2U Chassis
2U корпус для 24 NVMe E3.S накопителей
IW-RS224-E3 ориентирован на современные NVMe storage-системы с E3.S 7.5 мм накопителями. В корпусе 24 фронтальных hot-swap E3.S отсека, MCIO(8i) backplane и задние 2.5" SATA SSD для служебных задач.
Hot-swap

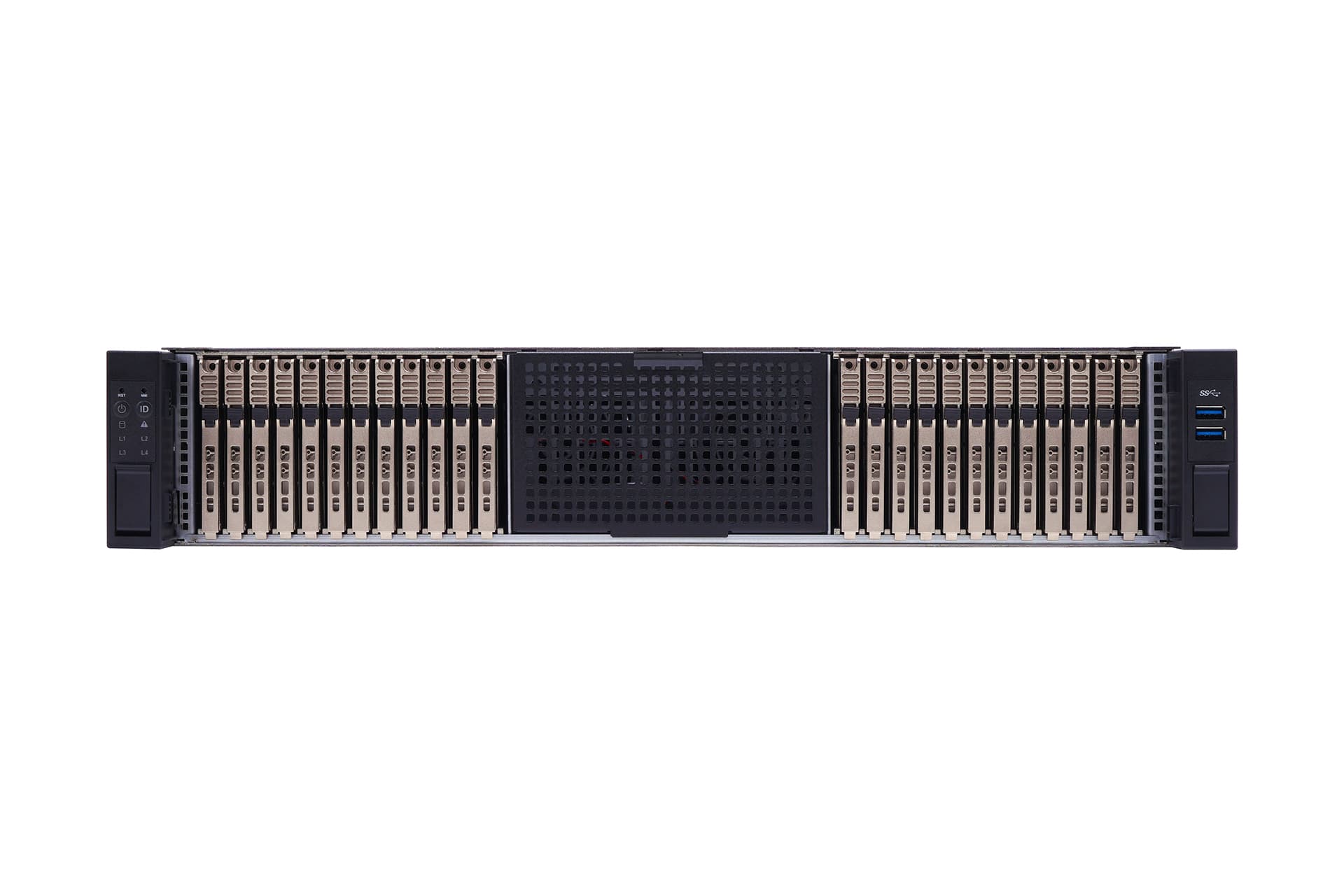

24 x E3.S NVMe
Backplane
MCIO(8i)
Платы
ATX / CEB / EEB
PCIe
8 x low-profile
E3.S NVMe

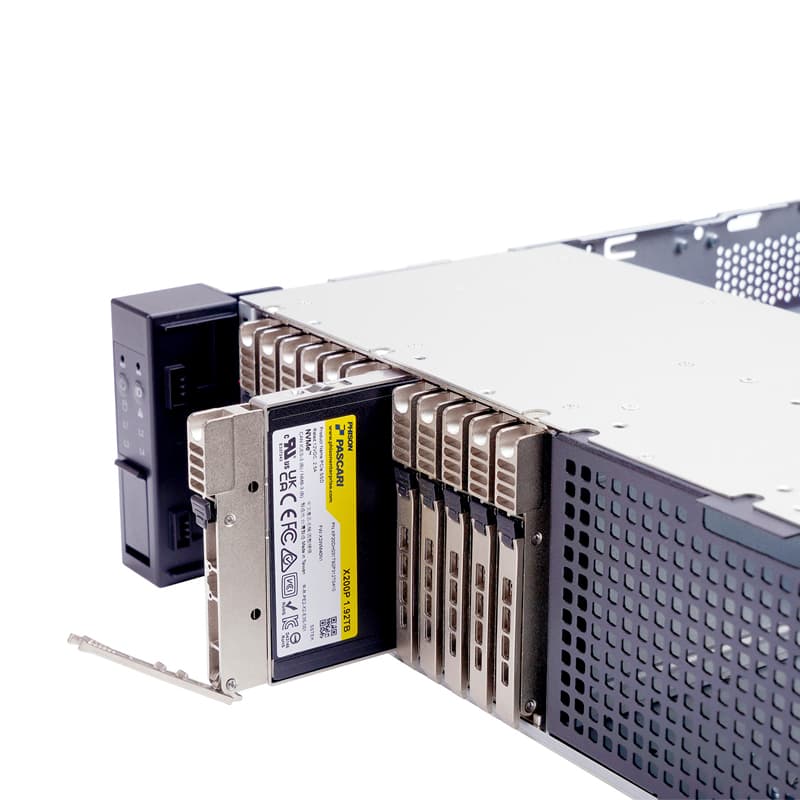

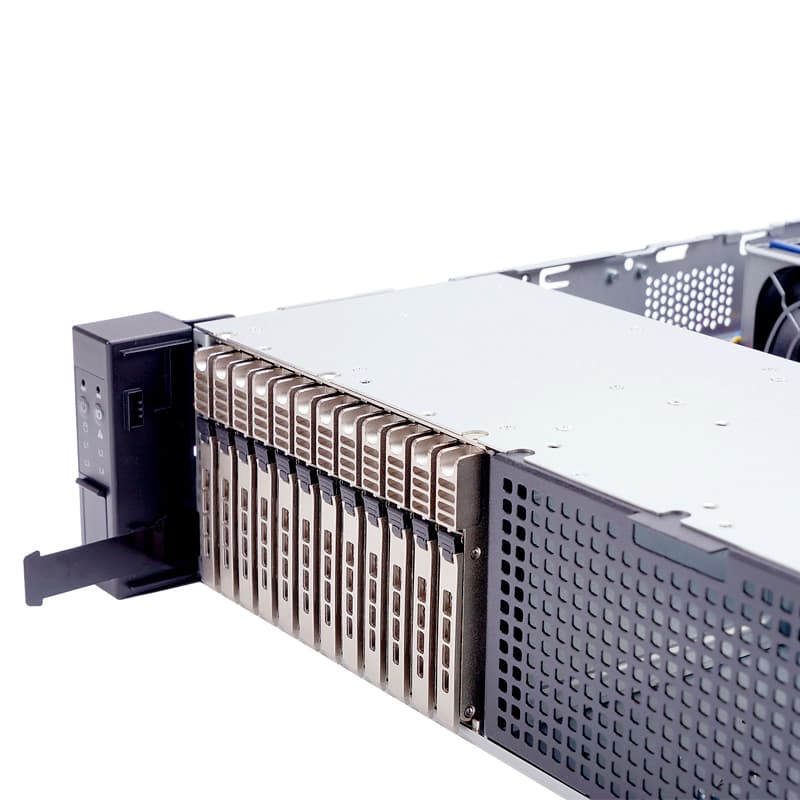

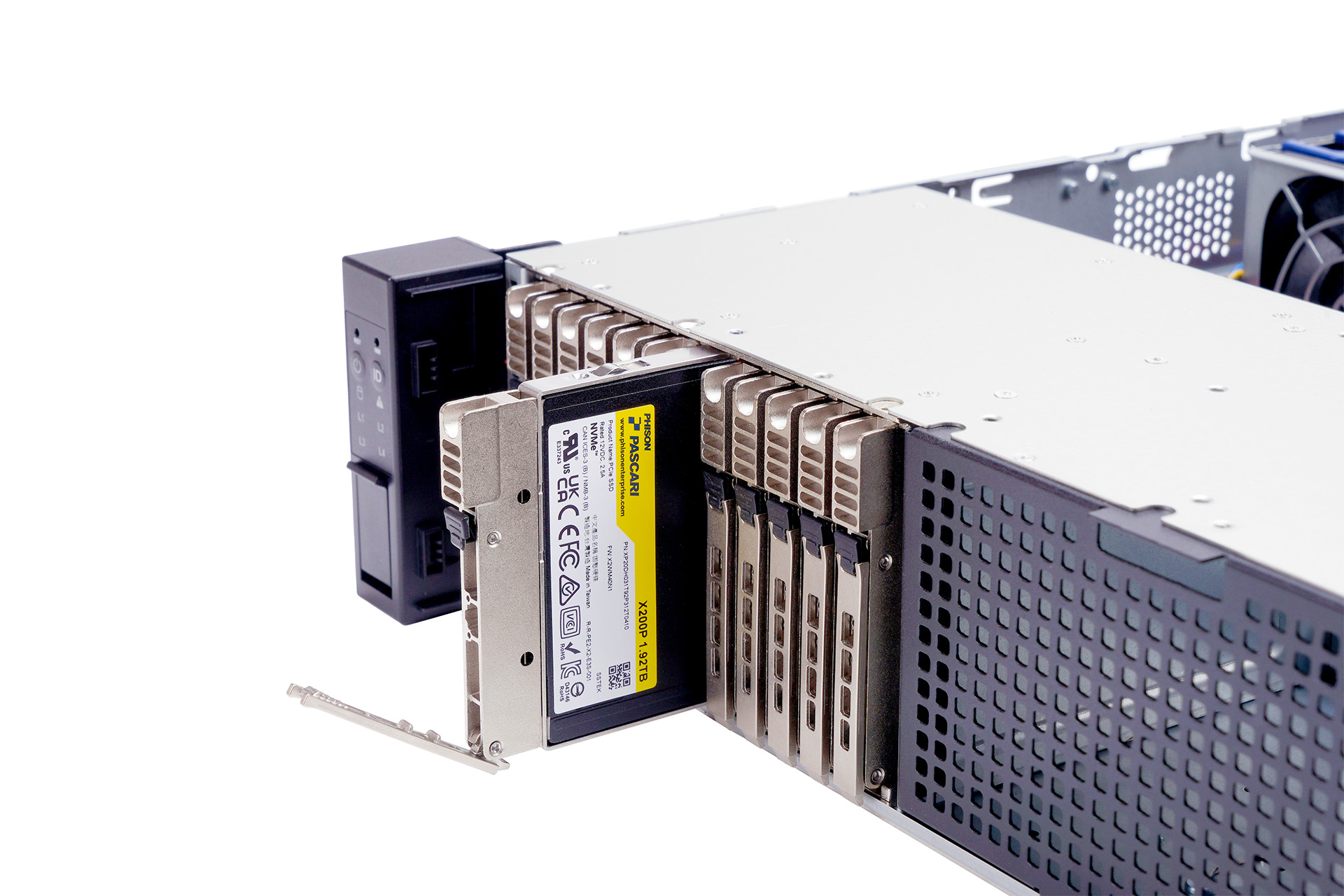

24 фронтальных E3.S 7.5 мм отсека
Формат E3.S рассчитан на плотные NVMe-системы нового поколения. Корпус подходит для быстрых массивов и кэширующих узлов.
PCIe Gen

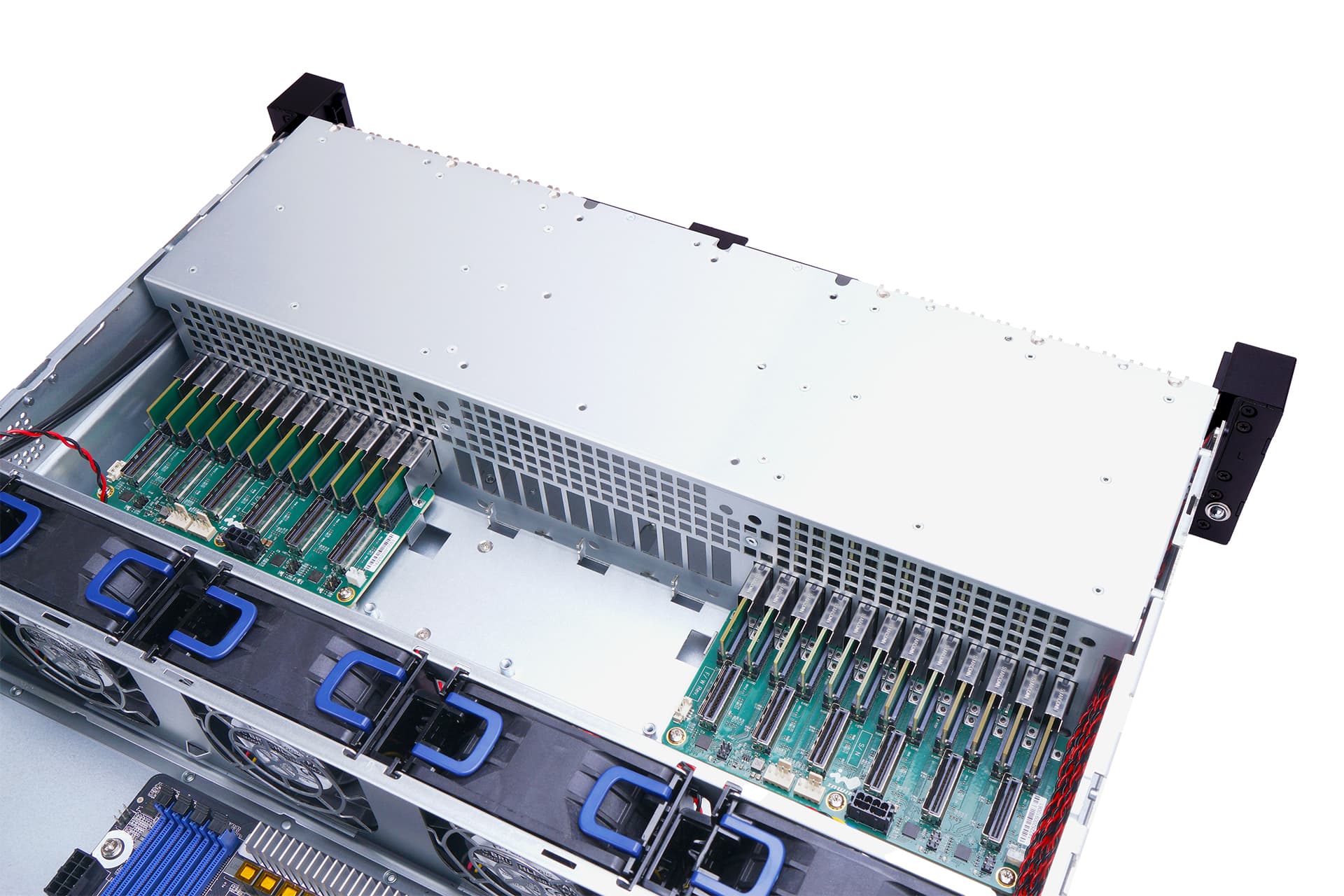

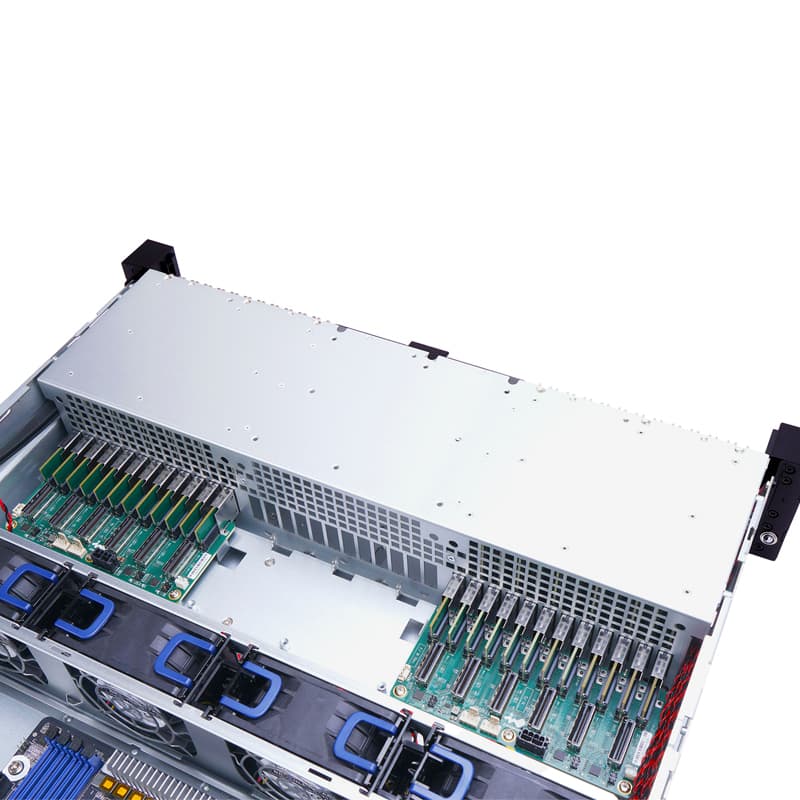

MCIO(8i) backplane для NVMe
Шесть MCIO(8i) подключений обслуживают две backplane-платы по 12 дисков каждая, что делает компоновку понятной для high-speed storage.
Service SSD

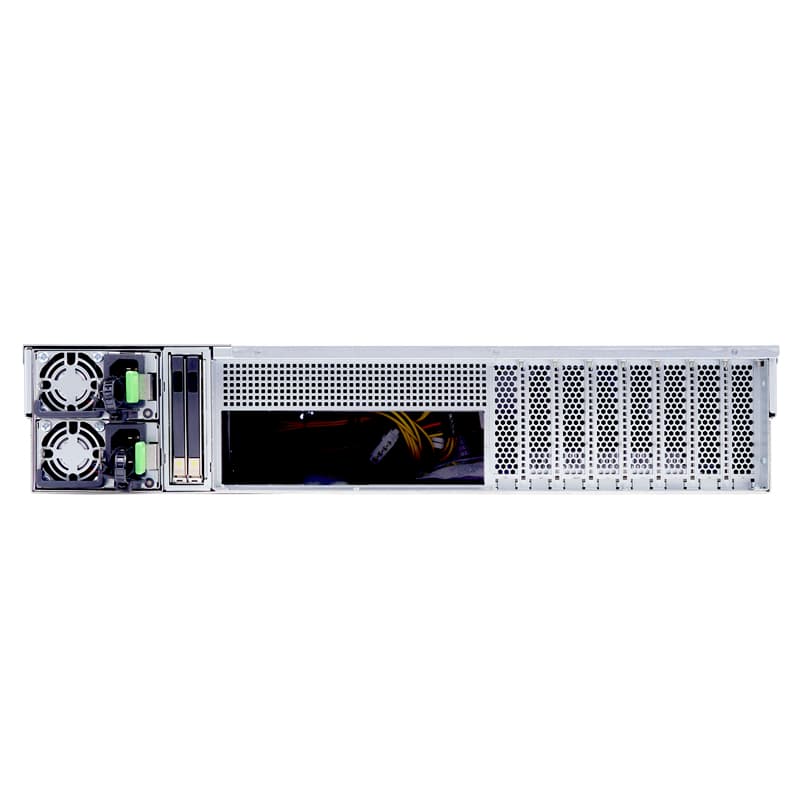

Задние 2.5" SATA отсеки
Задние hot-swap места можно использовать под загрузочные или сервисные SSD, не занимая фронтальный E3.S массив.
Product Details

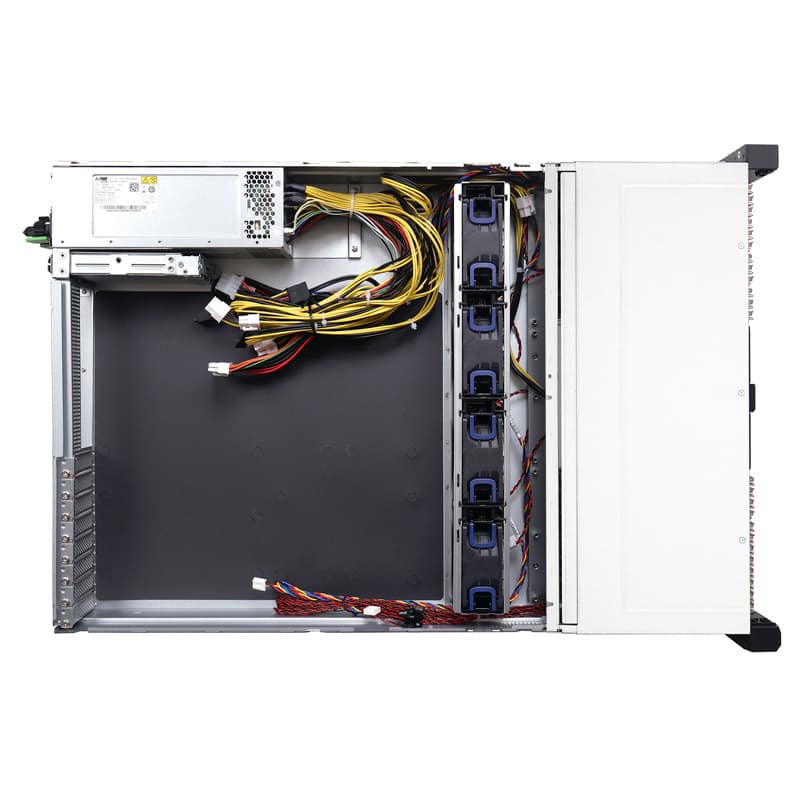

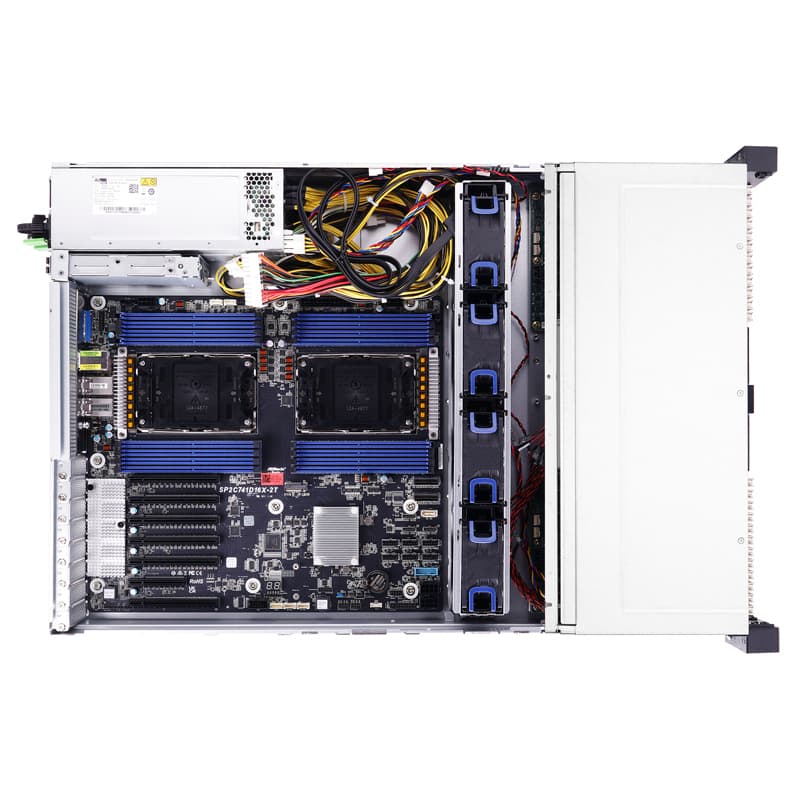

Детали конструкции InWin IW-RS224-E3
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13"), EEB (12.5" x 14") |
| Drive Bay | • External NVMe E3.S 7.5mm hot-swap trays x 24 • Rear 2.5" 7mm hot-swap trays x 2 (supports SATA drives) |

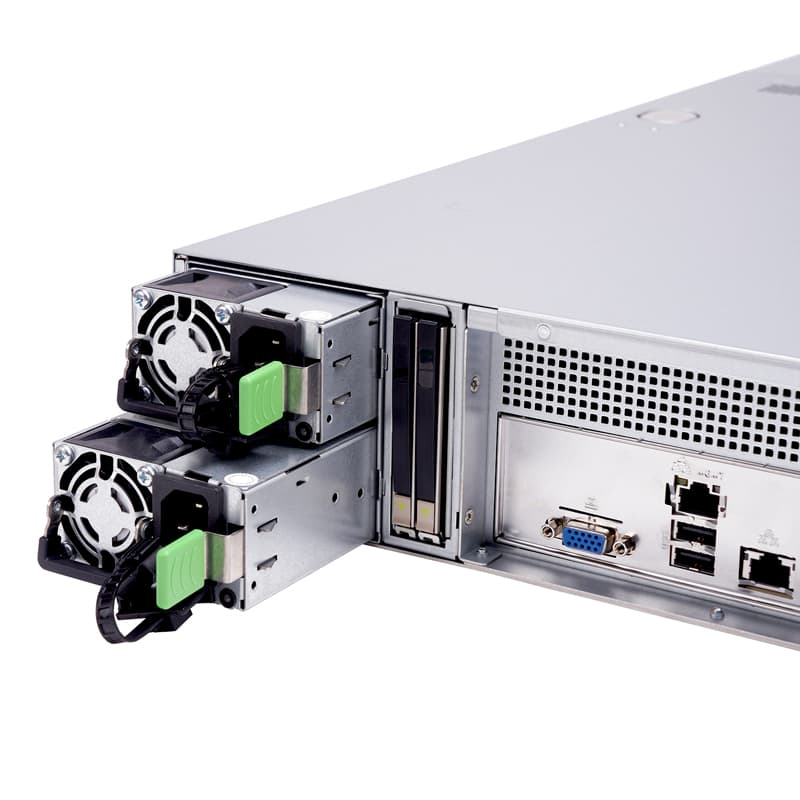

| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 1600W • 2000W CRPS PDB pre-installed |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, System LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane | • Host: MCIO(8i) x 6 • SSD: NVMe E3.S 7.5mm x 12 • Backplane pre-installed x 2pcs with 12-drive capacity of each |

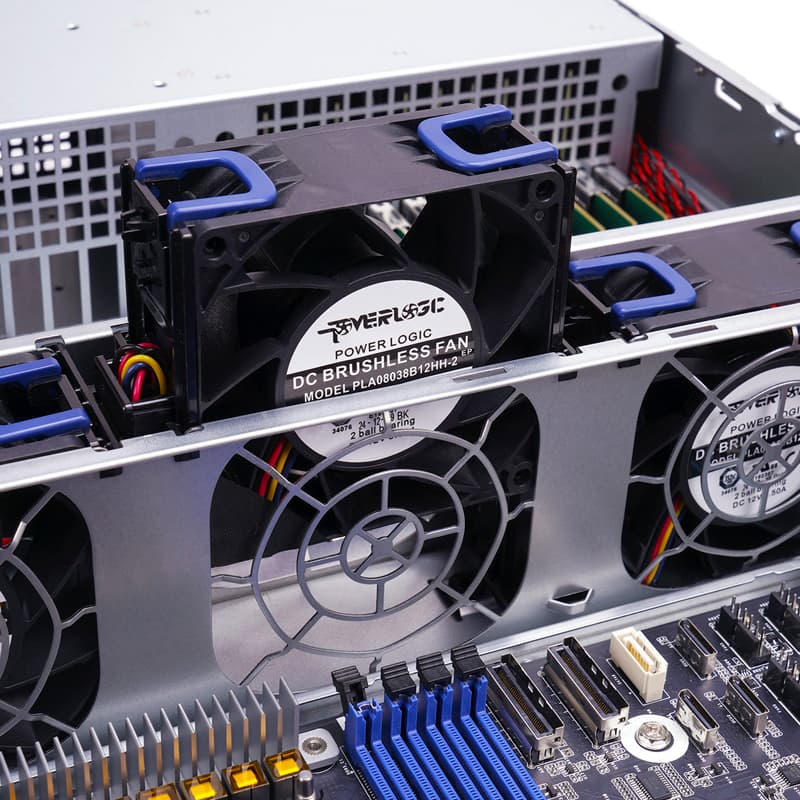

| Cooling Fans | Pre-installed 80 x 38 mm PWM fans x 4, 17000RPM |
| Expansion Slot | Low-profile PCIe slots x 8 |
| Material | Material: SGCC Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |

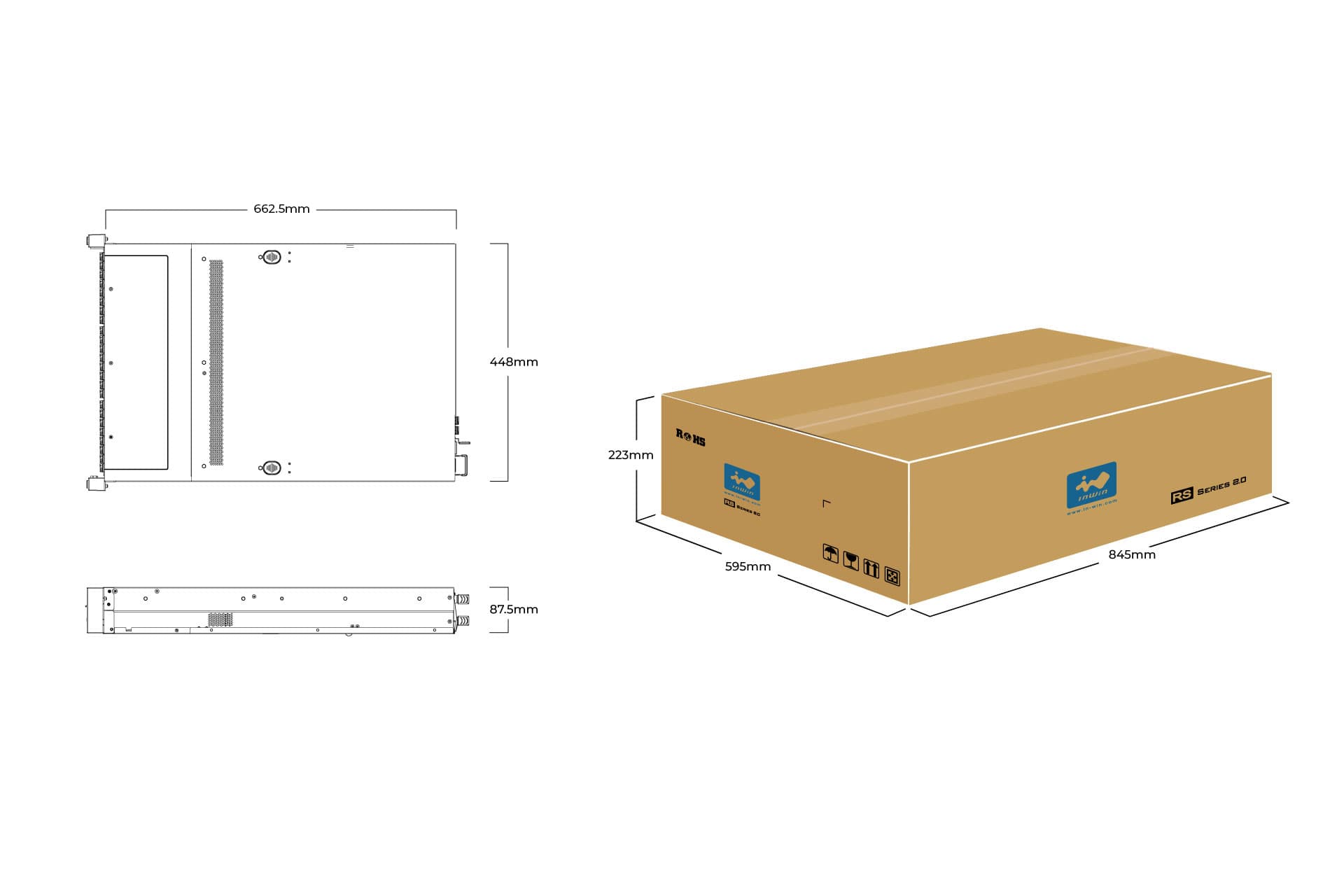

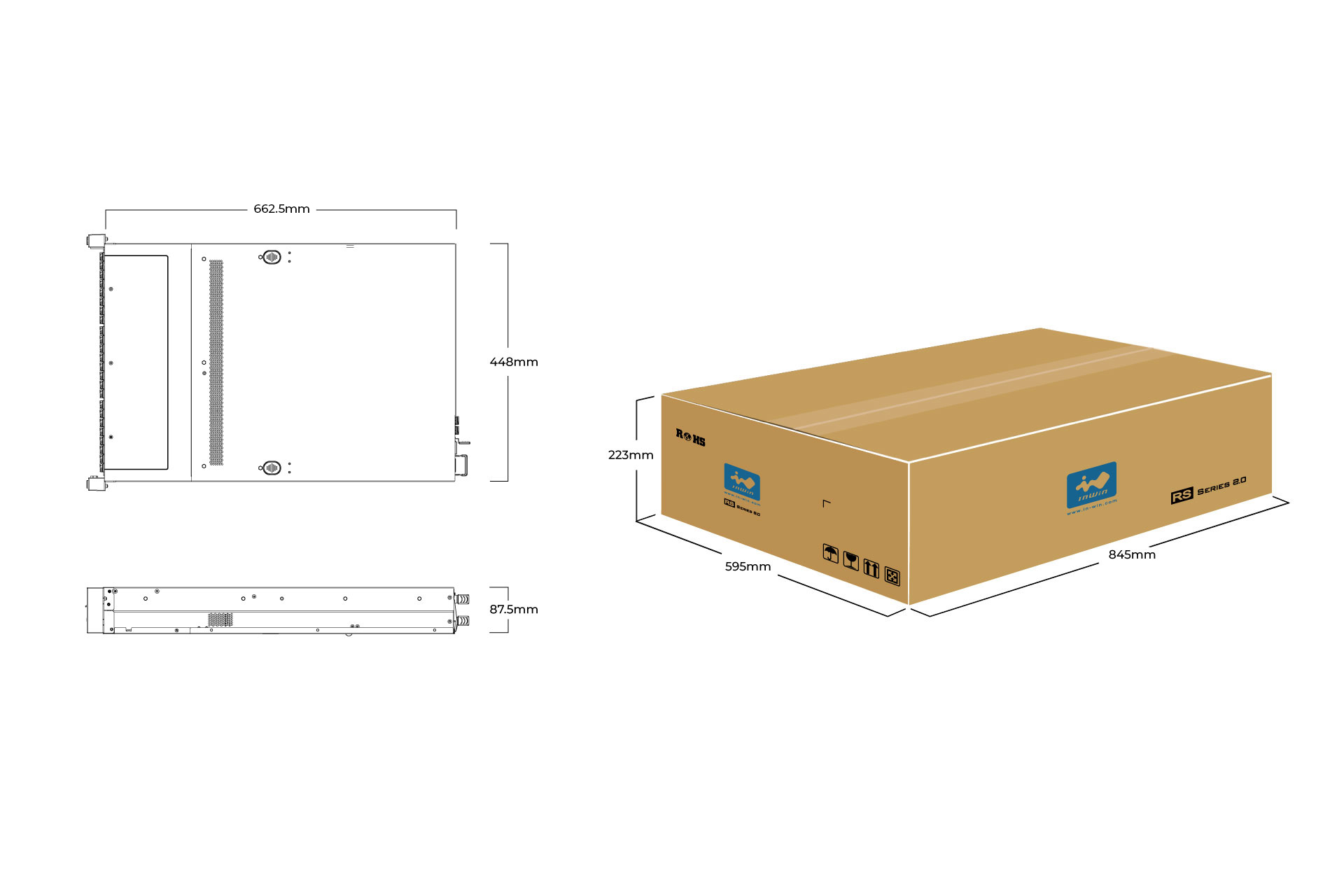

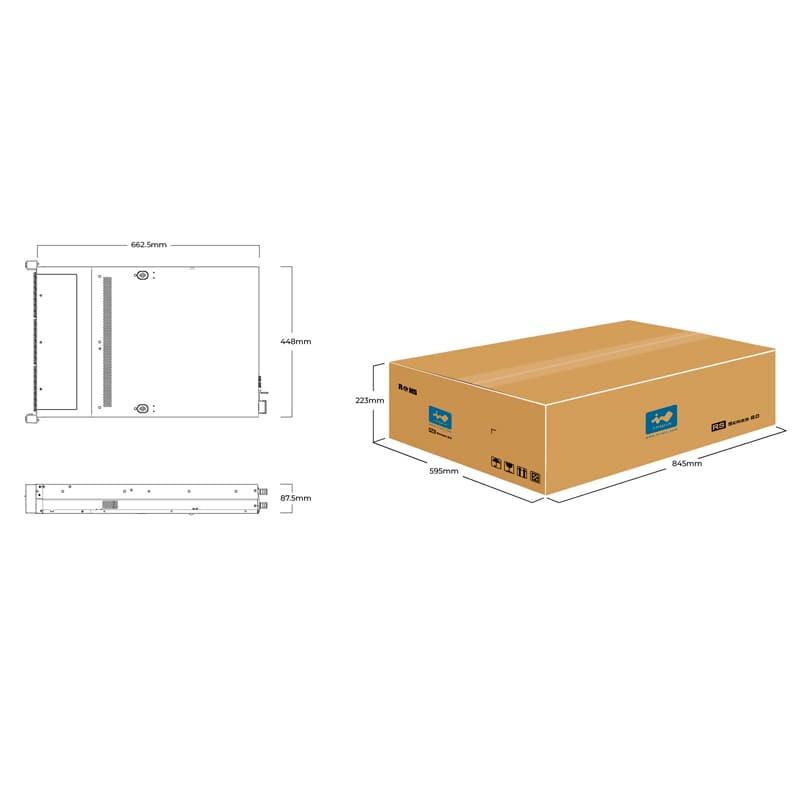

| Product Dimensions (DxWxH; Chassis Only) | 662.5 x 448 x 87.5mm (26.1" x 17.6" x3.4") |
| Package Dimensions (DxWxH) | 845 x 595 x 223mm (33.3" x 23.4" x 8.8") |
| Weight | Net Weight: 14.96kg Gross Weight: 18.16kg |
| Cubic Feet | 3.96 |
| Container Information | Single Packing with pallets: 20': 160 pcs 40': 368 pcs 40' HQ : 414 pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RS224-E3 Gallery
zipIW-RS224-E3 Compatibility List
pdfIW-RS224-E3 User Manual
pdfIW-RS224-E3 PCIe Gen5 Backplane User Manual
pdfOptional Items

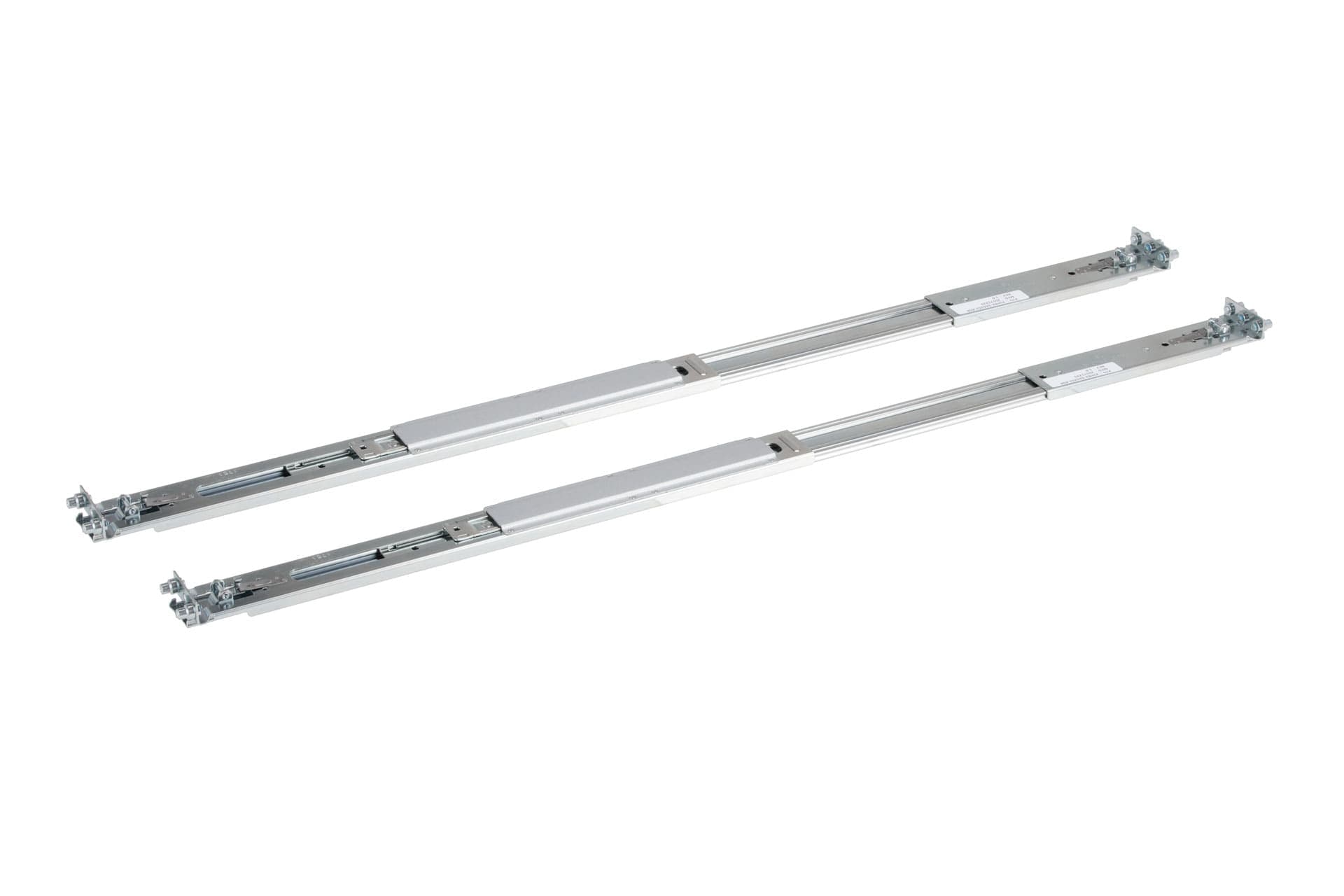

Slide Rail
3RAMIS148100
28" tool-less & ball-bearing slide rail
Support: 1

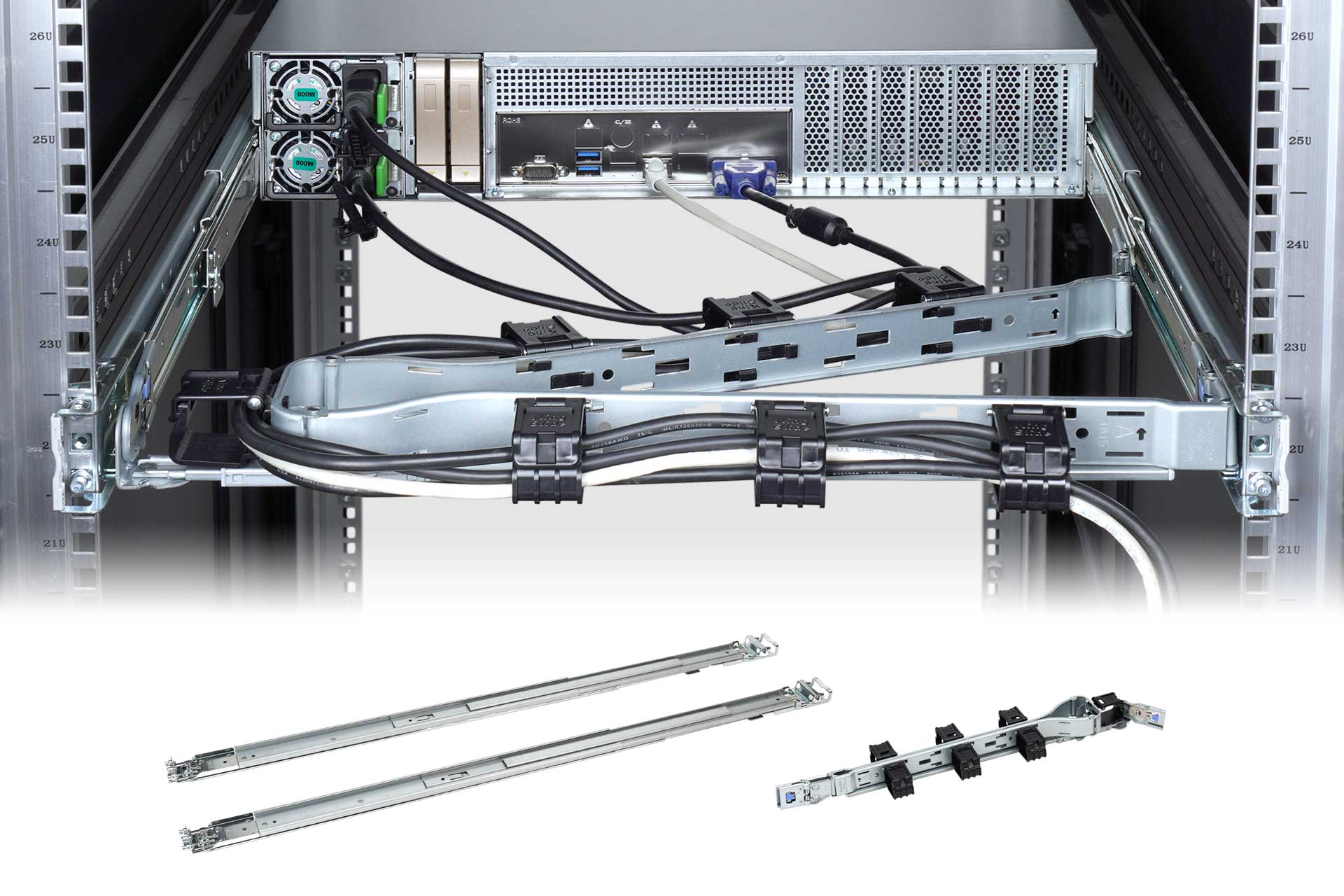

Slide Rail
RAMIS152300 / 3RAMIS152400
28" tool-less & ball-bearing slide rail with CMA support
Support: 1
Cable
3RAMW6006300
MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 400 mm
Support: Max. 12

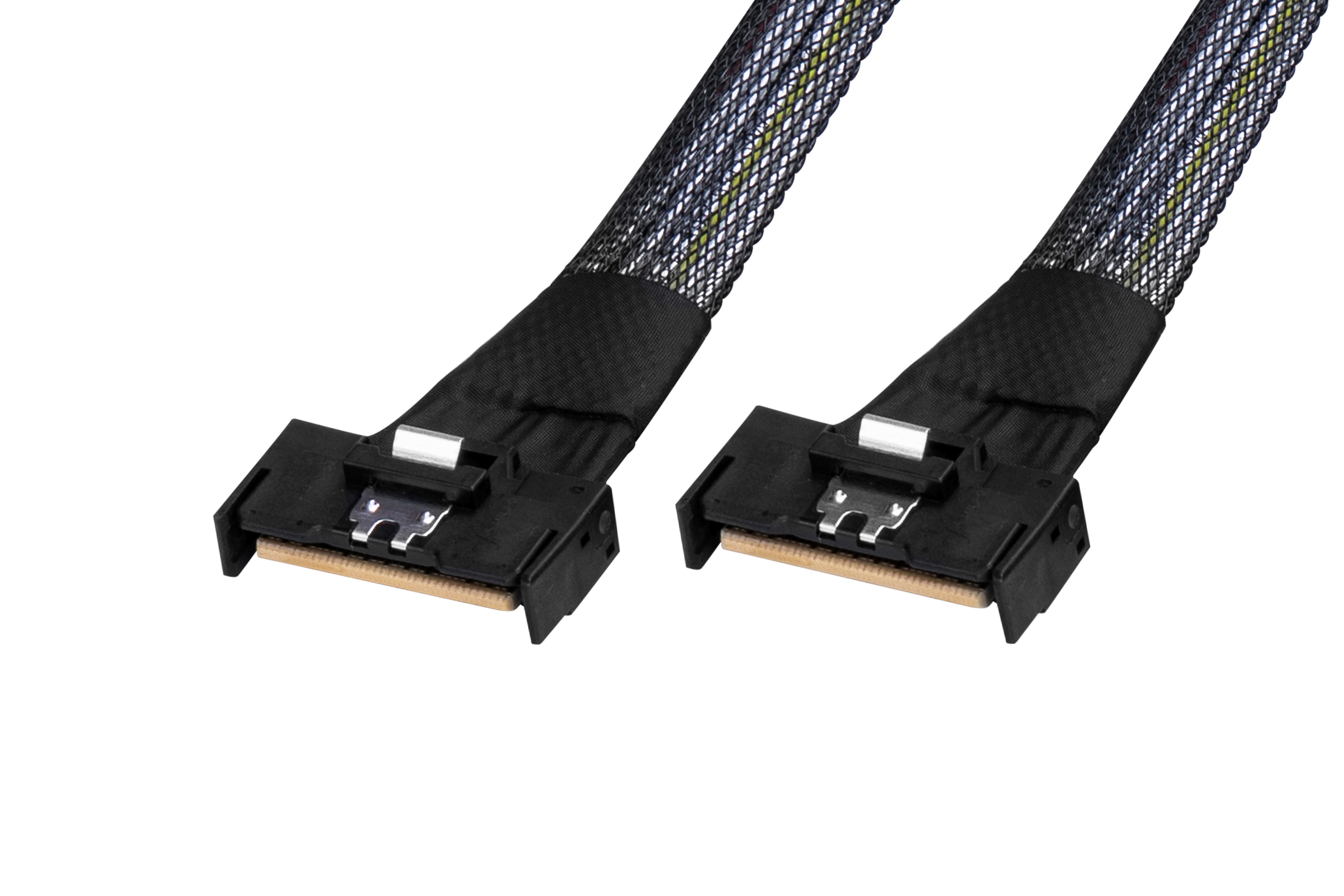

Cable
3RAMW6006200
MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 550 mm
Support: Max. 12

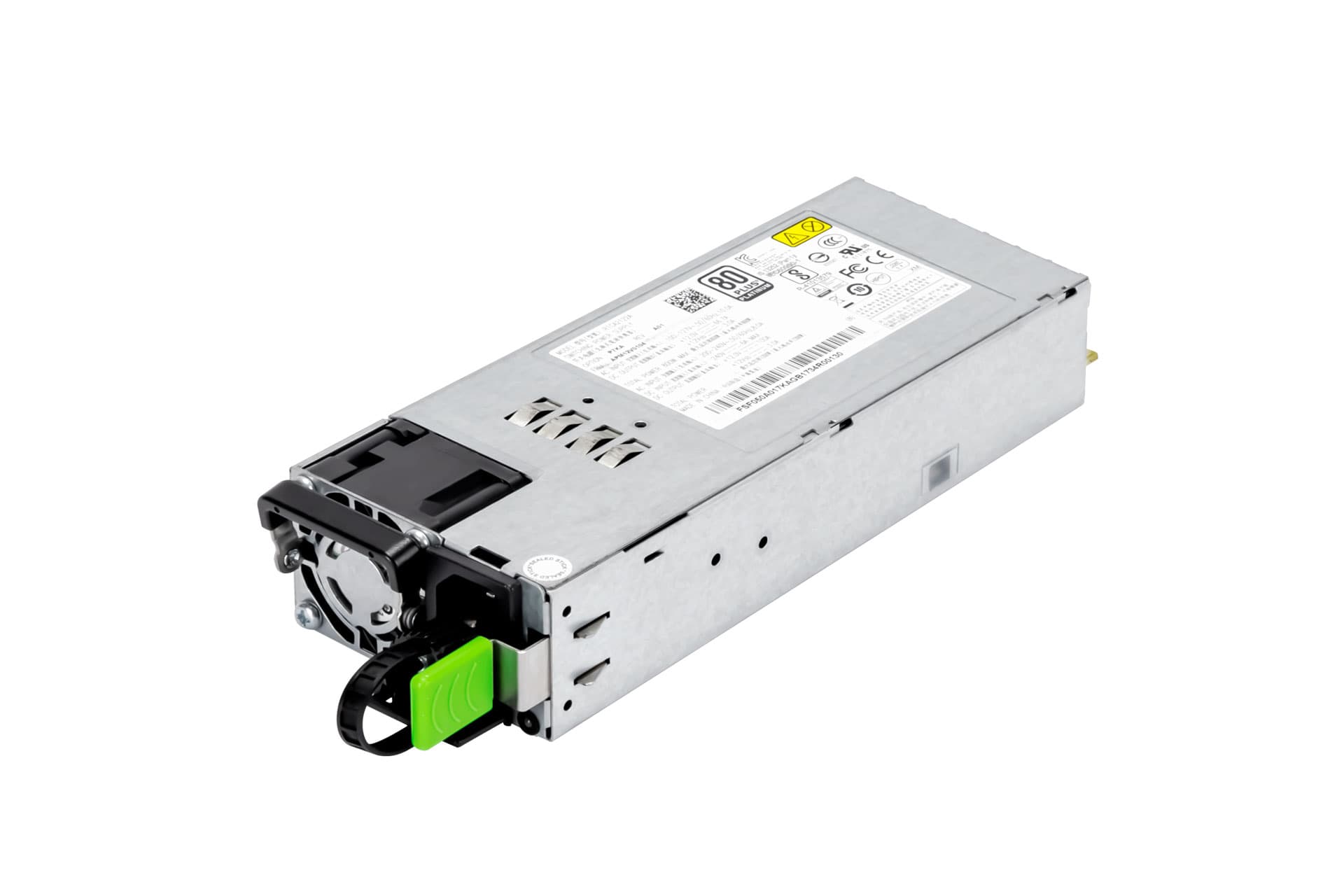

Power Supply
3RAMAP044300
80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.)
Support: Max. 2

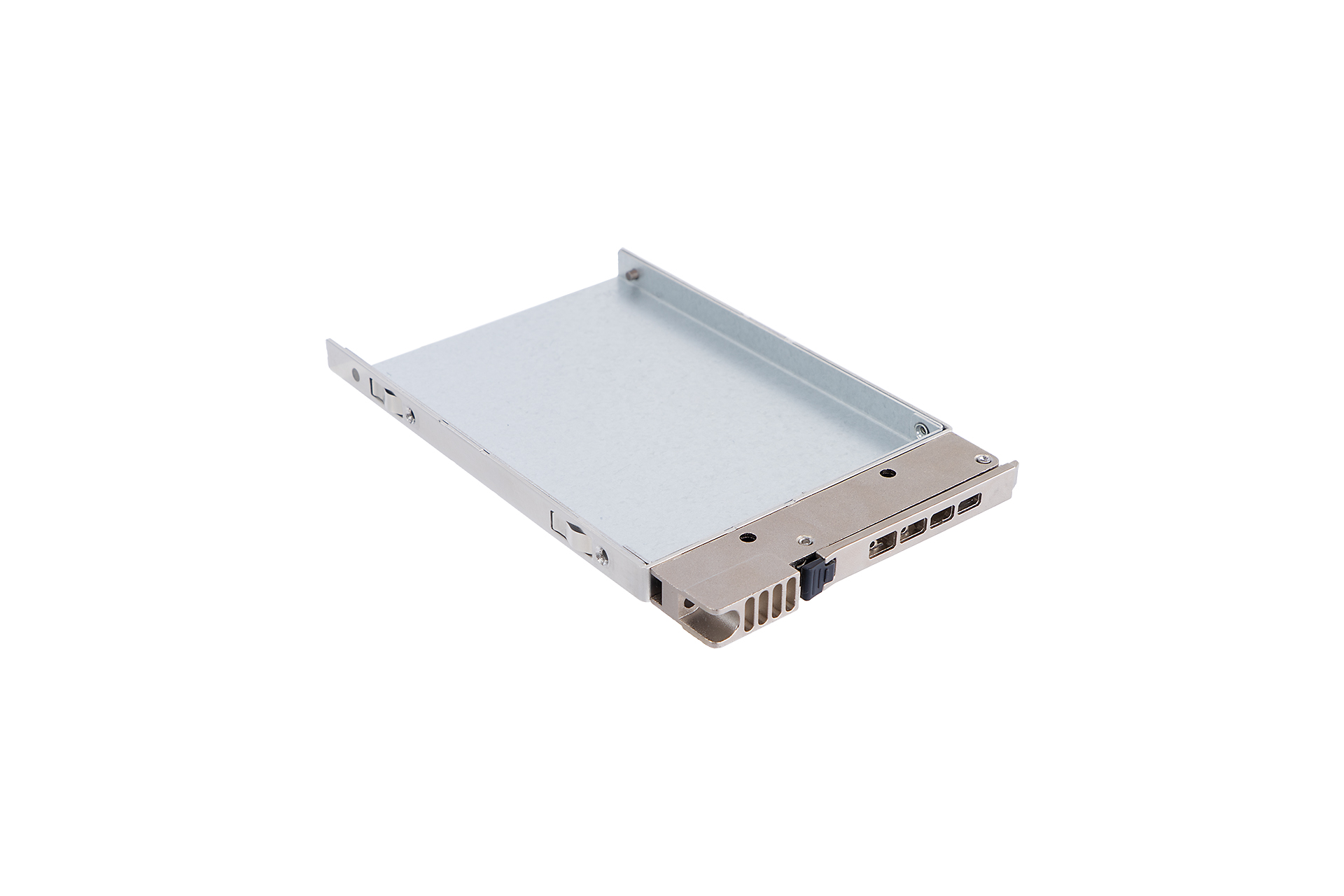

HDD Tray
3RAMIS221200
E3.S 7.5mm hot-swap NVMe SDD Tray
Support: Max. 24
Fan
2RAKFB020700

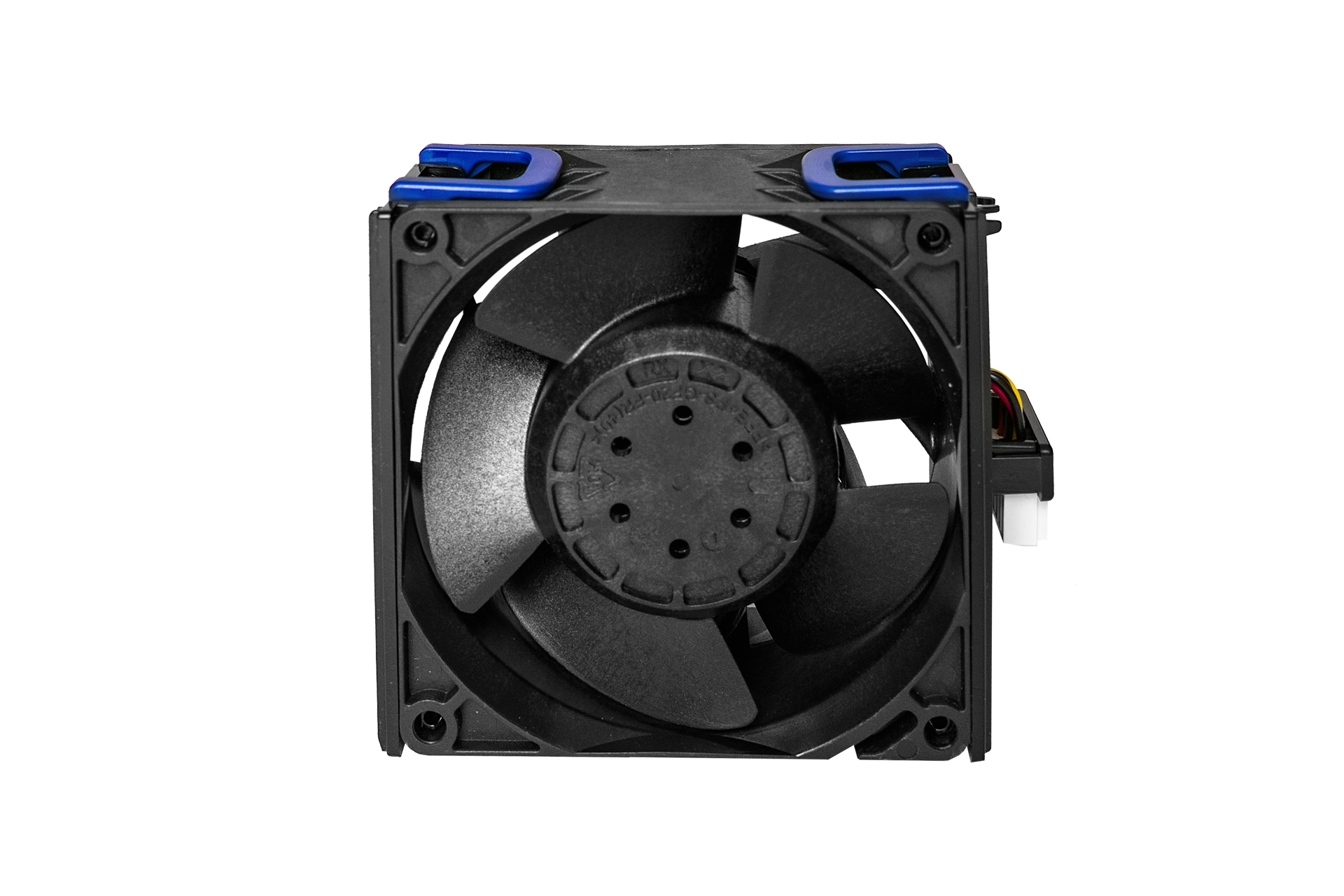

80 x 38mm PWM hot-swap fan, 17000RPM, 6pin
Support: Max. 4

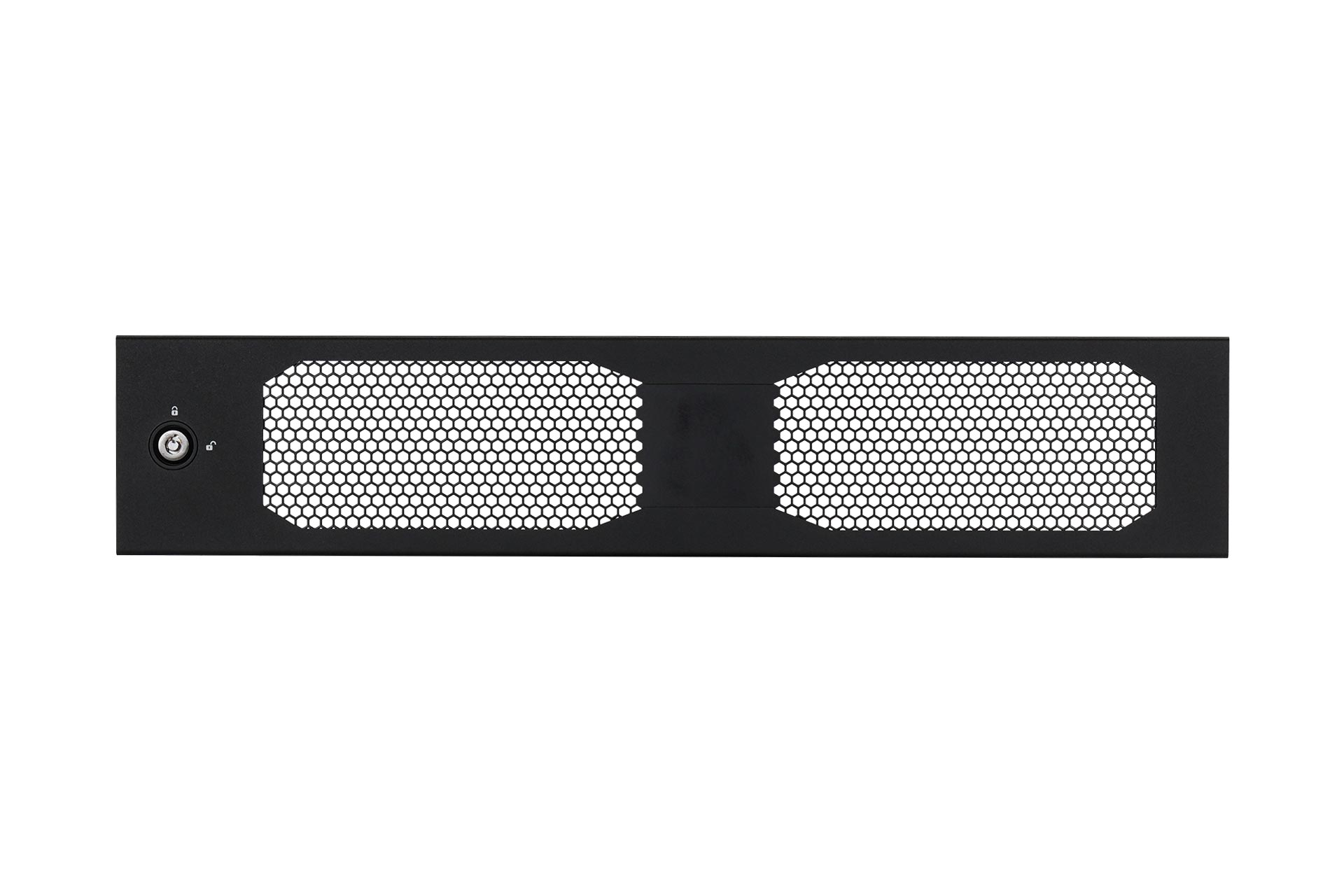

Others
2RAKIP022700
Mesh front panel
Support: 1

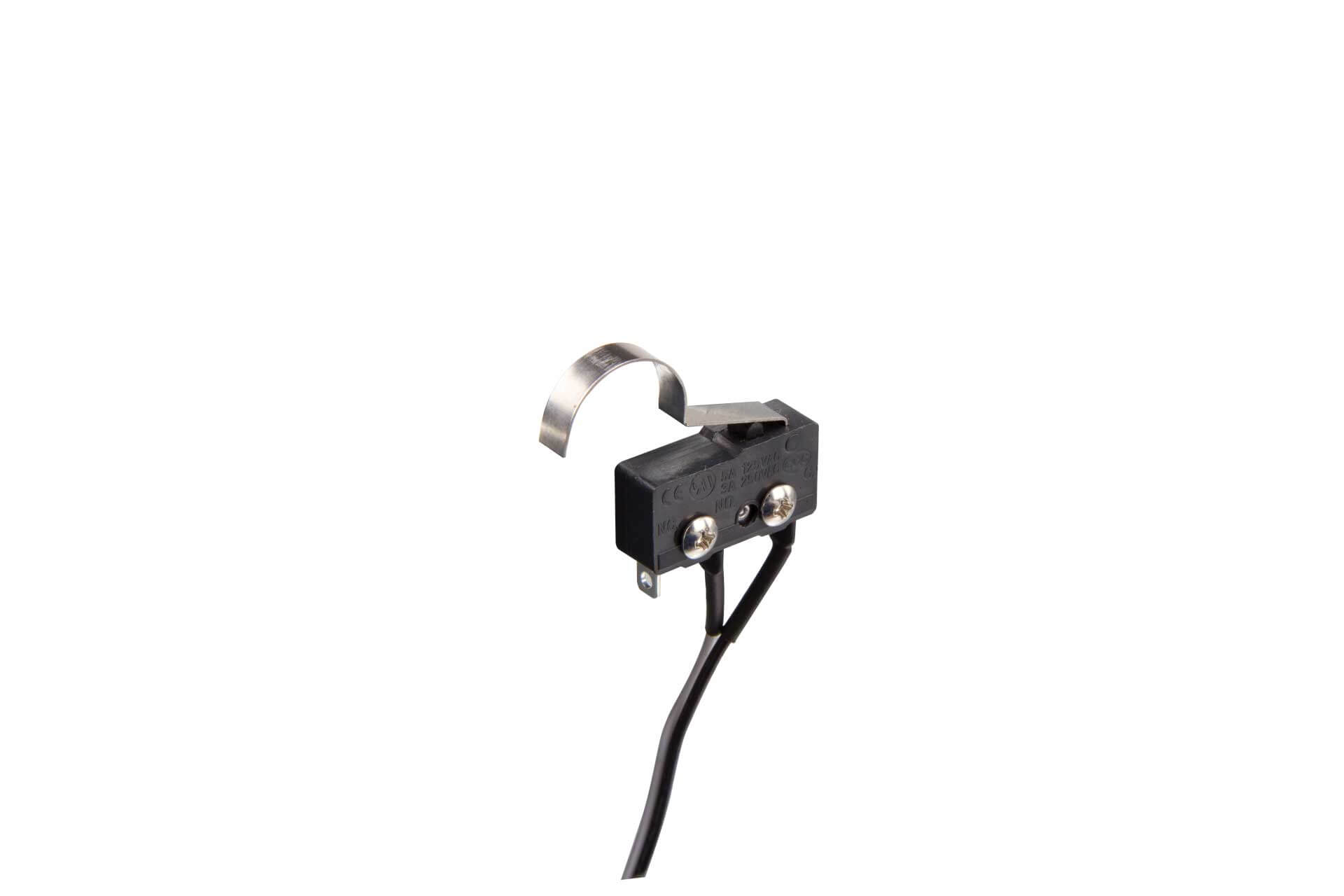

Others
3RAMRW011300
Intrusion switch / 800mm
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 | |
| Slide Rail | RAMIS152300 / 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 | |
| Cable | 3RAMW6006300 | MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 400 mm | Max. 12 | |
| Cable | 3RAMW6006200 | MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 550 mm | Max. 12 | |
| Power Supply | 3RAMAP044300 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max. 2 | |
| HDD Tray | 3RAMIS221200 | E3.S 7.5mm hot-swap NVMe SDD Tray | Max. 24 | |
| Fan | 2RAKFB020700 | 80 x 38mm PWM hot-swap fan, 17000RPM, 6pin | Max. 4 | |
| Others | 2RAKIP022700 | Mesh front panel | 1 | |
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 | |
