InWin
IW-RS216-07
Артикул: IW-RS216-07

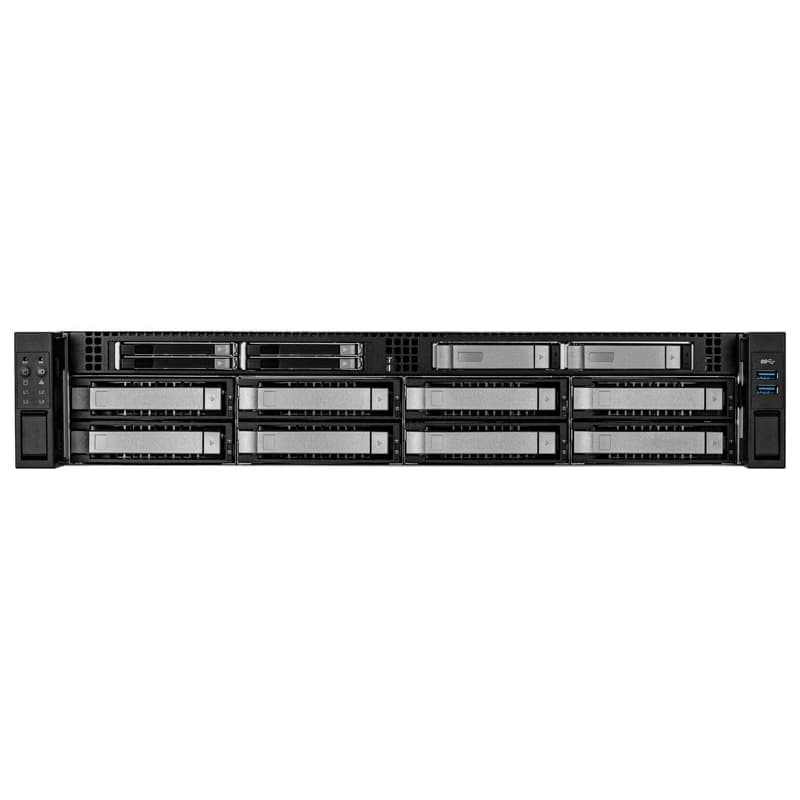

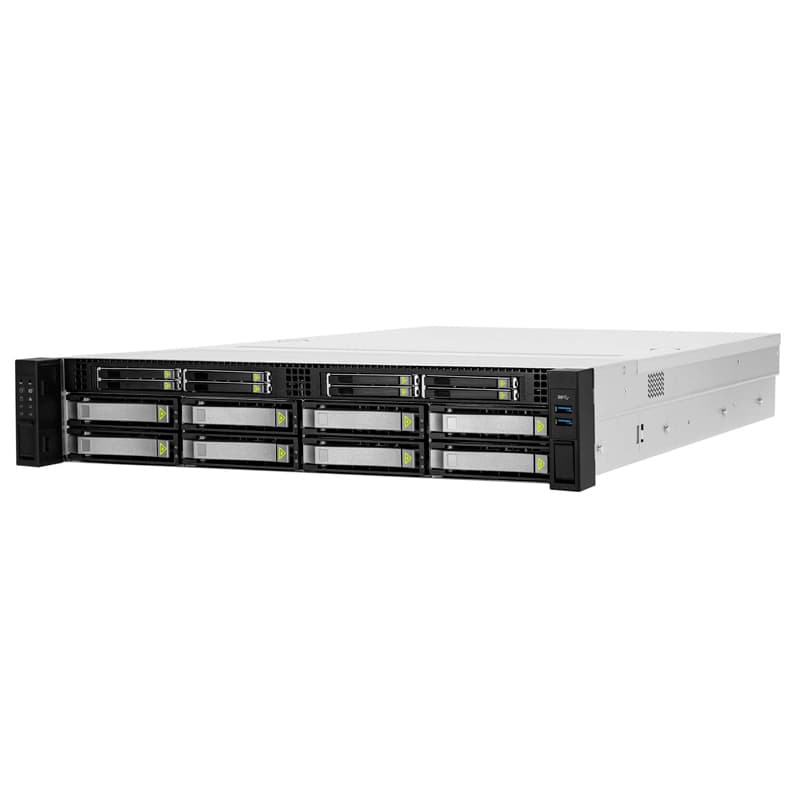

2U Chassis
2U storage-корпус с 16 hot-swap отсеками
IW-RS216-07 предназначен для гибридных 2U storage-конфигураций: фронтальные 3.5"/2.5" места, дополнительные SFF SSD и задние 2.5" отсеки. Модель поддерживает SAS/SATA/NVMe варианты подключения и подходит для плотных серверов хранения.
Hot-swap
до 16 отсеков
Диски
LFF + SFF + rear 2.5"
Интерфейсы
SAS / SATA / NVMe
Питание
1200 Вт 1+1 Platinum
Mixed Storage

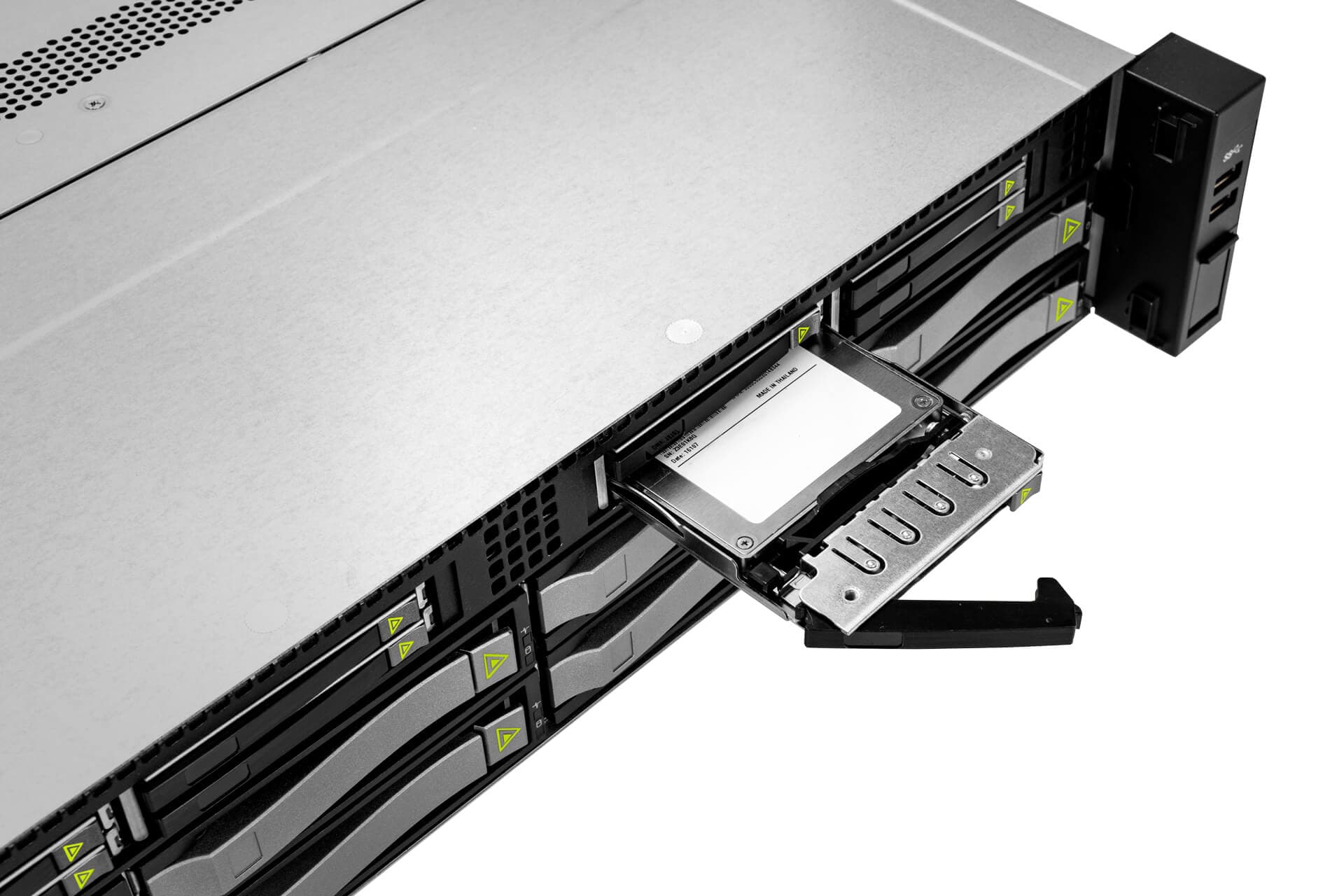

Смешанная LFF/SFF корзина

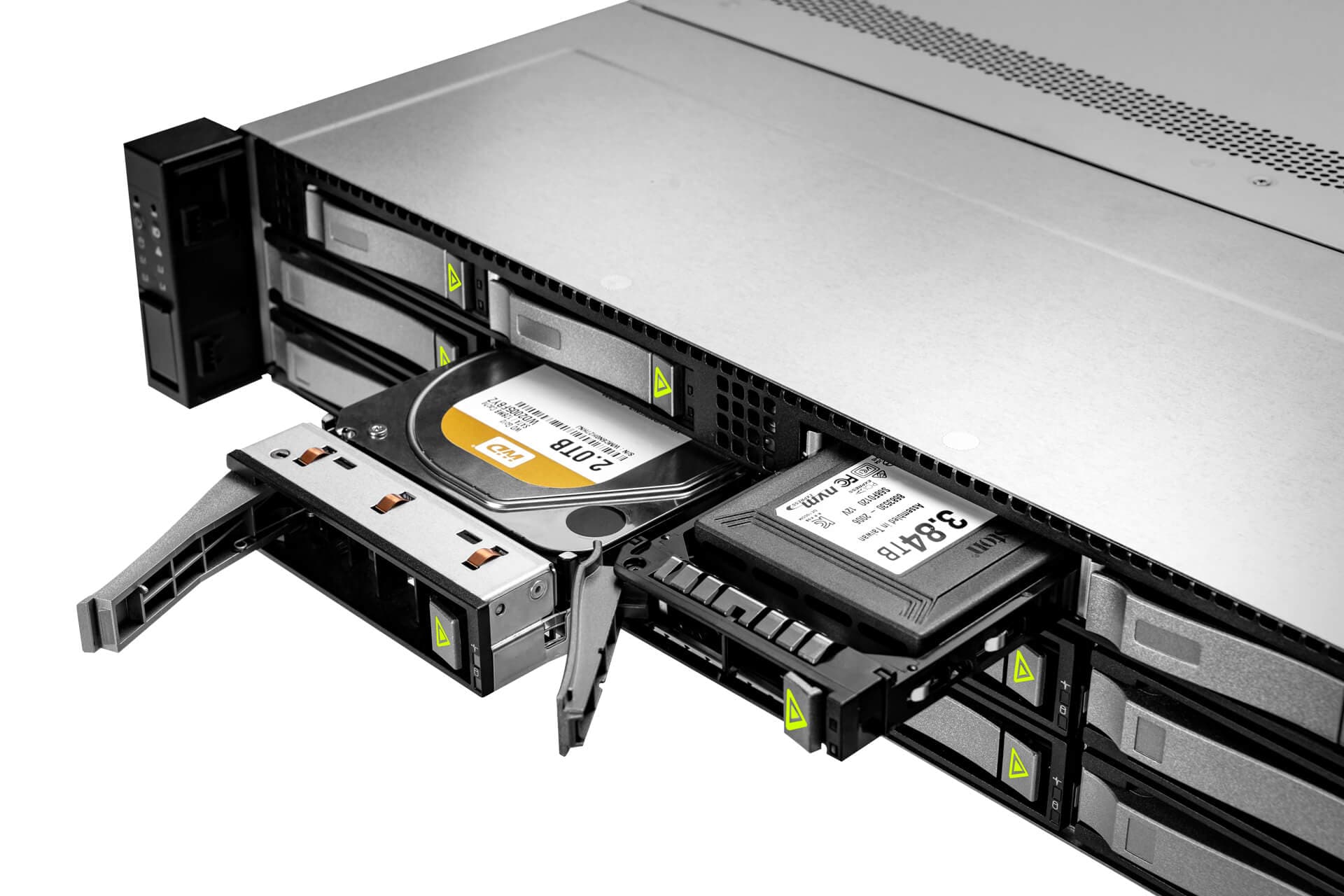

Корпус позволяет сочетать 3.5" диски, 2.5" SSD 15 мм, 7 мм SSD и задние 2.5" накопители. Это удобно для гибридных массивов.
Backplane Options
Mini-SAS и OCuLink backplane-варианты
Варианты backplane дают возможность подобрать корпус под SAS/SATA или NVMe-сценарий, не меняя общий 2U форм-фактор.
High Power
1200 Вт redundant PSU для плотной системы

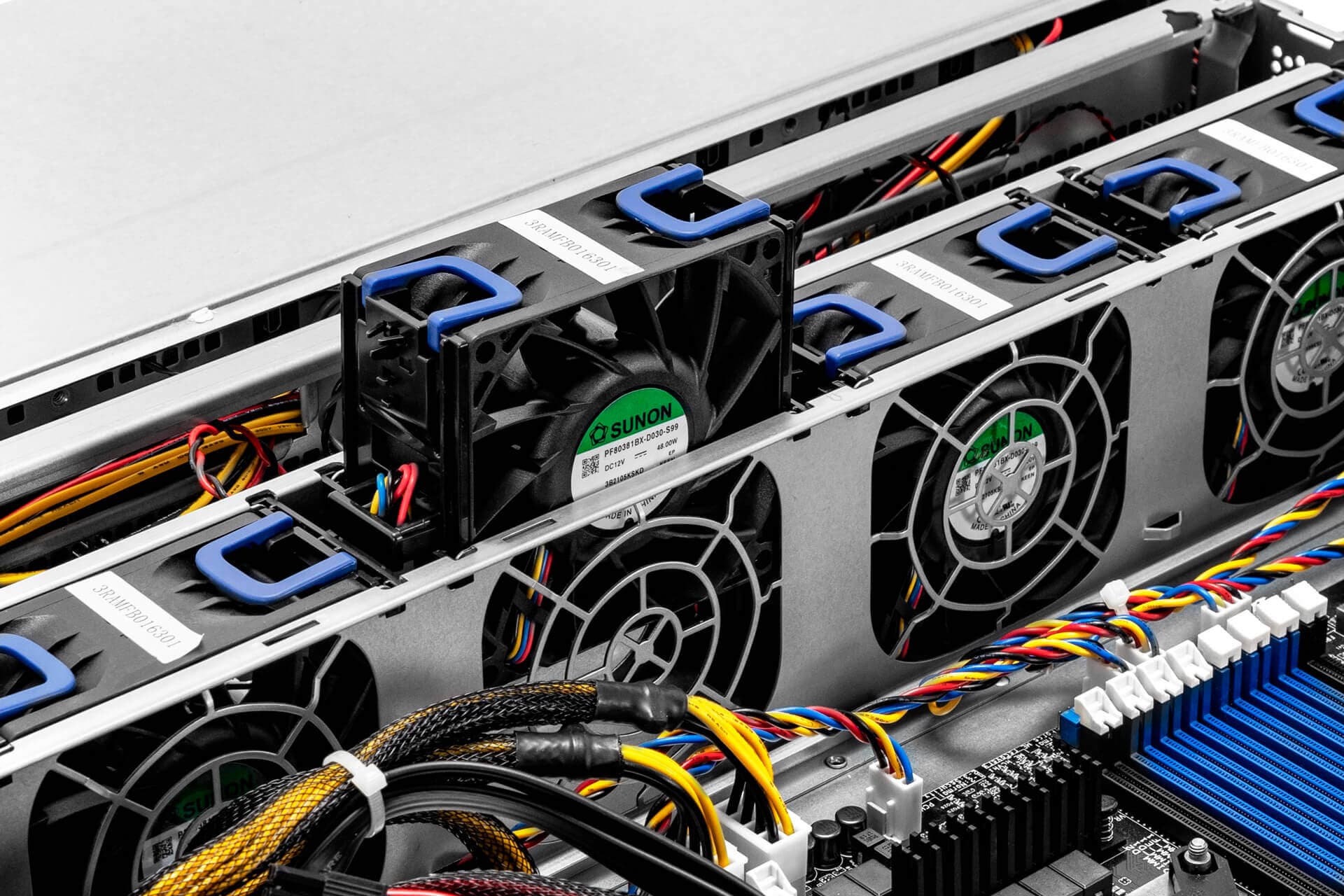

Резервируемое питание 1200 Вт и четыре 80 x 38 мм вентилятора рассчитаны на более насыщенную storage-конфигурацию.

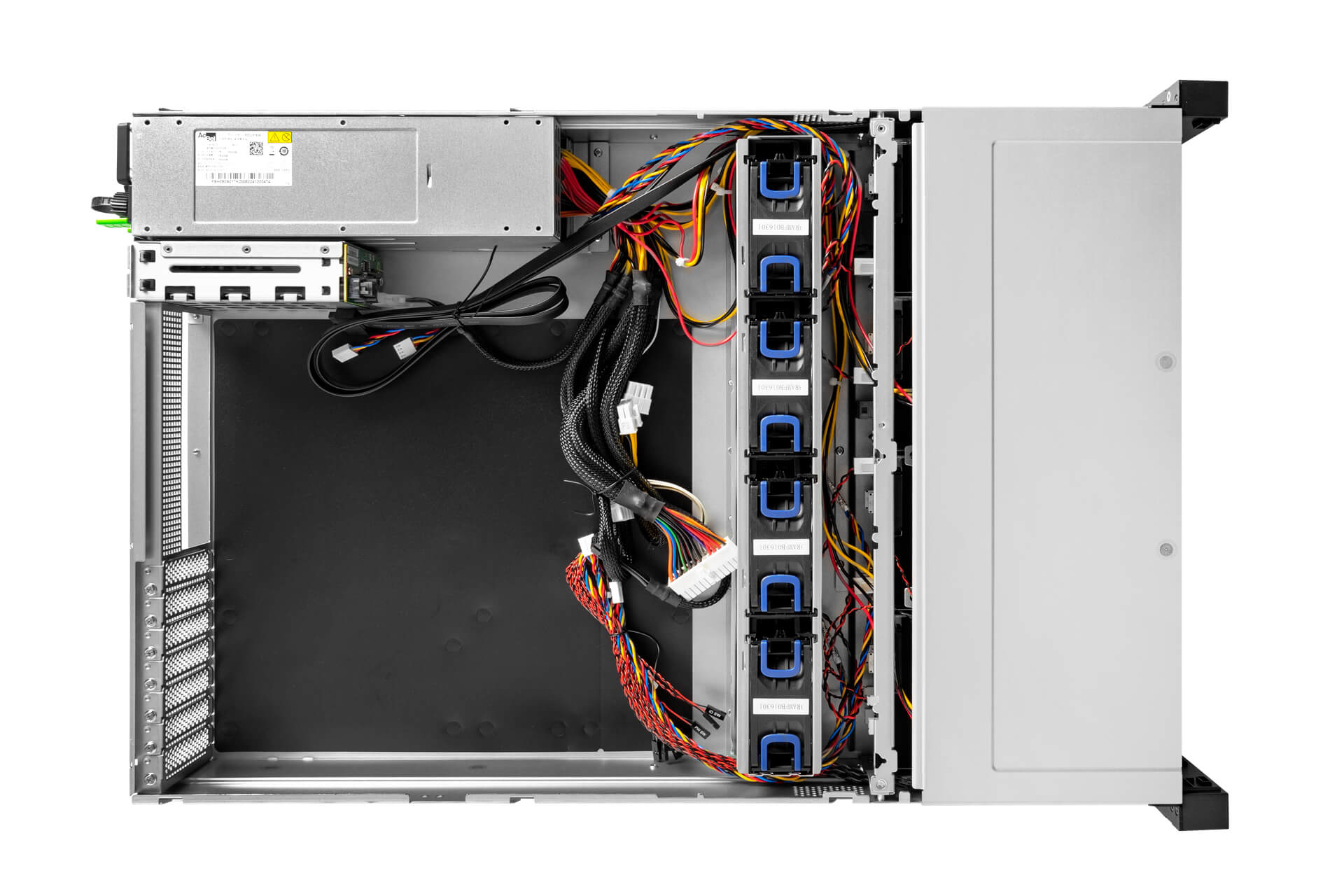

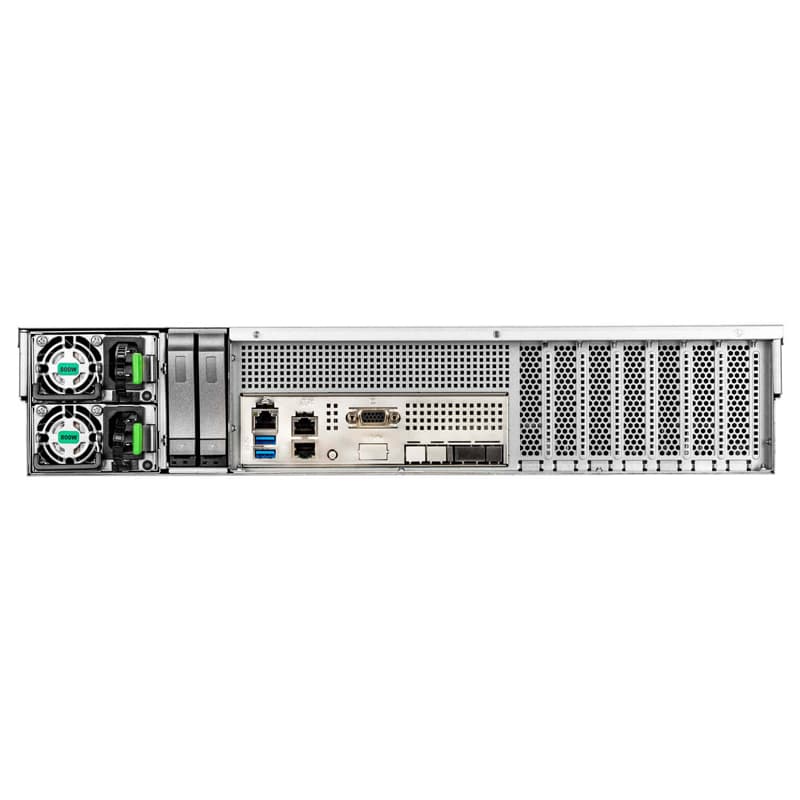

Product Details

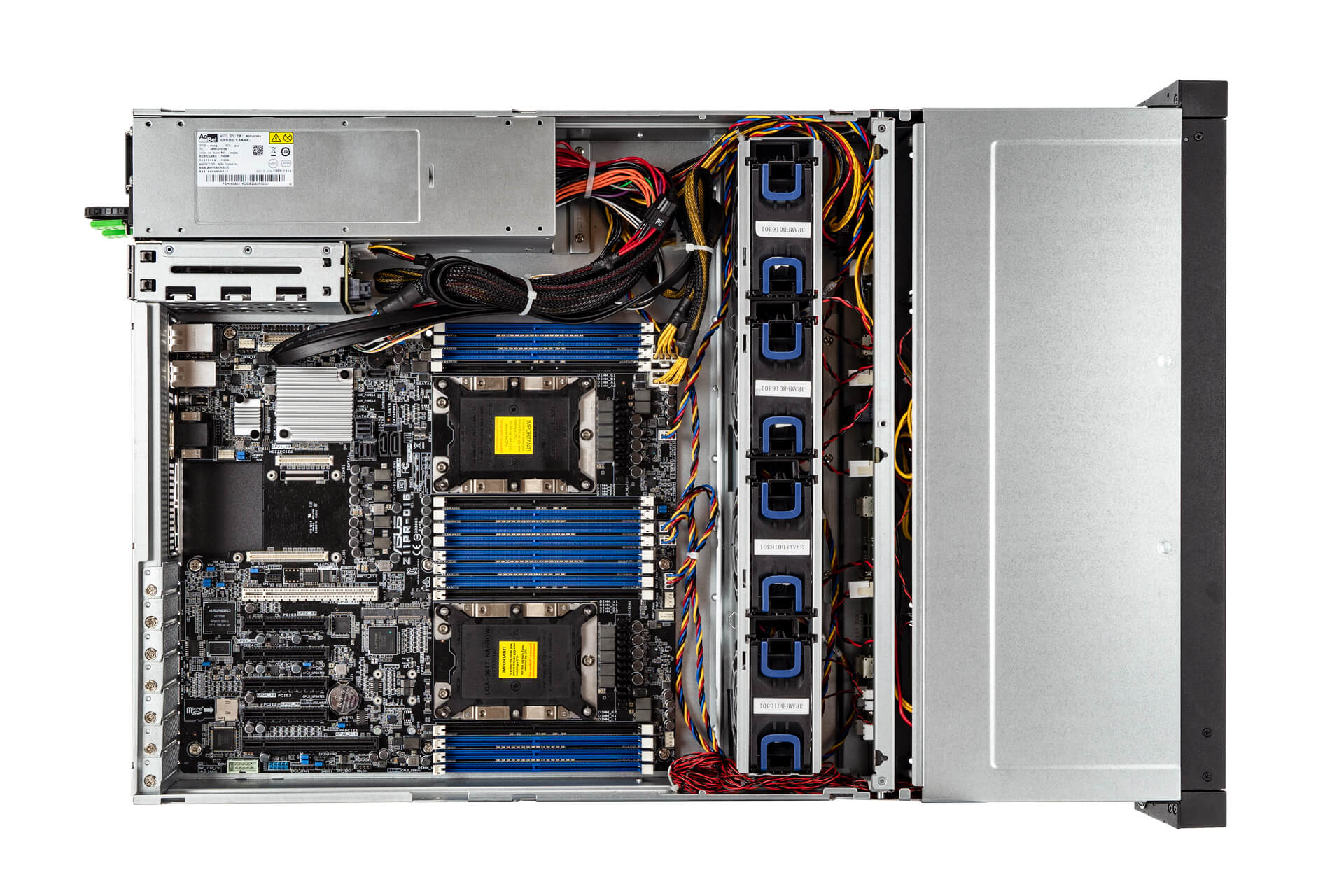

Детали конструкции InWin IW-RS216-07
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |

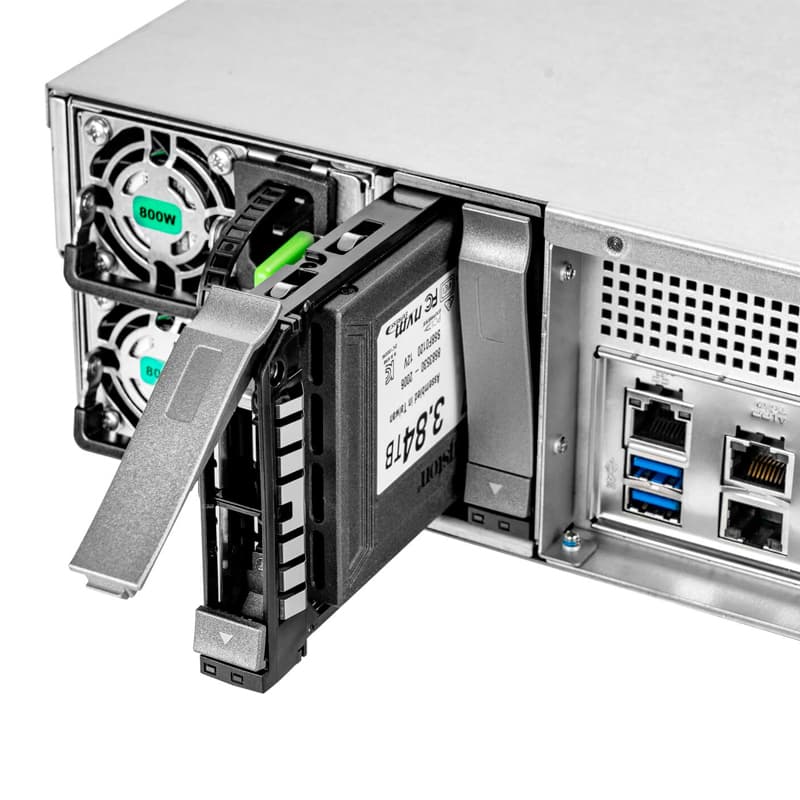

| Drive Bay | • Top layer: maximum supports external 2.5" hot-swap trays (15mm) x 4 or 2.5" hot-swap trays (7mm) x 8 • Bottom layer: external 3.5"/2.5" hot-swap trays x 8 • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W/1600W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4/LED, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW/ID LED, USB 3.0 x 2 |
| Backplane- Top Layer Type 1 | • Host: OCuLink (SFF-8611) x 3, one is for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe SSDs x 2 (2.5" 15mm) • Backplane kits pre-installed x 2pcs with 2-drive capacity of each |
| Backplane- Top Layer Type 2 | • Host: OCuLink (SFF-8611) x 5, one is for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe SSDs x 4 (2.5" 7mm) • Backplane kits pre-installed x 2pcs with 4-drive capacity of each |

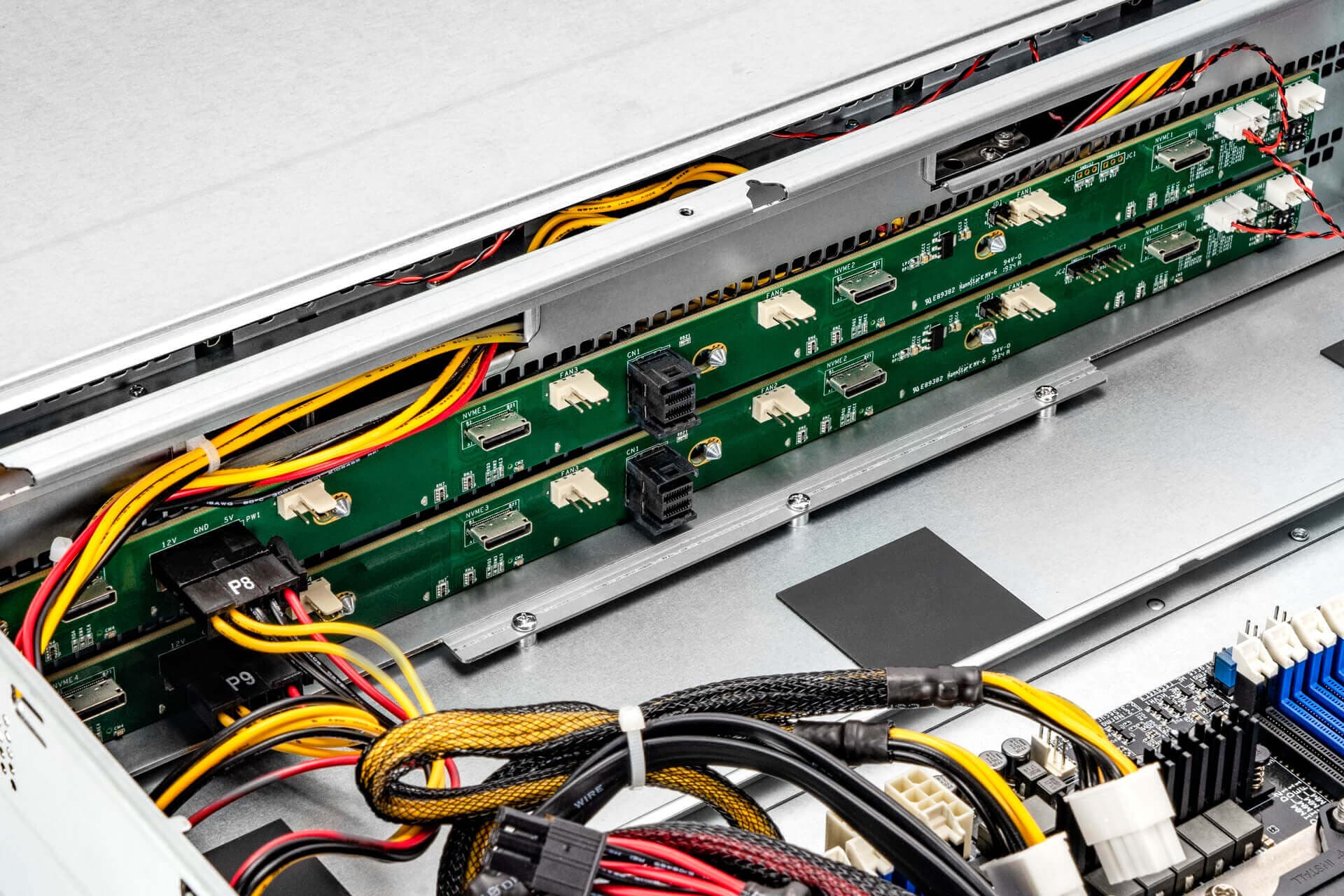

| Backplane- Bottom Layer | • Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA/NVMe SSDs x 4 (3.5"/2.5" 15mm) • Backplanes pre-installed x 2pcs |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000RPM |
| Expansion Slot | Low-Profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 87.5mm (26" x 17.6" x 3.4") |
| Package Dimensions (DxWxH) | 905 x 610 x 228mm |
| Weight (Chassis Only) | • Net weight:16.14kg • Gross weight:19.60kg |
| Cubic Feet | 4.44 |
| Container Information | Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40' HQ: 378pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RS216-07 Gallery
zipIW-RS216-07 Compatibility List
pdfIW-RS216-07 User Manual
pdfIW-RS216-07 Top Layer Type 1 Backplane User Manual
pdfIW-RS216-07 Top Layer Type 2 Backplane User Manual
pdfIW-RS216-07 Bottom Layer Backplane User Manual
pdf| Item | Download | Preview |
|---|---|---|
| IW-RS216-07 eDMpdf | Скачать | Открыть |
| IW-RS216-07 Galleryzip | Скачать | - |
| IW-RS216-07 Compatibility Listpdf | Скачать | Открыть |
| IW-RS216-07 User Manualpdf | Скачать | Открыть |
| IW-RS216-07 Top Layer Type 1 Backplane User Manualpdf | Скачать | Открыть |
| IW-RS216-07 Top Layer Type 2 Backplane User Manualpdf | Скачать | Открыть |
| IW-RS216-07 Bottom Layer Backplane User Manualpdf | Скачать | Открыть |
Optional Items
Slide Rail
3RAMIS148100

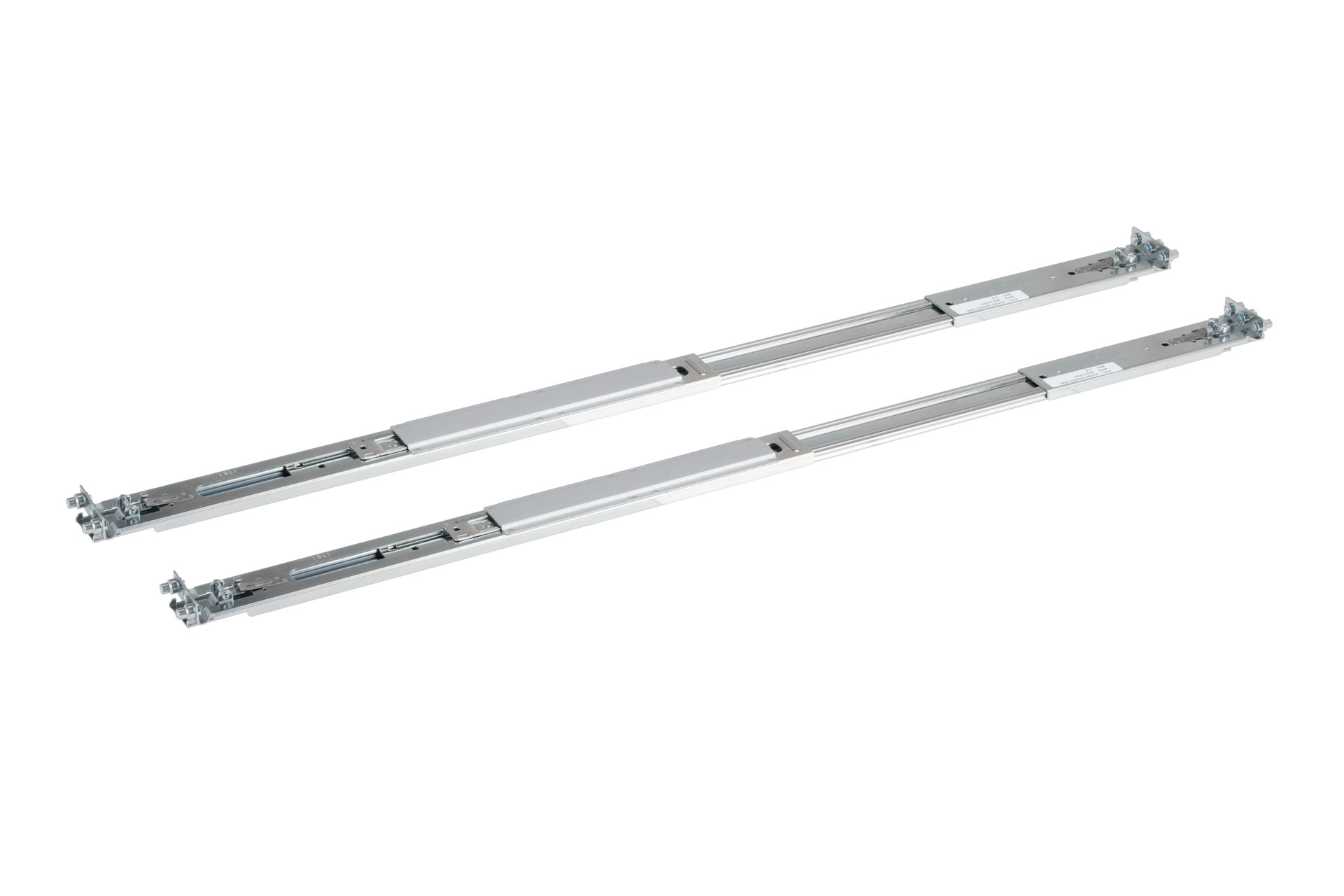

28" tool-less & ball-bearing slide rail
Support: 1 set

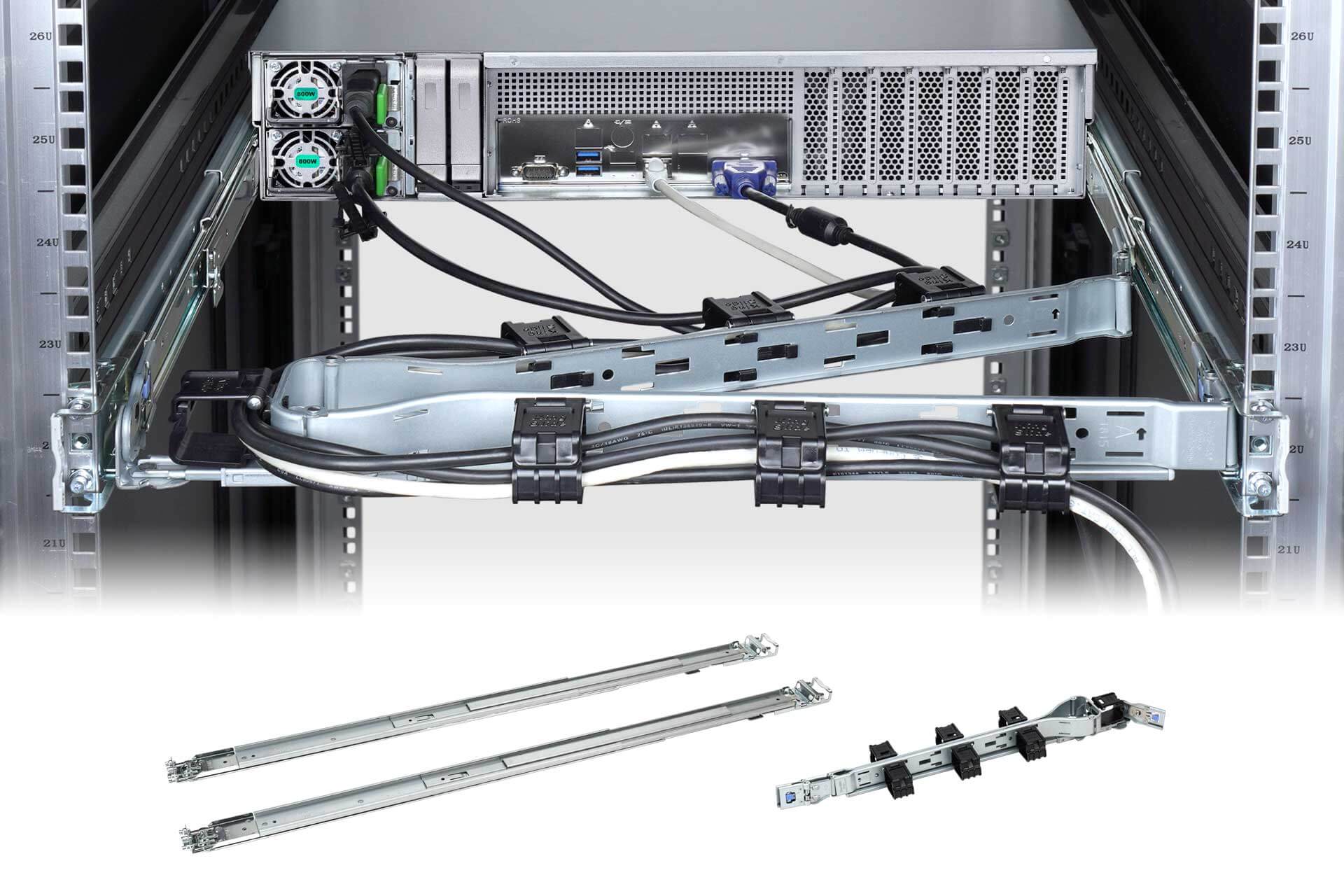

Slide Rail
3RAMIS152300/ 3RAMIS152400
28" tool-less & ball-bearing slide rail with CMA support
Support: 1 set
Cable

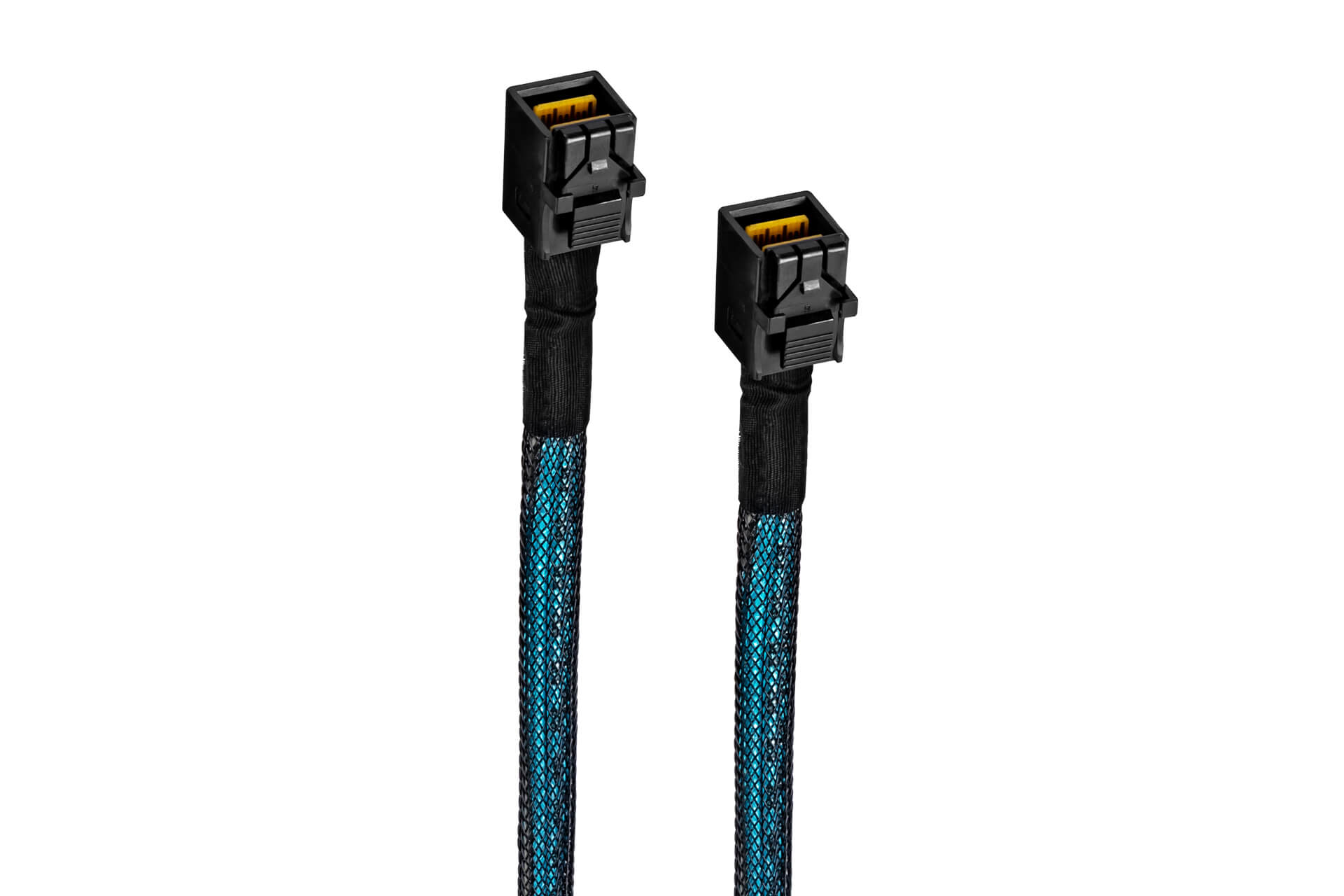

3RAMW4031700
Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm
Support: Max. 2
Cable

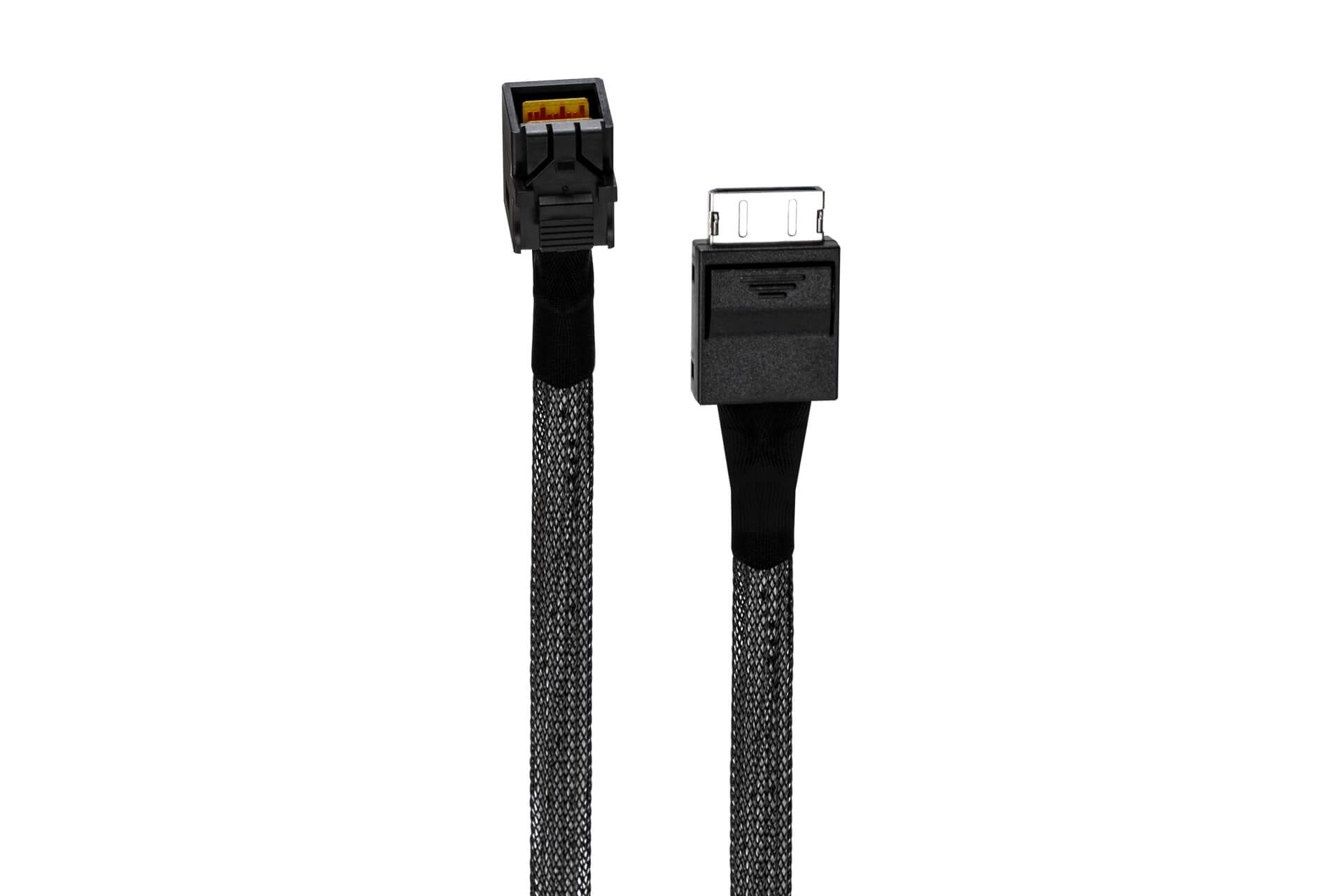

3RAMW4039700
Mini-SAS HD 12Gbps (SFF-8643) to OCuLink (SFF-8611) Cable, 800 mm
Support: Max. 2

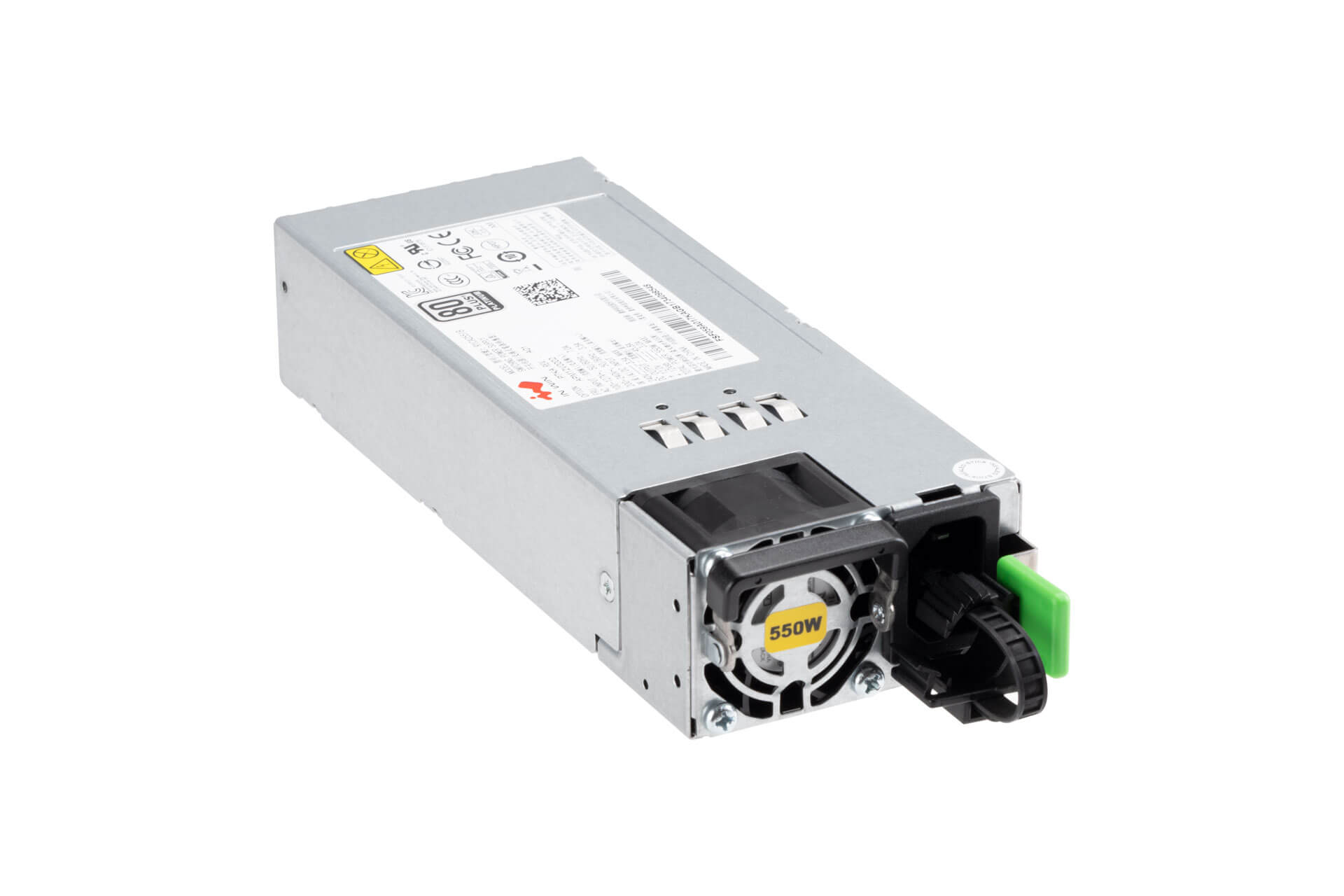

Power Supply
3RAMAP025102
80 Plus Platinum 550W CRPS
Support: Max. 2

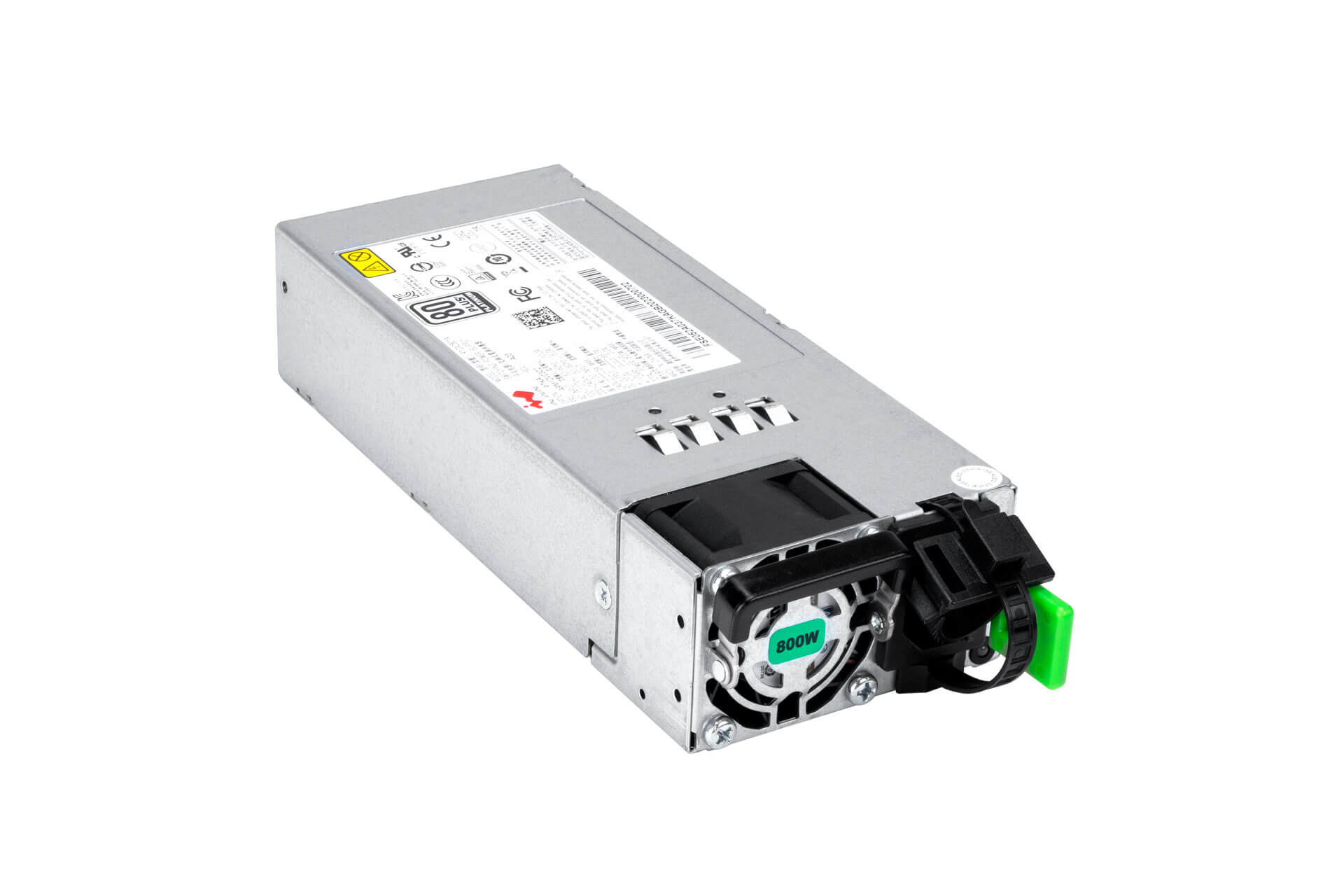

Power Supply
3RAMAP025202
80 Plus Platinum 800W CRPS
Support: Max. 2

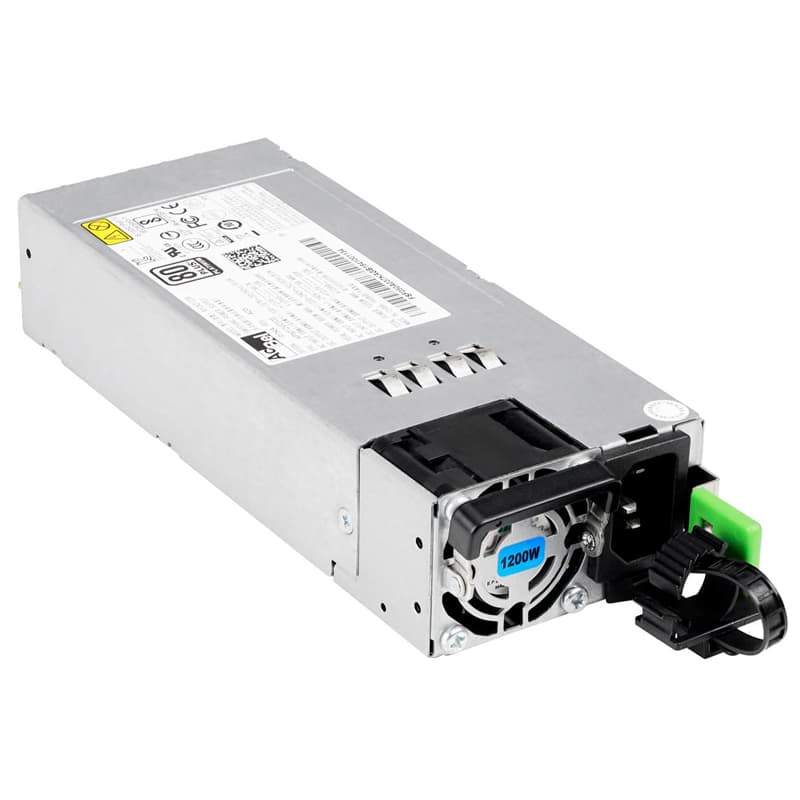

Power Supply

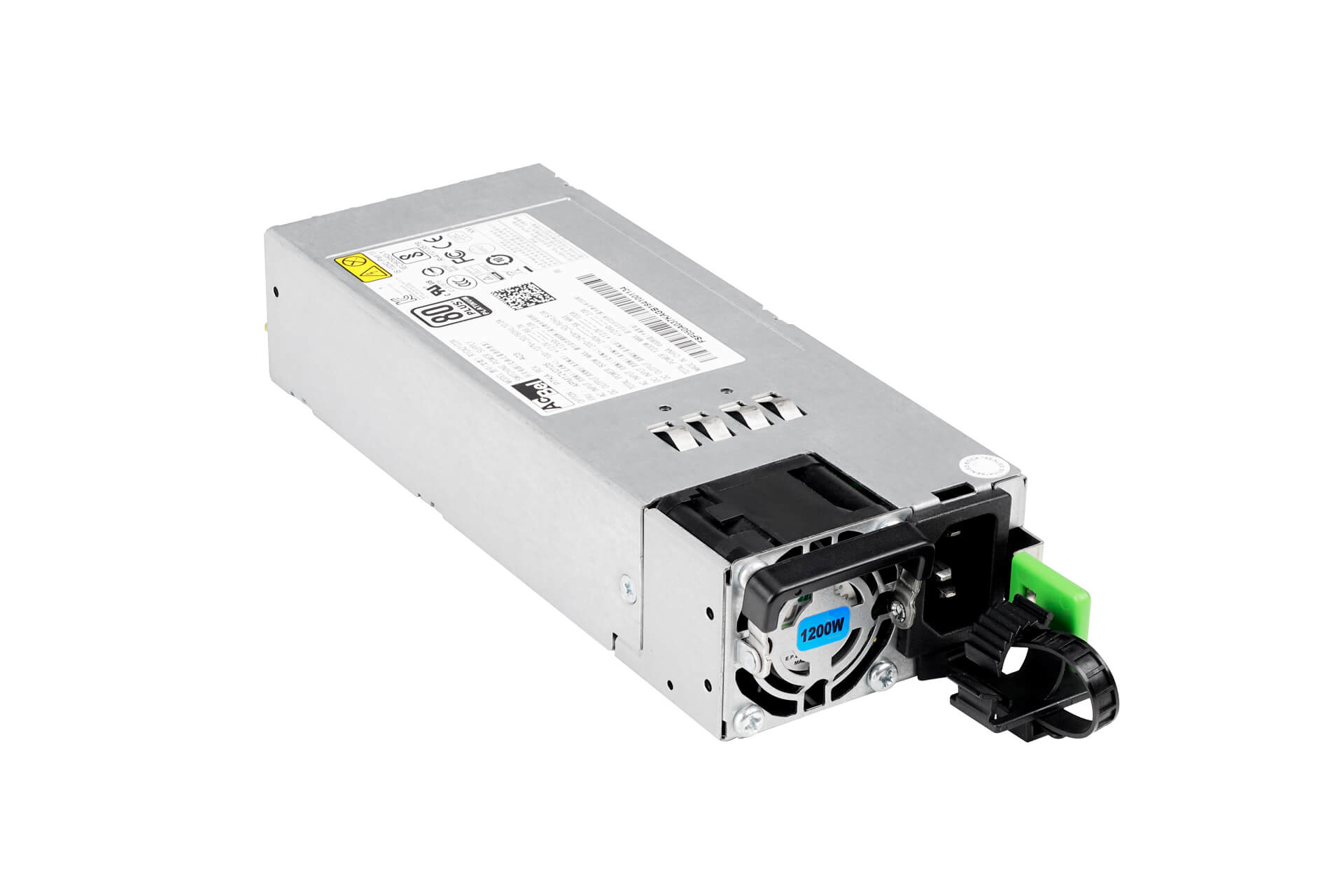

3RAMAP026501
80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.)
Support: Max. 2
Power Supply

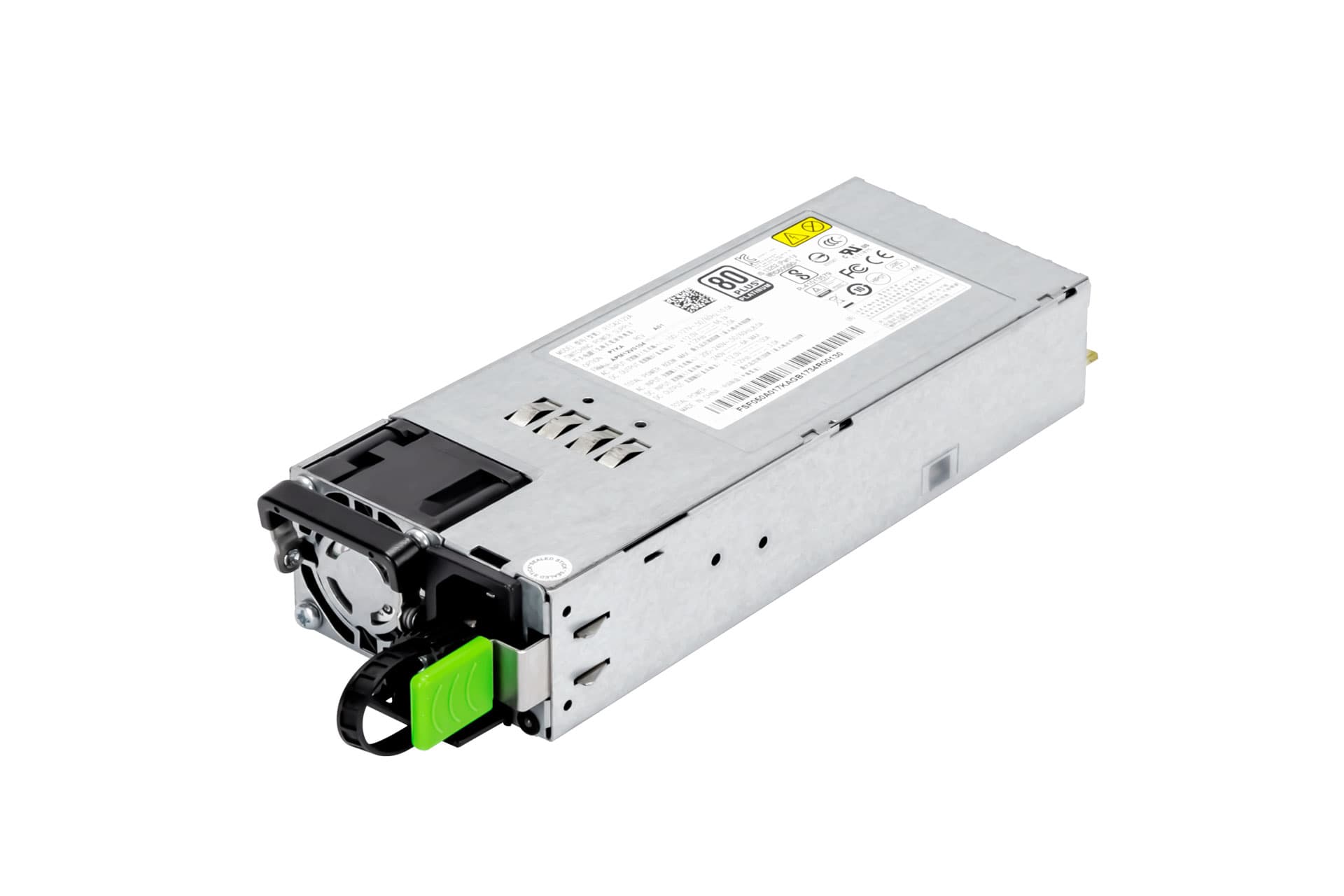

3RAMAP044300
80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.)
Support: Max. 2

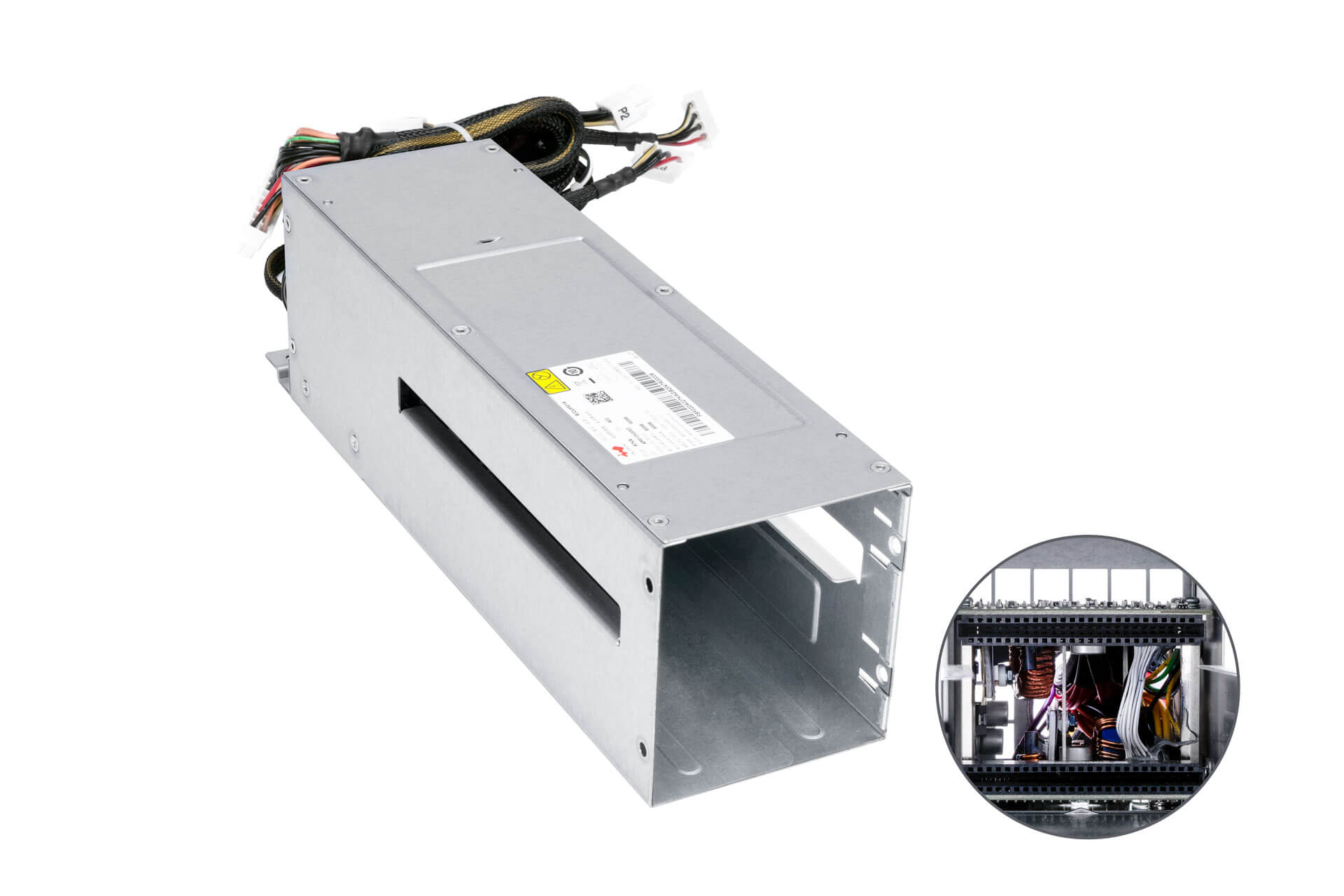

Power Supply
3RAMAP042900
CRPS PDB
Support: 1
Backplane

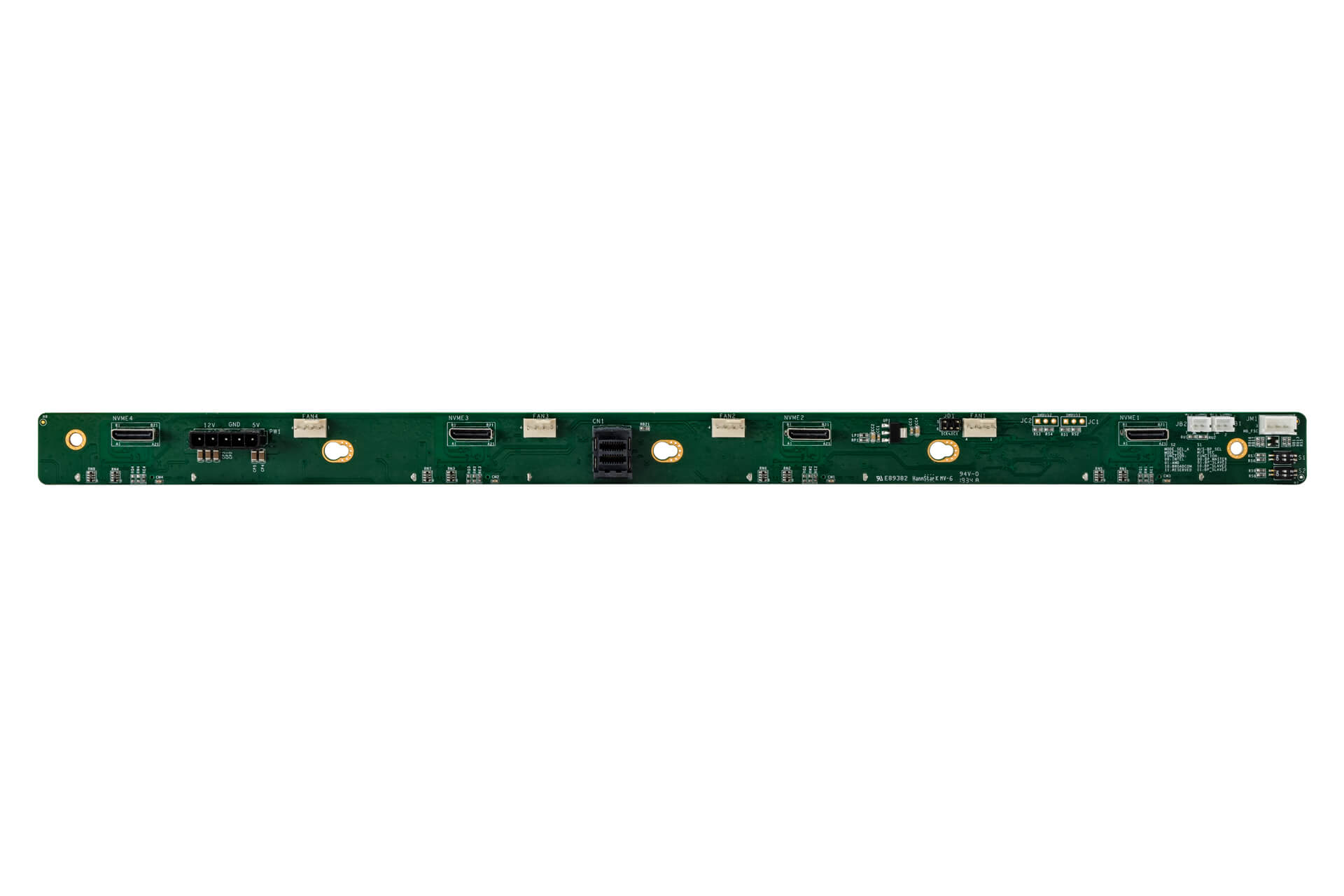

2RBTVI004000
Mini-SAS HD & OCuLink backplane
Support: Max. 2
Backplane Kit
2RAKID105401

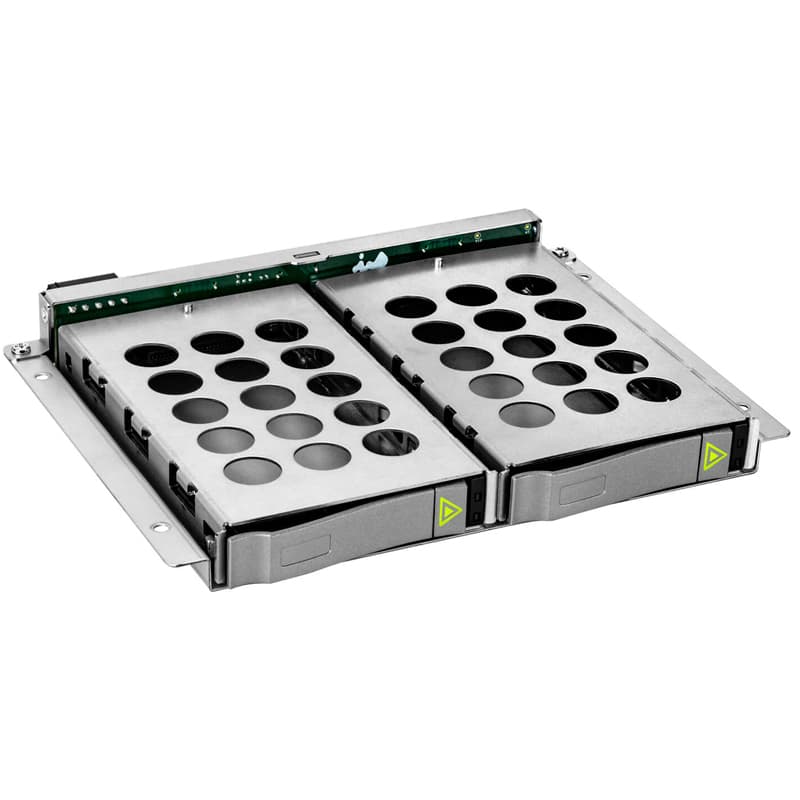

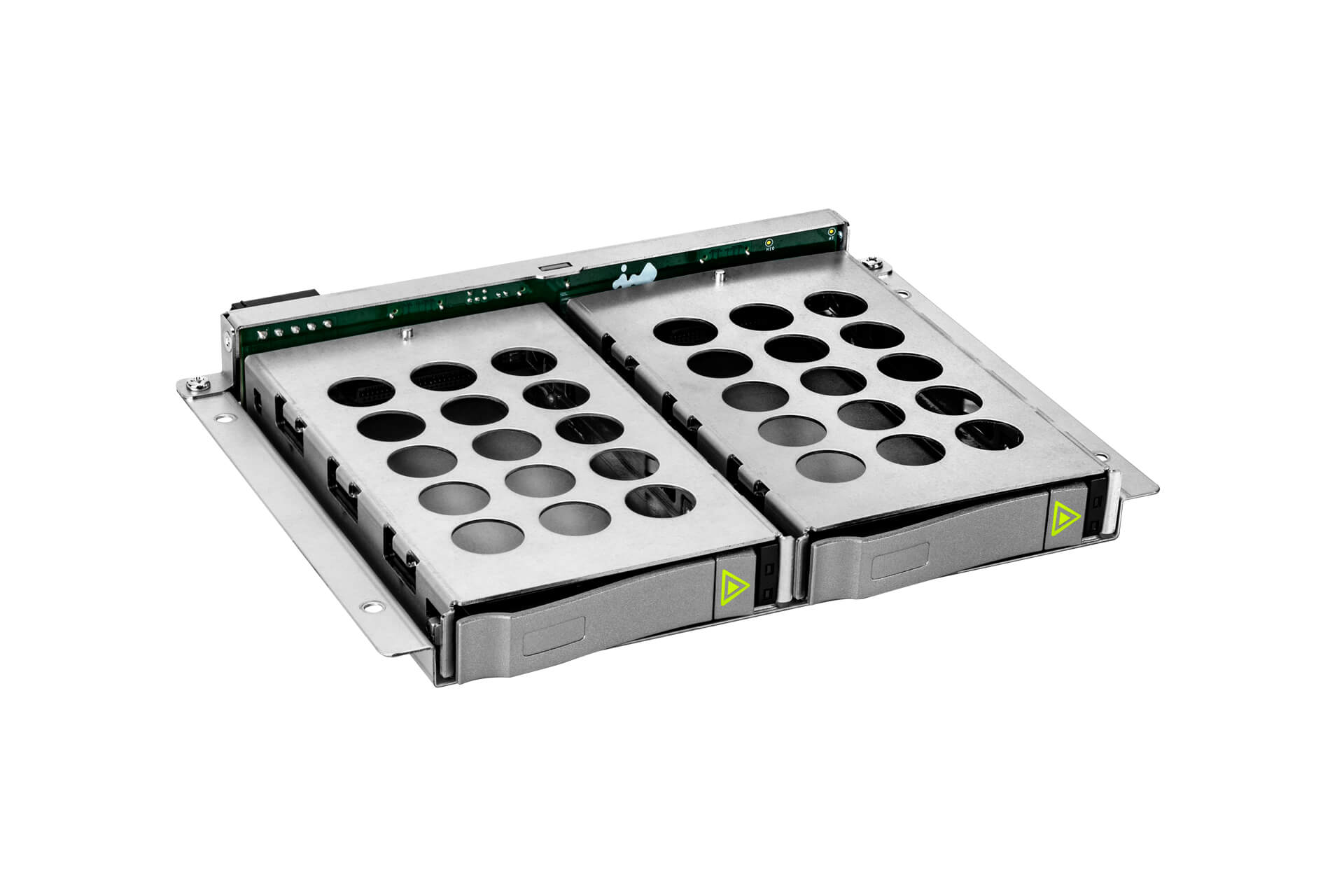

Top layer type 1 OCuLink backplane and 2.5" 15mm HDD trays x 2 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order.
Support: Max. 2
Backplane Kit

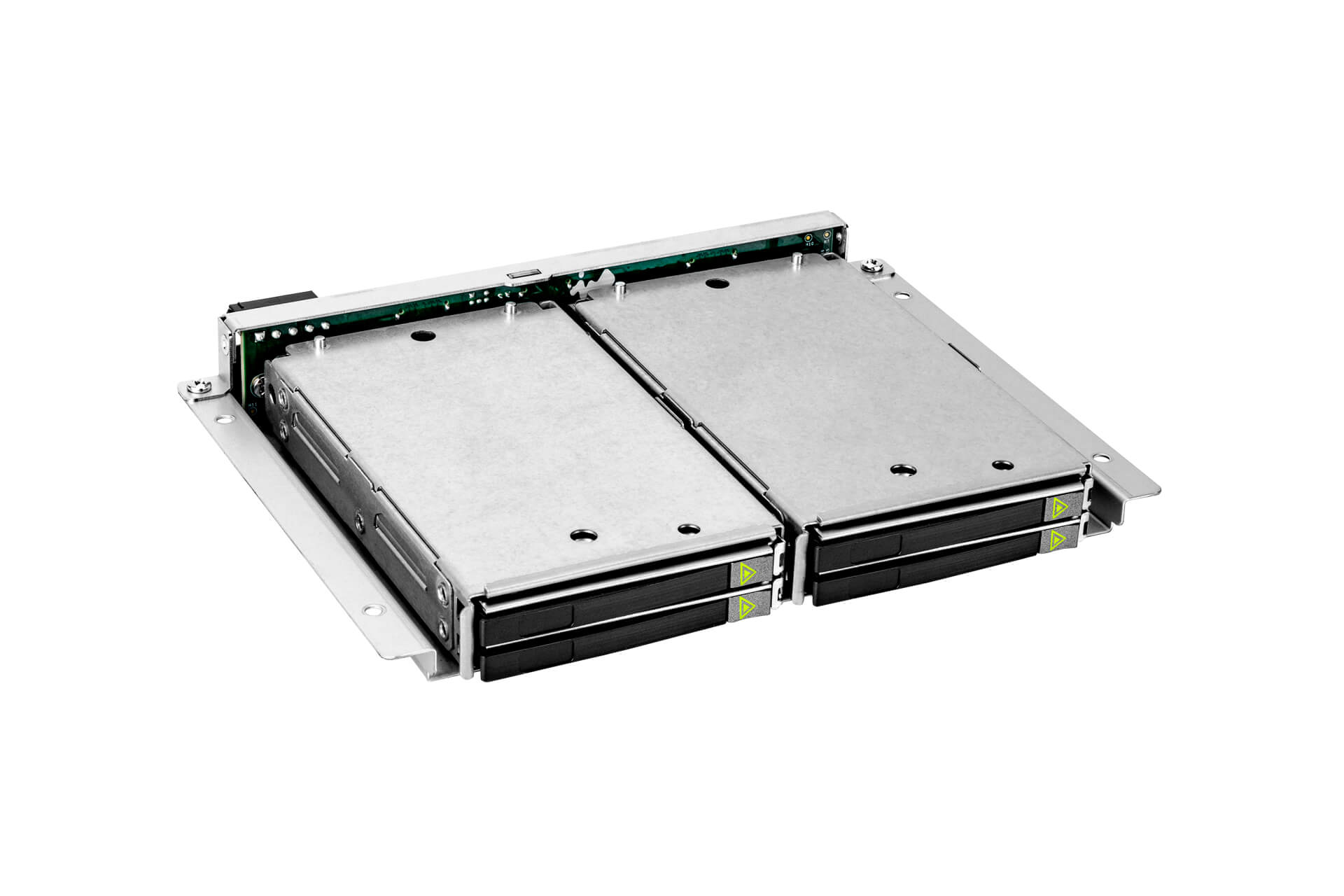

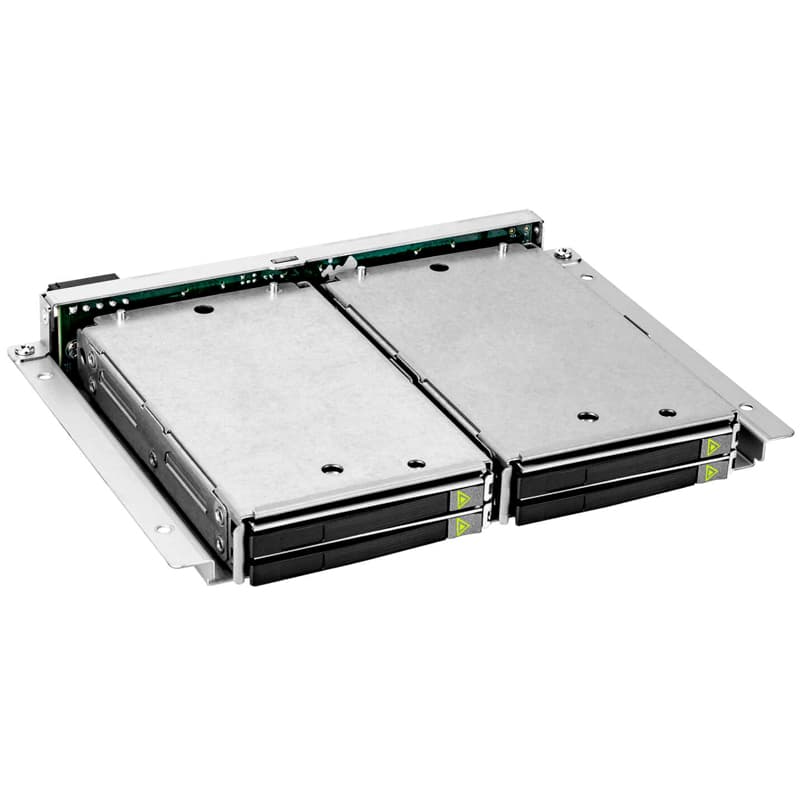

2RAKID105201
Top layer type 2 OCuLink backplane & 2.5" 7mm HDD trays x 4 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order.
Support: Max. 2
HDD Tray

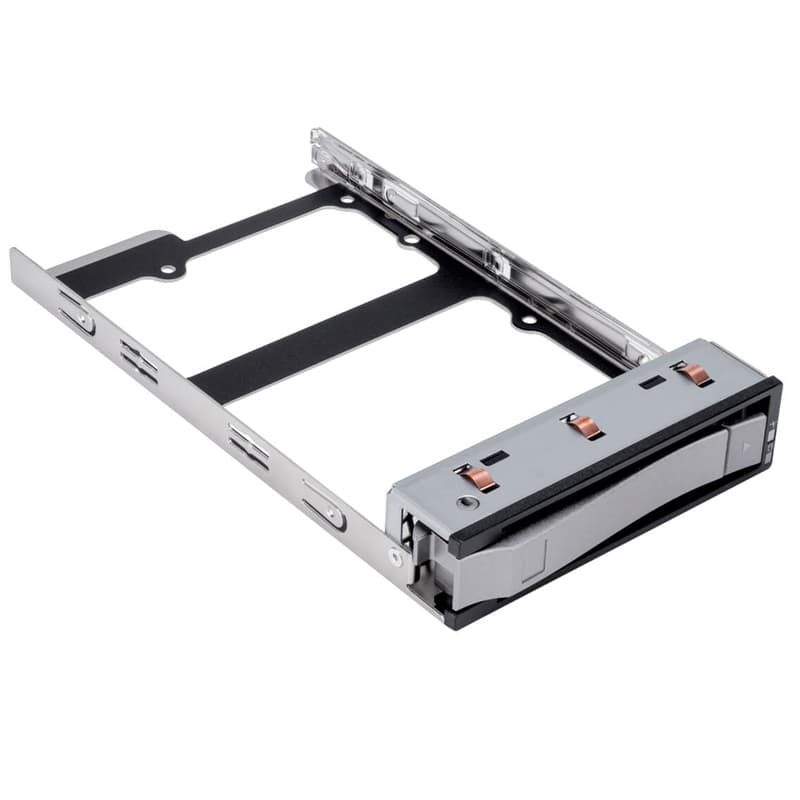

2RAKPH057702
3.5"/2.5" (15mm) hot-swap HDD tray (Gray color)
Support: Max. 8
HDD Tray
2RAKPH063701

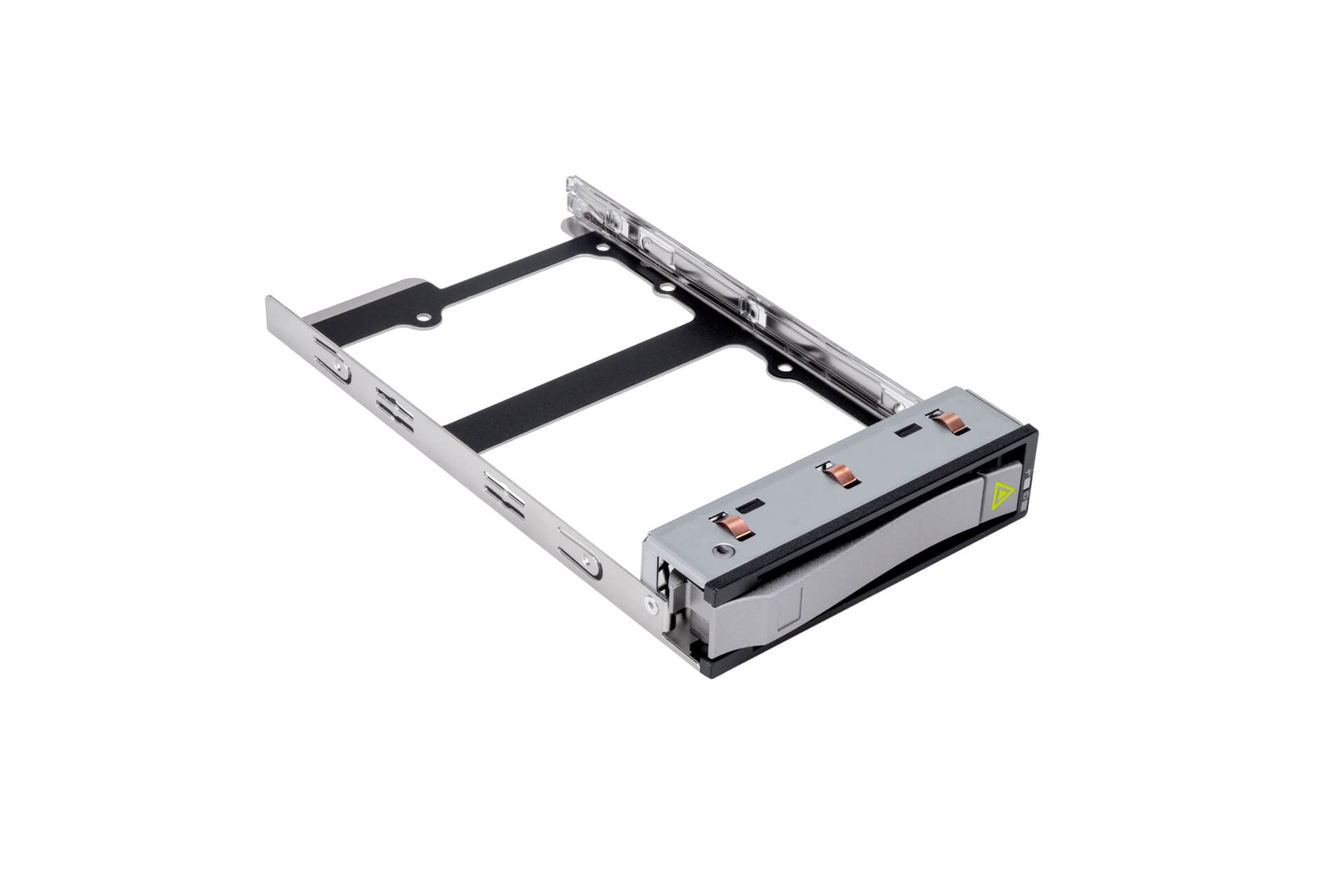

3.5"/2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol)
Support: Max. 8
HDD Tray
2RAKPH057801
2.5" (15mm) hot-swap HDD tray (Gray color)
Support: Max. 6
HDD Tray

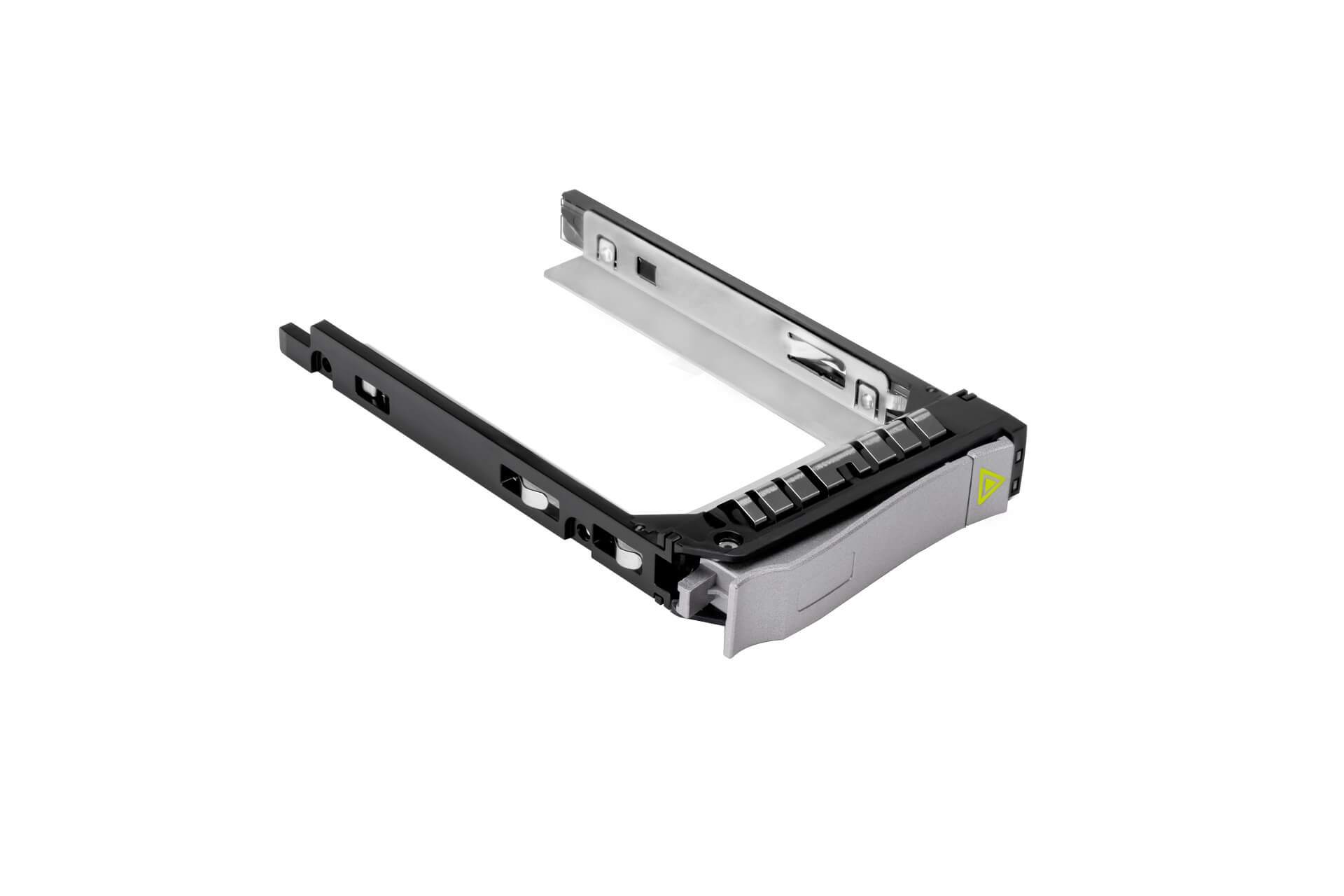

2RAKPH063801
2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol)
Support: Max. 4
HDD Tray
2RAKPH063400

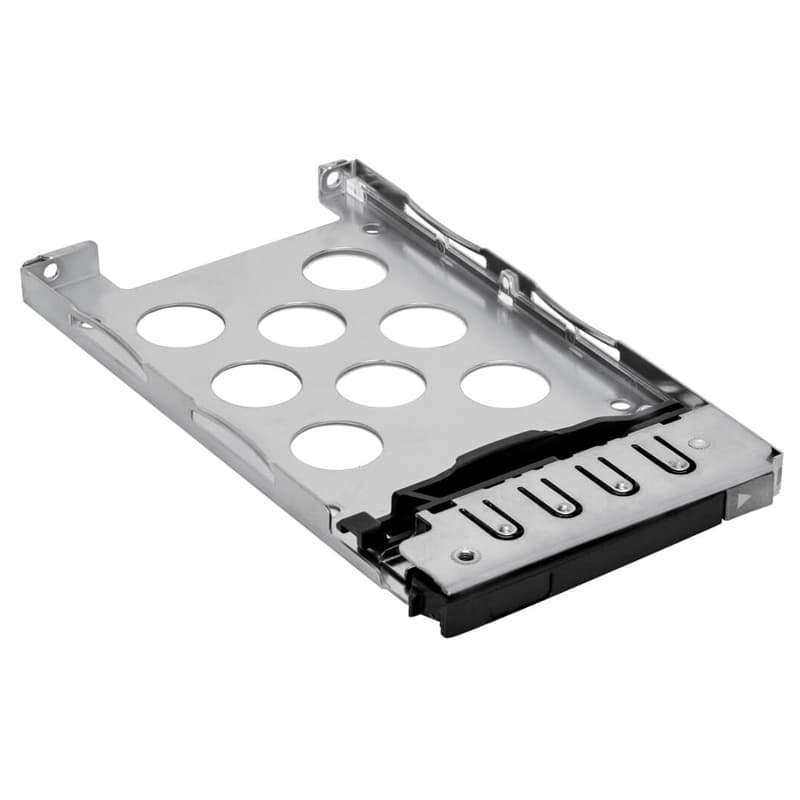

2.5" (7mm) hot-swap tray (Gray color)
Support: Max. 8

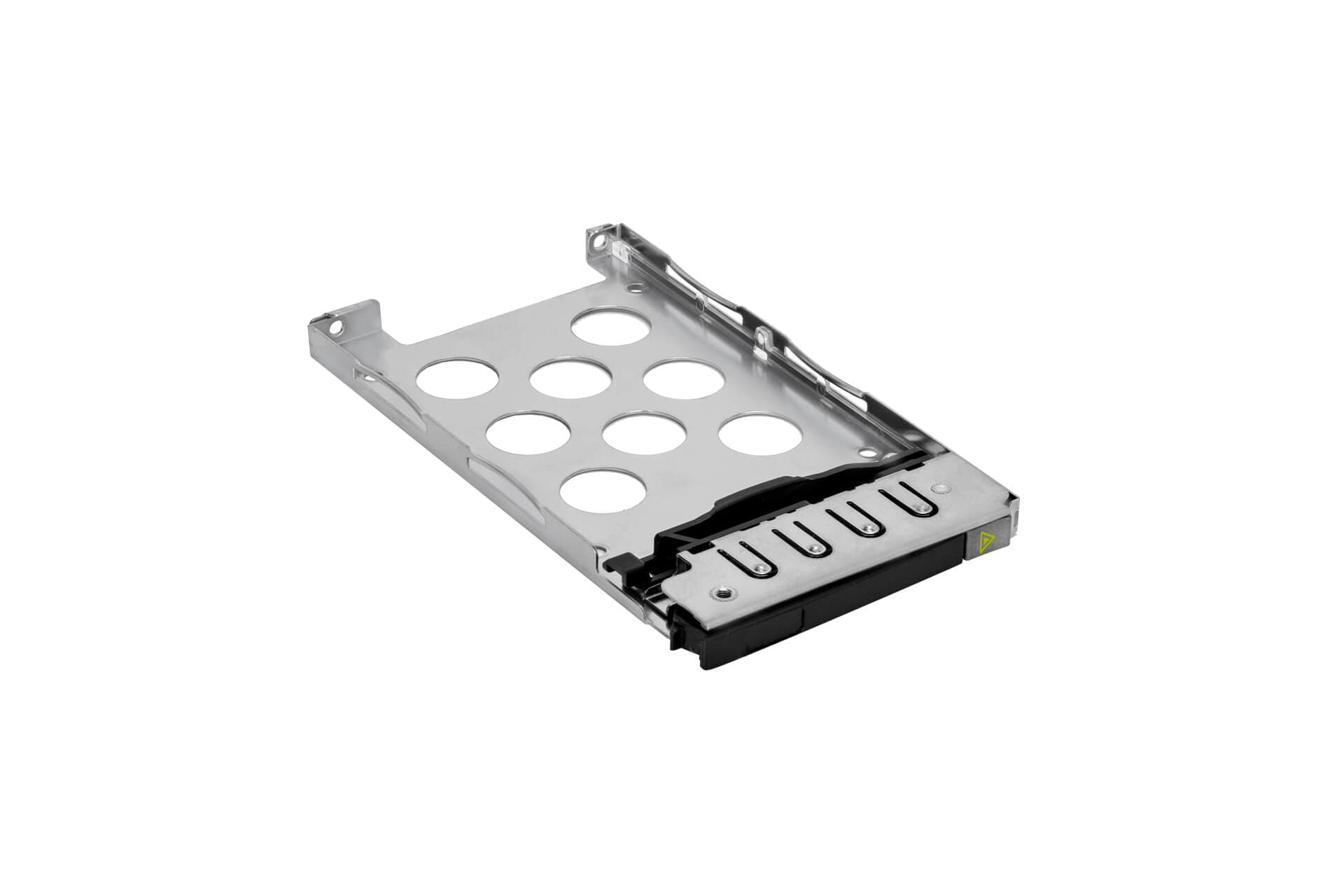

HDD Tray
2RAKPH063900
2.5" (7mm) hot-swap tray (Gray color with NVMe symbol)
Support: Max. 8

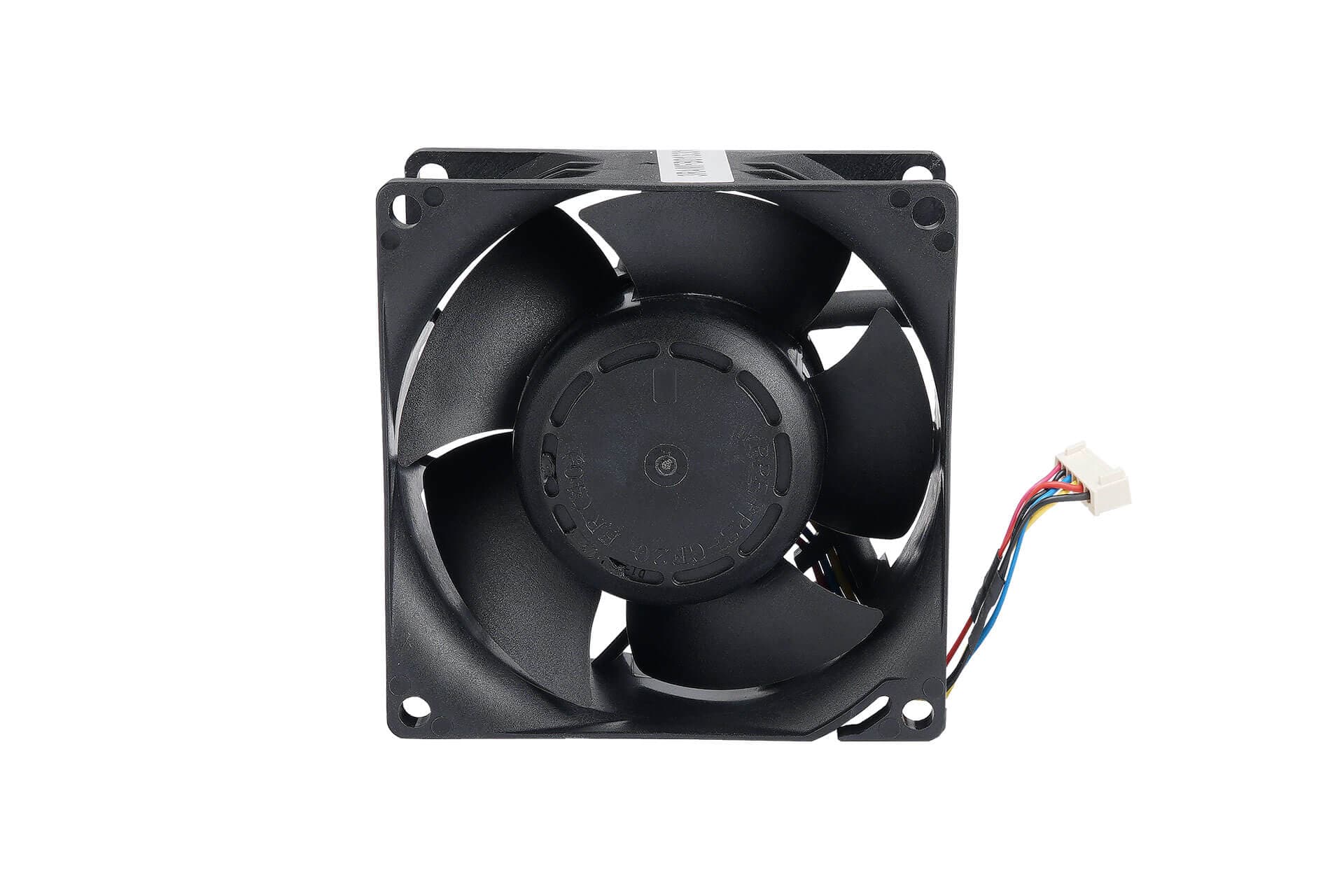

Fan
3RAMFB016302

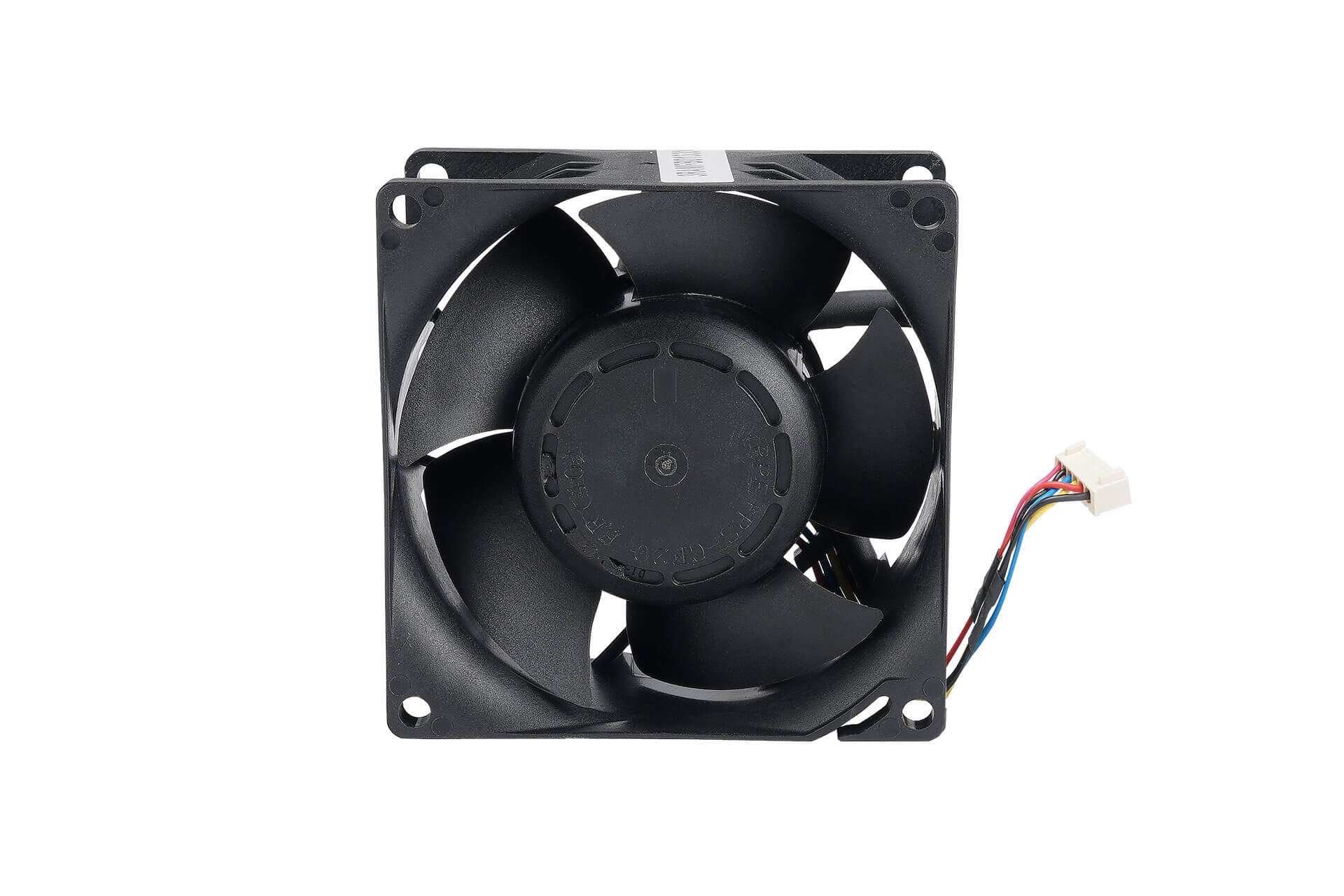

80 x 38mm PWM hot-swap fan, 12000RPM, 6pin
Support: Max. 4
Fan
2RAKFB011602

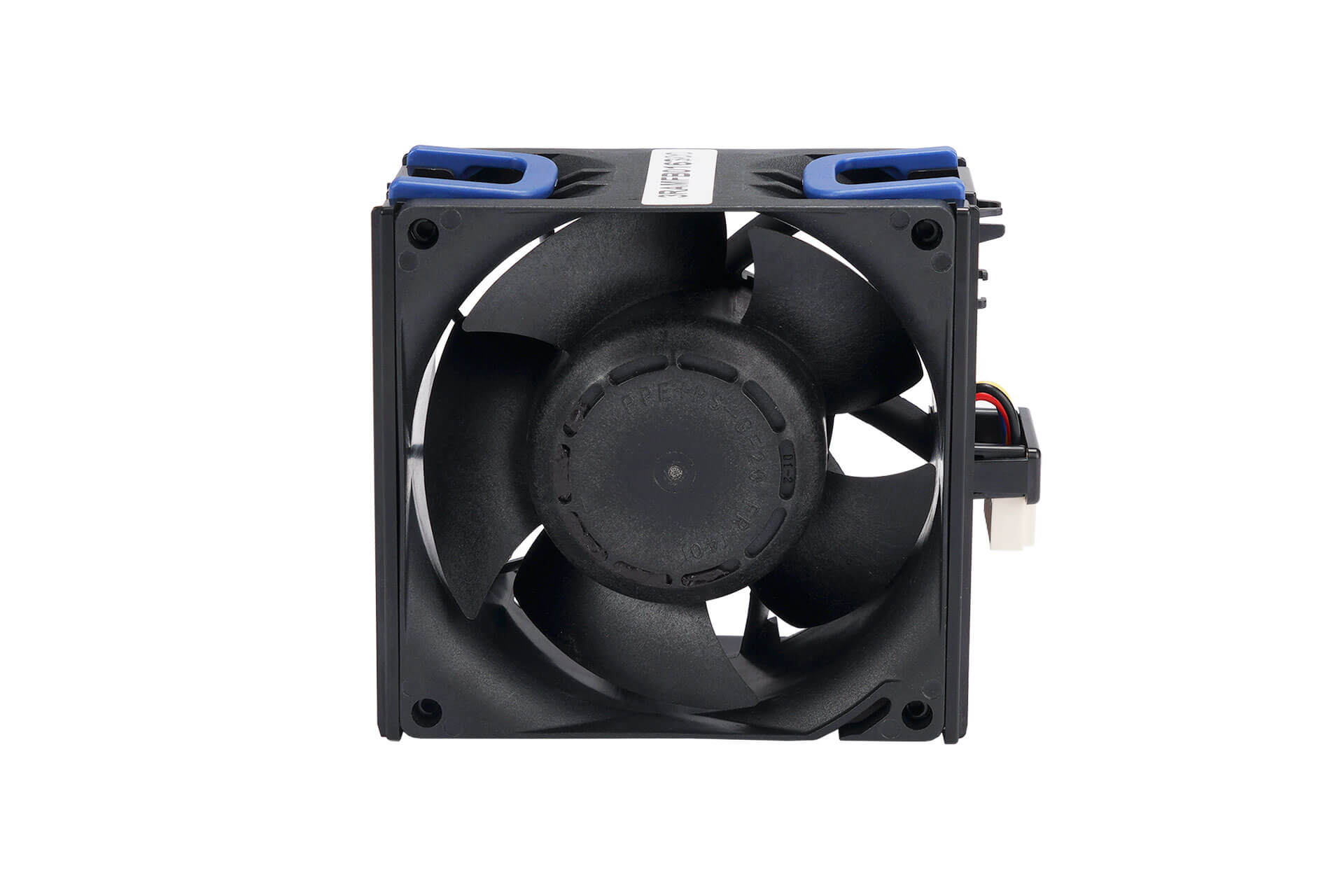

80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin
Support: Max. 4

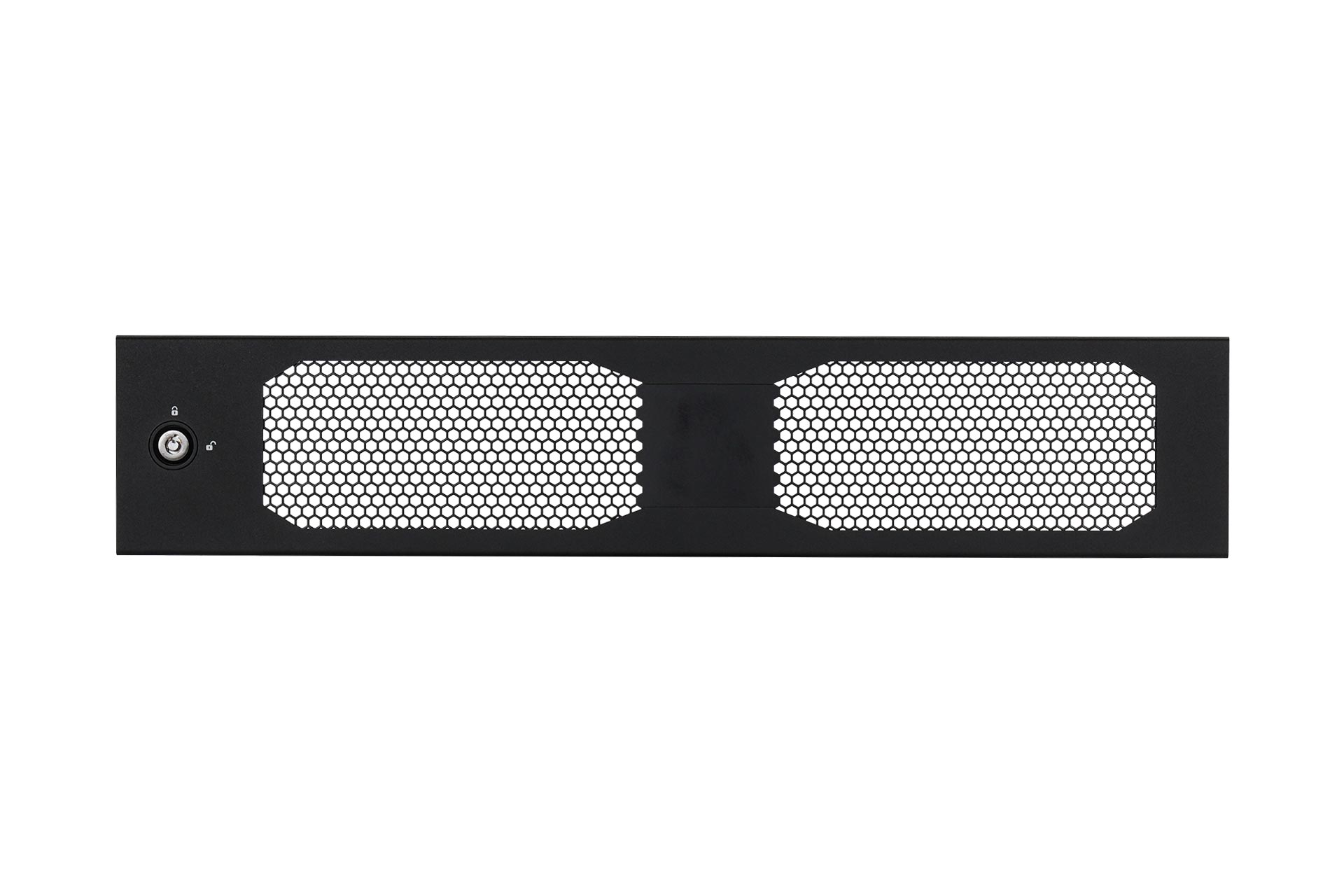

Others
2RAKIP022700
Mesh front panel
Support: 1
Others
3RAMRW011300

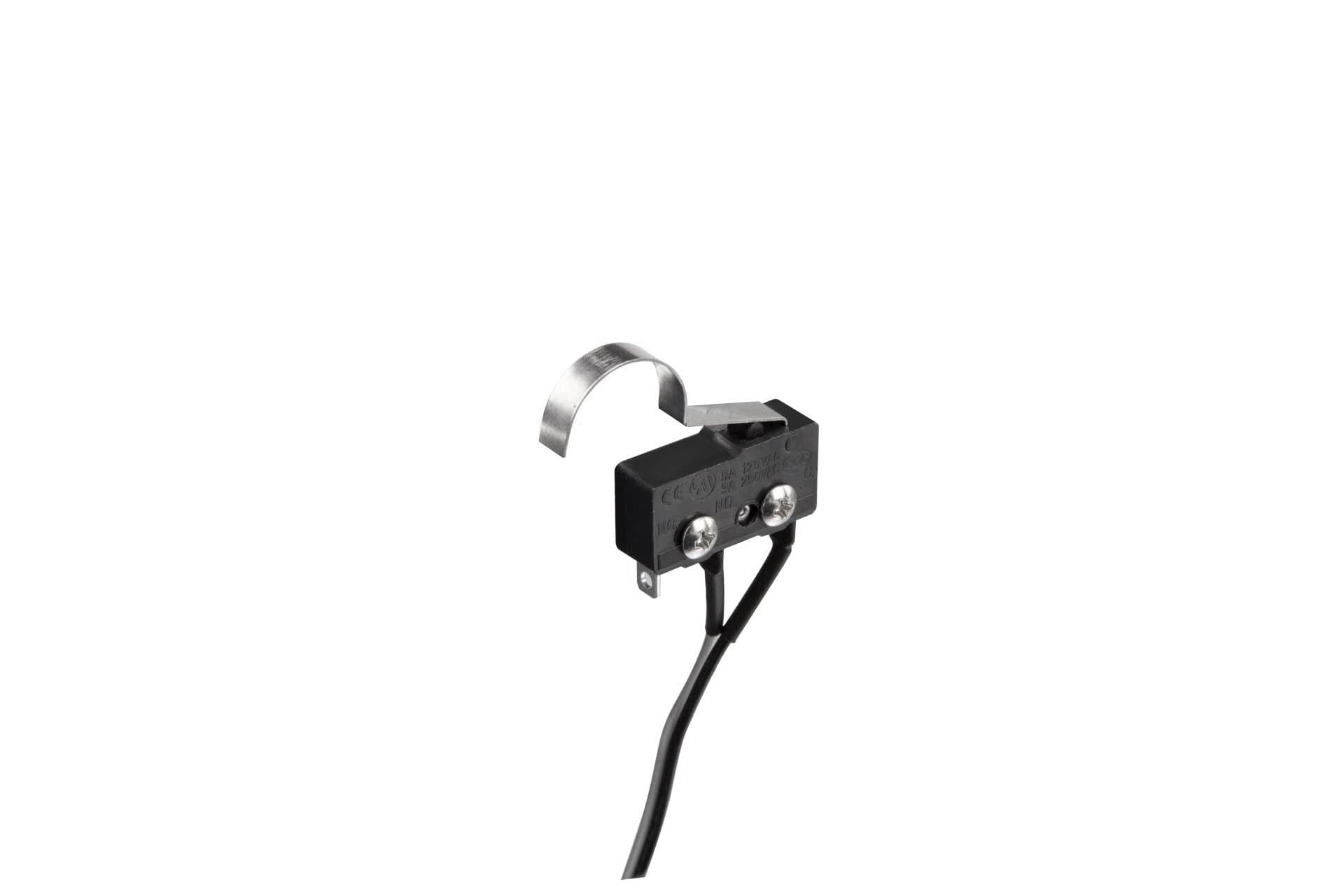

Intrusion switch / 800mm
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 set | |
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 set | |
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | Max. 2 | |
| Cable | 3RAMW4039700 | Mini-SAS HD 12Gbps (SFF-8643) to OCuLink (SFF-8611) Cable, 800 mm | Max. 2 | |
| Power Supply | 3RAMAP025102 | 80 Plus Platinum 550W CRPS | Max. 2 | |
| Power Supply | 3RAMAP025202 | 80 Plus Platinum 800W CRPS | Max. 2 | |
| Power Supply | 3RAMAP026501 | 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) | Max. 2 | |
| Power Supply | 3RAMAP044300 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max. 2 | |
| Power Supply | 3RAMAP042900 | CRPS PDB | 1 | |
| Backplane | 2RBTVI004000 | Mini-SAS HD & OCuLink backplane | Max. 2 | |
| Backplane Kit | 2RAKID105401 | Top layer type 1 OCuLink backplane and 2.5" 15mm HDD trays x 2 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order. | Max. 2 | |
| Backplane Kit | 2RAKID105201 | Top layer type 2 OCuLink backplane & 2.5" 7mm HDD trays x 4 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order. | Max. 2 | |
| HDD Tray | 2RAKPH057702 | 3.5"/2.5" (15mm) hot-swap HDD tray (Gray color) | Max. 8 | |
| HDD Tray | 2RAKPH063701 | 3.5"/2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol) | Max. 8 | |
| HDD Tray | 2RAKPH057801 | 2.5" (15mm) hot-swap HDD tray (Gray color) | Max. 6 | |
| HDD Tray | 2RAKPH063801 | 2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol) | Max. 4 | |
| HDD Tray | 2RAKPH063400 | 2.5" (7mm) hot-swap tray (Gray color) | Max. 8 | |
| HDD Tray | 2RAKPH063900 | 2.5" (7mm) hot-swap tray (Gray color with NVMe symbol) | Max. 8 | |
| Fan | 3RAMFB016302 | 80 x 38mm PWM hot-swap fan, 12000RPM, 6pin | Max. 4 | |
| Fan | 2RAKFB011602 | 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin | Max. 4 | |
| Others | 2RAKIP022700 | Mesh front panel | 1 | |
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 | |
