IW-RS116-E1
Артикул: IW-RS116-E1
1U Chassis
1U корпус на 16 NVMe E1.S накопителей
IW-RS116-E1 — специализированный 1U-корпус для 16 hot-swap NVMe E1.S 15 мм накопителей. Он подходит для высокопроизводительных систем хранения, кэширующих узлов и задач, где требуется высокая плотность быстрых SSD.
Отсеки
16 x E1.S NVMe
Внутренние
2 x 2.5"
Питание
750 Вт Platinum
Вентиляторы
6 x 40 мм, 33000 об/мин
E1.S Storage

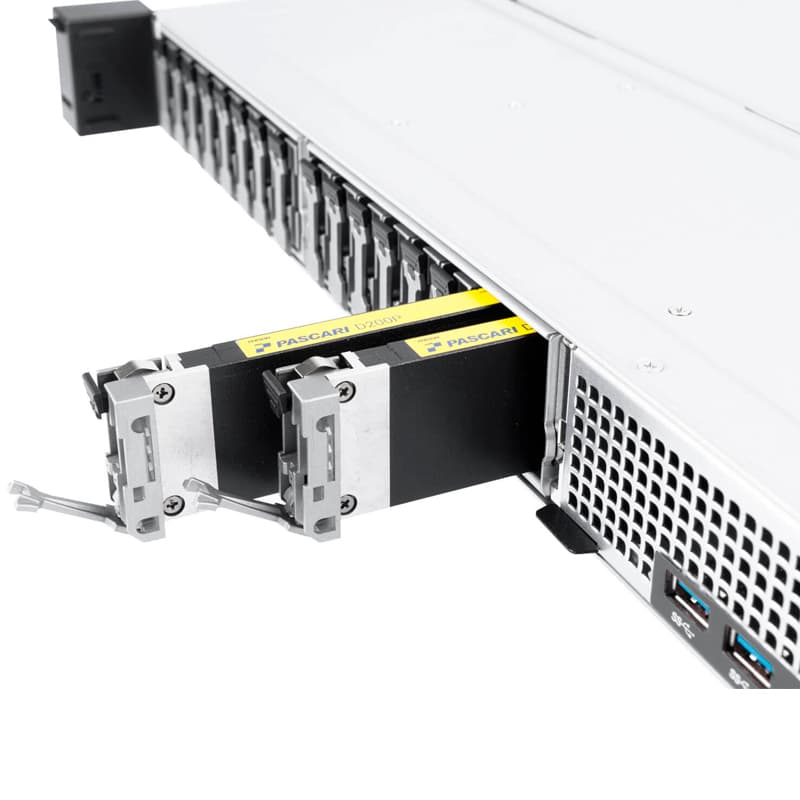

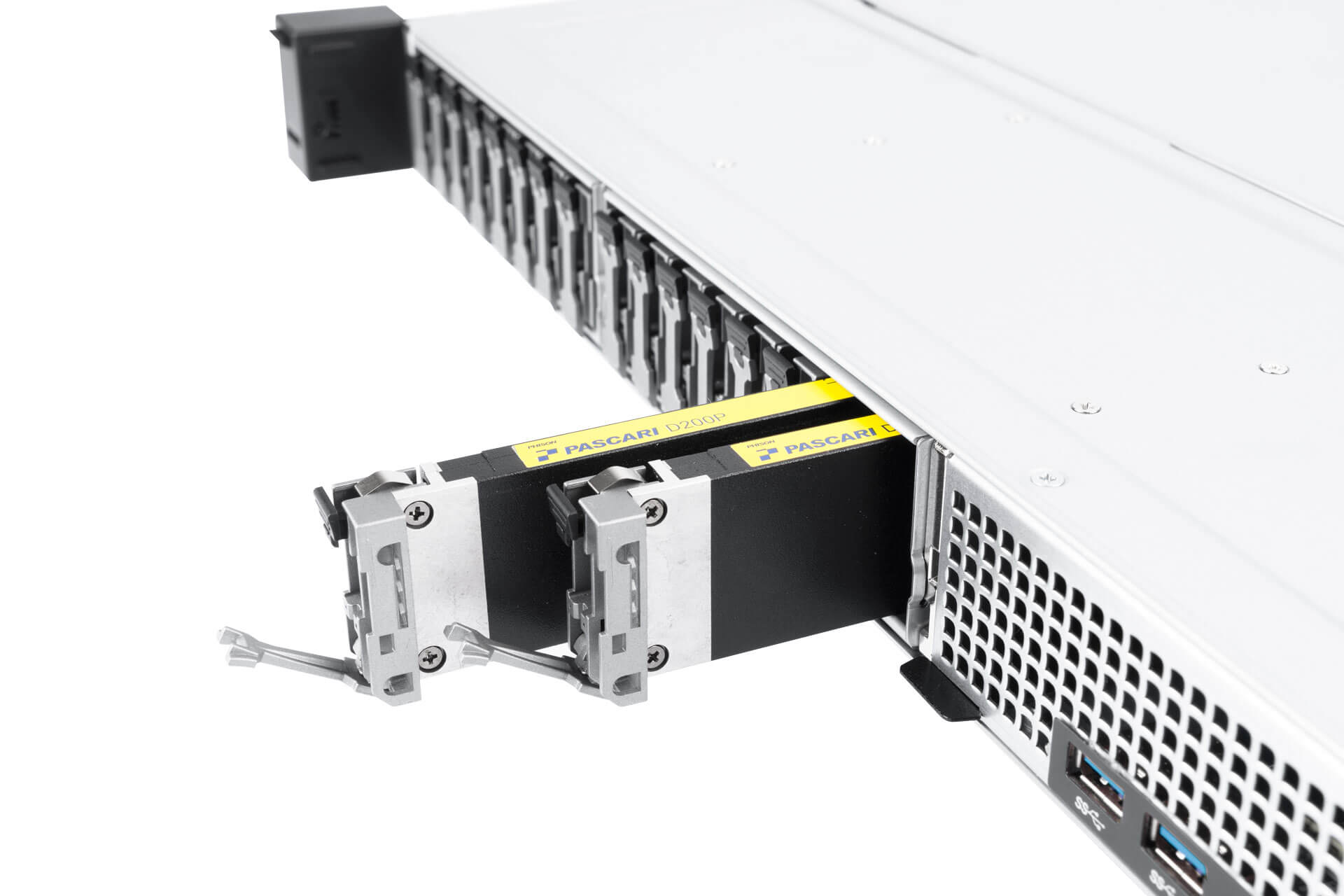

16 фронтальных E1.S NVMe отсеков
Формат E1.S рассчитан на плотные NVMe-системы нового поколения. Hot-swap доступ спереди упрощает обслуживание SSD в стойке.
Thermal Design
Охлаждение под быстрые NVMe SSD

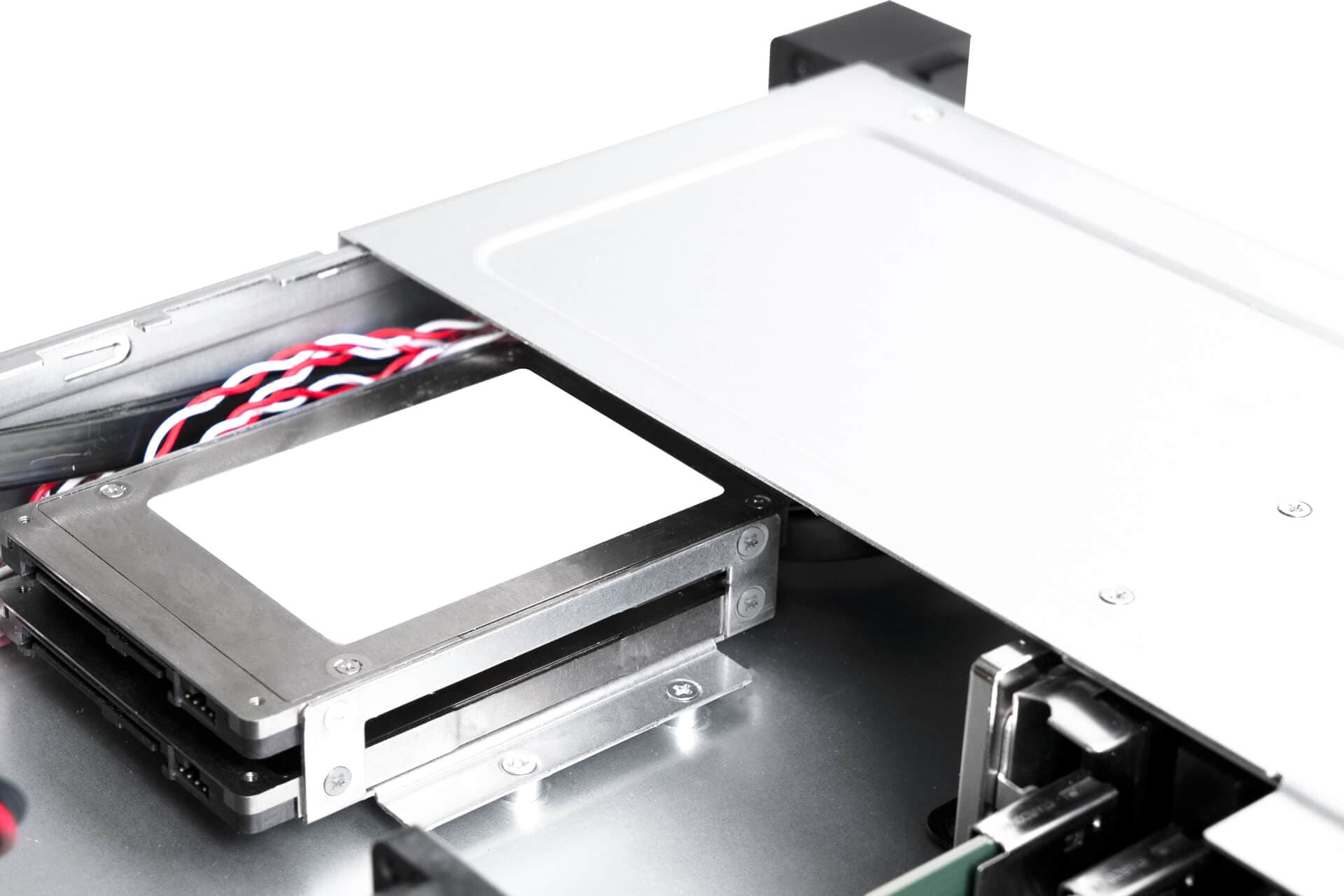

Шесть высокооборотистых вентиляторов 40 x 56 мм создают направленный поток воздуха через плотную E1.S корзину.
Service Platform
Резервируемое питание и PCIe-слот

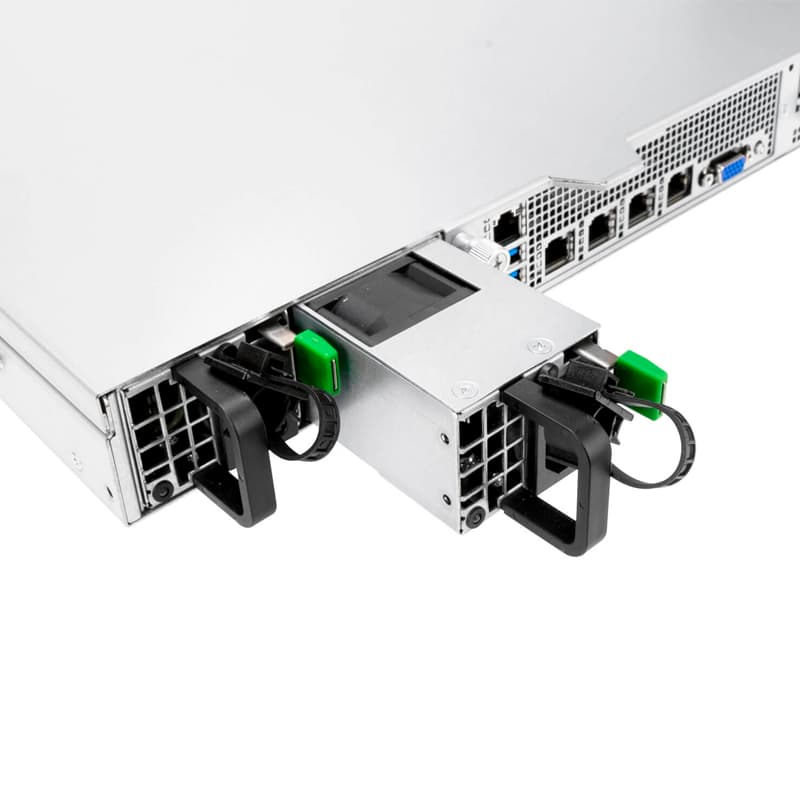

Корпус комплектуется 1U redundant PSU 750 Вт и поддерживает один full-height PCIe слот для контроллера или сетевой карты.
Product Details

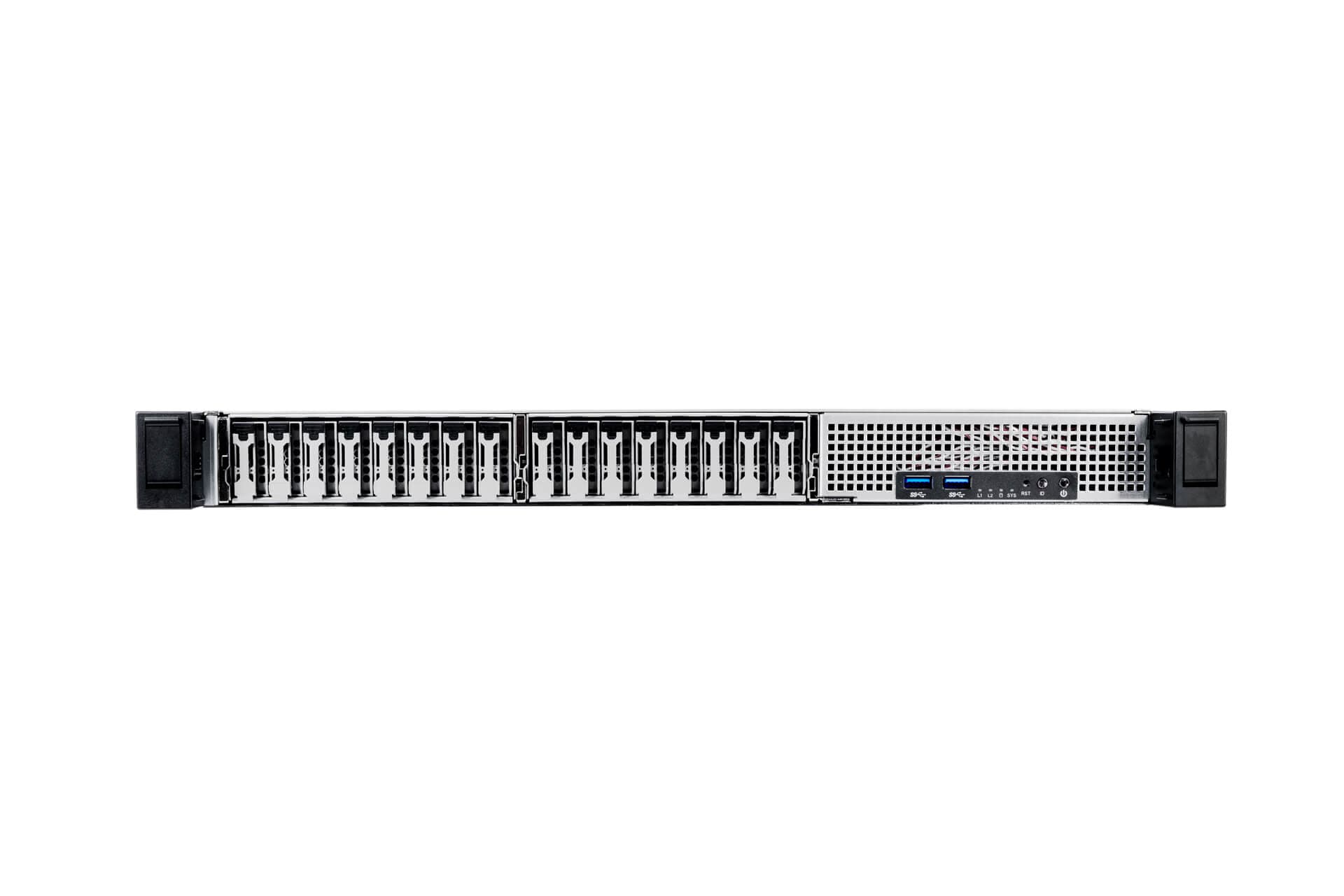

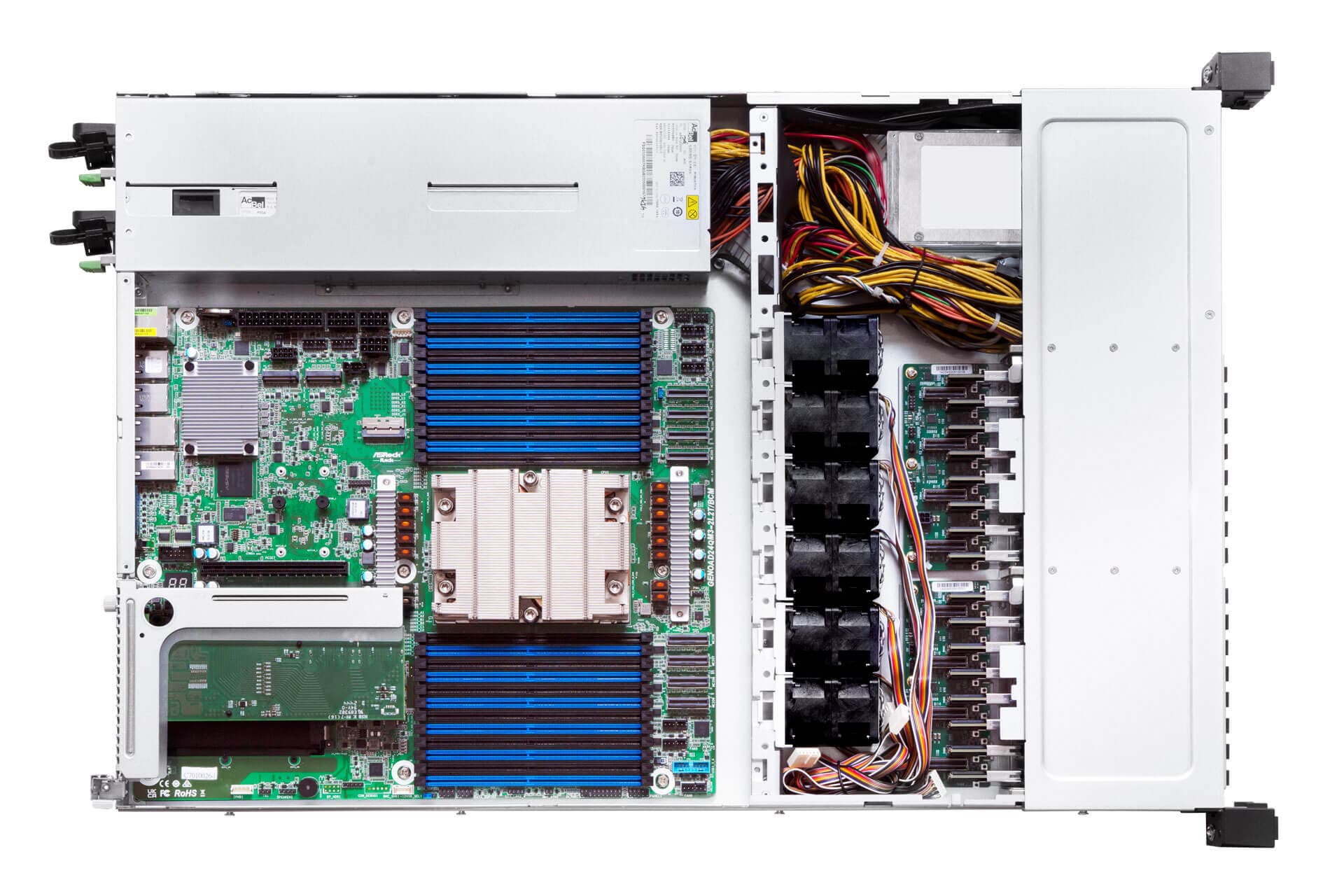

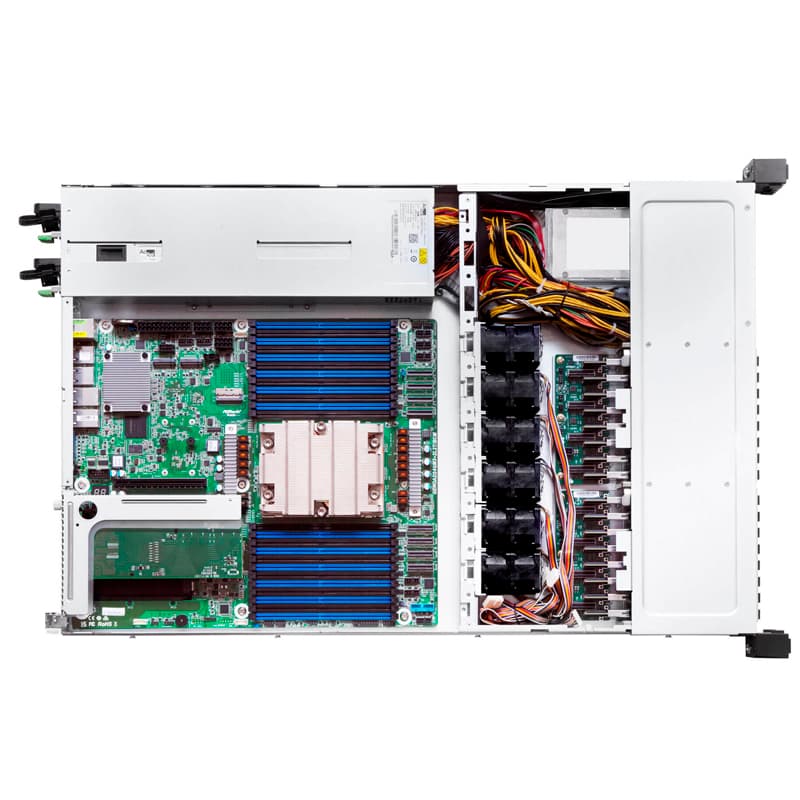

Детали конструкции InWin IW-RS116-E1
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13") |

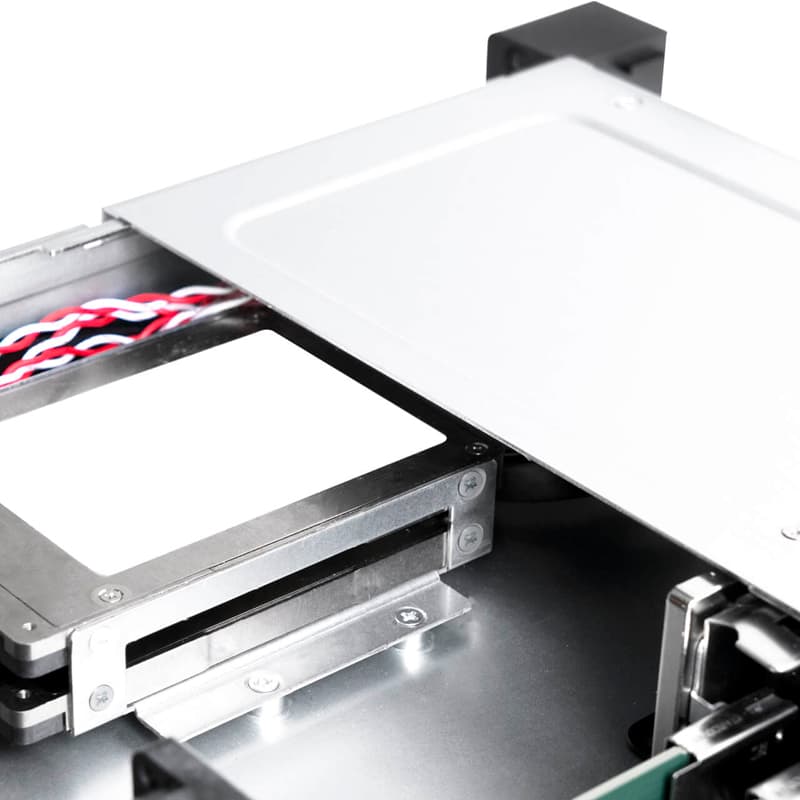

| Drive Bay | • External NVMe E1.S 15mm hot-swap trays x 16 • Internal 2.5" x 2 |
| Power Supply | Pre-installed: • Form factor: 1U redundant PSU, 80 Plus Platinum • Watt: 750W |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED |

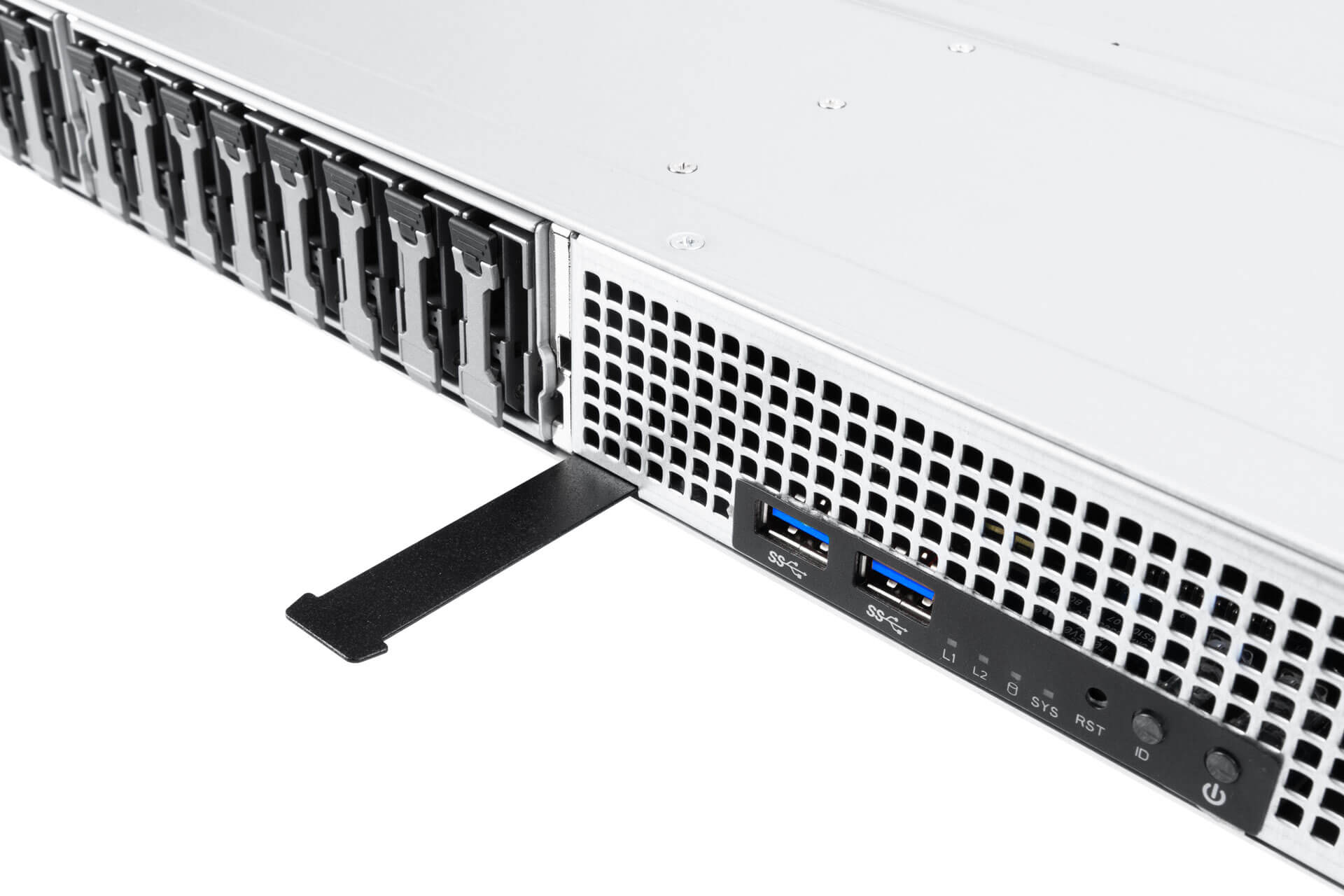

| Front Control Panel | Power on/off, reset, ID SW, USB 3.0 x 2 |

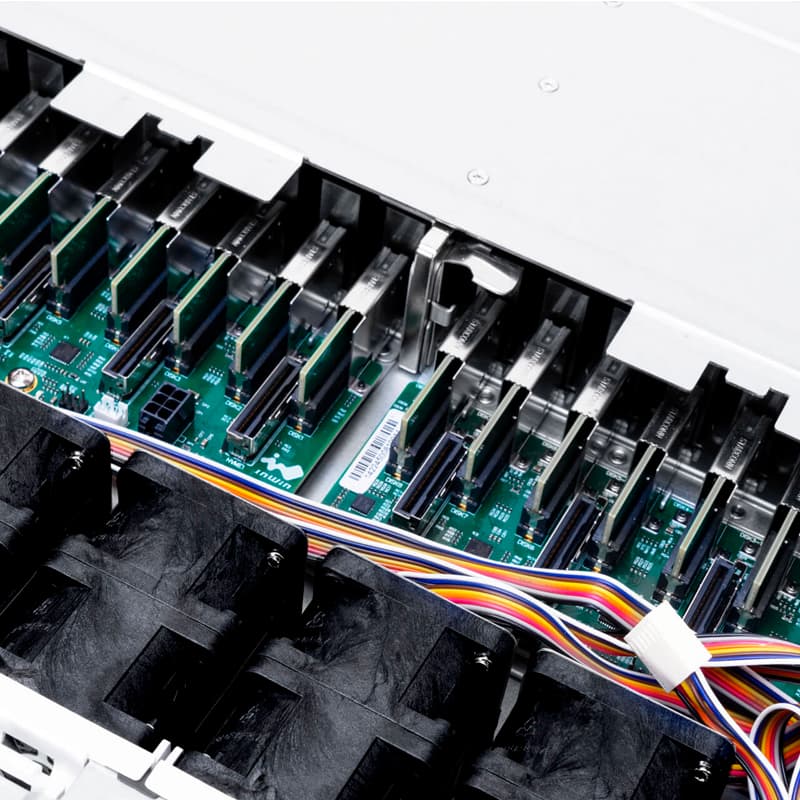

| Backplane | • Host: MCIO 8i x 4 • SSD: NVMe E1.S 15mm x 8 • Backplane cage kits pre-installed x 2pcs with 8-drive capacity of each |
| Cooling Fans | Pre-installed 40 x 56mm PWM fans x 6, 33000 RPM |
| Expansion Slot | Full-Height PCIe slot x 1 |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |

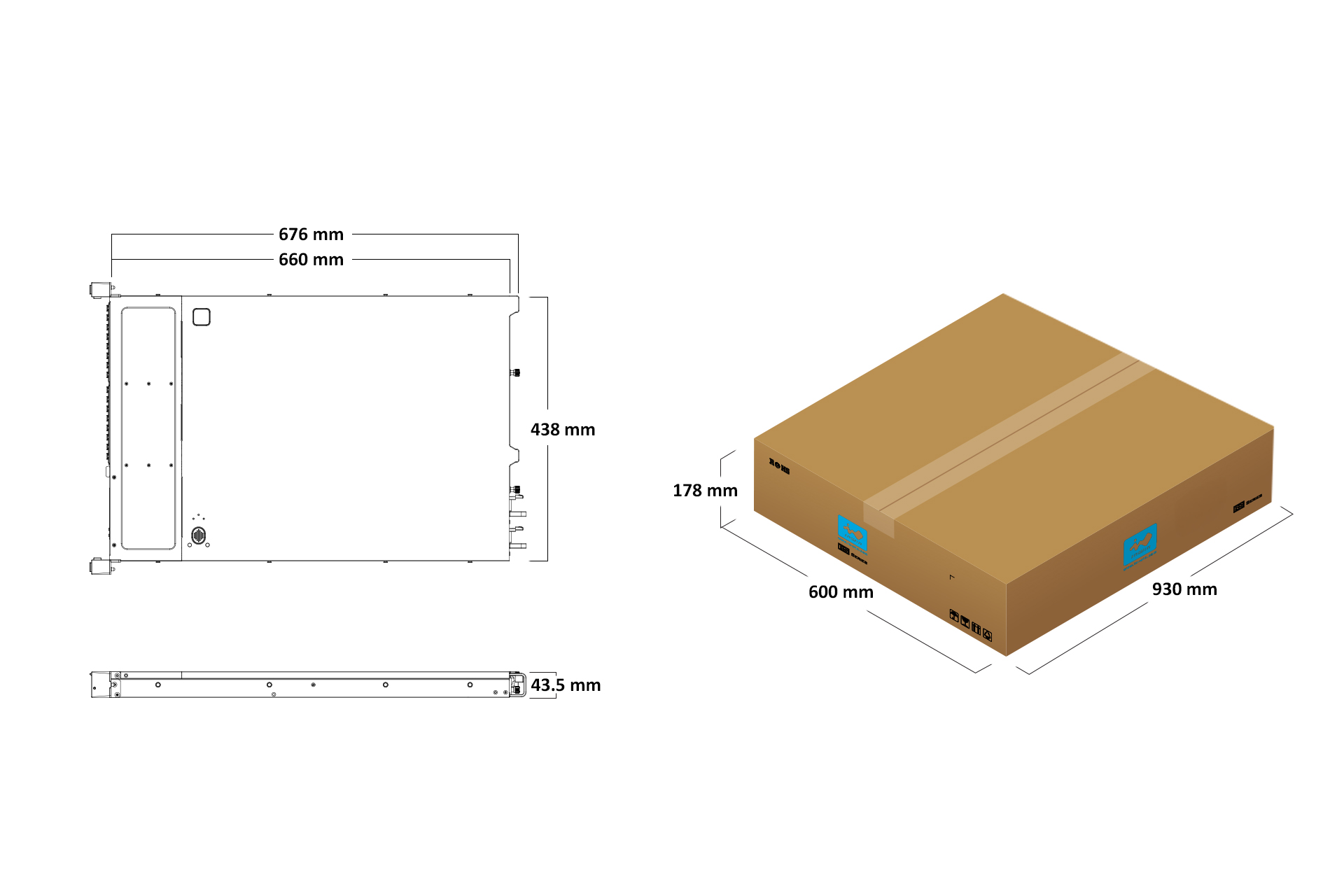

| Product Dimensions (DxWxH; Chassis Only) | 676 x 438 x 43.5mm (26.6"x17.2"x1.7") |
| Package Dimensions (DxWxH) | 930 x 600 x 178 mm (35.4”x23.6”x7”) |
| Weight (Chassis Only) | • Net weight: 9.17 kg • Gross weight: 11.96 kg |
| Cubic Feet | 3.51 |
| Container Information | Single packing with pallets: • 20’: 200pcs • 40’: 420pcs • 40'HQ: 462pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RS116-E1 Gallery
zipIW-RS116-E1 Compatibility List
pdfIW-RS116-E1 User Manual
pdfIW-RS116-E1 PCIe Gen5 Backplane User Manual
pdfOptional Items
Slide Rail

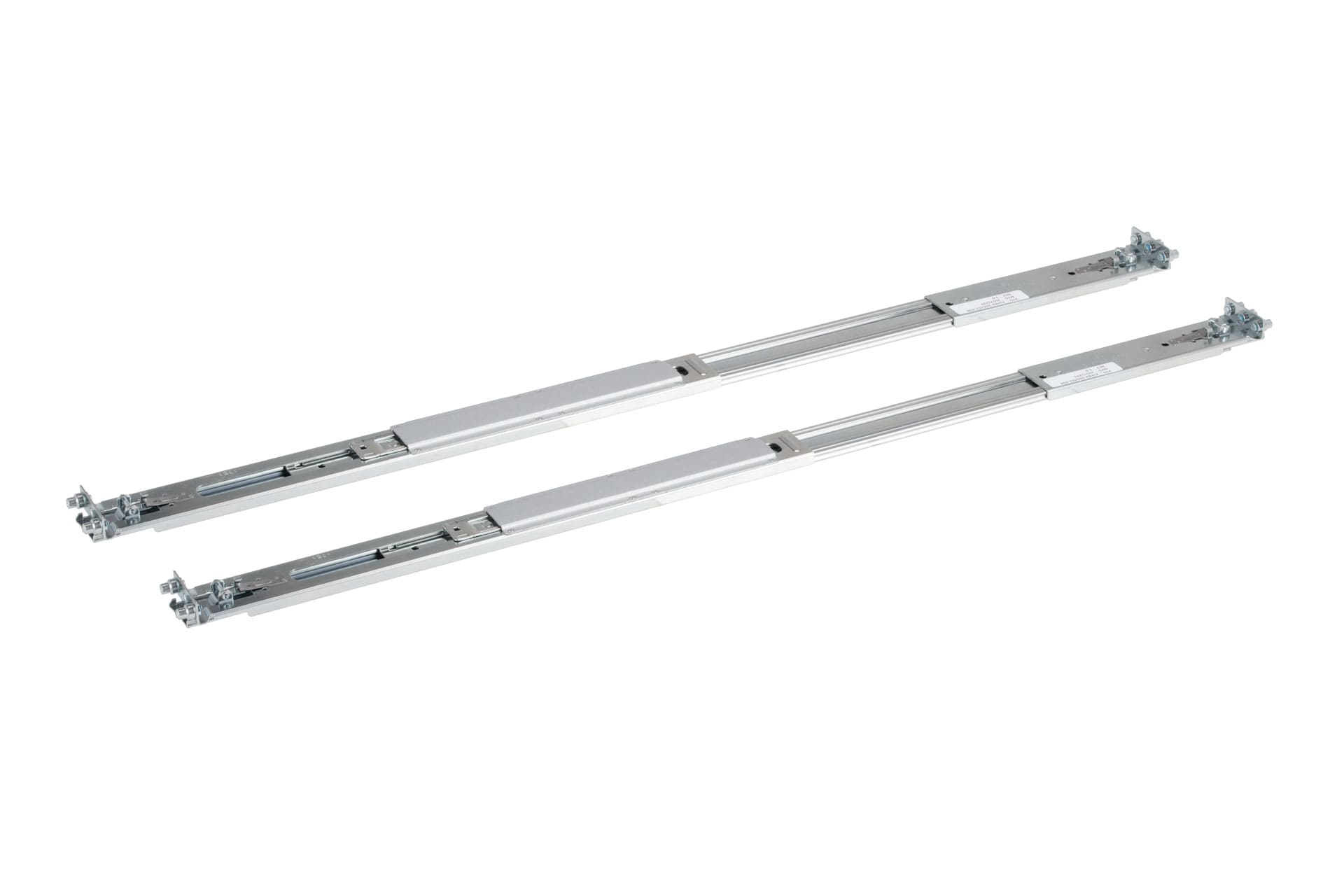

3RAMIS148100
28" tool-less & ball-bearing slide rail
Support: 1 Set
Slide Rail

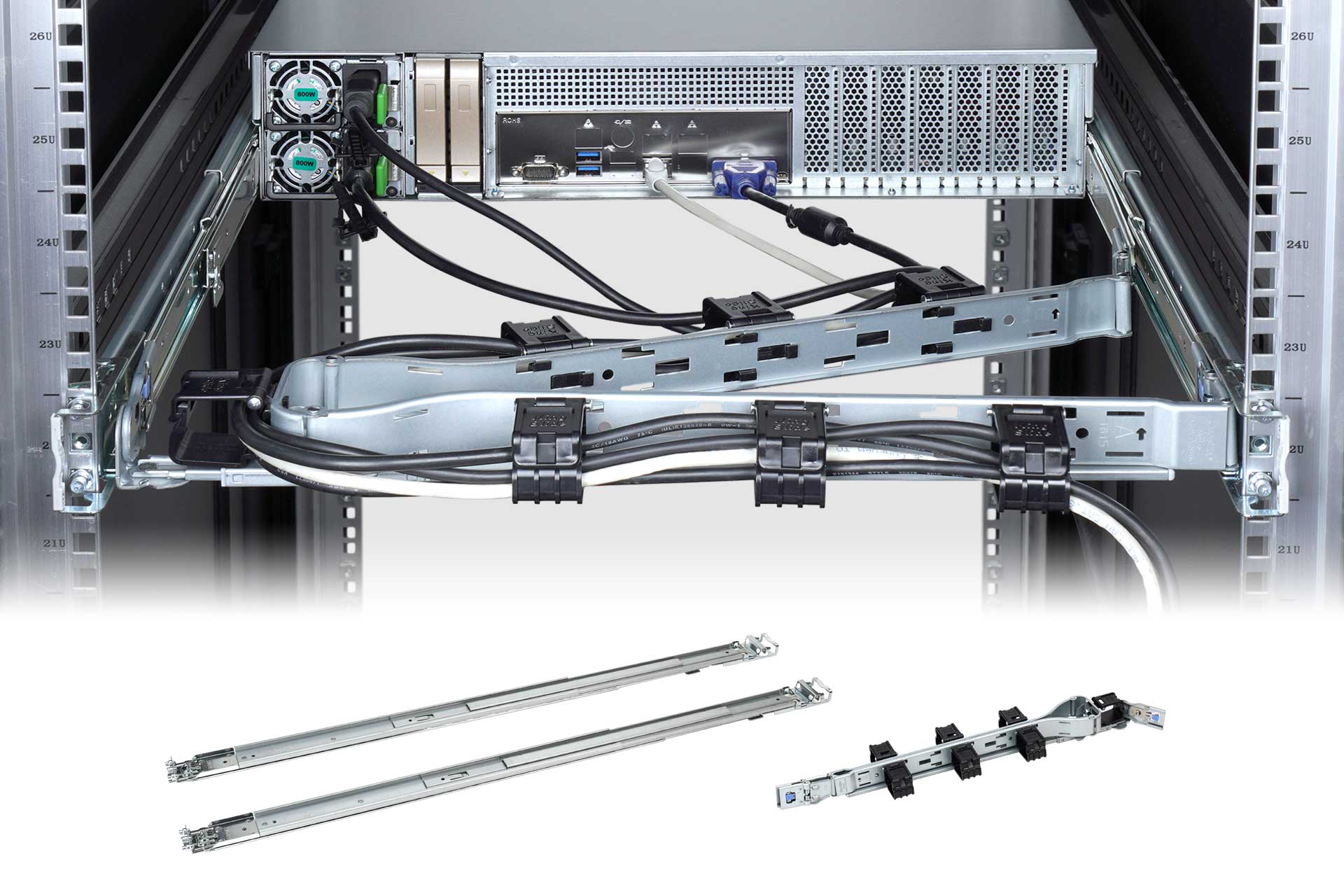

3RAMIS152300/ 3RAMIS152400
28" tool-less & ball-bearing slide rail with CMA support
Support: 1 Set
Cable
3RAMW6006300

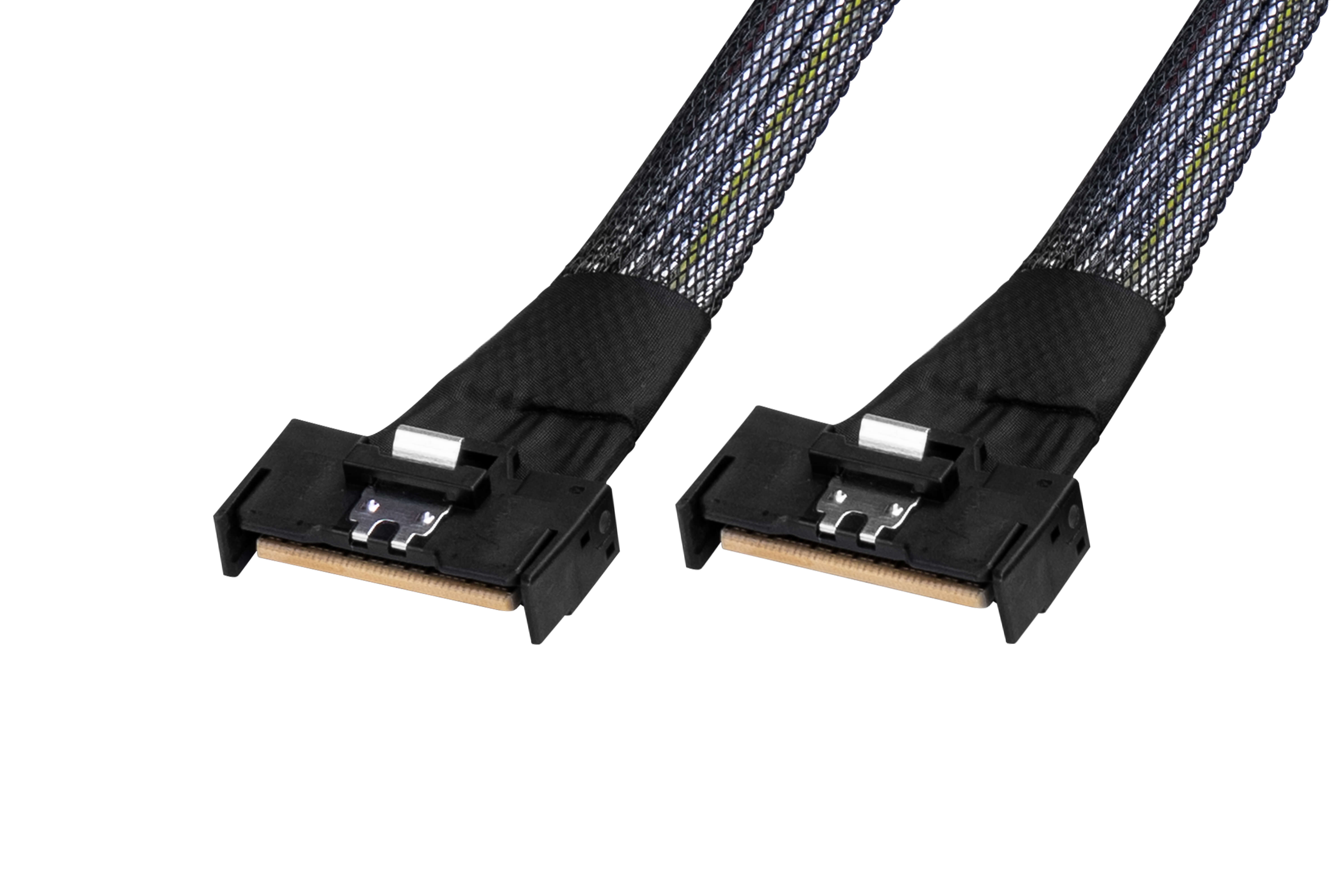

MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 400 mm
Support: Max. 8
Cable
3RAMW6006200
MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 550 mm
Support: Max. 8
Power Supply

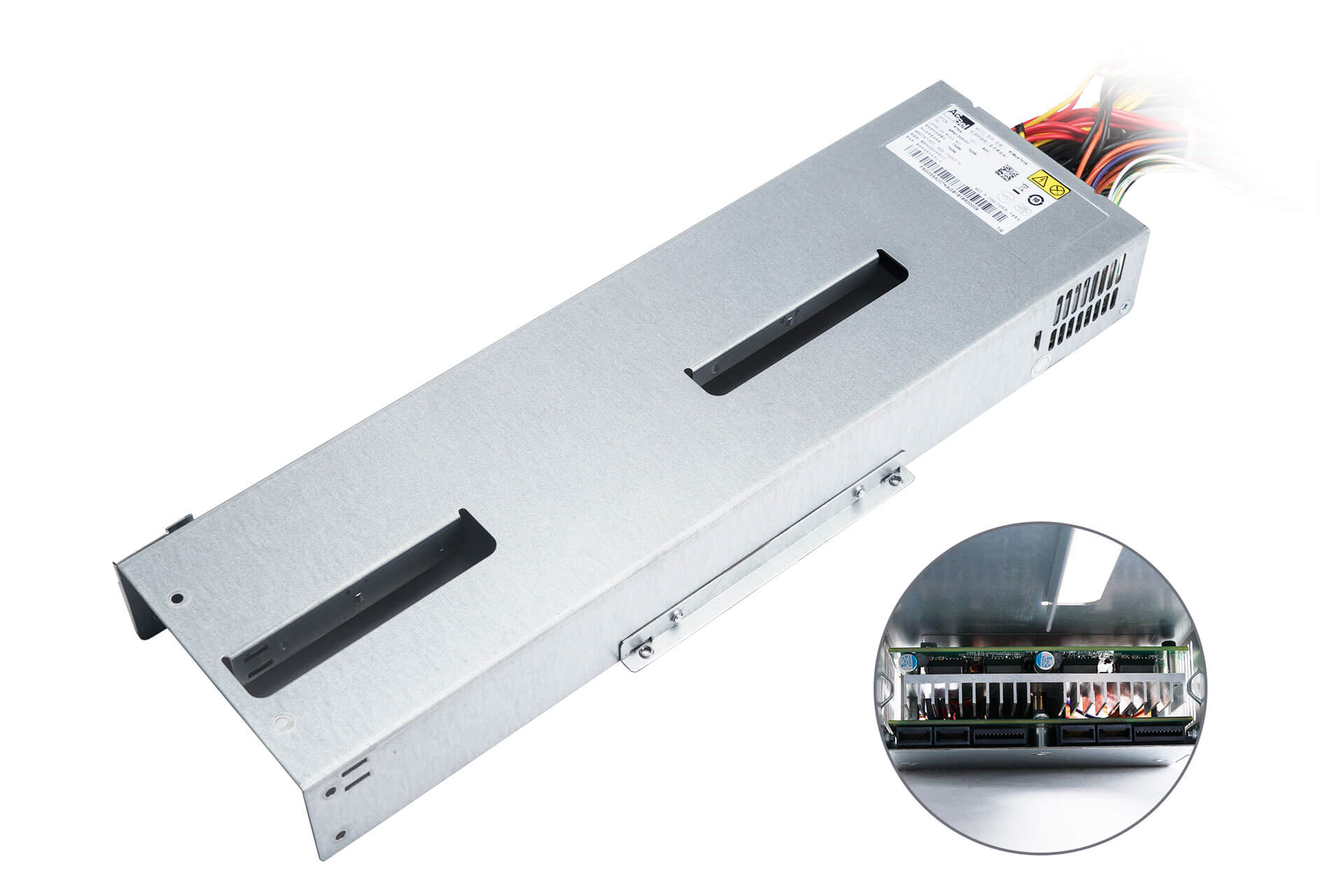

3RAMAP048600
750W 1U redundant PDB power cage
Support: 1
Power Supply
3RAMAP042200

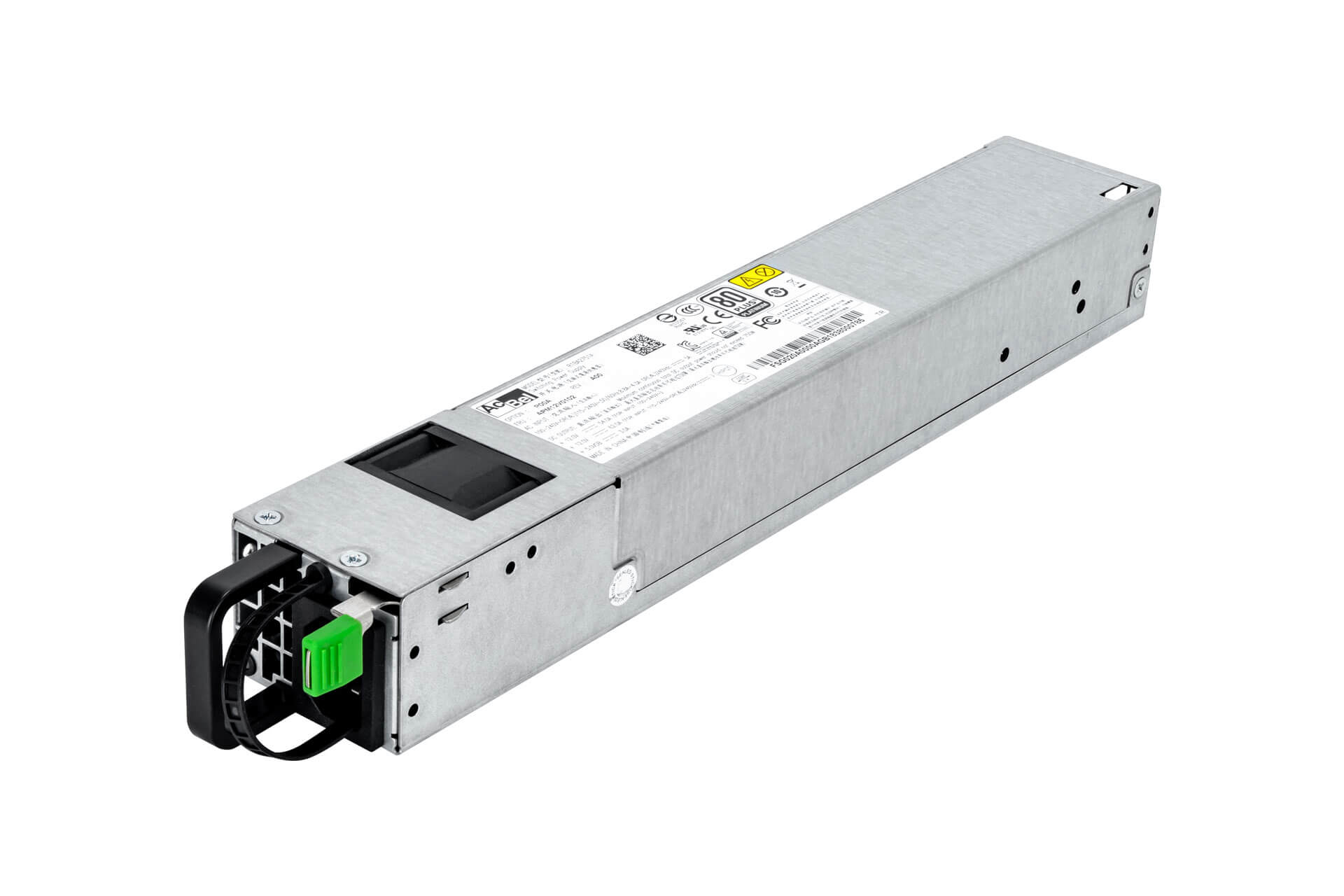

750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified
Support: Max. 2
Fan

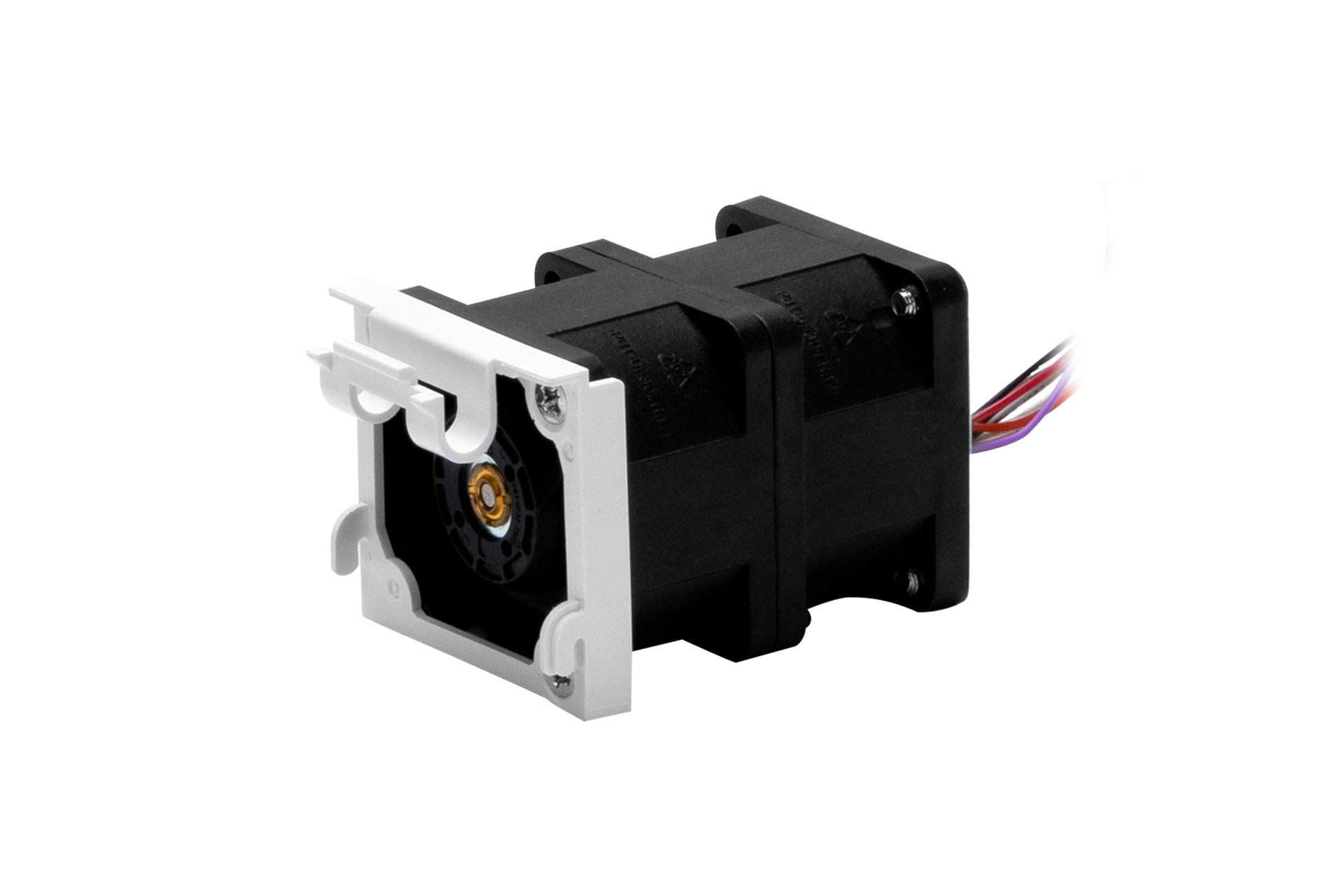

2RAKFB020600
40 x 56mm PWM fan & fan bracket, 6pin, 33000 RPM, PCIe Gen5 solution
Support: Max. 6
Riser Card
2RAKPD079901

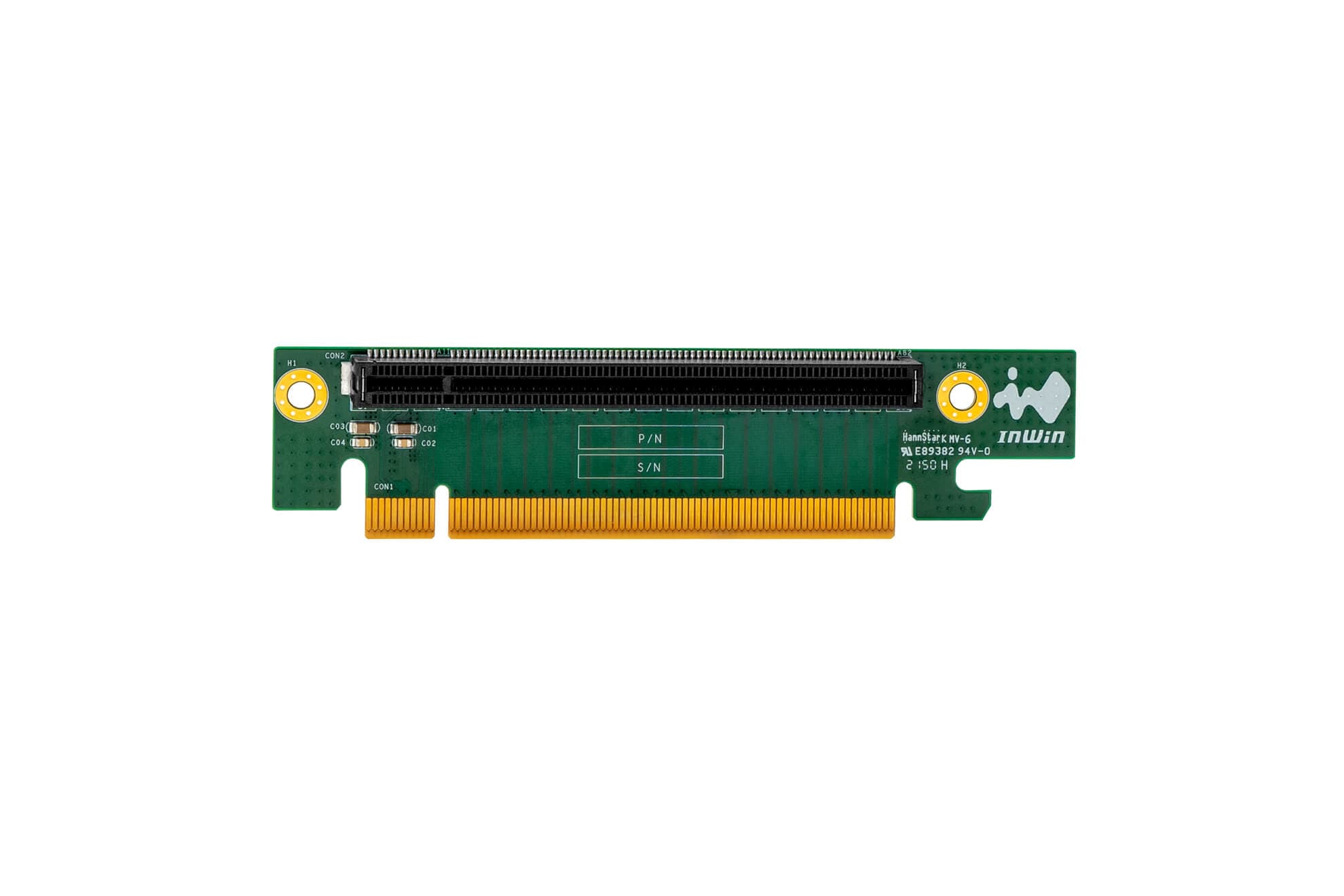

PCIe Gen4 x16 lanes riser card (left-facing 90-degree design)
Support: 1
Riser Card
2RAKPD087800

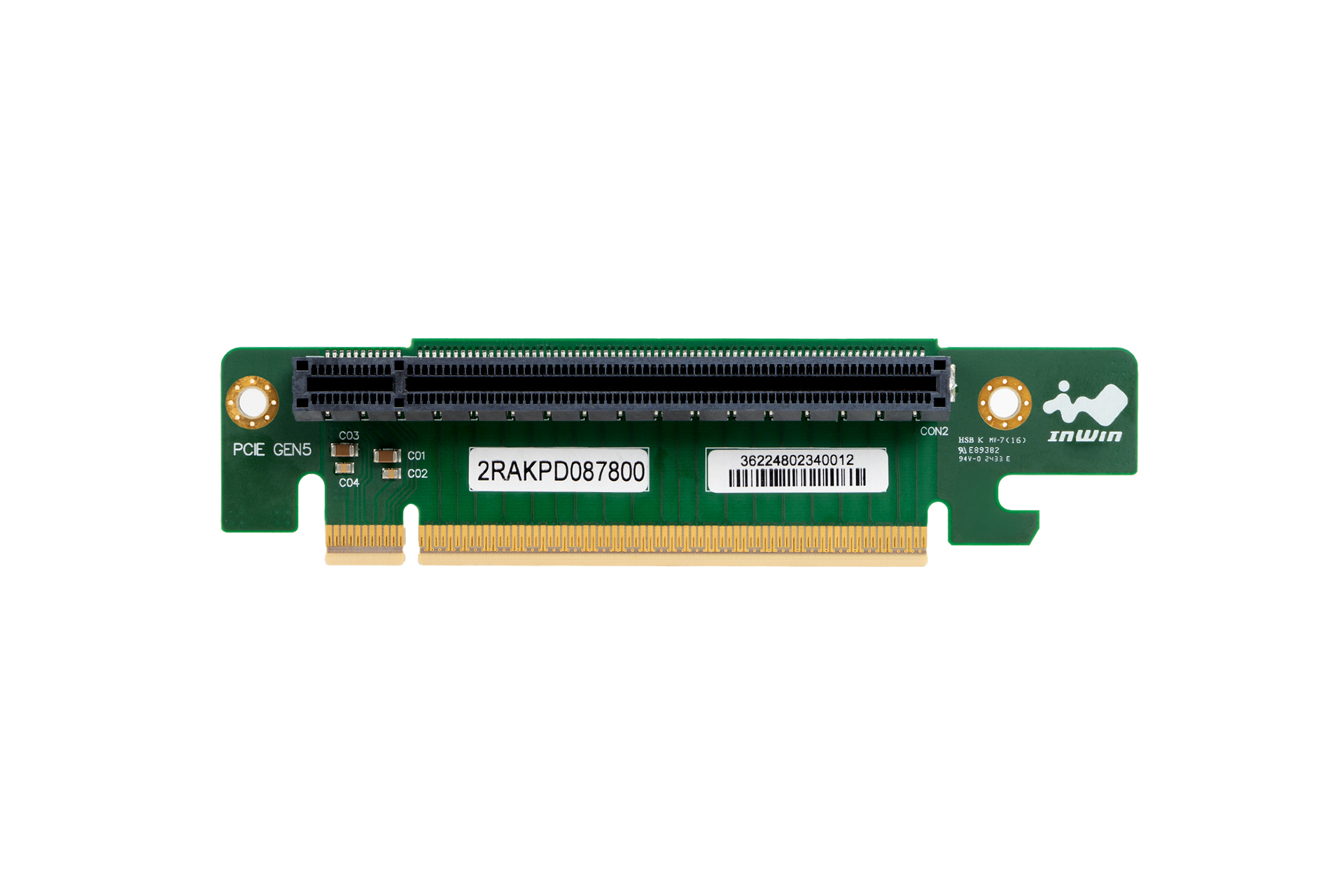

PCIe Gen5 x16 lanes riser card (left-facing 90-degree design)
Support: 1
Others
2RAKIP026500

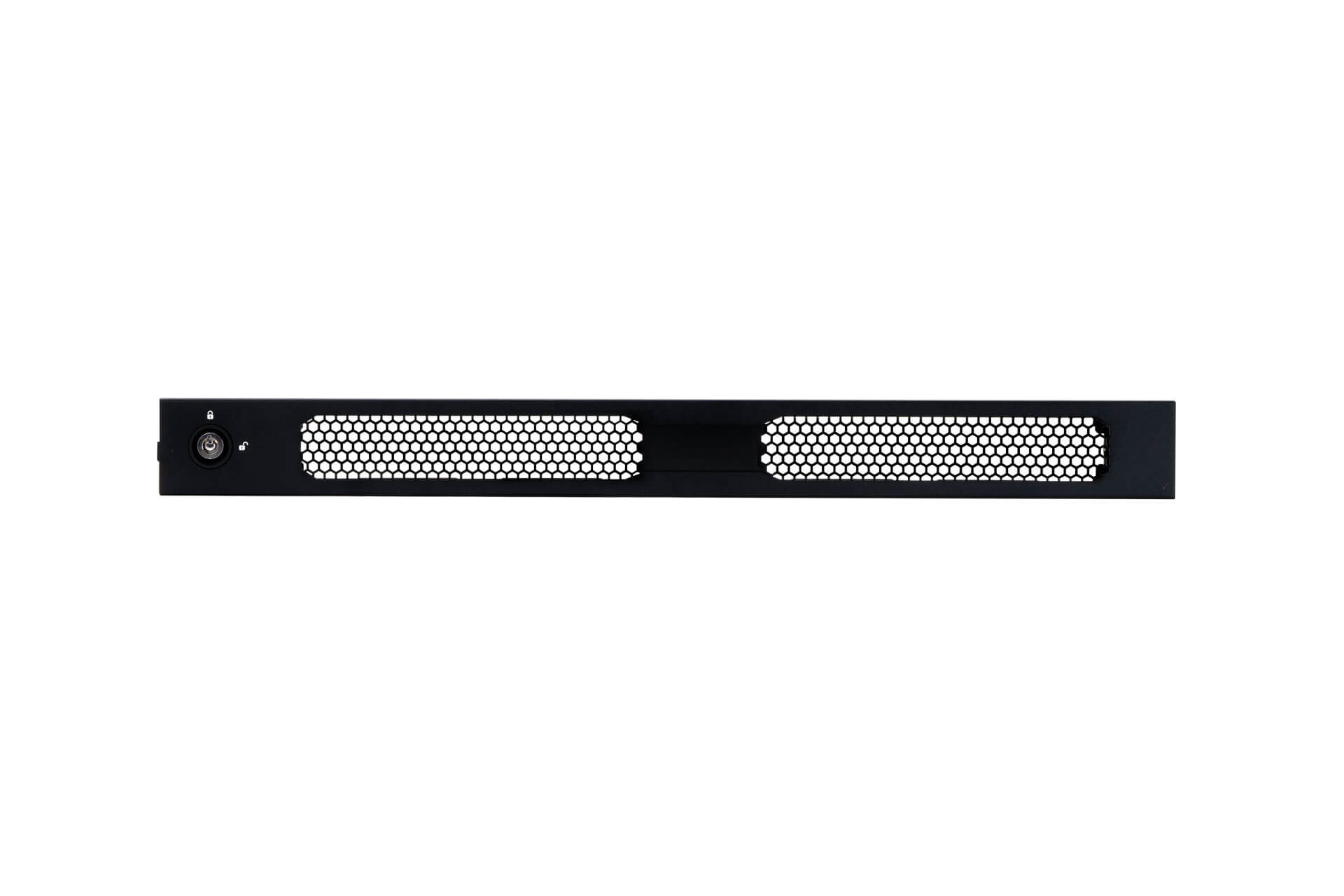

Mesh front panel
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 Set | |
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 Set | |
| Cable | 3RAMW6006300 | MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 400 mm | Max. 8 | |
| Cable | 3RAMW6006200 | MCIO (SFF-TA-1016) 8i to MCIO (SFF-TA-1016) 8i Cable, 550 mm | Max. 8 | |
| Power Supply | 3RAMAP048600 | 750W 1U redundant PDB power cage | 1 | |
| Power Supply | 3RAMAP042200 | 750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified | Max. 2 | |
| Fan | 2RAKFB020600 | 40 x 56mm PWM fan & fan bracket, 6pin, 33000 RPM, PCIe Gen5 solution | Max. 6 | |
| Riser Card | 2RAKPD079901 | PCIe Gen4 x16 lanes riser card (left-facing 90-degree design) | 1 | |
| Riser Card | 2RAKPD087800 | PCIe Gen5 x16 lanes riser card (left-facing 90-degree design) | 1 | |
| Others | 2RAKIP026500 | Mesh front panel | 1 | |
