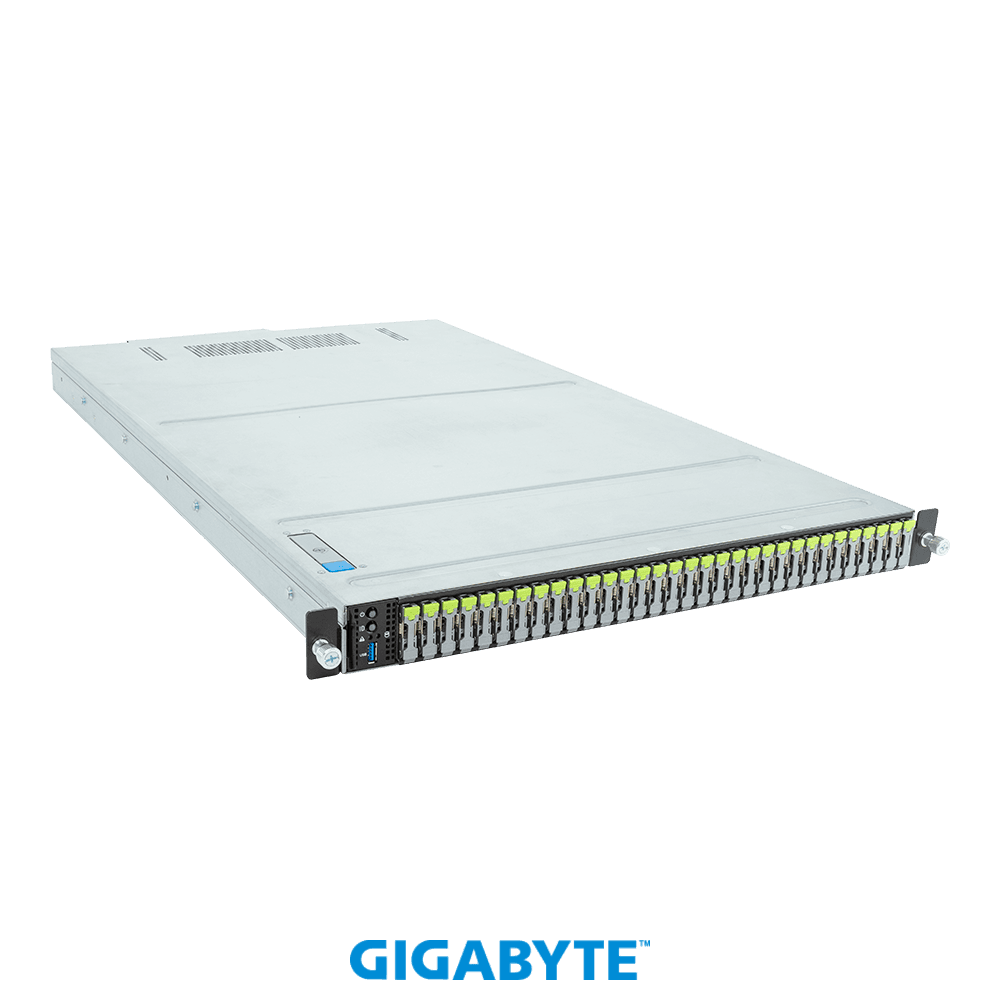

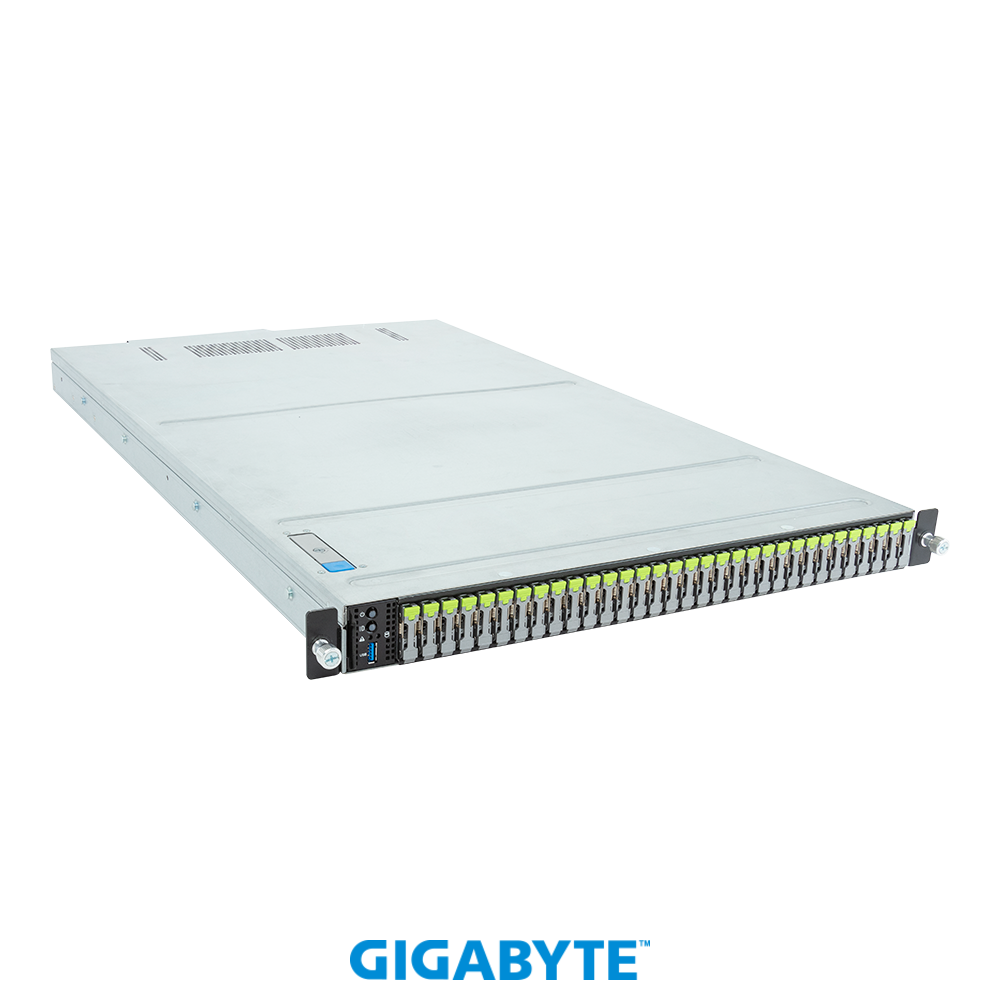

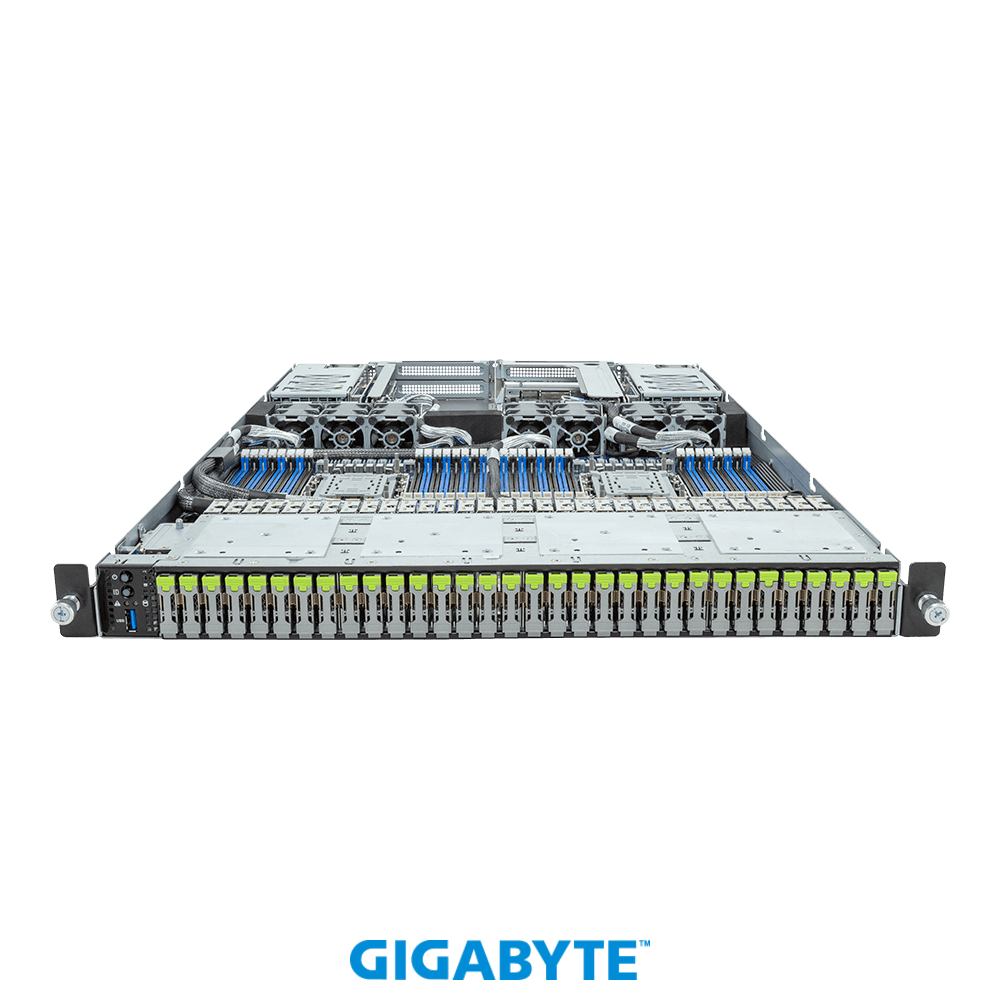

GIGABYTE S183-SH0-AAV1

Серверная платформа S183-SH0-AAV1

Серверная платформа GIGABYTE S183-SH0-AAV1. Storage Server - 5th/4th Gen Intel® Xeon® Scalable - 1U DP 32-Bay E1.S NVMe 1600 W

Форм-фактор

1U Rackmount

Процессоры

Память

32 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Сеть

Rear (G-SCM board - CDCR112): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN

серверная платформа GIGABYTE S183-SH0-AAV1

Compute And Memory

Вычислительная платформа и память

5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350 W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.. 32 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

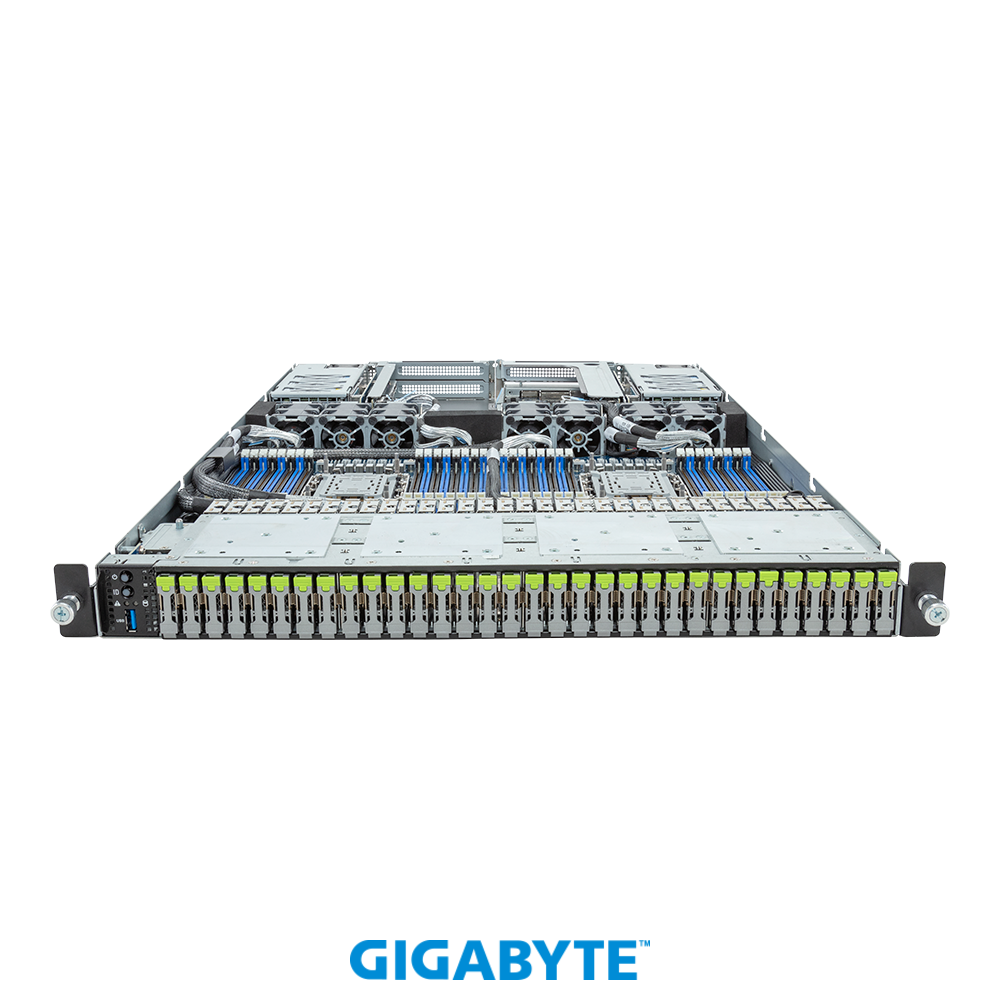

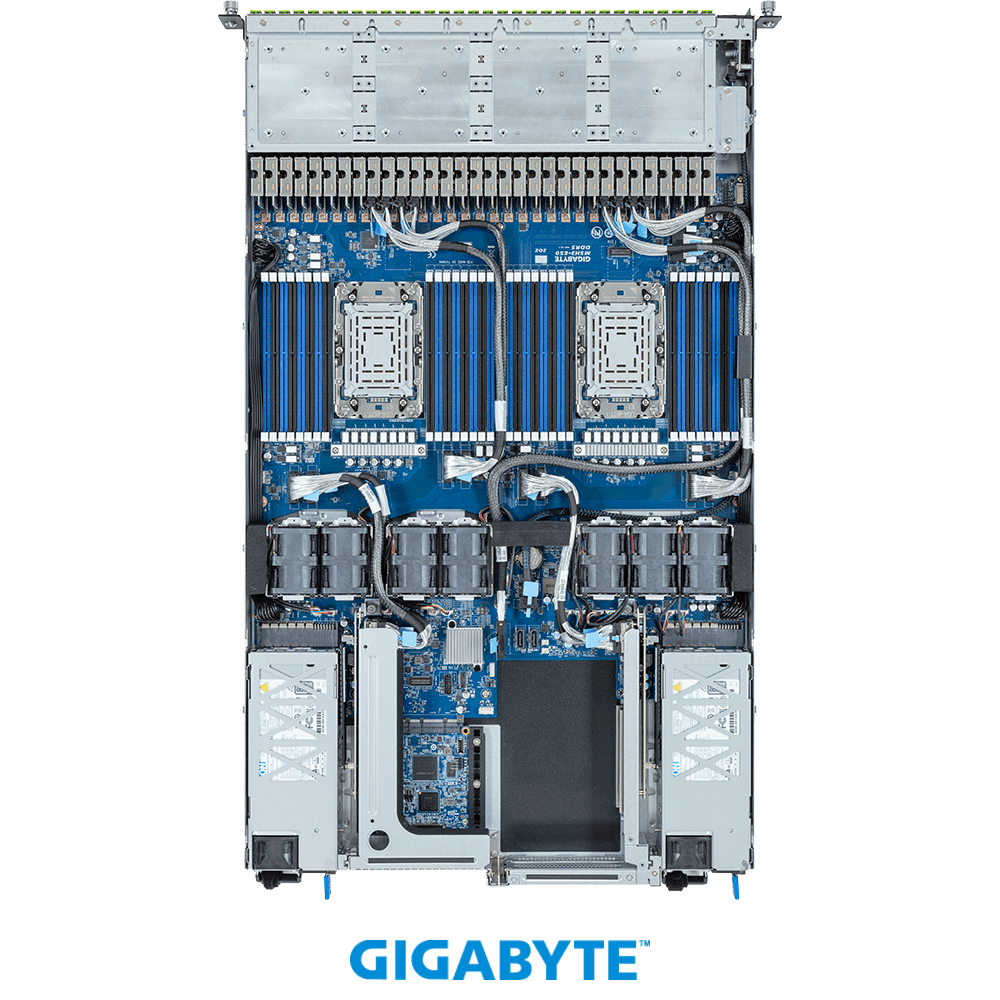

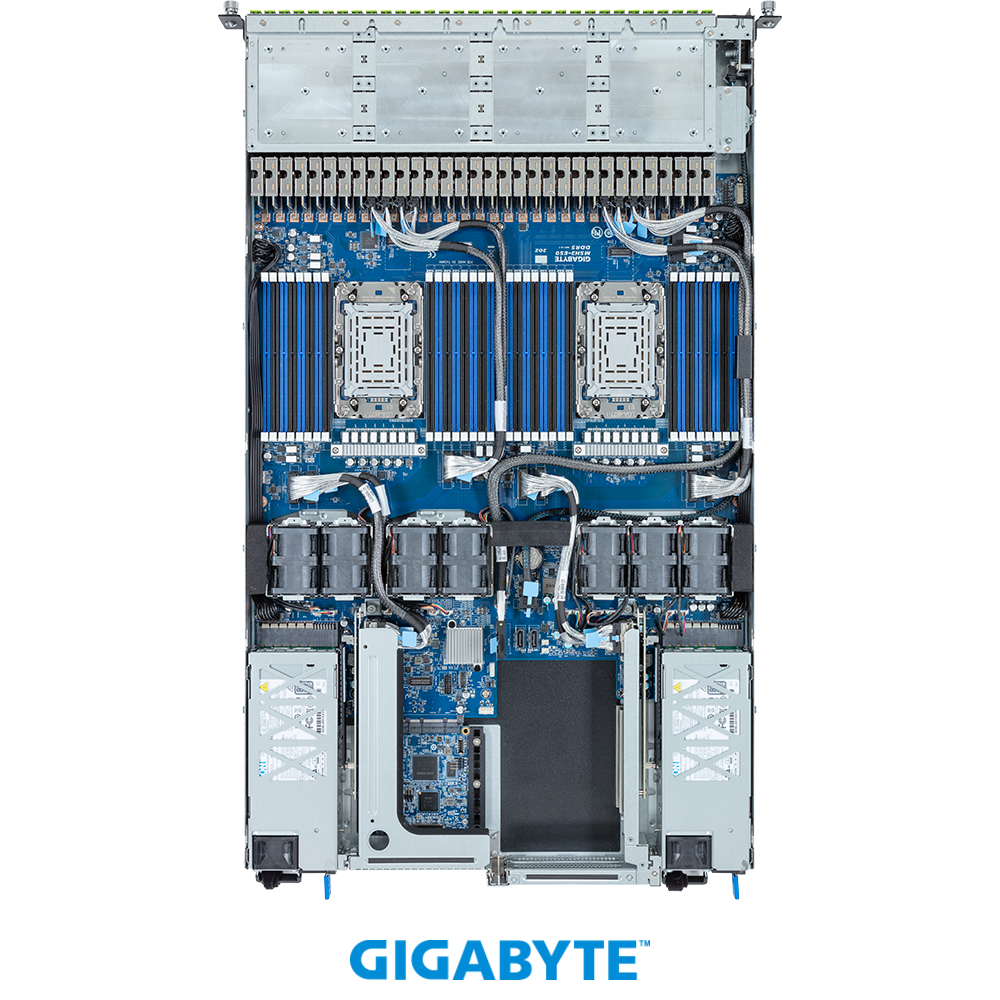

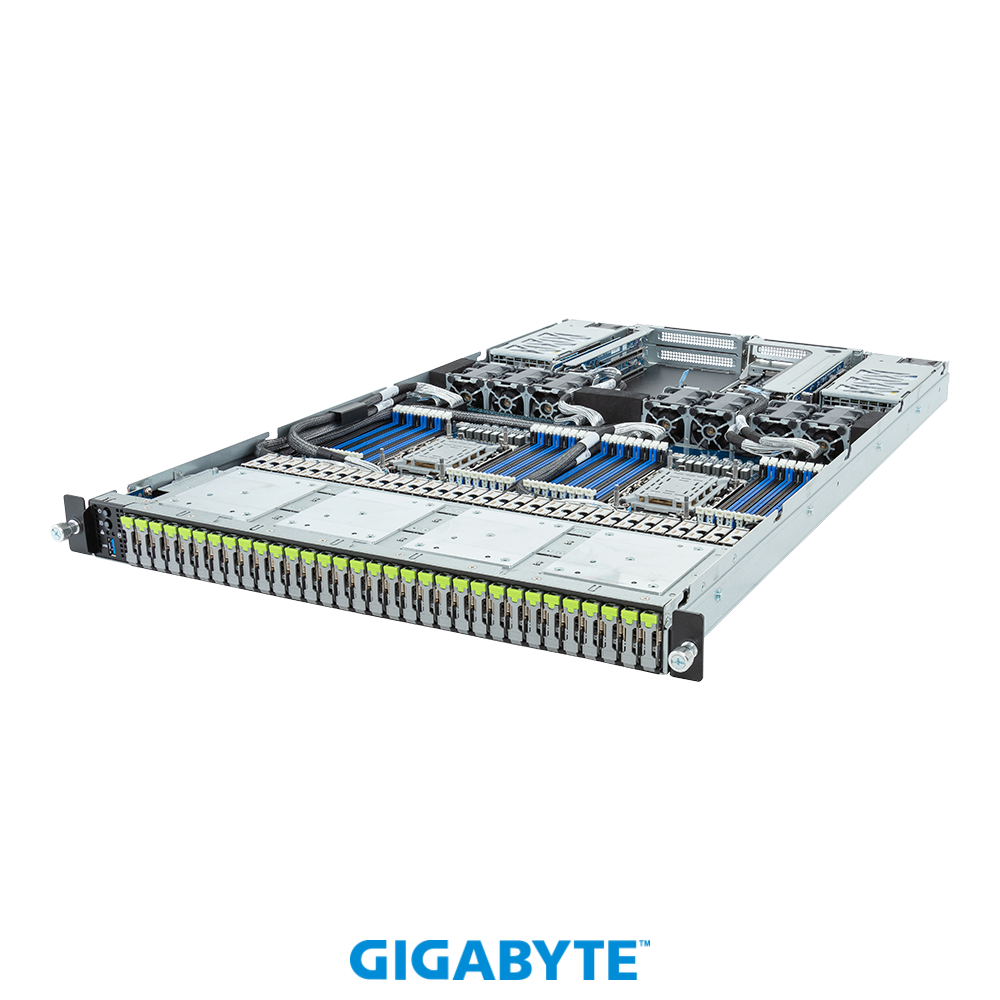

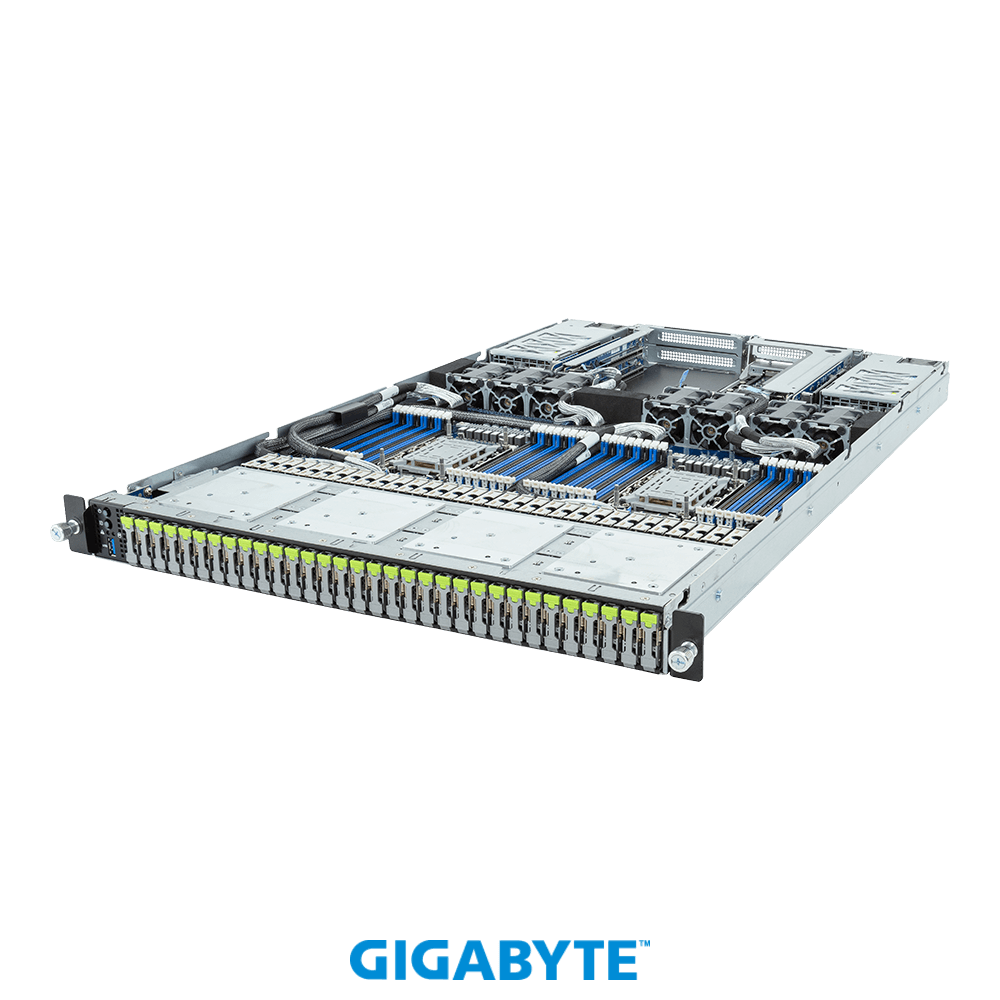

Внутренняя компоновка GIGABYTE S183-SH0-AAV1

GPU And Expansion

Ускорители и слоты расширения

Riser Card CRSD013: - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRSD022: - 1 x FHHL x16 (Gen5 x16 or x8), from CPU_0 - 1 x FHHL x16 (Gen5 x0 or x8), from CPU_0

Слоты GPU и расширения GIGABYTE S183-SH0-AAV1

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 32 x 9.5 mm E1.S NVMe - (16 x NVMe from CPU_0, 16 x NVMe from CPU_1) Internal M.2 (CMTP0C0): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH Internal M.2 (CMTP0C1): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH. Rear (G-SCM board - CDCR112): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN. Dual 1600 W 80 PLUS Titanium redundant power supply AC Input: - 100-240V~/ 12-9.5A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 9.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12Vsb/ 3A - Max 1600W/ 200-240V~ or 240Vdc Input +12.2V/ 131.2A +12Vsb/ 3A

Накопители и задняя панель GIGABYTE S183-SH0-AAV1

Product Details

Детали конструкции

Характеристики

SAS	N/A
RAID	Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology RAID Card models: SR-1000-FD32, SR-1010-FD32 Support RAID 0/1/5/6/10
Вес	Net Weight: 22 kg Gross Weight: 24.1 kg
Сеть	Rear (G-SCM board - CDCR112): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN
Видео	Integrated in ASPEED® AST2600 - 1 x Mini-DP
Сокет	2 x LGA 4677 Socket E
Память	32 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Чипсет	Intel® C741
Накопители	Front hot-swap: 32 x 9.5 mm E1.S NVMe - (16 x NVMe from CPU_0, 16 x NVMe from CPU_1) Internal M.2 (CMTP0C0): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH Internal M.2 (CMTP0C1): 1 x M.2 (2280/22110), PCIe Gen3 x4 or SATA, from PCH
Процессоры	5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350 W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Форм-фактор	1U Rackmount
Блоки питания	Dual 1600 W 80 PLUS Titanium redundant power supply AC Input: - 100-240V~/ 12-9.5A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 9.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12Vsb/ 3A - Max 1600W/ 200-240V~ or 240Vdc Input +12.2V/ 131.2A +12Vsb/ 3A

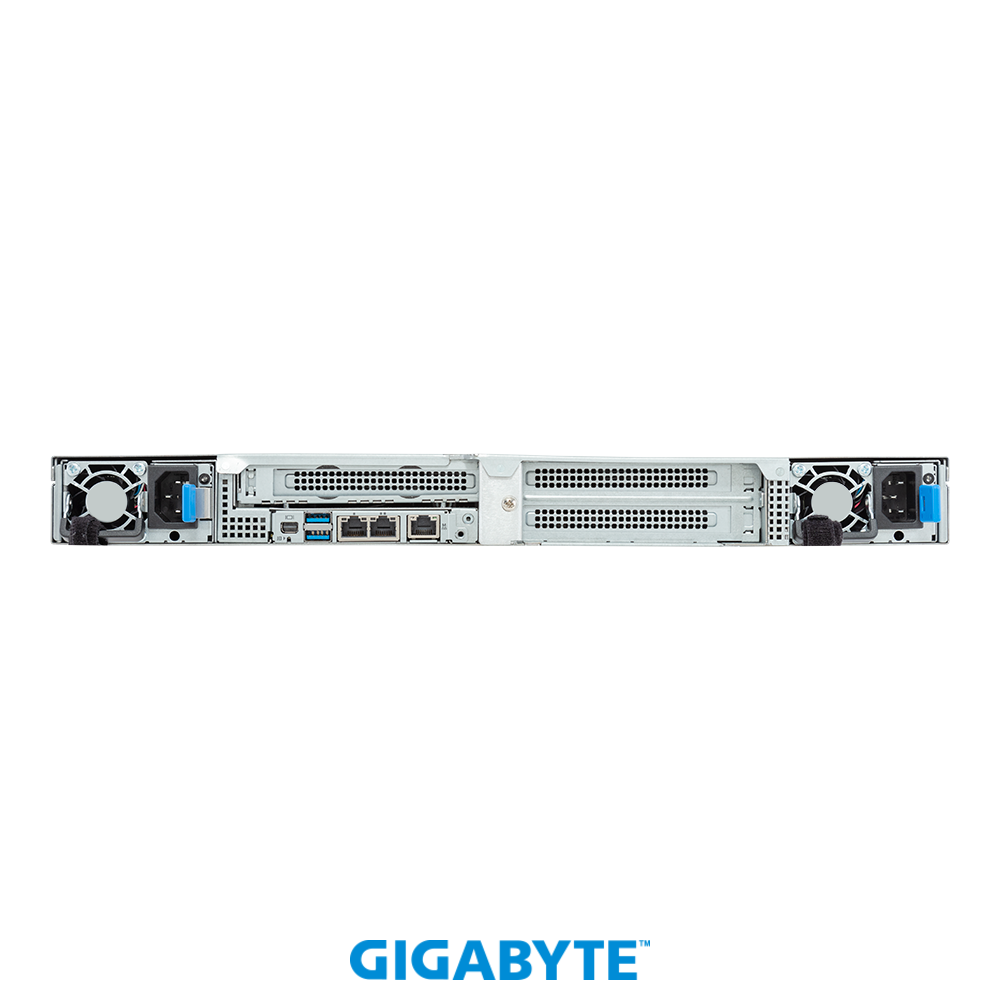

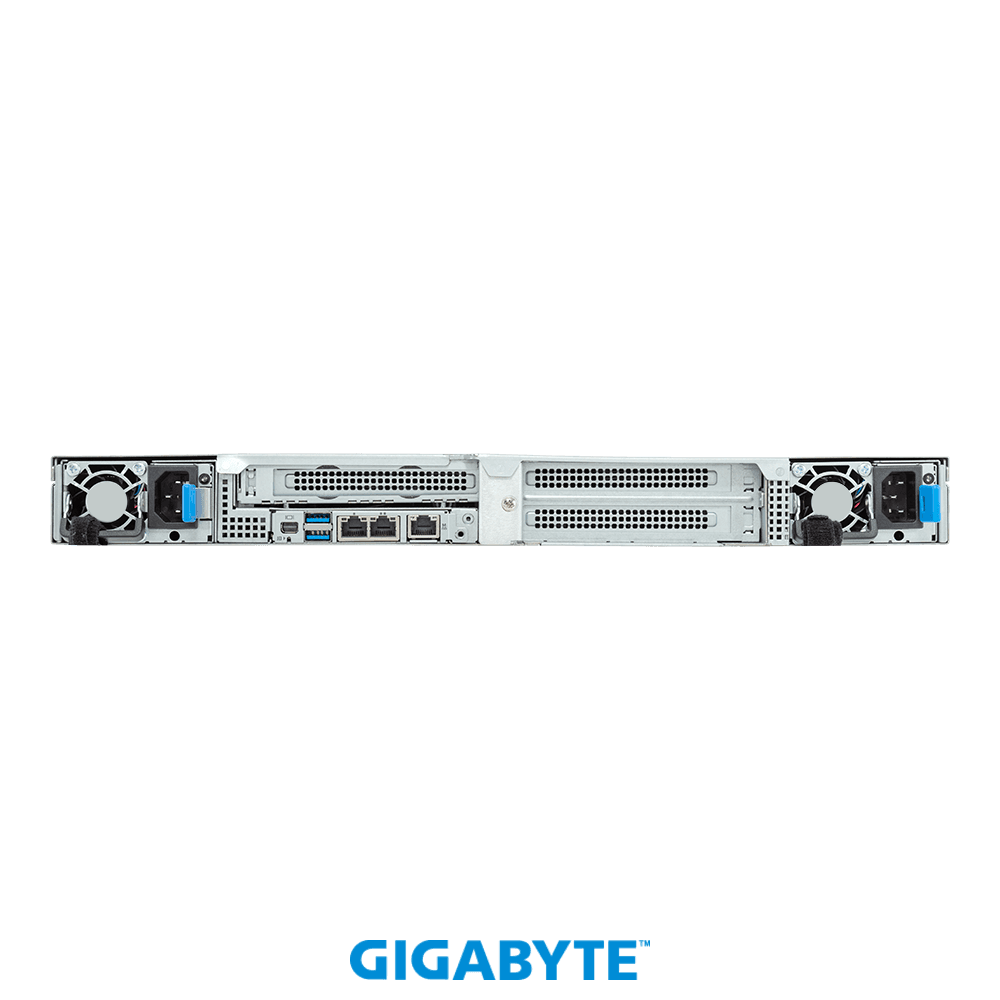

Задняя панель	G-SCM board - CDCR112: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED
Передняя панель	1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Storage activity LED 1 x System status LED
Плата бэкплейна	N/A
Сертификация ОС	Windows Server 2022
Габариты упаковки	990 x 594 x 264 mm
Комплект поставки	1 x S183-SH0-AAV1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit
Материнская плата	MSH3-ES0
Слоты расширения PCIe	Riser Card CRSD013: - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRSD022: - 1 x FHHL x16 (Gen5 x16 or x8), from CPU_0 - 1 x FHHL x16 (Gen5 x0 or x8), from CPU_0
Габариты (Ш x В x Г), мм	1U 438 x 43.5 x 730
Модули безопасности	1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM010
Системное управление	ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Условия эксплуатации	Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	7 x 40x40x56mm
Артикулы компонентов и опций	Barebone package (5th/4th Gen): 6NS183SH0DR000ABV1* Barebone package (4th Gen): 6NS183SH0DR000AAV1* Motherboard: 9MSH3ES0UR-000* 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R CPU heatsink: 25ST1-4Z3200-S7R M.2 heatsink: 12SP2-11000E-00R Front panel board - CFPD040: 9CFPD040NR-00* Fan module: 25ST2-40562H-A0R M.2 expansion card - CMTP0C0: 9CMTP0C0NR-00* M.2 expansion card - CMTP0C1: 9CMTP0C1NR-00* Riser card - CRSD013: 9CRSD013NR-00* Riser card - CRSD022: 9CRSD022NR-00* EDSFF bridge board - CBG060: 9CBG60NR-00* EDSFF bridge board - CBG061: 9CBG61NR-00* G-SCM board - CDCR112: 9CDCR112NR-00* Mini-DP to D-Sub cable: 25CRN-200801-K1R Power supply: 25EP0-21600E-L0S Дополнительные опции: RAID card (SR-1000-FD32): 25FC1-SRBUN0-AFS RAID card (SR-1010-FD32): 25FC1-SRBUN4-AFR 3-Section Rail kit (CMA supported): 25HB2-AA6105-K0R Cable Management Arm: 25HBZ-R18100-K0R RMA packaging: 6NS183SH0SR-RMA-A100 Состав, артикулы компонентов и доступность опций могут различаться в зависимости от исполнения сервера. Точную конфигурацию уточняйте при заказе.

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
