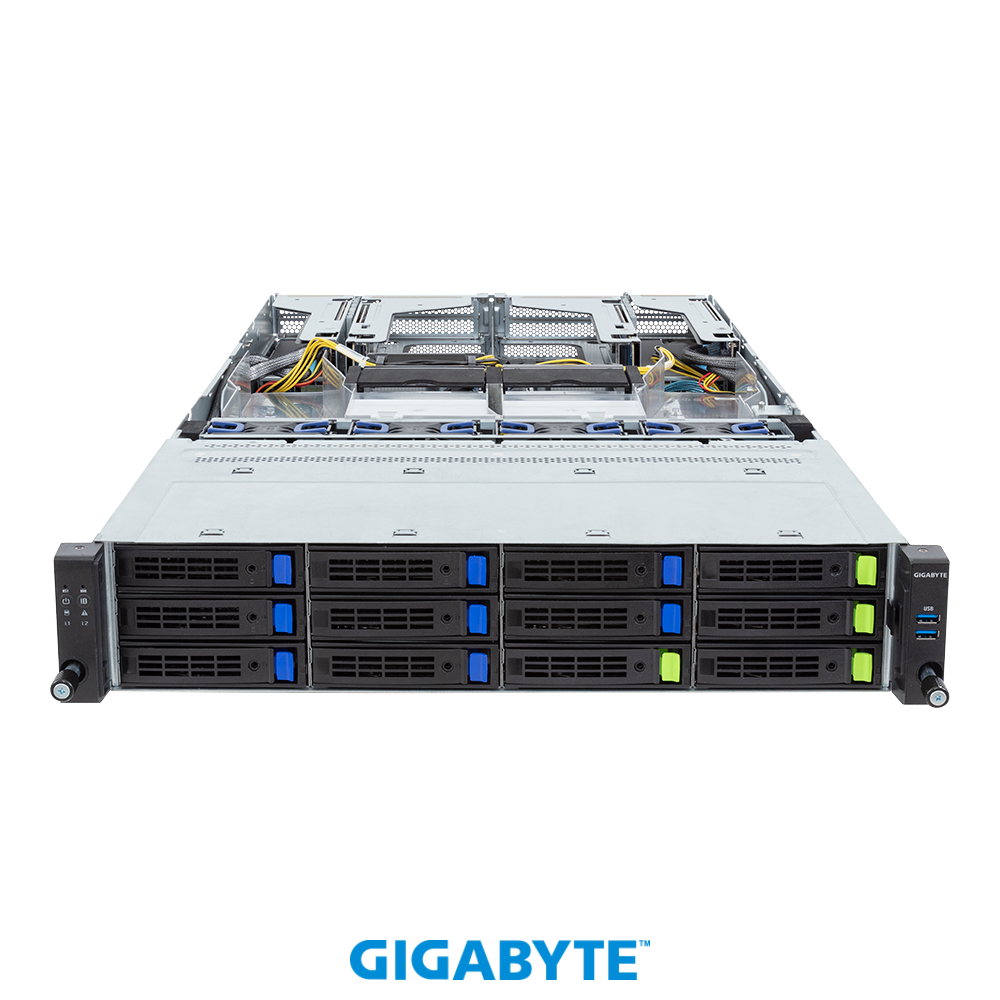

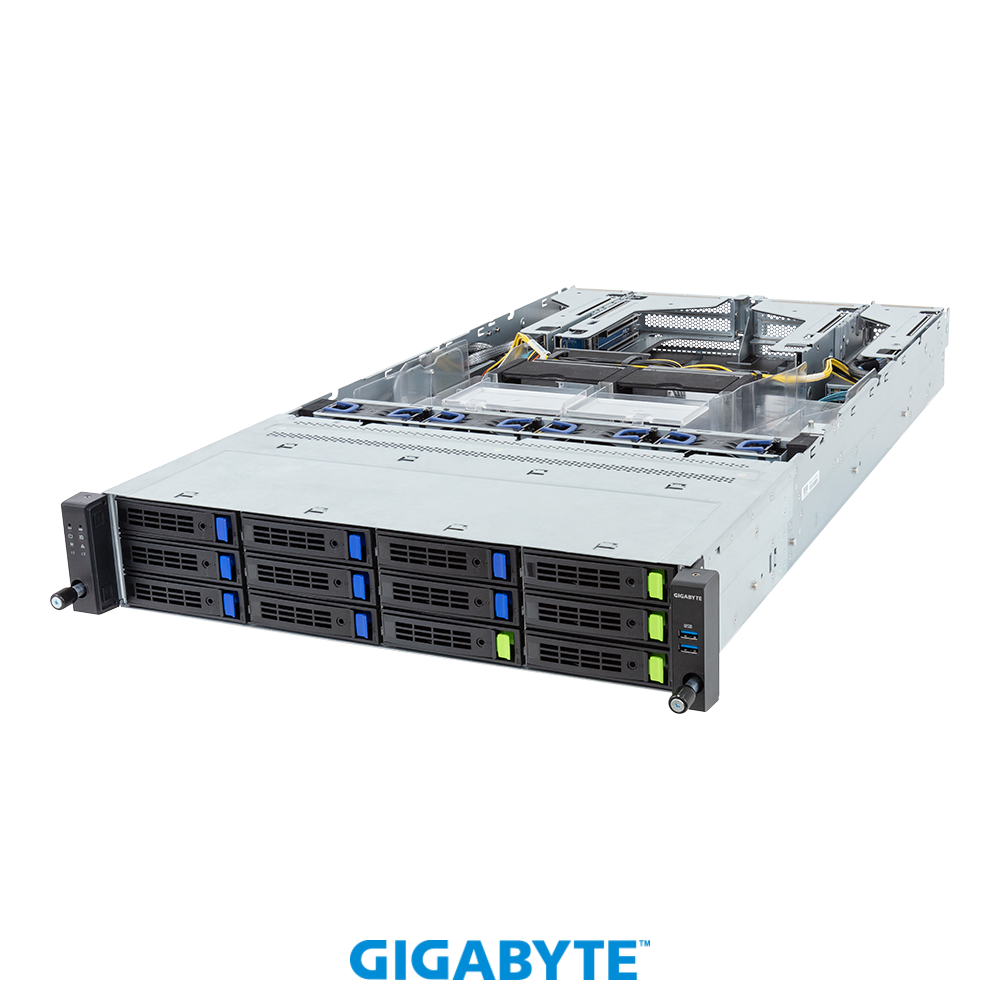

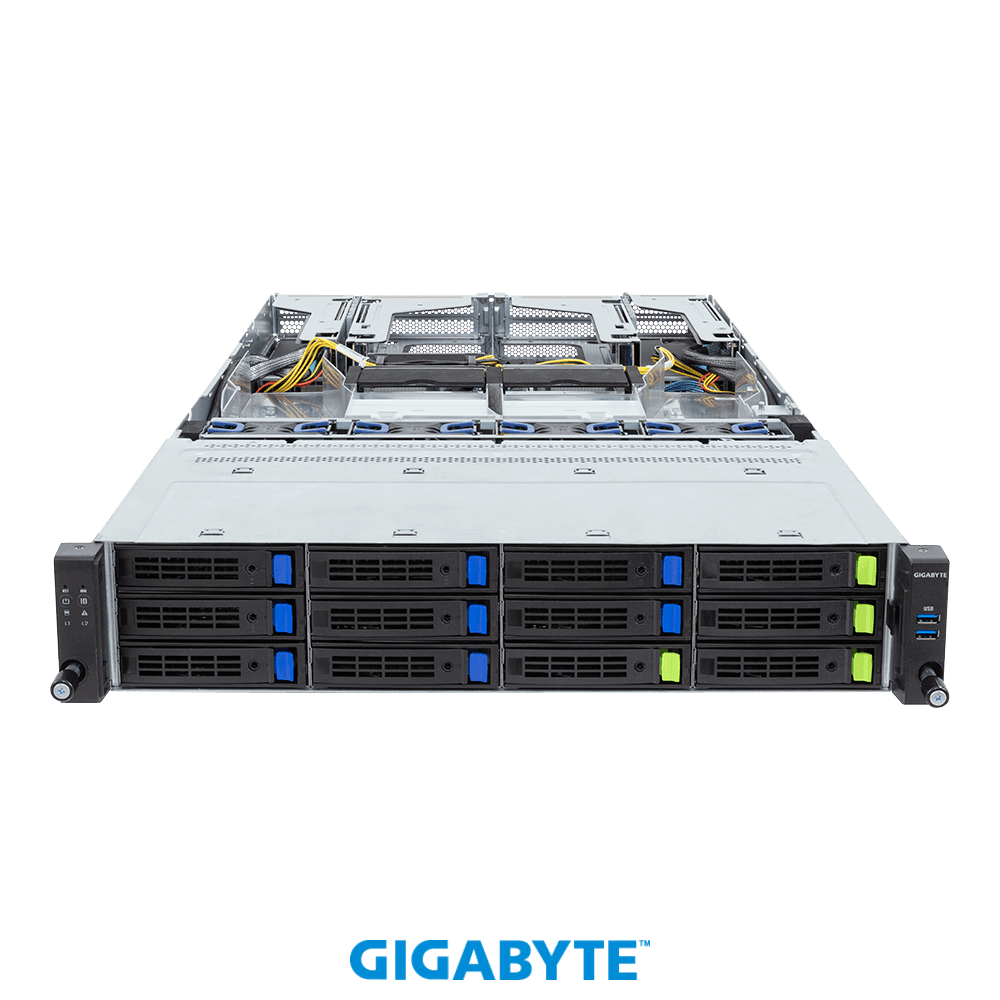

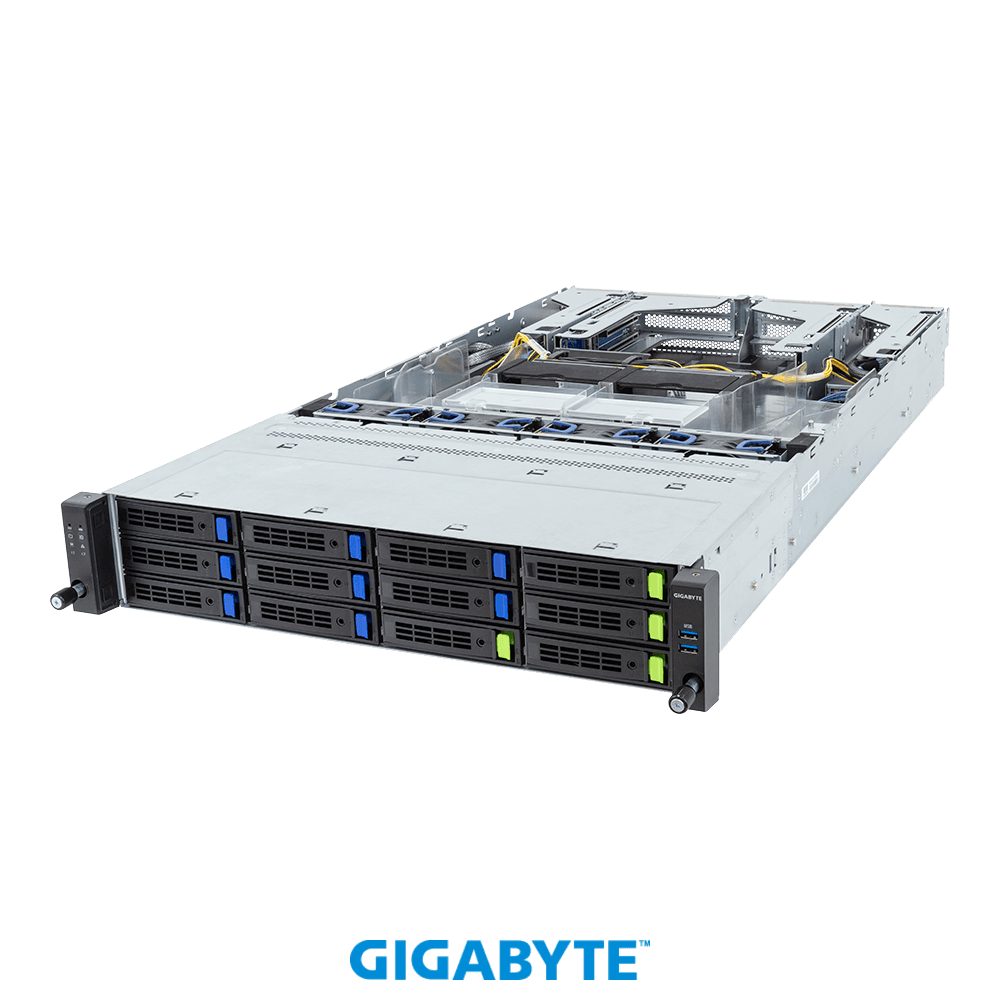

GIGABYTE R283-S93-AAF1
Артикул: R283-S93-AAF1
Другие исполнения
Варианты исполнения R283-S93
GIGABYTE R283-S93-AAF1
Серверная платформа R283-S93-AAF1
Серверная платформа GIGABYTE R283-S93-AAF1. Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 2 x PCIe Gen5 GPUs 2400 W
Форм-фактор
2U Rackmount
Процессоры
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP 350 W at ambient 25°C [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Память
32 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
Compute And Memory
Вычислительная платформа и память
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP 350 W at ambient 25°C [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.. 32 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
GPU And Expansion
Ускорители и слоты расширения
Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS202E x 2: - 2 x LP x16 (Gen5 x8), from CPU_0 - 2 x LP x16 (Gen5 x8), from CPU_1 Riser Card CRS202G: - 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs Riser Card CRS202H: - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function
Storage And Infrastructure
Накопители, сеть и питание
Front hot-swap: 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1] 8 x 3.5"/2.5" SATA/SAS [1] - (NVMe from CPU_1) [1] SAS card is required to support SAS drives.. Rear (G-SCM board - CDCR112): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN. Dual 2400 W 80 PLUS Platinum redundant power supply [1] AC Input: - 100-127V~/ 12.5A, 47-63Hz - 180-200V~/ 14.5A, 47-63Hz - 200-240V~/ 14.5A, 47-63Hz DC Input: (Only for China) - 240Vdc/ 12A DC Output: - Max 1000W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2200W/ 180-200V~ +12V/ 180A +12Vsb/ 3A - Max 2400W/ 200-240V~ or 240Vdc Input +12V/ 197A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Product Details
Детали конструкции
Характеристики
| SAS | Require SAS add-in cards |
|---|---|
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header |
| Вес | Net Weight: 30.32 kg Gross Weight: 35.32 kg |
| Сеть | Rear (G-SCM board - CDCR112): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mb/s Management LAN |
| Видео | Integrated in ASPEED® AST2600 - 1 x Mini-DP |
| Сокет | 2 x LGA 4677 Socket E |
| Память | 32 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information. |
| Чипсет | Intel® C741 |
| Накопители | Front hot-swap: 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1] 8 x 3.5"/2.5" SATA/SAS [1] - (NVMe from CPU_1) [1] SAS card is required to support SAS drives. |
| Процессоры | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP 350 W at ambient 25°C [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Форм-фактор | 2U Rackmount |
| Блоки питания | Dual 2400 W 80 PLUS Platinum redundant power supply [1] AC Input: - 100-127V~/ 12.5A, 47-63Hz - 180-200V~/ 14.5A, 47-63Hz - 200-240V~/ 14.5A, 47-63Hz DC Input: (Only for China) - 240Vdc/ 12A DC Output: - Max 1000W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2200W/ 180-200V~ +12V/ 180A +12Vsb/ 3A - Max 2400W/ 200-240V~ or 240Vdc Input +12V/ 197A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |

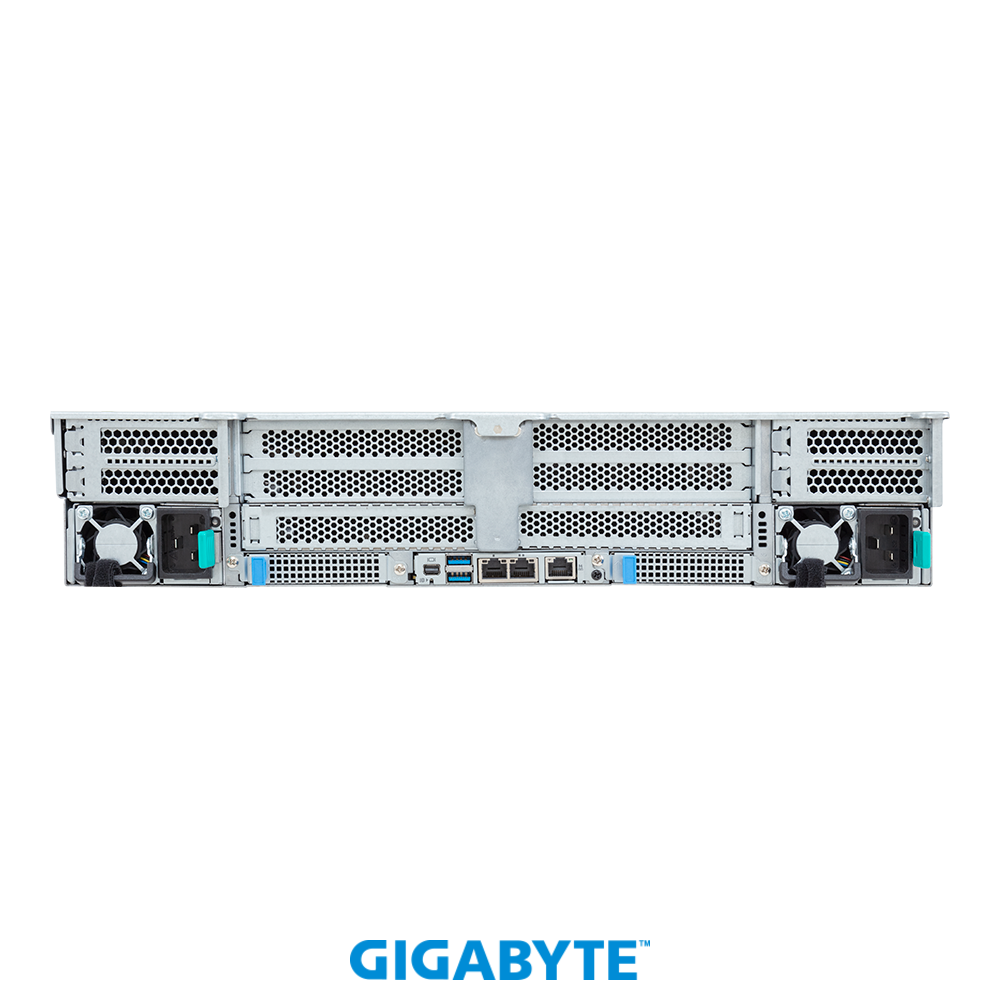

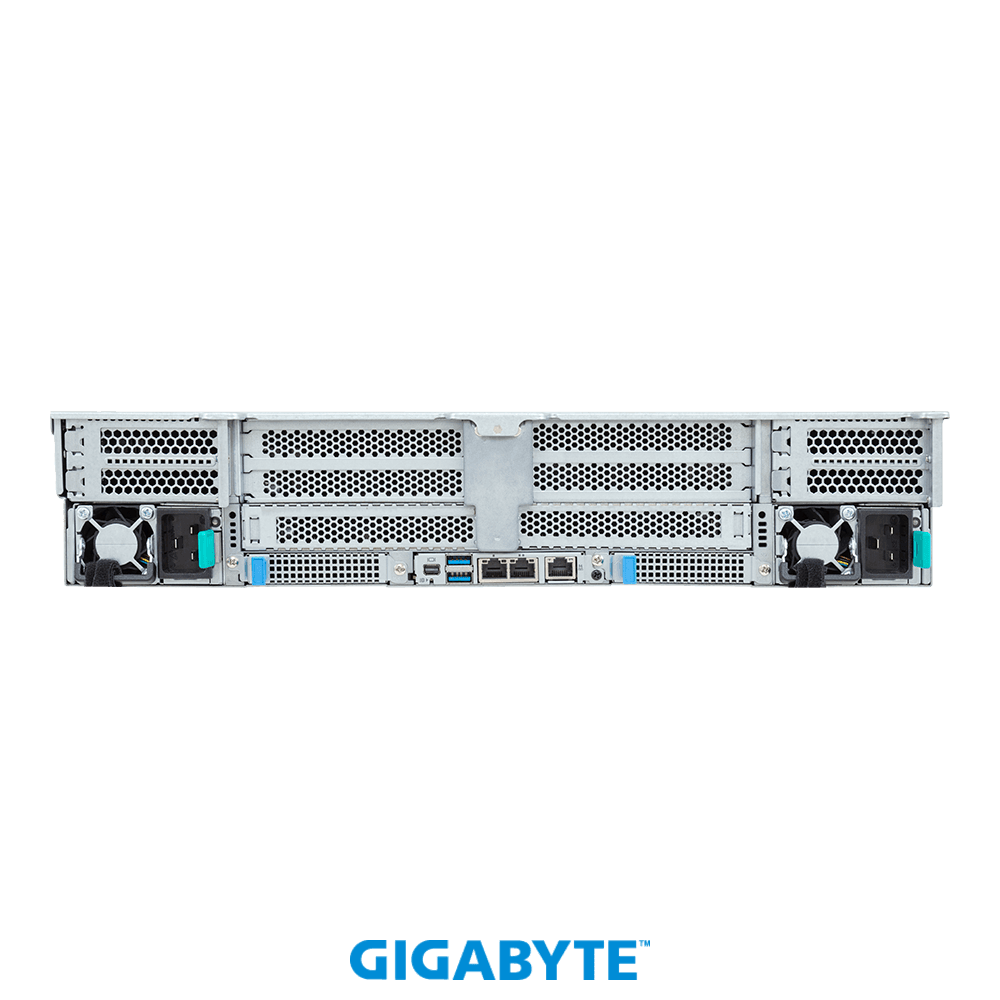

| Задняя панель | G-SCM board - CDCR112: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Передняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Плата бэкплейна | Speed and bandwidth: PCIe Gen4 x4 or SATA 6 Gb/s or SAS 12 Gb/s |
| Сертификация ОС | SUSE Linux Enterprise Server 15 SP4Windows Server 2022Windows Server 2025 |
| Габариты упаковки | 1082 x 685 x 314 mm |
| Комплект поставки | 1 x R283-S93-AAF1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 2 x GPU power cables (CPU 8pin, 350mm) 6 x Carriers 1 x 2-Section Rail kit |
| Материнская плата | MS93-FS0 |
| Номера исполнения | - Barebone package (5th/4th Gen): 6NR283S93DR000ABF1* - Barebone package (4th Gen): 6NR283S93DR000AAF1* - Motherboard: 9AS93FS0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20C5: 9CBP20C5NR-00* - Fan module: 25ST2-88382T-S1R - Riser card - CRS101J: 9CRS101JNR-00* - Riser card - CRS101K: 9CRS101KNR-00* - Riser card - CRS202E: 9CRS202ENR-00* - Riser card - CRS202G: 9CRS202GNR-00* - Riser card - CRS202H: 9CRS202HNR-00* - G-SCM board- CDCR112: 9CDCR112NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R - Power supply: 25EP0-224000-D0S Optional parts: - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R - RMA packaging: 6NR283S93SR-RMA-A100 |
| Слоты расширения PCIe | Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS202E x 2: - 2 x LP x16 (Gen5 x8), from CPU_0 - 2 x LP x16 (Gen5 x8), from CPU_1 Riser Card CRS202G: - 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs Riser Card CRS202H: - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function |
| Габариты (Ш x В x Г), мм | 2U 438 x 87.5 x 815 |
| Модули безопасности | 1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM010 |
| Системное управление | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| Условия эксплуатации | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Системные вентиляторы | 4 x 80x80x38mm |
Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
