GIGABYTE R283-S92-AAE1
Артикул: R283-S92-AAE1
Другие исполнения
Варианты исполнения R283-S92
GIGABYTE R283-S92-AAE1

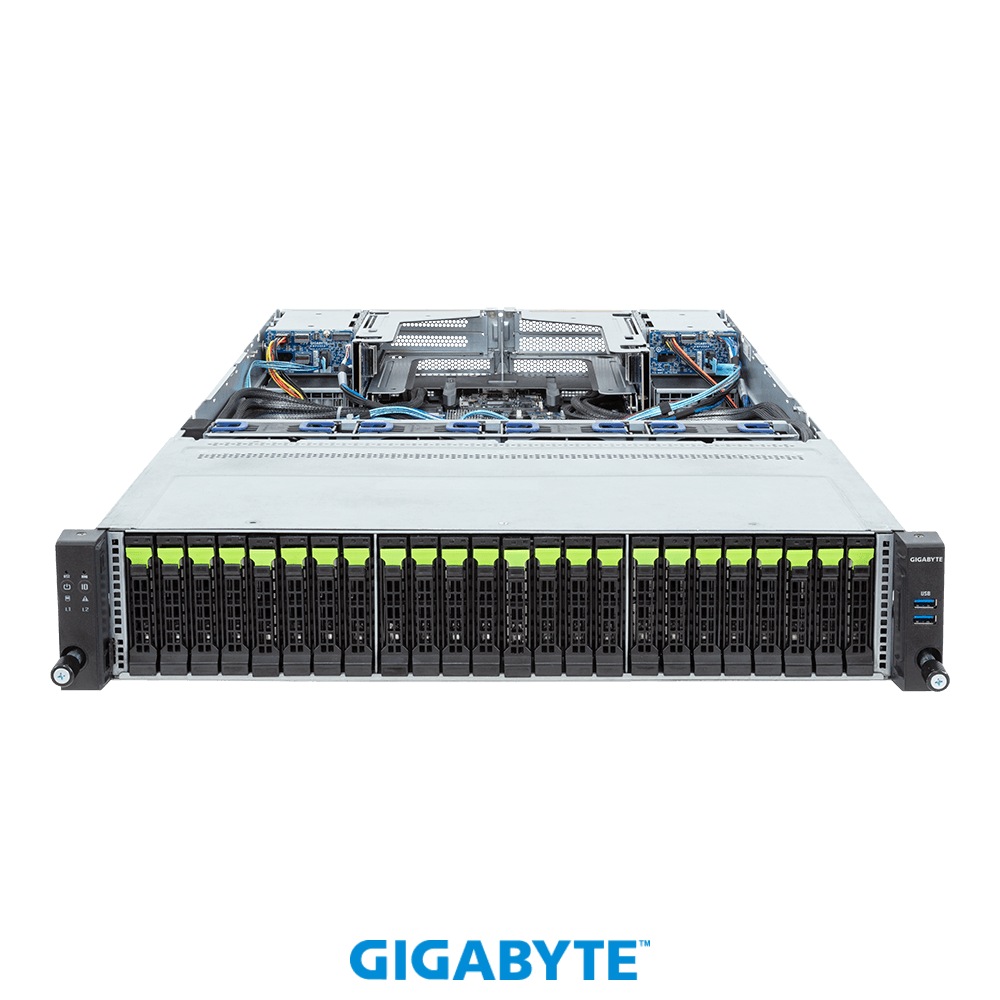

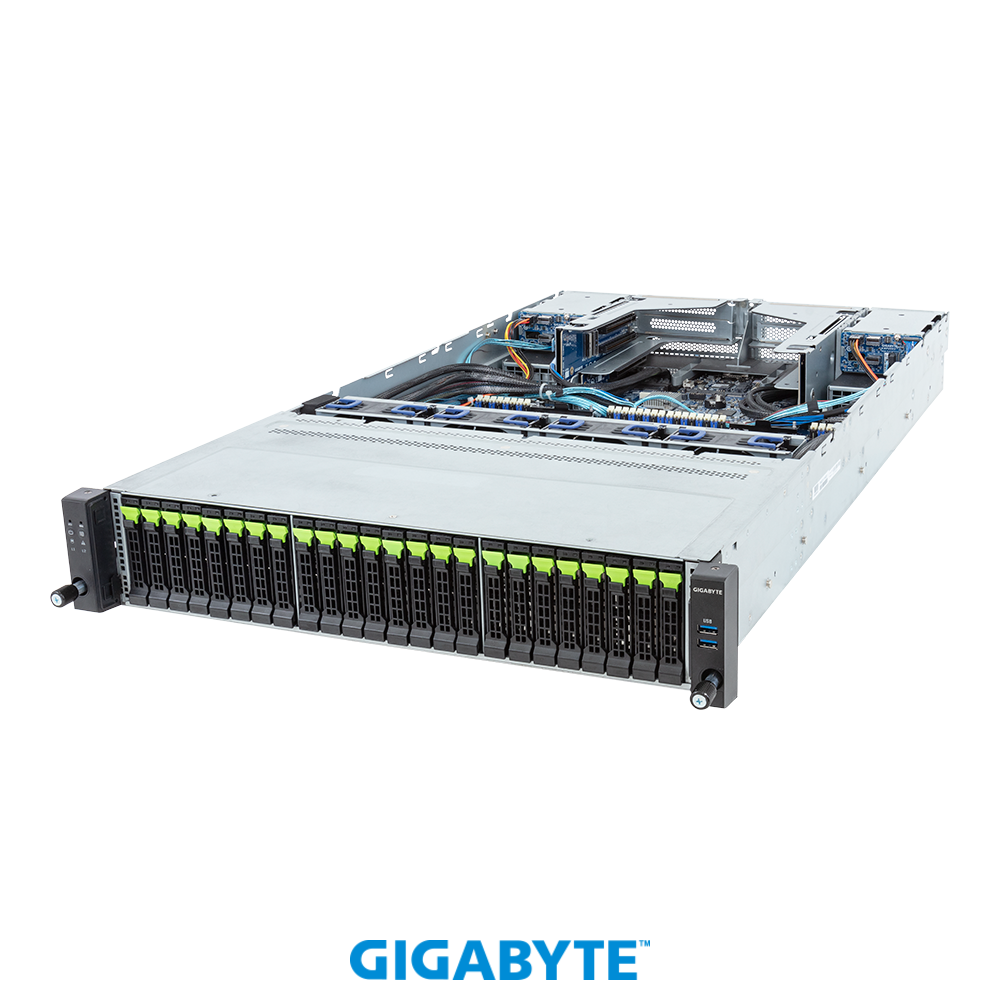

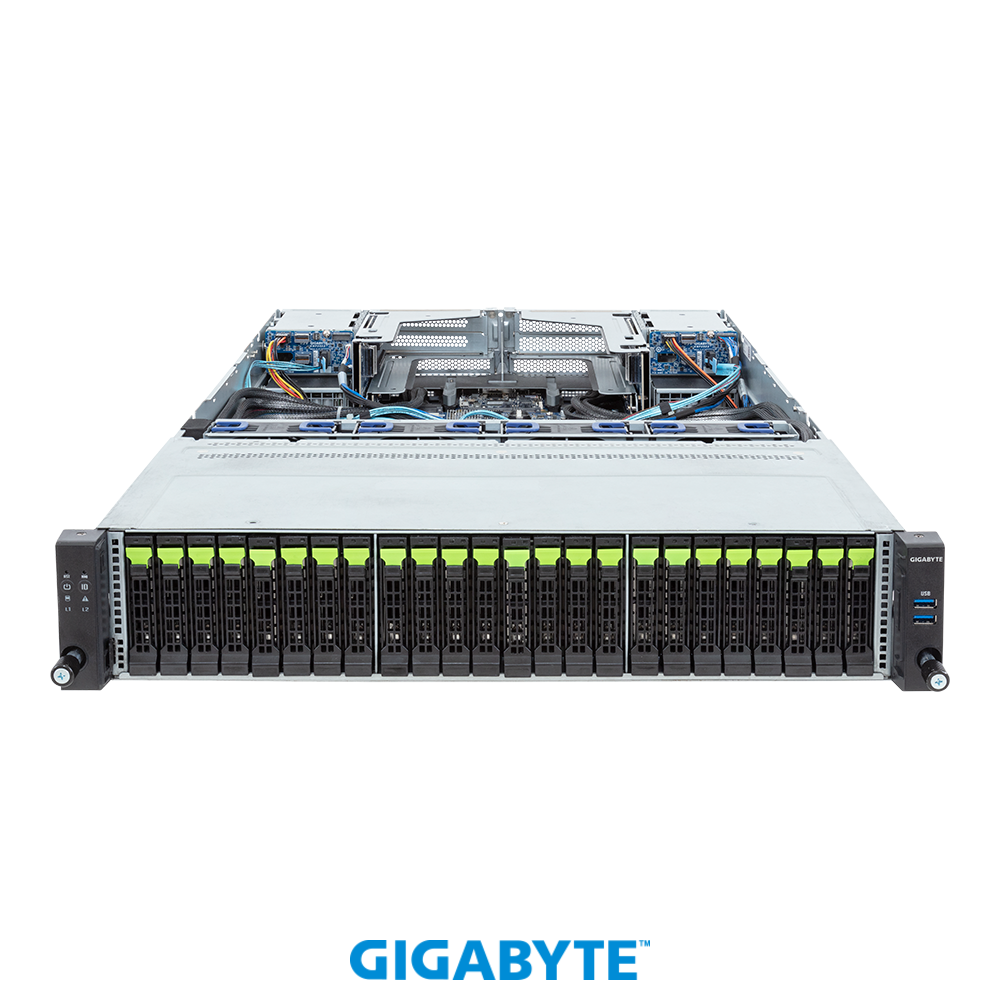

Серверная платформа R283-S92-AAE1
Серверная платформа GIGABYTE R283-S92-AAE1. Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 24+4-Bay Gen4 NVMe/SATA/SAS (24 x NVMe) Platinum
Форм-фактор
2U Rackmount
Процессоры
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Память
32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Compute And Memory
Вычислительная платформа и память
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.. 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
GPU And Expansion
Ускорители и слоты расширения
Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS202G: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS202H: - 1 x FHHL x16 (Gen5 x16), from CPU_1
Storage And Infrastructure
Накопители, сеть и питание
Front hot-swap: 12 x 2.5" Gen4 NVMe/SATA/SAS [1] 12 x 2.5" Gen4 NVMe - (12 x NVMe from CPU_0, 12 x NVMe from CPU_1) Rear hot-swap: 4 x 2.5" SATA/SAS [1] [1] SAS card is required to support SAS drives.. Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN. 1+1 2000W 80 PLUS Platinum redundant power supplies AC Input: - 100-120V~/ 12A, 50/60Hz - 180-240V~/ 10A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 10A DC Output: - Max 1000W/ 100-120V~ +12.2V/ 81.5A +12Vsb/ 2.5A - Max 1600W/ 180-199V~ +12.2V/ 131A +12Vsb/ 2.5A - Max 1800W/ 200-220V~ +12.2V/ 147.5A +12Vsb/ 2.5A - Max 2000W/ 221-240V~ or 240Vdc Input +12.2V/ 163.5A +12Vsb/ 2.5A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Product Details
Детали конструкции
Характеристики
| SAS | Require SAS add-in cards |
|---|---|
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology RAID Card models: SR-1000-ED12, SR-1000-FD32, SR-1010-FD32 Support RAID 0/1/5/6/10 |
| Вес | Net Weight: 30.66 kg Gross Weight: 35.66 kg |
| Сеть | Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Видео | Integrated in ASPEED® AST2600 - 1 x Mini-DP |
| Сокет | 2 x LGA 4677 Socket E |
| Память | 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Чипсет | Intel® C741 |
| Накопители | Front hot-swap: 12 x 2.5" Gen4 NVMe/SATA/SAS [1] 12 x 2.5" Gen4 NVMe - (12 x NVMe from CPU_0, 12 x NVMe from CPU_1) Rear hot-swap: 4 x 2.5" SATA/SAS [1] [1] SAS card is required to support SAS drives. |
| Процессоры | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Форм-фактор | 2U Rackmount |
| Блоки питания | 1+1 2000W 80 PLUS Platinum redundant power supplies AC Input: - 100-120V~/ 12A, 50/60Hz - 180-240V~/ 10A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 10A DC Output: - Max 1000W/ 100-120V~ +12.2V/ 81.5A +12Vsb/ 2.5A - Max 1600W/ 180-199V~ +12.2V/ 131A +12Vsb/ 2.5A - Max 1800W/ 200-220V~ +12.2V/ 147.5A +12Vsb/ 2.5A - Max 2000W/ 221-240V~ or 240Vdc Input +12.2V/ 163.5A +12Vsb/ 2.5A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| Задняя панель | G-SCM board - CDCR112: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Совместимые ОС | Please refer to OS compatibility table in support page Additional certifications: VMware ESXi 8.0 (for 4400/3400 series) VMware ESXi 8.0 (for 6400/5400 series) VMware ESXi 8.0 (for 8400 series) VMware ESXi 8.0 (for 4500/3500 series) VMware ESXi 8.0 (for 4500/3500 series) VMware ESXi 8.0 (for 6500/5500 series) VMware ESXi 8.0 (for 8500 series) Windows Server 2022 Windows Server 2025 |
| Передняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Плата бэкплейна | Speed and bandwidth: Front side - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s |
| Габариты упаковки | 1082 x 685 x 314 mm |
| Комплект поставки | 1 x R283-S92-AAE1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit |
| Материнская плата | MS93-FS0 |
| Номера исполнения | - Barebone package (5th/4th Gen): 6NR283S92DR000ABE1* - Barebone package (4th Gen): 6NR283S92DR000AAE1* - Motherboard: 9AS93FS0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-323208-A0R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20O7: 9CBP20O7NR-00* - Backplane board - CBP2022: 9CBP2022NR-00* - Fan module: 25ST2-88382T-S1R - Riser card - CRS101J: 9CRS101JNR-00* - Riser card - CRS101K: 9CRS101KNR-00* - Riser card - CRS202G: 9CRS202GNR-00* - Riser card - CRS202H: 9CRS202HNR-00* - G-SCM board - CDCR112: 9CDCR112NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-22000A-L0S Optional parts: - RAID card (SR-1000-ED12): 25FC1-SR1000-AFS - RAID card (SR-1000-FD32): 25FC1-SRBUN0-AFS - RAID card (SR-1010-ED32): 25FC1-SRBUN4-AFR - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R - RMA packaging: 6NR283S92SR-RMA-A100 |
| Слоты расширения PCIe | Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS202G: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS202H: - 1 x FHHL x16 (Gen5 x16), from CPU_1 |
| Габариты (Ш x В x Г), мм | 2U 438 x 87.5 x 815 |
| Модули безопасности | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
| Системное управление | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| Условия эксплуатации | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Системные вентиляторы | 4 x 80x80x38mm (18,300rpm) |
Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
