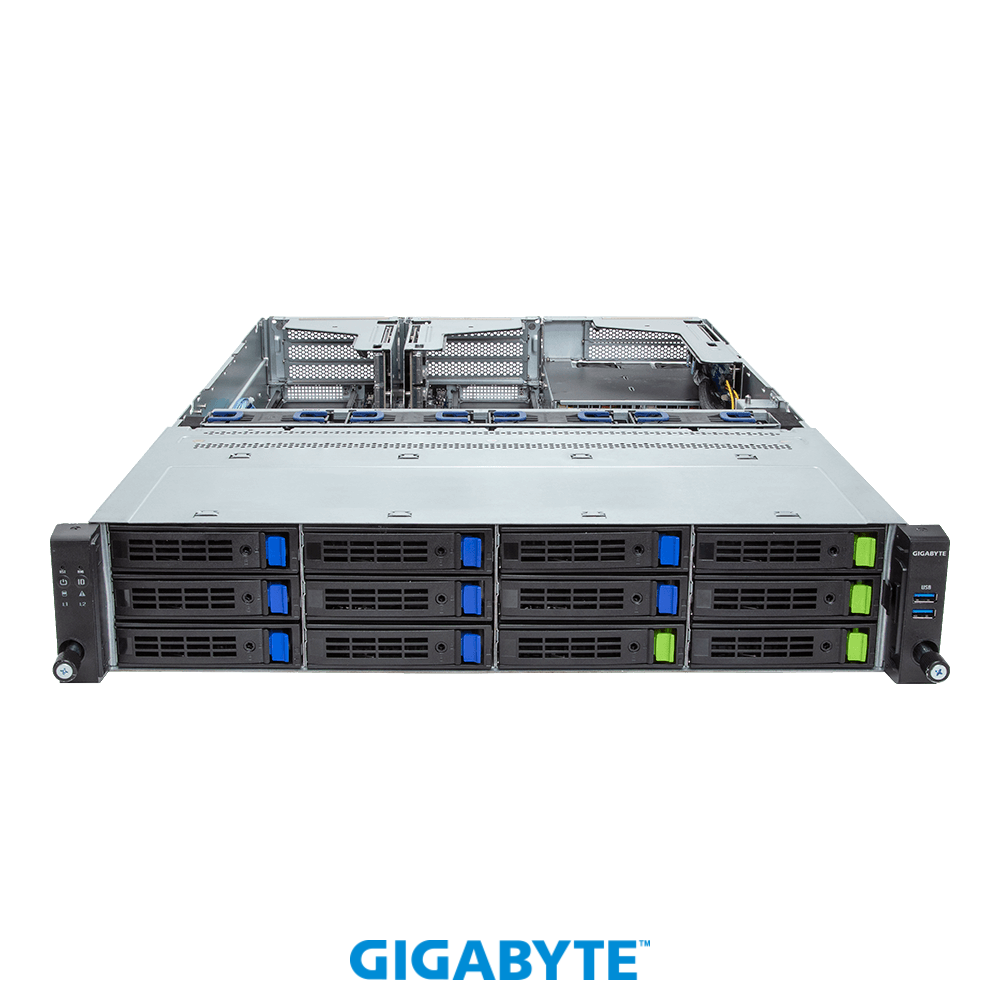

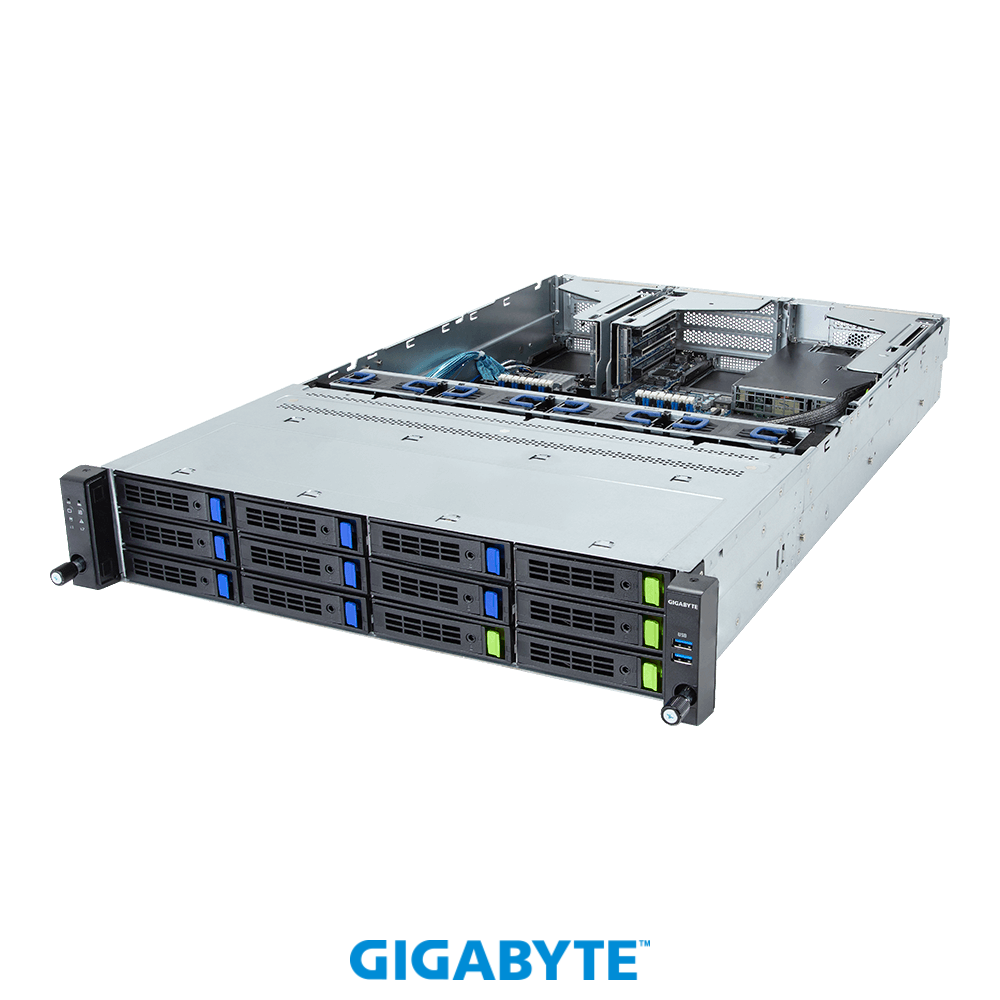

GIGABYTE R263-S30-AAH1
Артикул: R263-S30-AAH1
Другие исполнения
Варианты исполнения R263-S30
GIGABYTE R263-S30-AAH1
Серверная платформа R263-S30-AAH1
Серверная платформа GIGABYTE R263-S30-AAH1. Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U UP 12-Bay Gen4 NVMe/SATA/SAS Titanium
Форм-фактор
2U Rackmount
Процессоры
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Single processor, TDP up to 350 W
Память
16 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Compute And Memory
Вычислительная платформа и память
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Single processor, TDP up to 350 W. 16 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
GPU And Expansion
Ускорители и слоты расширения
Riser Card CRS201C: - 1 x FHHL x16 (Gen5 x16) Riser Card CRS201D: - 1 x FHHL x16 (Gen5 x16) 2 x OCP NIC 3.0 (Gen5 x16) - Support NCSI function
Storage And Infrastructure
Накопители, сеть и питание
Front hot-swap: 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1] 8 x 3.5"/2.5" SATA/SAS [1] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from PCH [1] SAS card is required to support SAS drives.. Rear: 1 x 1 Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mb/s Management LAN. 1+1 1300 W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 8A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 7A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12Vsb/ 3A - Max 1300W/ 200-240V~ or 240Vdc Input +12.2V/ 106A +12Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

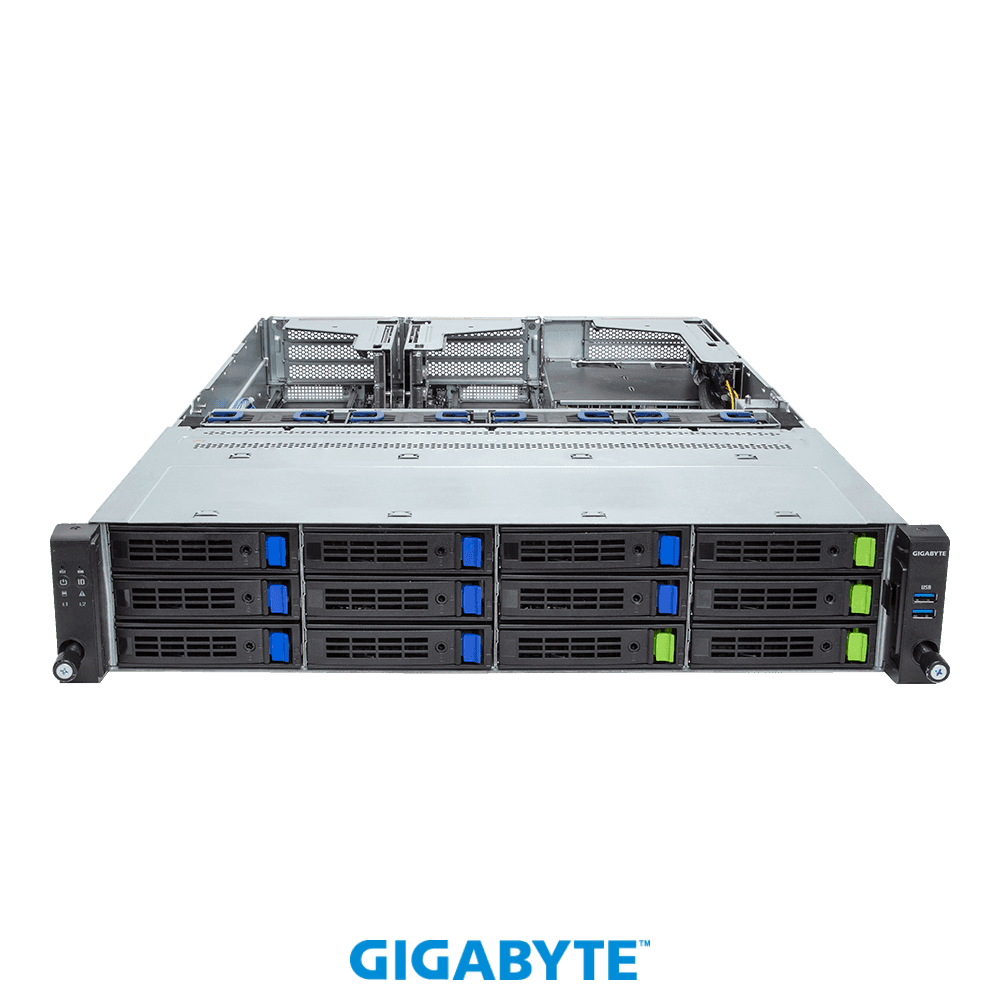

Product Details
Детали конструкции
Характеристики
| SAS | Require SAS add-in cards |
|---|---|
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header Optional compatible RAID Cards: NVMe RAID Cards with SupremeRAID™ by Graid Technology RAID Card models: SR-1001-ED4 Support RAID 0/1/5/6/10 |
| Вес | Net Weight: 26 kg Gross Weight: 27.5 kg |
| Сеть | Rear: 1 x 1 Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mb/s Management LAN |
| Видео | Integrated in ASPEED® AST2600 - 1 x Mini-DP |
| Сокет | 1 x LGA 4677 Socket E |
| Память | 16 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Чипсет | Intel® C741 |
| Накопители | Front hot-swap: 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1] 8 x 3.5"/2.5" SATA/SAS [1] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from PCH [1] SAS card is required to support SAS drives. |
| Процессоры | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Single processor, TDP up to 350 W |
| Форм-фактор | 2U Rackmount |
| Блоки питания | 1+1 1300 W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 8A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 7A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12Vsb/ 3A - Max 1300W/ 200-240V~ or 240Vdc Input +12.2V/ 106A +12Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| Задняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x RJ45 port 1 x MLAN port 1 x ID button with LED |
| Передняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x LAN activity LED 1 x Storage activity LED 1 x System status LED |
| Плата бэкплейна | Speed and bandwidth: PCIe Gen4 x4 or SATA 6 Gb/s or SAS 12 Gb/s |
| Сертификация ОС | VMware ESXi 9.1/9.0/8.0 (for 4400/3400 series)VMware ESXi 9.1/9.0/8.0 (for 6400/5400 series)VMware ESXi 9.1/9.0/8.0 (for 8400 series)VMware ESXi 9.1/9.0/8.0 (for 4500/3500 series)VMware ESXi 9.1/9.0/8.0 (for 4500/3500 series)VMware ESXi 9.1/9.0/8.0 (for 6500/5500 series)VMware ESXi 9.1/9.0/8.0 (for 8500 series)Windows Server 2022Windows Server 2025 |
| Габариты упаковки | 989 x 594 x 279 mm |
| Комплект поставки | 1 x R263-S30-AAH1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 3 x Carriers 1 x 2-Section Rail kit |
| Материнская плата | MS33-DC0 |
| Номера исполнения | - Barebone package (5th/4th Gen): 6NR263S30DR000ABH1* - Barebone package (4th Gen): 6NR263S30DR000AAH1* - Motherboard: 9MS33DC0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R - CPU heatsink: 25ST1-323208-A0R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20C5: 9CBP20C5NR-00* - Fan module: 25ST2-88382T-S1R - Riser card - CRS201C: 9CRS201CNR-00* - Riser card - CRS201D: 9CRS201DNR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-21300F-G1S Optional parts: - RAID card (SR-1001-ED4): 25FC1-SR1000-AFS - 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R - Cable Management Arm: 25HBZ-R18100-K0R |
| Слоты расширения PCIe | Riser Card CRS201C: - 1 x FHHL x16 (Gen5 x16) Riser Card CRS201D: - 1 x FHHL x16 (Gen5 x16) 2 x OCP NIC 3.0 (Gen5 x16) - Support NCSI function |
| Габариты (Ш x В x Г), мм | 2U 438 x 87.5 x 710 |
| Модули безопасности | 1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM010 |
| Системное управление | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| Условия эксплуатации | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Системные вентиляторы | 4 x 80x80x38mm |
Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
GIGABYTE Enterprise
Документация и поддержка
Актуальные руководства, драйверы, прошивки и списки совместимости для точного исполнения R263-S30-AAH1 опубликованы производителем.
Ссылки ведут только на официальный домен GIGABYTE. Производитель может обновлять файлы и перечни совместимости без предварительного уведомления.
