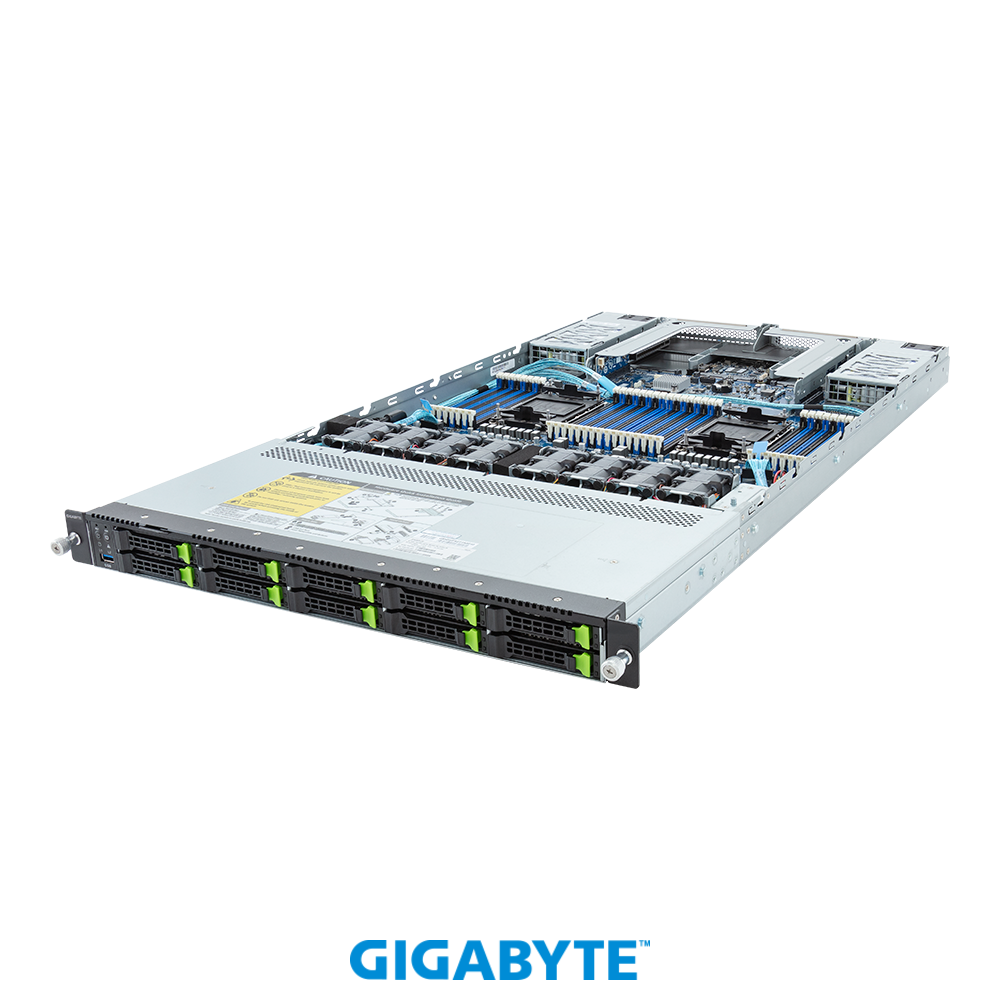

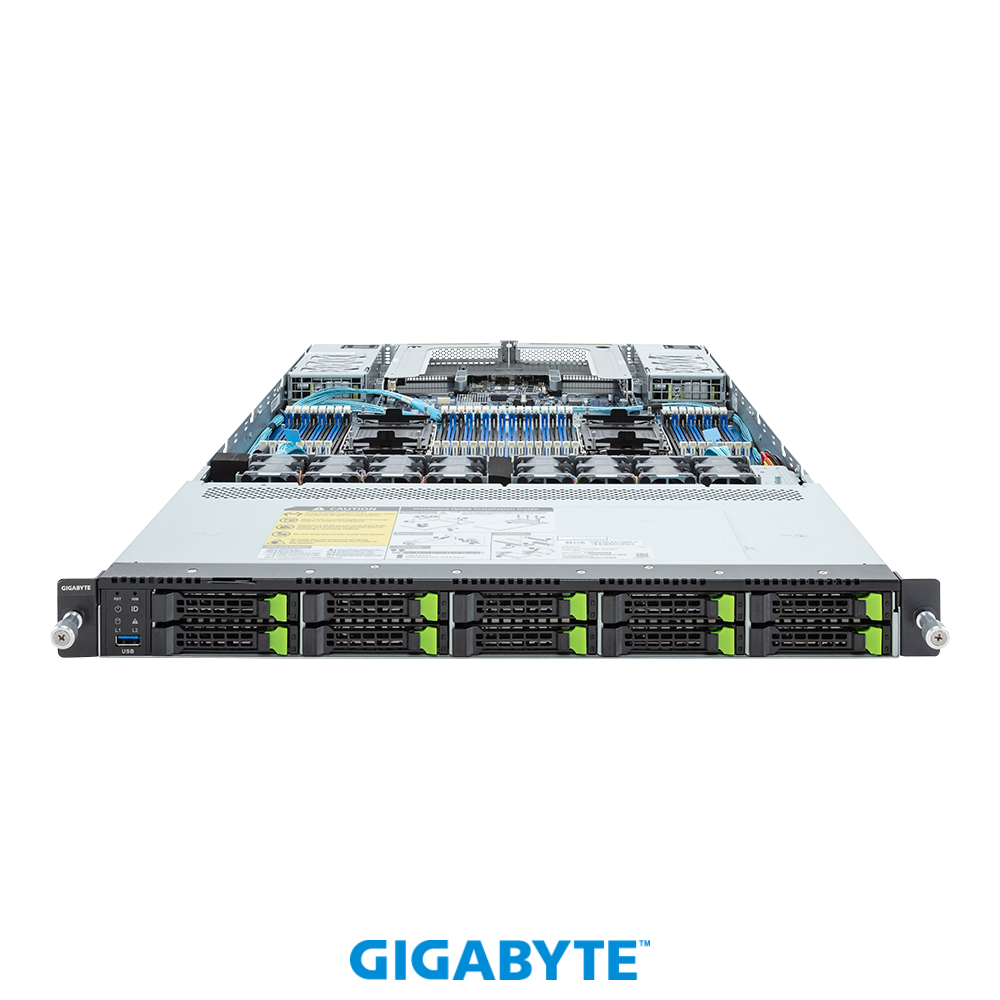

GIGABYTE R183-S94-AAH1
Артикул: R183-S94-AAH1
Другие исполнения
Варианты исполнения R183-S94
GIGABYTE R183-S94-AAH1
Серверная платформа R183-S94-AAH1
Серверная платформа GIGABYTE R183-S94-AAH1. Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 1U DP 10-Bay Gen4 NVMe/SATA/SAS Titanium
Форм-фактор
1U Rackmount
Процессоры
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Память
32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
Compute And Memory
Вычислительная платформа и память
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.. 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
GPU And Expansion
Ускорители и слоты расширения
Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101Q: - 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function
Storage And Infrastructure
Накопители, сеть и питание
Front hot-swap: 10 x 2.5" Gen4 NVMe/SATA/SAS [1] - (6 x NVMe from CPU_0, 4 x NVMe from CPU_1) [1] SAS card is required to support SAS drives.. Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN. Dual 1300W 80 PLUS Titanium redundant power supply AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 8A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 7A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A - Max 1300W/ 200-240V~ or 240Vdc Input +12.2V/ 106A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Product Details

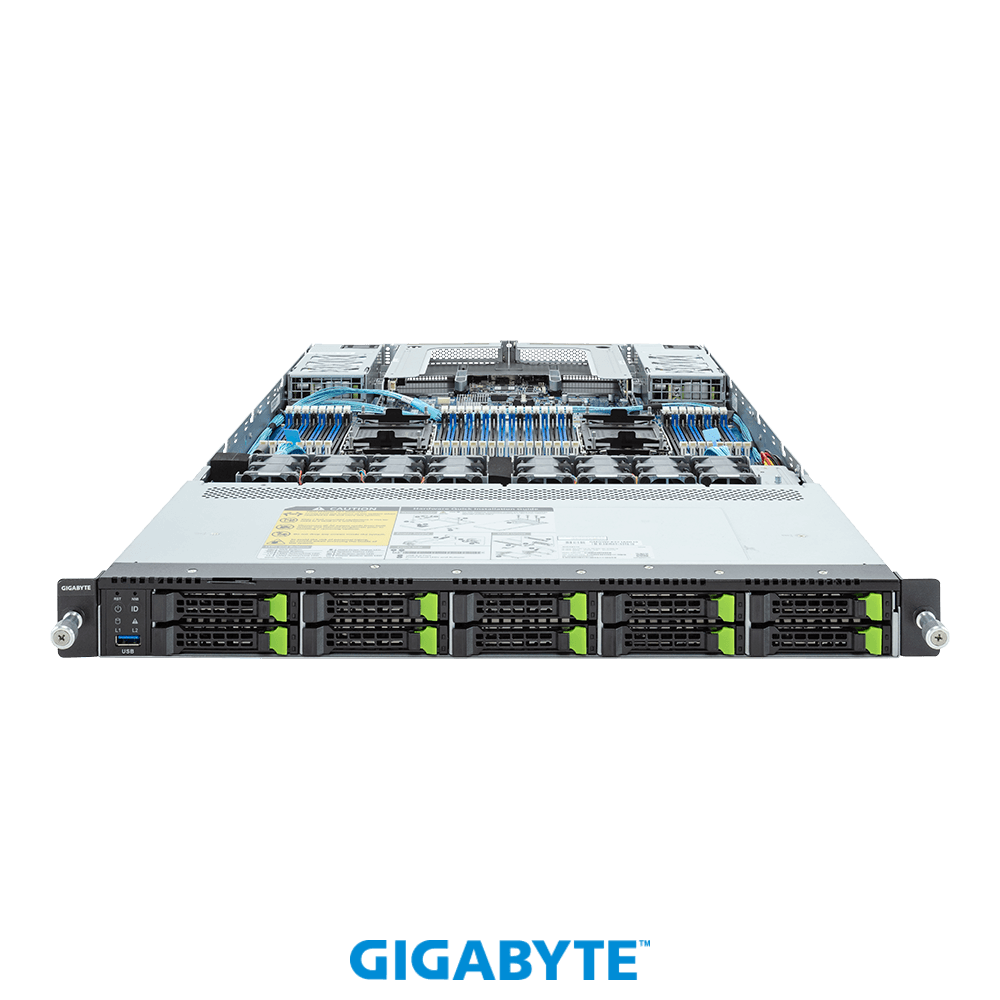

Детали конструкции
Характеристики
| SAS | Require SAS add-in cards |
|---|---|
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header |
| Вес | Net Weight: 22.94 kg Gross Weight: 27.94 kg |
| Сеть | Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Видео | Integrated in ASPEED® AST2600 - 1 x Mini-DP |
| Сокет | 2 x LGA 4677 Socket E |
| Память | 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information. |
| Чипсет | Intel® C741 |
| Накопители | Front hot-swap: 10 x 2.5" Gen4 NVMe/SATA/SAS [1] - (6 x NVMe from CPU_0, 4 x NVMe from CPU_1) [1] SAS card is required to support SAS drives. |
| Процессоры | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Форм-фактор | 1U Rackmount |
| Блоки питания | Dual 1300W 80 PLUS Titanium redundant power supply AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 8A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 7A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A - Max 1300W/ 200-240V~ or 240Vdc Input +12.2V/ 106A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| Задняя панель | G-SCM board - CDCR112: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Совместимые ОС | Please refer to OS compatibility table in support page Additional certifications: Windows Server 2022 Windows Server 2025 |
| Передняя панель | 1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Плата бэкплейна | Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s |
| Габариты упаковки | 1052 x 602 x 267 mm |
| Комплект поставки | 1 x R183-S94-AAH1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit |
| Материнская плата | MS93-FS1 |
| Номера исполнения | - Barebone package (5th/4th Gen): 6NR183S94DR000ABH1* - Barebone package (4th Gen): 6NR183S94DR000AAH1* - Motherboard: 9AS93FS1UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Backplane board - CBP10A5: 9CBP10A5NR-00* - Fan module: 25ST2-40562H-A0R - Riser card - CRS101J: 9CRS101JNR-00* - Riser card - CRS101Q: 9CRS101QNR-00* - G-SCM board - CDCR112: 9CDCR112NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-21300C-G1S Optional parts: - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R - RMA packaging: 6NR183S94SR-RMA-A100 |
| Слоты расширения PCIe | Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101Q: - 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function |
| Габариты (Ш x В x Г), мм | 1U 438 x 43.5 x 815 |
| Модули безопасности | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
| Системное управление | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| Условия эксплуатации | Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Системные вентиляторы | 8 x 40x40x56mm (32,000rpm) |
Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
GIGABYTE Enterprise
Документация и поддержка
Актуальные руководства, драйверы, прошивки и списки совместимости для точного исполнения R183-S94-AAH1 опубликованы производителем.
Ссылки ведут только на официальный домен GIGABYTE. Производитель может обновлять файлы и перечни совместимости без предварительного уведомления.
