32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

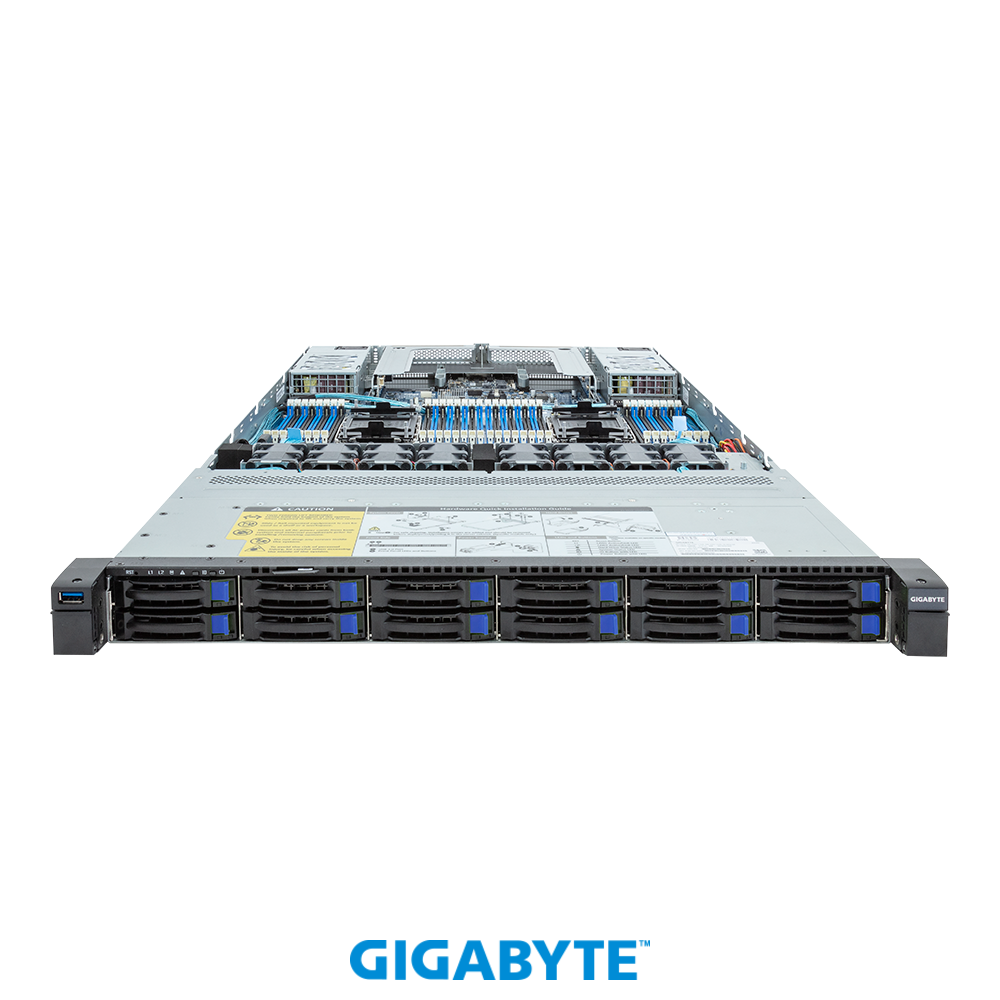

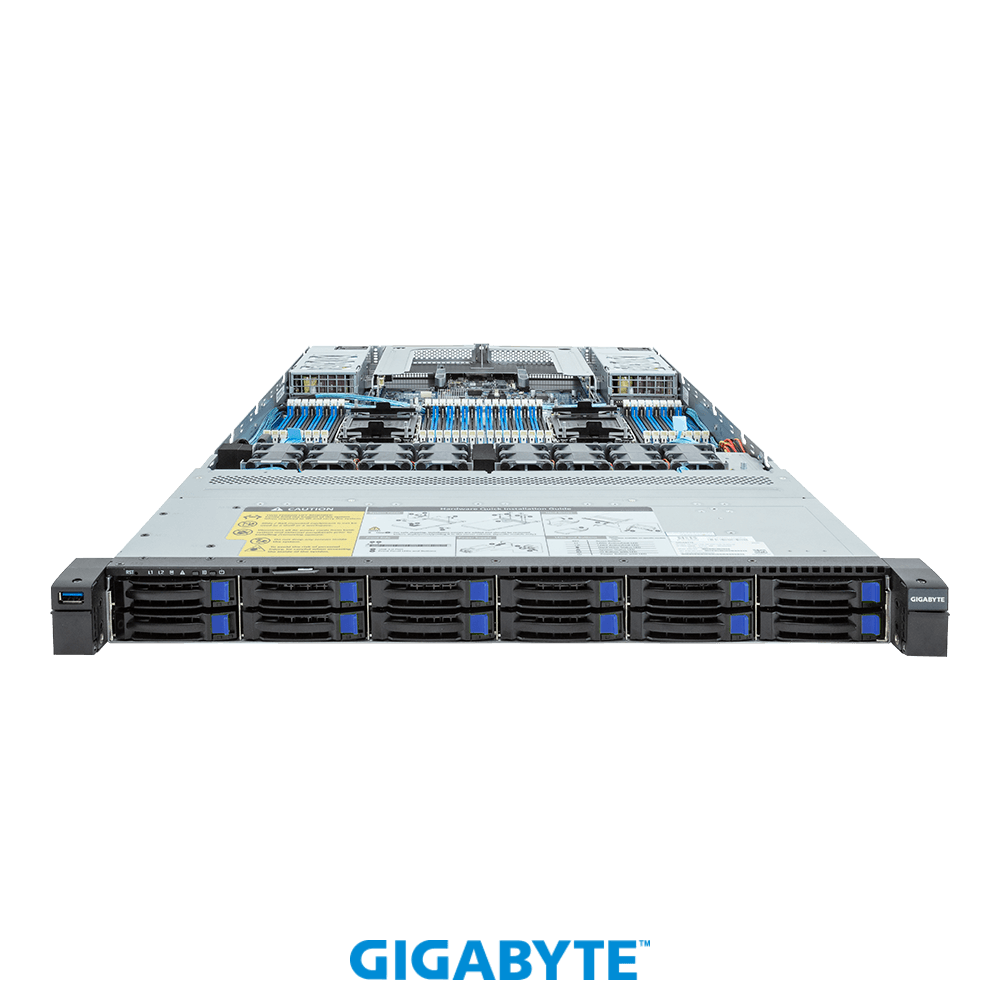

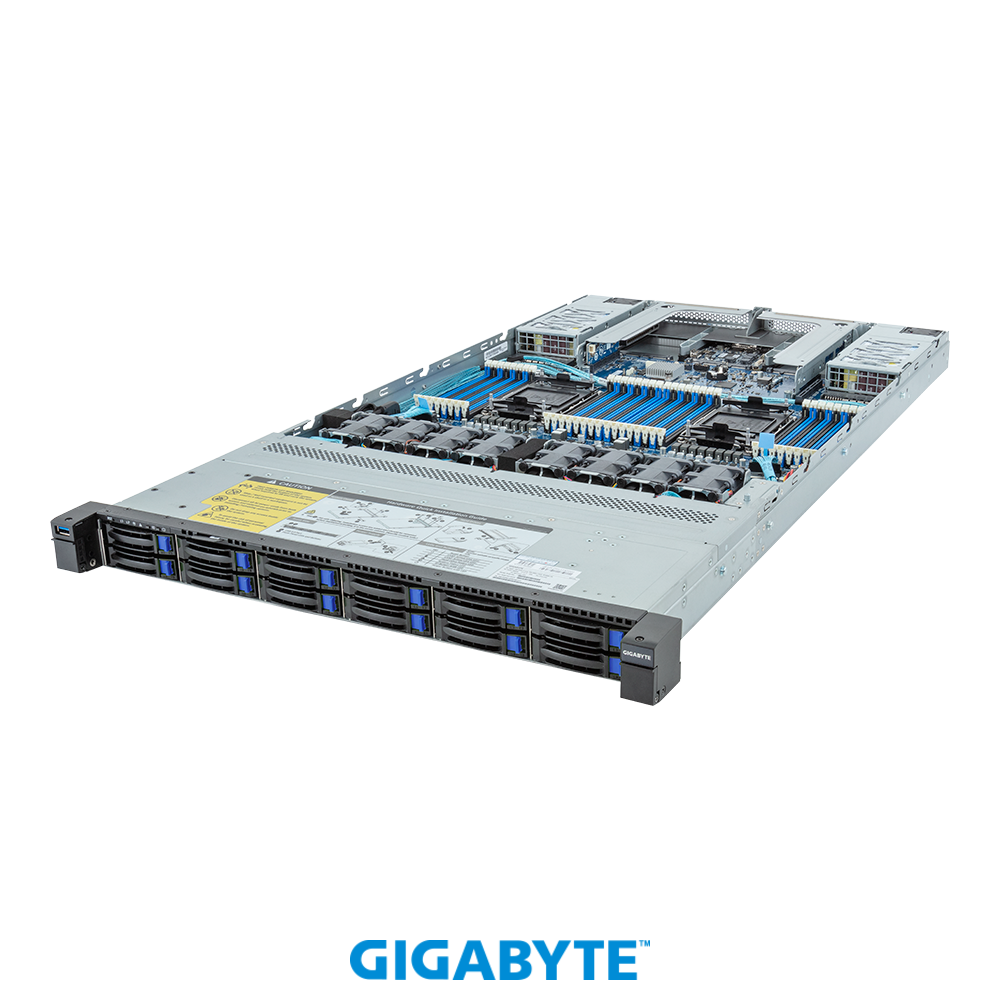

серверная платформа GIGABYTE R183-S92-AAD3

Compute And Memory

Вычислительная платформа и память

5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.. 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

Внутренняя компоновка GIGABYTE R183-S92-AAD3

GPU And Expansion

Ускорители и слоты расширения

Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function

Слоты GPU и расширения GIGABYTE R183-S92-AAD3

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 12 x 2.5" SATA/SAS [1] [1] SAS card is required to support SAS drives.. Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN. 1+1 1600W 80 PLUS Platinum redundant power supplies AC Input: - 100-120V~/ 12A, 50/60Hz - 200-240V~/ 10A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 10A DC Output: - Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A - Max 1600W/ 200-240V~ or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

Накопители и задняя панель GIGABYTE R183-S92-AAD3

Product Details

Детали конструкции

Характеристики

SAS	Require SAS add-in cards
RAID	Intel® SATA RAID 0/1/10/5 Onboard VROC key header
Вес	Net Weight: 22.82 kg Gross Weight: 27.6 kg
Сеть	Rear (G-SCM board - CDCR112): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN
Видео	Integrated in ASPEED® AST2600 - 1 x Mini-DP
Сокет	2 x LGA 4677 Socket E
Память	32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1] 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
Чипсет	Intel® C741
Накопители	Front hot-swap: 12 x 2.5" SATA/SAS [1] [1] SAS card is required to support SAS drives.
Процессоры	5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Форм-фактор	1U Rackmount
Блоки питания	1+1 1600W 80 PLUS Platinum redundant power supplies AC Input: - 100-120V~/ 12A, 50/60Hz - 200-240V~/ 10A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 10A DC Output: - Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A - Max 1600W/ 200-240V~ or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Задняя панель	G-SCM board - CDCR112: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED
Совместимые ОС	Please refer to OS compatibility table in support page Additional certifications: Red Hat Enterprise Linux 9.0 or later Ubuntu 20.04 LTS Ubuntu 22.04 LTS Ubuntu 24.04 LTS VMware ESXi 8.0 (for 4400/3400 series) VMware ESXi 8.0 (for 6400/5400 series) VMware ESXi 8.0 (for 8400 series) VMware ESXi 8.0 (for 4500/3500 series) VMware ESXi 8.0 (for 6500/5500 series) VMware ESXi 8.0 (for 8500 series) Windows Server 2022 Windows Server 2025
Передняя панель	1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED
Плата бэкплейна	Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Габариты упаковки	1043 x 594 x 237 mm
Комплект поставки	1 x R183-S92-AAD3 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit
Материнская плата	MS93-FS0
Номера исполнения	- Barebone package (5th/4th Gen): 6NR183S92DR000ABD3* - Barebone package (4th Gen): 6NR183S92DR000AAD3* - Motherboard: 9AS93FS0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Front panel board - CFP1030: 9CFP1030NR-00* - Backplane board - CBP10C0: 9CBP10C0NR-00* - Fan module: 25ST2-40562H-A0R - Riser card - CRS101J: 9CRS101JNR-00* - Riser card - CRS101K: 9CRS101KNR-00* - G-SCM board - CDCR112: 9CDCR112NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-216008-L0S Optional parts: - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R - RMA packaging: 6NR183S92SR-RMA-A100
Слоты расширения PCIe	Riser Card CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 - Supports NCSI function
Габариты (Ш x В x Г), мм	1U 438 x 43.5 x 815
Модули безопасности	1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010
Системное управление	ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Условия эксплуатации	Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	8 x 40x40x56mm

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
