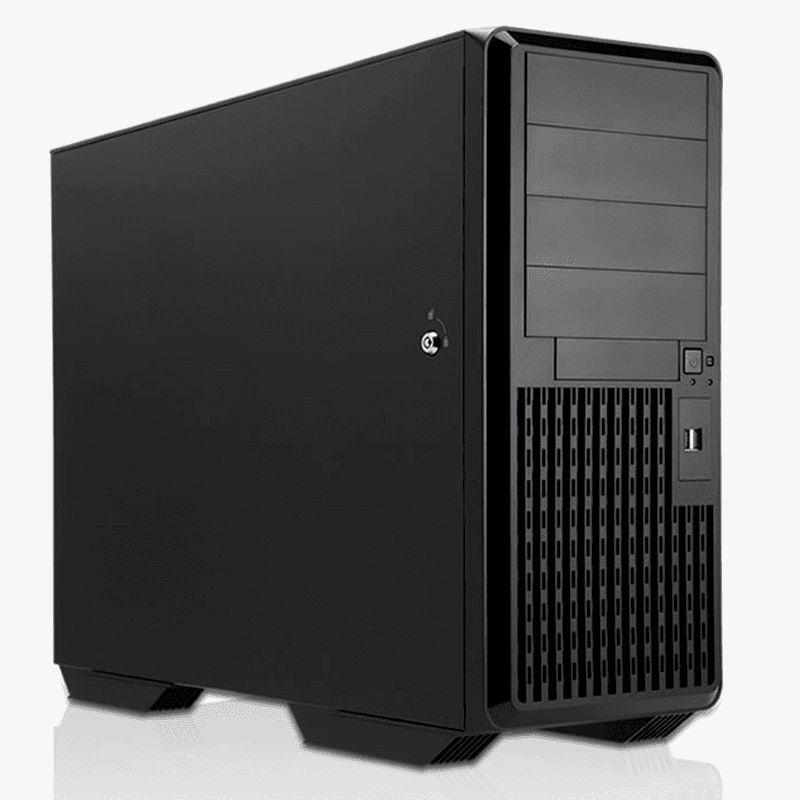

Performance Tower
Tower-корпус для EEB-плат, CRPS-питания и серверных задач
IW-PL689 - башенная платформа для ATX/CEB/EEB-плат, полноразмерных PCIe-карт и гибкого питания. Корпус сохраняет внешний формат tower, но рассчитан на серверные компоненты, длинные GPU и монтаж в стойку через опциональные направляющие.
Платы
ATX / CEB / EEB
GPU
до 350 мм
PCIe
7 x full-height
Питание
PS2 / CRPS

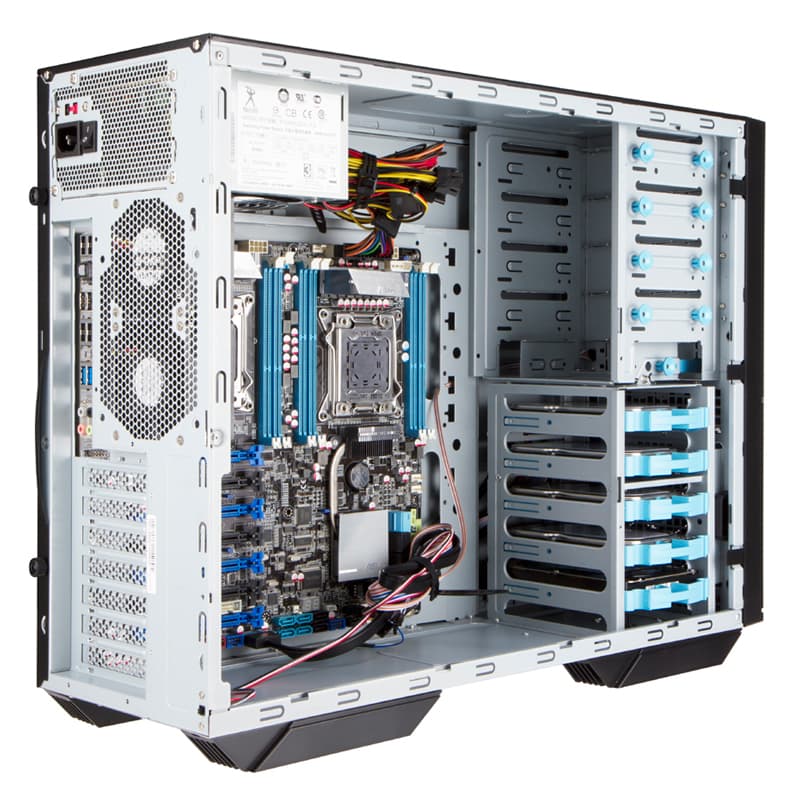

Server Tower
Башенный формат для серверной платы
Поддержка EEB и CEB позволяет использовать корпус не только как workstation, но и как компактную серверную платформу с привычным tower-доступом.

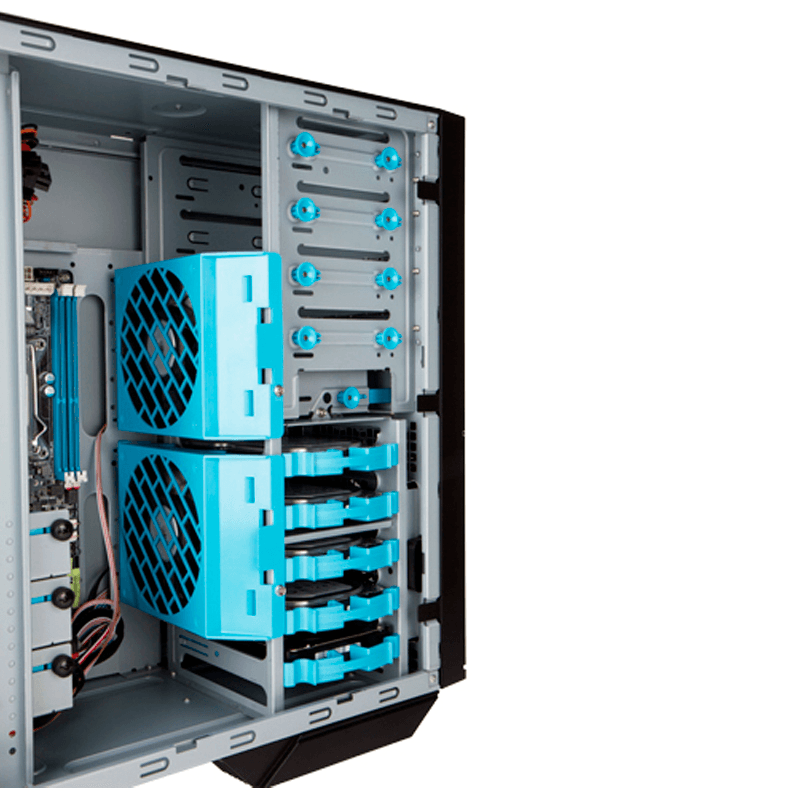

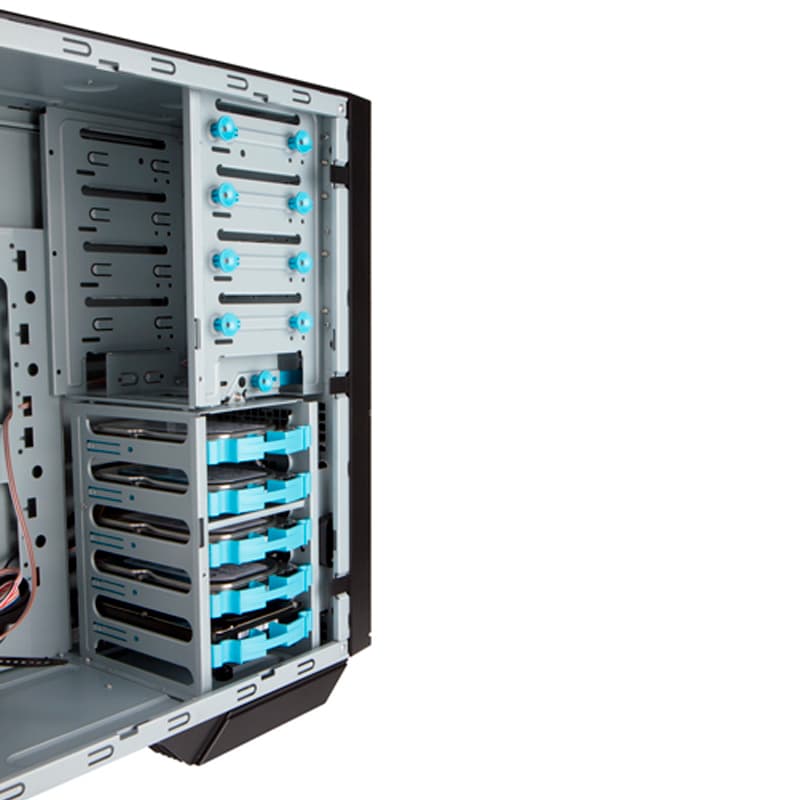

Storage And I/O
Внешние отсеки и внутренние места под диски
Пять внешних зон и внутренние 2.5"/3.5" места дают пространство под корзины, системные диски и локальное хранение.

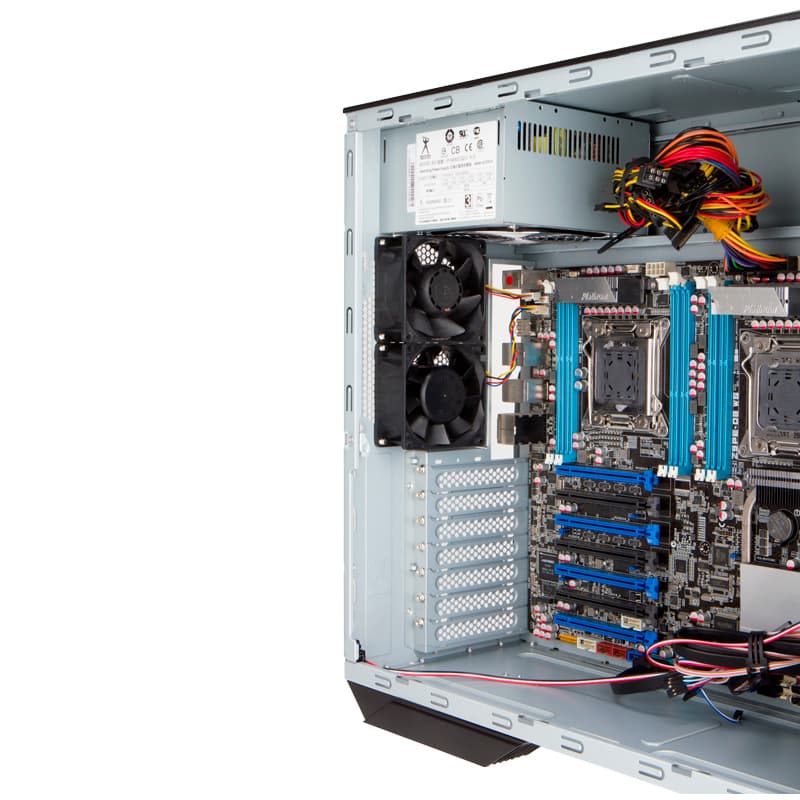

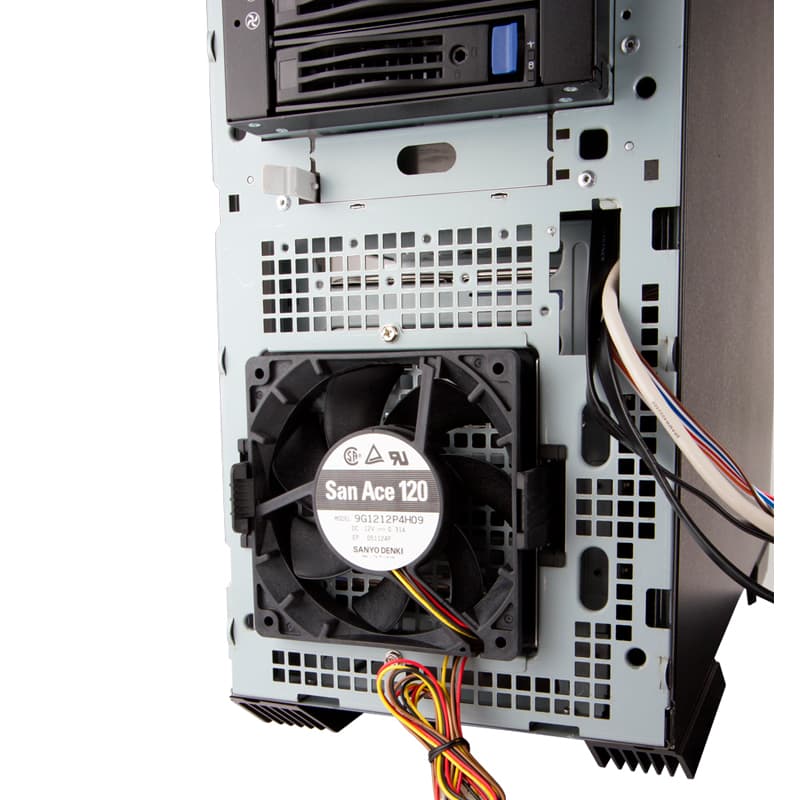

Cooling
Охлаждение под плату и карты расширения
Фронтальная, средняя и задняя зоны вентиляторов помогают выстроить поток через плату, накопители и PCIe-карты в зависимости от конфигурации.
Product Details

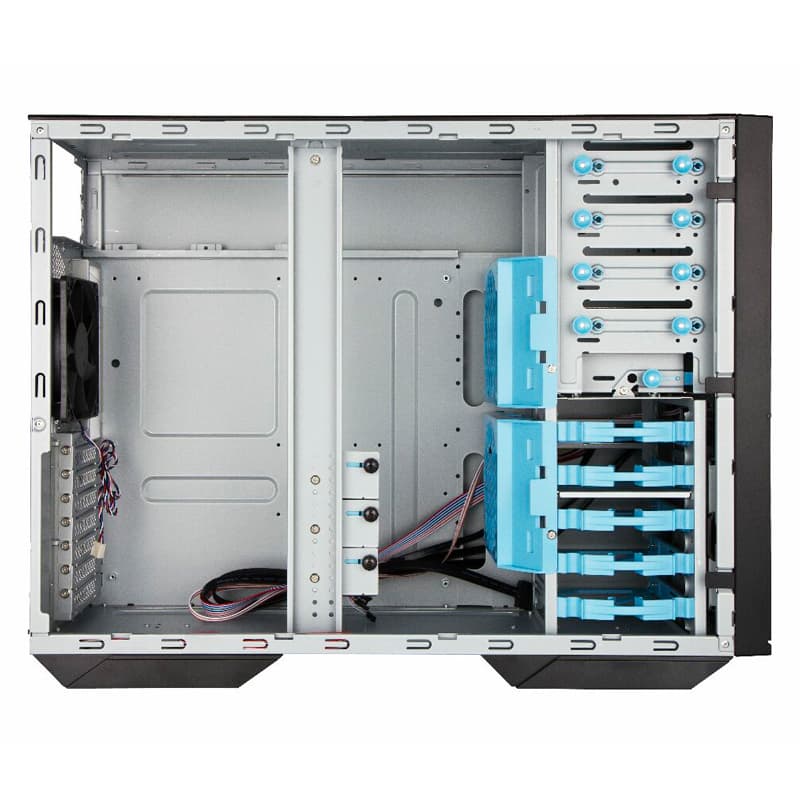

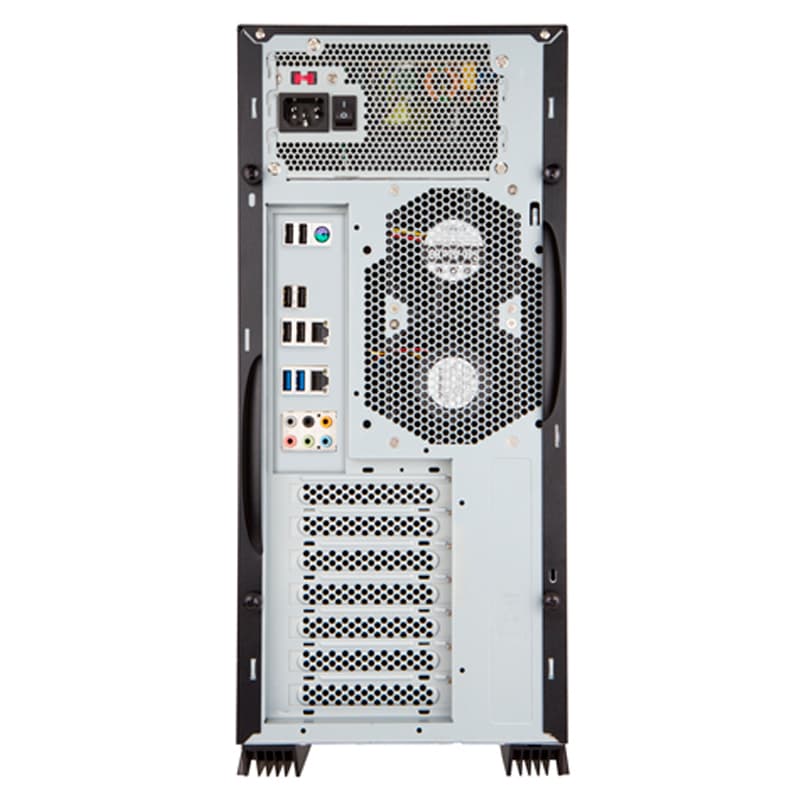

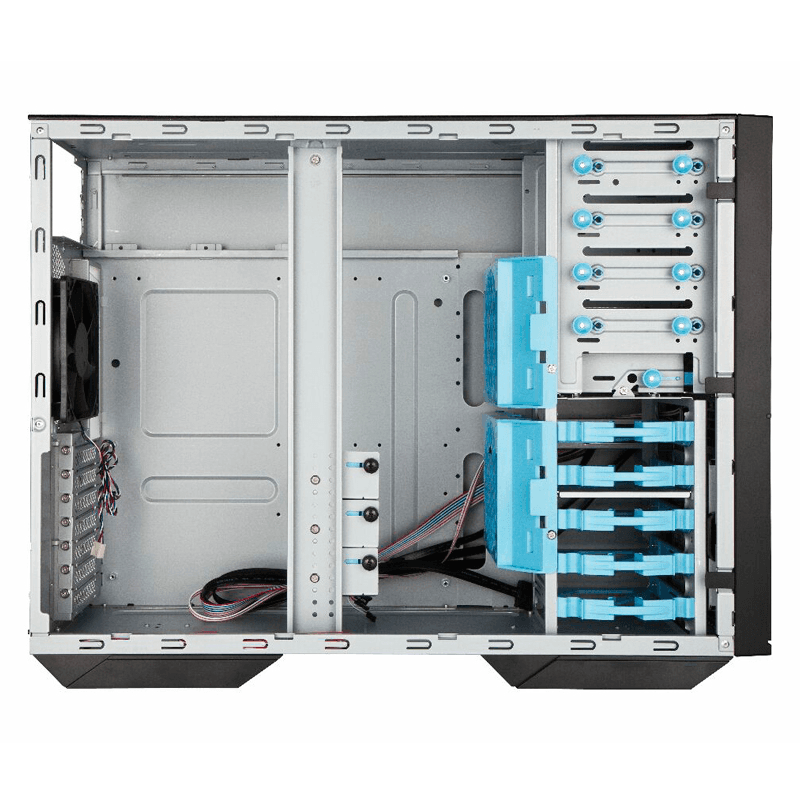

Детали конструкции InWin IW-PL689
Specification
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13") |
|---|---|
| Drive Bay | • External: 5.25" x 4, 3.5" x 1 • Internal 2.5"/3.5" x 5 |
| Power Supply | Supports: • 1250W PS2 single PSU, 80 Plus Gold • 550W/800W/1200/1600W 1+1 CRPS, 80 Plus Platinum |
| Indicators | Power status, HDD |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security | • Supports padlock loop and Kensington lock slot • Intrusion switch (optional) |
| Cooling Fans | • Front: 120 x 25mm PWM fan x 1 (optional) • Middle: 120 x 25mm PWM fans x 2 (optinal) • Rear: 120 x 25mm PWM fan x 1 (pre-installed) or optional 80 x 38mm PWM fans x 2 |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SECC • Thickness: 0.8mm |
| Maximum Capacity | • GPU length: 350mm • CPU heatsink height: 145mm • PS2 power length: 250mm (including cable management area) |
| Rail Kit | Supports 23" ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 560.2 x 200 x 430.1mm (22.1" x 7.9" x 16.9") |
| Package Dimensions (DxWxH) | 720 x 592 x 340mm |
| Weight (Chassis Only) | • Net weight: 10.67kg • Gross weight: 14.12kg |
| Cubic Feet | 5.12 |
| Container Information | Single packing with pallets: • 20': 110pcs • 40': 240pcs • 40'HQ: 288pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items
Slide Rail
3RAMIS144400

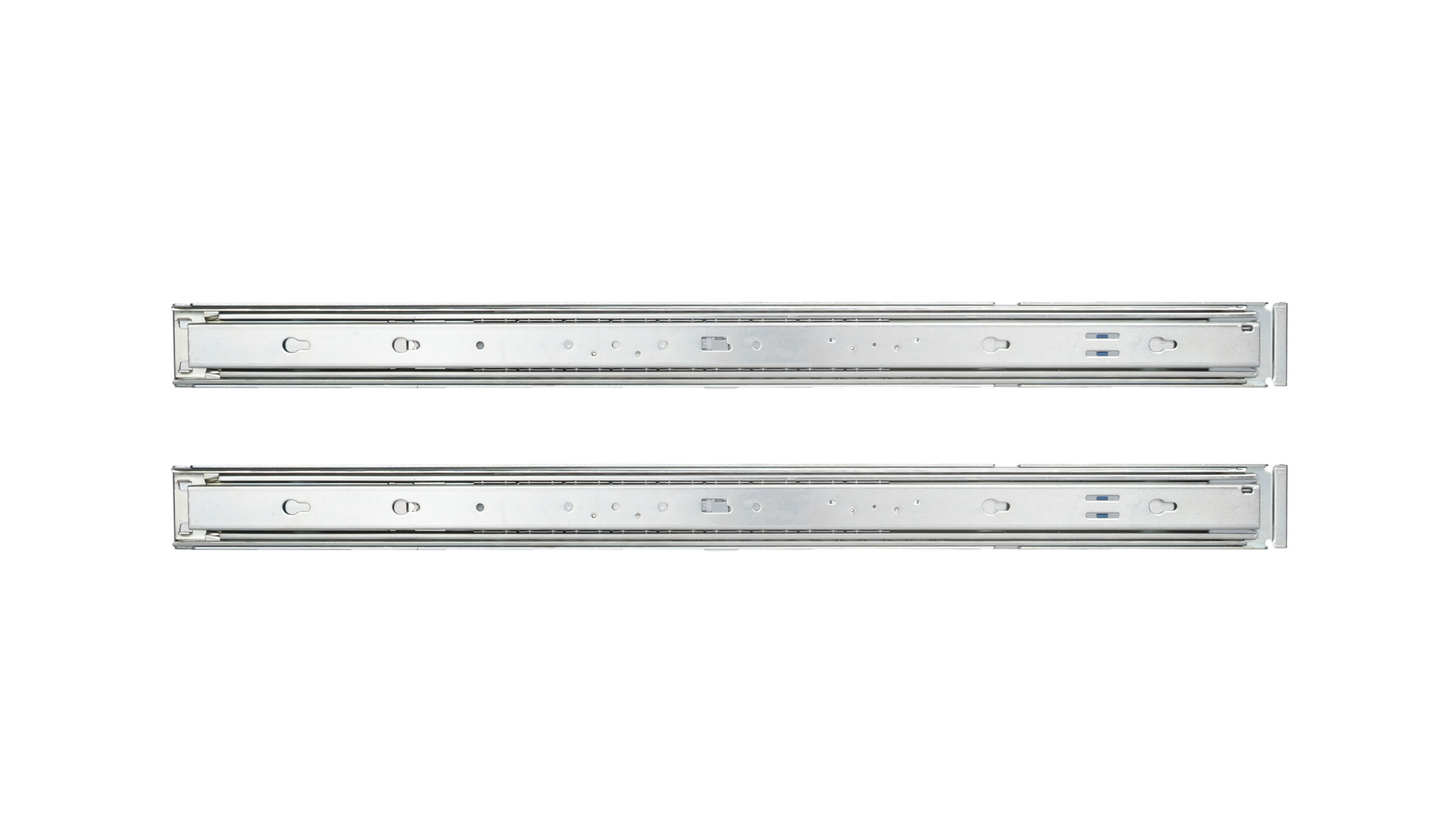

23" ball-bearing slide rail
Support: 1 set
Power Supply
3RAMAP034400

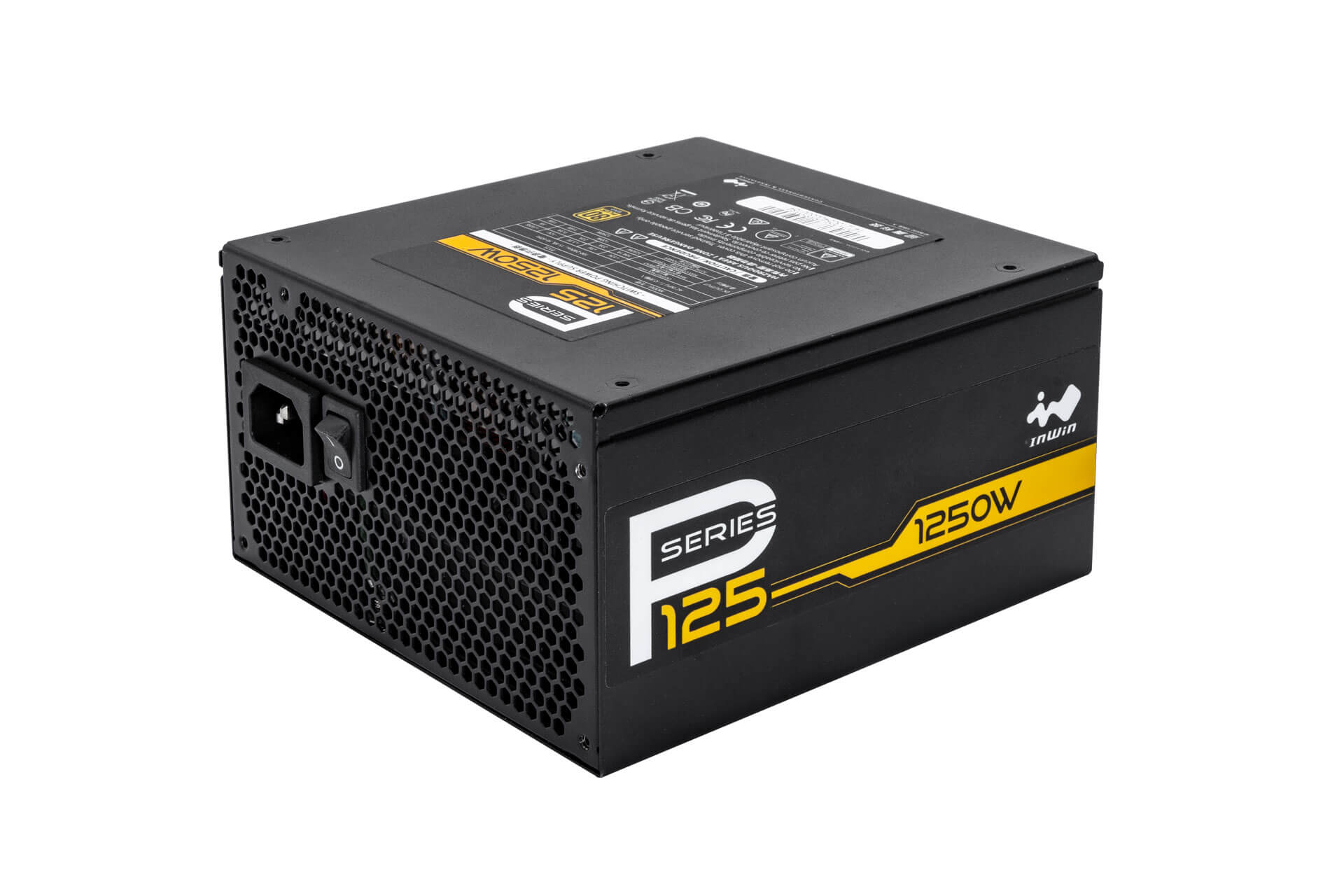

80 Plus Gold PS2 1250W
Support: 1
Power Supply
3RAMAP025502

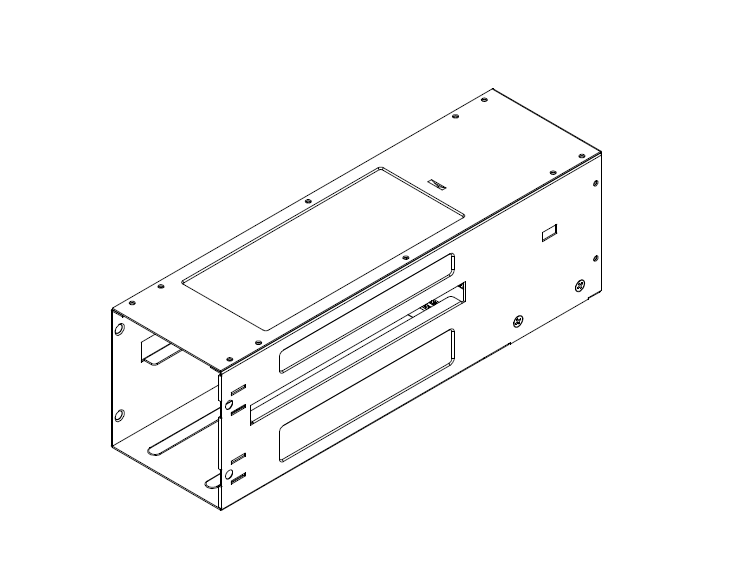

PDB power cage for CRPS 550W/800W
Support: 1
Power Supply
3RAMAP025102

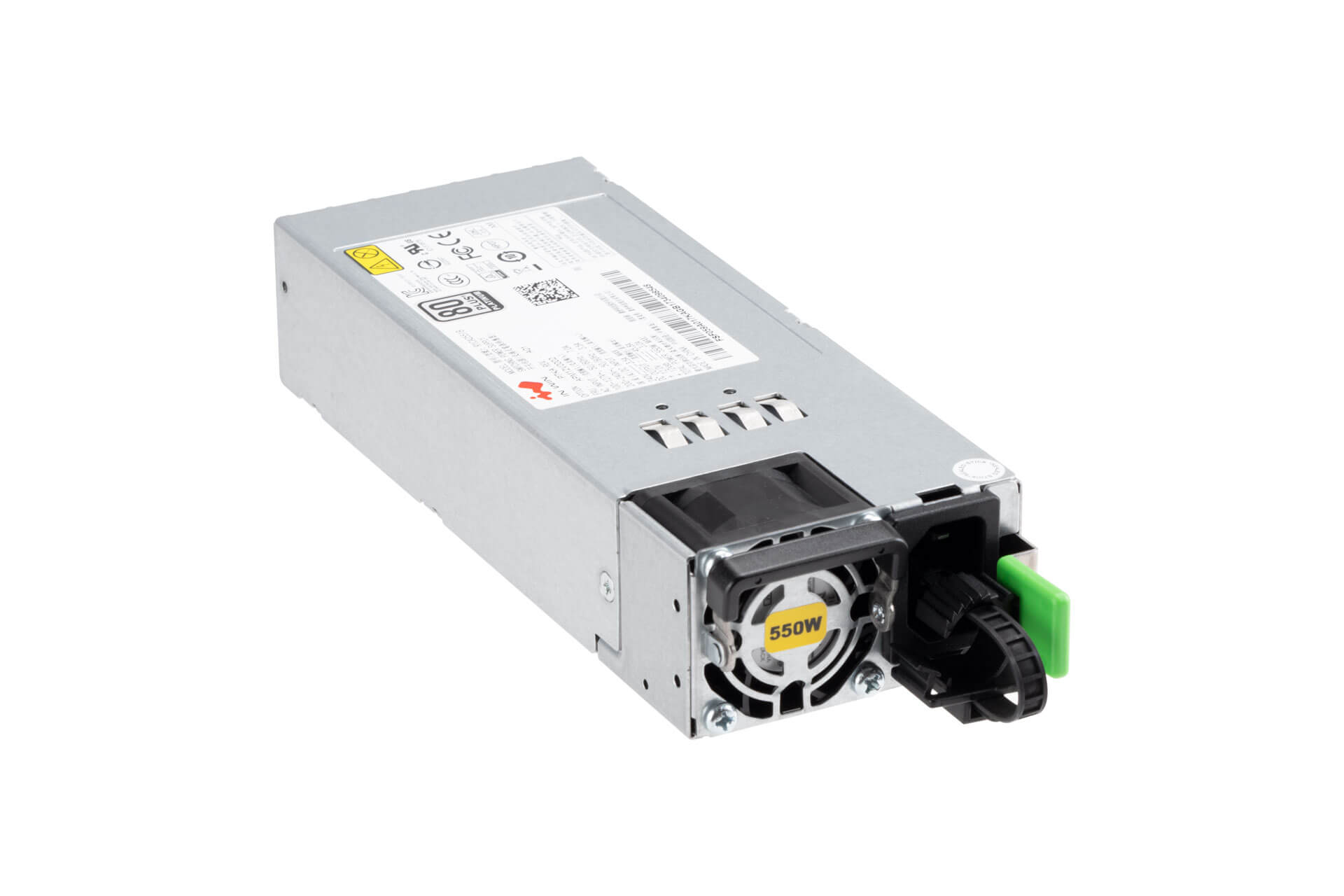

80 Plus Platinum 550W CRPS
Support: Max. 2
Power Supply
3RAMAP025202

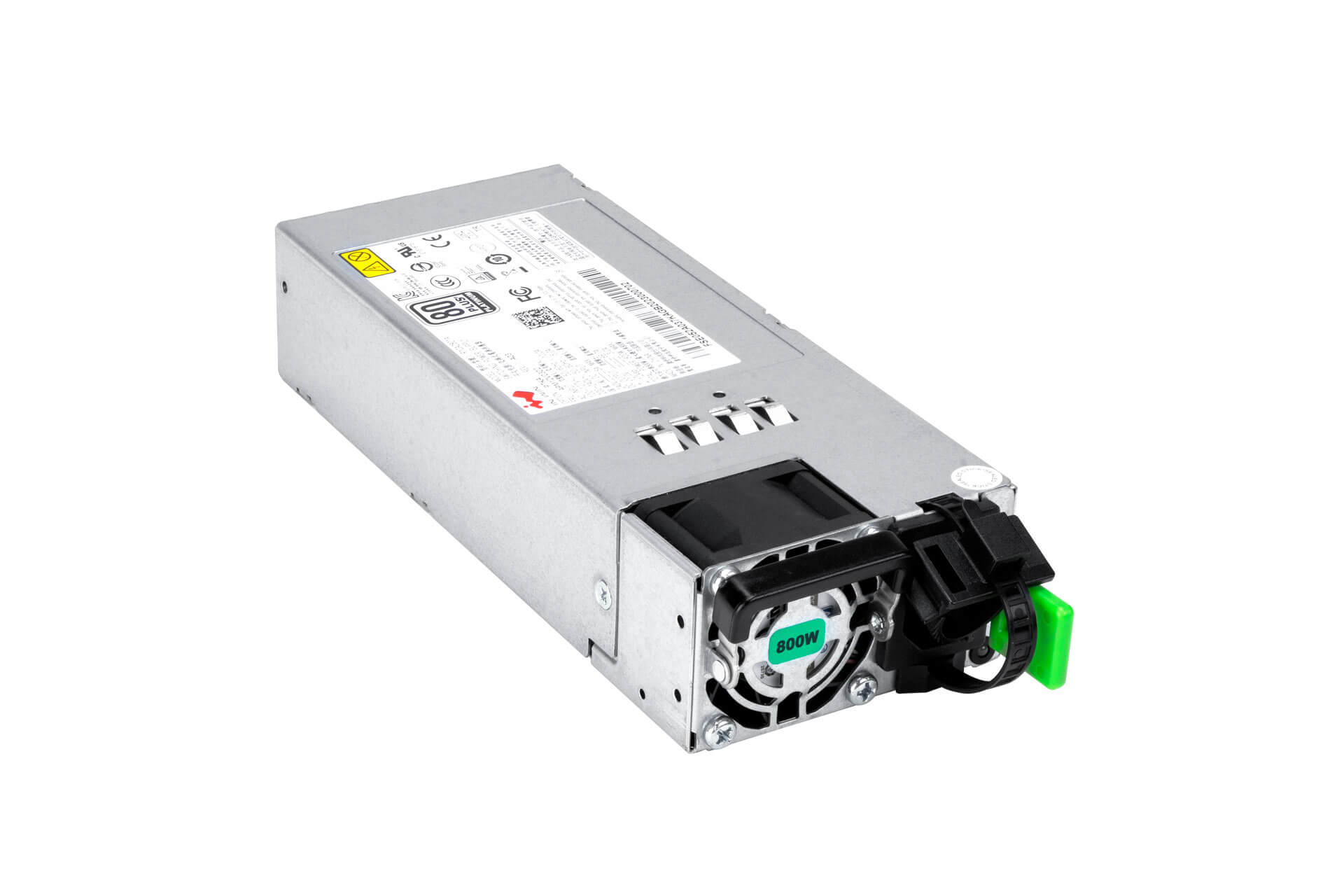

80 Plus Platinum 800W CRPS
Support: Max. 2
Power Supply

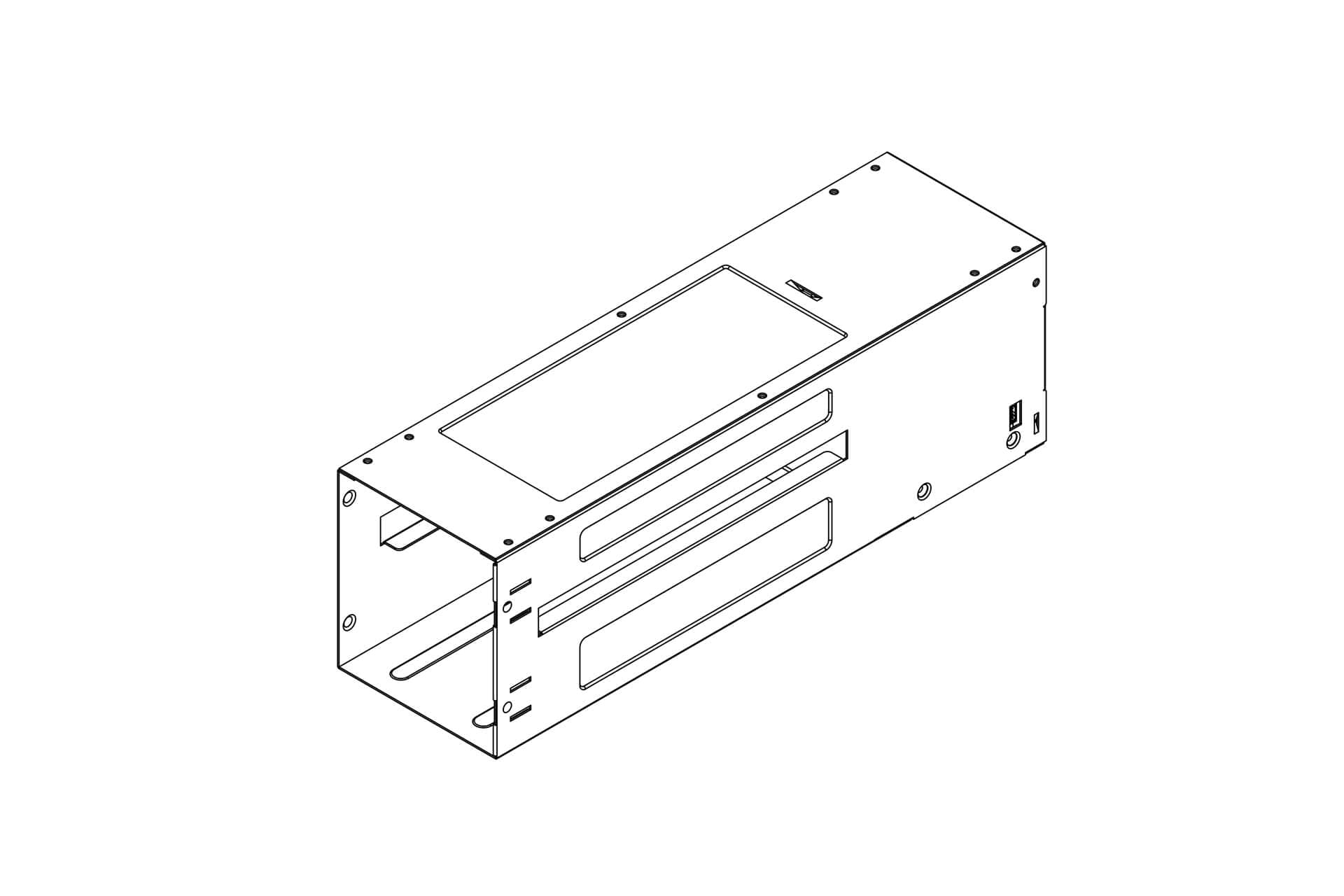

3RAMAP030501
PDB power cage for CRPS 1200W/1600W
Support: 1
Power Supply
3RAMAP026501

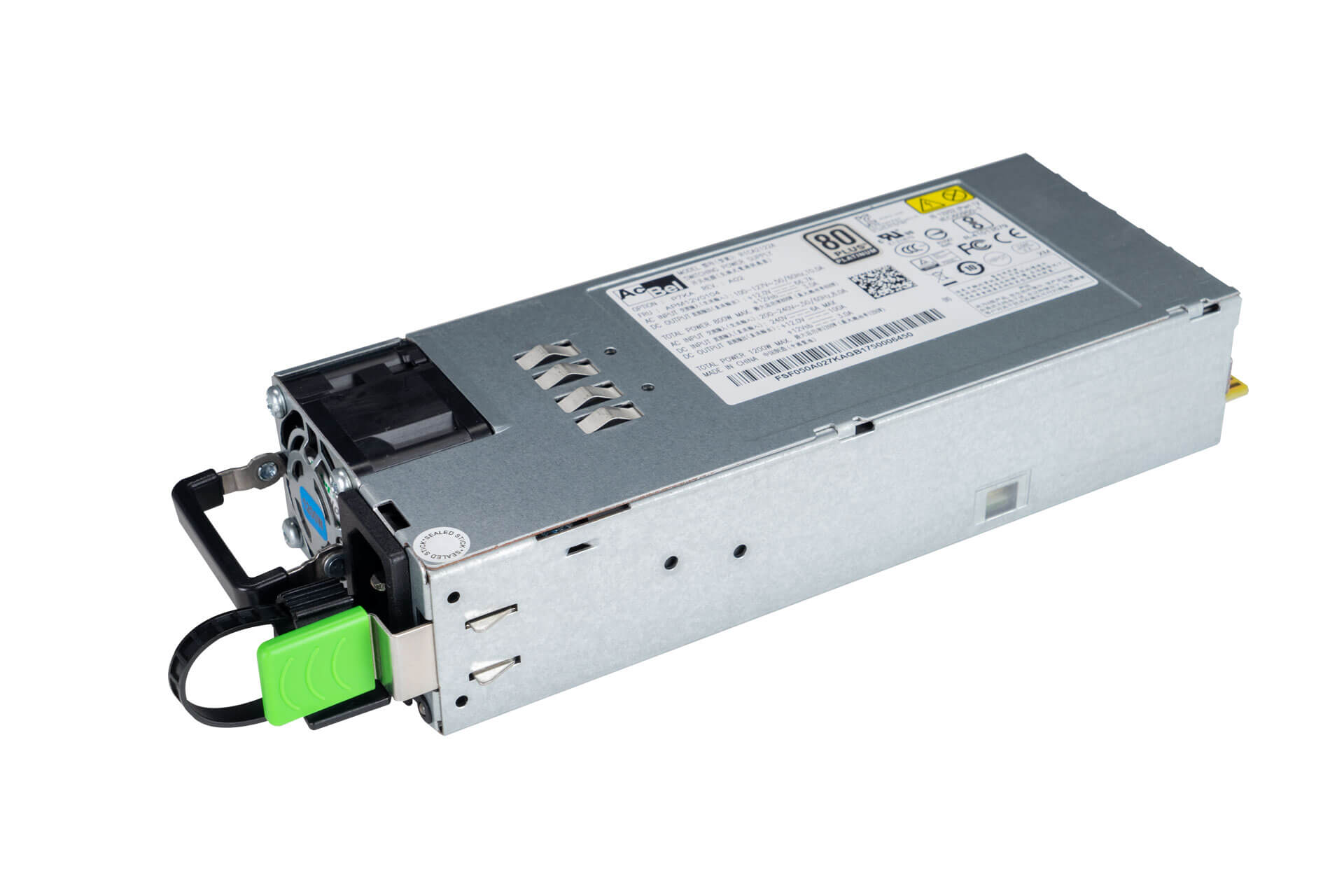

80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.)
Support: Max. 2
Power Supply
3RAMAP044300

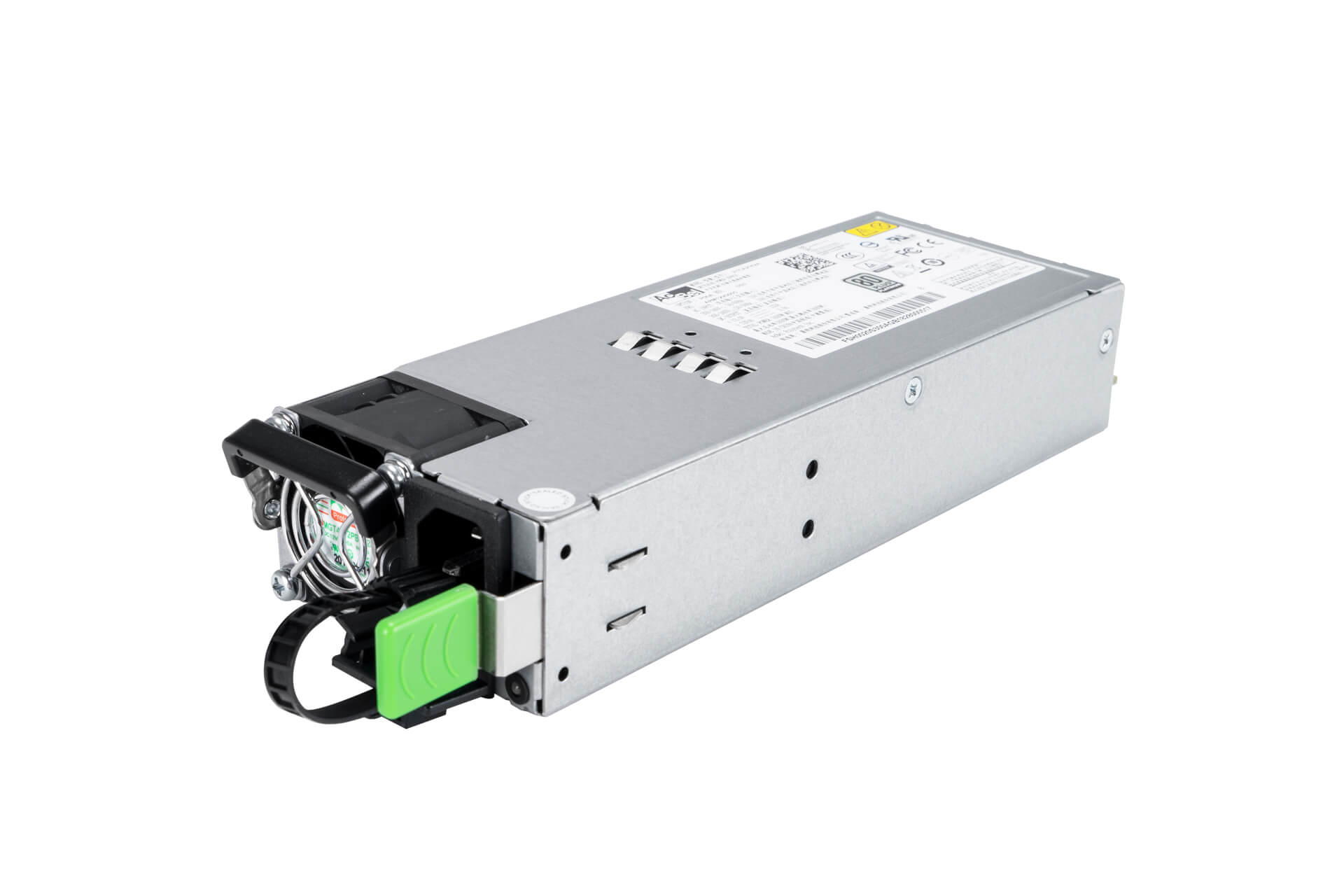

80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.)
Support: Max. 2
Fan

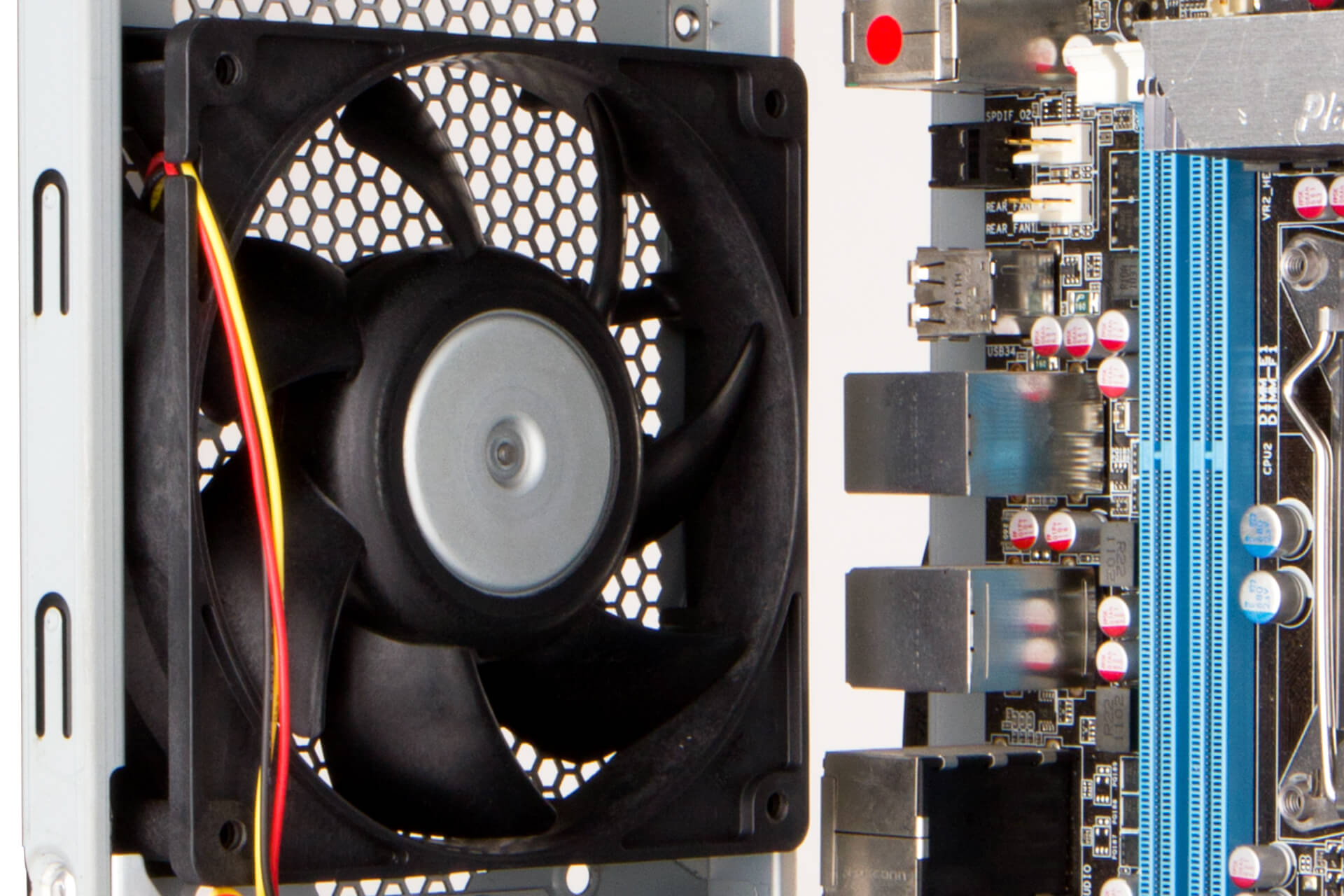

3RAMFC001300
120 x 25mm front or rear fan, PWM, 2500RPM
Support: Max. 2
Fan
3RAMFB007400
80 x 38mm rear fan, PWM, 5500RPM

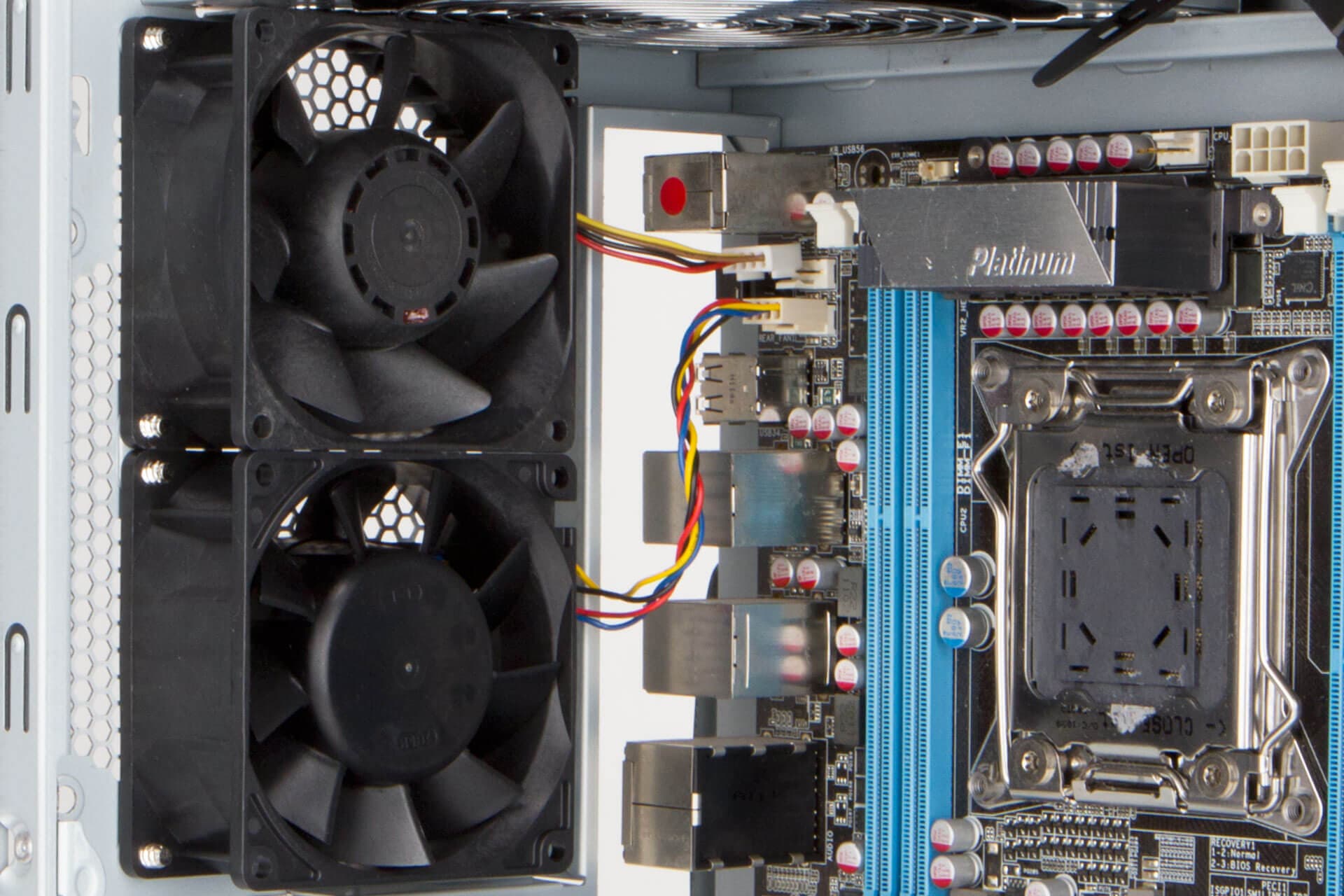

Support: Max. 2
Fan
2RATPH063901

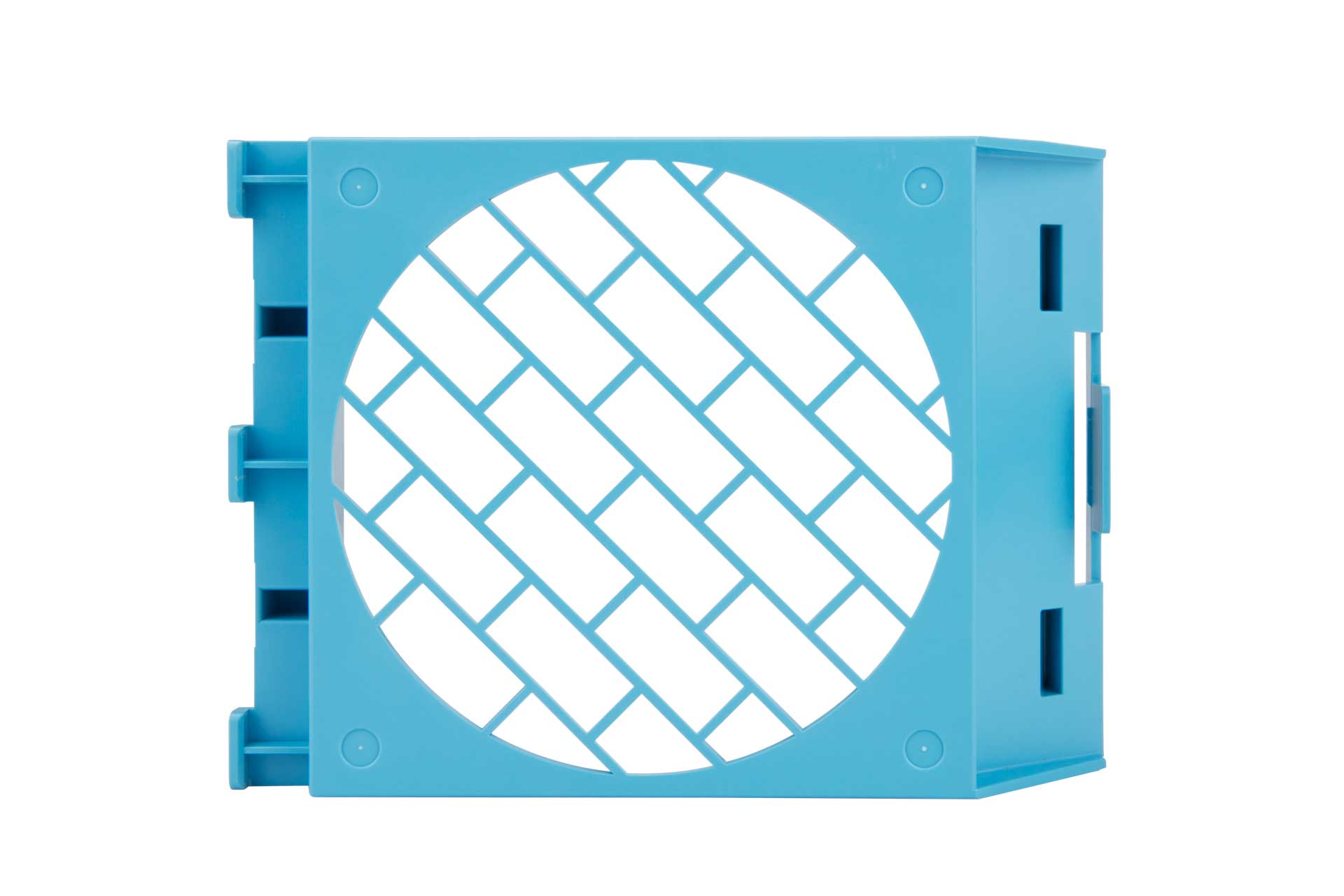

Plastic holder for 120mm fan (in the middle system of the chassis)
Support: 2
Storage Kit

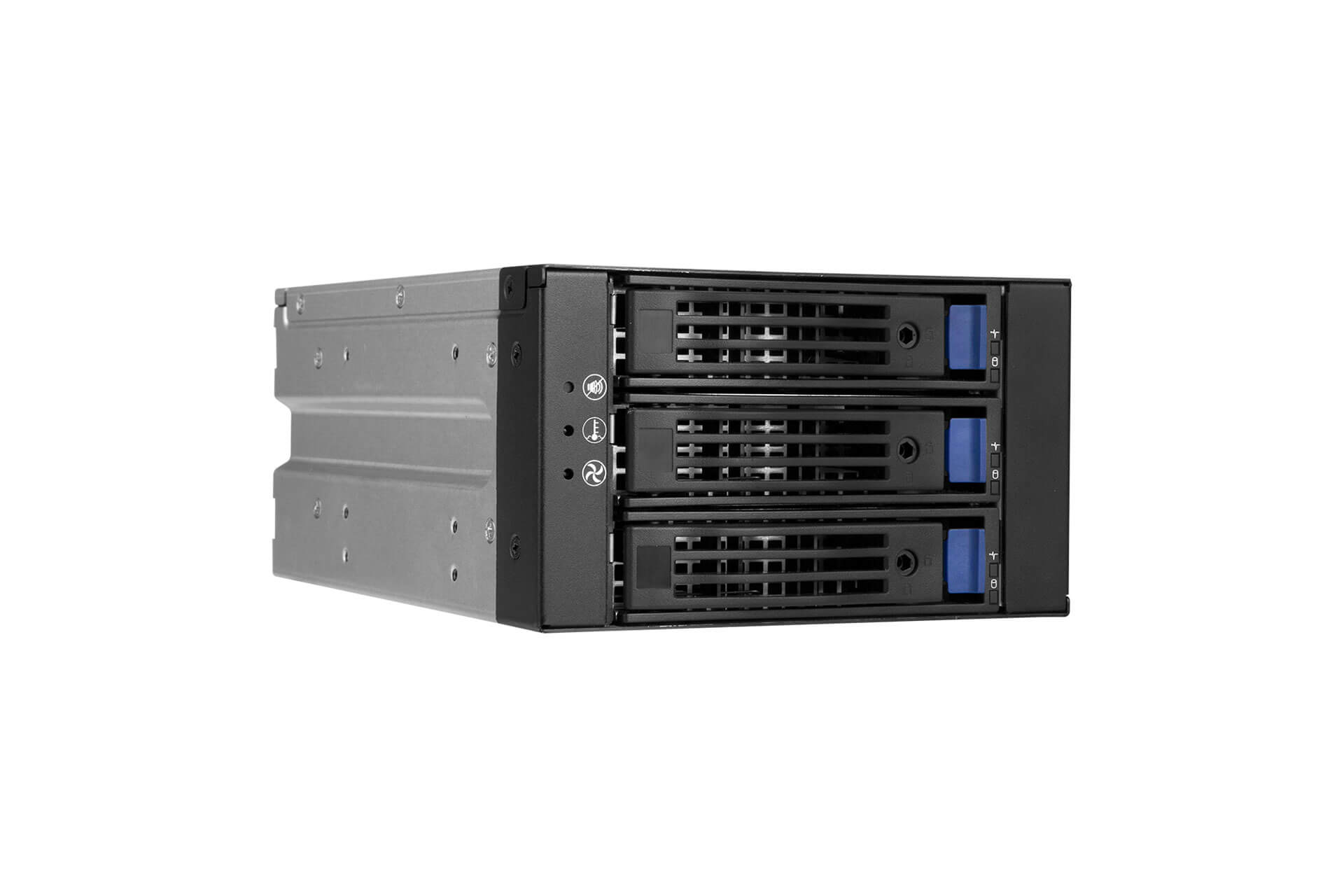

2RAKID044201
IW-SK23-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: Max. 2
Storage Kit
2RAKID073901

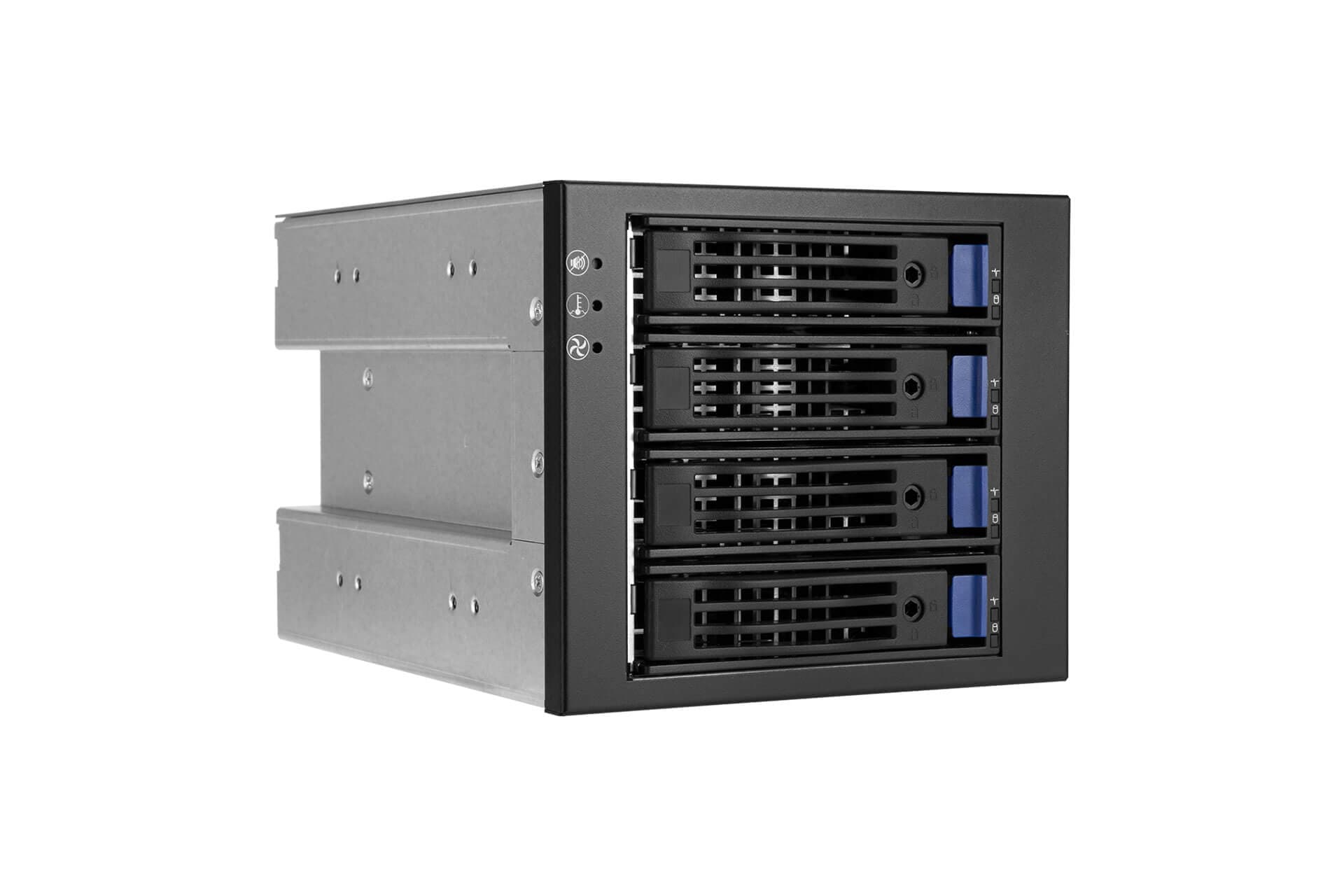

IW-SK34-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit
2RAKID088302

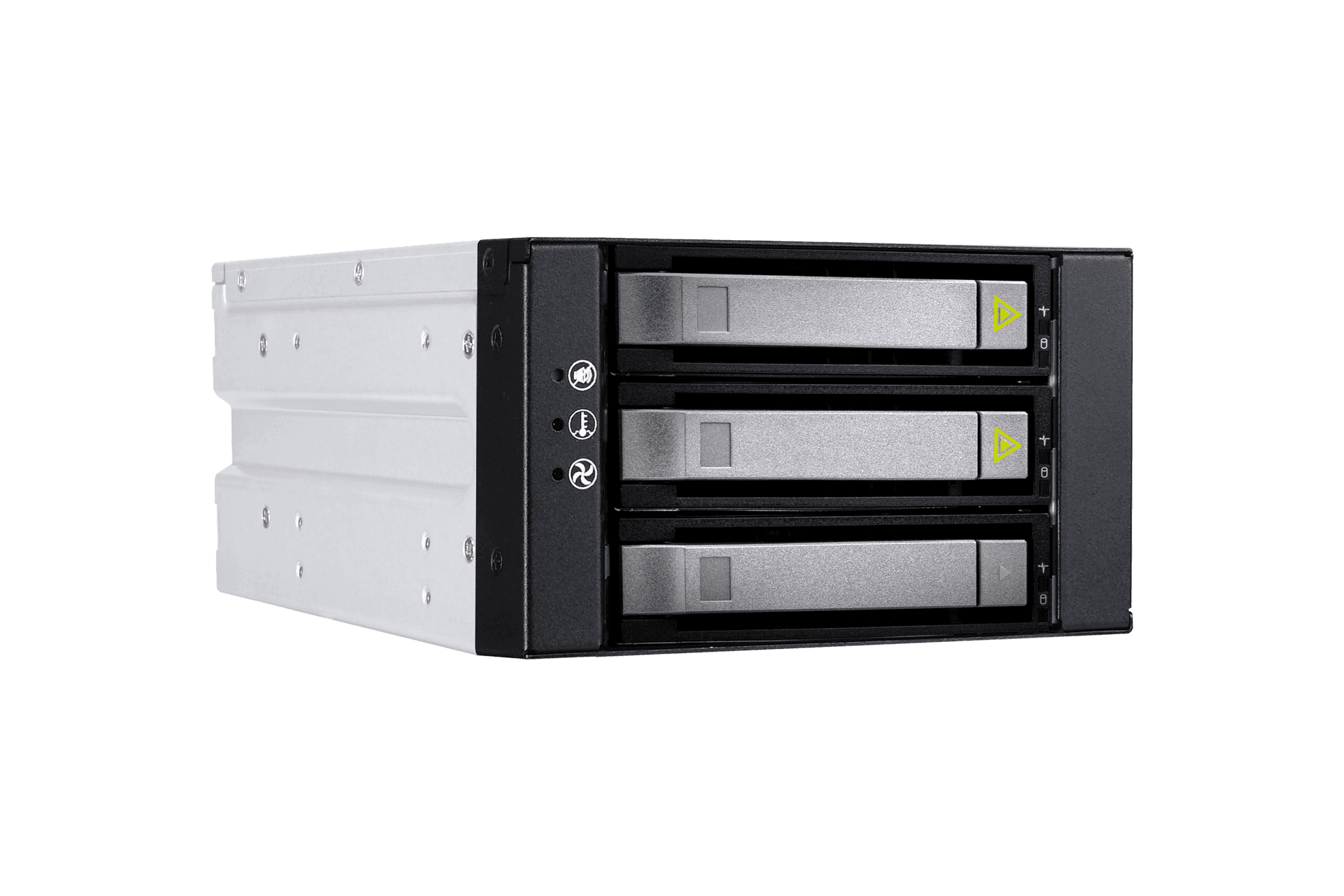

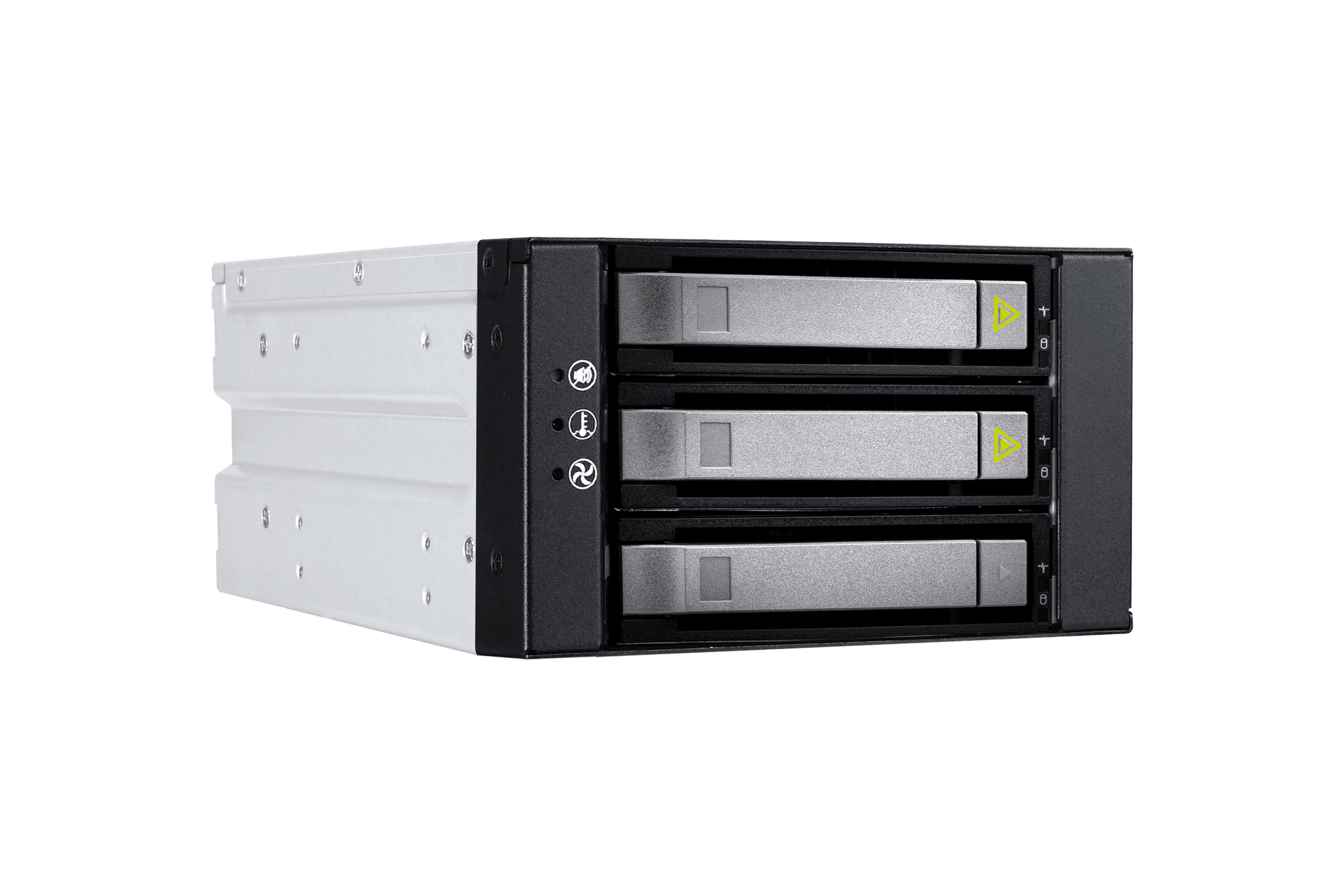

IW-SK23-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: Max. 2
Storage Kit
2RAKID088403

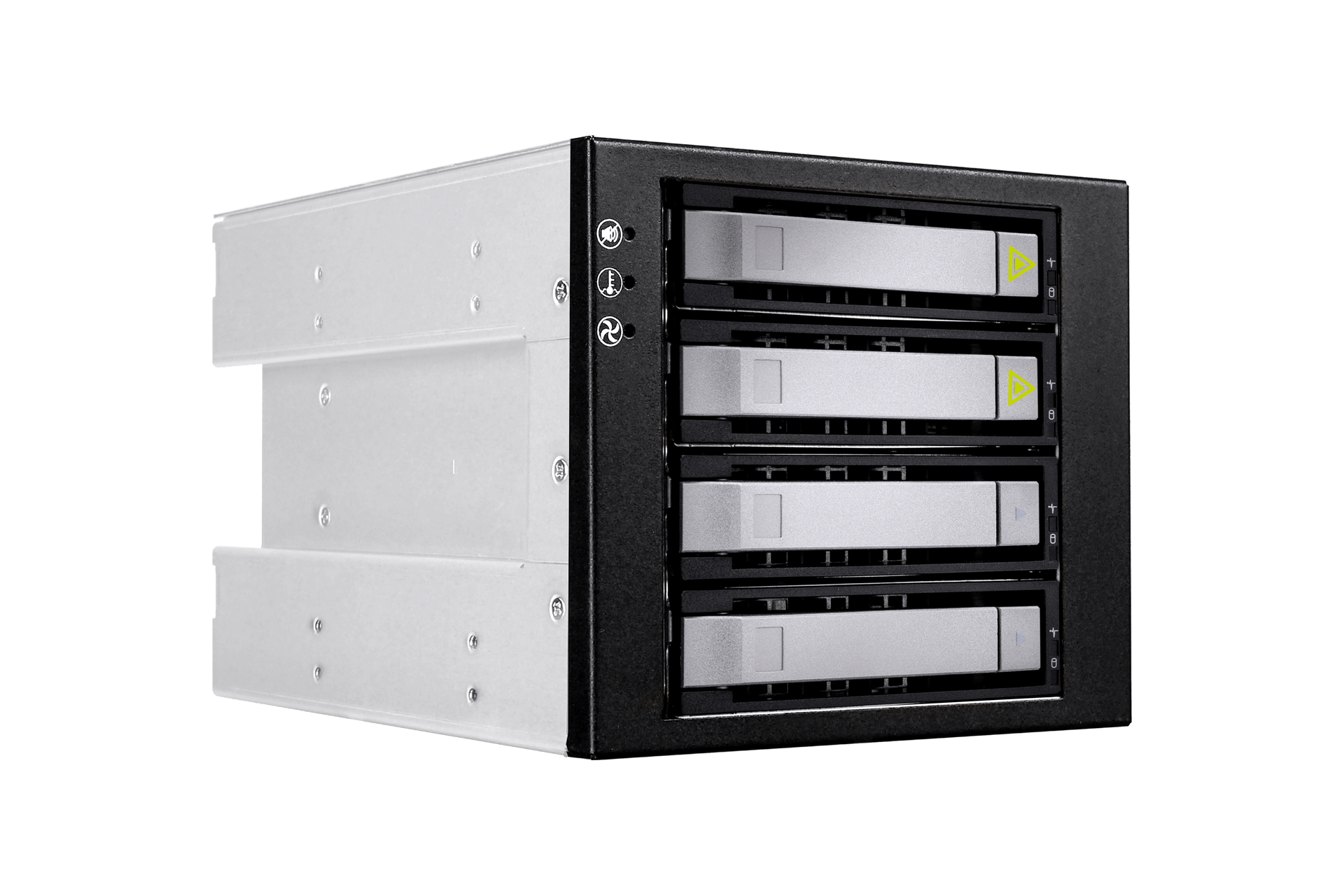

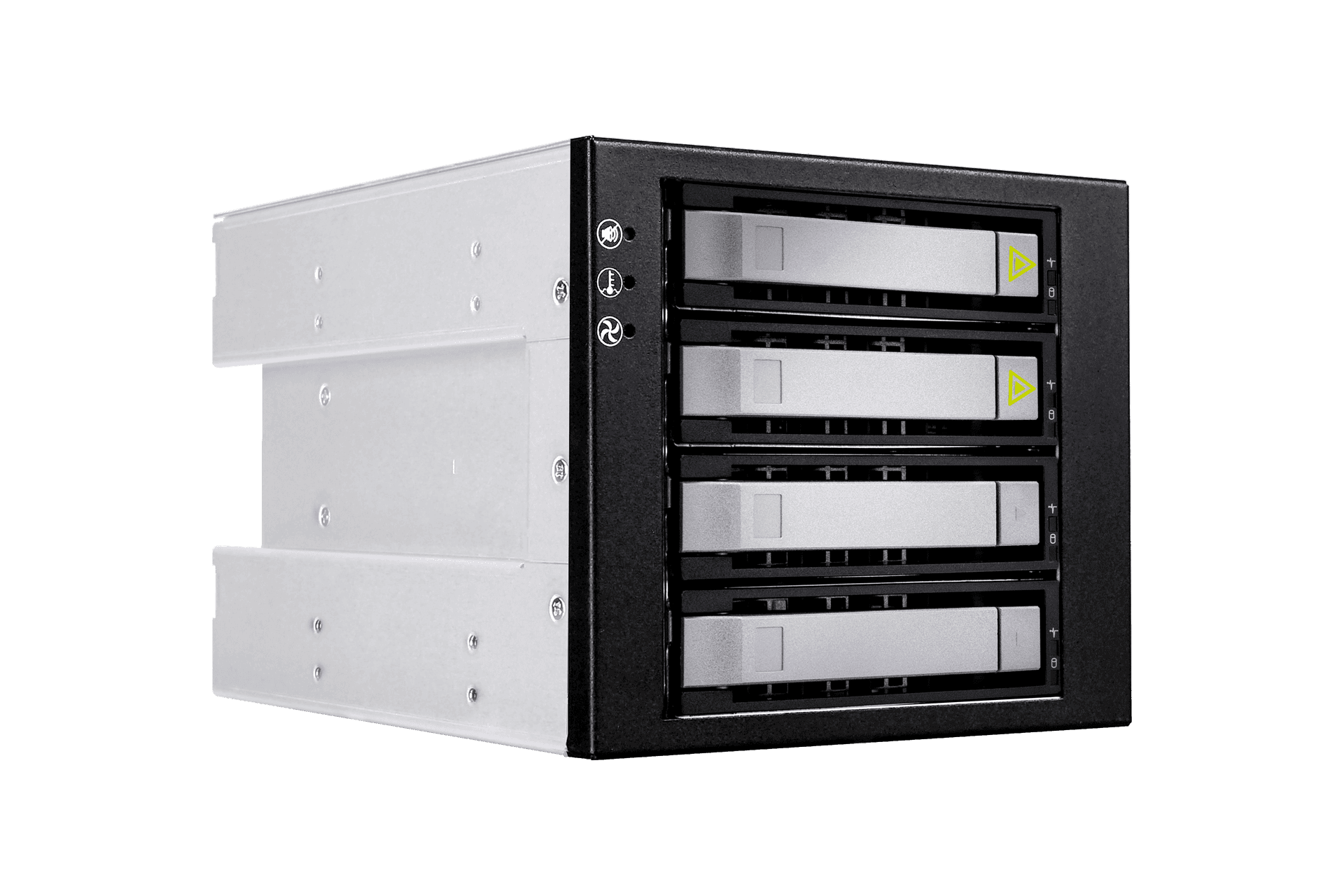

IW-SK34-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Others
3RAMRW020400

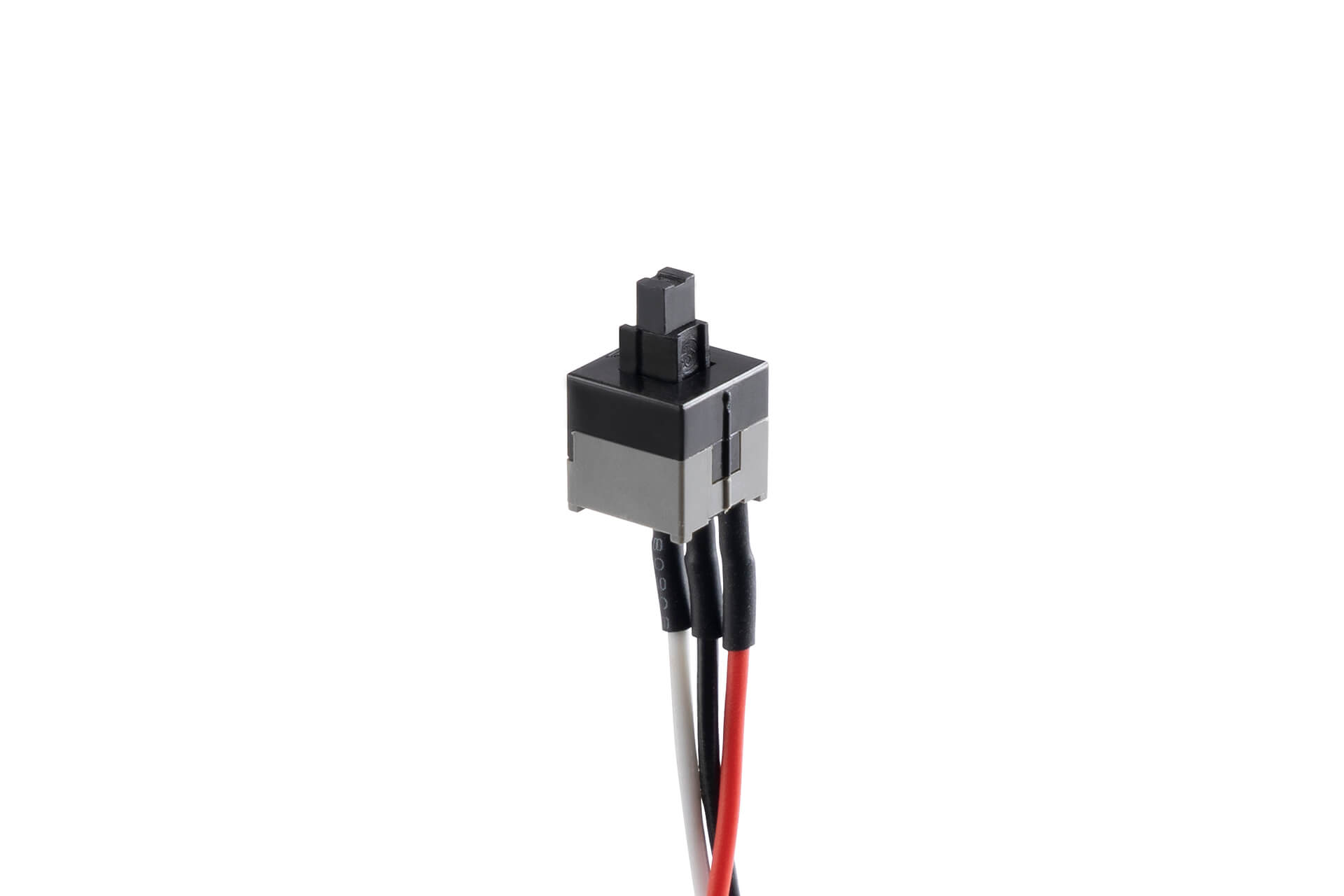

Intrusion switch/700mm
Support: 1
Others
2RAGPD028701

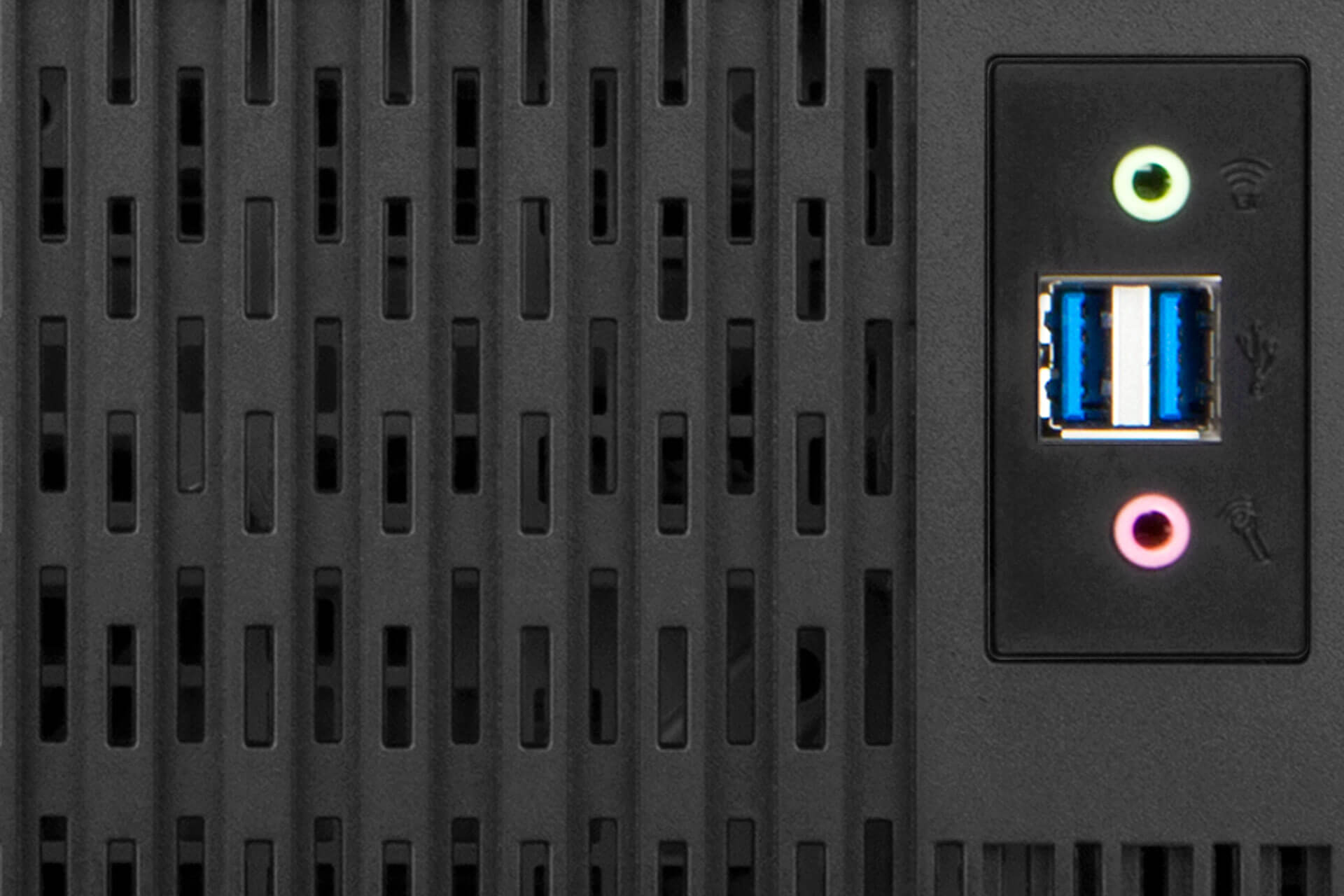

Front I/O USB 3.0 x 2 + Audio
Support: 1
Others
2RAGPD036101

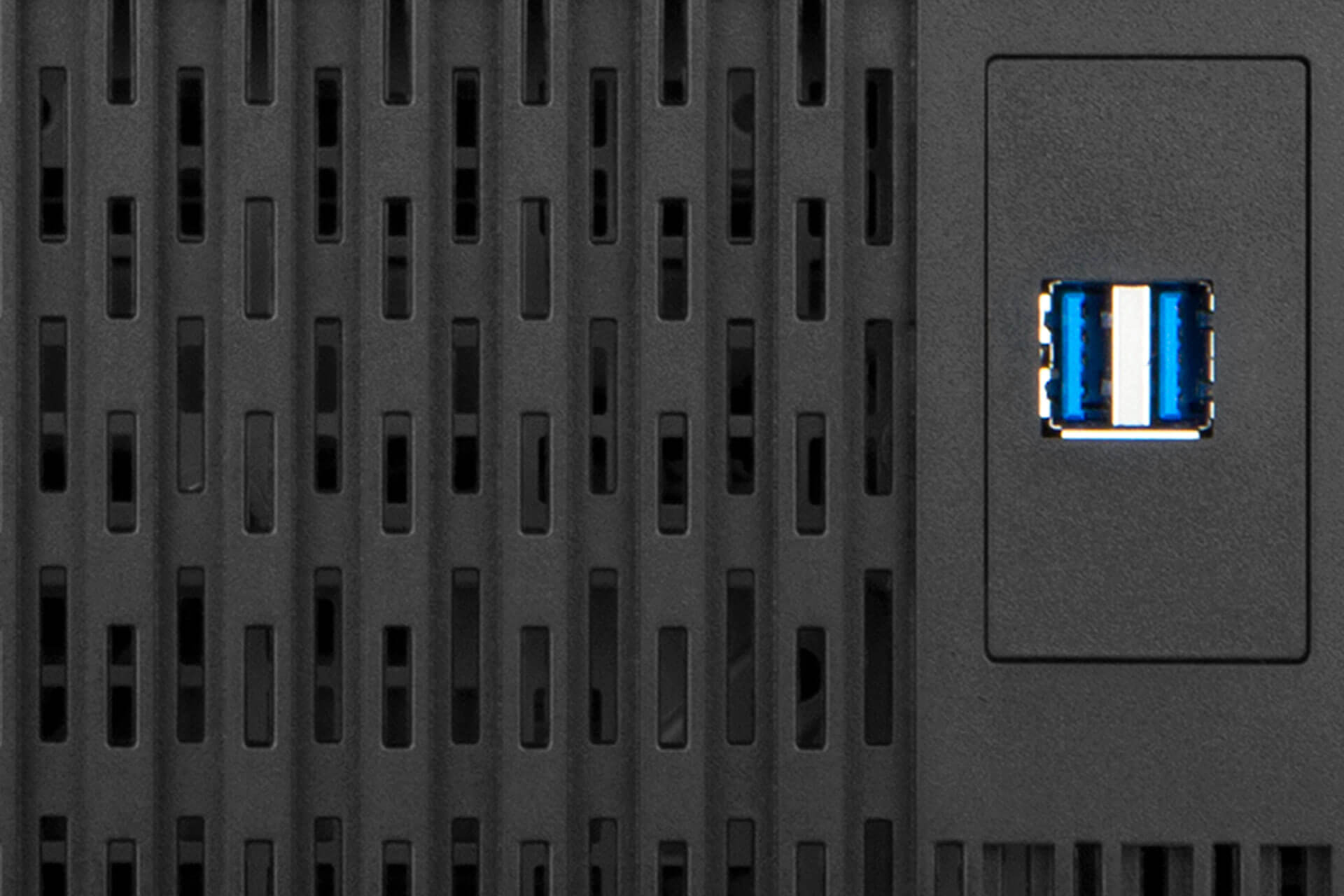

Front I/O USB 3.0 x 2
Support: 1
Others
2RAKIS013601

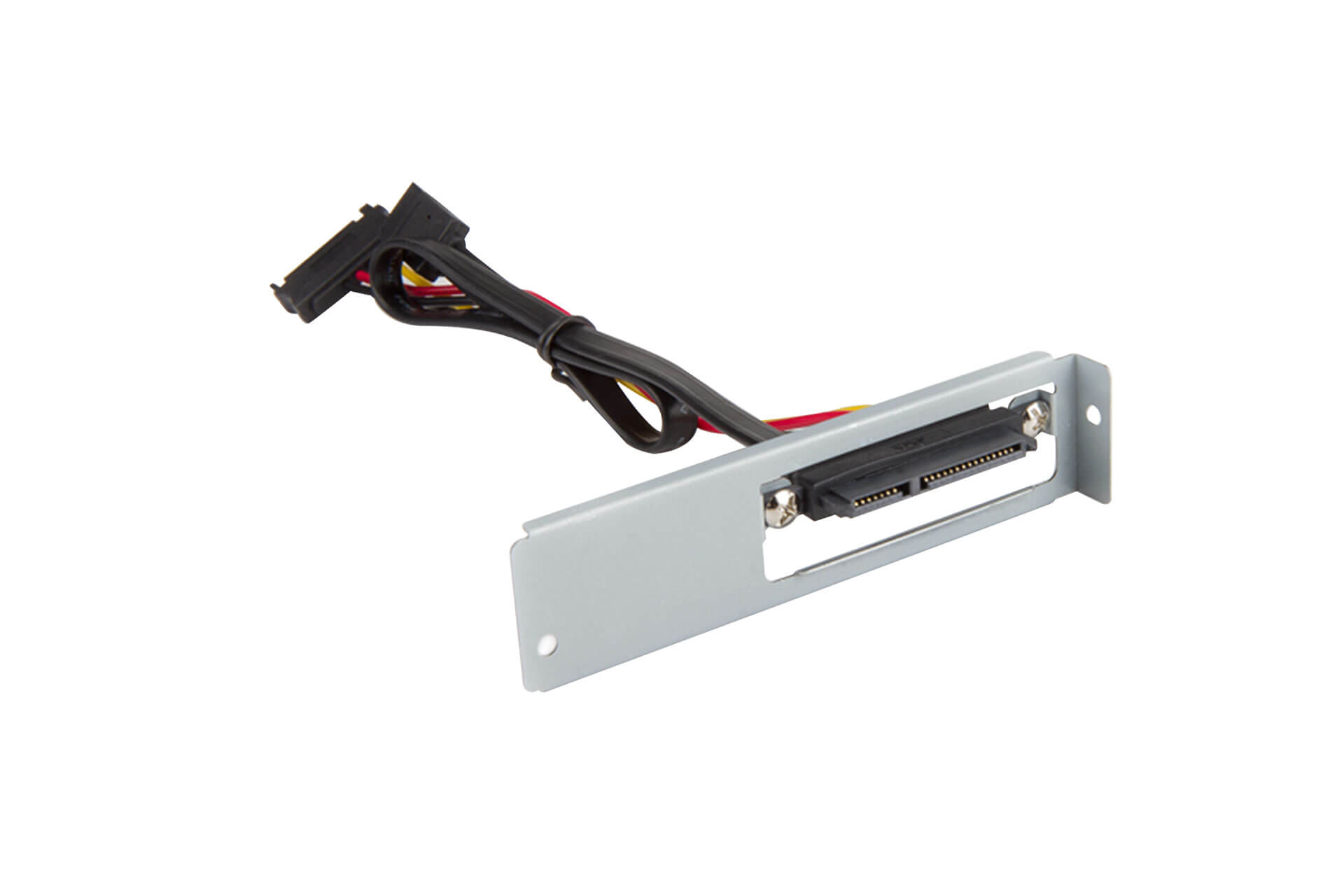

Single easy-swap SATA port module for 2.5"/3.5" HDD
Support: 5
Others

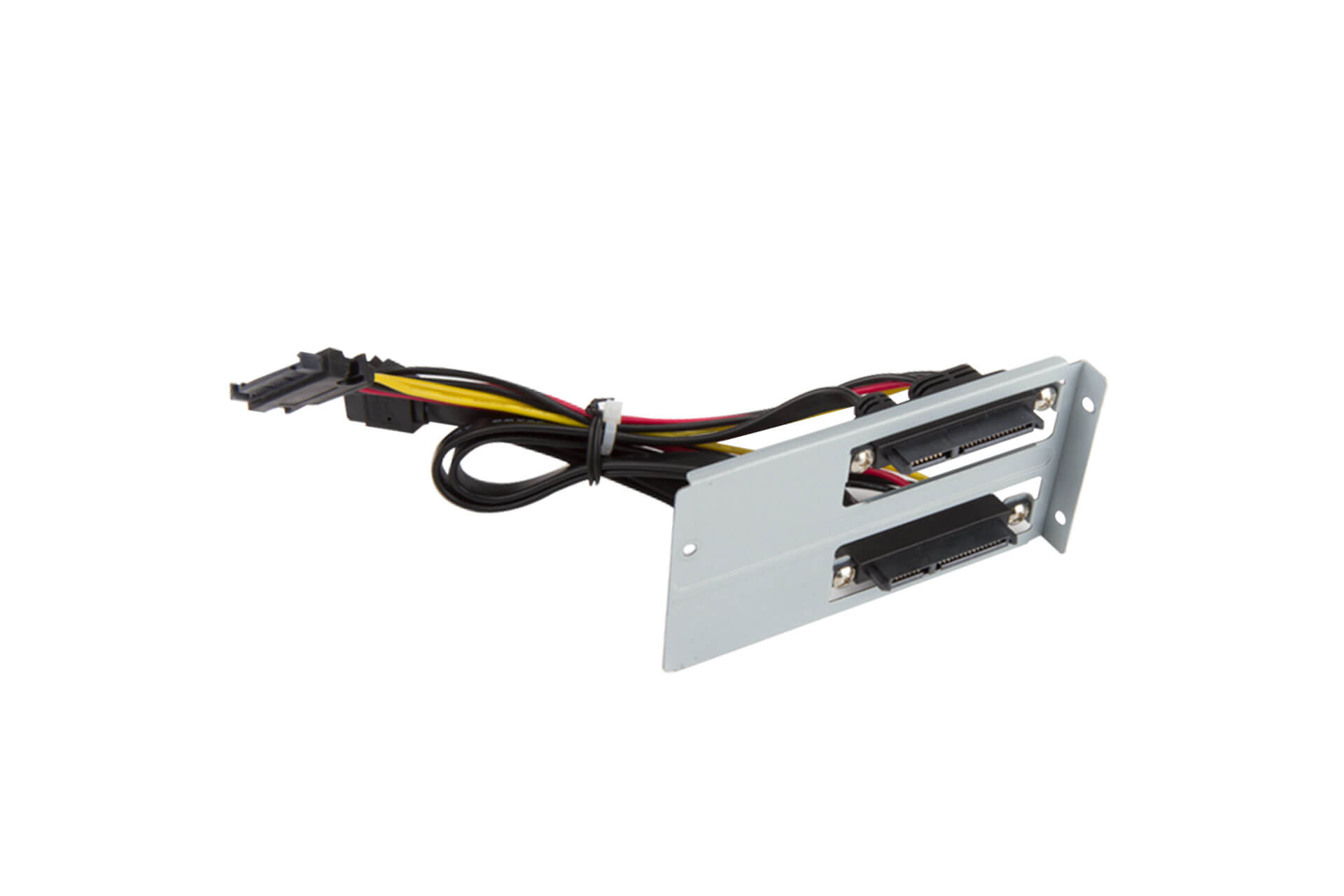

2RAKIS004400
Dual easy-swap SATA port module for 2.5"/3.5" HDD
Support: 2
Others

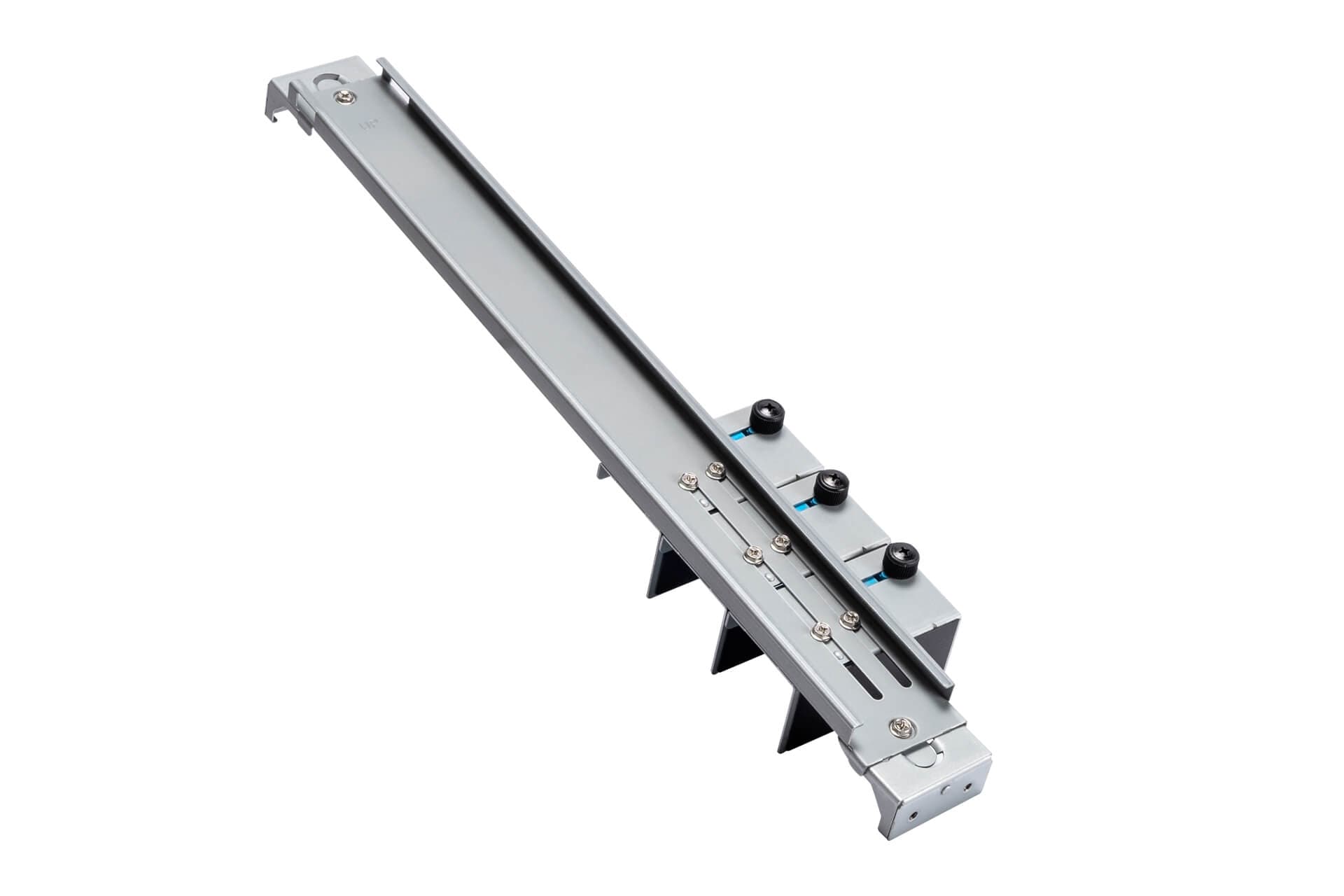

2RALXX611600
Add-on card holder kit
Support: 1
Others
2RAKIS040800

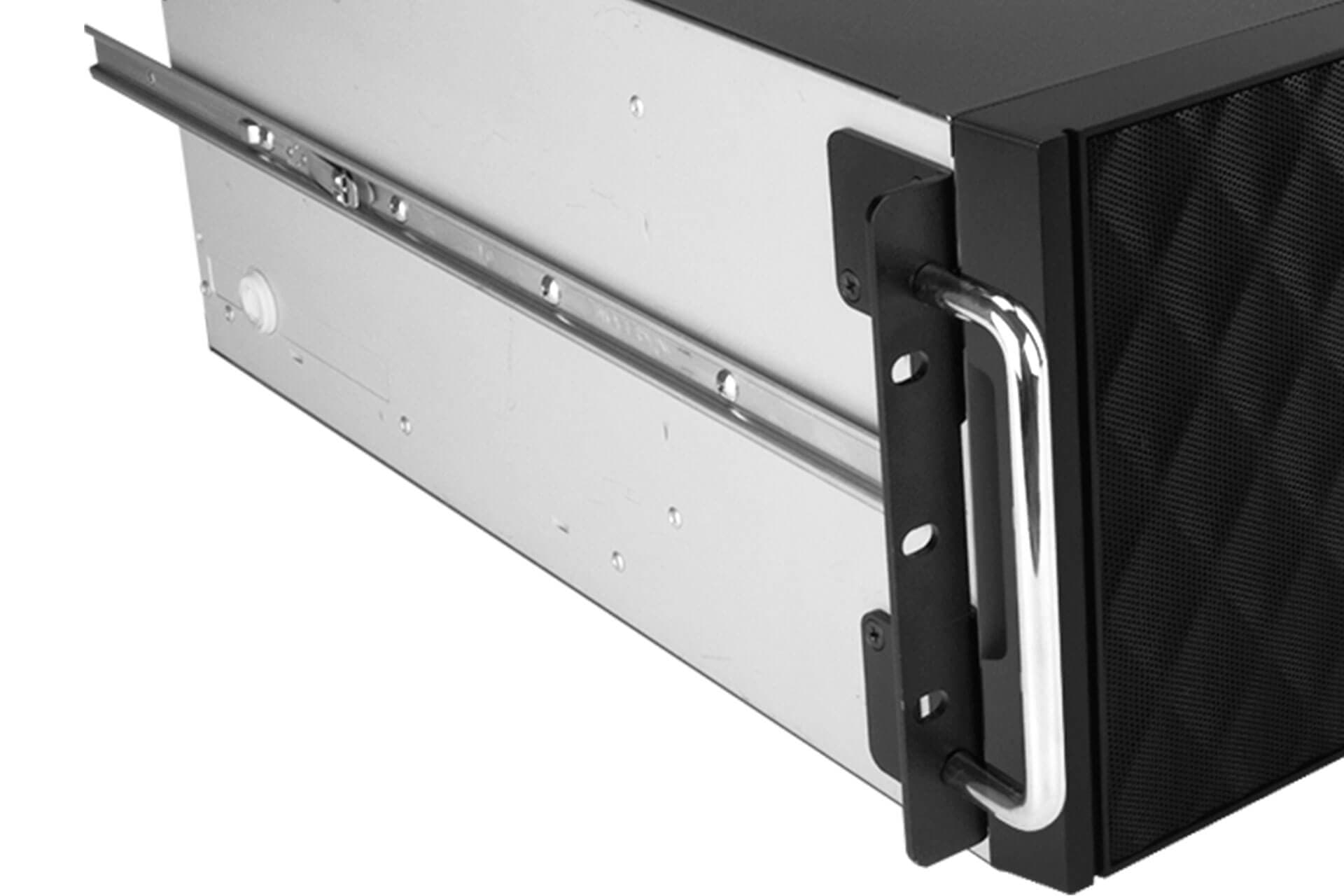

Rack mounting ear (L)
Support: 1

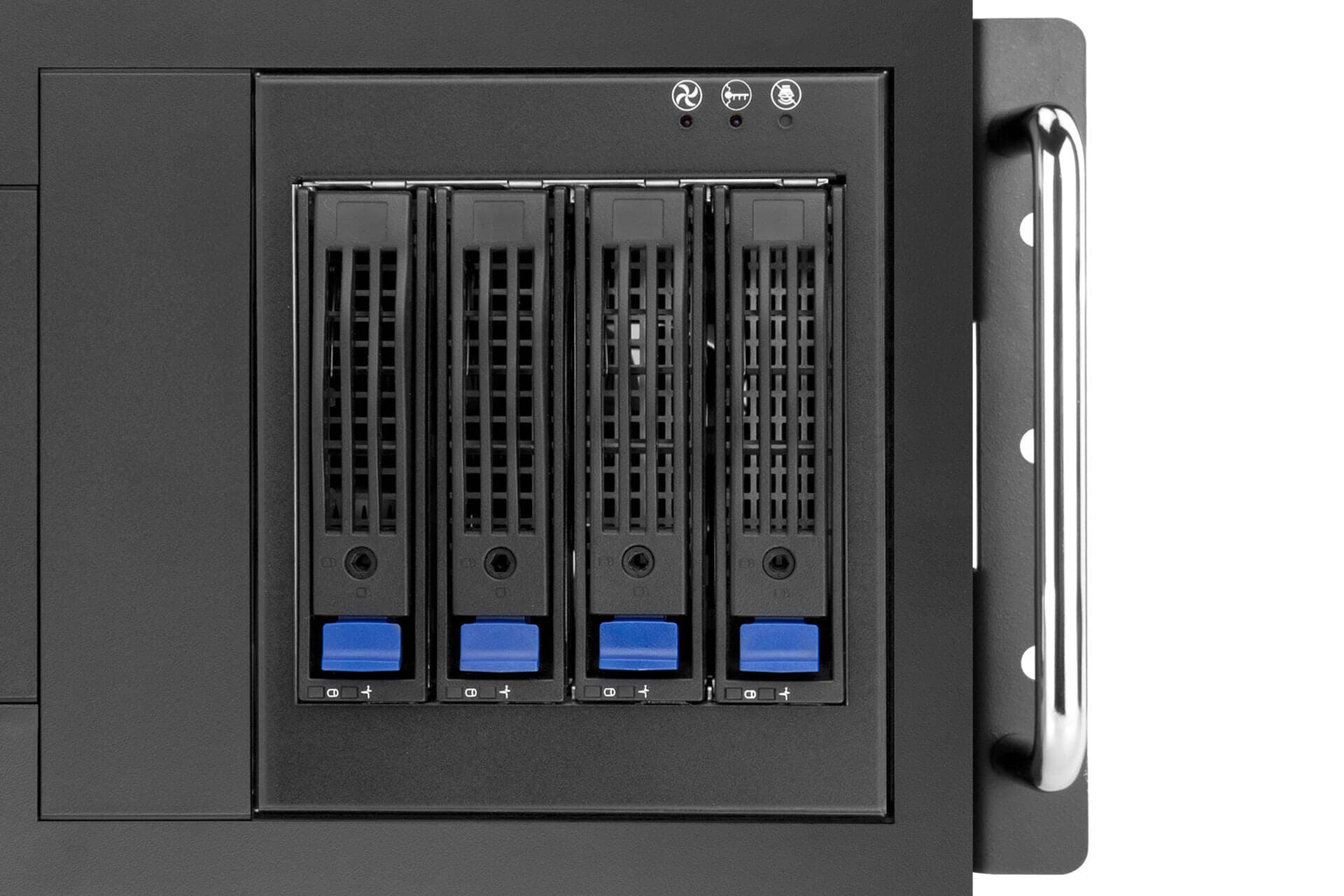

Others
2RAKIS040900
Rack mounting ear (R)
Support: 1
