InWin

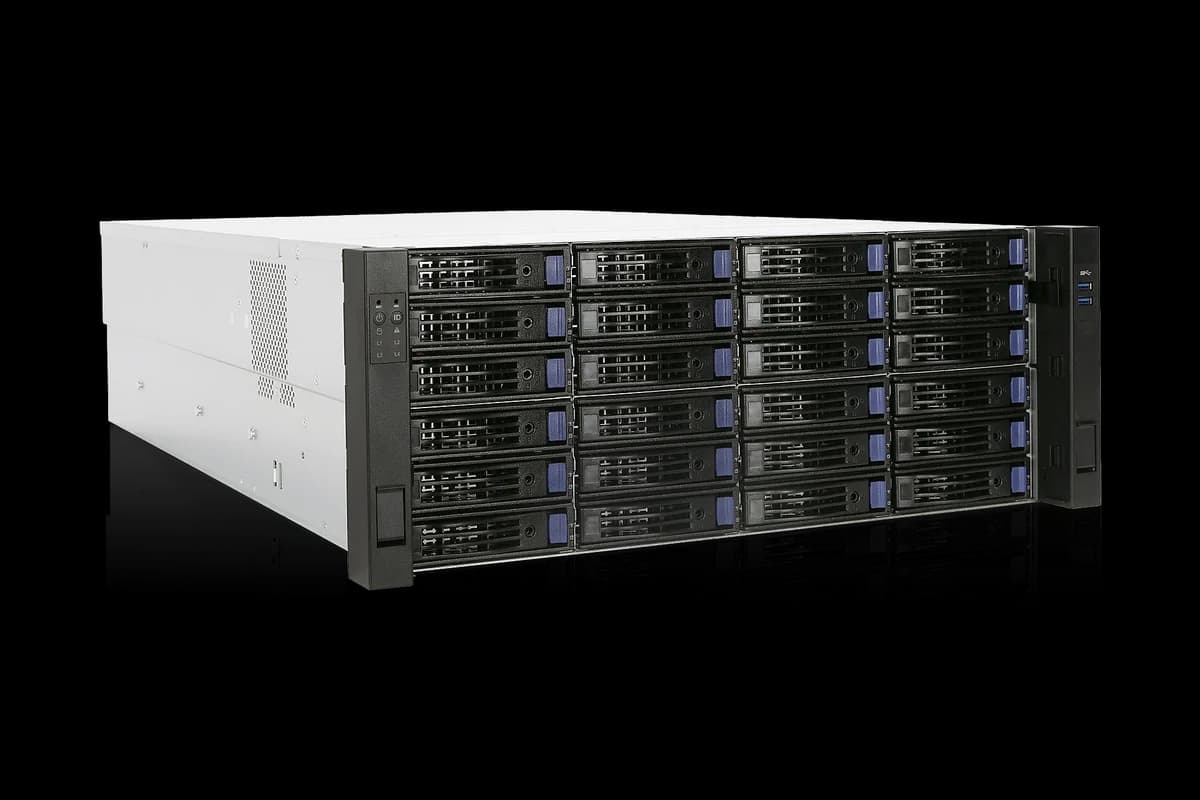

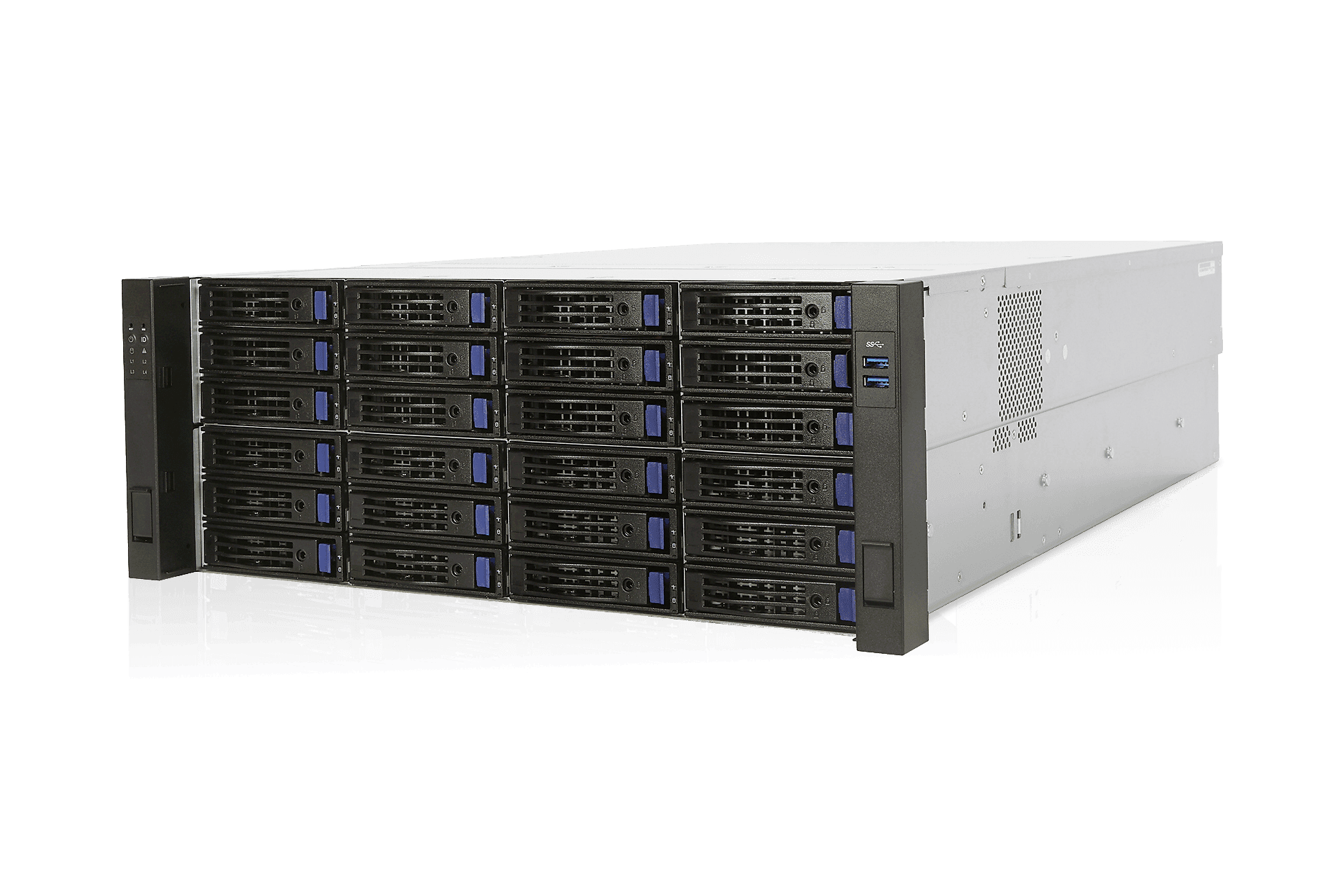

InWin IW-RSA424-02M
Артикул: INWIN-IW-RSA424-02M
4U Chassis
4U storage-корпус на 24 SAS/SATA накопителя с expander-модулем
IW-RSA424-02M предназначен для емких 4U storage-систем: 24 фронтальных SAS/SATA отсека, Mini-SAS HD подключение, Broadcom SAS expander, четыре hot-swap вентилятора и семь полноразмерных PCIe-слотов.
Hot-swap
24 x SAS/SATA
Backplane
Mini-SAS HD x3
Expander
Broadcom 12Gbps
PCIe
7 x full-height
Dense Storage

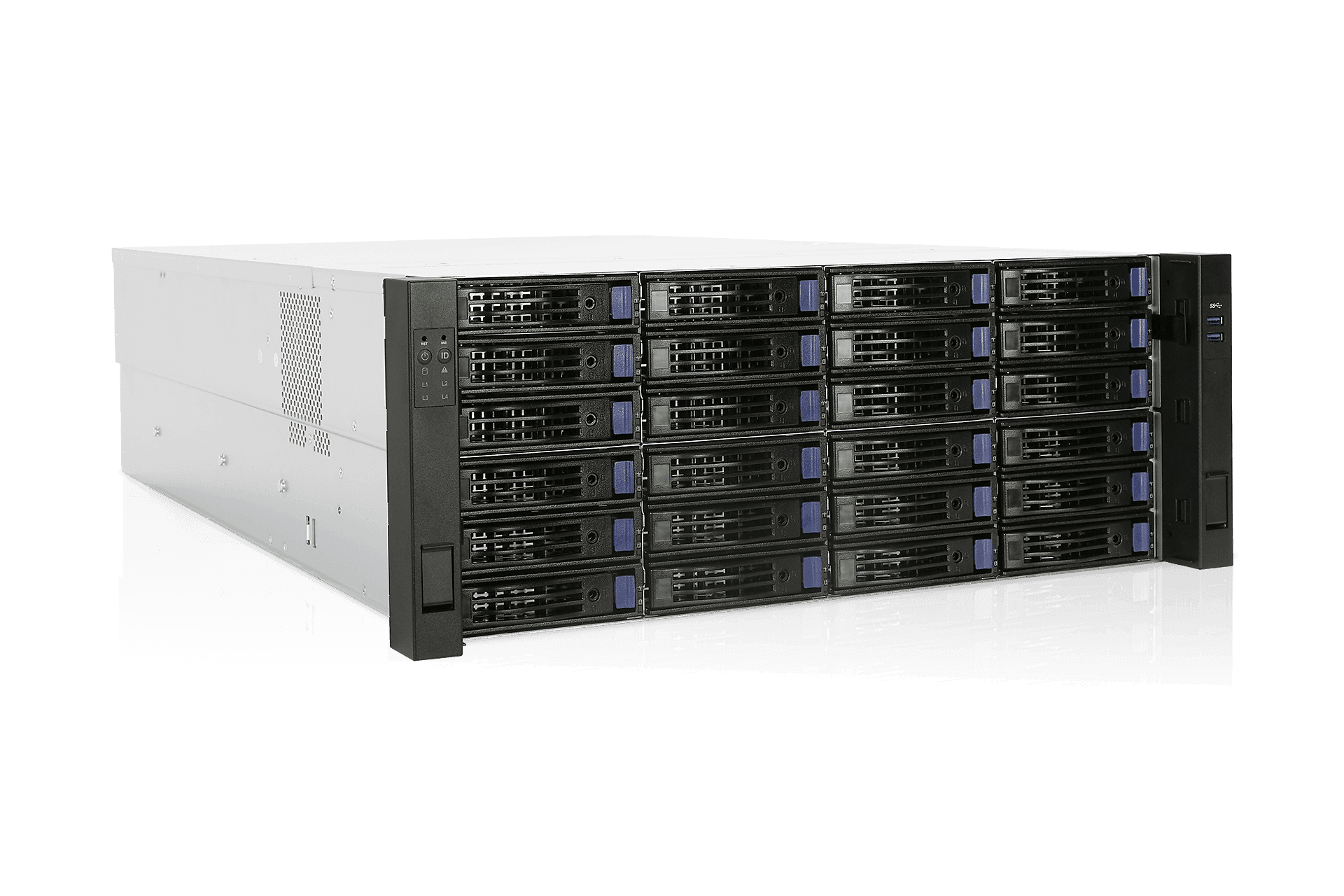

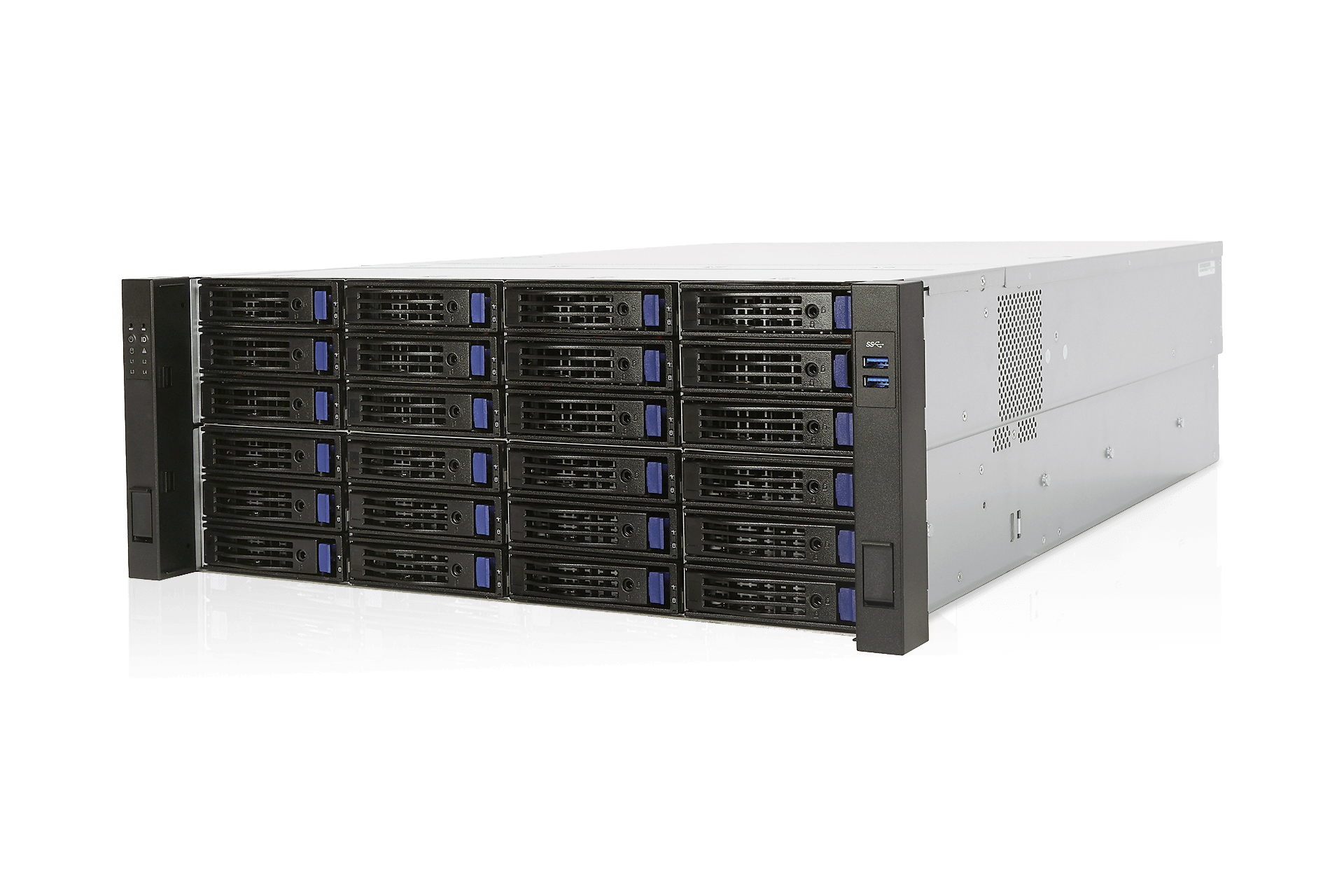

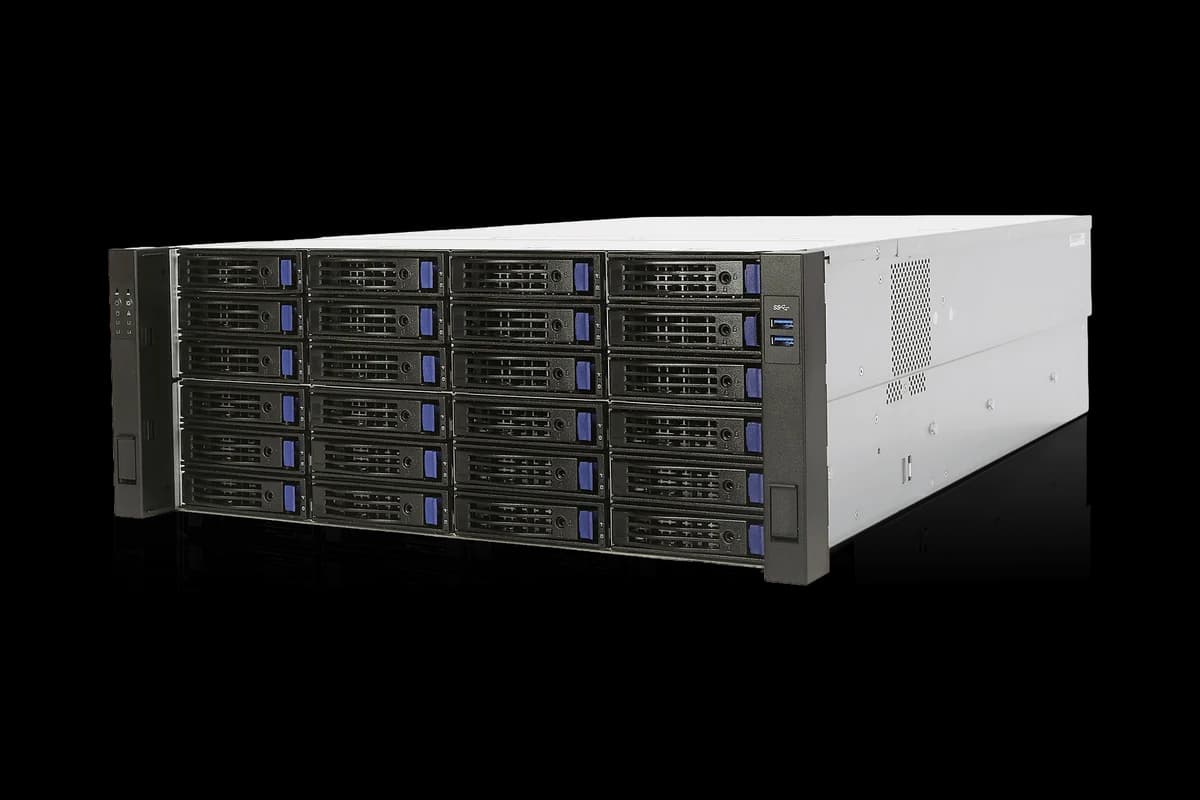

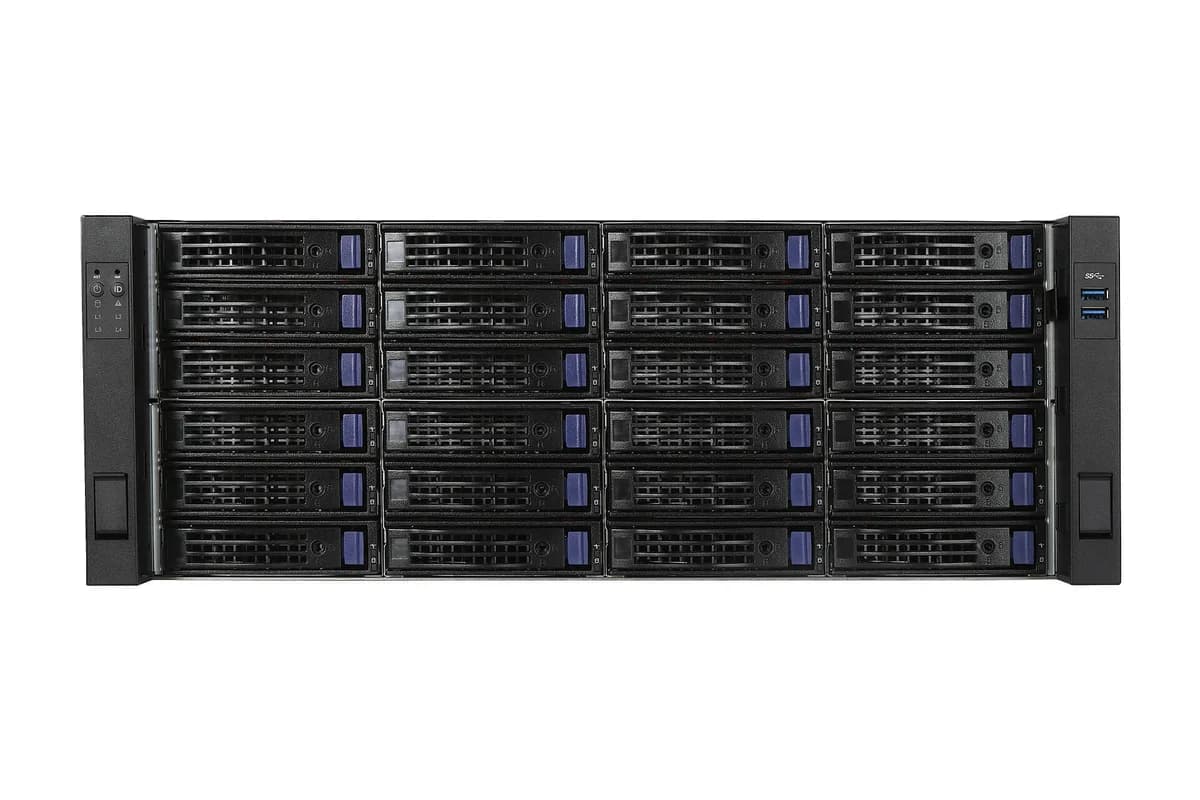

24 фронтальных отсека для SAS/SATA массивов
Передняя корзина рассчитана на плотное размещение накопителей в 4U. Такой формат подходит для архивов, резервного копирования, видеонаблюдения и других задач, где важны емкость и понятное обслуживание дисков.
12Gbps Expander
Mini-SAS HD подключение и Broadcom SAS expander

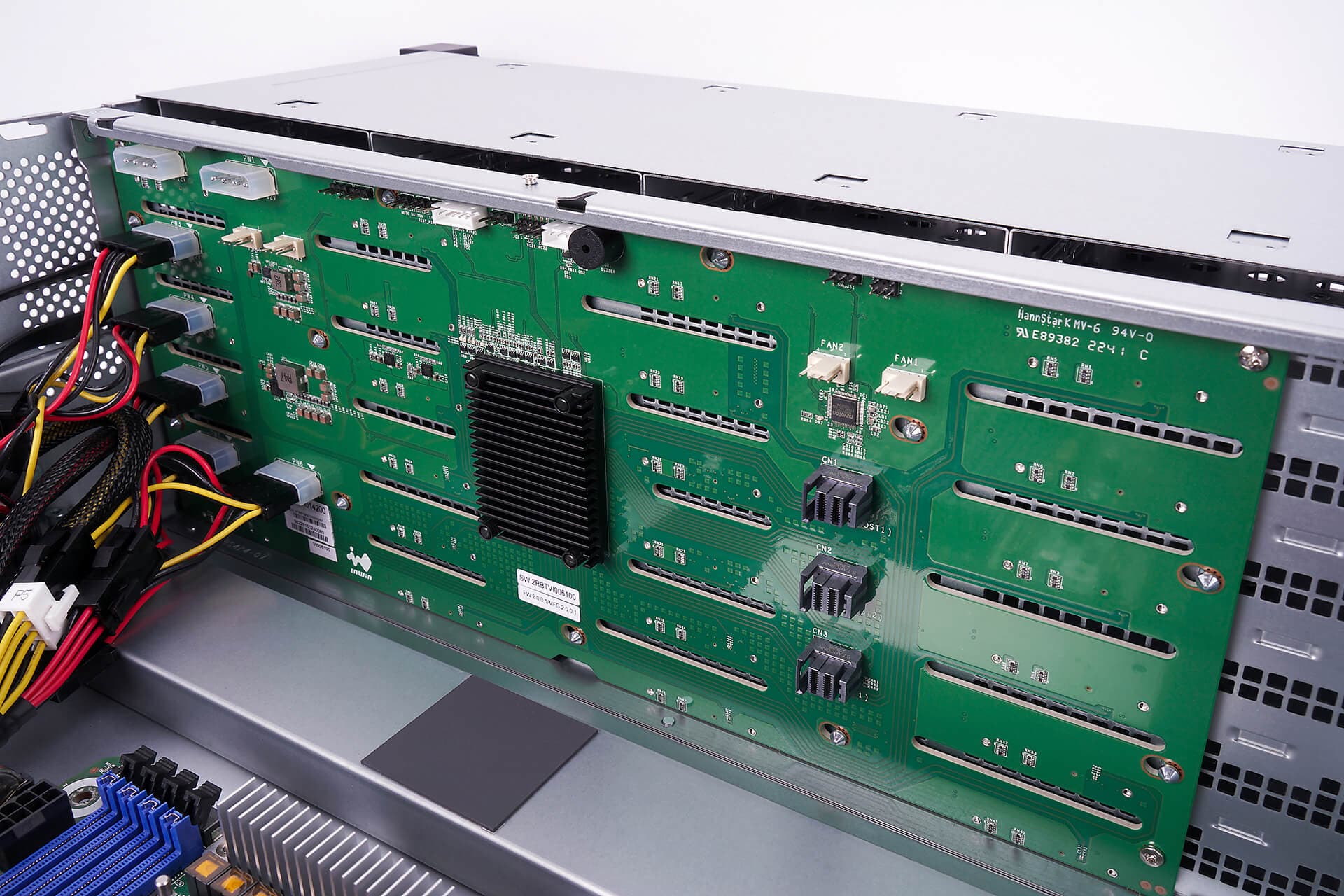

Backplane использует три Mini-SAS HD host-порта и 12Gbps expander-модуль Broadcom. Это упрощает подключение 24 SAS/SATA накопителей к серверной платформе и снижает сложность кабельной разводки.
Service Cooling

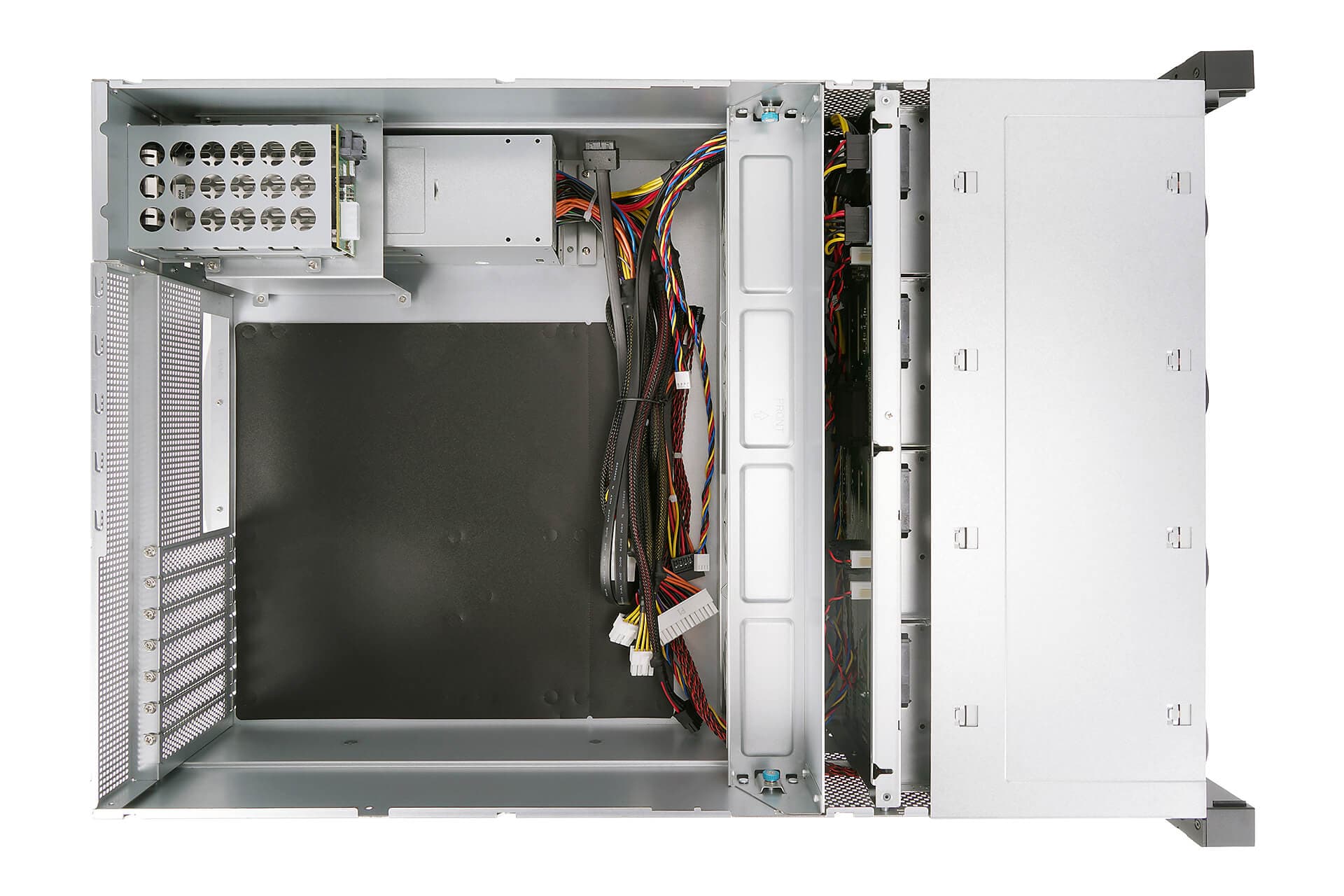

Четыре hot-swap вентилятора 80 x 38 мм
Модульные 80 x 38 мм PWM-вентиляторы помогают обслуживать плотный дисковый массив без полной разборки корпуса. Воздушный поток рассчитан на стабильную работу storage-конфигурации при высокой загрузке.
Product Details

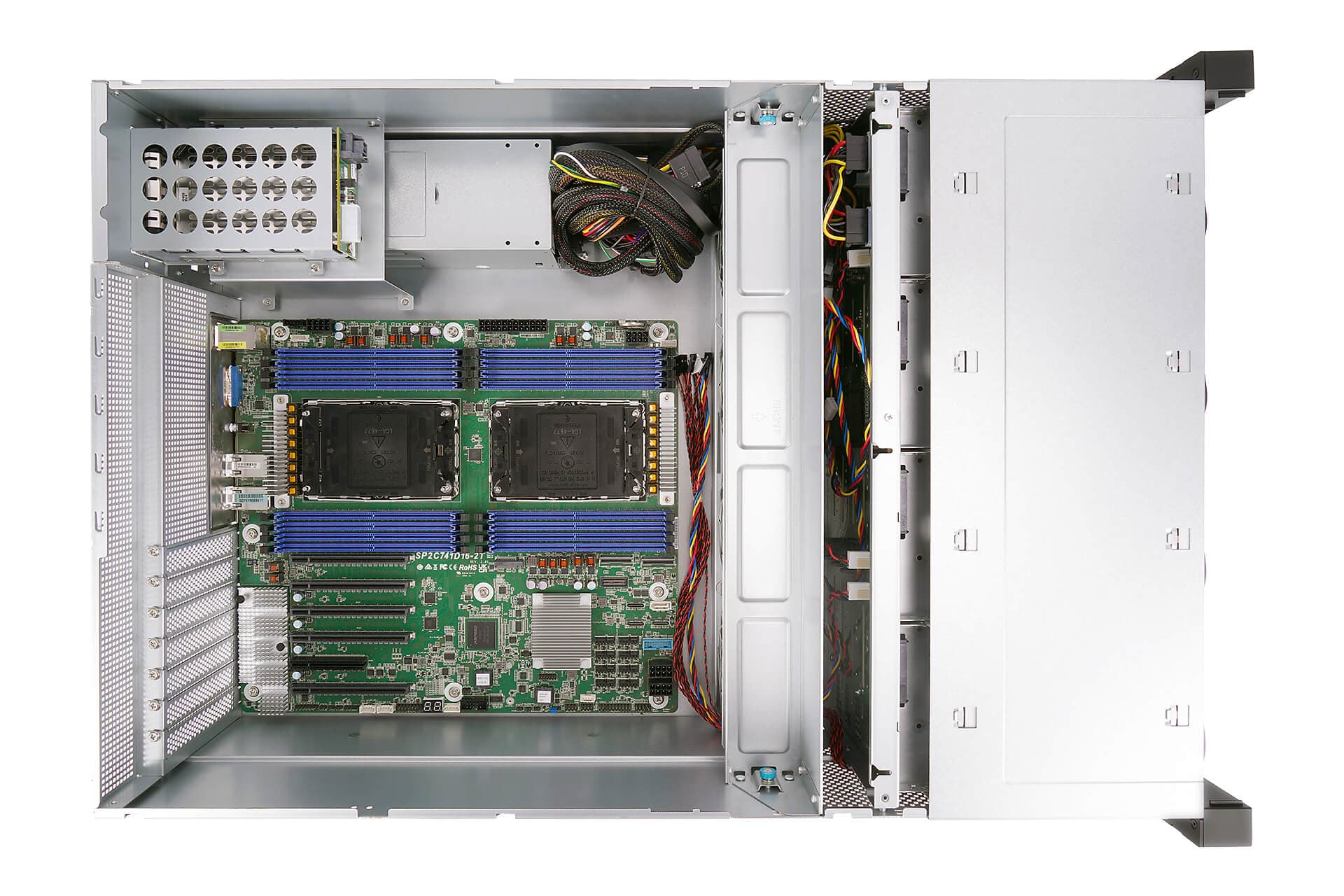

Детали конструкции InWin IW-RSA424-02M
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Power Supply | Supports: • Form factor: 80 PLUS Platinum CRPS • Watt: 1600W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane | • Host: Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 24 |
| 12Gbps Expander Module | Broadcom SAS 35 x 36R expander |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 10000RPM |

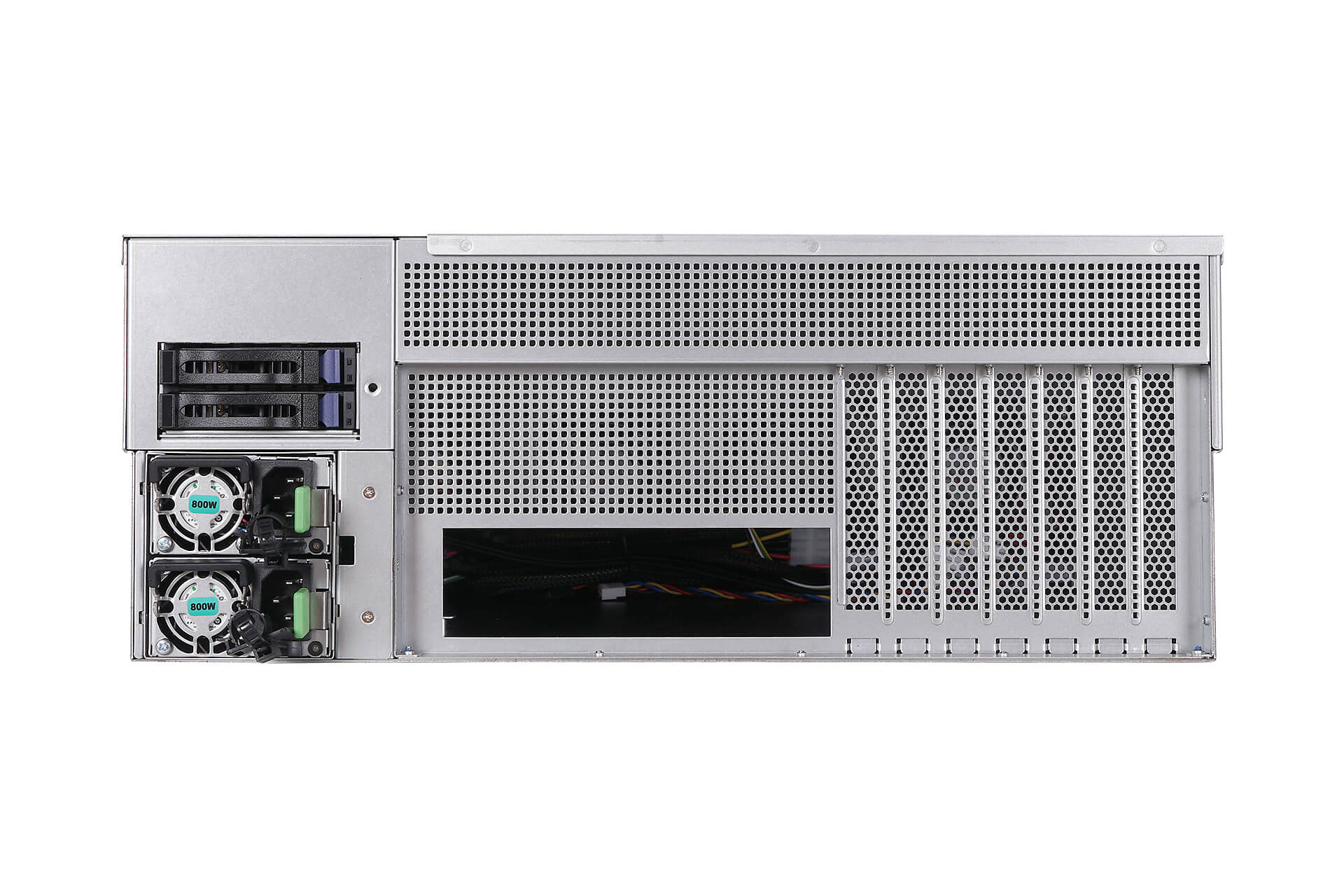

| Expansion Slot | Full-height PCIe slots x 7 |
| Material | Material: SGCC Thickness: 1.2mm |
| Rail Kit | Supports 30" tool-less & ball-bearing slide rail |

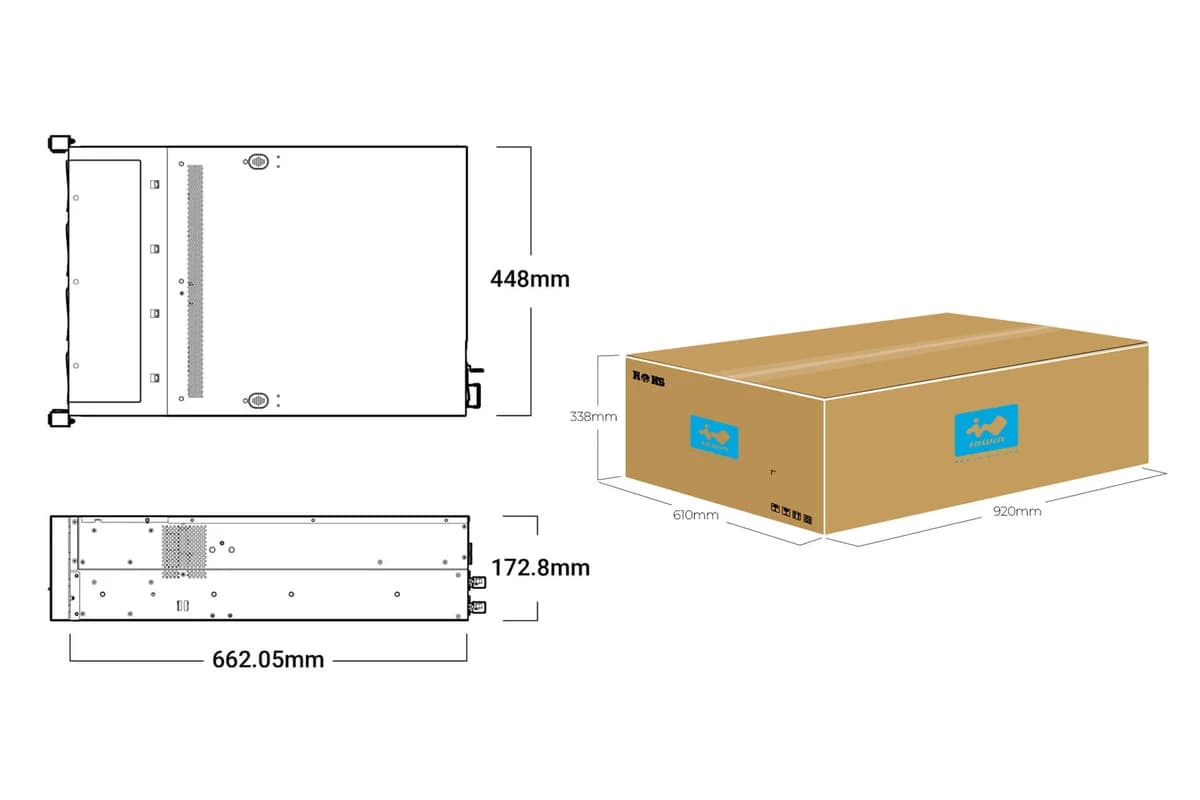

| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 172.8mm (26" x 17.6" x 6.8") |
| Product Dimensions (DxWxH) | 920 x 610 x 338mm (36.2" x 24.0" x 13.3") |
| Weight (Chassis Only) | • Net weight: 18.97kg • Gross weight: 23.15kg |
| Cubic Feet | 6.7 |
| Container Information | Single packing with pallets: • 20': 100 pcs • 40': 210 pcs • 40' HQ: 252 pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items
Slide Rail
3RAMIS133301
28" tool-less & ball-bearing slide rail
Support: 1 Set
Cable
3RAMW4031700
Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm
Support: Max.3
Power Supply
3RAMAP025102 / 3RAMAP042800
80 PLUS Platinum 550W CRPS / CRPS PDB
Support: Max.2
Power Supply
3RAMAP025202 / 3RAMAP042800
80 PLUS Platinum 800W CRPS / CRPS PDB
Support: Max.2
Power Supply
3RAMAP045100 / 3RAMAP045000
80 PLUS Platinum 800W CRPS / CRPS PDB
Support: Max.2
Power Supply
3RAMAP026501 / 3RAMAP042800
80 PLUS Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB
Support: Max.2
Power Supply
3RAMAP044300 / 3RAMAP042800
80 PLUS Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB
Support: Max.2
HDD Tray
2RAKPH008404

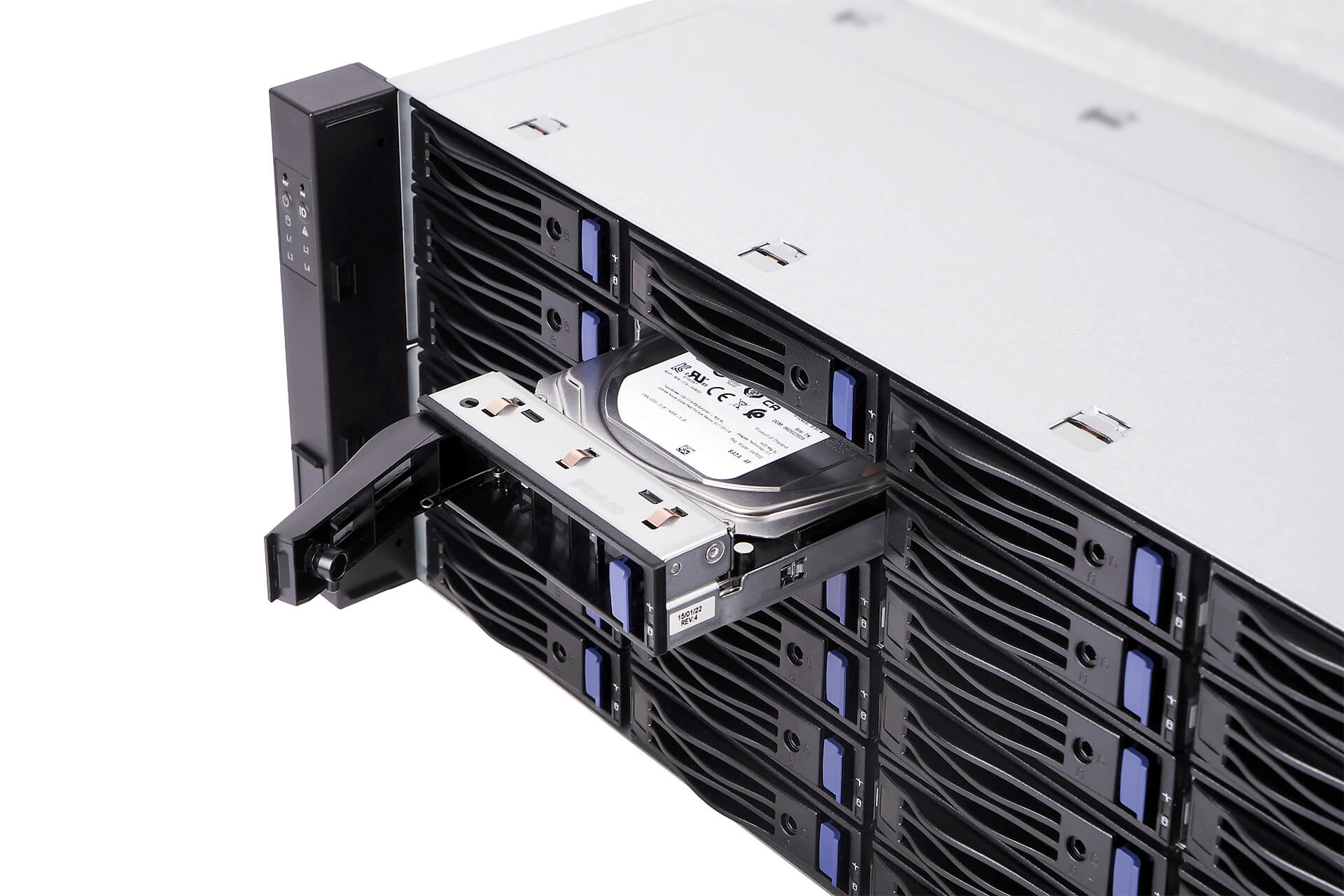

2.5"/3.5" hot-swap HDD tray (blue color)
Support: Max.24
HDD Tray
2RAAPH036605

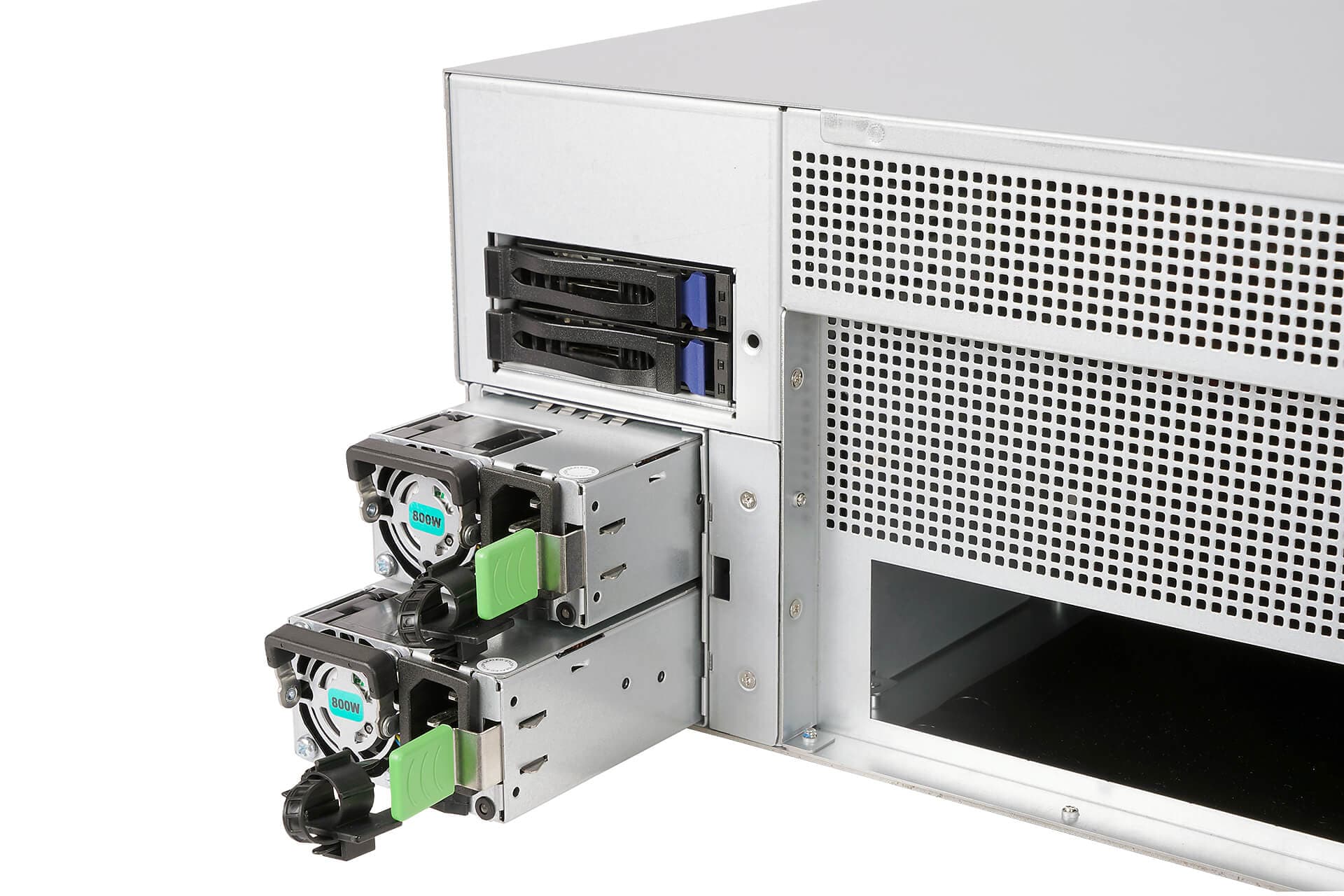

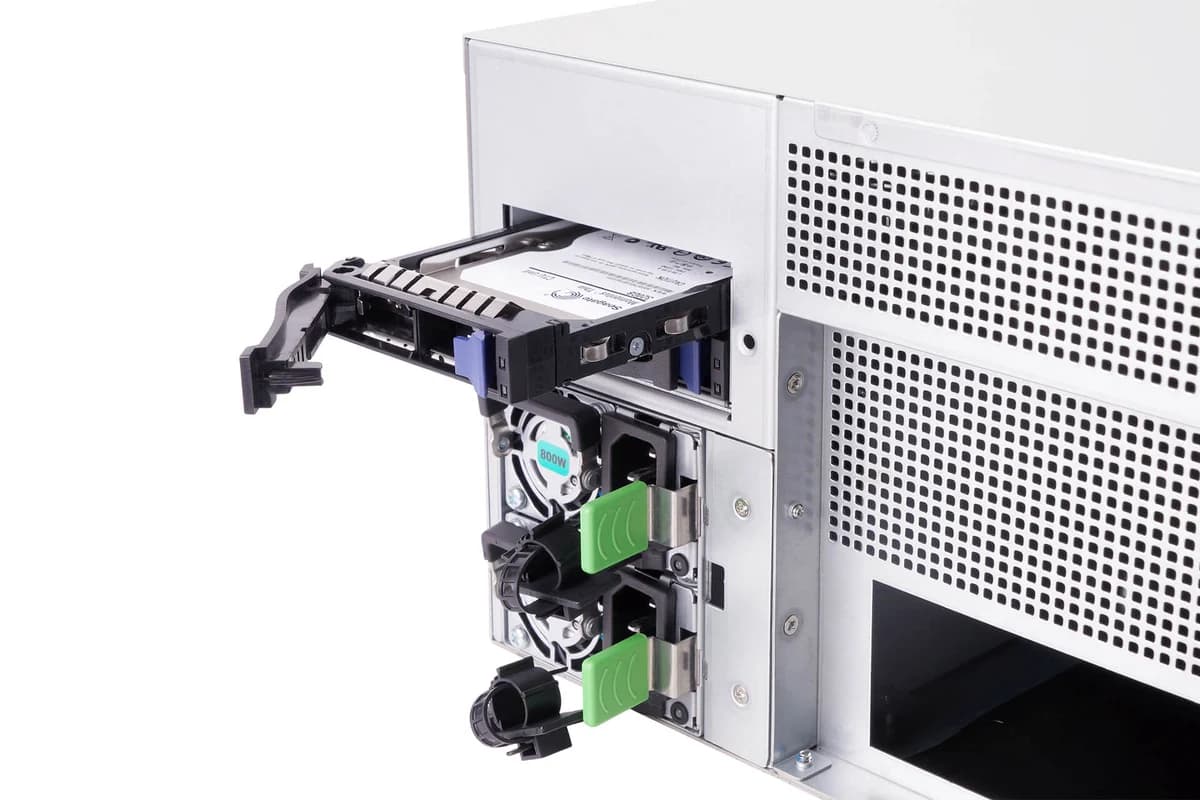

2.5" Screwless hot-swap SSD rear tray (blue color)
Support: Max.2
Fan
3RAMFB017900
80 x 38mm PWM hot-swap fan, 10000RPM, 6pin
Support: Max.4
Fan
2RAKFB014800
80 x 38mm PWM hot-swap fan & fan bracket, 10000RPM, 6pin
Support: Max.4
Others
2RAKIP032800
Mesh front panel
Support: 1
Others
3RAMRW011300
Intrusion switch / 800mm
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS133301 | 28" tool-less & ball-bearing slide rail | 1 Set | |
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | Max.3 | |
| Power Supply | 3RAMAP025102 / 3RAMAP042800 | 80 PLUS Platinum 550W CRPS / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP025202 / 3RAMAP042800 | 80 PLUS Platinum 800W CRPS / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP045100 / 3RAMAP045000 | 80 PLUS Platinum 800W CRPS / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP026501 / 3RAMAP042800 | 80 PLUS Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB | Max.2 | |
| Power Supply | 3RAMAP044300 / 3RAMAP042800 | 80 PLUS Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB | Max.2 | |
| HDD Tray | 2RAKPH008404 | 2.5"/3.5" hot-swap HDD tray (blue color) | Max.24 | |
| HDD Tray | 2RAAPH036605 | 2.5" Screwless hot-swap SSD rear tray (blue color) | Max.2 | |
| Fan | 3RAMFB017900 | 80 x 38mm PWM hot-swap fan, 10000RPM, 6pin | Max.4 | |
| Fan | 2RAKFB014800 | 80 x 38mm PWM hot-swap fan & fan bracket, 10000RPM, 6pin | Max.4 | |
| Others | 2RAKIP032800 | Mesh front panel | 1 | |
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
