InWin IW-RSA104-02M
Артикул: INWIN-IW-RSA104-02M
1U Chassis

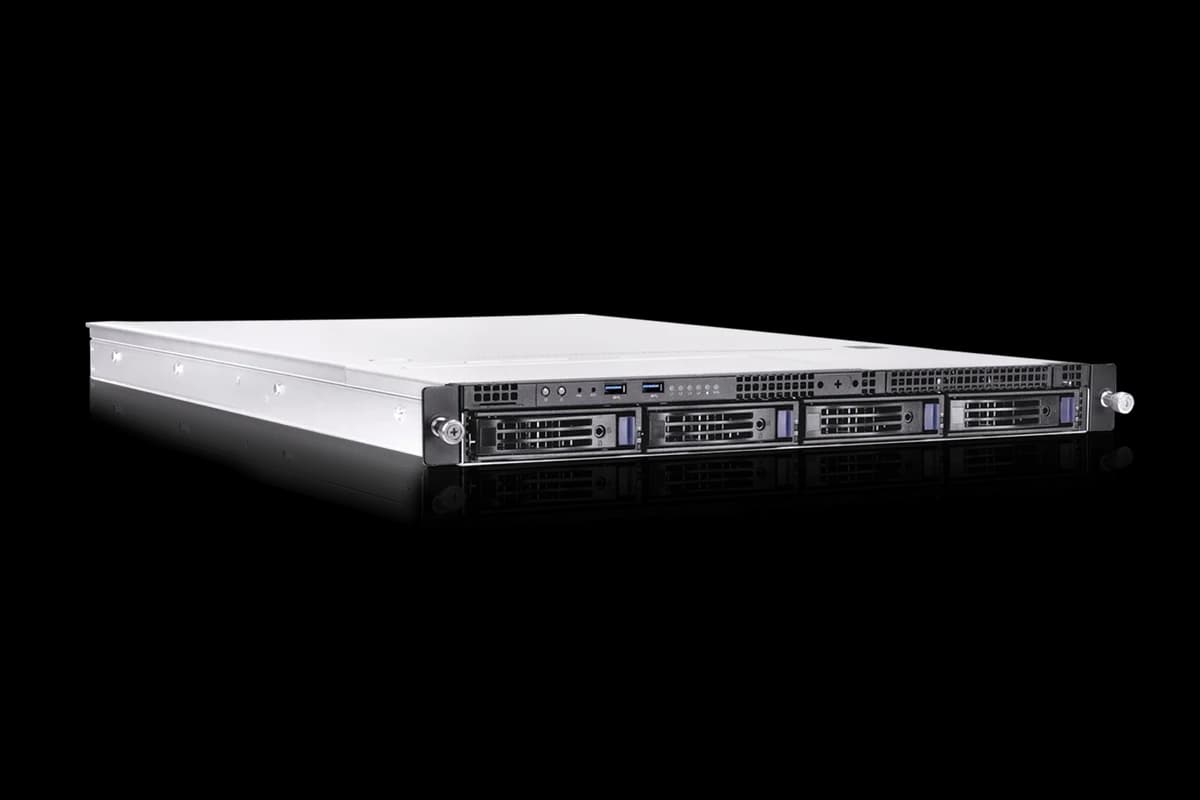

1U корпус с 4 hot-swap отсеками и модульной серверной компоновкой
IW-RSA104-02M — 1U серверный корпус с четырьмя внешними 2.5"/3.5" hot-swap отсеками, поддержкой ATX/CEB/EEB и redundant PSU 750 Вт. Модель подходит для компактных серверов хранения и универсальных инфраструктурных узлов.
Платы
ATX / CEB / EEB
Hot-swap
4 x 2.5"/3.5"
Питание
750 Вт 1+1 Platinum
Вентиляторы
6 x 40 мм easy-swap
Storage Access

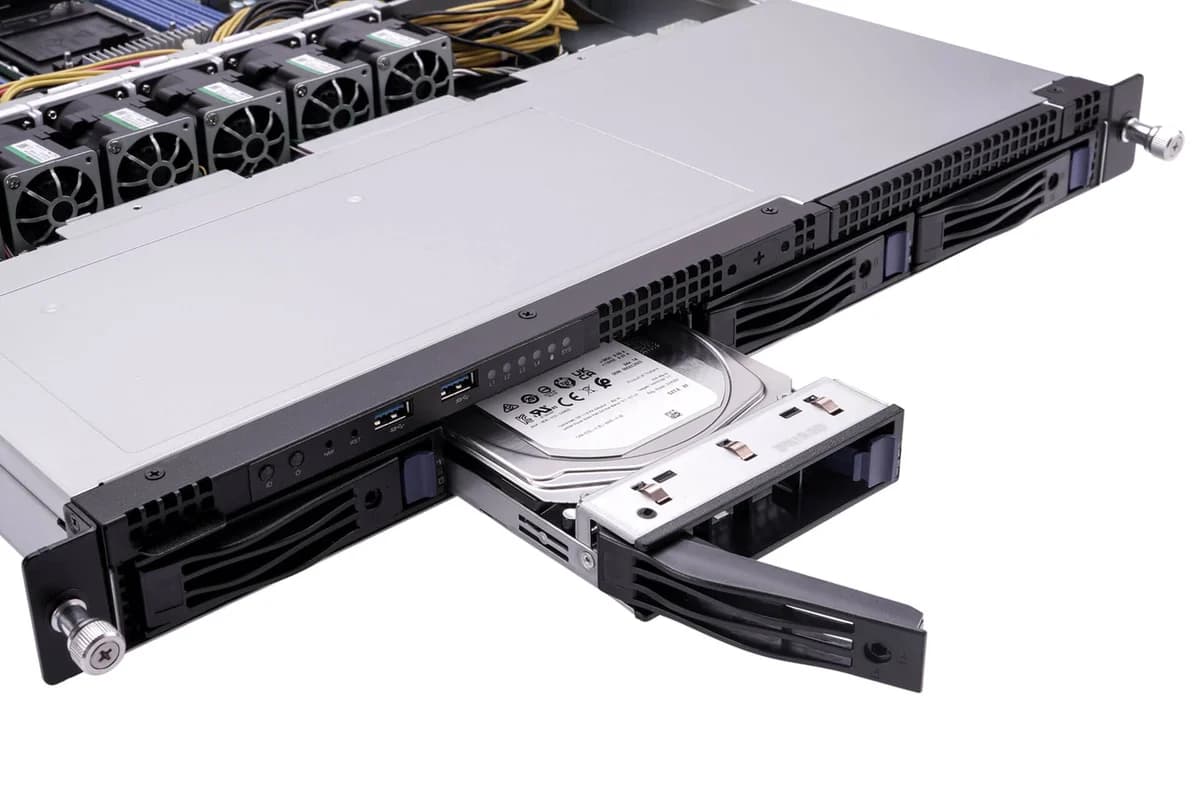

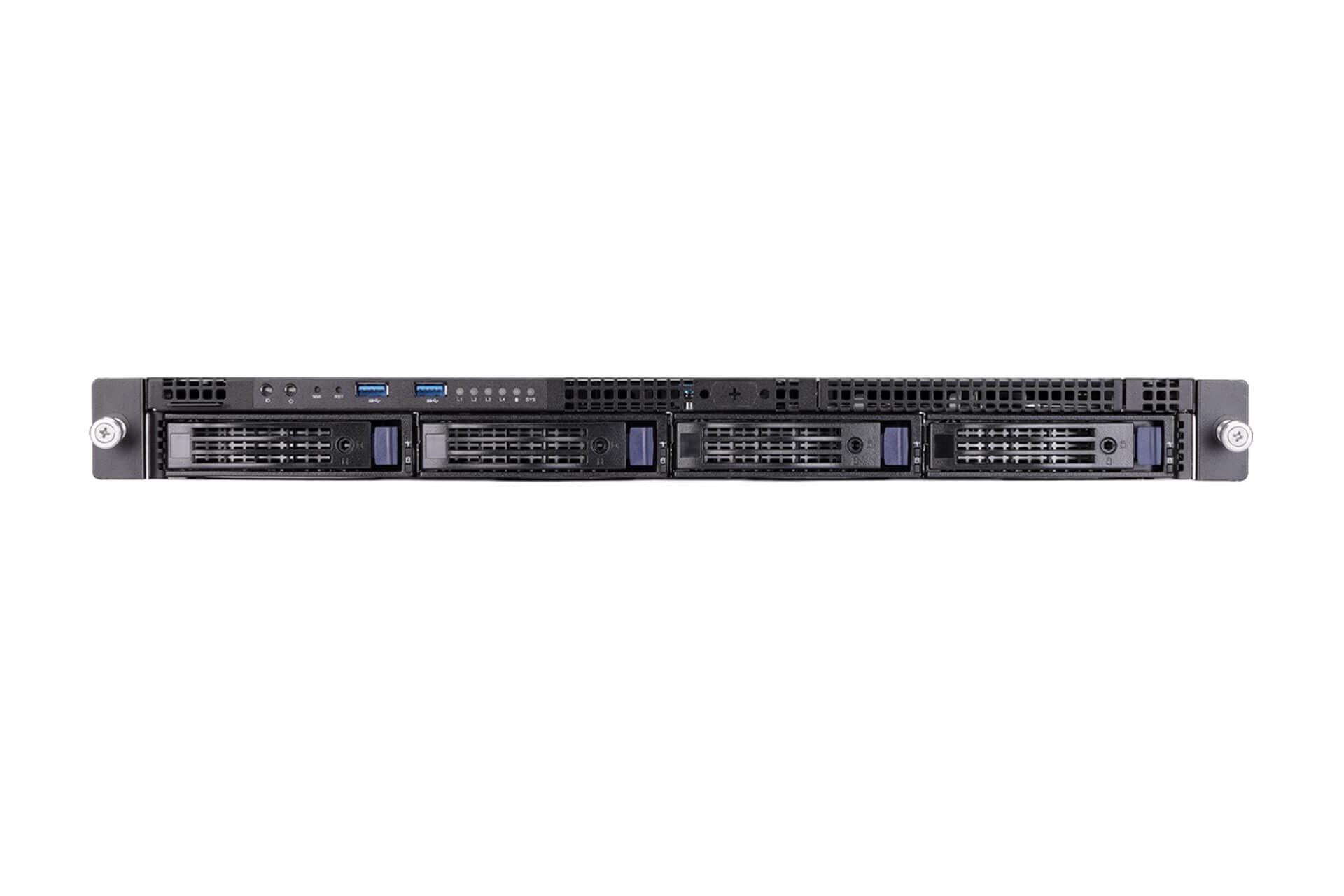

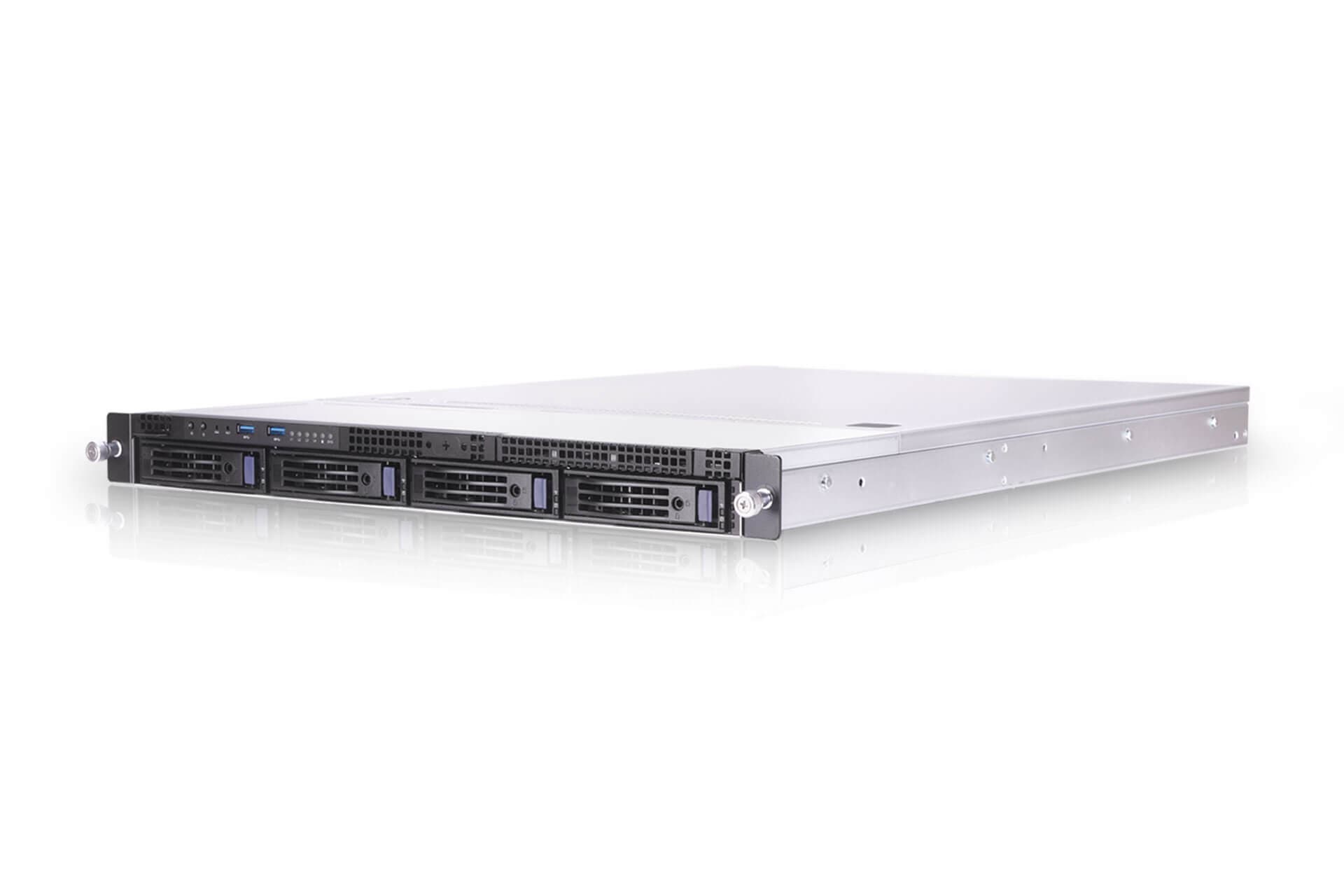

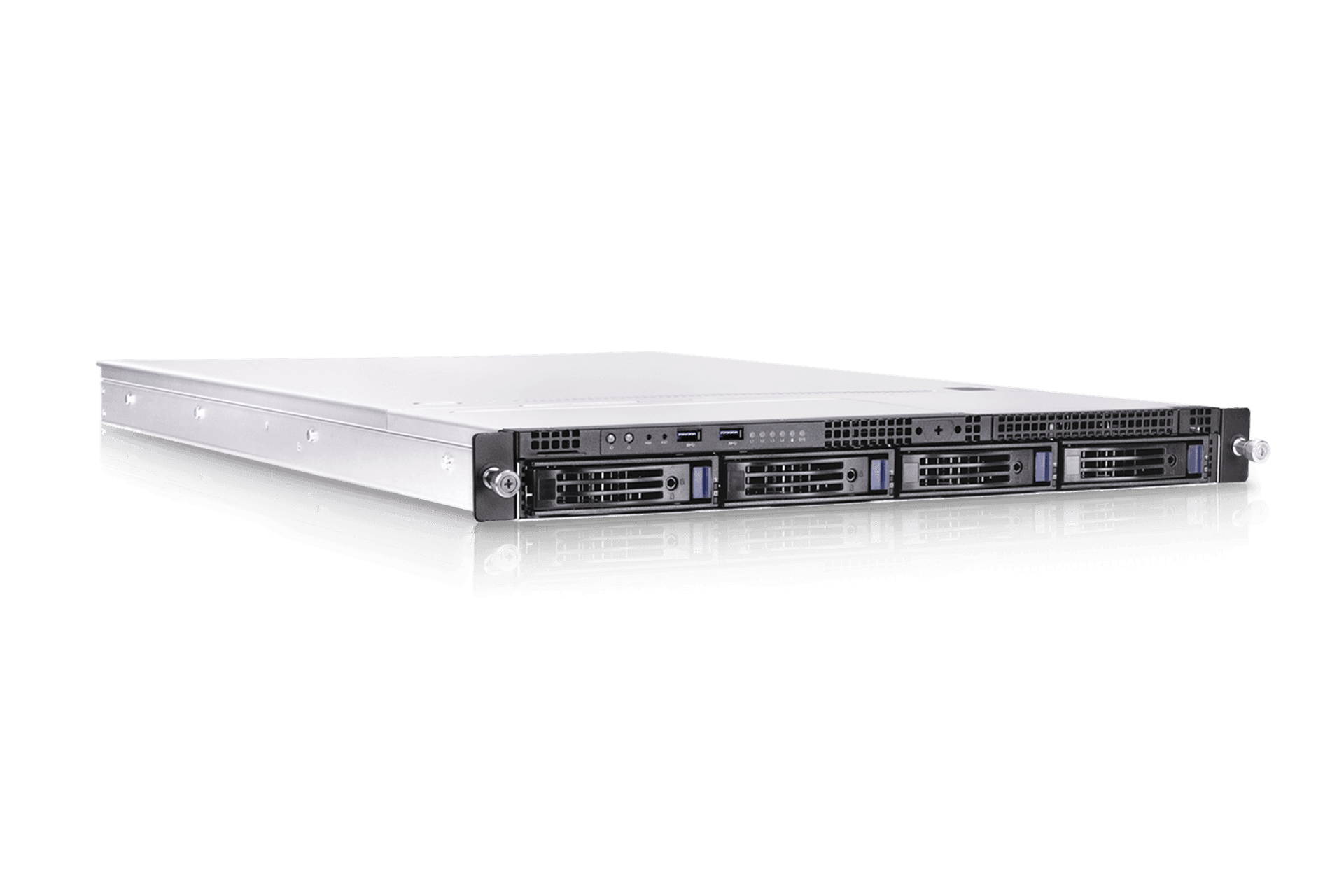

Четыре универсальных hot-swap отсека
Передние лотки принимают 2.5" и 3.5" накопители, что удобно для системных дисков, локального RAID или небольшого storage-узла.
Platform Flexibility

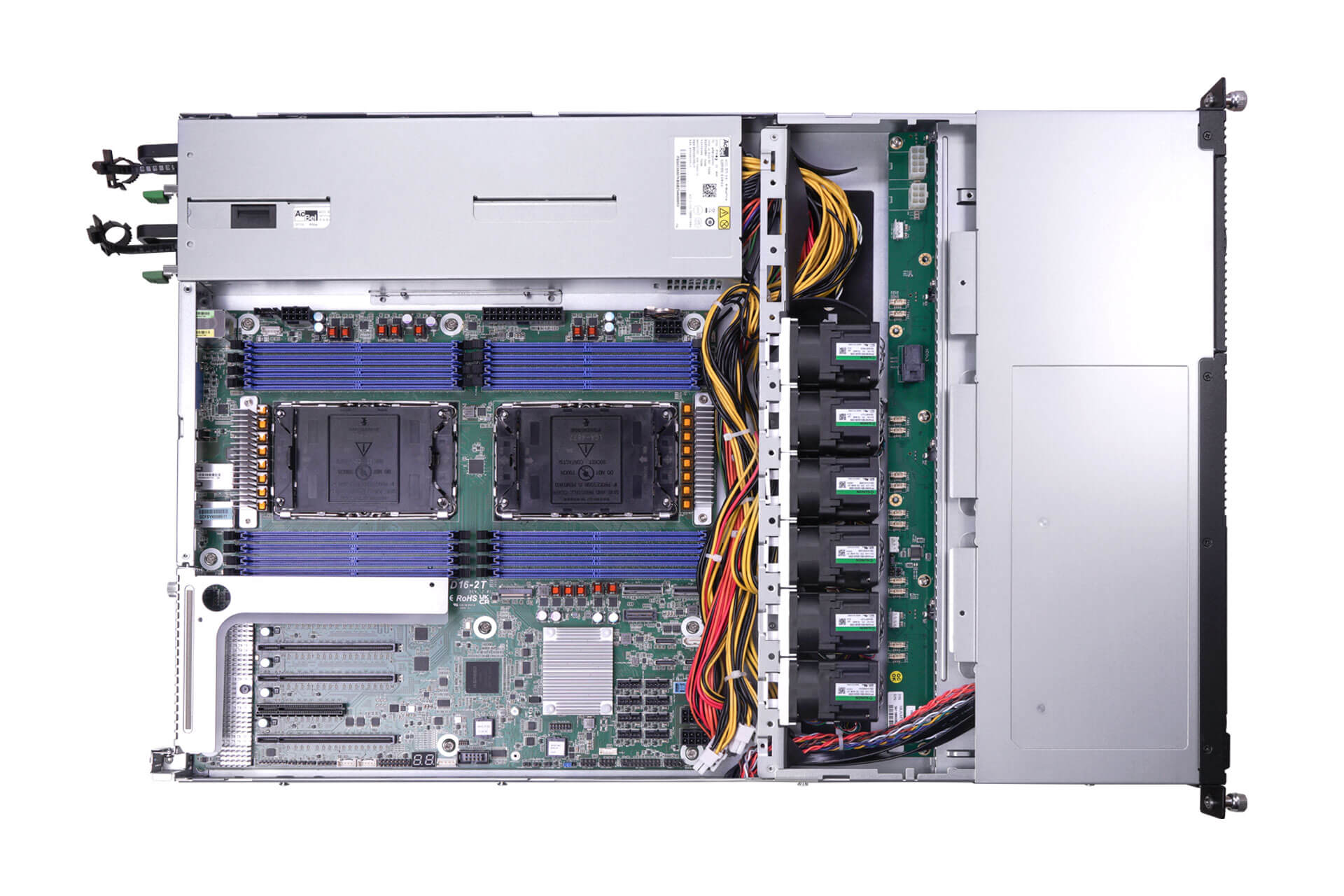

Поддержка ATX, CEB и EEB плат
Корпус допускает установку крупных серверных плат, поэтому его можно использовать не только для простых ATX-сборок, но и для более производительных серверных платформ.
Redundant Service

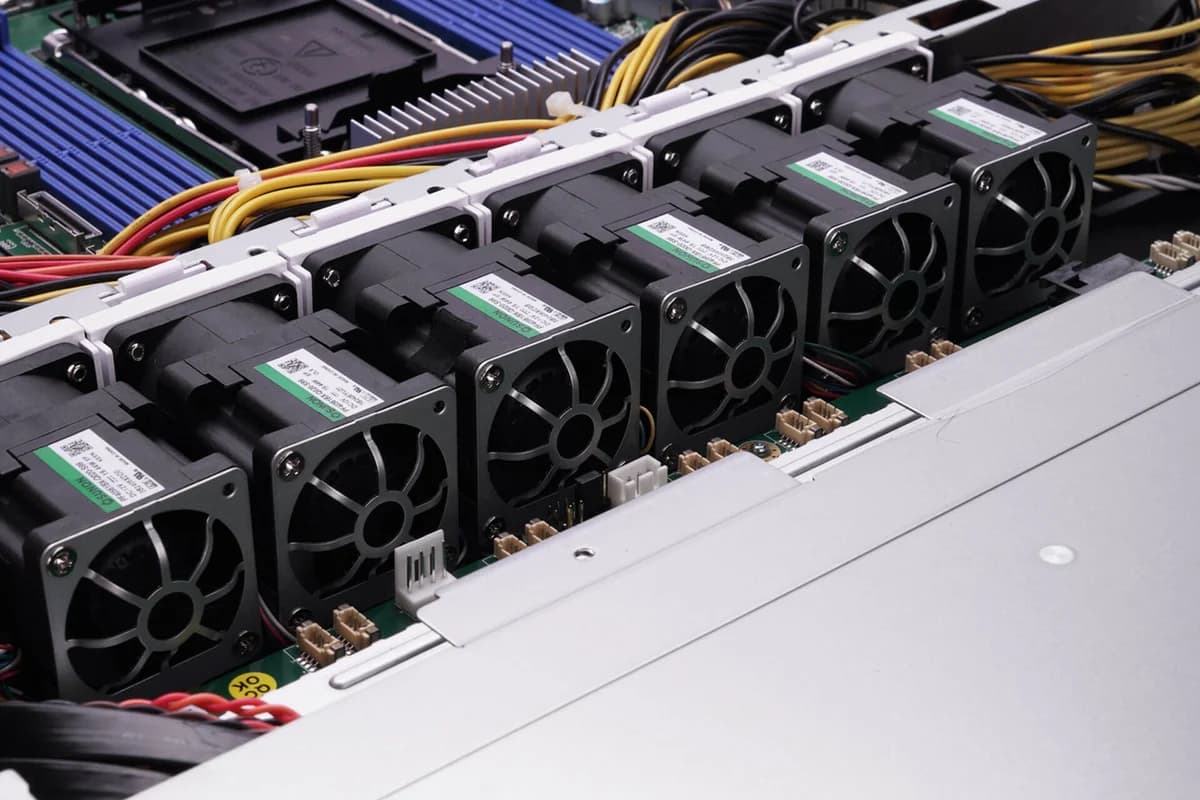

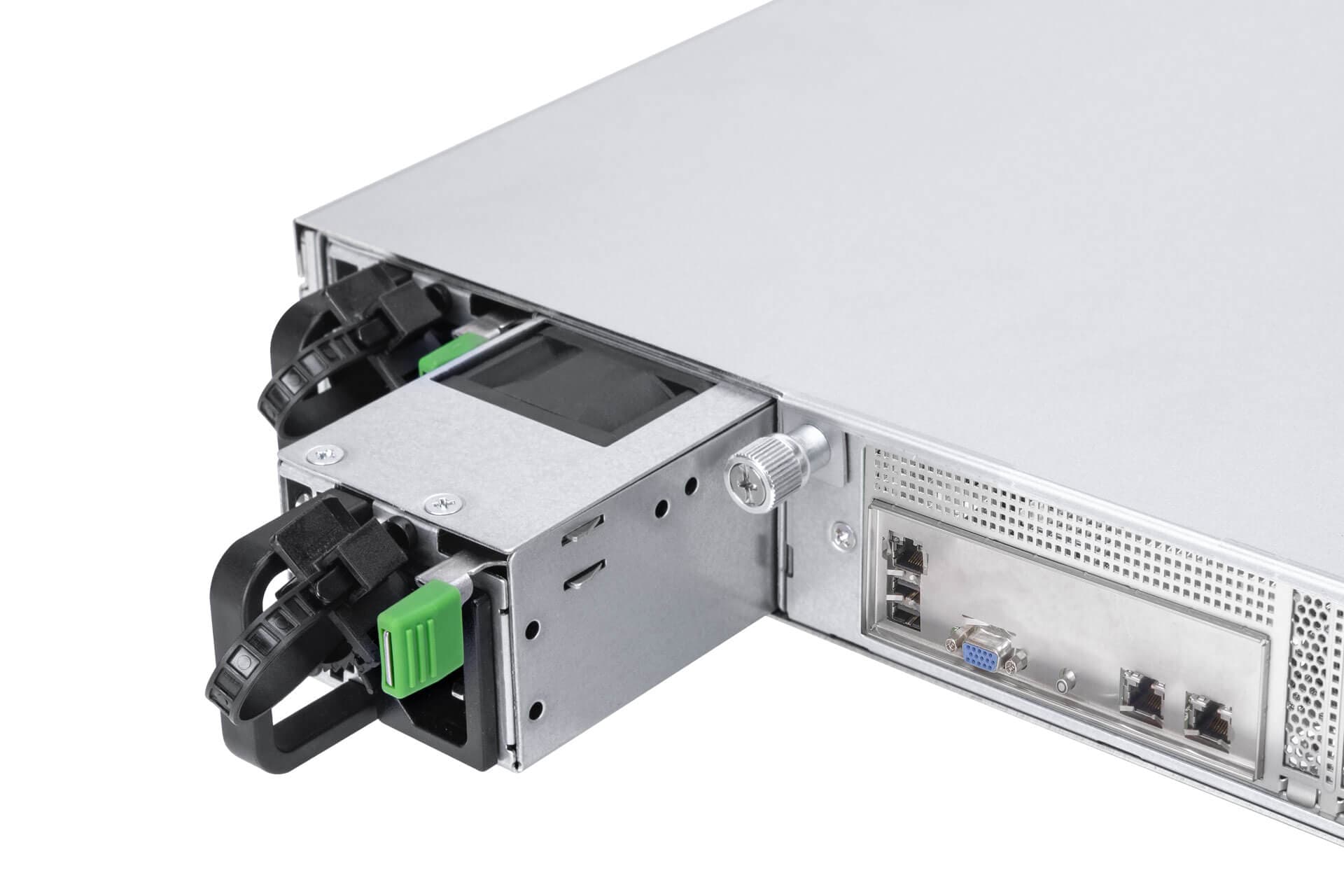

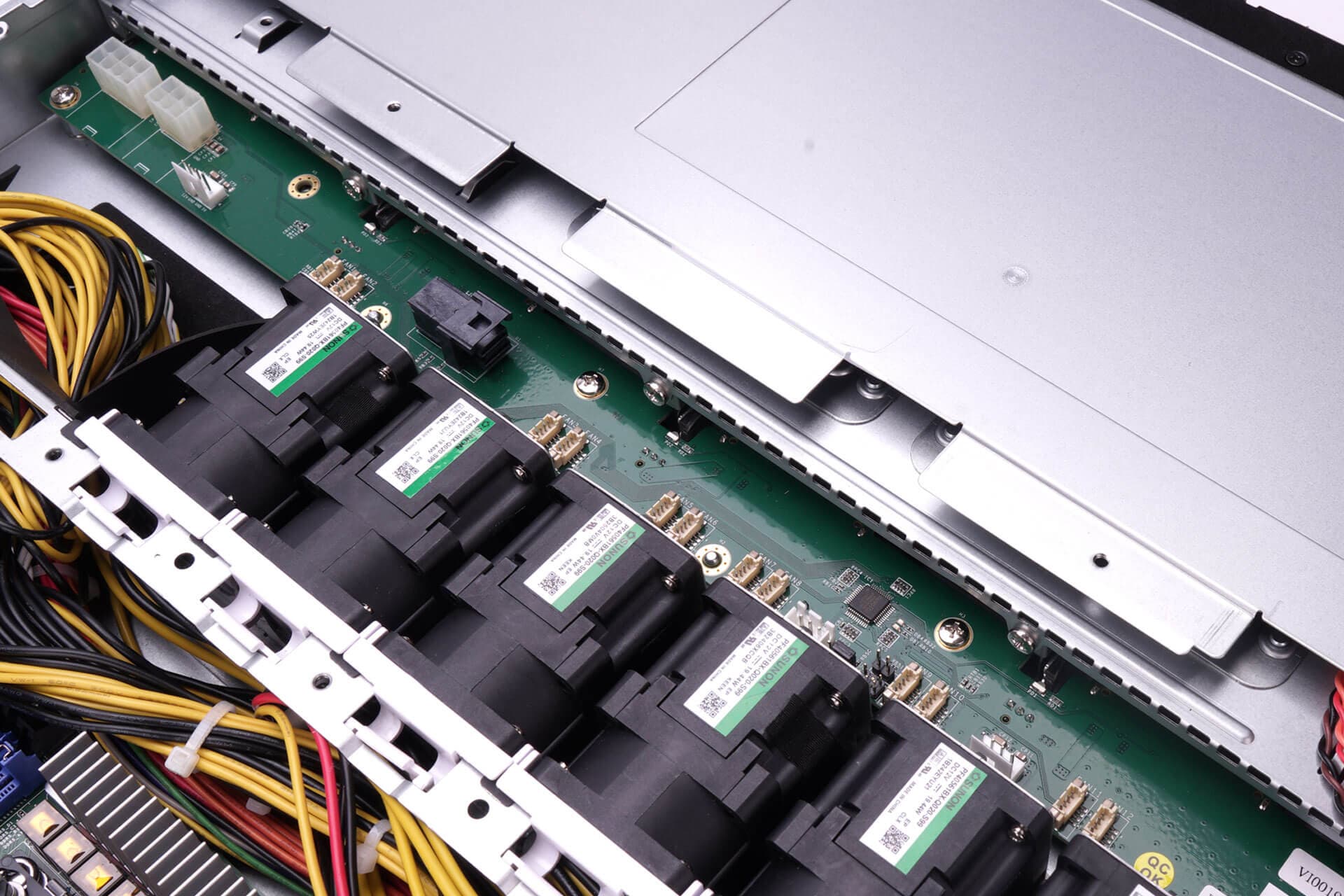

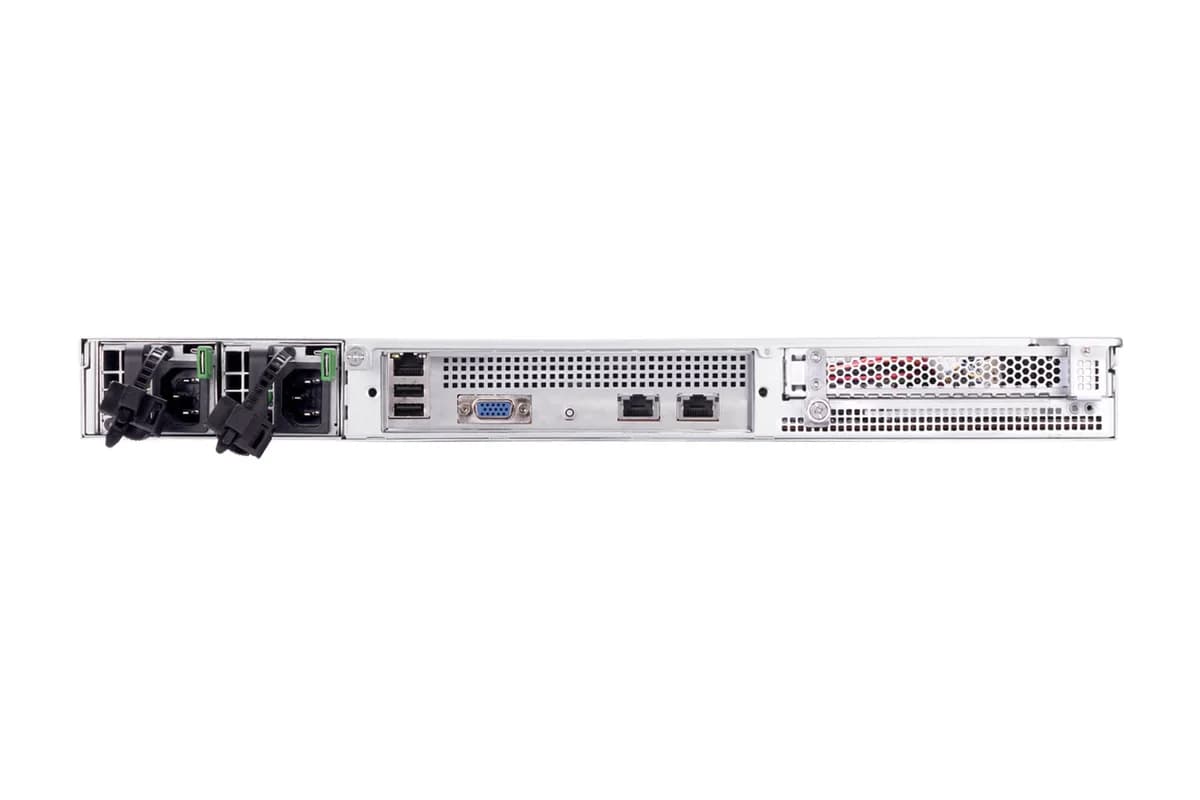

Резервируемое питание и easy-swap вентиляторы
1+1 redundant PSU и шесть easy-swap вентиляторов помогают обслуживать корпус в серверной стойке без длительной остановки оборудования.
Product Details

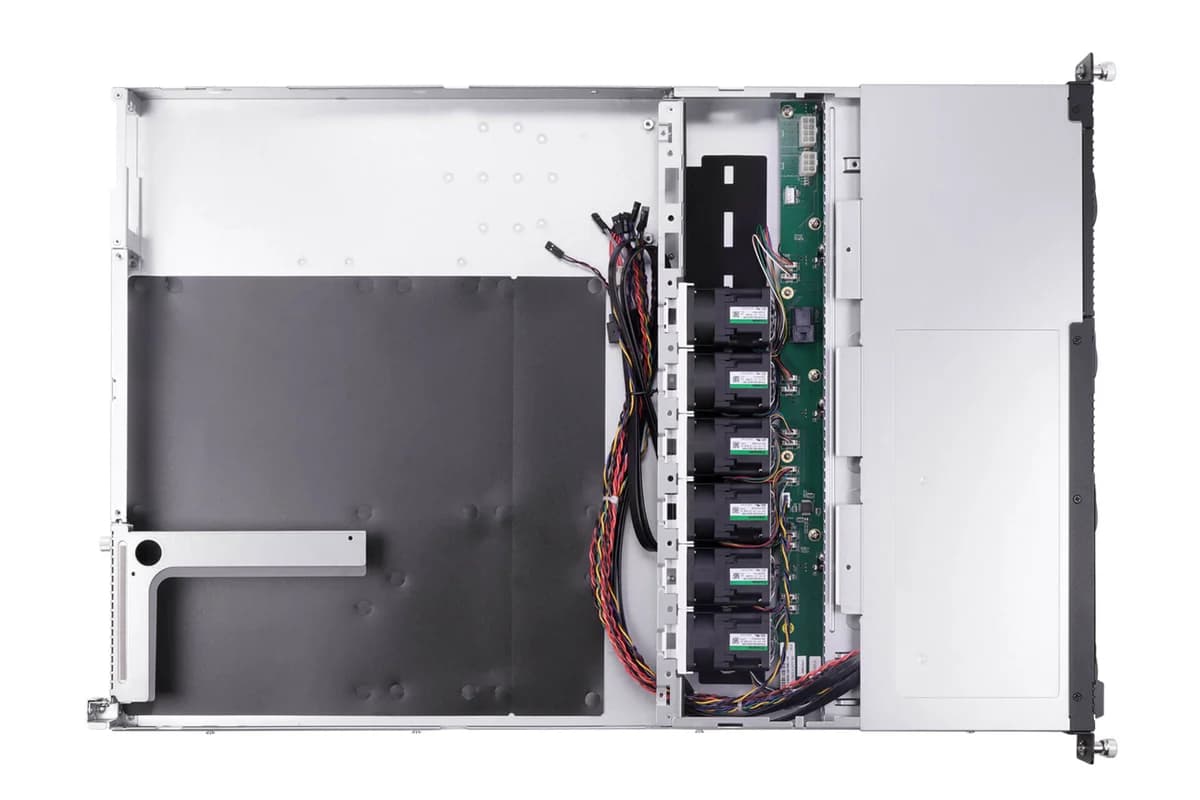

Детали конструкции InWin IW-RSA104-02M
Specification

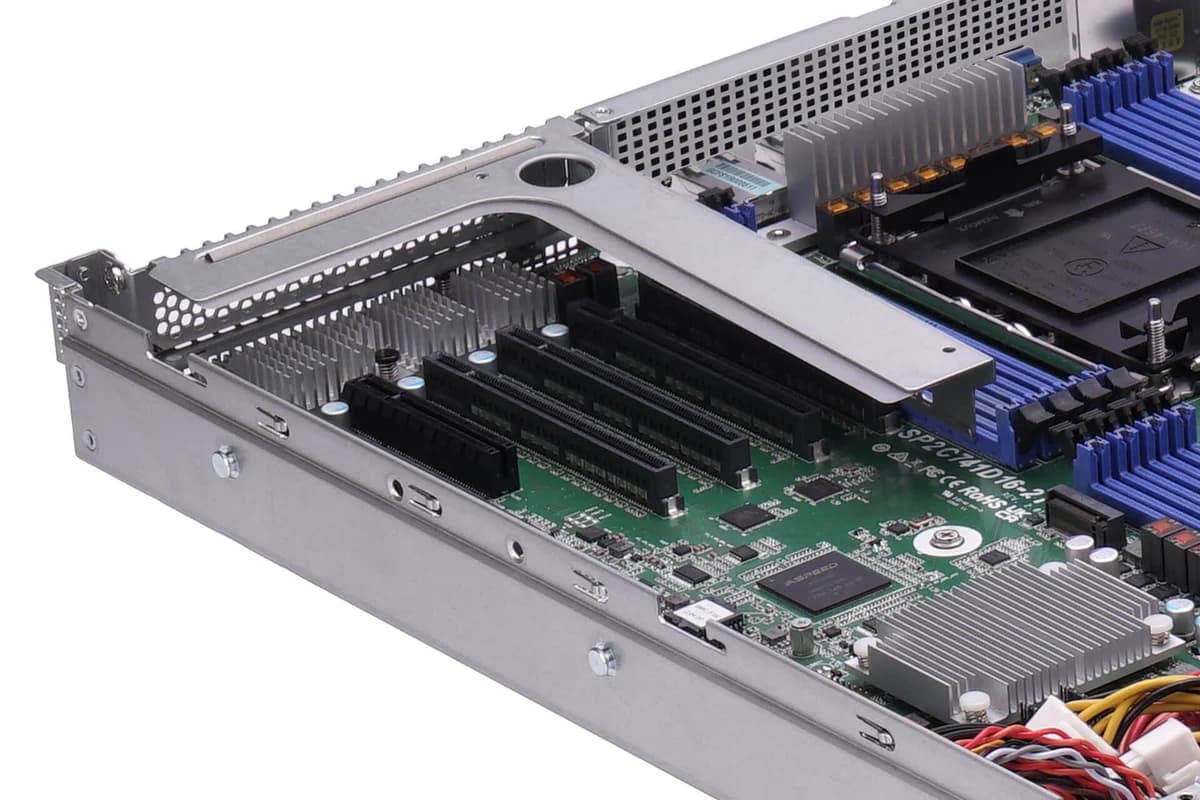

| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • External: 2.5"/3.5" hot-swap trays x 4 • Internal: 2.5" x 2 or x 3 (via slim ODD conversion tray) |
| Power Supply | Supports: •750W 1U 1+1 redundant PSU, 80 PLUS Platinum |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane | • Host: Mini-SAS HD (SFF-8643) x 1 • HDD: SAS/SATA x 4 |
| Cooling Fans | 40 x 56mm PWM easy-swap fans x 6, 21500RPM |
| Expansion Slot | Full-height PCIe slot x 1 (via riser card) |
| Material | Material: SGCC Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676 x 438 x 43.5 mm (26.6" x 17.2" x 1.7") |
| Product Dimensions (DxWxH) | 820 x 590 x 175 mm (32.3" x 23.2" x 6.9") |
| Weight (Chassis Only) | • Net weight: 7.74 kg • Gross weight: 10.53 kg |
| Cubic Feet | 2.99 |
| Container Information | Single packing with pallets: • 20': 200pcs • 40': 460pcs • 40' HQ: 552pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items
Slide Rail
3RAMIS148100
28" tool-less & ball-bearing slide rail
Support: 1 Set
Slide Rail
3RAMIS152300 / 3RAMIS152400
28" tool-less & ball-bearing slide rail
Support: 1 Set
Cable
3RAMW4031700
Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm
Support: Max.1
Power Supply
3RAMAP042200
750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified
Support: 1
Power Supply
3RAMAP030400
750W 1U redundant PDB power cage
Support: 1
Backplane
2RBTVI001900
Mini-SAS HD backplane
Support: 1
HDD Tray
2RAKPH008404
2.5"/3.5" hot-swap HDD tray (blue color)
Support: Max.4
Fan
3RAMFB016400
40 x 56mm PWM fan, 21500RPM, 4pin x 2
Support: Max.6
Fan
2RAKFB011800
40 x 56mm PWM fan & fan bracket, 21500RPM, 4pin x 2
Support: Max.6
Riser Card
Riser Card
2RAKPD074000
Support: PCIe Gen3 x16 riser card, left-facing 90 degree de
Others
2RAKIP032600
Mesh front panel
Support: 1
Back I/O Shield Plate
2RAKIQ020900
Rear I/O shield- ASRock EP2C624D16NM
Support: 1
Back I/O Shield Plate
2RAVIQ039500
Rear I/O shield- ASRock EP2C624D16NM w/Mezzing
Support: 1
Back I/O Shield Plate
2RAVIQ051200
Rear I/O shield- ASRock EP2C612D16C-4L
Support: 1
Back I/O Shield Plate
2RAVIQ051300
Rear I/O shield- ASRock EP2C622D16-2T
Support: 1
Back I/O Shield Plate
2RAKIQ020800
Rear I/O shield- ASUS Z11PR-D16
Support: 1
Back I/O Shield Plate
2RAKIQ021100
Rear I/O shield- Gigabyte MD61-SC2
Support: 1
Back I/O Shield Plate
2RAKIQ021000
Rear I/O shield- Intel H28527 S2600CW2R
Support: 1
Back I/O Shield Plate
2RAKIQ021200
Rear I/O shield- Tyan S7100AG2NR
Support: 1
Back I/O Shield Plate
2RAVIQ054000
Rear I/O shield- Supermicro X11SCM-F
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 Set | |
| Slide Rail | 3RAMIS152300 / 3RAMIS152400 | 28" tool-less & ball-bearing slide rail | 1 Set | |
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | Max.1 | |
| Power Supply | 3RAMAP042200 | 750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified | 1 | |
| Power Supply | 3RAMAP030400 | 750W 1U redundant PDB power cage | 1 | |
| Backplane | 2RBTVI001900 | Mini-SAS HD backplane | 1 | |
| HDD Tray | 2RAKPH008404 | 2.5"/3.5" hot-swap HDD tray (blue color) | Max.4 | |
| Fan | 3RAMFB016400 | 40 x 56mm PWM fan, 21500RPM, 4pin x 2 | Max.6 | |
| Fan | 2RAKFB011800 | 40 x 56mm PWM fan & fan bracket, 21500RPM, 4pin x 2 | Max.6 | |
| Riser Card | Riser Card | 2RAKPD074000 | PCIe Gen3 x16 riser card, left-facing 90 degree de | |

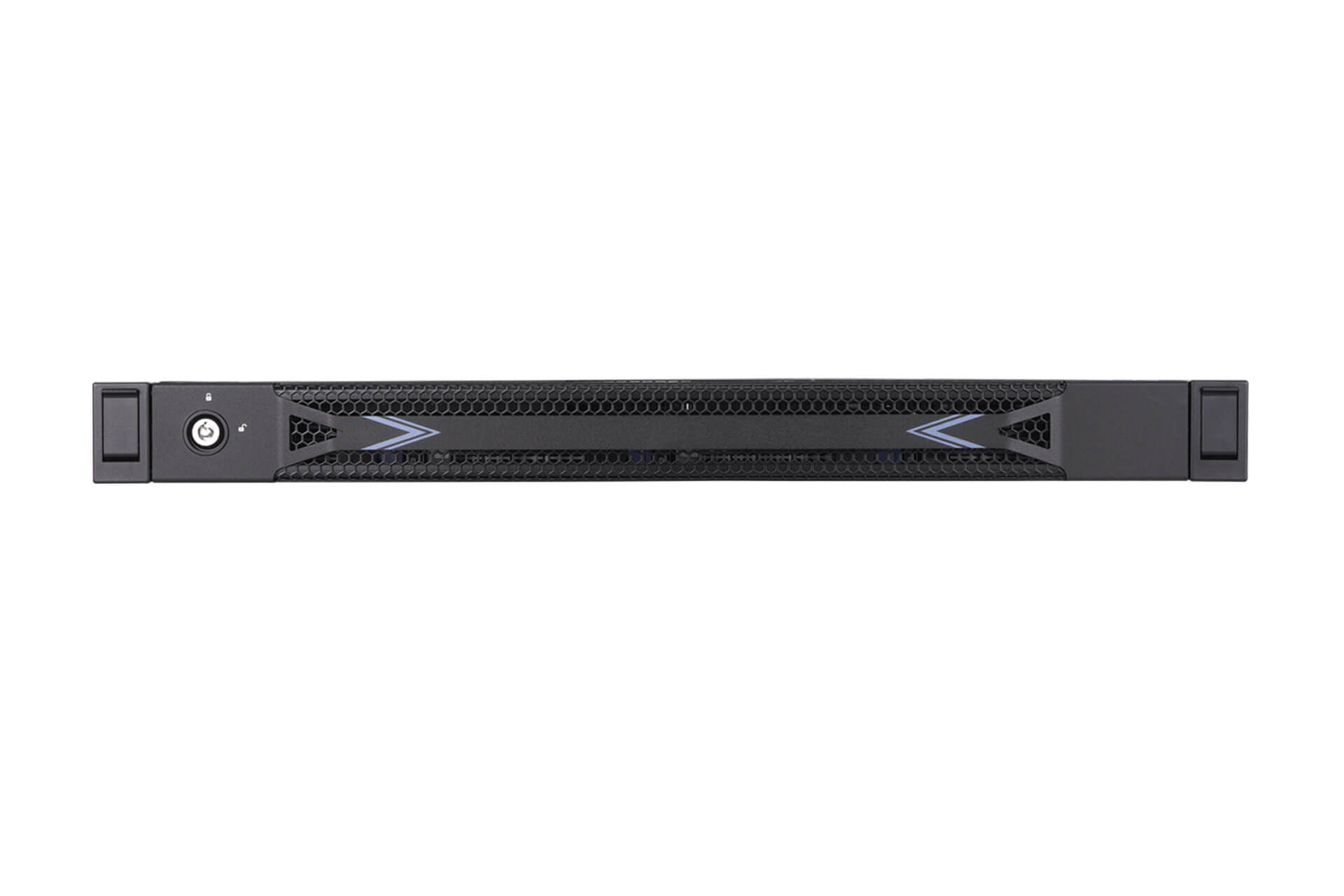

| Others | 2RAKIP032600 | Mesh front panel | 1 | |
| Back I/O Shield Plate | 2RAKIQ020900 | Rear I/O shield- ASRock EP2C624D16NM | 1 | |
| Back I/O Shield Plate | 2RAVIQ039500 | Rear I/O shield- ASRock EP2C624D16NM w/Mezzing | 1 | |
| Back I/O Shield Plate | 2RAVIQ051200 | Rear I/O shield- ASRock EP2C612D16C-4L | 1 | |
| Back I/O Shield Plate | 2RAVIQ051300 | Rear I/O shield- ASRock EP2C622D16-2T | 1 | |
| Back I/O Shield Plate | 2RAKIQ020800 | Rear I/O shield- ASUS Z11PR-D16 | 1 | |
| Back I/O Shield Plate | 2RAKIQ021100 | Rear I/O shield- Gigabyte MD61-SC2 | 1 | |
| Back I/O Shield Plate | 2RAKIQ021000 | Rear I/O shield- Intel H28527 S2600CW2R | 1 | |
| Back I/O Shield Plate | 2RAKIQ021200 | Rear I/O shield- Tyan S7100AG2NR | 1 | |
| Back I/O Shield Plate | 2RAVIQ054000 | Rear I/O shield- Supermicro X11SCM-F | 1 |
