InWin
IW-RS316-07
Артикул: IW-RS316-07

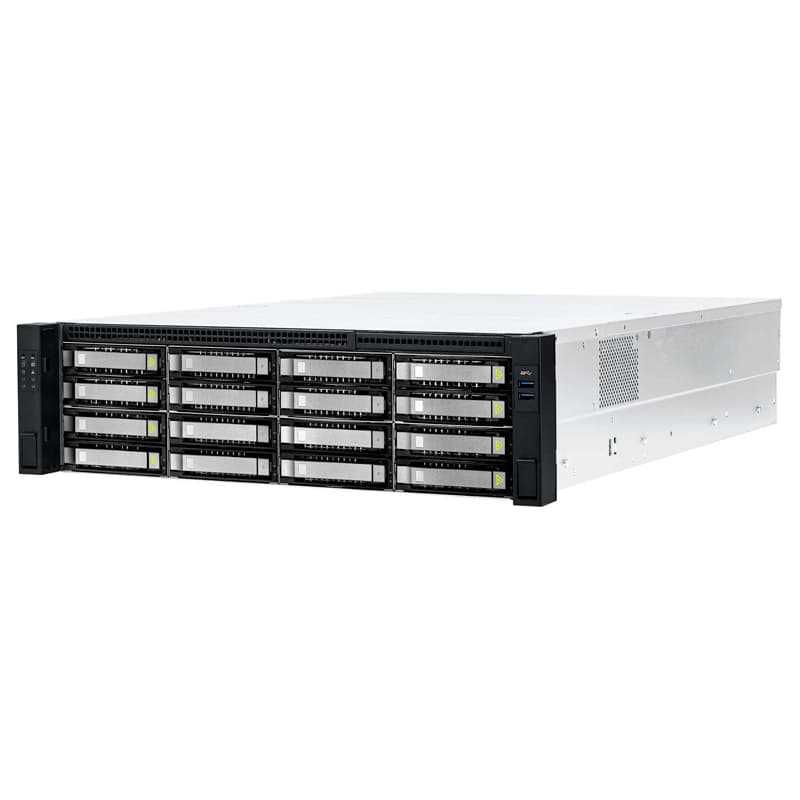

3U Chassis

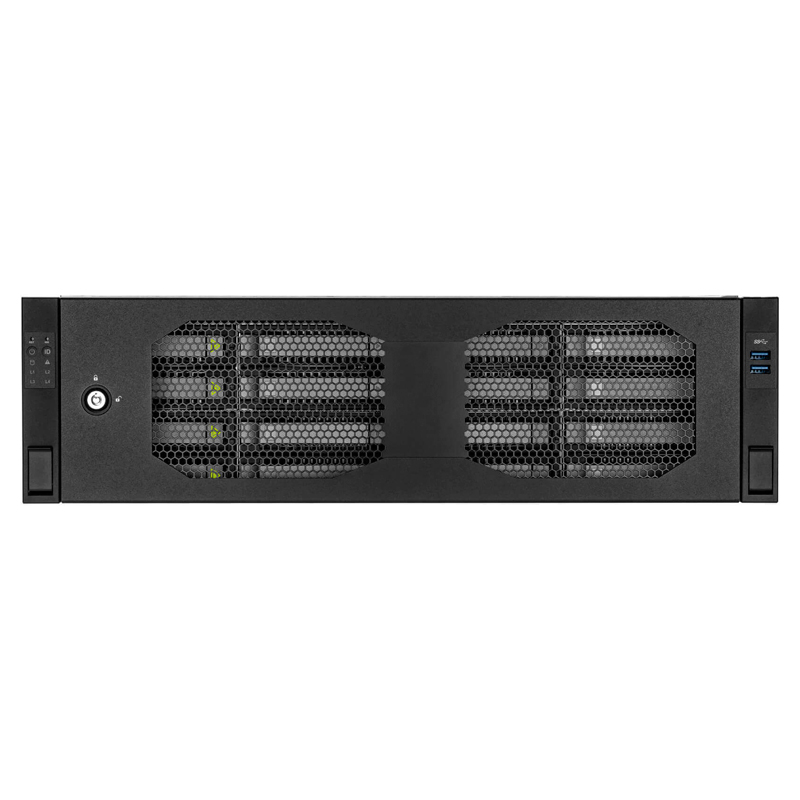

3U storage-корпус на 16 hot-swap отсеков
IW-RS316-07 - 3U корпус для систем хранения с 16 фронтальными 2.5"/3.5" hot-swap отсеками, поддержкой SAS/SATA и опциональной NVMe-конфигурацией. Модель подходит для storage-серверов, резервного копирования, виртуализации и плотных дисковых массивов.
Hot-swap
16 x 2.5"/3.5"
NVMe
до 8 x U.2 опция
Платы
ATX / CEB / EEB
Питание
CRPS до 1600 Вт
High Density Storage

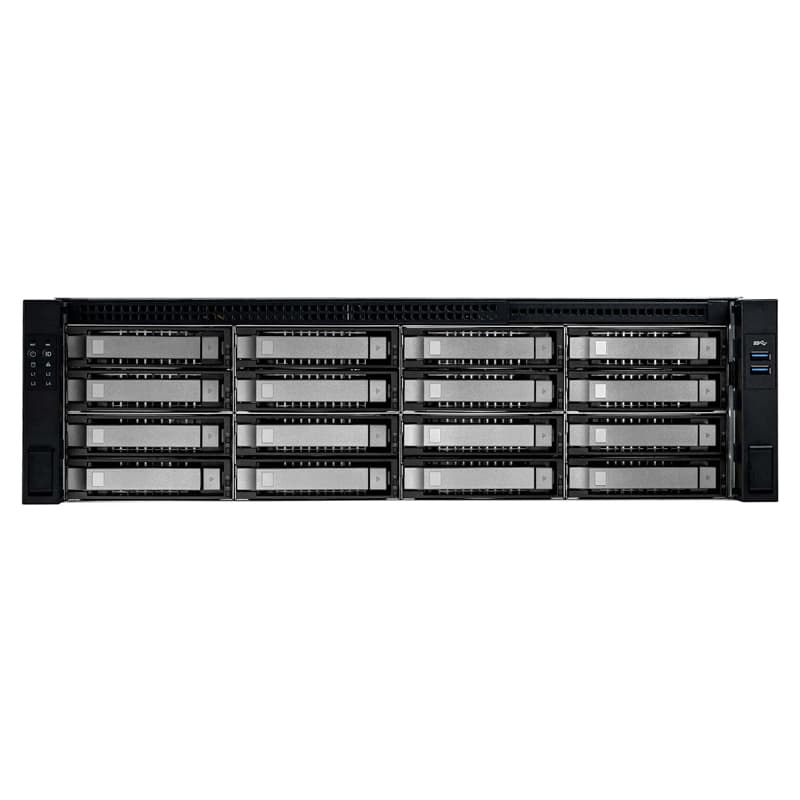

16 фронтальных hot-swap отсеков
Фронтальная корзина рассчитана на 16 накопителей 2.5" или 3.5". Это даёт хорошую плотность хранения в формате 3U и упрощает обслуживание дисков с передней стороны стойки.
Hybrid Backplane
SAS/SATA и опциональные U.2 NVMe отсеки
Для корпуса доступны backplane-варианты Mini-SAS HD, SlimSAS и OCuLink. Конфигурация может включать до восьми U.2 NVMe SSD в дополнение к SAS/SATA дискам.
Hot-Swap Cooling
Четыре hot-swap вентилятора 80 x 38 мм
Вентиляторы 12000 об/мин создают направленный поток через дисковую корзину, плату и карты расширения. Hot-swap исполнение упрощает обслуживание системы хранения.

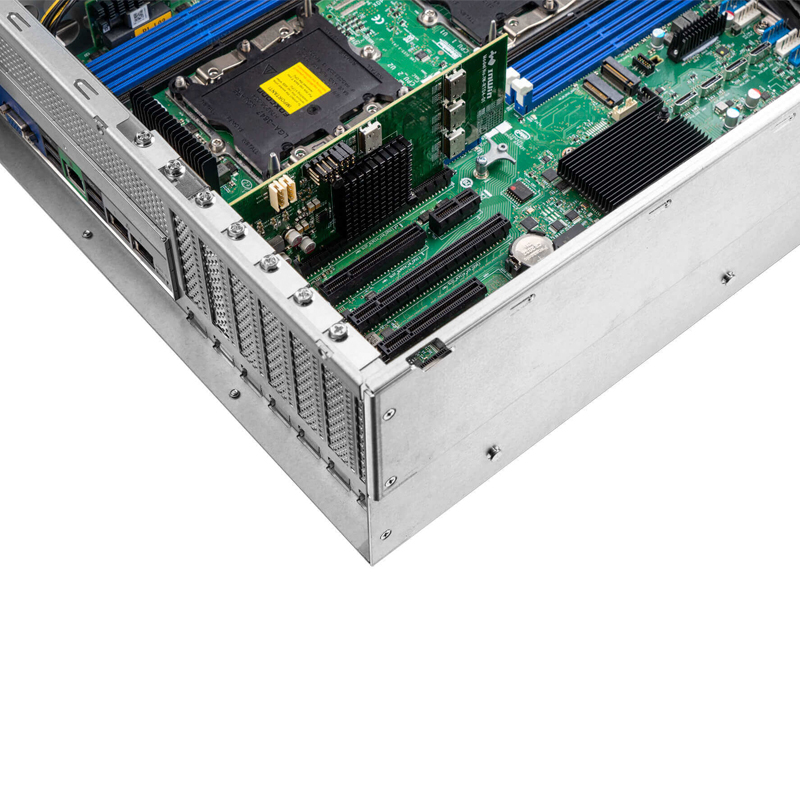

Product Details
Детали конструкции InWin IW-RS316-07
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |

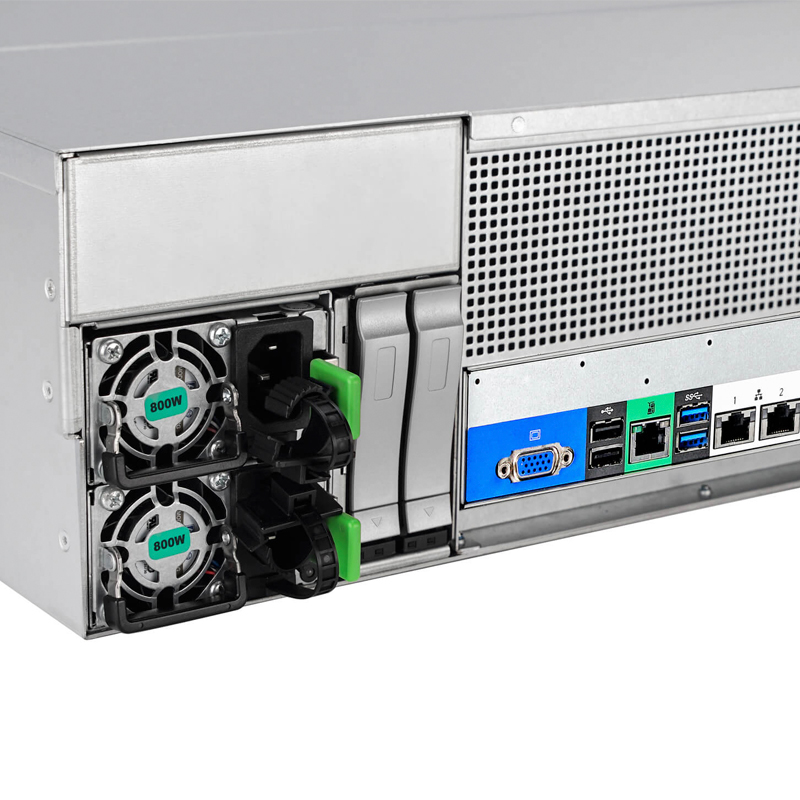

| Drive Bay | • External 2.5"/3.5" hot-swap trays x 16 (optional U.2 NVMe SSD trays x 8) • Internal 2.5" SSDs x 3 (one for option) and slim ODD x 1 • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W/800W/1200W/1600W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB3.0 x 2 |
| Backplane Type-1 | • Host: Mini-SAS HD (SFF-8643) x 3, SlimSAS (SFF-8654) x 8 • HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 |
| Backplane Type-2 | • Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 • HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 |
| 12Gbps Expander Module | Supports broadcom SAS 35 x 36R expander |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000RPM |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 132.1mm (26" x 17.6" x 5.2") |
| Package Dimensions (DxWxH) | 845 x 595 x 267mm |
| Weight (Chassis Only) | • Net weight: 17.63kg • Gross weight: 21.03kg |
| Cubic Feet | 4.74 |
| Container Information | Single packing with pallets: • 20': 140pcs • 40': 322pcs • 40'HQ: 368pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RS316-07 Gallery
zipIW-RS316-07 Compatibility
pdfIW-RS316-07 User Manual
pdfIW-RS316-07 SlimSAS Backplane User Manual
pdfIW-RS316-07 OCuLink Backplane User Manual
pdfOptional Items

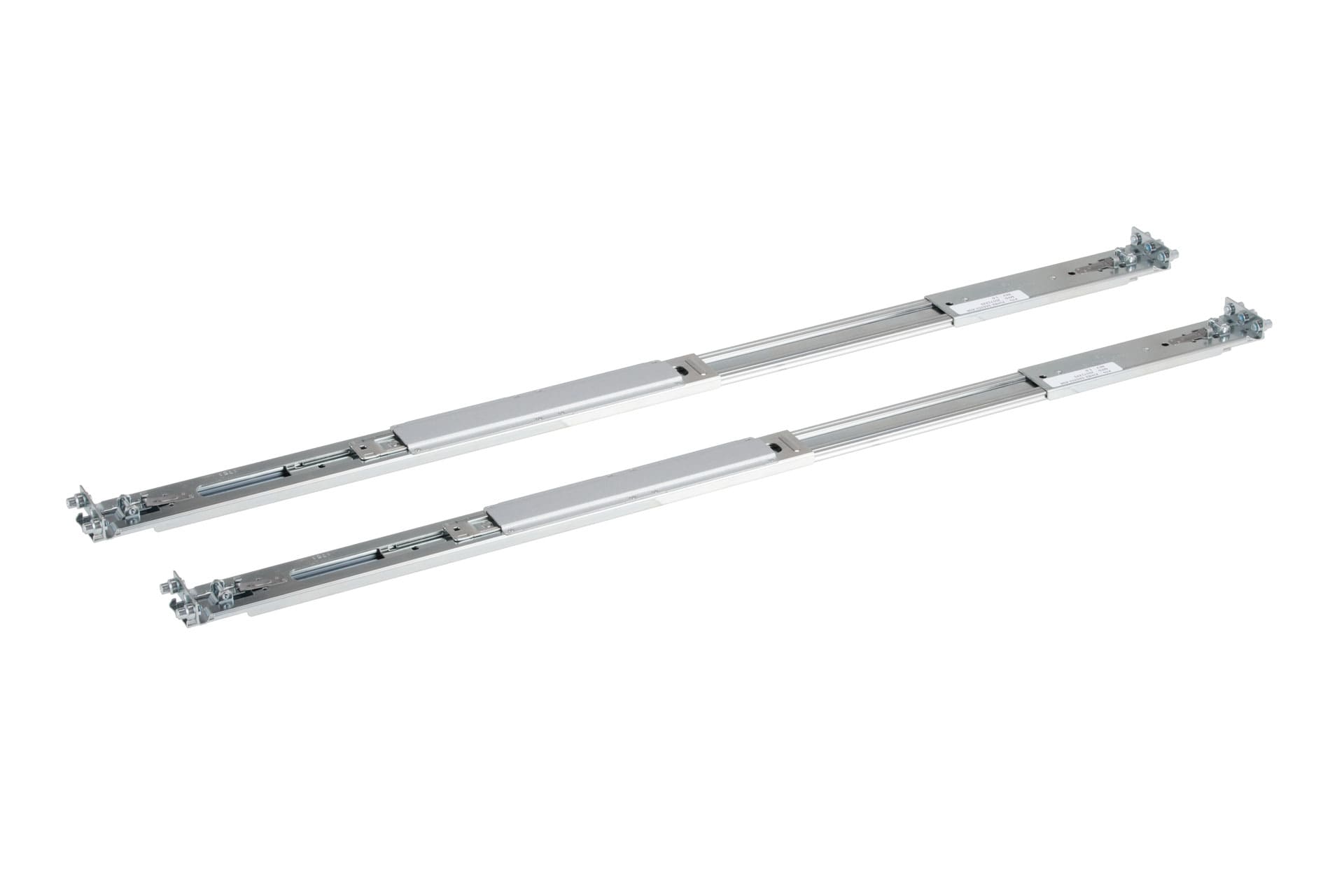

Slide Rail
3RAMIS148100

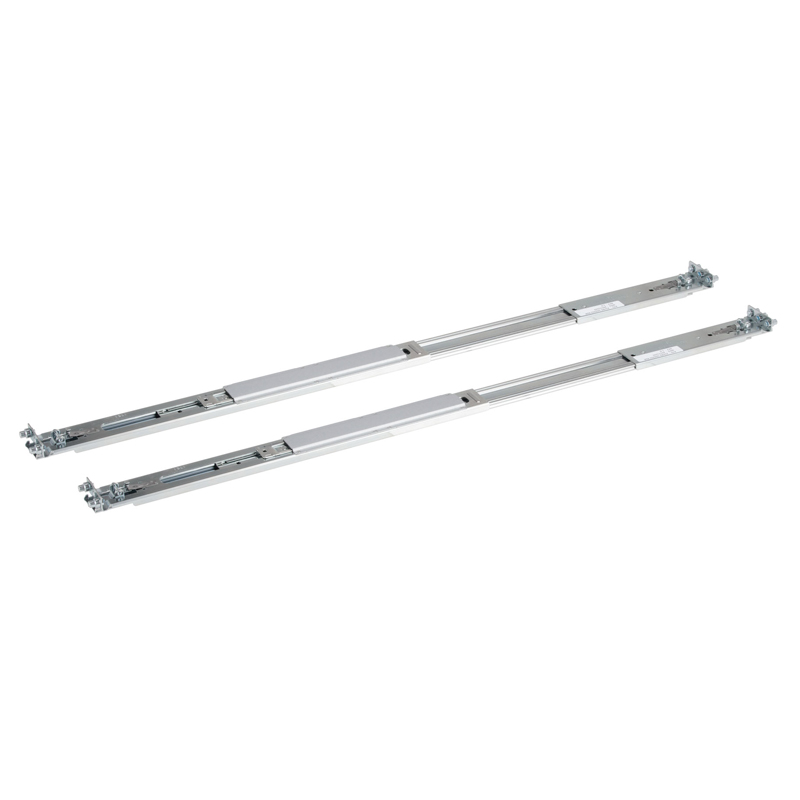

28" tool-less & ball-bearing slide rail
Support: 1 set

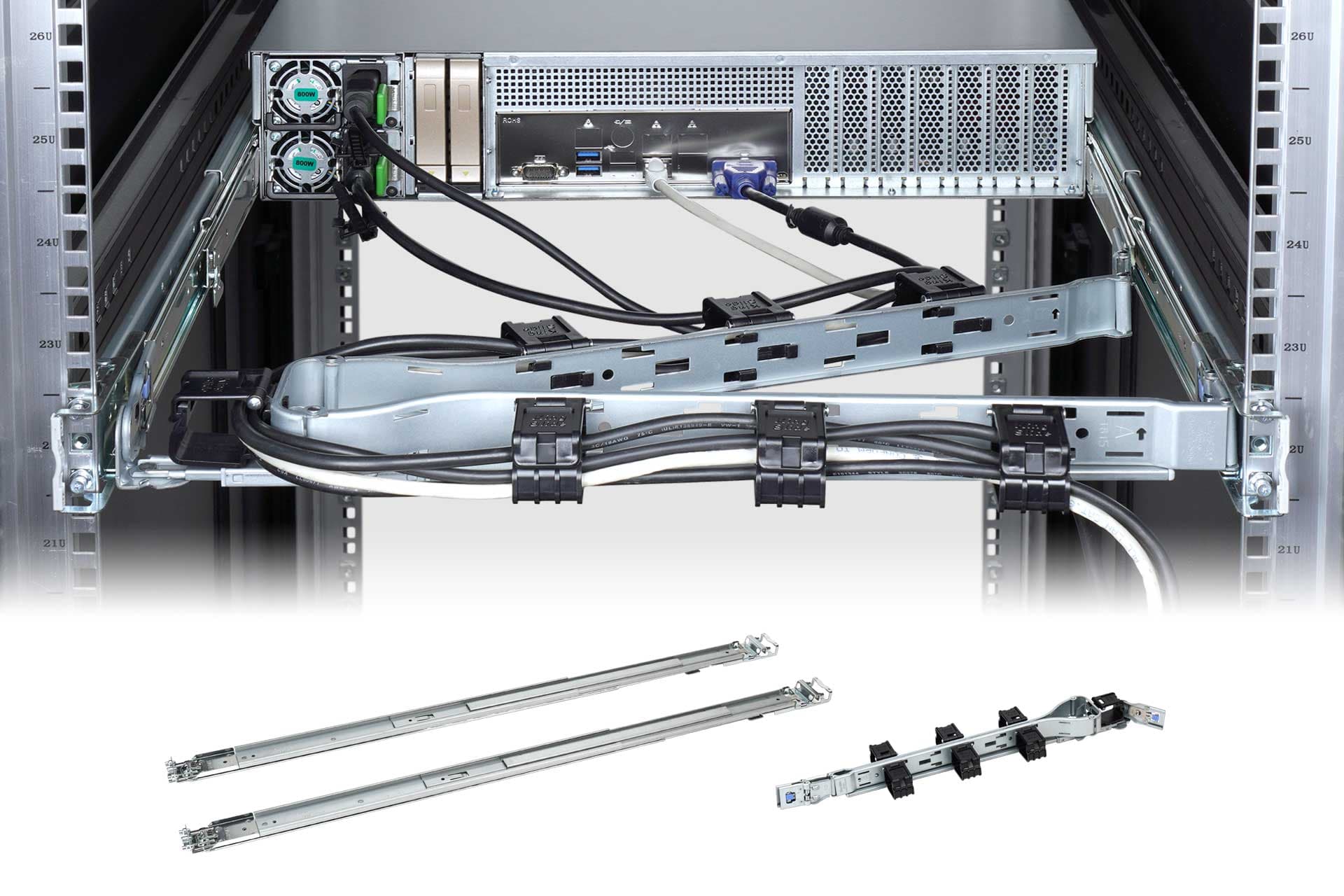

Slide Rail
3RAMIS152300 / 3RAMIS152400
28" tool-less & ball-bearing slide rail with CMA support
Support: 1 set
Cable
3RAMW4031700

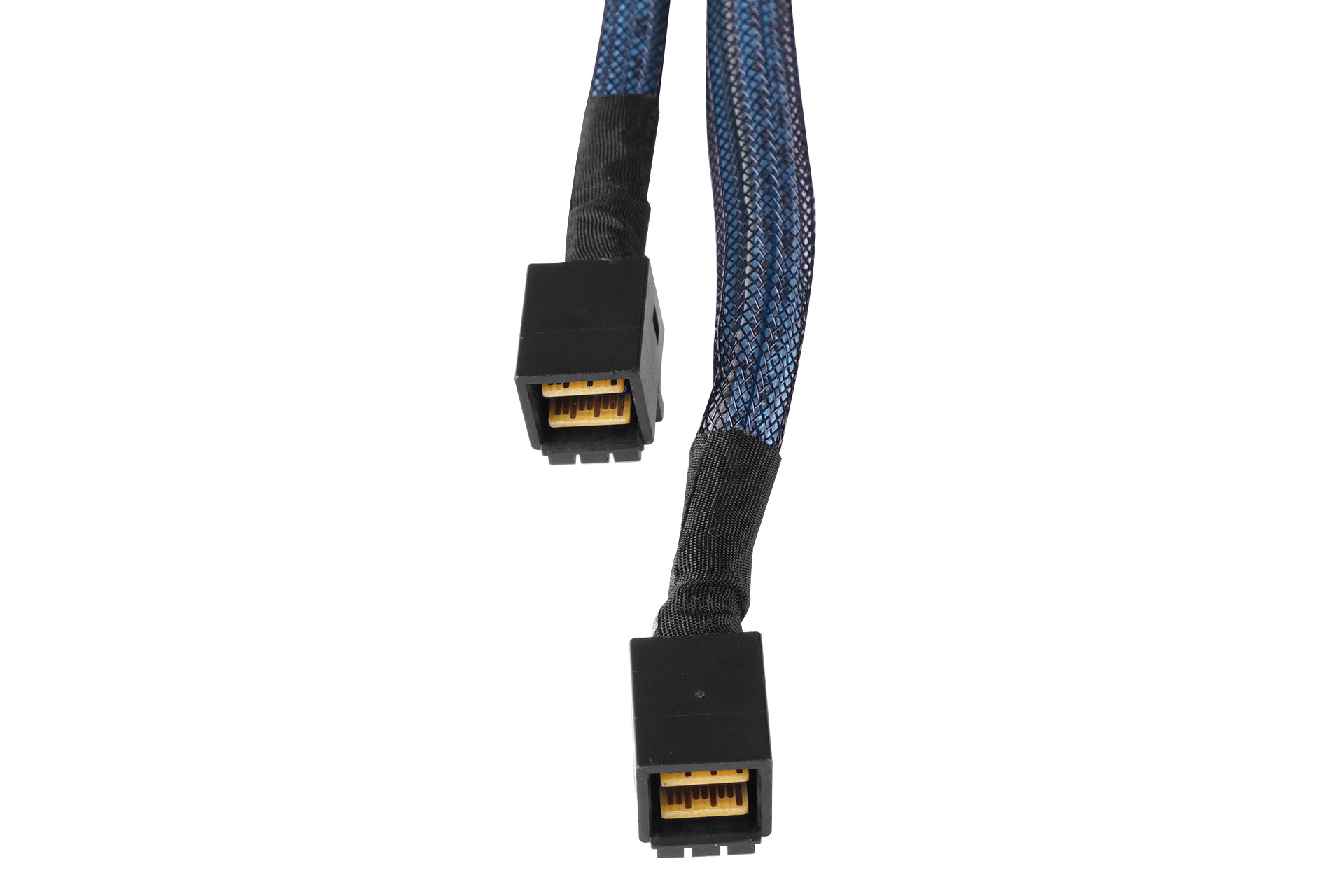

Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm
Support: Max. 3
Power Supply

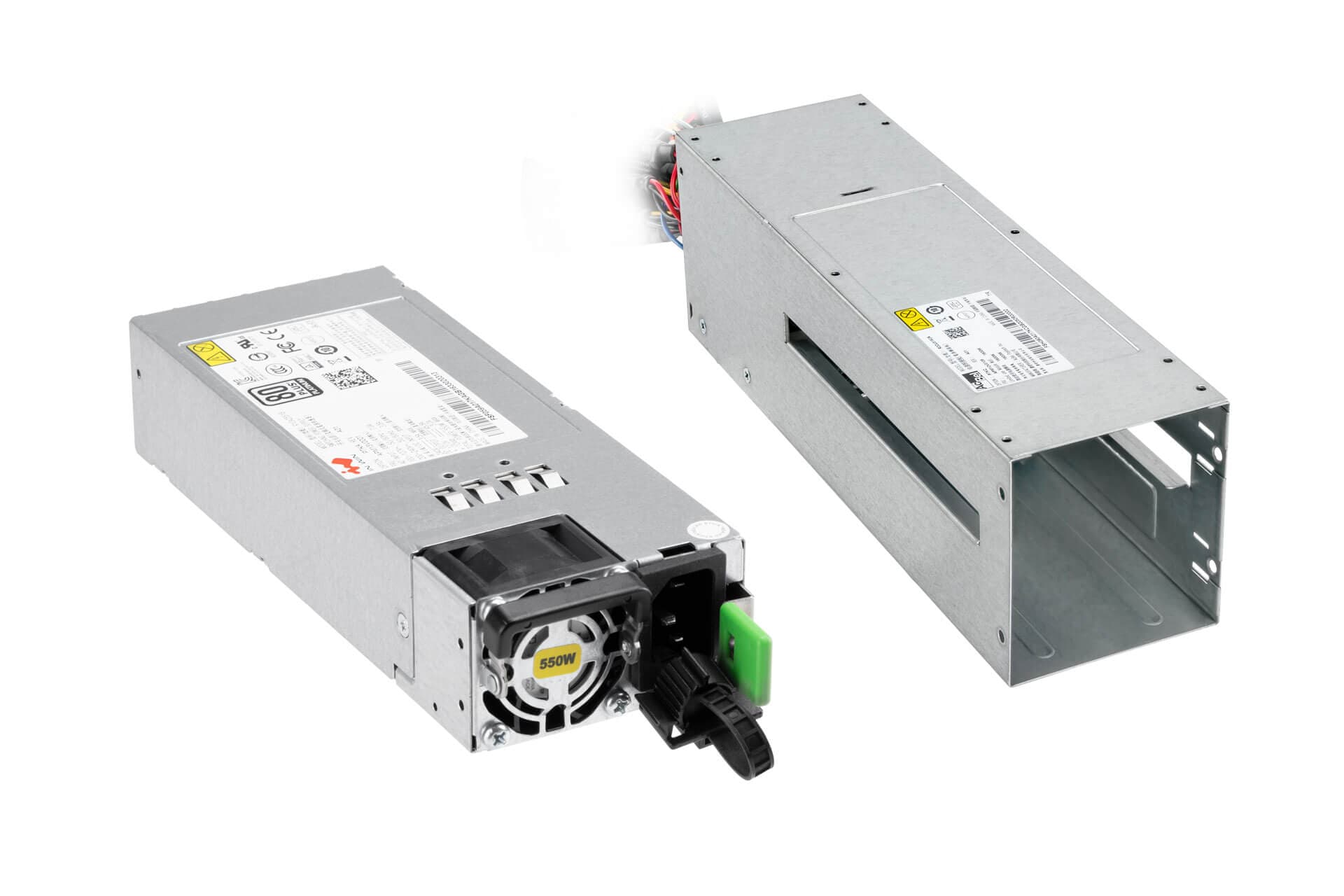

3RAMAP025102 / 3RAMAP042800
80 Plus Platinum 550W CRPS / CRPS PDB
Support: Max. 2

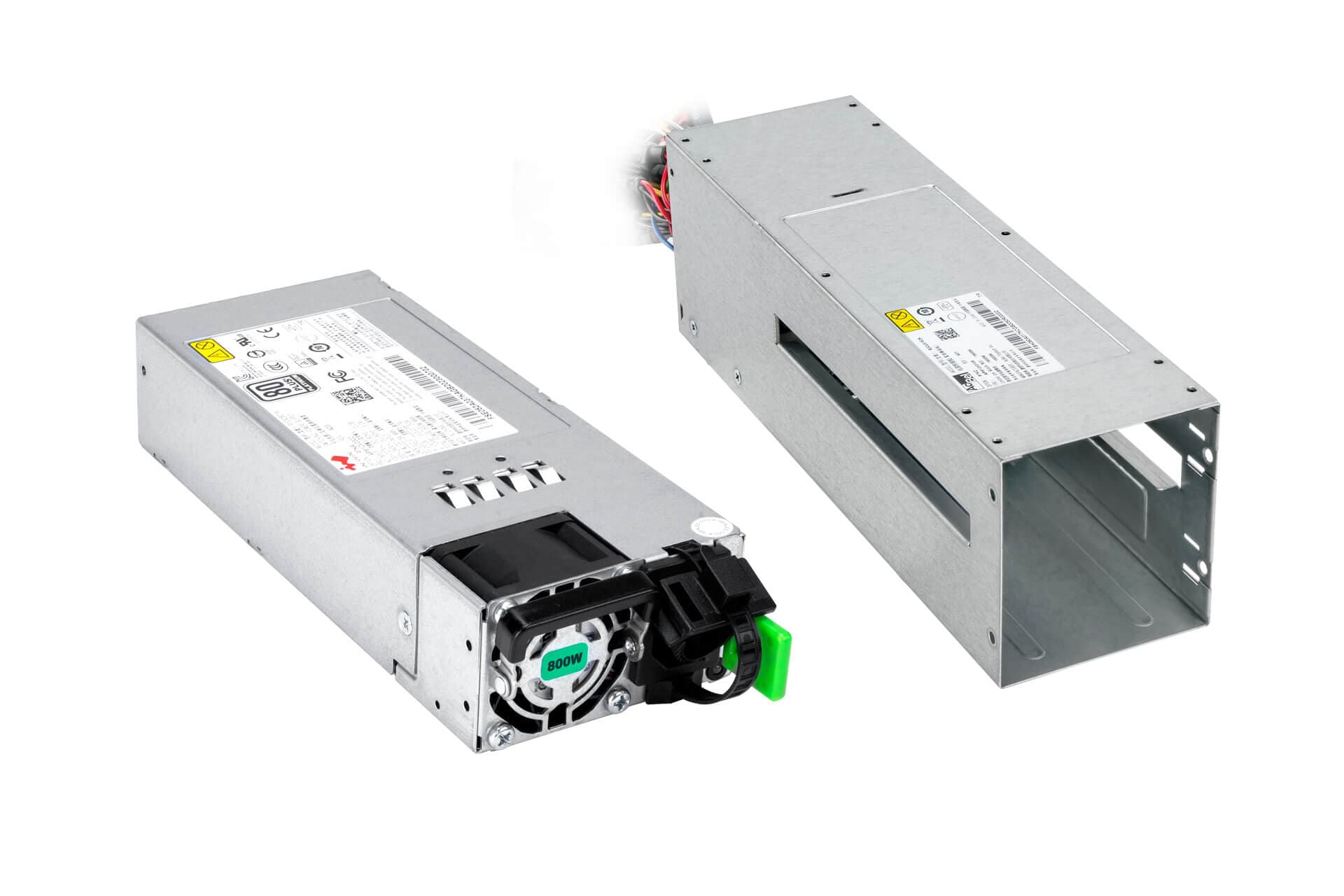

Power Supply
3RAMAP025202 / 3RAMAP042800
80 Plus Platinum 800W CRPS / CRPS PDB
Support: Max. 2
Power Supply

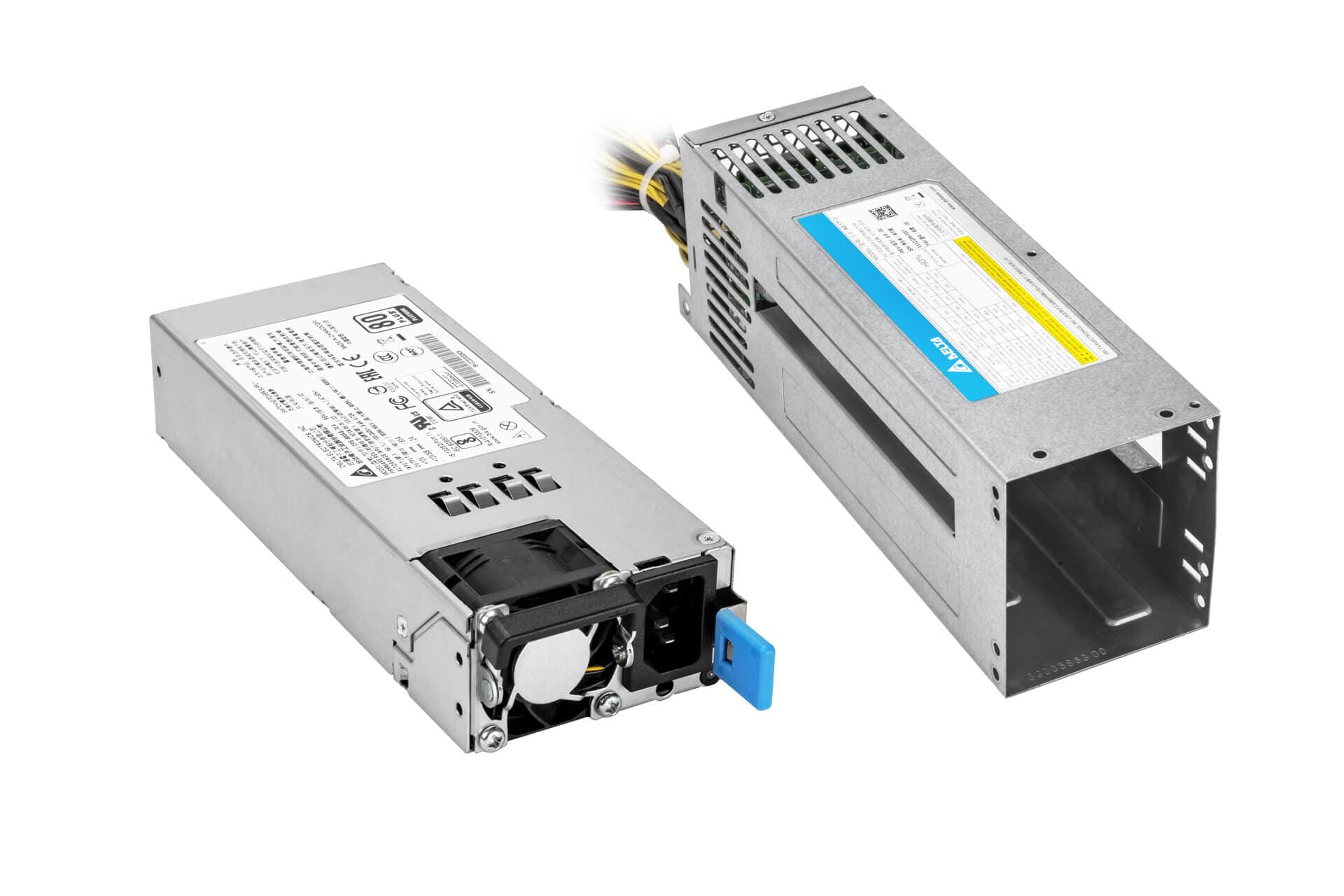

3RAMAP045100 / 3RAMAP045000
80 Plus Platinum 800W CRPS / CRPS PDB
Support: Max. 2

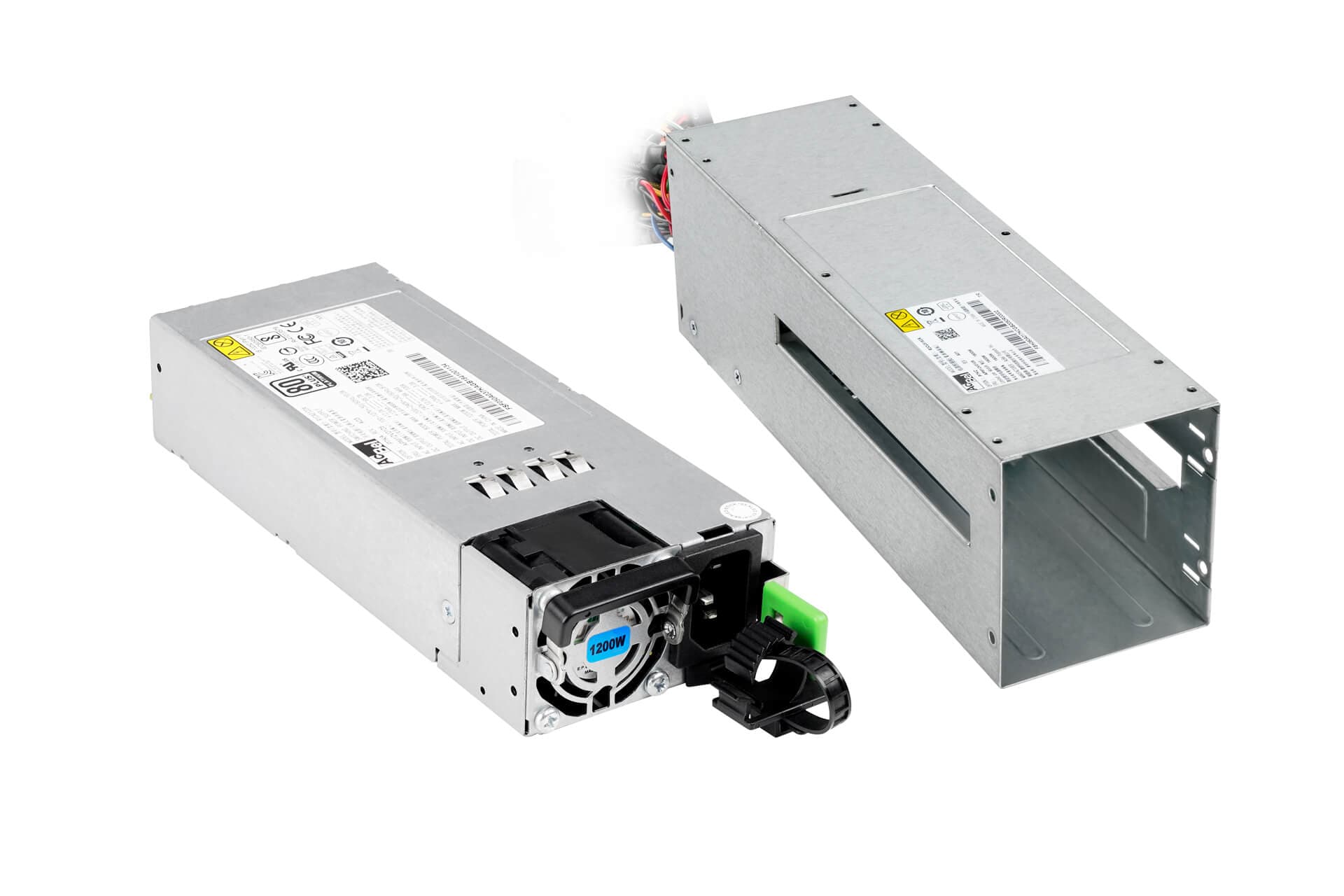

Power Supply
3RAMAP026501 / 3RAMAP042800
80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB
Support: Max. 2

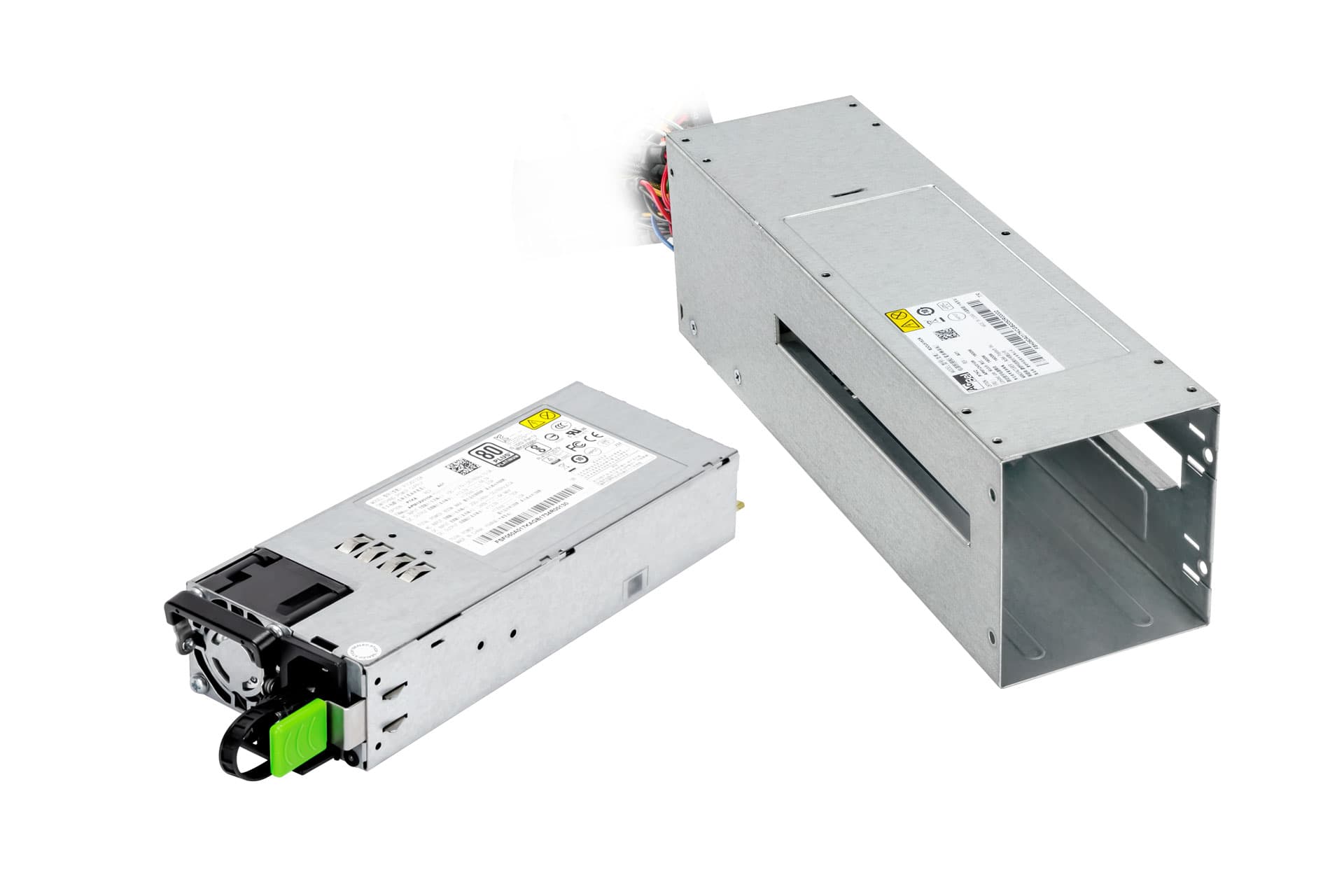

Power Supply
3RAMAP044300 / 3RAMAP042800
80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB
Support: Max. 2

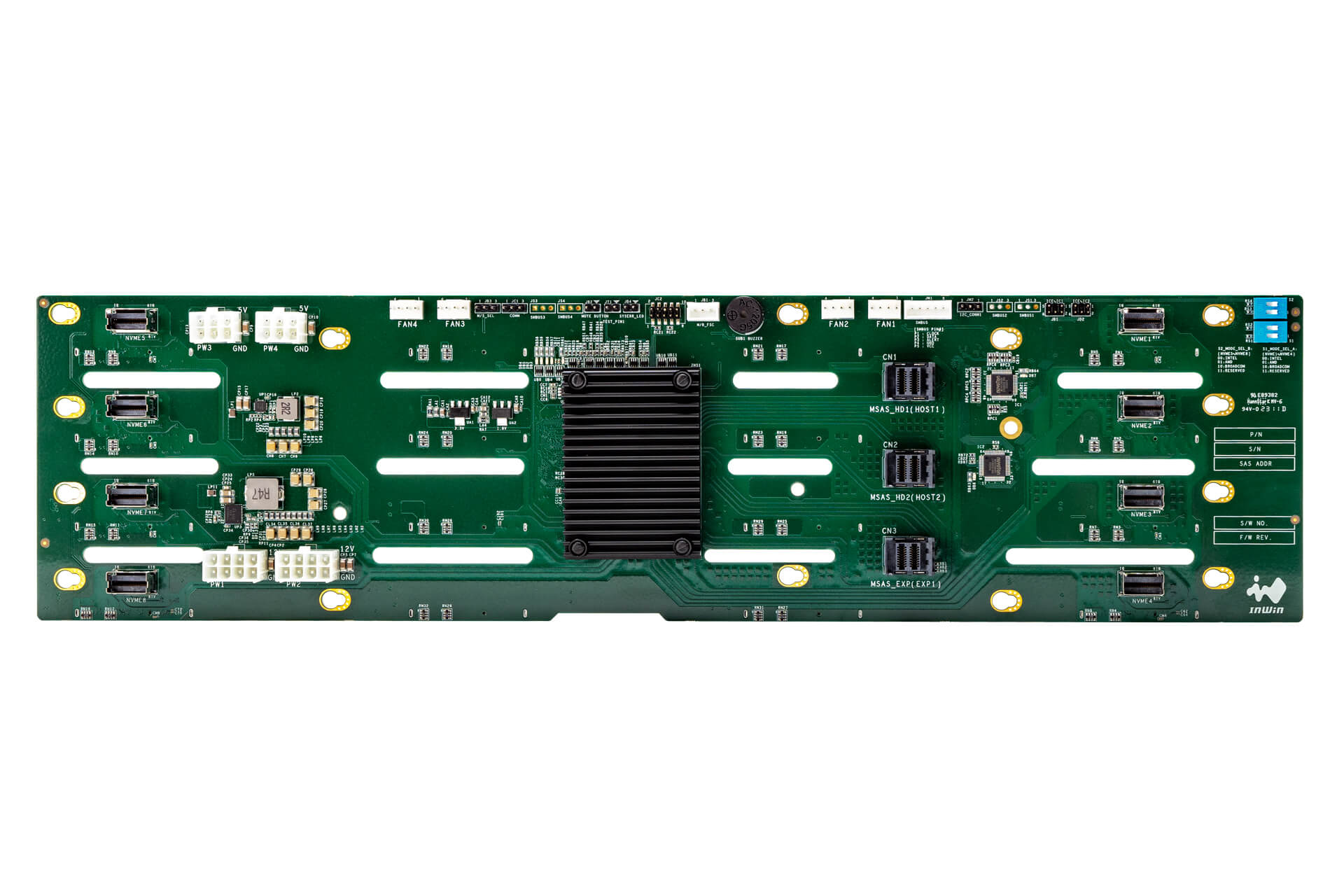

Backplane
2RBTVI009601
Mini-SAS HD & SlimSAS backplane
Support: 1

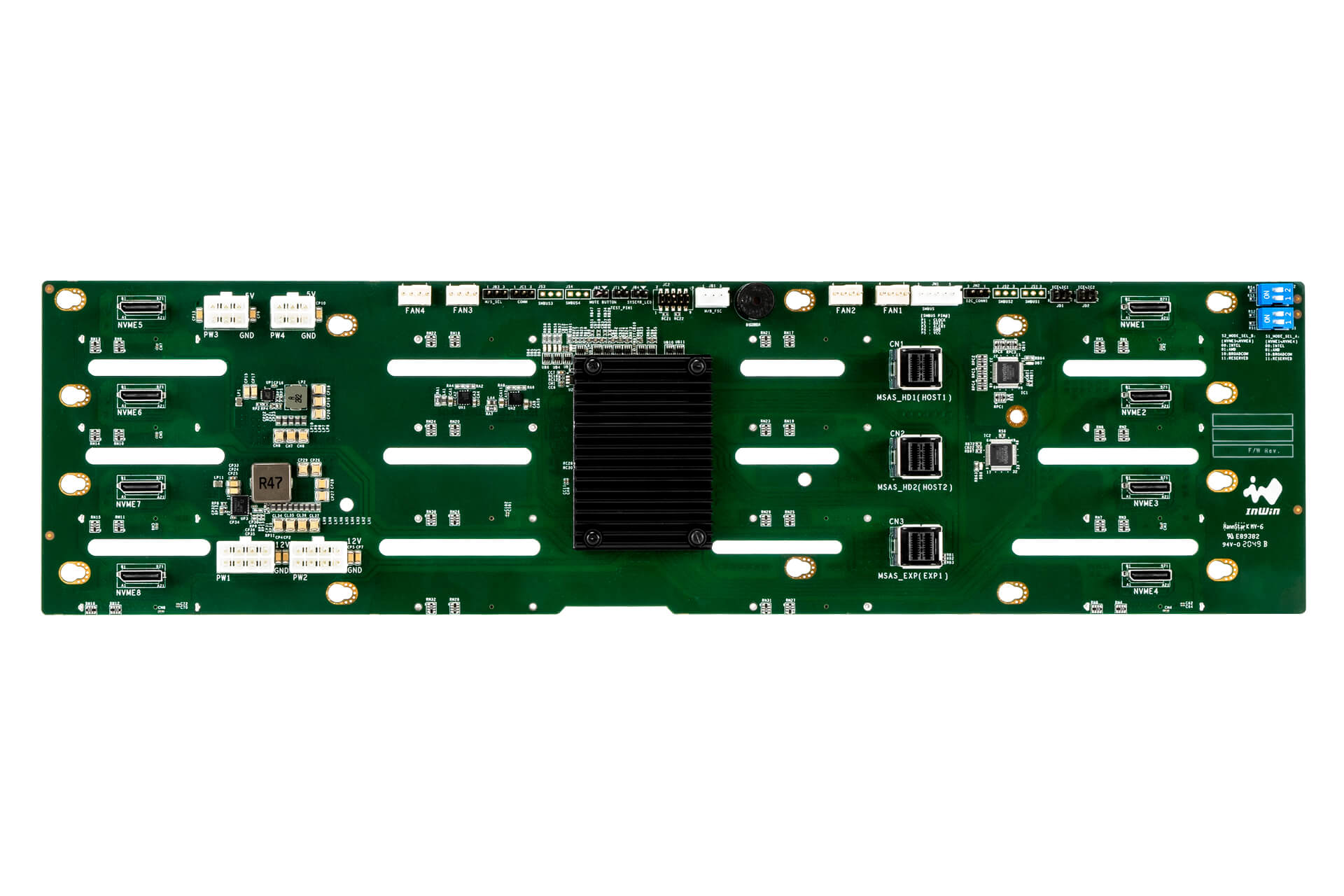

Backplane
2RBTVI005402
Mini-SAS HD & OCuLink backplane
Support: 1

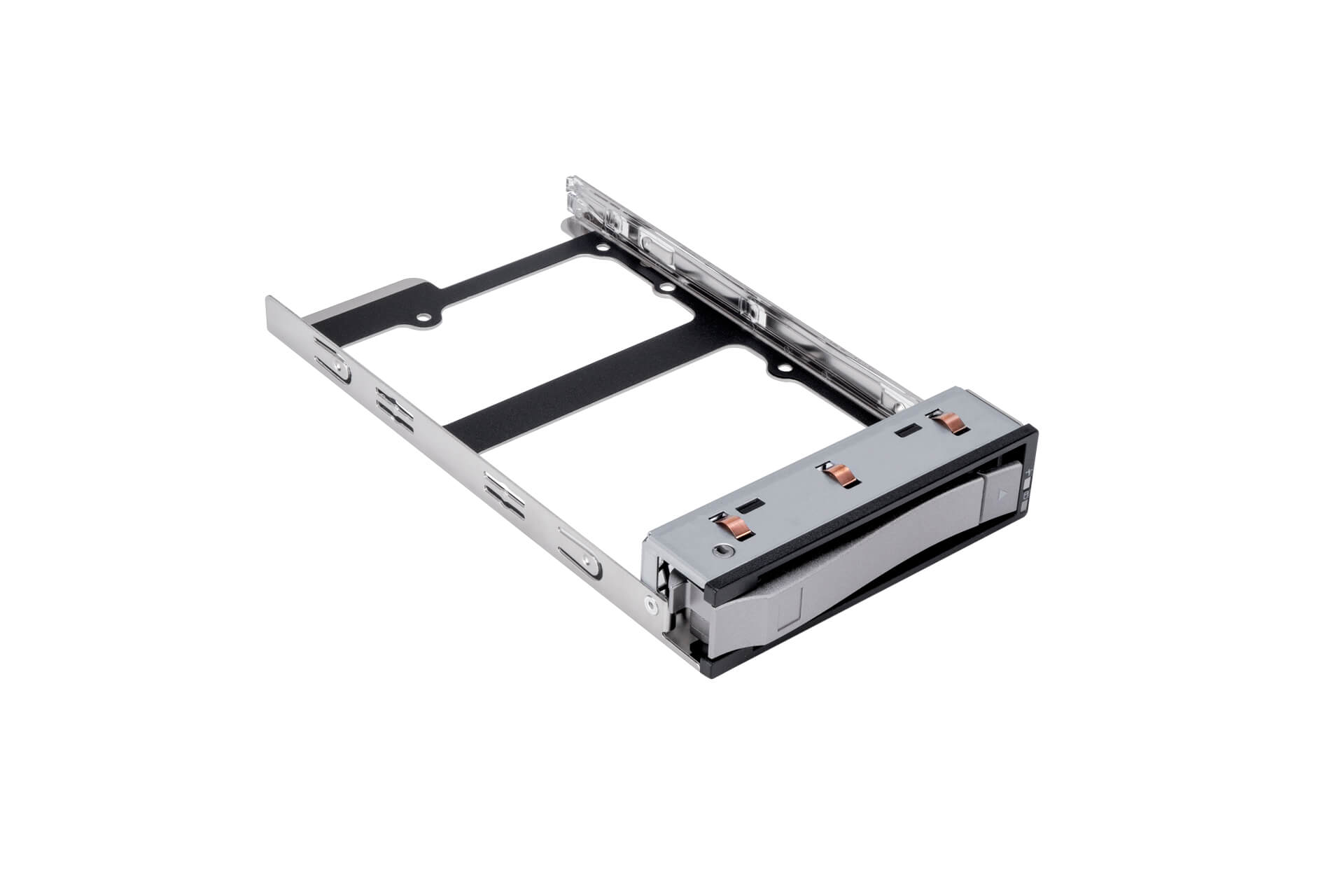

HDD Tray
2RAKPH057702
2.5"/3.5" hot-swap HDD tray (gray color)
Support: Max. 16
HDD Tray
2RAKPH063701
2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol)
Support: Max. 8
HDD Tray
2RAKPH057801

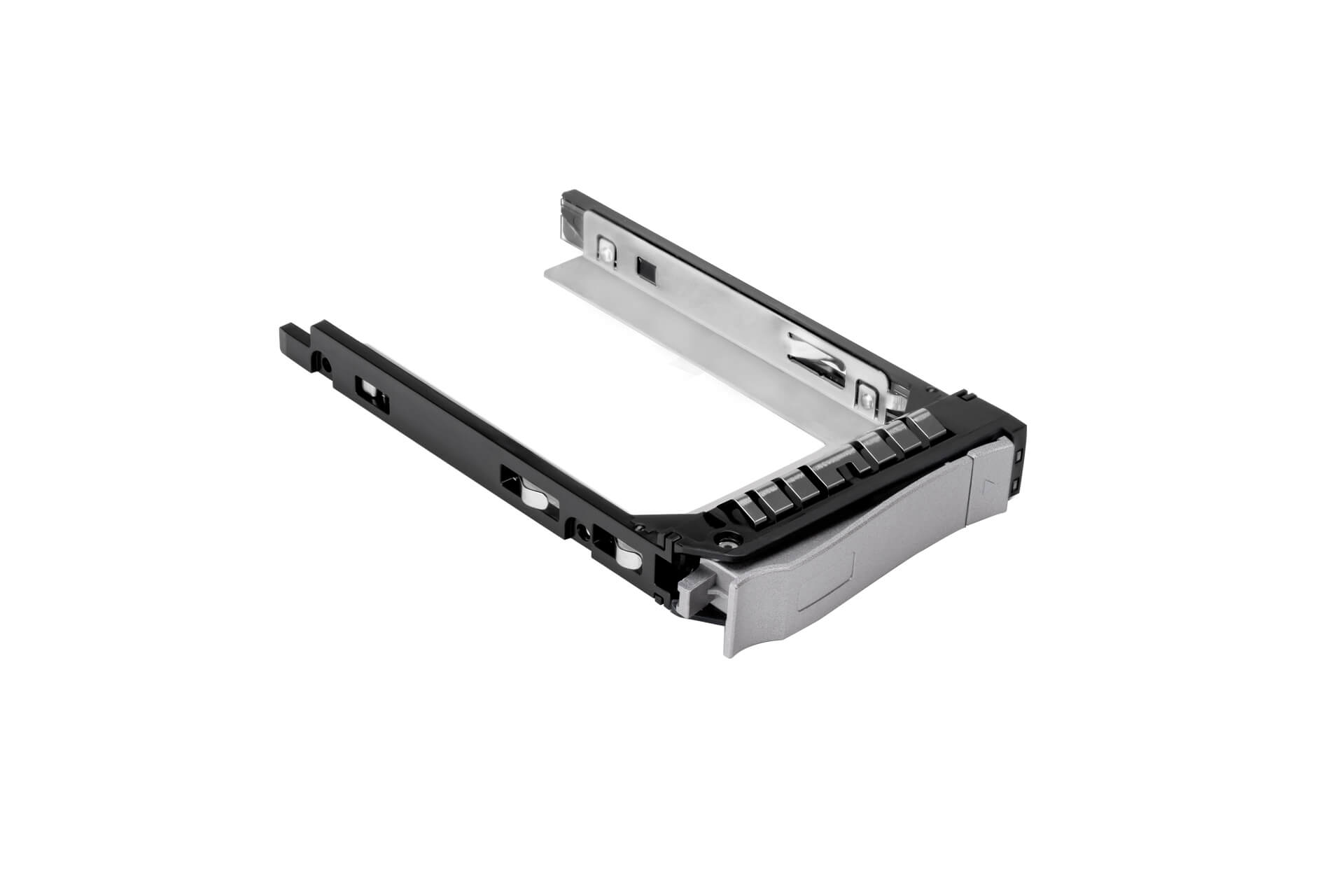

2.5" Screwless hot-swap SSD rear tray (gray color)
Support: Max. 2

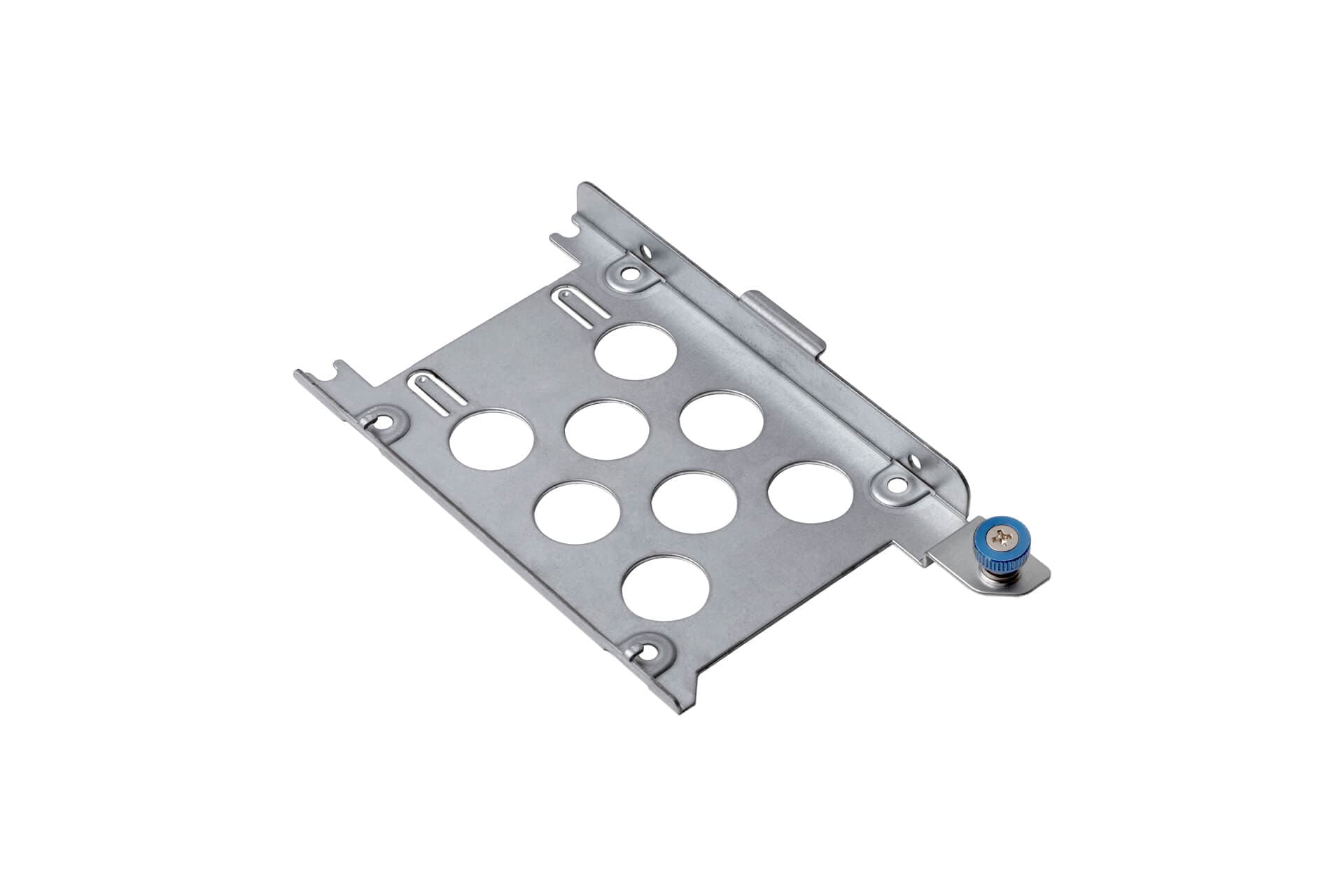

HDD Tray
2RARID046901
Internal 2.5" HDD bracket
Support: 1

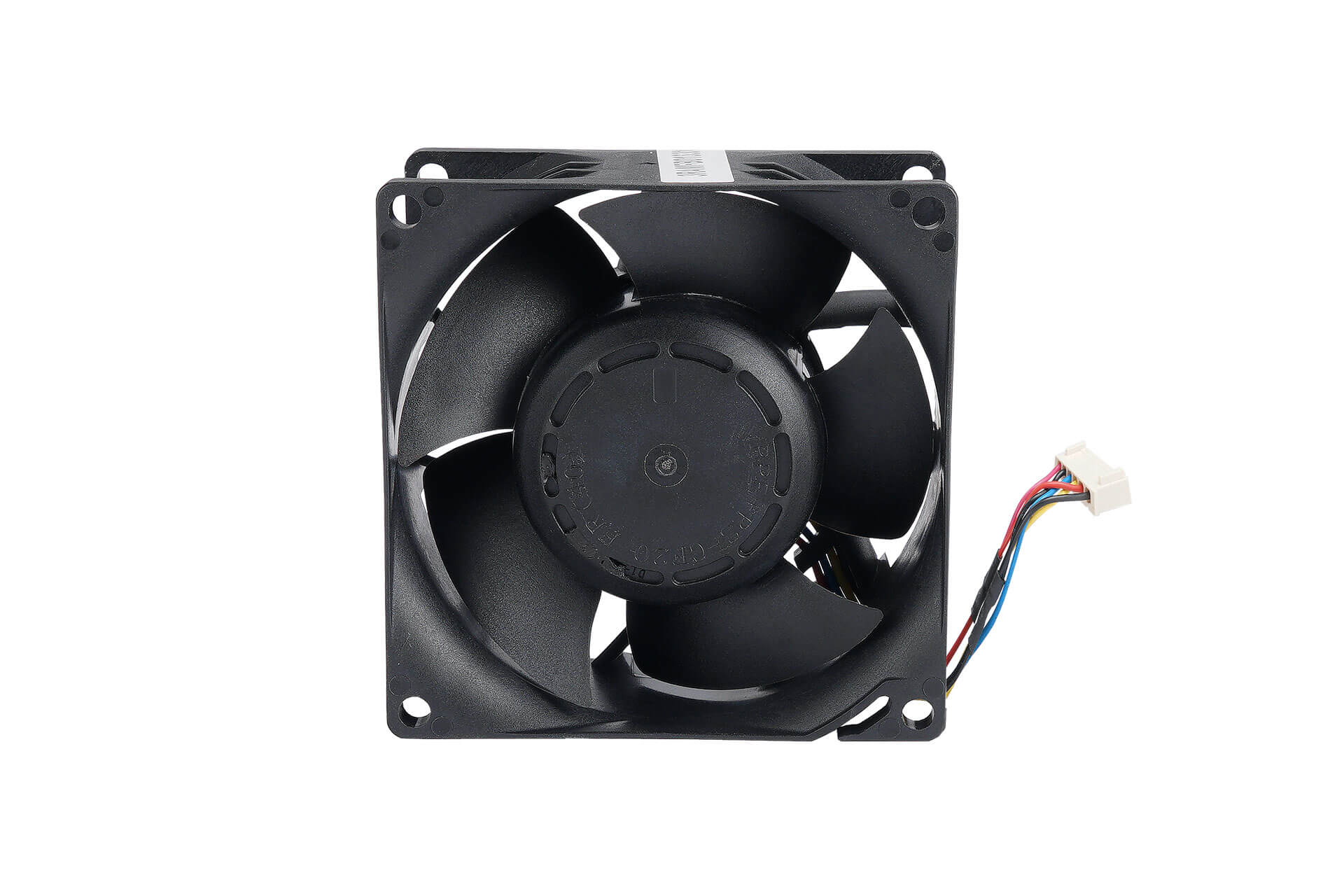

Fan
3RAMFB016302
80 x 38mm PWM hot-swap, 12000RPM, 6pin
Support: Max. 4

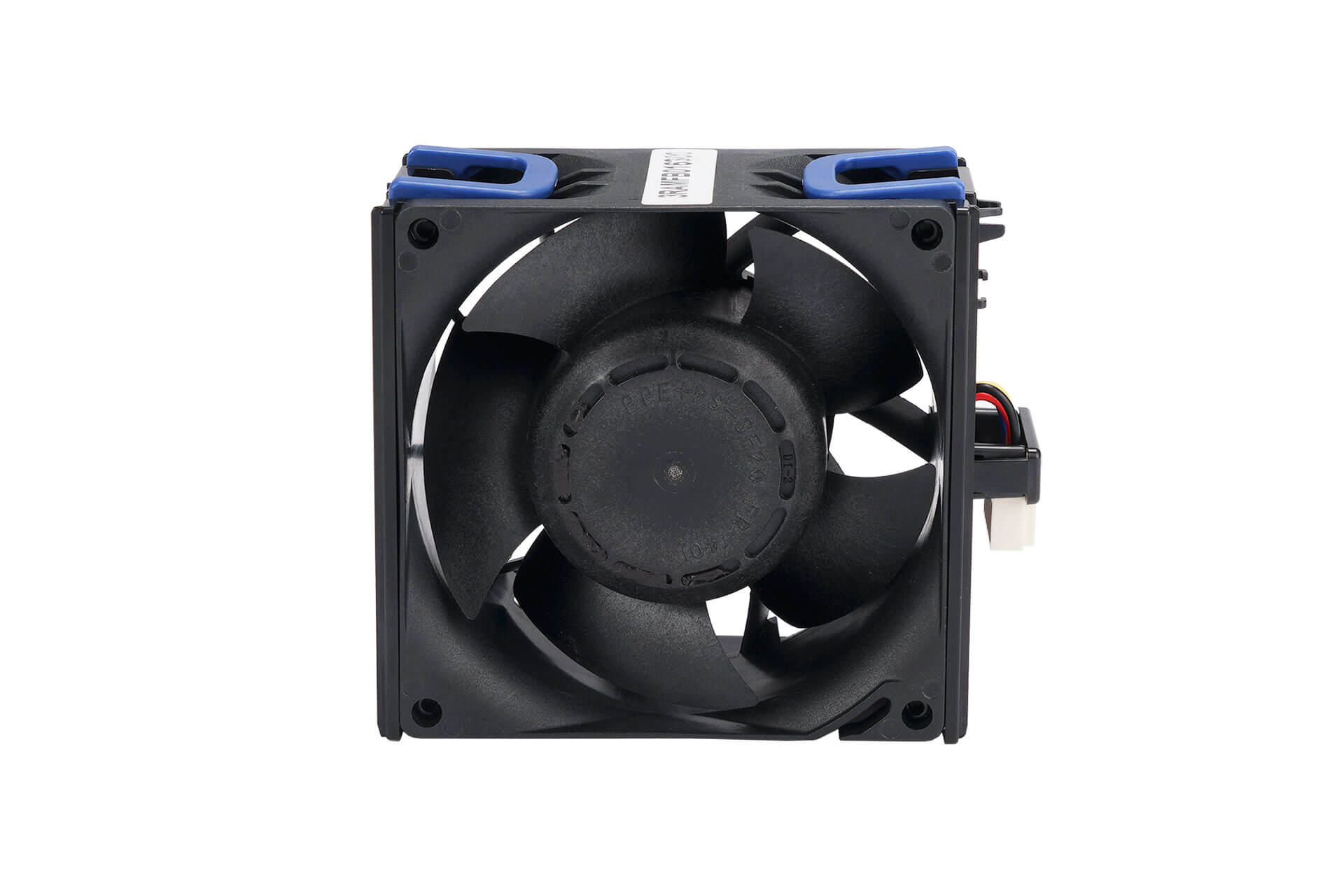

Fan
2RAKFB011602
80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin
Support: Max. 4
Others
2RAKIP023200

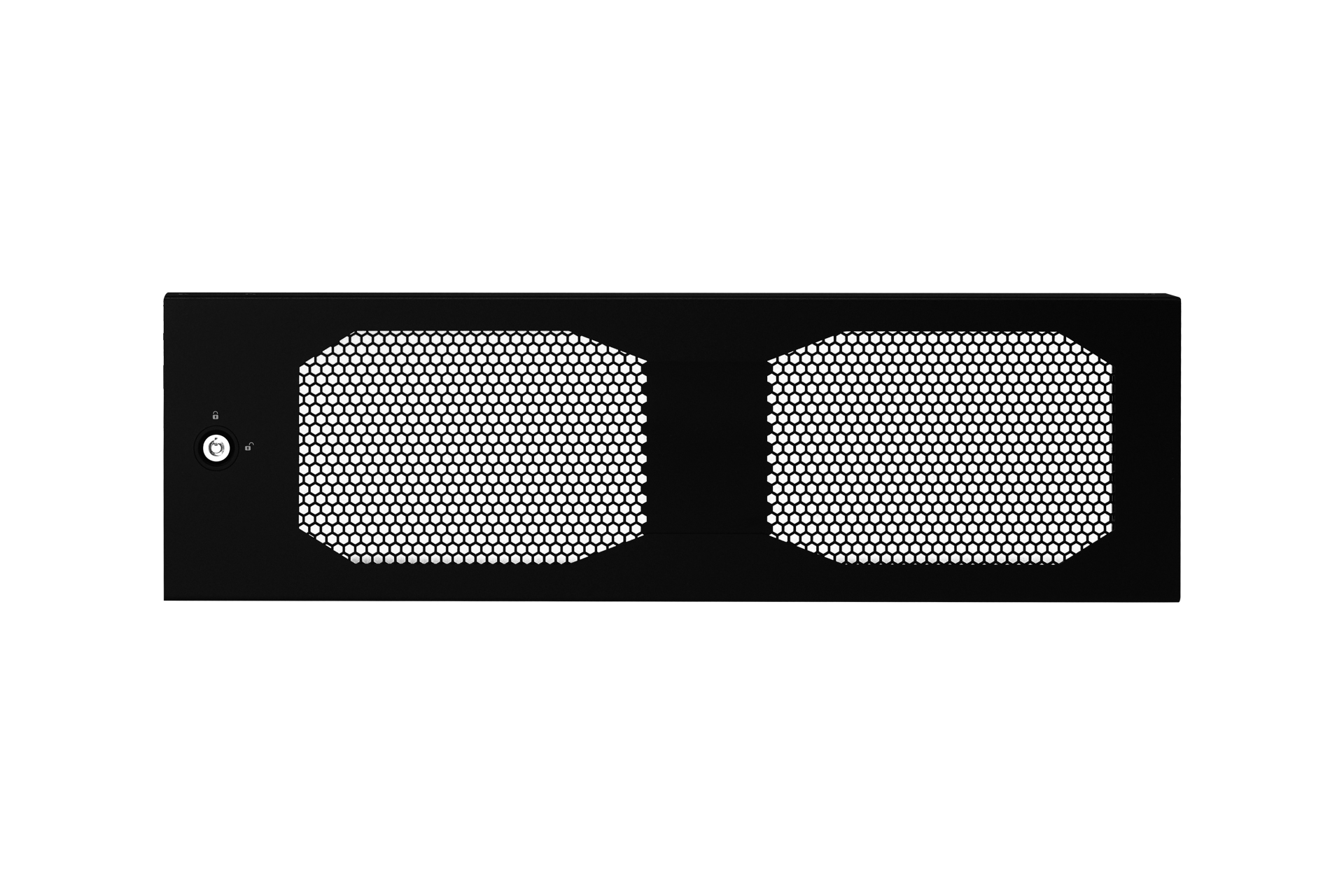

Mesh front panel
Support: 1
Others
3RAMRW011300

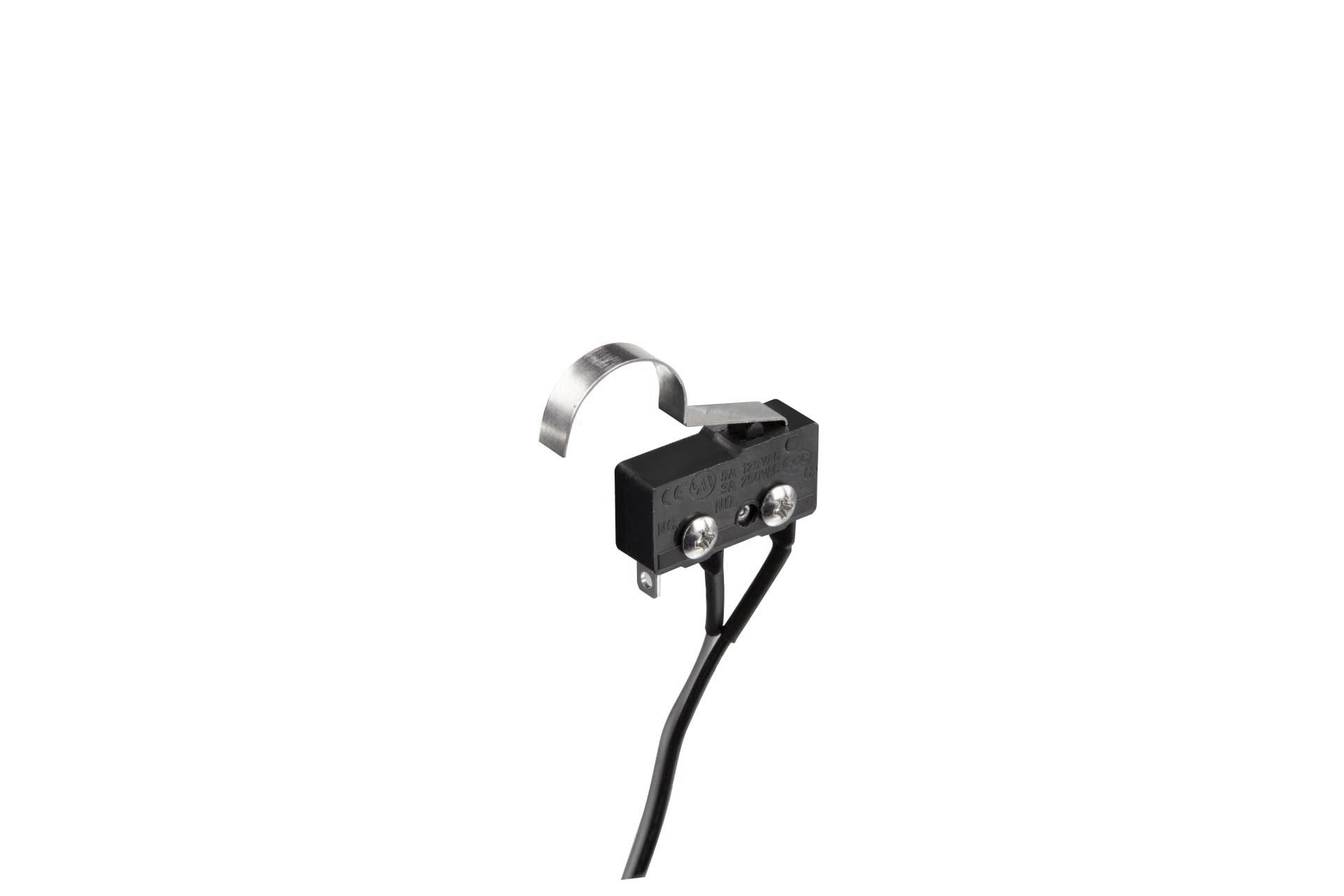

Intrusion switch / 800mm
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 set | |
| Slide Rail | 3RAMIS152300 / 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 set | |
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | Max. 3 | |
| Power Supply | 3RAMAP025102 / 3RAMAP042800 | 80 Plus Platinum 550W CRPS / CRPS PDB | Max. 2 | |
| Power Supply | 3RAMAP025202 / 3RAMAP042800 | 80 Plus Platinum 800W CRPS / CRPS PDB | Max. 2 | |
| Power Supply | 3RAMAP045100 / 3RAMAP045000 | 80 Plus Platinum 800W CRPS / CRPS PDB | Max. 2 | |
| Power Supply | 3RAMAP026501 / 3RAMAP042800 | 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB | Max. 2 | |
| Power Supply | 3RAMAP044300 / 3RAMAP042800 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) / CRPS PDB | Max. 2 | |
| Backplane | 2RBTVI009601 | Mini-SAS HD & SlimSAS backplane | 1 | |
| Backplane | 2RBTVI005402 | Mini-SAS HD & OCuLink backplane | 1 | |
| HDD Tray | 2RAKPH057702 | 2.5"/3.5" hot-swap HDD tray (gray color) | Max. 16 | |
| HDD Tray | 2RAKPH063701 | 2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol) | Max. 8 | |
| HDD Tray | 2RAKPH057801 | 2.5" Screwless hot-swap SSD rear tray (gray color) | Max. 2 | |
| HDD Tray | 2RARID046901 | Internal 2.5" HDD bracket | 1 | |
| Fan | 3RAMFB016302 | 80 x 38mm PWM hot-swap, 12000RPM, 6pin | Max. 4 | |
| Fan | 2RAKFB011602 | 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin | Max. 4 | |
| Others | 2RAKIP023200 | Mesh front panel | 1 | |
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 | |
