IW-RS208-07
Артикул: IW-RS208-07

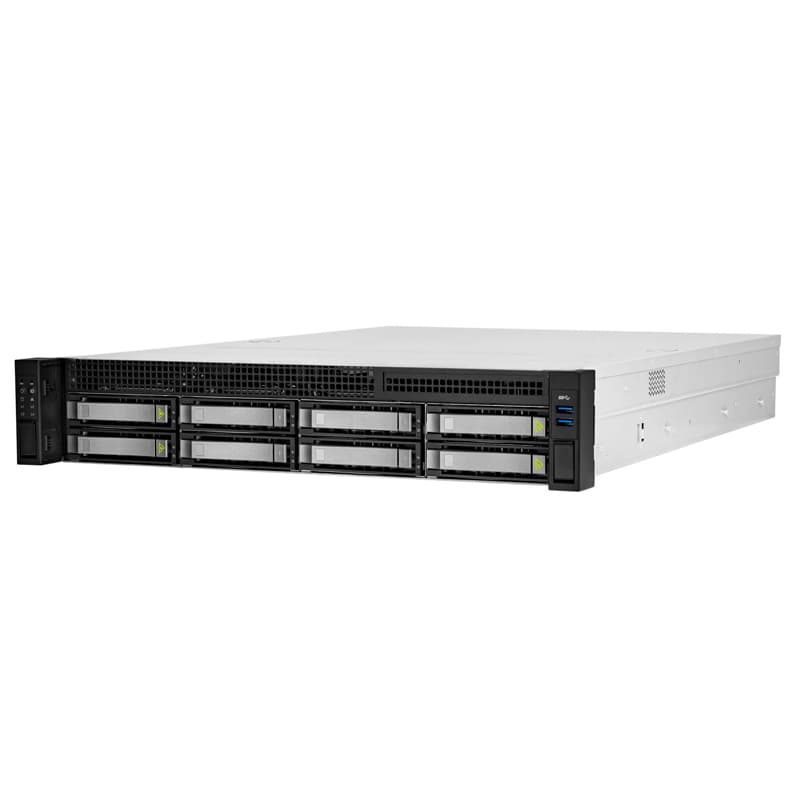

2U Chassis
2U storage-корпус на 8 LFF hot-swap дисков
IW-RS208-07 подходит для 2U-серверов хранения с восемью фронтальными 3.5"/2.5" hot-swap отсеками и двумя задними 2.5" местами. Модель рассчитана на ATX, CEB и EEB-платы, redundant CRPS-питание и 7 low-profile PCIe слотов.
Hot-swap
8 x 3.5"/2.5" + 2 x 2.5"
Платы
ATX / CEB / EEB
Питание
800 Вт 1+1 Platinum
PCIe
7 x low-profile

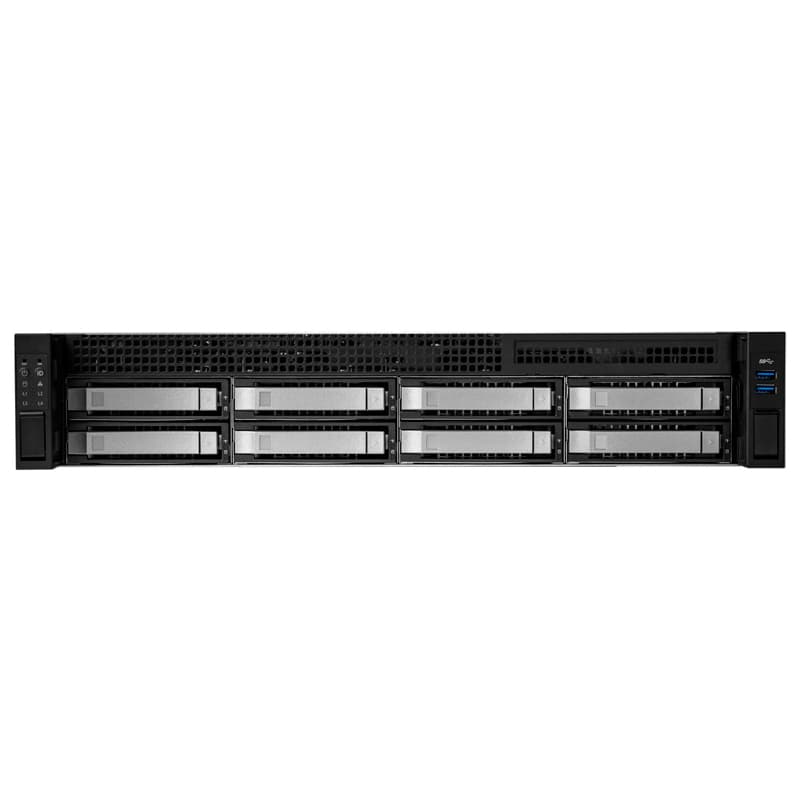

LFF Storage

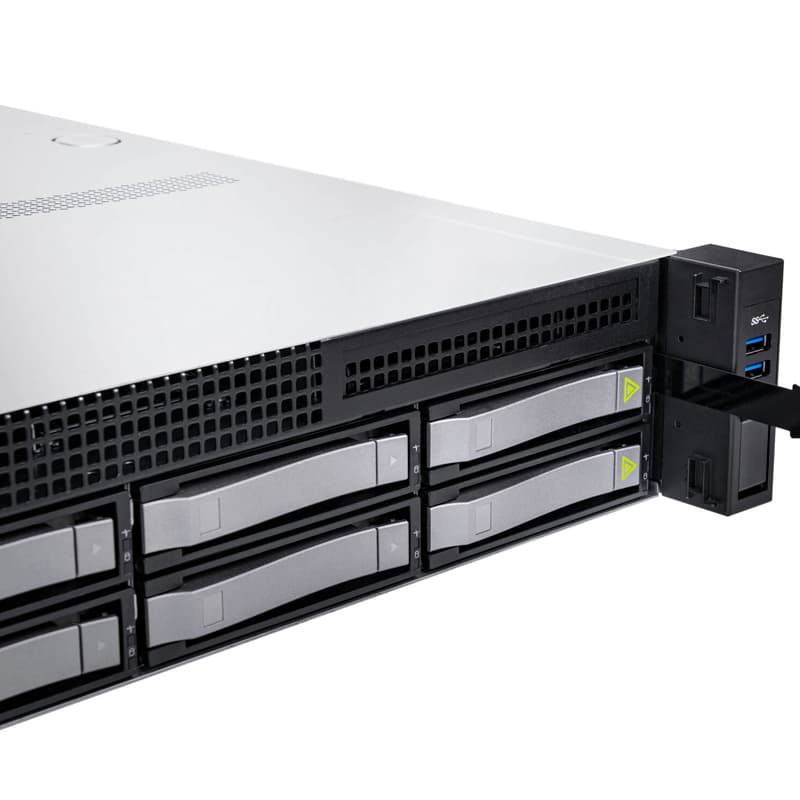

Восемь универсальных hot-swap отсеков
Фронтальная корзина принимает 3.5" и 2.5" накопители. Это хороший формат для универсального storage-сервера с емкими HDD или смешанной дисковой конфигурацией.

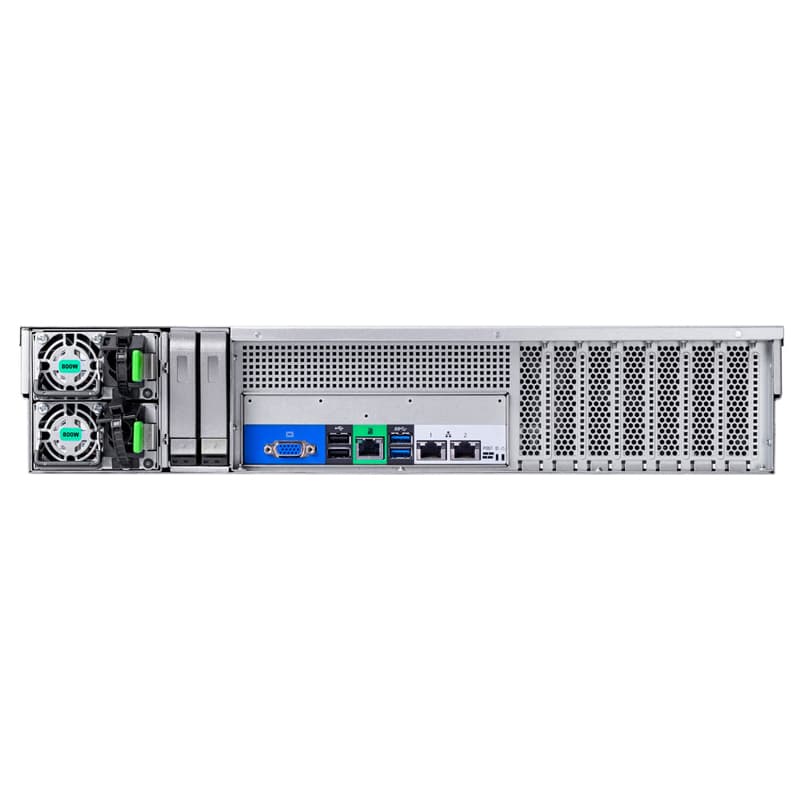

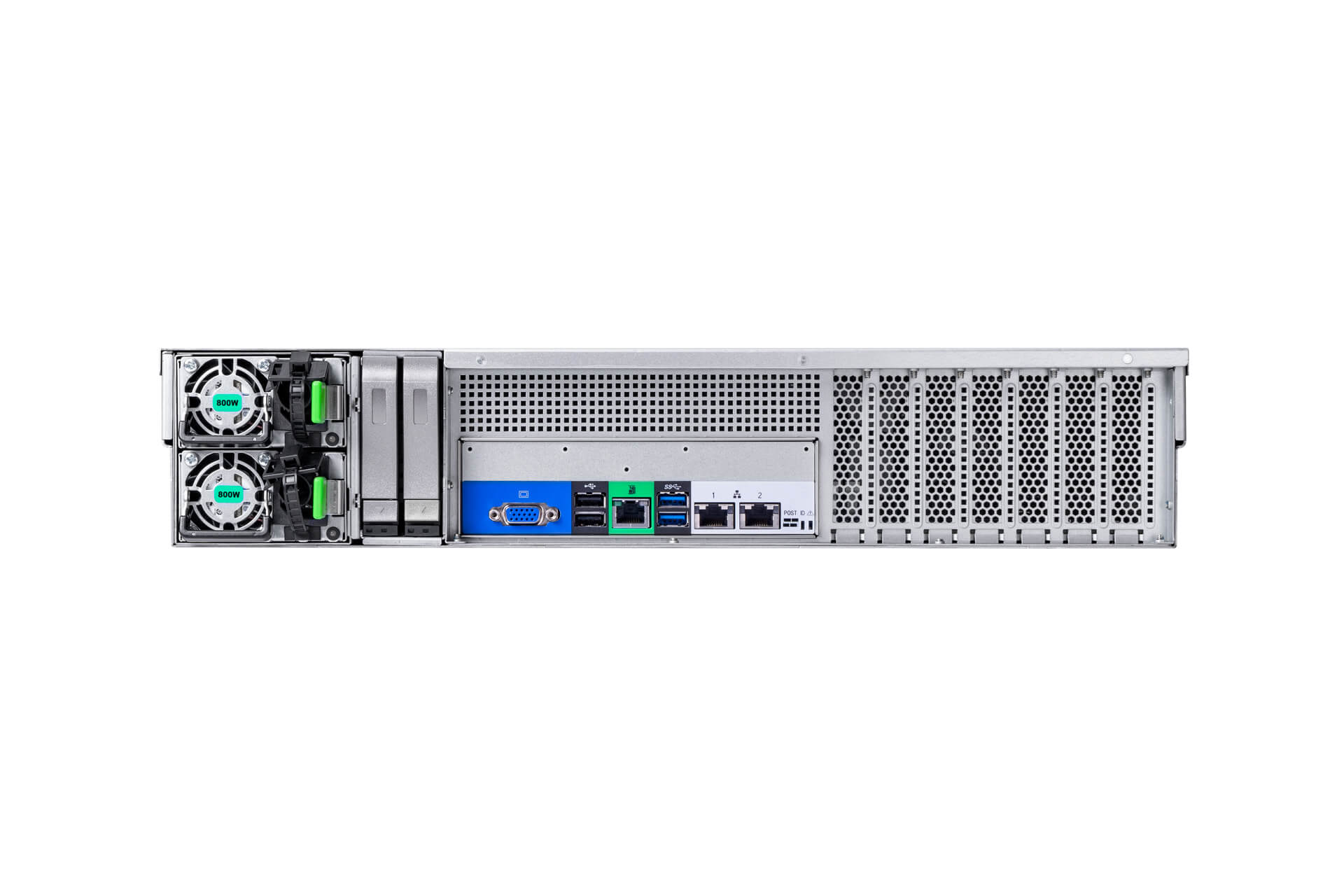

Rear Drives

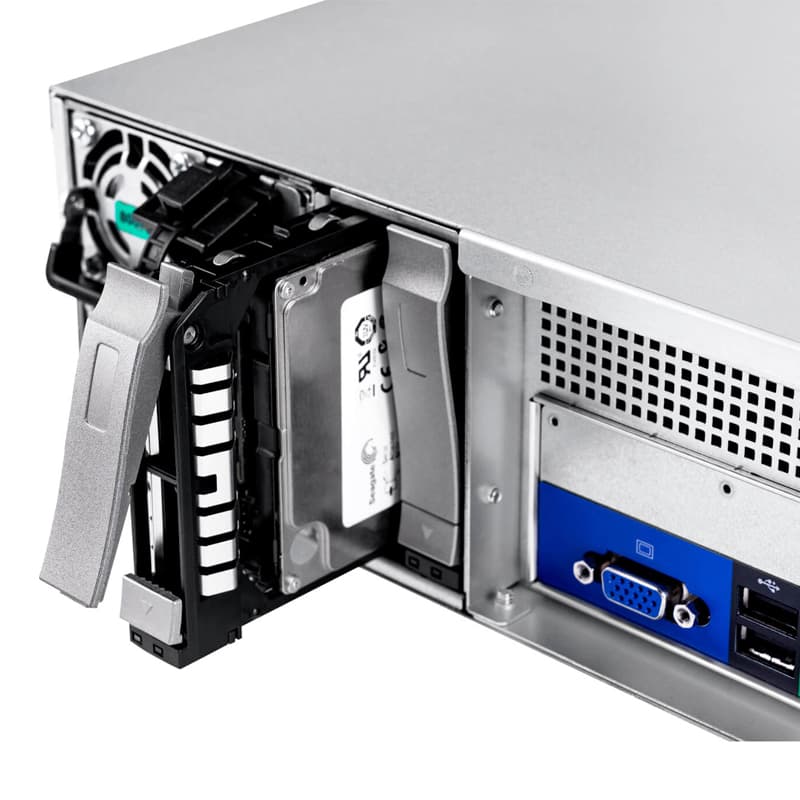

Два задних 2.5" отсека
Задние места можно использовать под системные SSD или отдельный сервисный набор дисков, не занимая фронтальные LFF-отсеки.

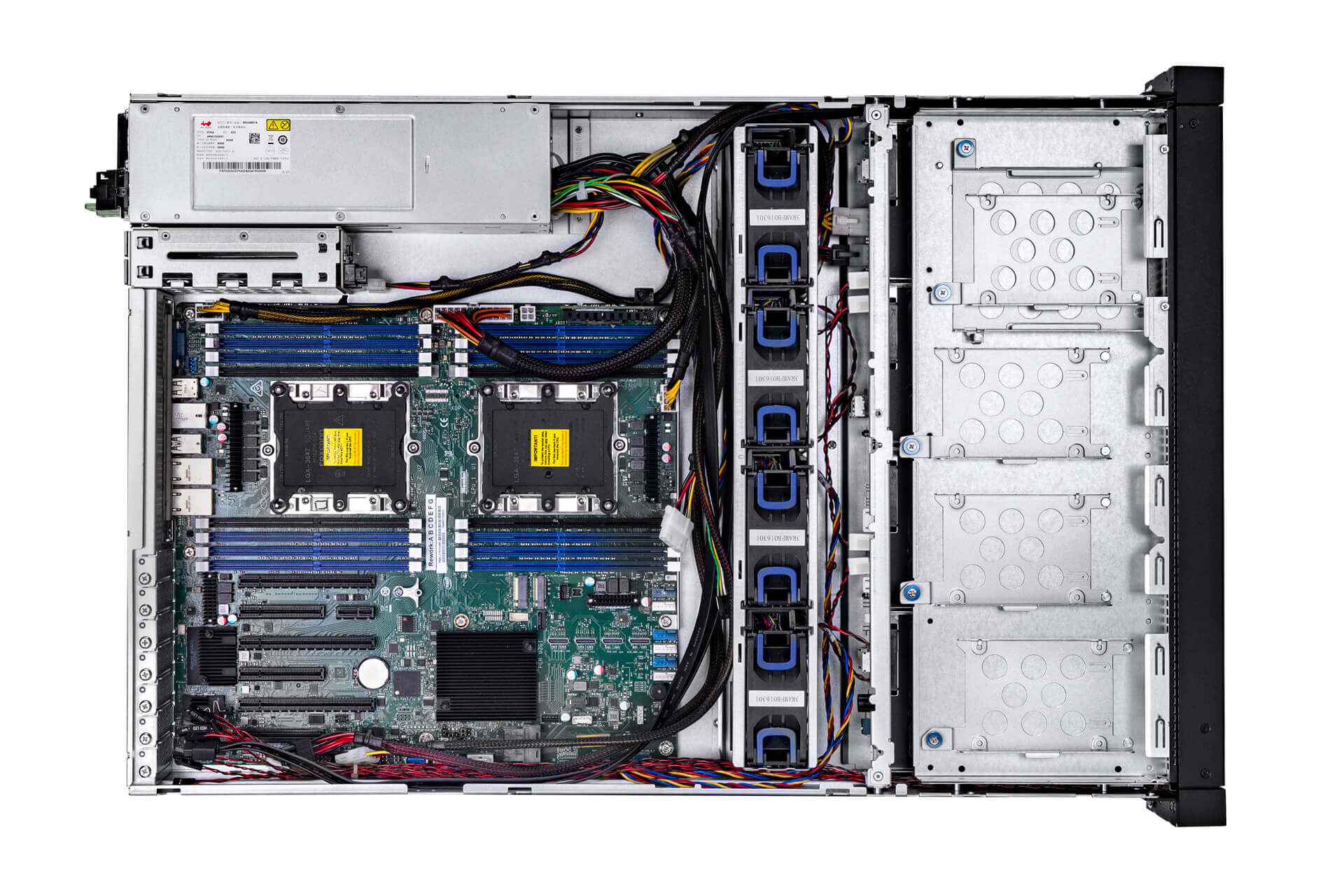

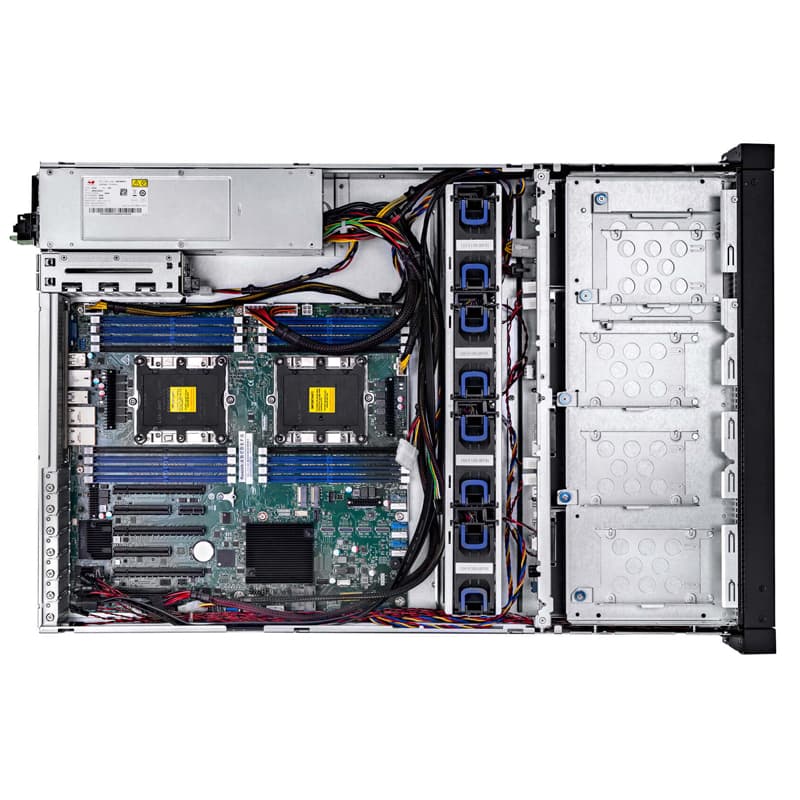

Enterprise Base

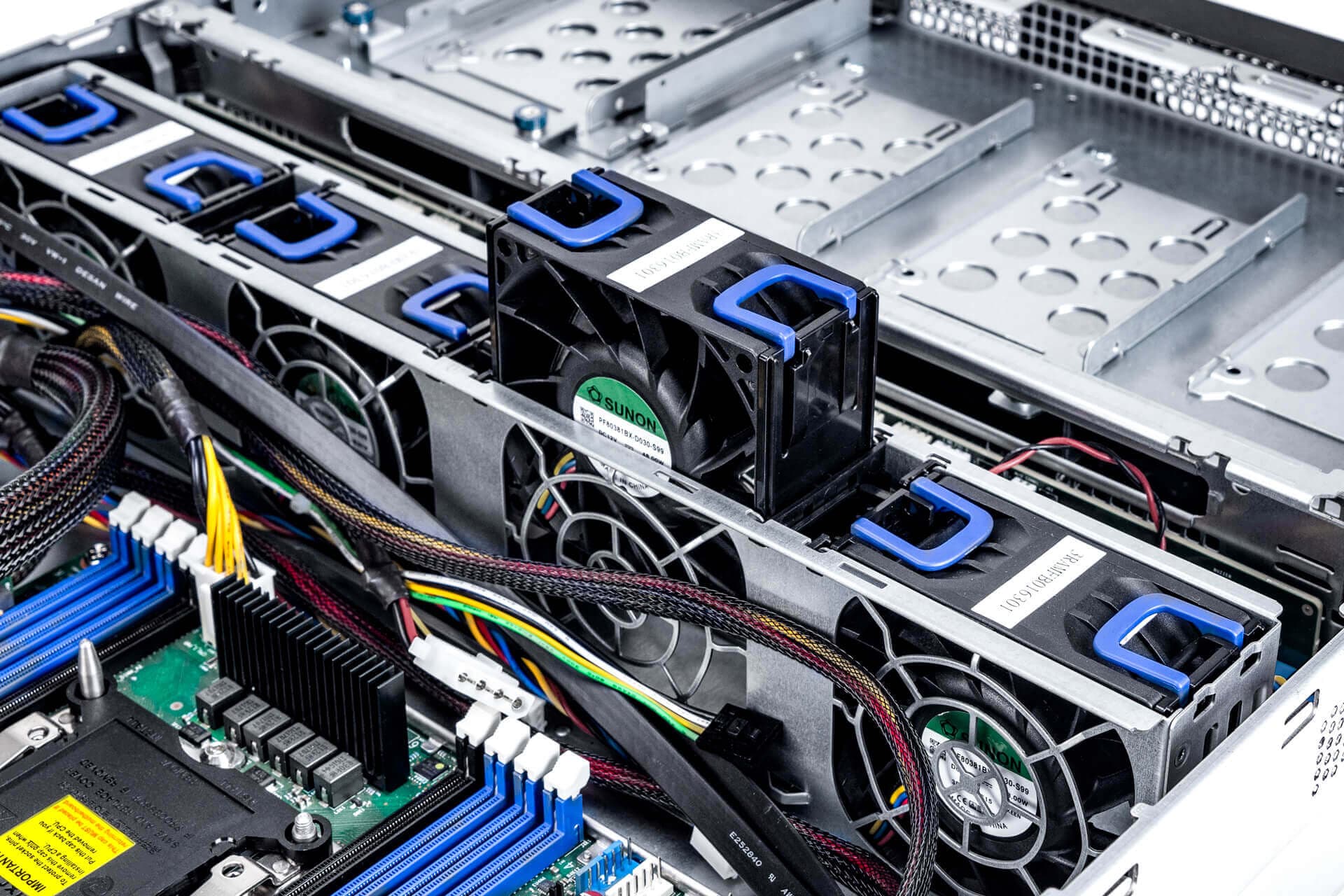

EEB-платы, redundant PSU и 80 мм вентиляторы

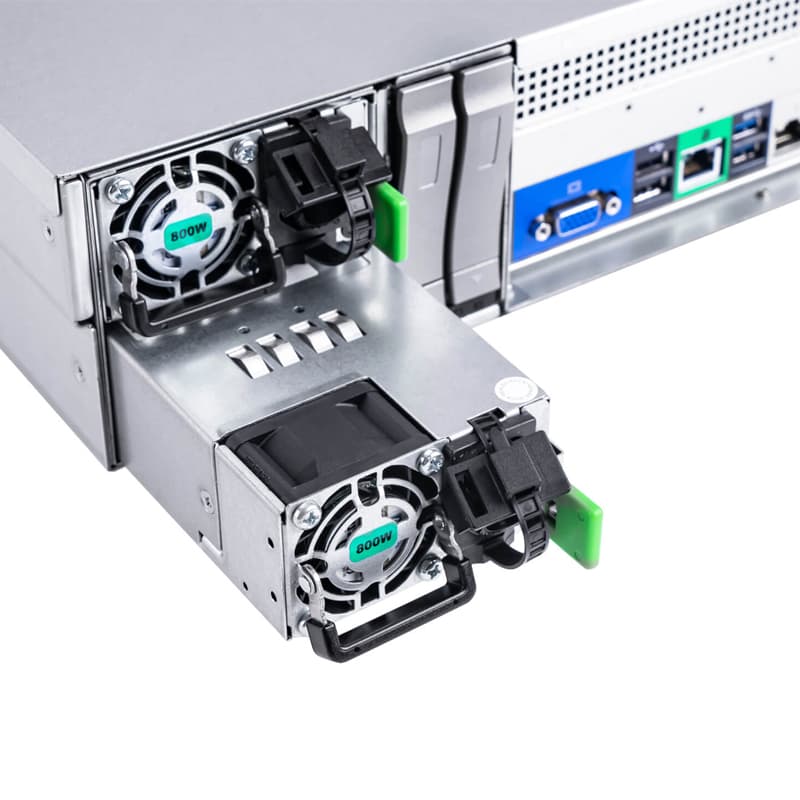

Корпус рассчитан на полноценную серверную платформу: крупные платы, резервируемое питание и четыре 80 x 38 мм вентилятора.
Product Details
Детали конструкции InWin IW-RS208-07
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |

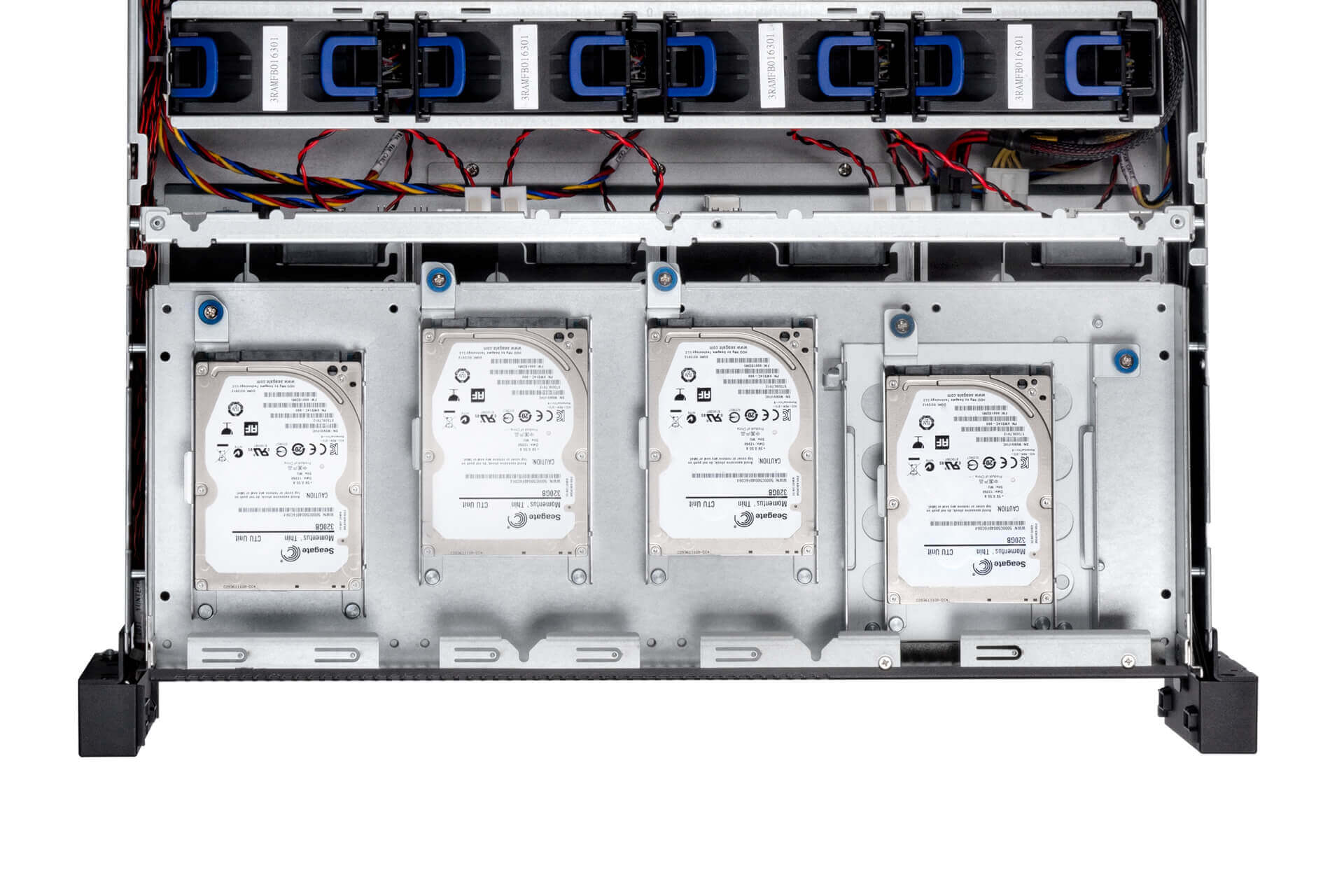

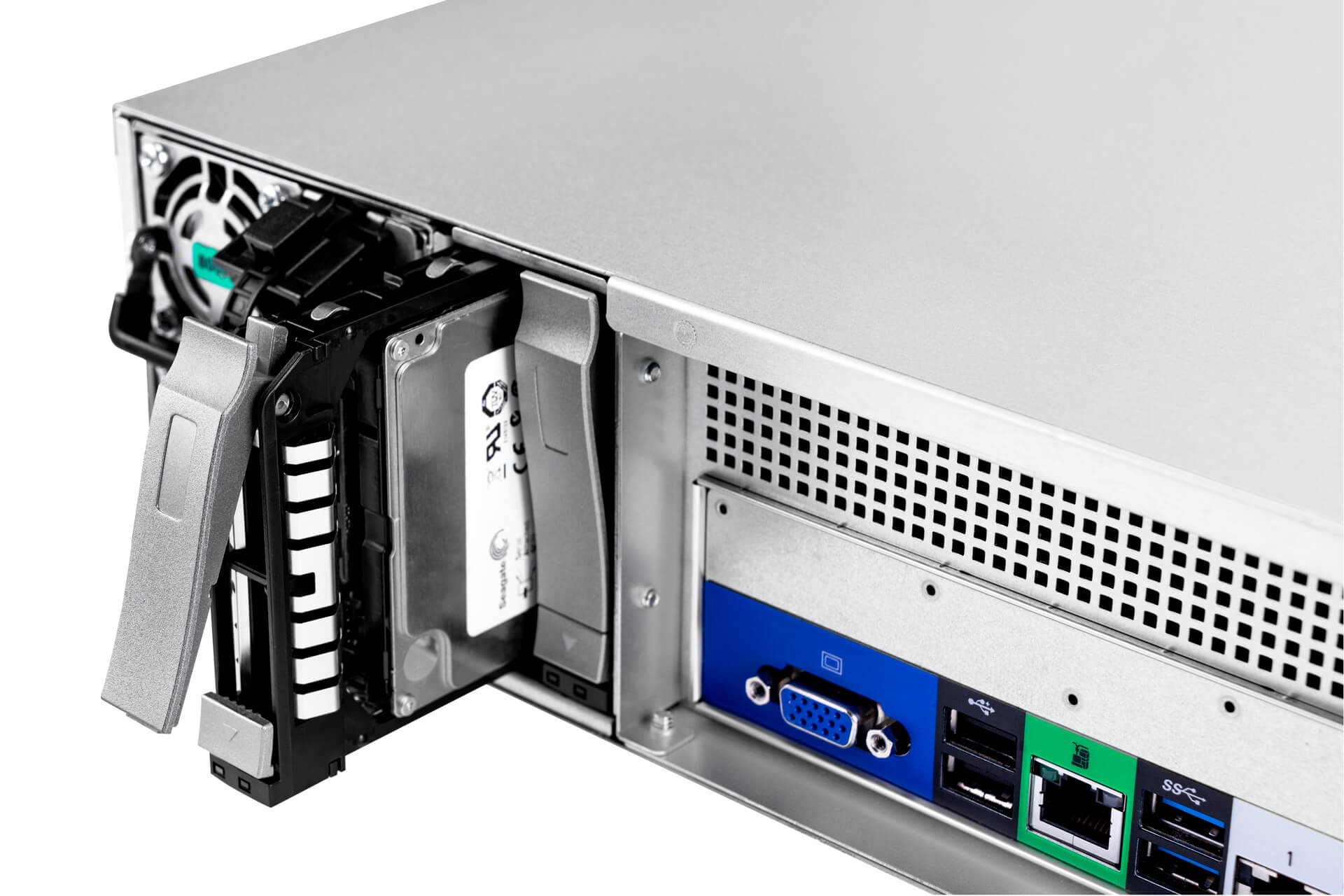

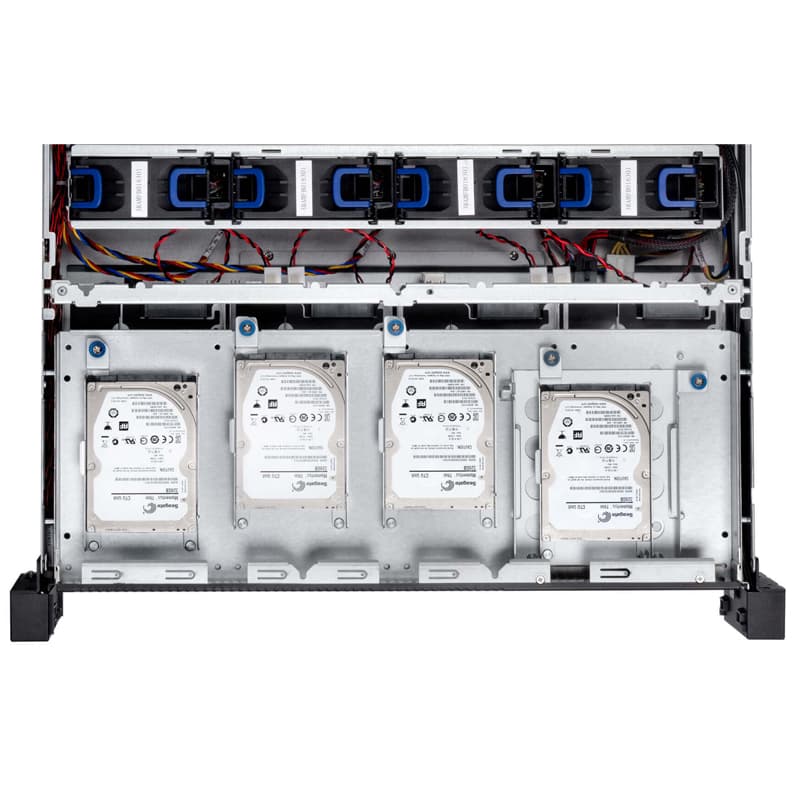

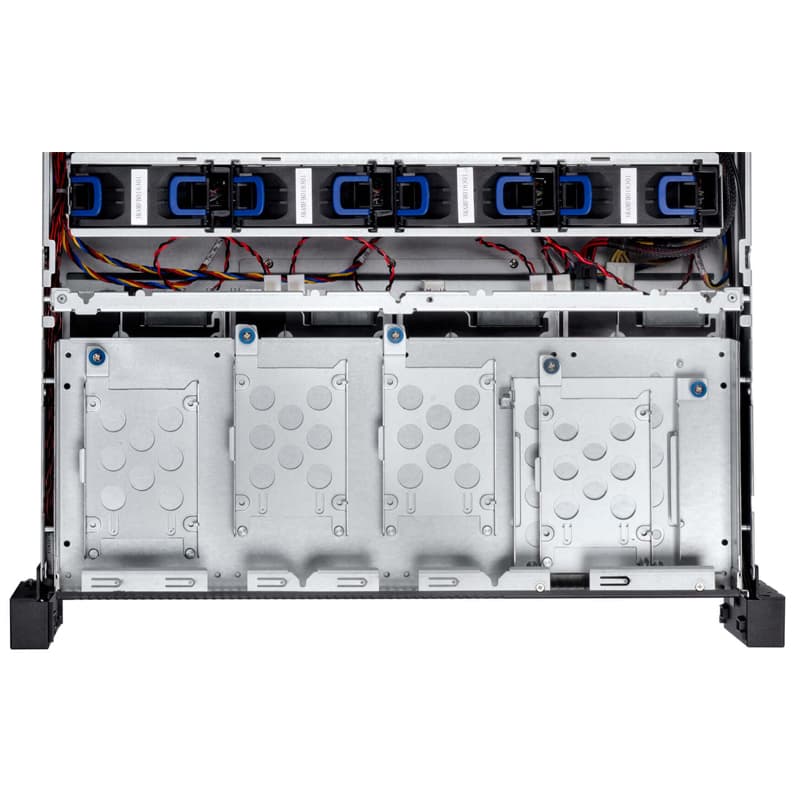

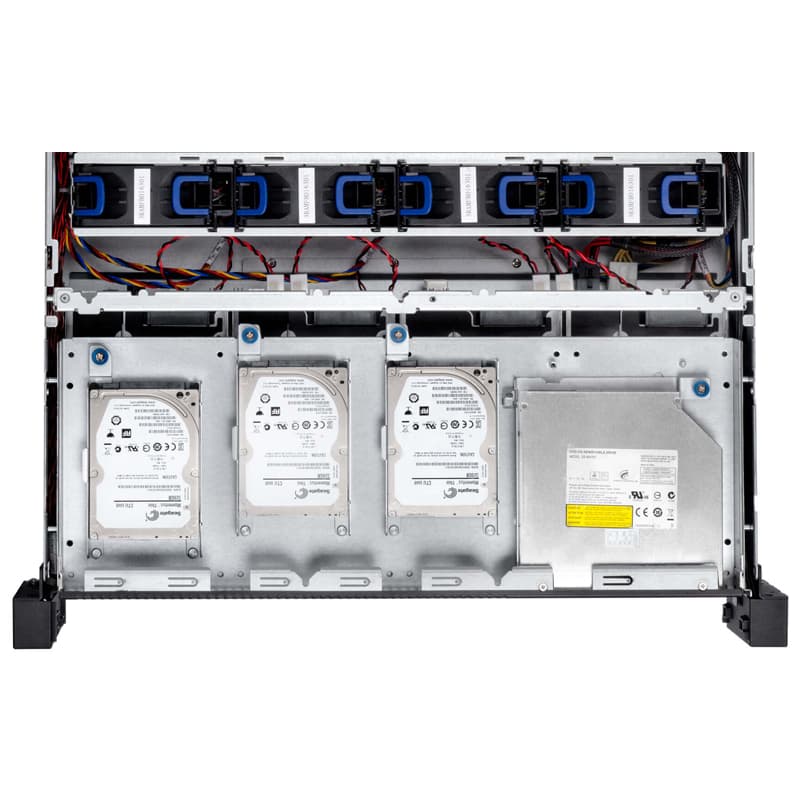

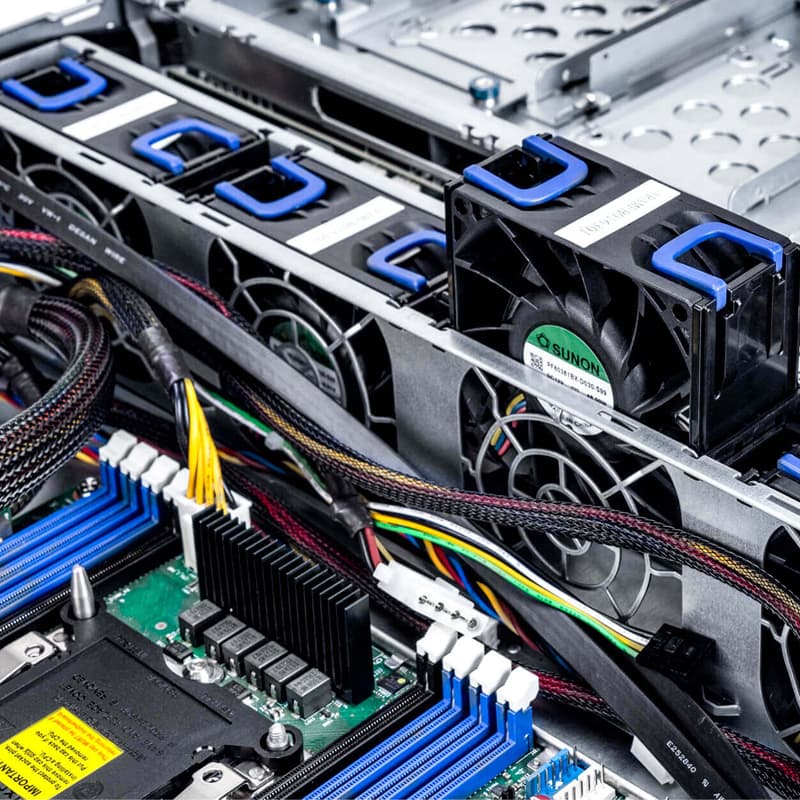

| Drive Bay | • External 2.5"/3.5" hot-swap trays x 8 (optional U.2 NVMe SSD trays x 4) • Internal 2.5" x 3 or x 4 (via slim ODD conversion tray) • Rear 2.5" hot-swap trays x 2 (supports SAS 12Gbps) |
| Power Supply | Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 550W /800W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB3.0 x 2 |
| Backplane Type-1 | • Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4 |
| Backplane Type-2 | • Host: Mini-SAS HD (SFF-8643) x 2 • HDD: SAS/SATA x 8 |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000RPM |
| Expansion Slot | Low-profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 87.5mm (26" x 17.6" x 3.4") |
| Package Dimensions (DxWxH) | 905 x 610 x 228mm |
| Weight (Chassis Only) | • Net weight: 13.26kg • Gross weight: 16.56kg |
| Cubic Feet | 4.44 |
| Container Information | Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40'HQ: 378pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RS208-07 Gallery
zipIW-RS208-07 Compatibility List
pdfIW-RS208-07 User Manual
pdfIW-RS208-07 Mini-SAS HD Backplane User Manual
pdfIW-RS208-07 OCuLink Backplane User Manual
pdfOptional Items
Slide Rail
3RAMIS148100

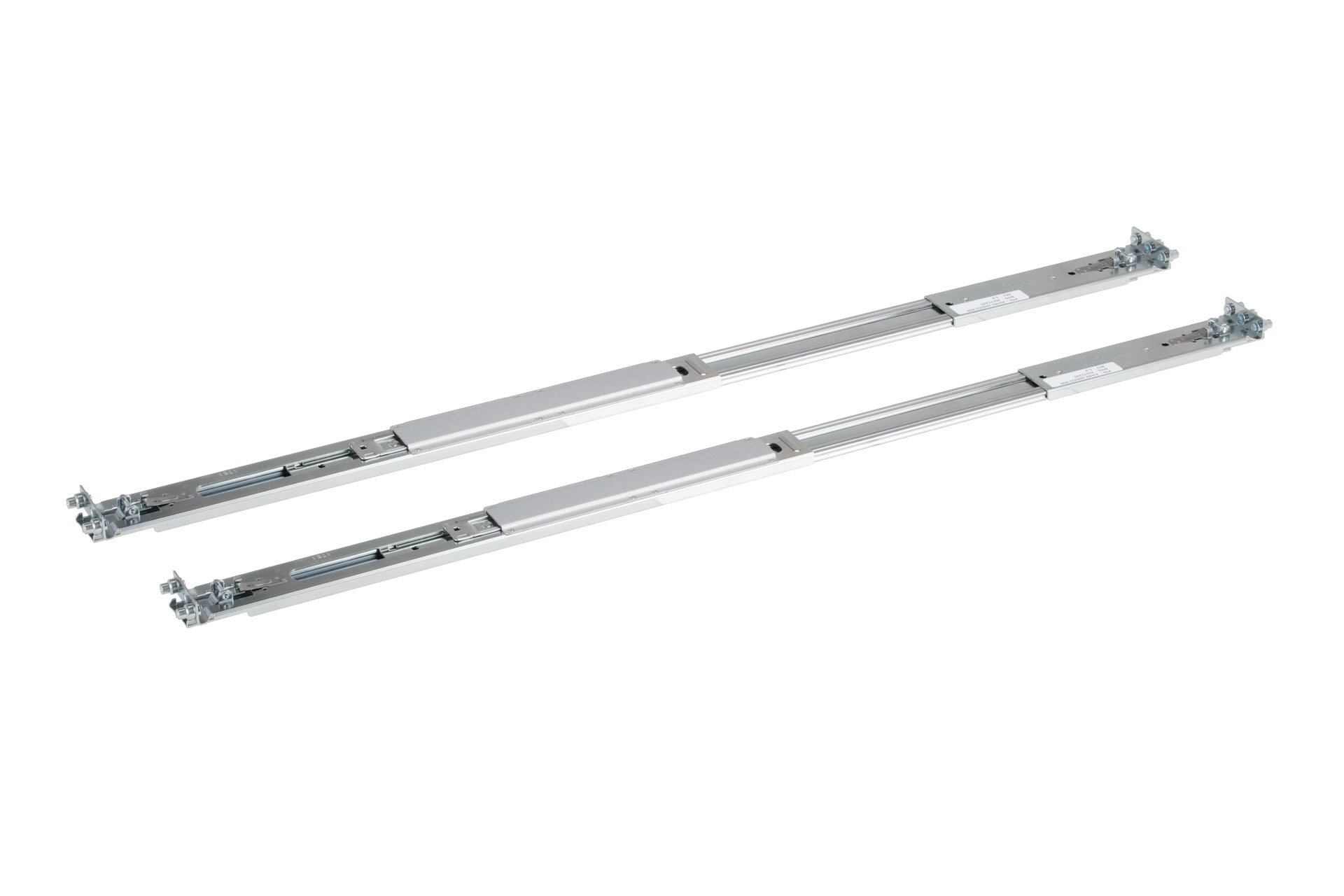

28" tool-less & ball-bearing slide rail
Support: 1 set
Slide Rail
3RAMIS152300/ 3RAMIS152400

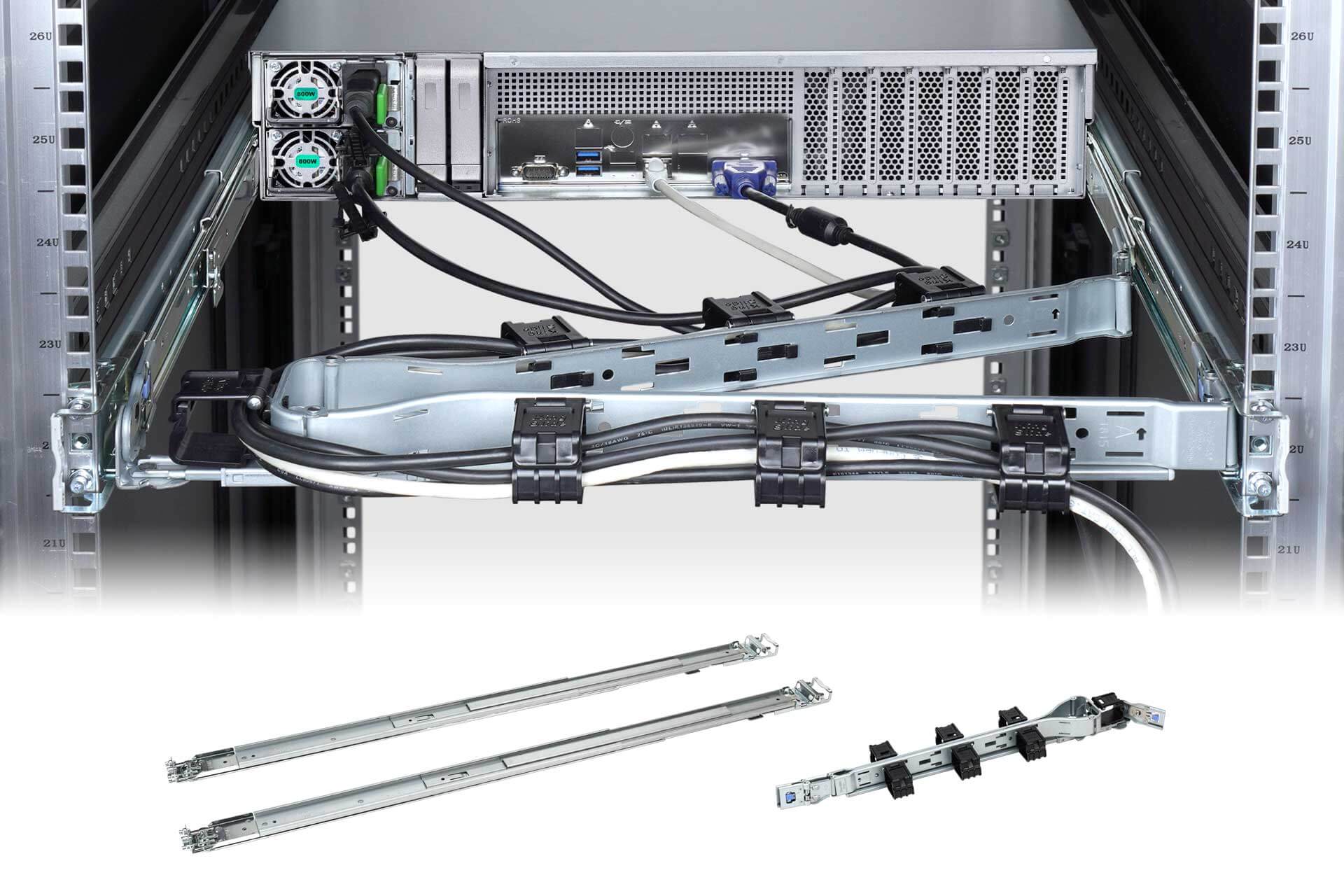

28" tool-less & ball-bearing slide rail with CMA support
Support: 1 set
Cable
3RAMW4031700

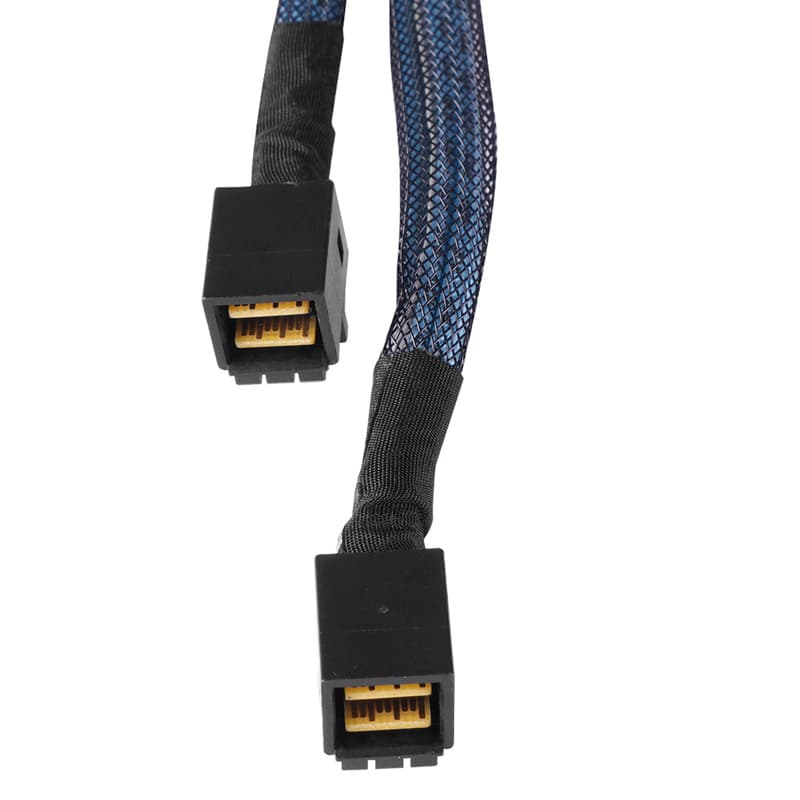

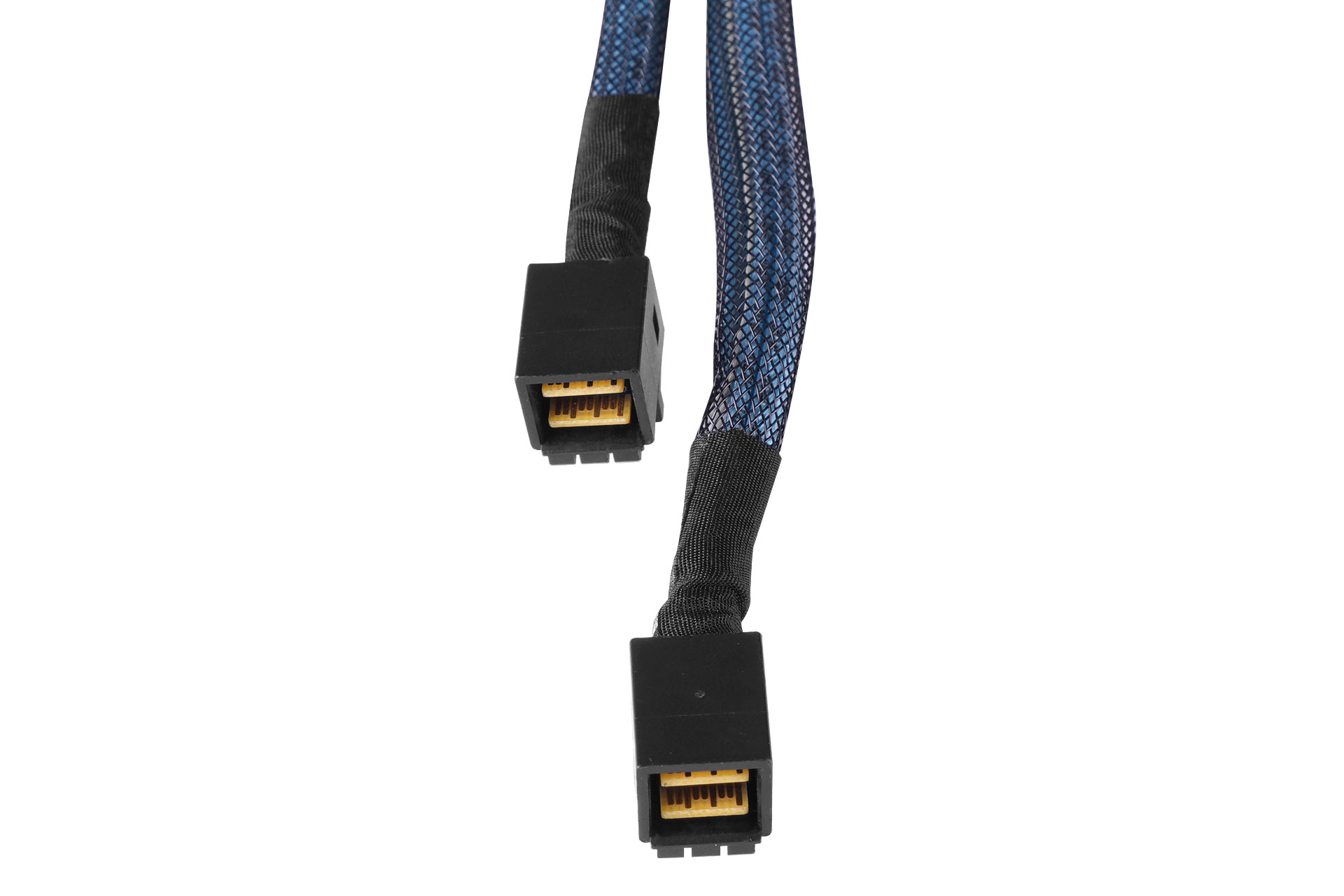

Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm
Support: Max. 2
Power Supply
3RAMAP025102

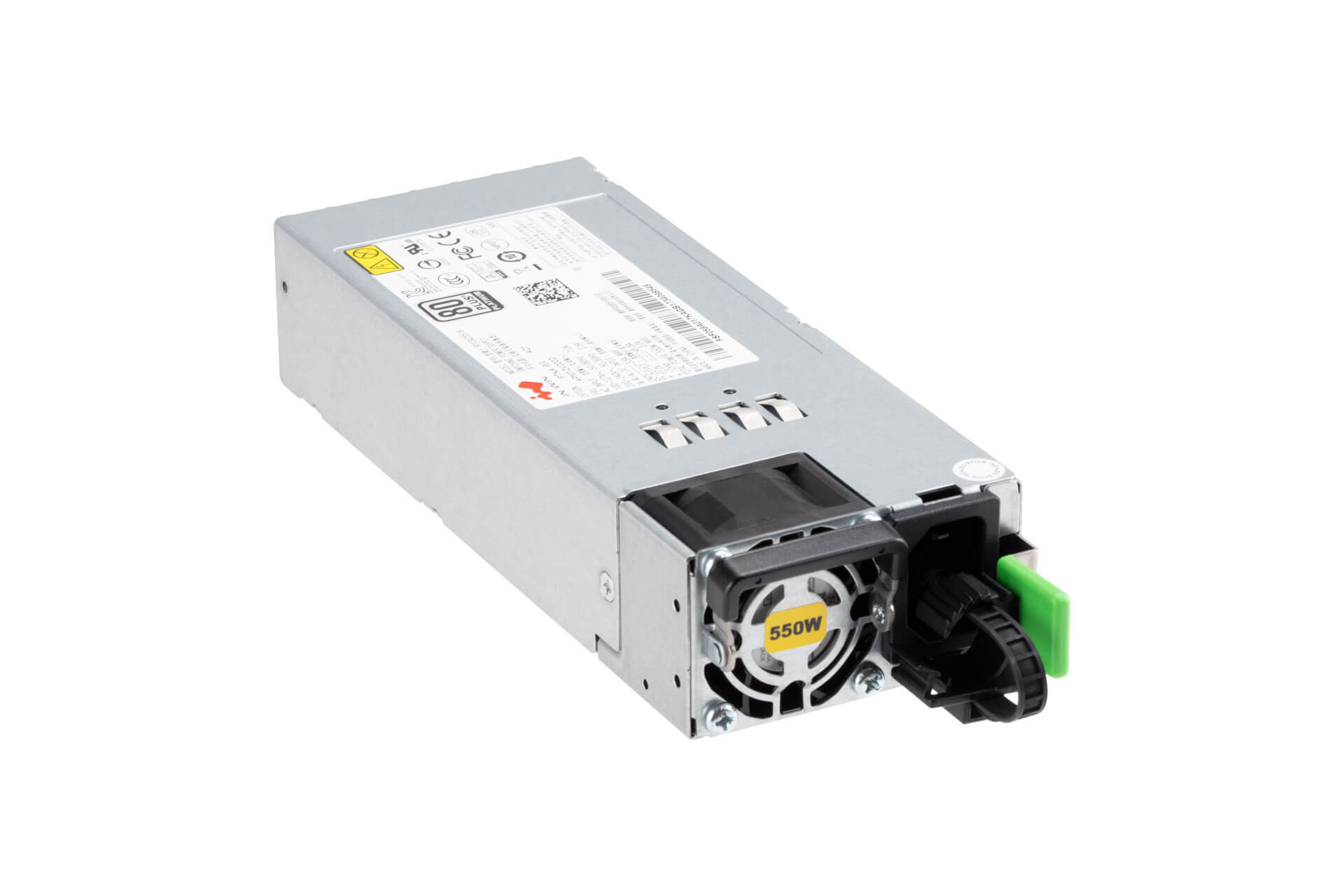

80 Plus Platinum CRPS 550W
Support: Max. 2
Power Supply
3RAMAP025202

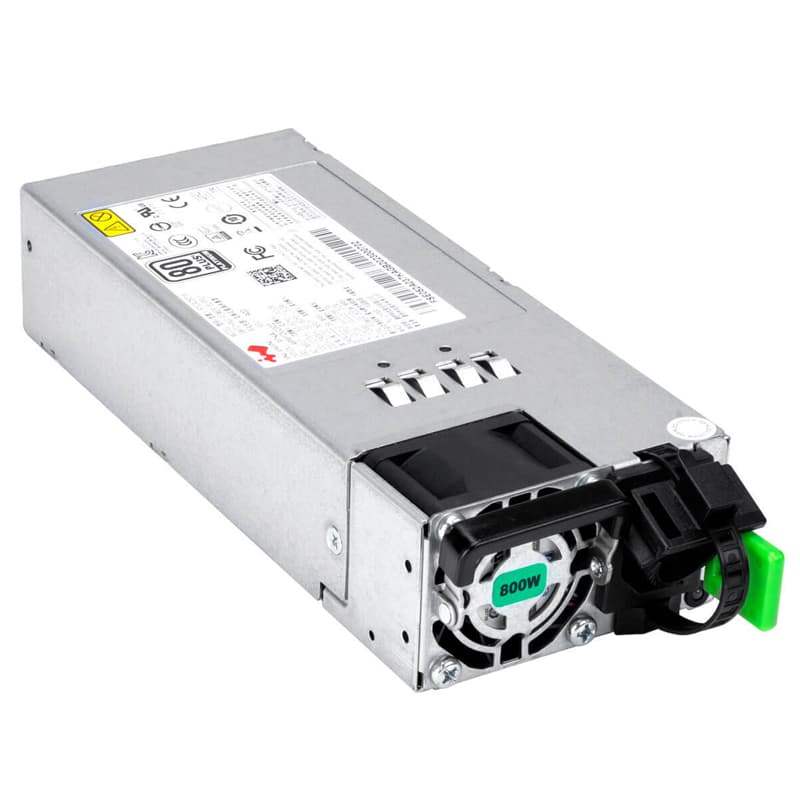

80 Plus Platinum CRPS 800W
Support: Max. 2
Power Supply
3RAMAP042501

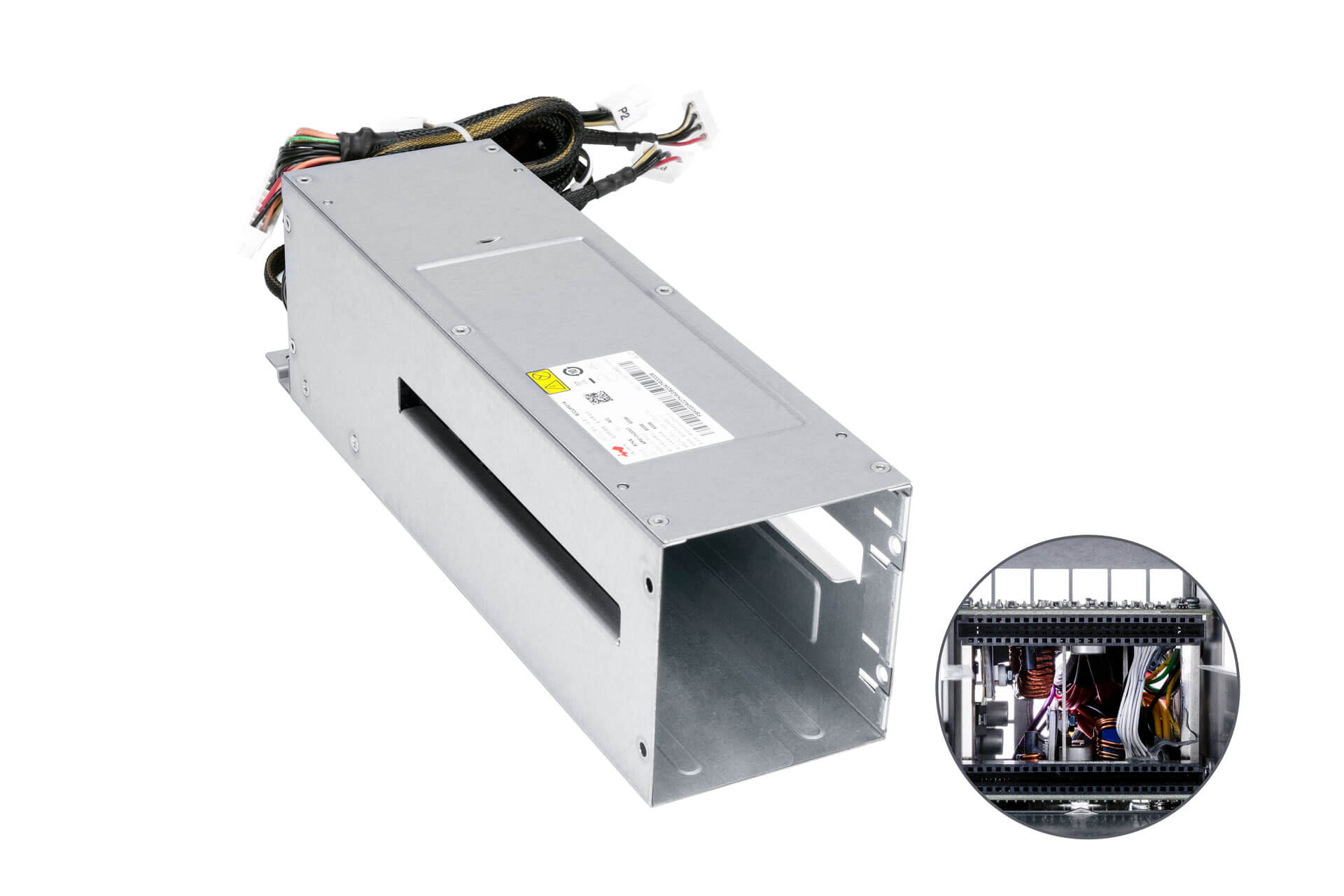

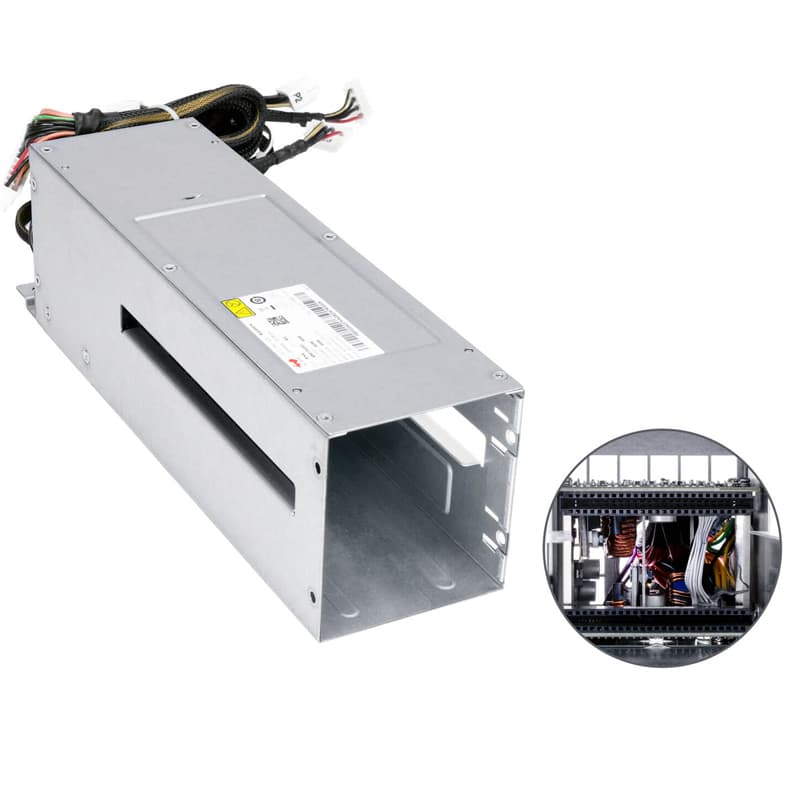

CRPS PDB
Support: 1
Backplane

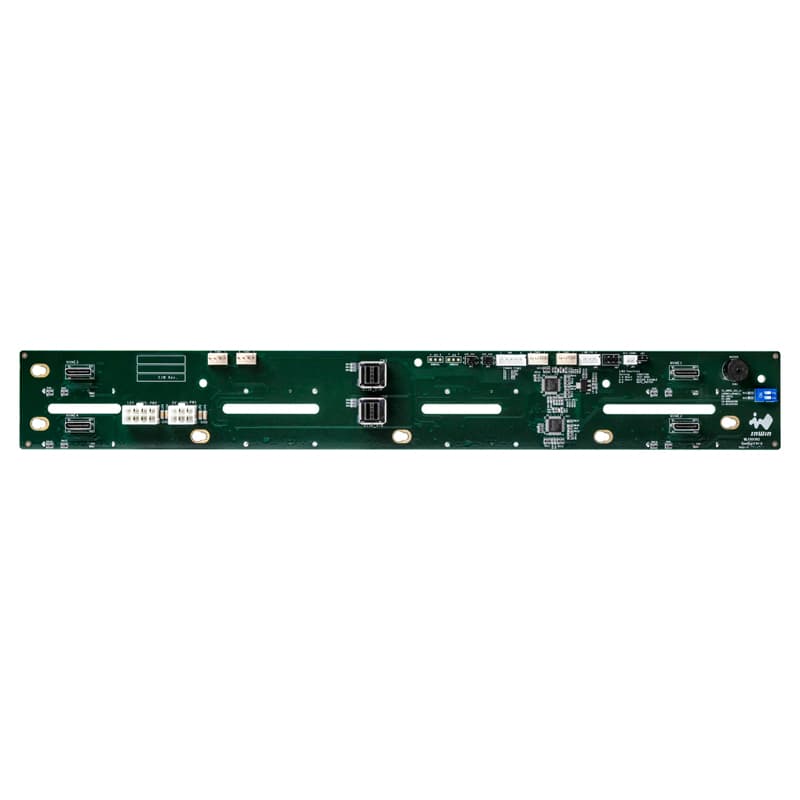

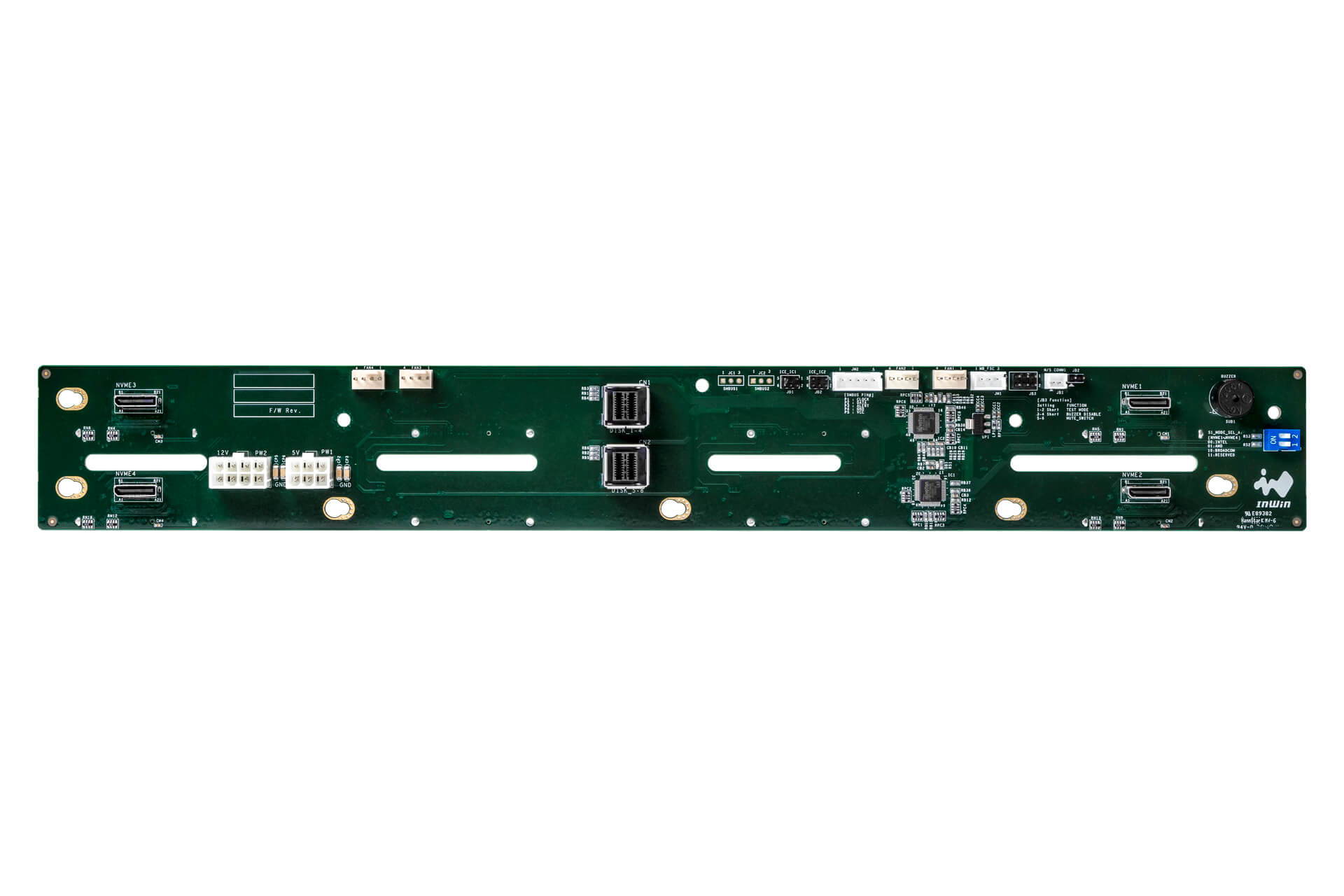

2RBTVI005600
Mini-SAS HD & OCuLink backplane
Support: 1
Backplane
2RBTVI004800

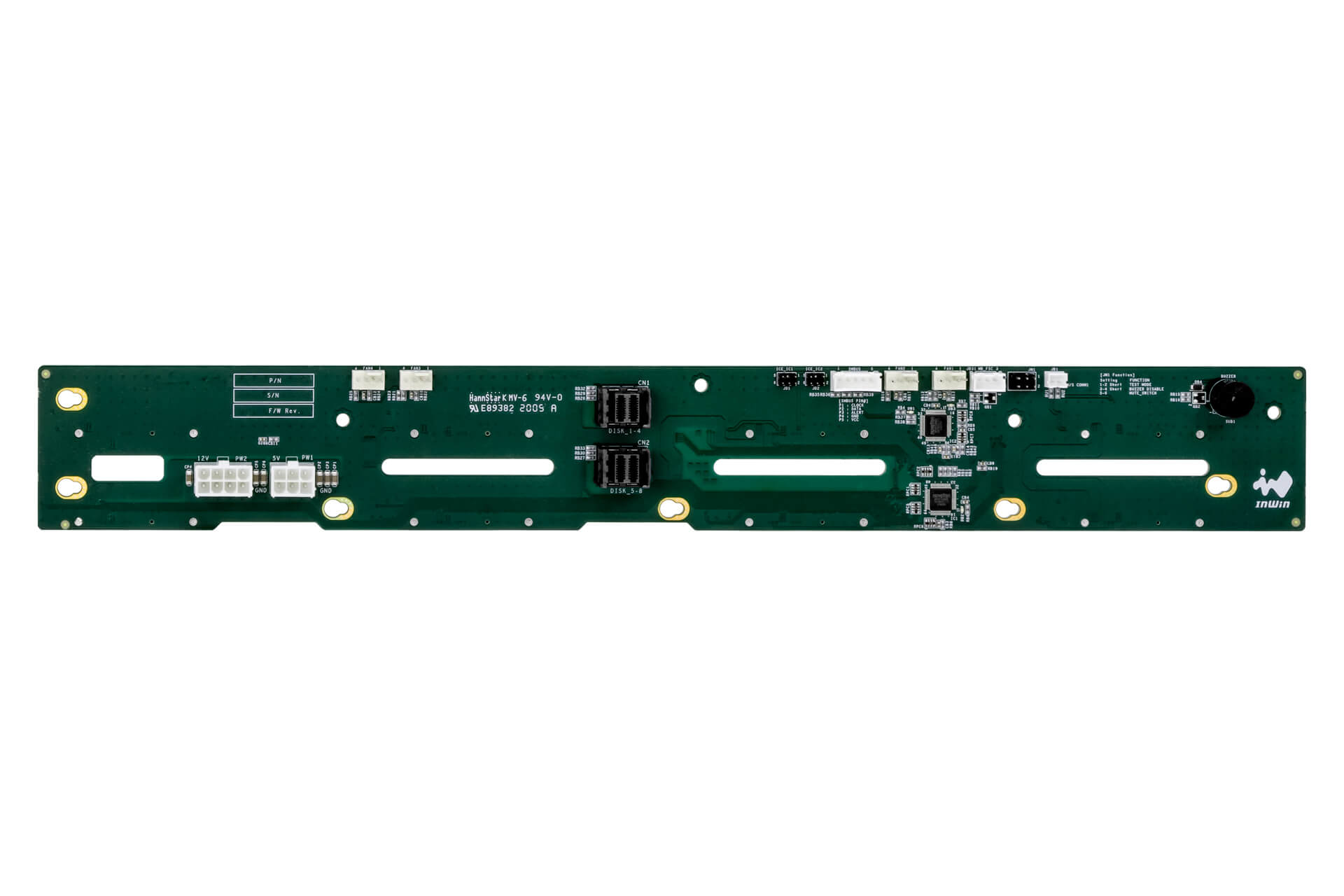

Mini-SAS HD backplane
Support: 1
HDD Tray
2RAKPH057702

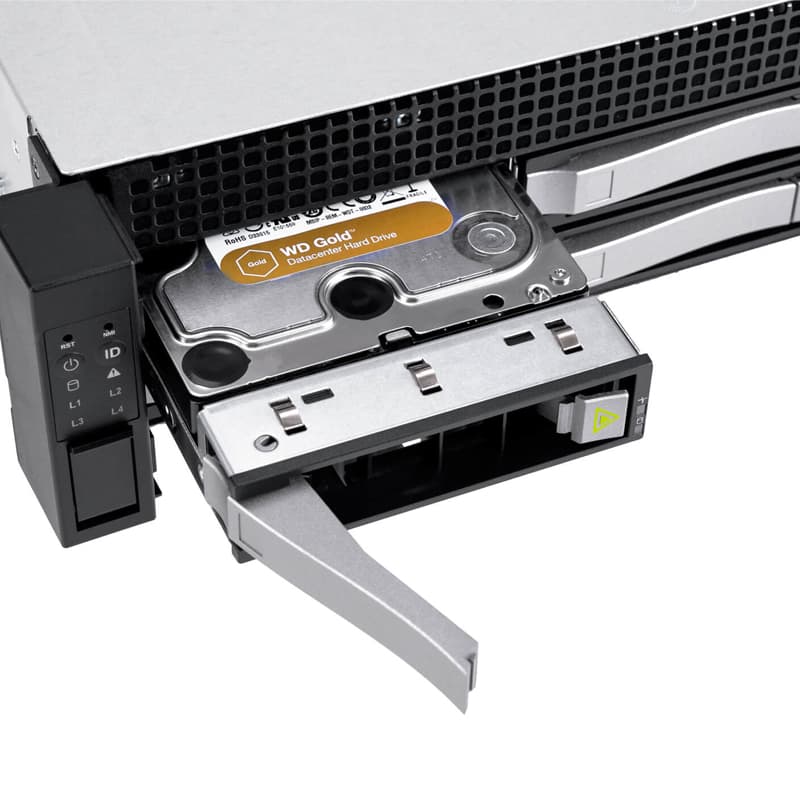

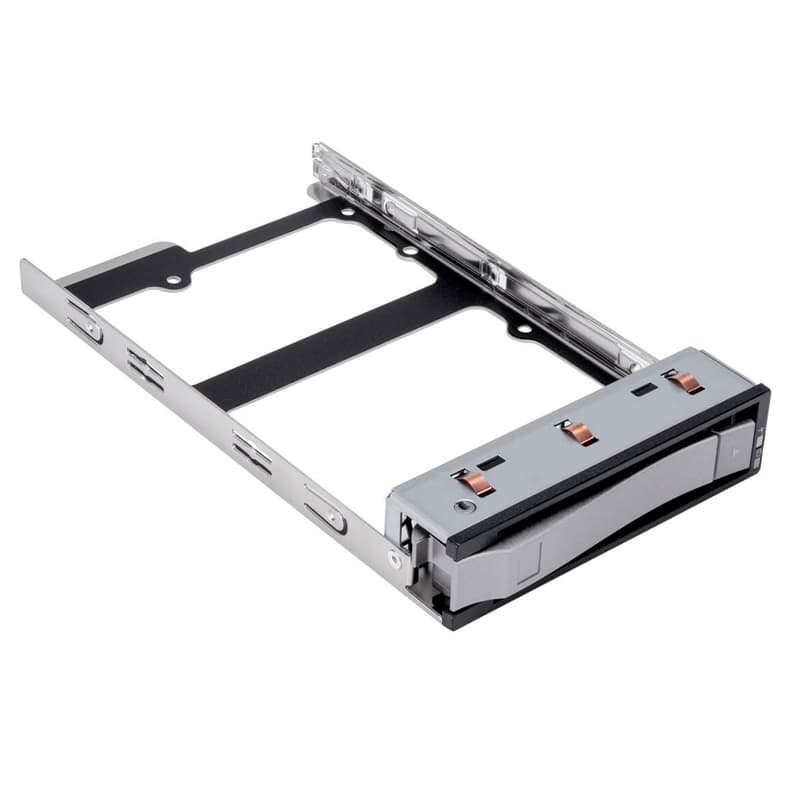

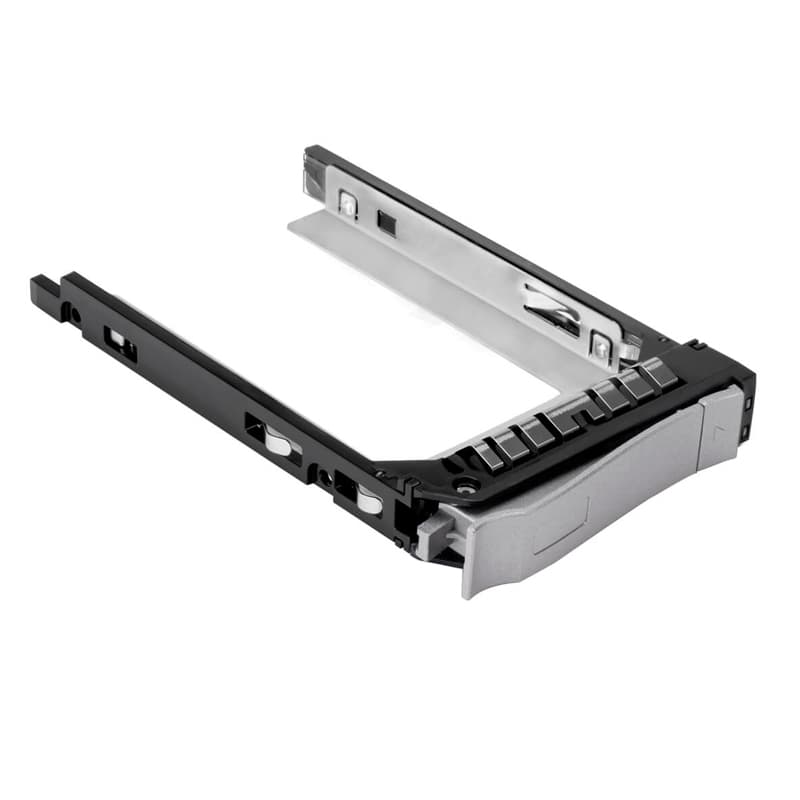

2.5"/3.5" hot-swap HDD tray (gray color)
Support: Max. 8
HDD Tray
2RAKPH063701

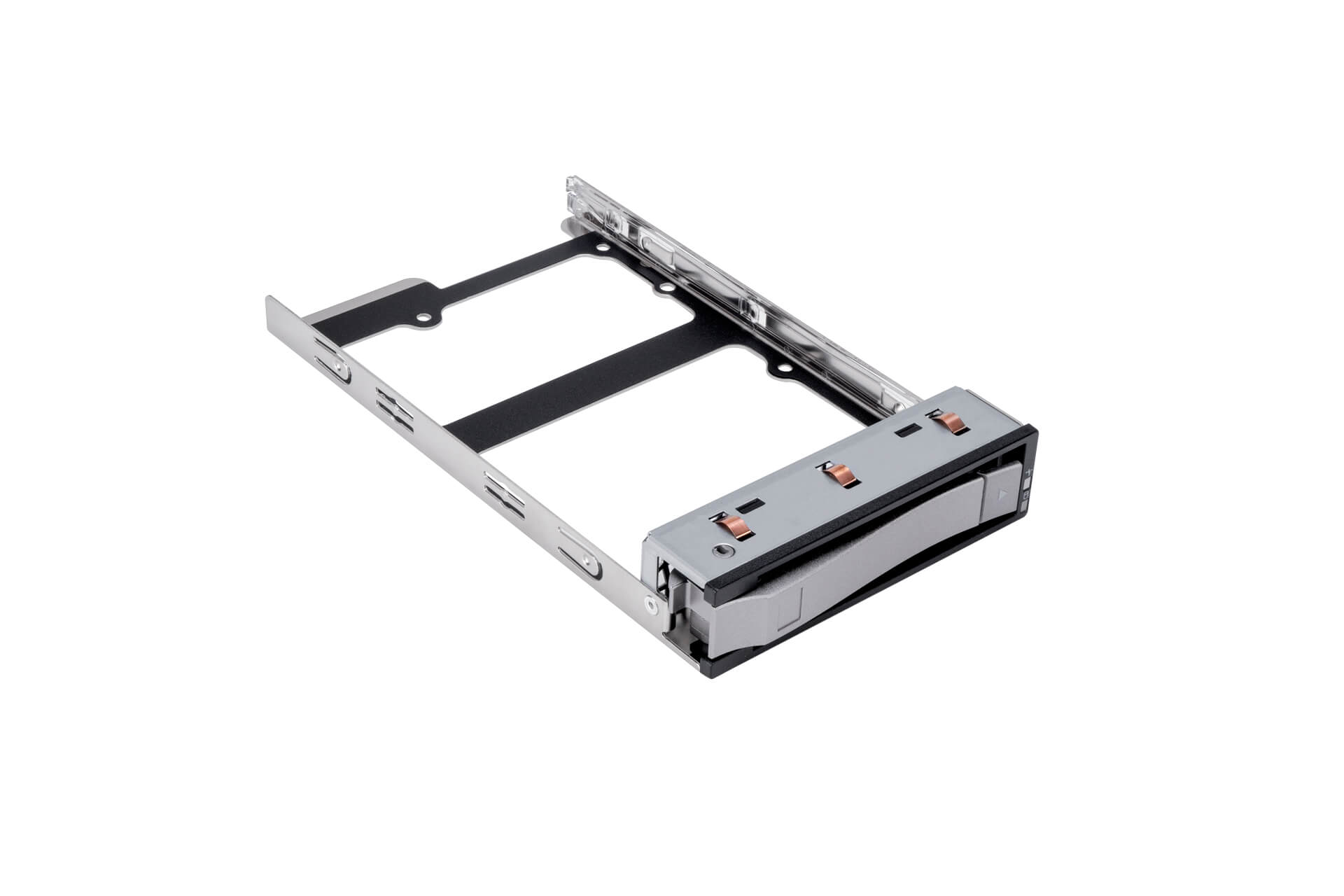

2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol)
Support: Max. 4
HDD Tray
2RAKPH057801

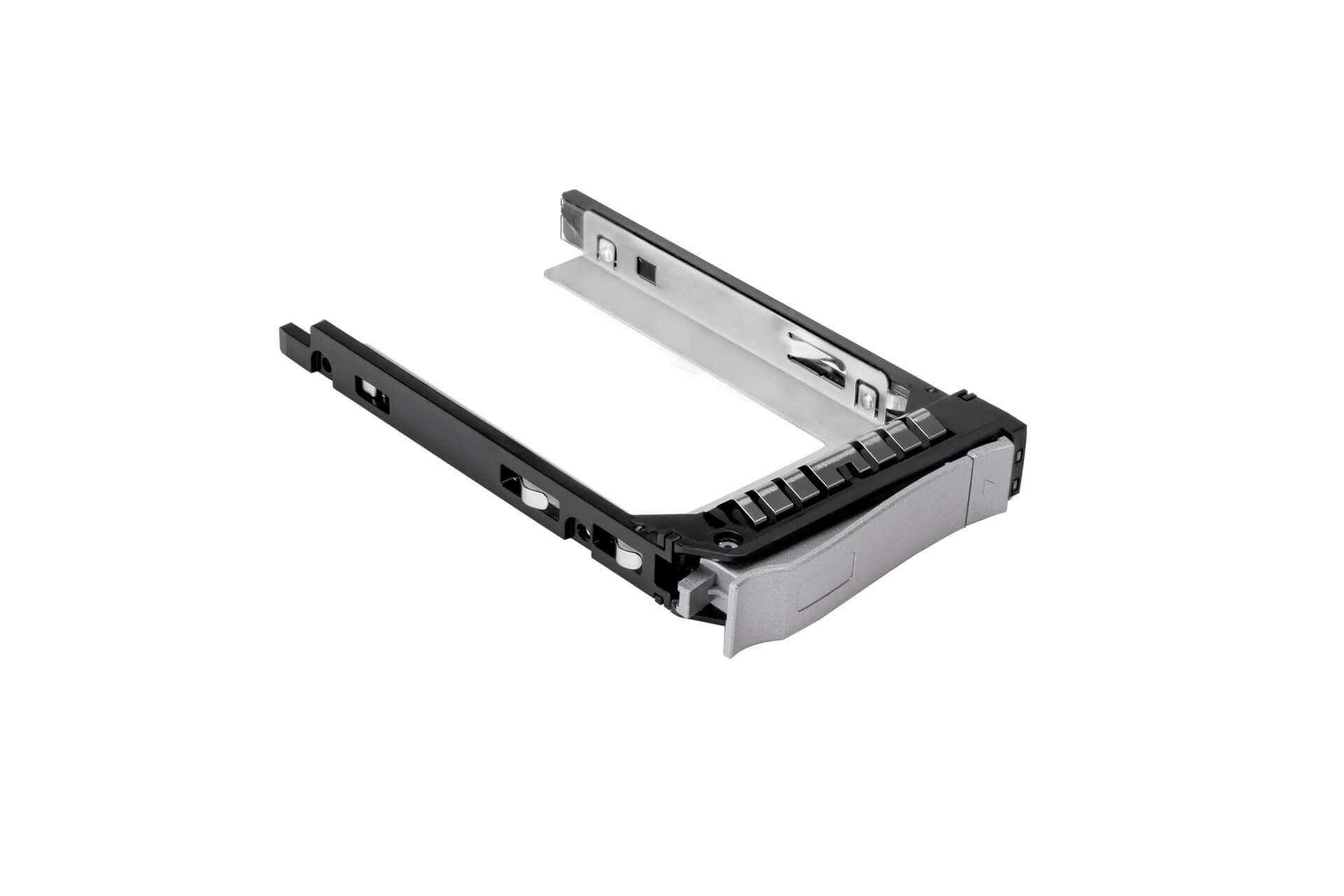

2.5" screwless hot-swap SSD rear tray (gray color)
Support: Max. 2
Fan
3RAMFB016302

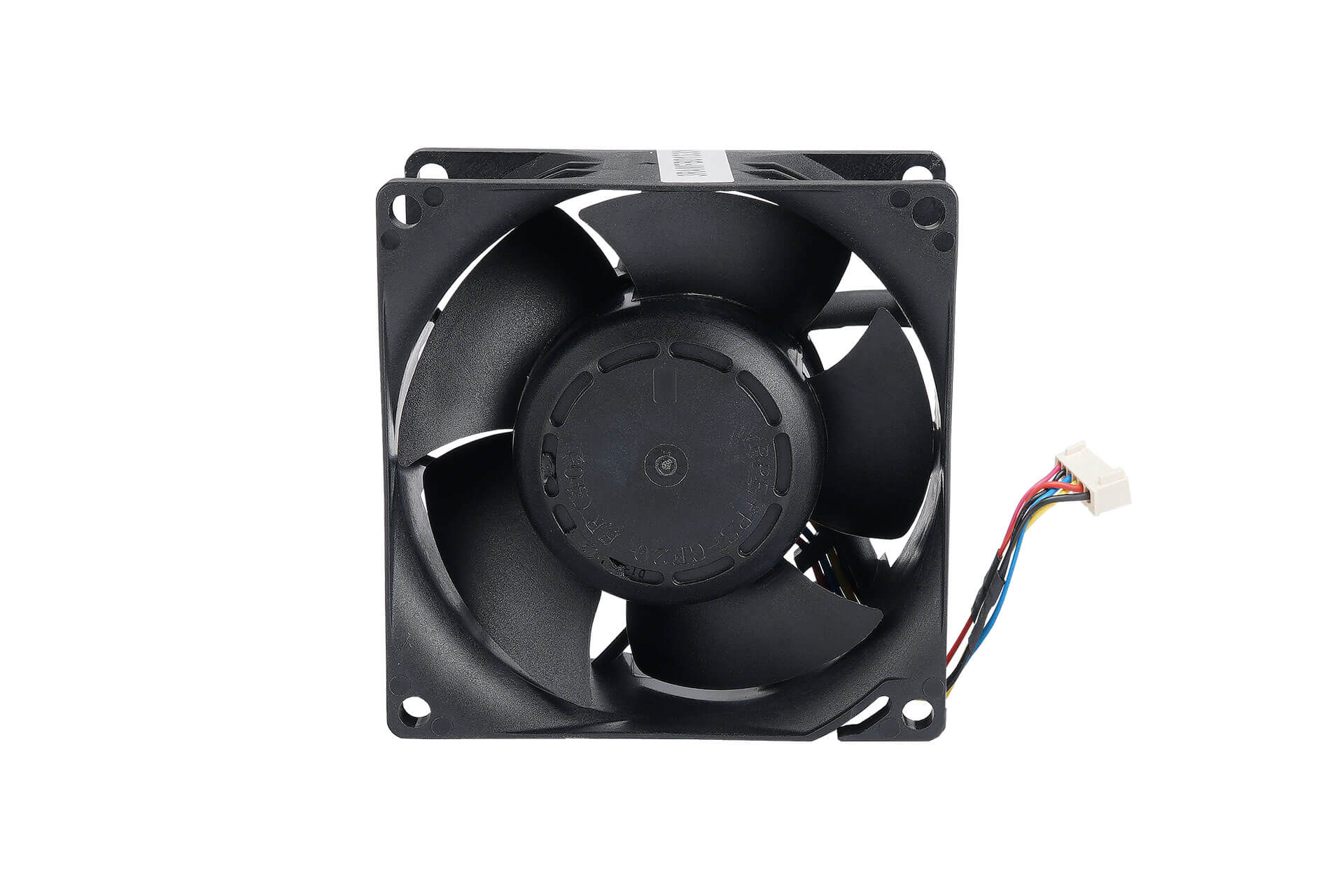

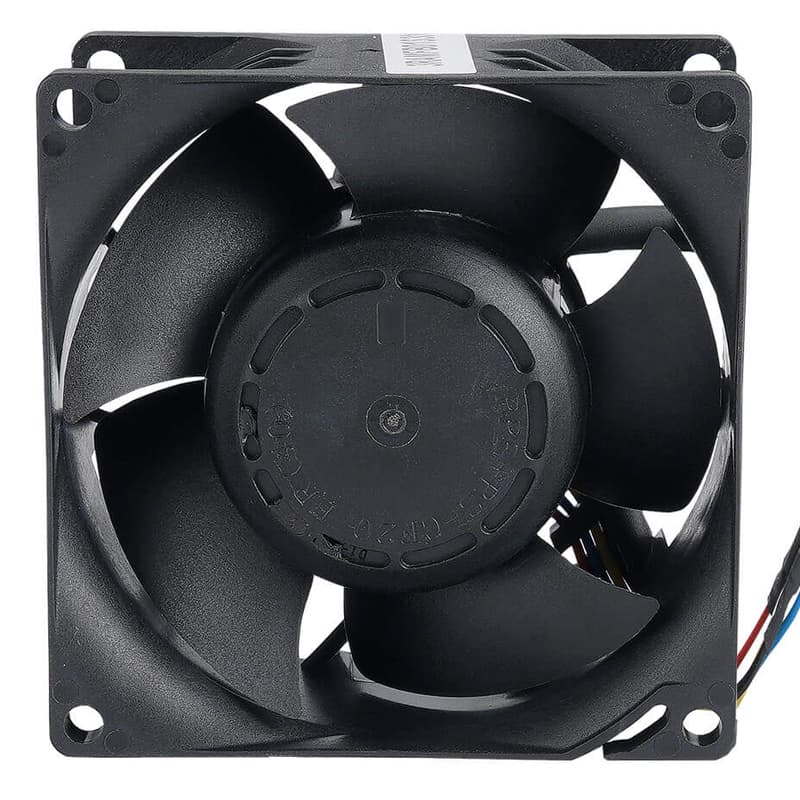

80 x 38mm PWM hot-swap, 12000RPM, 6 pin
Support: Max. 4
Fan
2RAKFB011602

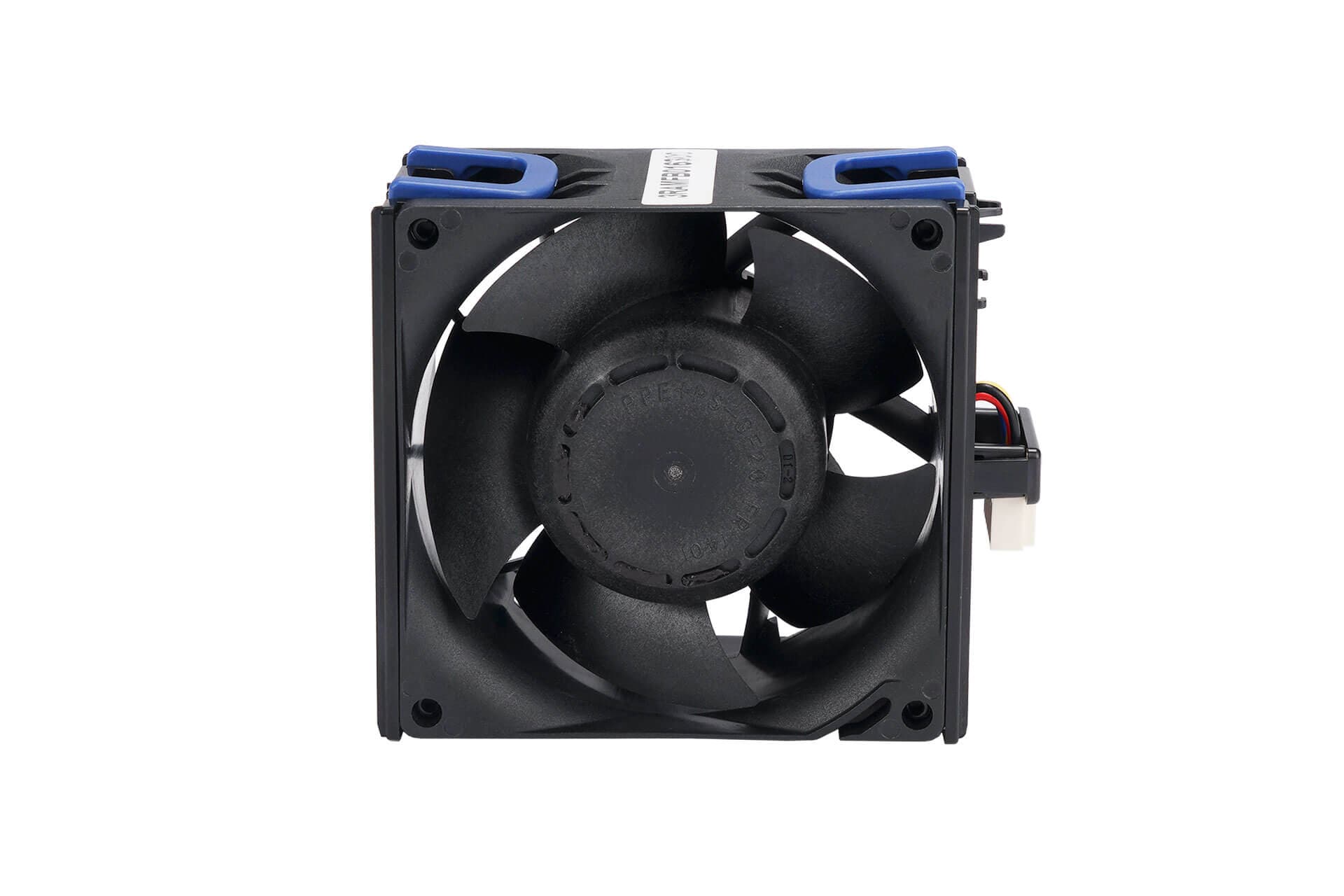

80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6 pin
Support: Max. 4
Others
2RAKIP022700

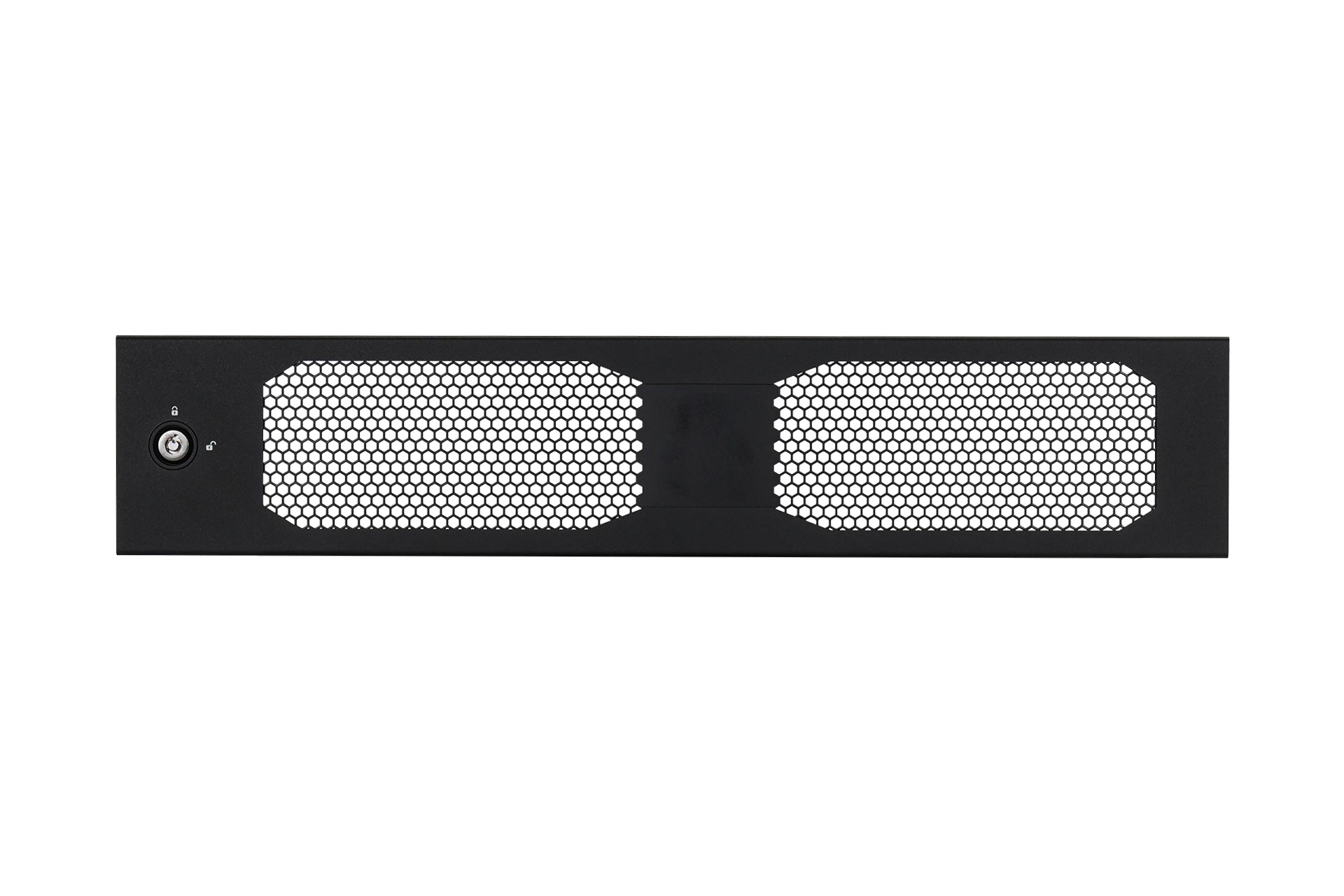

Mesh front panel
Support: 1
Others

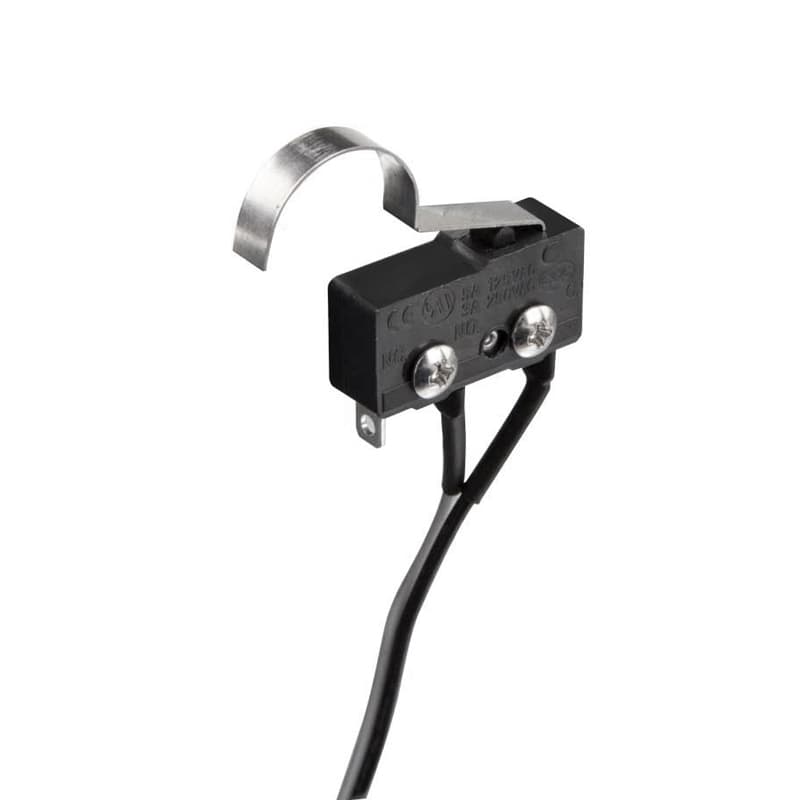

3RAMRW011300

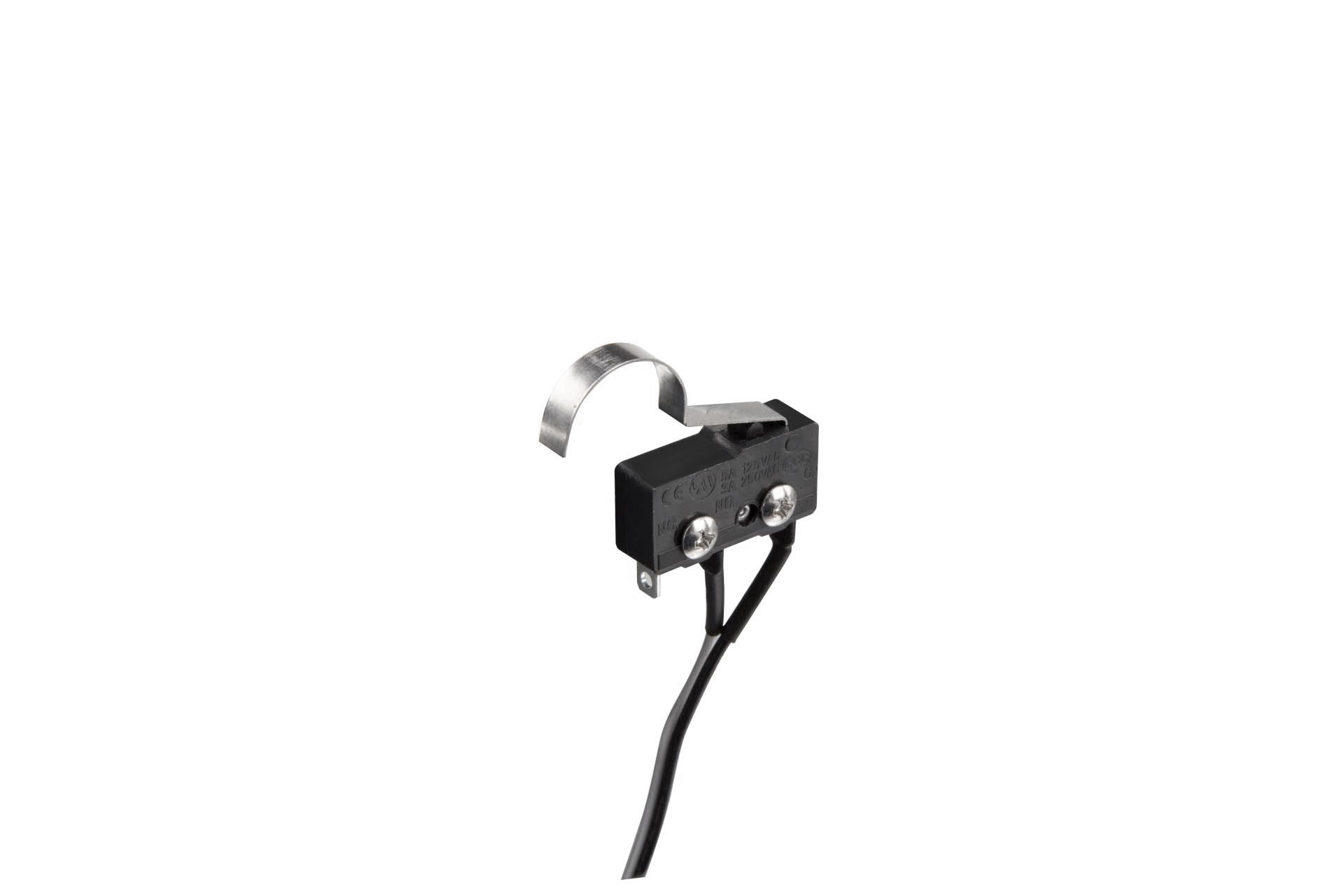

Intrusion switch/ 800mm
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 set | |
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 set | |
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | Max. 2 | |
| Power Supply | 3RAMAP025102 | 80 Plus Platinum CRPS 550W | Max. 2 | |
| Power Supply | 3RAMAP025202 | 80 Plus Platinum CRPS 800W | Max. 2 | |
| Power Supply | 3RAMAP042501 | CRPS PDB | 1 | |
| Backplane | 2RBTVI005600 | Mini-SAS HD & OCuLink backplane | 1 | |
| Backplane | 2RBTVI004800 | Mini-SAS HD backplane | 1 | |
| HDD Tray | 2RAKPH057702 | 2.5"/3.5" hot-swap HDD tray (gray color) | Max. 8 | |
| HDD Tray | 2RAKPH063701 | 2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol) | Max. 4 | |
| HDD Tray | 2RAKPH057801 | 2.5" screwless hot-swap SSD rear tray (gray color) | Max. 2 | |
| Fan | 3RAMFB016302 | 80 x 38mm PWM hot-swap, 12000RPM, 6 pin | Max. 4 | |
| Fan | 2RAKFB011602 | 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6 pin | Max. 4 | |
| Others | 2RAKIP022700 | Mesh front panel | 1 | |
| Others | 3RAMRW011300 | Intrusion switch/ 800mm | 1 | |
