IW-RS112-08
Артикул: IW-RS112-08
1U Chassis

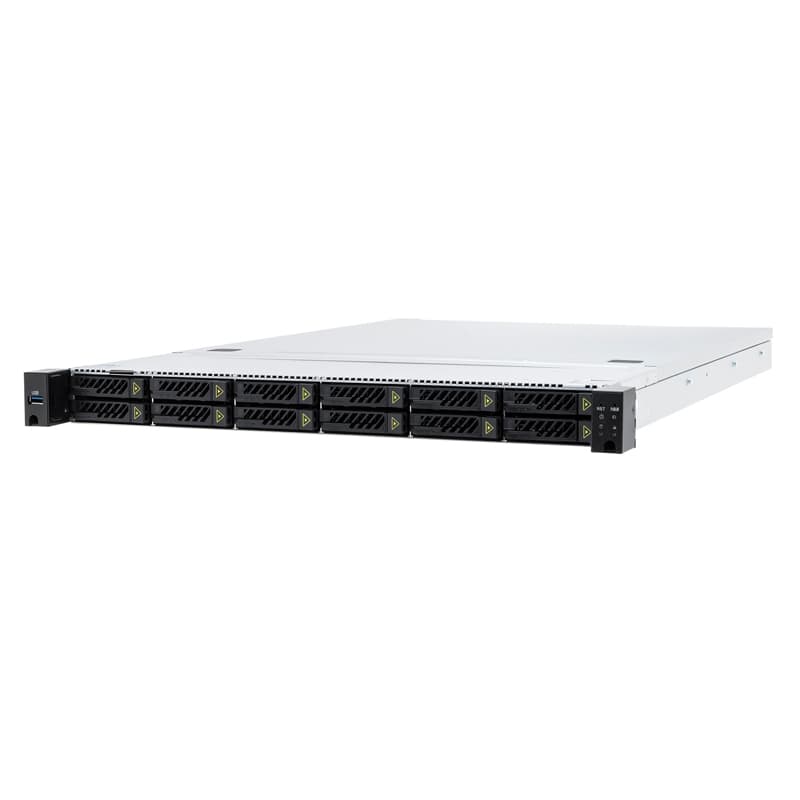

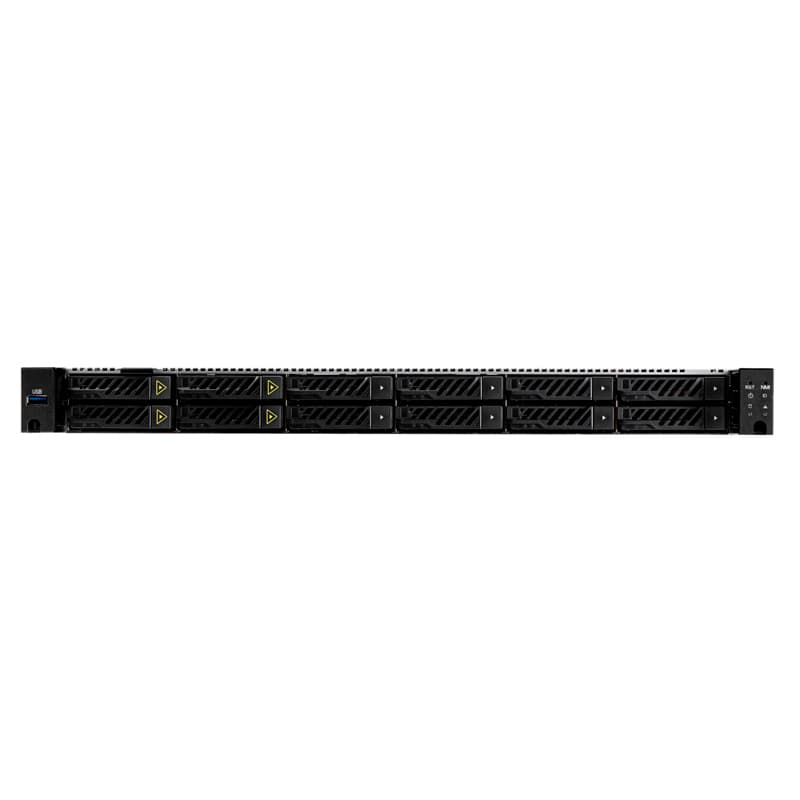

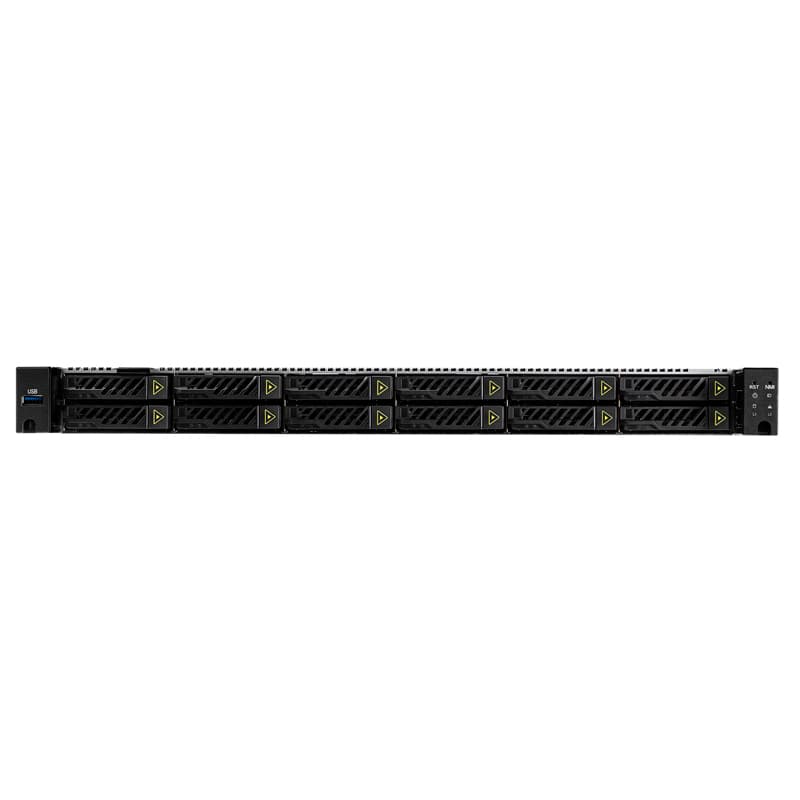

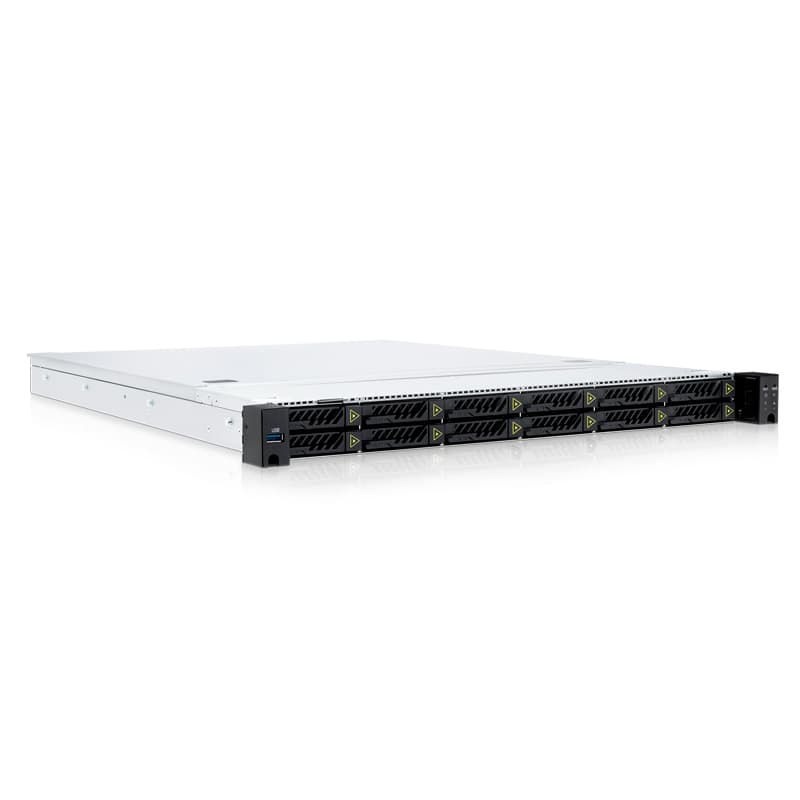

1U NVMe/SAS/SATA корпус на 12 hot-swap U.2 отсеков
IW-RS112-08 рассчитан на 12 внешних 2.5" U.2 NVMe/SAS/SATA накопителей. Это современная 1U-платформа для быстрых массивов, где важны PCIe Gen5/Gen4, высокая плотность и предсказуемое охлаждение.
Отсеки
12 x U.2 NVMe/SAS/SATA
Платы
ATX / CEB / EEB
PCIe
Gen5 / Gen4
Питание
750 Вт Platinum
NVMe Ready
12 hot-swap U.2 отсеков

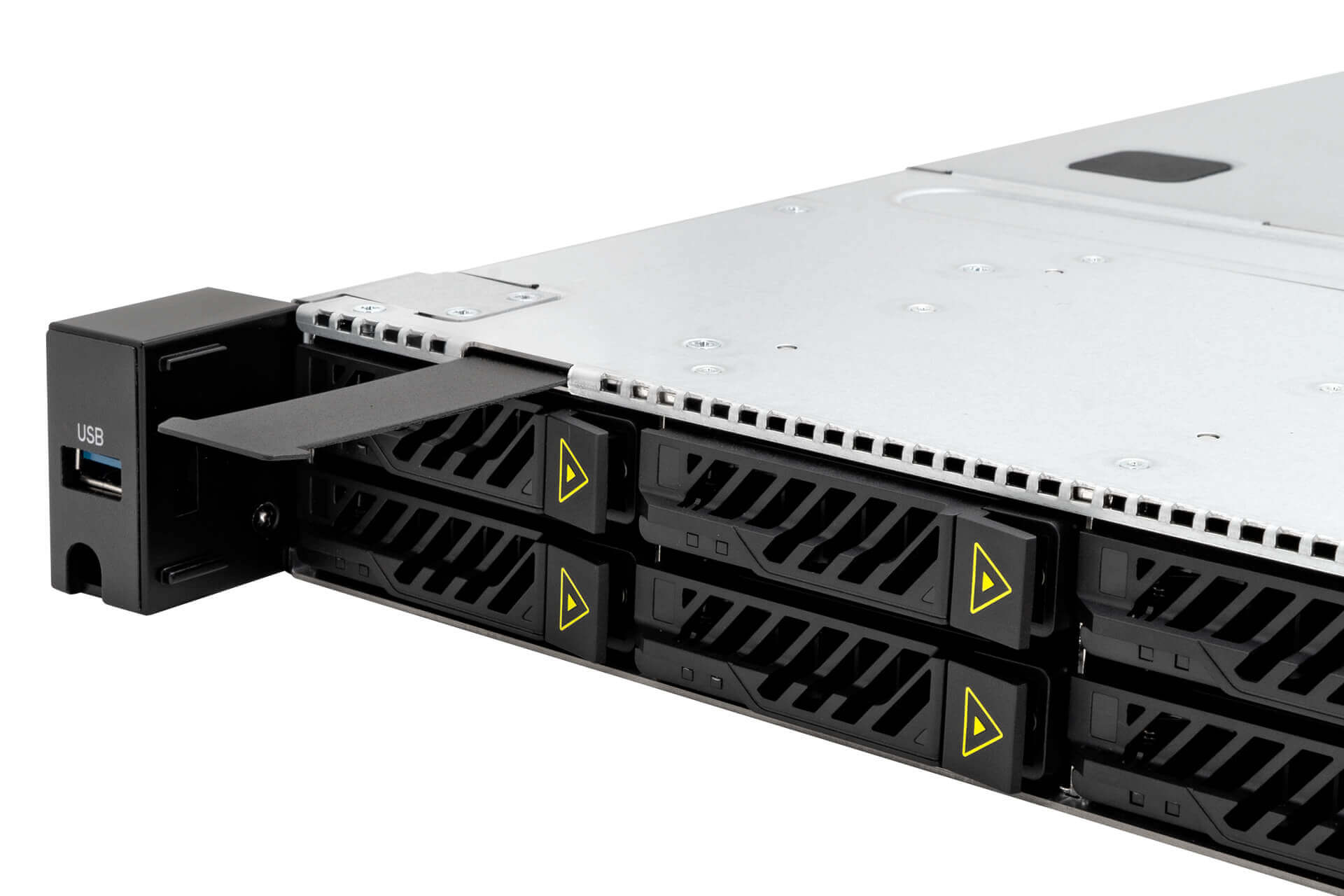

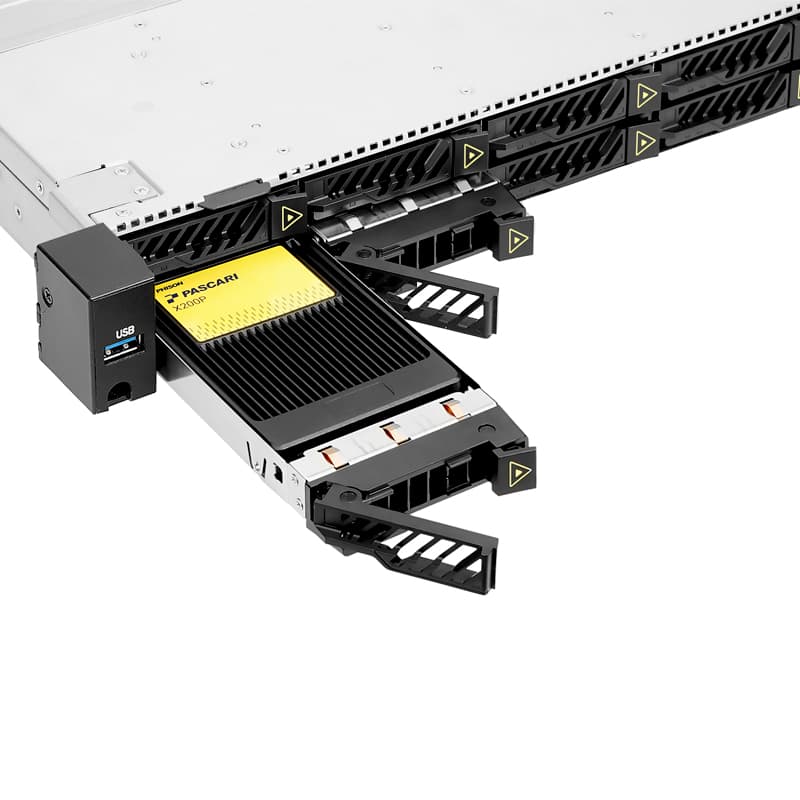

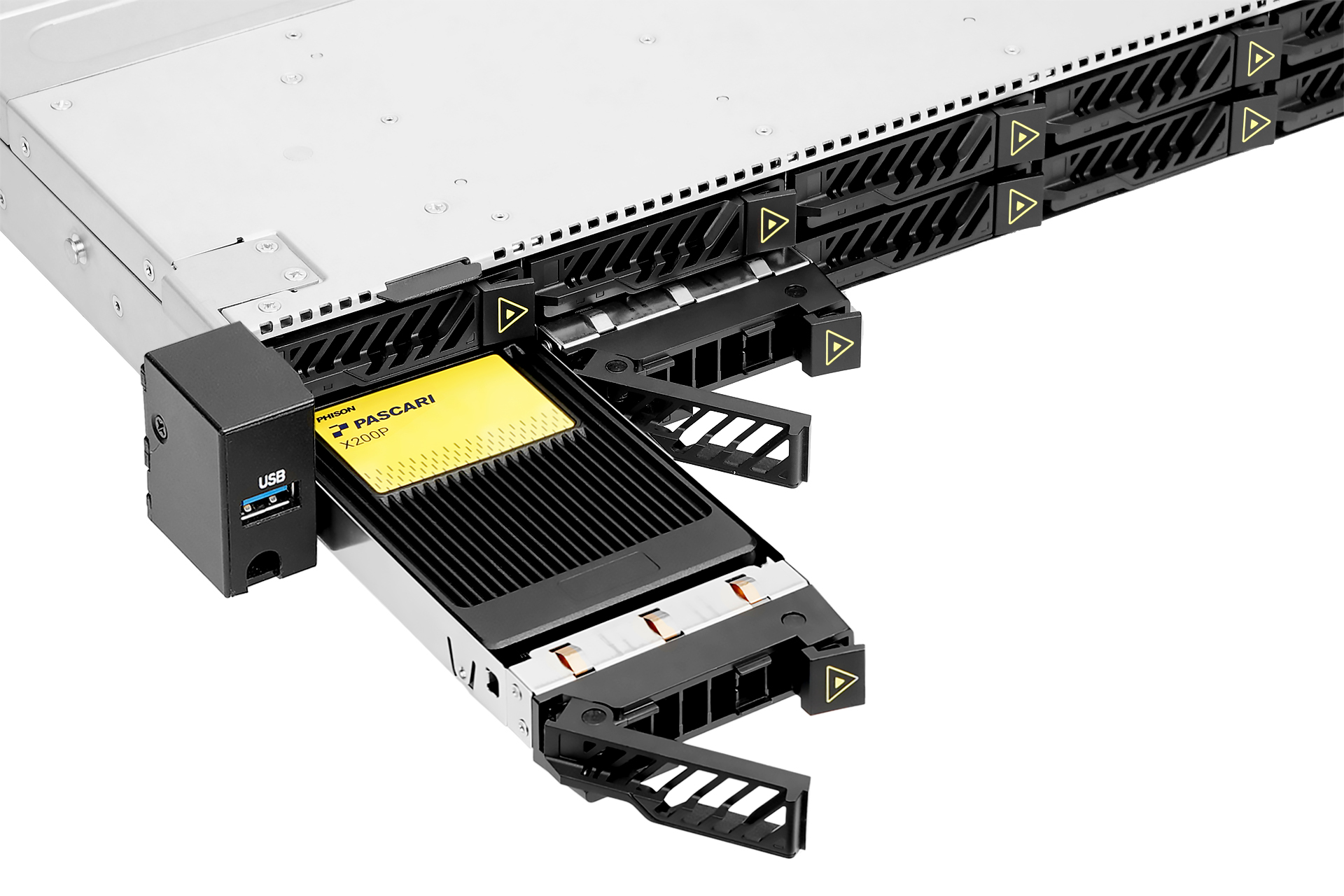

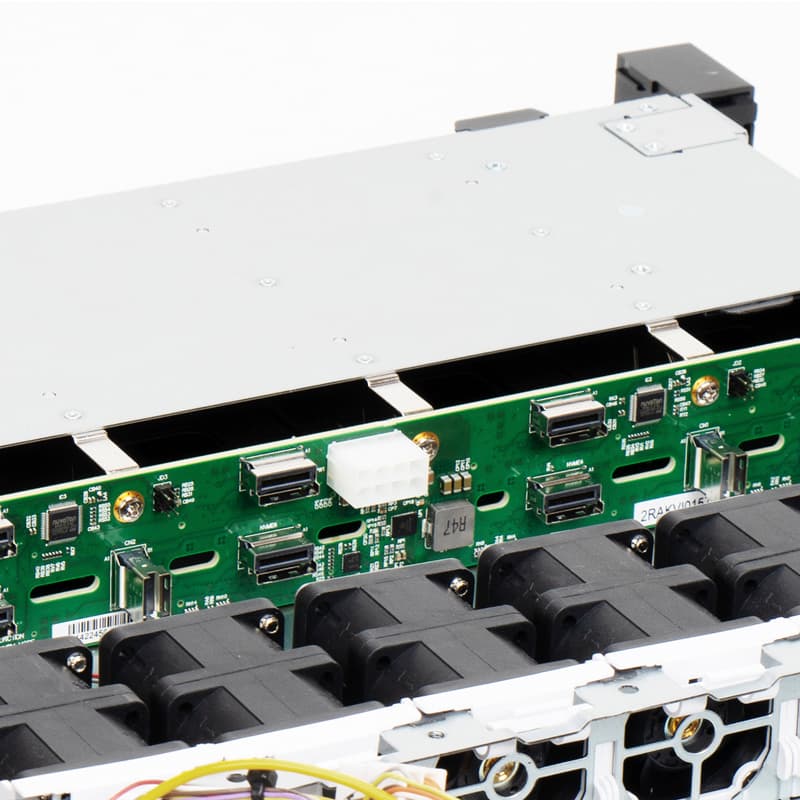

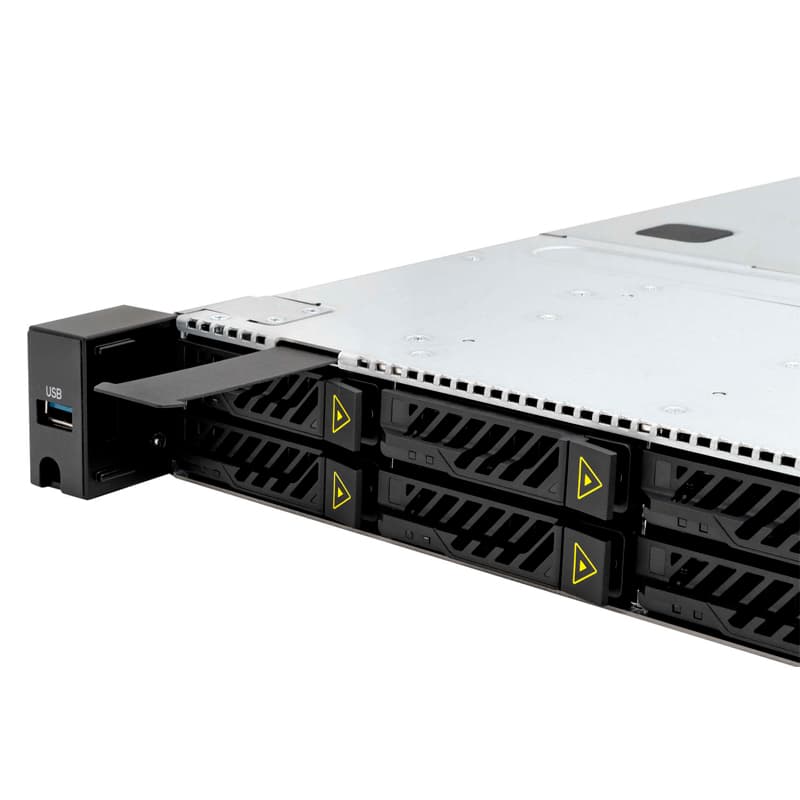

Фронтальная корзина поддерживает U.2 NVMe, SAS и SATA накопители. Это даёт гибкость при выборе дисков и позволяет собрать производительную storage-конфигурацию.
PCIe Gen5
Подготовка под высокоскоростные конфигурации
Версия с PCIe Gen5 комплектуется вентиляторами до 33000 об/мин, чтобы выдерживать тепловую нагрузку быстрых накопителей и современной платформы.
Server Service
Резервируемое питание и easy-swap вентиляторы

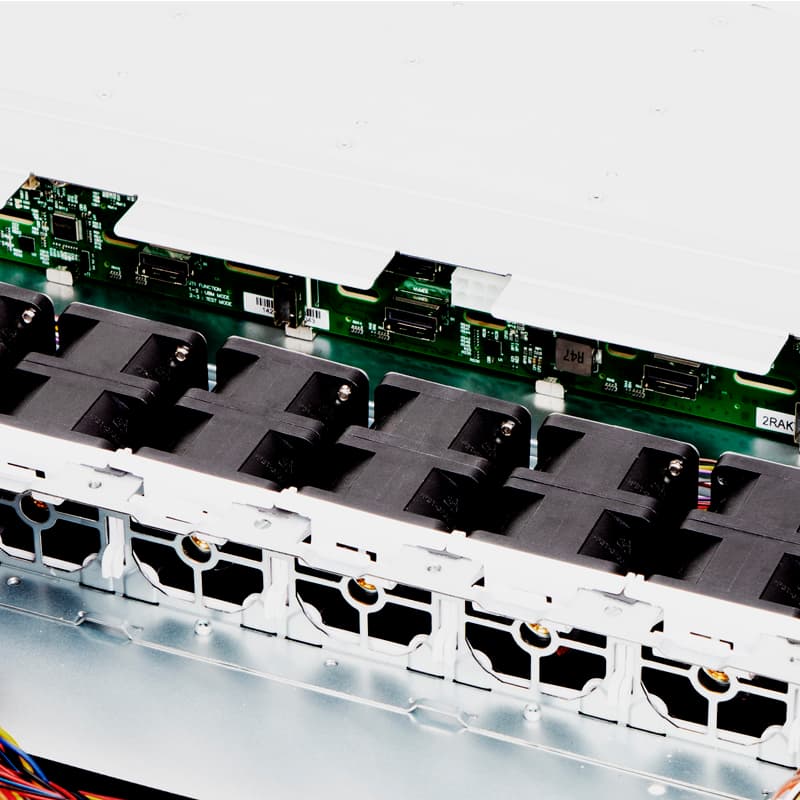

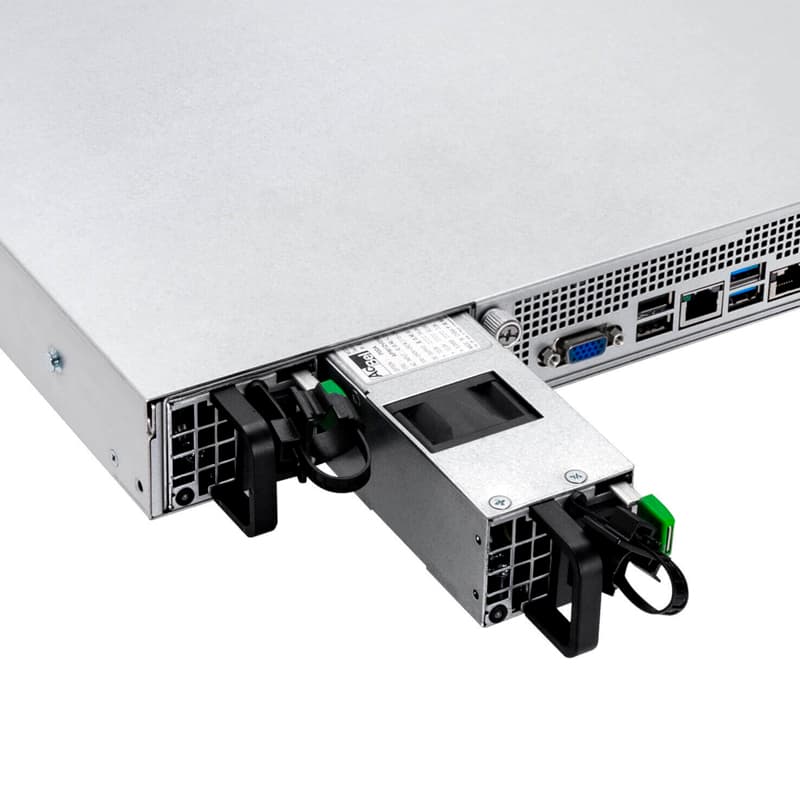

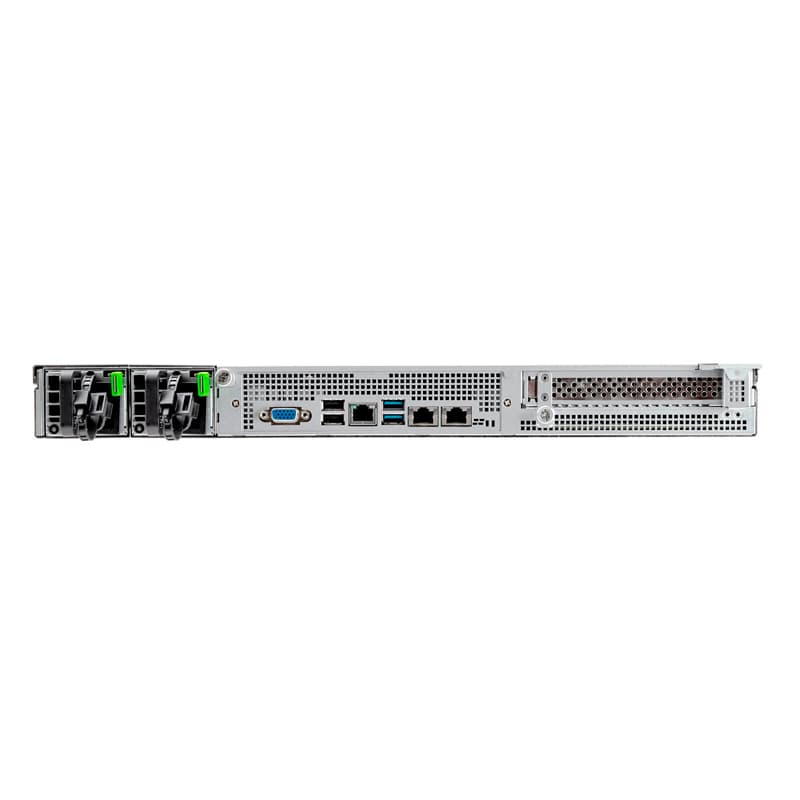

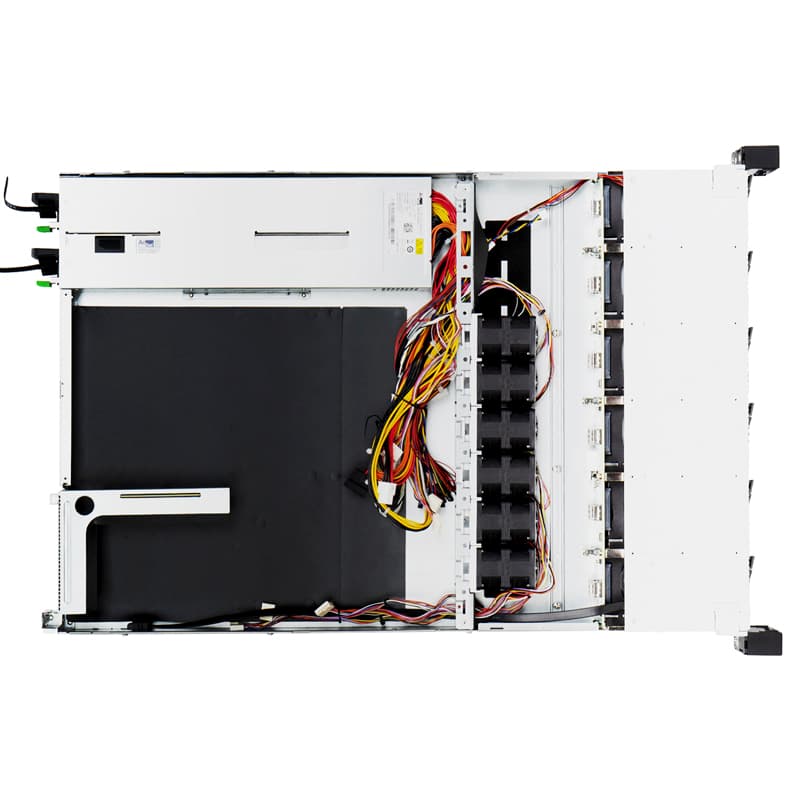

Предустановленный 1U redundant PSU 750 Вт и шесть 40 x 56 мм вентиляторов помогают обслуживать корпус как полноценный серверный узел.
Product Details

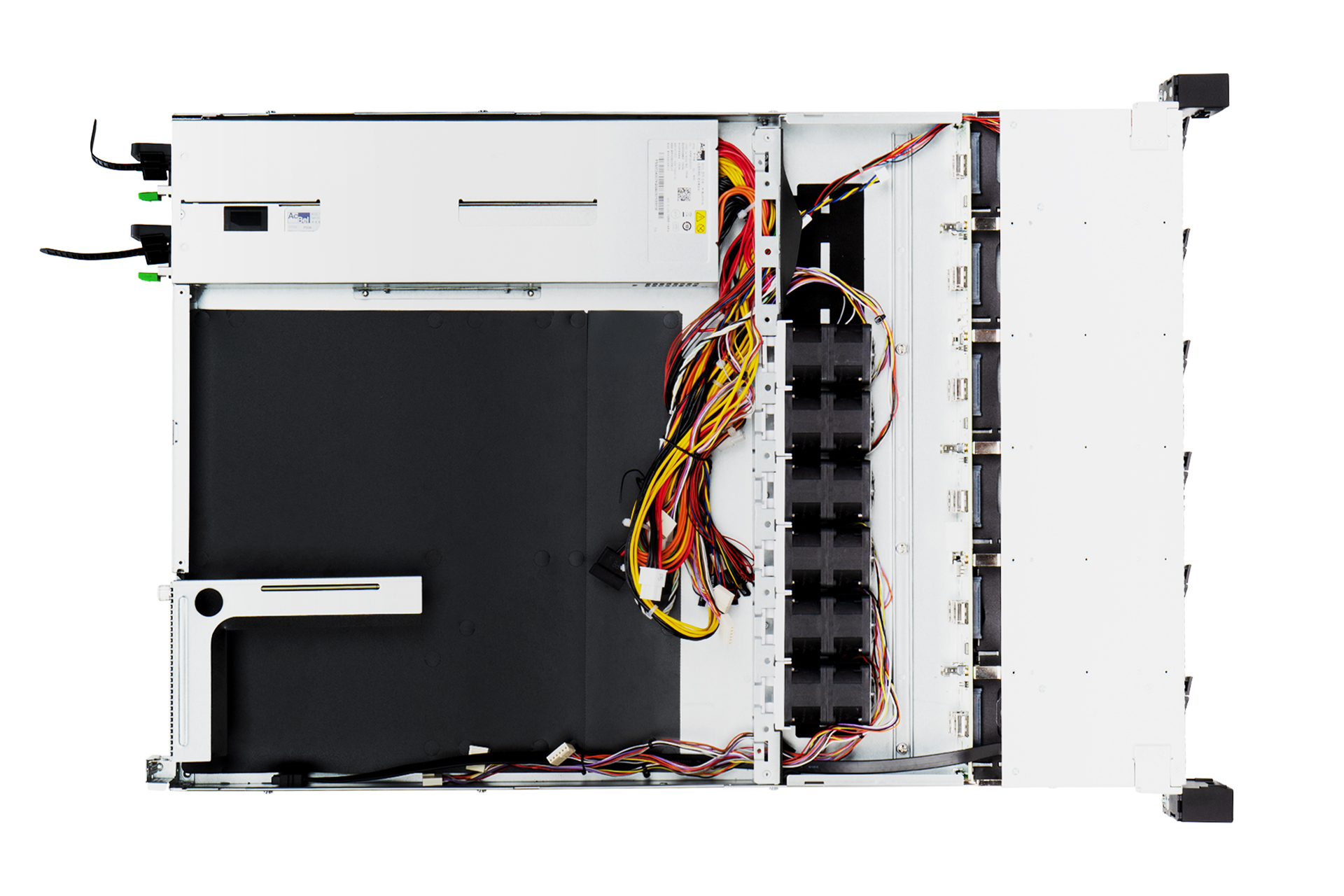

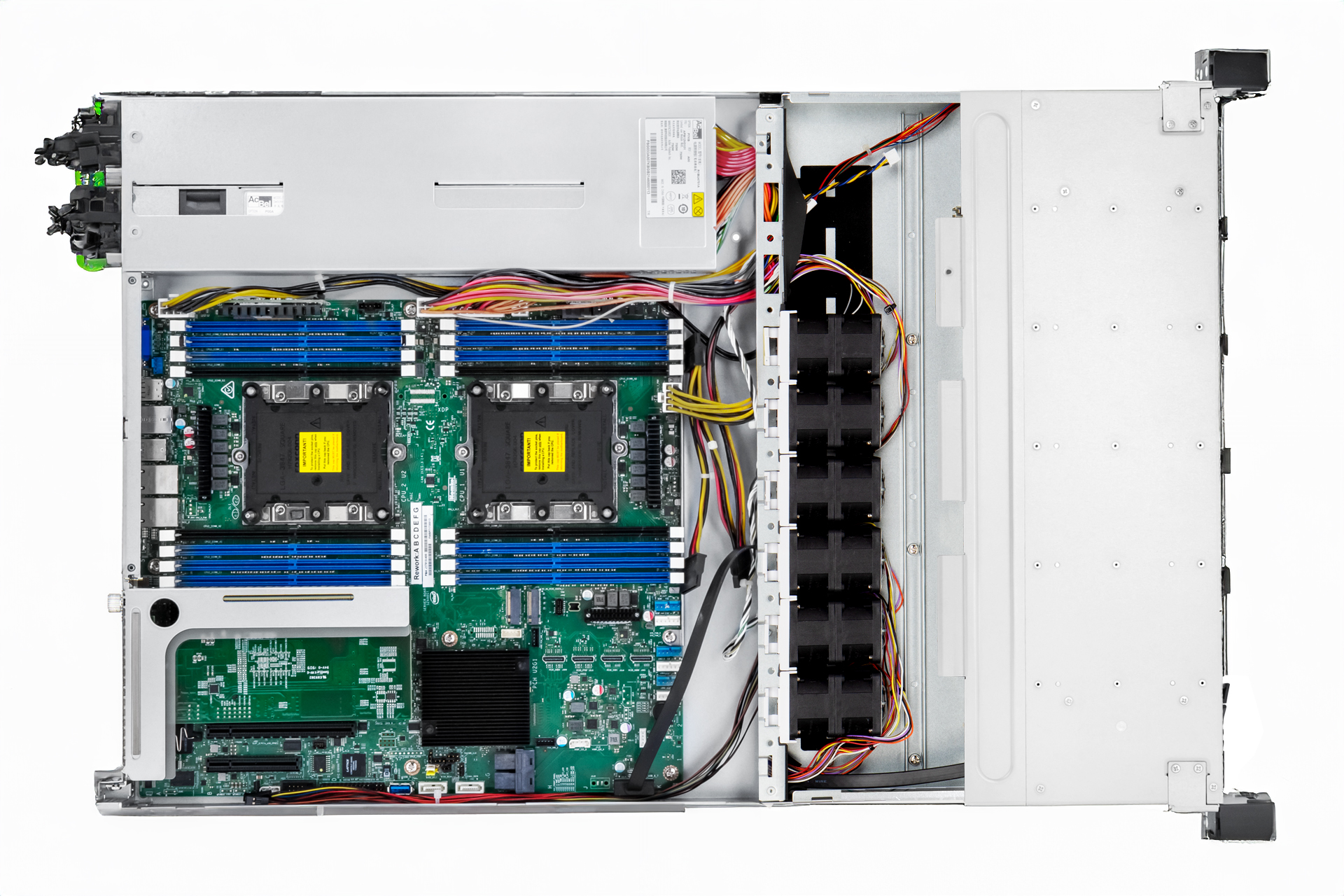

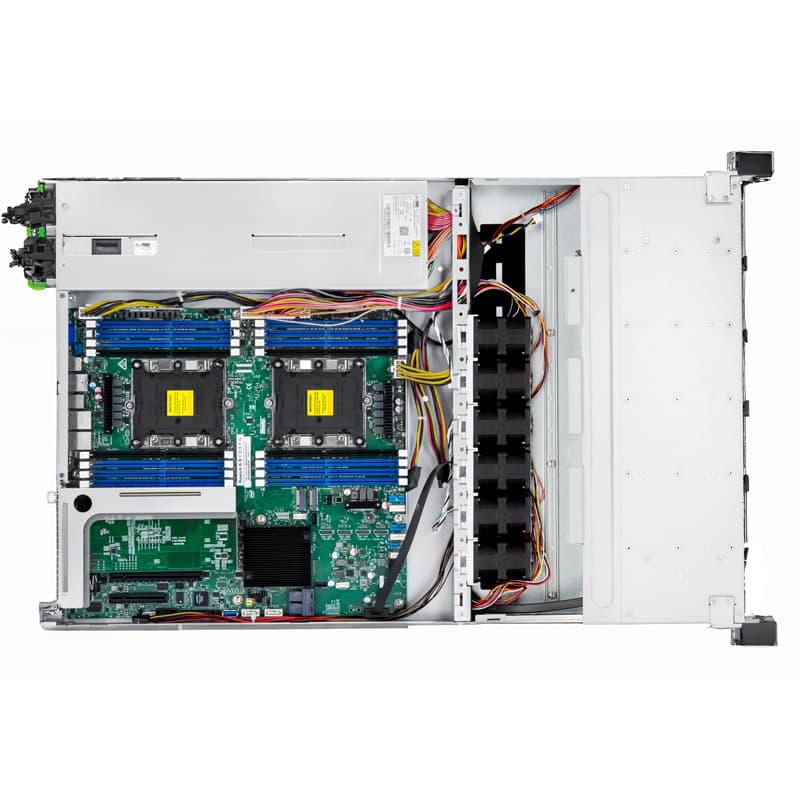

Детали конструкции InWin IW-RS112-08
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | External 2.5" hot-swap U.2 NVNe/SAS/SATA drives x 12 |
| Power Supply | Pre-installed: • Form factor: 1U redundant PSU, 80 Plus Platinum • Watt: 750W |
| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW, USB 3.0 x 1 |
| Backplane Type-1 | • Host: MCIO 4i x 12, SlimSAS (SFF-8654 4i) x 3 for SAS/SATA transfer rates • HDD: SAS/SATA/NVMe x 12 |
| Backplane Type-2 | • Host: Mini-SAS HD (SFF-8643) x 3, SlimSAS (SFF-8654 8i) x 2 • HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Backplane Type-3 | • Host: Mini-SAS HD (SFF-8643) x 3 • HDD: SAS/SATA x 12 |
| Cooling Fans | • PCIe Gen5 solution: Pre-installed 40 x 56mm PWM fans x 6, 33000 RPM • PCIe Gen4 solution: Pre-installed 40 x 56mm PWM fans x 6, 21500 RPM |

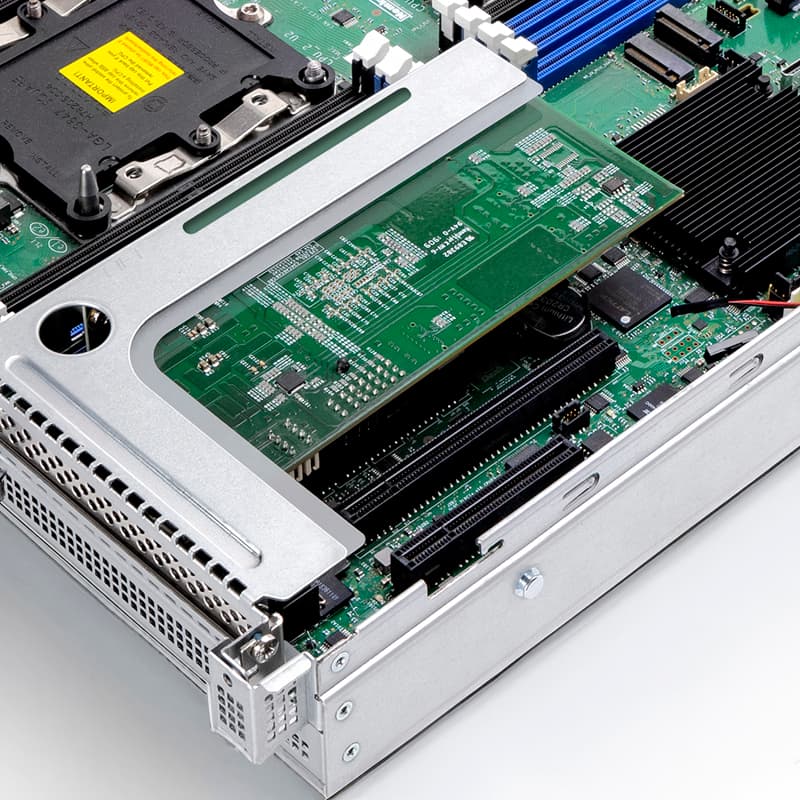

| Expansion Slot | One full-height PCIe slot with a PCIe Gen4 riser card and bracket included (Left-facing 90 degree design) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676 x 438 x 43.5mm (26.6 x 17.2 x 1.7") |

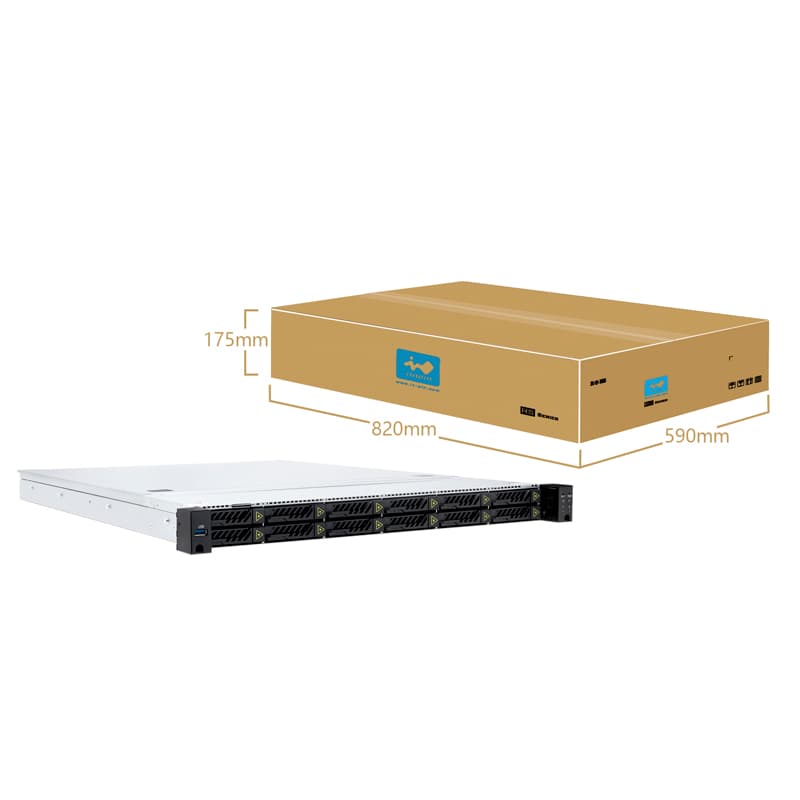

| Package Dimensions (DxWxH) | 820 x 590 x 175mm (32.3 x 23.2 x 6.9") |
| Weight (Chassis Only) | • Net weight: 10.6kg • Gross weight: 12.97kg |
| Cubic Feet | 2.99 |
| Container Information | Single packing with pallets: • 20': 200pcs • 40': 460pcs • 40' HQ: 552pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RS112-08 Gallery
zipIW-RS112-08 Compatibility List
pdfIW-RS112-08 User Manual
pdfIW-RS112-08 SAS4 & PCIe Gen5 Backplane User Manual
pdfIW-RS112-08 SAS3 & PCIe Gen4 Backplane User Manual
pdfIW-RS112-08 SAS3 Backplane User Manual
pdf| Item | Download | Preview |
|---|---|---|
| IW-RS112-08 eDMpdf | Скачать | Открыть |
| IW-RS112-08 Galleryzip | Скачать | - |
| IW-RS112-08 Compatibility Listpdf | Скачать | Открыть |
| IW-RS112-08 User Manualpdf | Скачать | Открыть |
| IW-RS112-08 SAS4 & PCIe Gen5 Backplane User Manualpdf | Скачать | Открыть |
| IW-RS112-08 SAS3 & PCIe Gen4 Backplane User Manualpdf | Скачать | Открыть |
| IW-RS112-08 SAS3 Backplane User Manualpdf | Скачать | Открыть |
Optional Items
Slide Rail

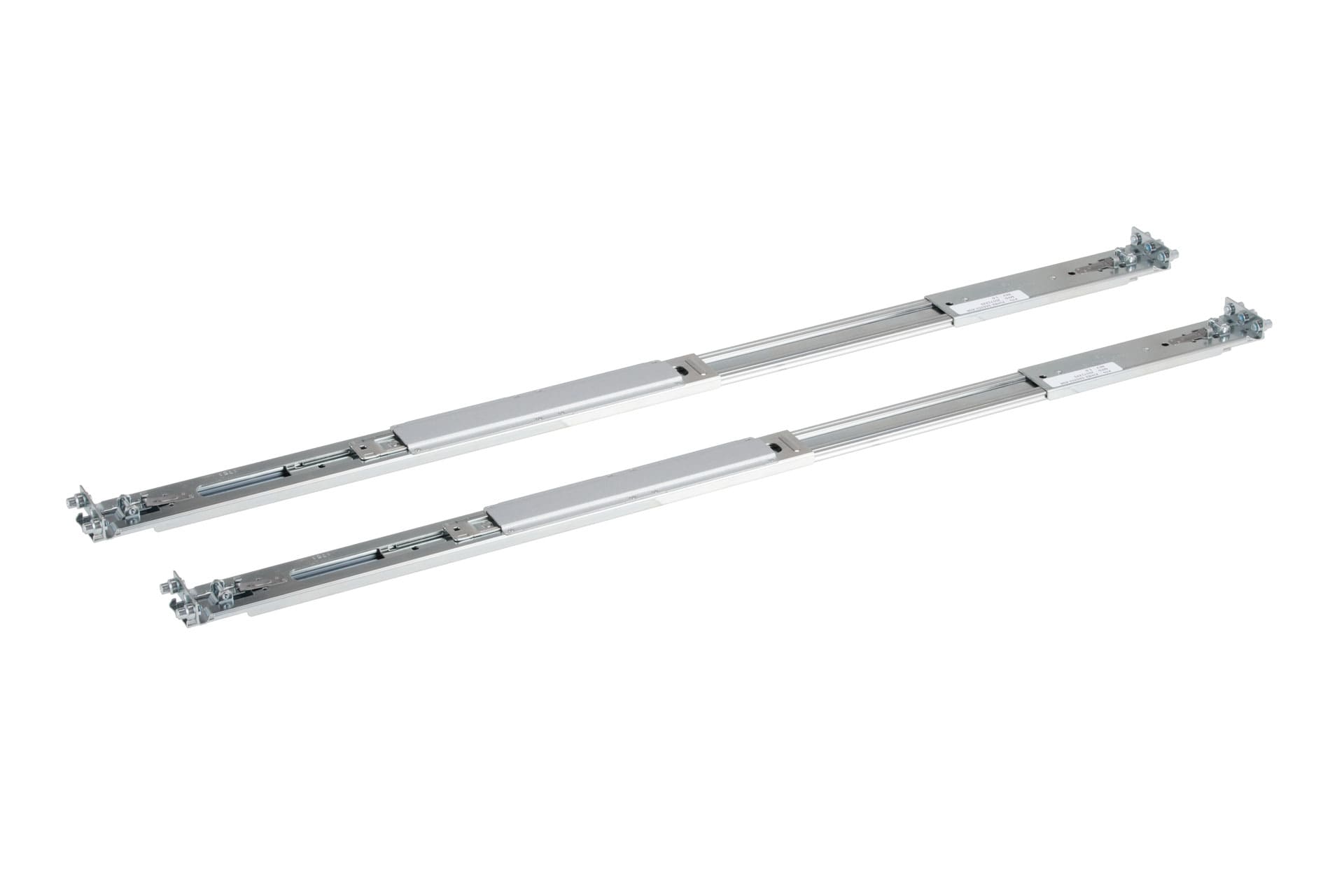

3RAMIS148100

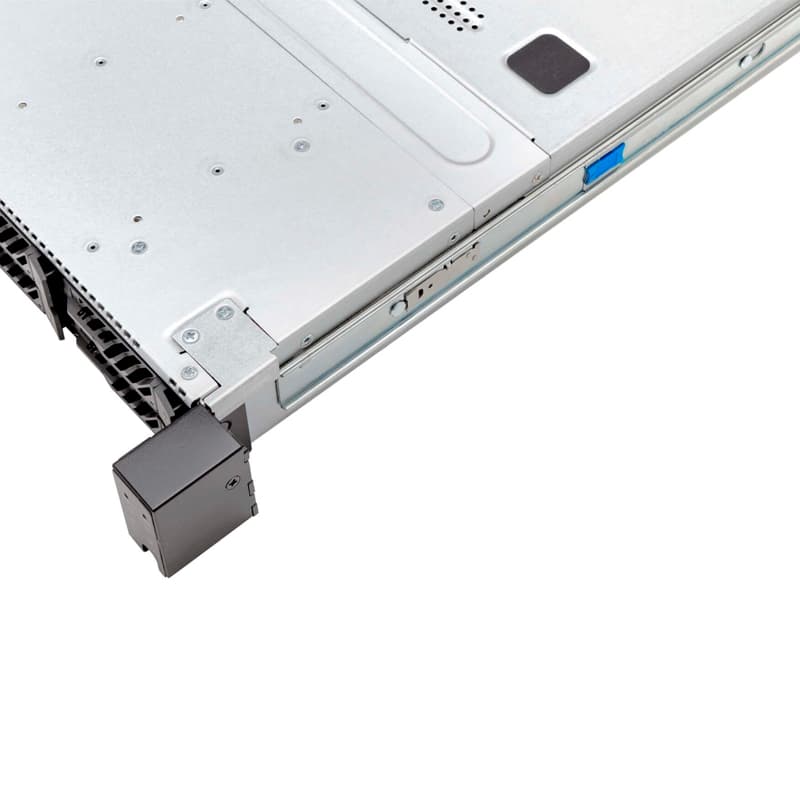

28" tool-less & ball-bearing slide rail
Support: 1 set
Slide Rail
3RAMIS152300/ 3RAMIS152400

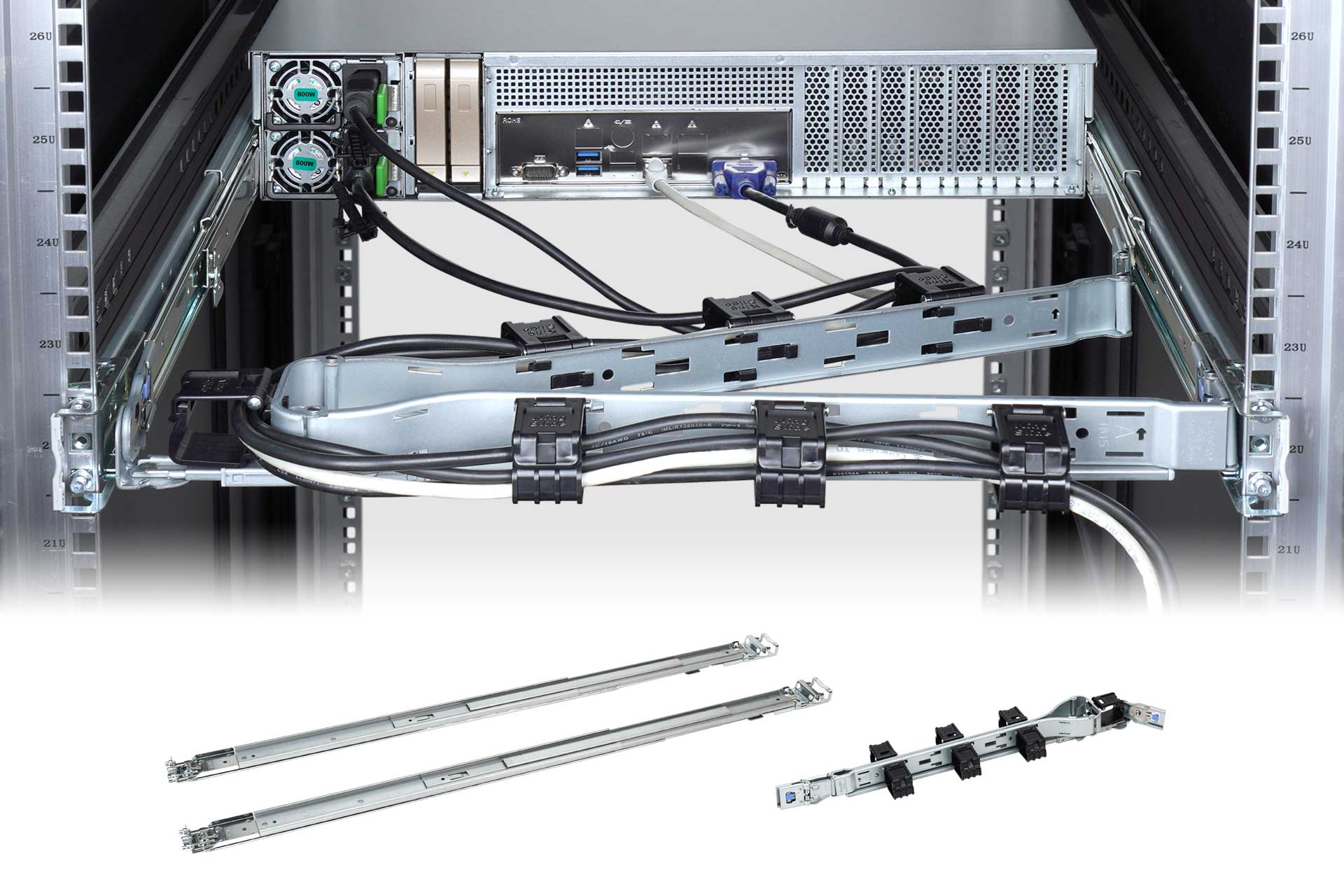

28" tool-less & ball-bearing slide rail with CMA support
Support: 1 set
Cable
3RAMW4084100

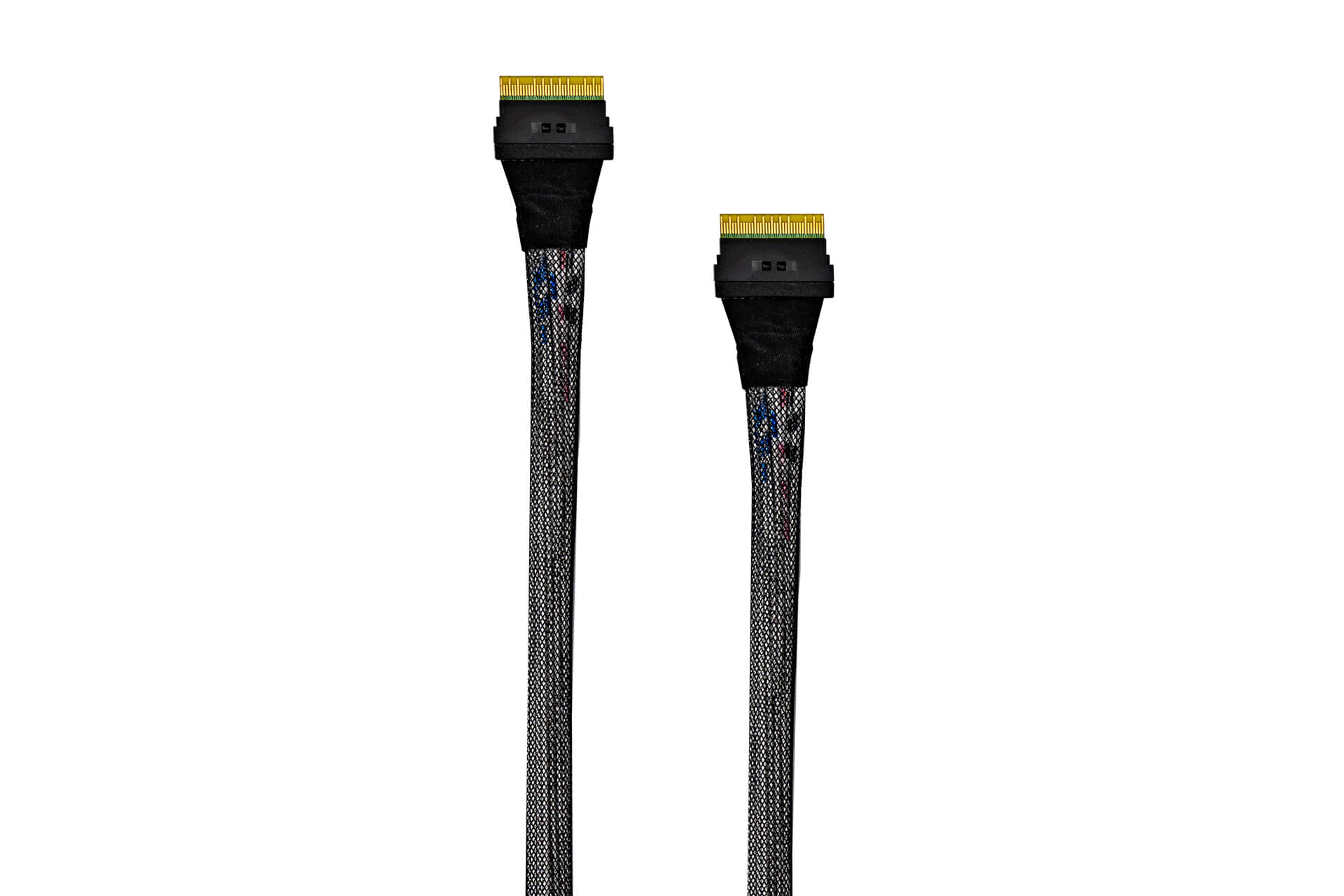

SlimSAS (SFF-8654) 8i to SlimSAS (SFF-8654) 8i Cable, 450 mm
Support: Max. 2
Cable
3RAMW4031700

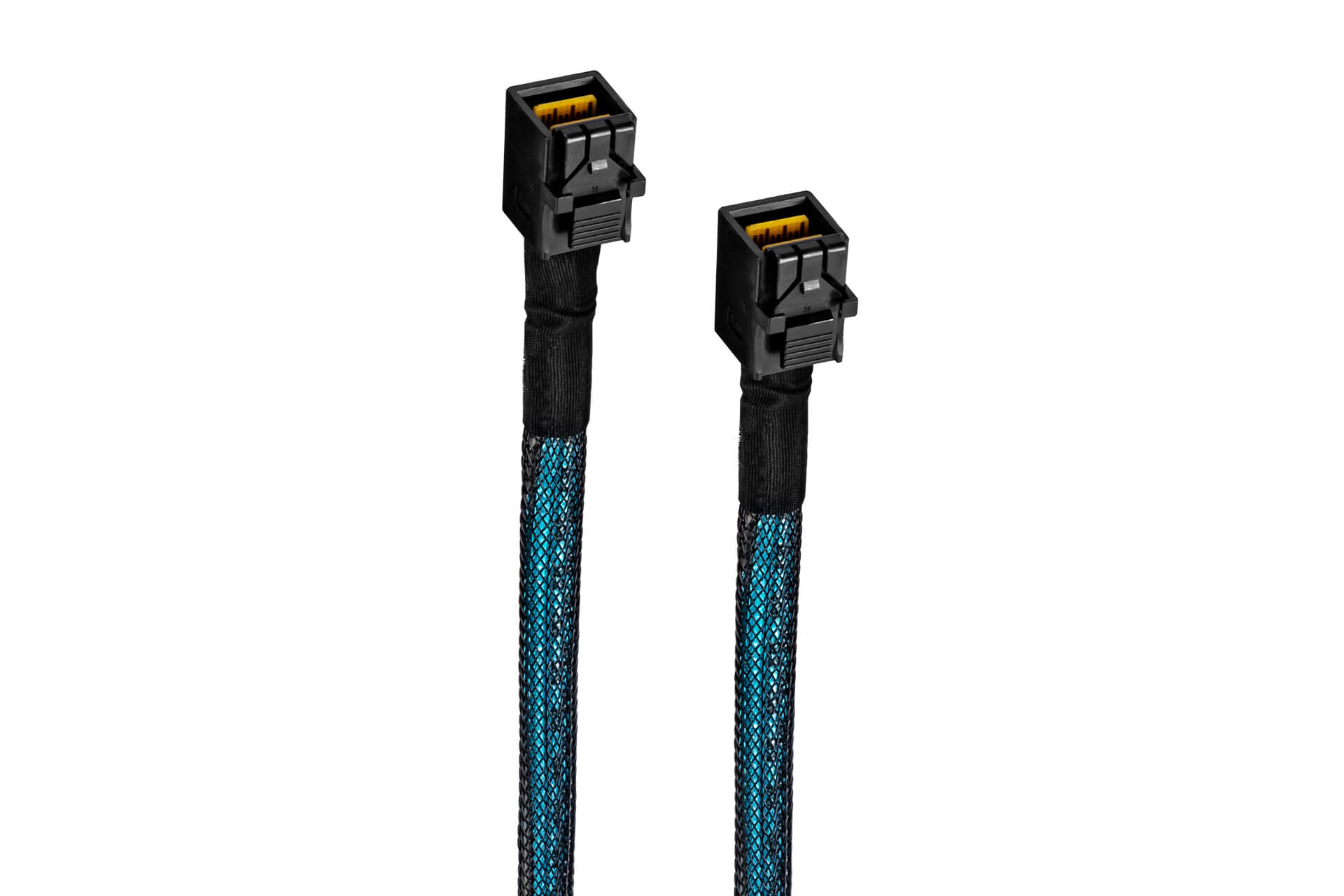

Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD Cable, 800 mm
Support: Max. 3
Power Supply
3RAMAP030400

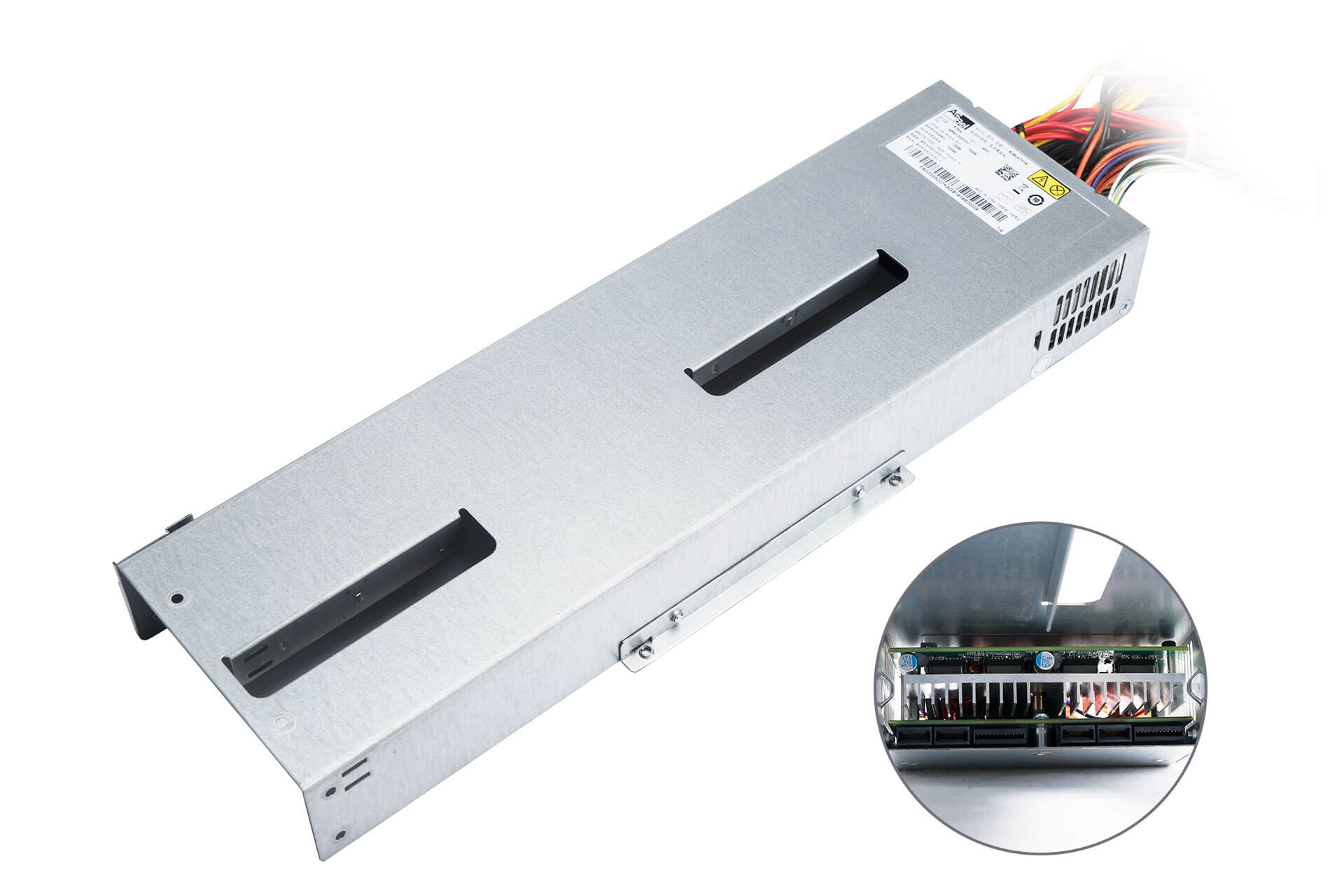

750W 1U redundant PDB power cage
Support: 1
Power Supply
3RAMAP042200

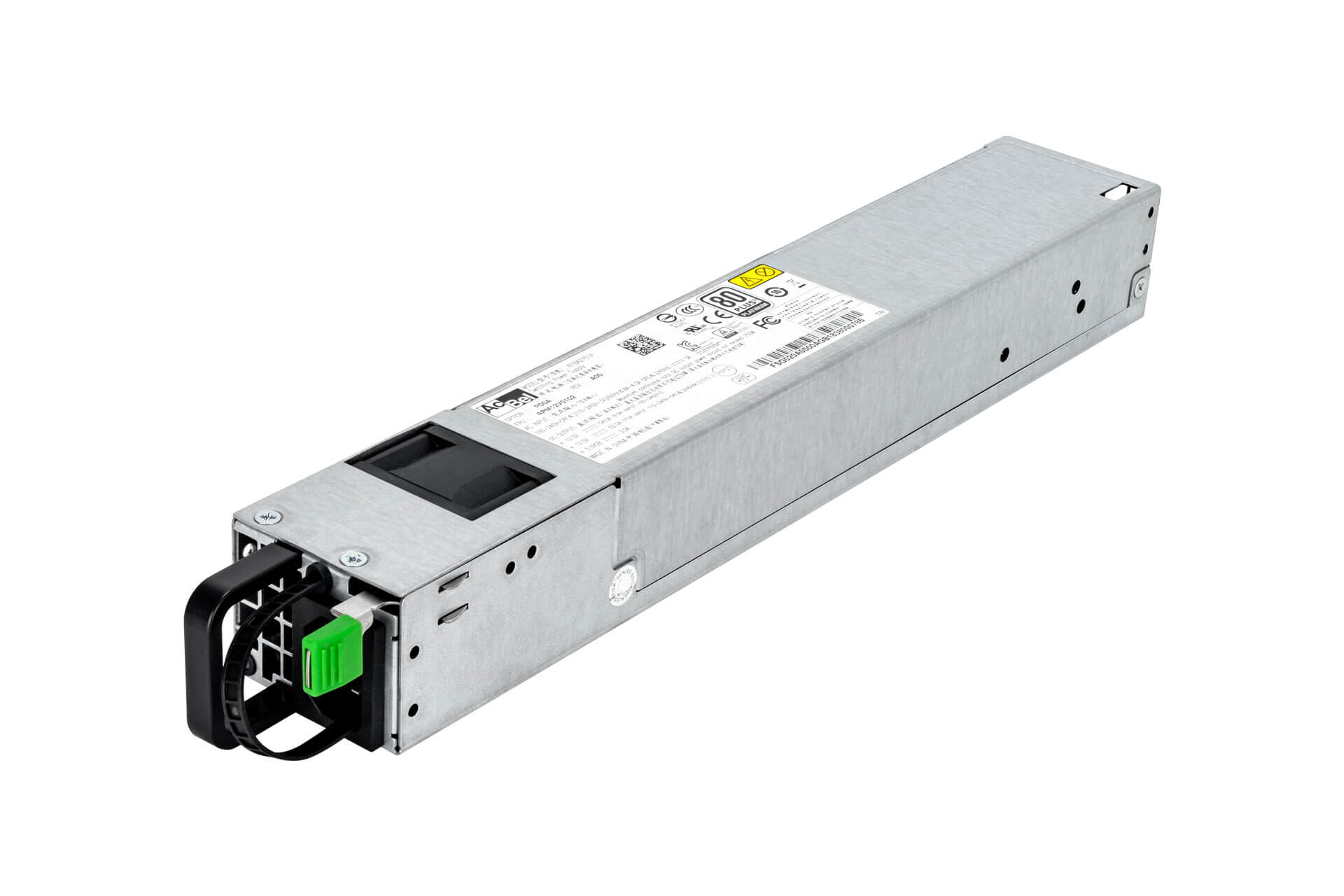

750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified
Support: Max.2
Backplane
2RBTVI011500

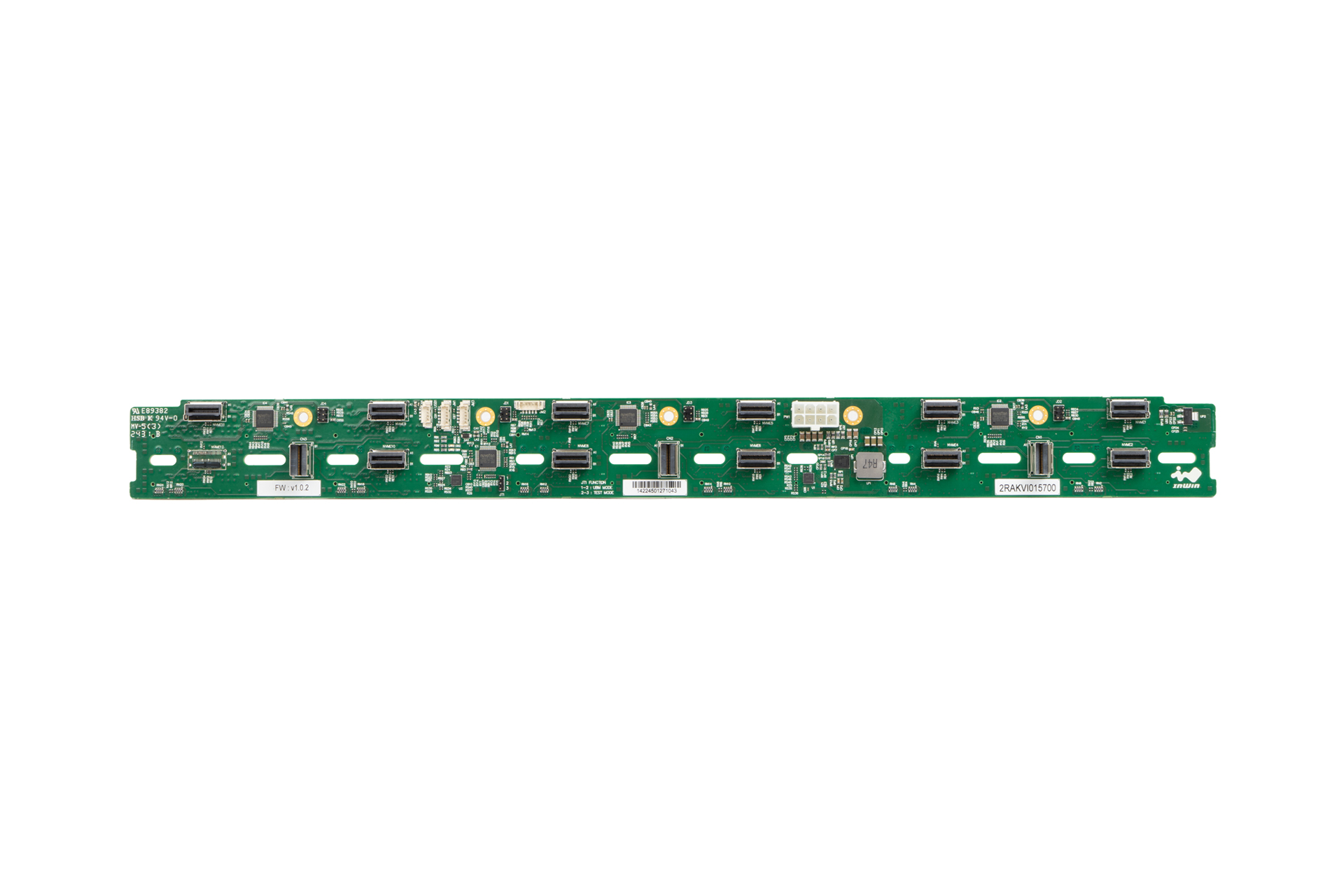

SAS4 & PCIe Gen5 backplane
Support: 1
Backplane
2RBTVI008002

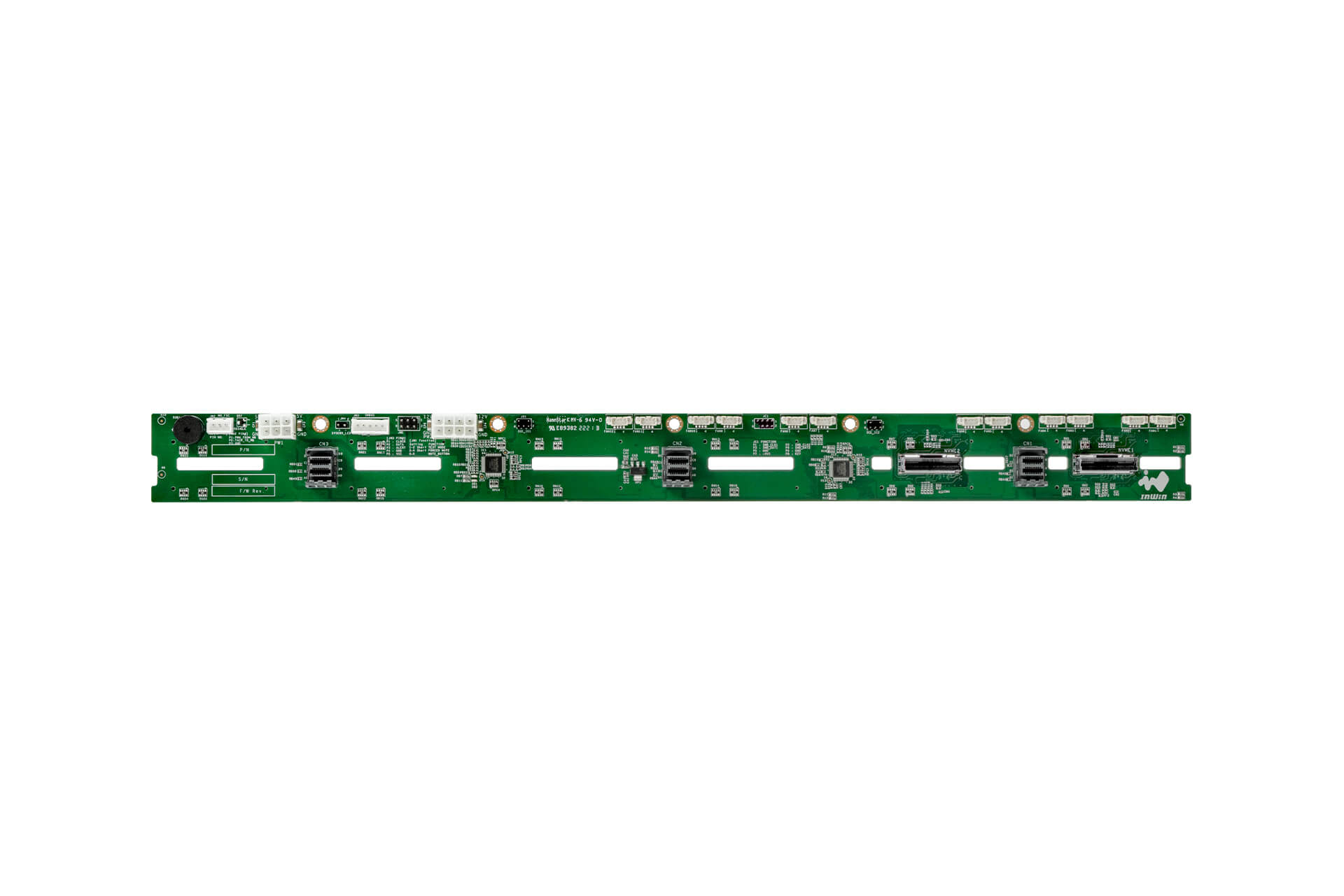

SAS3 & PCIe Gen4 backplane
Support: 1
Backplane
2RBTVI008102
SAS3 backplane
Support: 1
HDD Tray
2RAKPH066200
2.5" hot-swap HDD tray
Support: Max.12
HDD Tray
2RAKPH068100

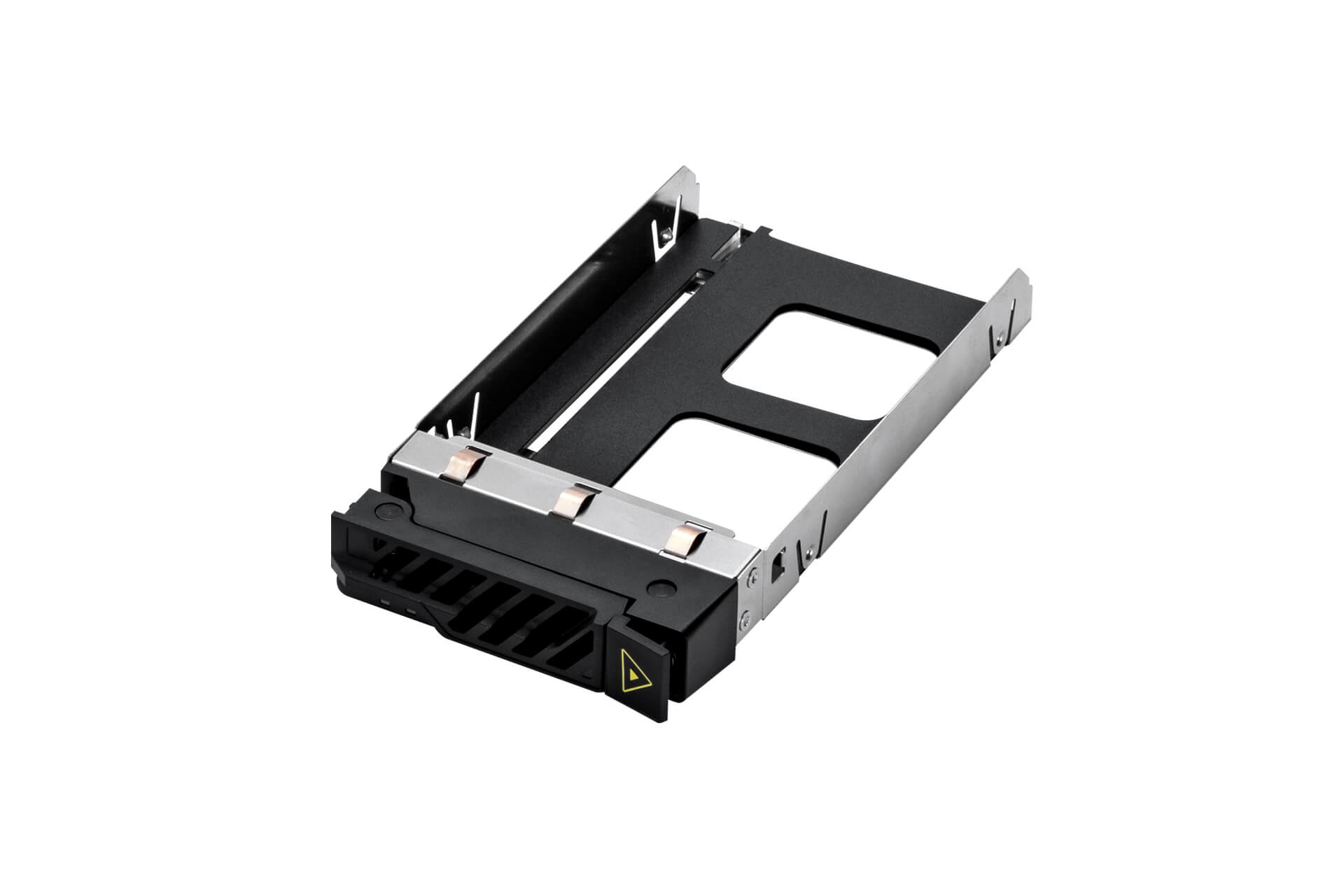

2.5" hot-swap HDD tray with NVMe symbol
Support: Max.12
Fan
2RAKFB020600

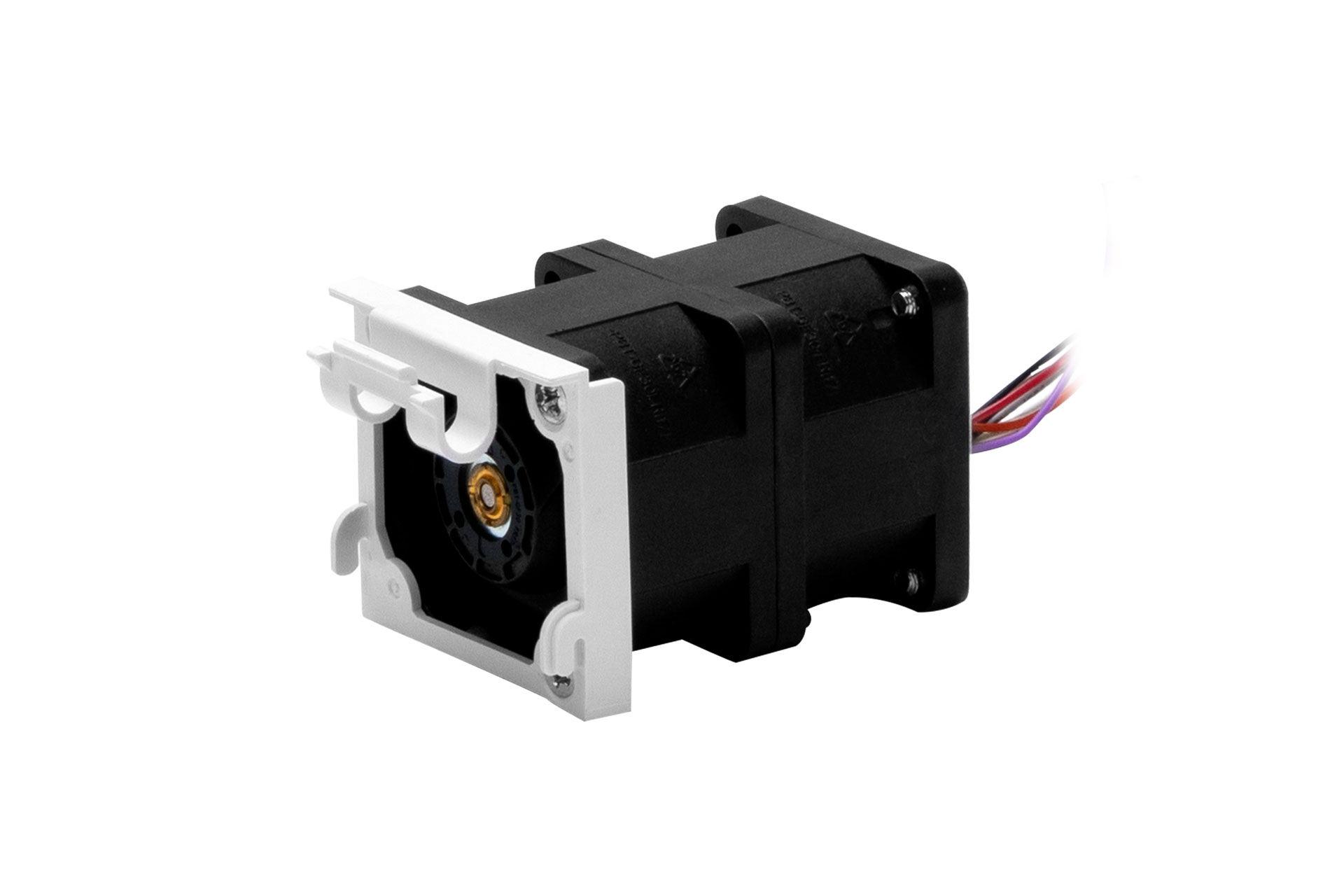

40 x 56mm PWM fan & fan bracket, 6pin, 33000 RPM, PCIe Gen5 solution
Support: Max.6
Fan
2RAKFB011800

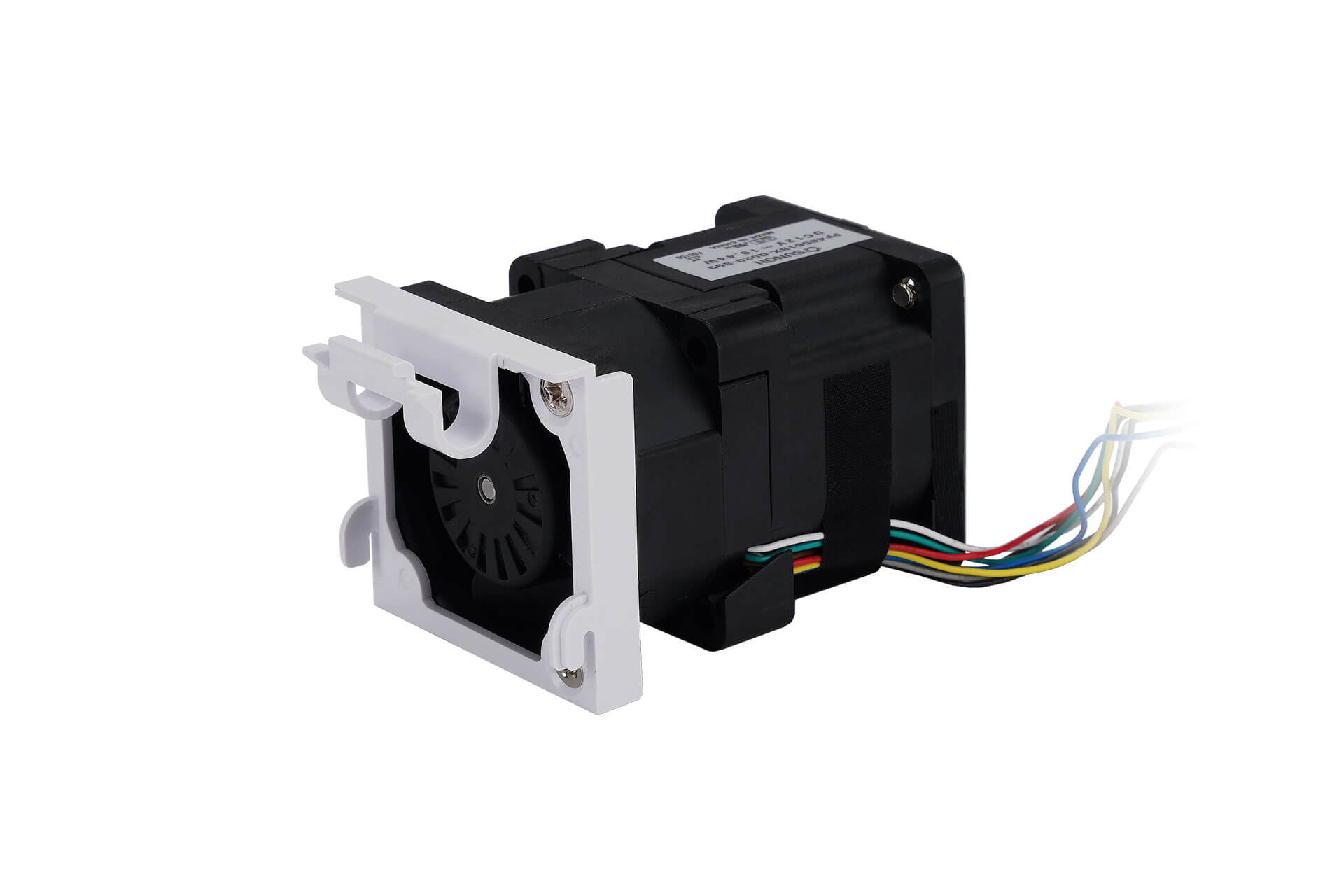

40 x 56mm PWM fan & fan bracket, 4pin, 21500 RPM, PCIe Gen4 solution
Support: Max.6
Riser Card
2RAKPD079901

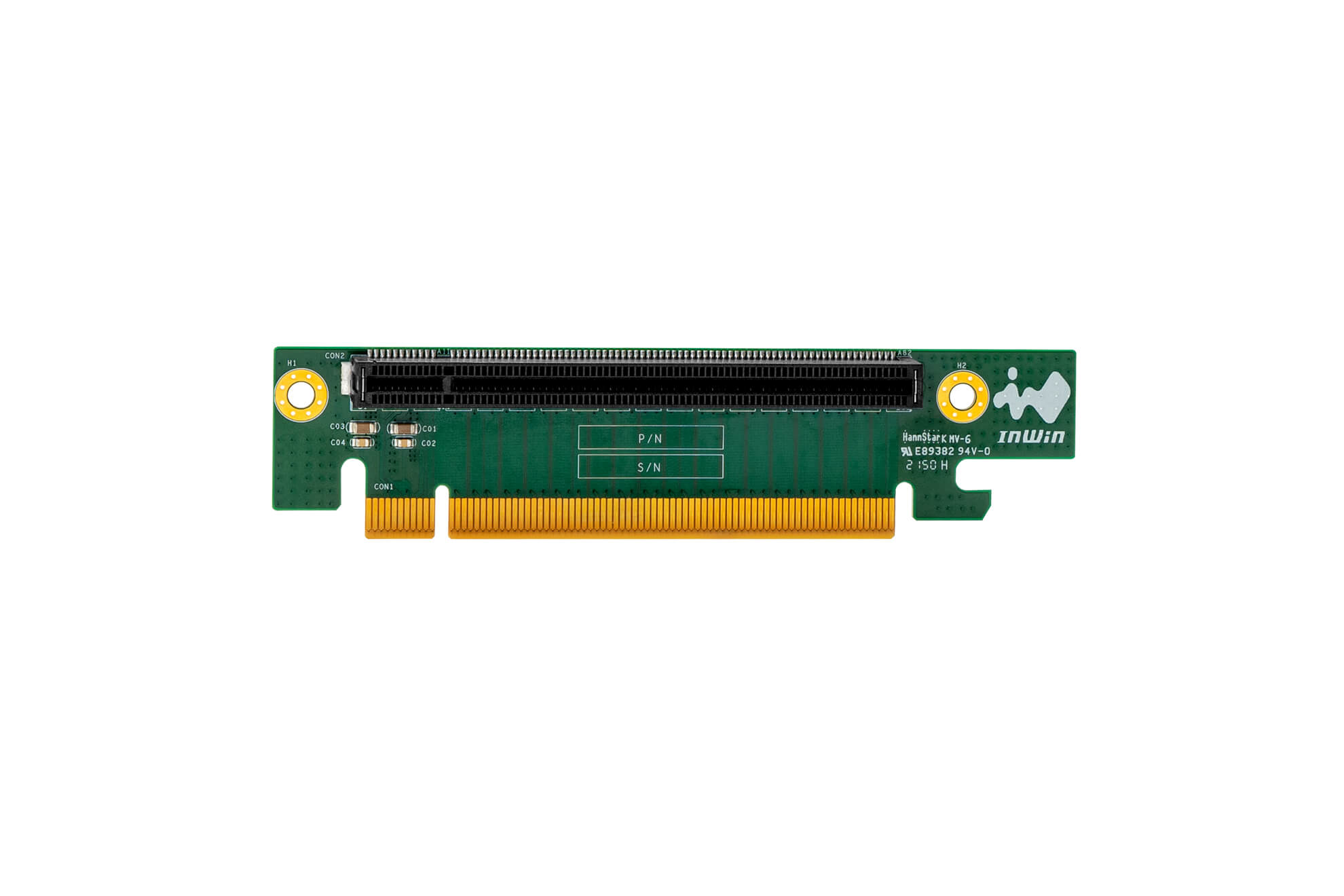

PCIe Gen4 x16 lanes riser card (left-facing 90 degree design)
Support: 1
Riser Card
2RAKPD087800

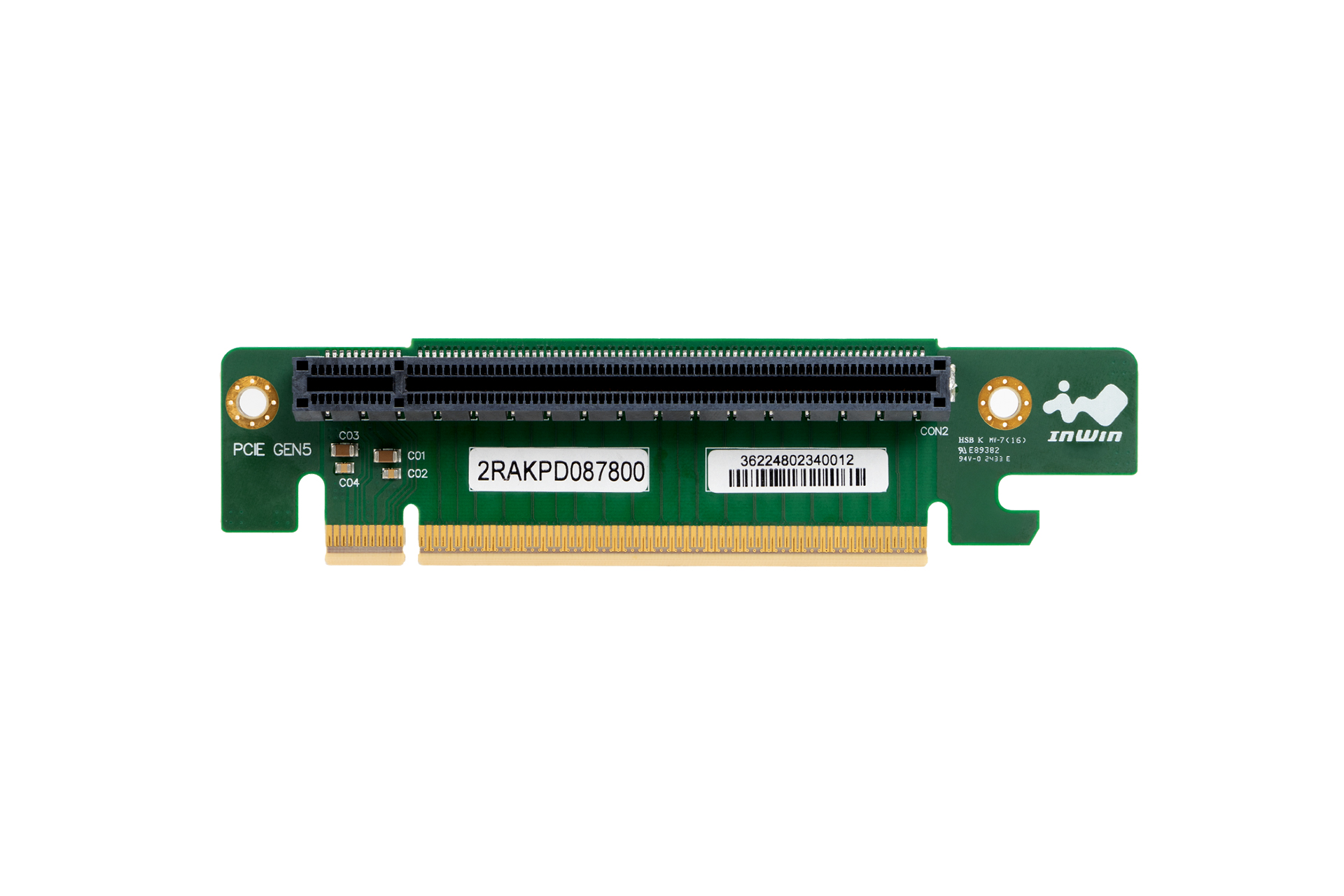

PCIe Gen5 x16 lanes riser card (left-facing 90 degree design)
Support: 1
Others
2RAKIP026500

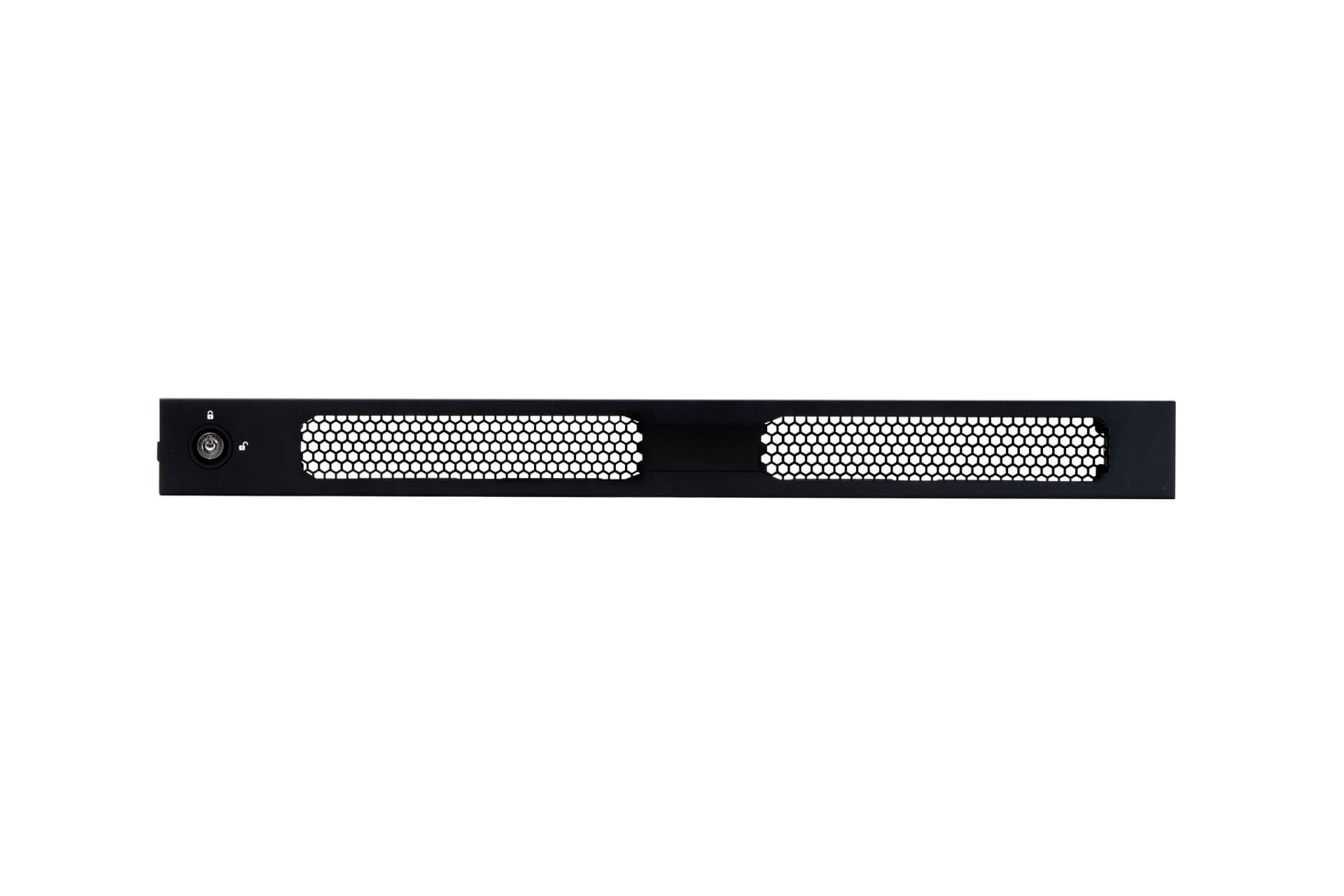

Mesh front panel
