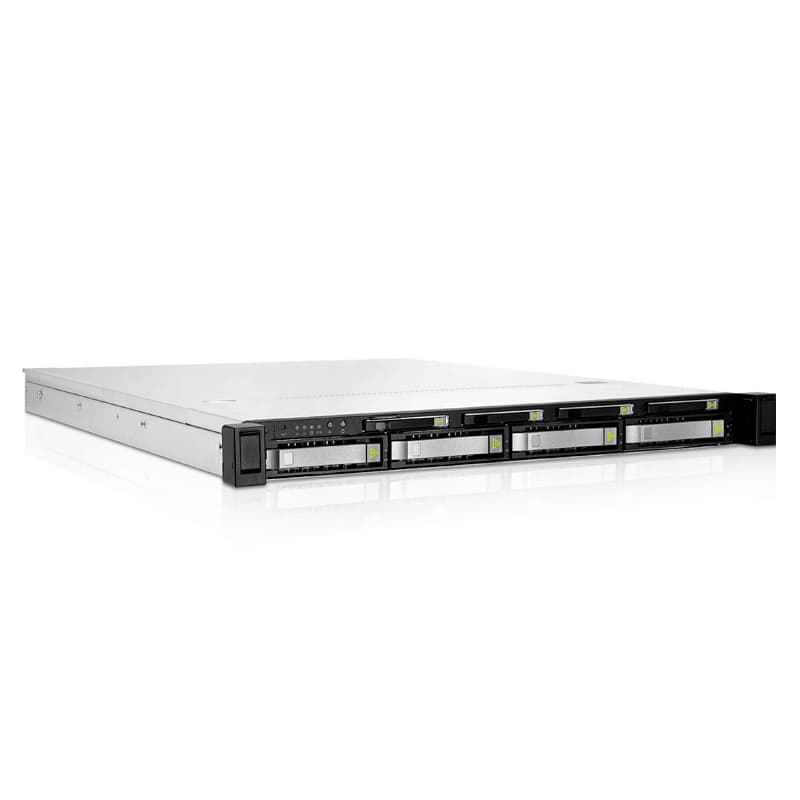

InWin
IW-RS108-07
Артикул: IW-RS108-07
1U Chassis
1U корпус с двухуровневой дисковой корзиной
IW-RS108-07 рассчитан на восемь внешних hot-swap отсеков: верхний уровень под 2.5" накопители и нижний уровень под 3.5"/2.5". Такая компоновка помогает собрать плотный 1U-сервер с гибким набором дисков.
Платы
ATX / CEB / EEB
Отсеки
4 x 2.5" + 4 x 3.5"/2.5"
Питание
750 Вт Platinum
Слоты
1 x full-height PCIe

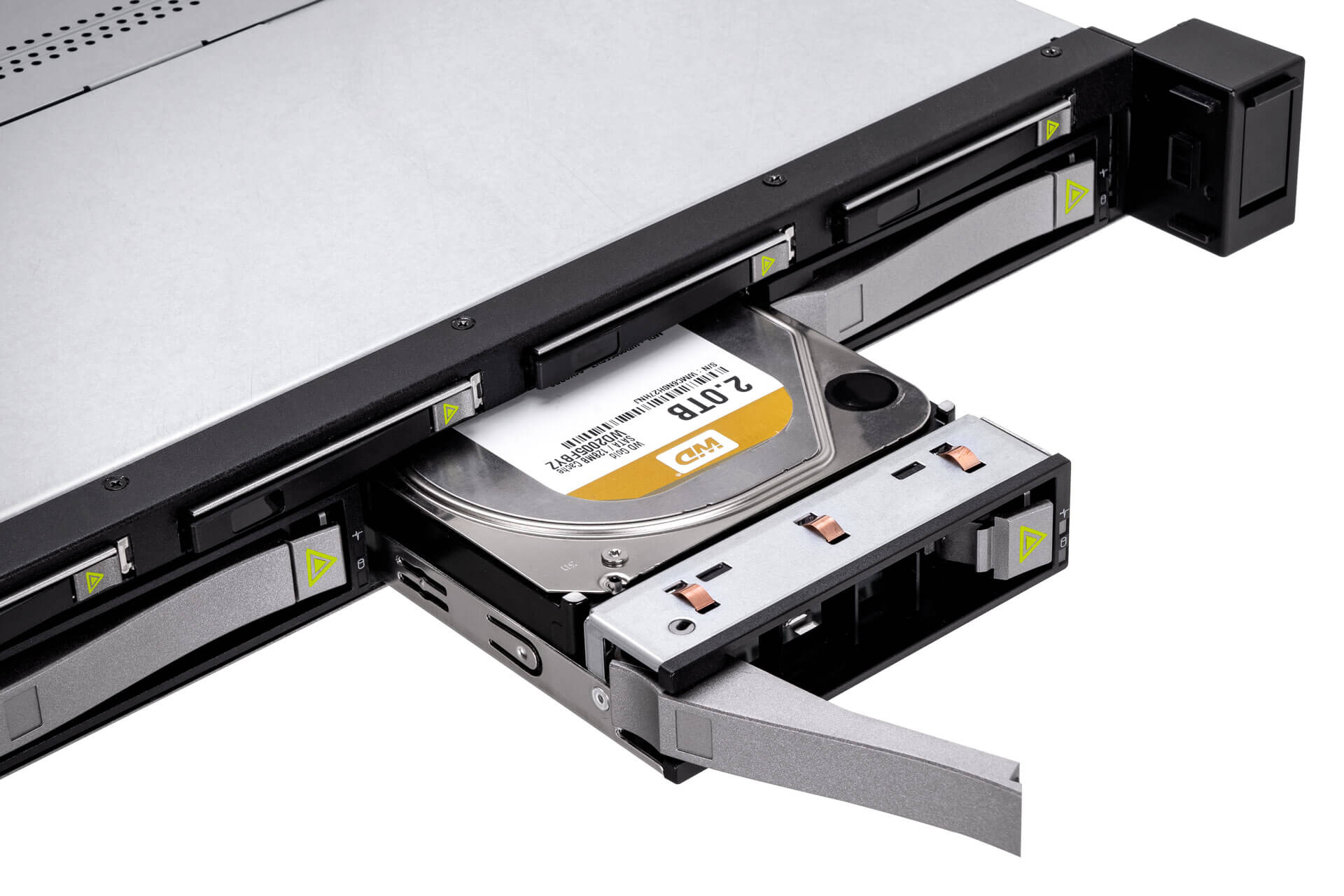

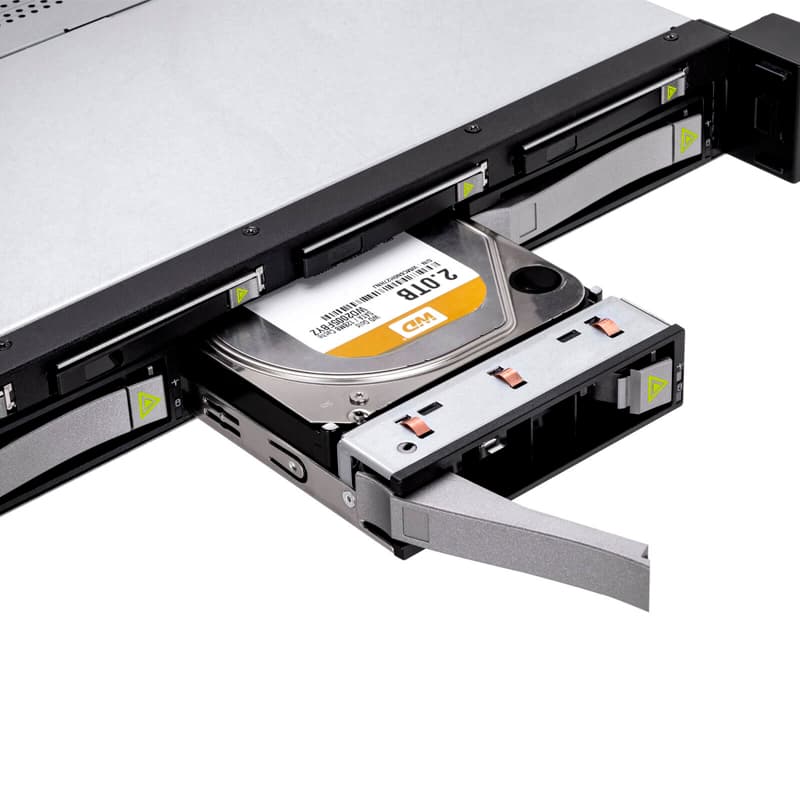

Dual-Layer Storage
Два уровня hot-swap накопителей
Верхний ряд рассчитан на 2.5" диски, нижний — на 3.5"/2.5". Это удобно для смешанных конфигураций с системными SSD и ёмкими HDD.
Server Platform
CEB/EEB платы в формате 1U
Поддержка ATX, CEB и EEB делает корпус применимым для серьёзных серверных платформ, которым требуется низкий стоечный форм-фактор.

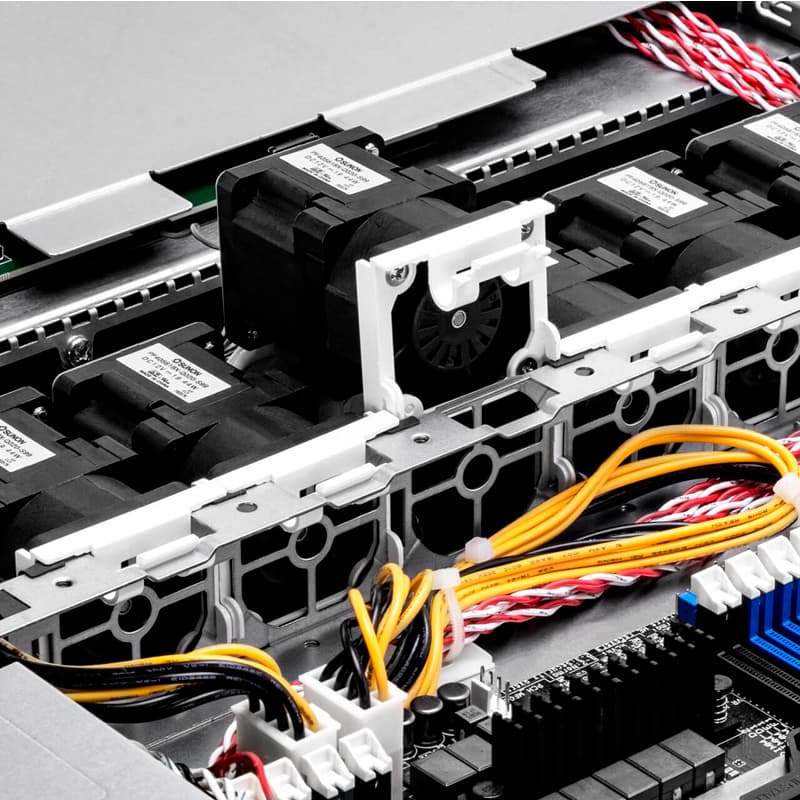

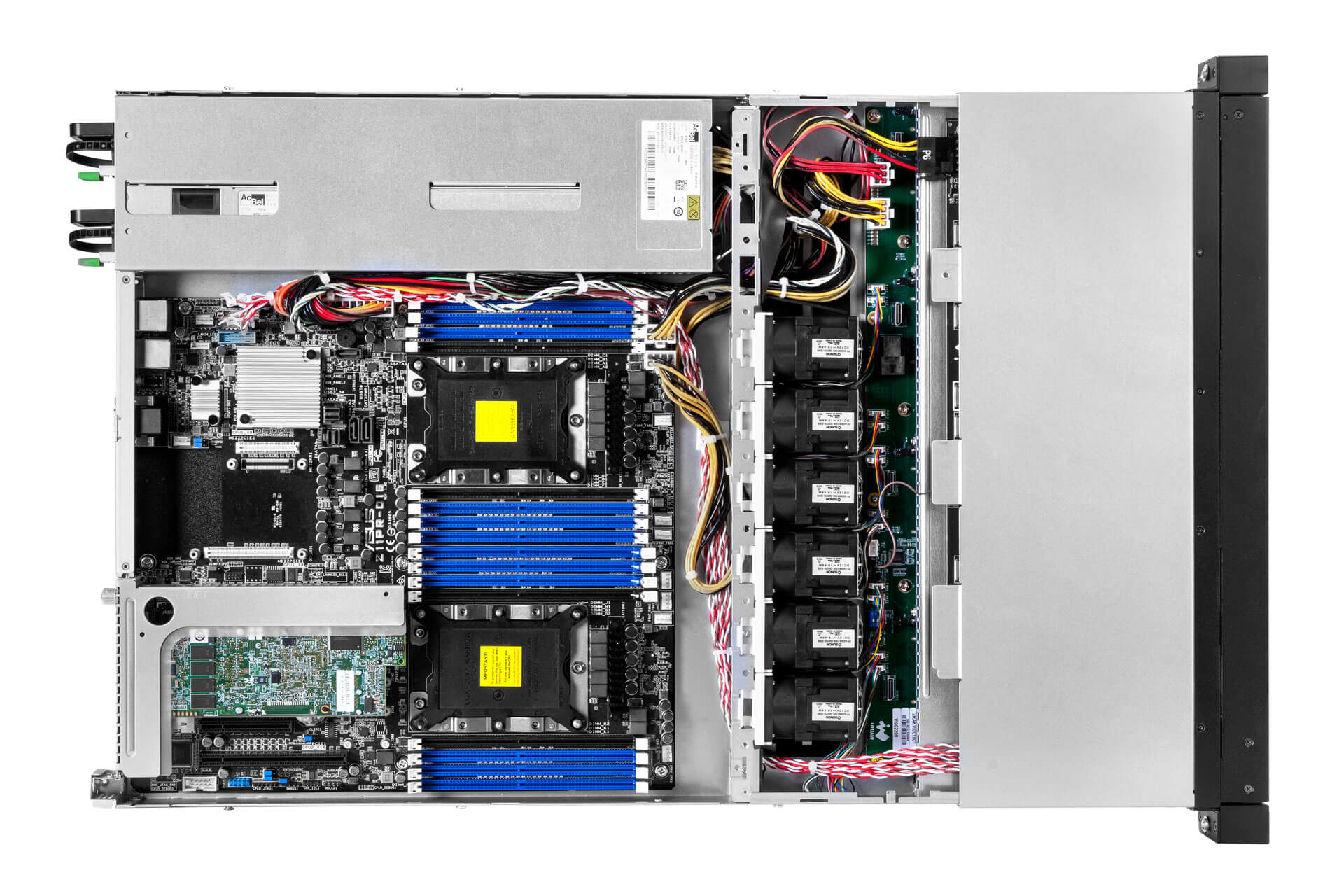

Cooling
Шесть easy-swap вентиляторов
Блок из шести PWM-вентиляторов 40 x 56 мм помогает прокачивать воздух через дисковую корзину, плату и карту расширения.
Product Details

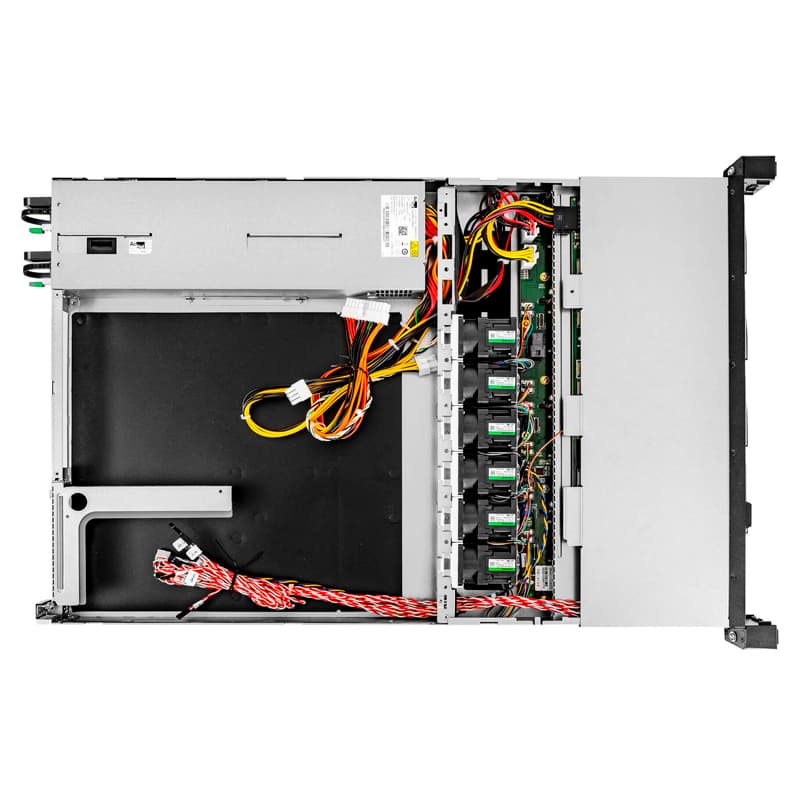

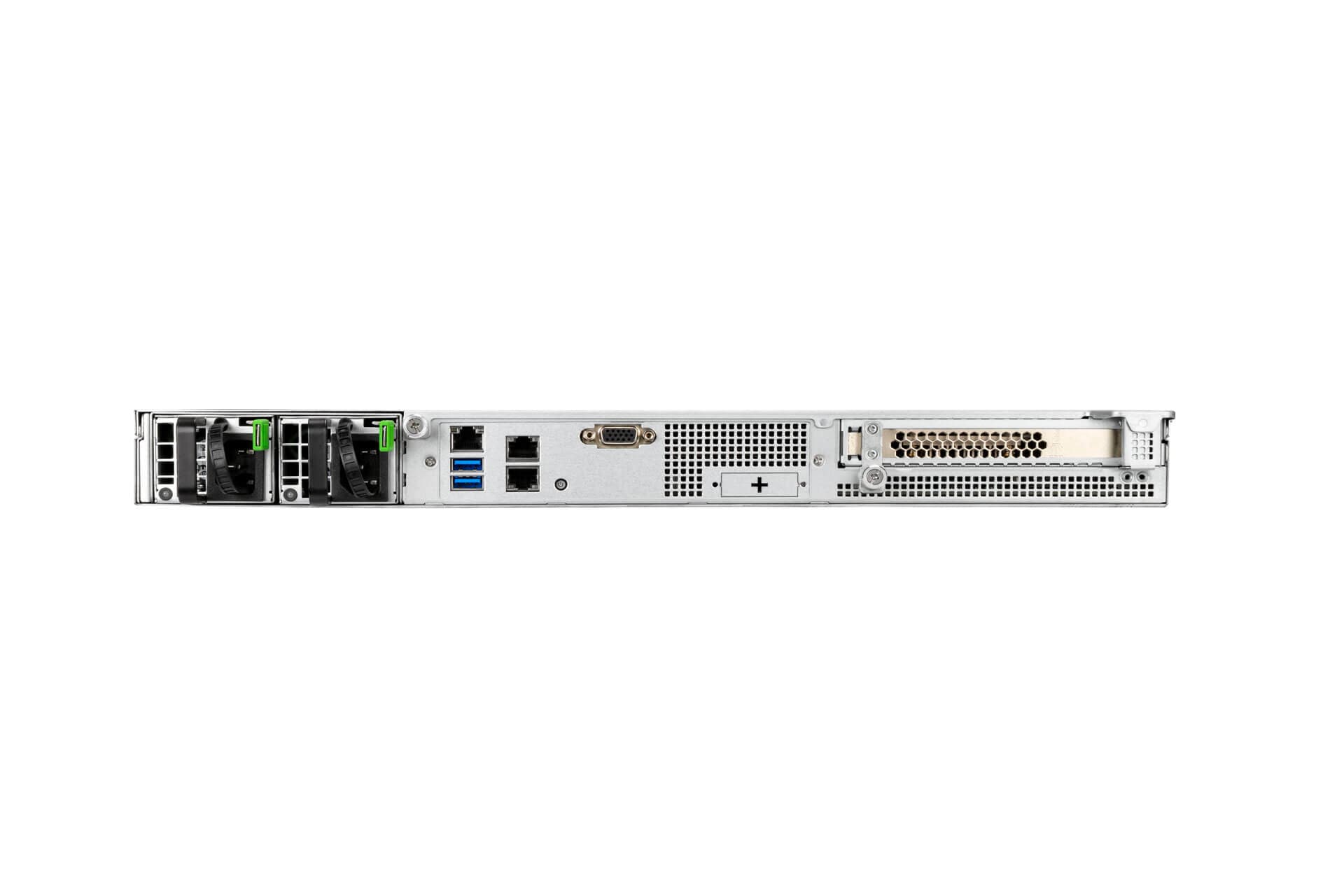

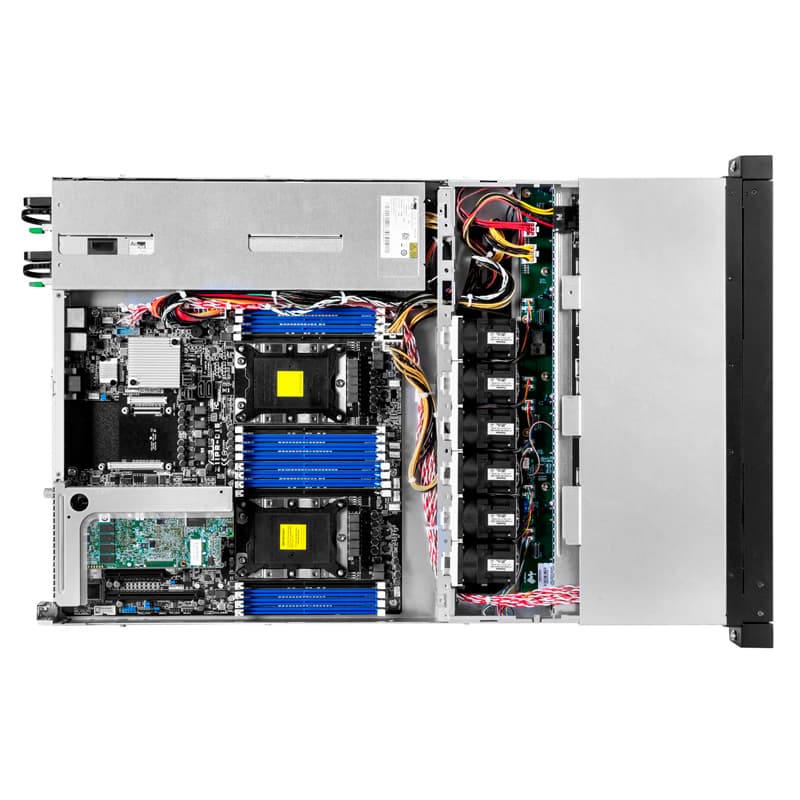

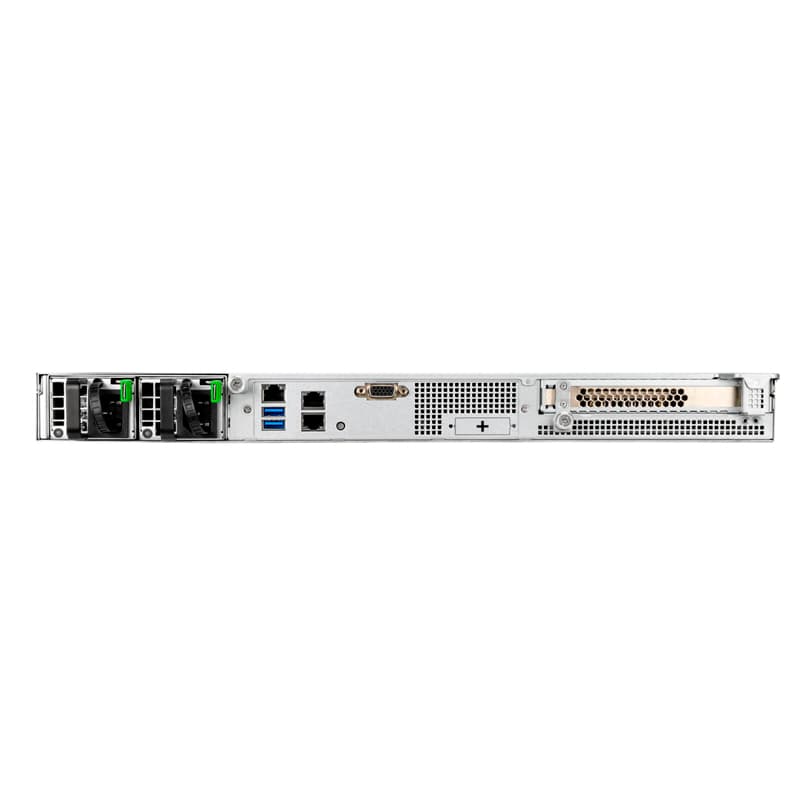

Детали конструкции InWin IW-RS108-07
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • Top layer: external 2.5" hot-swap trays (7mm) x 4 • Bottom layer: external 3.5"/2.5" hot-swap trays x 4 |
| Power Supply | Supports: • 750W 1U redundant PSU, 80 Plus Platinum |

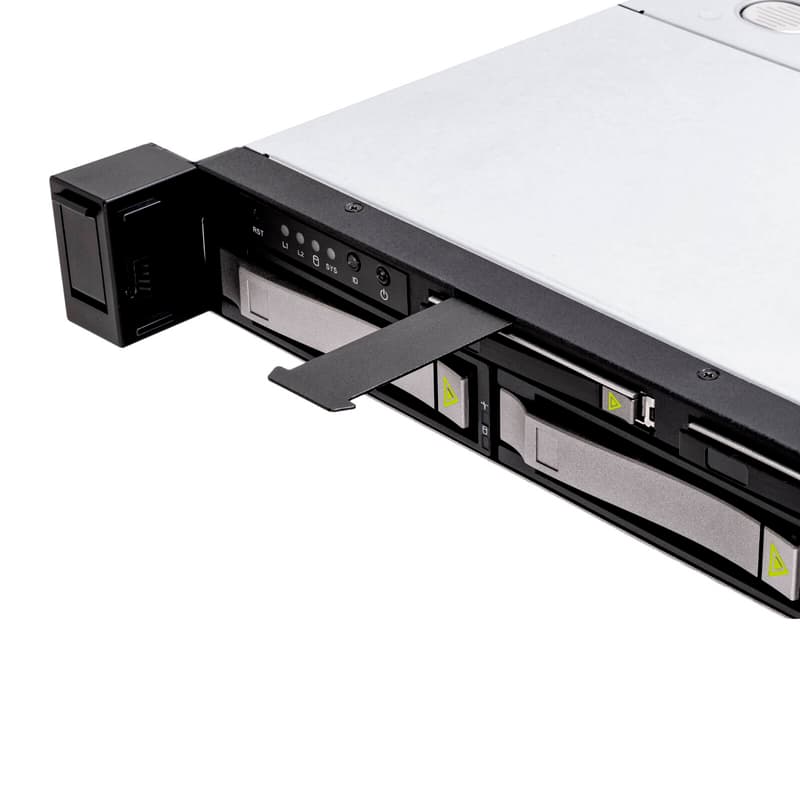

| Indicators | Power LED, LAN1/LAN2 LED, system LED, HDD LED, ID LED |
| Front Control Panel | Power on/off, system reset, NMI, ID SW |

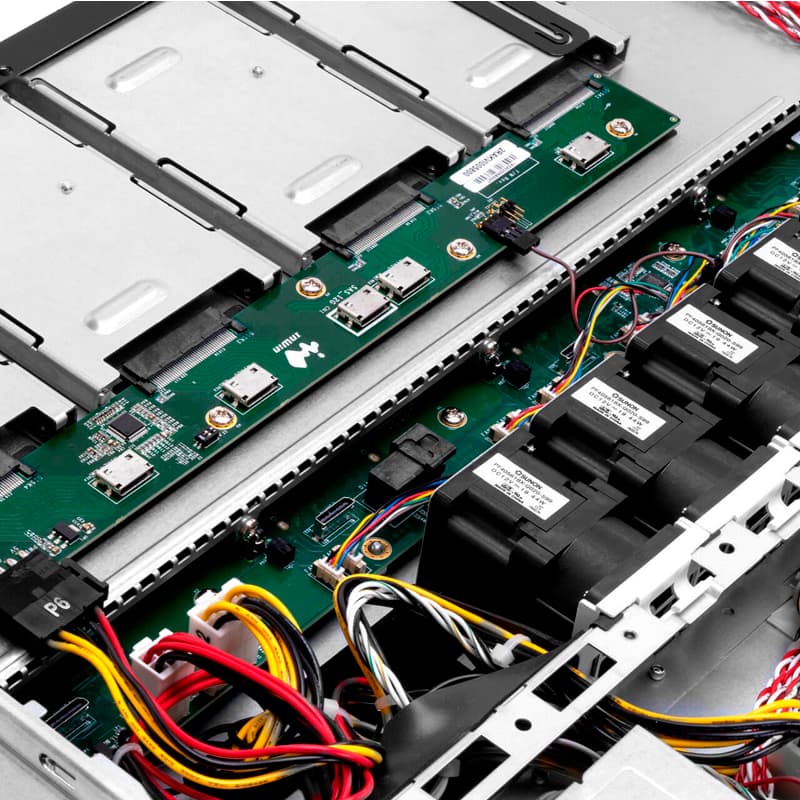

| Backplane- Top Layer | • Host: OCuLink (SFF-8611) x 5, one is for SAS/SATA data transfer rates • HDD: NVMe/SAS/SATA x 4 (2.5" 7mm) |
| Backplane- Bottom Layer | • Host: Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 4 • HDD: NVMe/SAS/SATA x 4 (3.5"/2.5" 15mm) |
| Cooling Fans | 40 x 56mm PWM easy-swap fans x 6, 21500RPM |

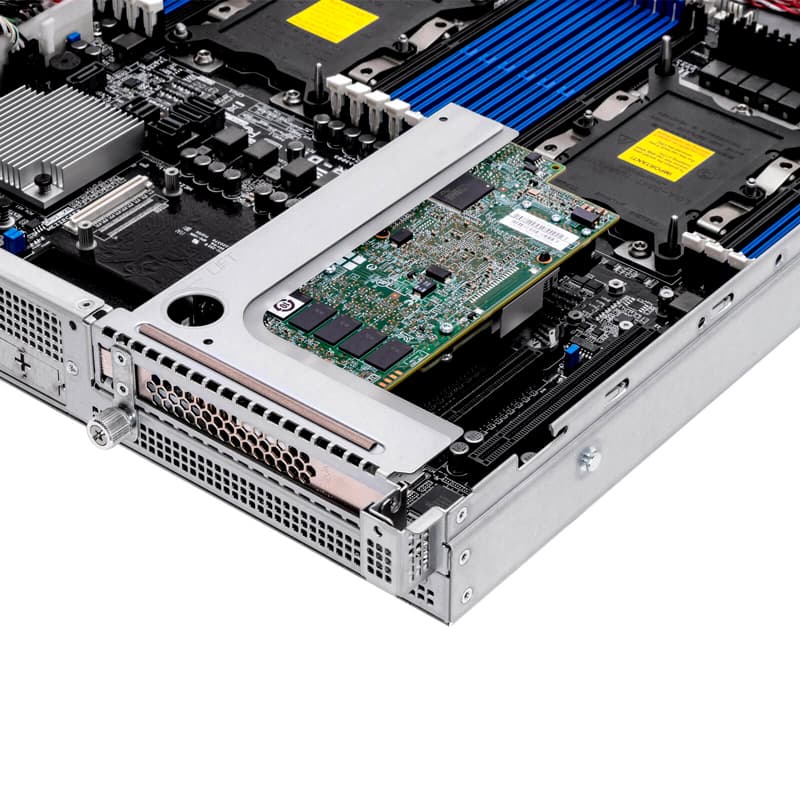

| Expansion Slot | Full-height PCIe slot x 1 (via riser card) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 676 x 438 x 43.5mm (26.6"x17.2"x1.7") |
| Package Dimensions (DxWxH) | 880 x 610 x 180mm |
| Weight (Chassis Only) | • Net weight: 8.5kg • Gross weight: 11.92kg |
| Cubic Feet | 3.41 |
| Container Information | Single packing with pallets: • 20': 200pcs • 40': 440pcs • 40'HQ: 528pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RS108-07 Gallery
zipIW-RS108-07 Compatibility List
pdfIW-RS108-07 User Manual
pdfIW-RS108-07 Top Layer Backplane User Manual
pdfIW-RS108-07 Bottom Layer Backplane User Manual
pdfOptional Items

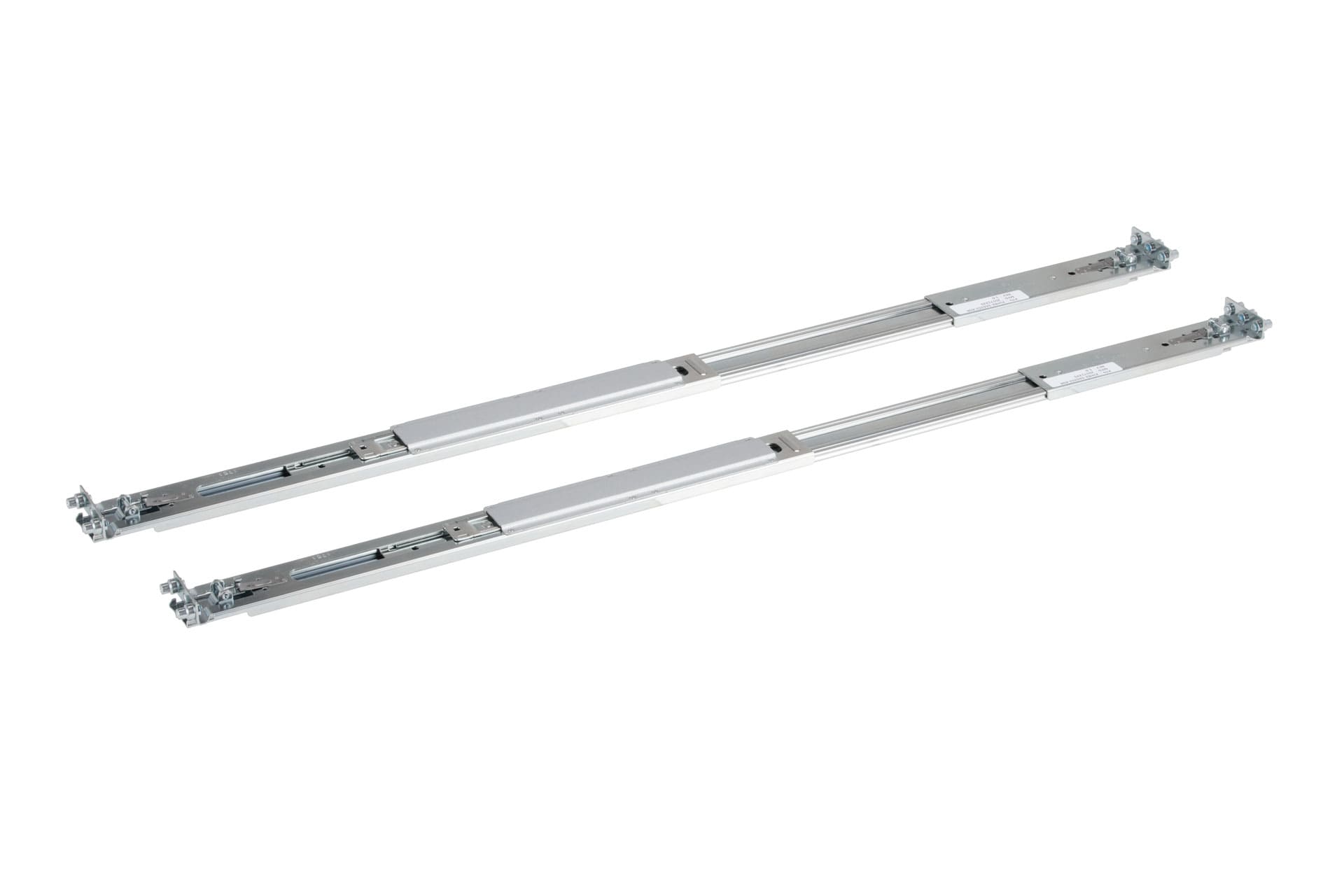

Slide Rail
3RAMIS148100
28" tool-less & ball-bearing slide rail
Support: 1 Set

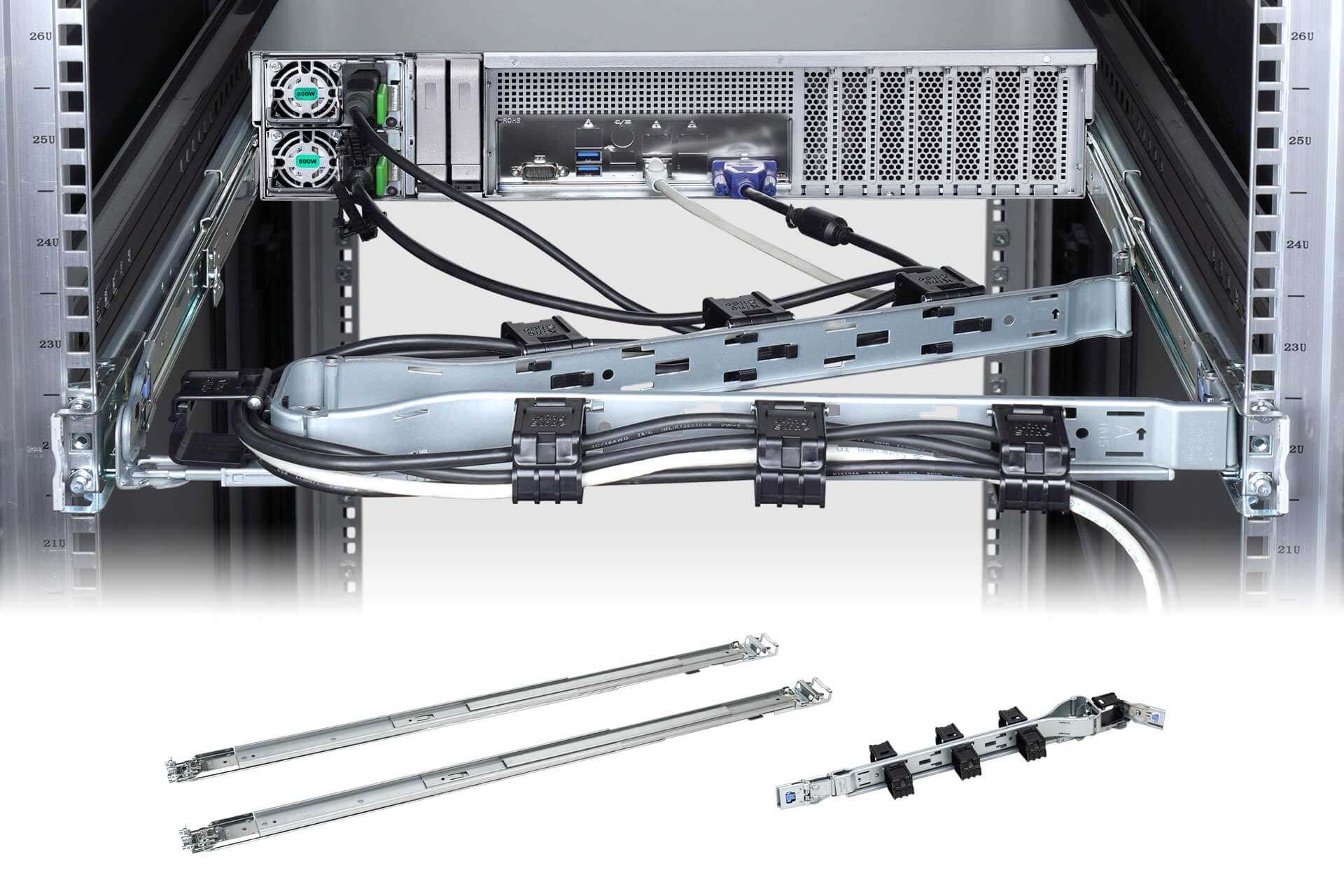

Slide Rail
3RAMIS152300/ 3RAMIS152400
28" tool-less & ball-bearing slide rail with CMA support
Support: 1 Set
Cable
3RAMW4031700

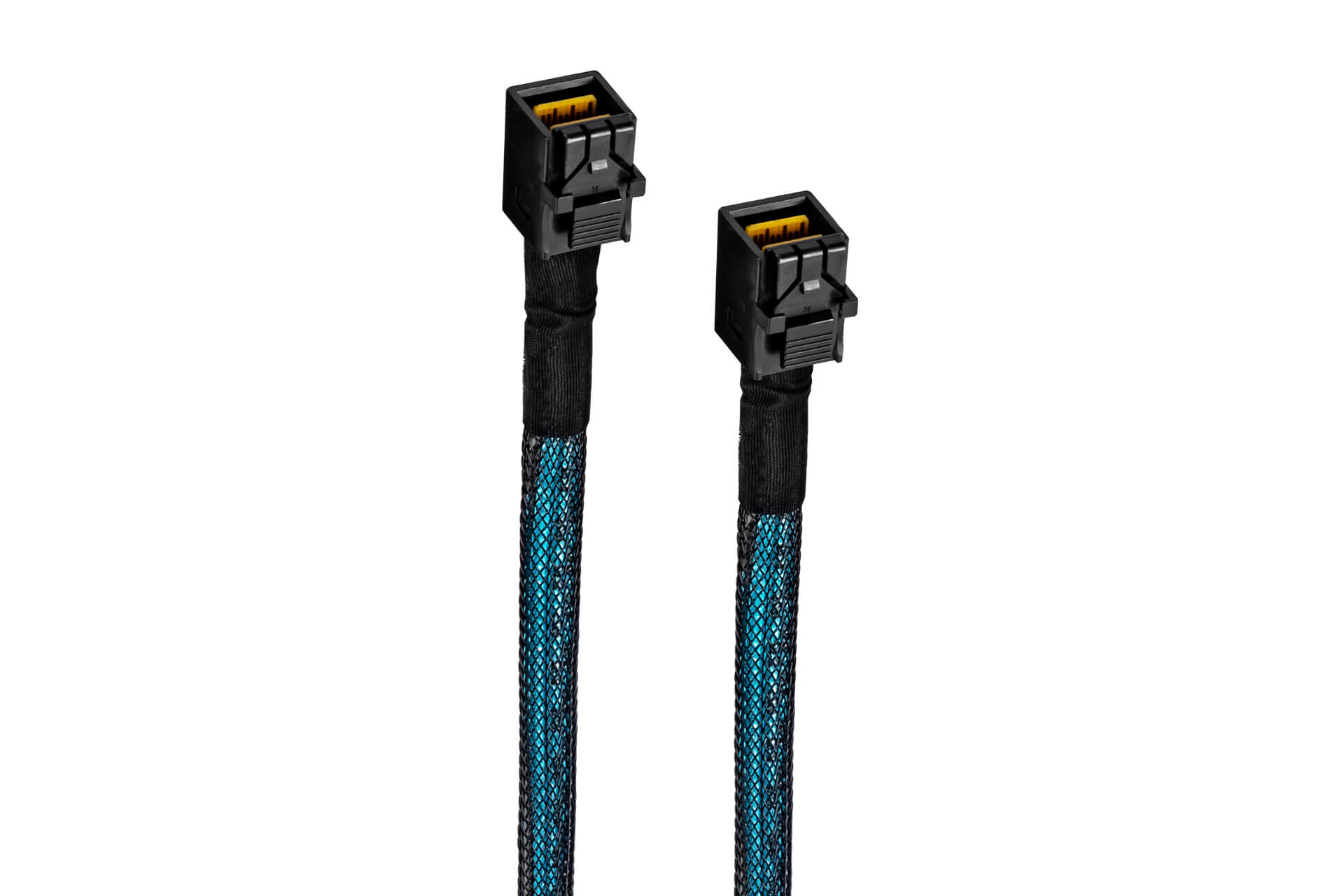

Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm
Support: 1
Cable
3RAMW4039700

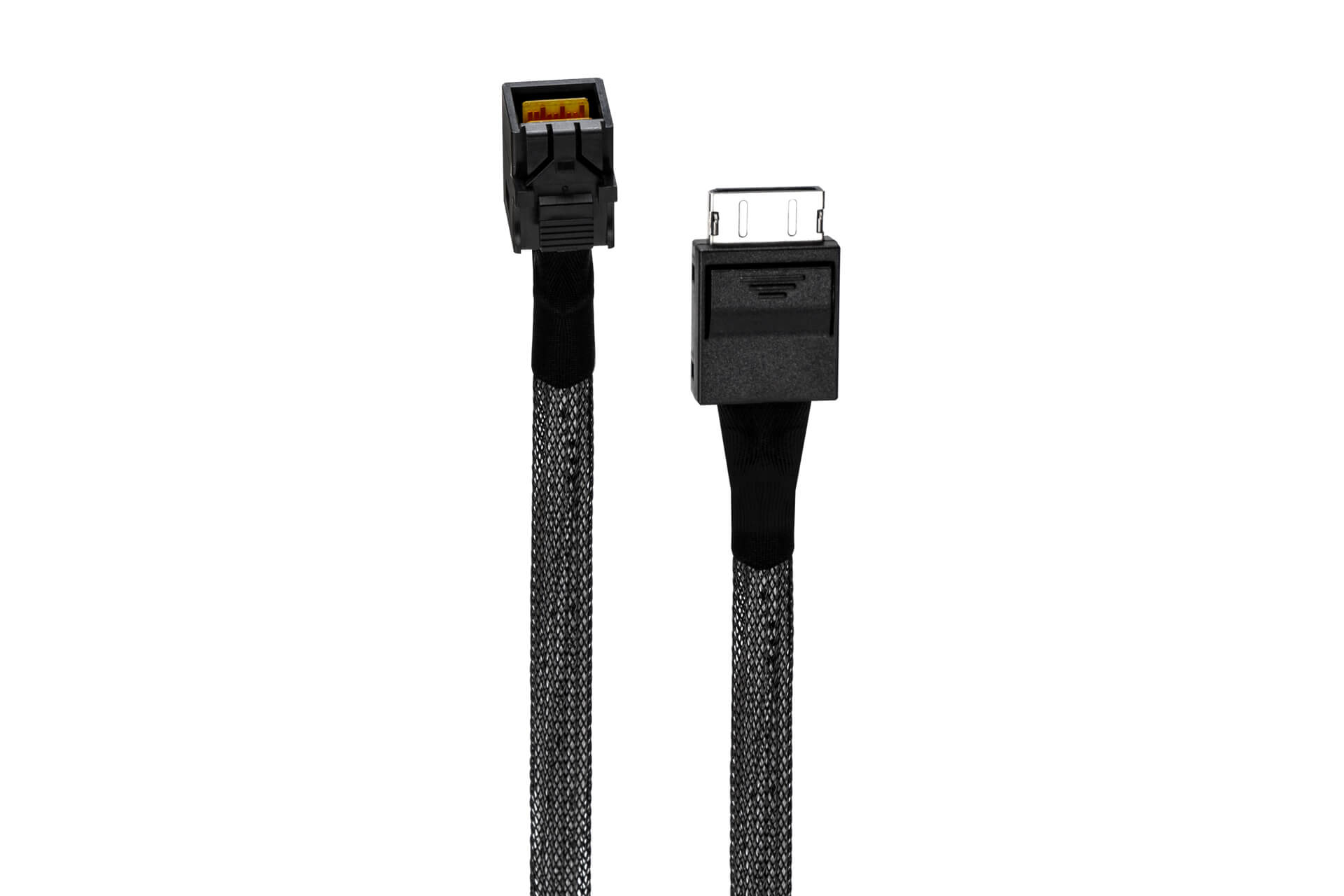

Mini-SAS HD 12Gbps (SFF-8643) to OCuLink (SFF-8611) Cable, 800 mm
Support: 1
Power Supply
3RAMAP042200

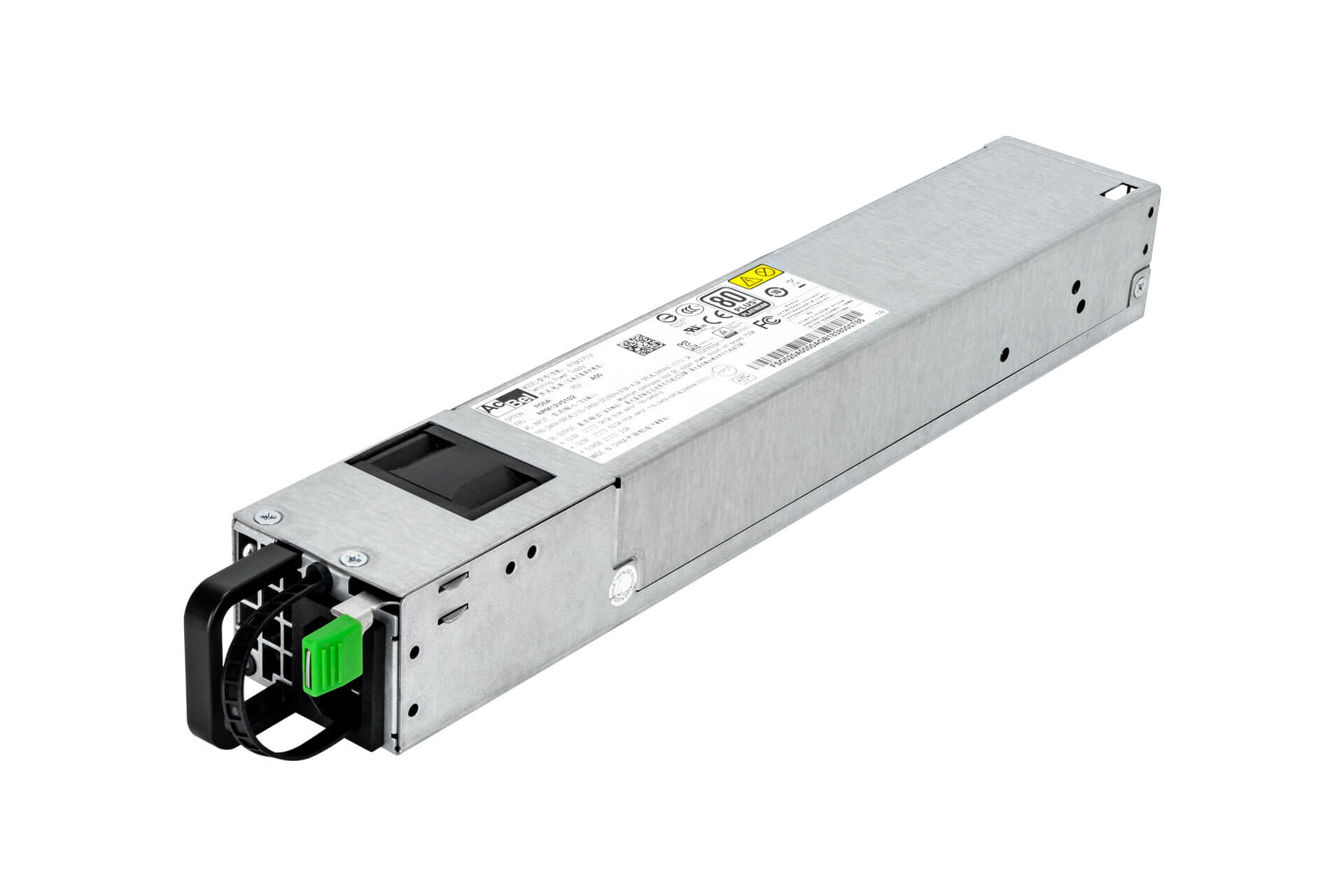

750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified
Support: Max. 2

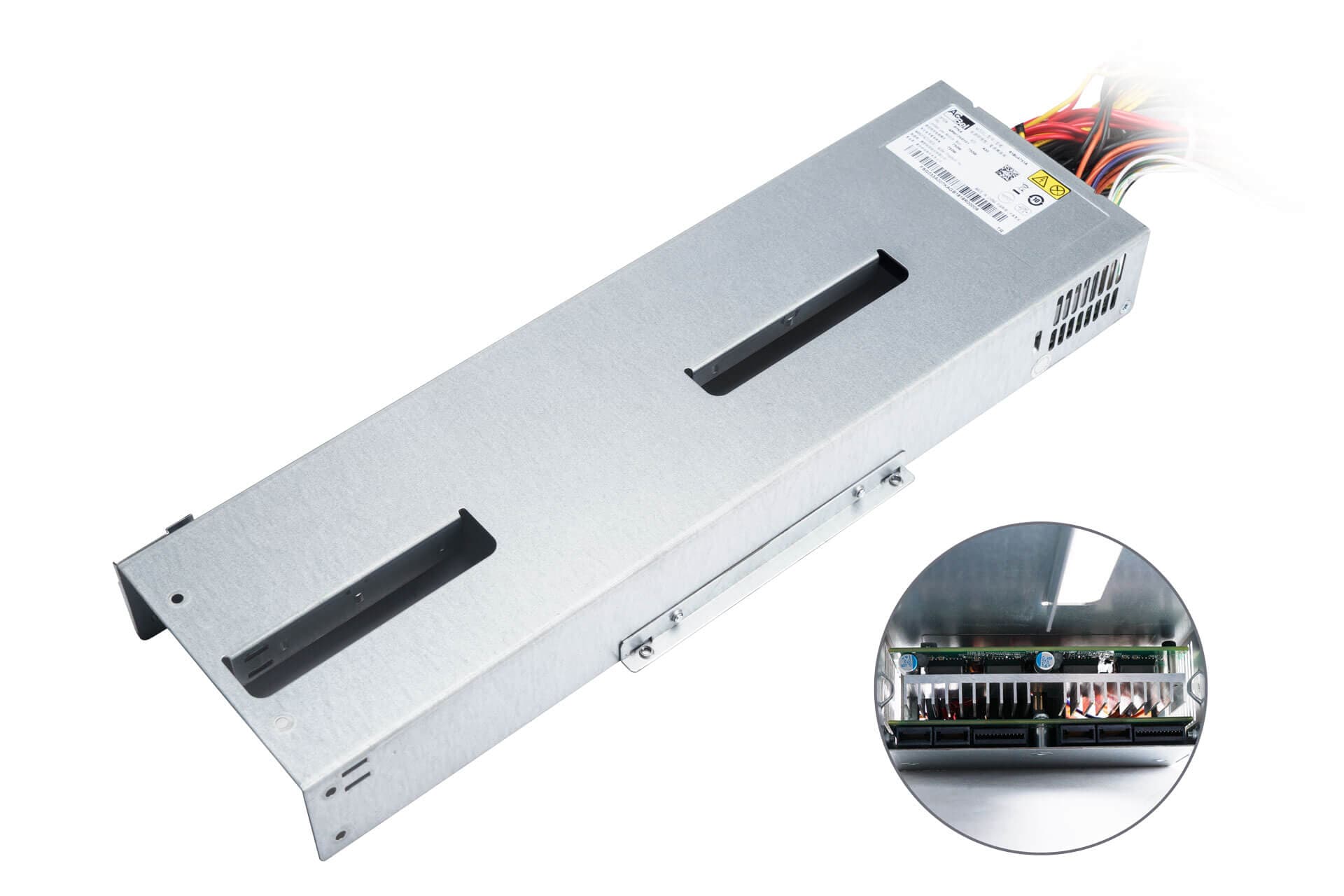

Power Supply
3RAMAP043000

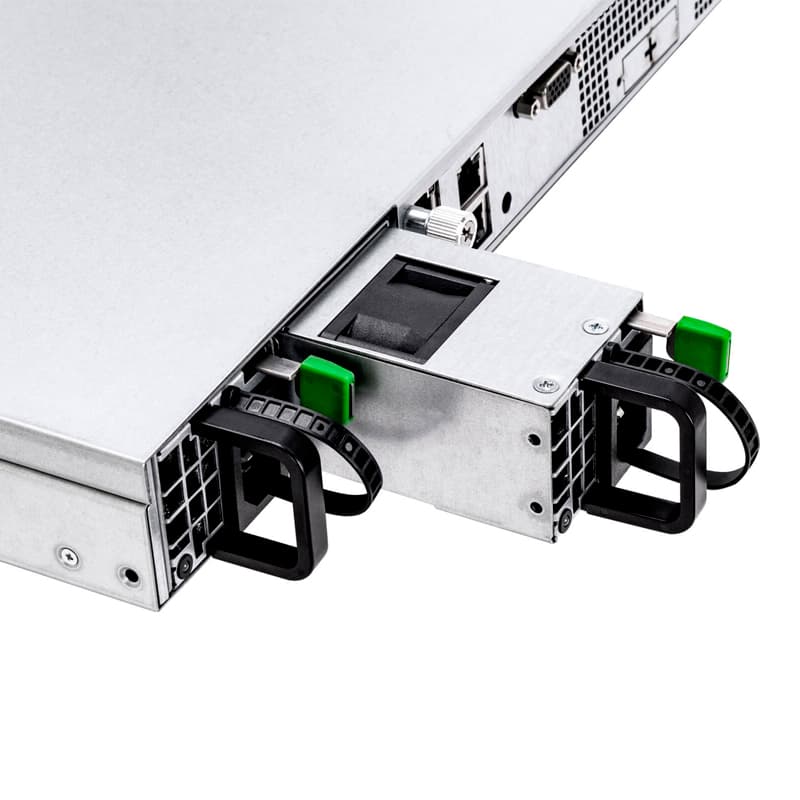

750W 1U redundant PDB power cage
Support: 1
HDD Tray
2RAKPH057702

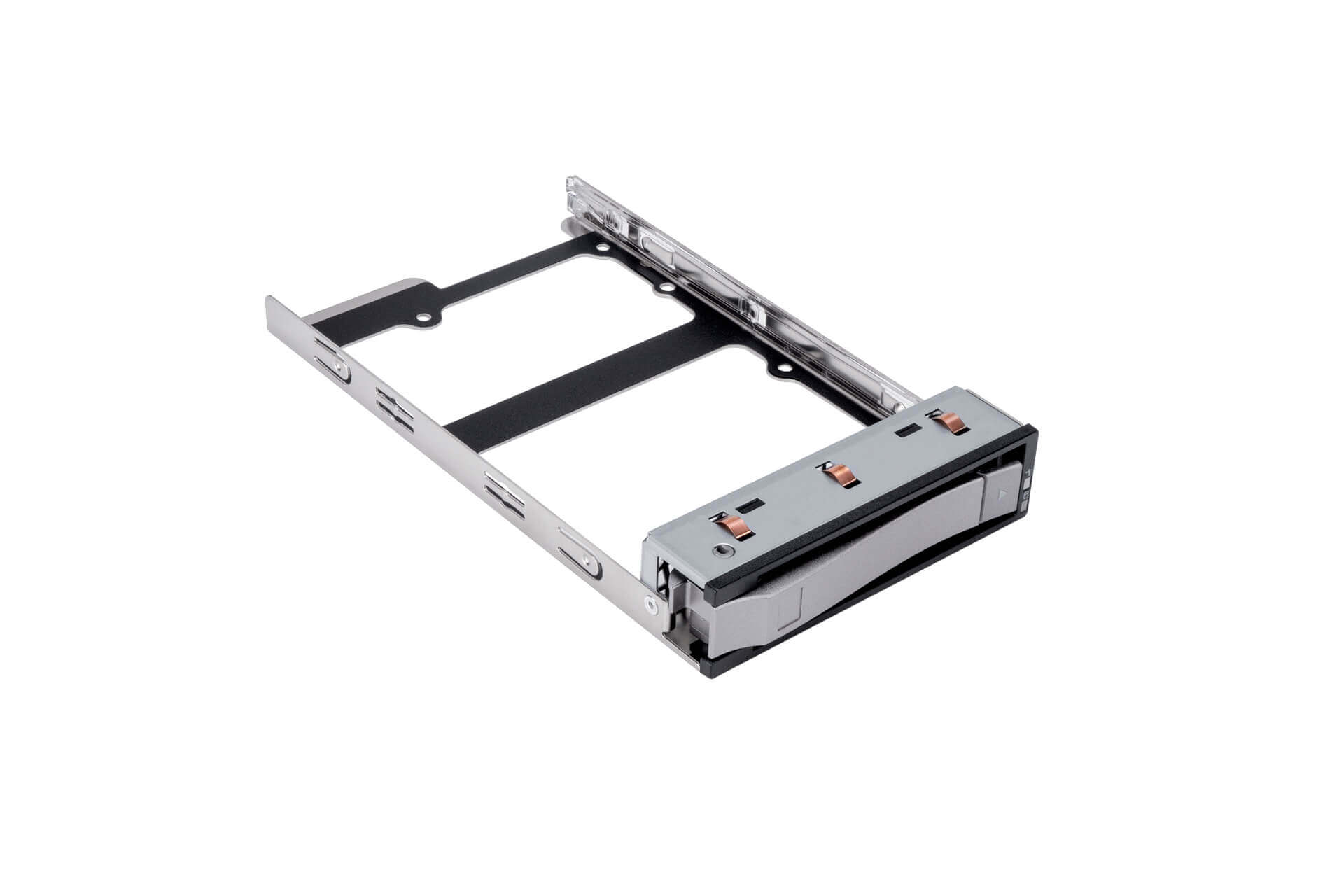

2.5"/3.5" hot-swap HDD tray (Gray color)
Support: Max. 4
HDD Tray
2RAKPH063701
2.5"/3.5" hot-swap HDD tray (Gray color with NVMe symbol)
Support: Max. 4
HDD Tray
2RAKPH063400
2.5" (7mm) hot-swap tray (Gray color)
Support: Max. 4

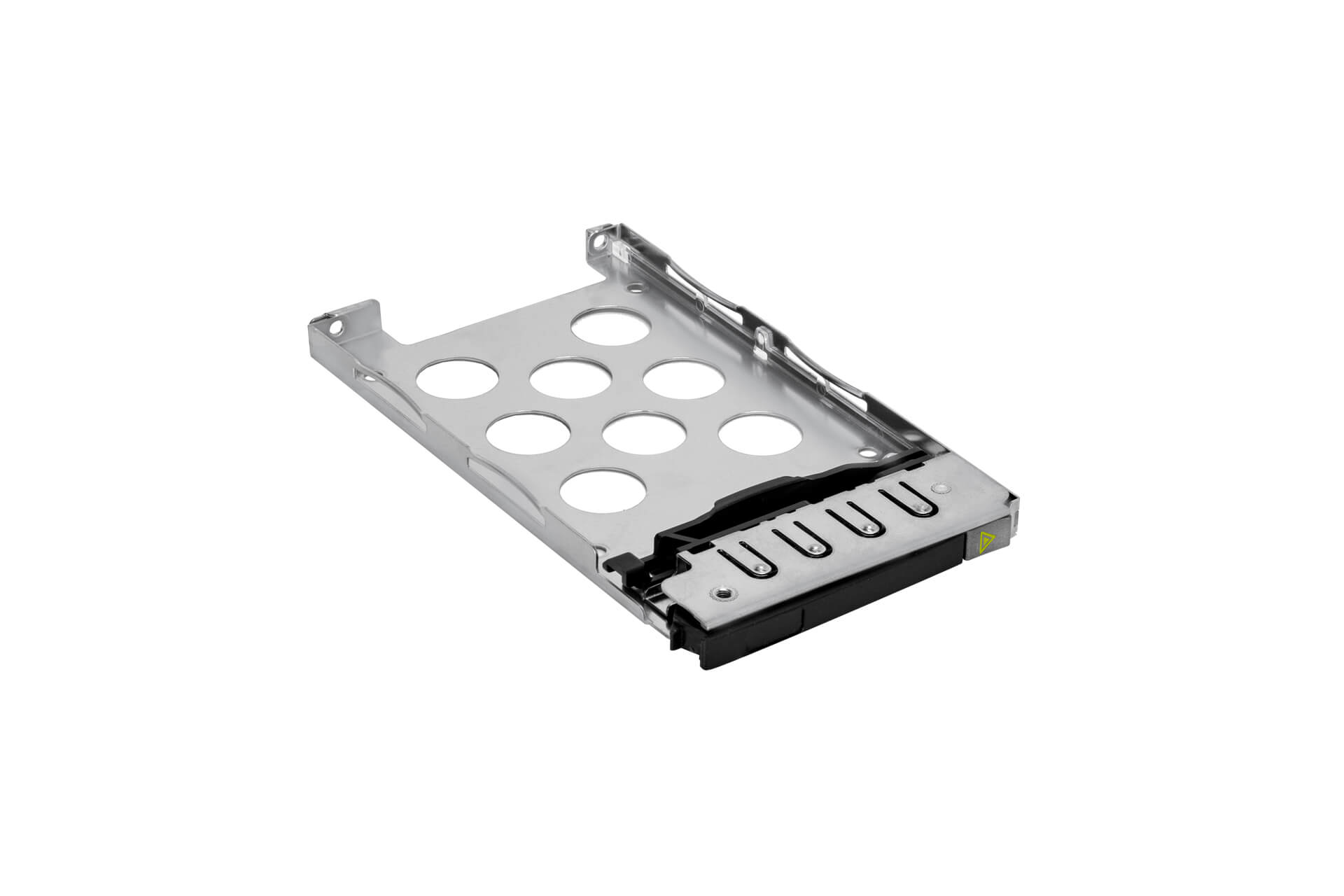

HDD Tray
2RAKPH063900
2.5" (7mm) hot-swap tray (Gray color with NVMe symbol)
Support: Max. 4

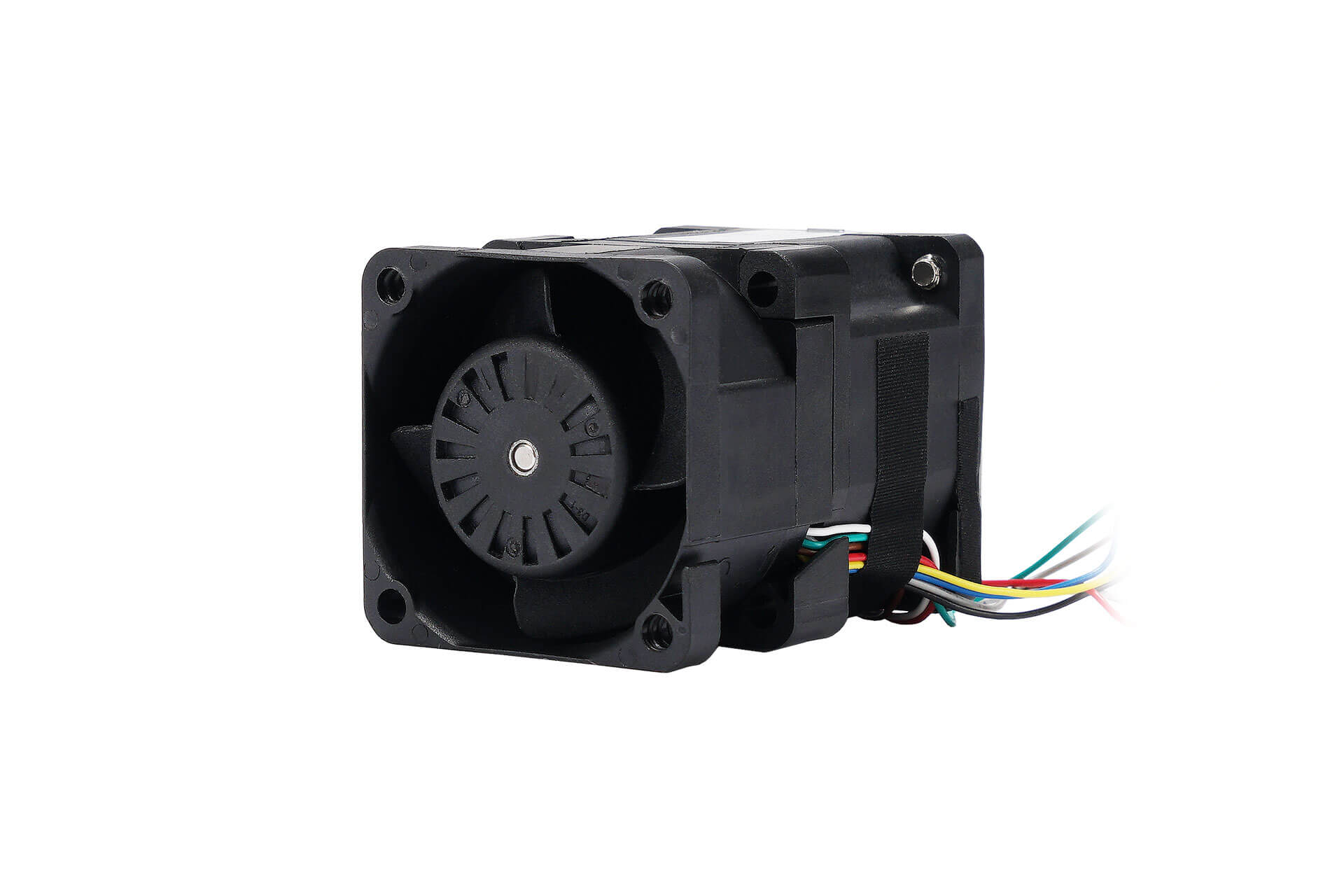

Fan
3RAMFB016400
40 x 56mm PWM easy-swap, 21500RPM, 4pin x 2
Support: Max.6

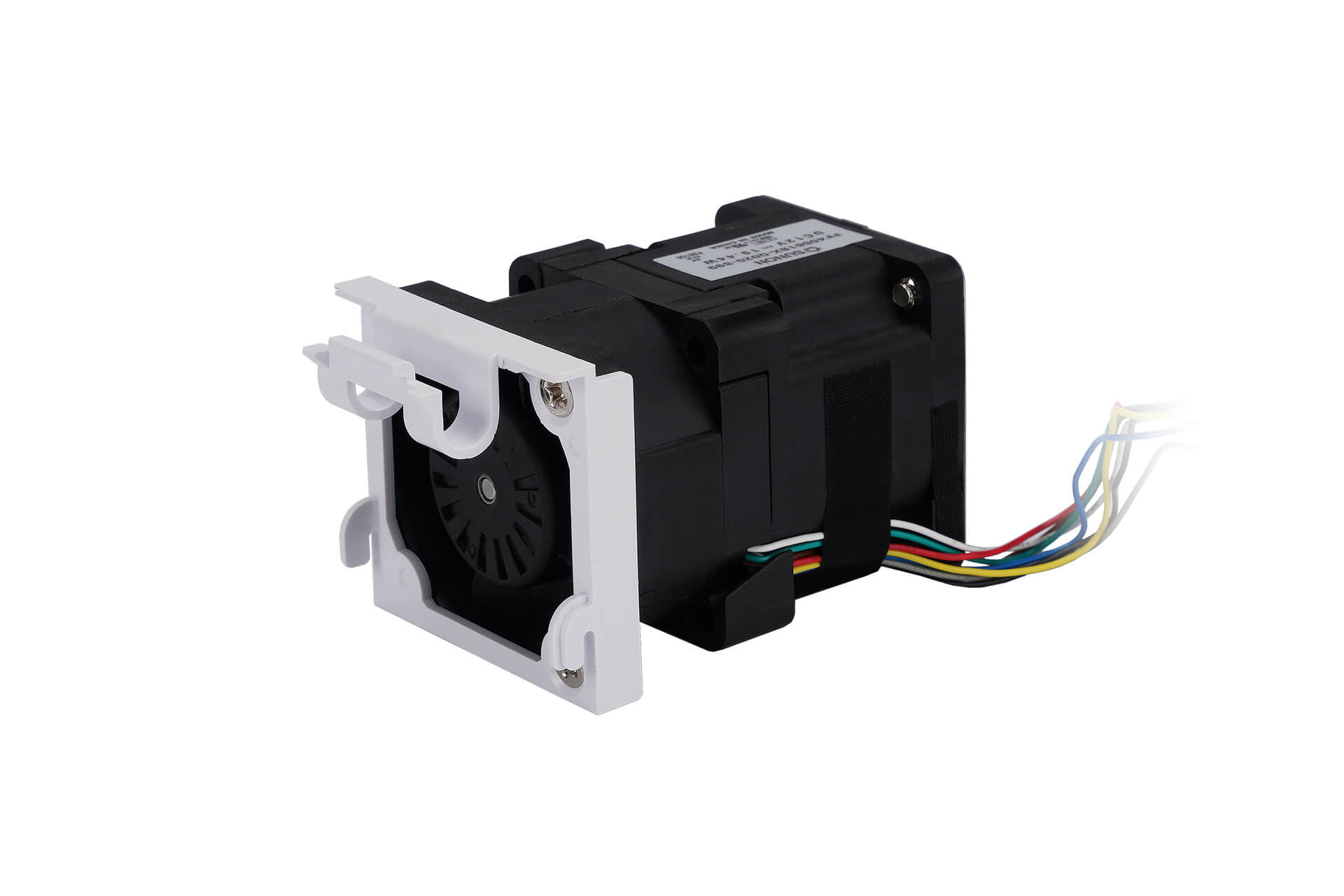

Fan
2RAKFB011800
40 x 56 mm PWM easy-swap fan & fan bracket, 21500RPM, 4pin x 2
Support: Max.6

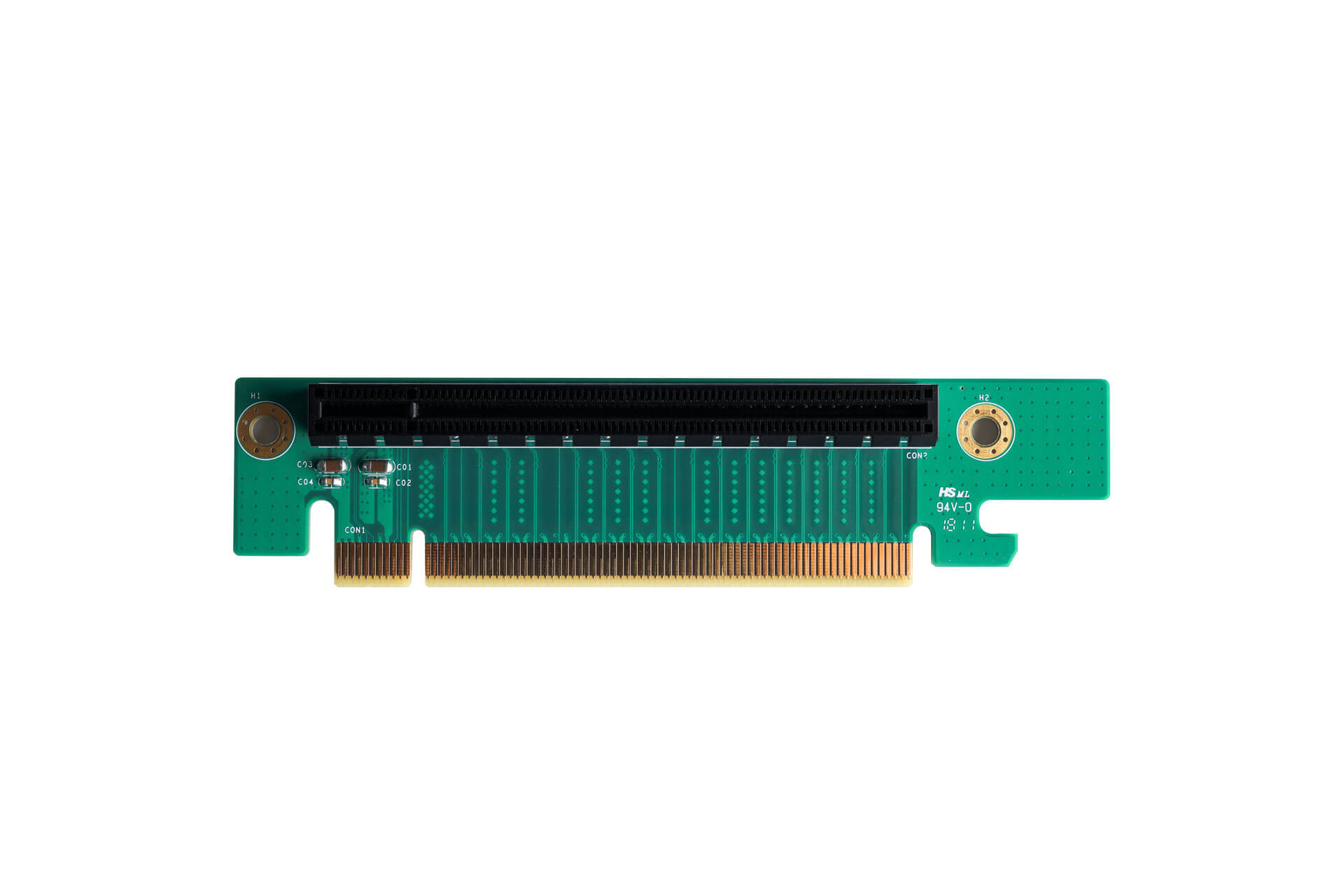

Riser Card
2RAKPD074000
PCIe Gen3 x16 riser card, left-facing 90 degree design
Support: 1

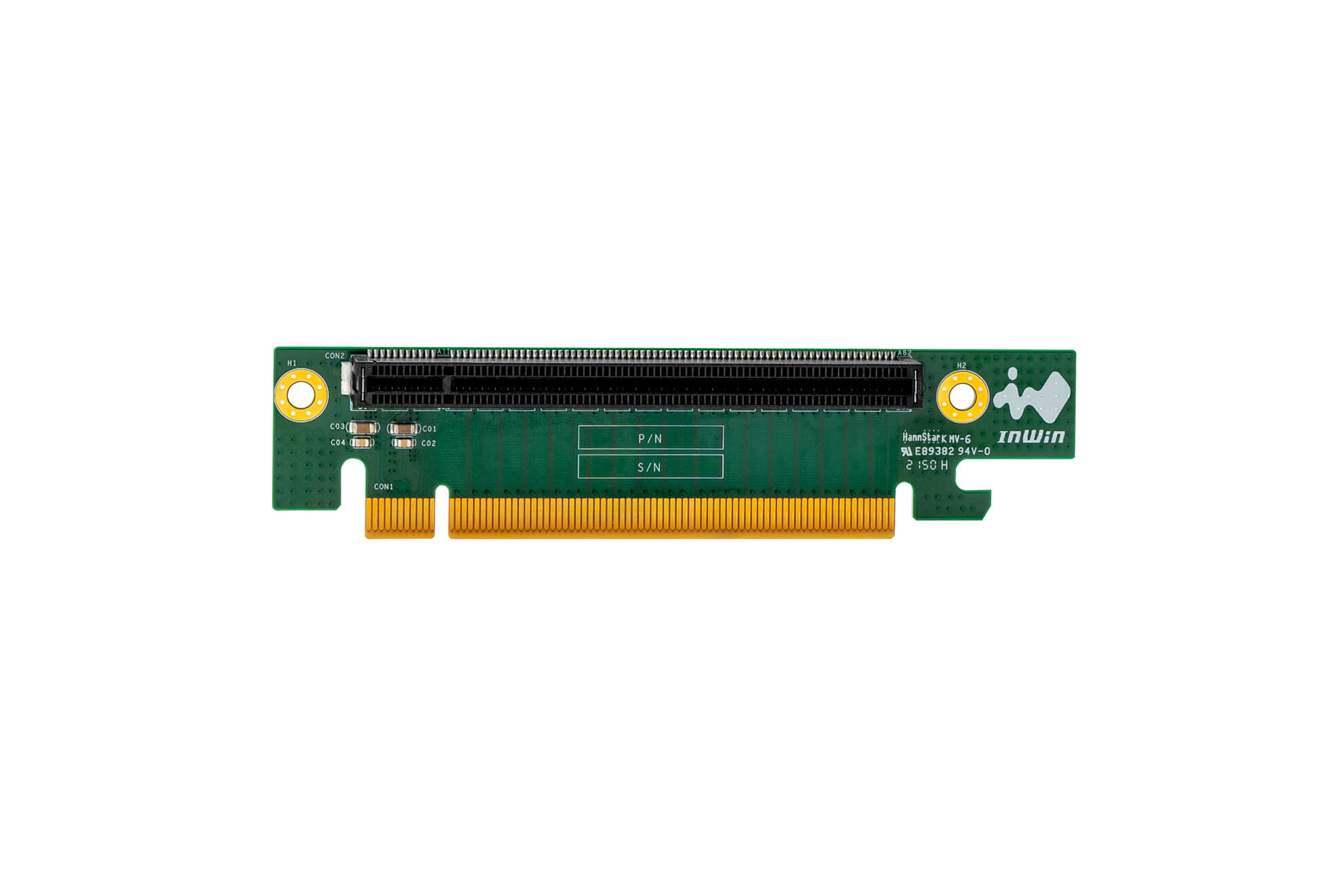

Riser Card
2RAKPD079901
PCIe Gen4 x16 riser card, left-facing 90 degree design
Support: 1

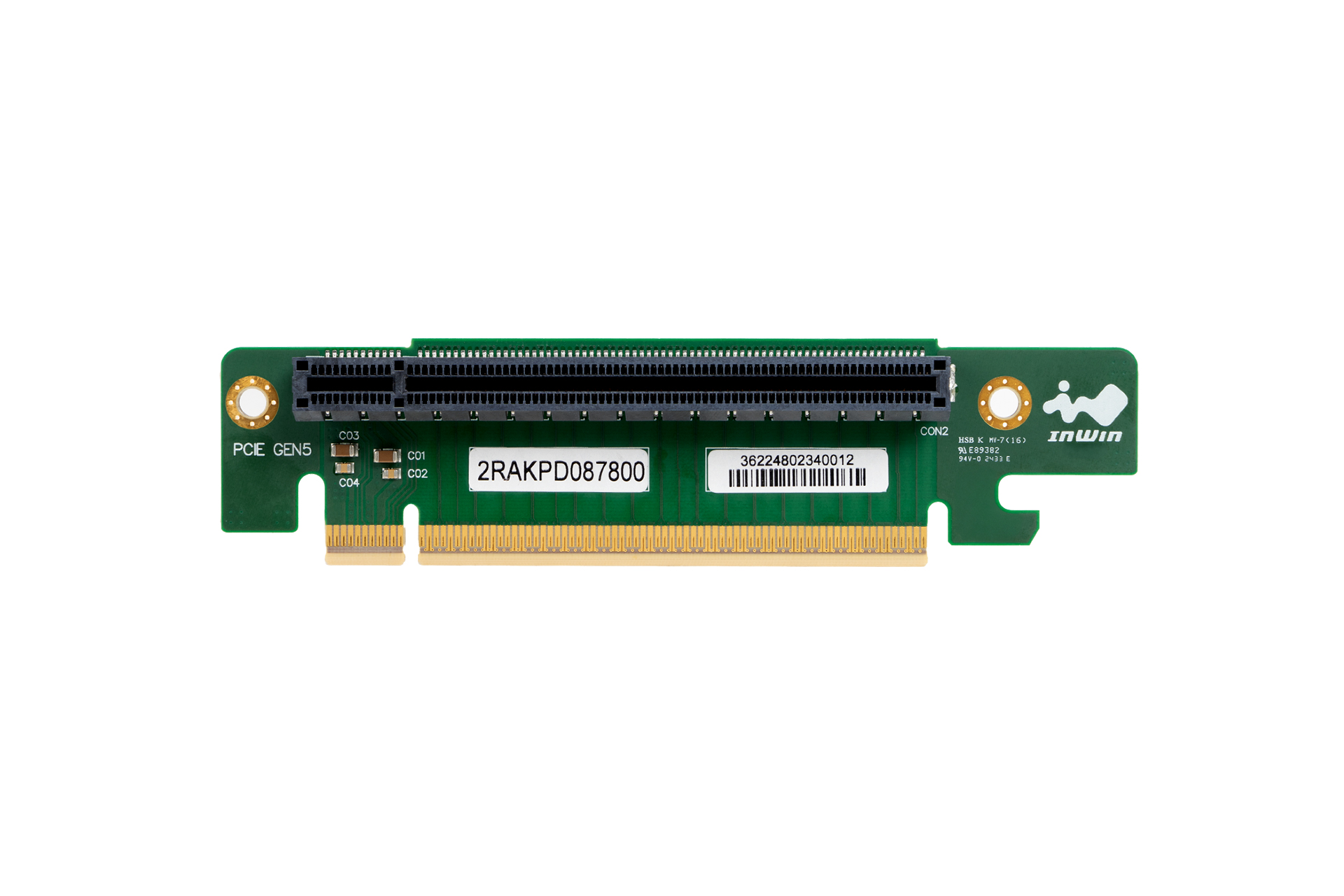

Riser Card
2RAKPD087800
PCIe Gen5 x16 riser card, left-facing 90 degree design
Support: 1
Riser Card
2RAKIS305000
PCIe Gen5 riser card bracket
Support: 1

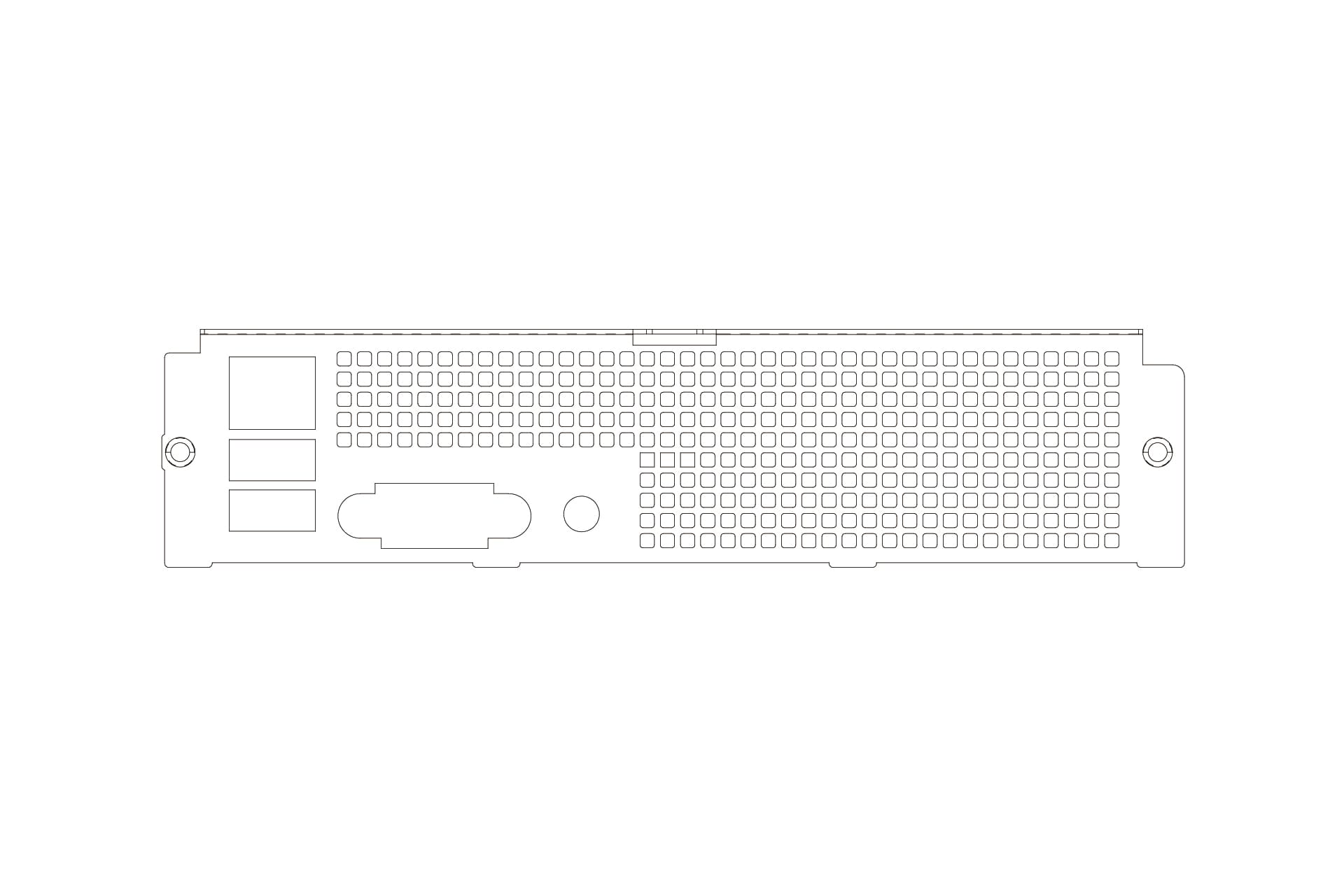

Back I/O Shield Plate
2RAKIQ020900
Rear I/O shield- ASRock EP2C624D16NM
Support: 1
Back I/O Shield Plate
2RAVIQ039500
Rear I/O shield- ASRock EP2C624D16NM w/Mezzing
Support: 1

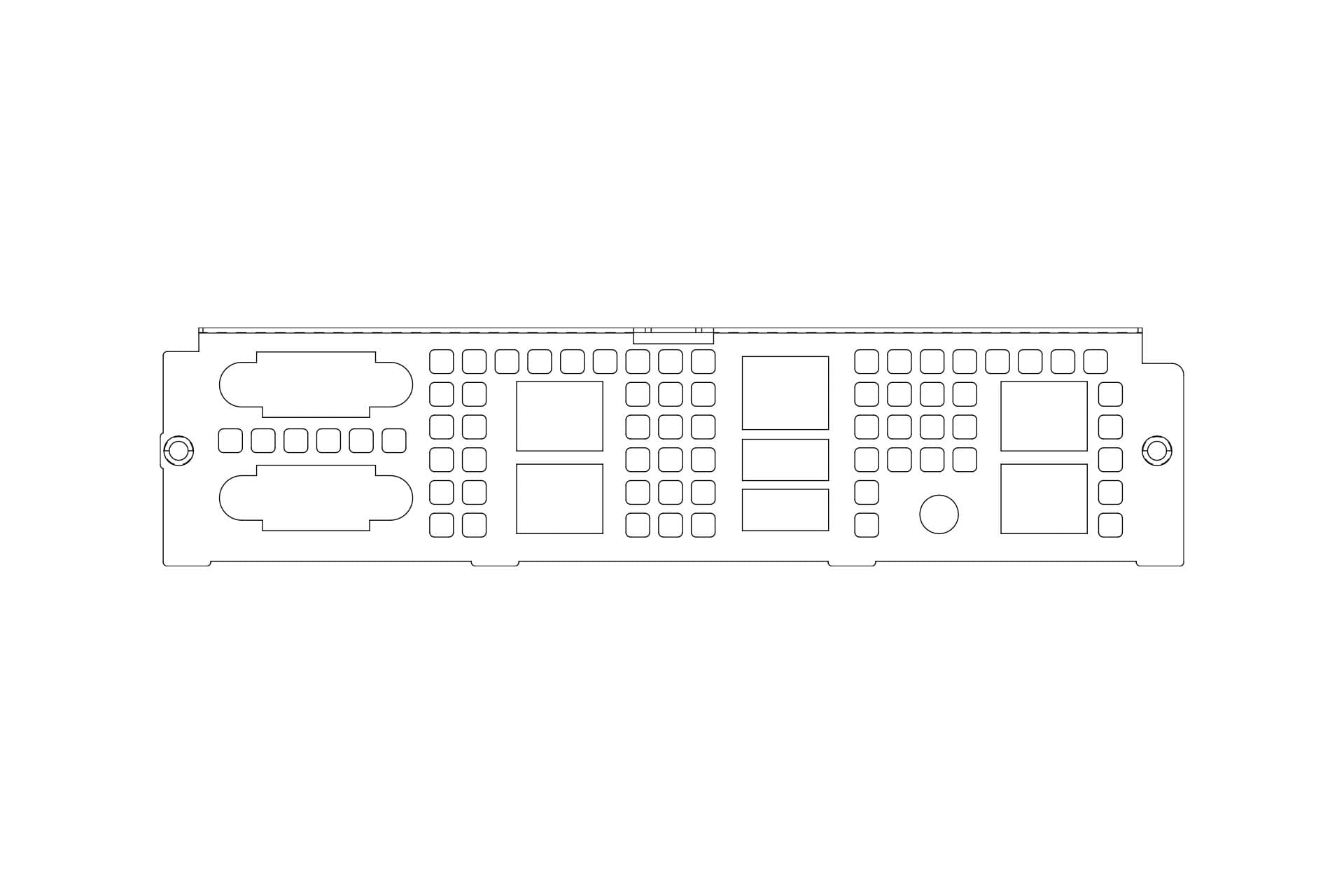

Back I/O Shield Plate
2RAVIQ051200
Rear I/O shield- ASRock EP2C612D16C-4L
Support: 1
Back I/O Shield Plate
2RAVIQ051300

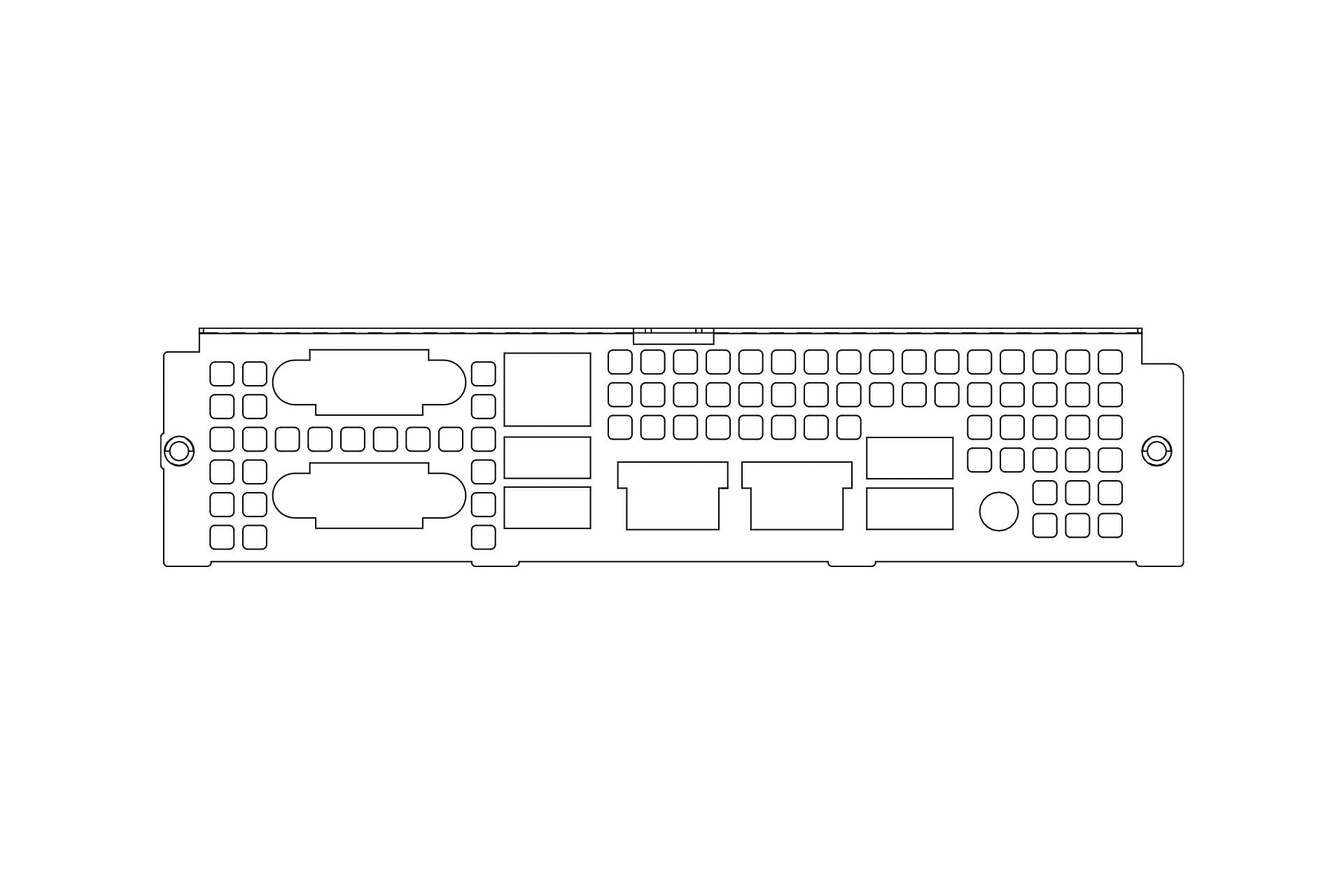

Rear I/O shield- ASRock EP2C622D16-2T
Support: 1

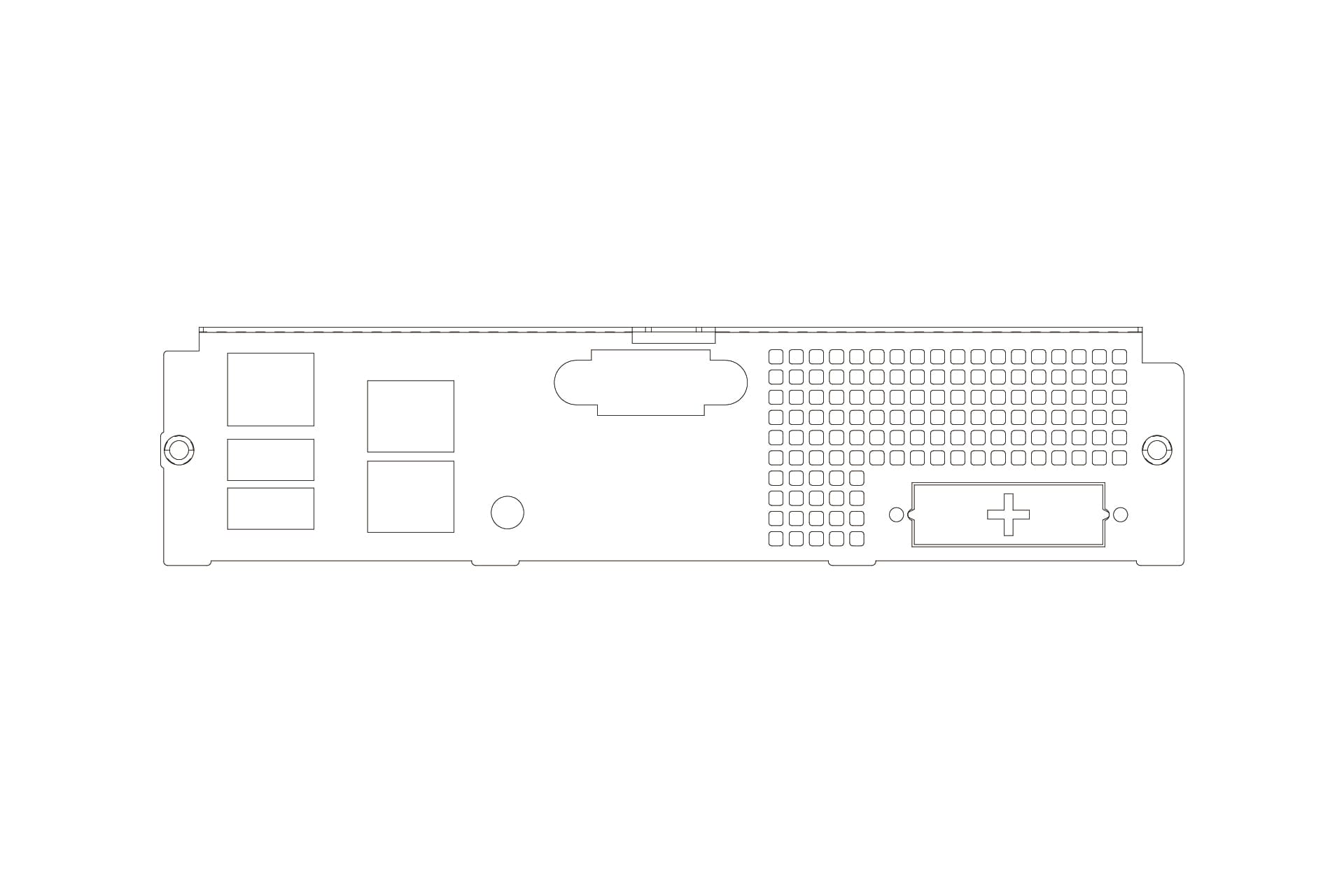

Back I/O Shield Plate
2RAKIQ020800
Rear I/O shield- ASUS Z11PR-D16
Support: 1

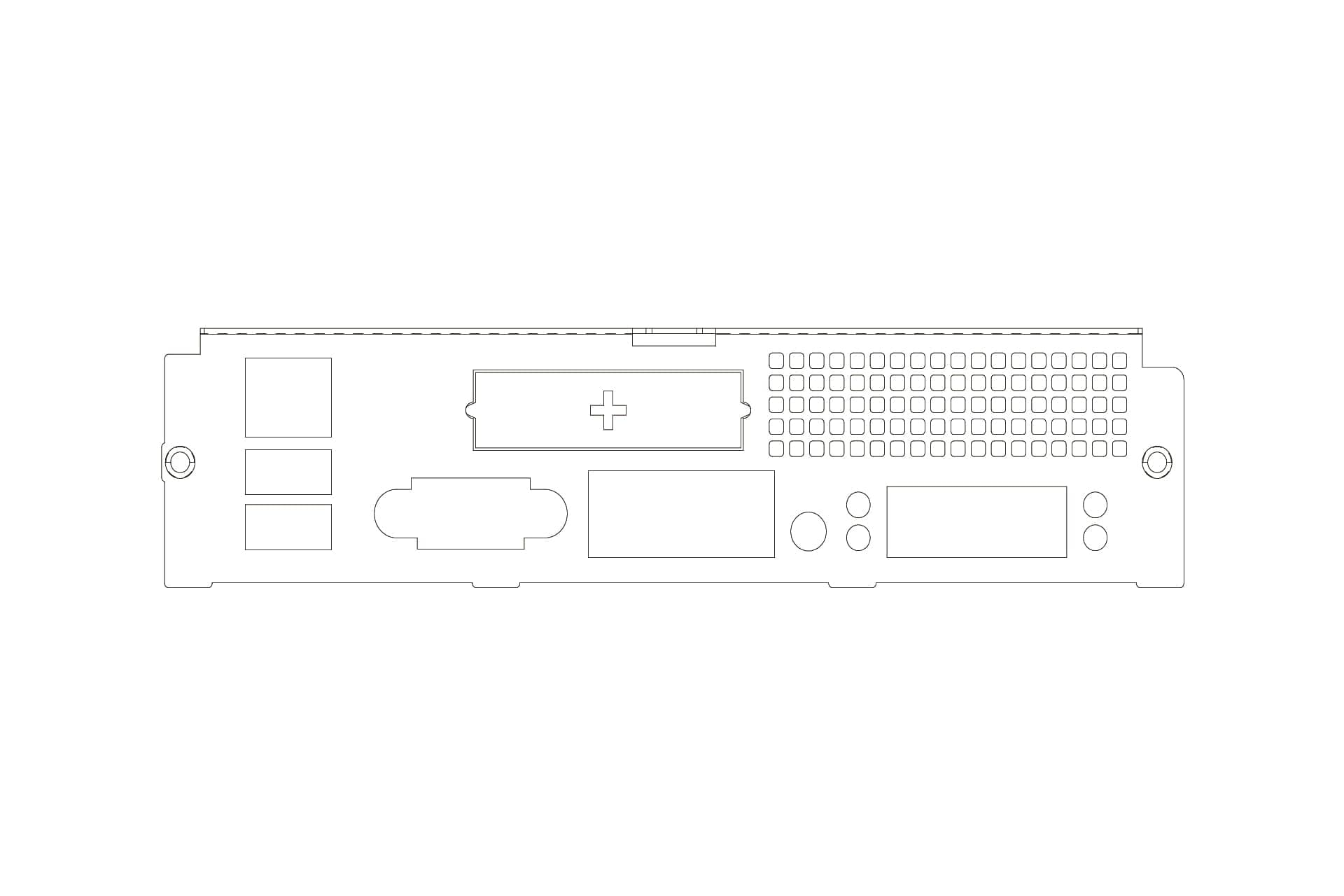

Back I/O Shield Plate
2RAKIQ021100
Rear I/O shield- Gigabyte MD61-SC2
Support: 1
Back I/O Shield Plate
2RAKIQ021000

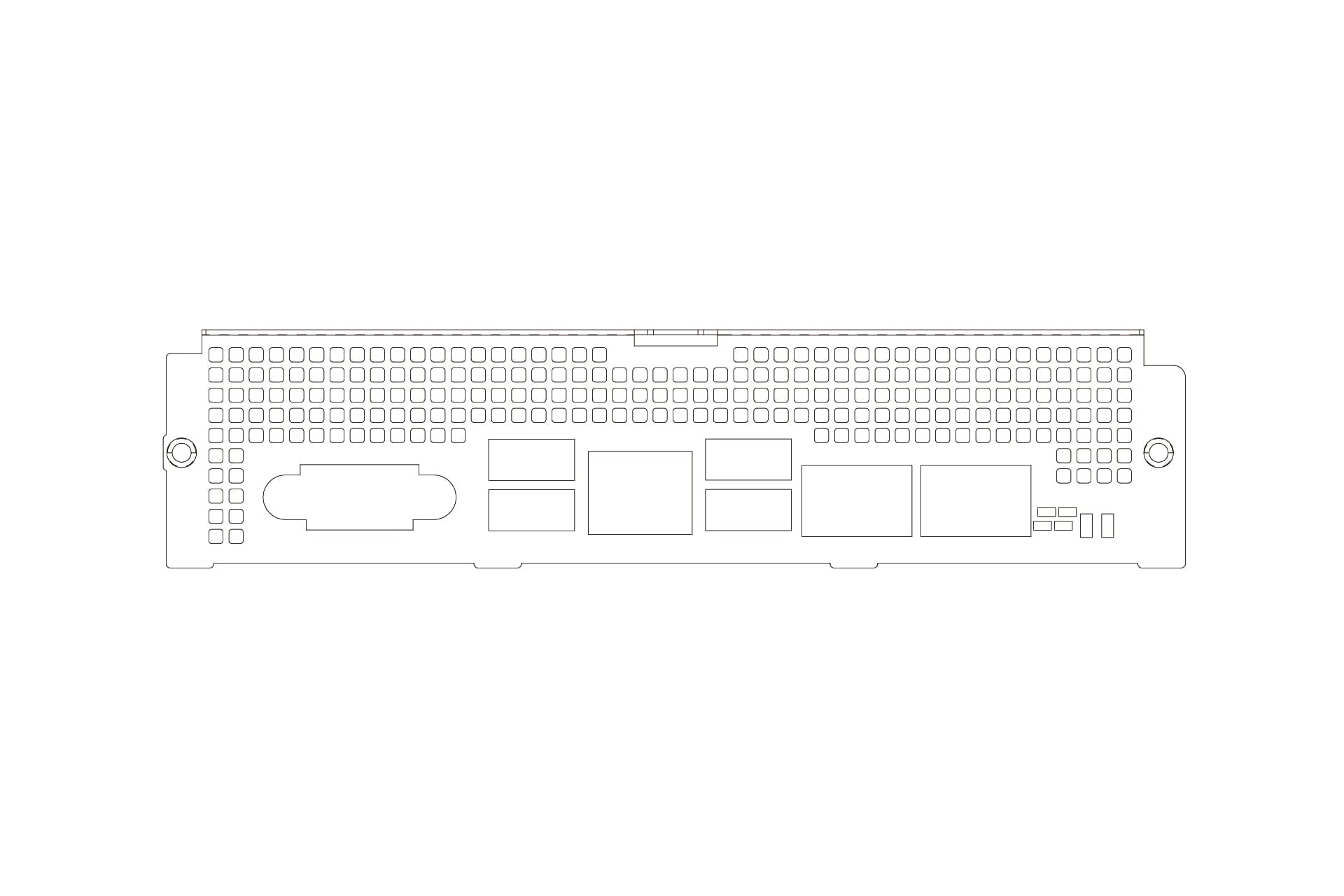

Rear I/O shield- Intel H28527 S2600CW2R
Support: 1

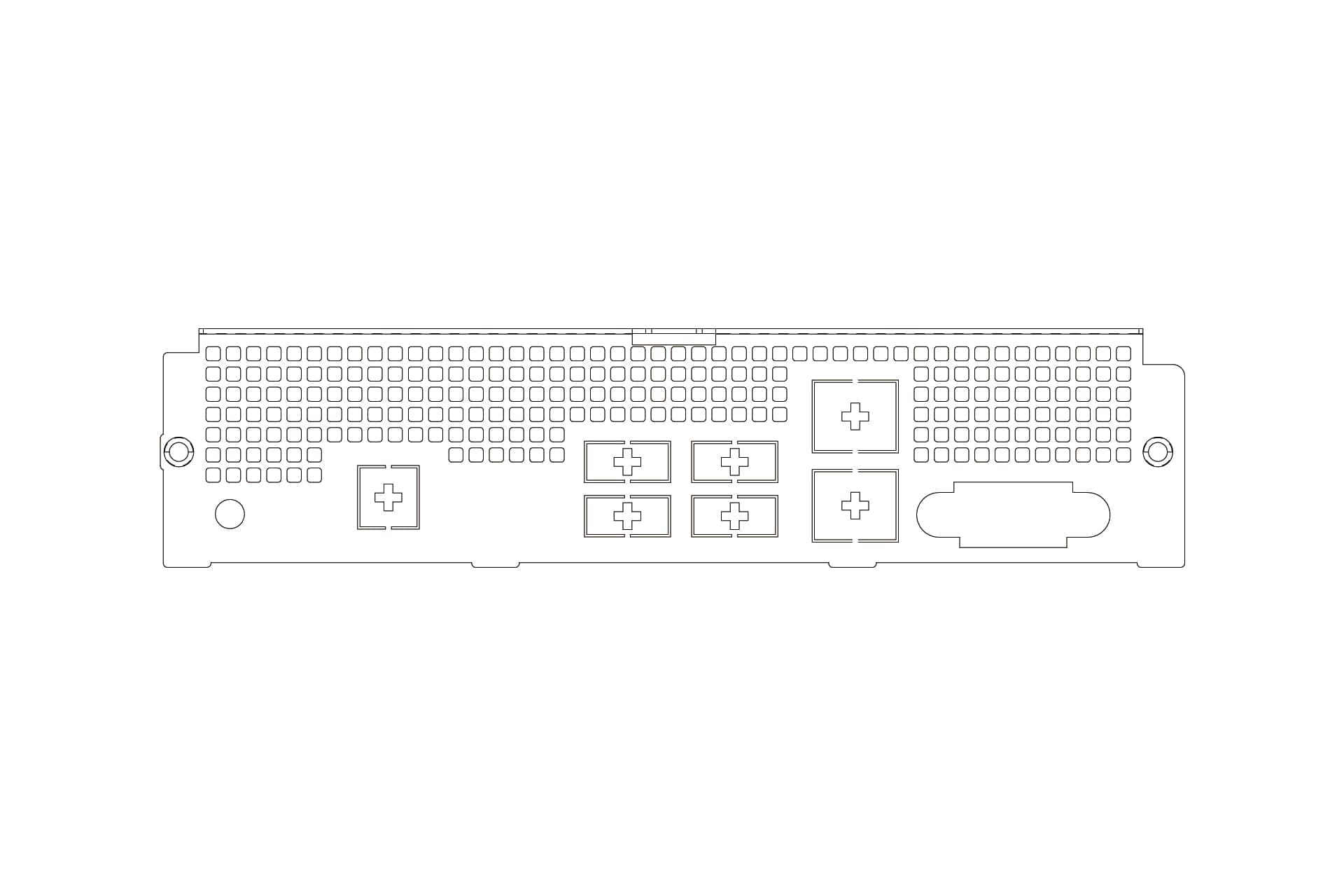

Back I/O Shield Plate
2RAKIQ021200
Rear I/O shield- Tyan S7100AG2NR
Support: 1
Back I/O Shield Plate
-
InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers’ specific I/O configuration requirements.
Support: 1
Others
2RAKIP012002

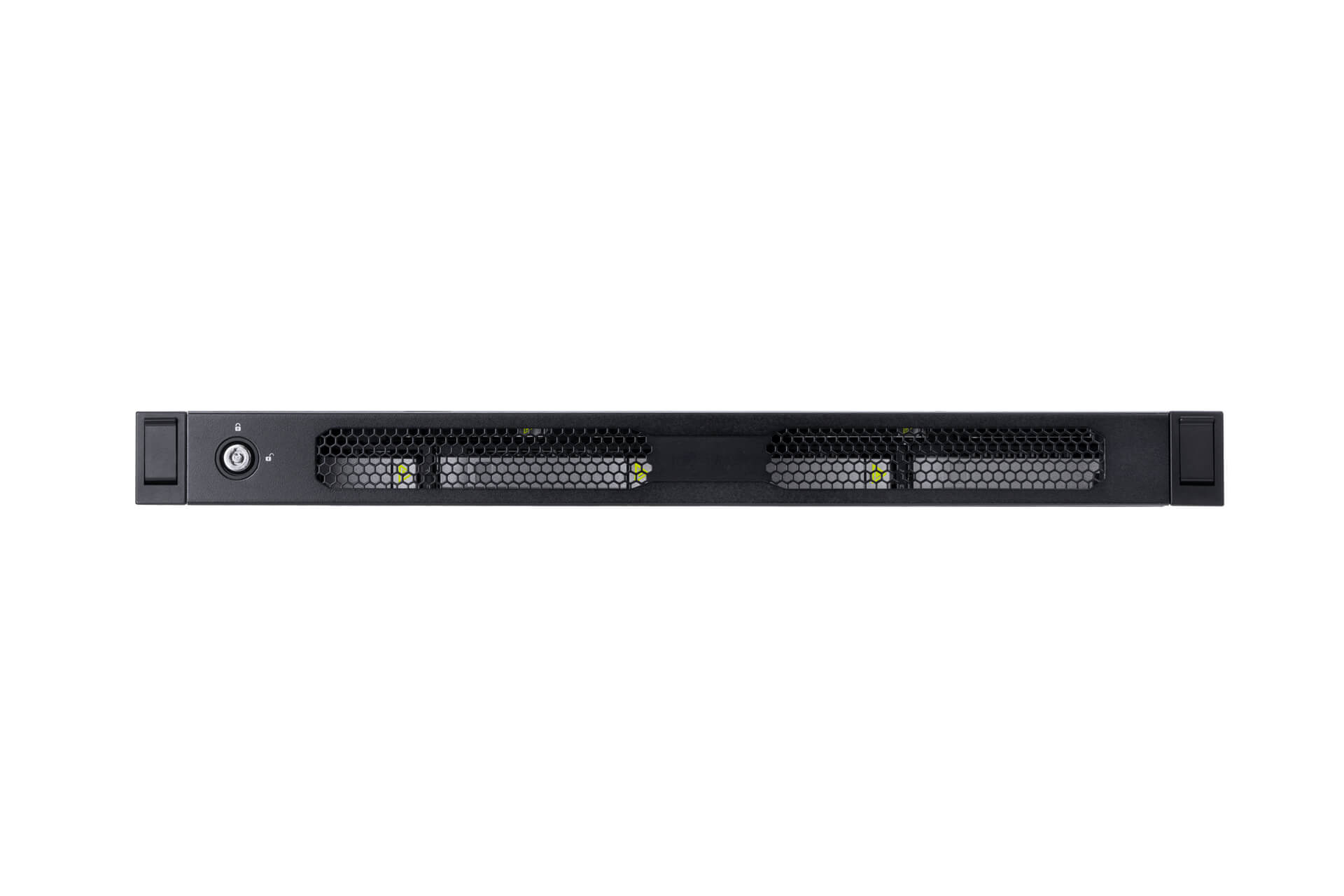

Mesh front panel
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 Set | |
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 Set | |
| Cable | 3RAMW4031700 | Mini-SAS HD 12Gbps (SFF-8643) to Mini-SAS HD (SFF-8643) Cable, 800 mm | 1 | |
| Cable | 3RAMW4039700 | Mini-SAS HD 12Gbps (SFF-8643) to OCuLink (SFF-8611) Cable, 800 mm | 1 | |
| Power Supply | 3RAMAP042200 | 750W 1U redundant module, 80 Plus Platinum, IEC 62368-1 certified | Max. 2 | |
| Power Supply | 3RAMAP043000 | 750W 1U redundant PDB power cage | 1 | |
| HDD Tray | 2RAKPH057702 | 2.5"/3.5" hot-swap HDD tray (Gray color) | Max. 4 | |
| HDD Tray | 2RAKPH063701 | 2.5"/3.5" hot-swap HDD tray (Gray color with NVMe symbol) | Max. 4 | |
| HDD Tray | 2RAKPH063400 | 2.5" (7mm) hot-swap tray (Gray color) | Max. 4 | |
| HDD Tray | 2RAKPH063900 | 2.5" (7mm) hot-swap tray (Gray color with NVMe symbol) | Max. 4 | |
| Fan | 3RAMFB016400 | 40 x 56mm PWM easy-swap, 21500RPM, 4pin x 2 | Max.6 | |
| Fan | 2RAKFB011800 | 40 x 56 mm PWM easy-swap fan & fan bracket, 21500RPM, 4pin x 2 | Max.6 | |
| Riser Card | 2RAKPD074000 | PCIe Gen3 x16 riser card, left-facing 90 degree design | 1 | |
| Riser Card | 2RAKPD079901 | PCIe Gen4 x16 riser card, left-facing 90 degree design | 1 | |
| Riser Card | 2RAKPD087800 | PCIe Gen5 x16 riser card, left-facing 90 degree design | 1 | |
| Riser Card | 2RAKIS305000 | PCIe Gen5 riser card bracket | 1 | |
| Back I/O Shield Plate | 2RAKIQ020900 | Rear I/O shield- ASRock EP2C624D16NM | 1 | |
| Back I/O Shield Plate | 2RAVIQ039500 | Rear I/O shield- ASRock EP2C624D16NM w/Mezzing | 1 | |
| Back I/O Shield Plate | 2RAVIQ051200 | Rear I/O shield- ASRock EP2C612D16C-4L | 1 | |
| Back I/O Shield Plate | 2RAVIQ051300 | Rear I/O shield- ASRock EP2C622D16-2T | 1 | |
| Back I/O Shield Plate | 2RAKIQ020800 | Rear I/O shield- ASUS Z11PR-D16 | 1 | |
| Back I/O Shield Plate | 2RAKIQ021100 | Rear I/O shield- Gigabyte MD61-SC2 | 1 | |

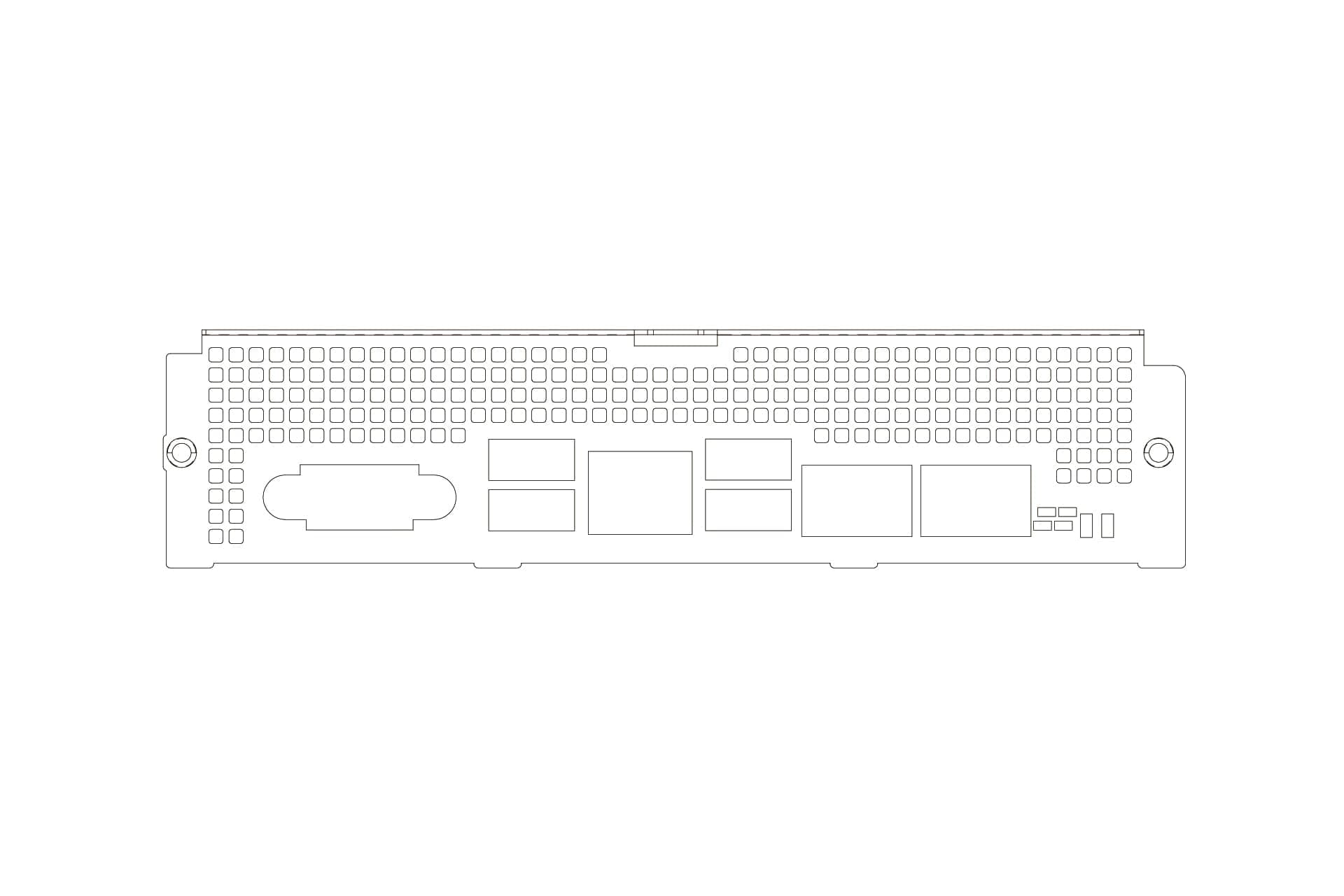

| Back I/O Shield Plate | 2RAKIQ021000 | Rear I/O shield- Intel H28527 S2600CW2R | 1 | |
| Back I/O Shield Plate | 2RAKIQ021200 | Rear I/O shield- Tyan S7100AG2NR | 1 | |
| Back I/O Shield Plate | - | InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers’ specific I/O configuration requirements. | 1 | |
| Others | 2RAKIP012002 | Mesh front panel | 1 | |
