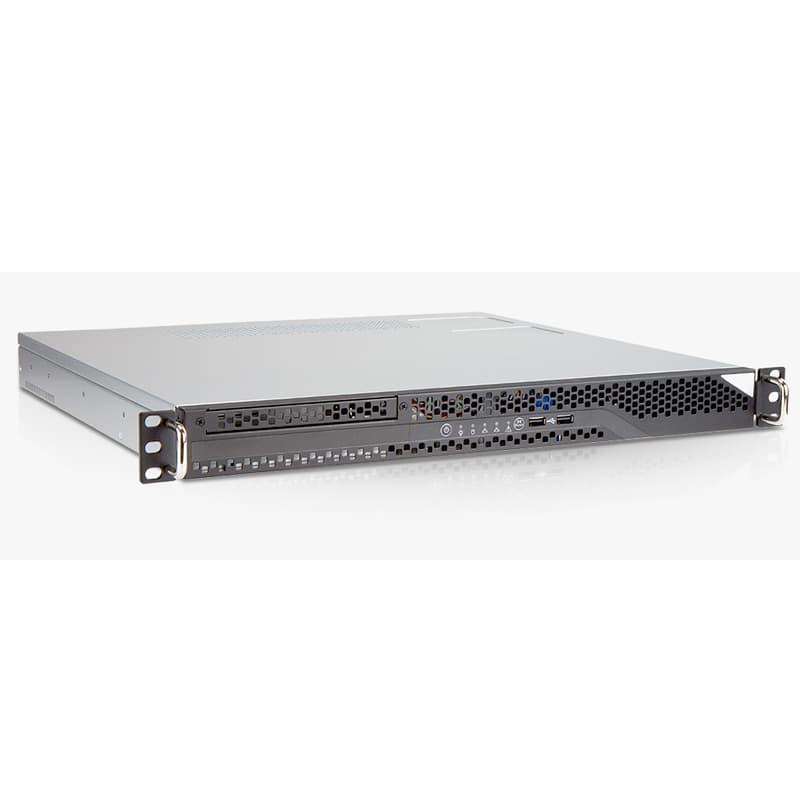

1U Chassis

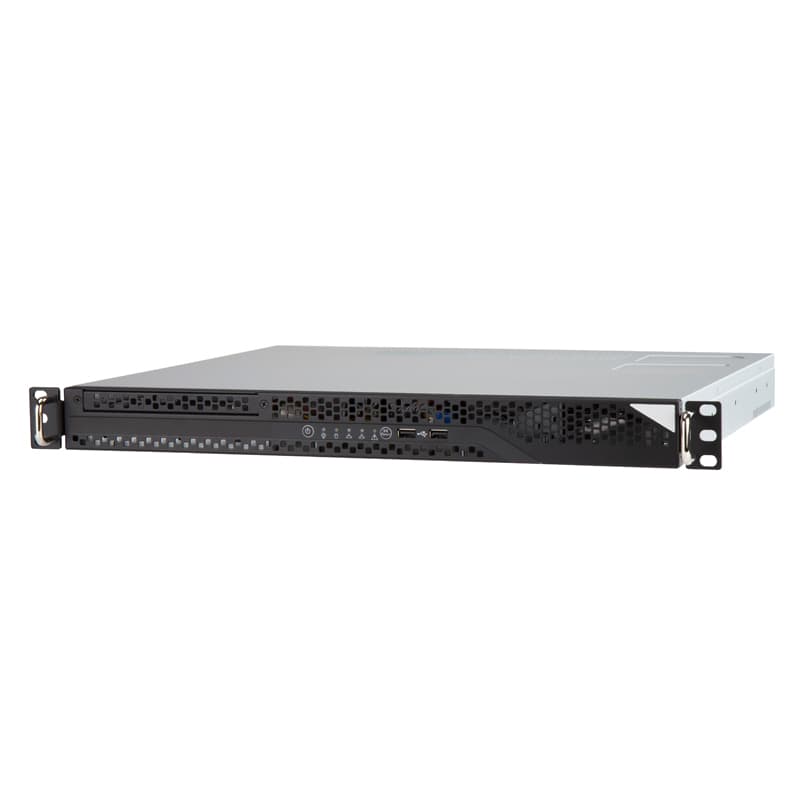

1U ATX-корпус для компактного сервера
IW-RA100 подходит для базовых 1U-систем на ATX-плате: сетевых сервисов, контроллеров, инфраструктурных узлов и лёгких серверных задач. В корпусе предусмотрены внутренние отсеки под накопители, Flex-блок питания и один полноразмерный PCIe-слот через riser.
Плата
ATX
Накопители
2 x 3.5" или 3.5" + 2.5"
Питание
Flex до 315 Вт
Расширение
1 x full-height PCIe
Compact ATX
ATX-платформа в высоте 1U
Корпус позволяет разместить стандартную ATX-плату в стойке 19". Такой формат удобен, когда нужно собрать простой сервер или appliance без перехода на специализированную серверную платформу.

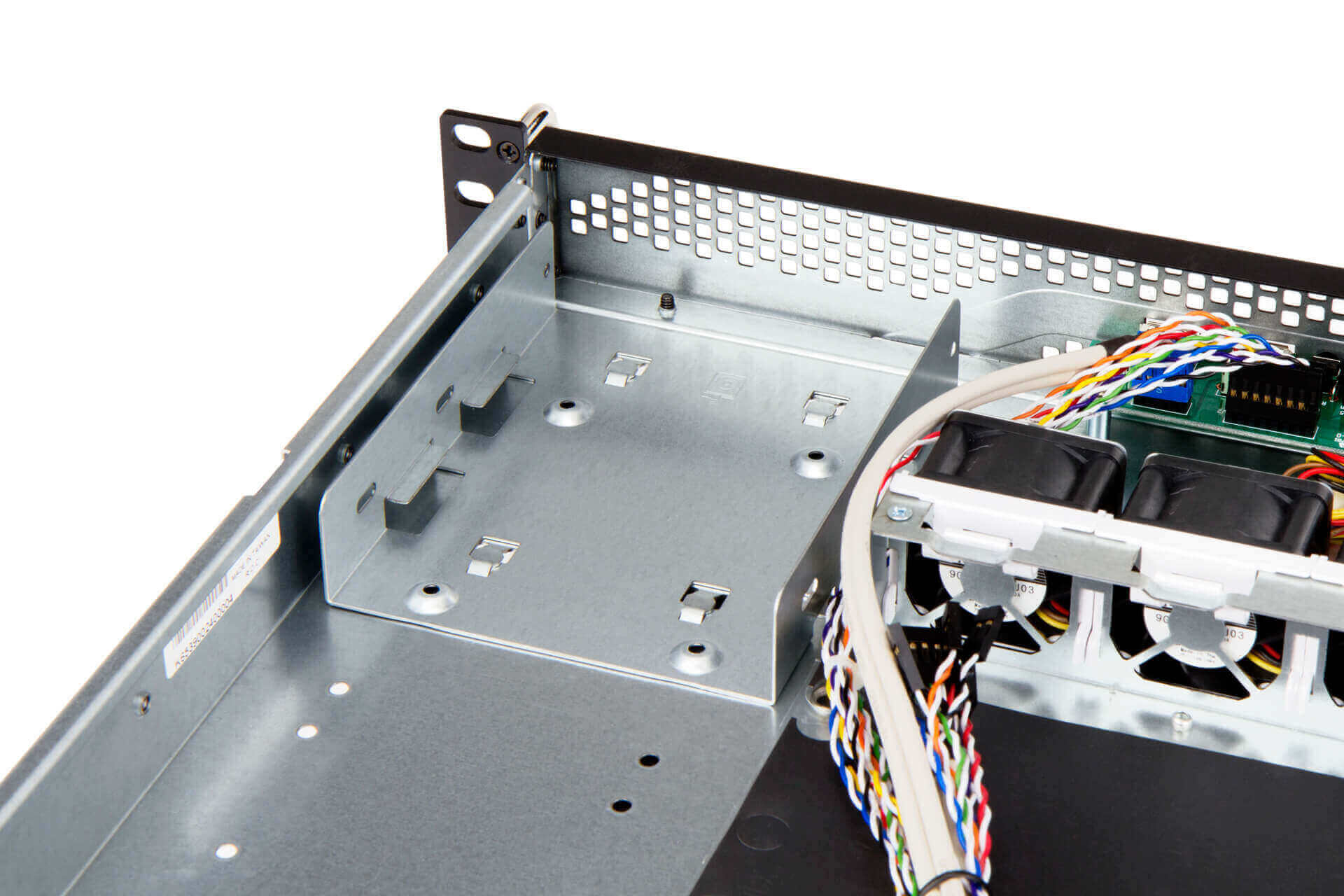

Storage Layout

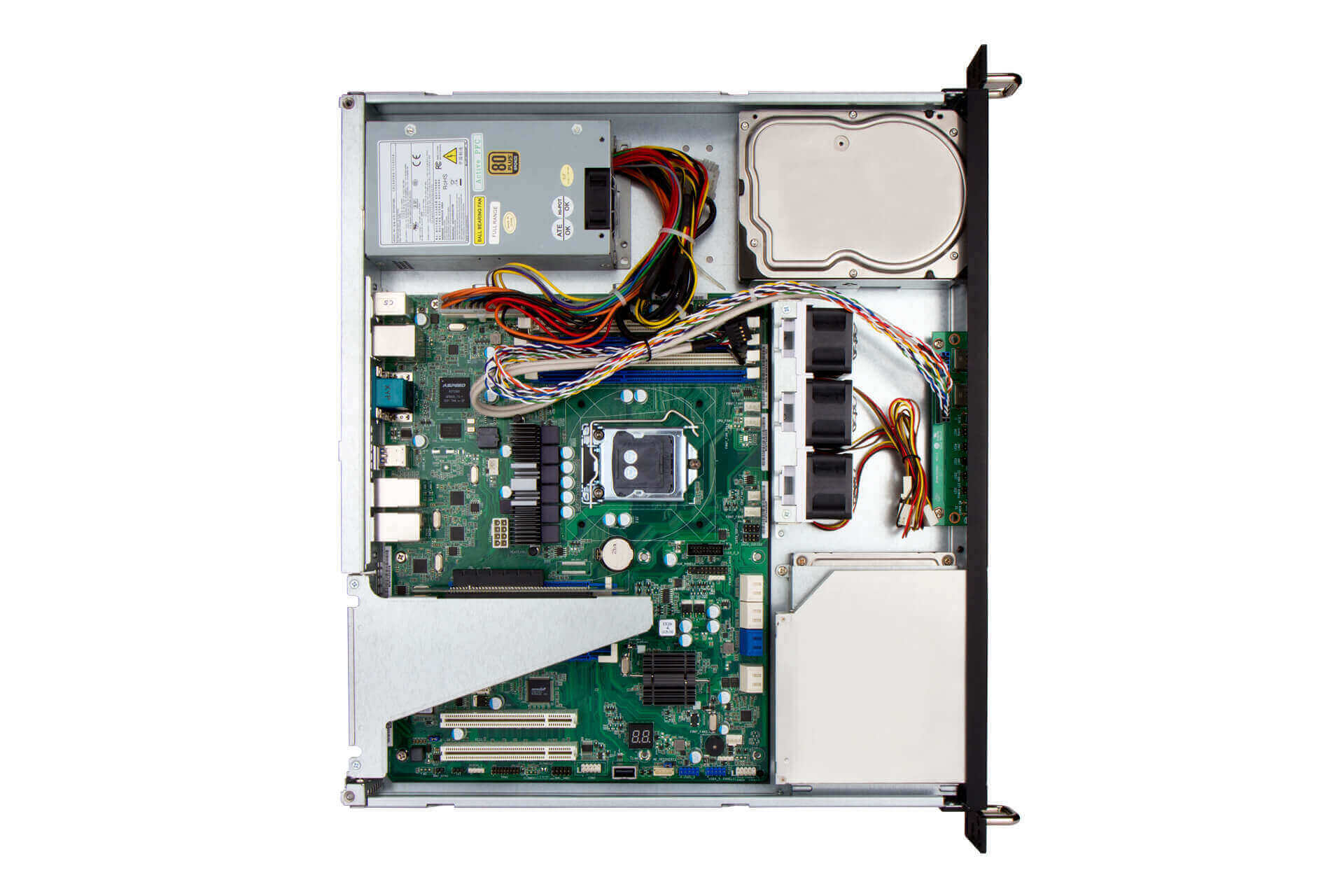

Внутренние отсеки для системных дисков
Внутри можно установить два 3.5" накопителя либо связку 3.5" + 2.5". Это достаточно для системного диска, локального кэша или небольшого набора рабочих данных.

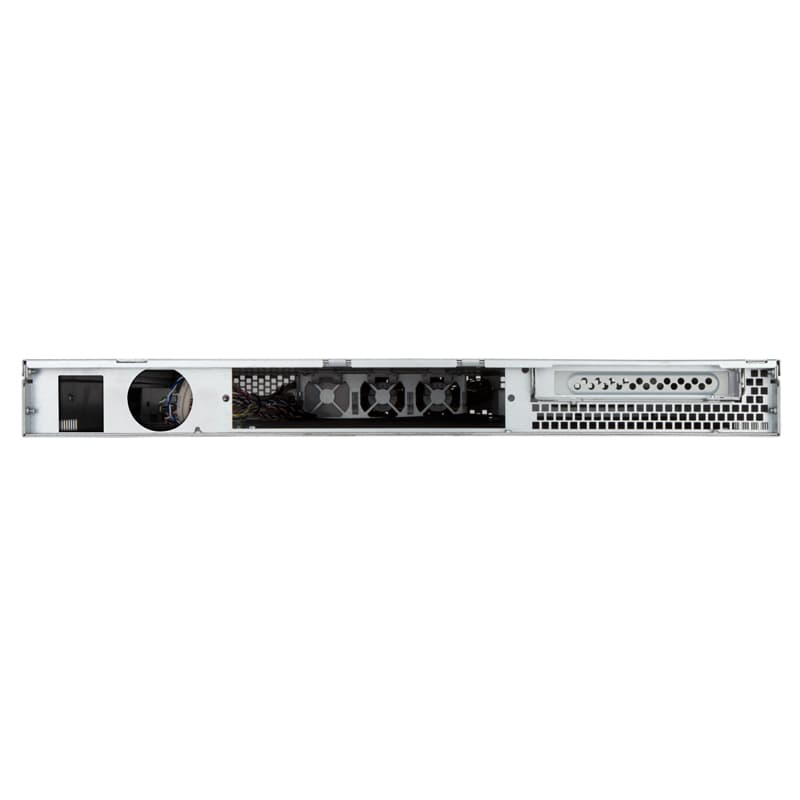

Service Basics
Передняя панель и базовое охлаждение
Два предустановленных PWM-вентилятора 40 x 28 мм и фронтальные USB 2.0 закрывают базовые требования к обслуживанию компактного 1U-узла.

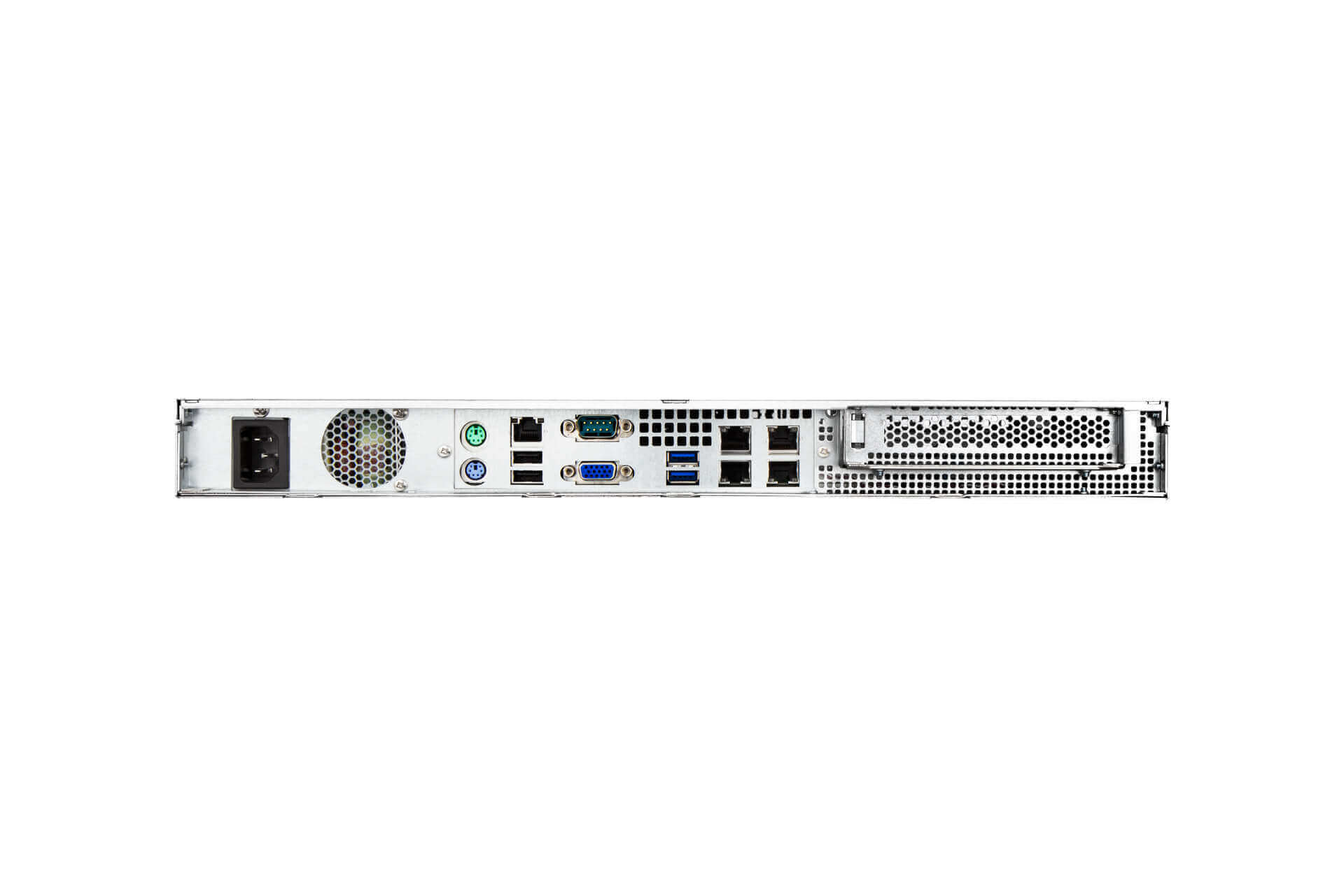

Product Details

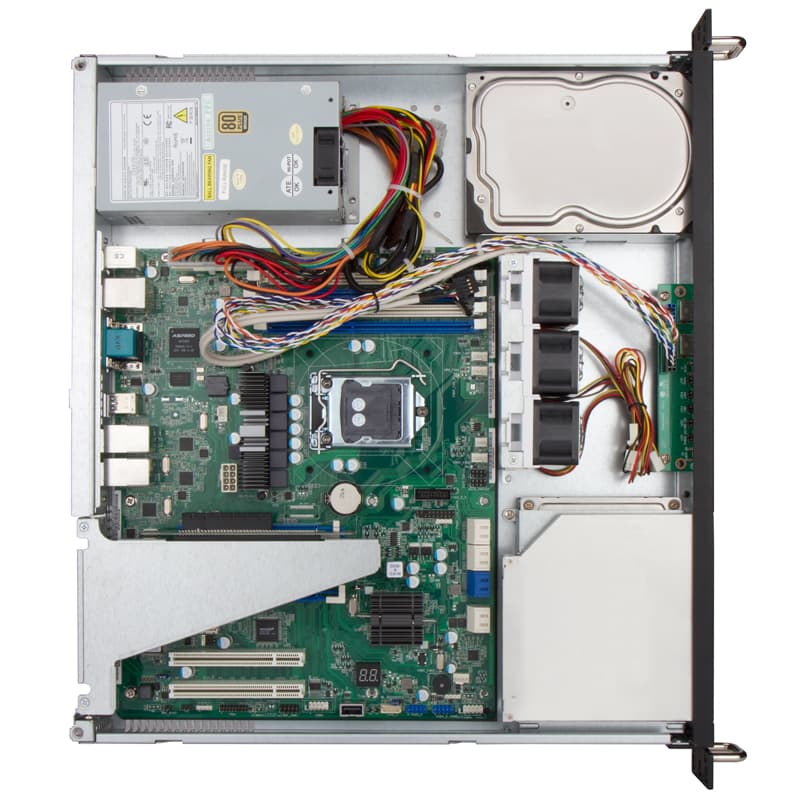

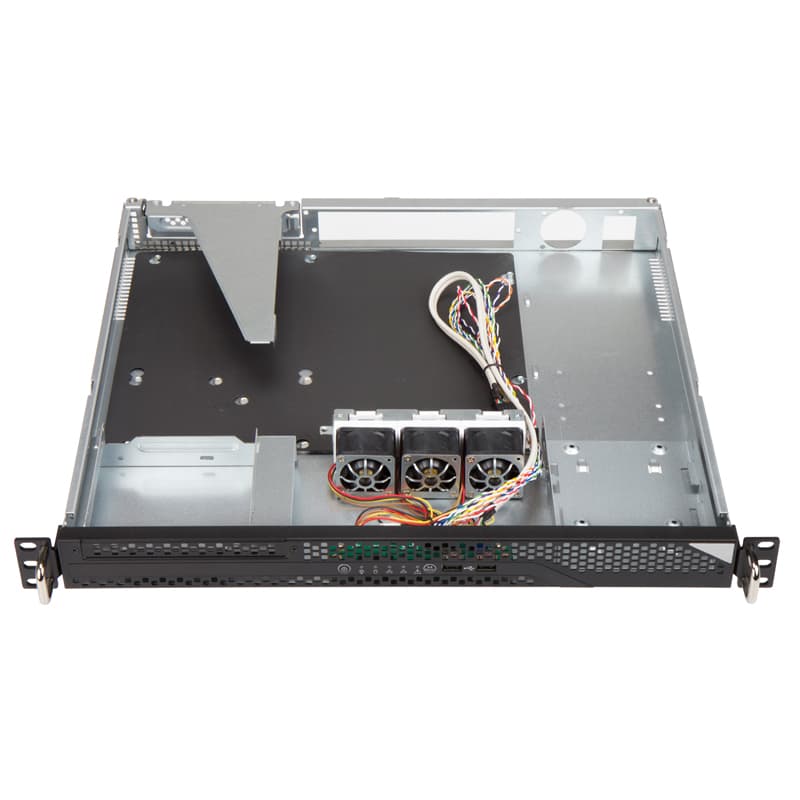

Детали конструкции InWin IW-RA100
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6") |
| Drive Bay | • External: slim ODD x 1 • Internal: 3.5" x 2 or 3.5" x 1 & 2.5" x 1 |
| Power Supply | Supports: • Form factor: Flex • Watt: up to 315W |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Cooling Fans | Supports 40 x 28mm PWM fan x 3 (pre-installed x 2) |
| Expansion Slot | Full height PCIe slot x 1 (via riser card and bracket) |
| Material | • Material: SGCC • Thickness: 1.0mm |
| Rail Kit | Supports 20" friction slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 393.2 x 430 x 43.5mm (15.48" x 16.93" x 1.71") |
| Package Dimensions (DxWxH) | 592 x 518 x 155mm |
| Weight (Chassis Only) | • Net weight: 3.67kg • Gross weight: 4.79kg |
| Cubic Feet | 1.68 |
| Container Information | Single packing with pallets: • 20': 440pcs • 40': 968pcs • 40' HQ: 1056pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items

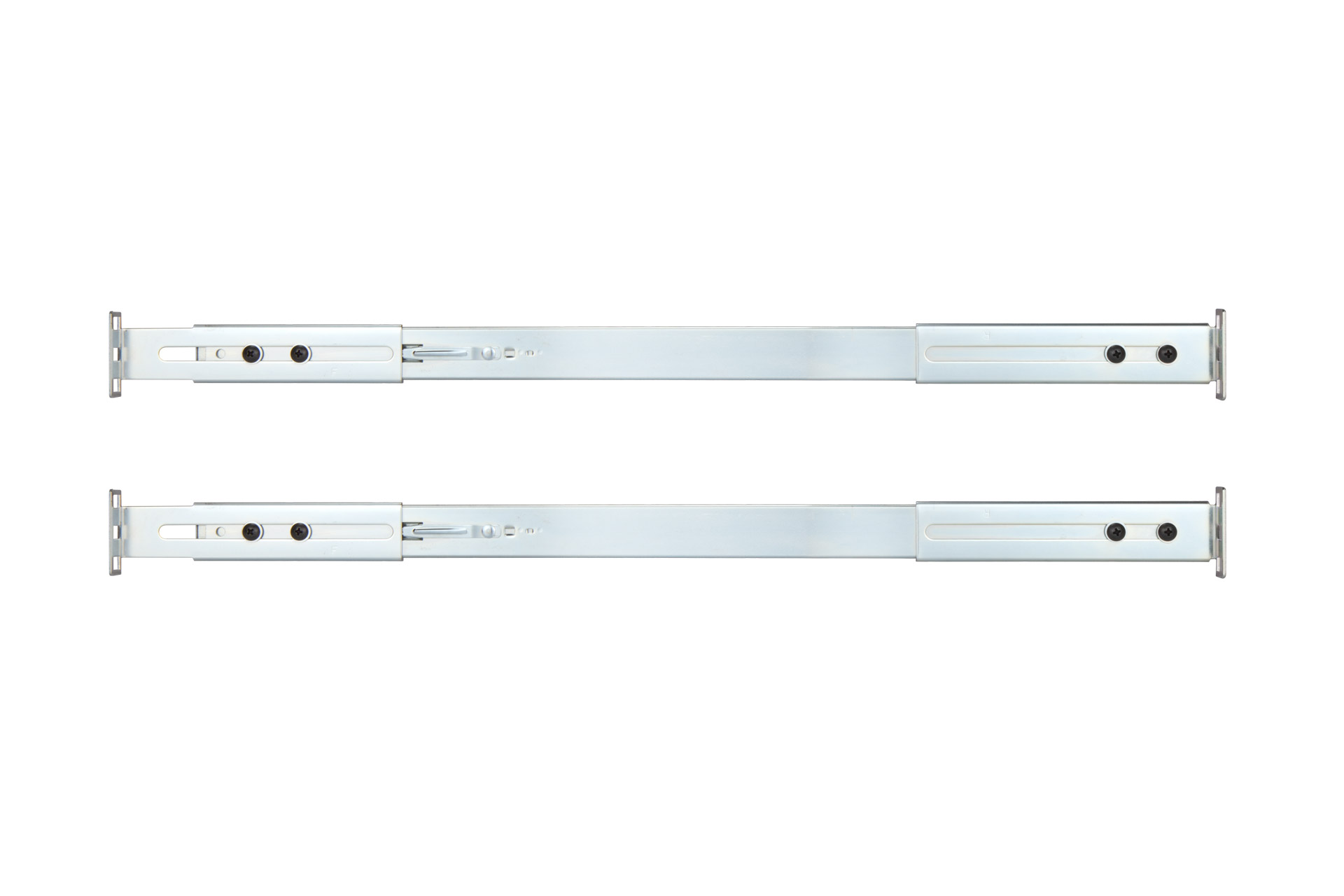

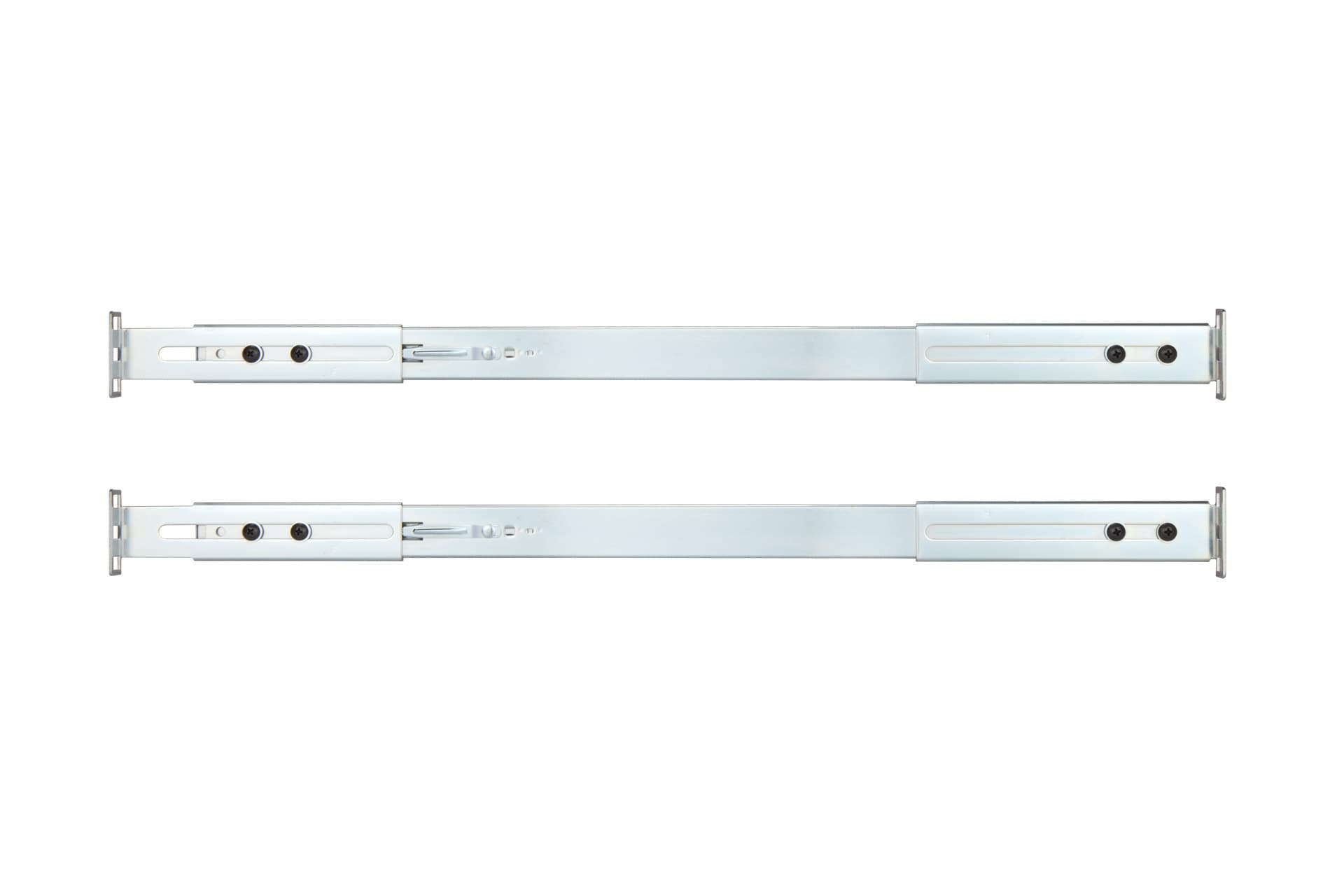

Slide Rail
3RAMIS032202
20" friction slide rails
Support: 1 set

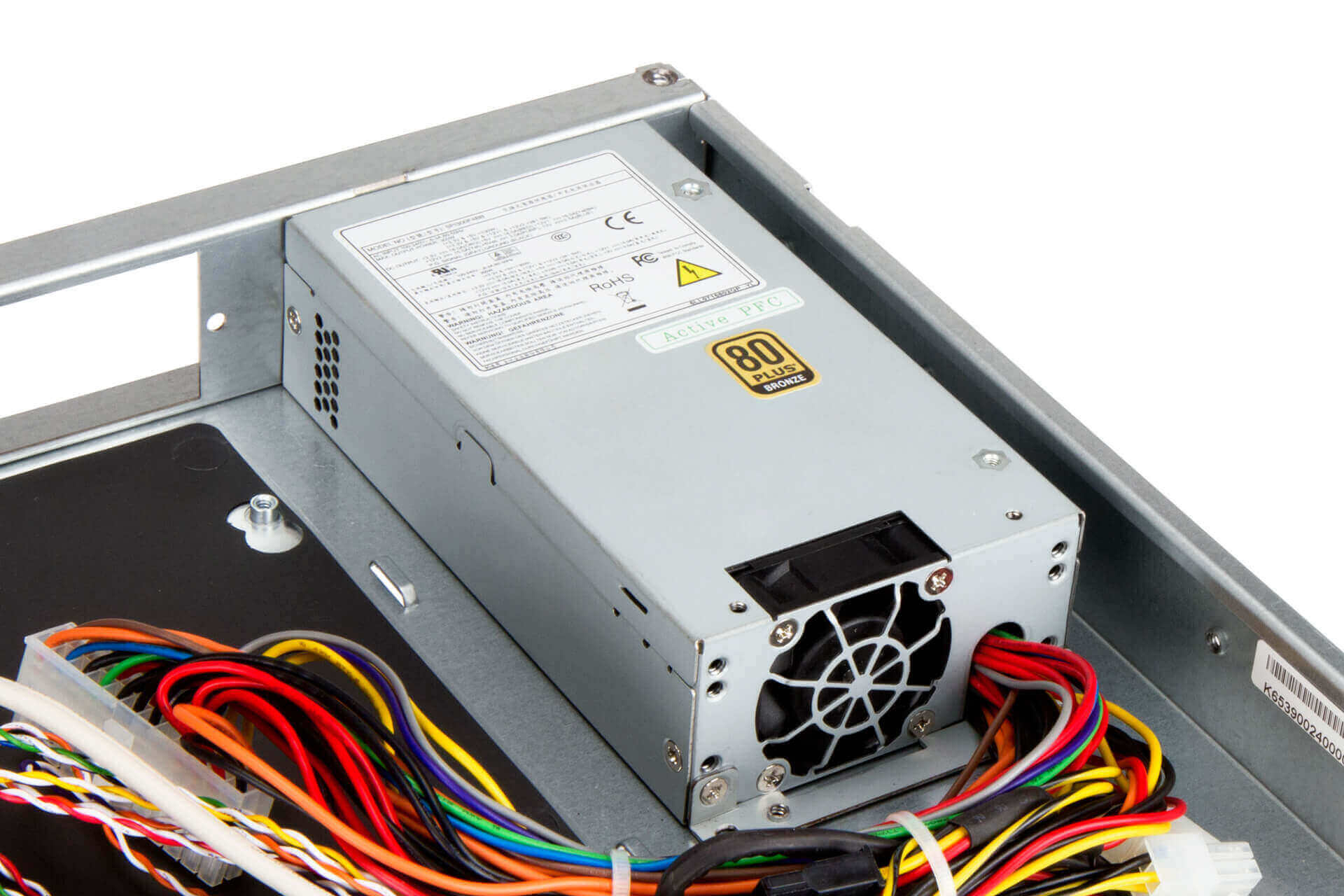

Power Supply

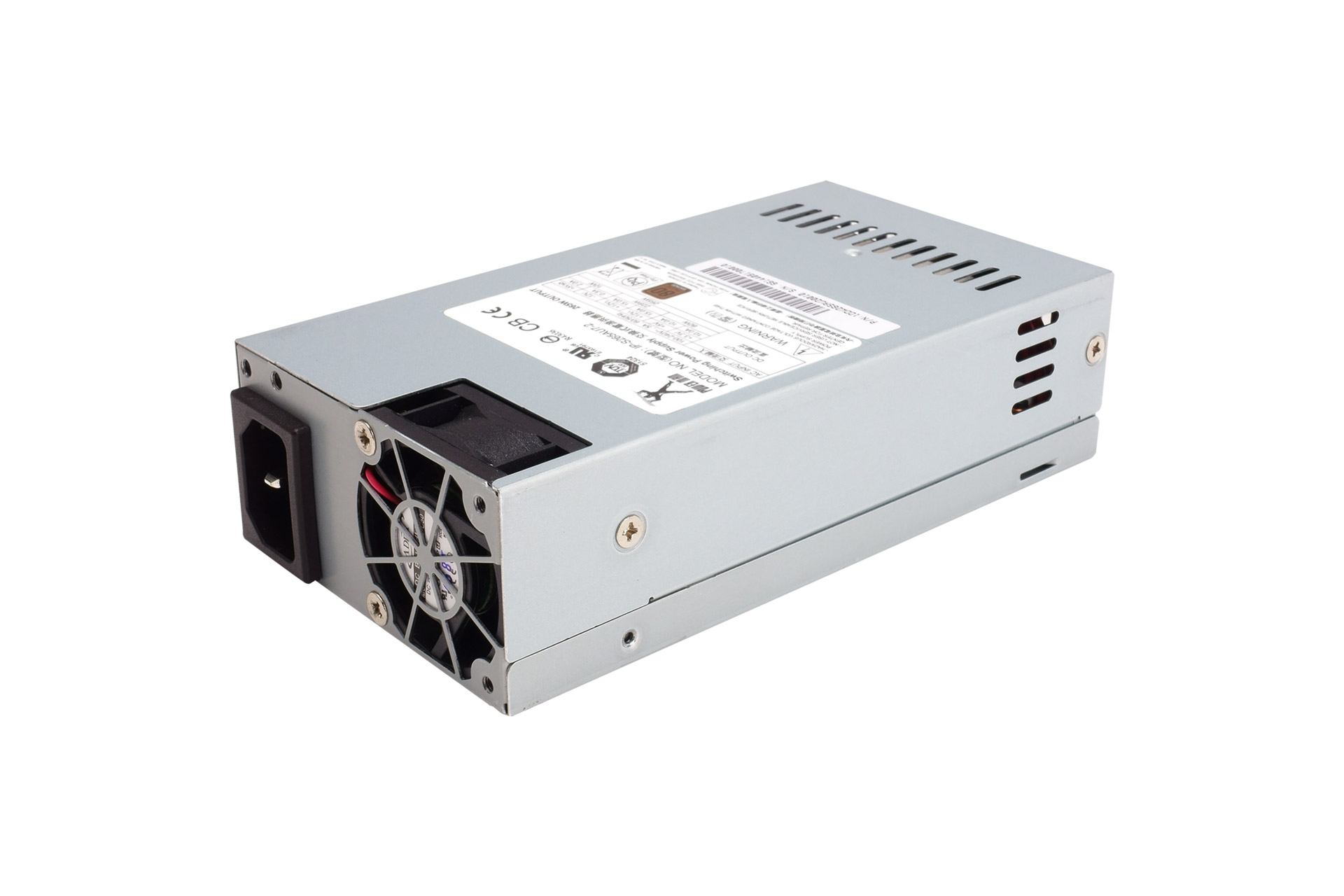

1DDW265AU20201
IP-S265AU7-2, 1U Flex 265W, 80 Plus Bronze
Support: 1
Power Supply
1DDU315AU20222

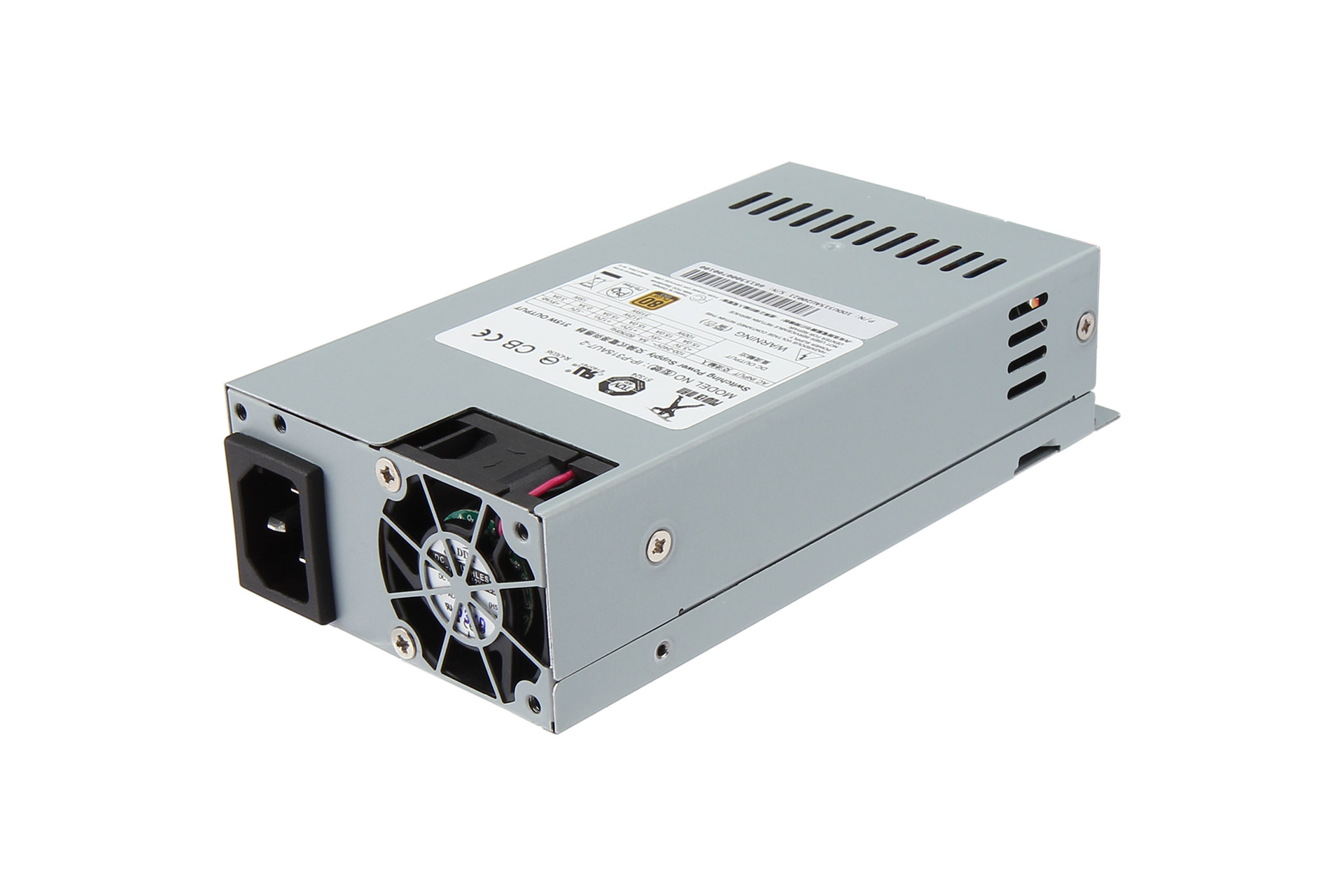

IP-P315AU7-2, 1U Flex 315W, 80 Plus Gold
Support: 1
Power Supply
1DDU350BU20030
IP-P350BU7-2, 1U Flex PSU, 350W, 80 Plus Platinum
Support: 1
Power Supply
1DDU450BU20031
IP-P450BU7-2, 1U Flex PSU, 450W, 80 Plus Platinum
Support: 1
Fan

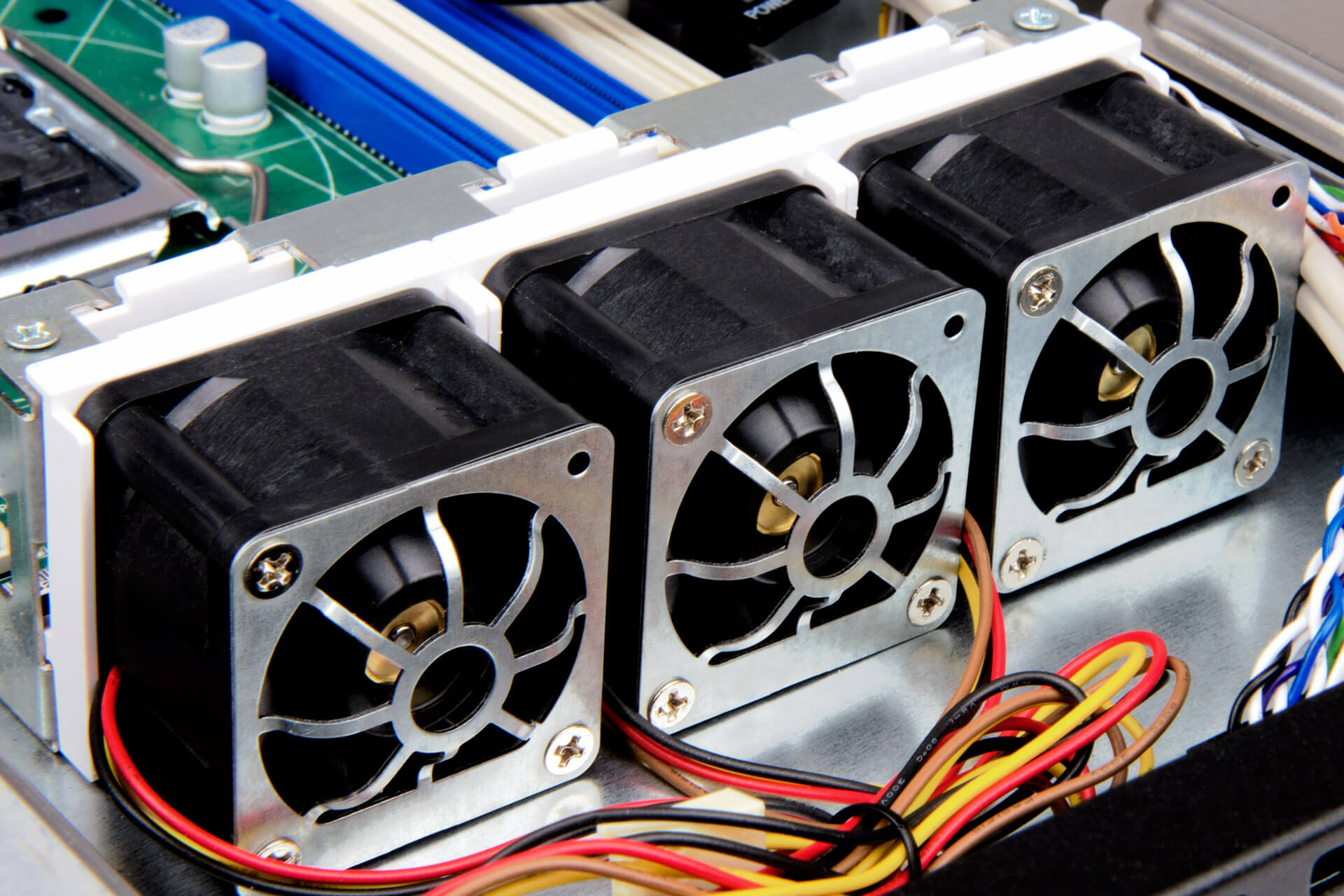

3RAMFB010802
40 x 28mm PWM fan, 14500RPM
Support: Max. 3

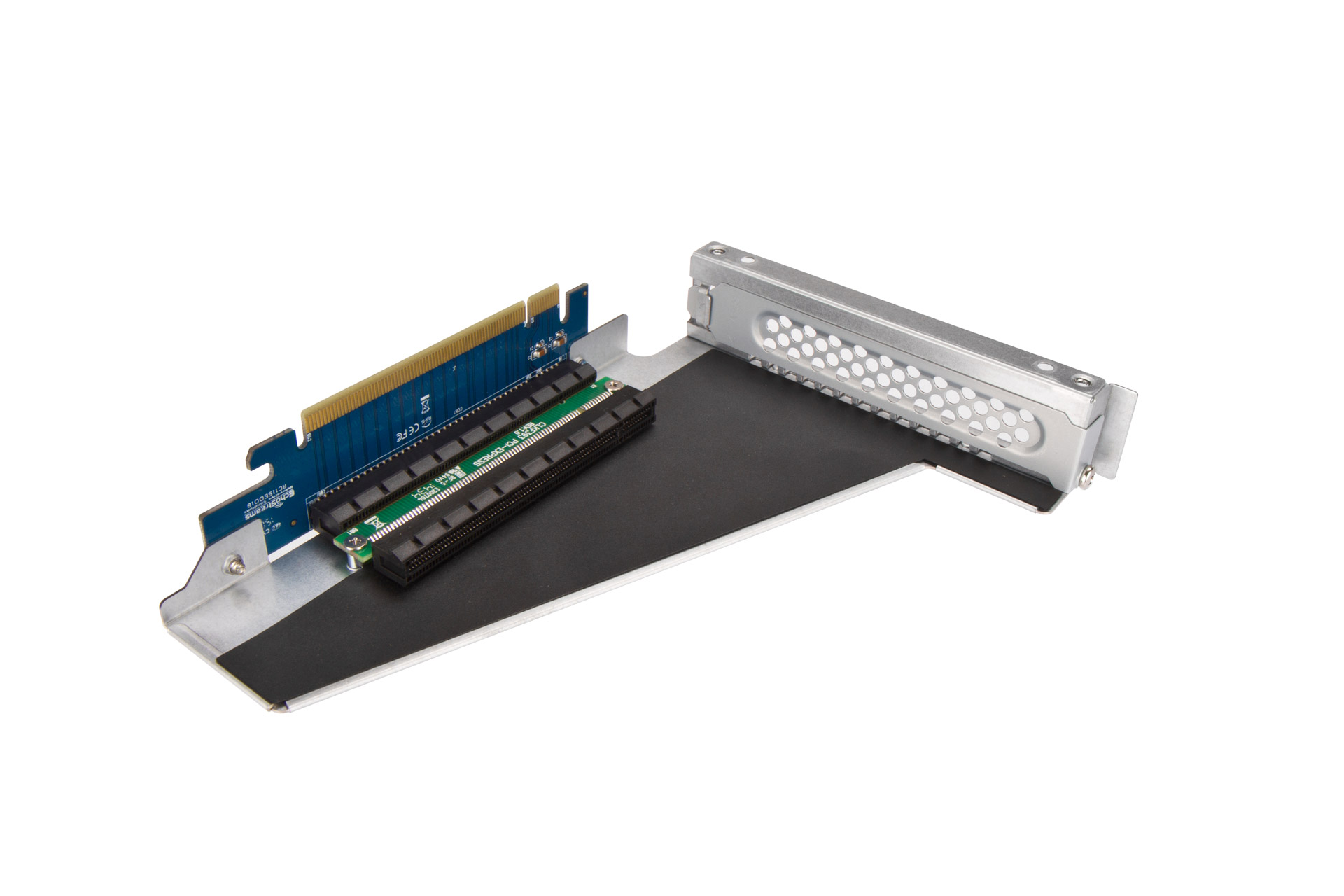

Riser Card
2RAKPD049200
1U PCIe Gen3 x16 lanes riser kit, ITX MB compatibility
Support: 1

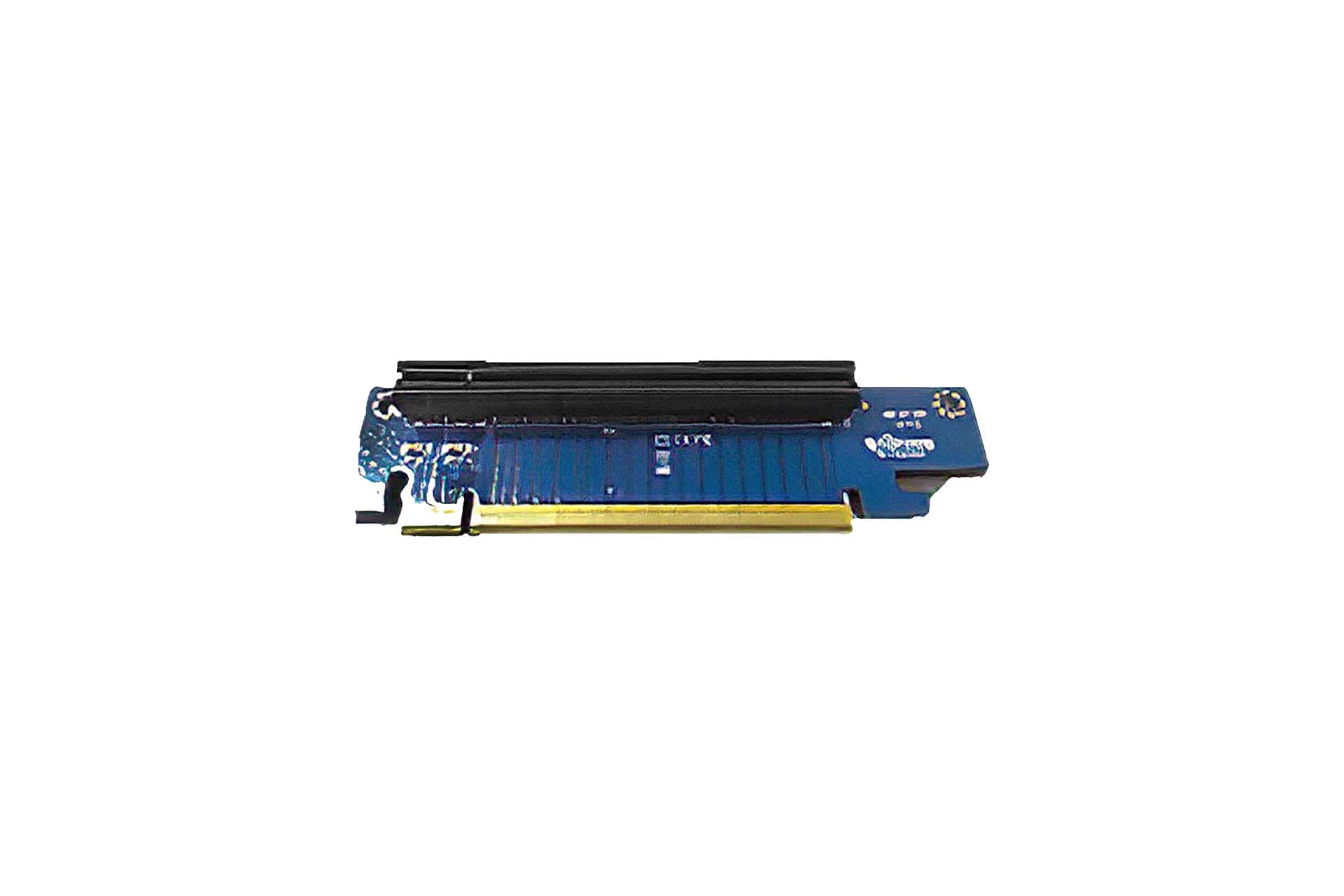

Riser Card
3RAMPD020200
PCIe Gen3 x16 lanes riser card, left-facing 90 degree design
Support: 1
Riser Card

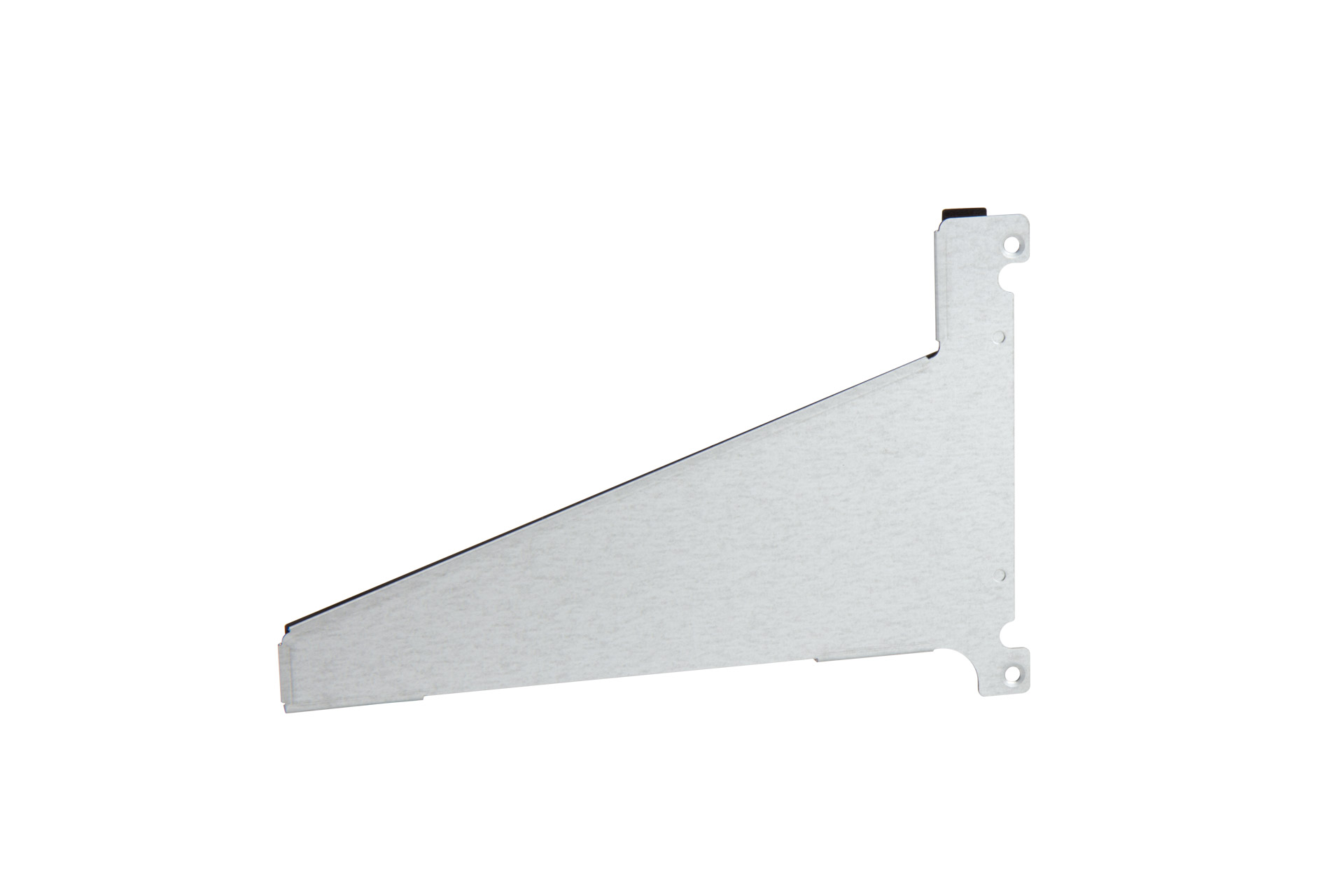

2RARIC026400
1U riser card bracket, ATX/mATX MB compatibility
Support: 1
Back I/O Shield Plate
2RAVIQ037800

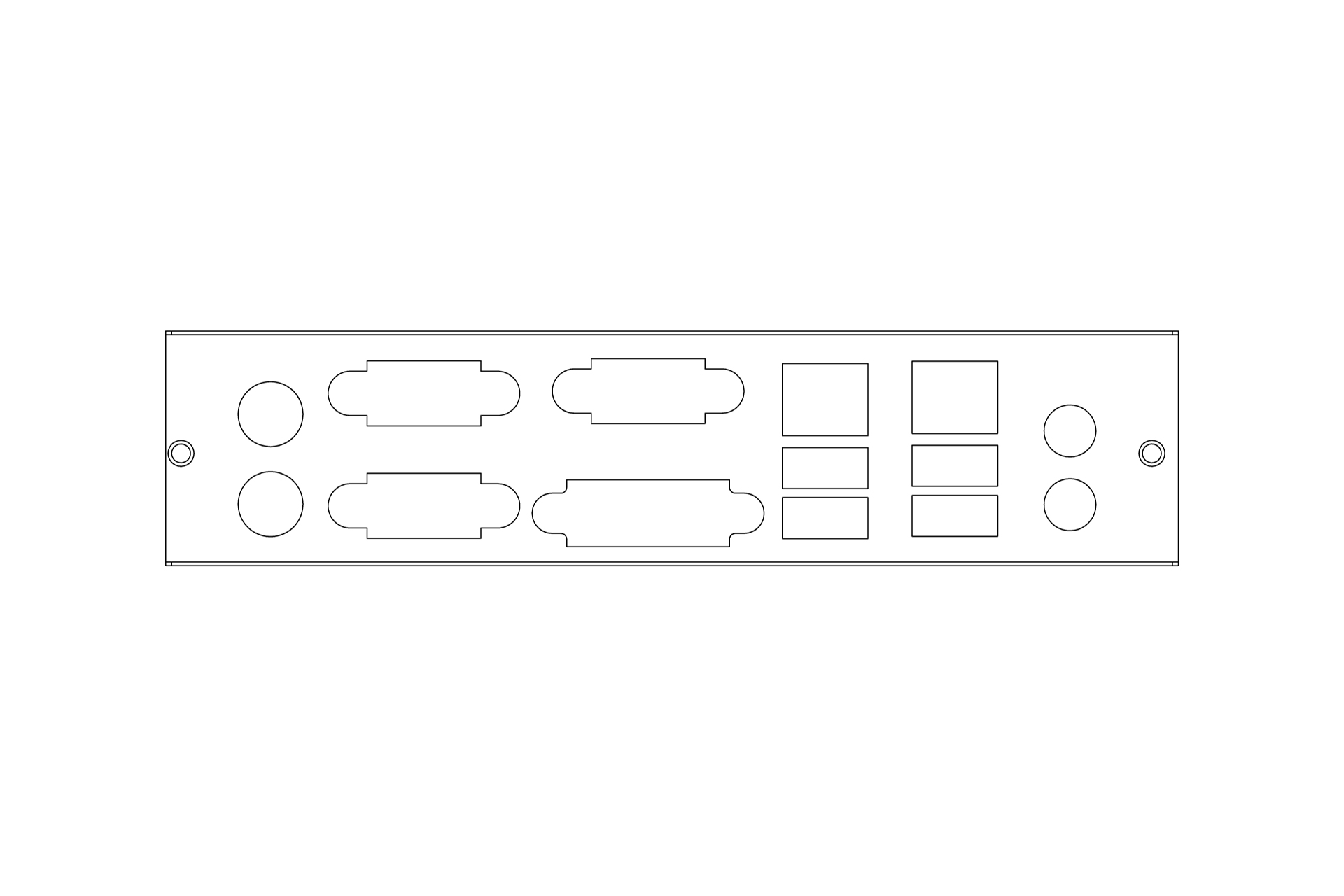

Rear I/O shield- Advantech AIMB-705
Support: 1
Back I/O Shield Plate
2RAVIQ035700

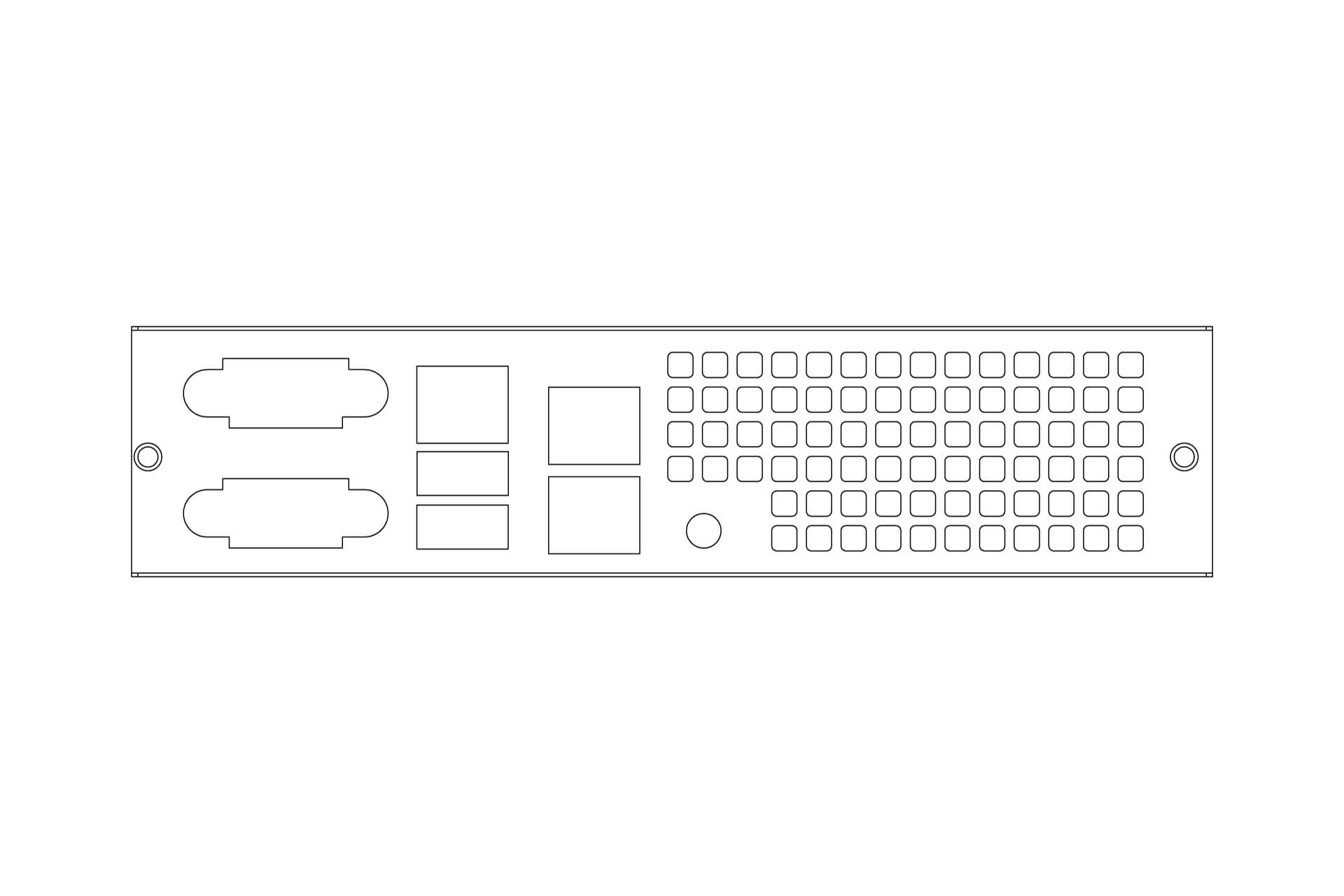

Rear I/O shield- ASRock C2750D4I
Support: 1
Back I/O Shield Plate

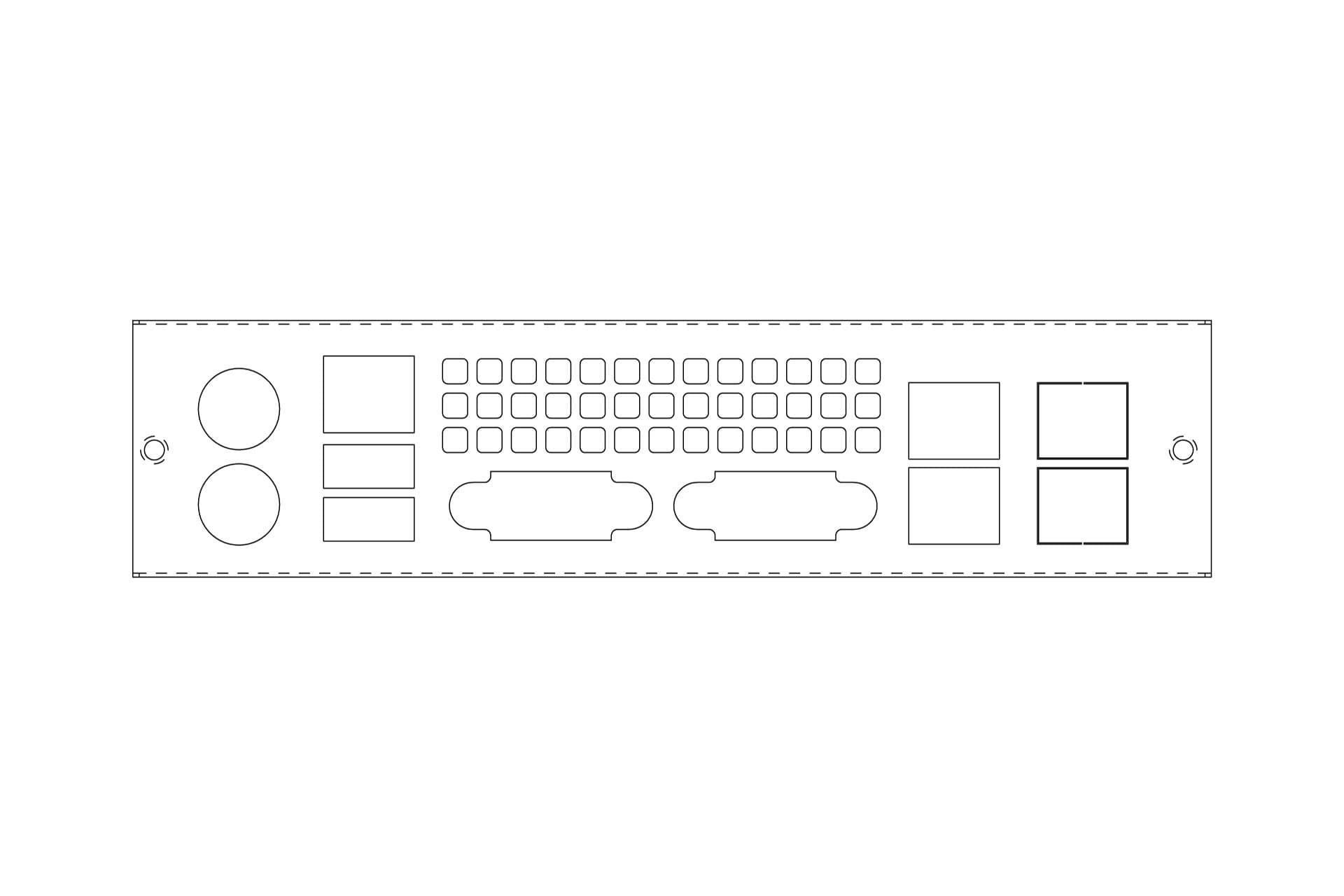

2RAVIQ006100
Rear I/O shield- ASRock E3C204
Support: 1

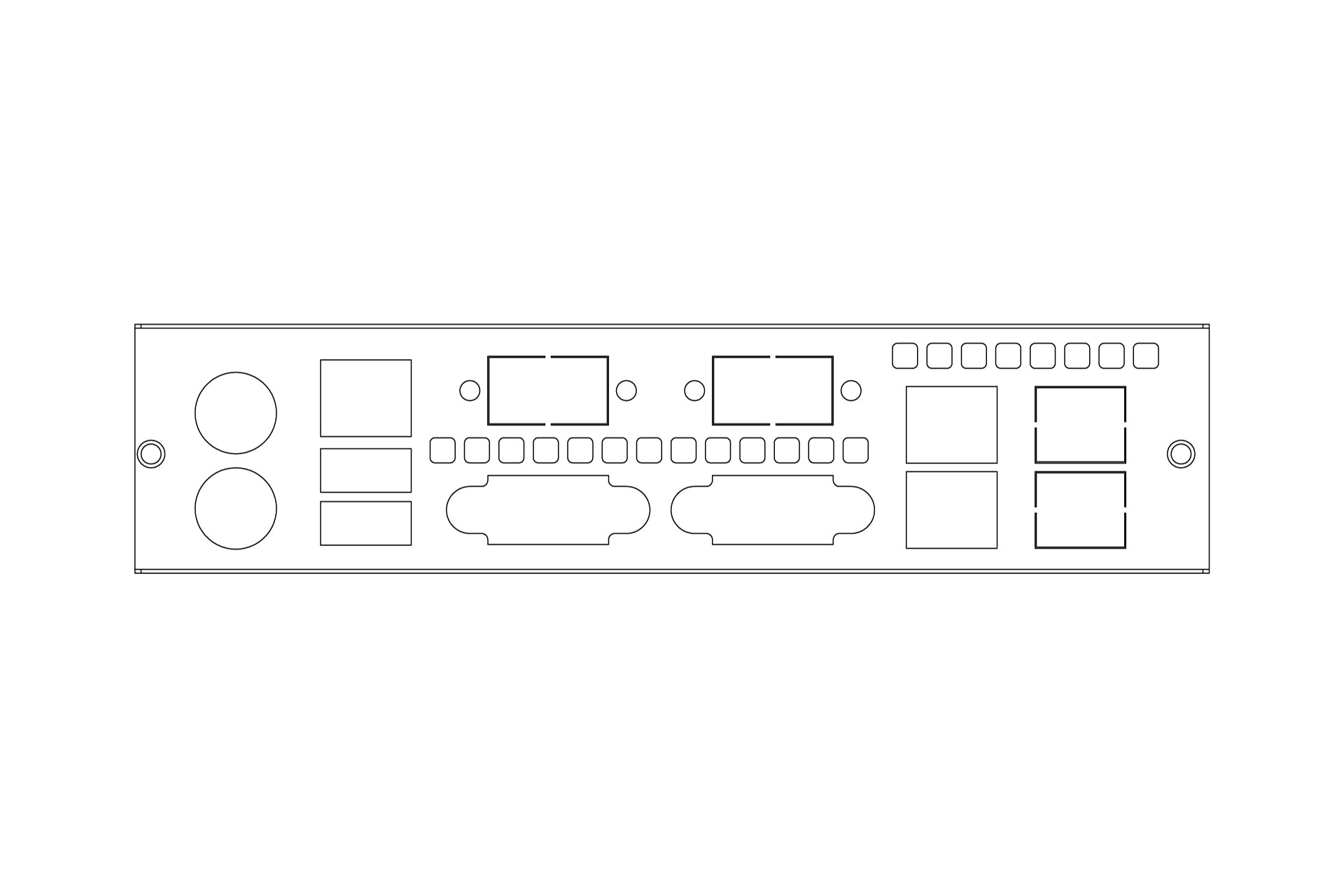

Back I/O Shield Plate
2RAVIQ007600
Rear I/O shield- ASRock E3C204
Support: 1
Back I/O Shield Plate
2RAVIQ022800

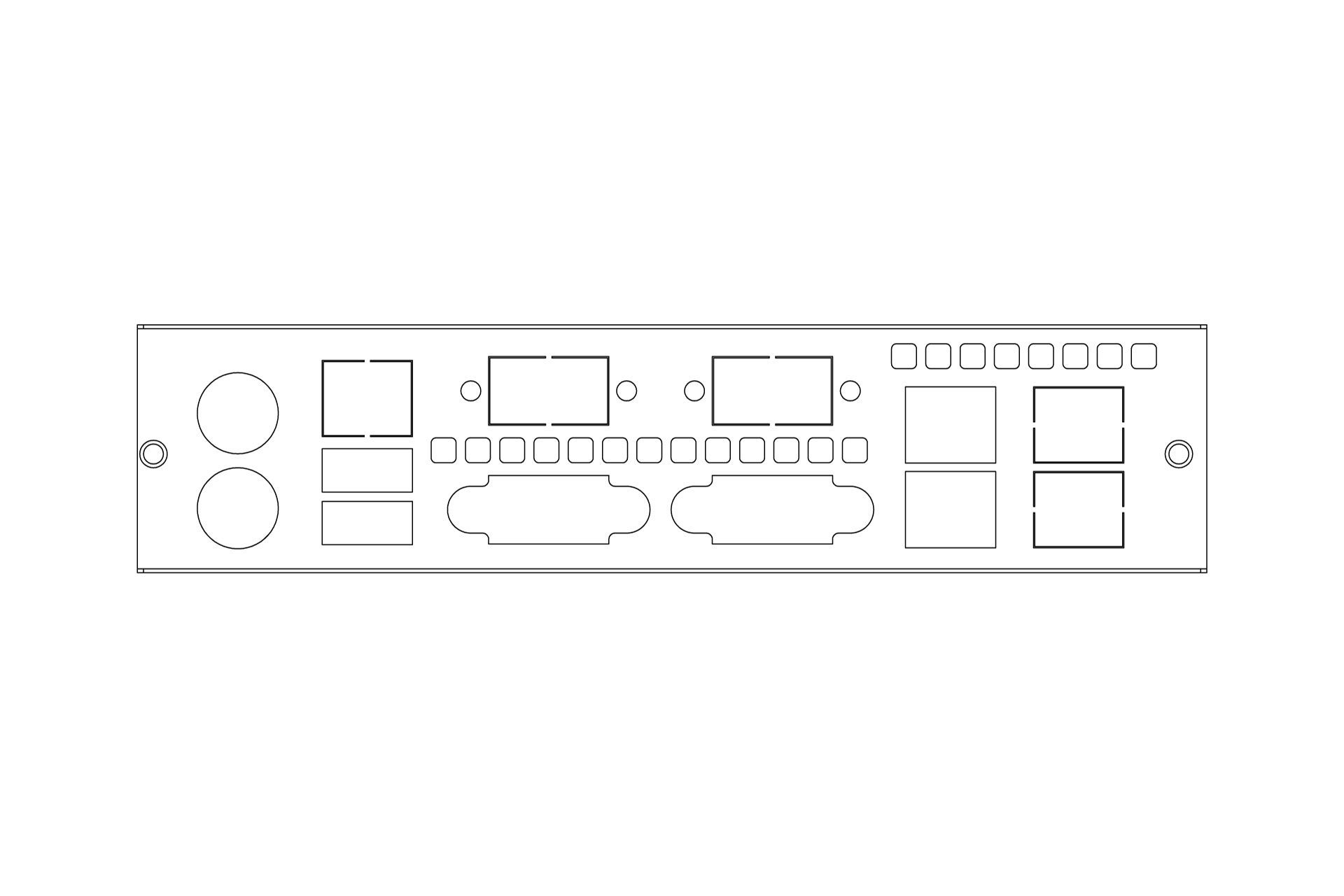

Rear I/O shield- ASRock E3C204-V+
Support: 1

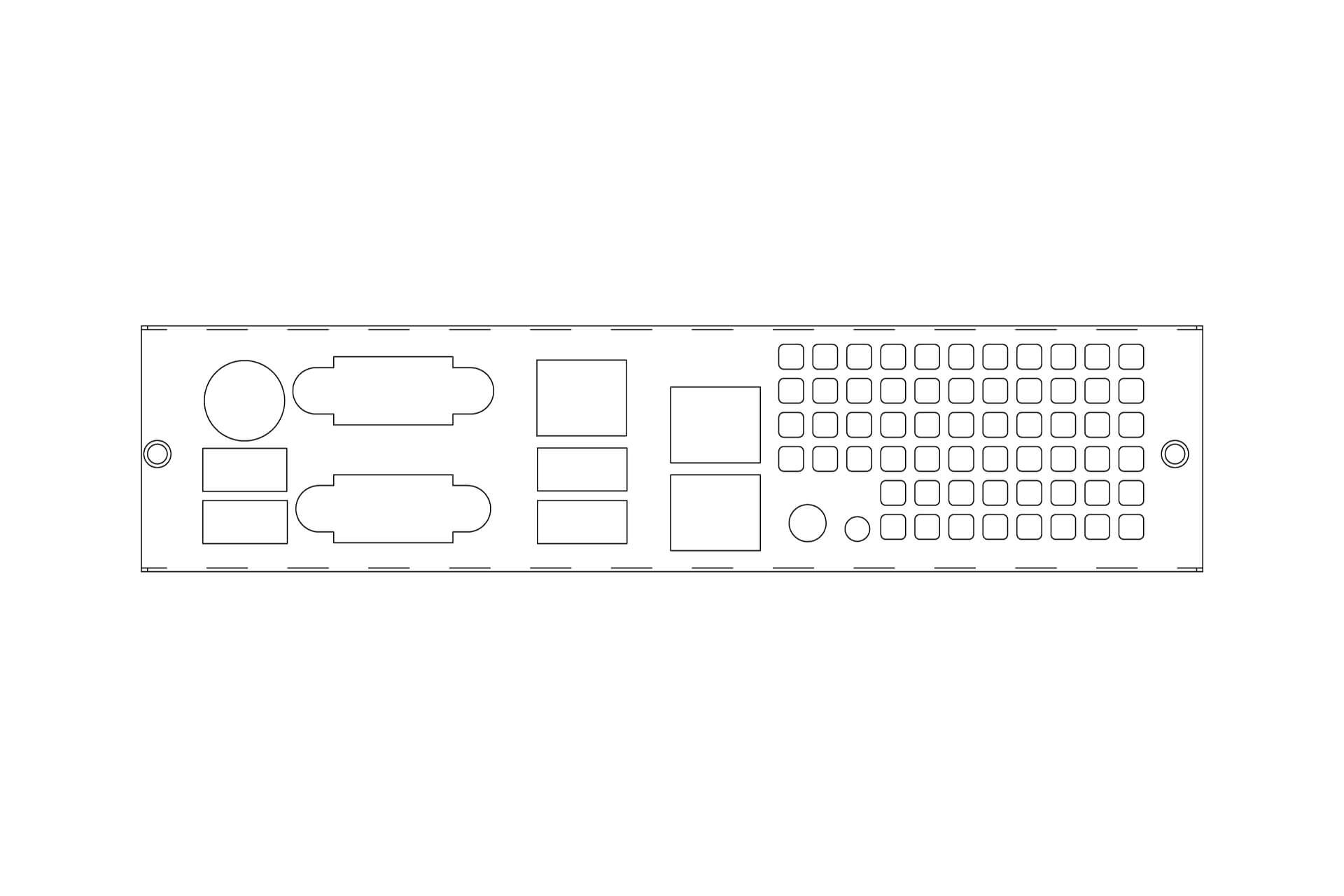

Back I/O Shield Plate
2RAVIQ007400
Rear I/O shield- ASRock E3C224D2I/E3C226D2I
Support: 1
Back I/O Shield Plate

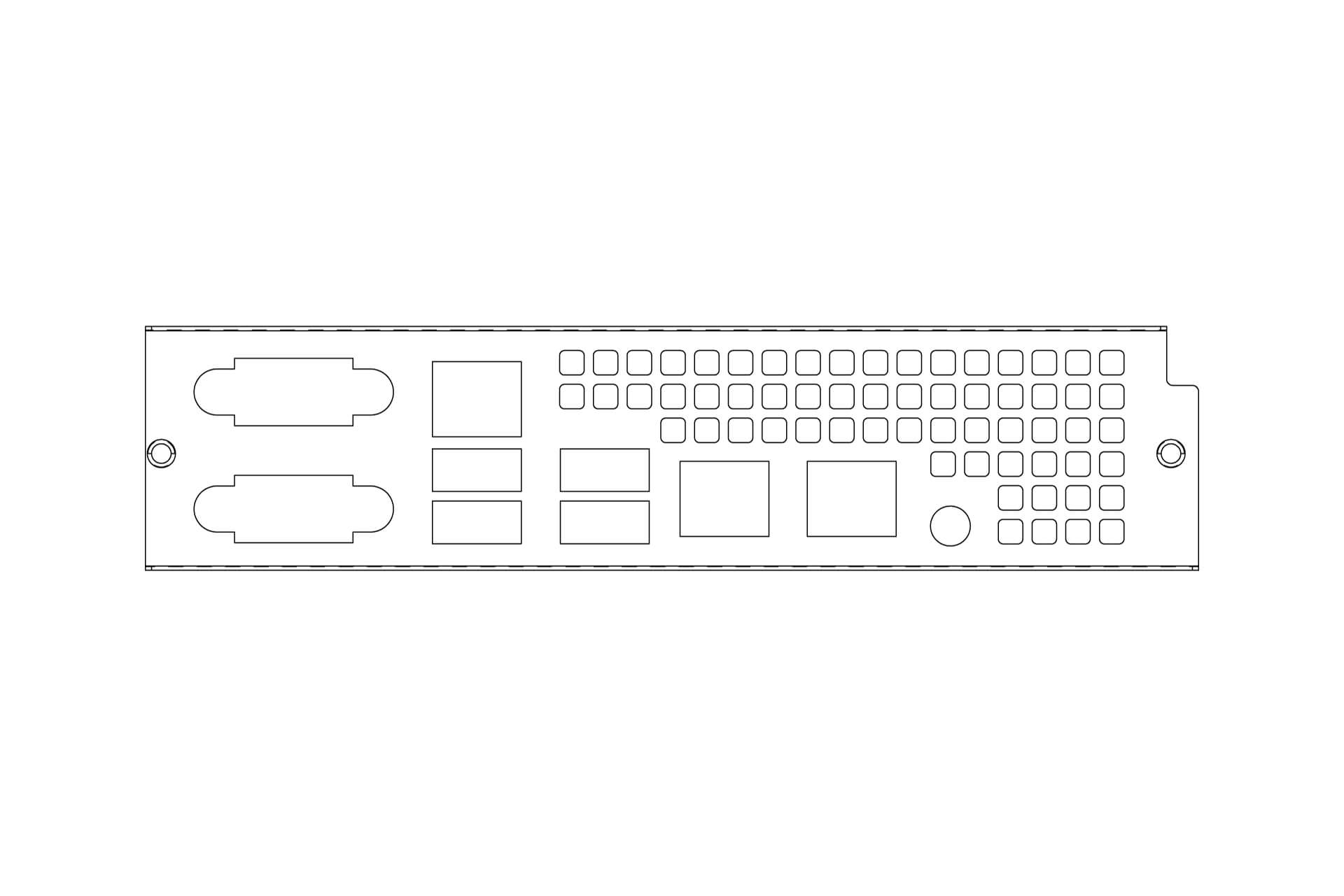

2RAVIQ014900
Rear I/O shield- ASRock E3C224D4M-16RE
Support: 1
Back I/O Shield Plate

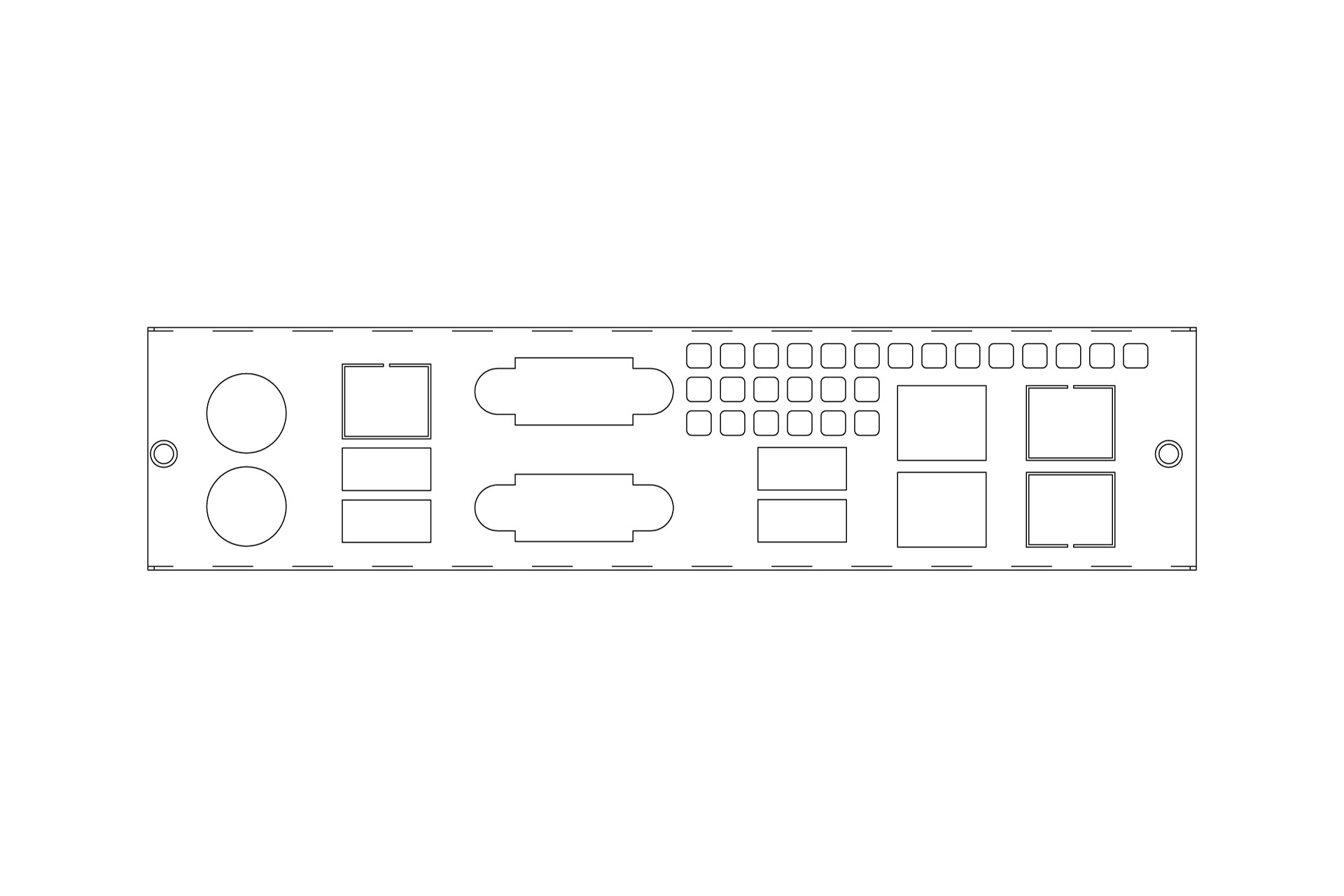

2RAVIQ007501
Rear I/O shield- ASRock E3C224/E3C224-4L
Support: 1

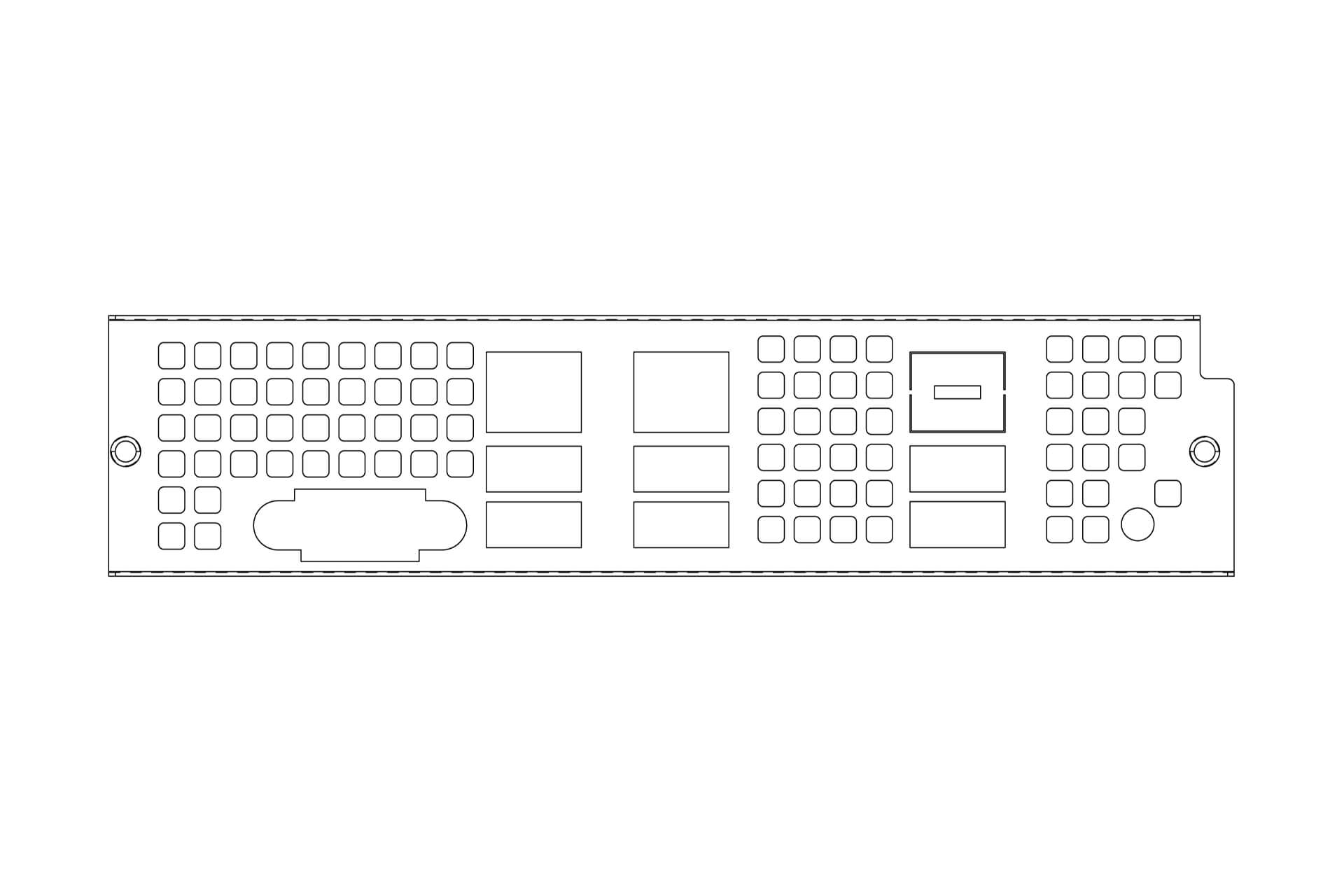

Back I/O Shield Plate
2RAVIQ046700
Rear I/O shield- ASRock E3C242D2I
Support: 1
Back I/O Shield Plate
2RAVIQ047700

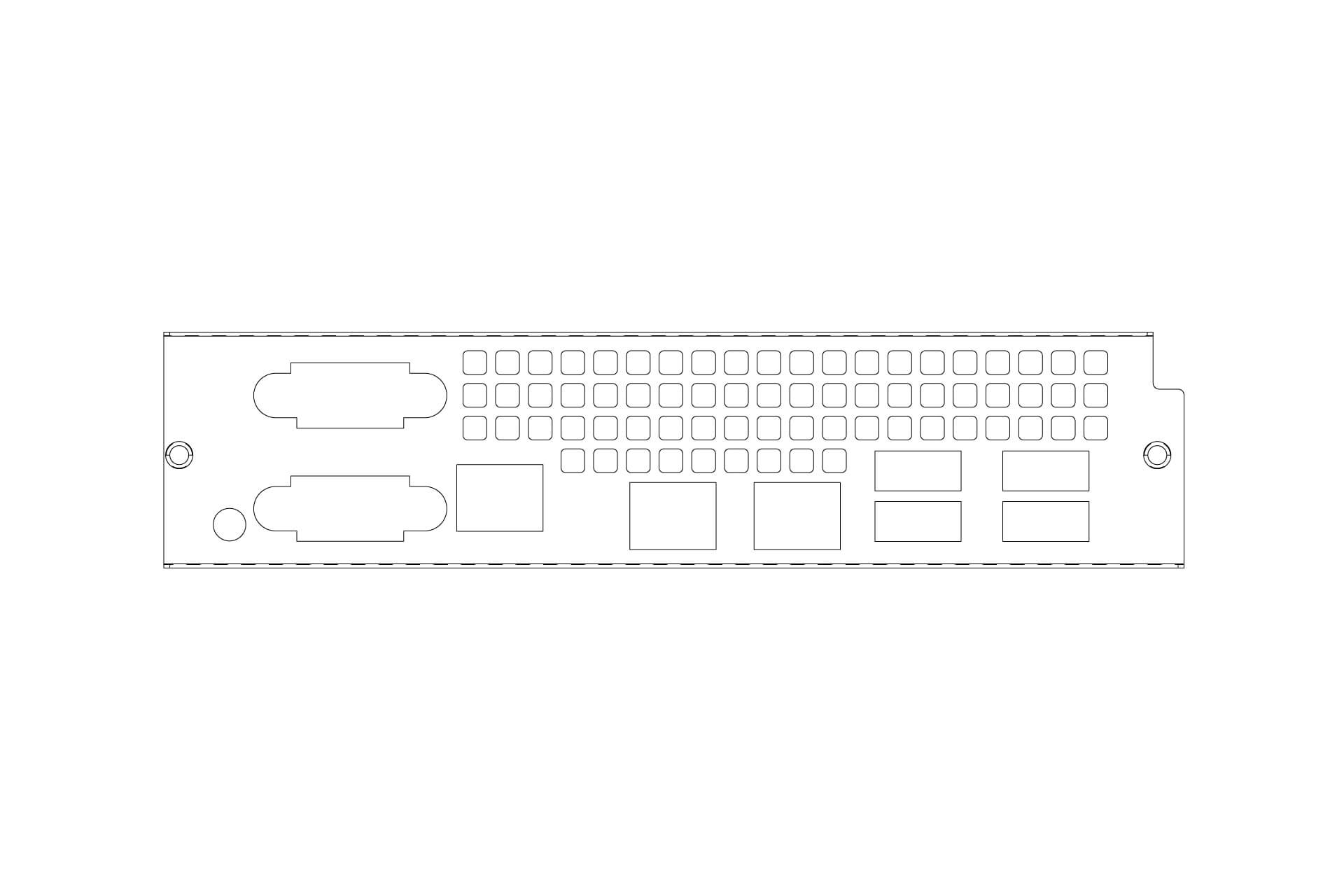

Rear I/O shield- AsRock E3C242D4U2-2T
Support: 1
Back I/O Shield Plate
2RAVIQ032100

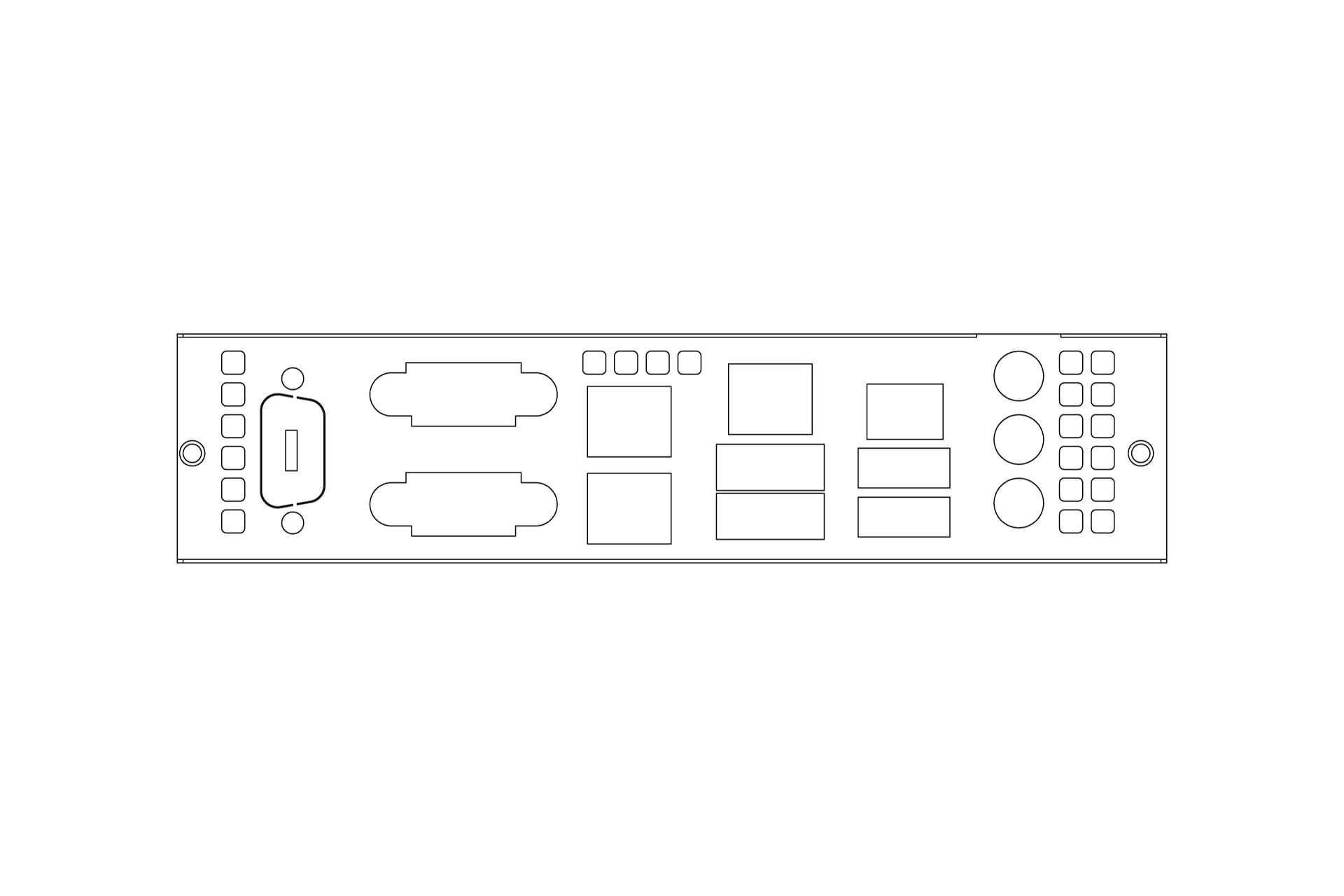

Rear I/O shield- ASRock EPC602D8A
Support: 1

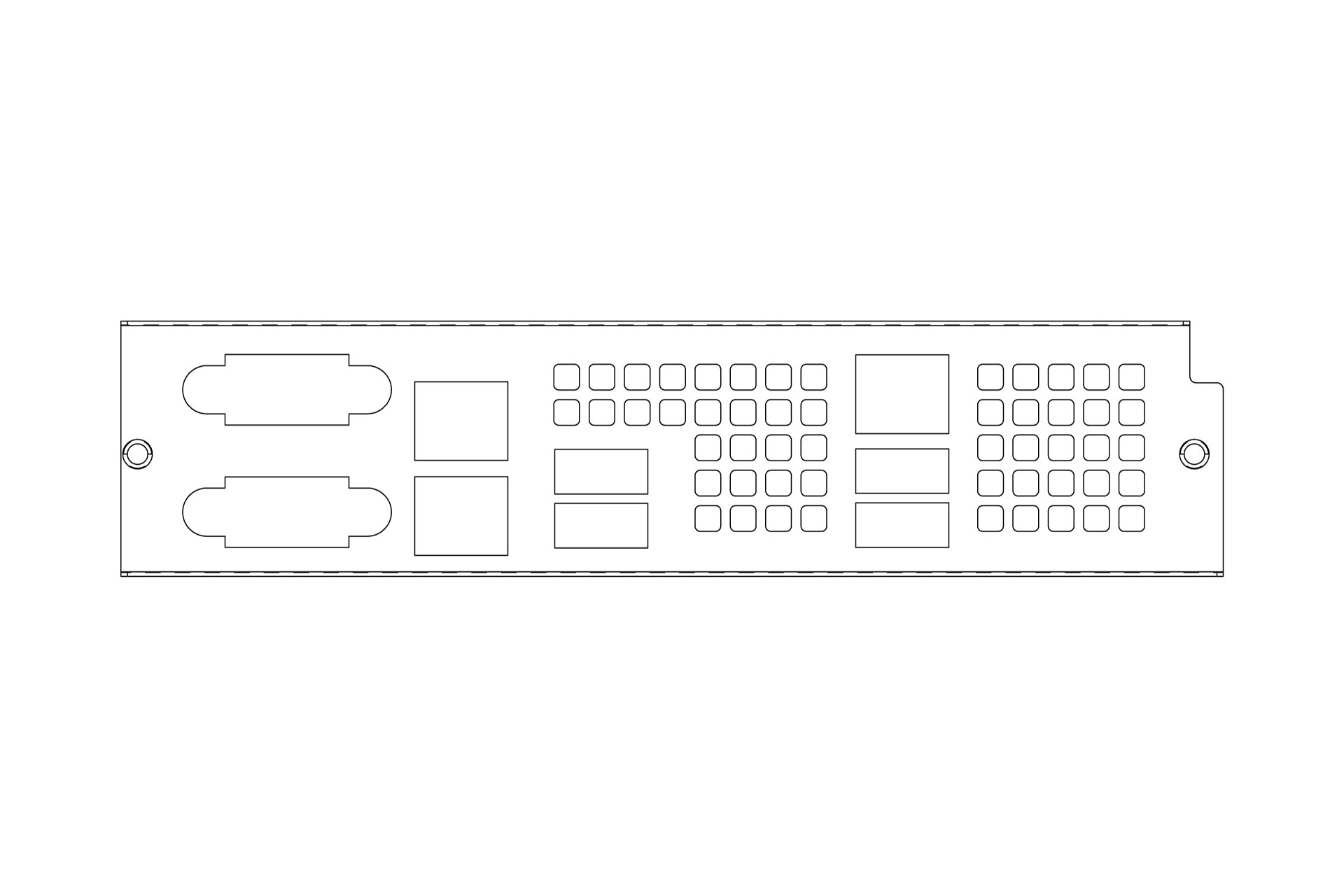

Back I/O Shield Plate
2RAVIQ010900
Rear I/O shield- ASRock EPC612D8
Support: 1

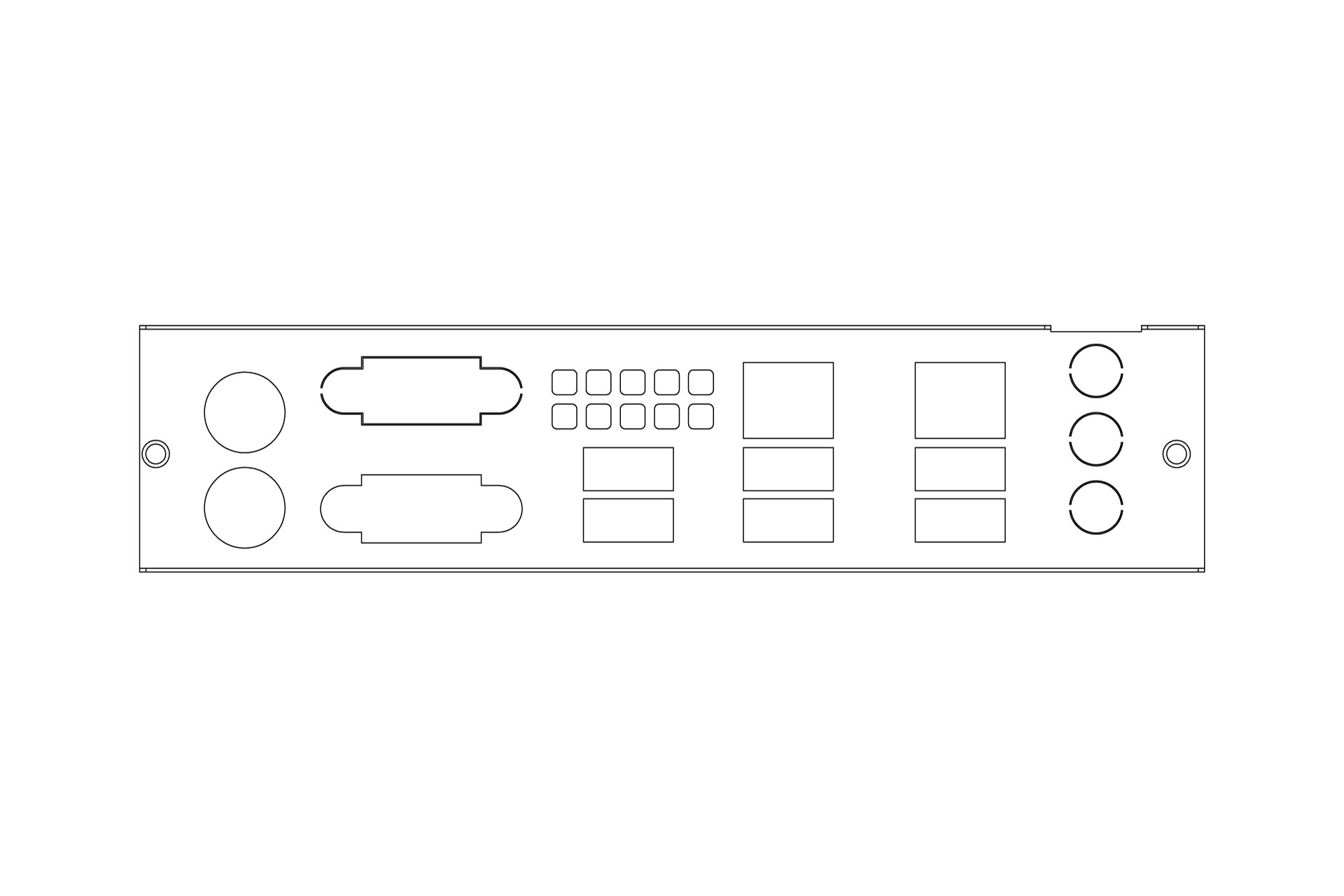

Back I/O Shield Plate
2RAVIQ011300
Rear I/O shield- ASRock H87WS-DL
Support: 1
Back I/O Shield Plate

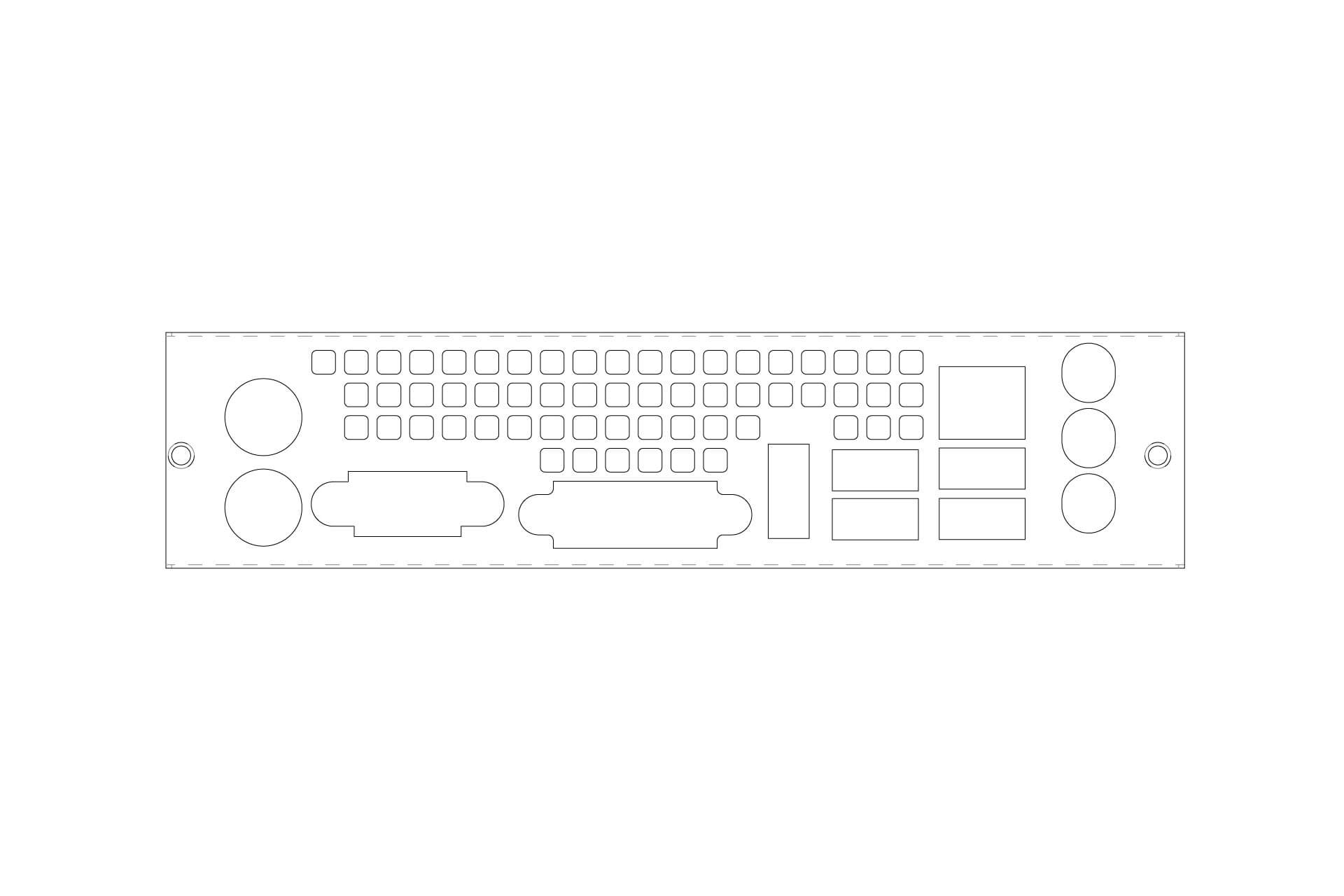

2RAVIQ052600
Rear I/O shield- AsRock J3455M
Support: 1

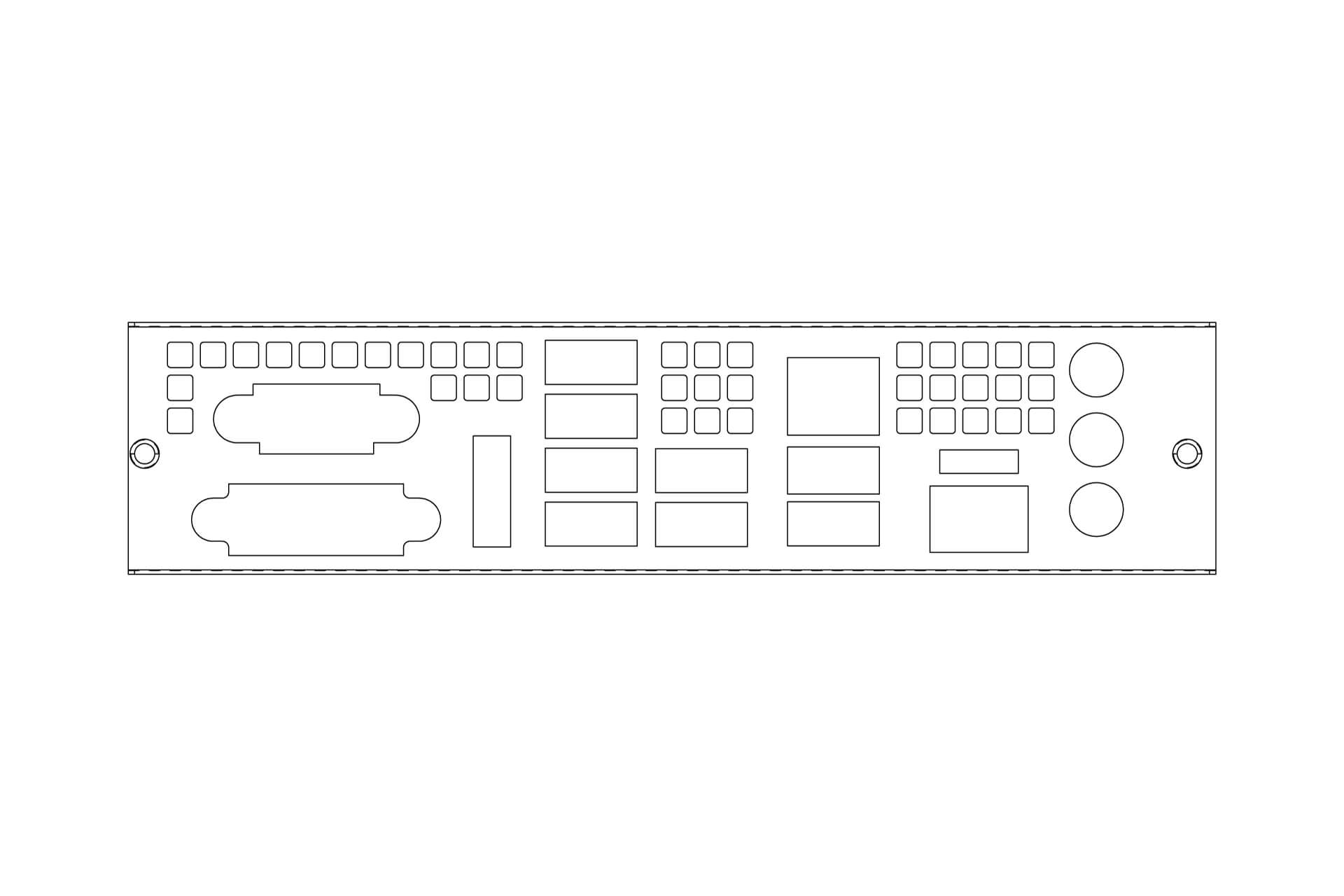

Back I/O Shield Plate

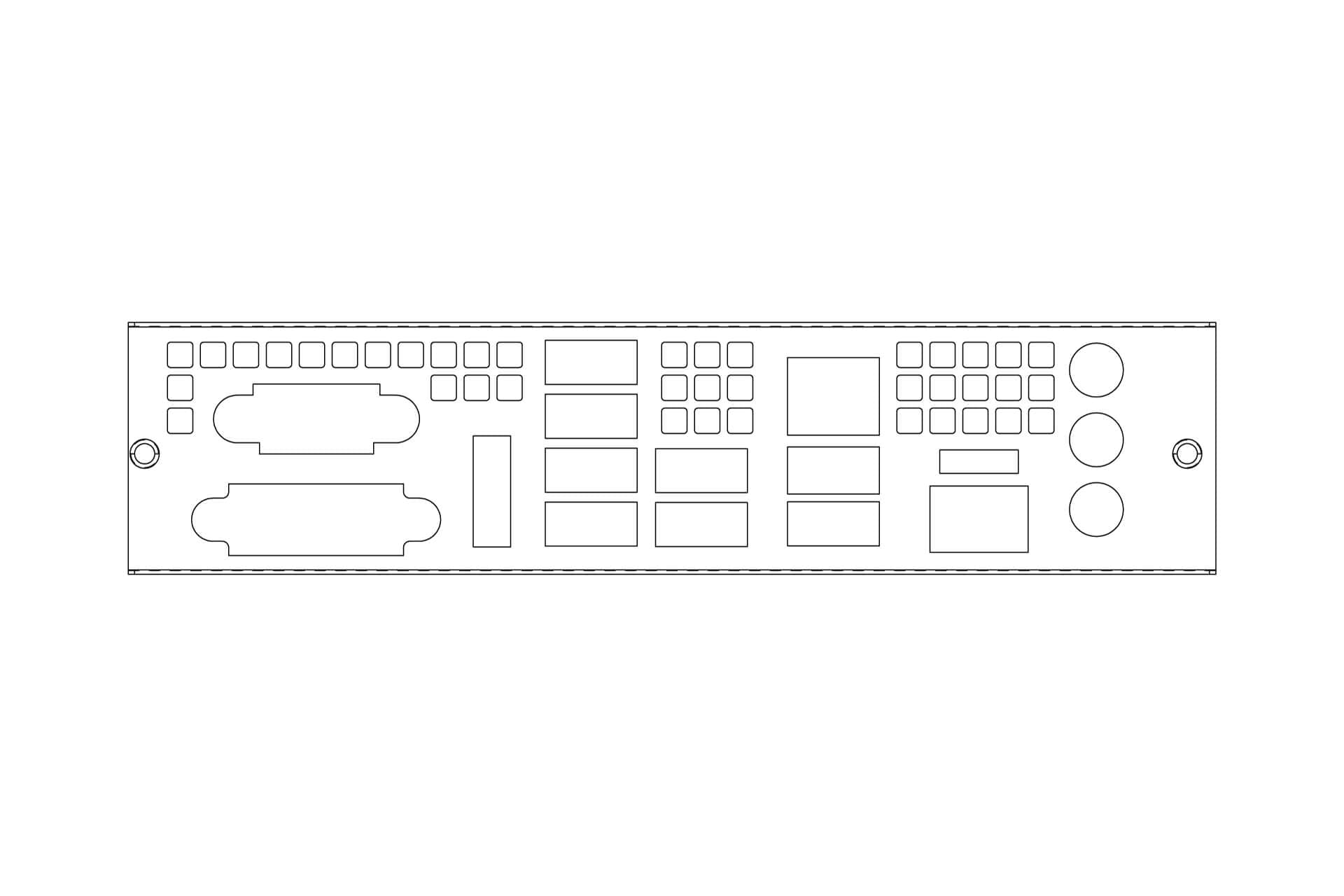

2RAVIQ043200
Rear I/O shield- ASRock KWQ87
Support: 1
Back I/O Shield Plate
2RAVIQ061500

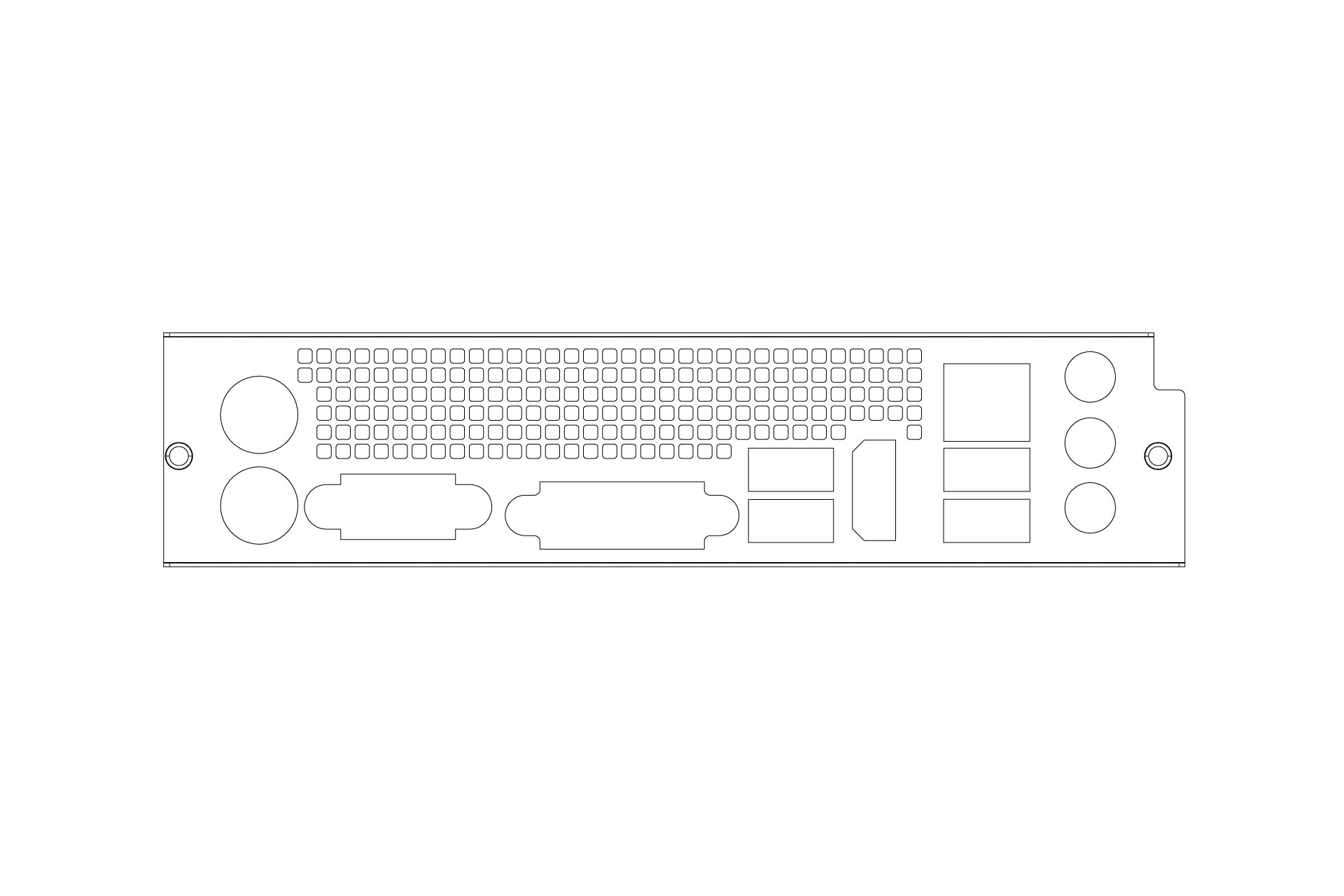

Rear I/O shield- ASRock Q1900M
Support: 1
Back I/O Shield Plate
2RAVIQ060700

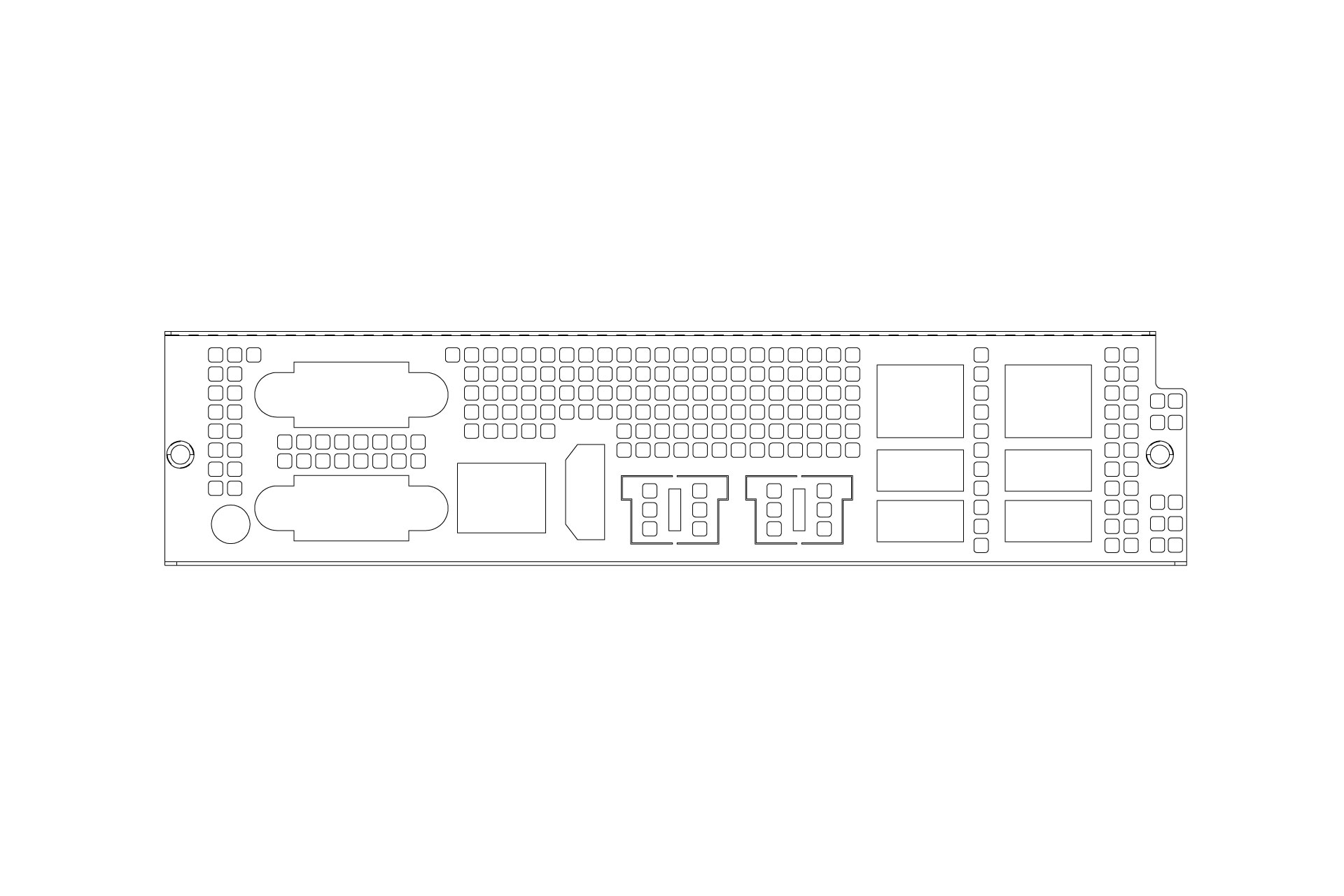

Rear I/O shield- ASRock Z490D4U-2L2T
Support: 1
Back I/O Shield Plate

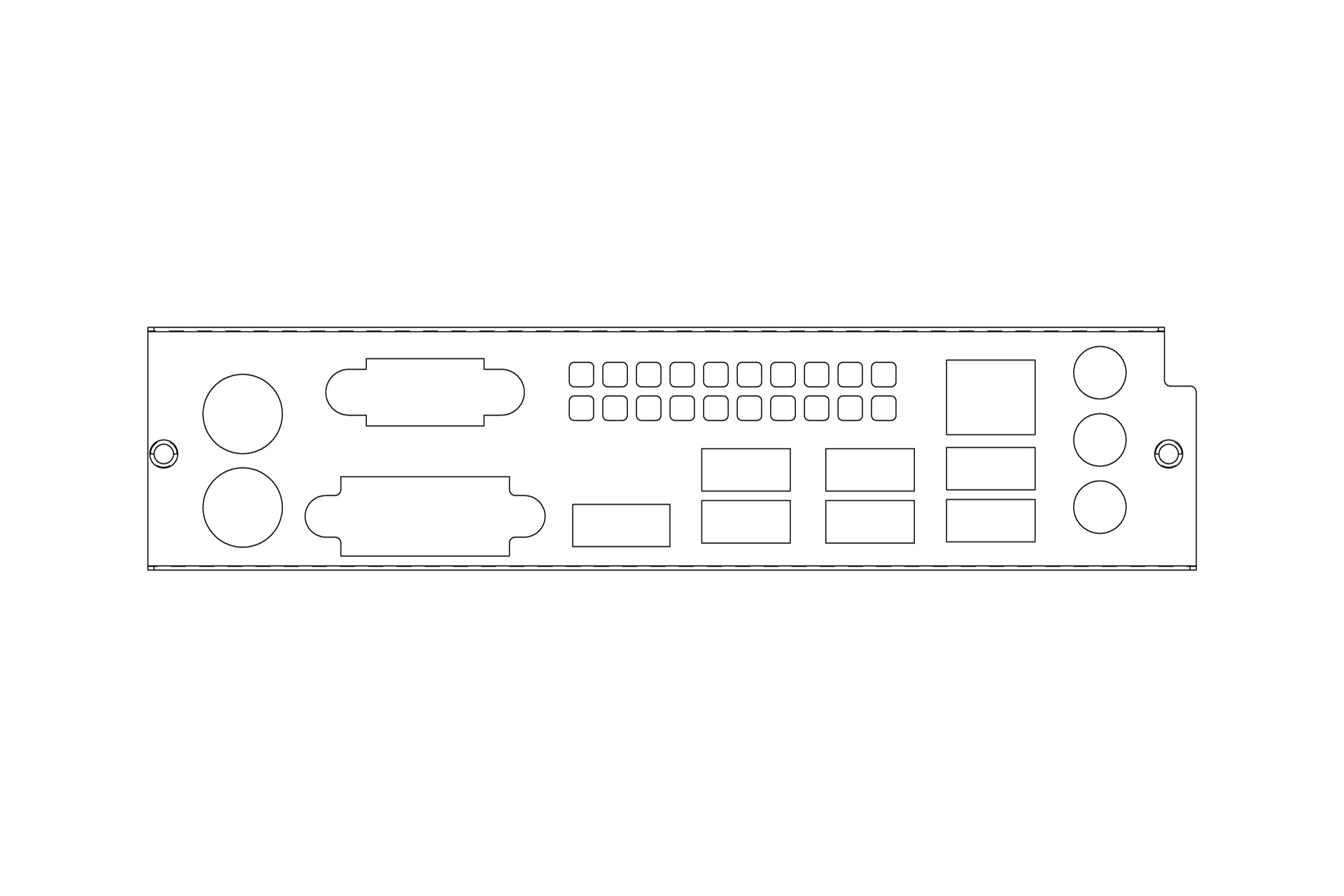

2RAVIQ009500
Rear I/O shield- ASUS H97M-E
Support: 1
Back I/O Shield Plate

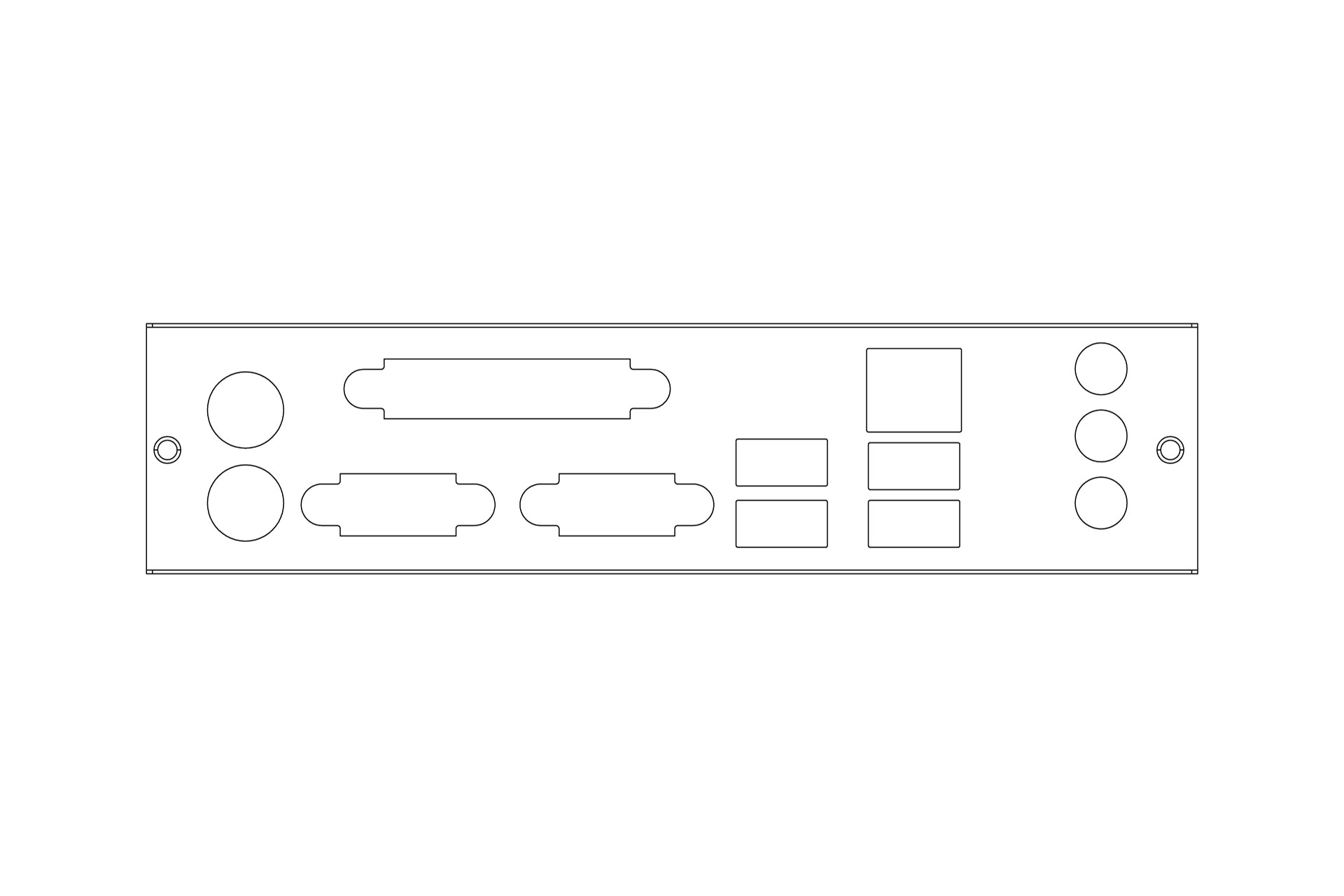

2RAVIQ003500
Rear I/O shield- ASUS M4N68TM
Support: 1

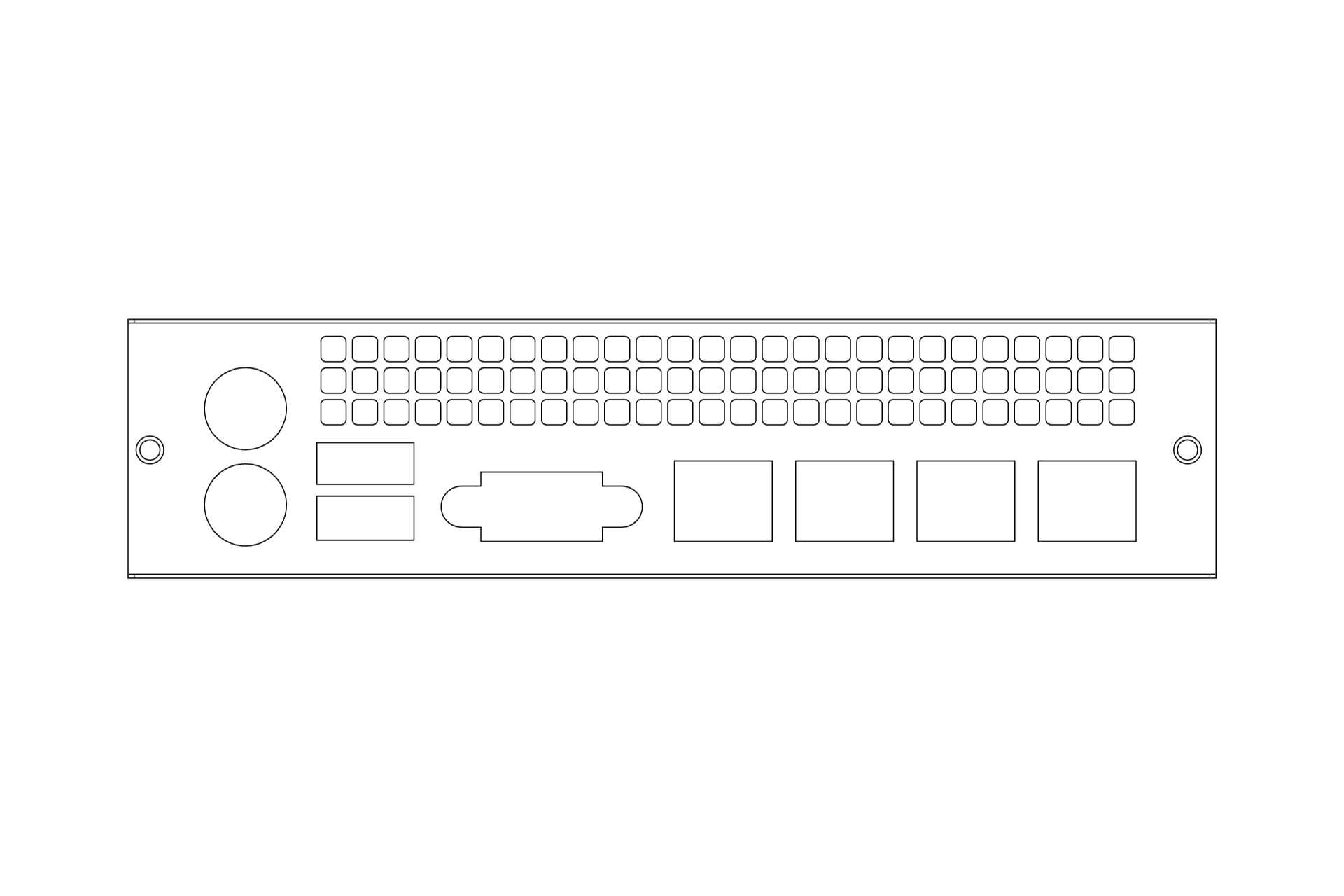

Back I/O Shield Plate
2RAVIQ004100
Rear I/O shield- ASUS P8B-C/4L
Support: 1

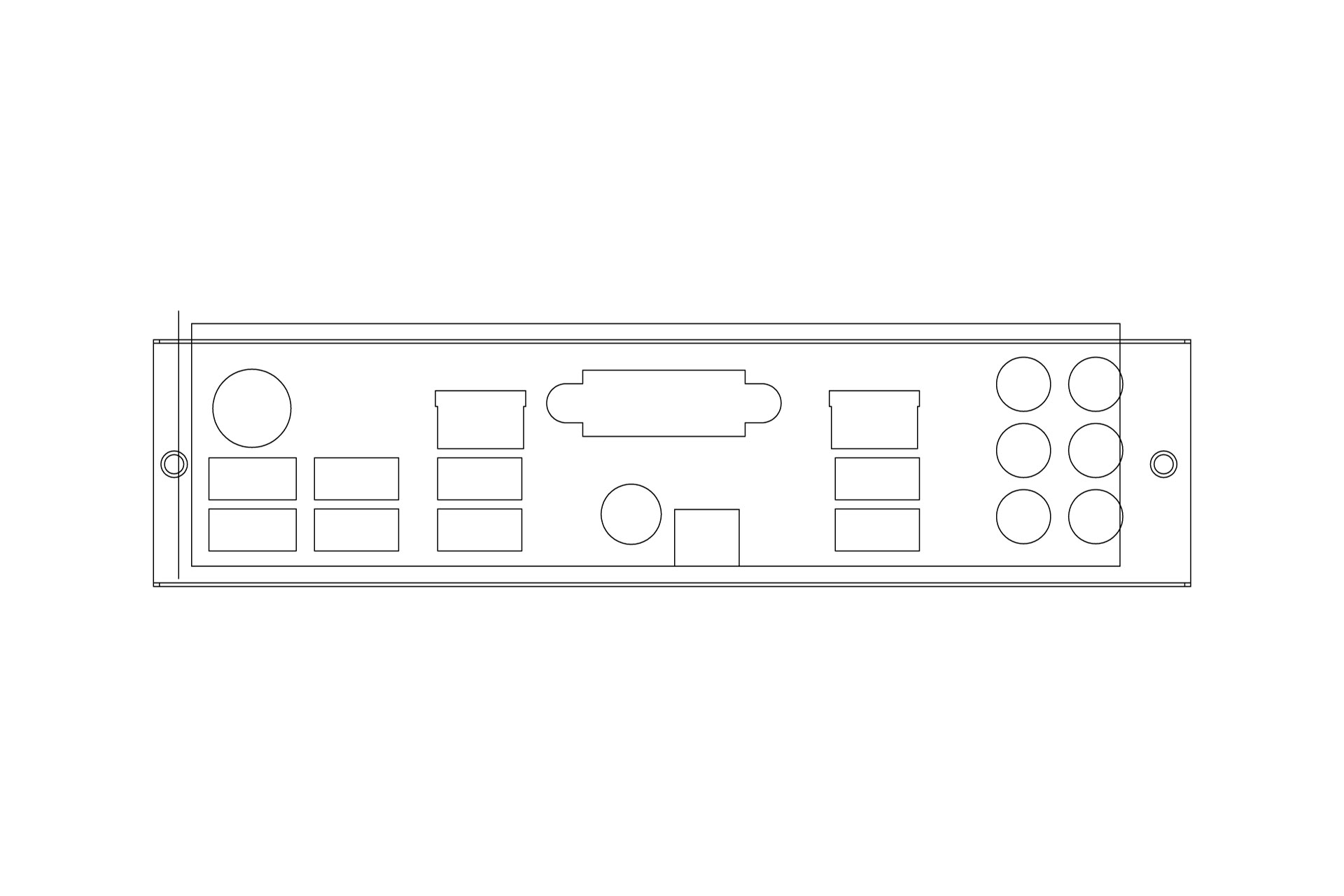

Back I/O Shield Plate
2RAVIQ004800
Rear I/O shield-ASUS P8B WS
Support: 1

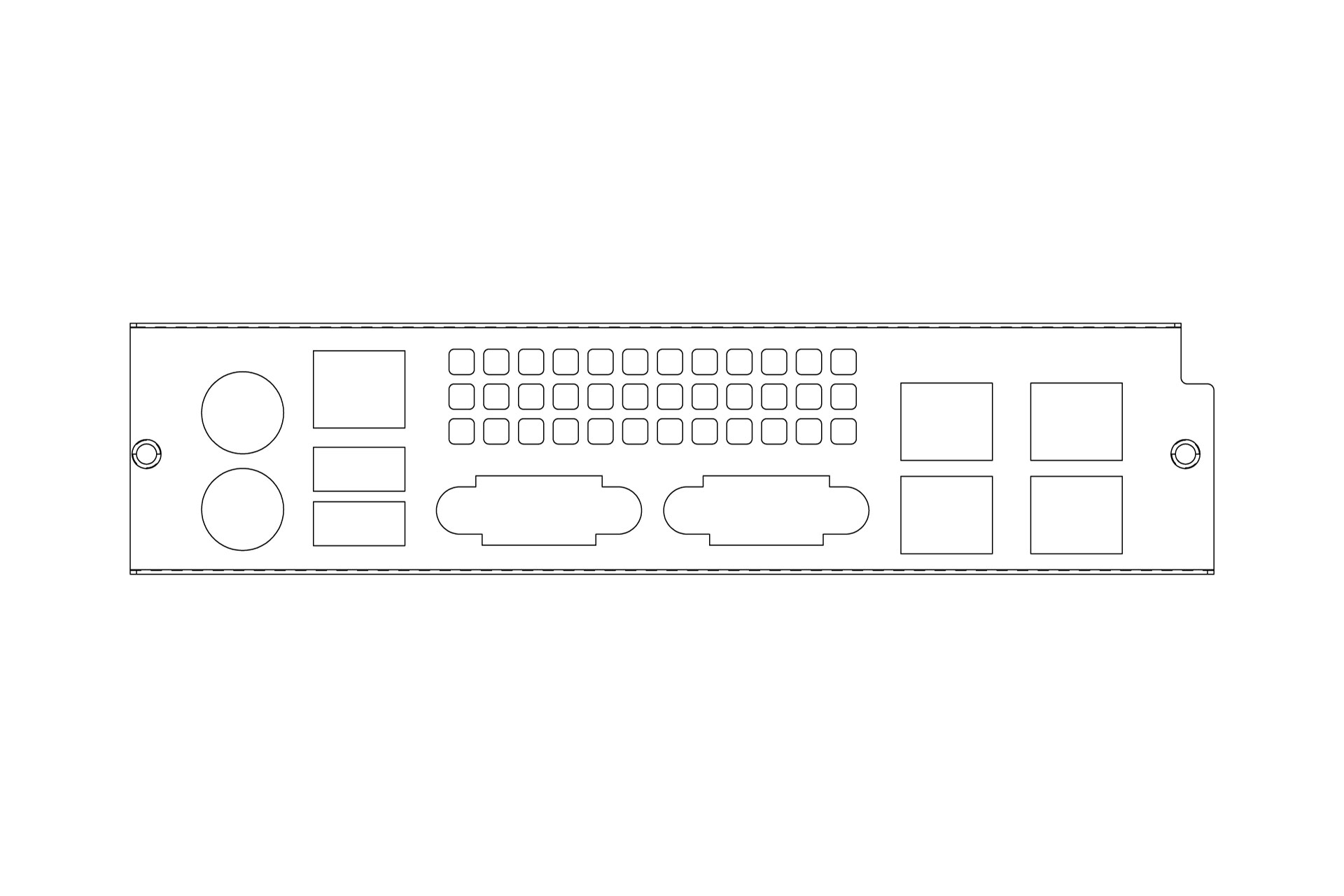

Back I/O Shield Plate
2RAVIQ009001
Rear I/O shield- ASUS P8B-X
Support: 1
Back I/O Shield Plate
2RAVIQ010800
Rear I/O shield- ASUS P9D-C
Support: 1

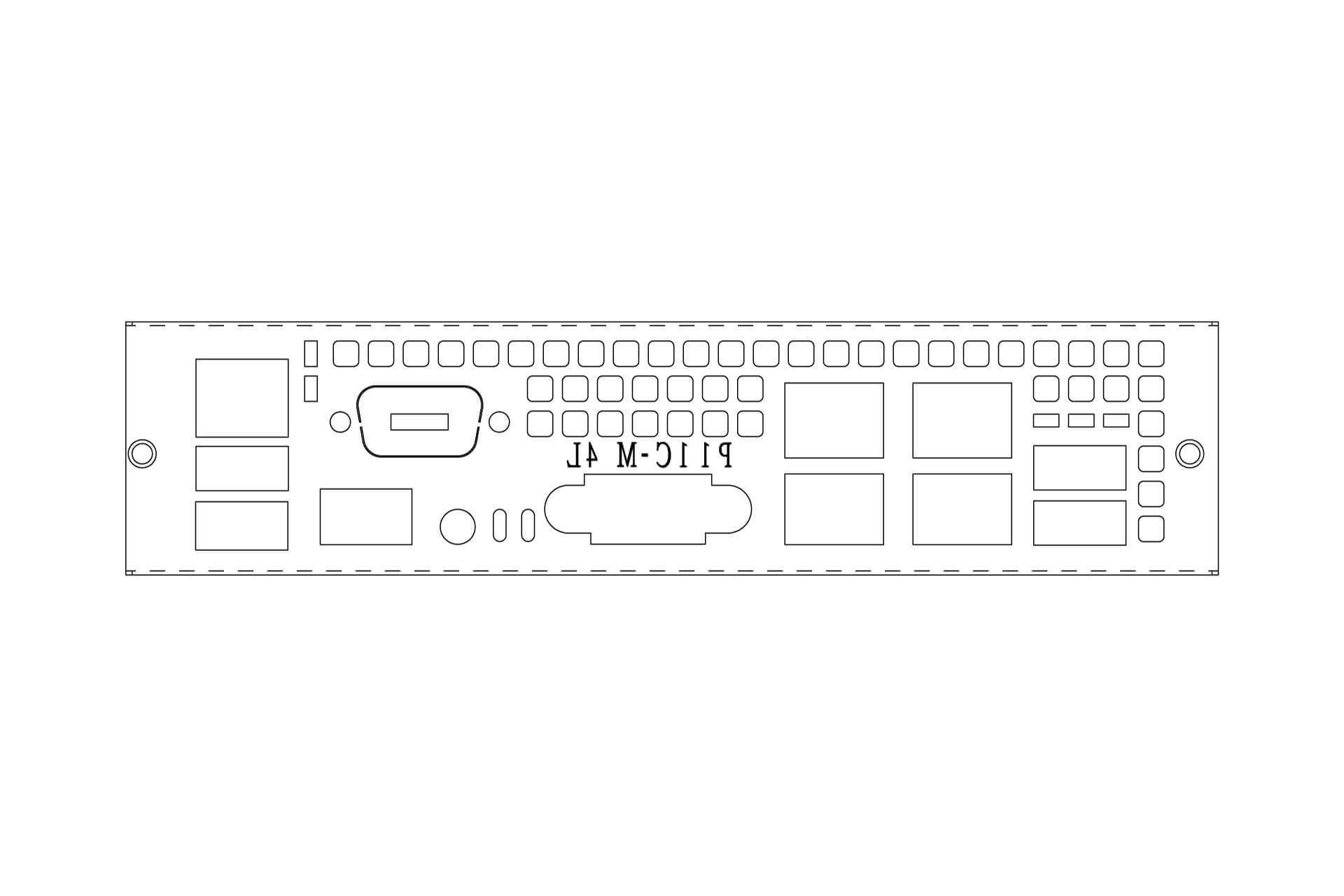

Back I/O Shield Plate
2RAVIQ043600
Rear I/O shield- ASUS P11C-M/4L
Support: 1

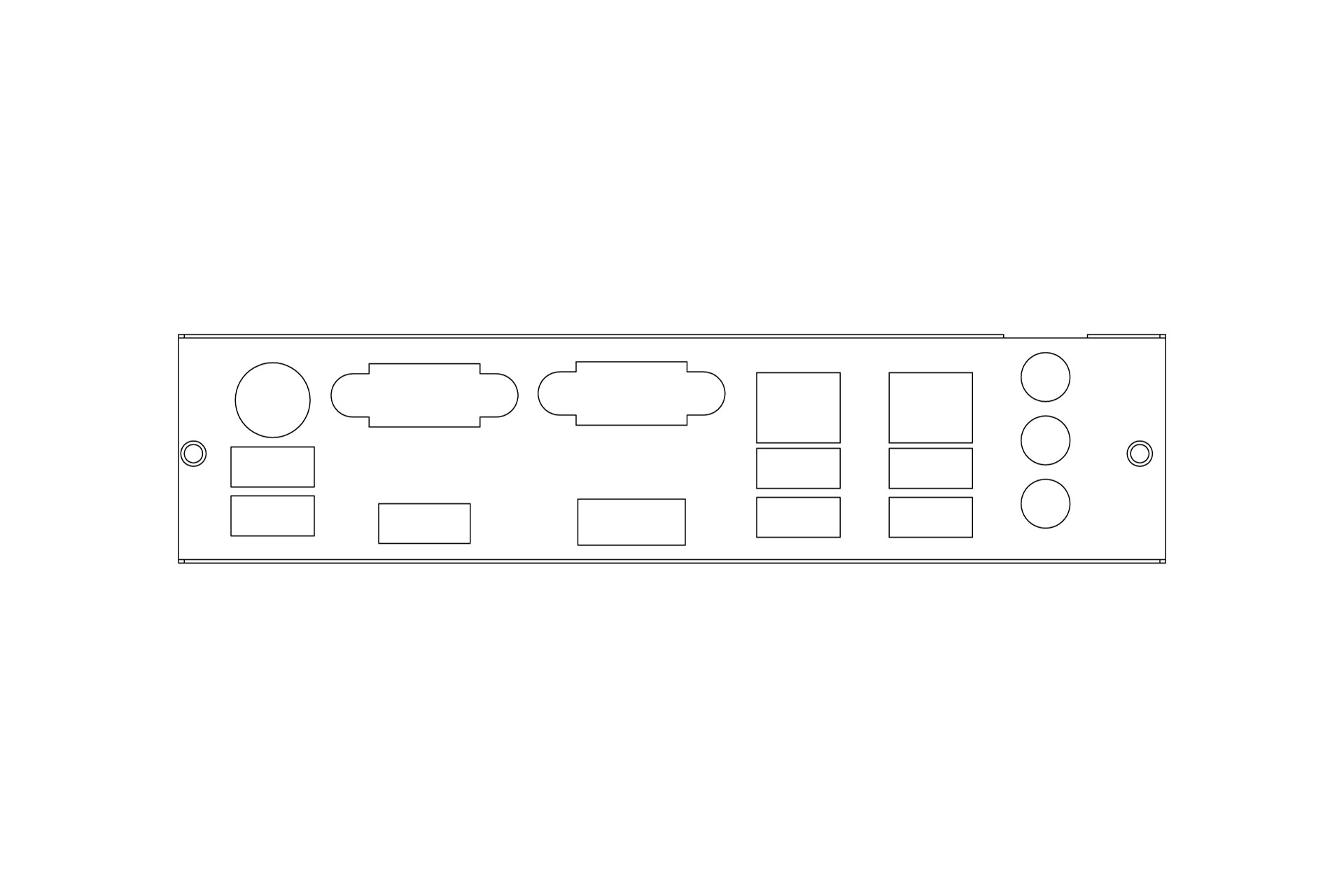

Back I/O Shield Plate
2RAVIQ027600
Rear I/O shield- Avalue EMX-Q170P
Support: 1

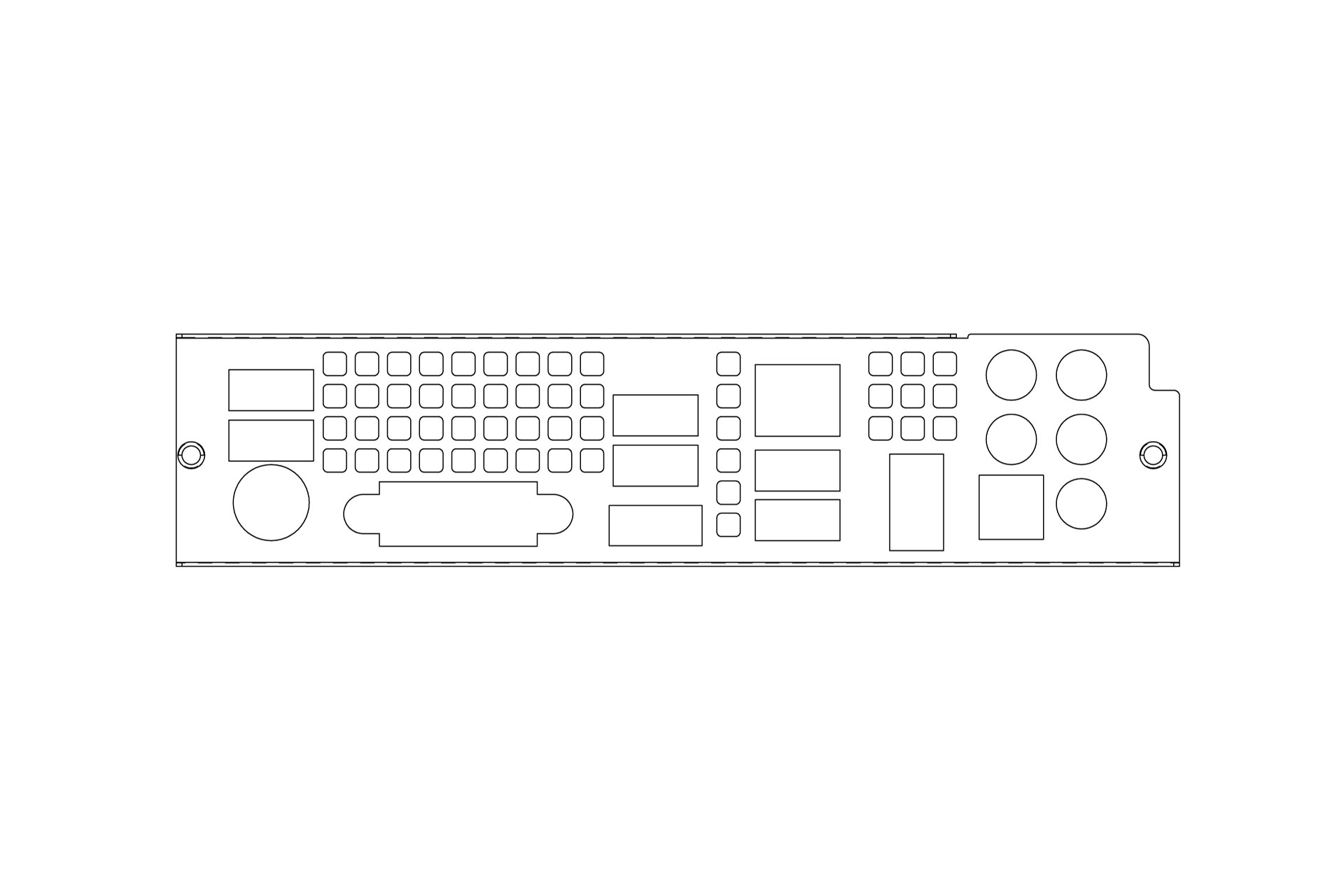

Back I/O Shield Plate
2RAVIQ013600
Rear I/O shield- Gigabyte GA-B85N
Support: 1
Back I/O Shield Plate

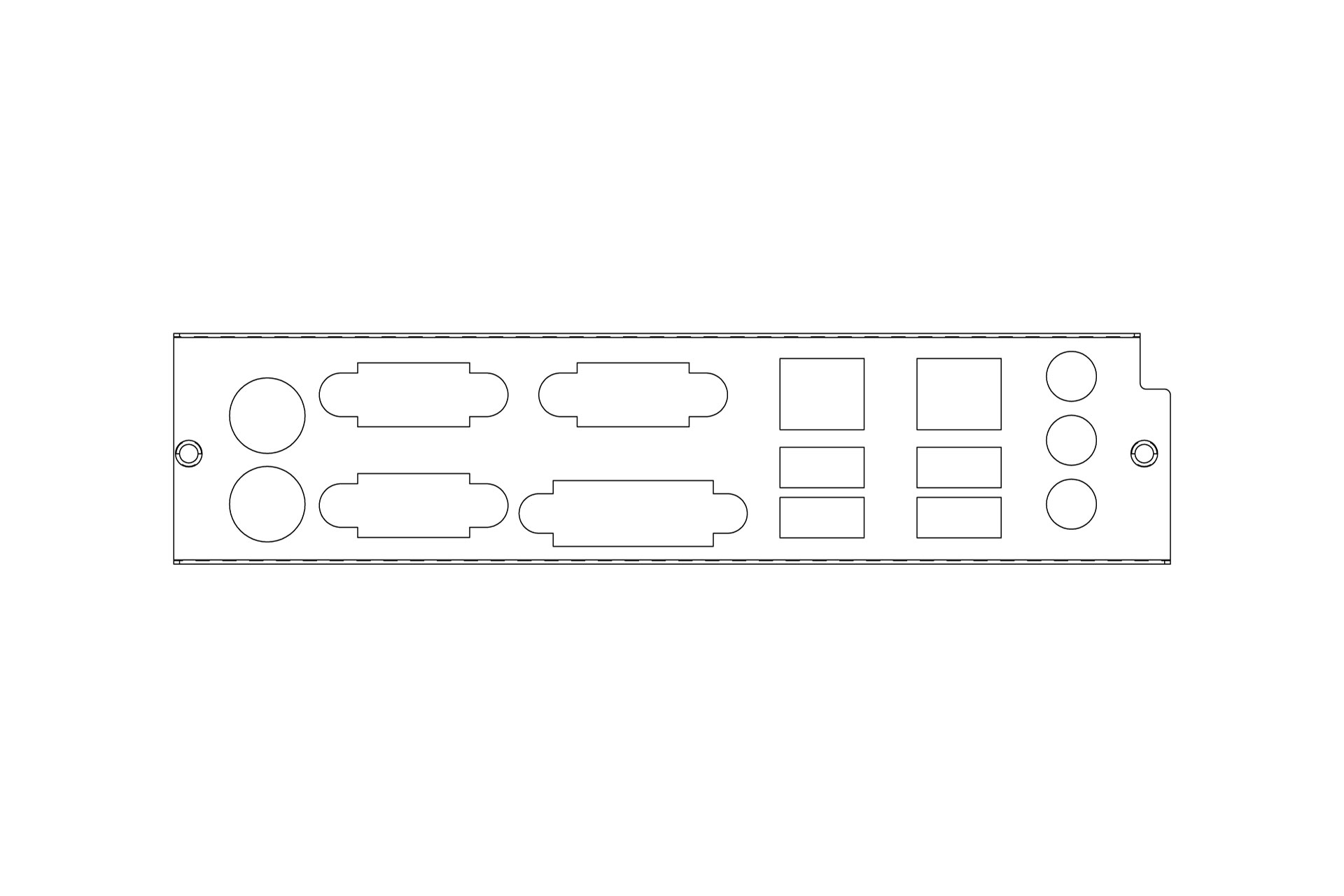

2RAVIQ008800
Rear I/O shield- Gigabyte J1900N-D3V
Support: 1

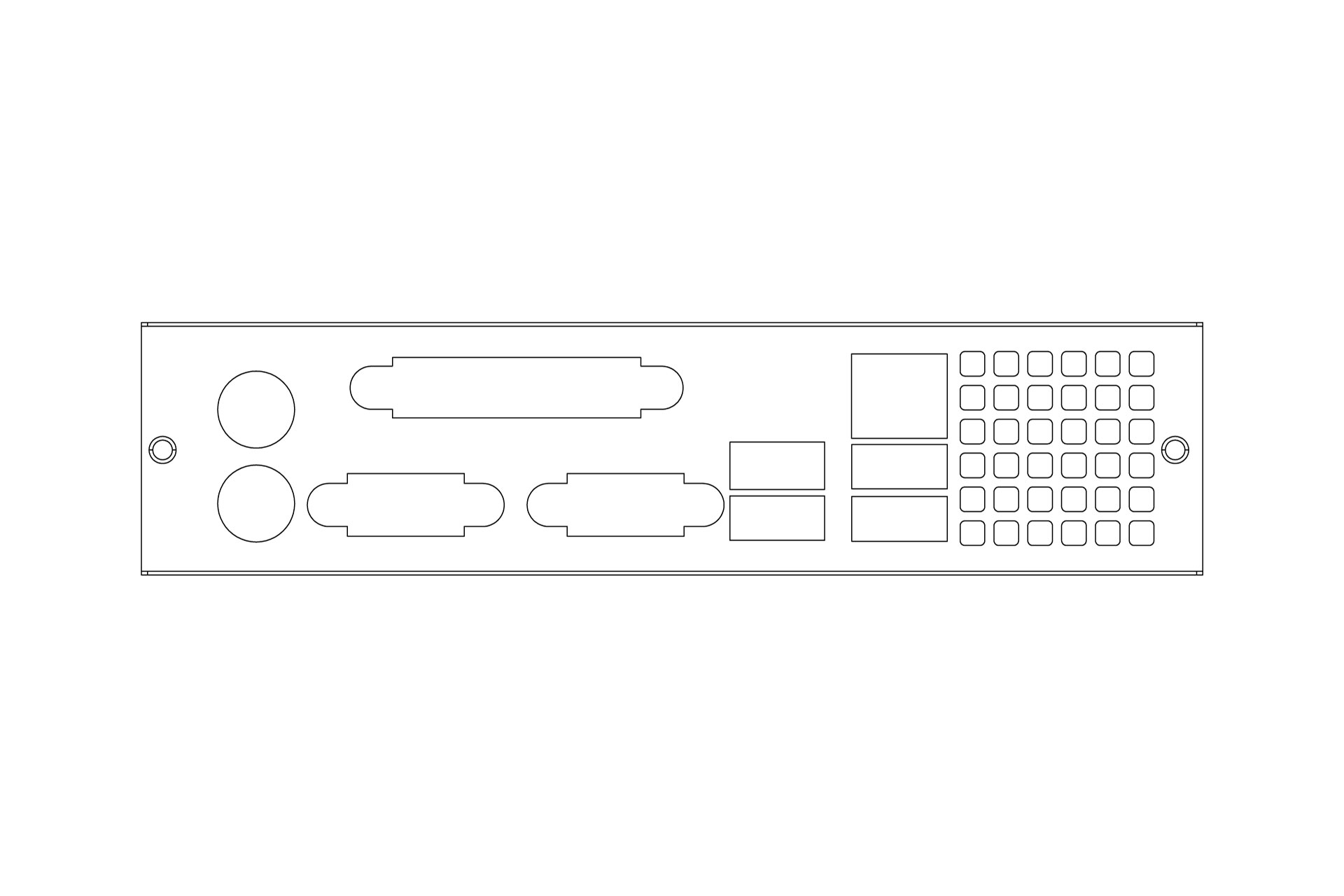

Back I/O Shield Plate
2RAVIQ003700
Rear I/O shield- Intel BCM RX965Q
Support: 1

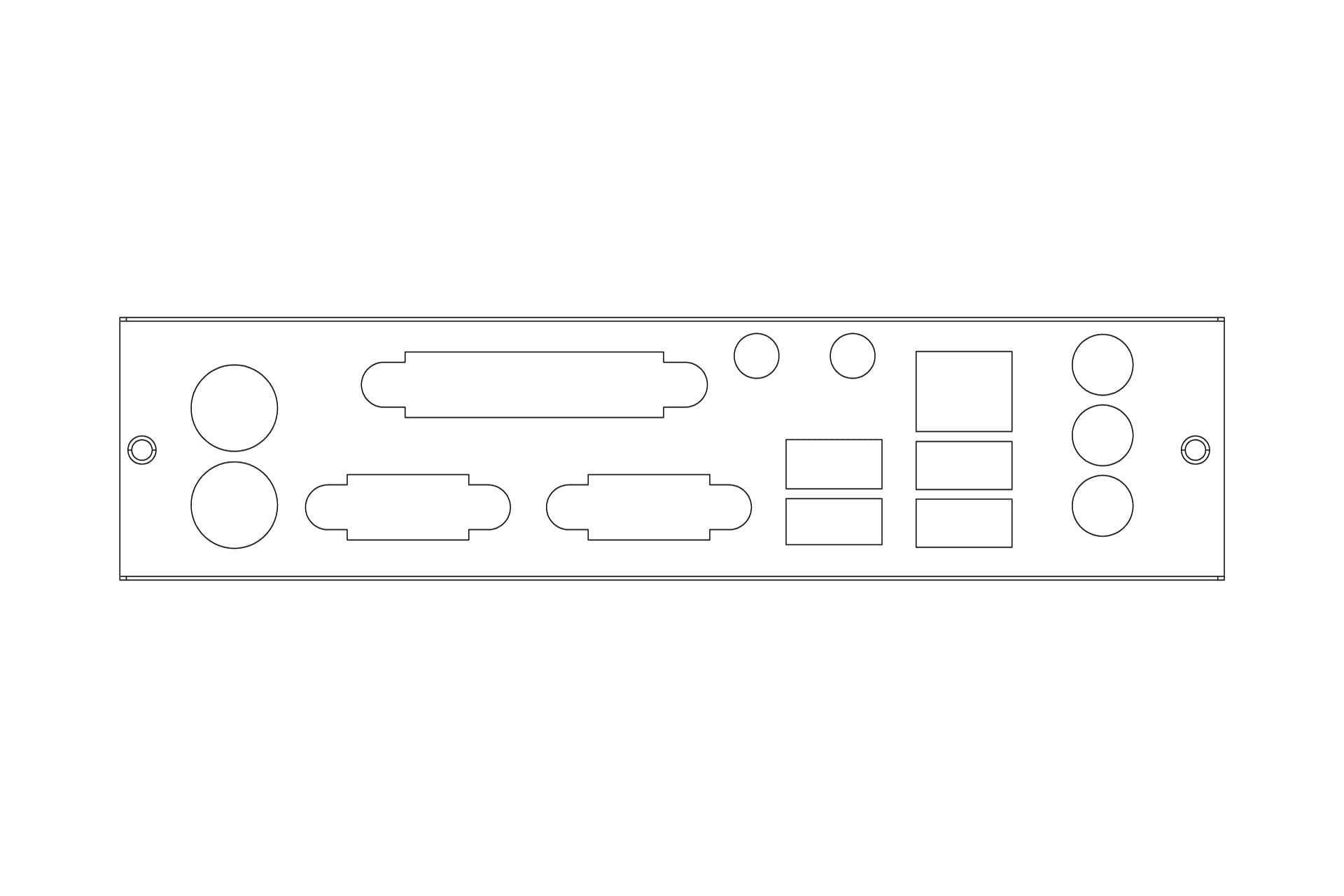

Back I/O Shield Plate
2RAVIQ003800
Rear I/O shield- Intel D525MW
Support: 1
Back I/O Shield Plate

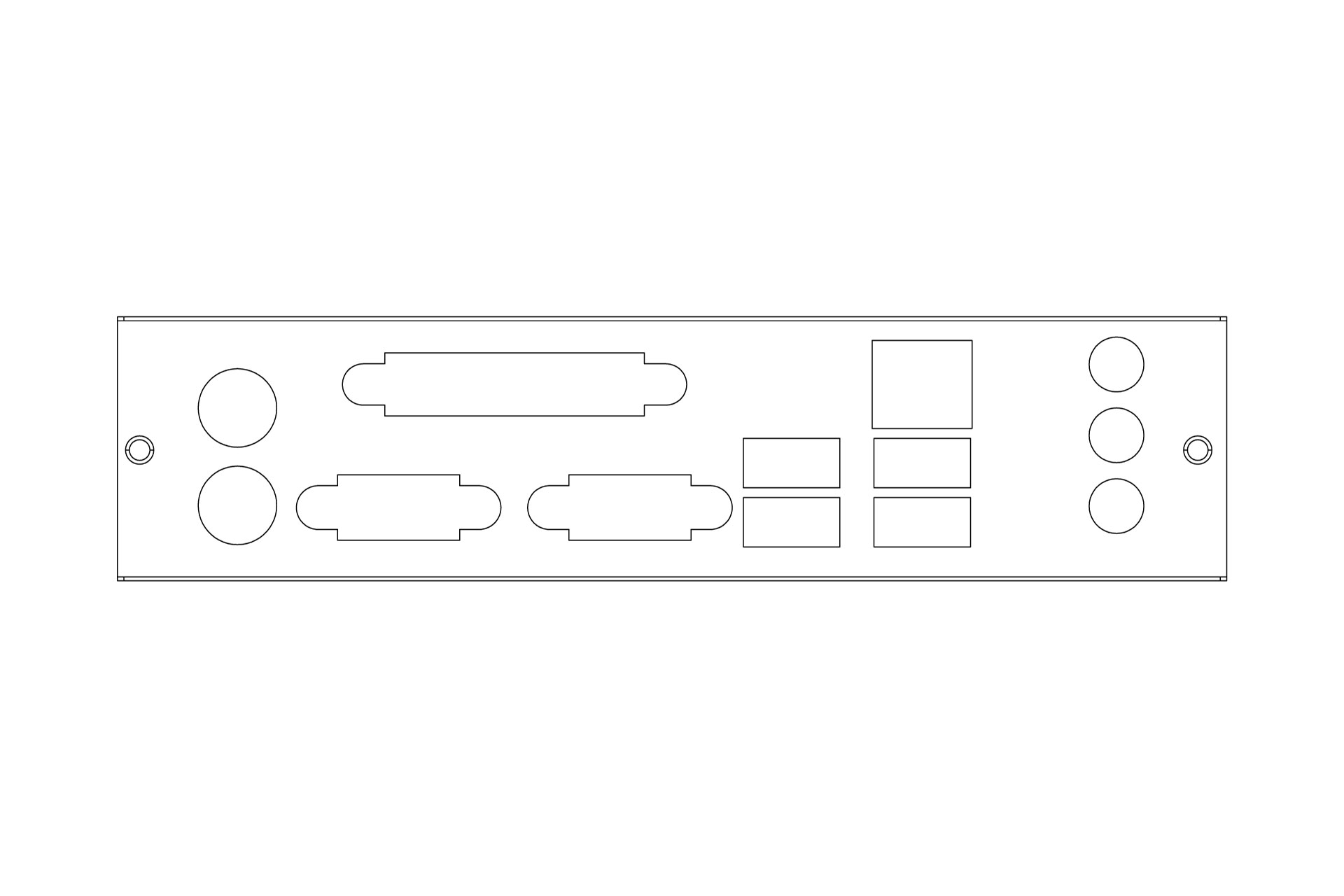

2RAVIQ004300
Rear I/O shield- Intel DG41CN
Support: 1

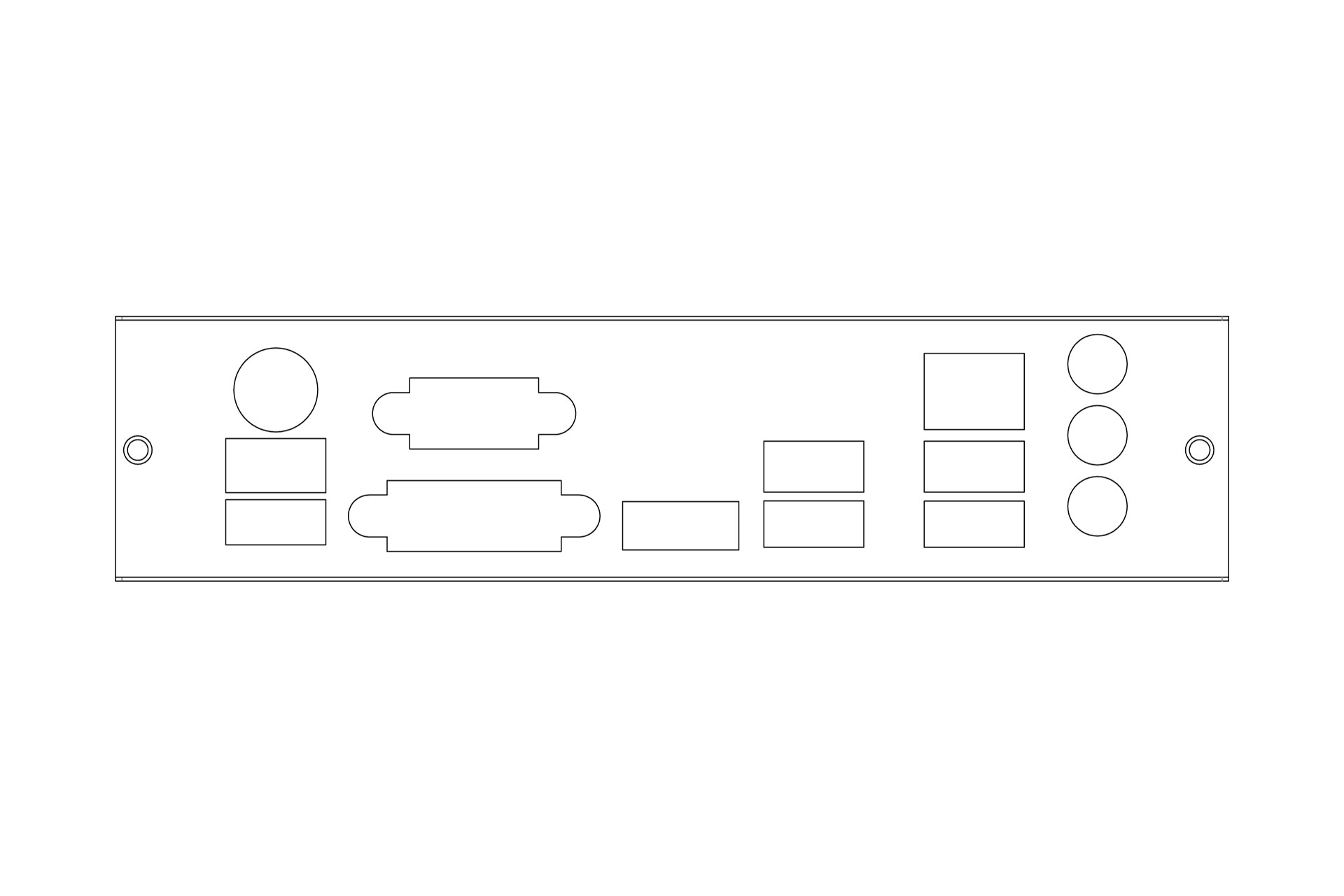

Back I/O Shield Plate
2RAVIQ002700
Rear I/O shield- Intel DH55TC
Support: 1

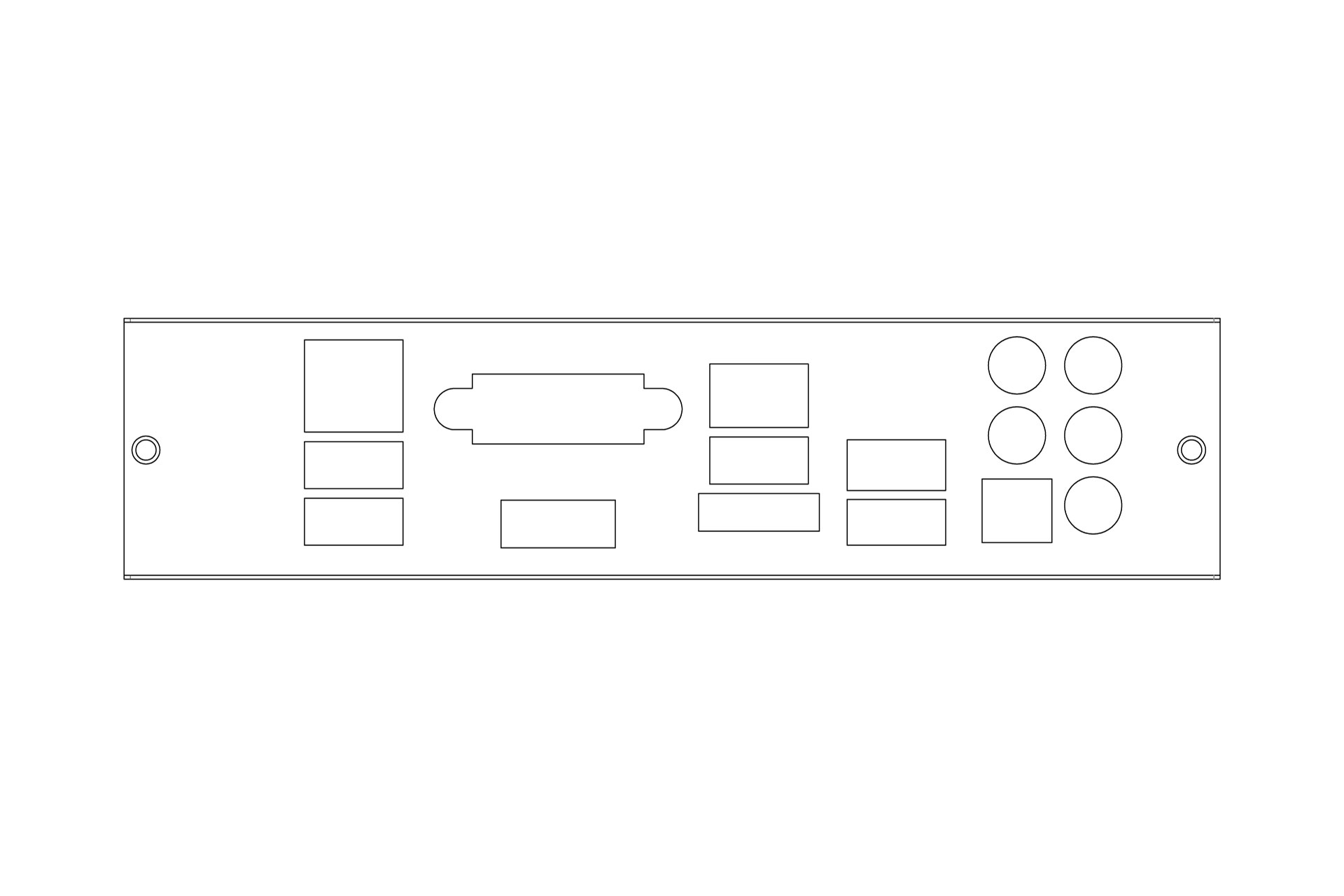

Back I/O Shield Plate
2RAVIQ002800
Rear I/O shield- Intel DH57JG
Support: 1
Back I/O Shield Plate
2RAVIQ004700

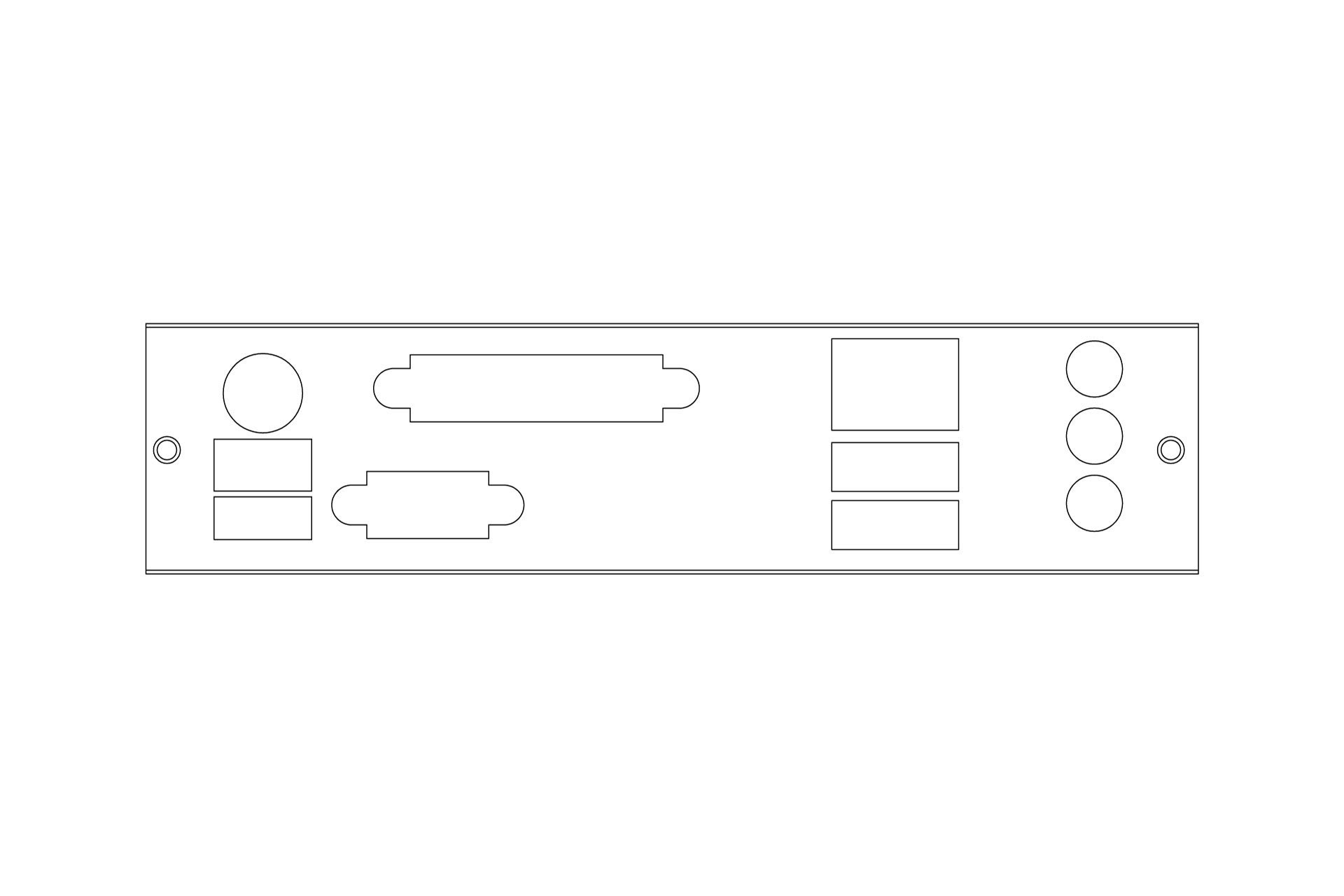

Rear I/O shield- Intel DH61WW
Support: 1
Back I/O Shield Plate

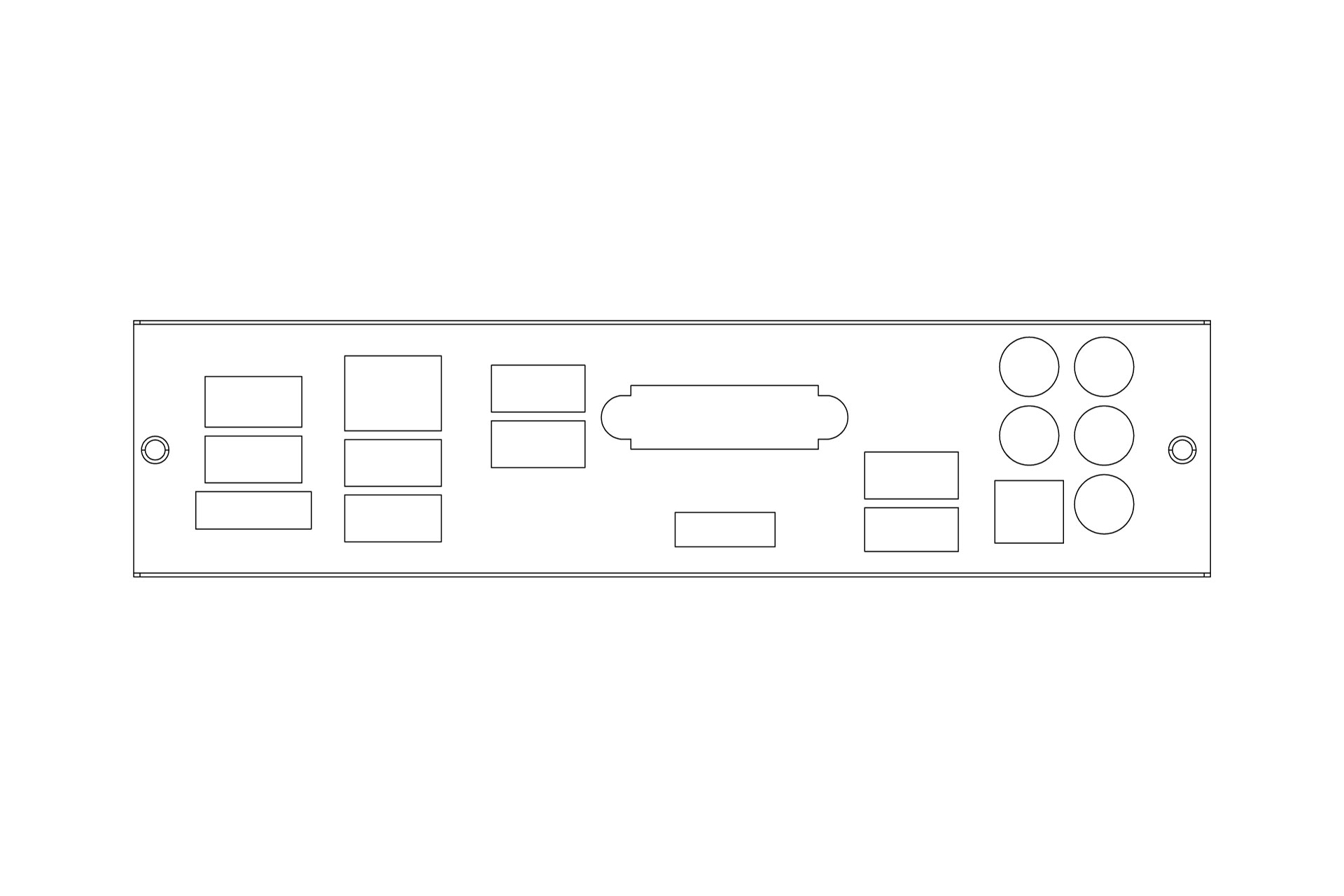

2RAVIQ004400
Rear I/O shield- Intel DH67BL
Support: 1
Back I/O Shield Plate
2RAVIQ003900

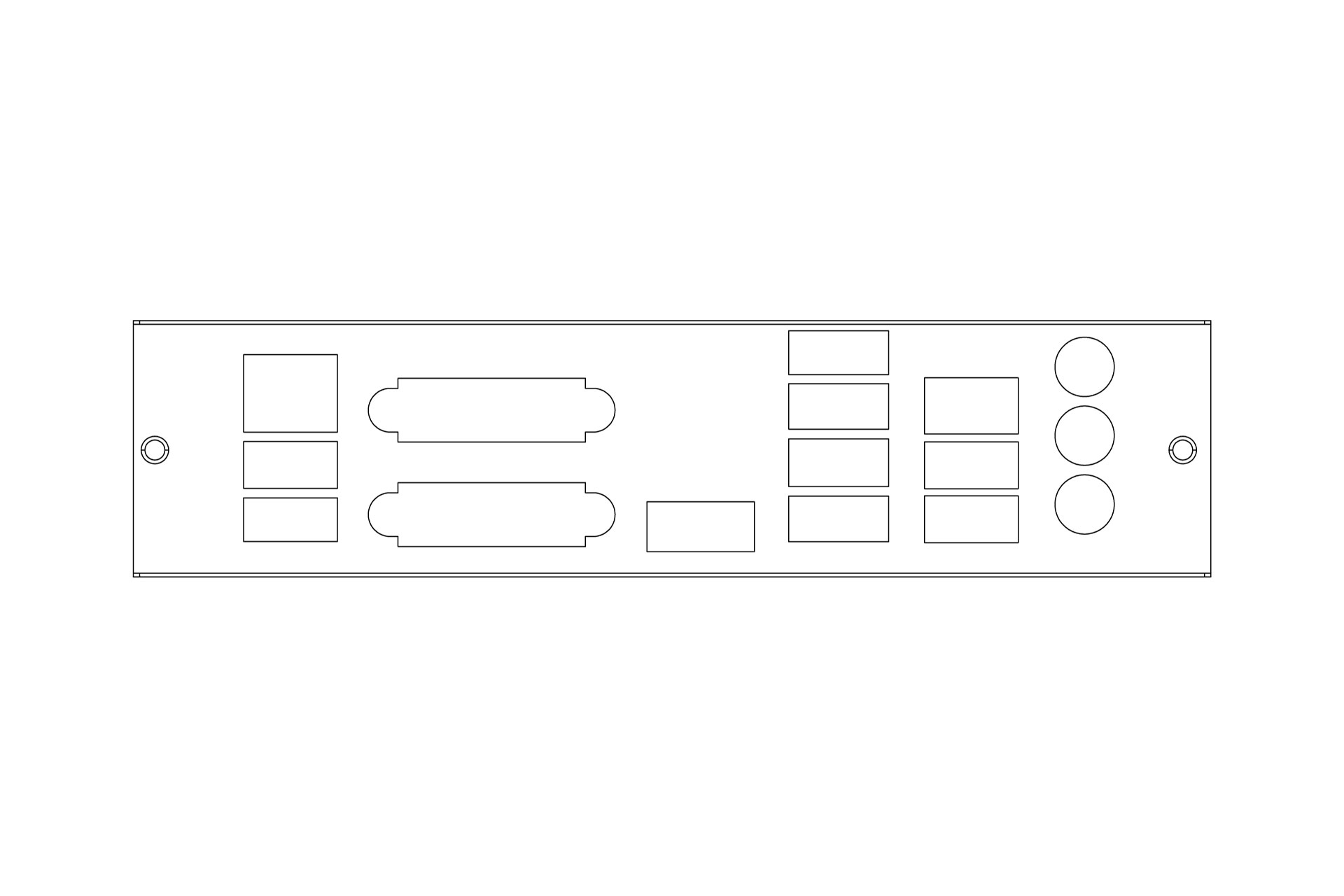

Rear I/O shield- Intel DQ67SW
Support: 1

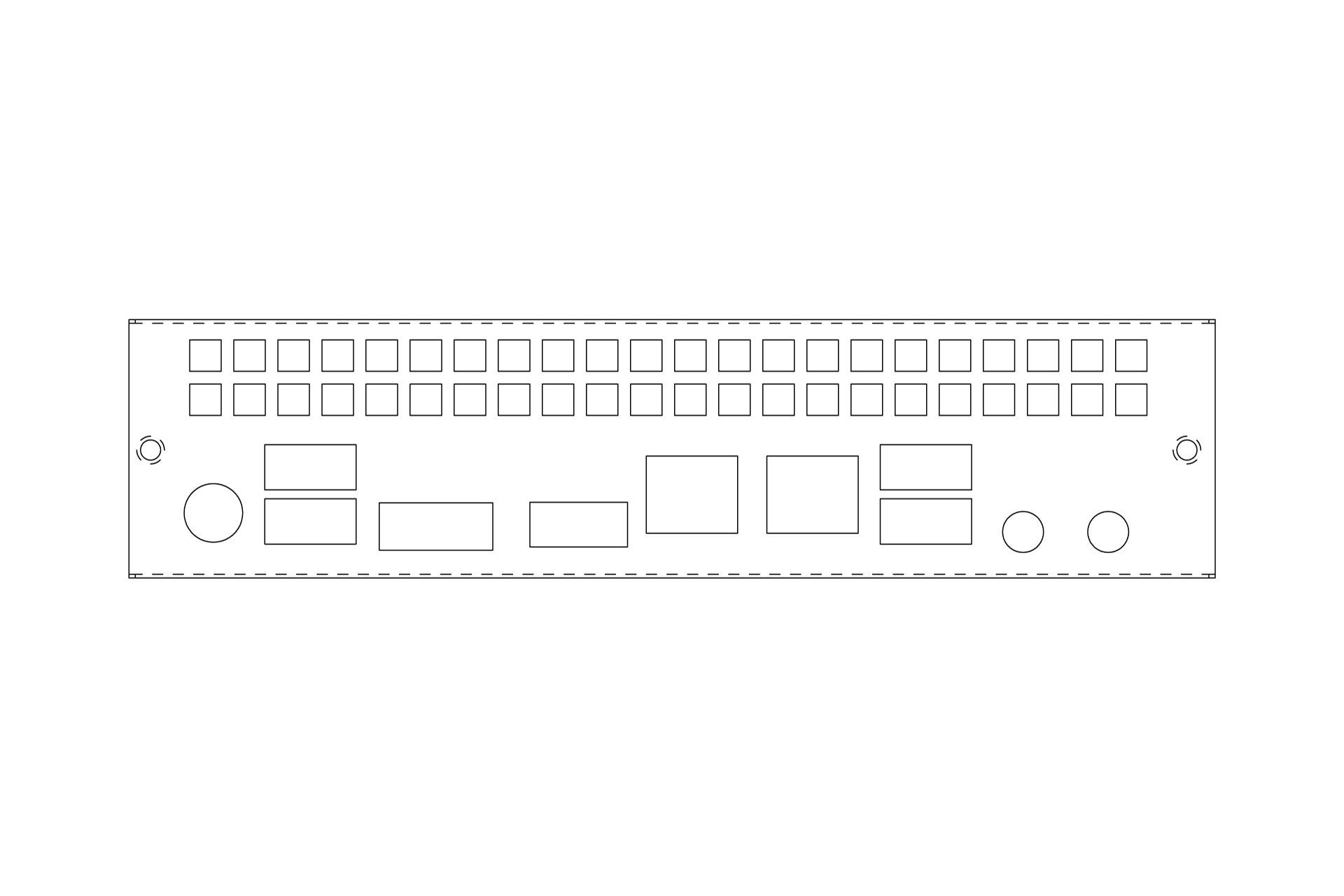

Back I/O Shield Plate
2RAVIQ005700
Rear I/O shield- Intel DQ77KB
Support: 1

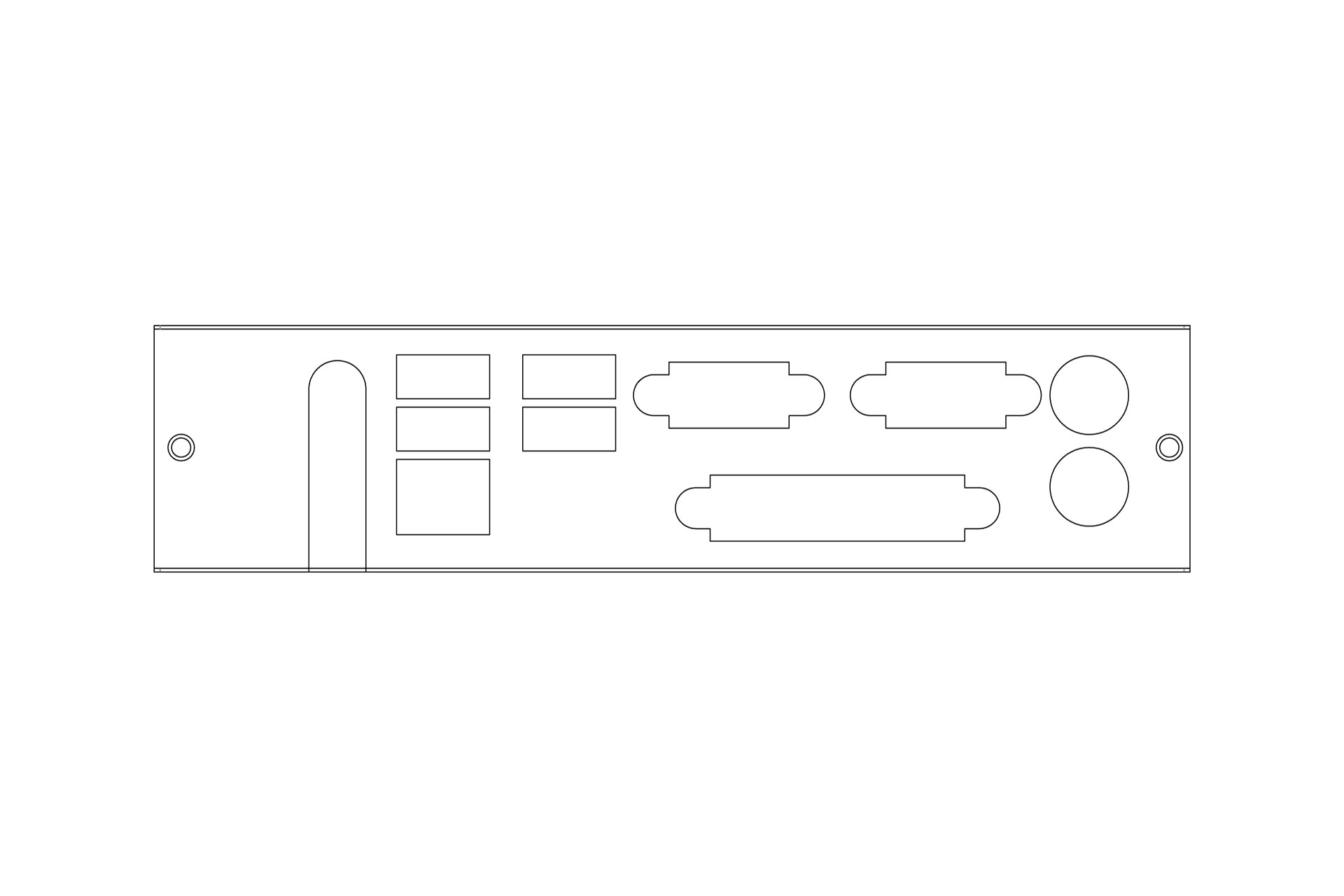

Back I/O Shield Plate
2RAVIQ002600
Rear I/O shield- Intel NC94FL
Support: 1

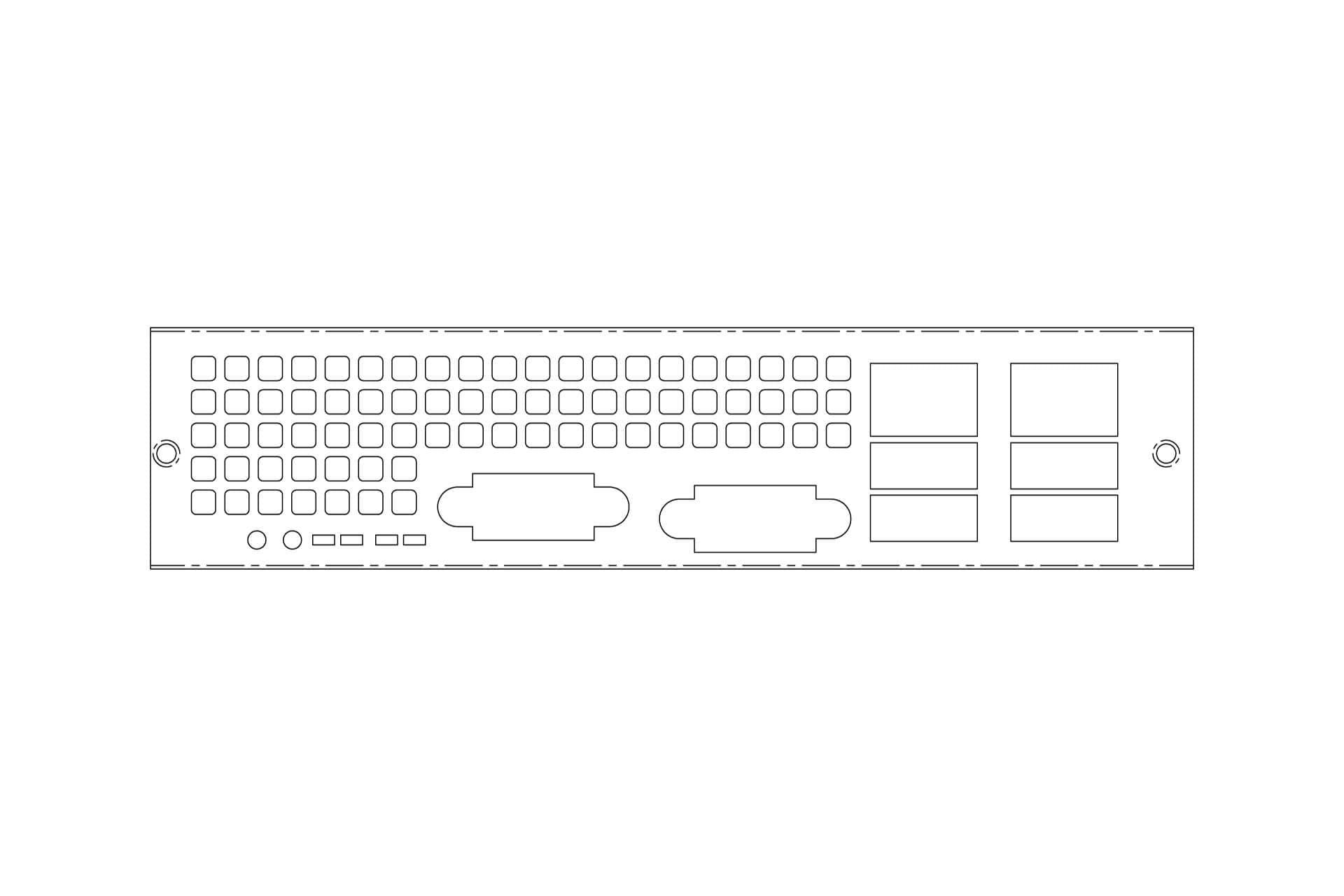

Back I/O Shield Plate

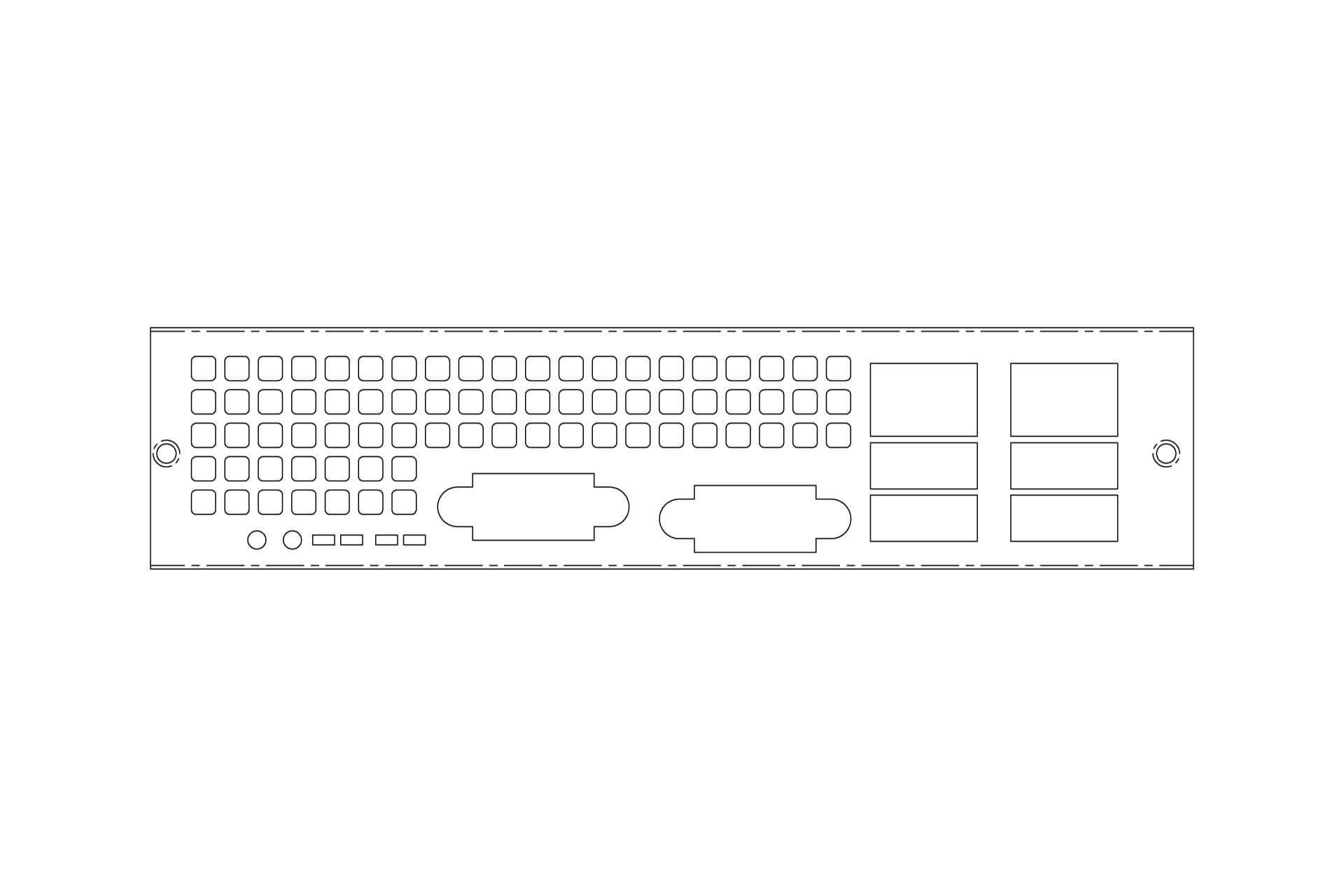

2RAVIQ031600
Rear I/O shield- Intel S1200BTS
Support: 1
Back I/O Shield Plate
2RAVIQ008000

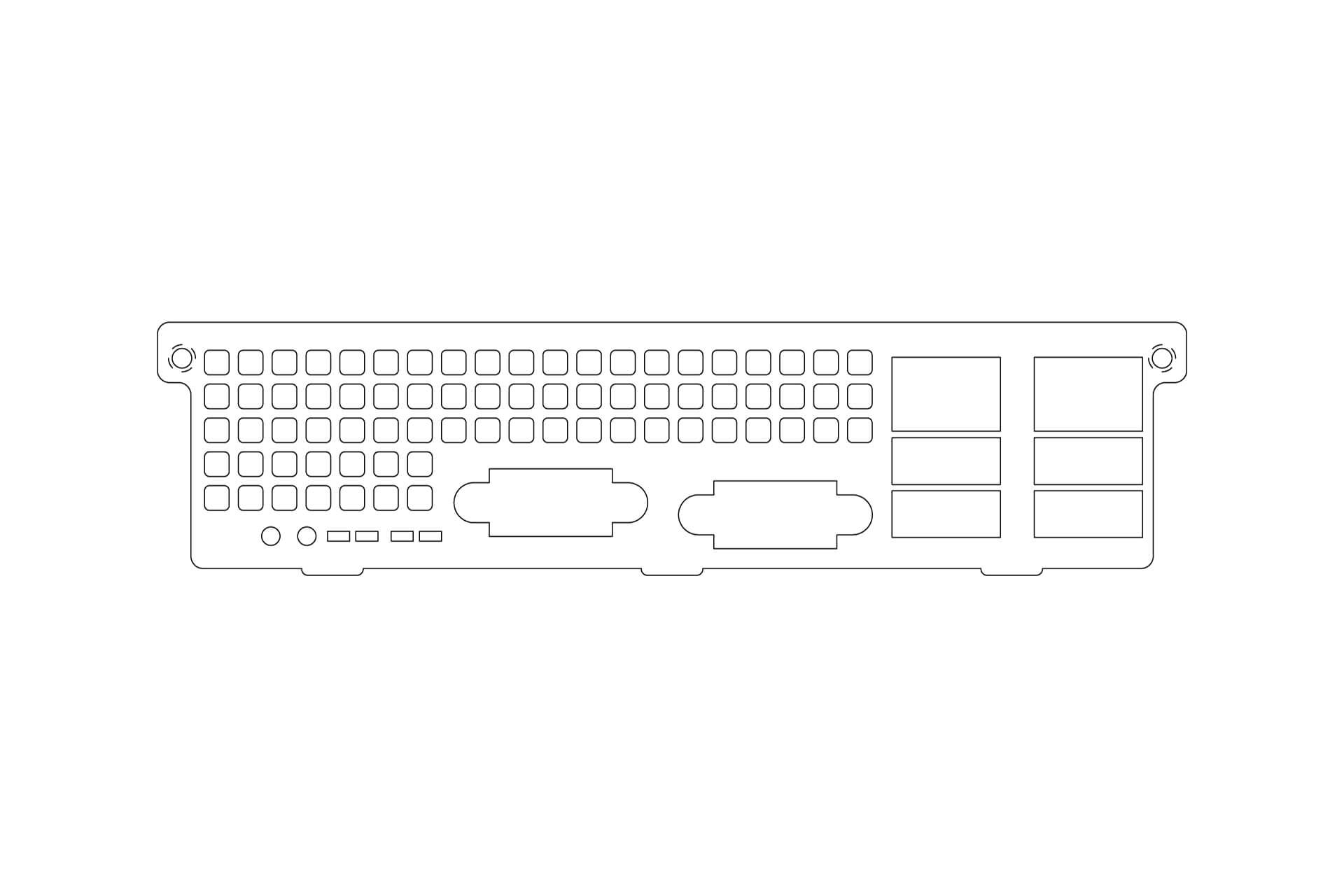

Rear I/O shield- Intel S1200BTSR
Support: 1

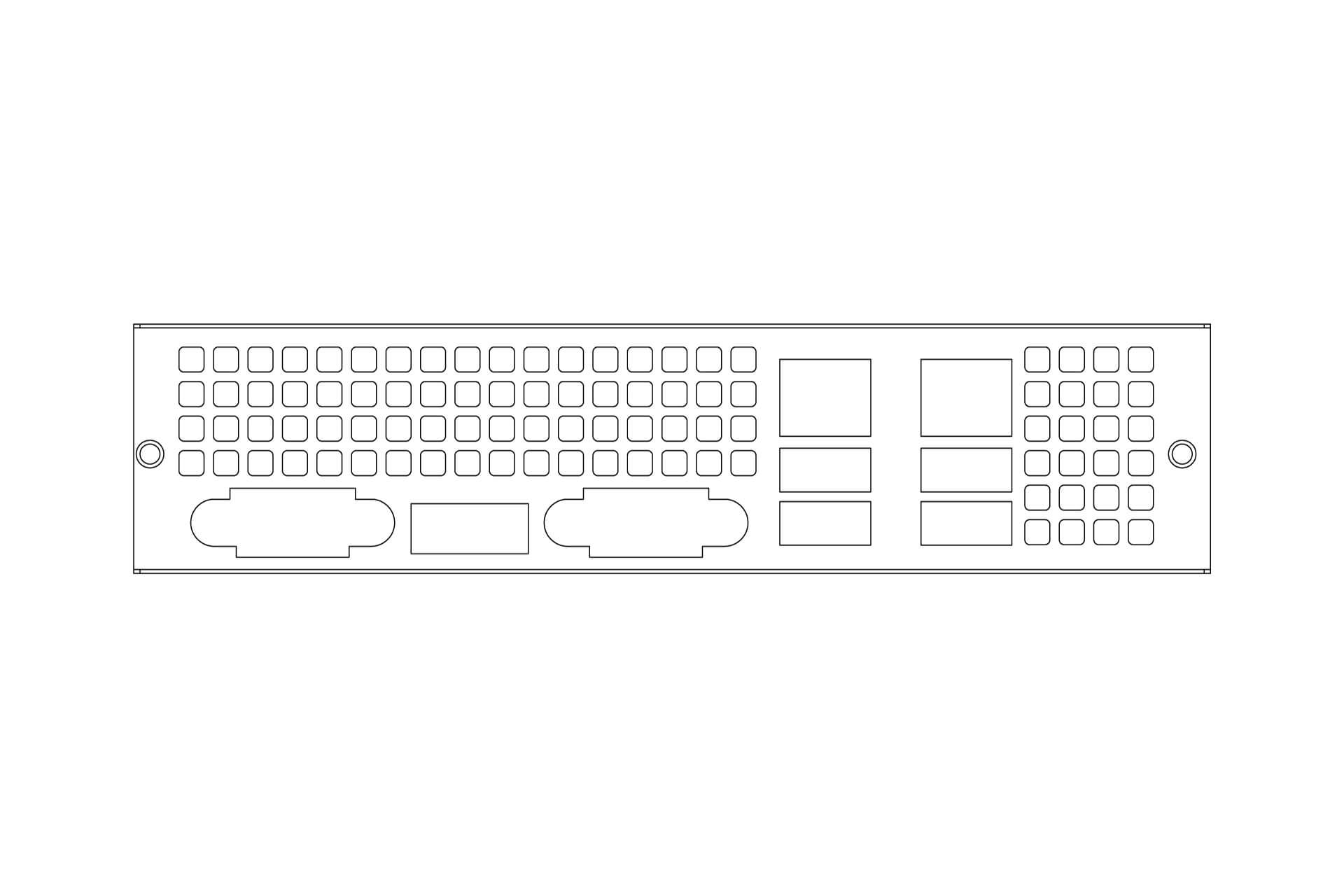

Back I/O Shield Plate
2RAVIQ007801
Rear I/O shield- Intel S1200V3RP
Support: 1
Back I/O Shield Plate

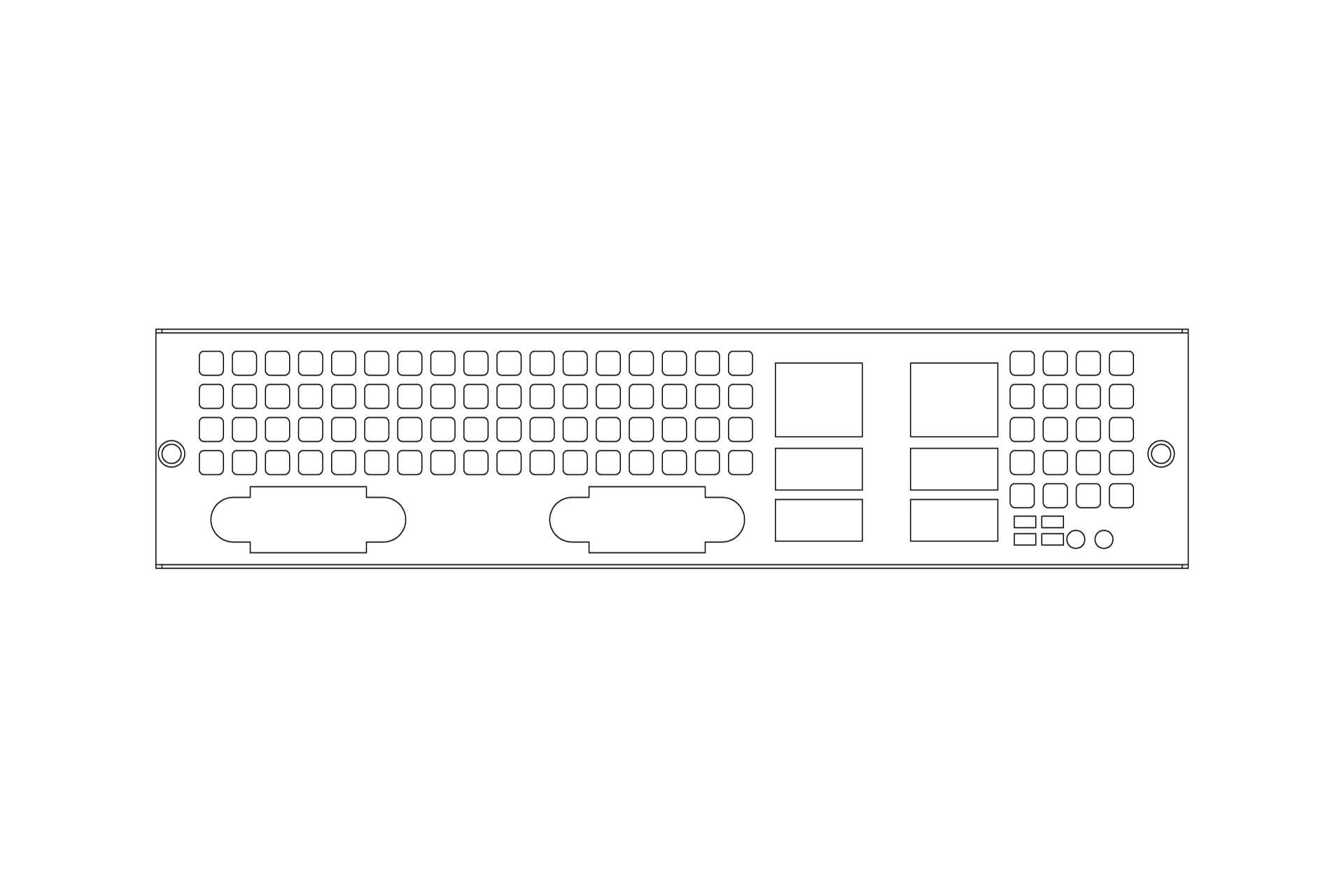

2RAVIQ029100
Rear I/O shield- Intel S1200V3RPS
Support: 1
Back I/O Shield Plate

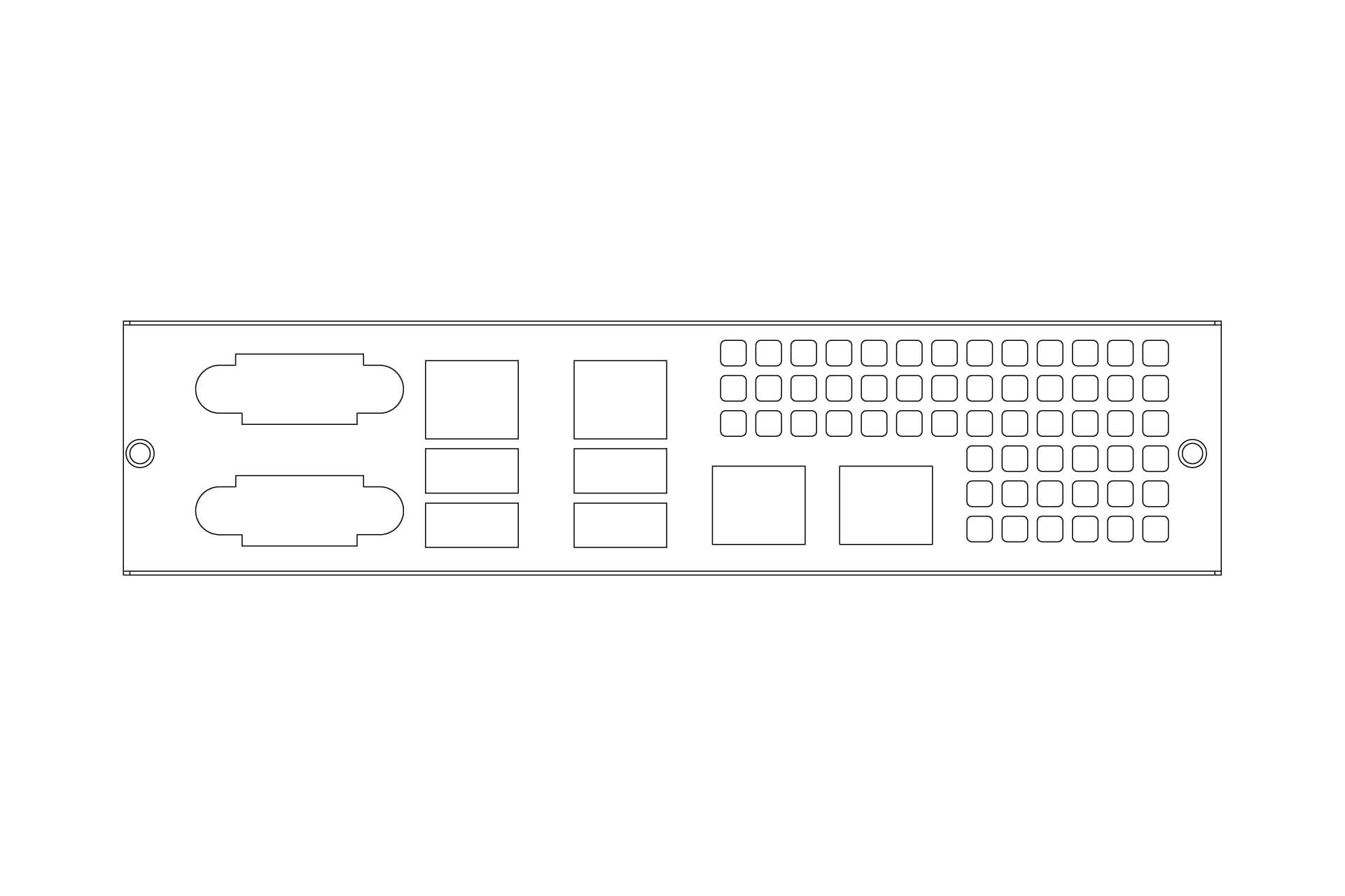

2RAVIQ040900
Rear I/O shield- Inventec B400G3-4L
Support: 1
Back I/O Shield Plate

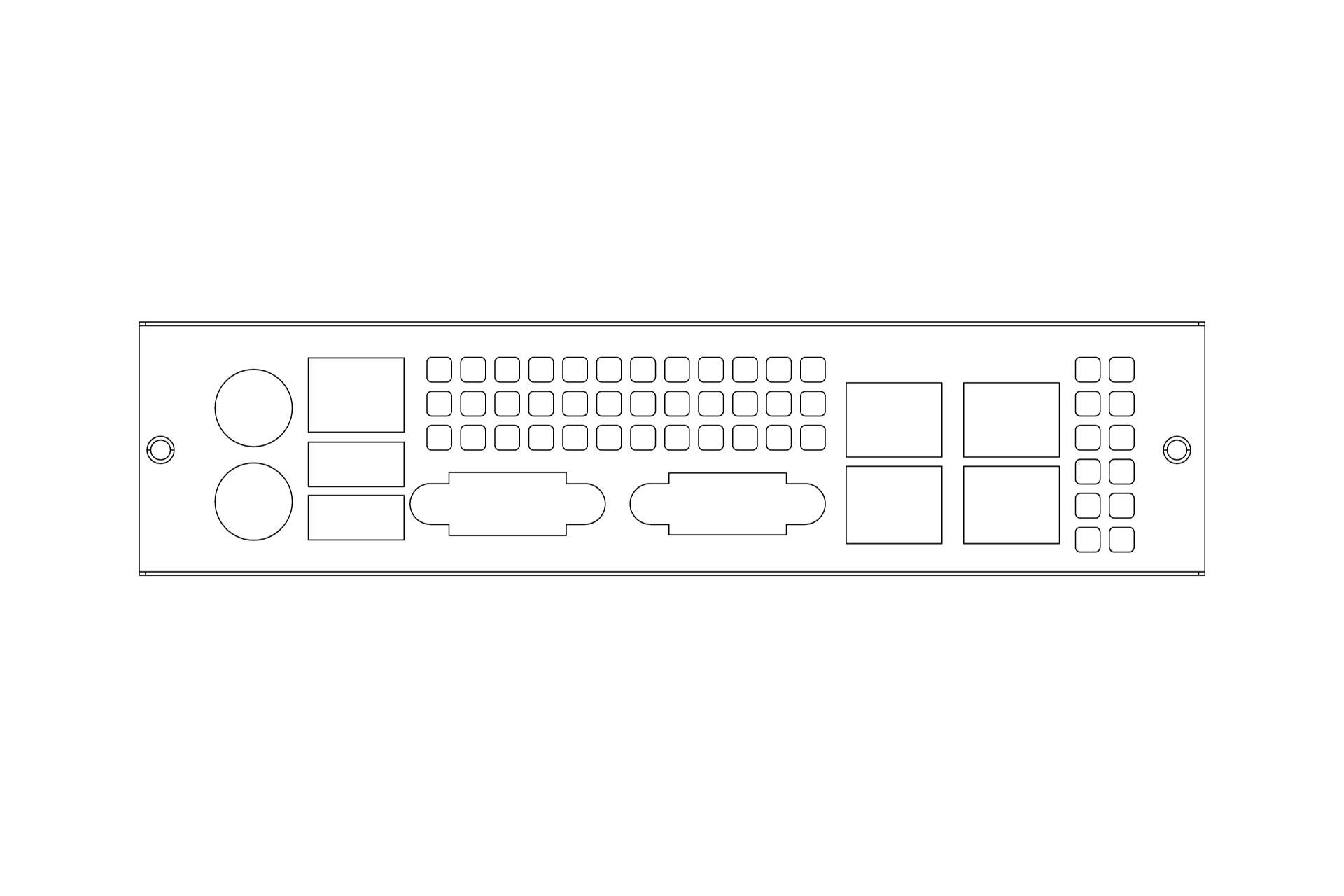

2RAVIQ003600
Rear I/O shield- SUPERMICRO X9SCI-LN4F
Support: 1
Back I/O Shield Plate
2RAVIQ043500

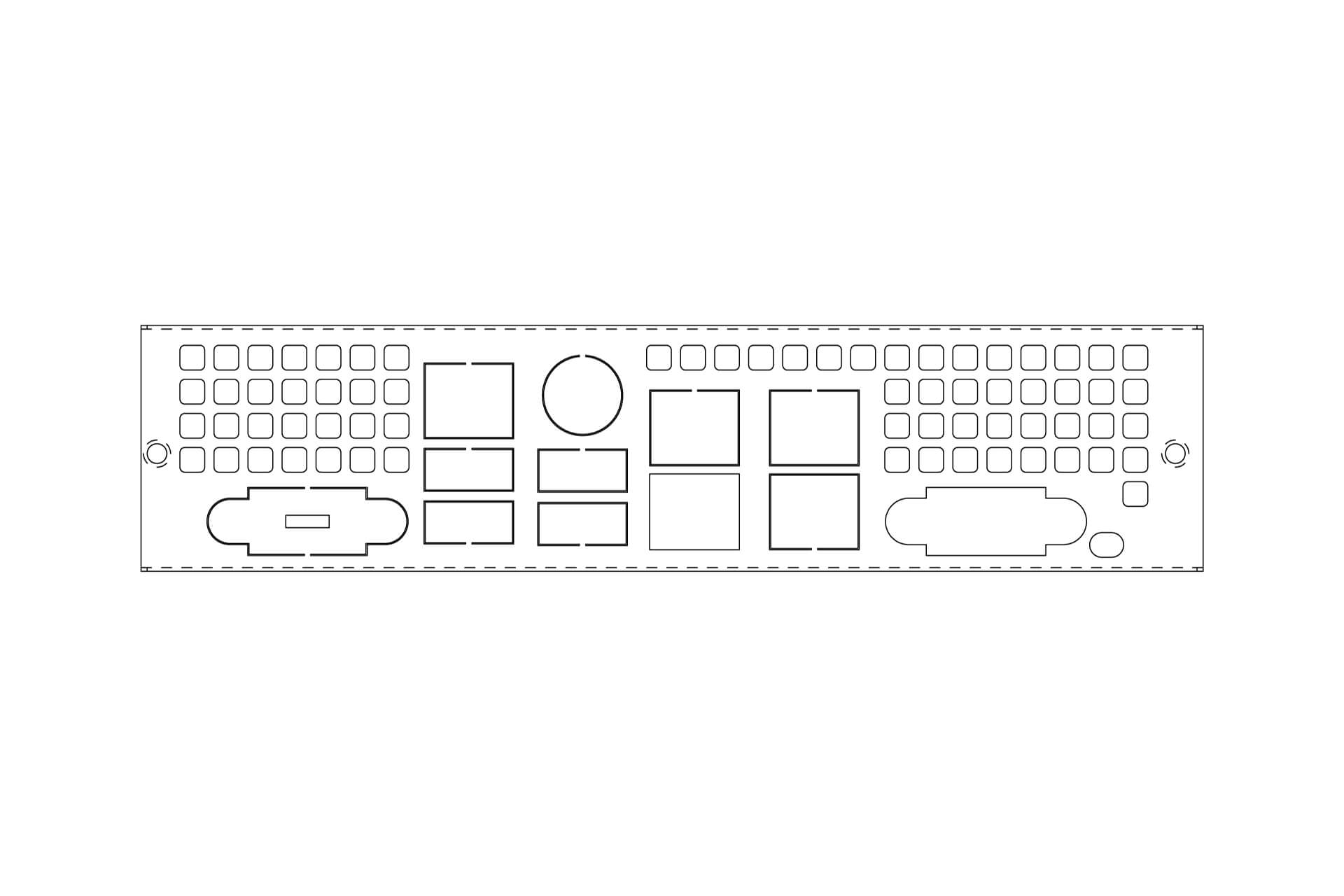

Rear I/O shield- SUPERMICRO X10SLL-SF/-S
Support: 1
Back I/O Shield Plate
2RAVIQ007100

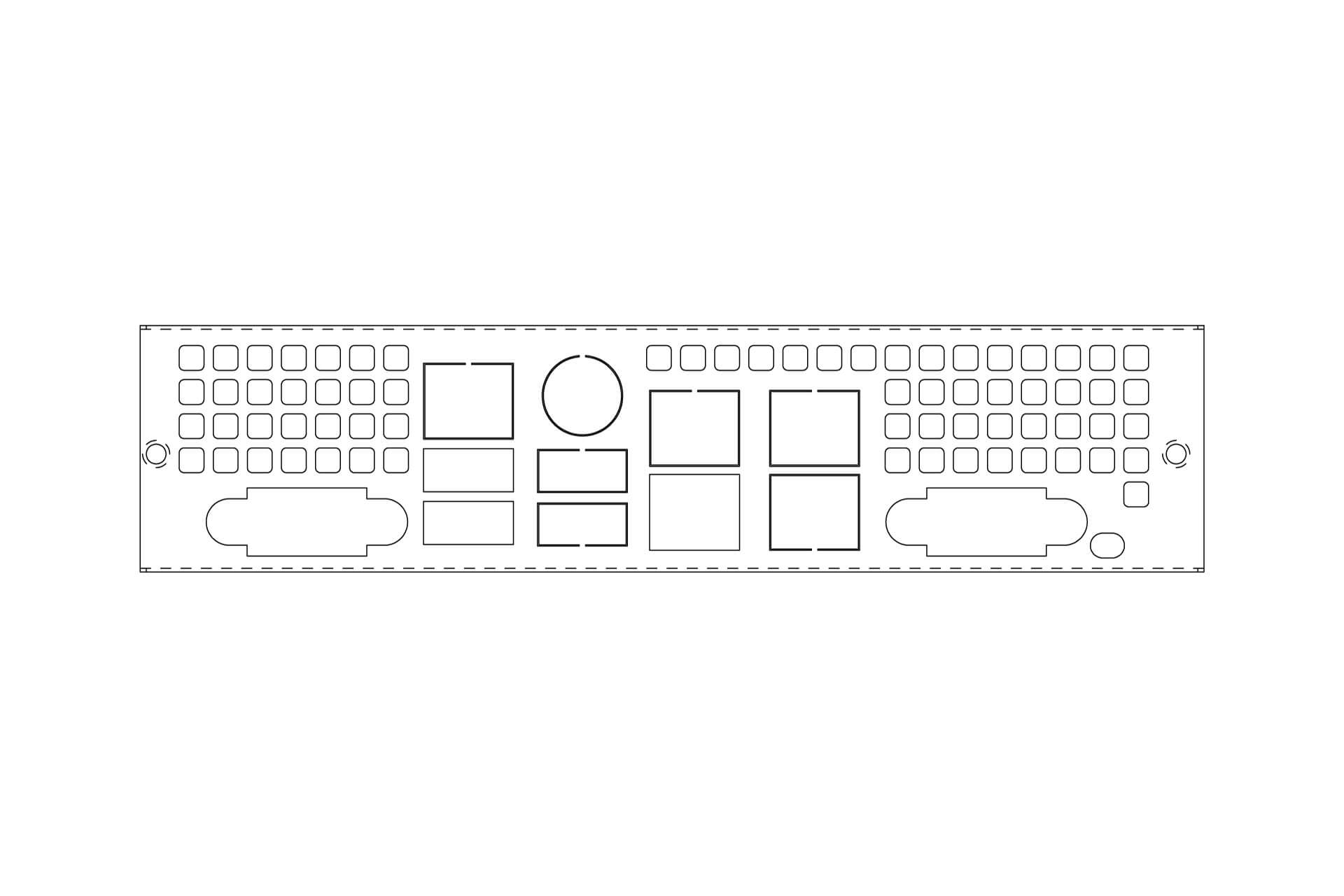

Rear I/O shield- SUPERMICRO X10SLM-LN4F/X11SCL-F
Support: 1
Back I/O Shield Plate

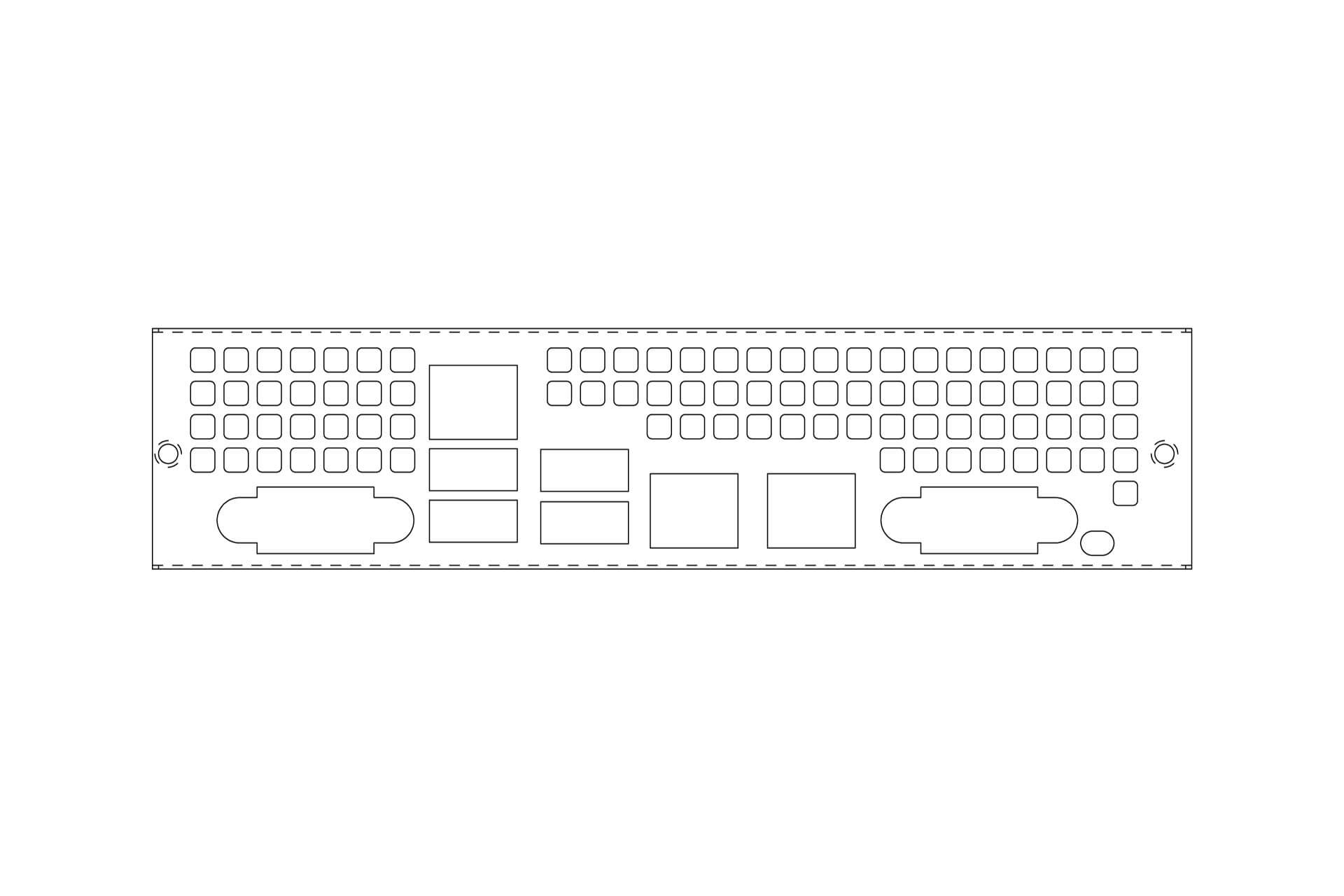

2RAVIQ029200
Rear I/O shield- SUPERMICRO X10SLM-F
Support: 1
Back I/O Shield Plate

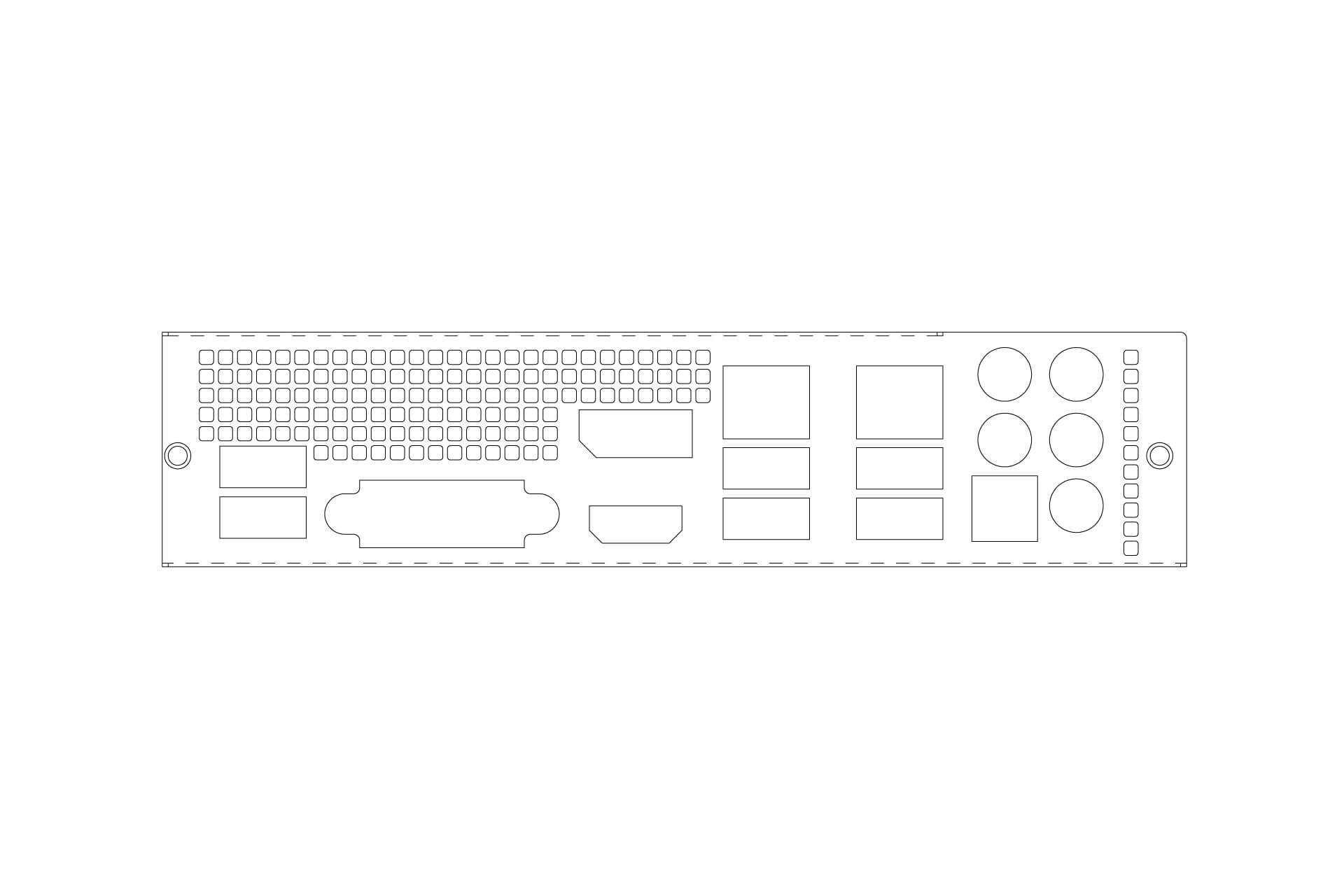

2RAVIQ058600
Rear I/O shield- Supermicro X11SAE
Support: 1
Back I/O Shield Plate

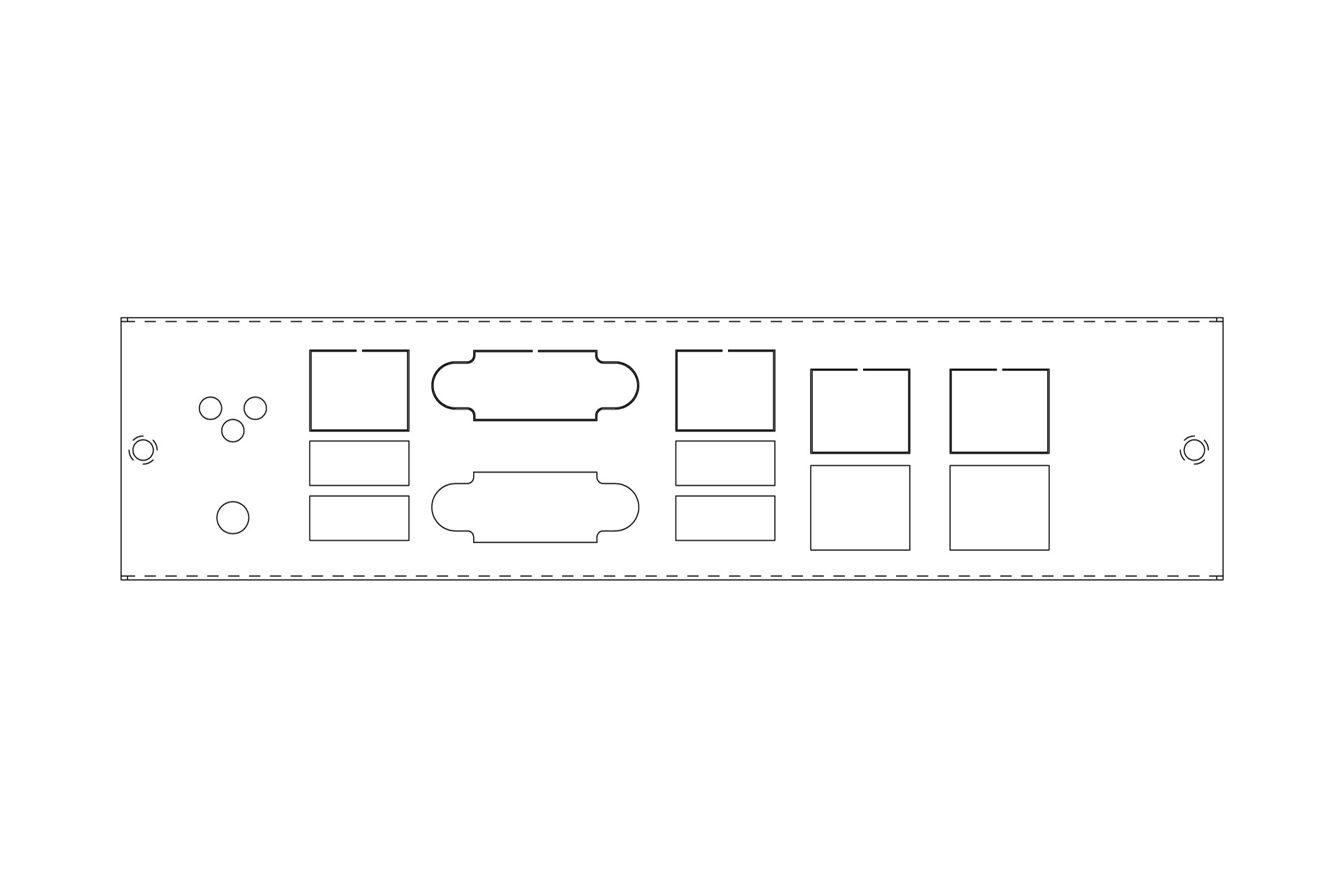

2RAVIQ006200
Rear I/O shield- Tyan S5510GM3NR
Support: 1

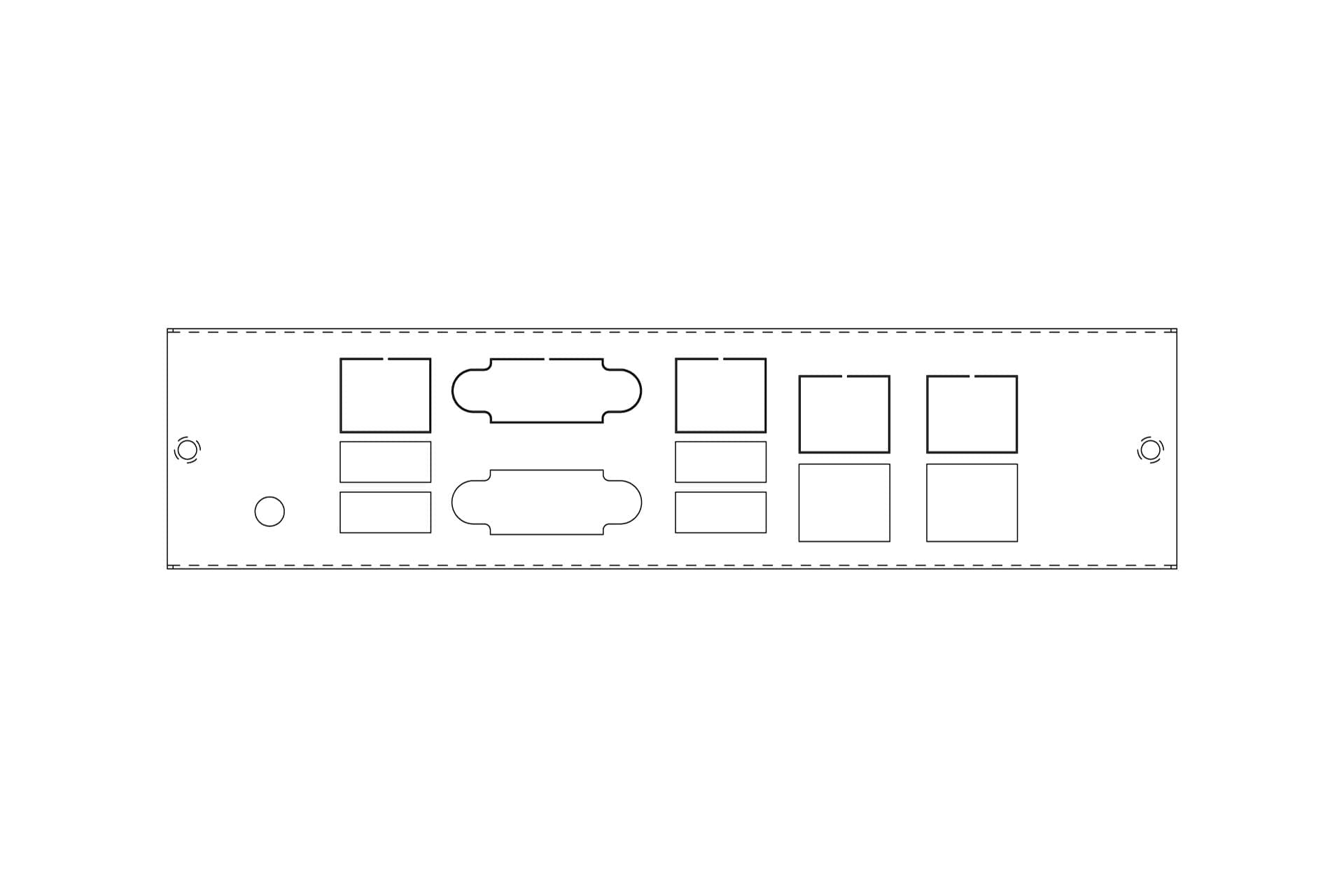

Back I/O Shield Plate
2RAVIQ029900
Rear I/O shield- Tyan S5532WGM2NR-LE
Support: 1
Back I/O Shield Plate
-
InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers' specific I/O configuration requirements.
Support: 1

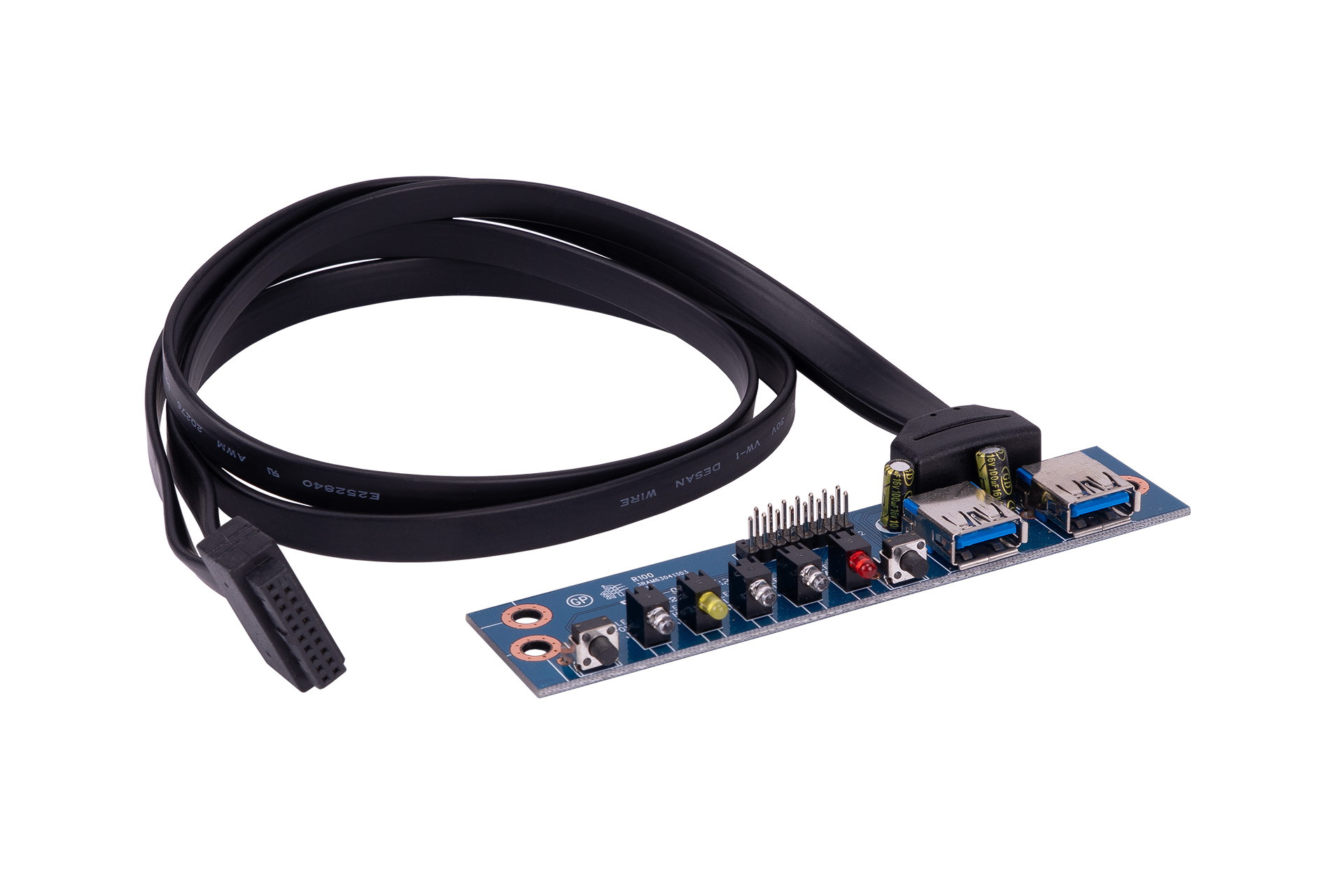

Others
2RAKPD046404
USB 3.0 module
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS032202 | 20" friction slide rails | 1 set | |
| Power Supply | 1DDW265AU20201 | IP-S265AU7-2, 1U Flex 265W, 80 Plus Bronze | 1 | |
| Power Supply | 1DDU315AU20222 | IP-P315AU7-2, 1U Flex 315W, 80 Plus Gold | 1 | |
| Power Supply | 1DDU350BU20030 | IP-P350BU7-2, 1U Flex PSU, 350W, 80 Plus Platinum | 1 | |
| Power Supply | 1DDU450BU20031 | IP-P450BU7-2, 1U Flex PSU, 450W, 80 Plus Platinum | 1 | |
| Fan | 3RAMFB010802 | 40 x 28mm PWM fan, 14500RPM | Max. 3 | |
| Riser Card | 2RAKPD049200 | 1U PCIe Gen3 x16 lanes riser kit, ITX MB compatibility | 1 | |
| Riser Card | 3RAMPD020200 | PCIe Gen3 x16 lanes riser card, left-facing 90 degree design | 1 | |
| Riser Card | 2RARIC026400 | 1U riser card bracket, ATX/mATX MB compatibility | 1 | |
| Back I/O Shield Plate | 2RAVIQ037800 | Rear I/O shield- Advantech AIMB-705 | 1 | |
| Back I/O Shield Plate | 2RAVIQ035700 | Rear I/O shield- ASRock C2750D4I | 1 | |
| Back I/O Shield Plate | 2RAVIQ006100 | Rear I/O shield- ASRock E3C204 | 1 | |
| Back I/O Shield Plate | 2RAVIQ007600 | Rear I/O shield- ASRock E3C204 | 1 | |
| Back I/O Shield Plate | 2RAVIQ022800 | Rear I/O shield- ASRock E3C204-V+ | 1 | |
| Back I/O Shield Plate | 2RAVIQ007400 | Rear I/O shield- ASRock E3C224D2I/E3C226D2I | 1 | |
| Back I/O Shield Plate | 2RAVIQ014900 | Rear I/O shield- ASRock E3C224D4M-16RE | 1 | |
| Back I/O Shield Plate | 2RAVIQ007501 | Rear I/O shield- ASRock E3C224/E3C224-4L | 1 | |
| Back I/O Shield Plate | 2RAVIQ046700 | Rear I/O shield- ASRock E3C242D2I | 1 | |
| Back I/O Shield Plate | 2RAVIQ047700 | Rear I/O shield- AsRock E3C242D4U2-2T | 1 | |
| Back I/O Shield Plate | 2RAVIQ032100 | Rear I/O shield- ASRock EPC602D8A | 1 | |
| Back I/O Shield Plate | 2RAVIQ010900 | Rear I/O shield- ASRock EPC612D8 | 1 | |
| Back I/O Shield Plate | 2RAVIQ011300 | Rear I/O shield- ASRock H87WS-DL | 1 | |
| Back I/O Shield Plate | 2RAVIQ052600 | Rear I/O shield- AsRock J3455M | 1 | |
| Back I/O Shield Plate | 2RAVIQ043200 | Rear I/O shield- ASRock KWQ87 | 1 | |
| Back I/O Shield Plate | 2RAVIQ061500 | Rear I/O shield- ASRock Q1900M | 1 | |
| Back I/O Shield Plate | 2RAVIQ060700 | Rear I/O shield- ASRock Z490D4U-2L2T | 1 | |
| Back I/O Shield Plate | 2RAVIQ009500 | Rear I/O shield- ASUS H97M-E | 1 | |
| Back I/O Shield Plate | 2RAVIQ003500 | Rear I/O shield- ASUS M4N68TM | 1 | |
| Back I/O Shield Plate | 2RAVIQ004100 | Rear I/O shield- ASUS P8B-C/4L | 1 | |
| Back I/O Shield Plate | 2RAVIQ004800 | Rear I/O shield-ASUS P8B WS | 1 | |
| Back I/O Shield Plate | 2RAVIQ009001 | Rear I/O shield- ASUS P8B-X | 1 | |
| Back I/O Shield Plate | 2RAVIQ010800 | Rear I/O shield- ASUS P9D-C | 1 | |
| Back I/O Shield Plate | 2RAVIQ043600 | Rear I/O shield- ASUS P11C-M/4L | 1 | |
| Back I/O Shield Plate | 2RAVIQ027600 | Rear I/O shield- Avalue EMX-Q170P | 1 | |
| Back I/O Shield Plate | 2RAVIQ013600 | Rear I/O shield- Gigabyte GA-B85N | 1 | |
| Back I/O Shield Plate | 2RAVIQ008800 | Rear I/O shield- Gigabyte J1900N-D3V | 1 | |
| Back I/O Shield Plate | 2RAVIQ003700 | Rear I/O shield- Intel BCM RX965Q | 1 | |
| Back I/O Shield Plate | 2RAVIQ003800 | Rear I/O shield- Intel D525MW | 1 | |
| Back I/O Shield Plate | 2RAVIQ004300 | Rear I/O shield- Intel DG41CN | 1 | |
| Back I/O Shield Plate | 2RAVIQ002700 | Rear I/O shield- Intel DH55TC | 1 | |
| Back I/O Shield Plate | 2RAVIQ002800 | Rear I/O shield- Intel DH57JG | 1 | |
| Back I/O Shield Plate | 2RAVIQ004700 | Rear I/O shield- Intel DH61WW | 1 | |
| Back I/O Shield Plate | 2RAVIQ004400 | Rear I/O shield- Intel DH67BL | 1 | |
| Back I/O Shield Plate | 2RAVIQ003900 | Rear I/O shield- Intel DQ67SW | 1 | |
| Back I/O Shield Plate | 2RAVIQ005700 | Rear I/O shield- Intel DQ77KB | 1 | |
| Back I/O Shield Plate | 2RAVIQ002600 | Rear I/O shield- Intel NC94FL | 1 | |
| Back I/O Shield Plate | 2RAVIQ031600 | Rear I/O shield- Intel S1200BTS | 1 | |
| Back I/O Shield Plate | 2RAVIQ008000 | Rear I/O shield- Intel S1200BTSR | 1 | |
| Back I/O Shield Plate | 2RAVIQ007801 | Rear I/O shield- Intel S1200V3RP | 1 | |
| Back I/O Shield Plate | 2RAVIQ029100 | Rear I/O shield- Intel S1200V3RPS | 1 | |
| Back I/O Shield Plate | 2RAVIQ040900 | Rear I/O shield- Inventec B400G3-4L | 1 | |
| Back I/O Shield Plate | 2RAVIQ003600 | Rear I/O shield- SUPERMICRO X9SCI-LN4F | 1 | |
| Back I/O Shield Plate | 2RAVIQ043500 | Rear I/O shield- SUPERMICRO X10SLL-SF/-S | 1 | |
| Back I/O Shield Plate | 2RAVIQ007100 | Rear I/O shield- SUPERMICRO X10SLM-LN4F/X11SCL-F | 1 | |
| Back I/O Shield Plate | 2RAVIQ029200 | Rear I/O shield- SUPERMICRO X10SLM-F | 1 | |
| Back I/O Shield Plate | 2RAVIQ058600 | Rear I/O shield- Supermicro X11SAE | 1 | |
| Back I/O Shield Plate | 2RAVIQ006200 | Rear I/O shield- Tyan S5510GM3NR | 1 | |
| Back I/O Shield Plate | 2RAVIQ029900 | Rear I/O shield- Tyan S5532WGM2NR-LE | 1 | |
| Back I/O Shield Plate | - | InWin can customize the I/O shield backplate for specific motherboards, with SGCC material to fulfill customers' specific I/O configuration requirements. | 1 | |
| Others | 2RAKPD046404 | USB 3.0 module | 1 | |
