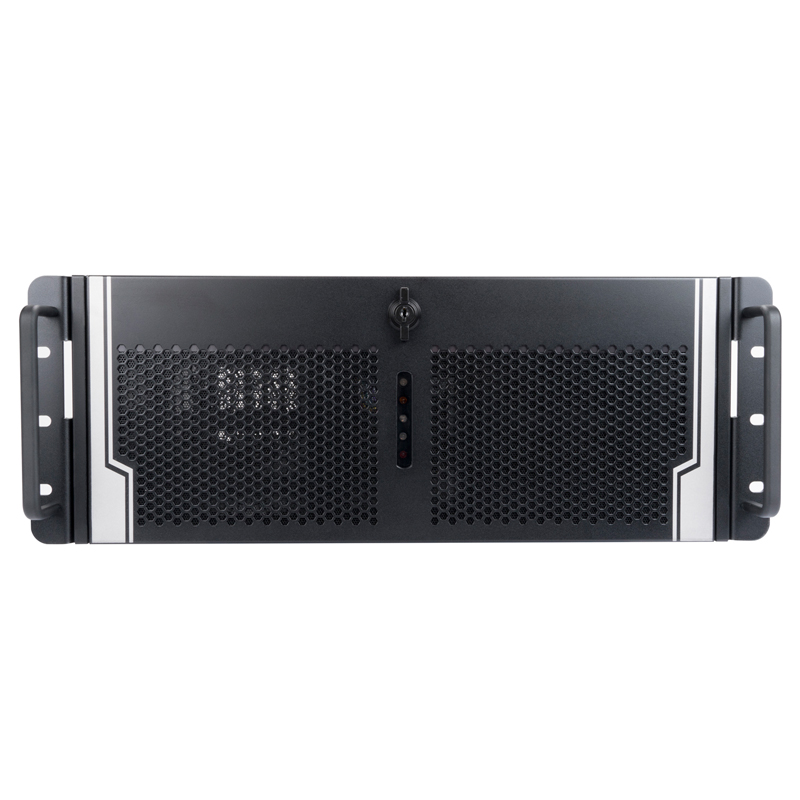

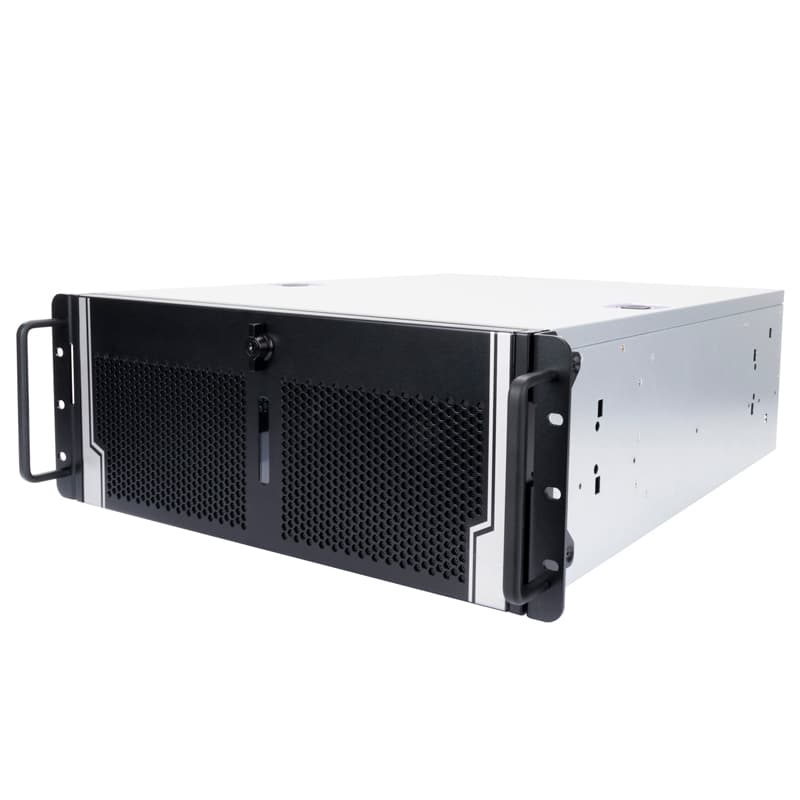

4U Chassis
4U open-bay корпус с расширенной передней зоной
IW-R400-03N рассчитан на 4U-сборки, которым нужно больше внешних отсеков: шесть 5.25" мест, два 3.5" отсека, EEB/CEB/ATX-платы и восемь полноразмерных PCIe-слотов.
Платы
ATX / CEB / EEB
Внешние отсеки
6 x 5.25" + 2 x 3.5"
Глубина
596 мм
PCIe
8 x full-height

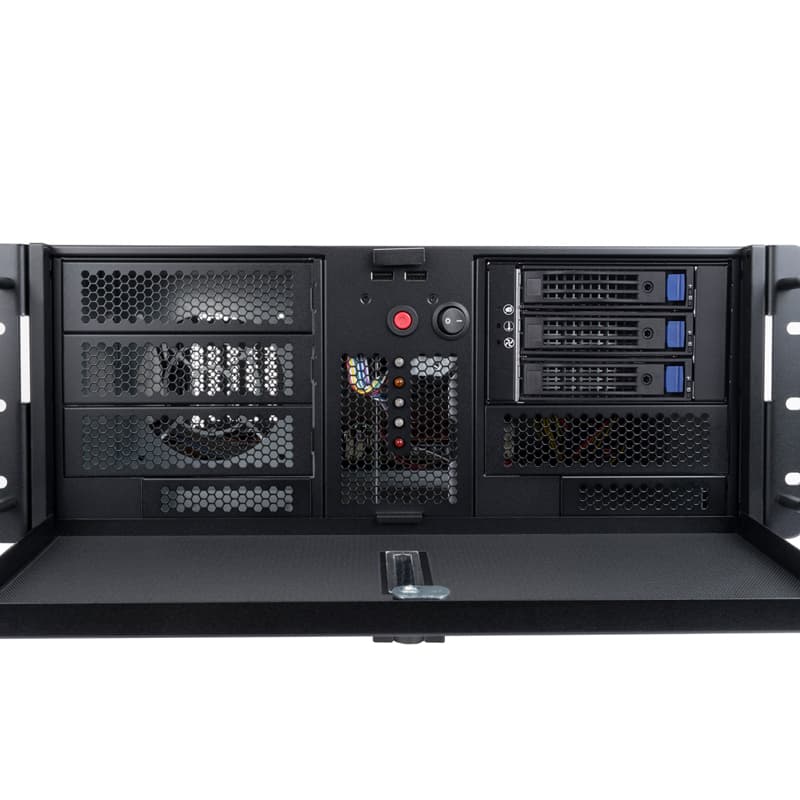

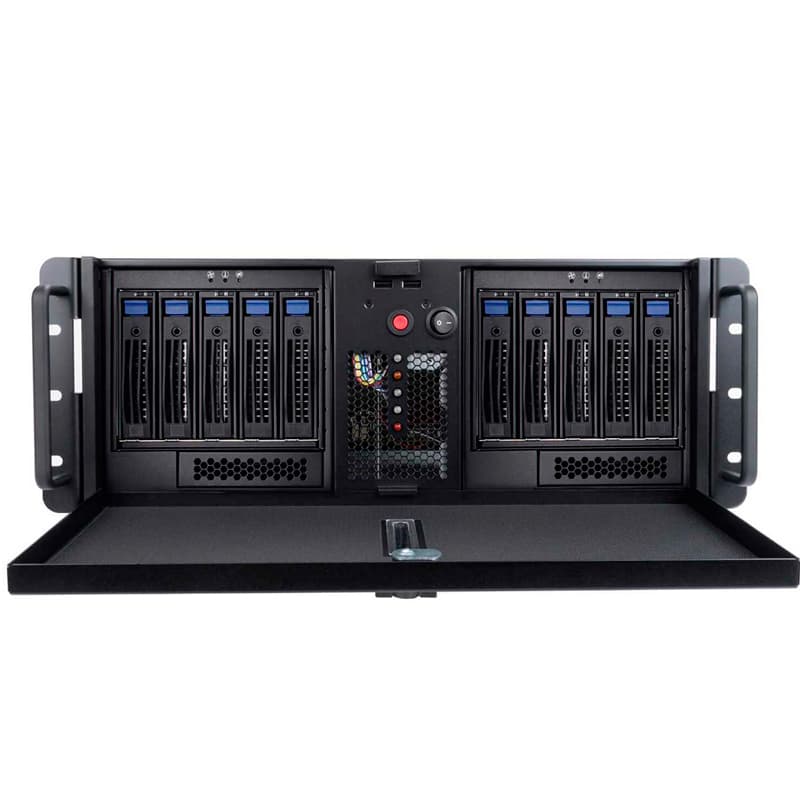

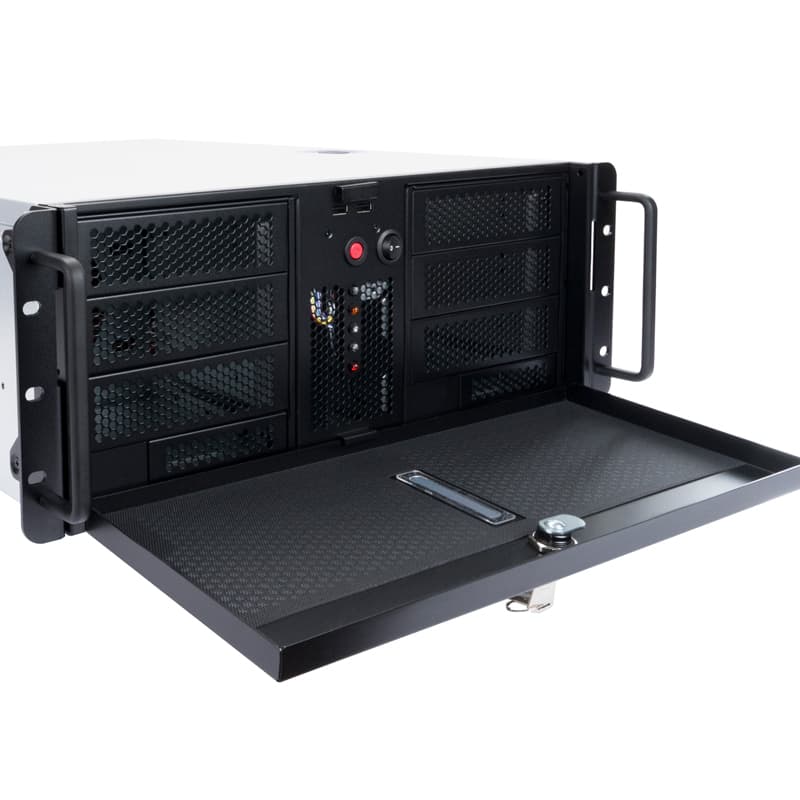

Open Bay
Больше фронтальных отсеков для заказной конфигурации
Шесть внешних 5.25" отсеков позволяют установить корзины накопителей, съемные модули или специализированные устройства. Такой формат удобен для систем, где передняя панель активно используется в эксплуатации.

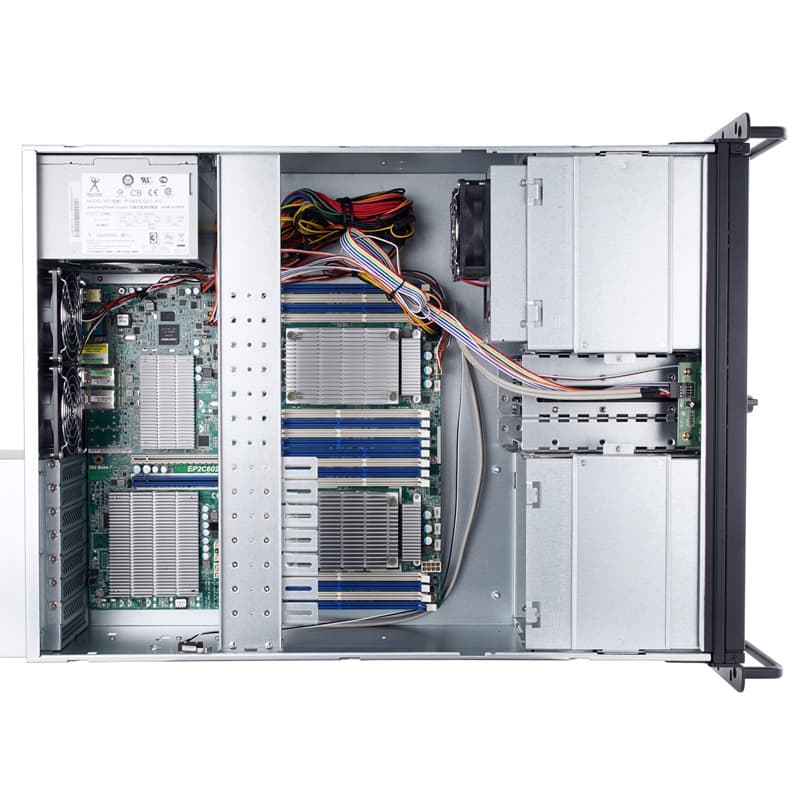

Server Board
Поддержка EEB, CEB и ATX-плат
Корпус сохраняет совместимость с полноразмерными серверными платами. При установке EEB-платы нижнее 5.25" пространство учитывается как резерв для корректной компоновки.
Rack Service
28-дюймовые направляющие и 4U доступ к компонентам
Формат 4U упрощает монтаж и обслуживание компонентов в стойке. Поддержка tool-less ball-bearing rails помогает быстрее работать с корпусом при сборке и сервисе.
Product Details

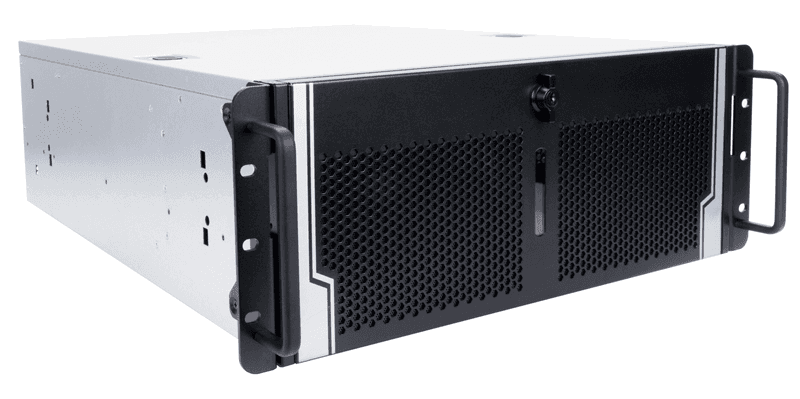

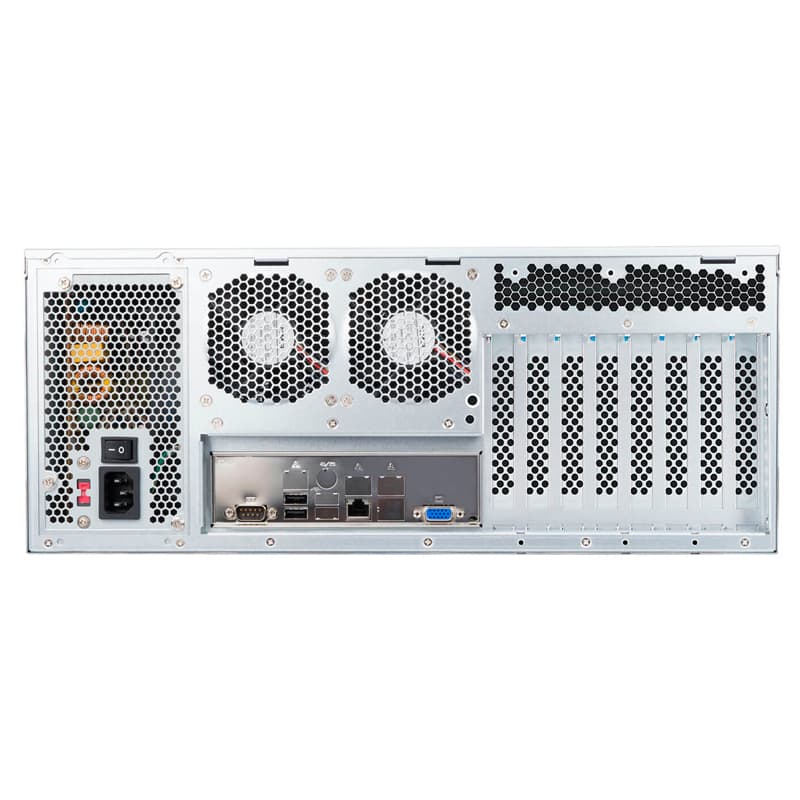

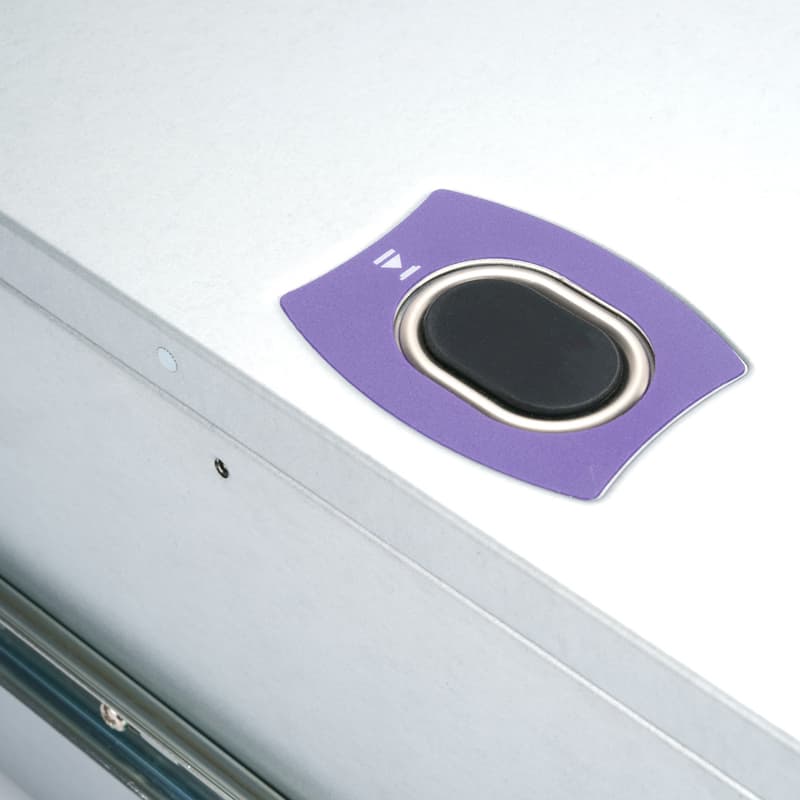

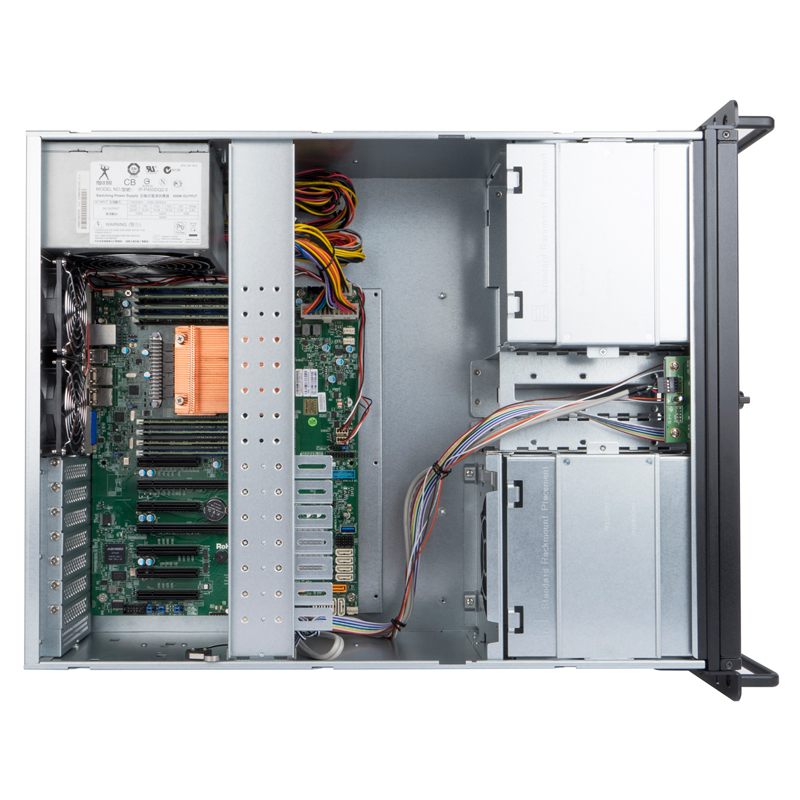

Детали конструкции InWin IW-R400-03N
Specification

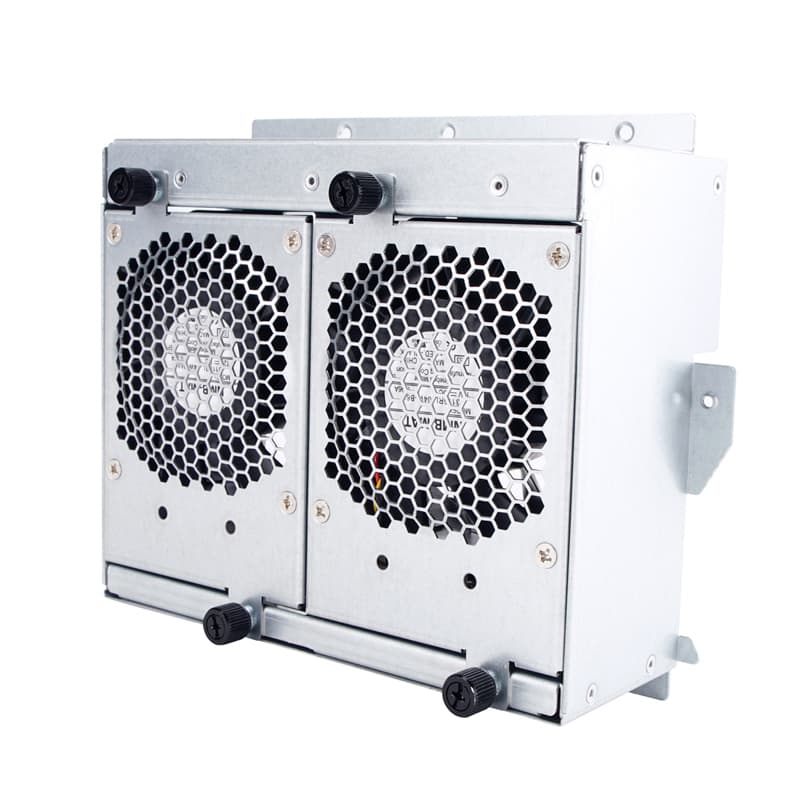

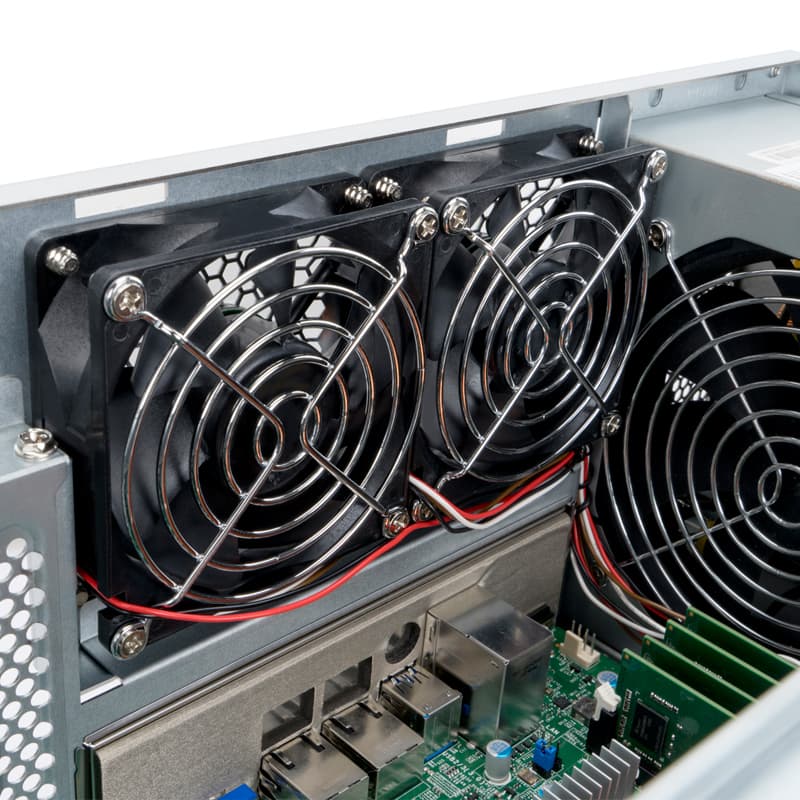

| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") *The bottom 5.25 drive bay space should be reserved for the EEB motherboard installation. |
| Drive Bay | • External: 5.25" x 6, 3.5" x 2 • Internal: 3.5" x 2, 2.5" x 1 |
| Power Supply | Supports: • PS2 single PSU • 550W/800W/1200W/1600W 1+1 CRPS 80 Plus Platinum |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fans | Supports: • 80 x 25mm PWM rear fan x 2, 4500RPM • 80 x 25mm PWM rear fan x 2 (optional), 4200RPM • 80 x 25mm PWM rear fan x 2 (optional), 4500RPM |
| Expansion Slot | Full-height PCIe slots x 8 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 596x 430 x 174.8mm (23.5" x 16.9" x 6.9") |
| Package Dimensions (DxWxH) | 757 x 595 x 300mm |
| Weight (Chassis Only) | • Net weight: 14.36kg • Gross weight: 18.07kg |
| Cubic Feet | 4.77 |
| Container Information | Single packing with pallets: • 20': 132pcs • 40': 288pcs • 40' HQ: 336pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items
Slide Rail

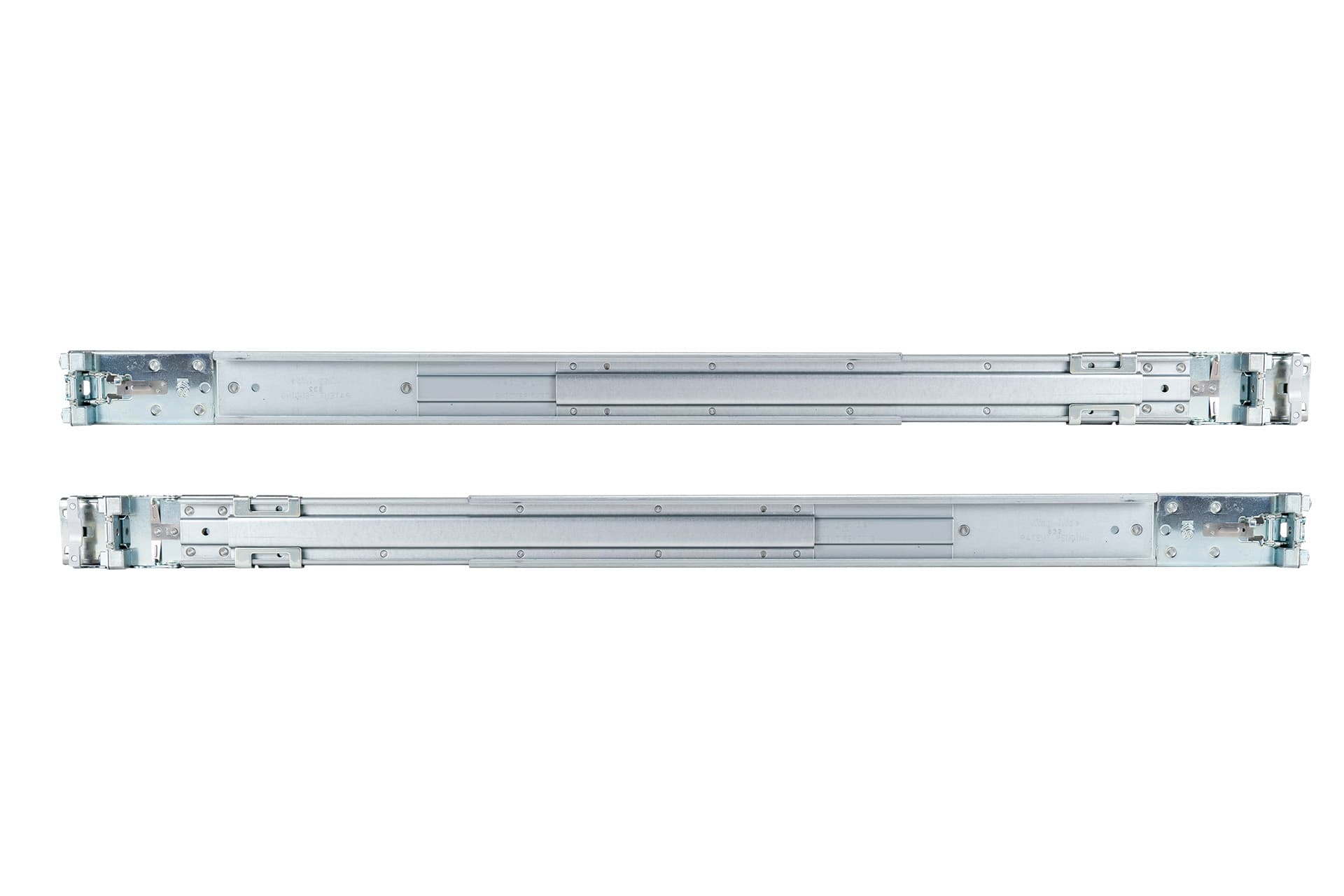

3RAMIS129500
28" tool-less & ball-bearing slide rails (weight capacity 35kg)
Support: 1 set
Slide Rail
3RAMIS152700

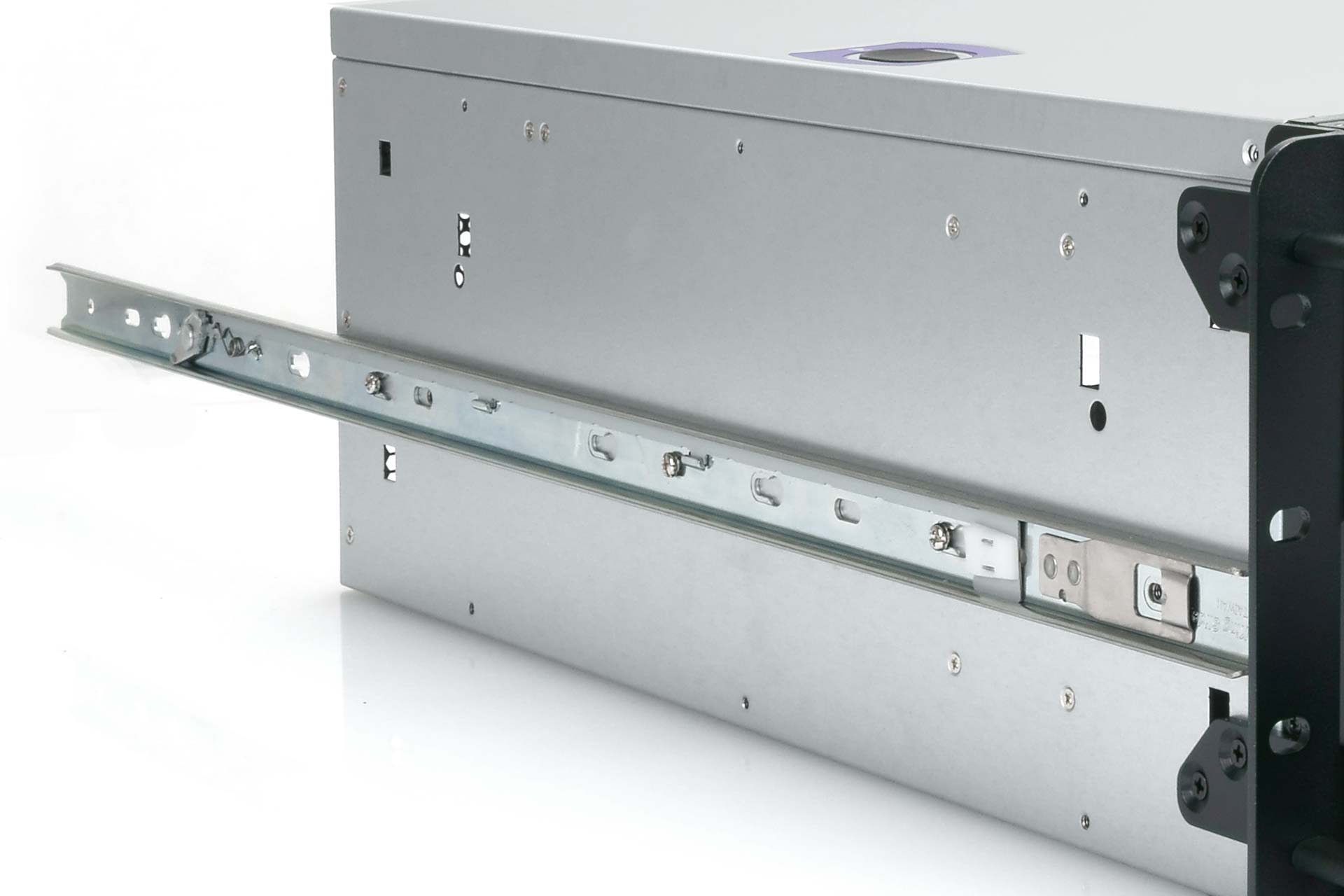

28" tool-less & ball-bearing slide rails (weight capacity 60kg)
Support: 1 set
Power Supply
3RAMAP025102
80 Plus Platinum 550W CRPS
Support: Max. 2
Power Supply
3RAMAP025202
80 Plus Platinum 800W CRPS
Support: Max. 2
Power Supply
3RAMAP026501
80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.)
Support: Max. 2
Power Supply

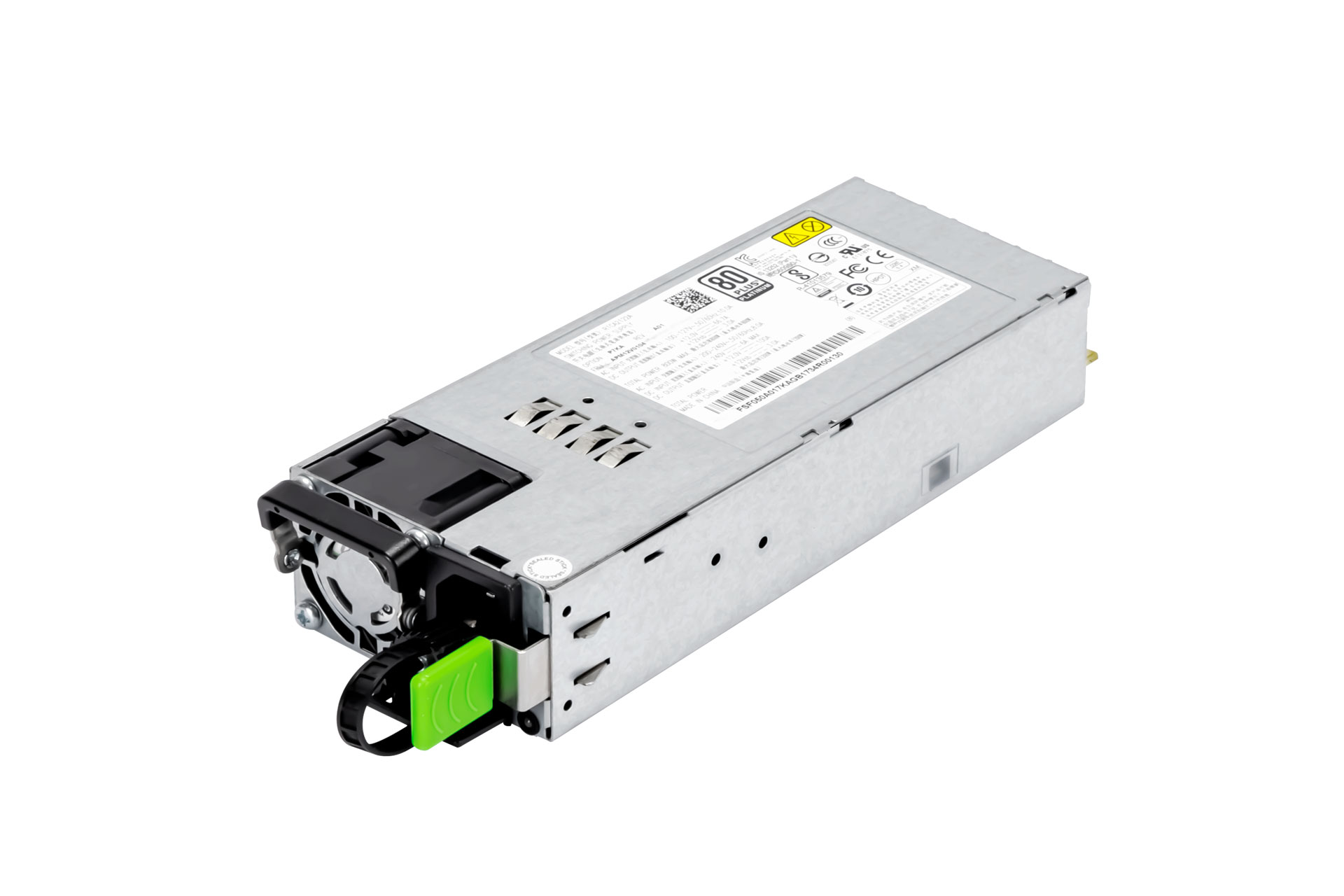

3RAMAP044300
80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.)
Support: Max. 2
Power Supply
3RAMAP025502
PDB power cage for CRPS Max. 800W
Support: 1
Power Supply
3RAMAP030501
PDB power cage for CRPS Max. 1600W
Support: 1
Fan
3RAMFB015300
80 x 25mm rear fan, PWM, 4200RPM
Support: 2
Fan
3RAMFB014800

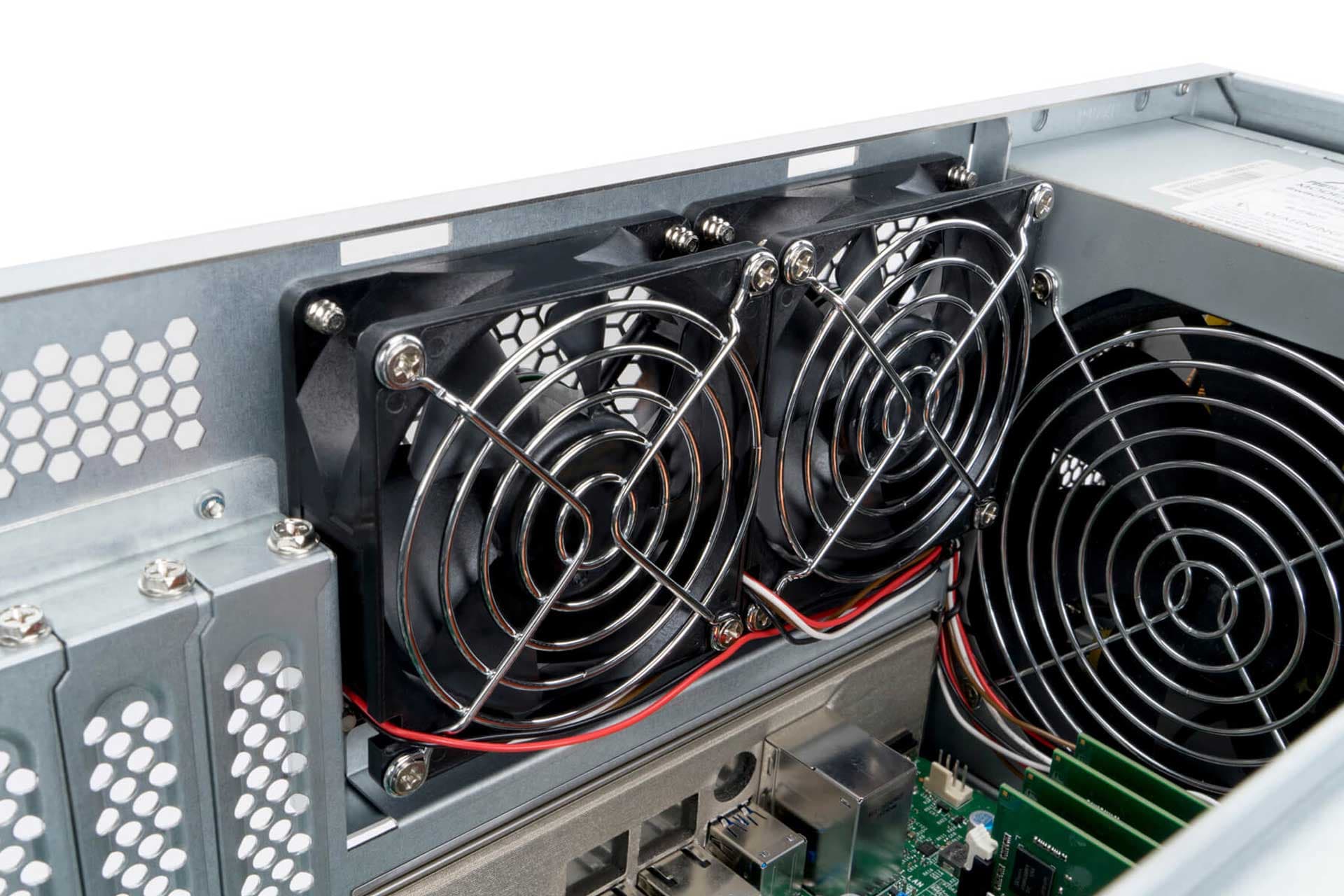

80 x 25mm rear fan, PWM, 4500RPM
Support: 2
Fan

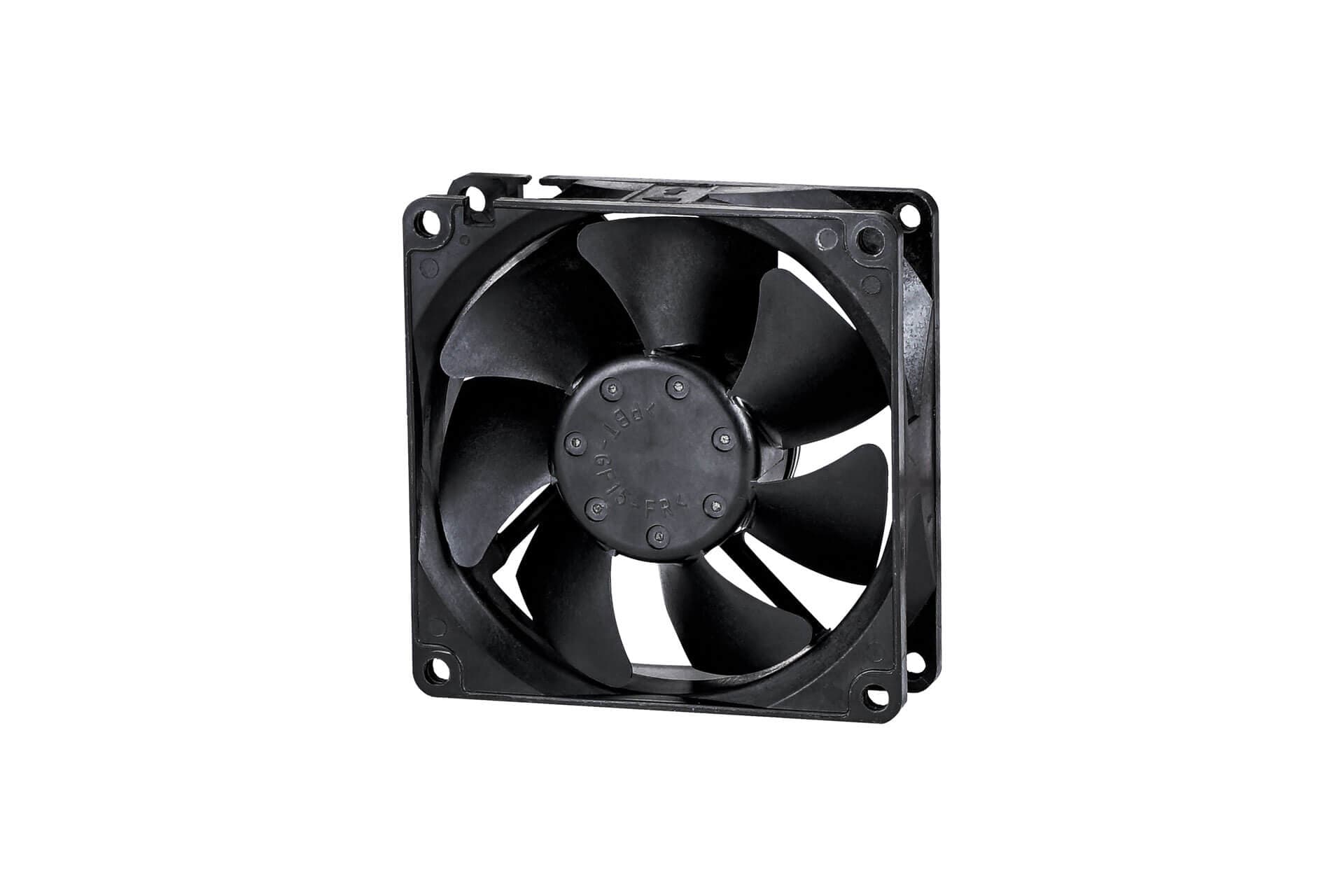

3RAMFB008602
80 x 25mm rear fan, PWM, 4500RPM
Support: 2

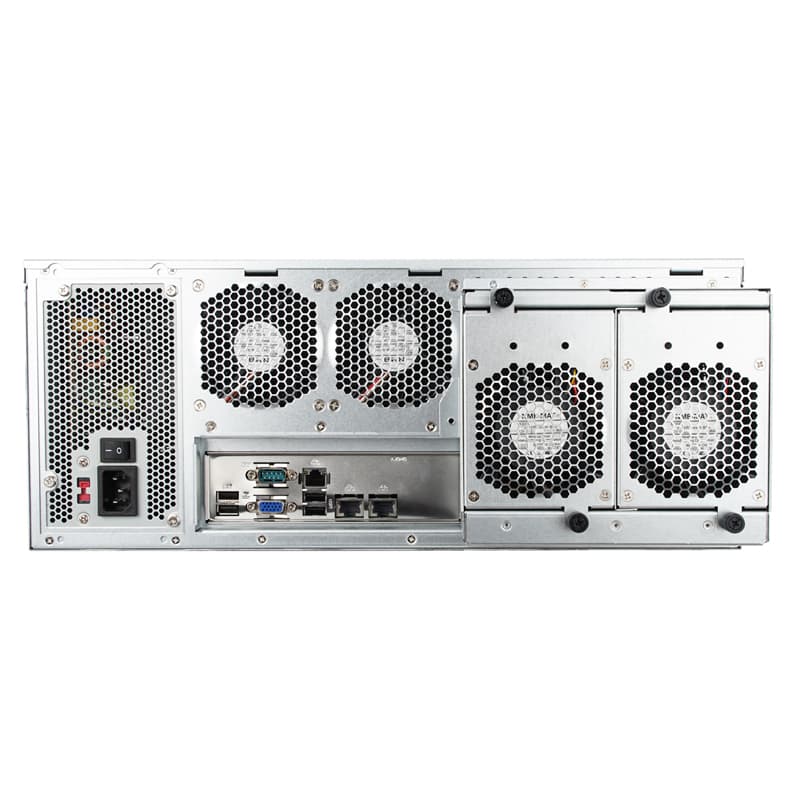

Fan
2RAKID059800

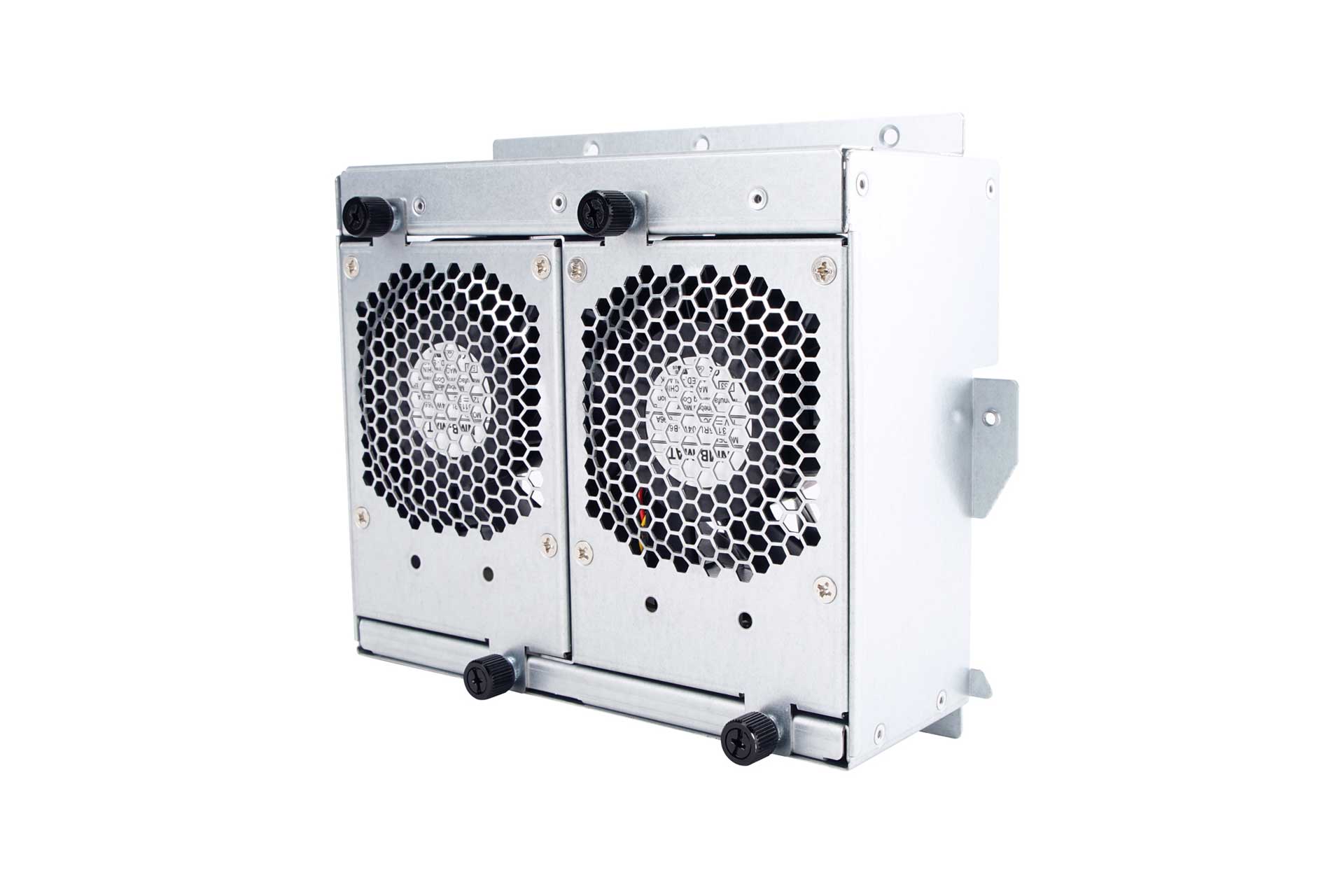

Rear fan kit for GPU thermal, 80 x 38mm, 5500RPM
Support: 1
Storage Kit
2RAKID044201

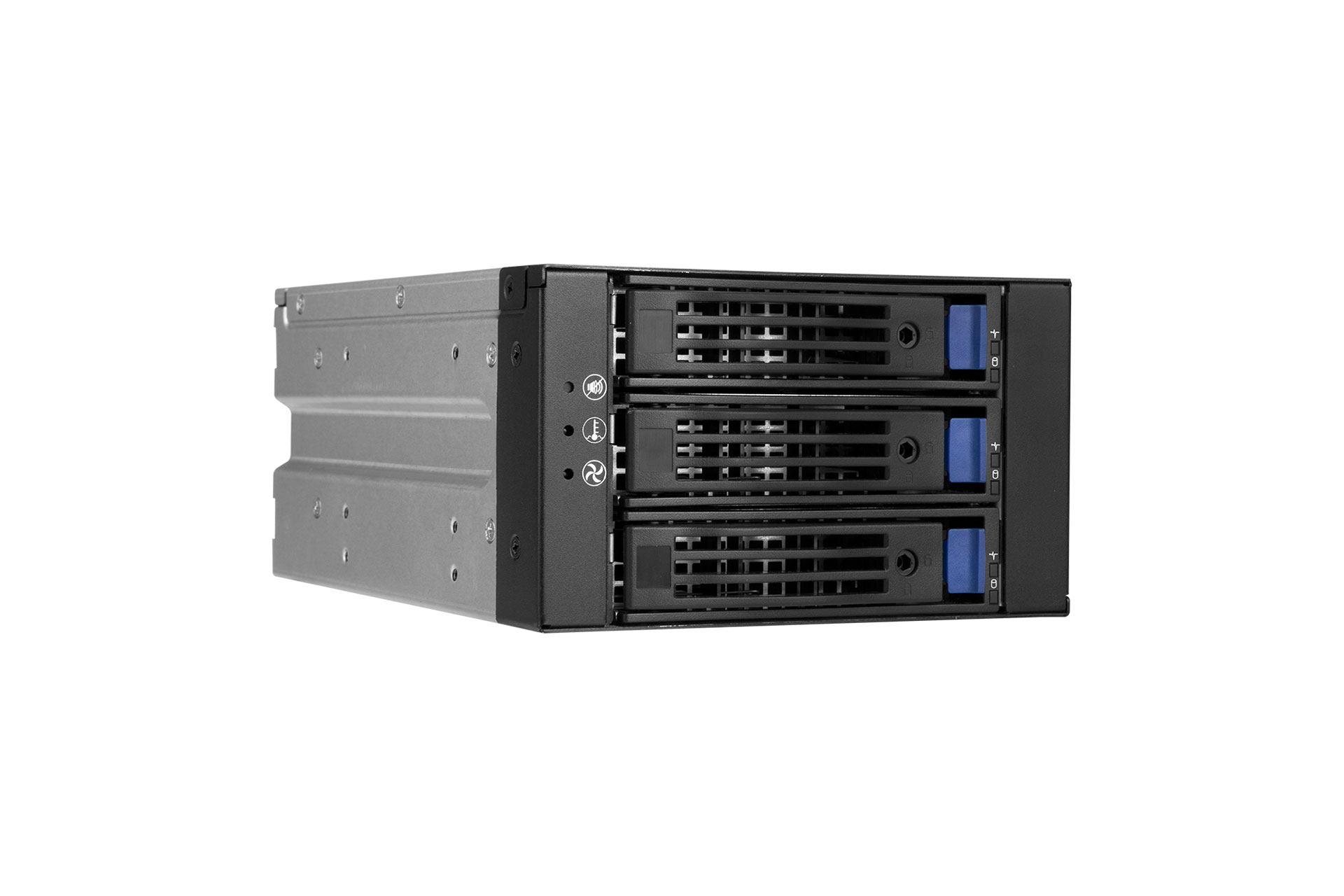

IW-SK23-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: Max. 2
Storage Kit
2RAKID073901

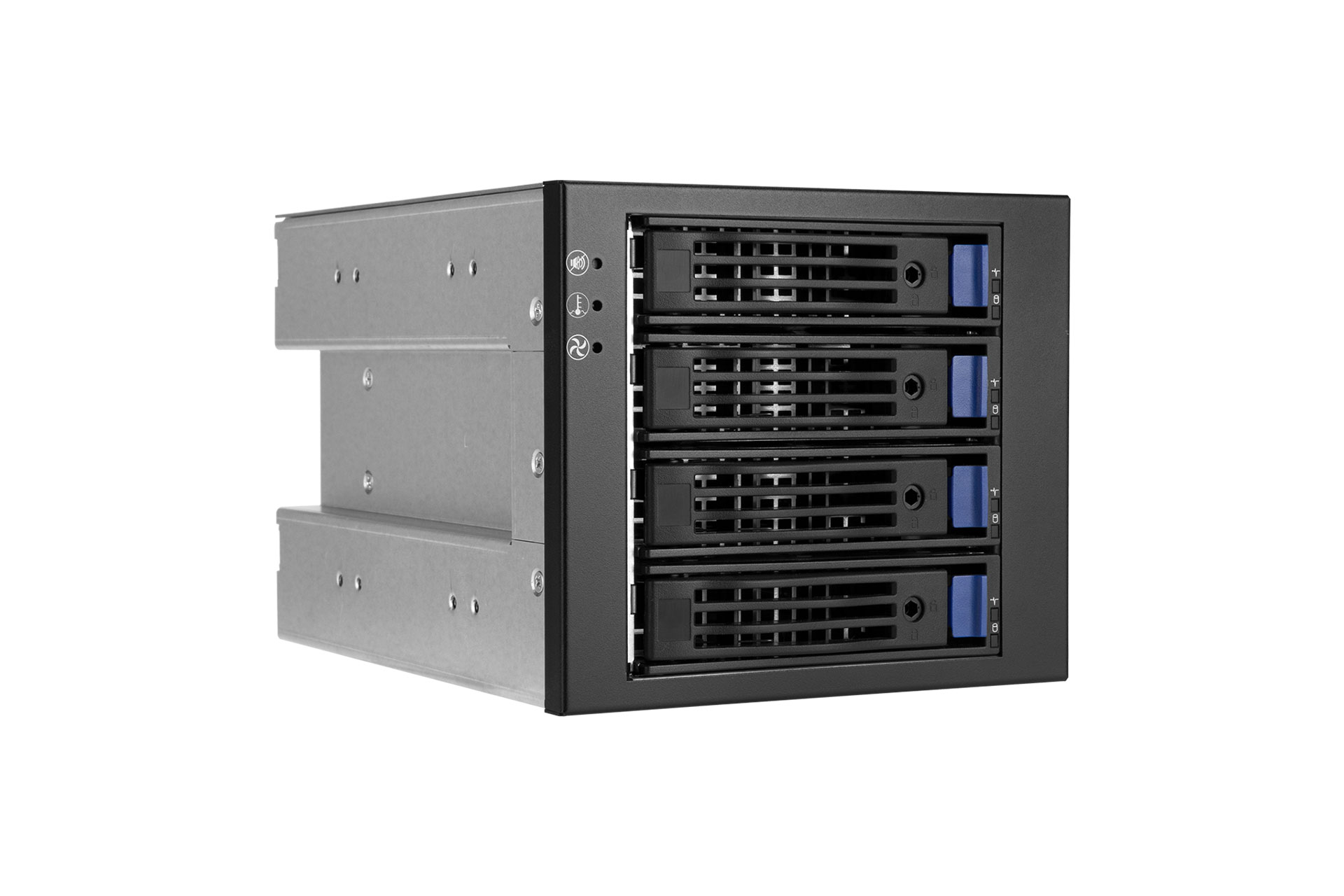

IW-SK34-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: Max. 2
Storage Kit
2RAKID062800

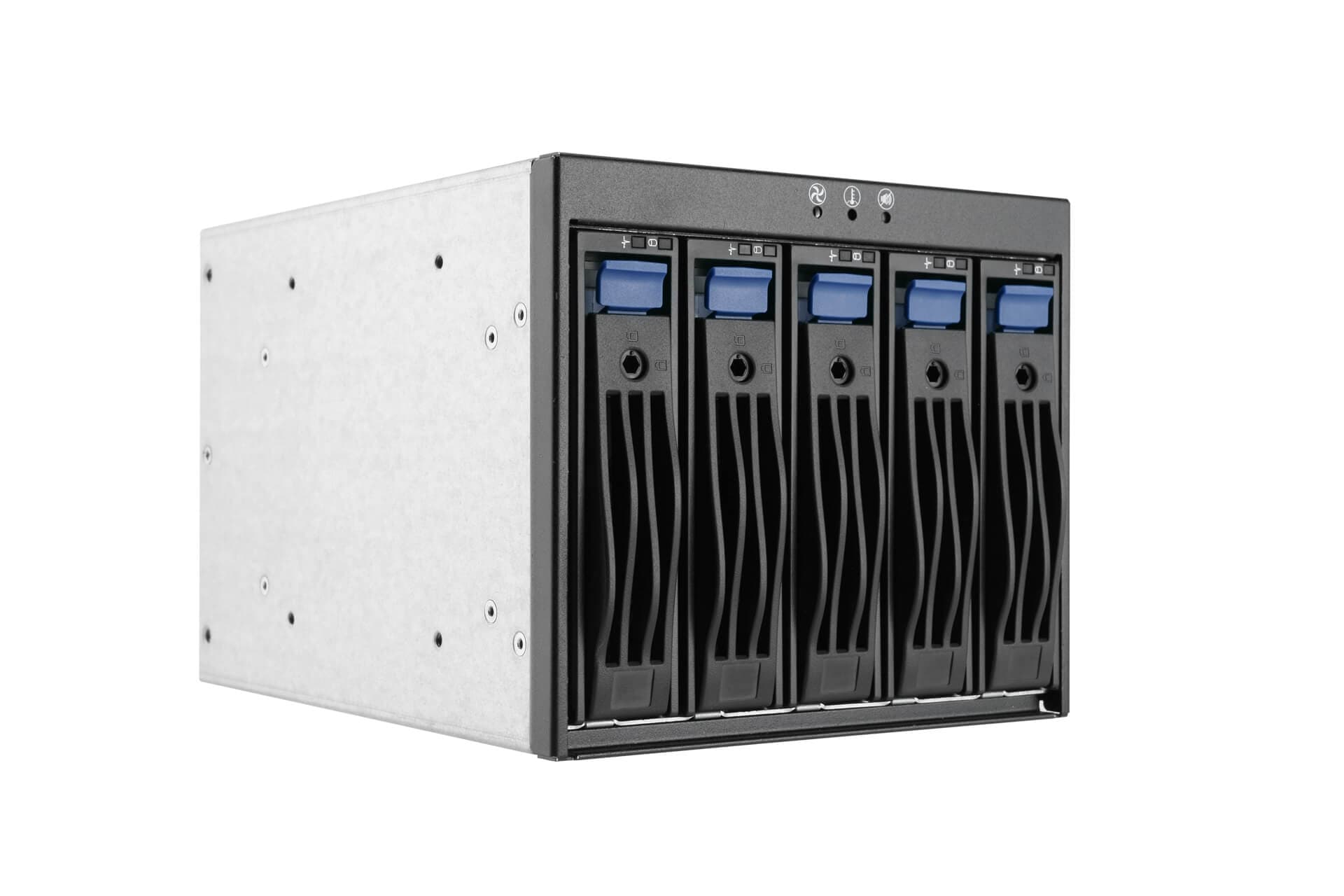

IW-SK35-02, 2.5"/3.5" SAS/SATA III Storage Kit, 6Gb/s, 7pin connector
Support: Max. 2
Storage Kit

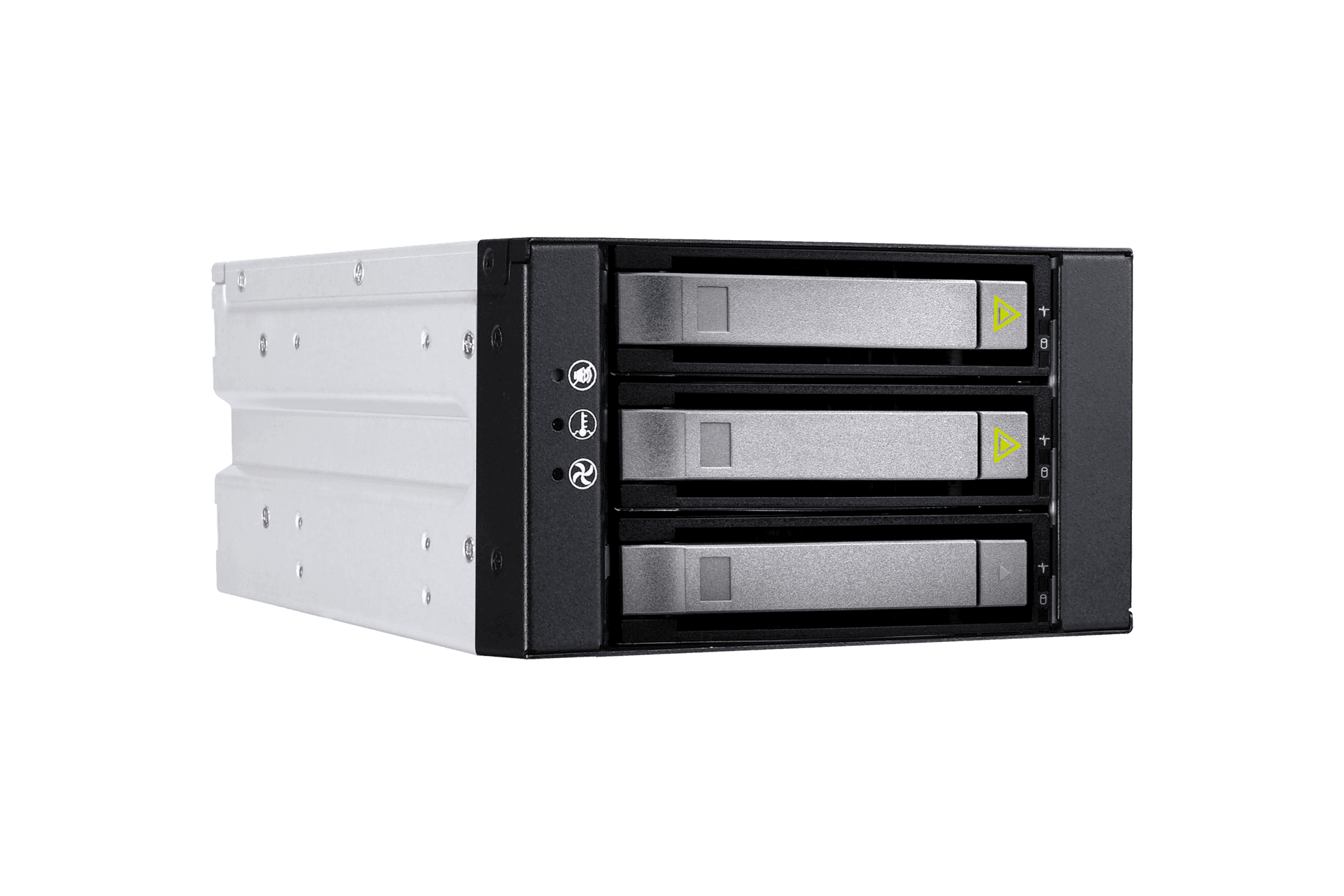

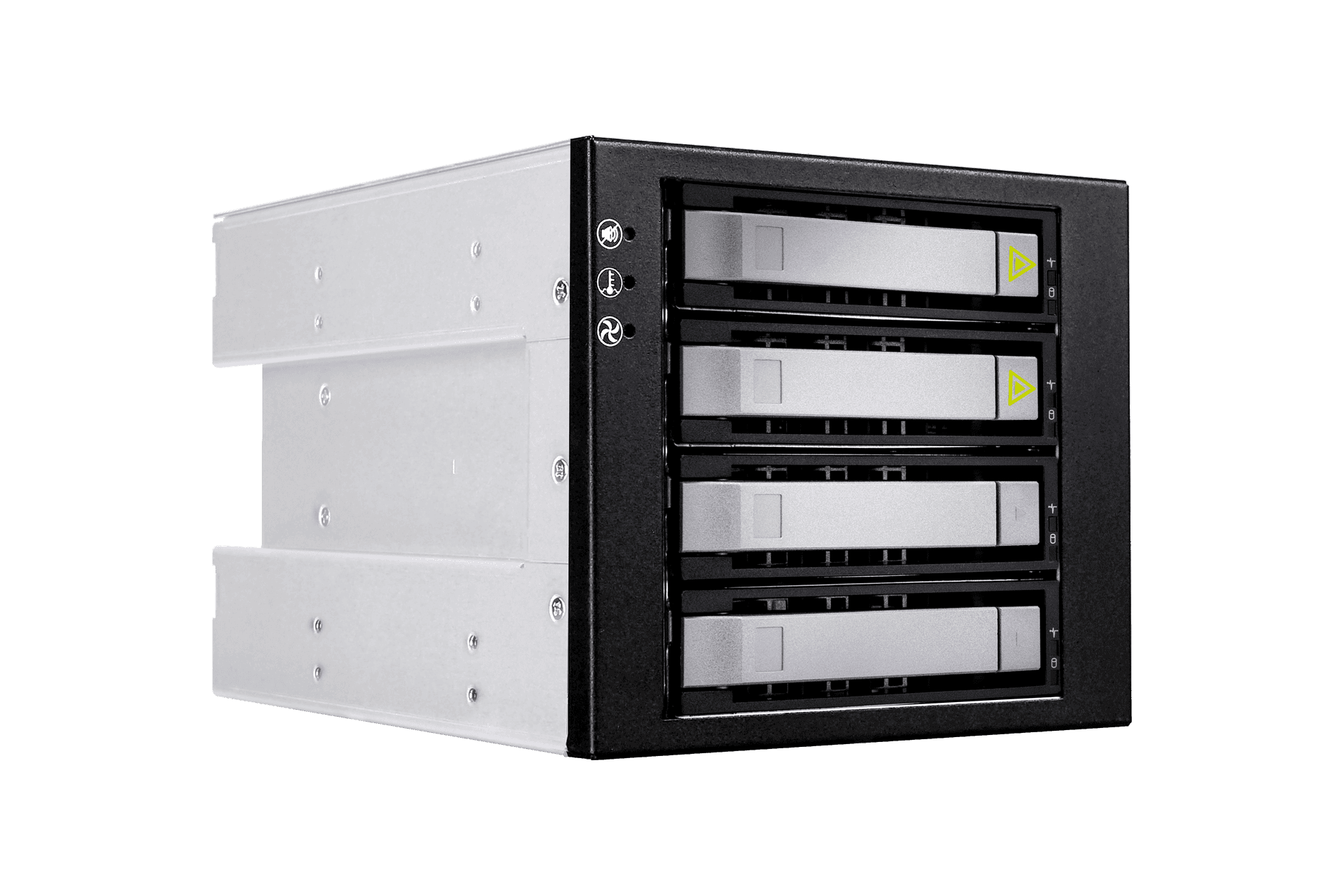

2RAKID088302

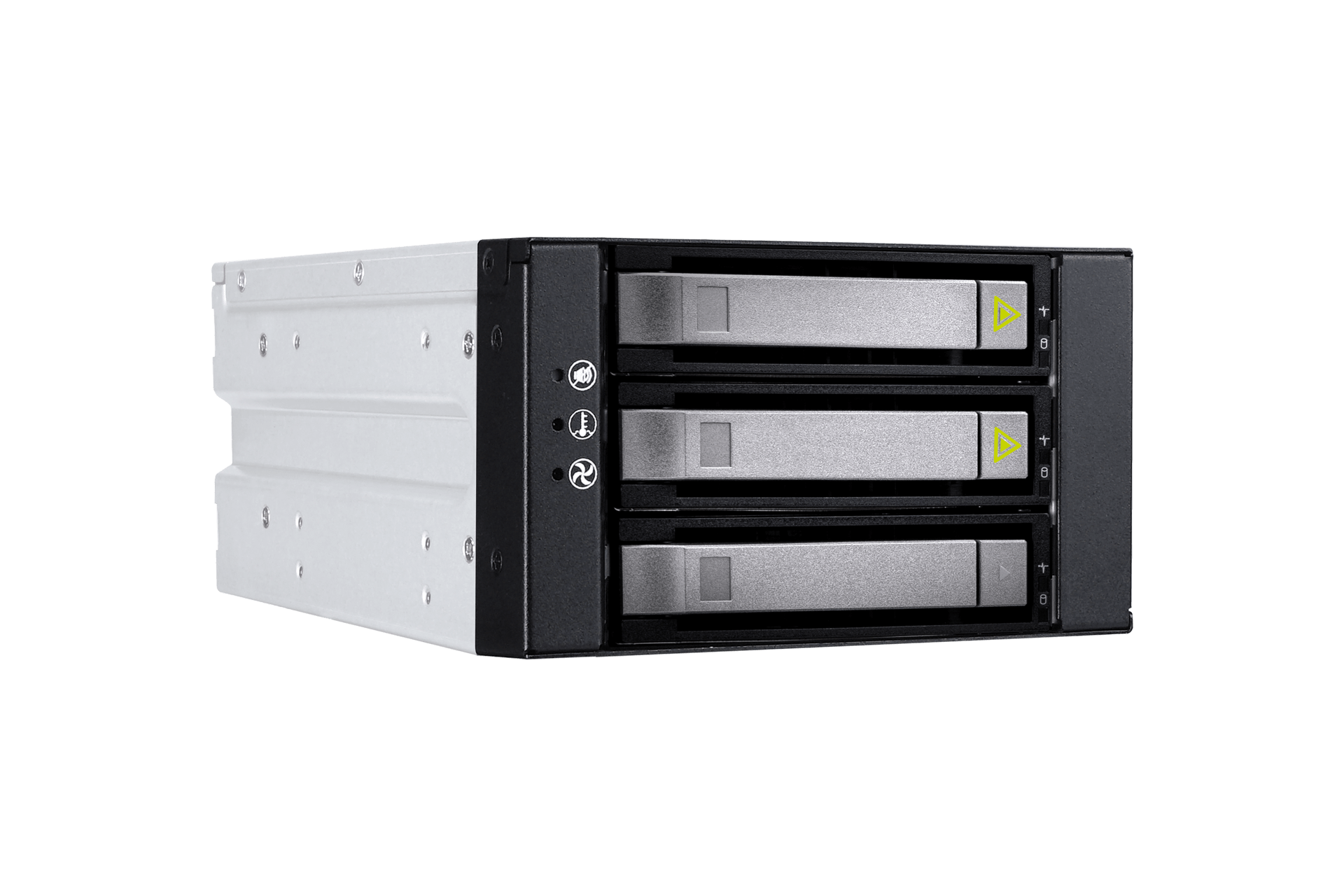

IW-SK23-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: Max. 2
Storage Kit
2RAKID088403

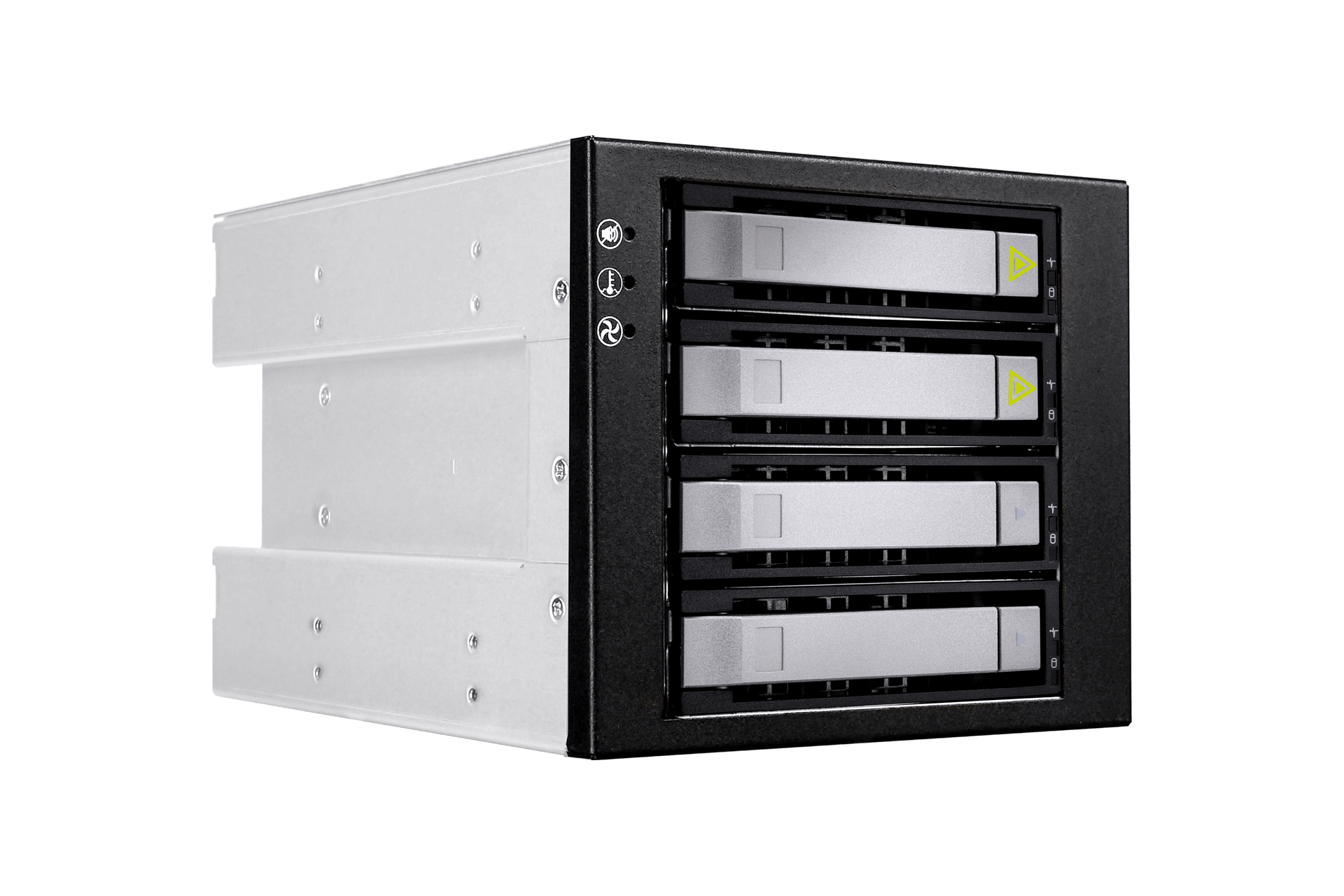

IW-SK34-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: Max. 2
Storage Kit

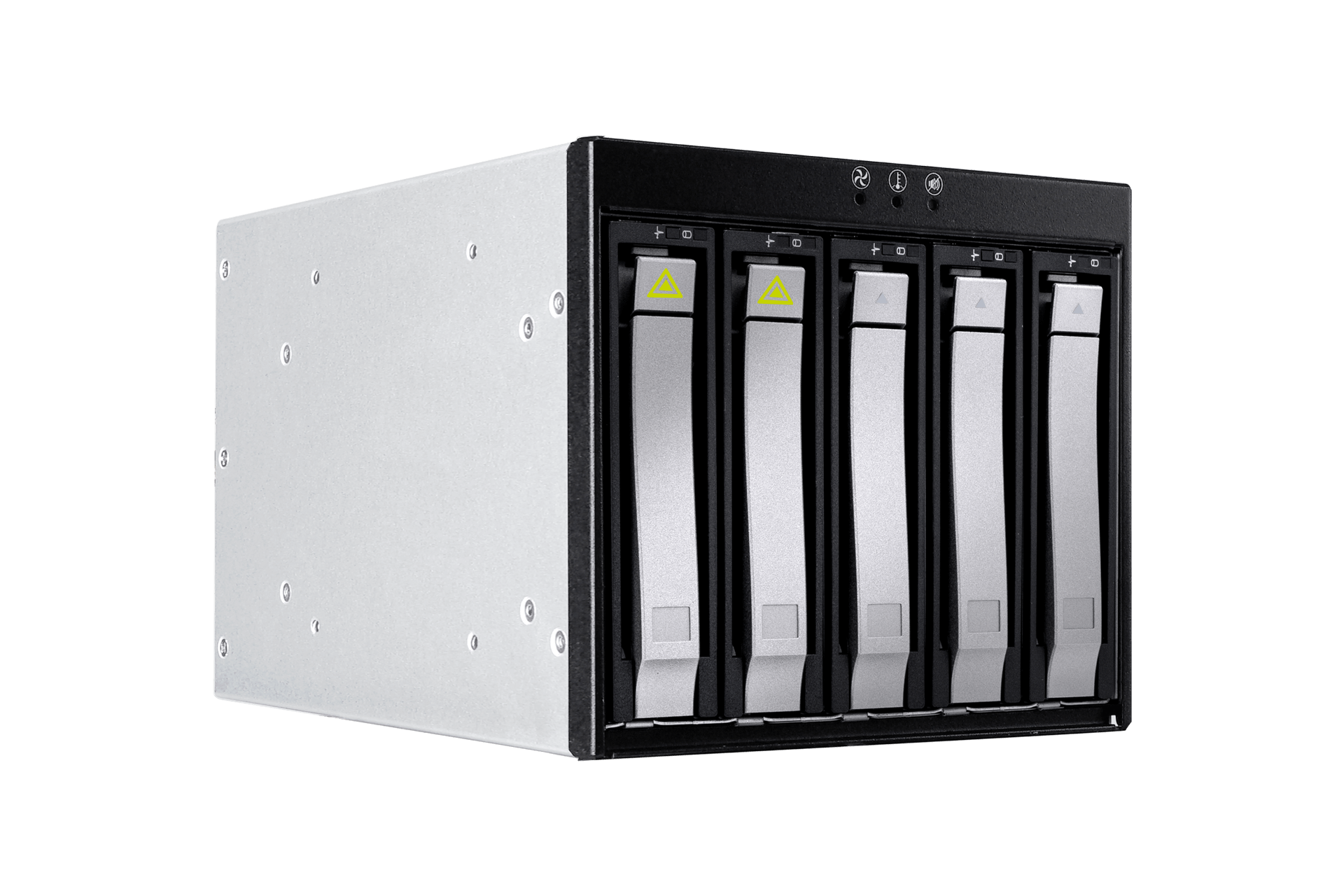

2RAKID088202

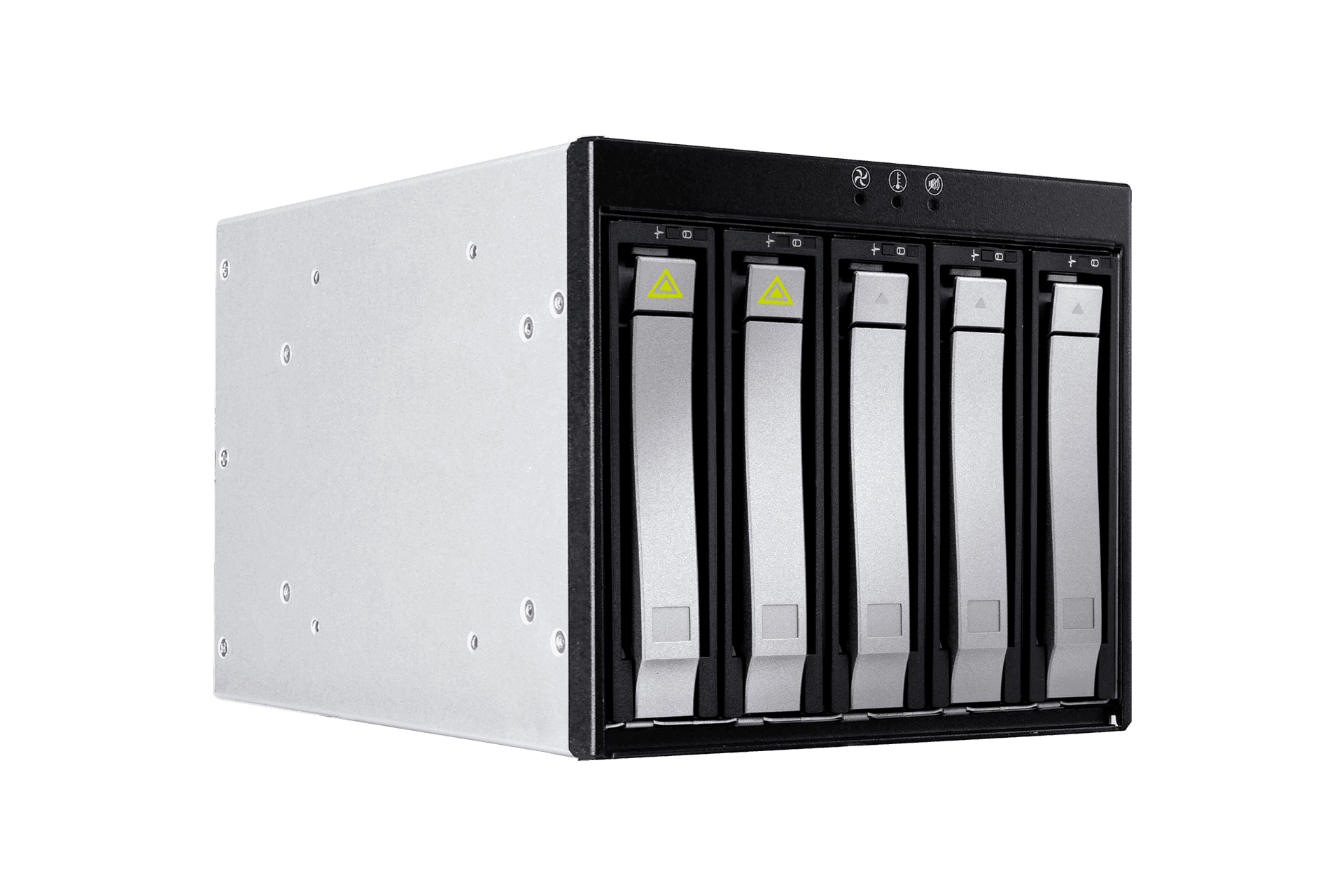

IW-SK35-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s, 7pin connector
Support: Max. 2
Others
3RAMRW011300

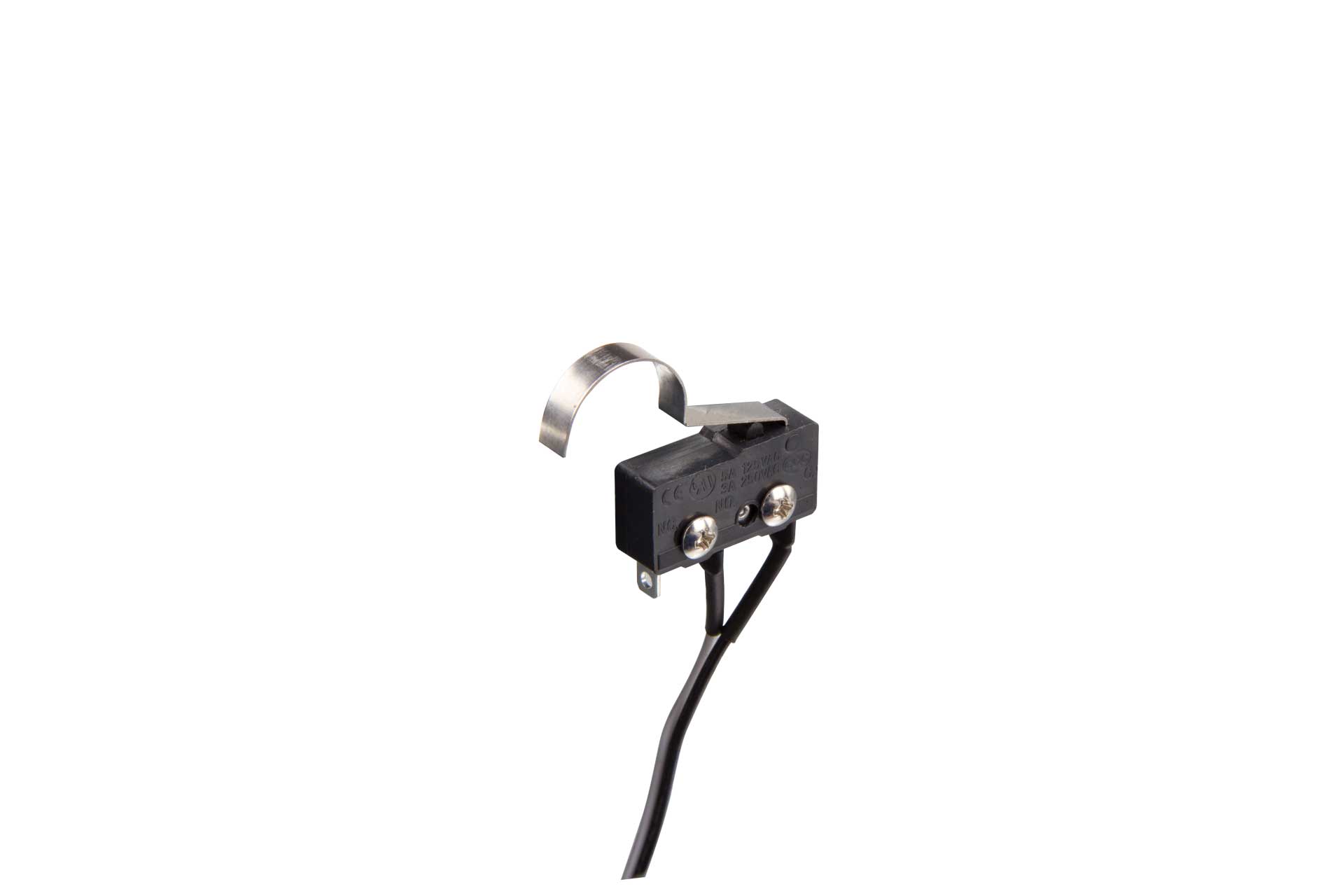

Intrusion switch / 800mm
Support: 1
Others

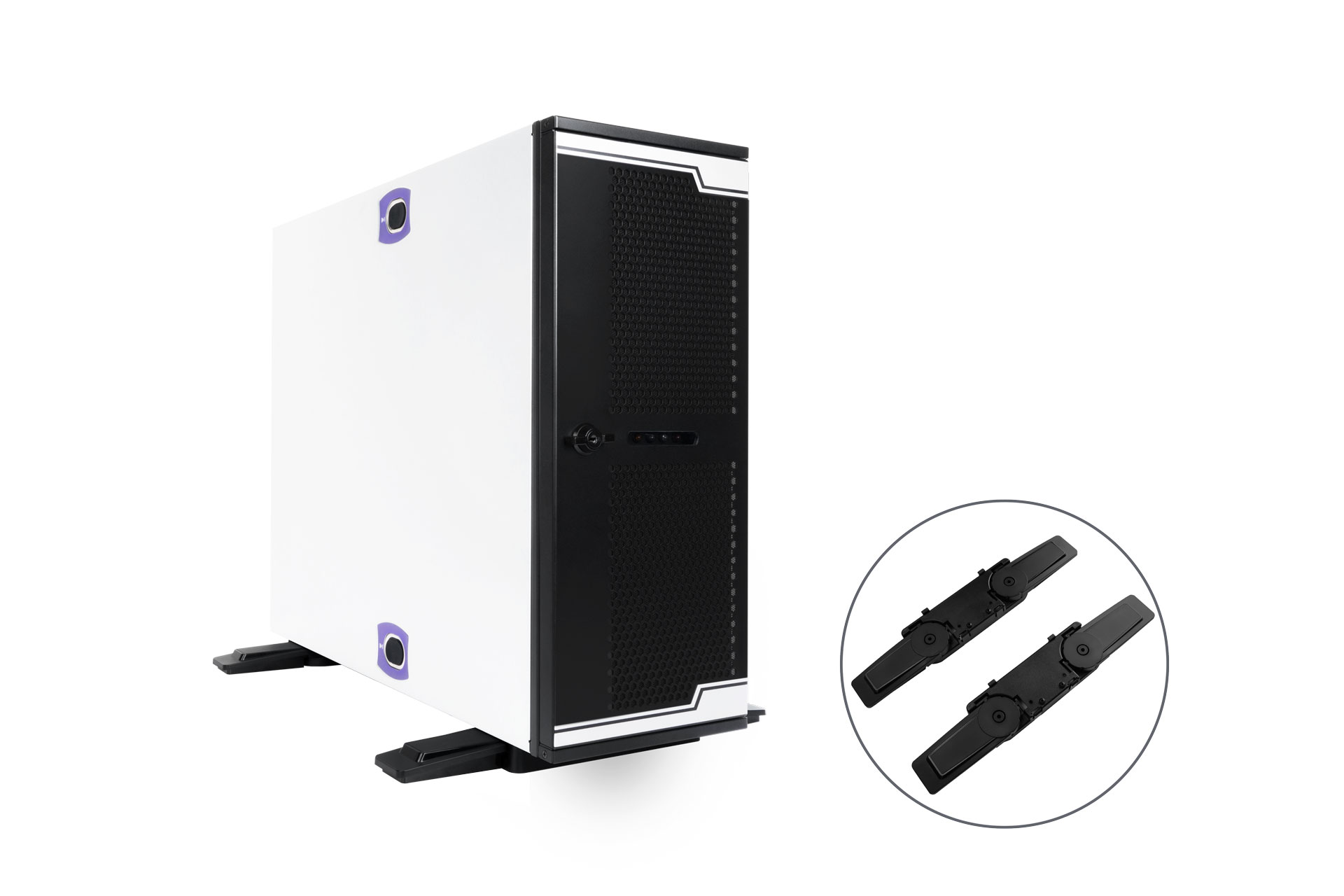

2RALXX396100
Foot stands
Support: 1 set
