IW-R400-01N с передней дверкой и корзиной HDD
Артикул: IW-R400-01N-С-ПЕРЕДНЕЙ-ДВЕРКОЙ-И-КОРЗИНОЙ-HDD
Документация
4U Chassis
4U корпус с дверцей и HDD-корзиной для серверной сборки
Вариант IW-R400-01N с передней дверцей и HDD-корзиной рассчитан на универсальные 4U-серверы, где нужны полноразмерные платы, доступ к накопителям и выбор между одиночным и резервируемым питанием.
Платы
ATX / CEB / EEB
Отсеки
5.25" + 3.5" / 2.5"
PCIe
8 x full-height
Рельсы
28" tool-less

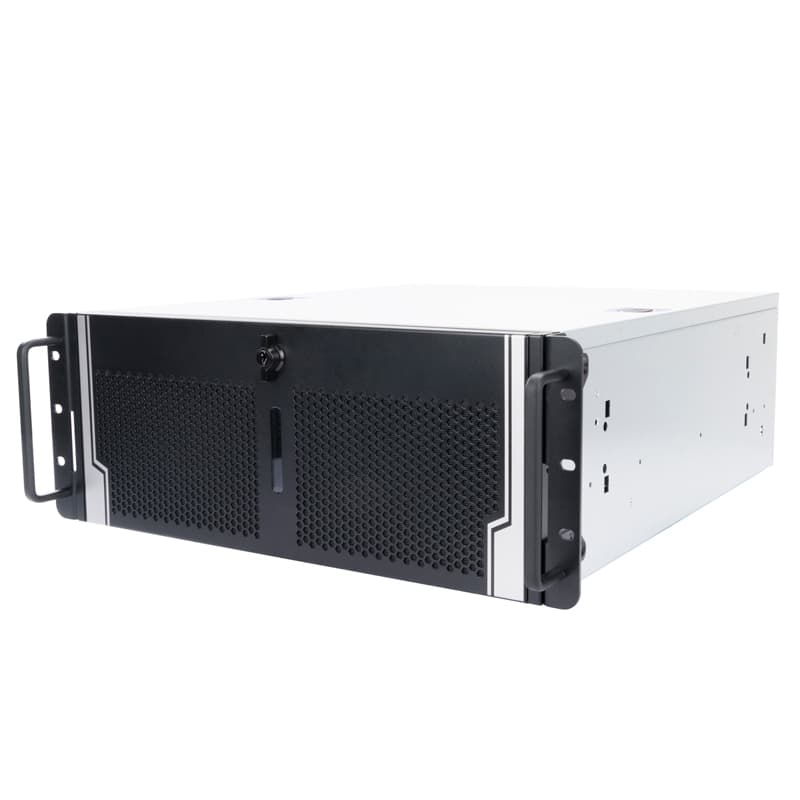

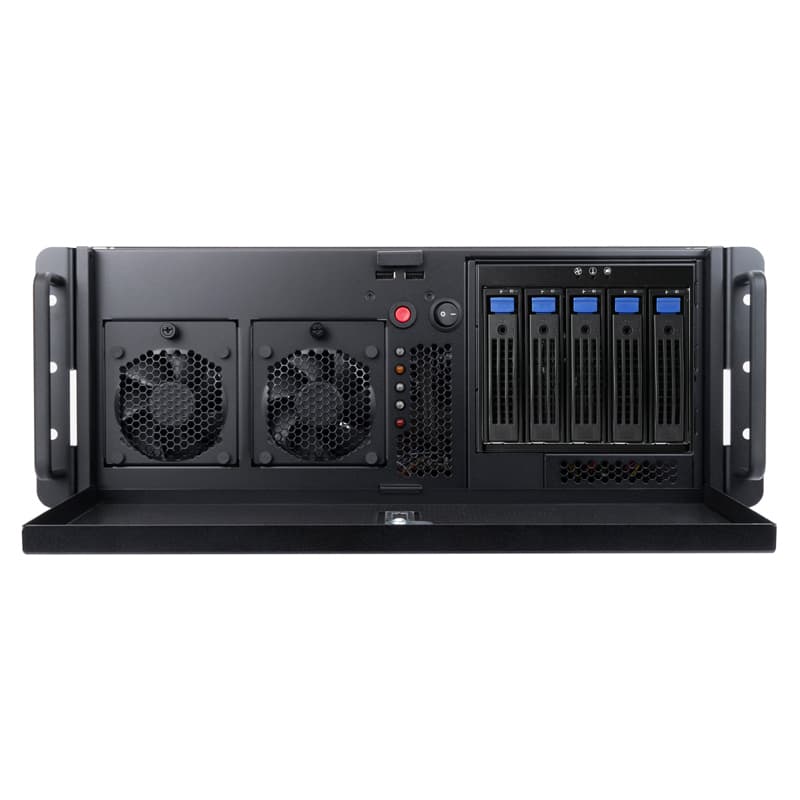

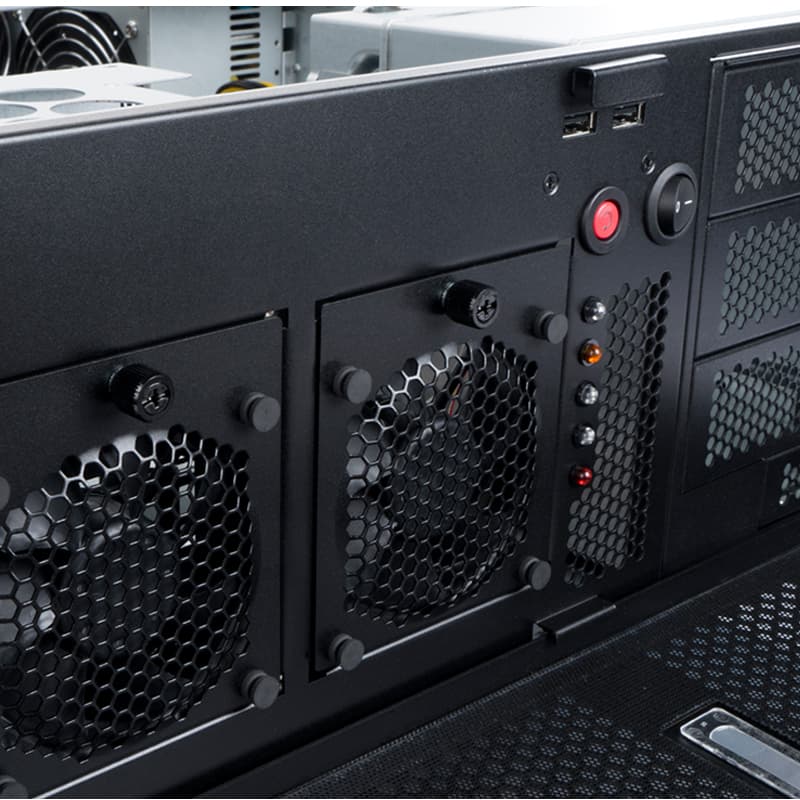

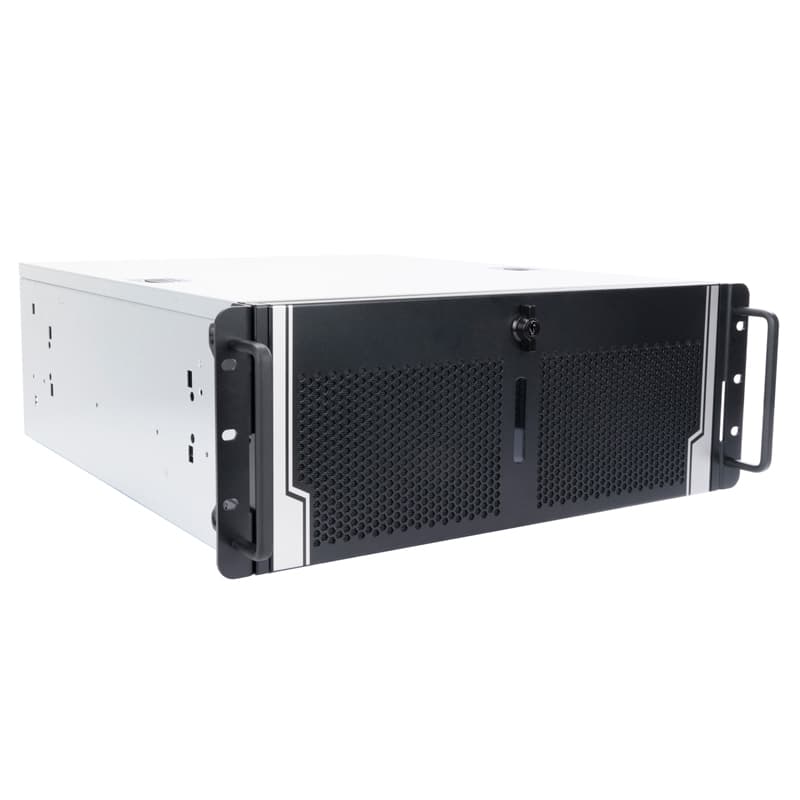

Front Access
Передняя зона под корзины и сервисные модули
Наличие внешних отсеков упрощает подбор конфигурации под задачу: можно использовать HDD-корзину, съемные модули или оставить часть пространства под обслуживание системы.
Expansion
Восемь полноразмерных PCIe-слотов
Корпус подходит для контроллеров хранения, сетевых карт, HBA и других полноразмерных плат. Высота 4U оставляет больше свободы для компоновки, чем низкопрофильные 1U/2U решения.
Cooling
Гибкая схема вентиляторов для 4U-системы

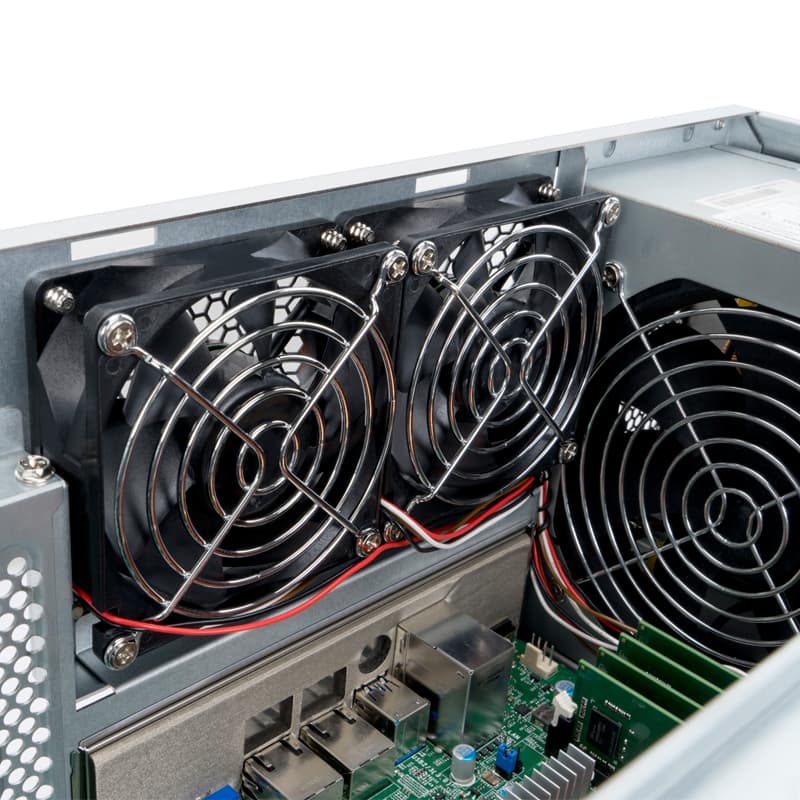

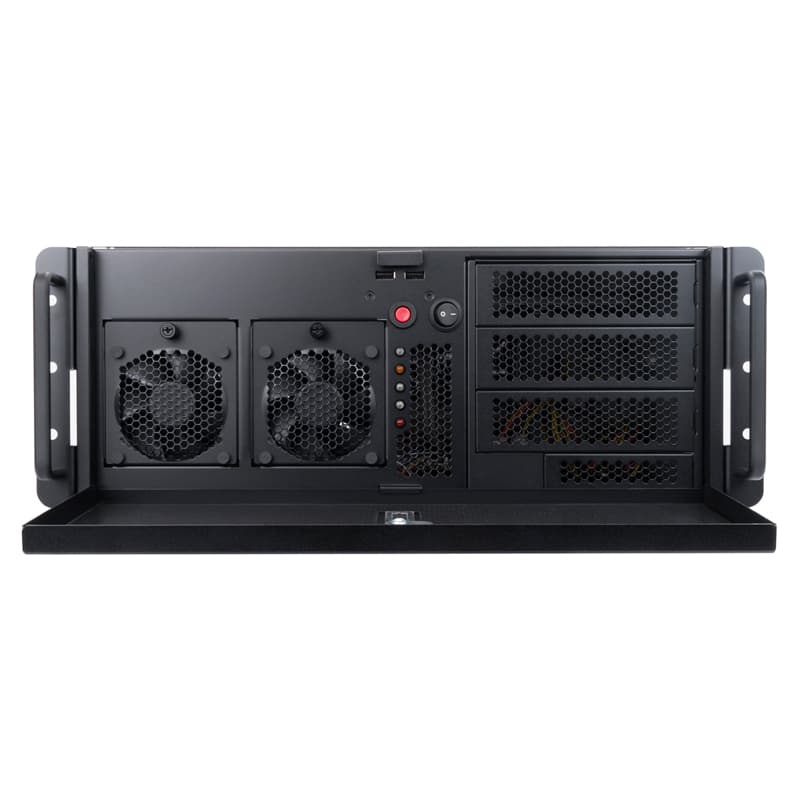

Фронтальные и задние PWM-вентиляторы помогают охлаждать плату, накопители и карты расширения. Это важно для универсального корпуса, где итоговая конфигурация может заметно отличаться от проекта к проекту.
Product Details

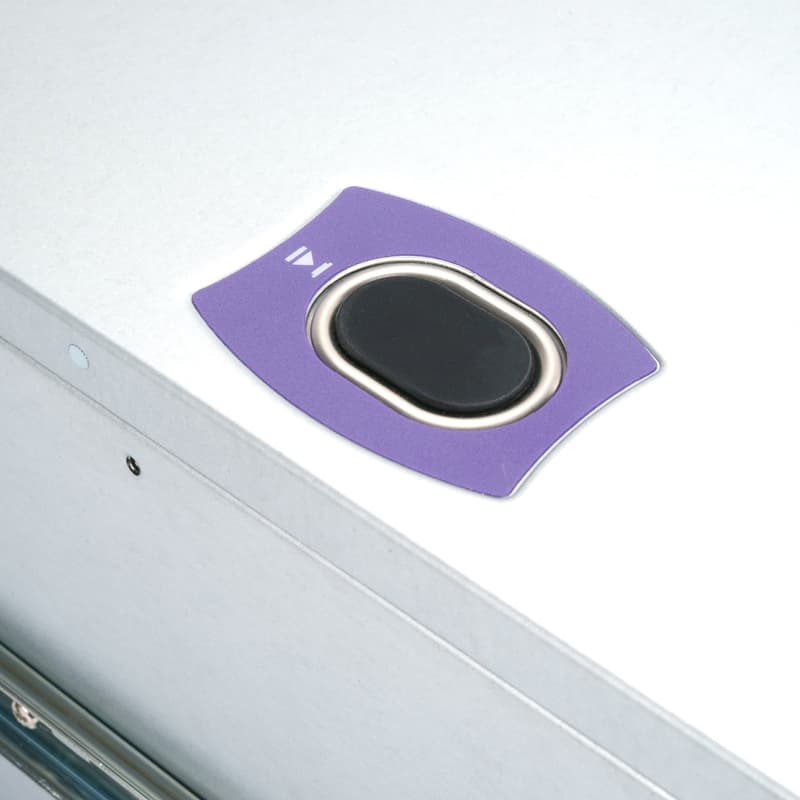

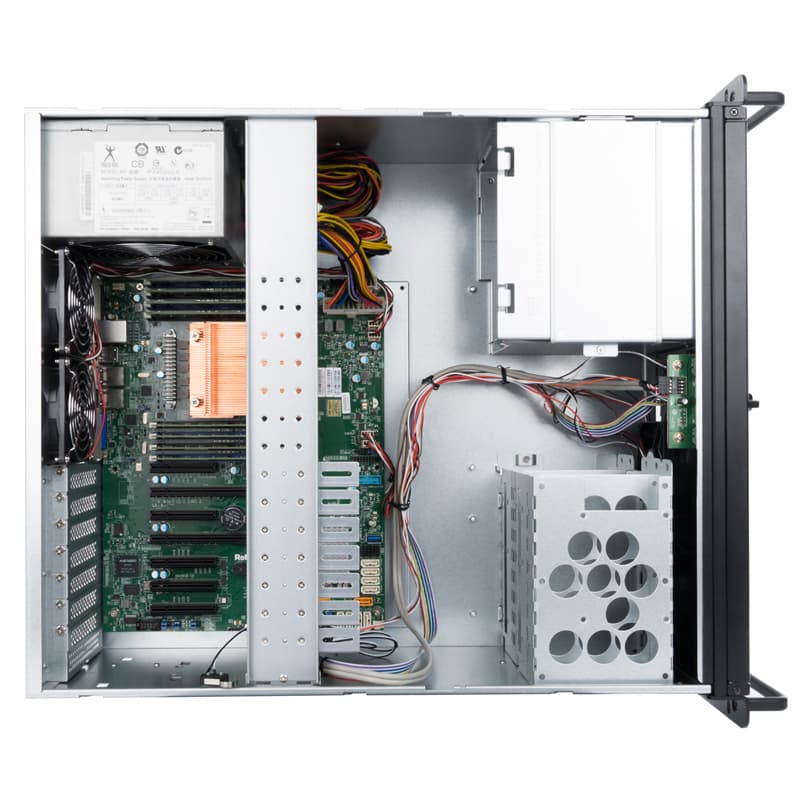

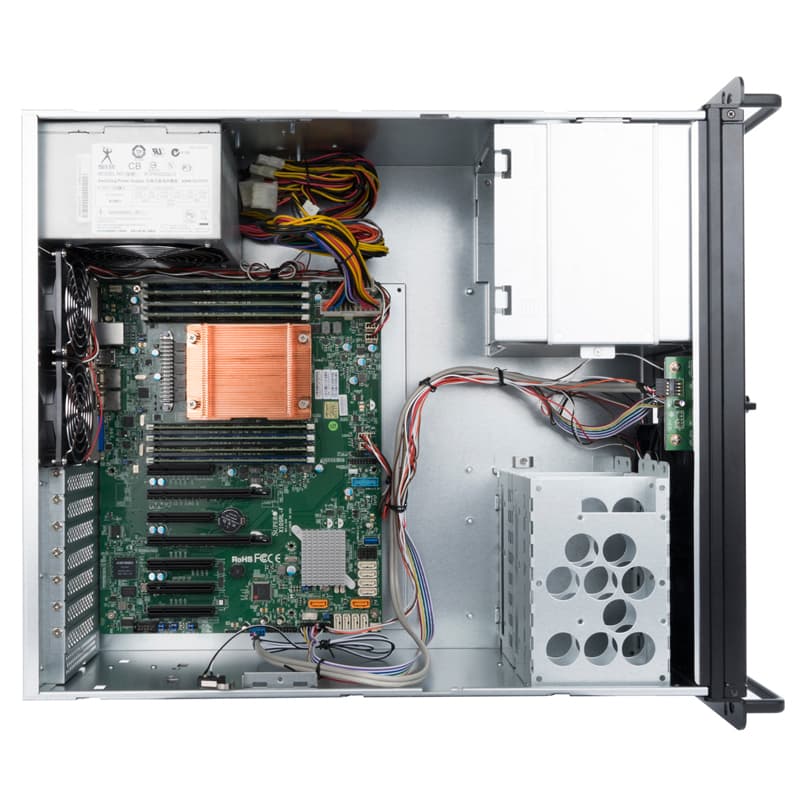

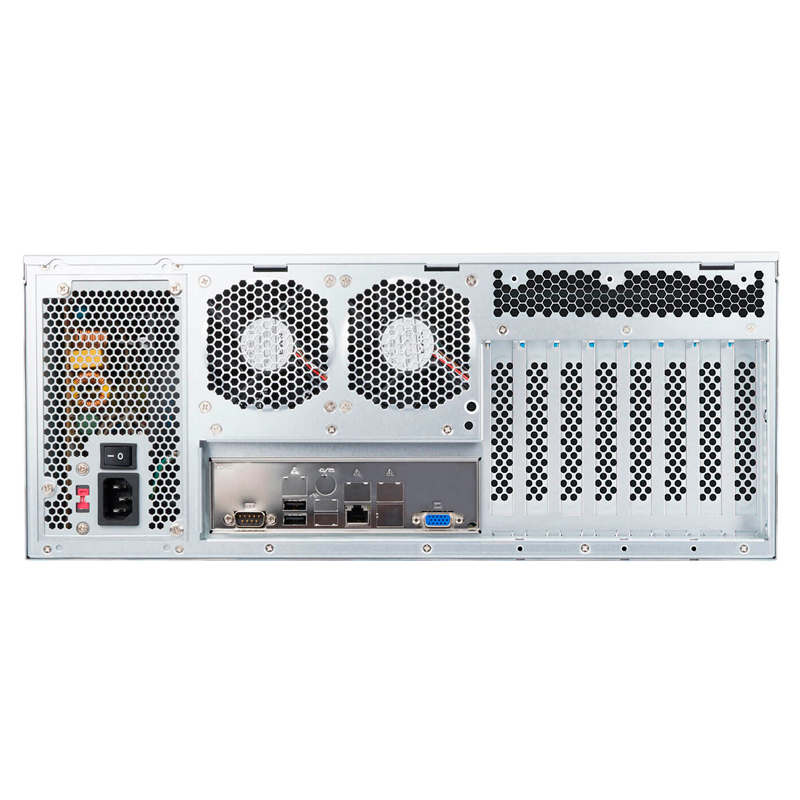

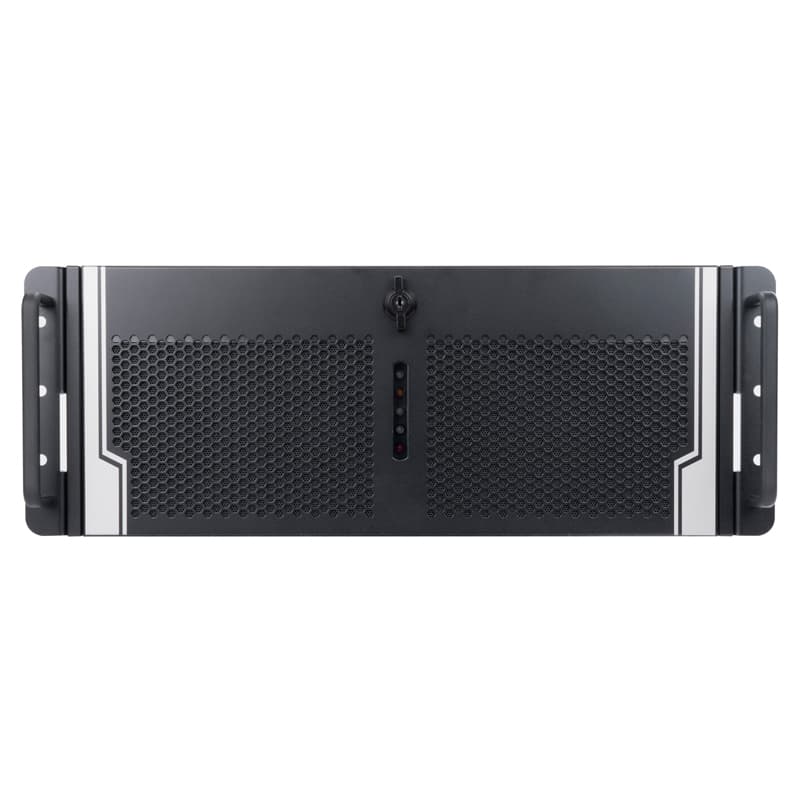

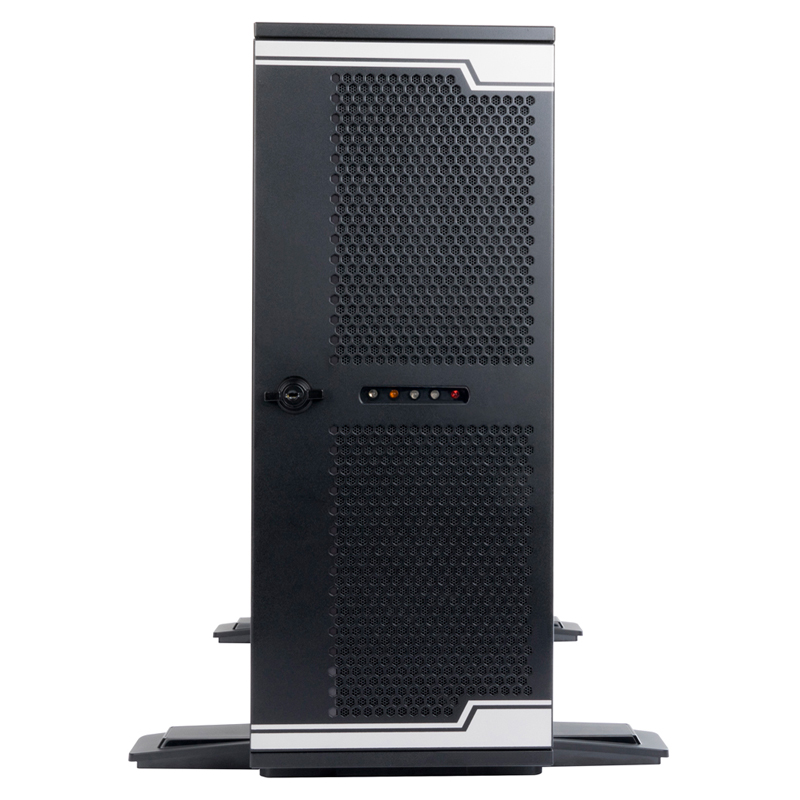

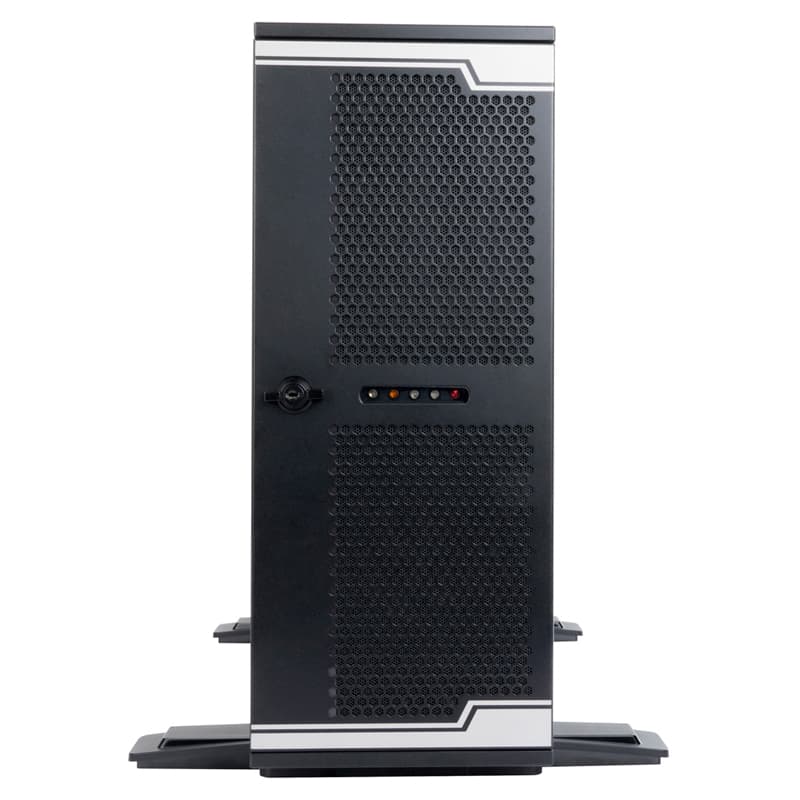

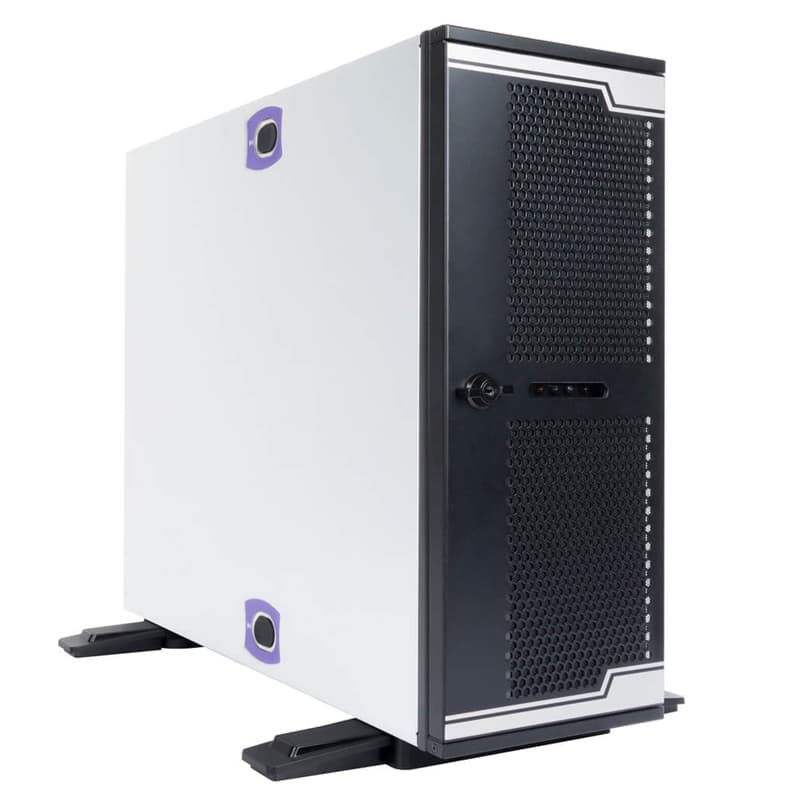

Детали конструкции InWin IW-R400-01N
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") *The bottom 5.25 drive bay space should be reserved for the EEB motherboard installation |
| Drive Bay | • External: 5.25" x 3, 3.5" x 1 • Internal: 3.5" x 4, 2.5" x 1 |
| Power Supply | Supports: • PS2 single PSU • 550W/800W/1200W/1600W 1+1 CRPS 80 Plus Platinum |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fans | Supports: • 80 x 25mm PWM front fan x 2, 4500RPM • 80 x 25mm PWM rear fan x 2 (optional), 4200RPM • 80 x 25mm PWM rear fan x 2 (optional), 4500RPM |
| Expansion Slot | Full-height PCIe slots x 8 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 525x 430 x 174.8mm (20.7" x 16.9" x 6.9") |
| Package Dimensions (DxWxH) | 696 x 610 x 310mm |
| Weight (Chassis Only) | • Net weight: 12.09kg • Gross weight: 15.37kg |
| Cubic Feet | 4.65 |
| Container Information | Single packing with pallets: • 20': 144pcs • 40': 300pcs • 40' HQ: 350pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items
Slide Rail
3RAMIS129500
28" tool-less & ball-bearing slide rails (weight capacity 35kg)
Support: 1 set
Power Supply

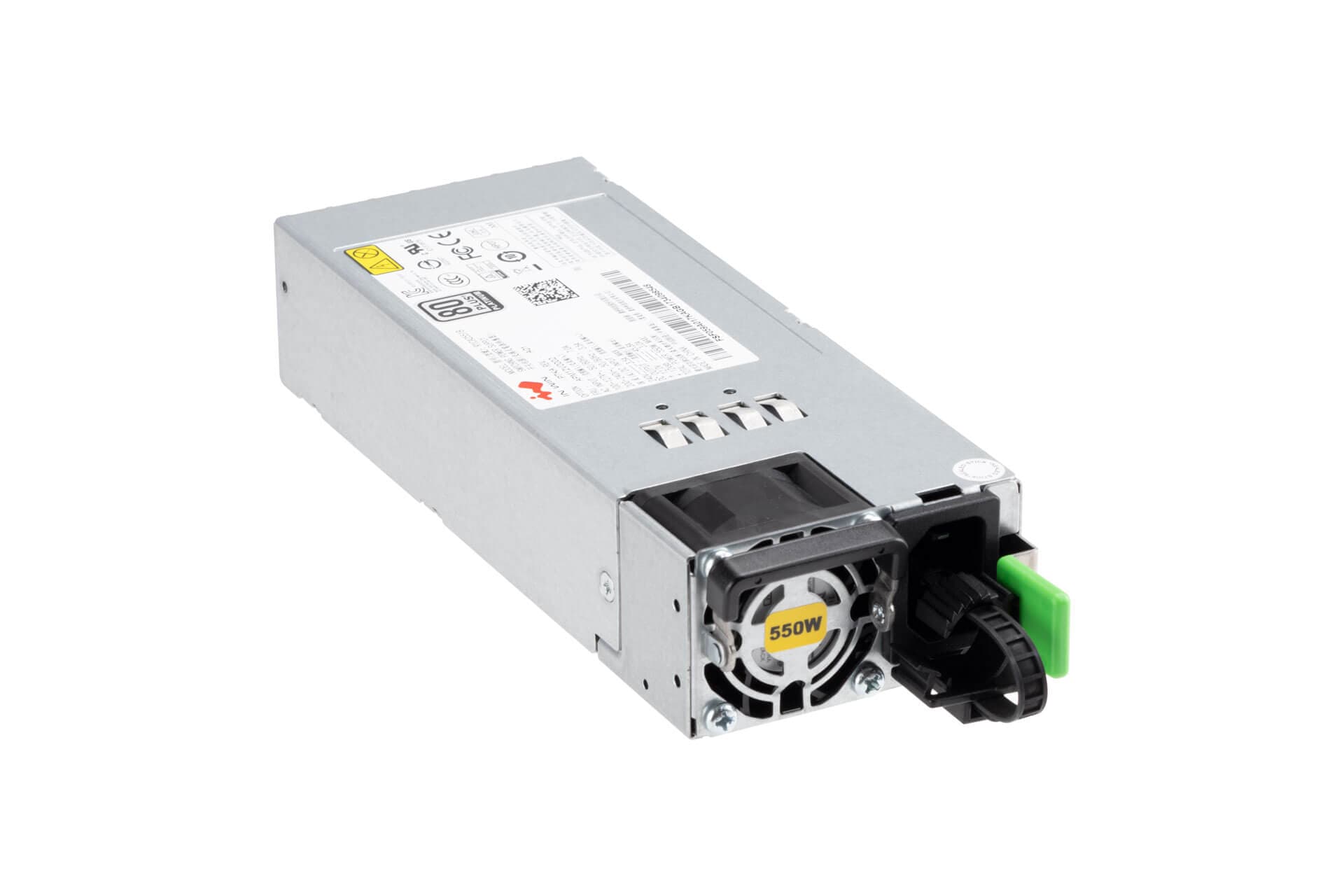

3RAMAP025102
80 Plus Platinum 550W CRPS
Support: Max. 2
Power Supply

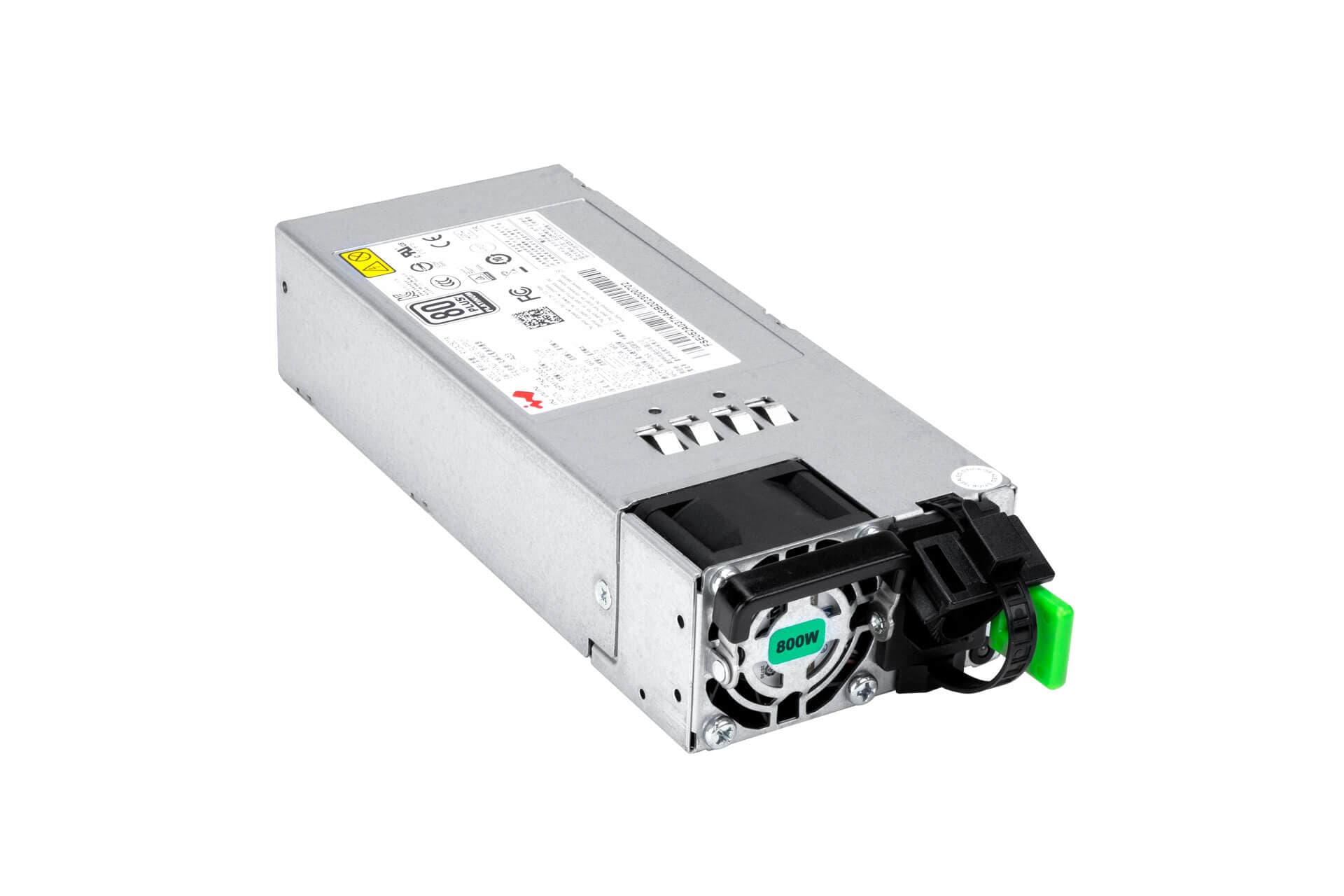

3RAMAP025202
80 Plus Platinum 800W CRPS
Support: Max. 2
Power Supply

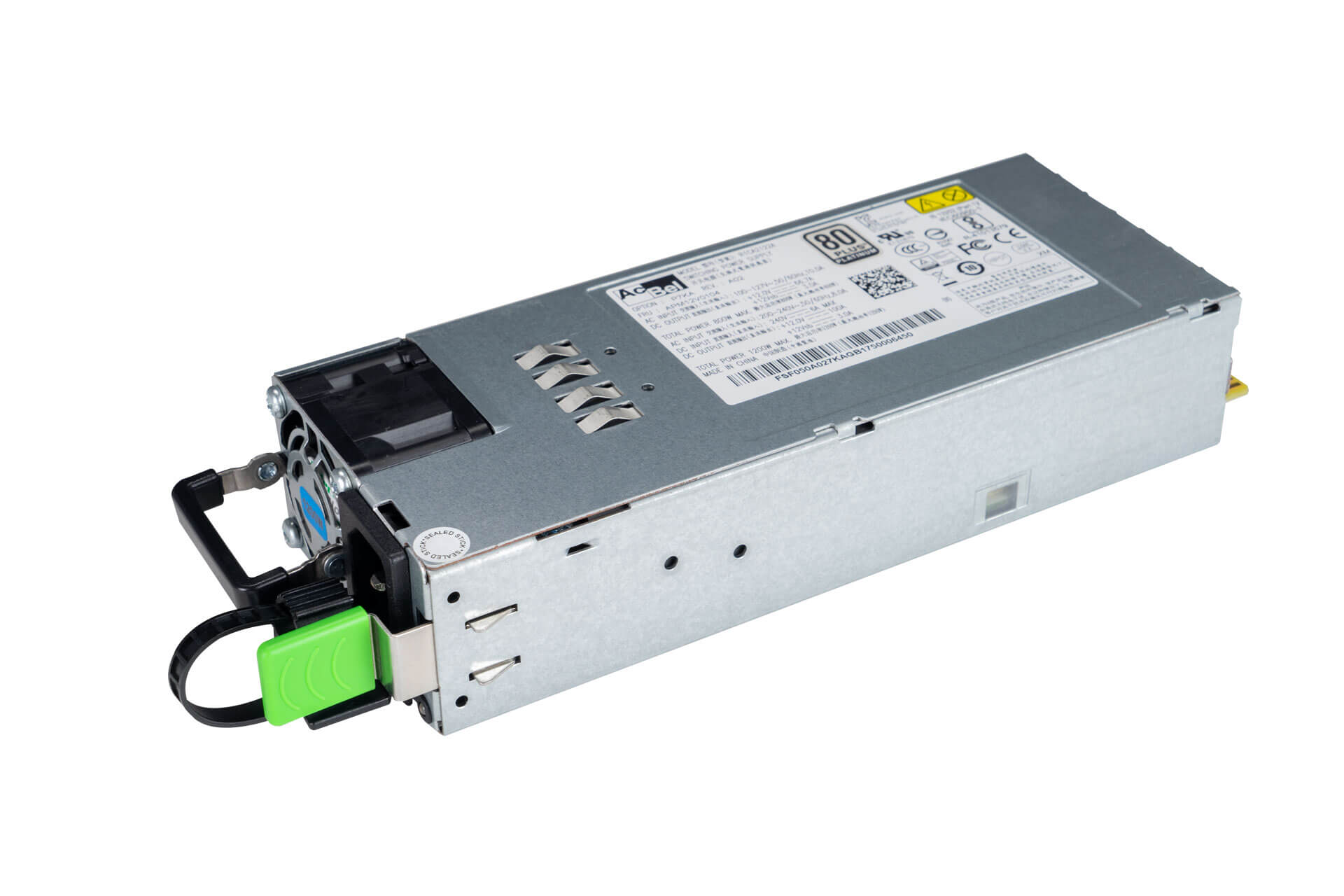

3RAMAP026501
80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.)
Support: Max. 2
Power Supply
3RAMAP044300
80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.)
Support: Max. 2

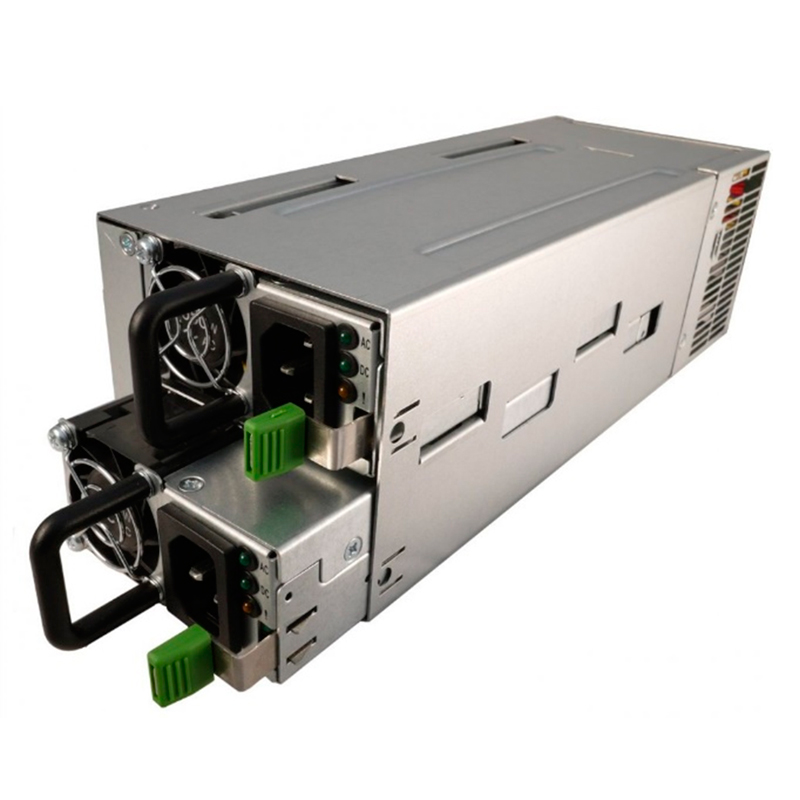

Power Supply
3RAMAP027201
PDB power cage for CRPS Max. 1200W
Support: 1
Power Supply

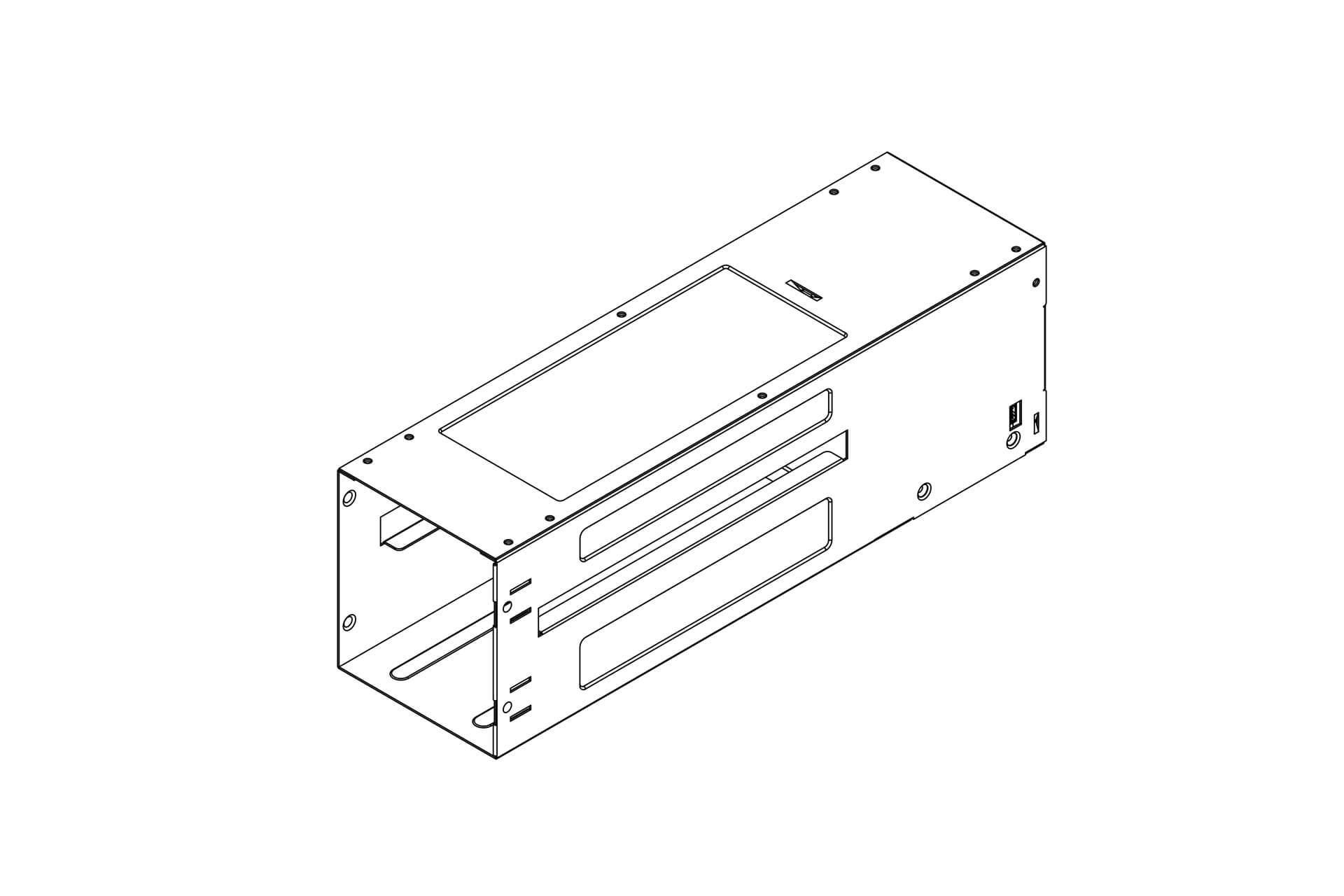

3RAMAP030501
PDB power cage for CRPS Max. 1600W
Support: 1
Fan
3RAMFB008602
80 x 25mm front fan, PWM, 4500RPM
Support: 2
Fan
3RAMFB015300
80 x 25mm rear fan, PWM, 4200RPM
Support: 2
Fan
3RAMFB014800
80 x 25mm rear fan, PWM, 4500RPM
Support: 2
Fan
2RAKID059800
Rear fan kit for GPU thermal, 80 x 38mm, 5500RPM
Support: 1

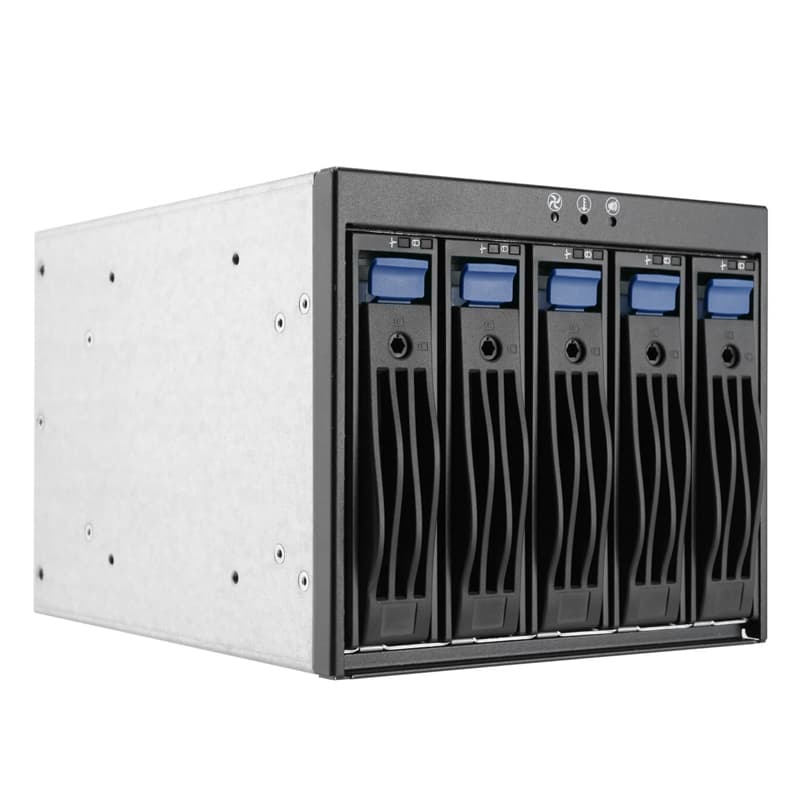

Storage Kit
2RAKID044201
IW-SK23-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit
2RAKID073901
IW-SK34-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit
2RAKID062800
IW-SK35-02, 2.5"/3.5" SAS/SATA III Storage Kit, 6Gb/s, 7pin connector
Support: 1
Storage Kit
2RAKID088302
IW-SK23-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit
2RAKID088403
IW-SK34-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit
2RAKID088202
IW-SK35-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s, 7pin connector
Support: 1
Others
3RAMRW011300
Intrusion switch / 800mm
Support: 1

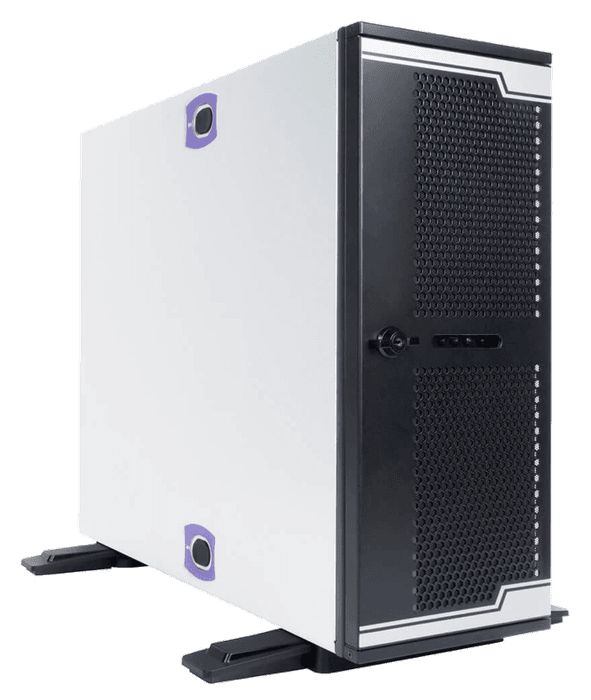

Others
2RALXX396100
Foot stands
Support: 1 set
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS129500 | 28" tool-less & ball-bearing slide rails (weight capacity 35kg) | 1 set | |
| Power Supply | 3RAMAP025102 | 80 Plus Platinum 550W CRPS | Max. 2 | |
| Power Supply | 3RAMAP025202 | 80 Plus Platinum 800W CRPS | Max. 2 | |
| Power Supply | 3RAMAP026501 | 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) | Max. 2 | |
| Power Supply | 3RAMAP044300 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max. 2 | |
| Power Supply | 3RAMAP027201 | PDB power cage for CRPS Max. 1200W | 1 | |
| Power Supply | 3RAMAP030501 | PDB power cage for CRPS Max. 1600W | 1 | |
| Fan | 3RAMFB008602 | 80 x 25mm front fan, PWM, 4500RPM | 2 | |
| Fan | 3RAMFB015300 | 80 x 25mm rear fan, PWM, 4200RPM | 2 | |
| Fan | 3RAMFB014800 | 80 x 25mm rear fan, PWM, 4500RPM | 2 | |
| Fan | 2RAKID059800 | Rear fan kit for GPU thermal, 80 x 38mm, 5500RPM | 1 | |
| Storage Kit | 2RAKID044201 | IW-SK23-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s | 1 | |
| Storage Kit | 2RAKID073901 | IW-SK34-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s | 1 | |
| Storage Kit | 2RAKID062800 | IW-SK35-02, 2.5"/3.5" SAS/SATA III Storage Kit, 6Gb/s, 7pin connector | 1 | |
| Storage Kit | 2RAKID088302 | IW-SK23-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s | 1 | |
| Storage Kit | 2RAKID088403 | IW-SK34-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s | 1 | |
| Storage Kit | 2RAKID088202 | IW-SK35-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s, 7pin connector | 1 | |
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 | |
| Others | 2RALXX396100 | Foot stands | 1 set | |
