IW-R400-01N с передней дверкой
Артикул: IW-R400-01N-С-ПЕРЕДНЕЙ-ДВЕРКОЙ
Документация
4U Chassis

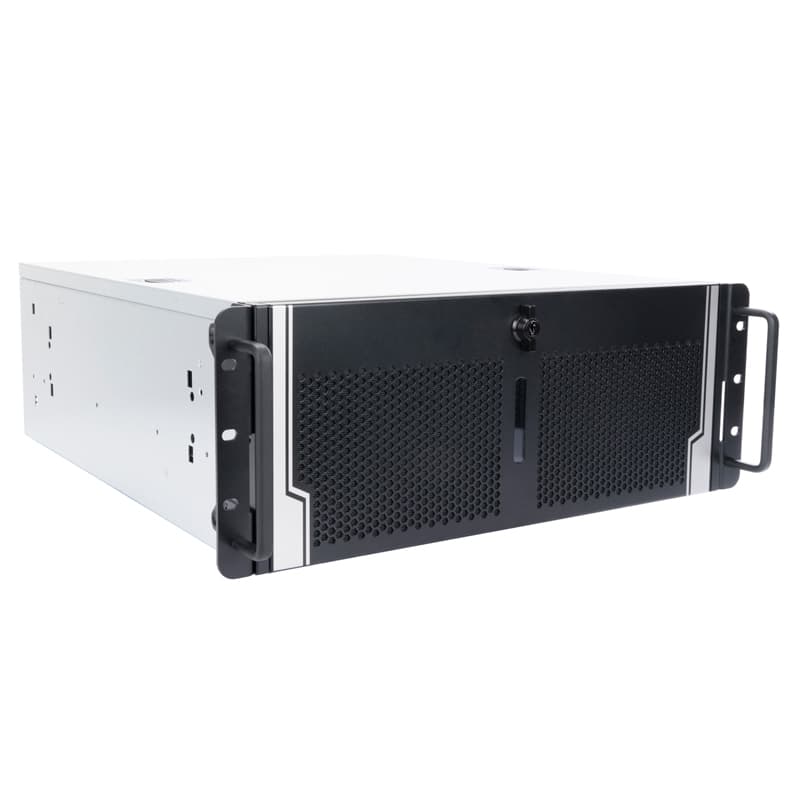

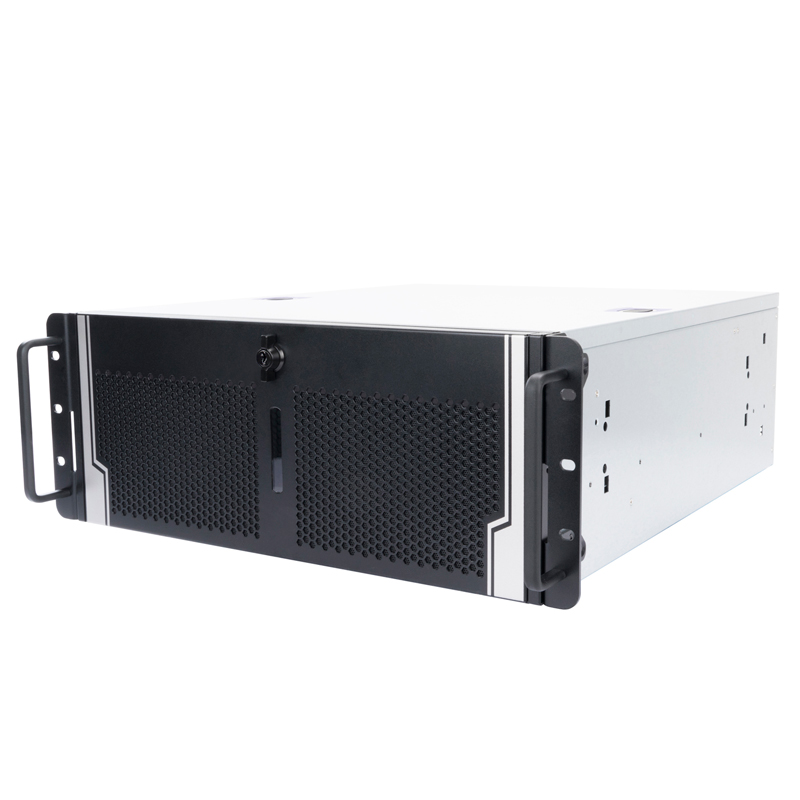

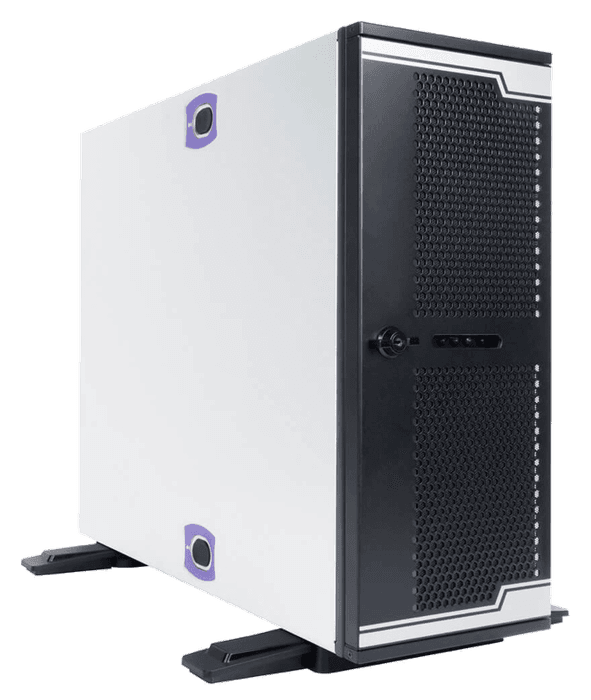

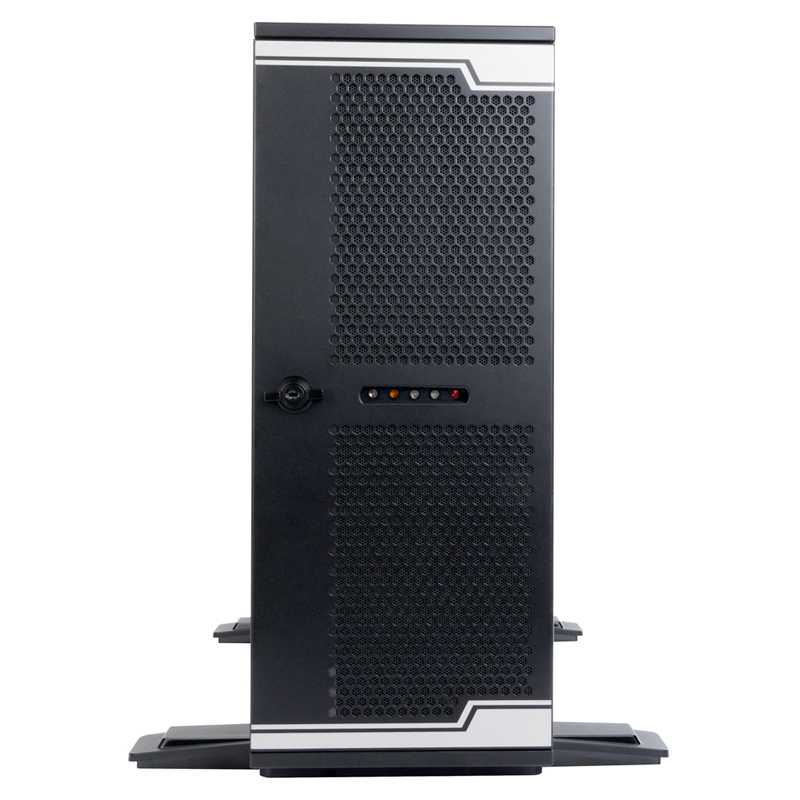

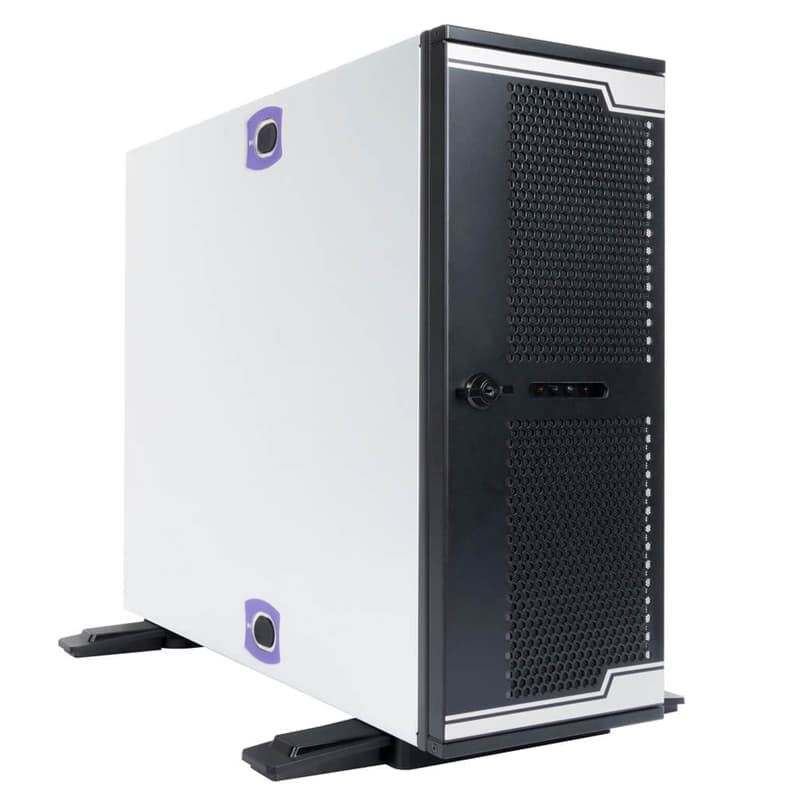

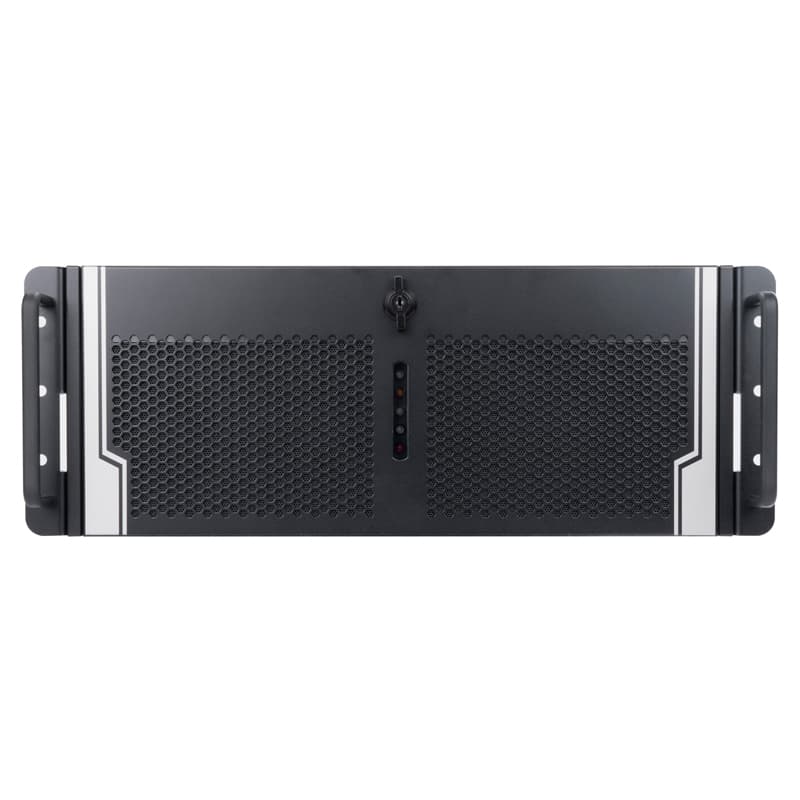

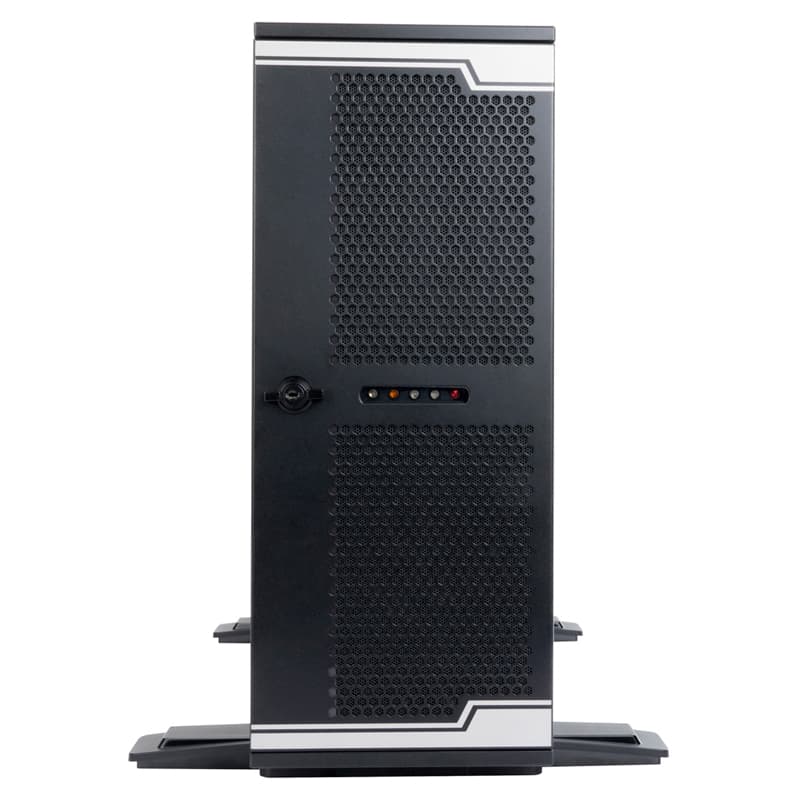

4U корпус с передней дверцей для универсального сервера
IW-R400-01N подходит для стоечных серверов на ATX, CEB и EEB-платах. Корпус сочетает классическую 4U-компоновку, внешние 5.25" отсеки, внутренние места под накопители и восемь полноразмерных PCIe-слотов.
Платы
ATX / CEB / EEB
Отсеки
3 x 5.25" + 4 x 3.5"
PCIe
8 x full-height
Питание
PS2 или CRPS 1+1
Universal 4U
Полноразмерная платформа для серверных плат

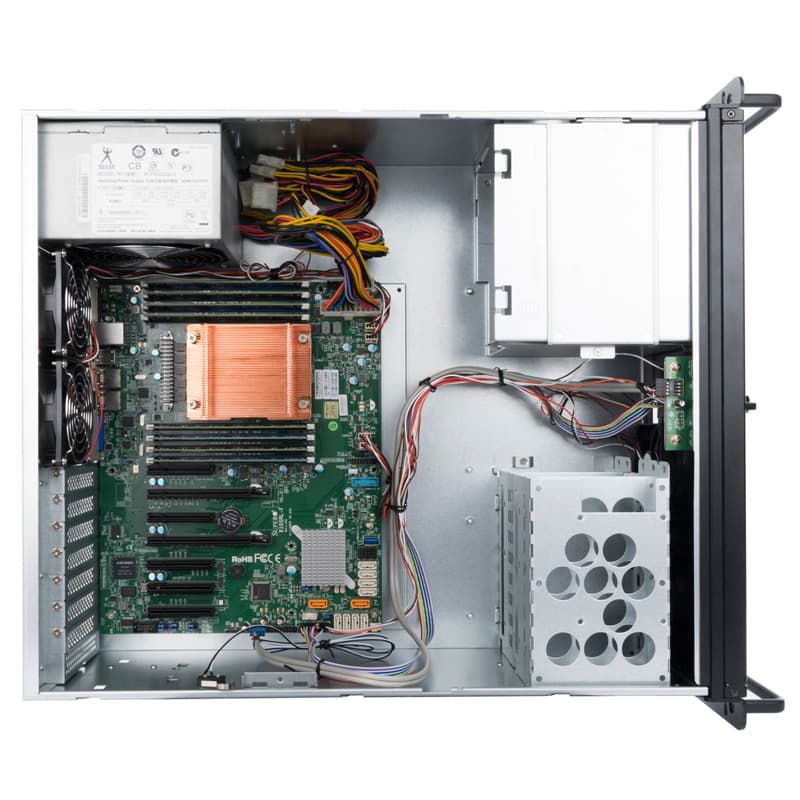

Высота 4U дает место для EEB-платы, полноразмерных карт расширения и аккуратной прокладки кабелей. Это практичный формат для инфраструктурных серверов, систем хранения и специализированных appliance.

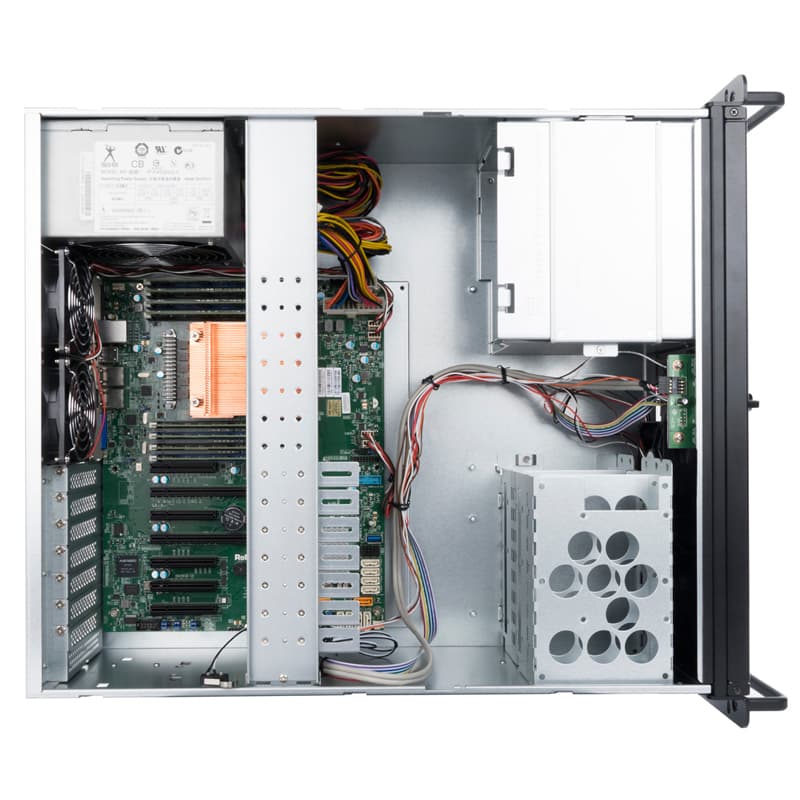

Drive Layout
Внешние и внутренние отсеки под разные носители

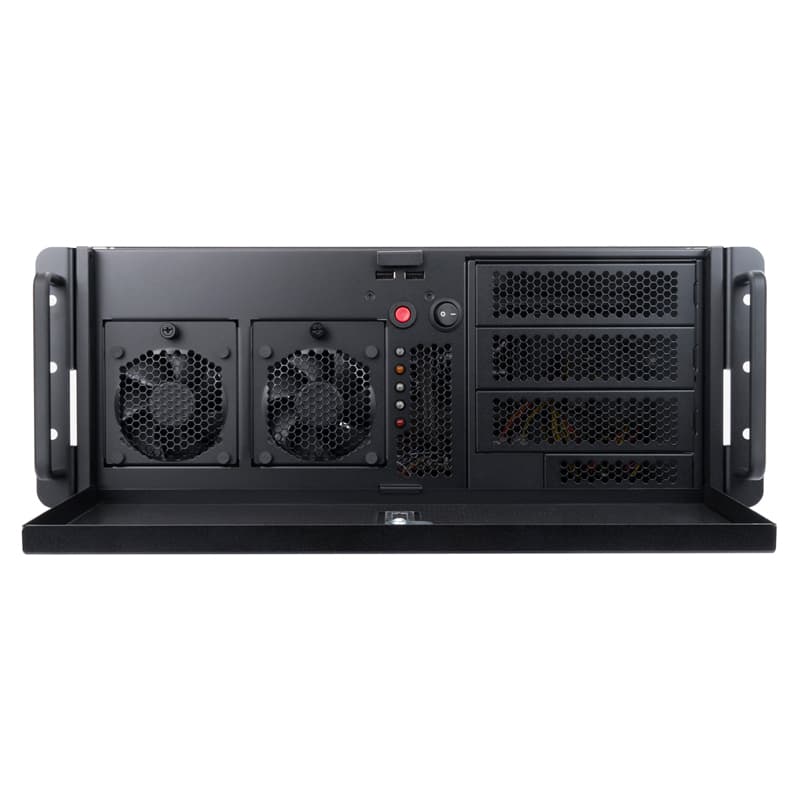

Передние 5.25" отсеки можно использовать для корзин, приводов или специальных модулей, а внутренние 3.5" и 2.5" места подходят для системных дисков и локального хранилища.
Service Ready
Поддержка резервируемого питания и направленного охлаждения

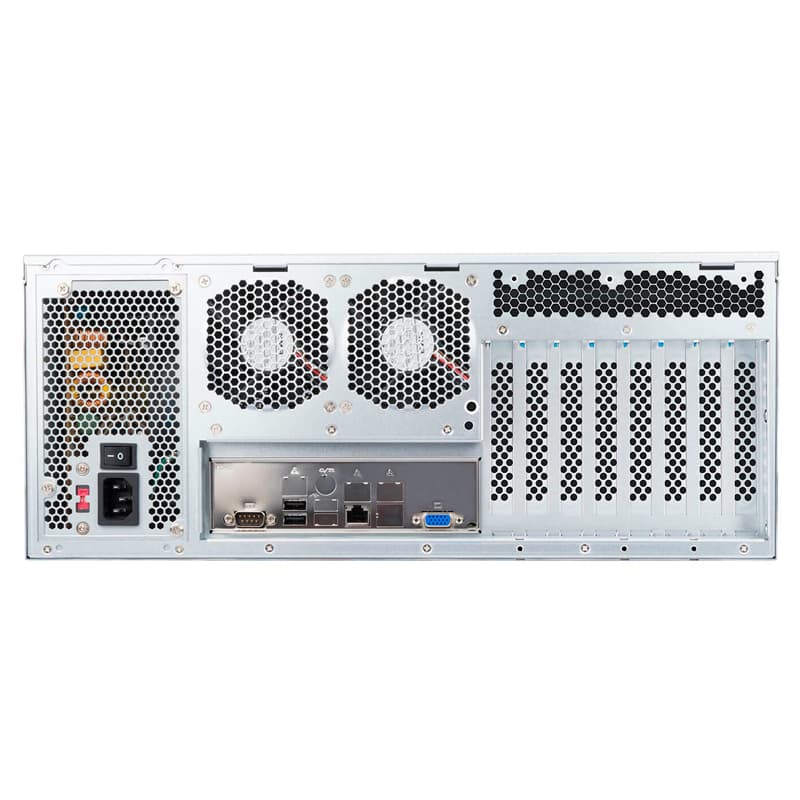

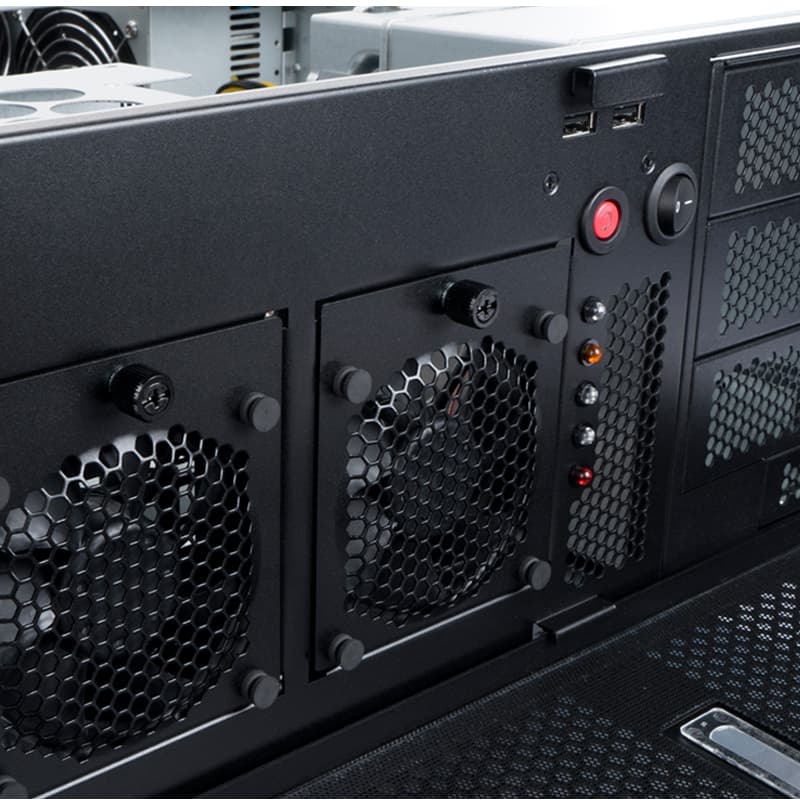

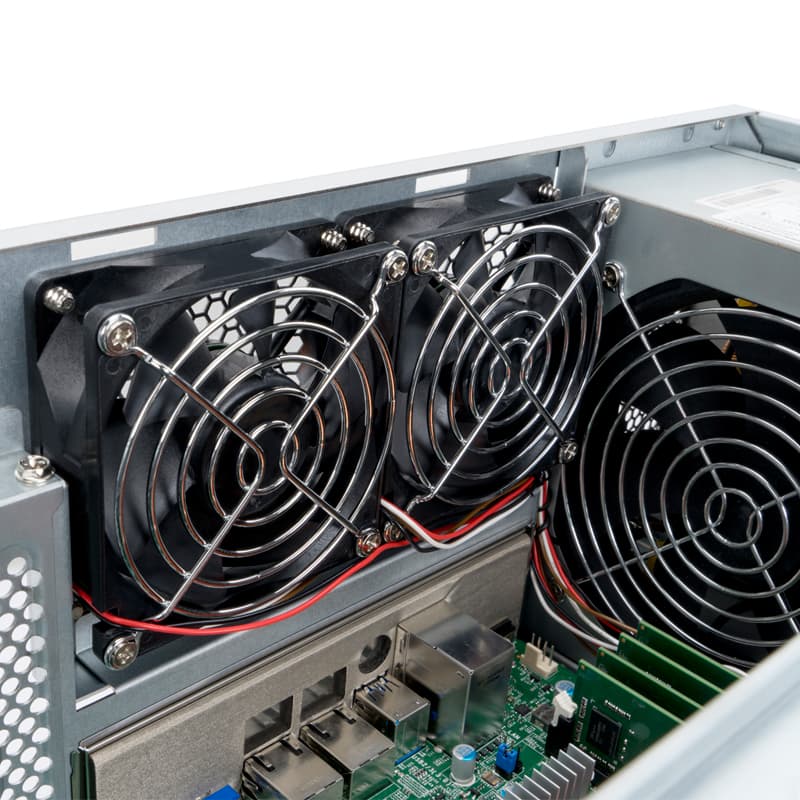

Корпус поддерживает одиночный PS2-блок или резервируемые CRPS-модули. Фронтальные и задние PWM-вентиляторы помогают выстроить стабильный поток воздуха через плату, накопители и карты расширения.
Product Details
Детали конструкции InWin IW-R400-01N
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") *The bottom 5.25 drive bay space should be reserved for the EEB motherboard installation |
| Drive Bay | • External: 5.25" x 3, 3.5" x 1 • Internal: 3.5" x 4, 2.5" x 1 |
| Power Supply | Supports: • PS2 single PSU • 550W/800W/1200W/1600W 1+1 CRPS 80 Plus Platinum |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fans | Supports: • 80 x 25mm PWM front fan x 2, 4500RPM • 80 x 25mm PWM rear fan x 2 (optional), 4200RPM • 80 x 25mm PWM rear fan x 2 (optional), 4500RPM |
| Expansion Slot | Full-height PCIe slots x 8 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 525x 430 x 174.8mm (20.7" x 16.9" x 6.9") |
| Package Dimensions (DxWxH) | 696 x 610 x 310mm |
| Weight (Chassis Only) | • Net weight: 12.09kg • Gross weight: 15.37kg |
| Cubic Feet | 4.65 |
| Container Information | Single packing with pallets: • 20': 144pcs • 40': 300pcs • 40' HQ: 350pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items
Slide Rail

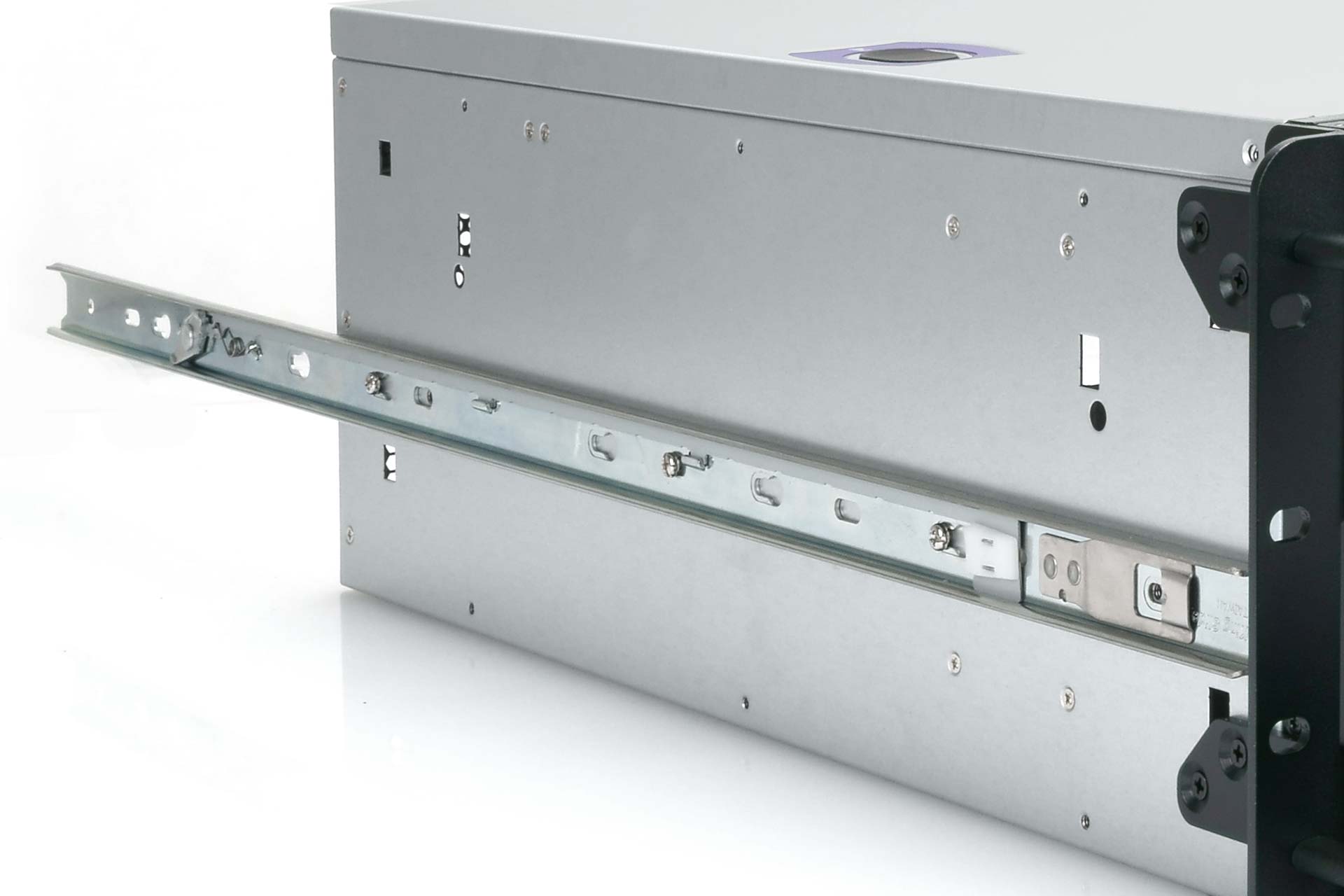

3RAMIS129500
28" tool-less & ball-bearing slide rails (weight capacity 35kg)
Support: 1 set
Power Supply
3RAMAP025102
80 Plus Platinum 550W CRPS
Support: Max. 2
Power Supply
3RAMAP025202
80 Plus Platinum 800W CRPS
Support: Max. 2
Power Supply
3RAMAP026501
80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.)
Support: Max. 2
Power Supply
3RAMAP044300

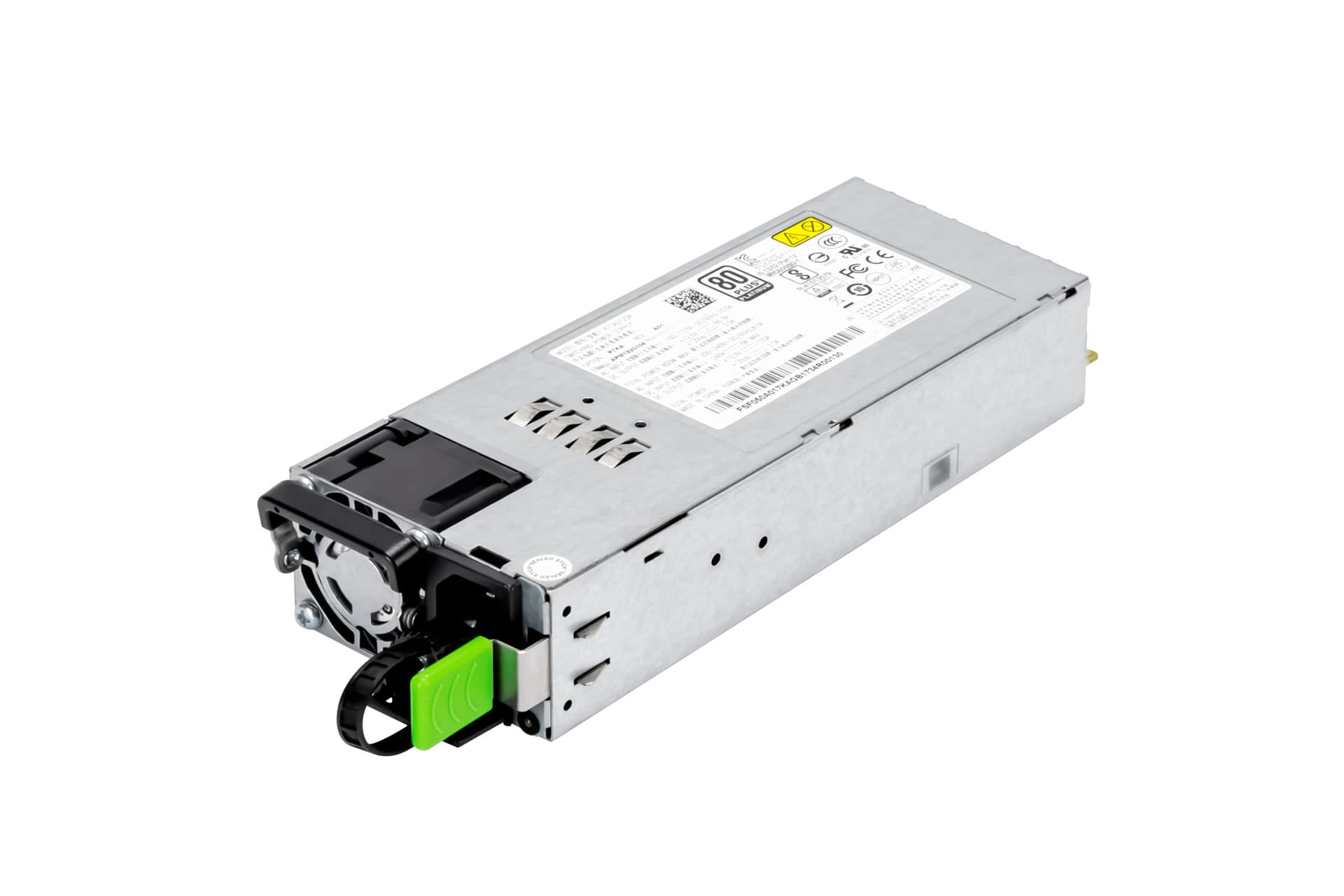

80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.)
Support: Max. 2
Power Supply
3RAMAP027201
PDB power cage for CRPS Max. 1200W
Support: 1
Power Supply
3RAMAP030501
PDB power cage for CRPS Max. 1600W
Support: 1
Fan

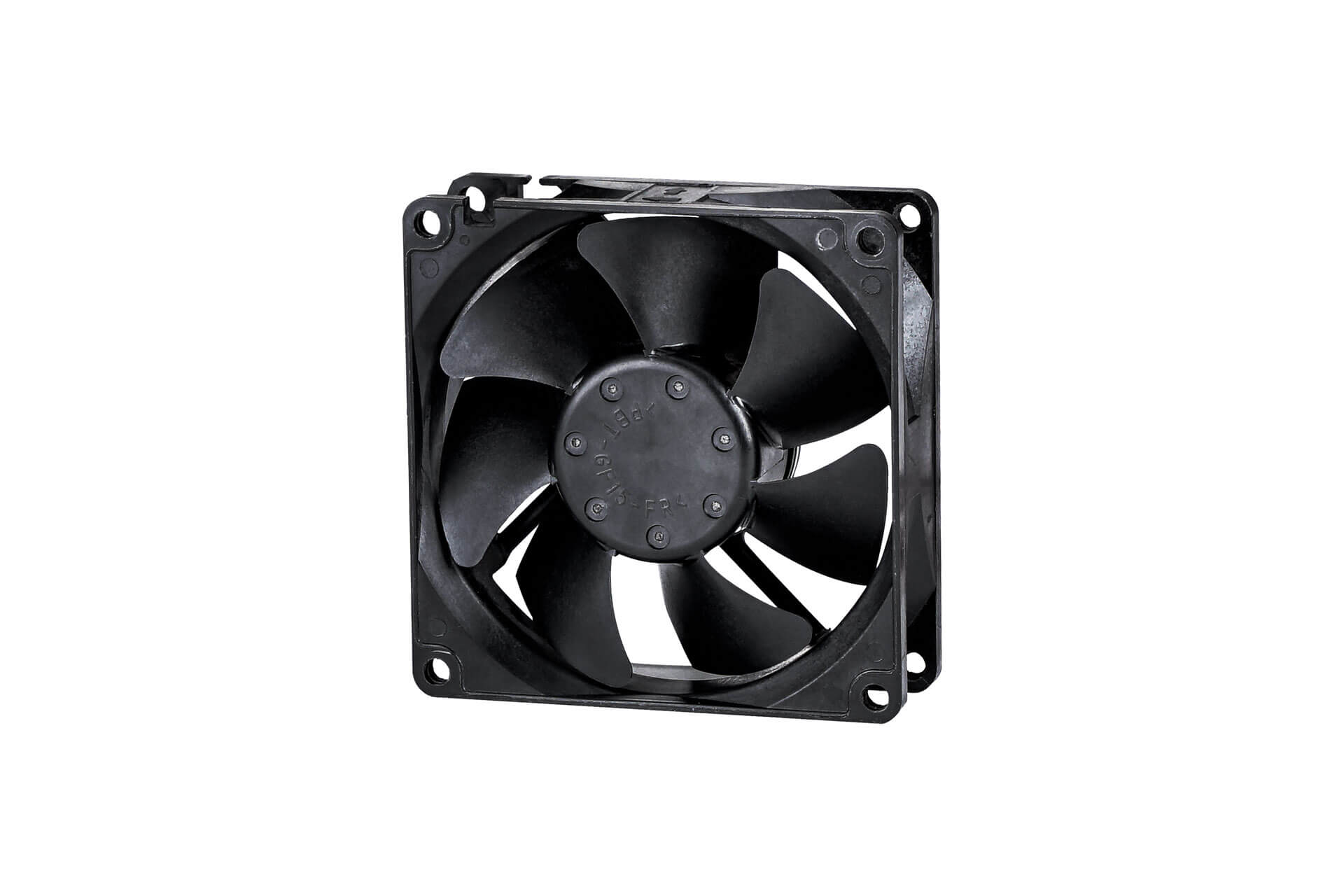

3RAMFB008602
80 x 25mm front fan, PWM, 4500RPM
Support: 2
Fan
3RAMFB015300
80 x 25mm rear fan, PWM, 4200RPM
Support: 2
Fan

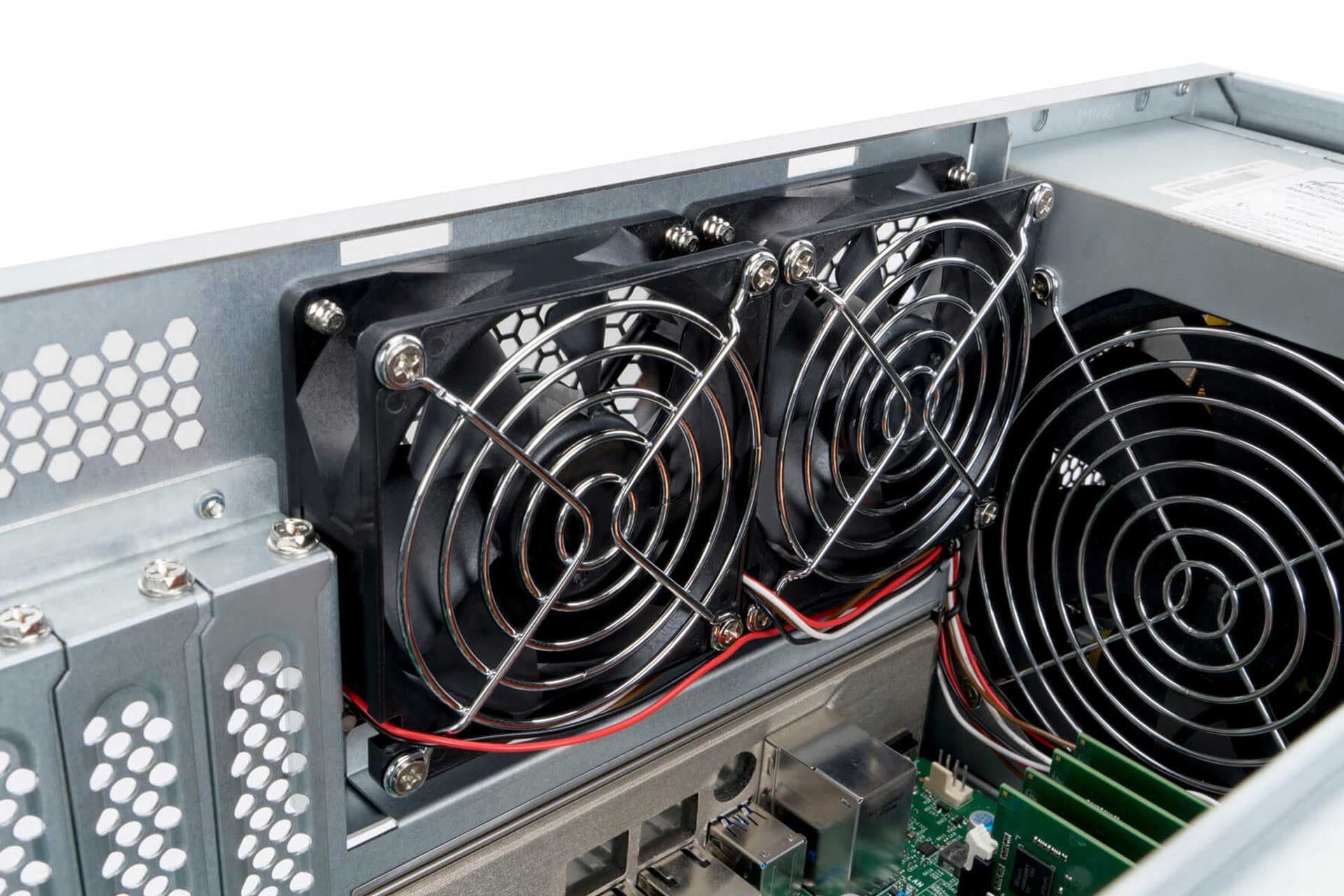

3RAMFB014800
80 x 25mm rear fan, PWM, 4500RPM
Support: 2
Fan

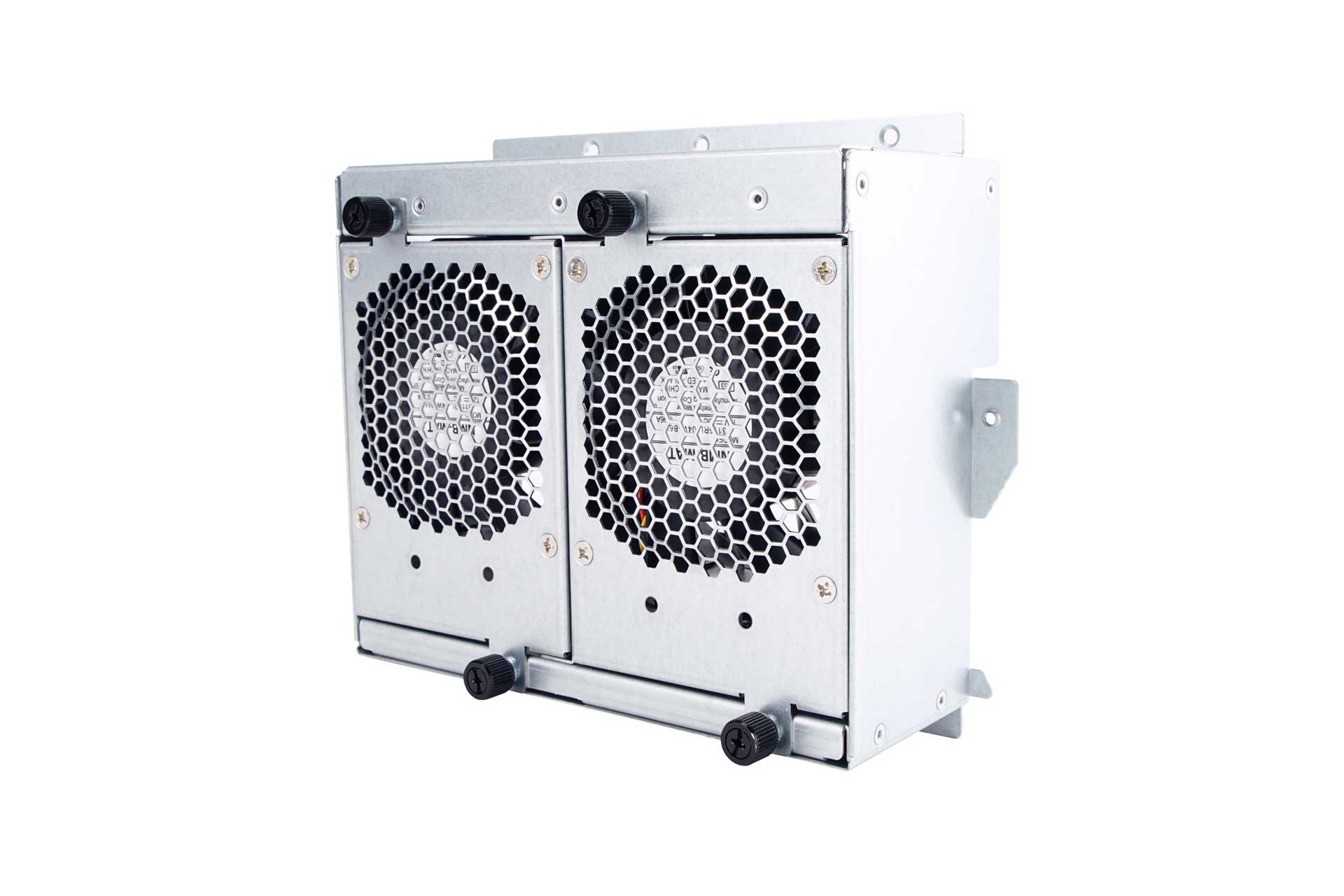

2RAKID059800
Rear fan kit for GPU thermal, 80 x 38mm, 5500RPM
Support: 1

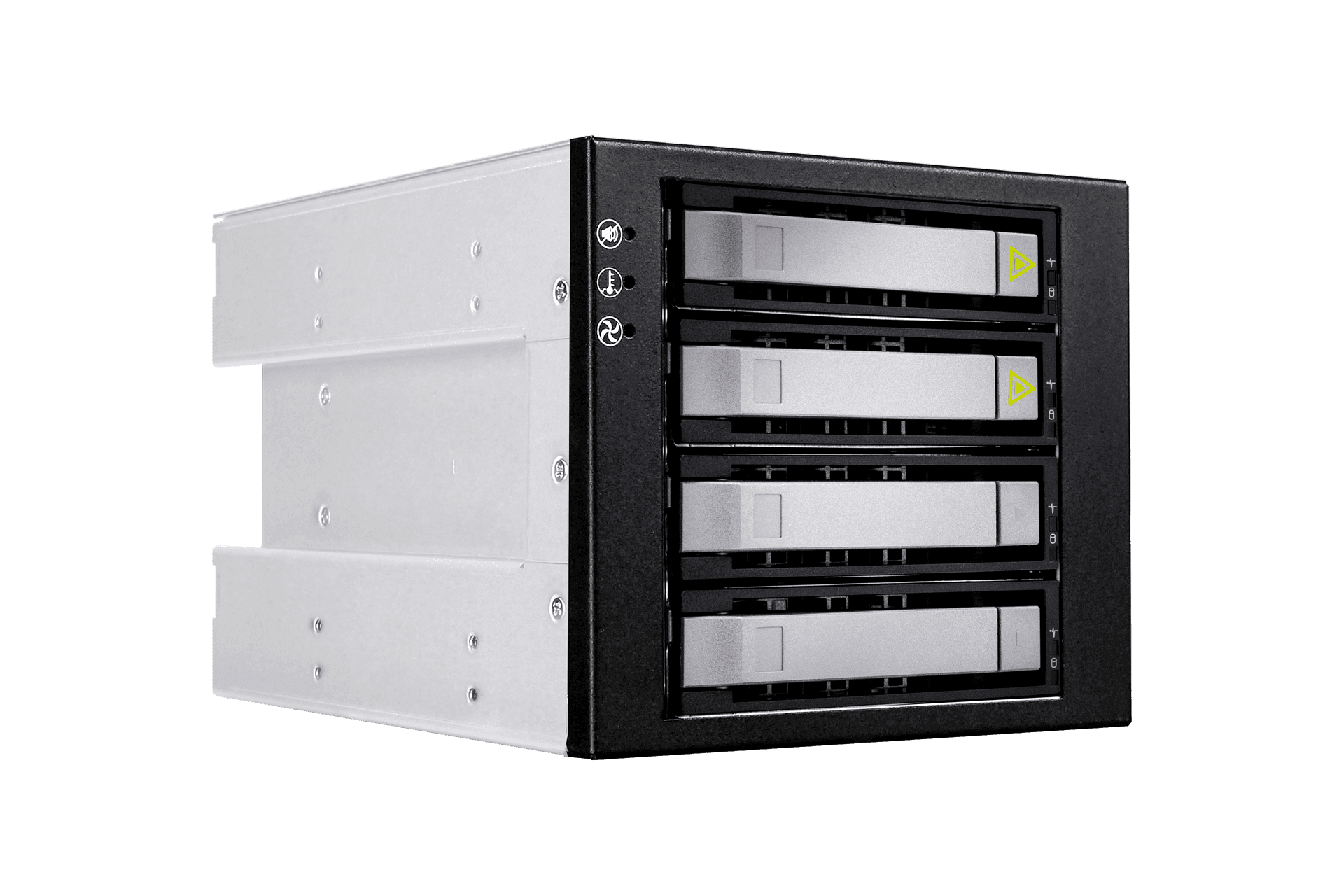

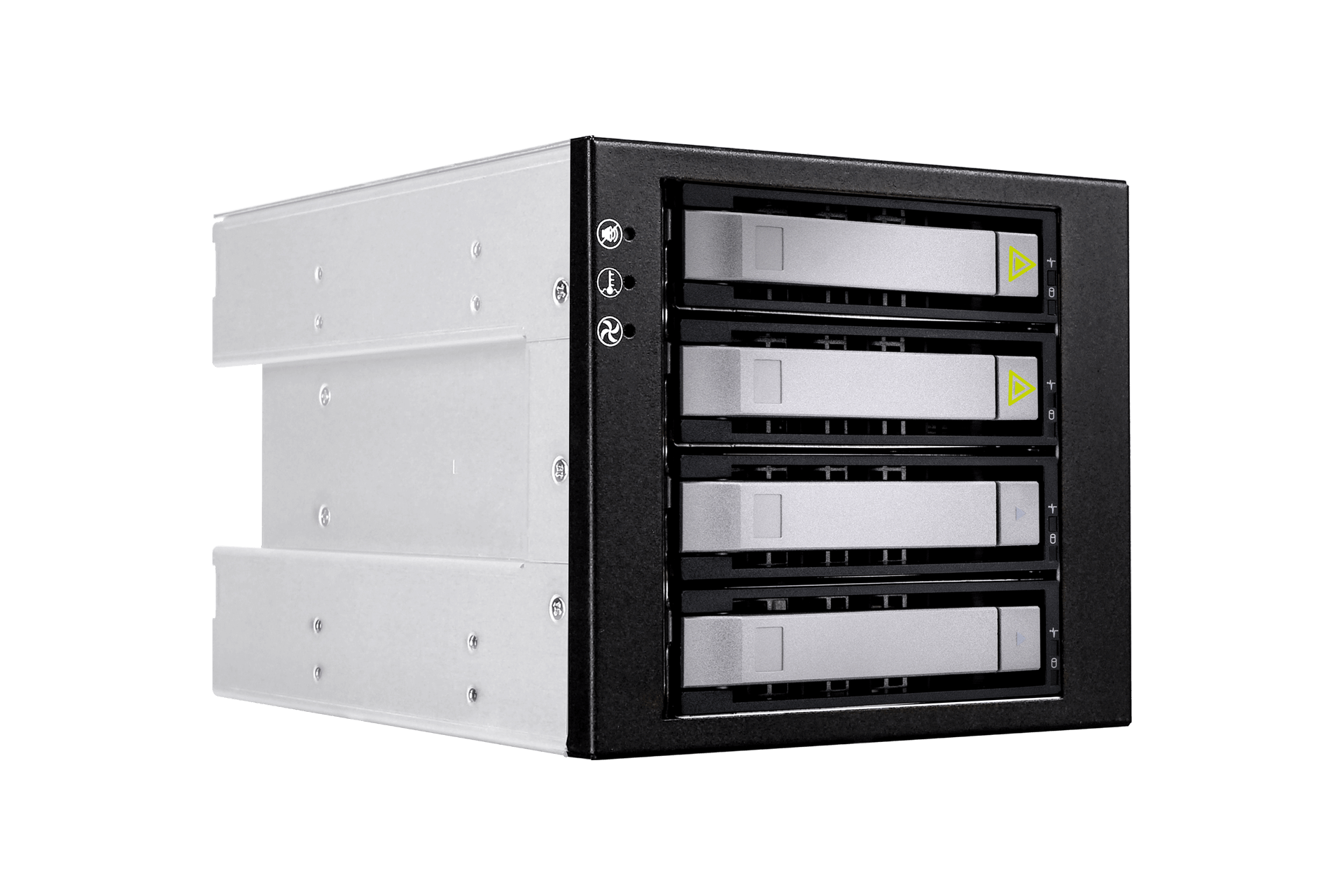

Storage Kit

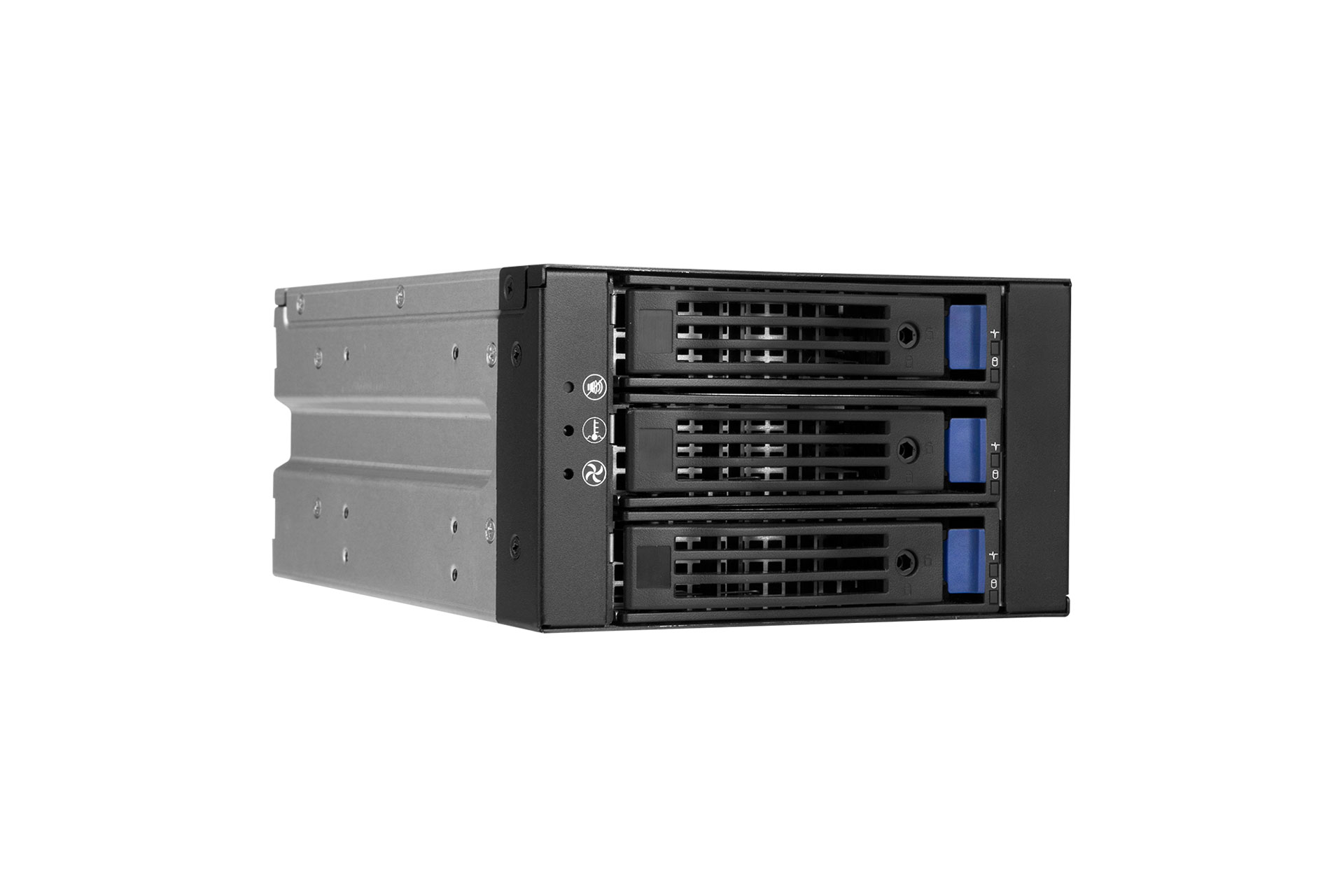

2RAKID044201
IW-SK23-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit
2RAKID073901

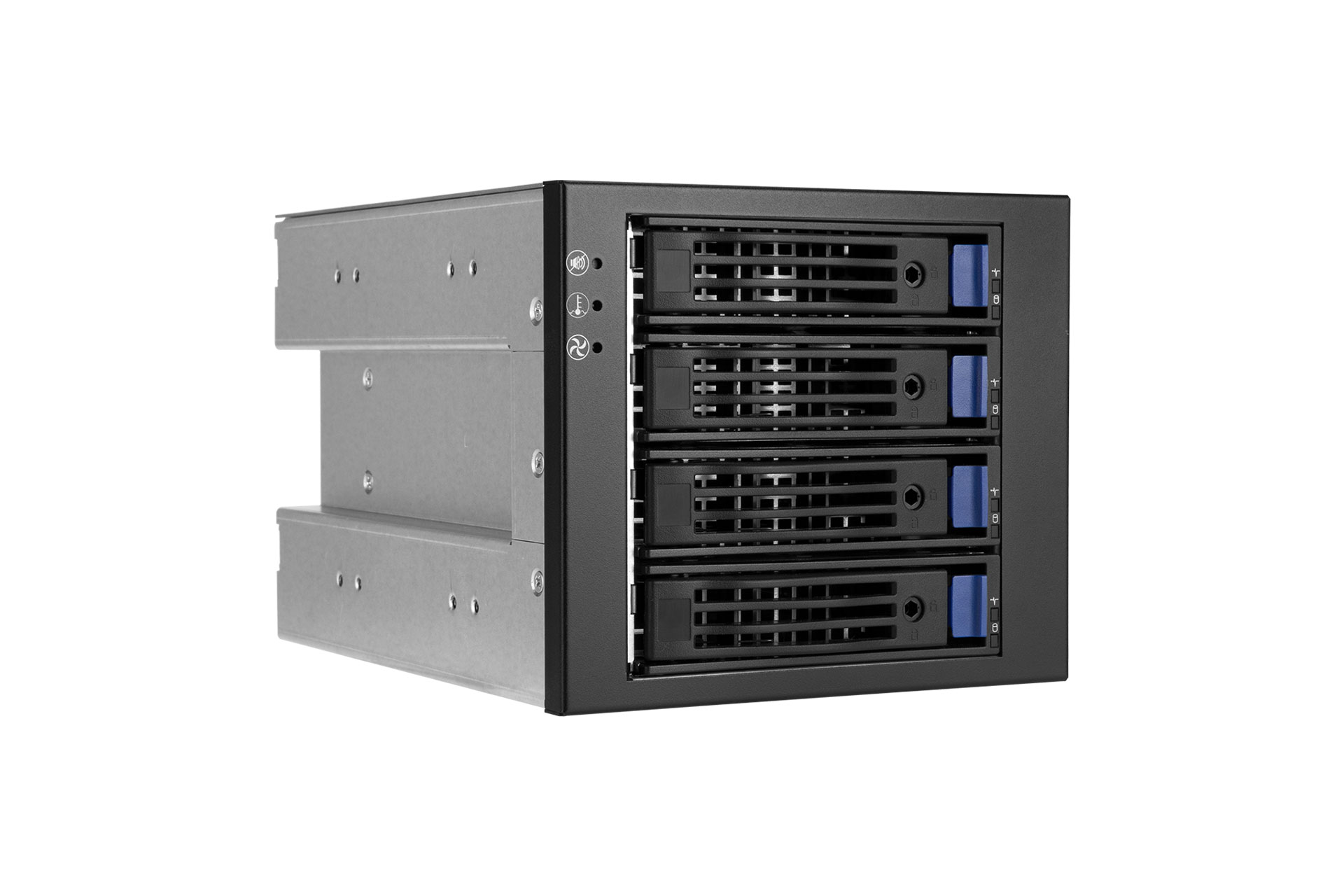

IW-SK34-02, 2.5"/3.5" SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit

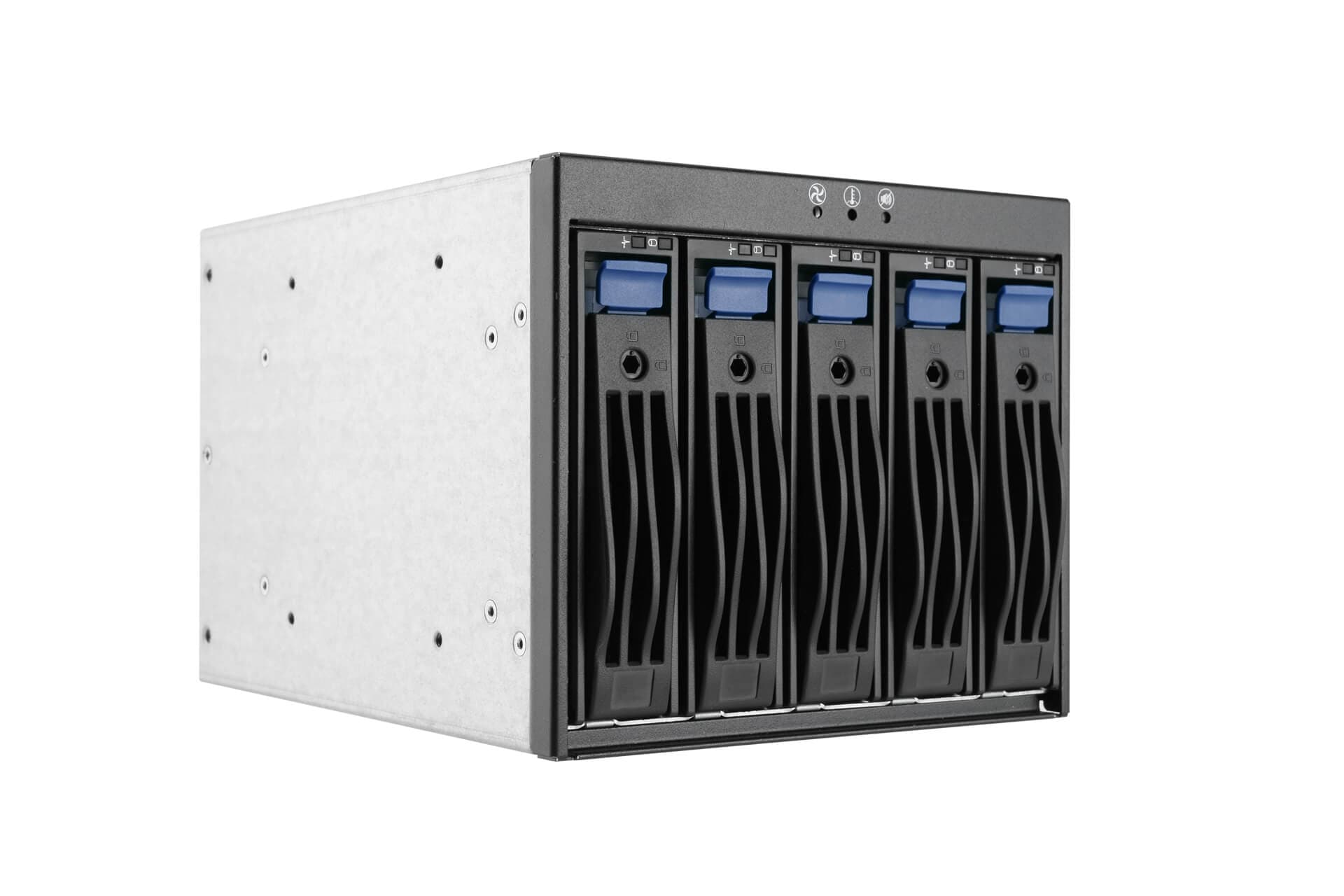

2RAKID062800
IW-SK35-02, 2.5"/3.5" SAS/SATA III Storage Kit, 6Gb/s, 7pin connector
Support: 1
Storage Kit
2RAKID088302

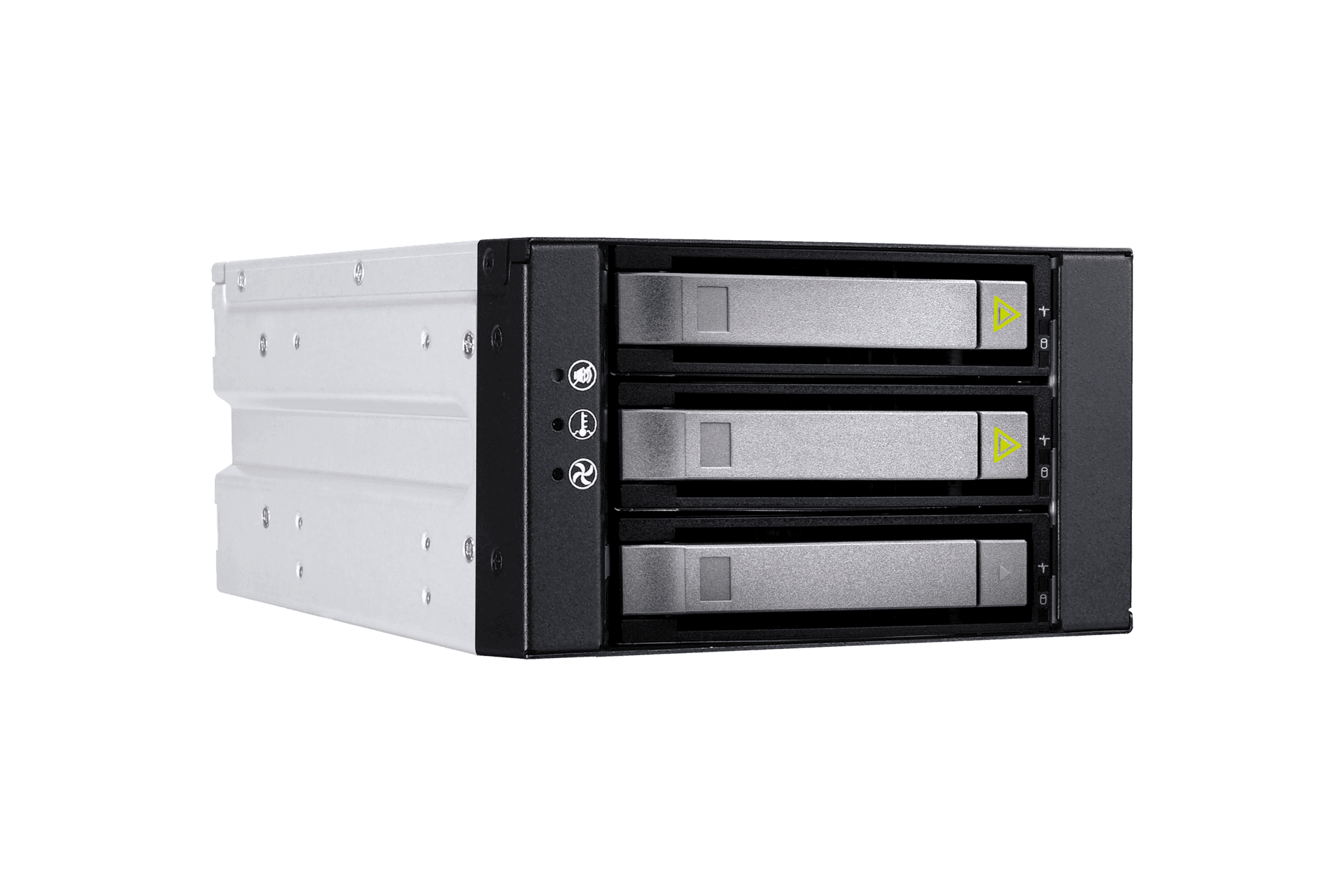

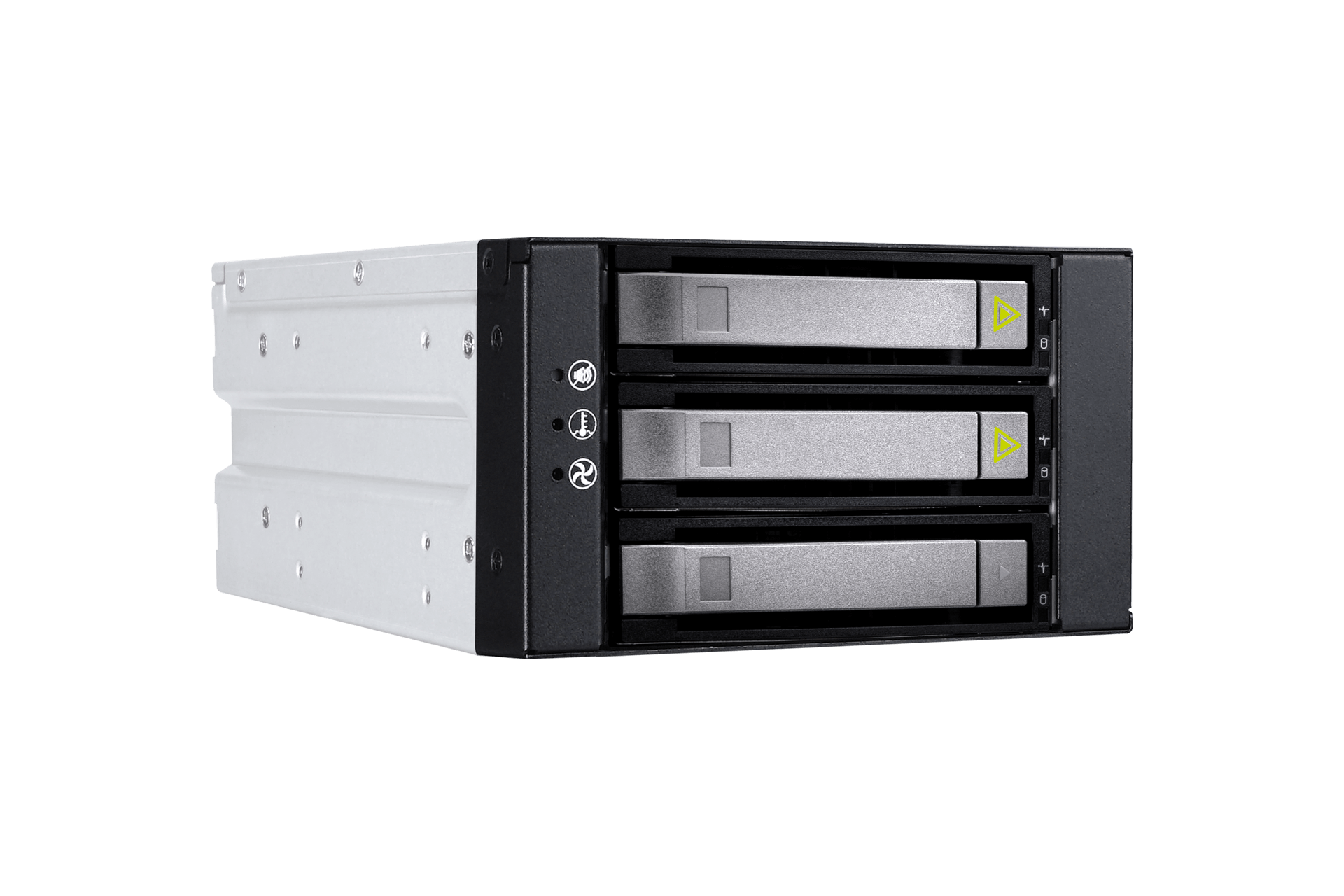

IW-SK23-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit
2RAKID088403
IW-SK34-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s
Support: 1
Storage Kit

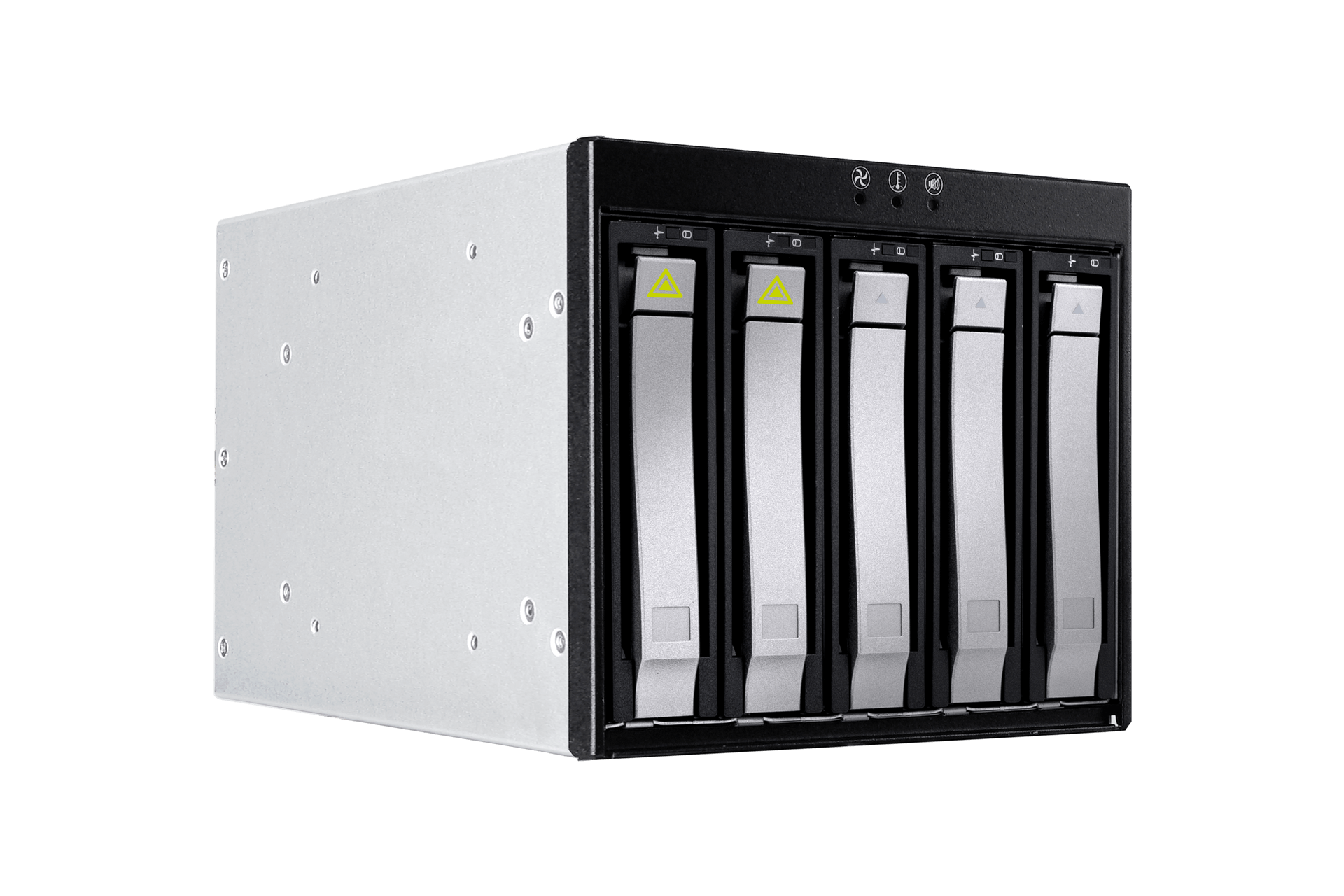

2RAKID088202

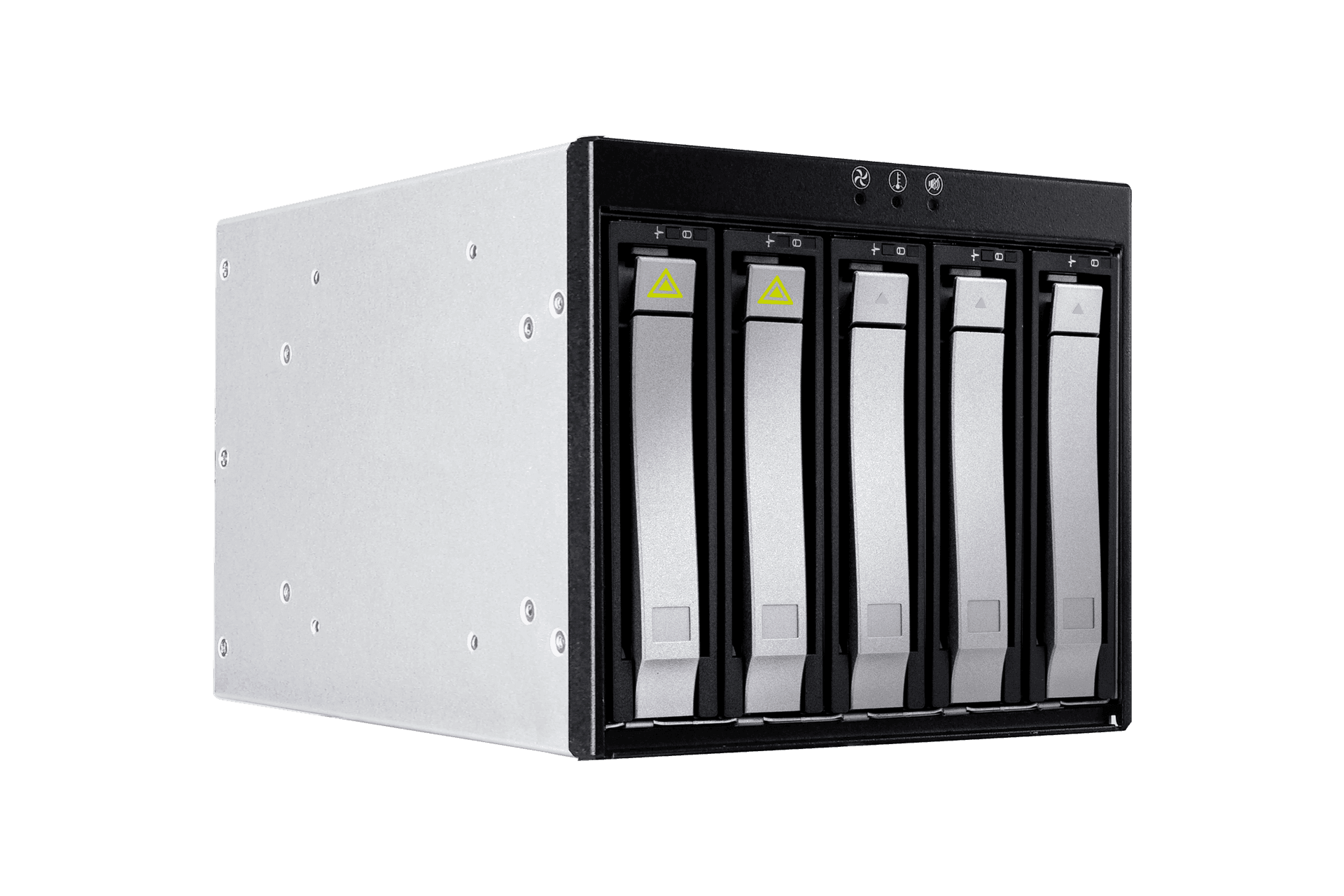

IW-SK35-07, 2.5"/3.5" NVMe/SAS/SATA III Storage Kit, 12Gb/s, 7pin connector
Support: 1
Others

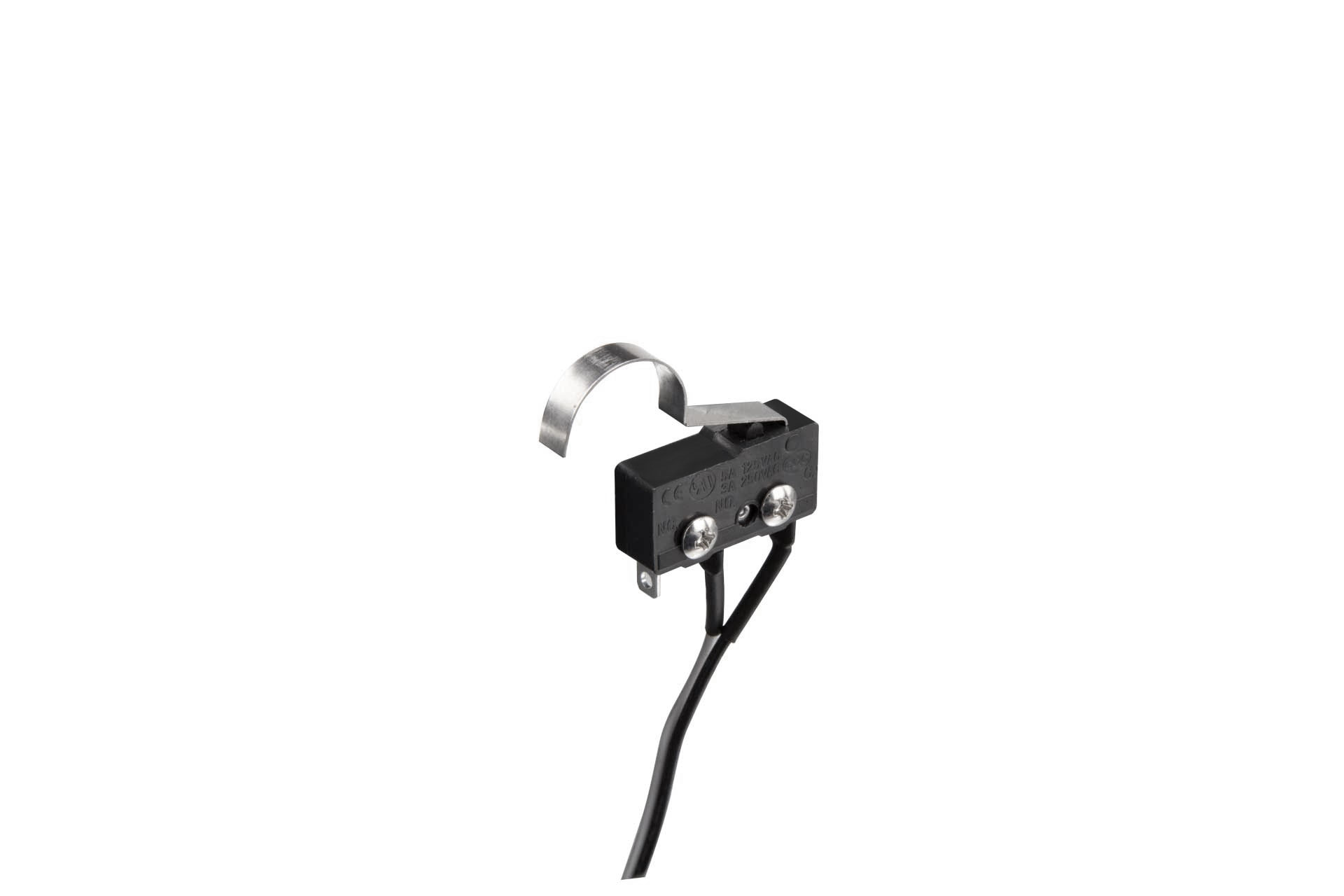

3RAMRW011300
Intrusion switch / 800mm
Support: 1
Others

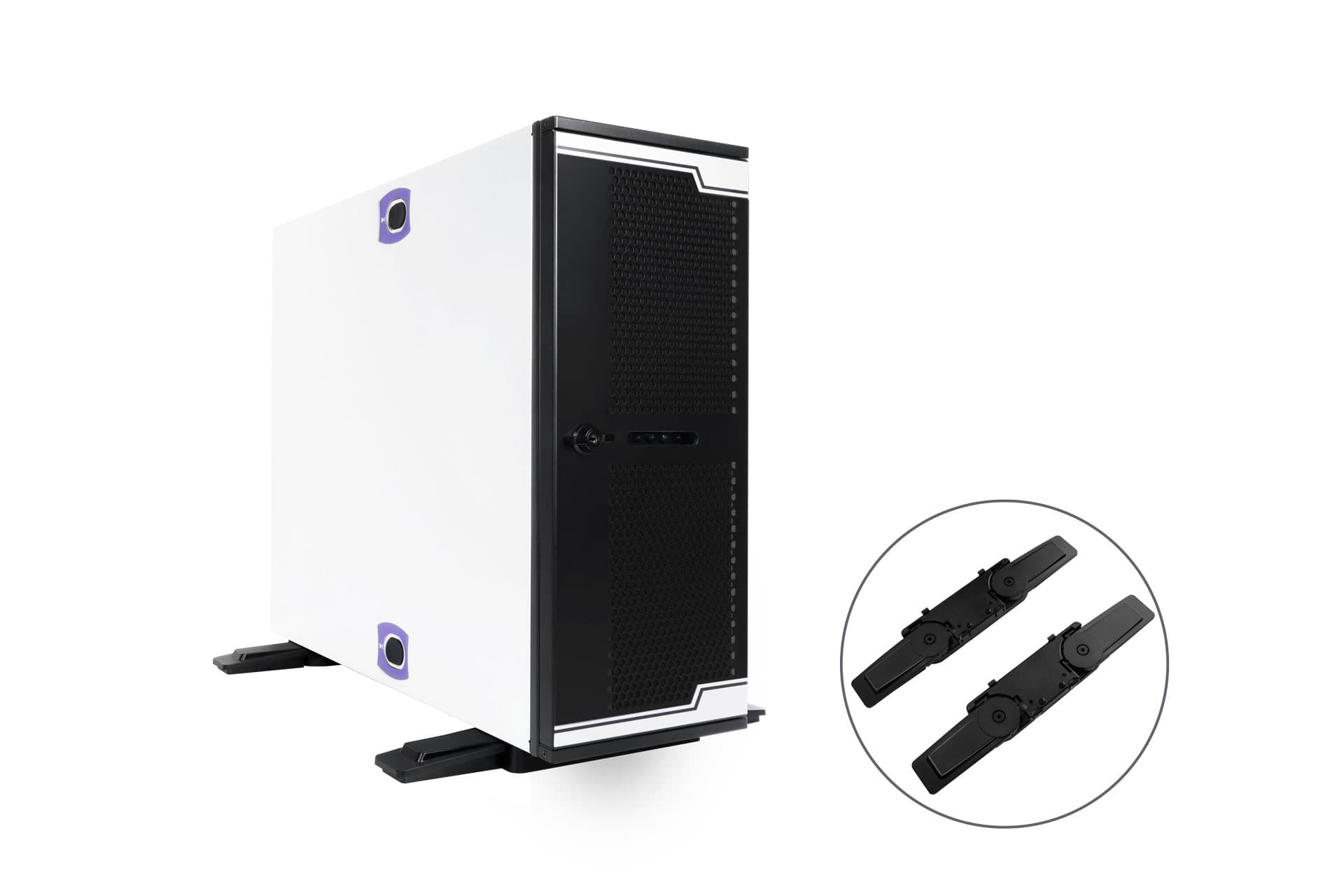

2RALXX396100
