Mini Server Chassis

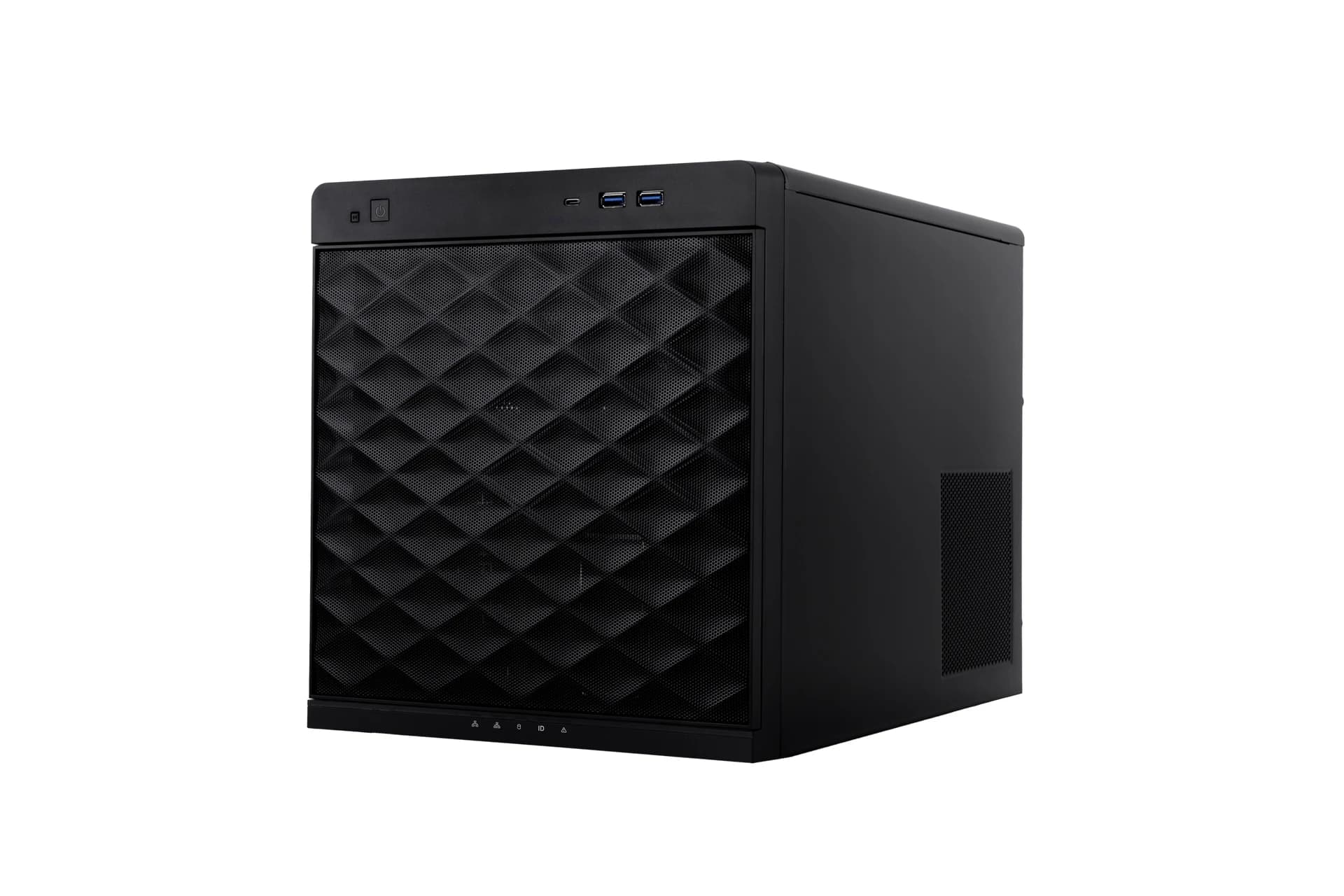

Компактное 7-литровое шасси для Mini-ITX сервера
IW-MS07 рассчитан на плотные edge- и storage-сборки в малом объеме: Mini-ITX плата, фронтальный доступ к накопителям, серверное охлаждение и опции под разные backplane-конфигурации.
Формат
Mini-ITX
Объем
7 л
Сценарий
Edge / NAS
Сервис
Front access
Small Form Factor

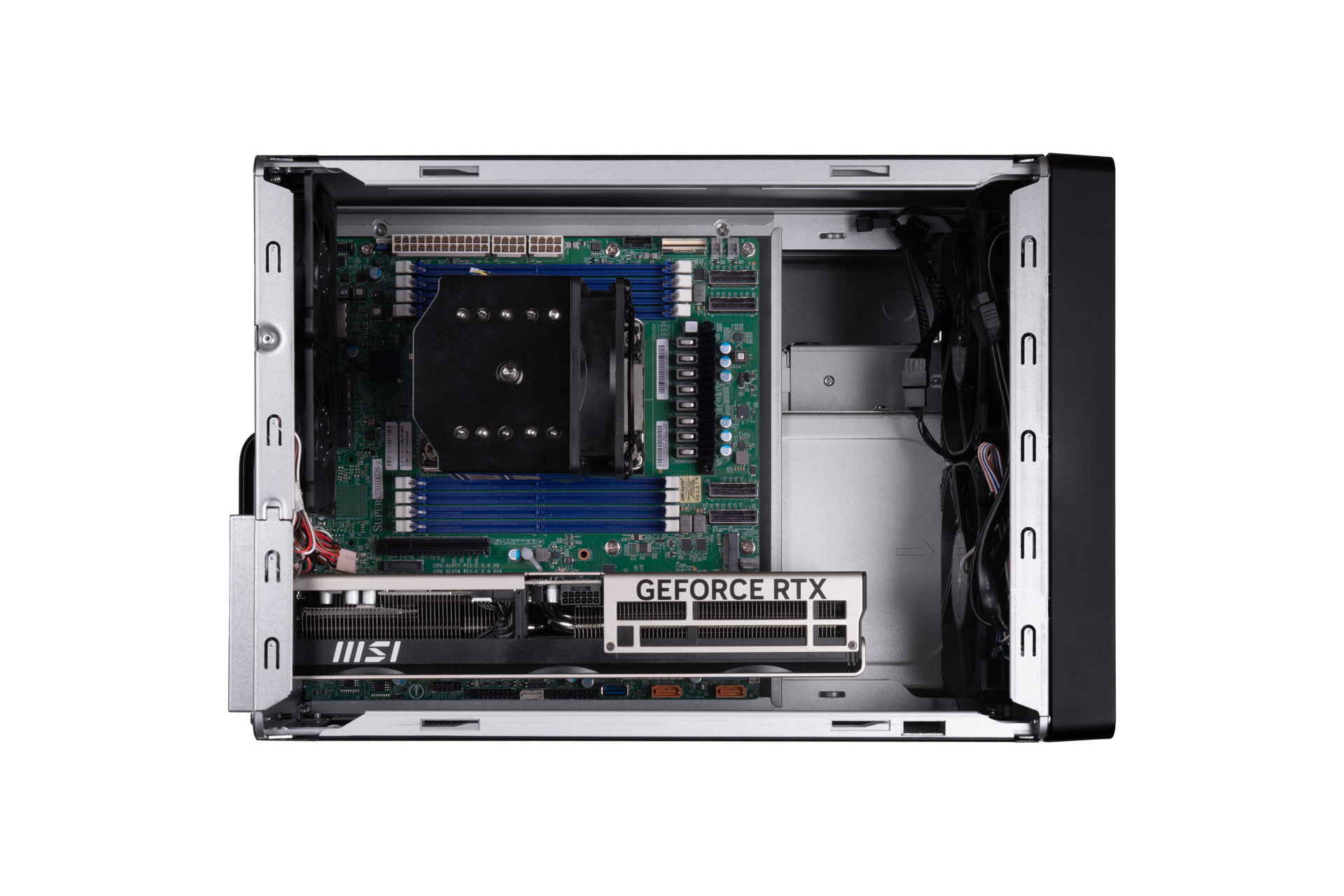

Серверная компоновка в компактном корпусе
Корпус помогает собрать небольшой сервер или NAS без перехода к полноразмерному стоечному формату. Внутренний объем отведен под плату, накопители и направленный поток воздуха.
Storage Access

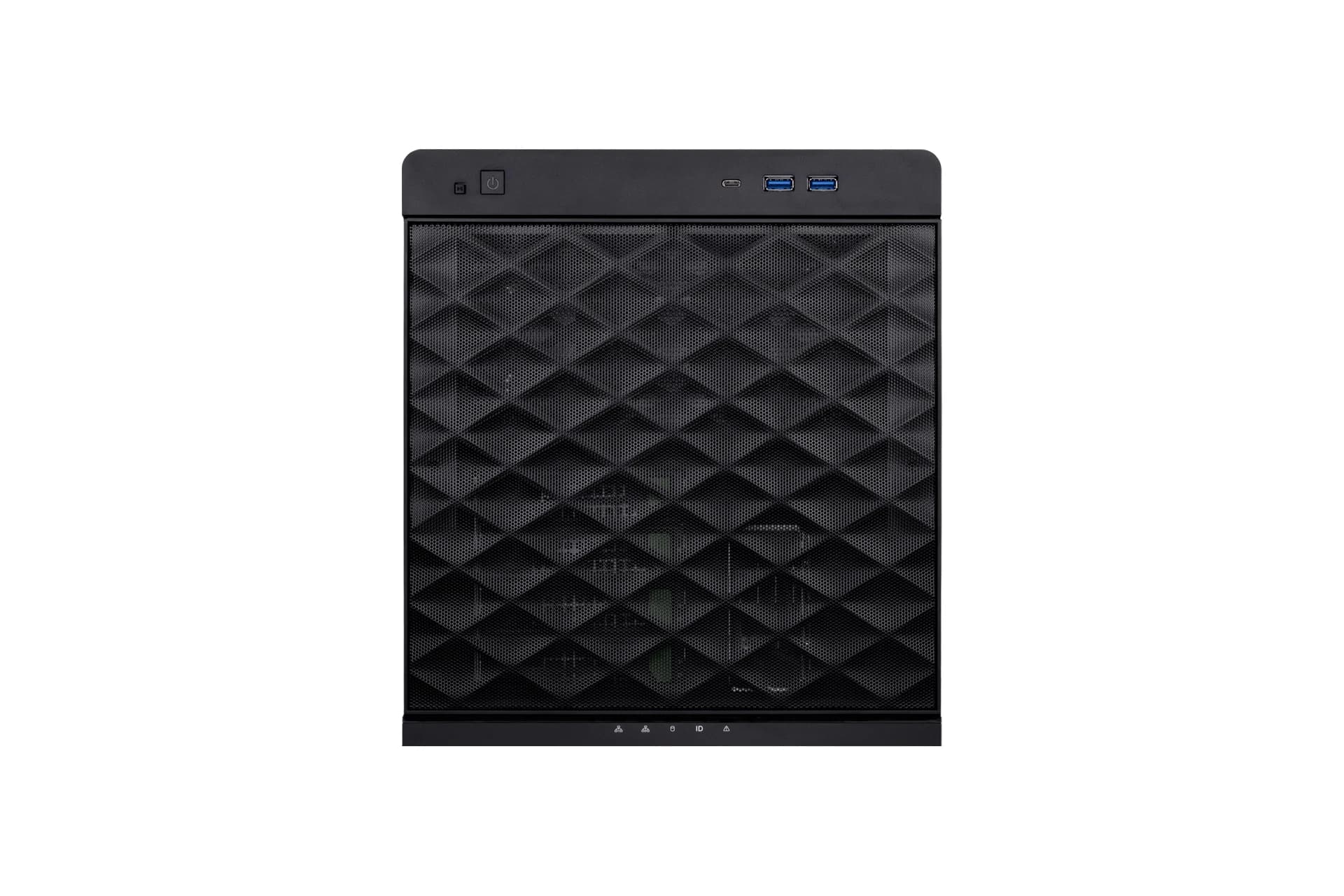

Фронтальная зона для обслуживания накопителей
Передняя часть корпуса рассчитана на быстрый доступ к дискам и сервисным элементам. Это удобно для небольших систем хранения, где корпус стоит рядом с рабочим местом или в компактной стойке.
Thermal Design

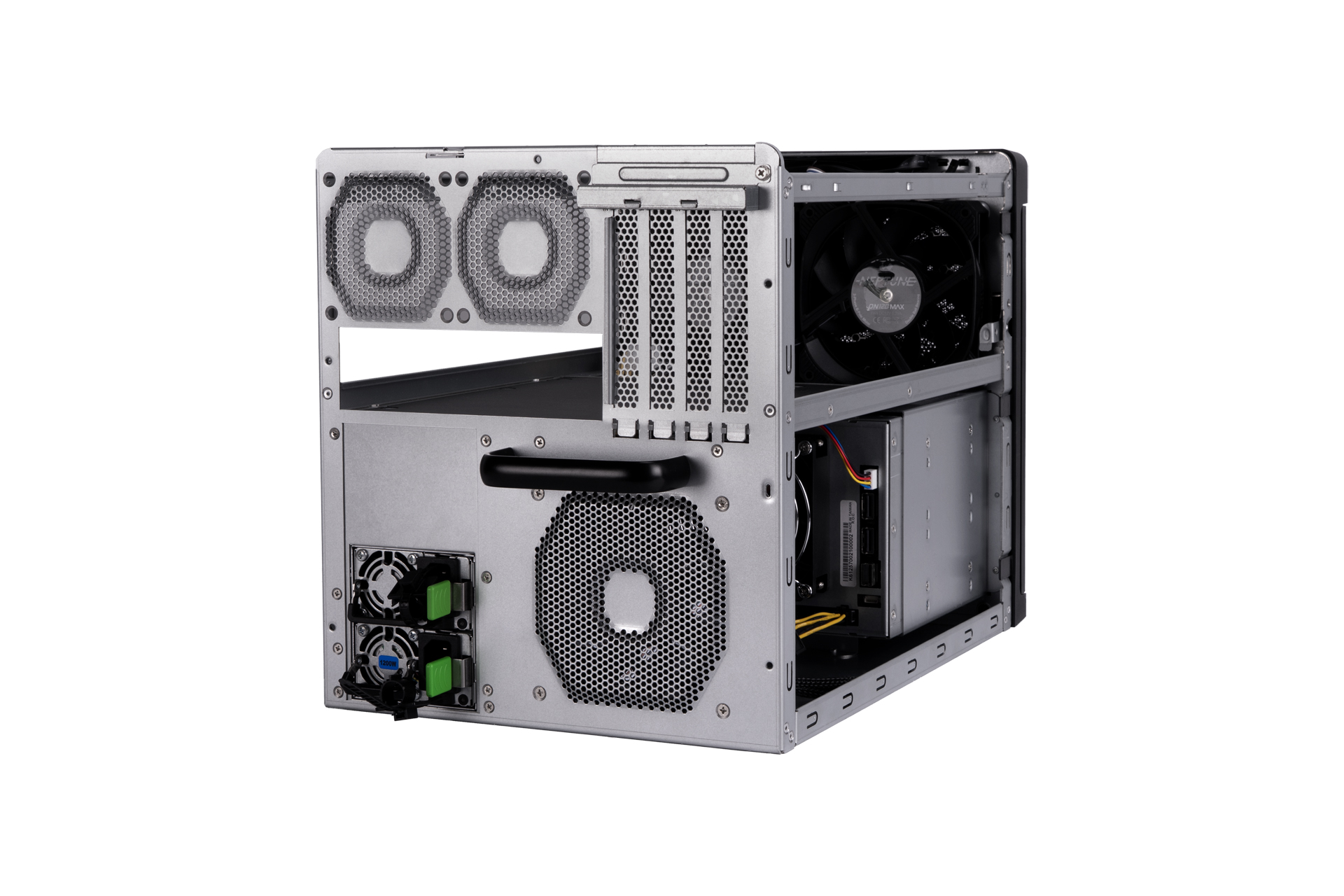

Воздушный поток для плотной Mini-ITX сборки
Продуманное расположение вентиляционных зон помогает охлаждать накопители и плату в ограниченном объеме. Для edge-сценариев это важнее декоративных элементов корпуса.
Product Details

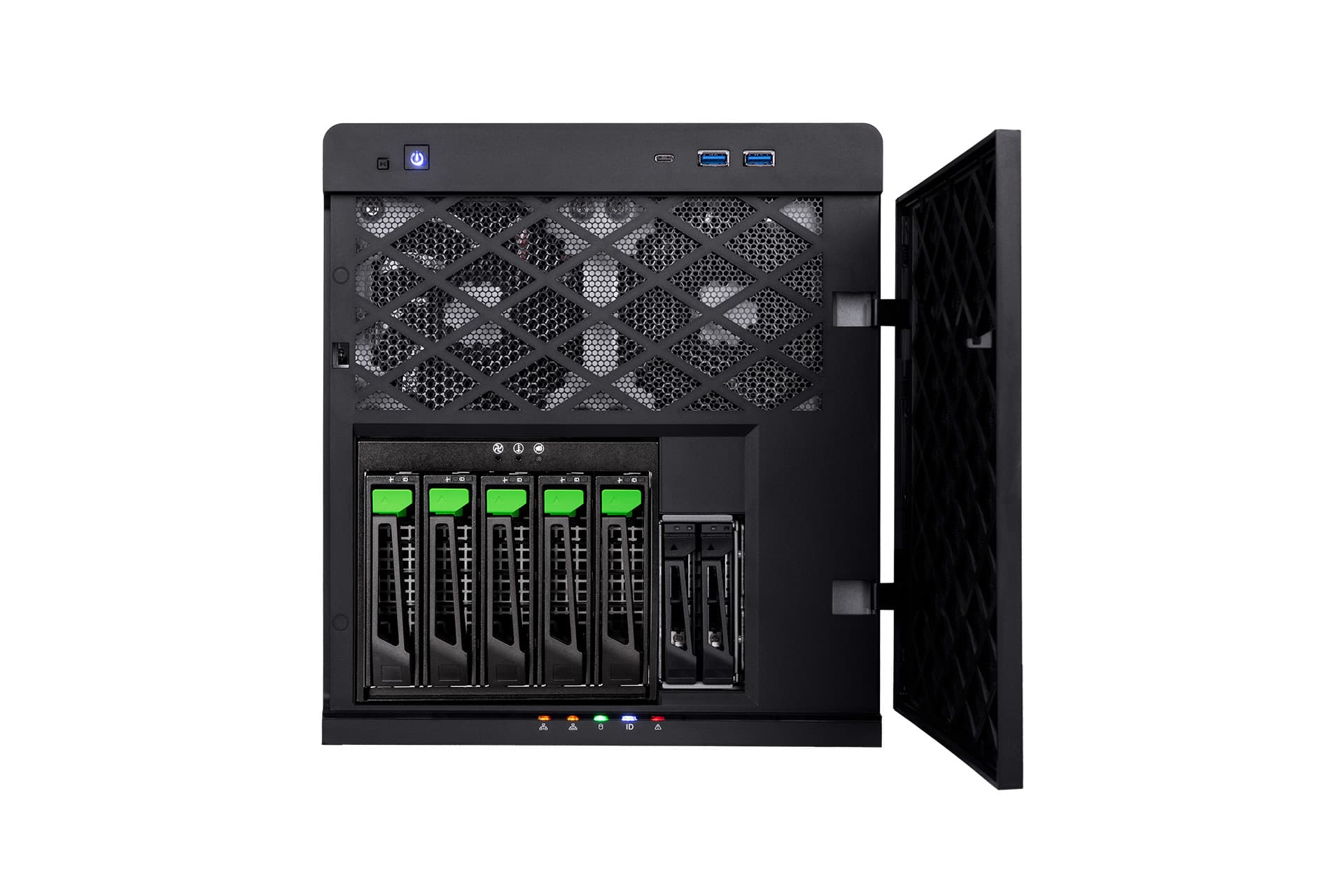

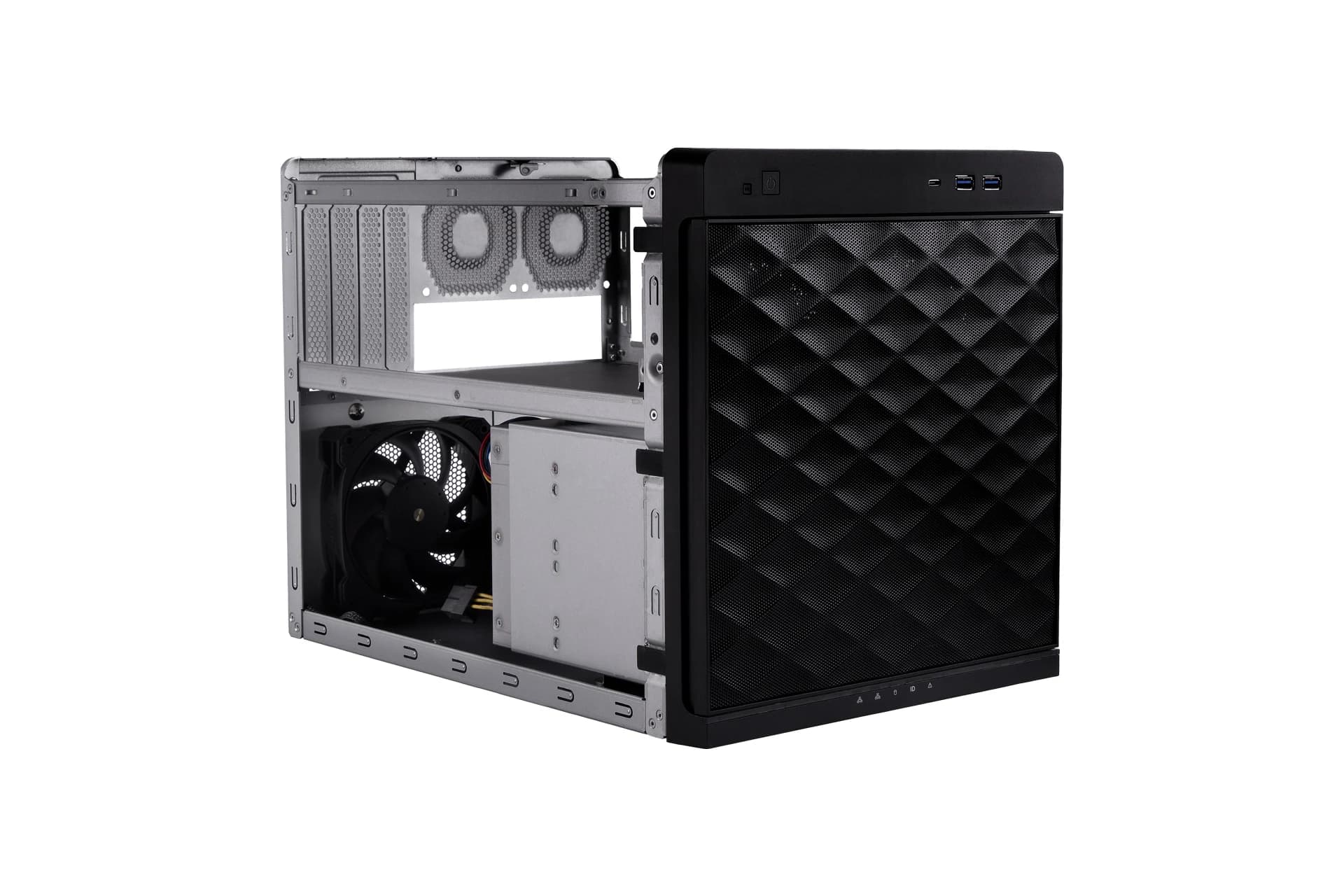

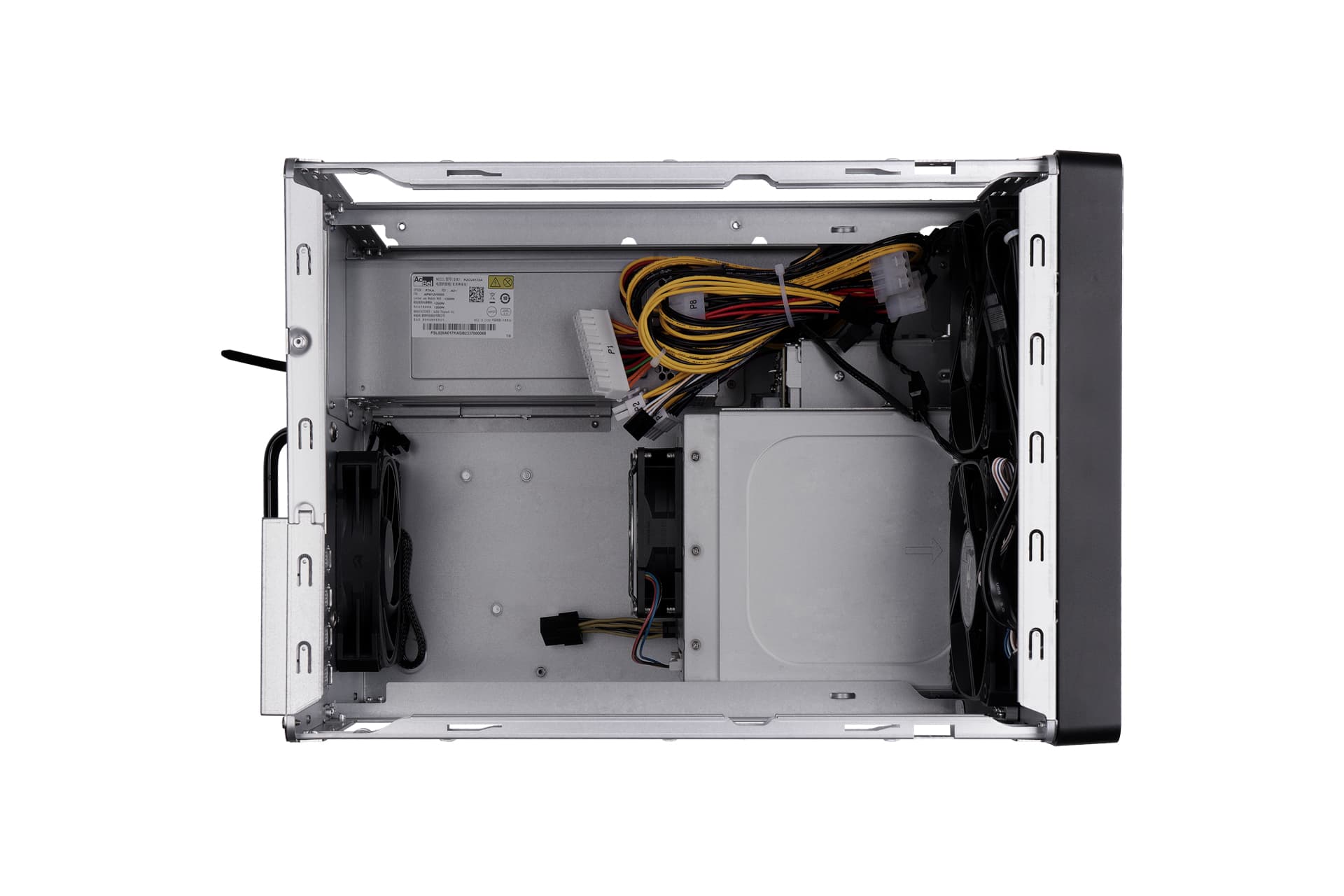

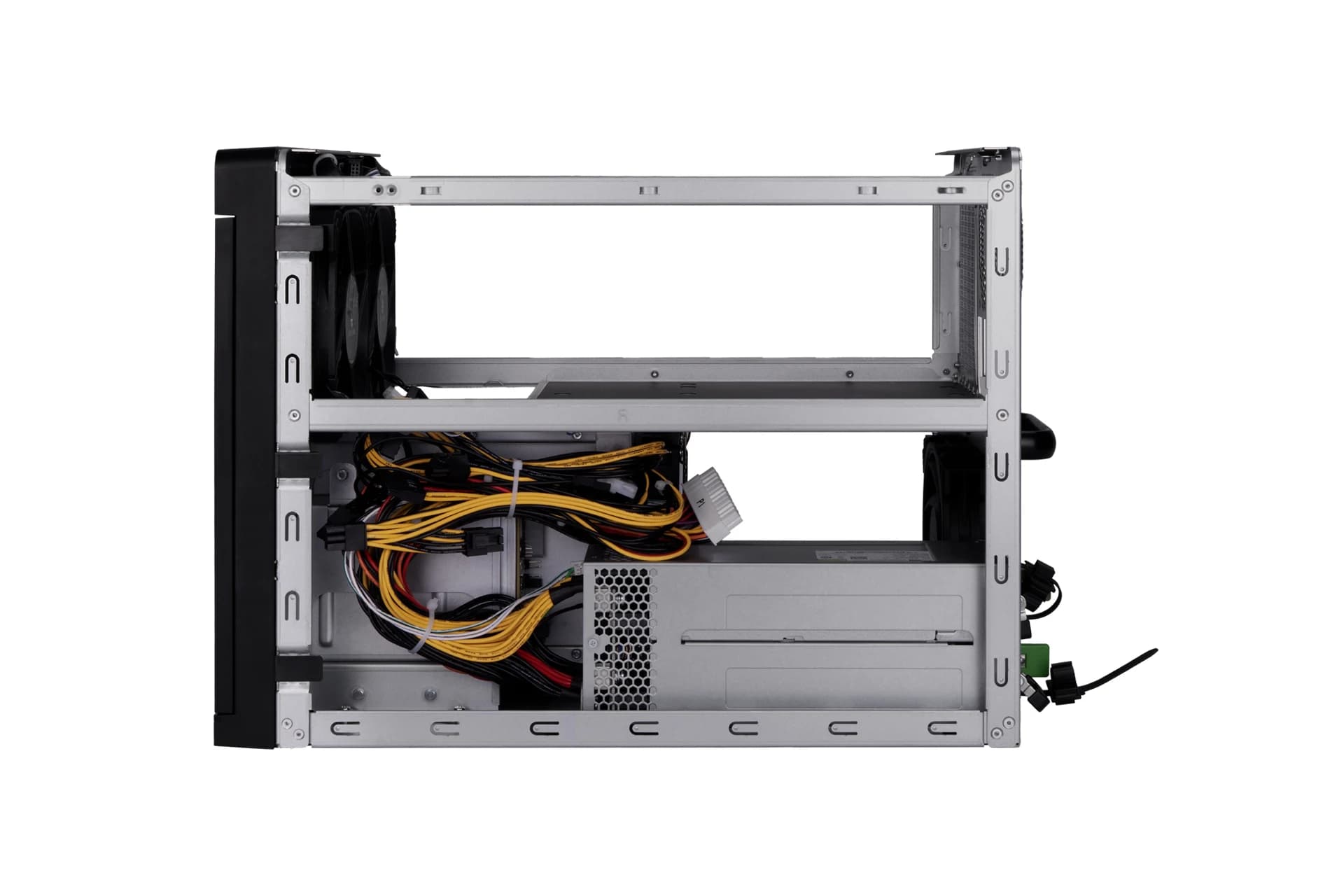

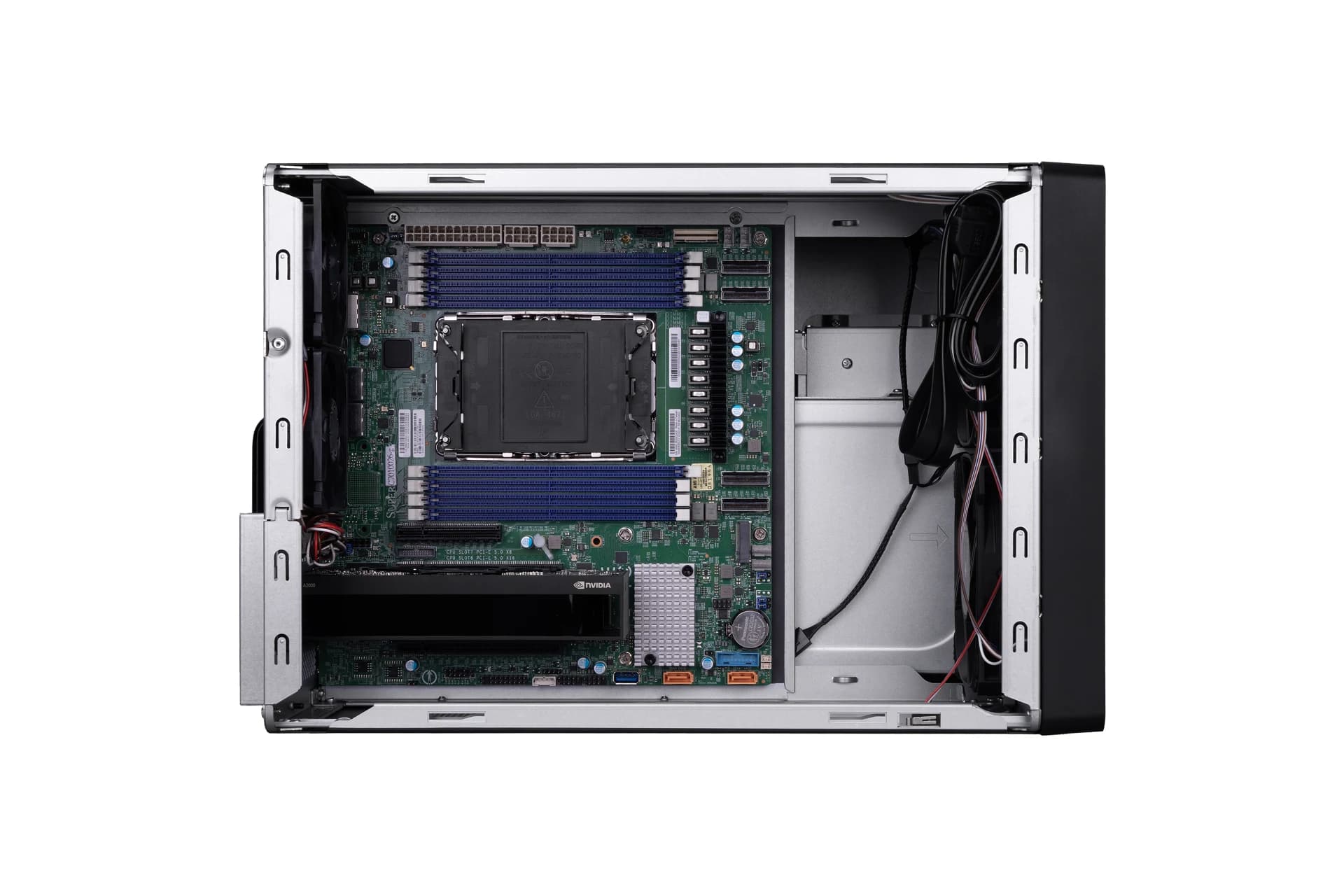

Детали конструкции InWin IW-MS07
Specification
| M/B Form Factor | Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
|---|---|
| Drive Bay | • Storage Module: - Standard IW-SK35-09: 3.5" / 2.5" x 5 (Supports U.2 NVMe / SAS / SATA drives) - Optional IW-SK34-09: 3.5" / 2.5" x 4 (or full IW-SK series storage kits) • External 2.5" hot-swap trays x 2 (SAS / SATA) • Internal 2.5" x 4 |
| Power Supply | Supports: • CRPS: 1200W (1+1) Redundant, 80 PLUS Platinum • ATX: 1300W, 80 PLUS Platinum |
| Indicators | Power status, LAN1, LAN2, HDD, ID, system fail activity LEDs |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2, Type-C x1 |
| Chassis Security | • Supports padlock loop and Kensington lock slot • Intrusion switch (optional) |
| Cooling Fans | • Front:120 x 25 mm PWM fans x 2 (pre-installed) • Rear: 120 x 25 mm PWM fans x 1 (pre-installed), 80 x 25 mm PWM fans x 2 |
| Expansion Slot | Full Height PCIe Slot x 4 |
| Material | • Material: SECC • Thickness: 1.0 |
| Maximum Compatibility | • GPU length: Max. 340 mm; height: Max. 120 mm (both including power connectors) • CPU heatsink height: Max. 130 mm • Power supply length: Max. 220 mm |
| Product Dimensions (DxWxH; Chassis Only) | 406.6 x 275 x 305 mm |
| Package Dimensions (DxWxH) | 590 x 400 x 410 mm |
| Weight (Chassis Only) | Net Weight / Gross Weight: • IW-MS07+IW-SK35-09+CRPS: 13.65 kg / 15.59 kg • IW-MS07+IW-SK34-09+CRPS: 13.85 kg / 15.77 kg |
| Cubic Feet | 3.42 |
| Container Information | Single Packing with pallets: 20’: 160pcs 40’: 368pcs 40’HQ: 460 pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Optional Items

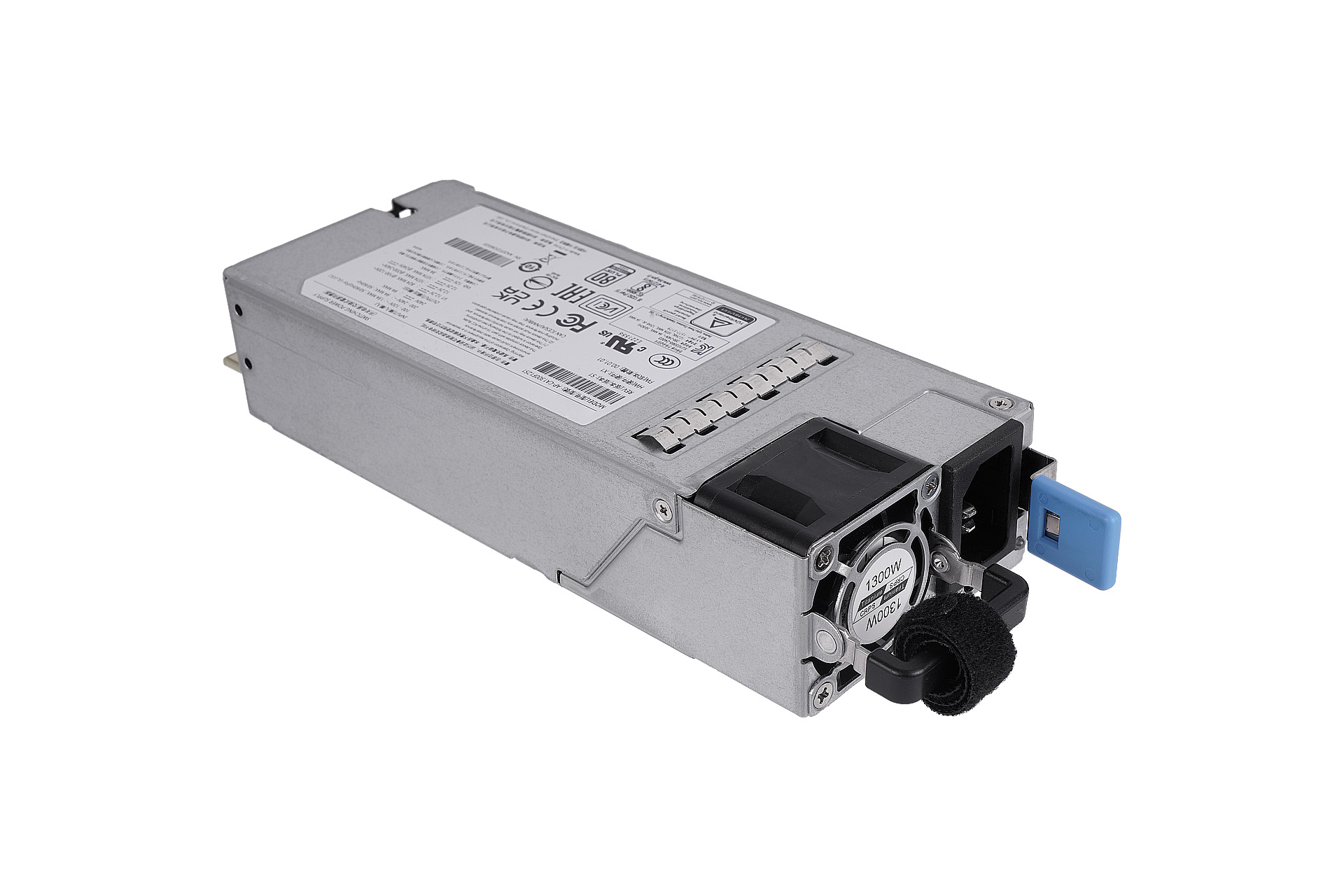

Power Supply
3RAMAP049300
80 PLUS Titanium CRPS 1300W (AC input 90–132V, total power 1000W max. / AC input 180–264V, total power 1300W max.)
Support: 2
Power Supply
3RAMAP050200

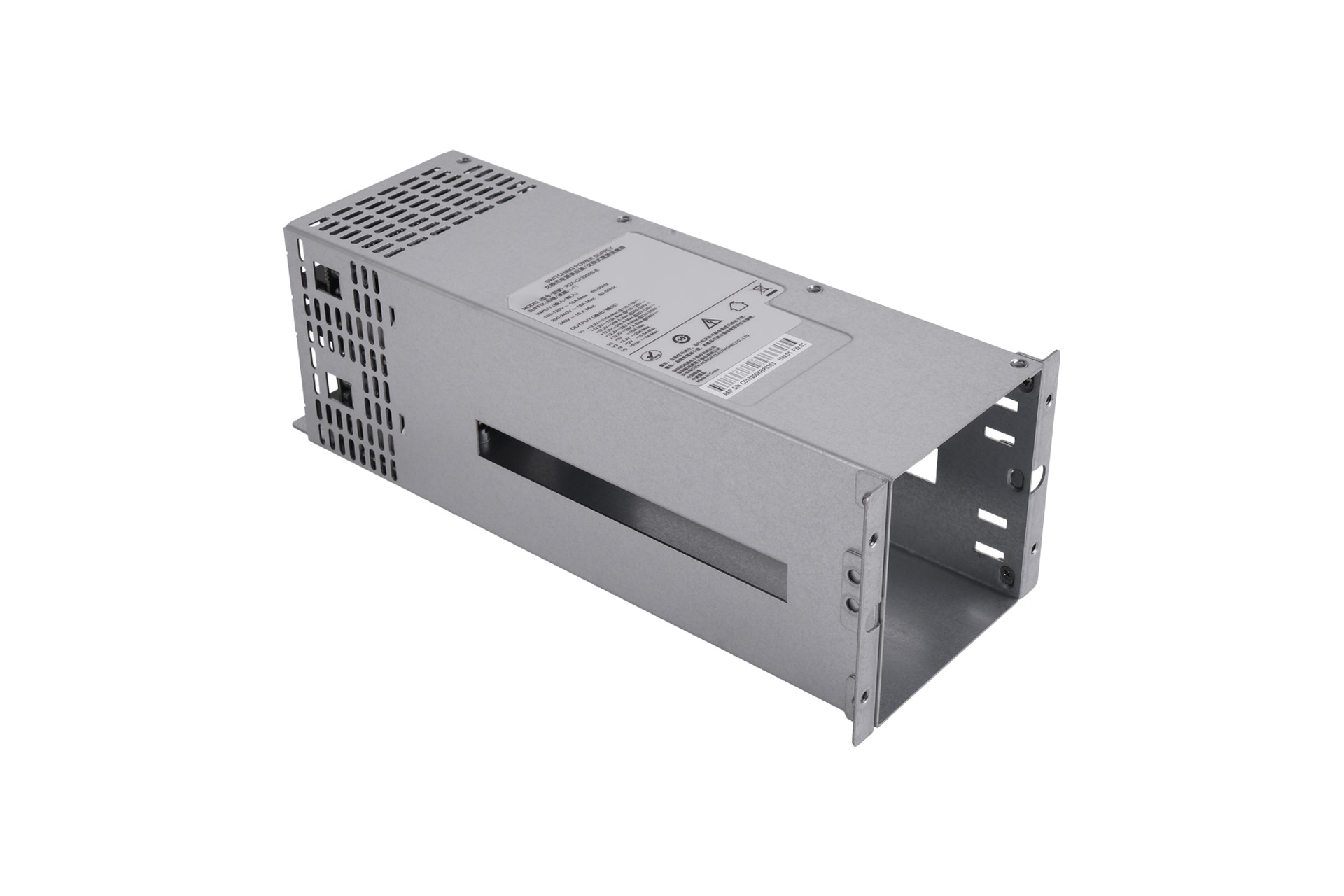

Power cage with PDB for CRPS, Max. 1300W
Support: 1
Power Supply
3RAMAP026501

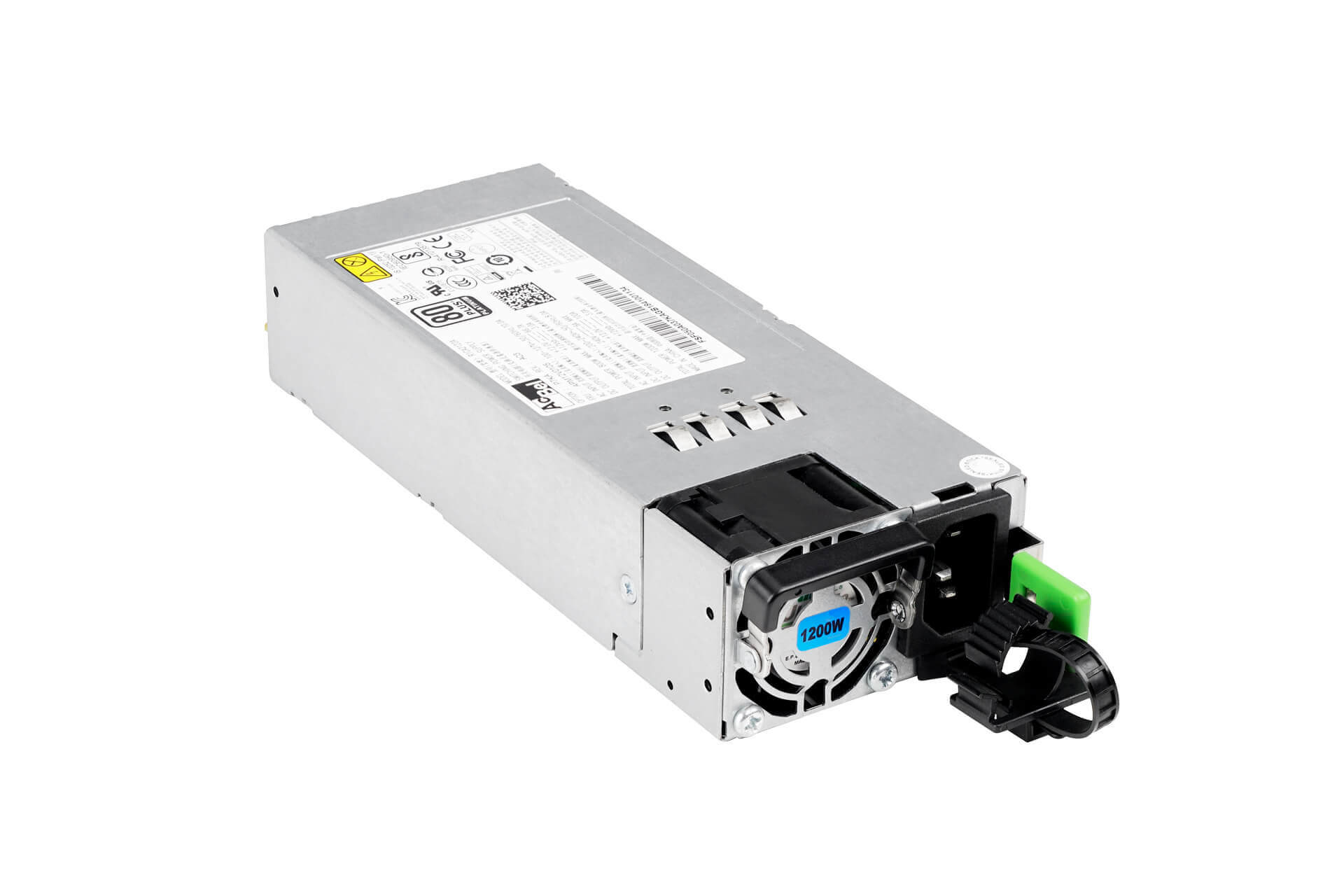

80 PLUS Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.)
Support: 2

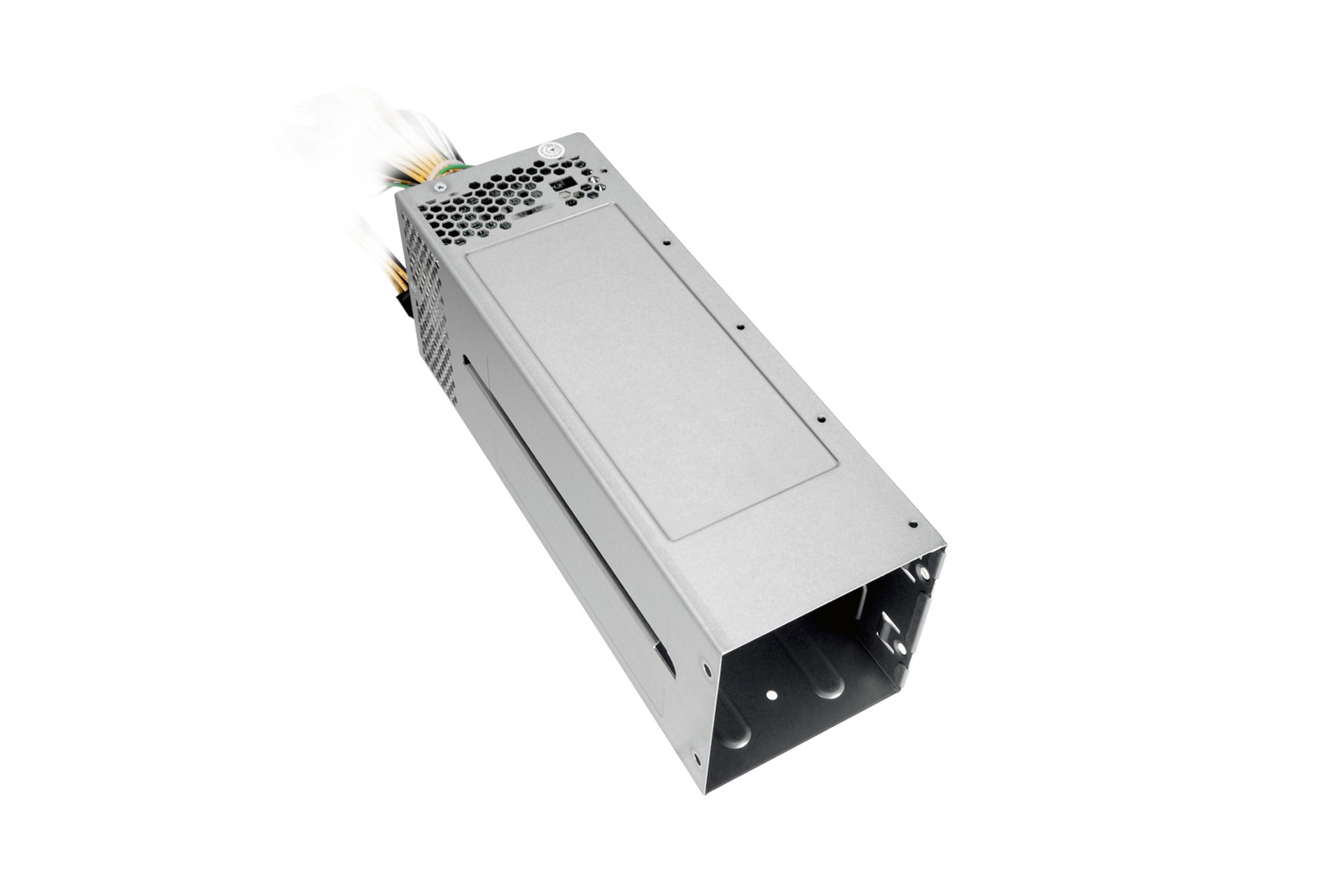

Power Supply
3RAMAP042300
Power cage with PDB for CRPS, Max. 1200W (short type)
Support: 1
Power Supply
3RAMAP046201

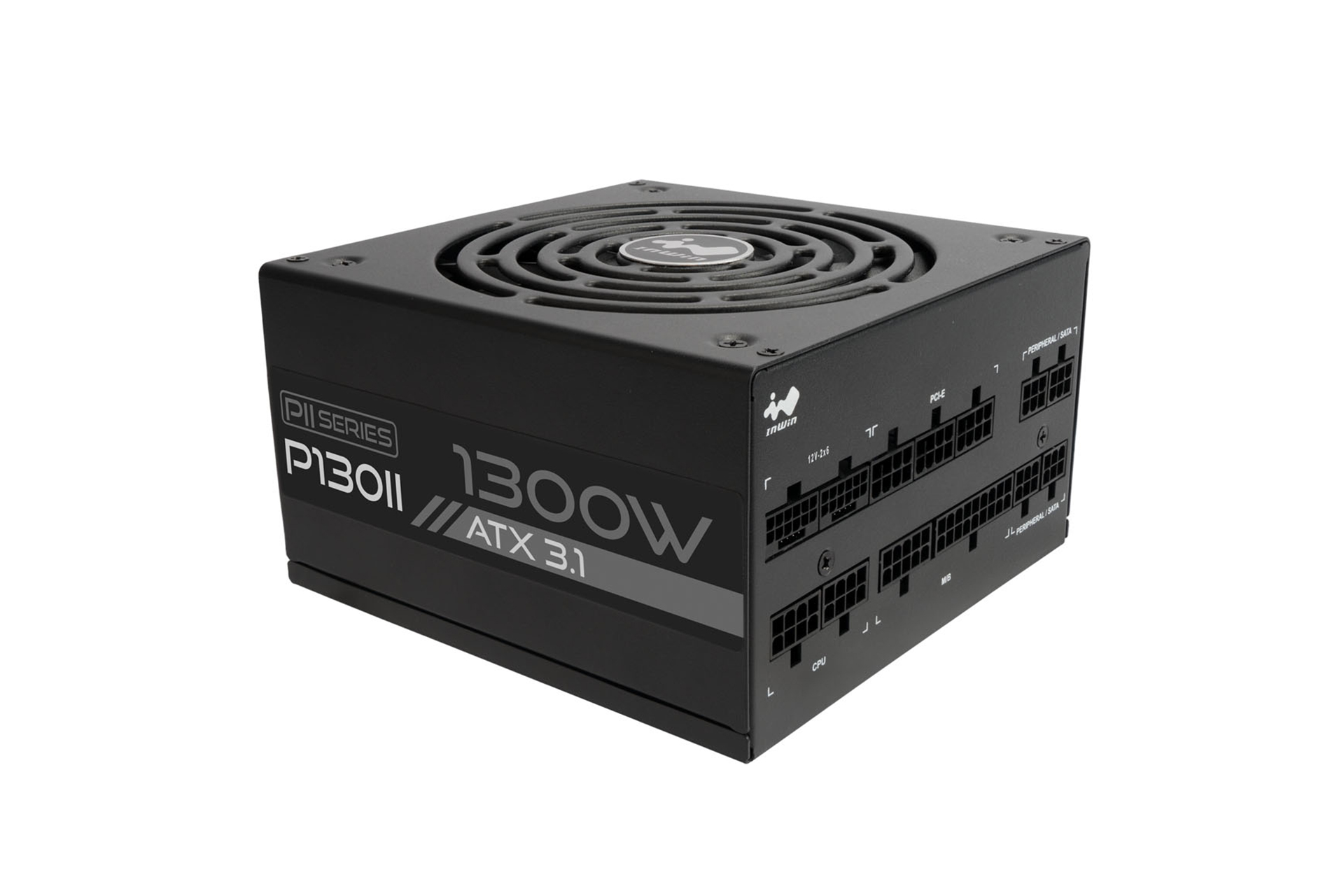

80 PLUS Platinum 1300W ATX power supply (IW-P130II)
Support: 1
Power Supply
3RAMW7091101

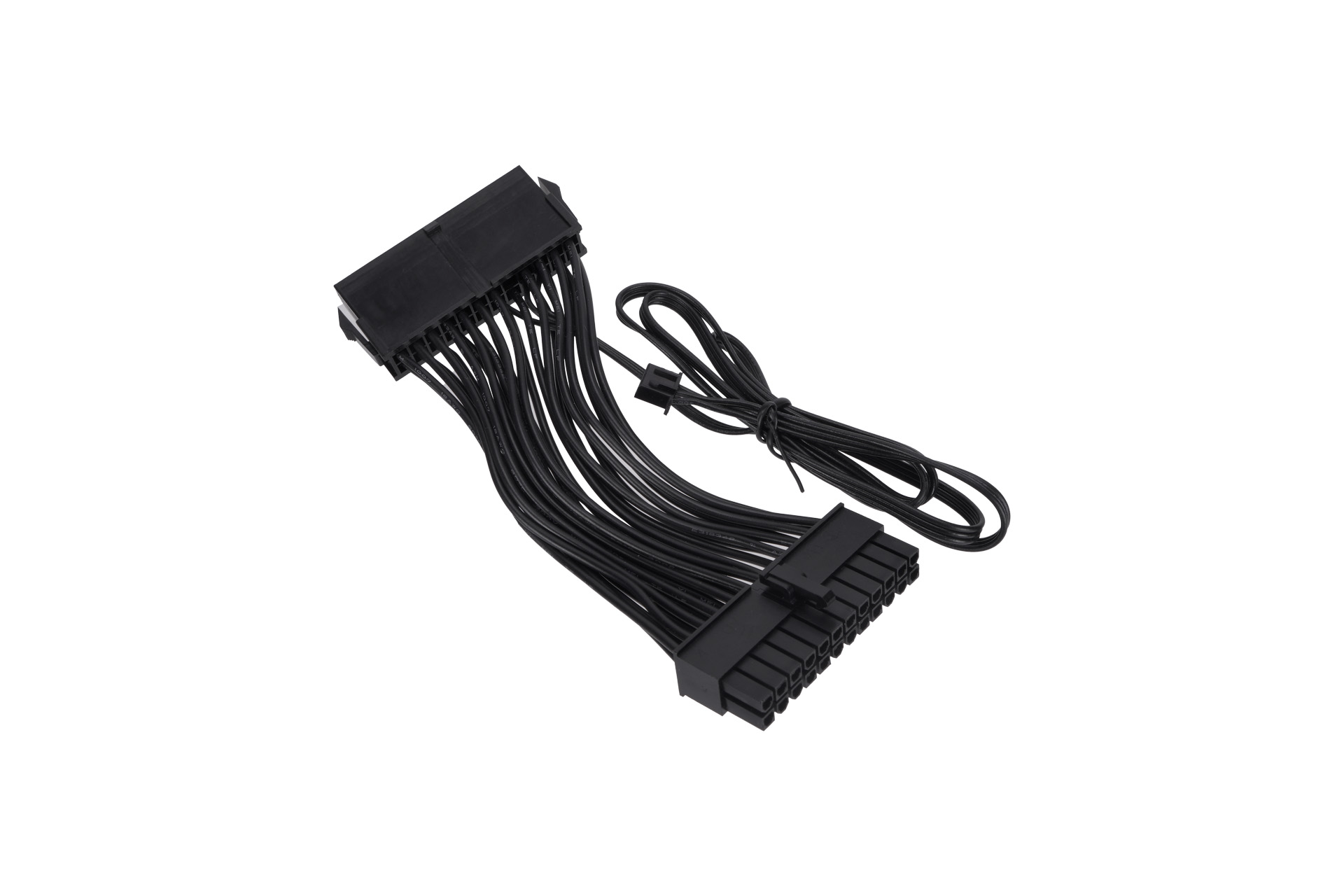

Power extension cable 24-pin to 24-pin / 1+3-pin
Support: 4
Storage Kit
2RAKID74800

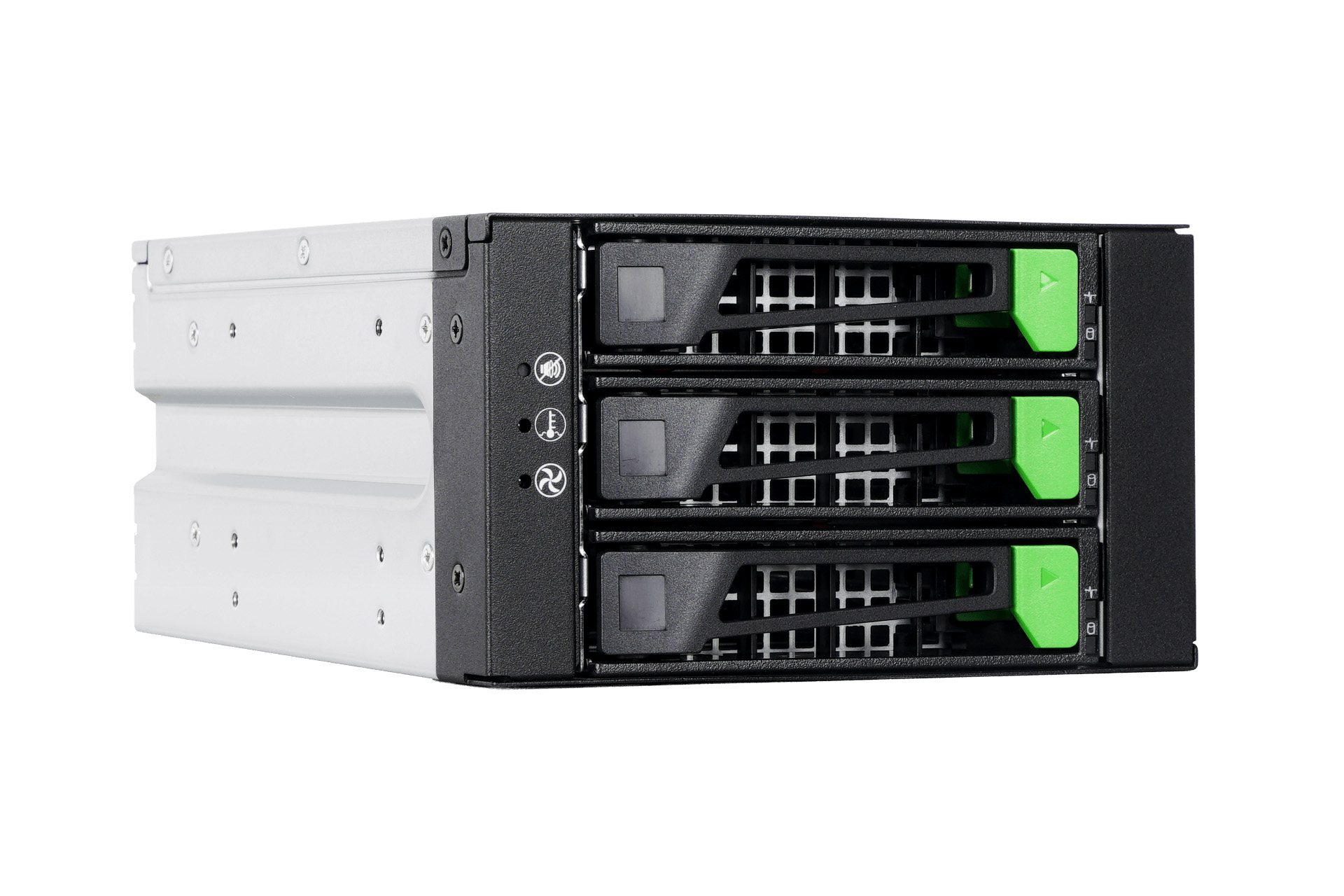

IW-SK23-09, external 2.5"/3.5" x 3, supports U.2 NVMe/SAS/SATA drives
Support: 1
Storage Kit
2RAKID167800

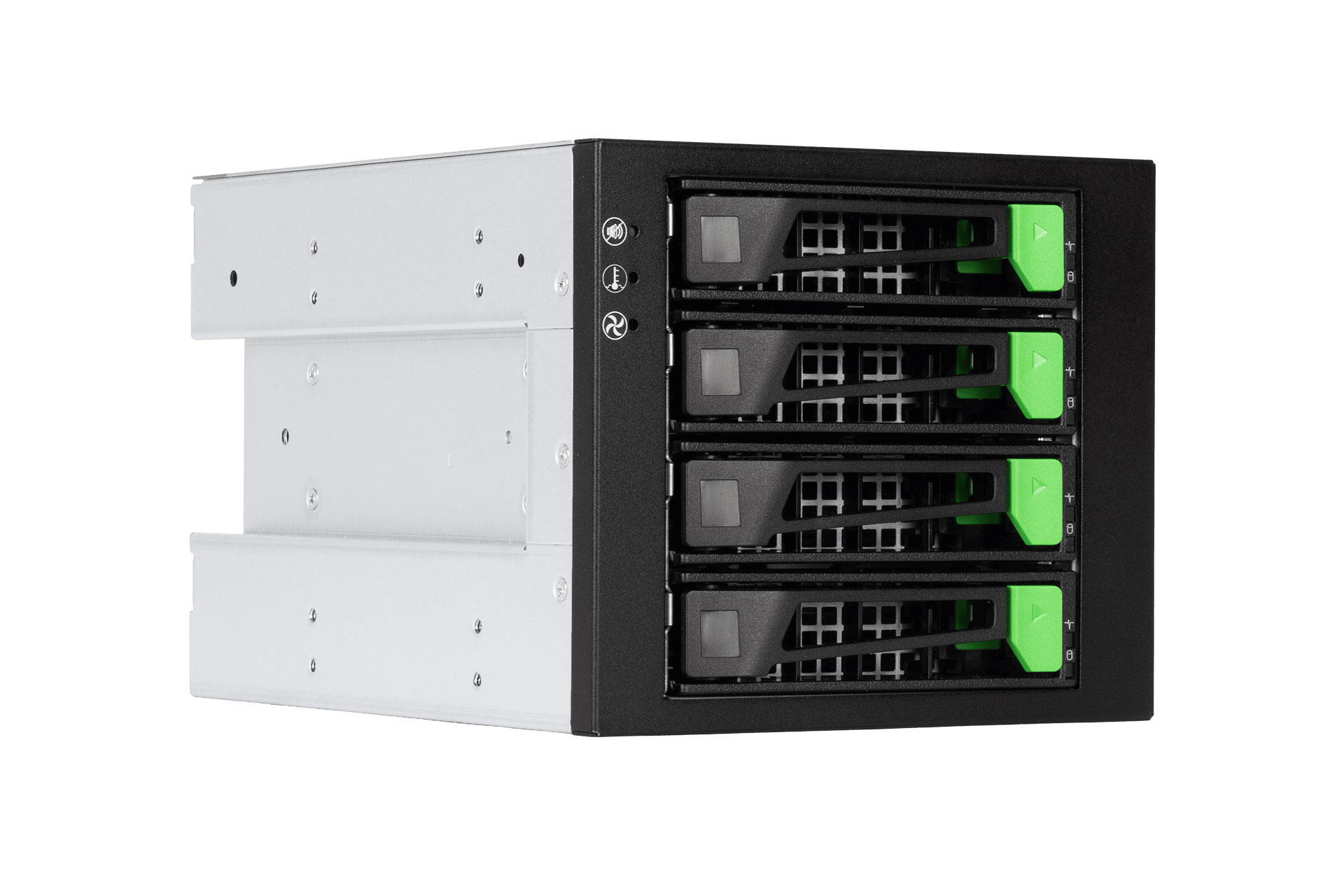

IW-SK34-09, external 2.5"/3.5" x 4, supports U.2 NVMe/SAS/SATA drives
Support: 1

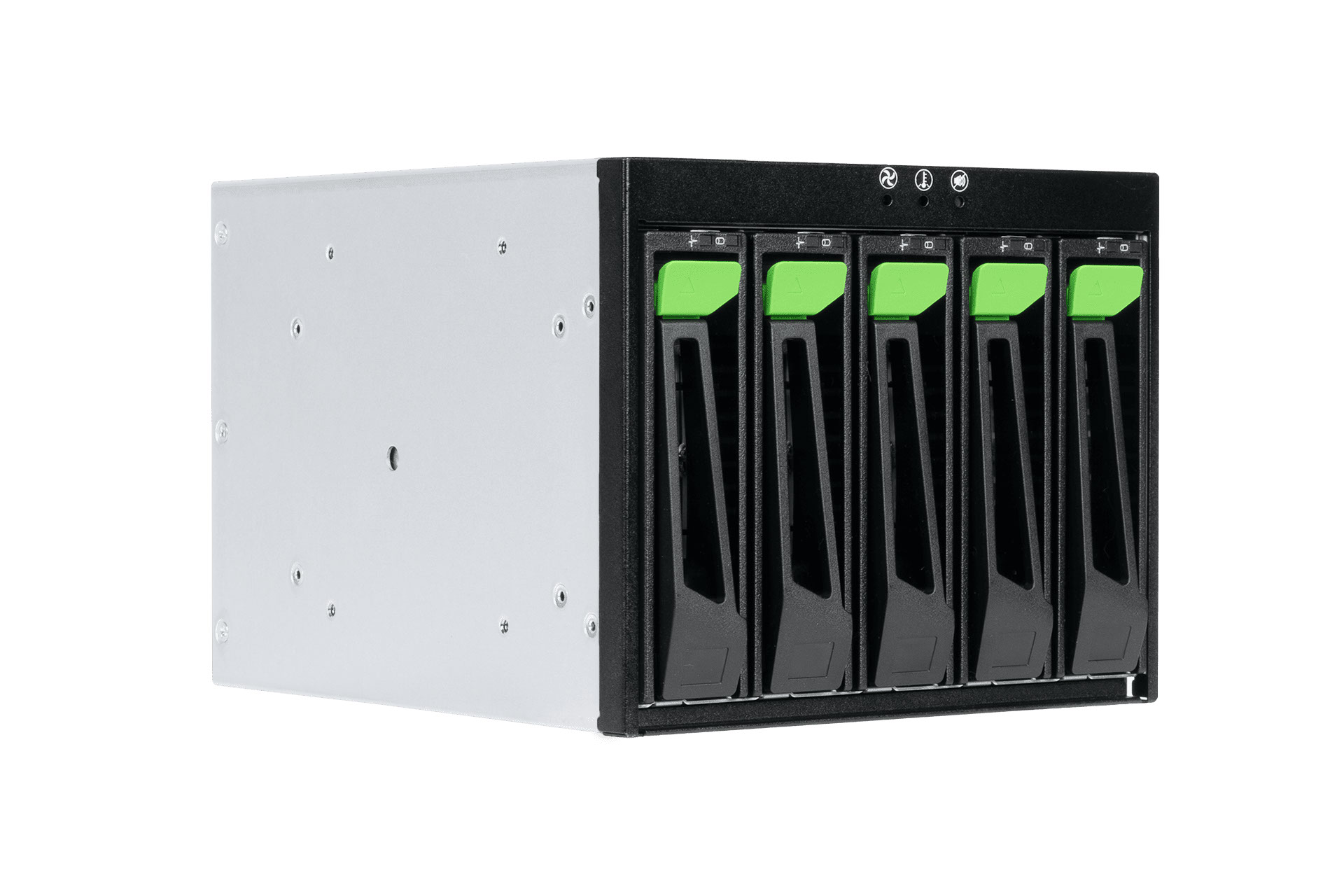

Storage Kit
2RAKID167900
IW-SK35-09, external 2.5"/3.5" x 5, supports U.2 NVMe/SAS/SATA drives (*included)
Support: 1
Storage Kit
3RAMW6005400

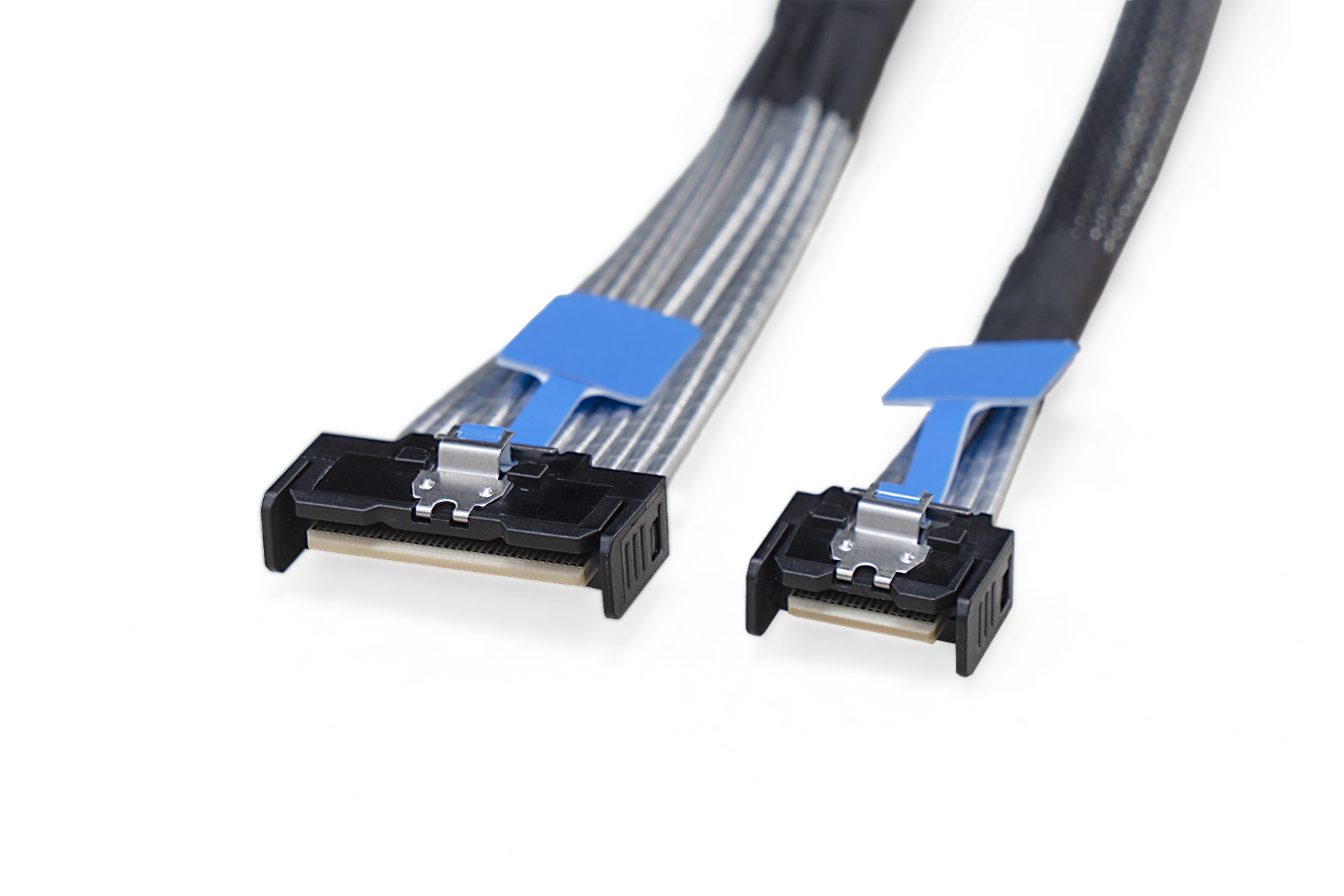

MCIO (SFF-TA-1016) 8i to 2 x MCIO (SFF-TA-1016) 4i Cable, 500 mm
Support: Max. 2
Storage Kit
3RAMW4092200

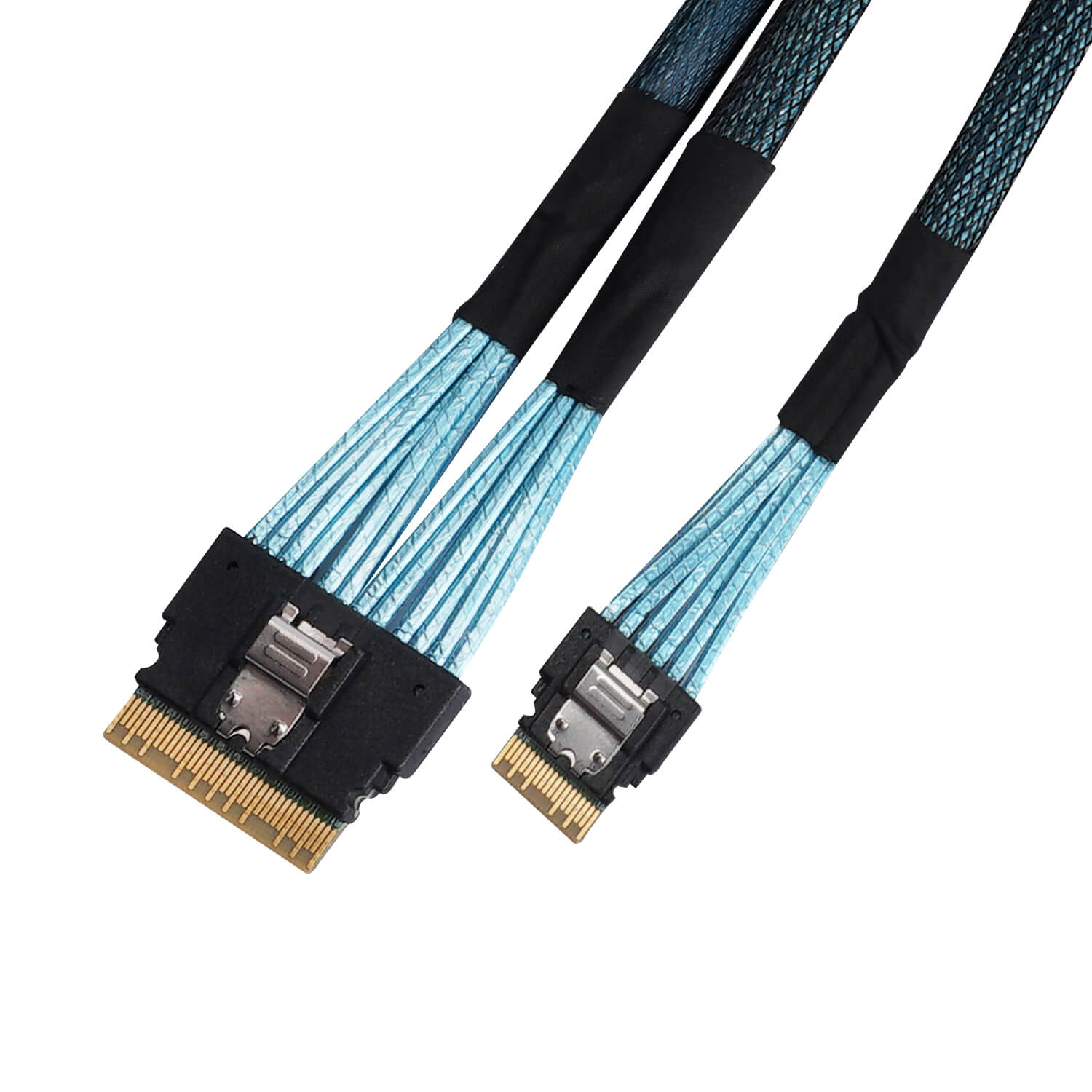

SlimSAS (SFF-8654) 8i to 2 x SlimSAS (SFF-8654) 4i Cable, 600 mm
Support: 1

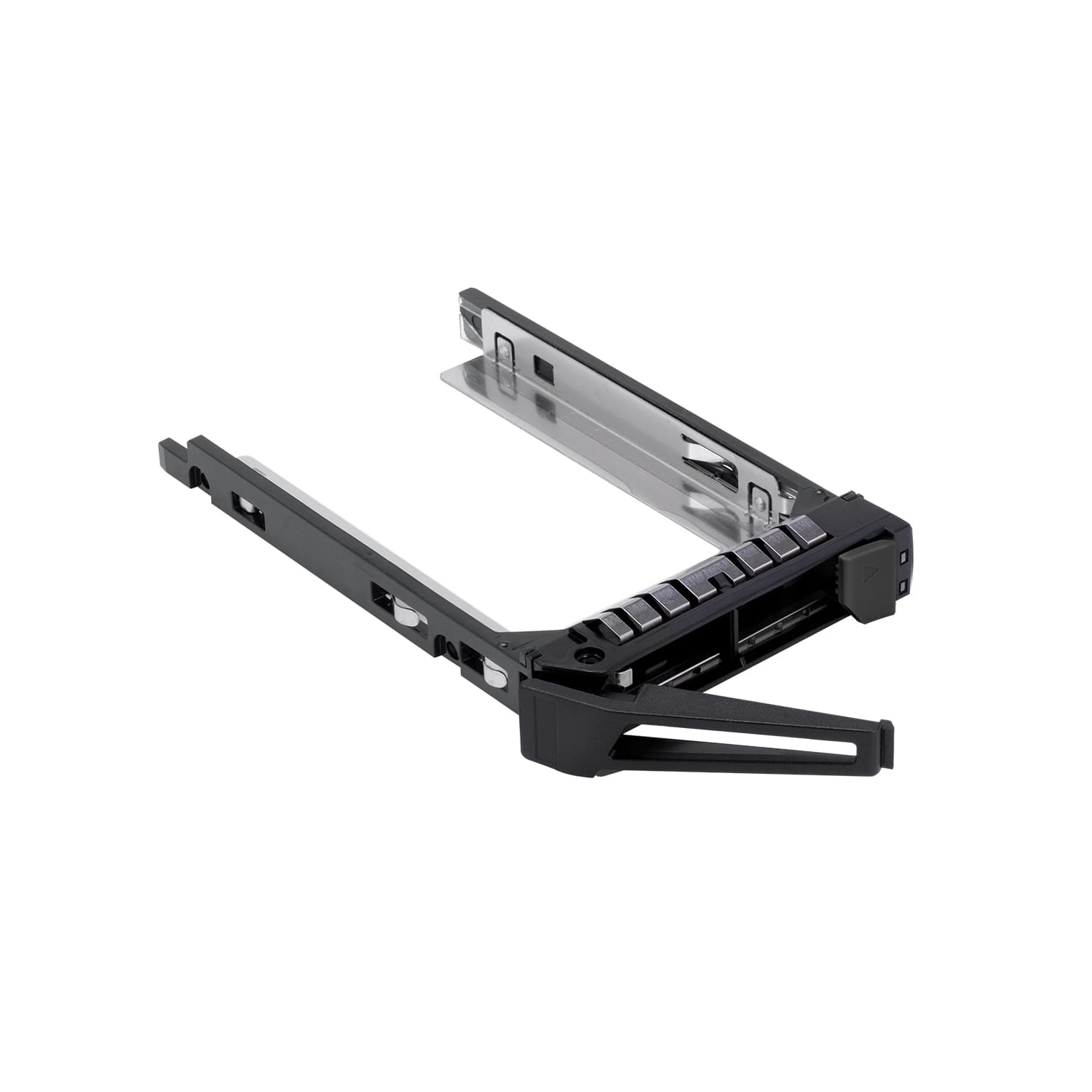

HDD Tray
2RAKPH075400
2.5" hot-swap HDD tray (*included)
Support: 2

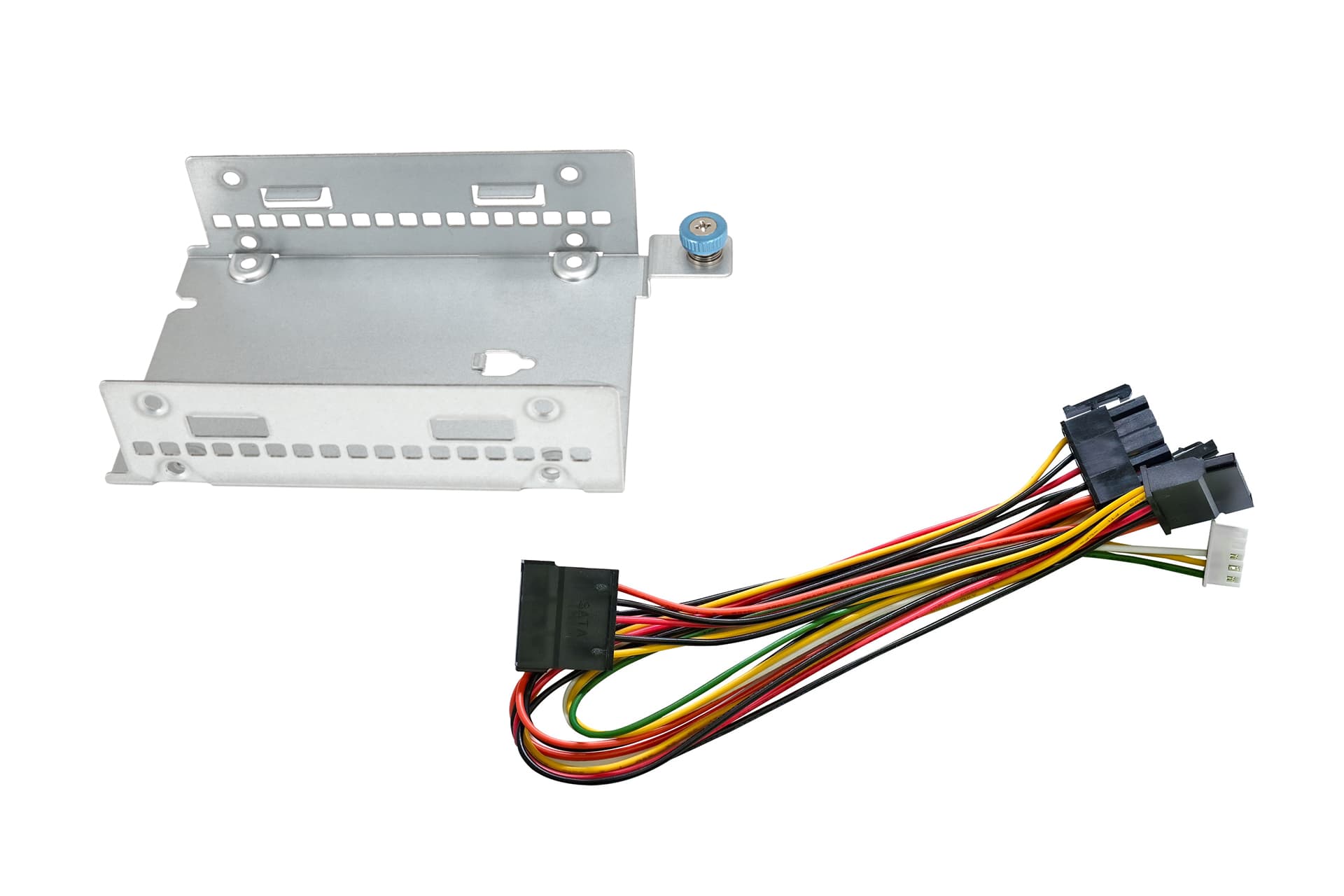

HDD Cage Kit
2RARID047501 / 3RAMW7121800
2-in-1 2.5" HDD Bracket / SATA-to-SATA + PMBus Split Cables
Support: Max.2 sets

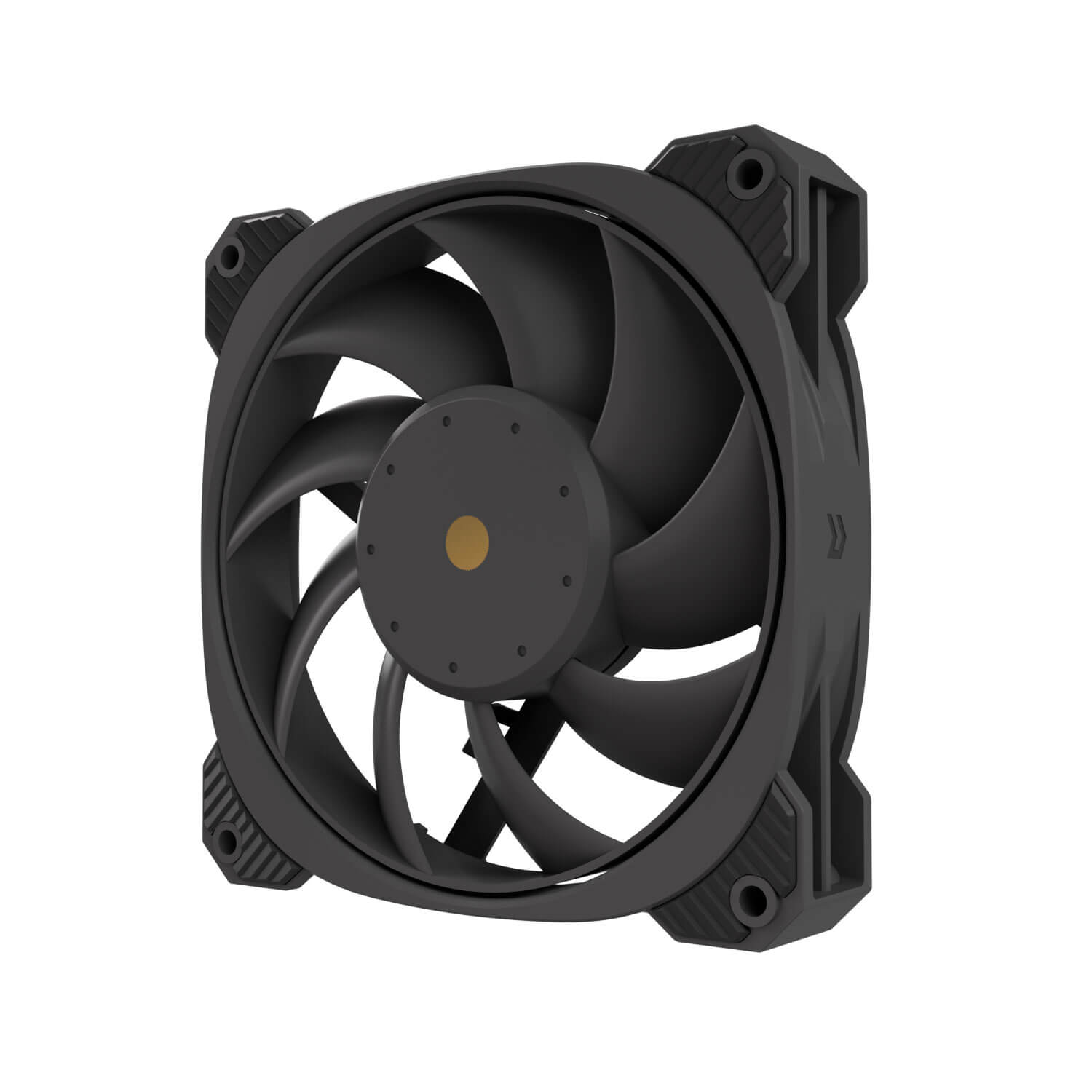

Fan
3RAMFS025600
IW-DN Max, 120 x 25mm PWM fan, 2700RPM, 4pin (* included front x 2, rear x 1)
Support: 3

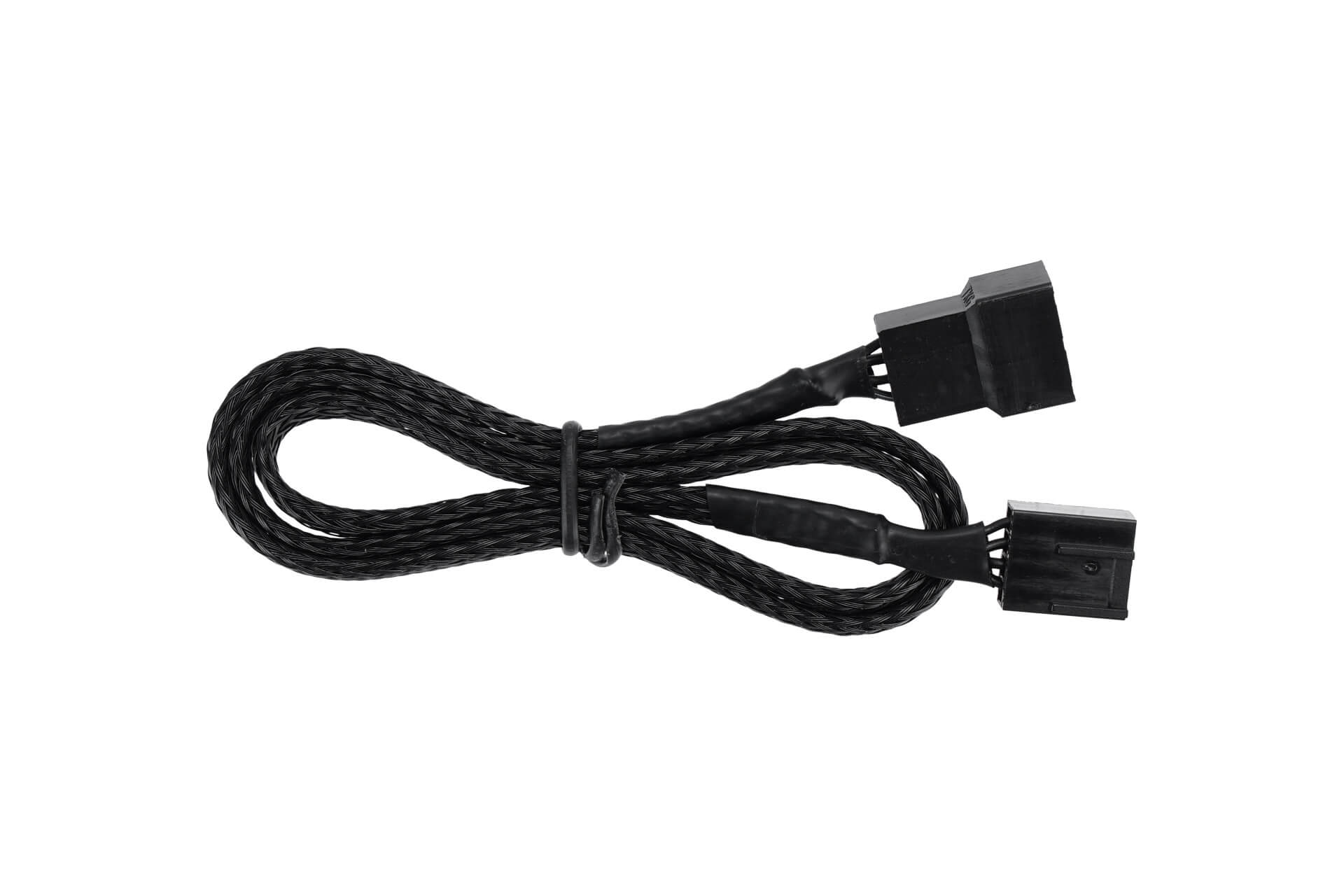

Fan
3RAMW7111600
PWM fan extension cable 500m (*included)
Support: 3
Fan
3RAMFB008602

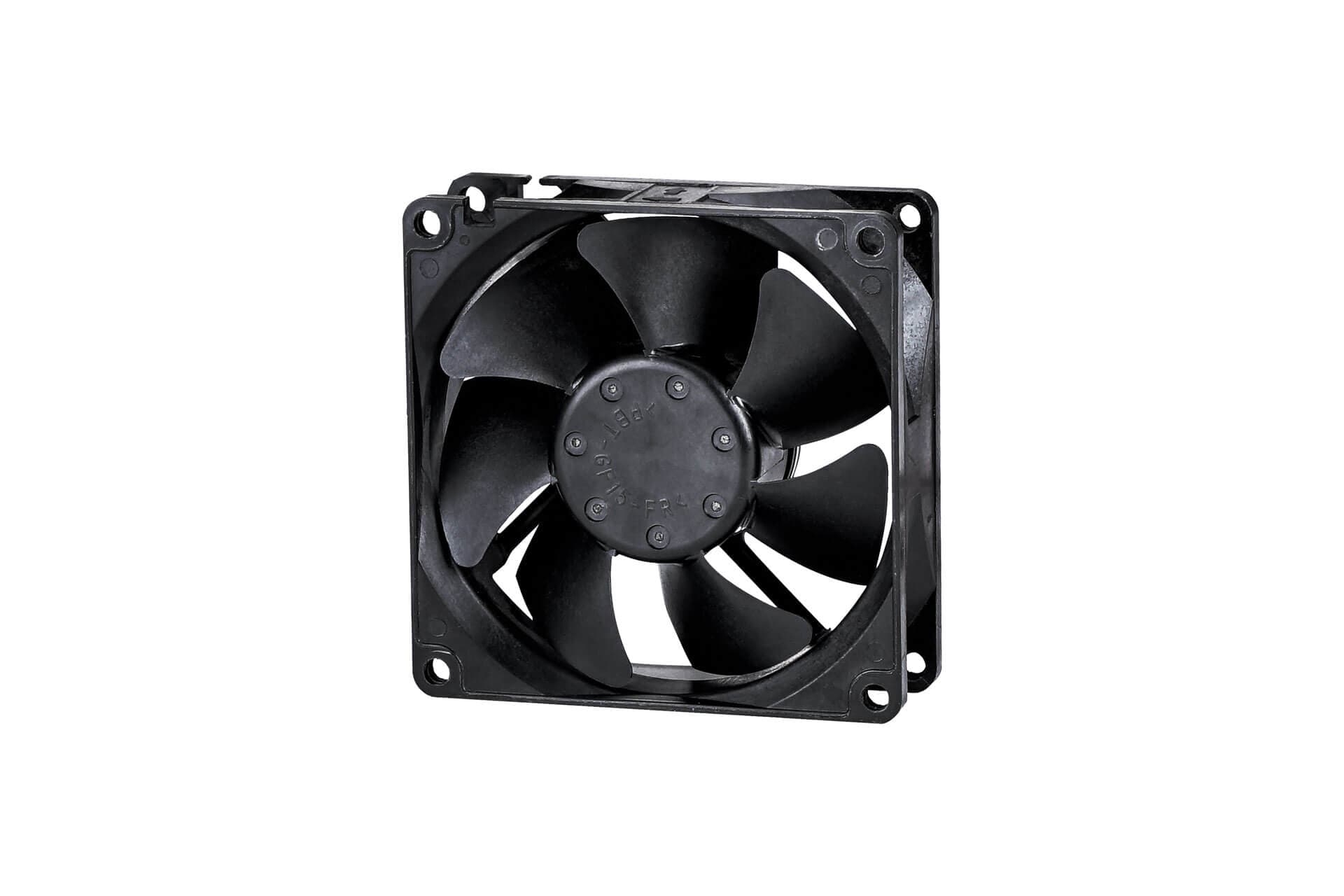

80 x 25mm PWM fan, 4500 RPM, 4pin
Support: Max.2

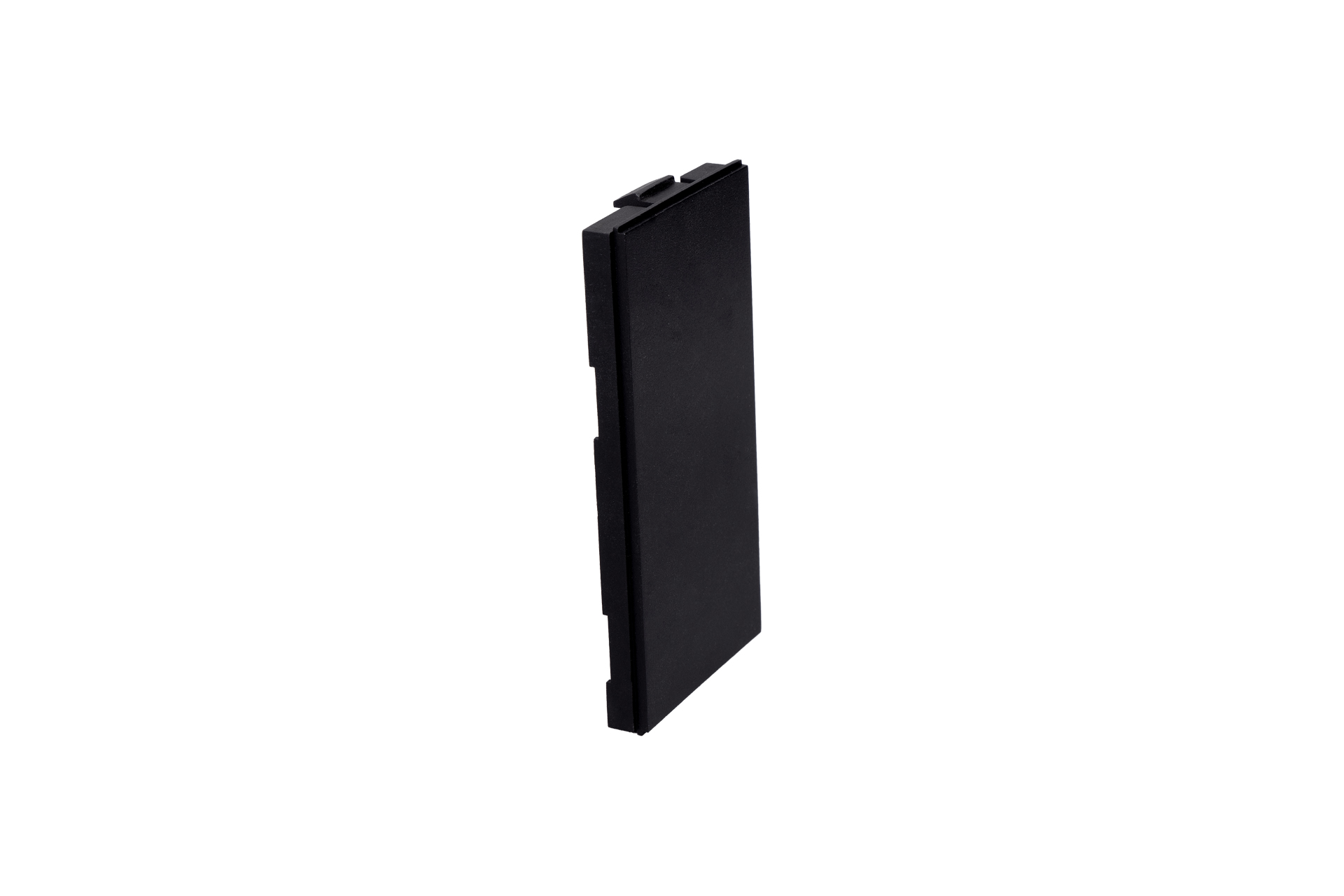

Dummy Bay Cover
2RATPC175700
2.5" HDD bay plastic dummy cover
Support: 1

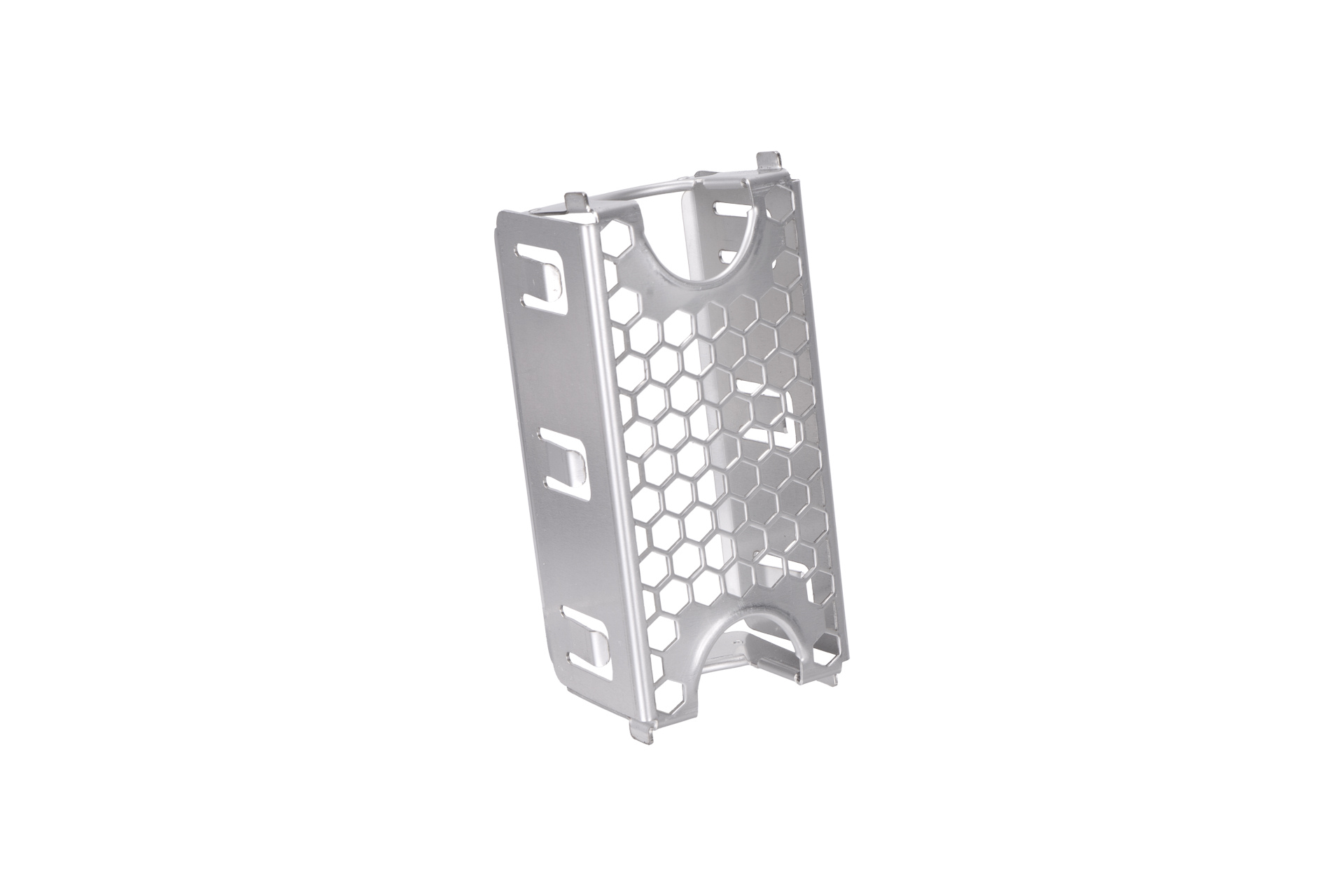

Dummy Bay Cover
2RAVIC110800
2.5" HDD bay metal dummy cover
Support: 1

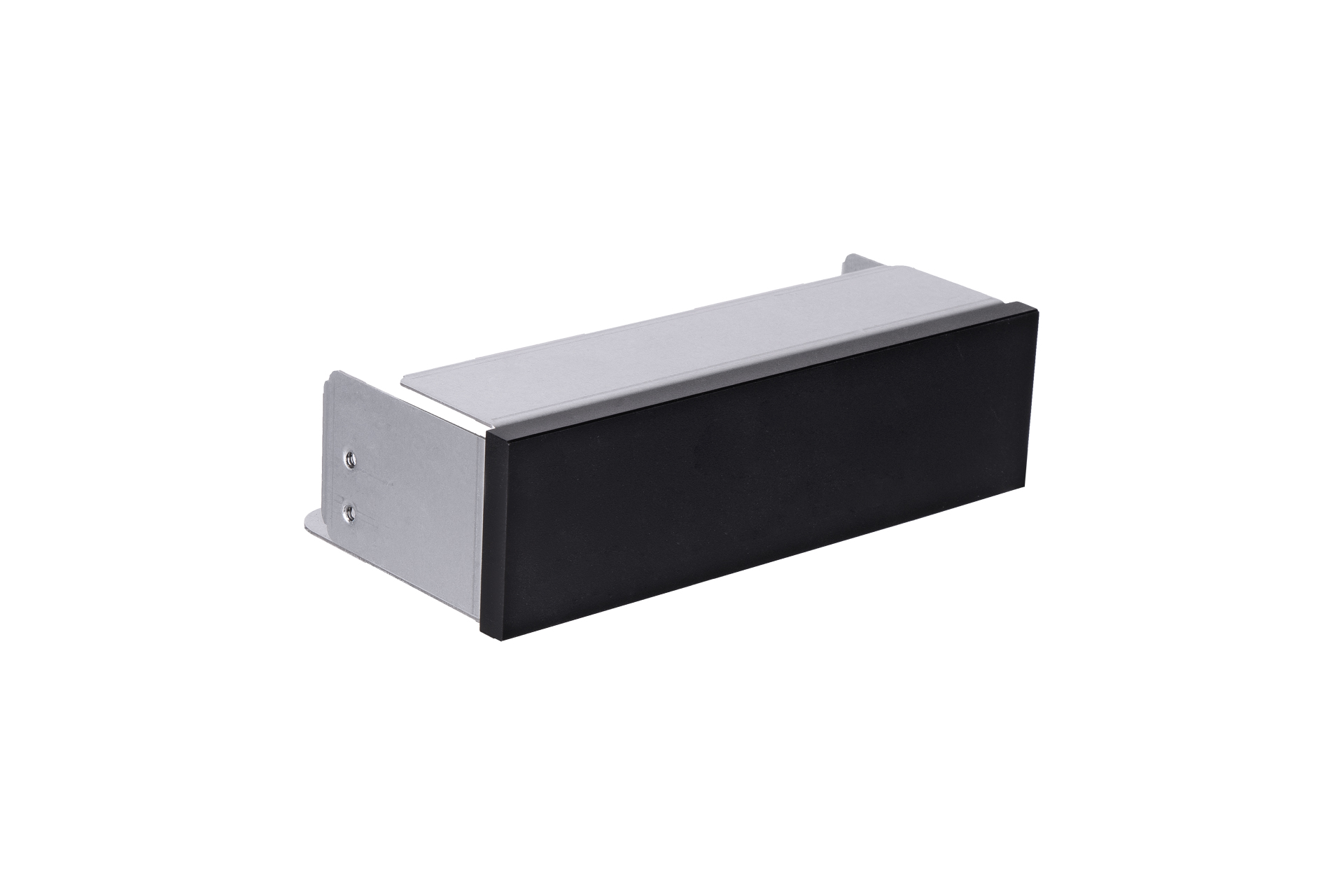

Dummy Bay Cover
2RAKIC037600
5.25" drive bay plastic dummy cover
Support: Max.3

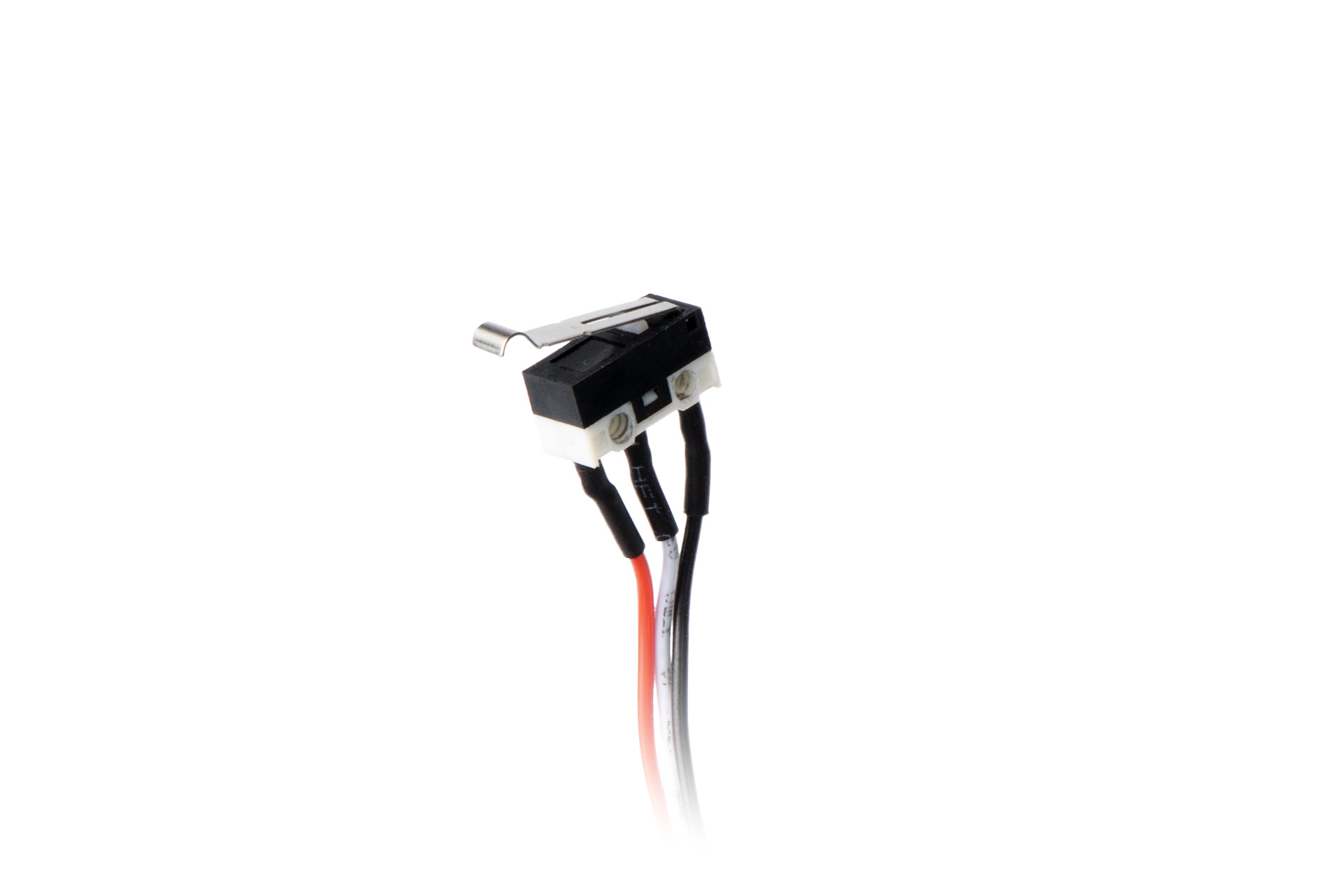

Others
3RAMRW053600
Intrusion switch / 220mm
Support: 1
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Power Supply | 3RAMAP049300 | 80 PLUS Titanium CRPS 1300W (AC input 90–132V, total power 1000W max. / AC input 180–264V, total power 1300W max.) | 2 | |
| Power Supply | 3RAMAP050200 | Power cage with PDB for CRPS, Max. 1300W | 1 | |
| Power Supply | 3RAMAP026501 | 80 PLUS Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) | 2 | |
| Power Supply | 3RAMAP042300 | Power cage with PDB for CRPS, Max. 1200W (short type) | 1 | |
| Power Supply | 3RAMAP046201 | 80 PLUS Platinum 1300W ATX power supply (IW-P130II) | 1 | |
| Power Supply | 3RAMW7091101 | Power extension cable 24-pin to 24-pin / 1+3-pin | 4 | |
| Storage Kit | 2RAKID74800 | IW-SK23-09, external 2.5"/3.5" x 3, supports U.2 NVMe/SAS/SATA drives | 1 | |
| Storage Kit | 2RAKID167800 | IW-SK34-09, external 2.5"/3.5" x 4, supports U.2 NVMe/SAS/SATA drives | 1 | |
| Storage Kit | 2RAKID167900 | IW-SK35-09, external 2.5"/3.5" x 5, supports U.2 NVMe/SAS/SATA drives (*included) | 1 | |
| Storage Kit | 3RAMW6005400 | MCIO (SFF-TA-1016) 8i to 2 x MCIO (SFF-TA-1016) 4i Cable, 500 mm | Max. 2 | |
| Storage Kit | 3RAMW4092200 | SlimSAS (SFF-8654) 8i to 2 x SlimSAS (SFF-8654) 4i Cable, 600 mm | 1 | |
| HDD Tray | 2RAKPH075400 | 2.5" hot-swap HDD tray (*included) | 2 | |
| HDD Cage Kit | 2RARID047501 / 3RAMW7121800 | 2-in-1 2.5" HDD Bracket / SATA-to-SATA + PMBus Split Cables | Max.2 sets | |
| Fan | 3RAMFS025600 | IW-DN Max, 120 x 25mm PWM fan, 2700RPM, 4pin (* included front x 2, rear x 1) | 3 | |
| Fan | 3RAMW7111600 | PWM fan extension cable 500m (*included) | 3 | |
| Fan | 3RAMFB008602 | 80 x 25mm PWM fan, 4500 RPM, 4pin | Max.2 | |
| Dummy Bay Cover | 2RATPC175700 | 2.5" HDD bay plastic dummy cover | 1 | |
| Dummy Bay Cover | 2RAVIC110800 | 2.5" HDD bay metal dummy cover | 1 | |
| Dummy Bay Cover | 2RAKIC037600 | 5.25" drive bay plastic dummy cover | Max.3 | |
| Others | 3RAMRW053600 | Intrusion switch / 220mm | 1 | |
