GIGABYTE R283-SF1-AAL1
Артикул: R283-SF1-AAL1
GIGABYTE R283-SF1-AAL1

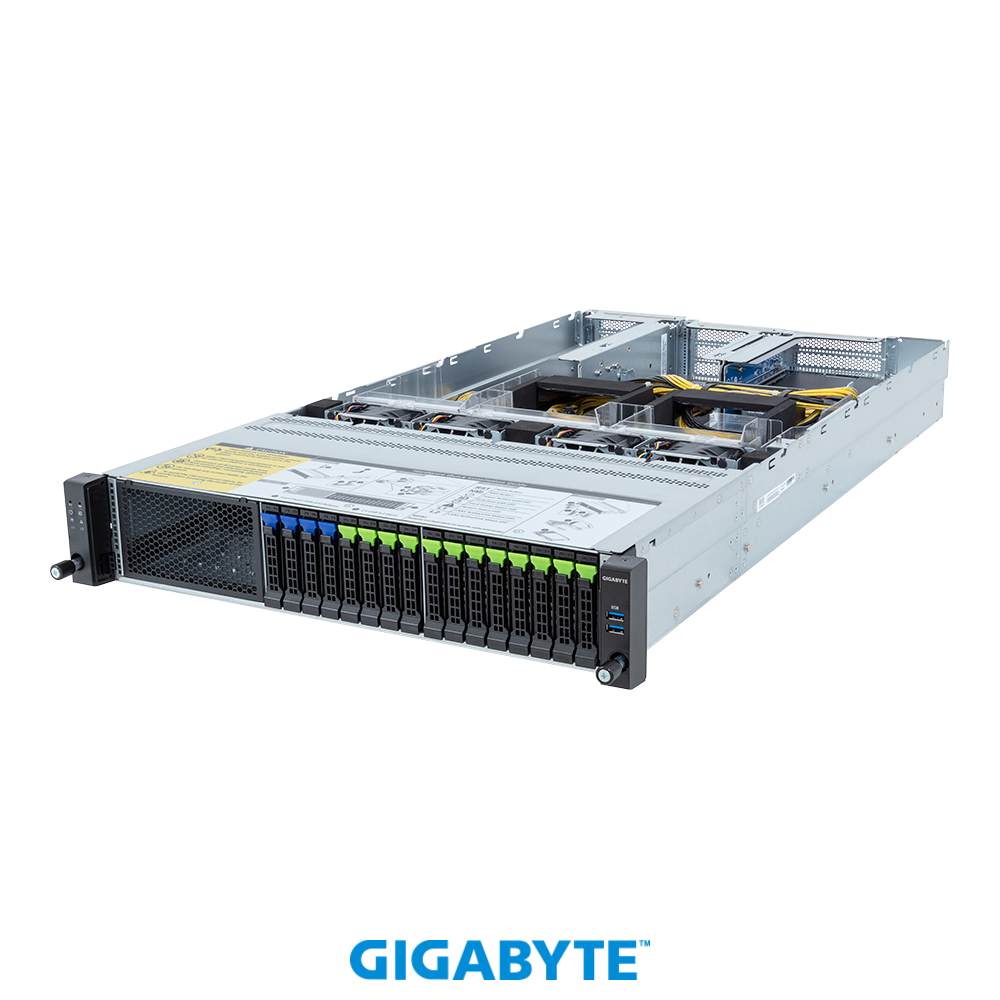

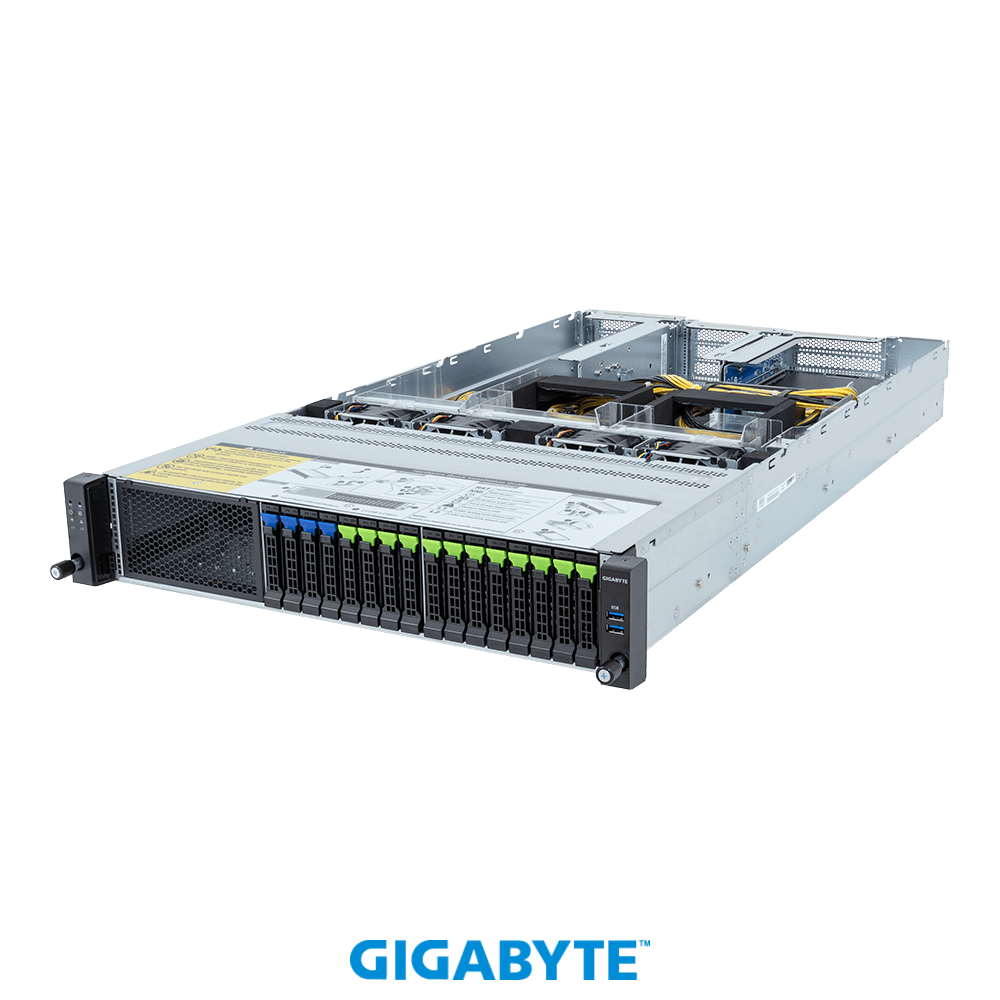

Серверная платформа R283-SF1-AAL1
Серверная платформа GIGABYTE R283-SF1-AAL1. Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 4 x PCIe Gen5 GPUs (16 x drives)
Форм-фактор
2U Rackmount
Процессоры
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Память
32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Compute And Memory
Вычислительная платформа и память
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.. 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
GPU And Expansion
Ускорители и слоты расширения
Riser Card CRS202P: - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs Riser Card CRS202Q: - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS201J: - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function
Storage And Infrastructure
Накопители, сеть и питание
Front hot-swap: 12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1] 4 x 2.5" SATA/SAS-4 [1] - (6 x NVMe from CPU_0, 6 x NVMe from CPU_1) [1] SAS card is required to support SAS drives.. Rear: 1 x 10/100/1000 Mbps Management LAN. Dual 2700W 80 PLUS Titanium redundant power supply [1] AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 16A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2700W/ 200-240V~ or 240Vdc Input +12V/ 225A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Product Details
Детали конструкции
Характеристики
| SAS | Require SAS add-in cards |
|---|---|
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header Support optional RAID add-in cards |
| Вес | Net Weight: 29.49 kg Gross Weight: 31.49 kg |
| Сеть | Rear: 1 x 10/100/1000 Mbps Management LAN |
| Видео | Integrated in ASPEED® AST2600 - 1 x Mini-DP |
| Сокет | 2 x LGA 4677 Socket E |
| Память | 32 x DIMM slots DDR5 memory supported 8-Channel memory per processor 5th Gen Intel® Xeon®: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) Intel® Xeon® Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) |
| Чипсет | Intel® C741 |
| Накопители | Front hot-swap: 12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1] 4 x 2.5" SATA/SAS-4 [1] - (6 x NVMe from CPU_0, 6 x NVMe from CPU_1) [1] SAS card is required to support SAS drives. |
| Процессоры | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Форм-фактор | 2U Rackmount |
| Блоки питания | Dual 2700W 80 PLUS Titanium redundant power supply [1] AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 16A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2700W/ 200-240V~ or 240Vdc Input +12V/ 225A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |

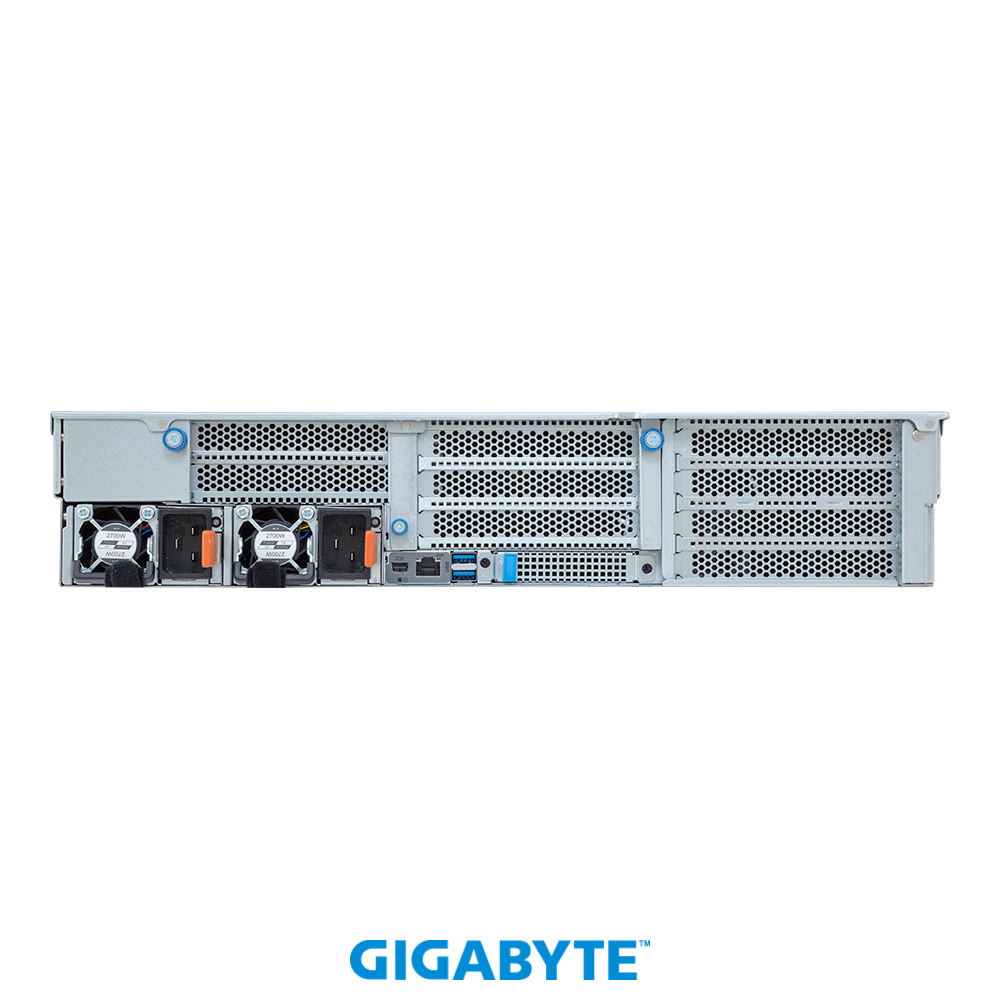

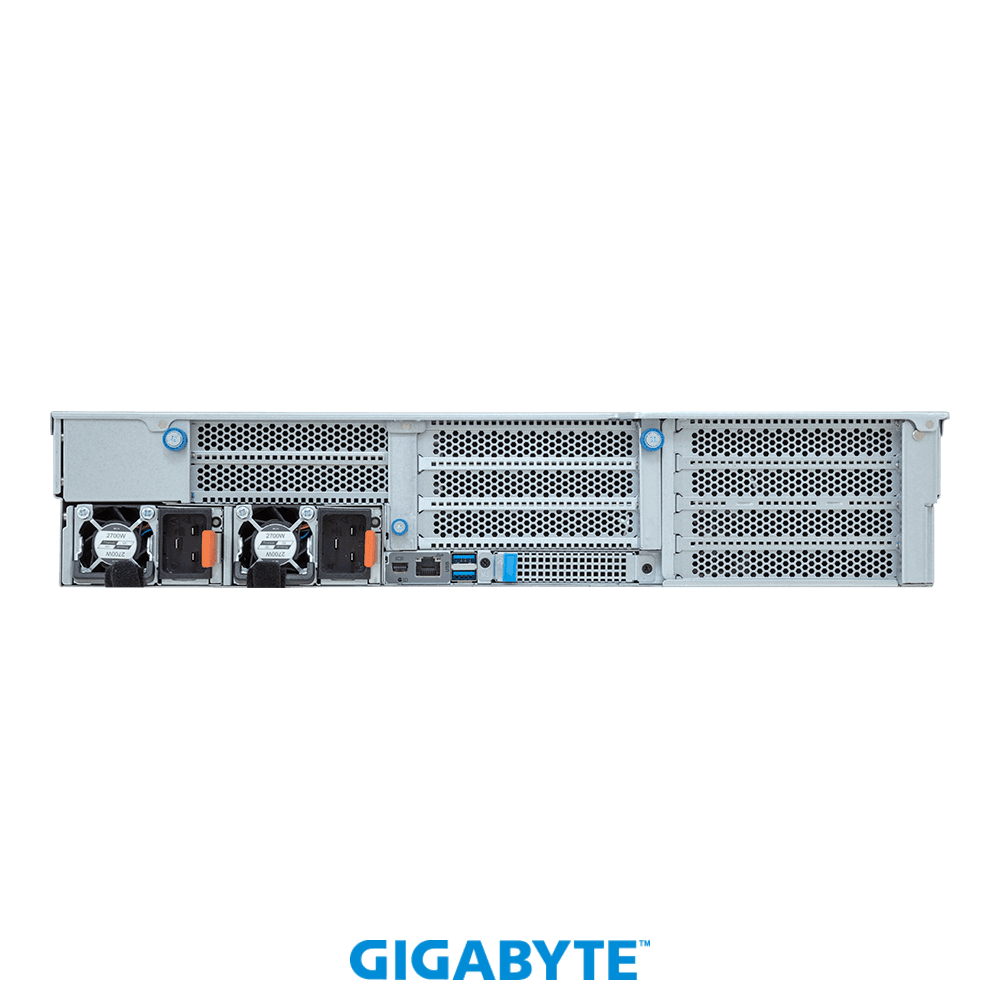

| Задняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x MLAN port 1 x ID LED |
| Совместимые ОС | Please refer to OS compatibility table in support page Additional certifications: Windows Server 2022 Windows Server 2025 |

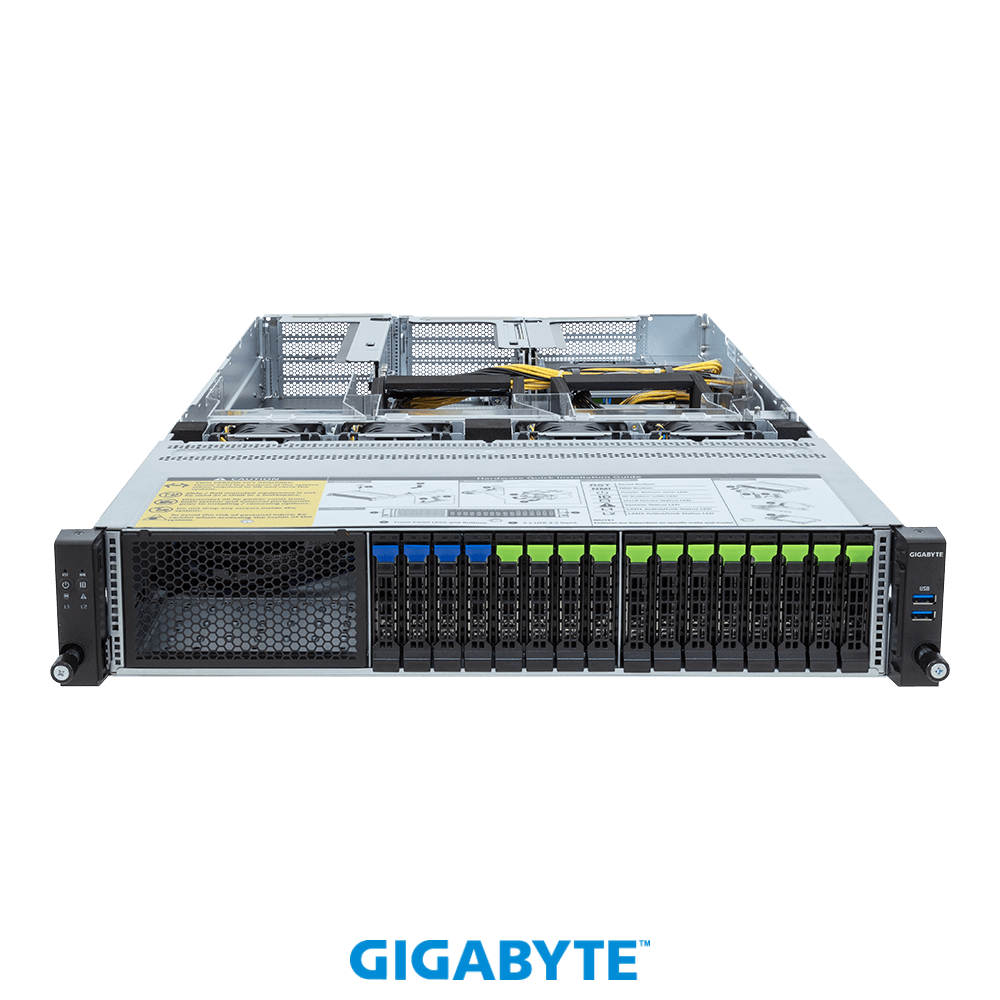

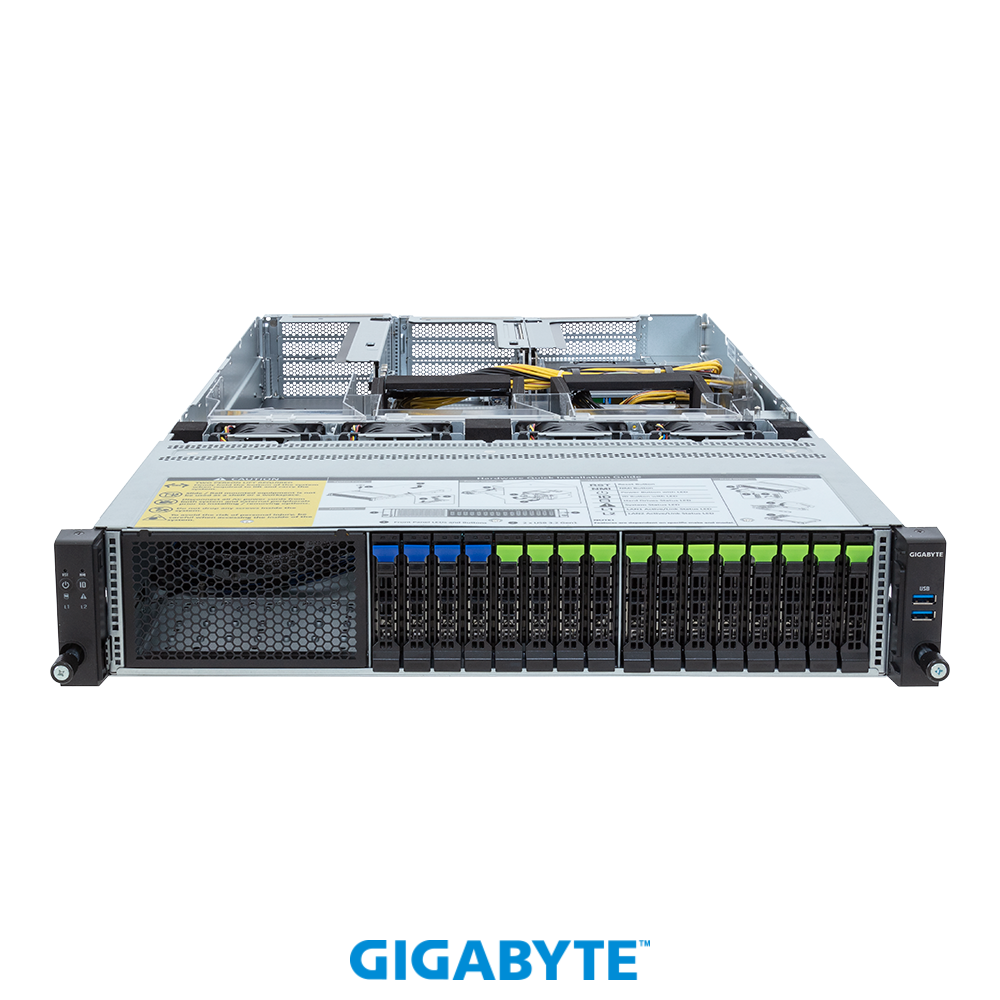

| Передняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED |
| Плата бэкплейна | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Габариты упаковки | 1082 x 685 x 314 mm |
| Комплект поставки | 1 x R283-SF1-AAL1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x GPU power cable (12VHPWR, 100mm) 1 x GPU power cable (12VHPWR, 300mm) 1 x GPU power cable (12VHPWR, 450mm) 1 x GPU power cable (12VHPWR, 650mm) 6 x Carriers 1 x 2-Section Rail kit |
| Материнская плата | MSF3-GP0 |
| Номера исполнения | - Barebone package (5th/4th Gen): 6NR283SF1DR000ABL1* - Barebone package (4th Gen): 6NR283SF1DR000AAL1* - Motherboard: 9MSF3GP0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20G0: 9CBP20G0NR-00* - Fan module: 25ST2-44282I-N2R/25ST2-88382W-S1R - Riser card - CRS201J: 9CRS201JNR-00* - Riser card - CRS202P: 9CRS202PNR-00* - Riser card - CRS202Q: 9CRS202QNR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (12VHPWR, 100mm): 25CRI-1001C0-Y4R - GPU power cable (12VHPWR, 300mm): 25CRI-300102-Y4R - GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R - GPU power cable (12VHPWR, 650mm): 25CRI-650102-Y4R - Power supply: 25EP0-227000-D0S Optional parts: - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R - Cable Management Arm: 25HB1-R18300-K0R - RMA packaging: 6NR283SF1SR-RMA-A100 |
| Слоты расширения PCIe | Riser Card CRS202P: - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs Riser Card CRS202Q: - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs - 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS201J: - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 - Supports NCSI function |
| Габариты (Ш x В x Г), мм | 2U 438 x 87.5 x 815 |
| Модули безопасности | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
| Системное управление | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| Условия эксплуатации | Operating temperature: 10°C to 30°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Системные вентиляторы | 1 x 40x40x28mm (34,000rpm) 4 x 80x80x38mm (18,300rpm) |
Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
