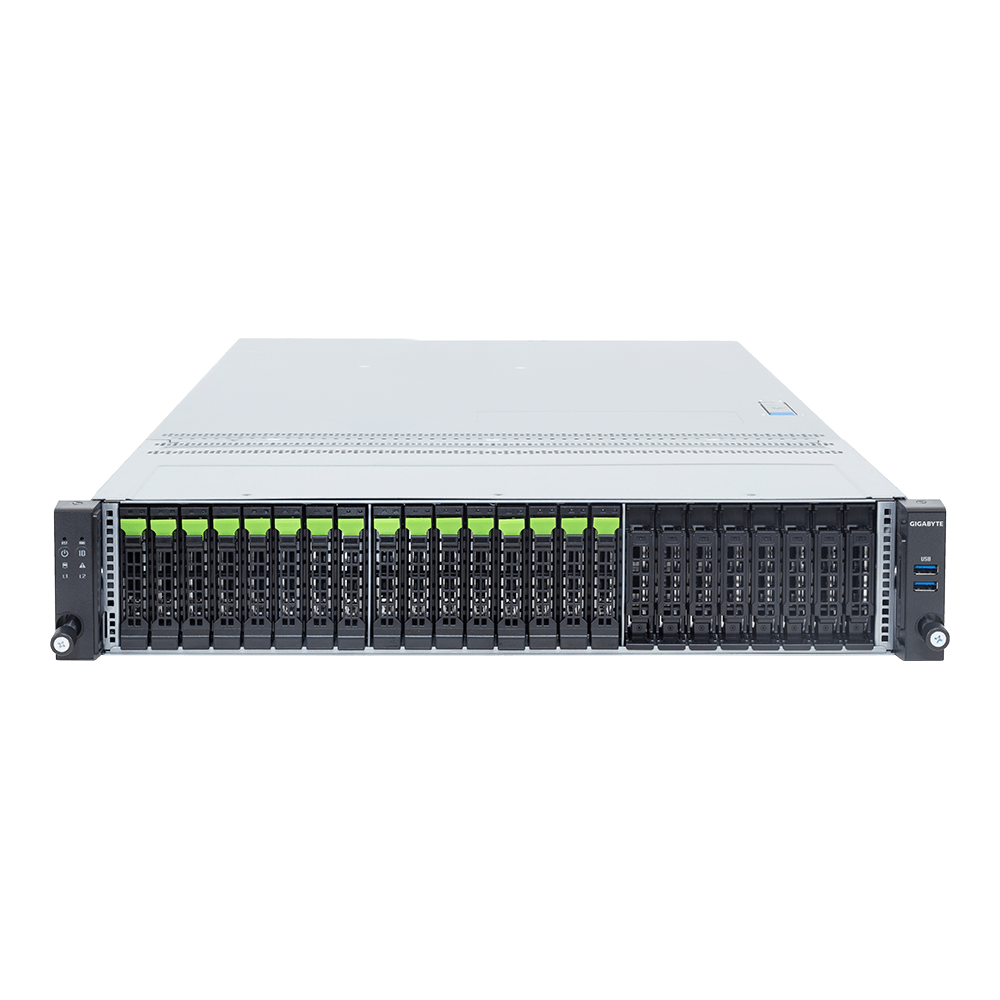

GIGABYTE R265-DG2-AJ1

Name: GIGABYTE R265-DG2-AJ1
Brand: GIGABYTE
SKU: R265-DG2-AJ1

Серверная платформа R265-DG2-AJ1

Серверная платформа GIGABYTE R265-DG2-AJ1. Rack Server - AMD EPYC™ 9006 SP7 Server Processors - 2U UP, 16-Bay Gen5 NVMe/SATA/SAS-4

Форм-фактор

2U Rackmount

Процессоры

AMD EPYC™ 9006 SP7 Server processors Single processor, PPT up to 600 W

Память

16 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 16-Channel memory per processor RDIMM: Up to 8000 MT/s MRDIMM: Up to 12800 MT/s [1] MRDIMMs are supported only on select CPU SKUs.

Сеть

Rear (LAN board): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function Rear (DC-SCM): 1 x Management LAN

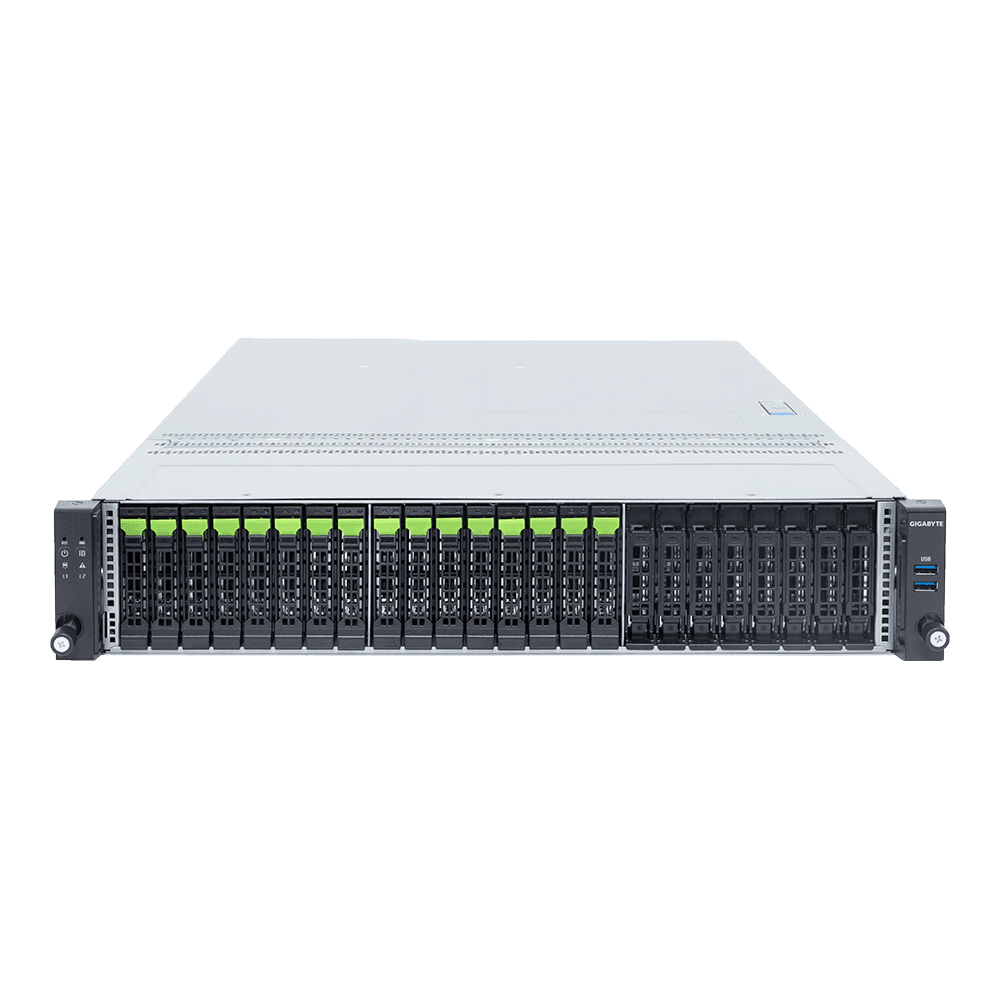

серверная платформа GIGABYTE R265-DG2-AJ1

Compute And Memory

Вычислительная платформа и память

AMD EPYC™ 9006 SP7 Server processors Single processor, PPT up to 600 W. 16 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 16-Channel memory per processor RDIMM: Up to 8000 MT/s MRDIMM: Up to 12800 MT/s [1] MRDIMMs are supported only on select CPU SKUs.

Внутренняя компоновка GIGABYTE R265-DG2-AJ1

GPU And Expansion

Ускорители и слоты расширения

1 x FHFL x16 (Gen6 x16) 2 x FHHL x8 (Gen6 x8)

Слоты GPU и расширения GIGABYTE R265-DG2-AJ1

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 16 x 2.5" Gen5 NVMe/SATA/SAS-4 Internal M.2: 2 x M.2 (2280/22110), PCIe Gen4 x2 Storage card(s) required to support SATA and SAS drives.. Rear (LAN board): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function Rear (DC-SCM): 1 x Management LAN. 2 x 2000 W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~, 13A, 50-60Hz - 200-220V~, 10A, 50-60Hz - 220-240V~, 10A, 50-60Hz DC Input: (Only for China) - 240Vdc, 10A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A - Max 1800W/ 200-220V~ +12.2V/ 148A +12.2Vsb/ 3A - Max 2000W/ 220-240V~ or 240Vdc Input +12.2V/ 164A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

Накопители и задняя панель GIGABYTE R265-DG2-AJ1

Product Details

Детали конструкции

Характеристики

Сеть	Rear (LAN board): 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) - Support NCSI function Rear (DC-SCM): 1 x Management LAN
Видео	Integrated in ASPEED® AST2700 - 1 x Mini-DP
Сокет	1 x LGA 7536 Socket SP7
Память	16 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 16-Channel memory per processor RDIMM: Up to 8000 MT/s MRDIMM: Up to 12800 MT/s [1] MRDIMMs are supported only on select CPU SKUs.
Чипсет	Integrated into SoC
Накопители	Front hot-swap: 16 x 2.5" Gen5 NVMe/SATA/SAS-4 Internal M.2: 2 x M.2 (2280/22110), PCIe Gen4 x2 Storage card(s) required to support SATA and SAS drives.
Процессоры	AMD EPYC™ 9006 SP7 Server processors Single processor, PPT up to 600 W
Форм-фактор	2U Rackmount
Блоки питания	2 x 2000 W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~, 13A, 50-60Hz - 200-220V~, 10A, 50-60Hz - 220-240V~, 10A, 50-60Hz DC Input: (Only for China) - 240Vdc, 10A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A - Max 1800W/ 200-220V~ +12.2V/ 148A +12.2Vsb/ 3A - Max 2000W/ 220-240V~ or 240Vdc Input +12.2V/ 164A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Задняя панель	LAN board: 2 x RJ45 ports DC-SCM: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x Debug port (Type-C) 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x System status LED
Передняя панель	2 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED
Габариты упаковки	1122 x 685 x 305 mm
Комплект поставки	1 x R265-DG2-AJ1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Материнская плата	MDG5-GU0
Слоты расширения PCIe	1 x FHFL x16 (Gen6 x16) 2 x FHHL x8 (Gen6 x8)
Габариты (Ш x В x Г), мм	2U 438 x 87.5 x 850
Модули безопасности	1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM012
Условия эксплуатации	Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	4 x 80x80x80mm
Артикулы компонентов и опций	Barebone package: 6NR265DG2HR000AJ1* Motherboard: 9MDG5GU0IR-000* 2-Section Rail kit (CMA not supported): 25HB2-Q3JH01-K0R Front panel board - CFP2003: 9CFP2003NR-00* Backplane board - CBP20OB: 9CBP20OBNR-00* Дополнительные опции: 3-Section Rail kit (Supports CMA): 25HB2-A5JH00-K0R Cable Management Arm: 25HB2-2AA700-K0R Состав, артикулы компонентов и доступность опций могут различаться в зависимости от исполнения сервера. Точную конфигурацию уточняйте при заказе.

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
