Серверная платформа R263-ZG5-AAL2

Серверная платформа GIGABYTE R263-ZG5-AAL2. Rack Server - AMD EPYC™ 9005/9004 Server Processors - 2U UP 1 x PCIe Gen5 GPU + 4-Bay E3.S 2T CXL

Форм-фактор

2U Rackmount

Процессоры

AMD EPYC™ 9005 Server Processors AMD EPYC™ 9004 Server Processors Single processor, cTDP up to 500 W

Память

24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 5200 MT/s (1DPC) Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC) AMD EPYC™ 9004: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC) CXL memory expansion module: 4 x E3.S 2T (Gen5 x8)

Сеть

Rear: 1 x 10/100/1000 Mb/s Management LAN

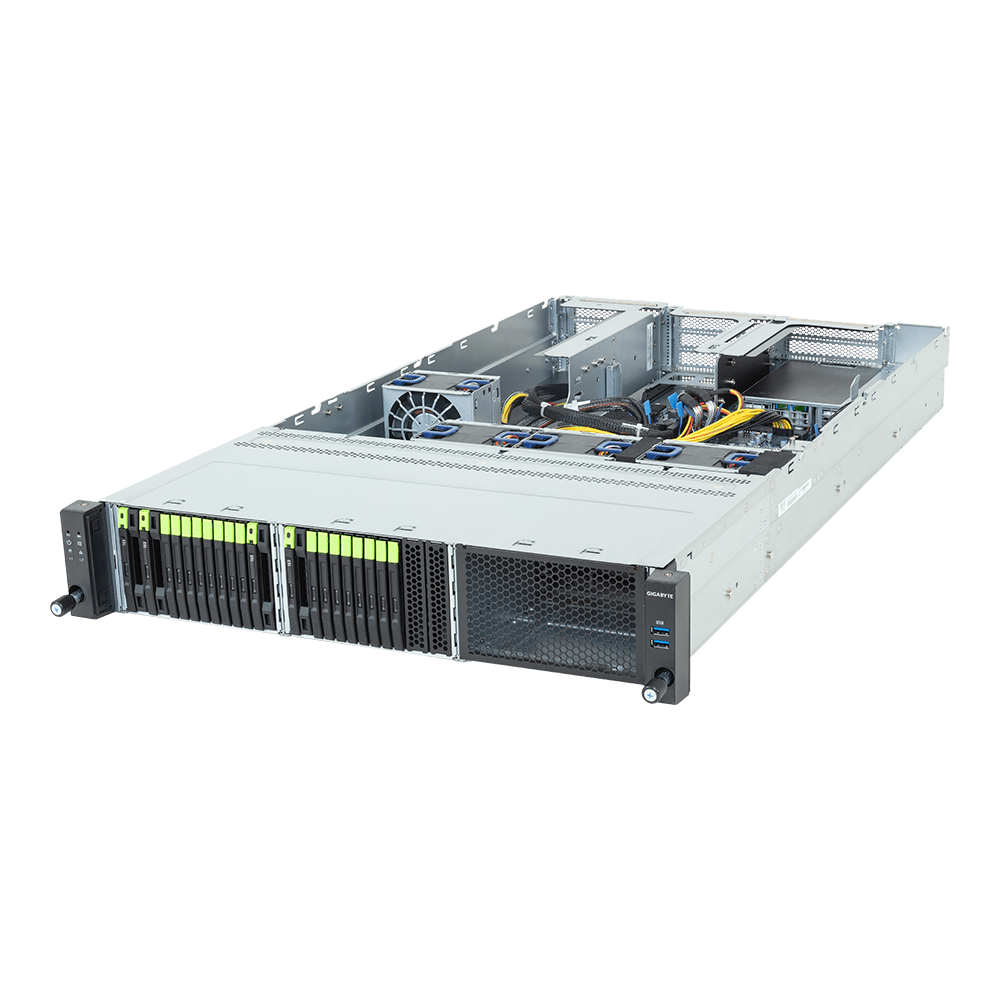

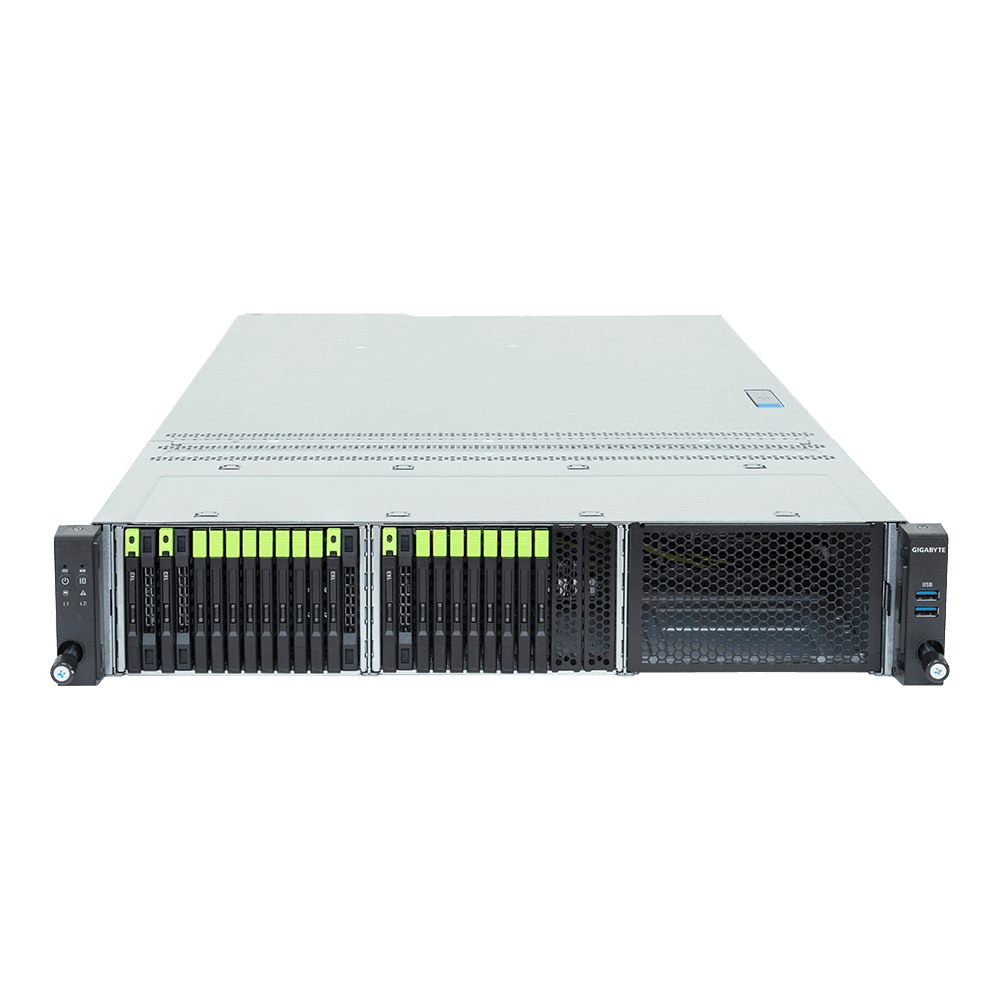

серверная платформа GIGABYTE R263-ZG5-AAL2

Compute And Memory

Вычислительная платформа и память

AMD EPYC™ 9005 Server Processors AMD EPYC™ 9004 Server Processors Single processor, cTDP up to 500 W. 24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 5200 MT/s (1DPC) Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC) AMD EPYC™ 9004: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC) CXL memory expansion module: 4 x E3.S 2T (Gen5 x8)

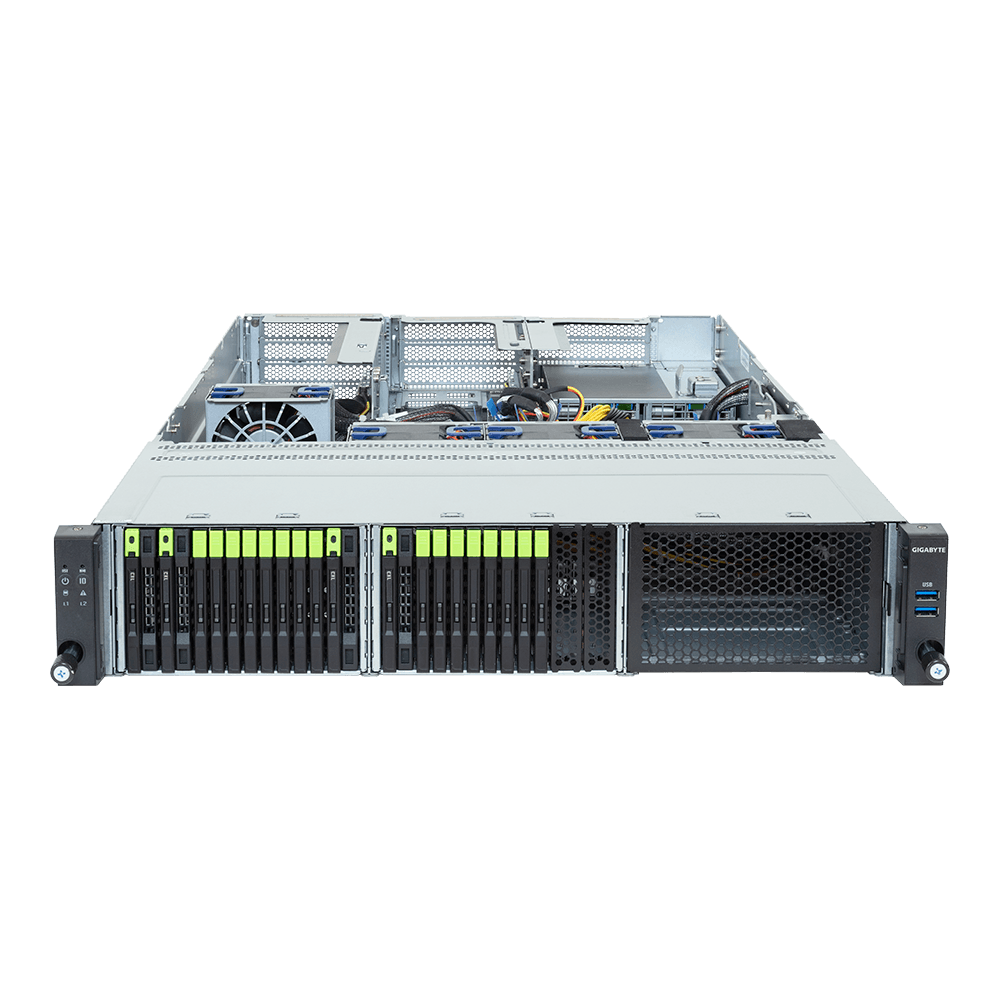

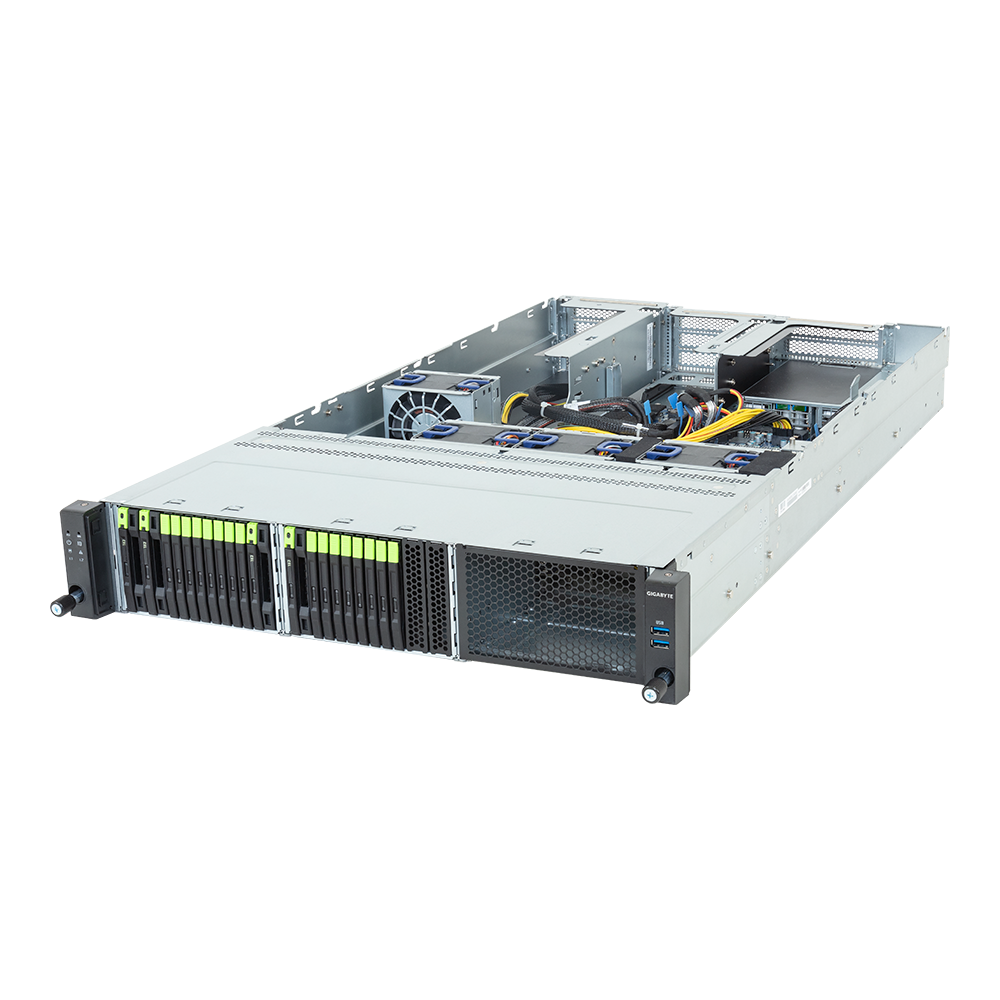

Внутренняя компоновка GIGABYTE R263-ZG5-AAL2

GPU And Expansion

Ускорители и слоты расширения

PCIe Cable x 2: - 1 x FHFL x16 (Gen5 x16), for GPUs - 1 x FHHL x16 (Gen5 x16) 1 x OCP NIC 3.0 (Gen5 x16), disabled

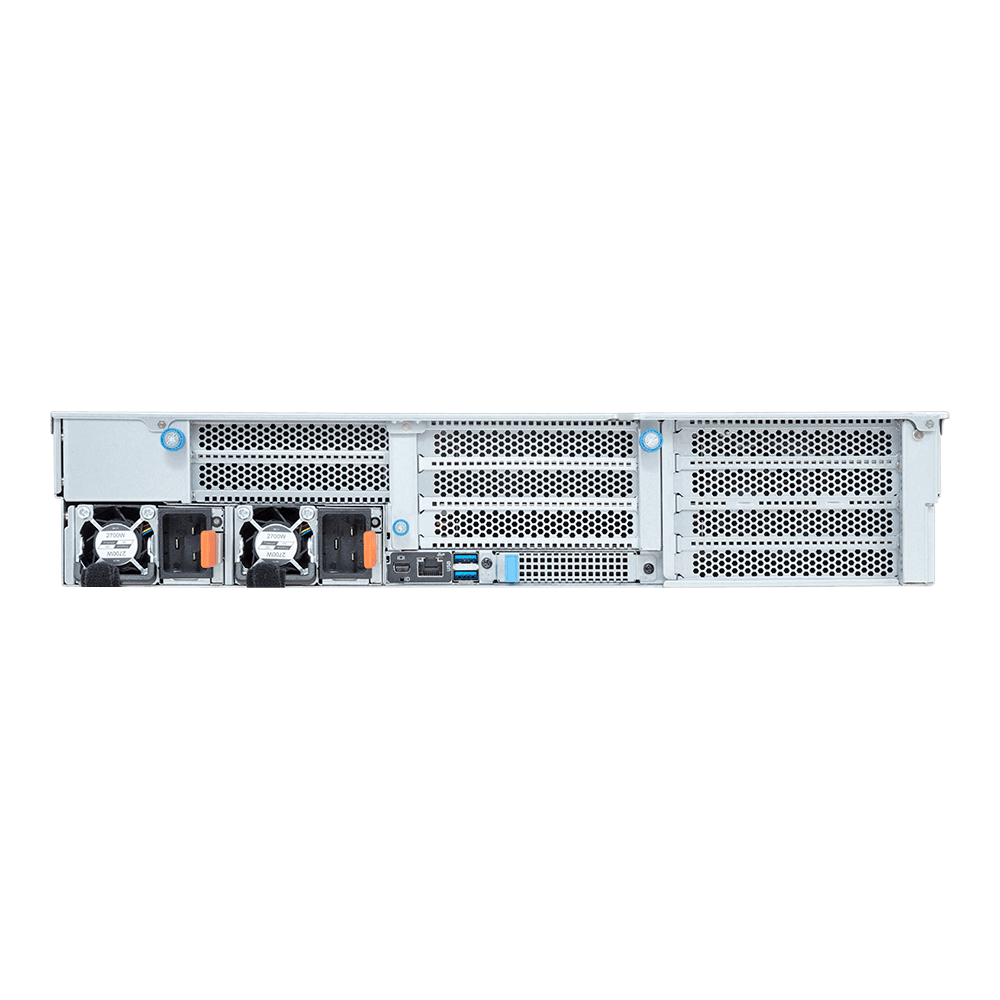

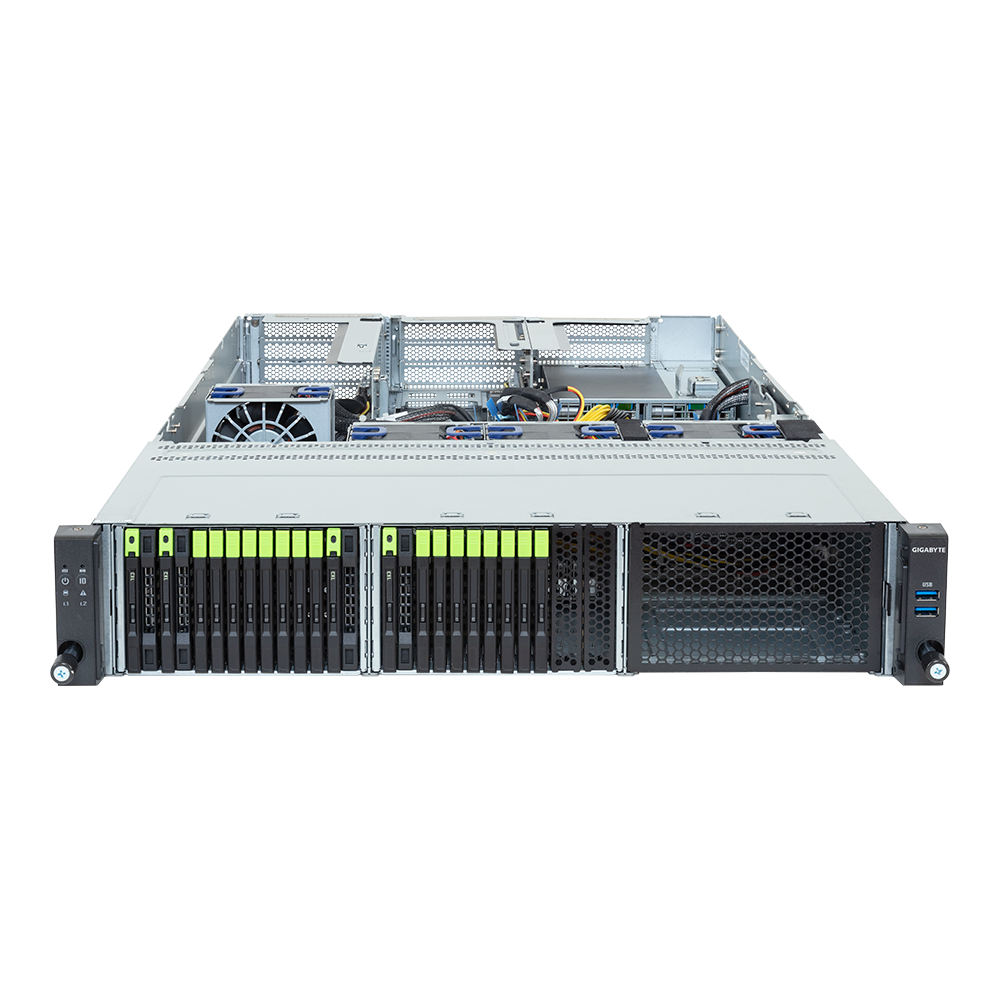

Слоты GPU и расширения GIGABYTE R263-ZG5-AAL2

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 16 x E3.S Gen5 NVMe Internal M.2: 2 x M.2 (2280/22110), PCIe Gen3 x2. Rear: 1 x 10/100/1000 Mb/s Management LAN. 1+1 2700 W 80 PLUS Titanium redundant power supplies [1] AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 16A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2700W/ 200-240V~ or 240Vdc Input +12V/ 225A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

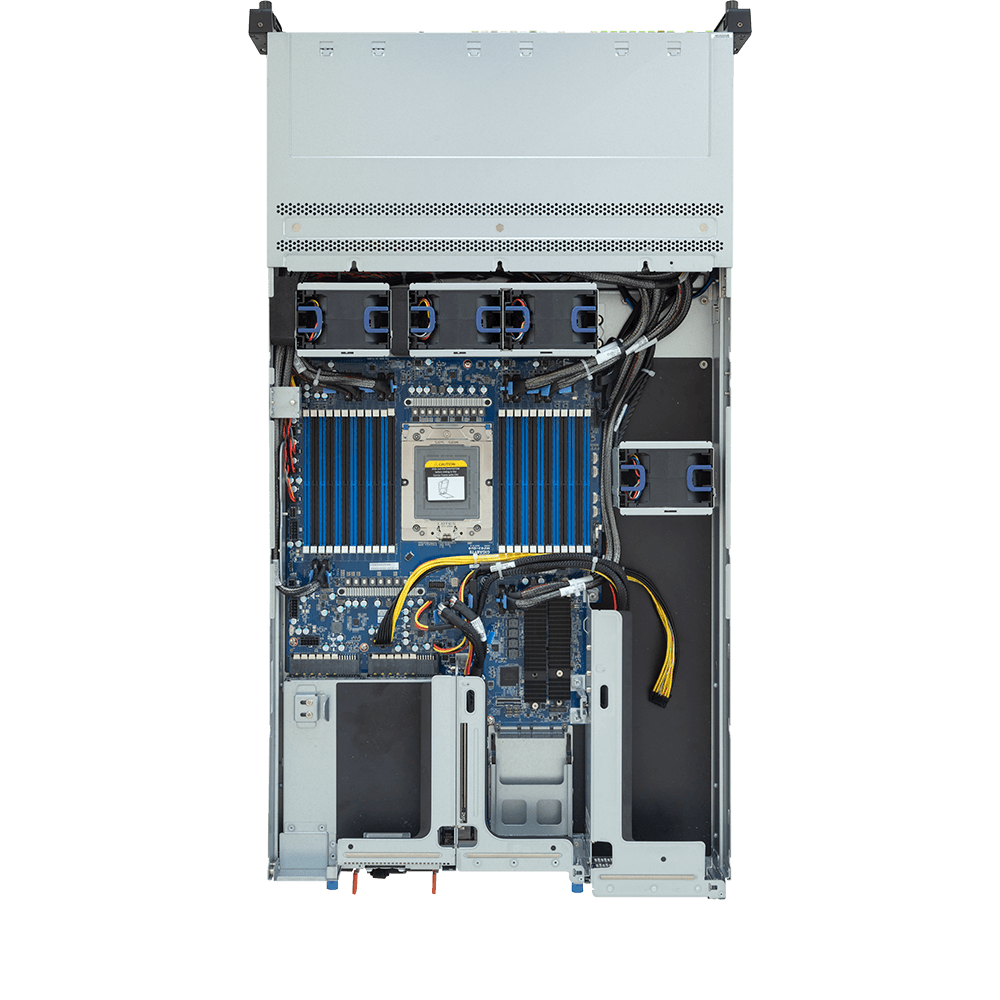

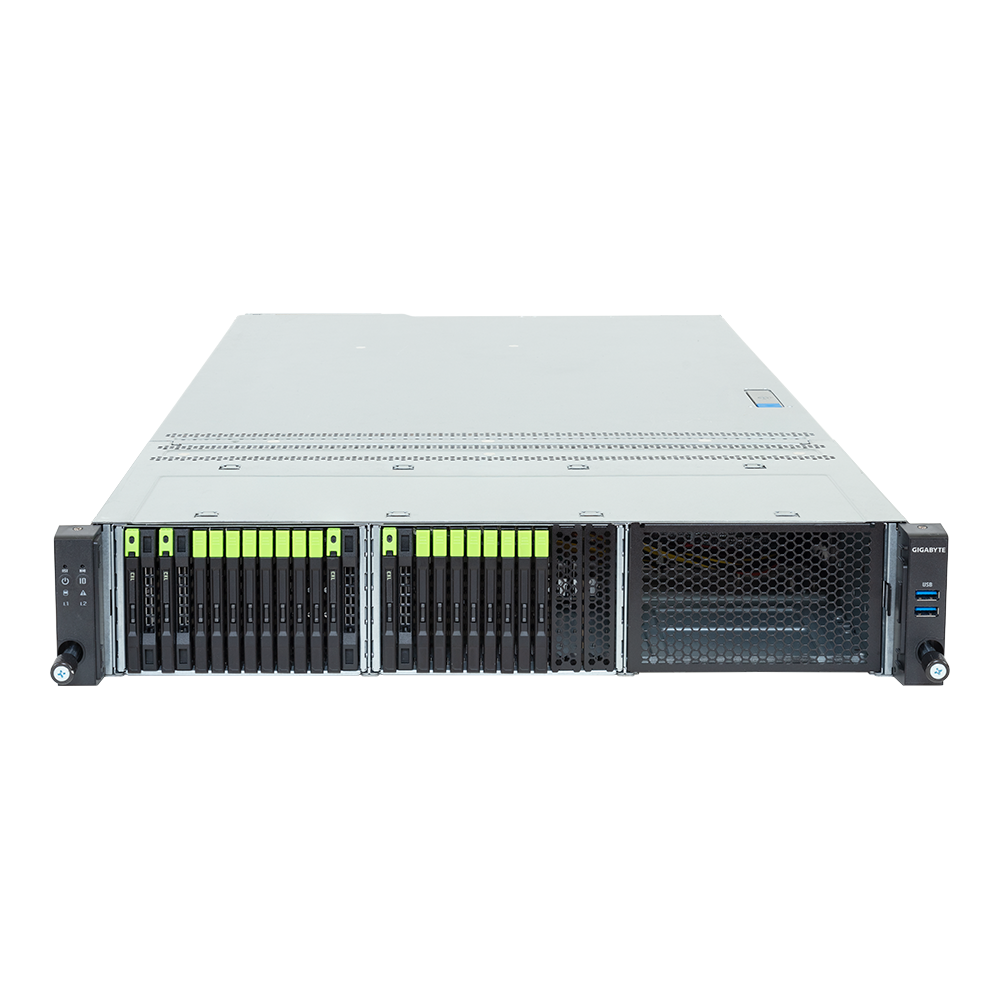

Накопители и задняя панель GIGABYTE R263-ZG5-AAL2

Product Details

Детали конструкции

Характеристики

SAS	N/A
RAID	Require RAID add-in cards
Сеть	Rear: 1 x 10/100/1000 Mb/s Management LAN
Видео	Integrated in ASPEED® AST2600 - 1 x Mini-DP
Сокет	1 x LGA 6096 Socket SP5
Память	24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 5200 MT/s (1DPC) Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC) AMD EPYC™ 9004: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC) CXL memory expansion module: 4 x E3.S 2T (Gen5 x8)
Чипсет	System on Chip
Накопители	Front hot-swap: 16 x E3.S Gen5 NVMe Internal M.2: 2 x M.2 (2280/22110), PCIe Gen3 x2
Процессоры	AMD EPYC™ 9005 Server Processors AMD EPYC™ 9004 Server Processors Single processor, cTDP up to 500 W
Форм-фактор	2U Rackmount
Блоки питания	1+1 2700 W 80 PLUS Titanium redundant power supplies [1] AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 16A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2700W/ 200-240V~ or 240Vdc Input +12V/ 225A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Задняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x MLAN port 1 x ID LED
Передняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs (disabled) 1 x Storage activity LED 1 x System status LED
Плата бэкплейна	Speed and bandwidth: PCIe Gen5 x4
Габариты упаковки	1082 x 685 x 314 mm
Комплект поставки	1 x R263-ZG5-AAL2 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (16-pin, 450mm) 1 x 2-Section Rail kit
Материнская плата	MZG3-GU0
Номера исполнения	Barebone package: 6NR263ZG5DR000ACL2* Motherboard: 9MZG3GU0UR-000-3* 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R CPU heatsink: 25ST1-563400-C1R M.2 heatsink: 12SP2-11000E-00R Front panel board - CFP2001: 9CFP2001NR-00* Backplane board - CBP20P0: 9CBP20P0NR-00* Fan module: 25ST2-885621-A0R Mini-DP to D-Sub cable: 25CRN-200801-K1R GPU power cable (16-pin, 450mm): 25CRI-4500B0-Y4R Power supply: 25EP0-227000-D0S Optional parts: 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R Cable Management Arm: 25HB1-R18300-K0R
Слоты расширения PCIe	PCIe Cable x 2: - 1 x FHFL x16 (Gen5 x16), for GPUs - 1 x FHHL x16 (Gen5 x16) 1 x OCP NIC 3.0 (Gen5 x16), disabled
Габариты (Ш x В x Г), мм	2U 438 x 87.5 x 815
Модули безопасности	1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM012
Системное управление	ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Условия эксплуатации	Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	4 x 80x80x56mm

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
