GIGABYTE R263-Z39-AAJ2

Name: GIGABYTE R263-Z39-AAJ2
Brand: GIGABYTE
SKU: R263-Z39-AAJ2

Серверная платформа R263-Z39-AAJ2

Серверная платформа GIGABYTE R263-Z39-AAJ2. Rack Server - AMD EPYC™ 9005/9004 - 2U UP 16-Bay E3.S Gen5 NVMe + 4-Bay E3.S 2T CXL

Форм-фактор

2U Rackmount

Процессоры

AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 500W

Память

12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s CXL memory expansion module: 4 x E3.S 2T (Gen5 x8)

Сеть

Rear: 1 x 1Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mbps Management LAN

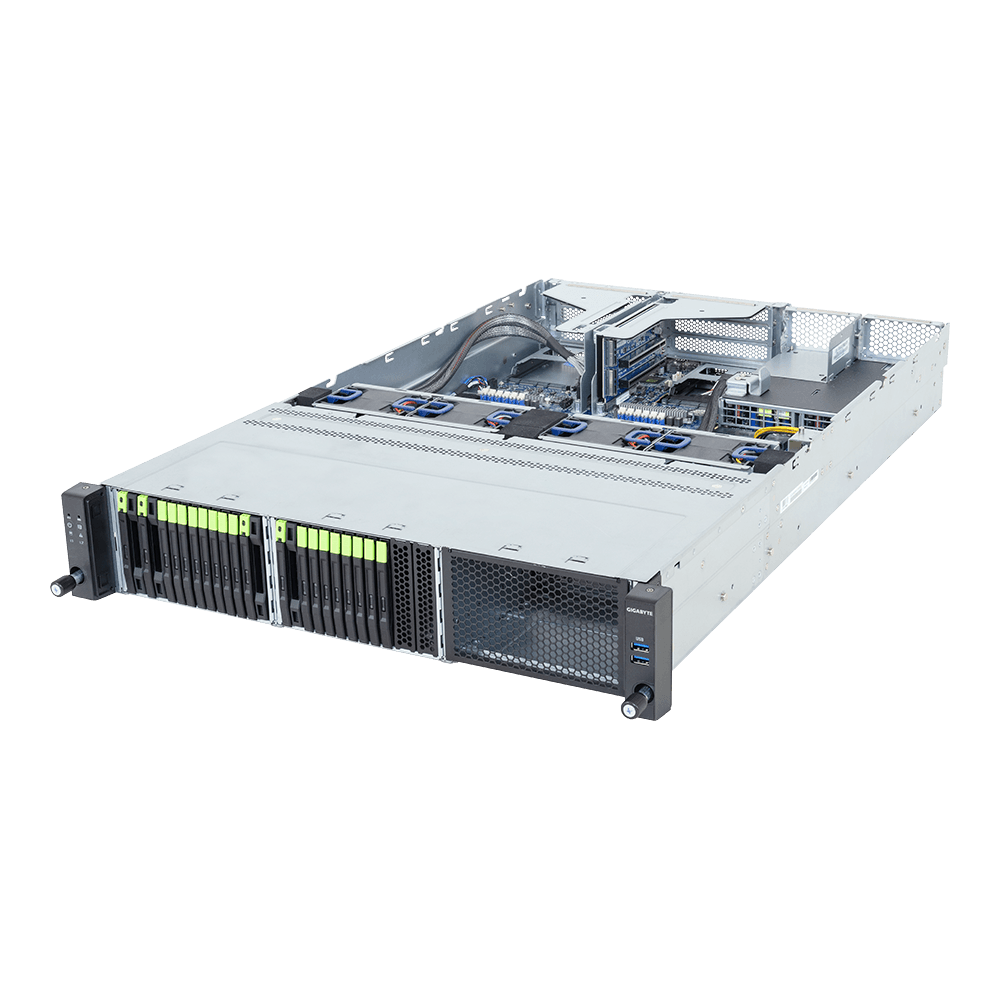

серверная платформа GIGABYTE R263-Z39-AAJ2

Compute And Memory

Вычислительная платформа и память

AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 500W. 12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s CXL memory expansion module: 4 x E3.S 2T (Gen5 x8)

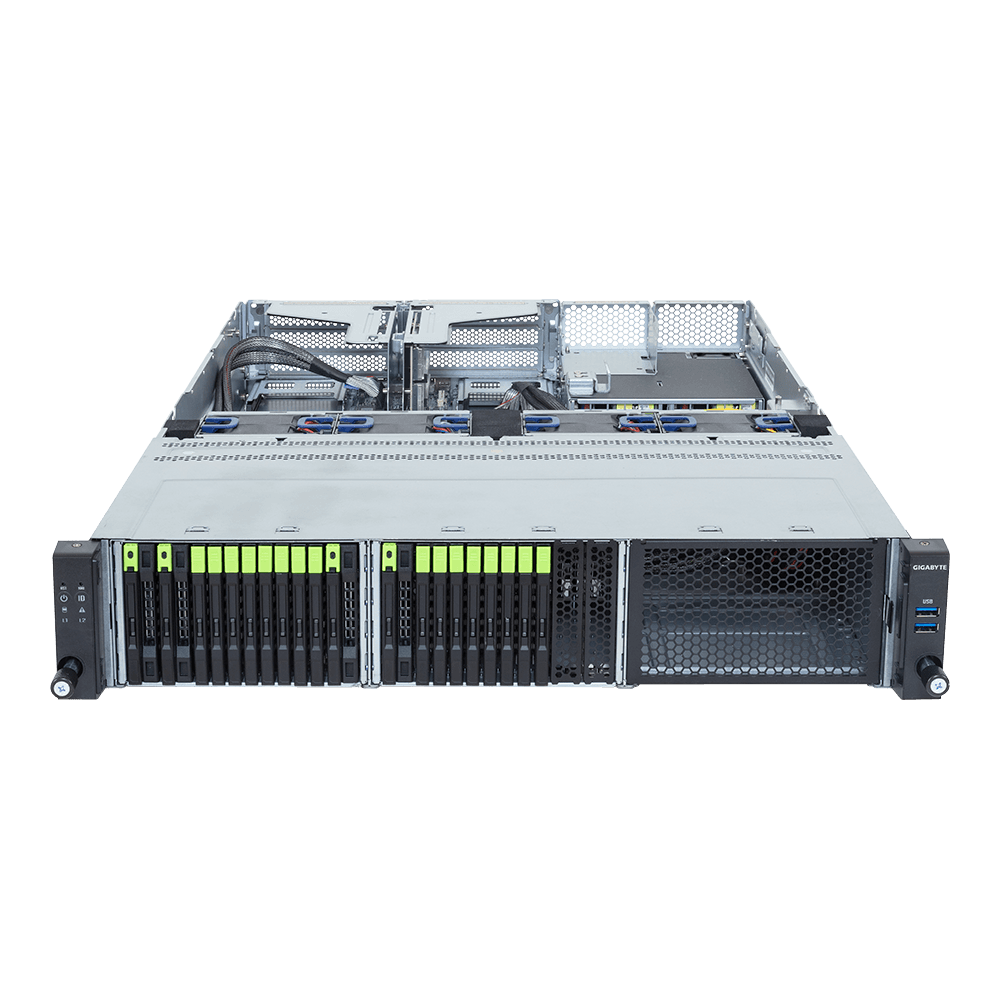

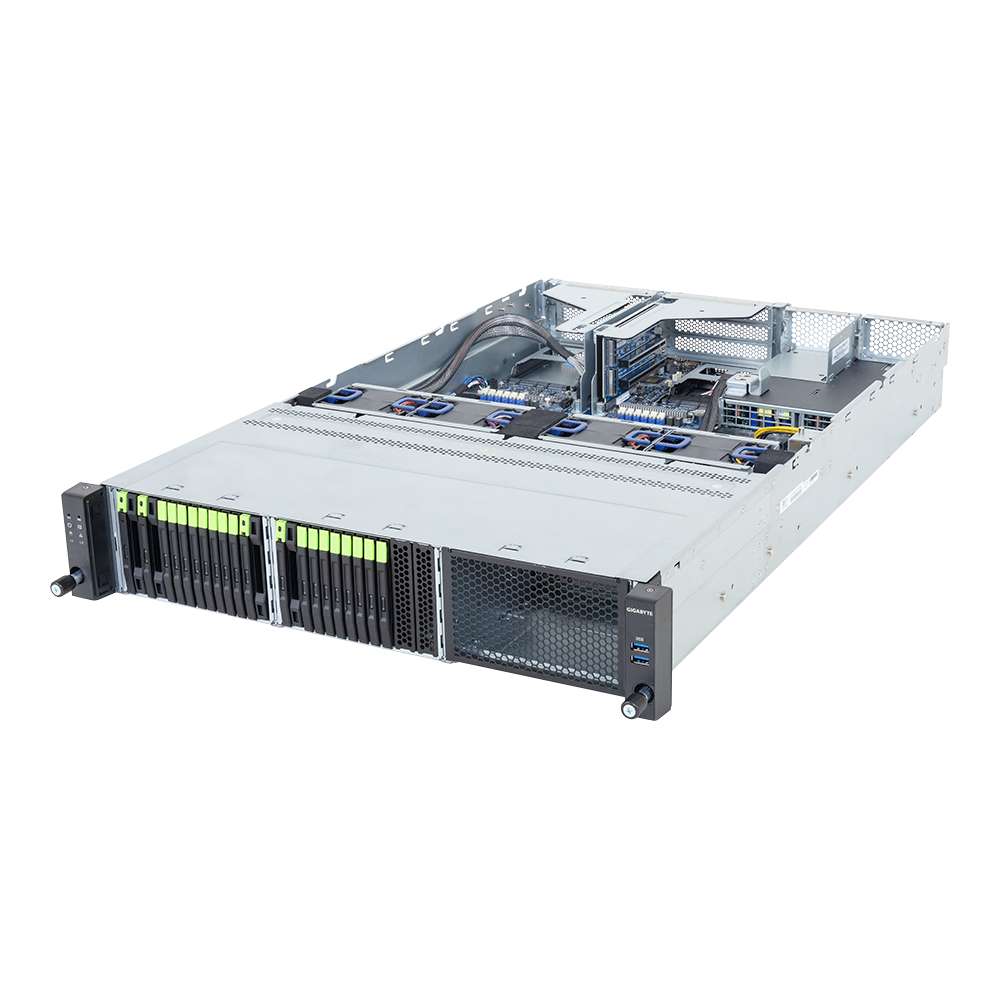

Внутренняя компоновка GIGABYTE R263-Z39-AAJ2

GPU And Expansion

Ускорители и слоты расширения

Riser Card CRS201H: - 1 x FHHL x16 (Gen5 x16) 1 x OCP NIC 3.0 (Gen5 x16) - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), occupied for CXL memory expansion

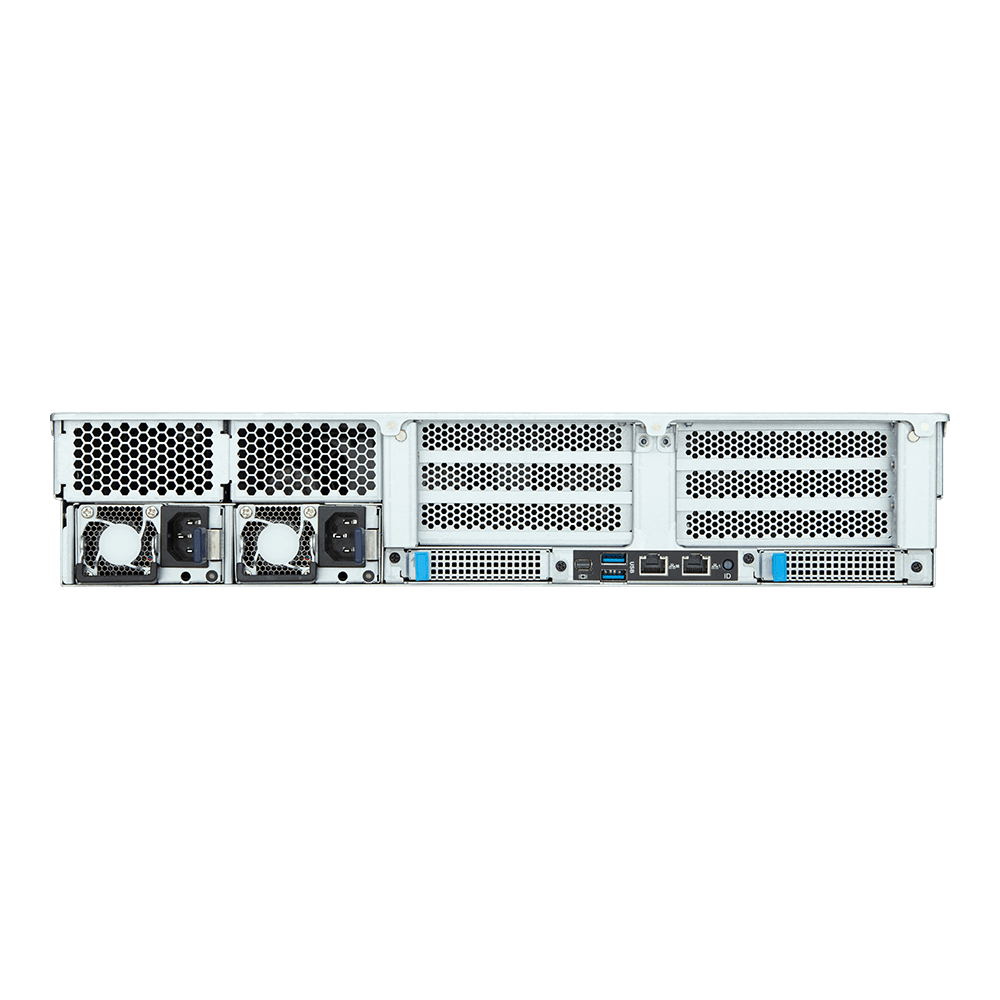

Слоты GPU и расширения GIGABYTE R263-Z39-AAJ2

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 16 x E3.S Gen5 NVMe Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4. Rear: 1 x 1Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mbps Management LAN. 1+1 2000W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 12A, 50/60Hz - 200-240V~/ 10A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 10A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12Vsb/ 3A - Max 1800W/ 200-207V~ +12.2V/ 147.5A +12Vsb/ 3A - Max 1900W/ 208-219V~ +12.2V/ 155.7A +12Vsb/ 3A - Max 2000W/ 220-240V~ or 240Vdc Input +12.2V/ 164A +12Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

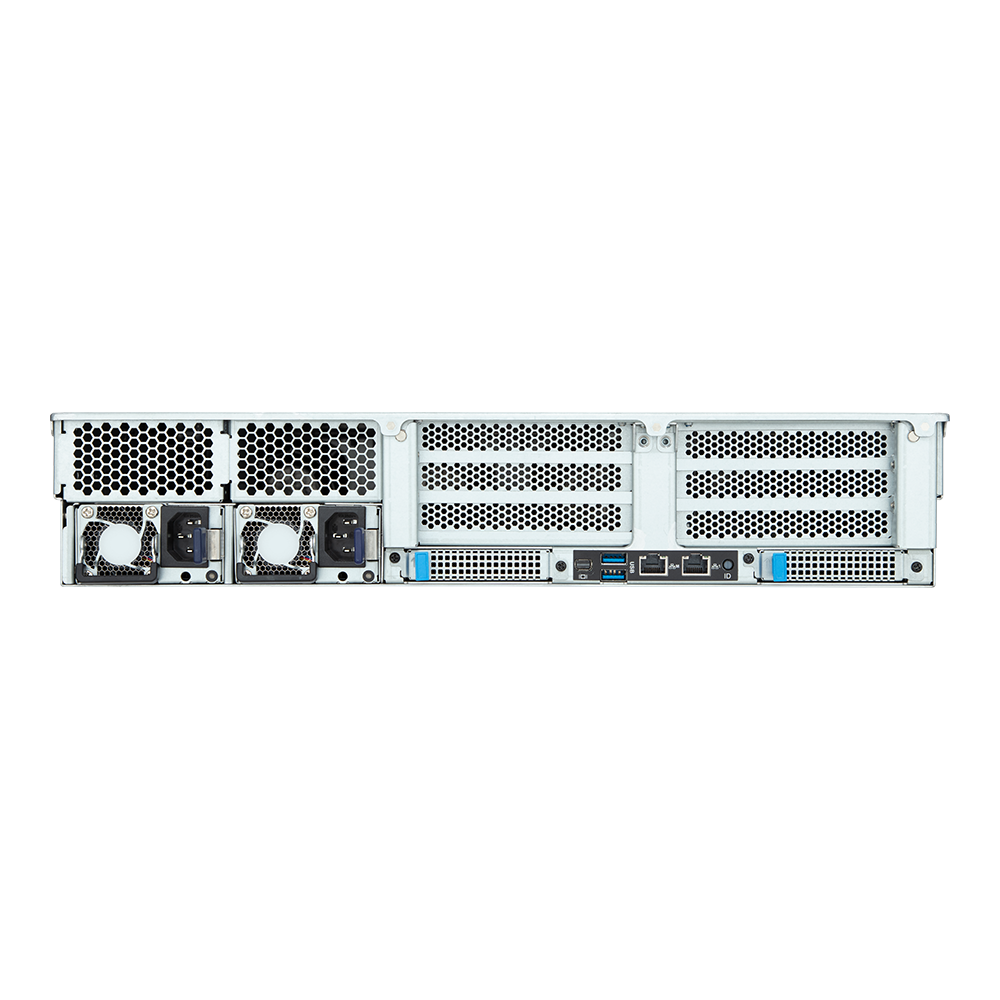

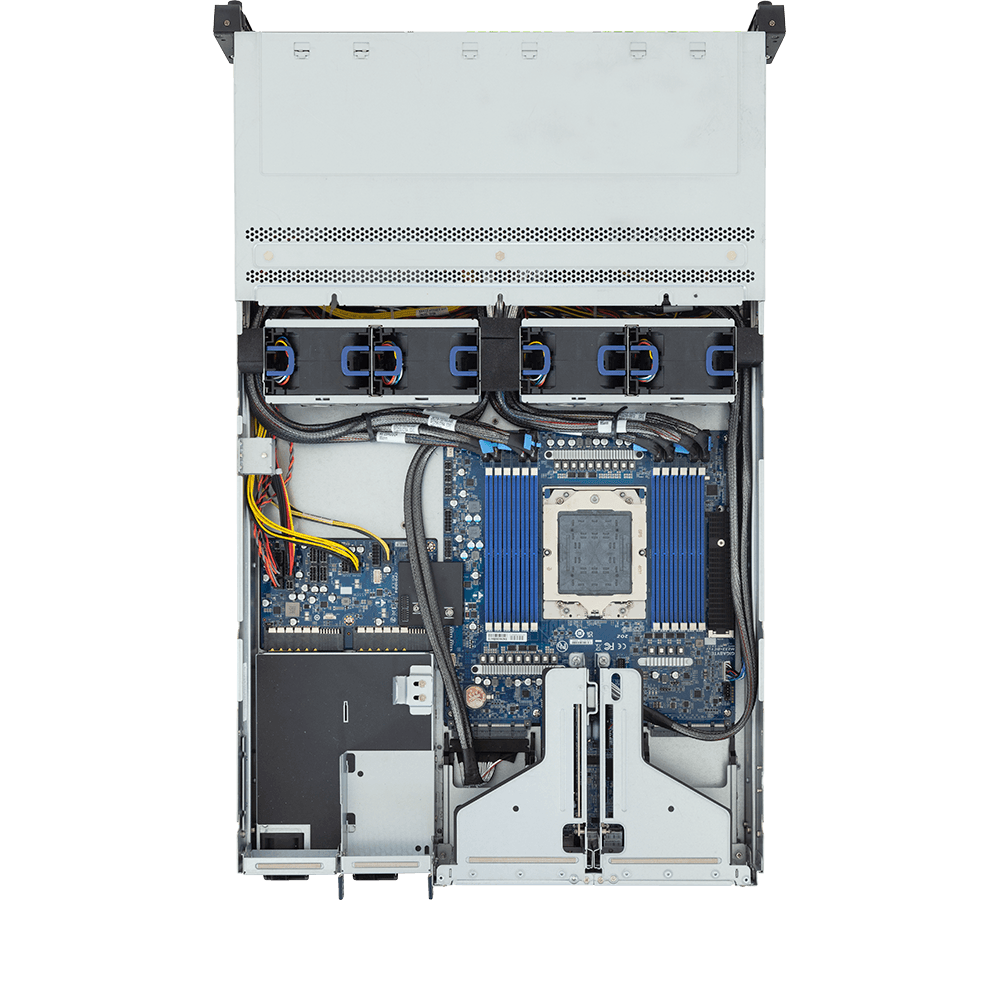

Накопители и задняя панель GIGABYTE R263-Z39-AAJ2

Product Details

Детали конструкции

Характеристики

SAS	N/A
RAID	Require RAID add-in cards
Вес	Net Weight: 20.3 kg Gross Weight: 28 kg
Сеть	Rear: 1 x 1Gb/s LAN (1 x Intel® I210-AT) Supports NCSI function 1 x 10/100/1000 Mbps Management LAN
Видео	Integrated in ASPEED® AST2600 - 1 x Mini-DP
Сокет	1 x LGA 6096 Socket SP5
Память	12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s CXL memory expansion module: 4 x E3.S 2T (Gen5 x8)
Чипсет	System on Chip
Накопители	Front hot-swap: 16 x E3.S Gen5 NVMe Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4
Процессоры	AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 500W
Форм-фактор	2U Rackmount
Блоки питания	1+1 2000W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 12A, 50/60Hz - 200-240V~/ 10A, 50/60Hz DC Input: (Only for China) - 240Vdc/ 10A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12Vsb/ 3A - Max 1800W/ 200-207V~ +12.2V/ 147.5A +12Vsb/ 3A - Max 1900W/ 208-219V~ +12.2V/ 155.7A +12Vsb/ 3A - Max 2000W/ 220-240V~ or 240Vdc Input +12.2V/ 164A +12Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Задняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x RJ45 port 1 x MLAN port 1 x ID button with LED
Совместимые ОС	Please refer to OS compatibility table in support page
Передняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs (1 x LED disabled) 1 x Storage activity LED 1 x System status LED
Плата бэкплейна	Speed and bandwidth: PCIe Gen5 x4
Габариты упаковки	994 x 600 x 293 mm
Комплект поставки	1 x R263-Z39-AAJ2 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Материнская плата	MZ33-DC1
Номера исполнения	Barebone package: 6NR263Z39DR000ACJ2* Motherboard: 9MZ33DC1UR-000-3* 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R CPU heatsink: 25ST1-563400-C1R M.2 heatsink: 12SP2-11000E-00R Front panel board - CFP2001: 9CFP2001NR-00* Backplane board - CBP20P0: 9CBP20P0NR-00* Fan module: 25ST2-885621-A0R Riser card - CRS201H: 9CRS201HNR-00* Mini-DP to D-Sub cable: 25CRN-200801-K1R Power supply: 25EP0-22000O-L0S Optional parts: 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R Cable Management Arm: 25HBZ-R18100-K0R
Слоты расширения PCIe	Riser Card CRS201H: - 1 x FHHL x16 (Gen5 x16) 1 x OCP NIC 3.0 (Gen5 x16) - Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), occupied for CXL memory expansion
Габариты (Ш x В x Г), мм	2U 438 x 87.5 x 710
Модули безопасности	1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM012
Системное управление	ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Условия эксплуатации	Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	4 x 80x80x56mm

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
