GIGABYTE R263-Z37-AAH2

Name: GIGABYTE R263-Z37-AAH2
Brand: GIGABYTE
SKU: R263-Z37-AAH2

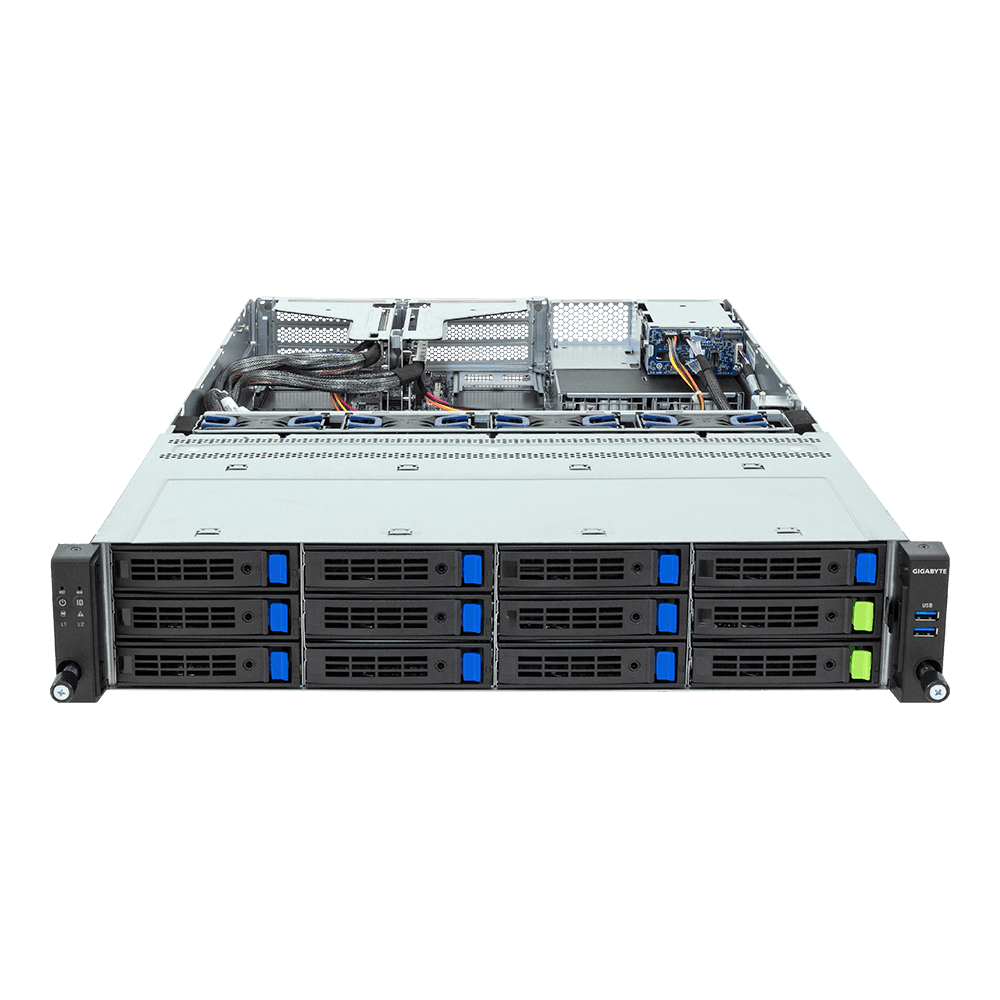

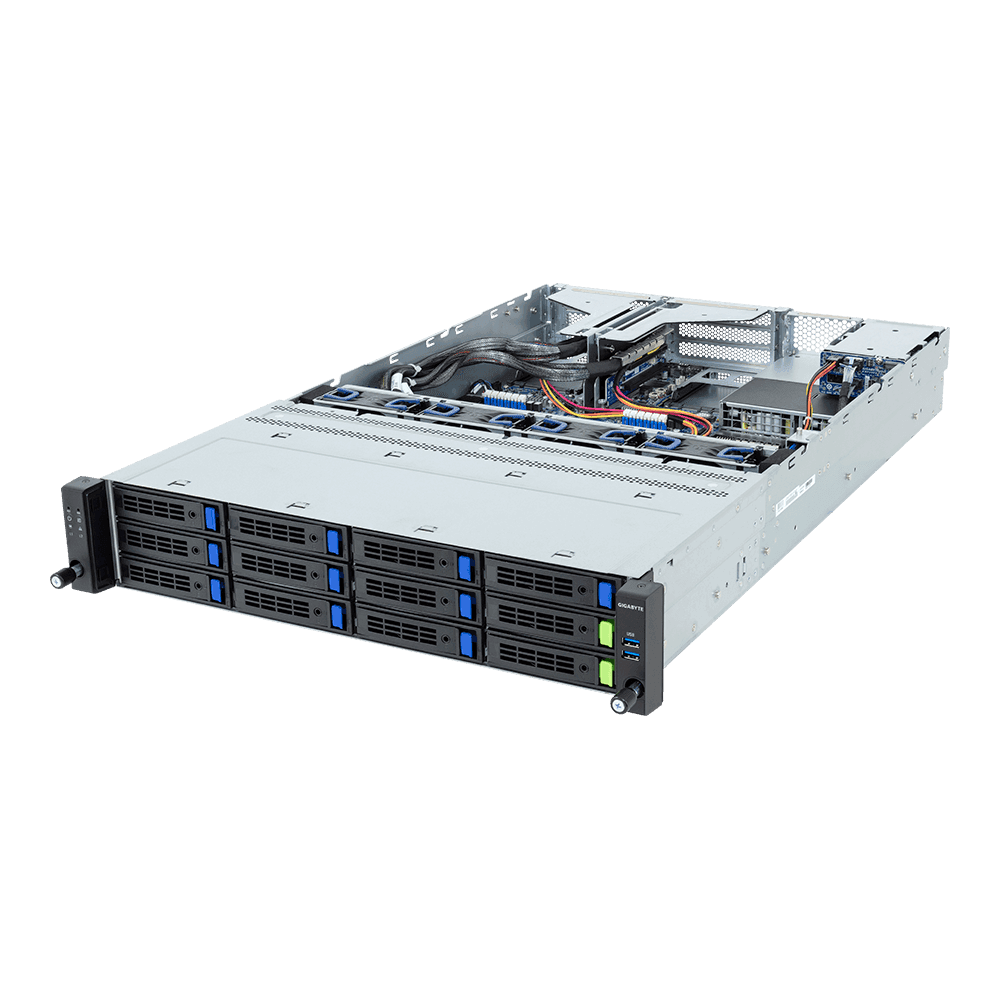

Серверная платформа R263-Z37-AAH2

Серверная платформа GIGABYTE R263-Z37-AAH2. Rack Server - AMD EPYC™ 9005/9004 Server Processors - 2U UP 12+2-Bay Gen5 NVMe/SATA/SAS-4 Titanium

Форм-фактор

2U Rackmount

Процессоры

AMD EPYC™ 9005 Server Processors AMD EPYC™ 9004 Server Processors Single processor, cTDP up to 400 W - At 25°C ambient, cTDP up to 500 W

Память

12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s

Сеть

Rear: 1 x 1 Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mb/s Management LAN

серверная платформа GIGABYTE R263-Z37-AAH2

Compute And Memory

Вычислительная платформа и память

AMD EPYC™ 9005 Server Processors AMD EPYC™ 9004 Server Processors Single processor, cTDP up to 400 W - At 25°C ambient, cTDP up to 500 W. 12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s

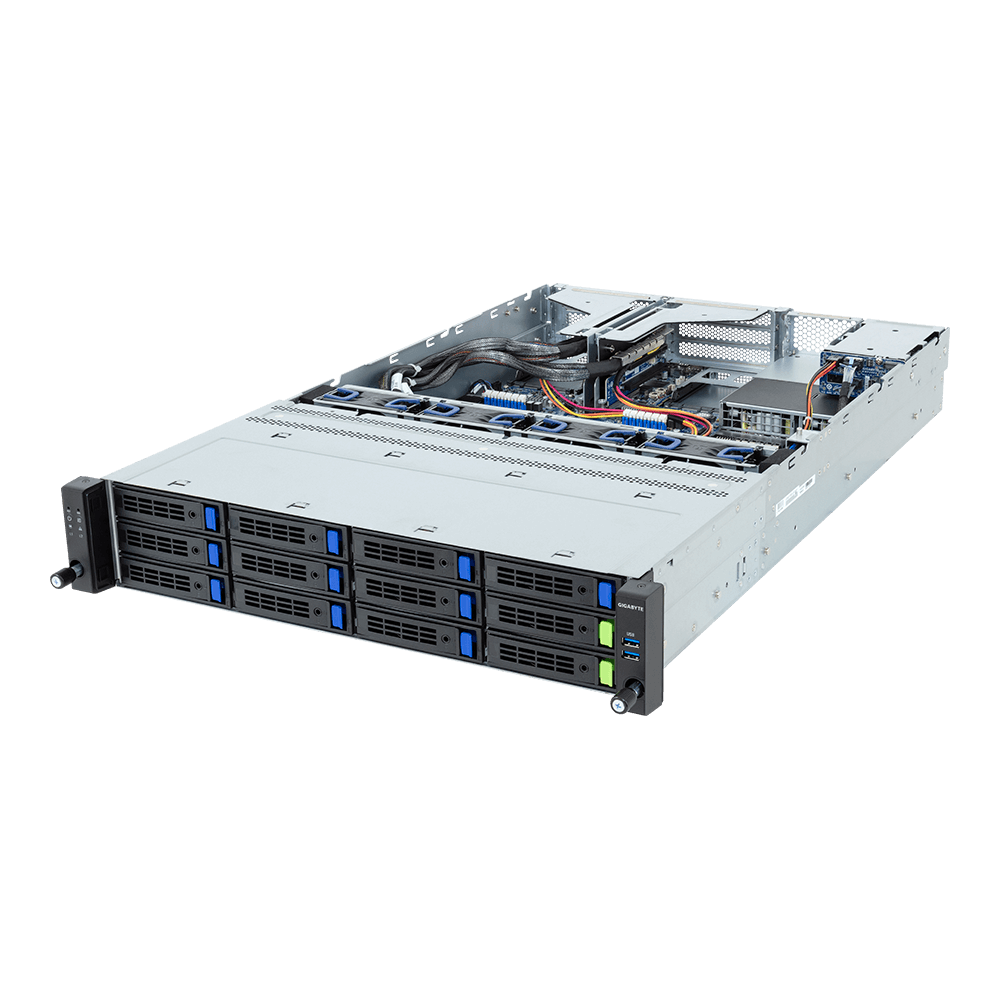

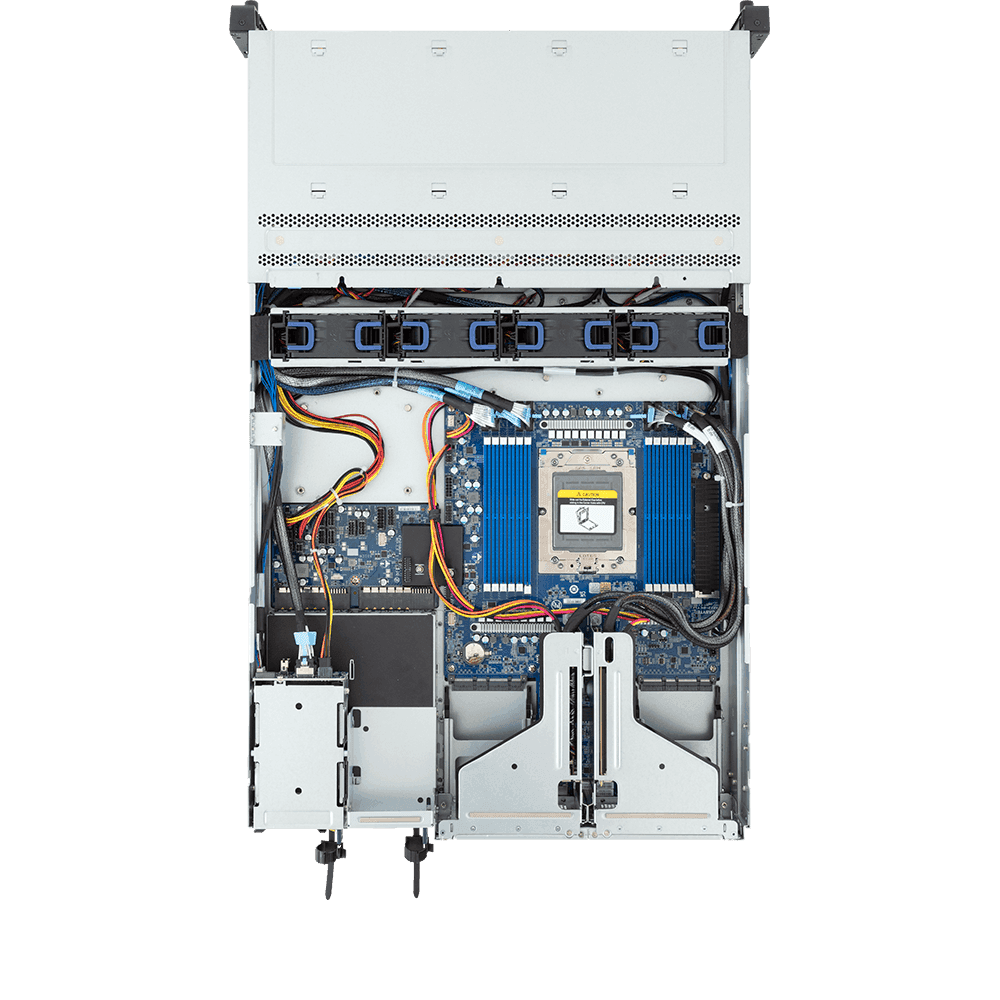

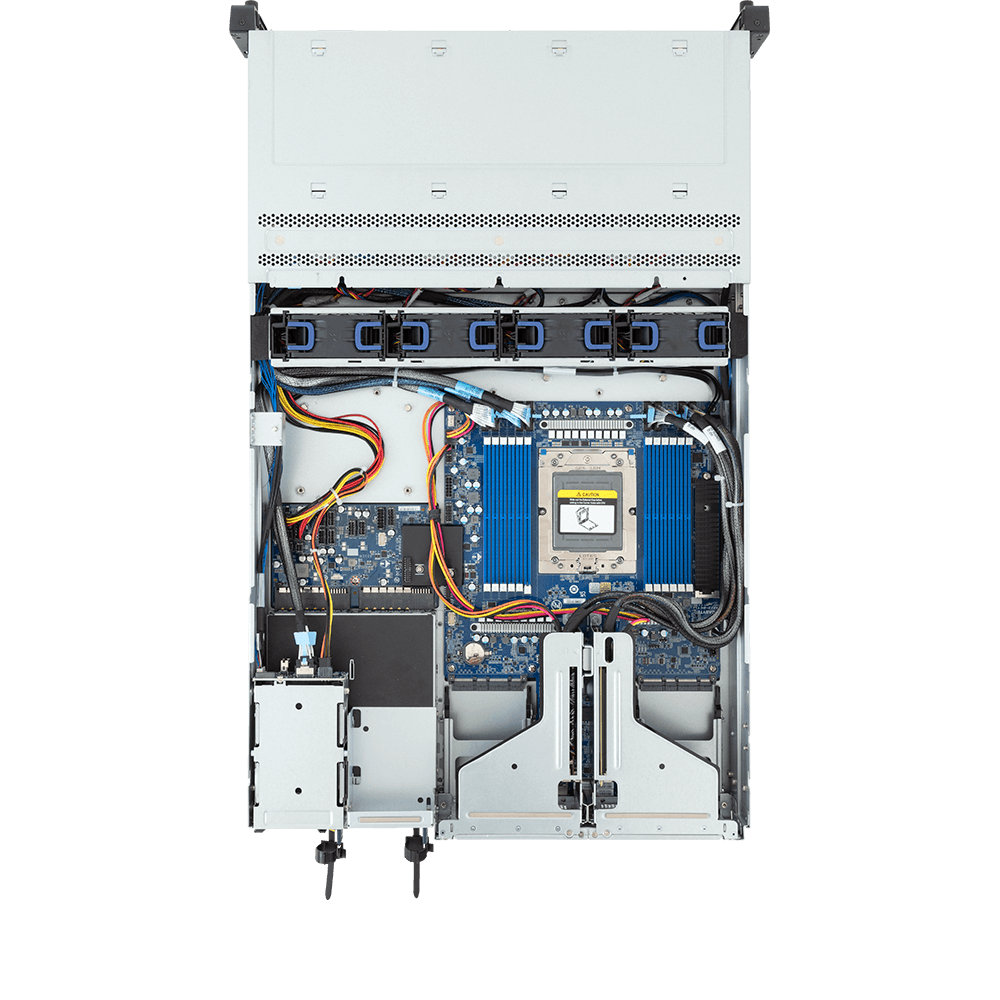

Внутренняя компоновка GIGABYTE R263-Z37-AAH2

GPU And Expansion

Ускорители и слоты расширения

Riser Card CRC1012: - 1 x FHHL x16 (Gen5 x16) Riser Card CRC1013: - 1 x FHHL x16 (Gen5 x16) PCIe Cable x 2: - 2 x FHHL x16 (Gen5 x16) 2 x OCP NIC 3.0 (Gen5 x16) - Support NCSI function

Слоты GPU и расширения GIGABYTE R263-Z37-AAH2

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 2 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1] 10 x 3.5"/2.5" SATA/SAS-4 [1] Rear hot-swap: 2 x 2.5" Gen5 NVMe [2] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4 [1] SAS card is required to support SAS drives. [2] NVMe supported only.. Rear: 1 x 1 Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mb/s Management LAN. 1+1 1300 W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 8A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 7A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A - Max 1300W/ 200-240V~ or 240Vdc Input +12.2V/ 106A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

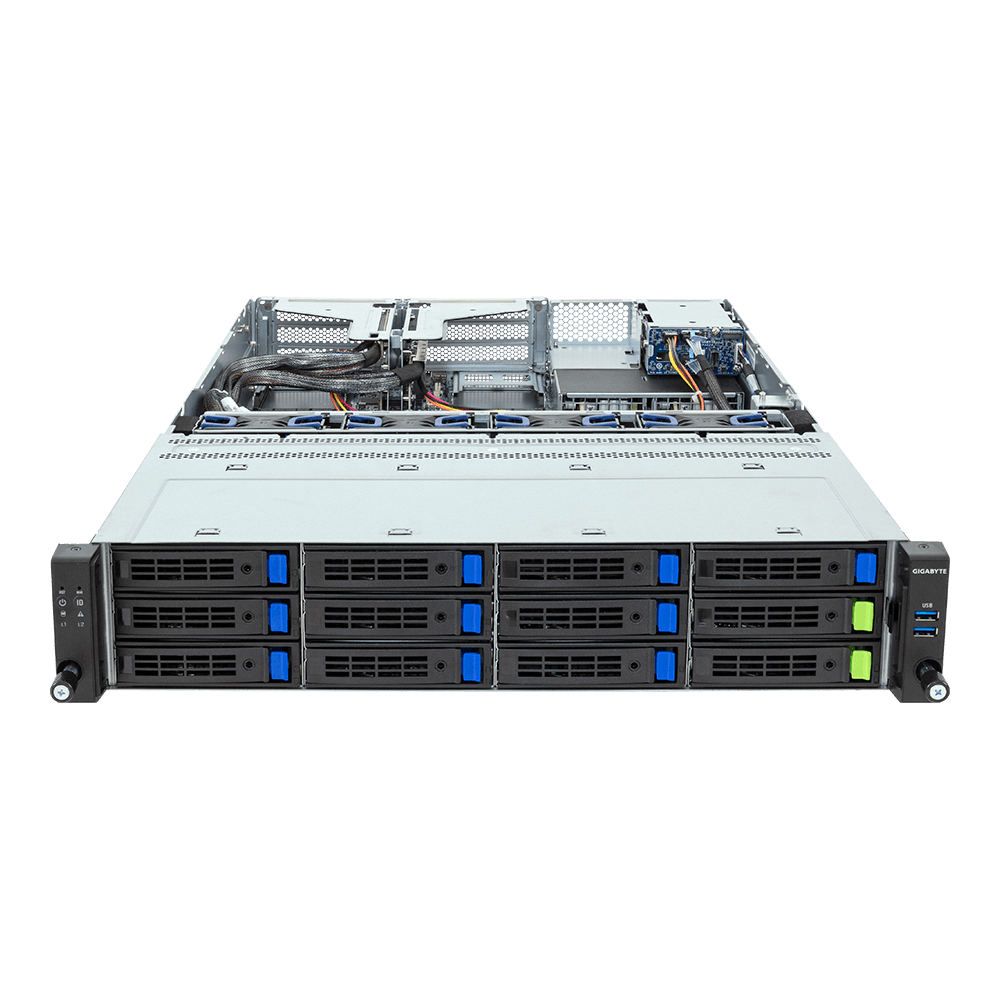

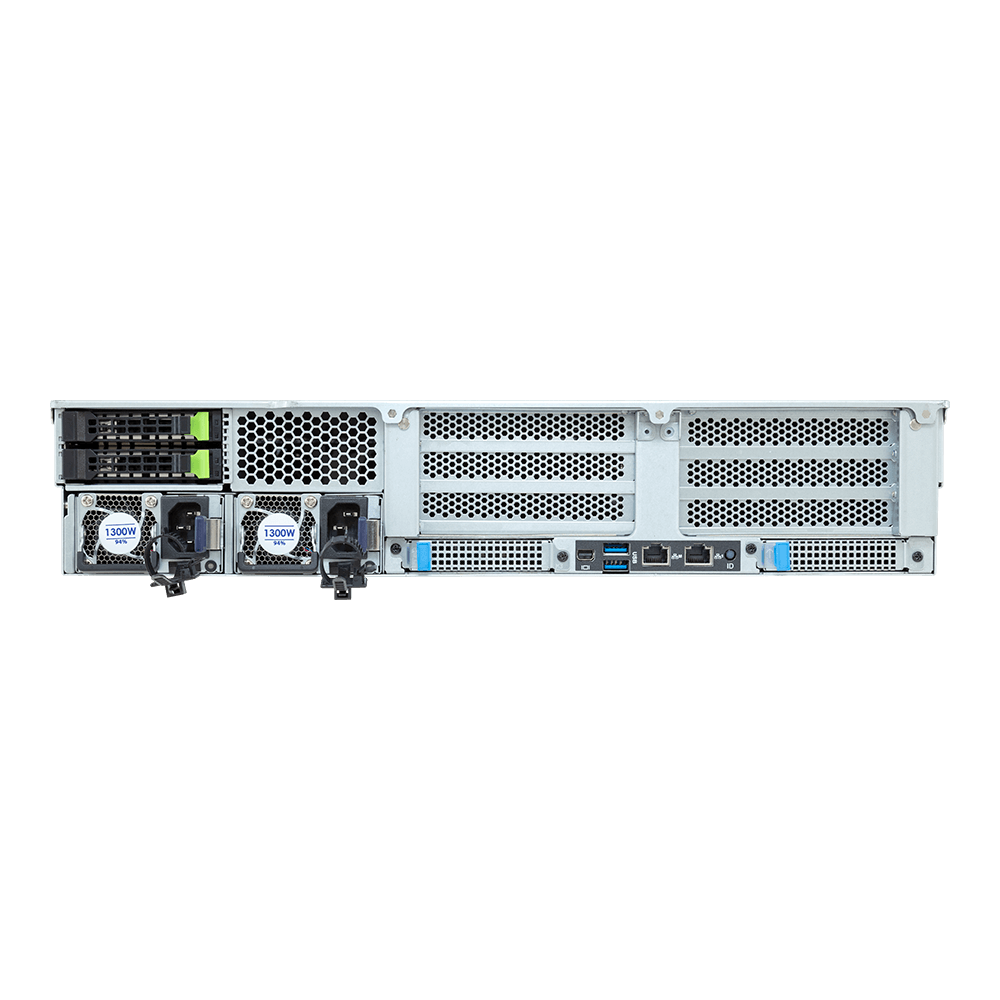

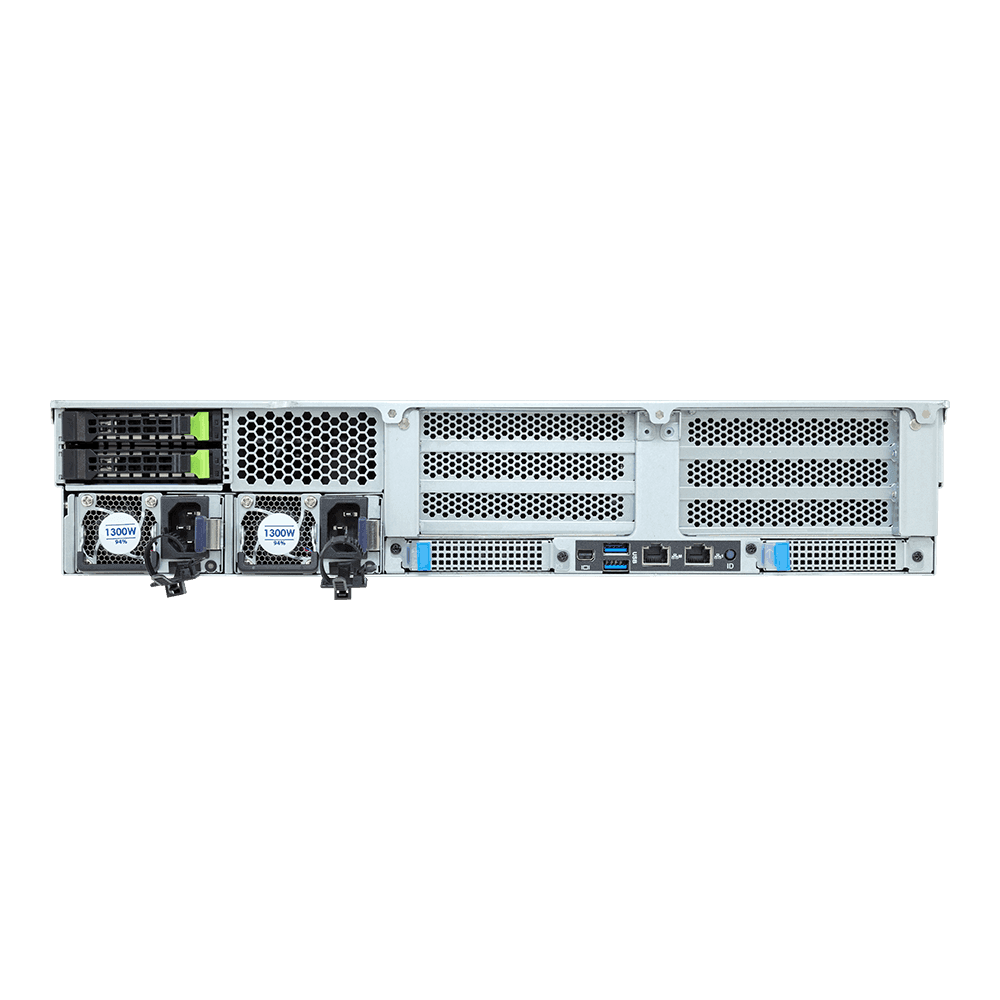

Накопители и задняя панель GIGABYTE R263-Z37-AAH2

Product Details

Детали конструкции

Характеристики

SAS	Require SAS add-in cards
RAID	Require RAID add-in cards
Вес	Net Weight: 15.2 kg Gross Weight: 27.8 kg
Сеть	Rear: 1 x 1 Gb/s LAN (1 x Intel® I210-AT) Supports NCSI function 1 x 10/100/1000 Mb/s Management LAN
Видео	Integrated in ASPEED® AST2600 - 1 x Mini-DP
Сокет	1 x LGA 6096 Socket SP5
Память	12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s
Чипсет	System on Chip
Накопители	Front hot-swap: 2 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1] 10 x 3.5"/2.5" SATA/SAS-4 [1] Rear hot-swap: 2 x 2.5" Gen5 NVMe [2] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4 [1] SAS card is required to support SAS drives. [2] NVMe supported only.
Процессоры	AMD EPYC™ 9005 Server Processors AMD EPYC™ 9004 Server Processors Single processor, cTDP up to 400 W At 25°C ambient, cTDP up to 500 W
Форм-фактор	2U Rackmount
Блоки питания	1+1 1300 W 80 PLUS Titanium redundant power supplies AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 8A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 7A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A - Max 1300W/ 200-240V~ or 240Vdc Input +12.2V/ 106A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Задняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x RJ45 port 1 x MLAN port 1 x ID button with LED
Передняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs (1 x LED disabled) 1 x Storage activity LED 1 x System status LED
Плата бэкплейна	Speed and bandwidth: Front - CBP20C7: PCIe Gen5 x4 or SATA 6 Gb/s or SAS-4 24 Gb/s Rear - CBP2025: PCIe Gen5 x4
Габариты упаковки	994 x 600 x 293 mm
Комплект поставки	1 x R263-Z37-AAH2 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Материнская плата	MZ33-DC1
Номера исполнения	Barebone package: 6NR263Z37DR000ADH2* Motherboard: 9MZ33DC1UR-000-3* 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R CPU heatsink: 25ST1-563400-C1R M.2 heatsink: 12SP2-11000E-00R Front panel board - CFP2001: 9CFP2001NR-00* Backplane board - CBP2025: 9CBP2025NR-00* Backplane board - CBP20C7: 9CBP20C7NR-00* Fan module: 25ST2-88382T-S1R Riser card - CRC1012: 9CRC1012NR-00* Riser card - CRC1013: 9CRC1013NR-00* Mini-DP to D-Sub cable: 25CRN-200801-K1R Power supply: 25EP0-21300F-G1S Optional parts: 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R Cable Management Arm: 25HBZ-R18100-K0R
Слоты расширения PCIe	Riser Card CRC1012: - 1 x FHHL x16 (Gen5 x16) Riser Card CRC1013: - 1 x FHHL x16 (Gen5 x16) PCIe Cable x 2: - 2 x FHHL x16 (Gen5 x16) 2 x OCP NIC 3.0 (Gen5 x16) Support NCSI function
Габариты (Ш x В x Г), мм	2U 438 x 87.5 x 710
Модули безопасности	1 x TPM header with SPI interface - Optional TPM 2.0 kit: CTM012
Системное управление	ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Условия эксплуатации	Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	4 x 80x80x38mm

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
