GIGABYTE

GIGABYTE R263-Z35-AAL1

Name: GIGABYTE R263-Z35-AAL1
Brand: GIGABYTE
SKU: R263-Z35-AAL1

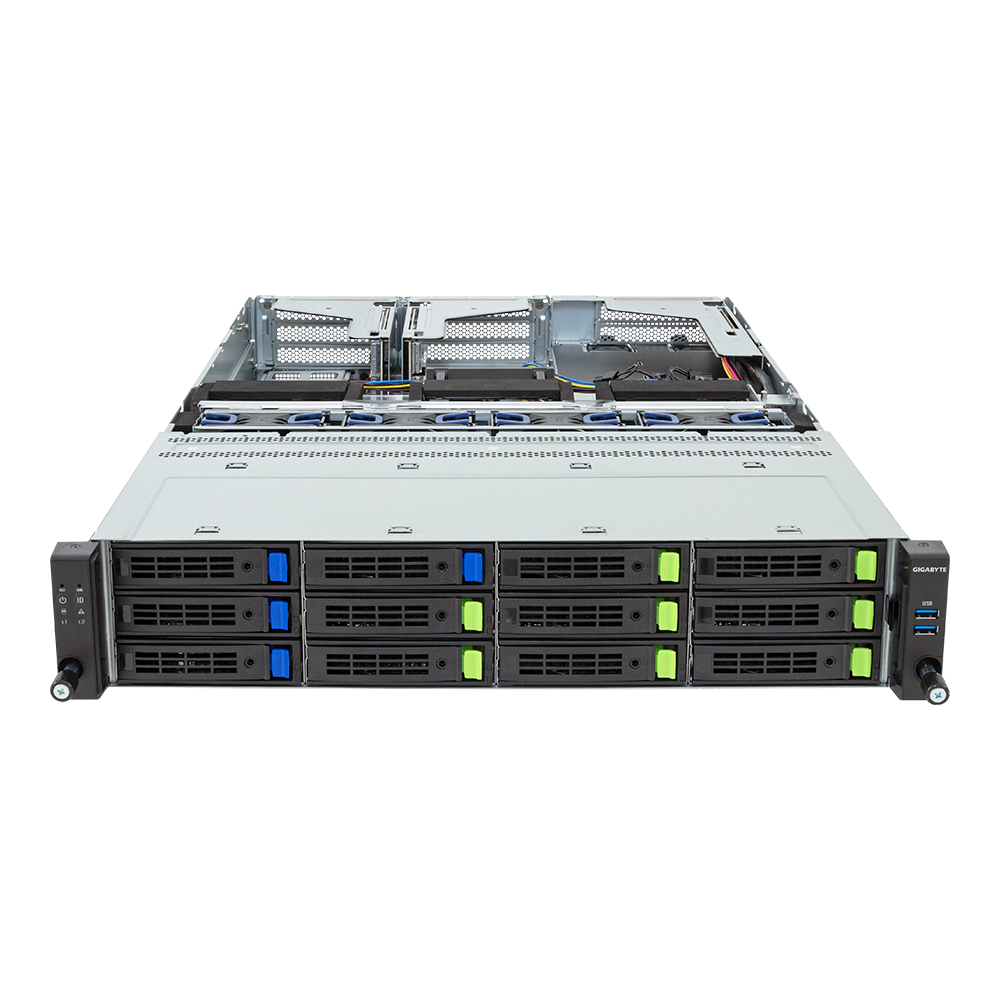

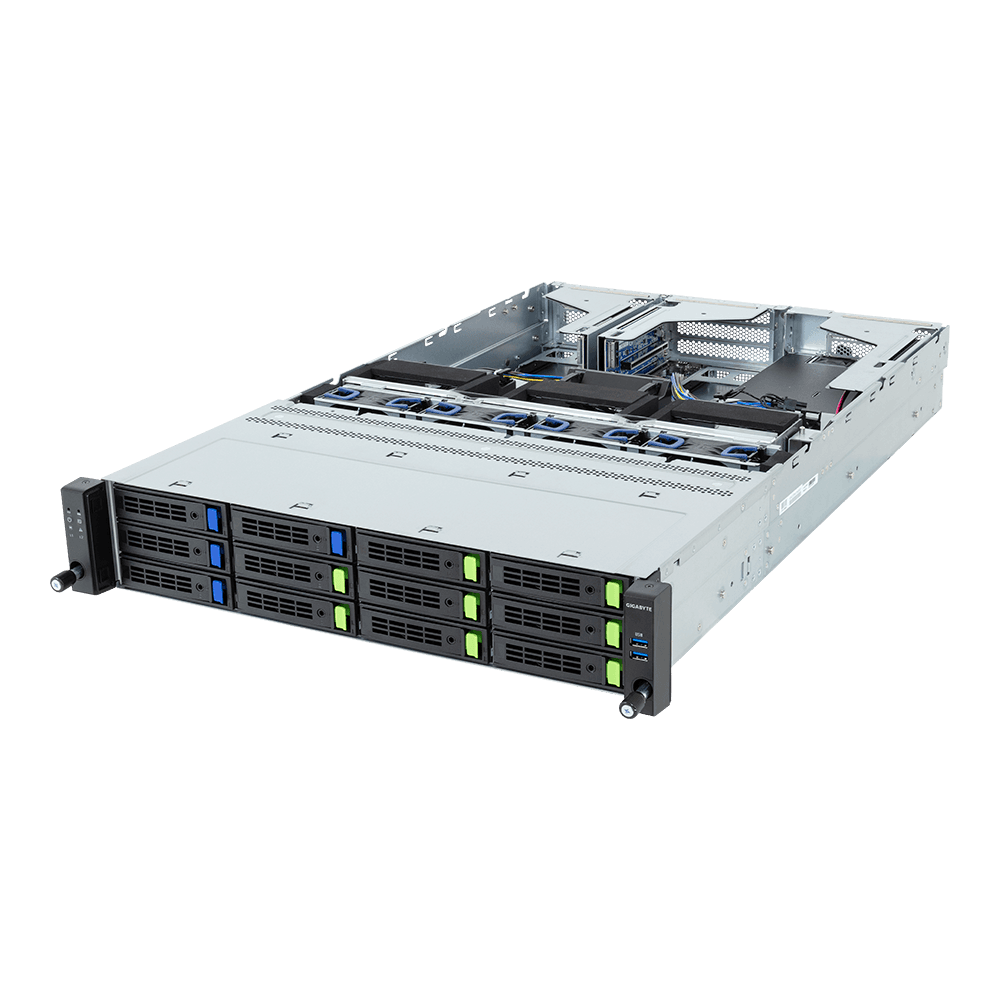

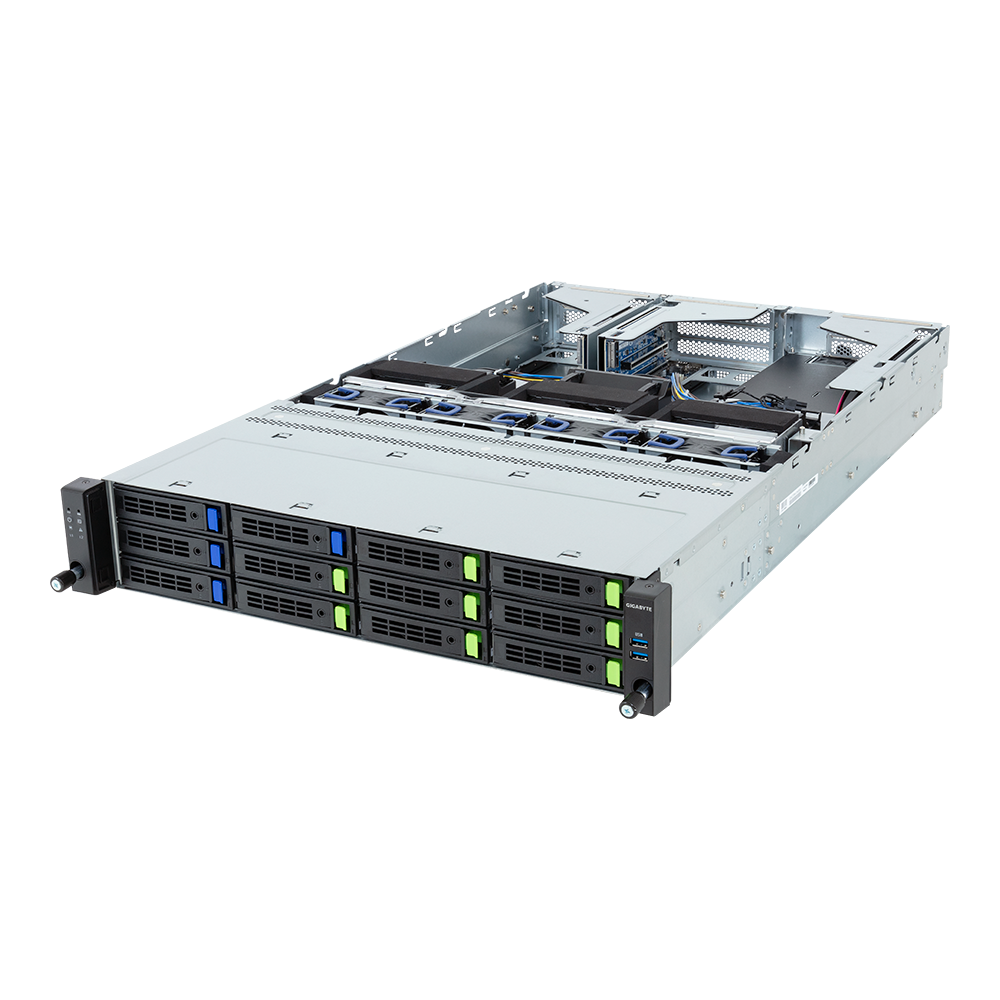

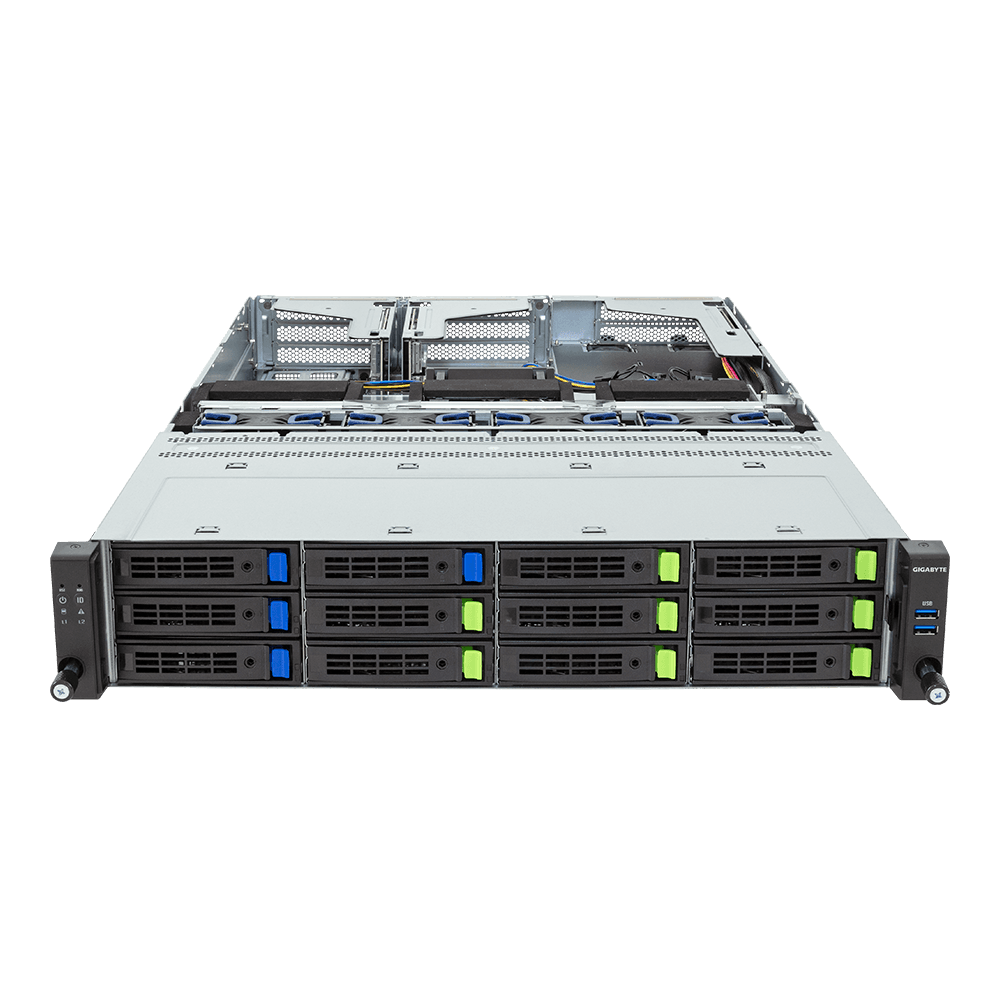

Серверная платформа R263-Z35-AAL1

Серверная платформа GIGABYTE R263-Z35-AAL1. Rack Server - AMD EPYC™ 9005/9004 - 2U UP 3 x PCIe Gen5 GPUs Titanium

Форм-фактор

2U Rackmount

Процессоры

Память

12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s

Сеть

Rear: 1 x 1Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mbps Management LAN

серверная платформа GIGABYTE R263-Z35-AAL1

Compute And Memory

Вычислительная платформа и память

AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 400W [1] [1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.. 12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s

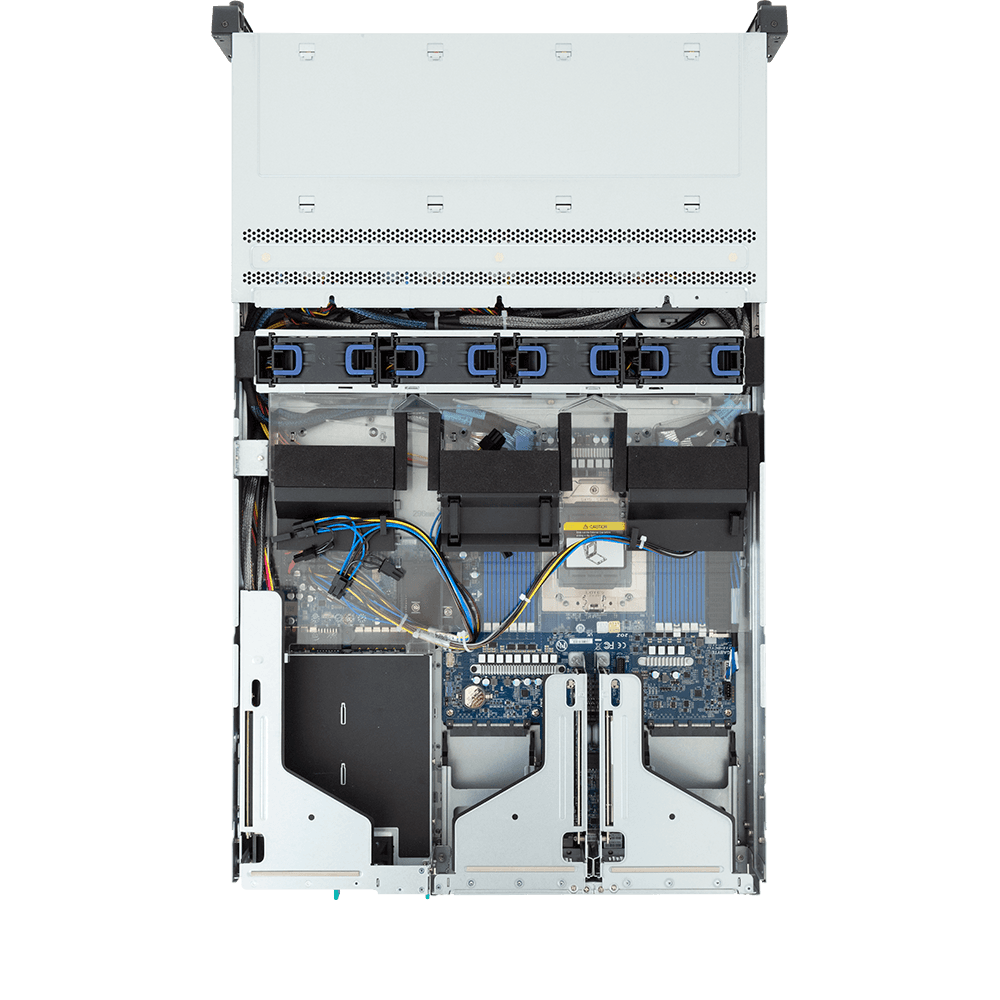

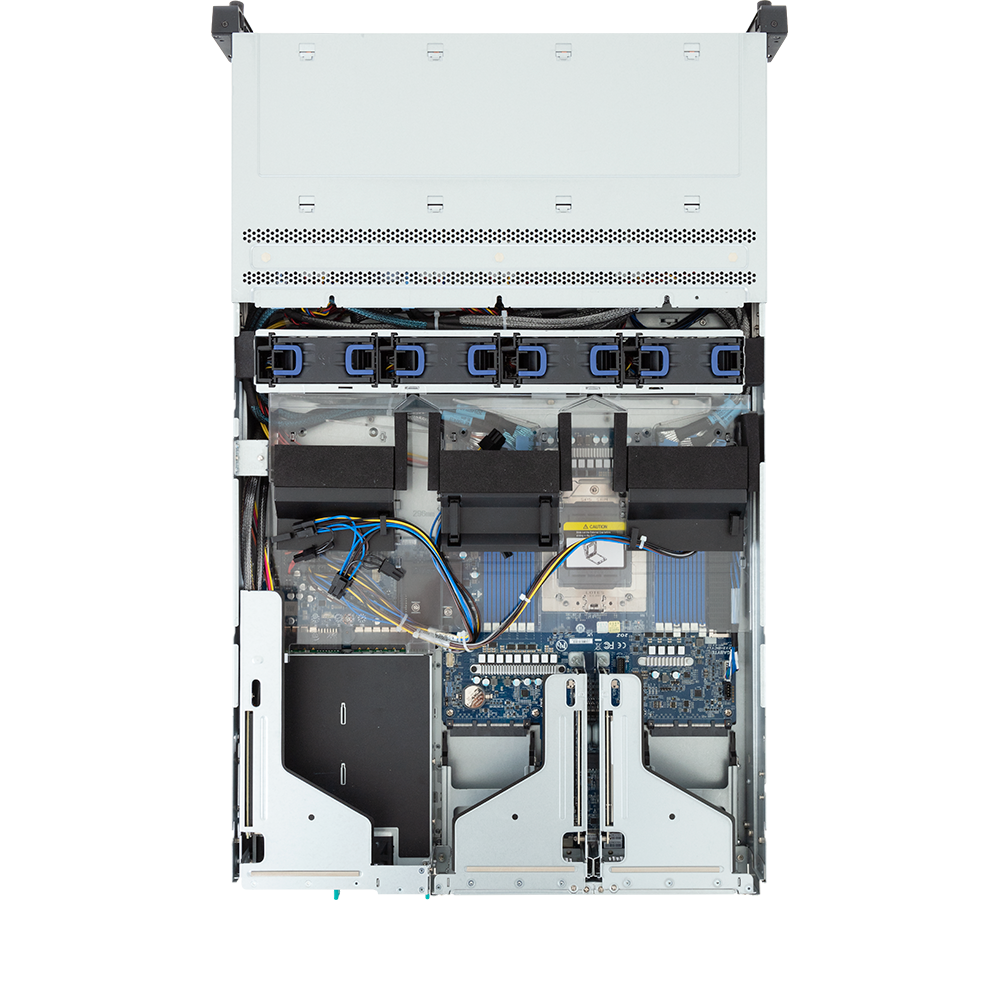

Внутренняя компоновка GIGABYTE R263-Z35-AAL1

GPU And Expansion

Ускорители и слоты расширения

Riser Card CRS201H: - 1 x FHFL x16 (Gen5 x16), for GPUs Riser Card CRS201M: - 1 x FHFL x16 (Gen5 x16), for GPUs PCIe Cable: - 1 x FHFL x16 (Gen5 x16), for GPUs 2 x OCP NIC 3.0 (Gen5 x16) - Support NCSI function

Слоты GPU и расширения GIGABYTE R263-Z35-AAL1

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1] 4 x 3.5"/2.5" SATA/SAS-4 [1] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4 [1] SAS card is required to support SAS drives.. Rear: 1 x 1Gb/s LAN (1 x Intel® I210-AT) - Supports NCSI function 1 x 10/100/1000 Mbps Management LAN. 1+1 2700W 80 PLUS Titanium redundant power supplies [1] AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 16A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2700W/ 200-240V~ or 240Vdc Input +12V/ 225A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

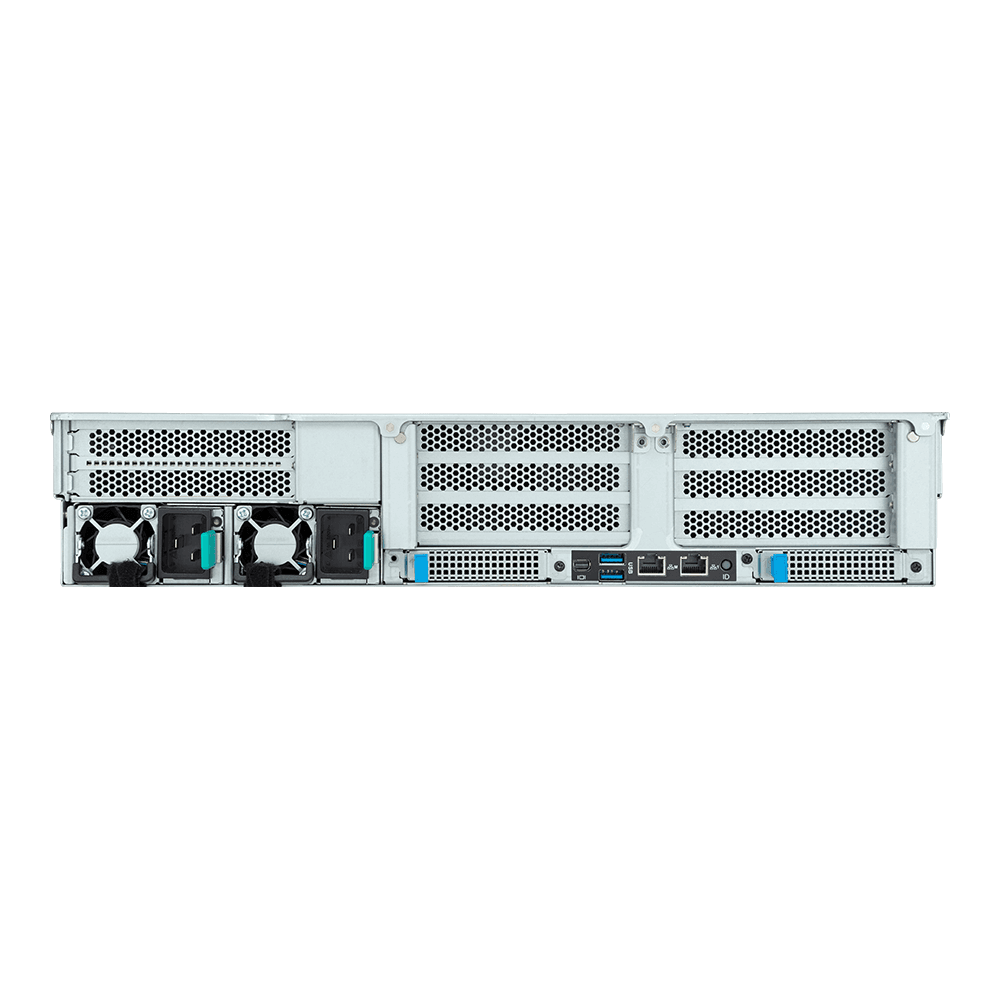

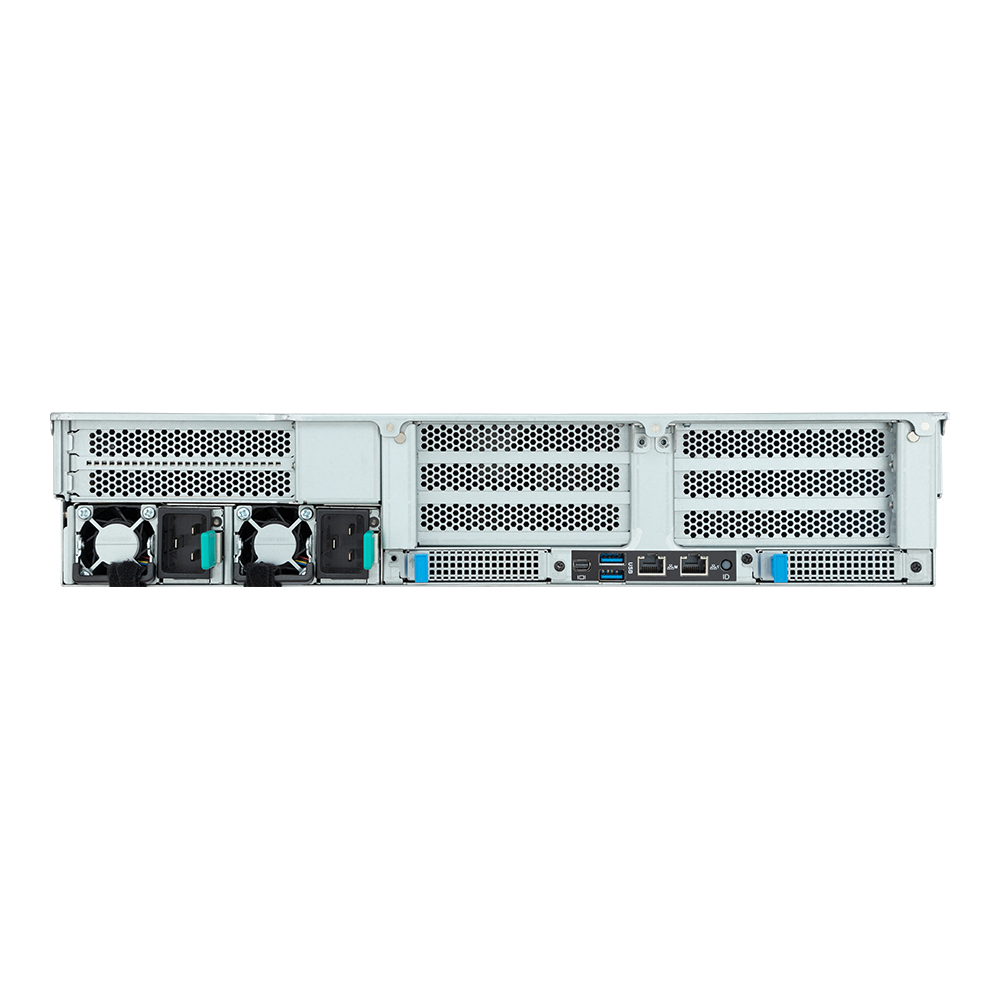

Накопители и задняя панель GIGABYTE R263-Z35-AAL1

Product Details

Детали конструкции

Характеристики

SAS	Require SAS add-in cards
RAID	Require RAID add-in cards
Вес	Net Weight: 16.4 kg Gross Weight: 18.2 kg
Сеть	Rear: 1 x 1Gb/s LAN (1 x Intel® I210-AT) Supports NCSI function 1 x 10/100/1000 Mbps Management LAN
Видео	Integrated in ASPEED® AST2600 - 1 x Mini-DP
Сокет	1 x LGA 6096 Socket SP5
Память	12 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s
Чипсет	System on Chip
Накопители	Front hot-swap: 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1] 4 x 3.5"/2.5" SATA/SAS-4 [1] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4 [1] SAS card is required to support SAS drives.
Процессоры	AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 400W [1] [1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
Форм-фактор	2U Rackmount
Блоки питания	1+1 2700W 80 PLUS Titanium redundant power supplies [1] AC Input: - 100-127V~/ 12A, 50-60Hz - 200-240V~/ 16A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 16A DC Output: - Max 1008W/ 100-127V~ +12V/ 84A +12Vsb/ 3A - Max 2700W/ 200-240V~ or 240Vdc Input +12V/ 225A +12Vsb/ 3A [1] The system power supply requires C19 power cord. [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Задняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x RJ45 port 1 x MLAN port 1 x ID button with LED
Совместимые ОС	Please refer to OS compatibility table in support page
Передняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs (1 x LED disabled) 1 x Storage activity LED 1 x System status LED
Плата бэкплейна	Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Габариты упаковки	989 x 594 x 279 mm
Комплект поставки	1 x R263-Z35-AAL1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 2 x GPU power cables (16-pin, 360mm) 1 x GPU power cable (16-pin, 490mm) 1 x 2-Section Rail kit
Материнская плата	MZ33-DC1
Номера исполнения	Barebone package: 6NR263Z35DR000ACL1* Motherboard: 9MZ33DC1UR-000-3* 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R CPU heatsink: 25ST1-553201-M1R M.2 heatsink: 12SP2-11000E-00R Front panel board - CFP2001: 9CFP2001NR-00* Backplane board - CBP20C7: 9CBP20C7NR-00* Fan module: 25ST2-88382T-S1R Riser card - CRS201H: 9CRS201HNR-00* Riser card - CRS201M: 9CRS201MNR-00* Mini-DP to D-Sub cable: 25CRN-200801-K1R GPU power cable (16-pin, 360mm): 25CRI-360102-Y4R GPU power cable (16-pin, 490mm): 25CRI-490102-Y4R Power supply: 25EP0-227000-D0S Optional parts: 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R Cable Management Arm: 25HBZ-R18100-K0R A100/MI210 power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R A100/MI210 power cable (CPU 8pin, 480mm): 25CRI-480101-Y4R
Слоты расширения PCIe	Riser Card CRS201H: - 1 x FHFL x16 (Gen5 x16), for GPUs Riser Card CRS201M: - 1 x FHFL x16 (Gen5 x16), for GPUs PCIe Cable: - 1 x FHFL x16 (Gen5 x16), for GPUs 2 x OCP NIC 3.0 (Gen5 x16) Support NCSI function
Габариты (Ш x В x Г), мм	2U 438 x 87.5 x 710
Модули безопасности	1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM012
Системное управление	ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Условия эксплуатации	Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	4 x 80x80x38mm

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
