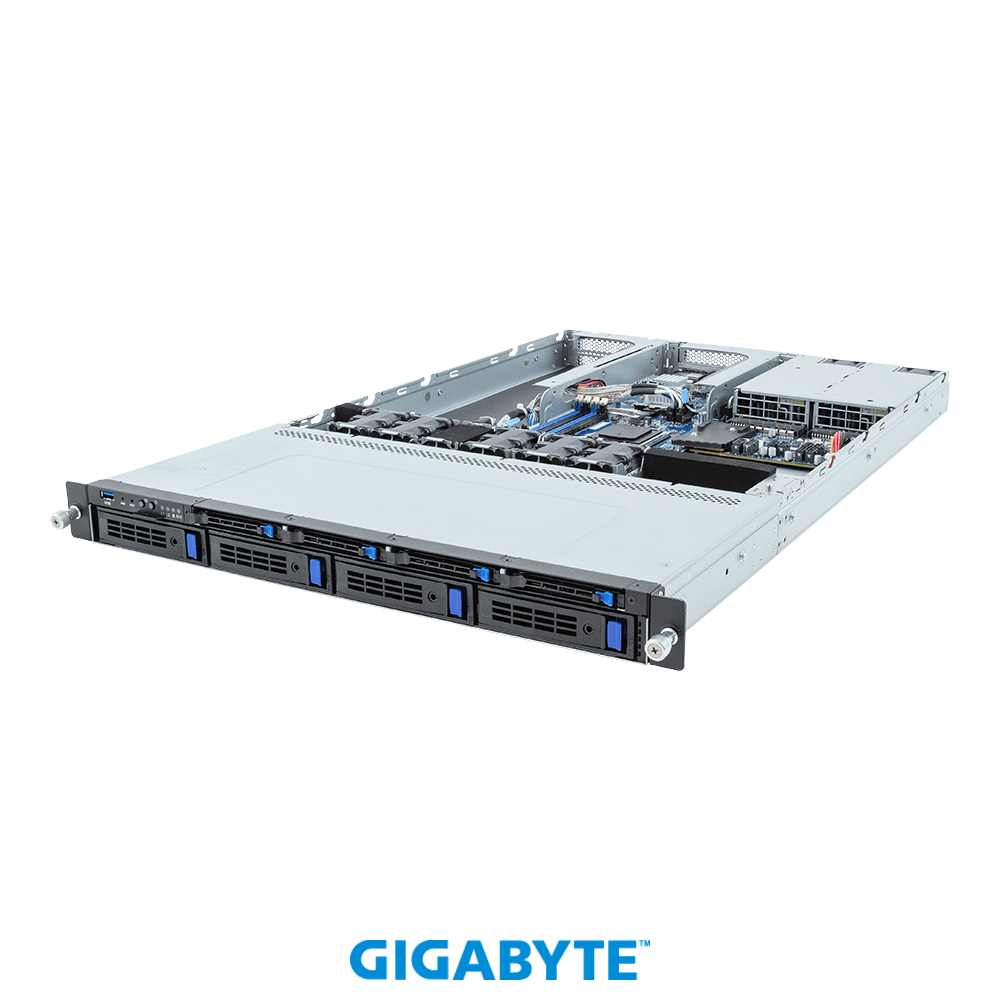

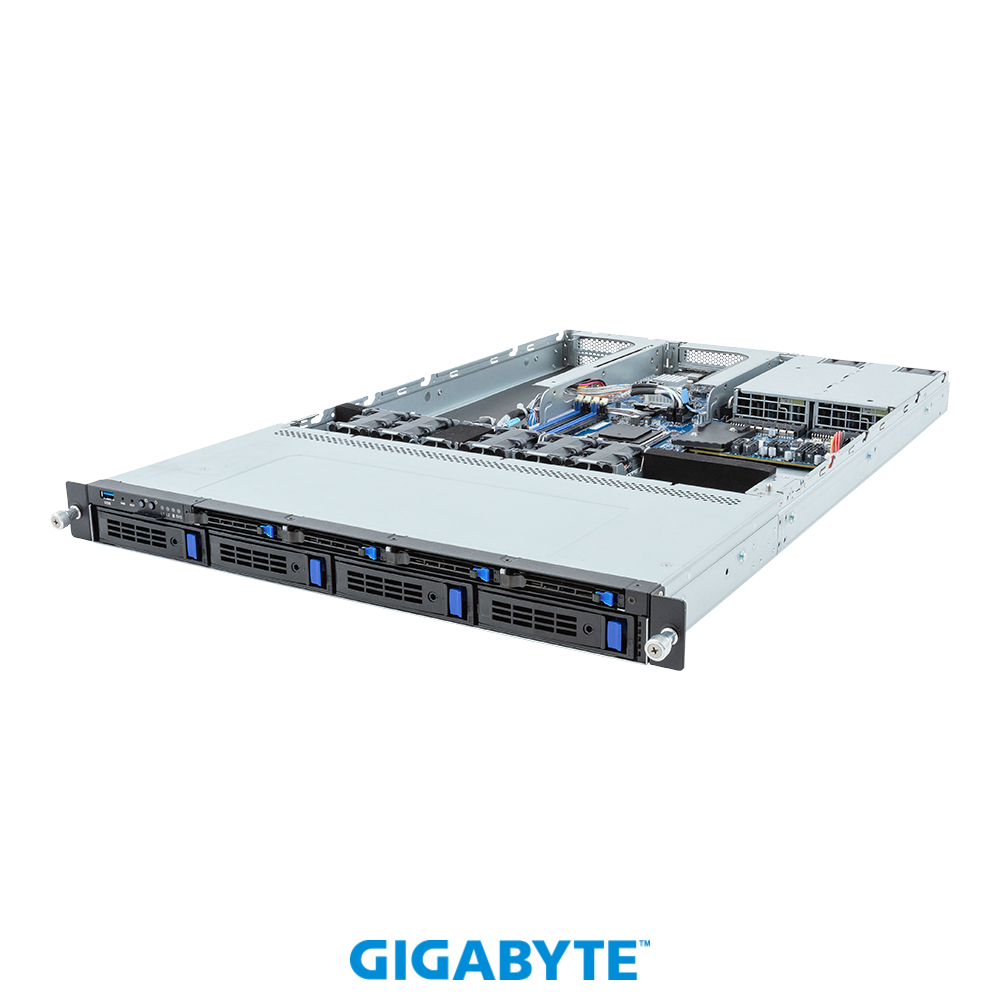

GIGABYTE R133-C11-AAB1

Name: GIGABYTE R133-C11-AAB1
Brand: GIGABYTE
SKU: R133-C11-AAB1

Серверная платформа R133-C11-AAB1

Серверная платформа GIGABYTE R133-C11-AAB1. Rack Server - AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 - 1U UP 1 x PCIe Gen5 GPU Platinum

Форм-фактор

1U Rackmount

Процессоры

Память

4 x DIMM slots DDR5 memory supported Dual Channel memory per processor ECC/Non-ECC memory supported AMD EPYC™ 4005 / Ryzen™ 9000: UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)

Сеть

Rear: 2 x 10Gb/s LAN (1 x Broadcom® BCM57416) 2 x 1Gb/s LAN (1 x Broadcom® BCM5720) - Support NCSI function (by switch) 1 x 10/100/1000 Mbps Management LAN

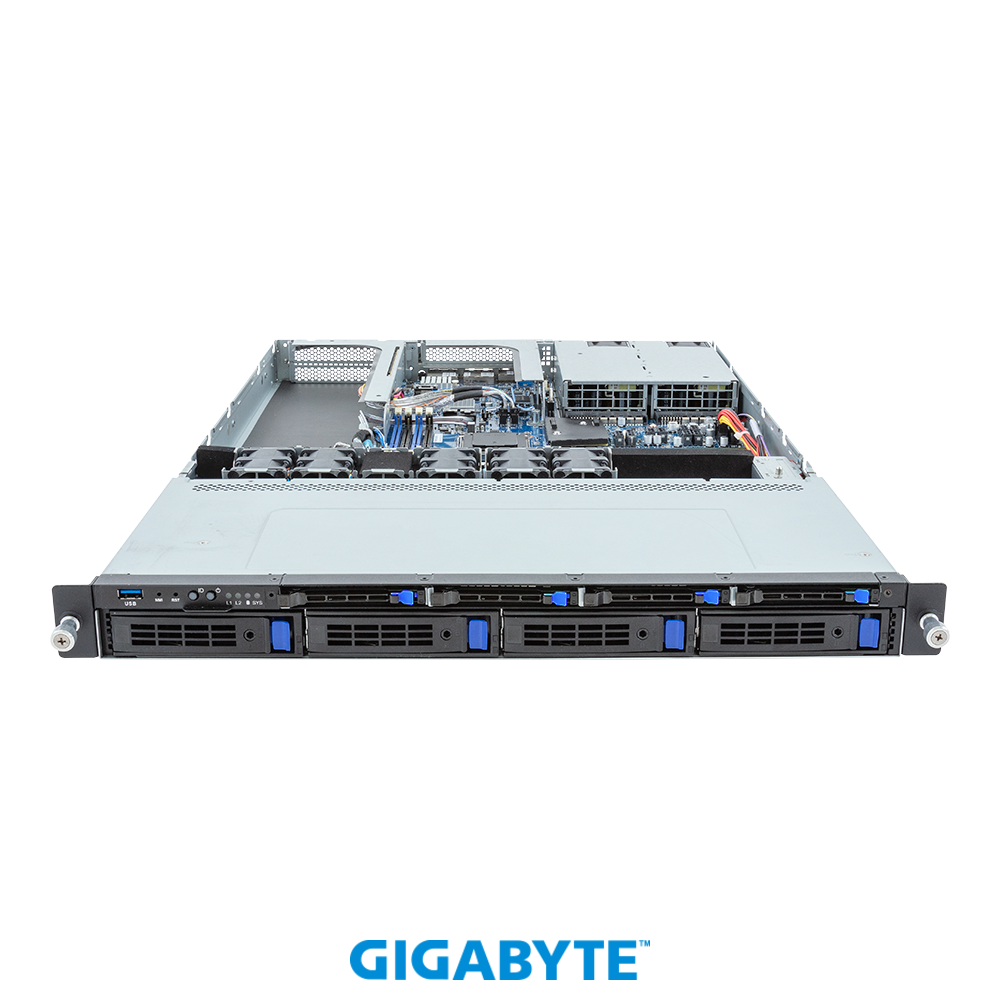

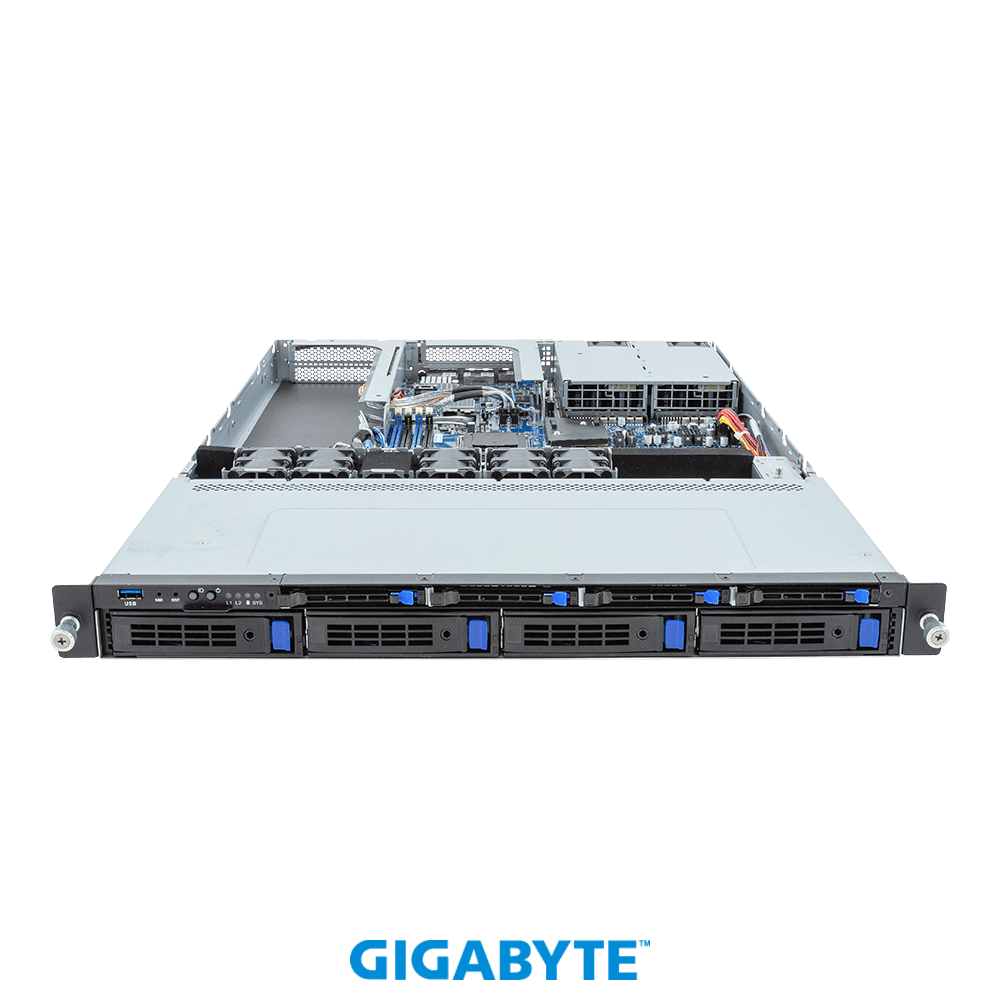

серверная платформа GIGABYTE R133-C11-AAB1

Compute And Memory

Вычислительная платформа и память

AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 170W [Note] Overclocking is not supported due to thermal limitations.. 4 x DIMM slots DDR5 memory supported Dual Channel memory per processor ECC/Non-ECC memory supported AMD EPYC™ 4005 / Ryzen™ 9000: UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)

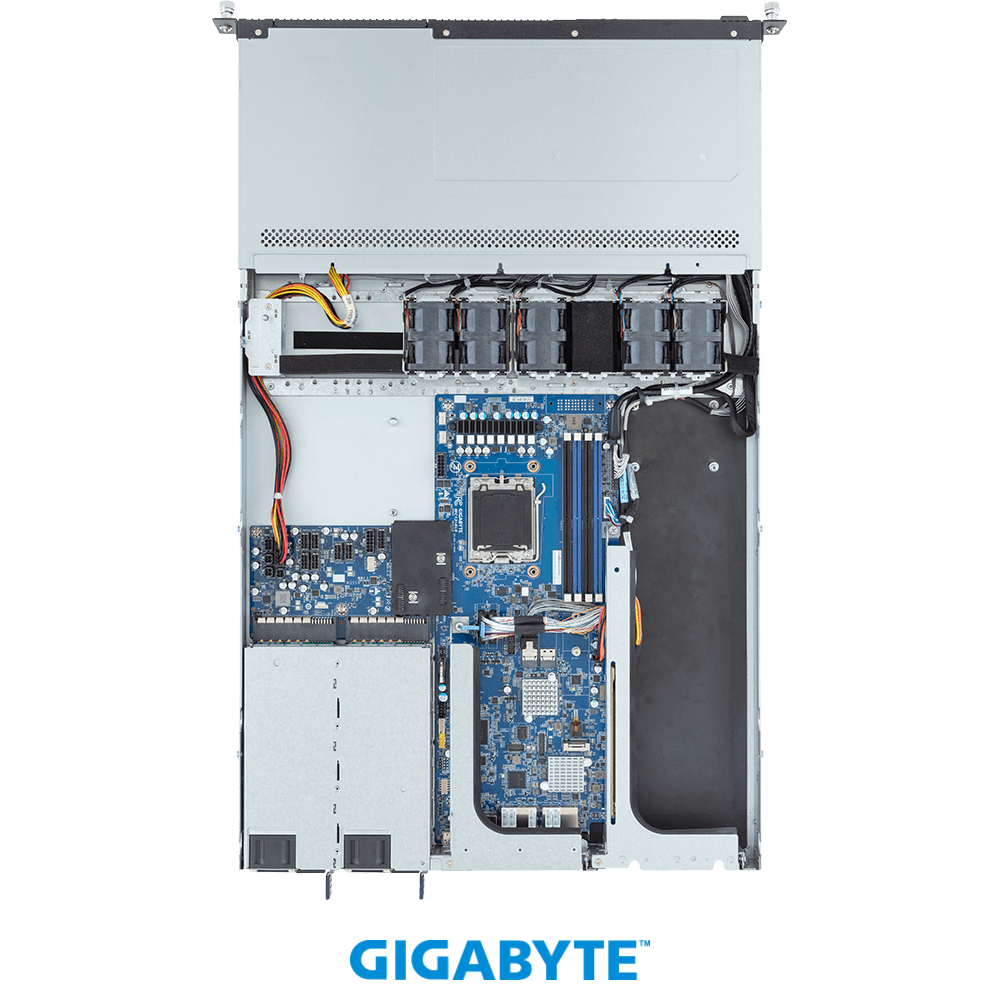

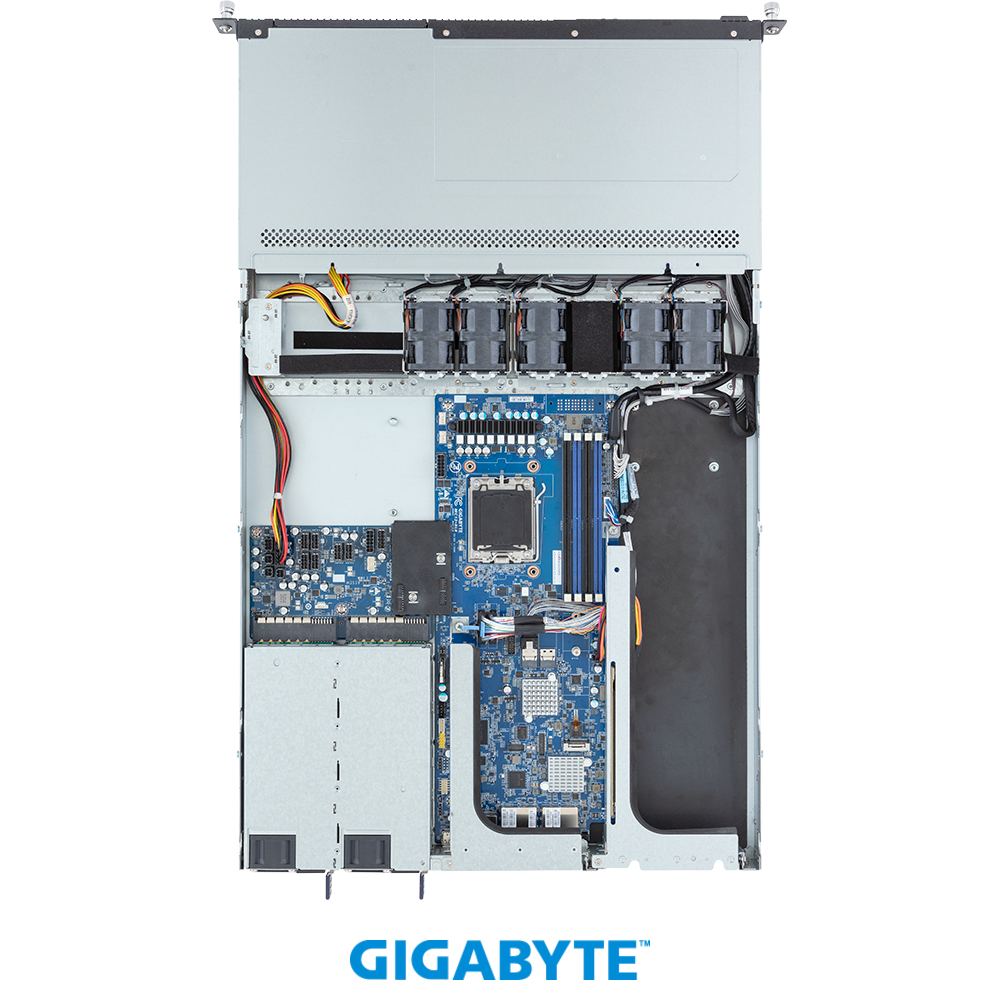

Внутренняя компоновка GIGABYTE R133-C11-AAB1

GPU And Expansion

Ускорители и слоты расширения

PCIe Cable: - 1 x FHFL x16 (Gen5 x16), from CPU, for GPUs [1] Riser Card CRSE016: - 1 x FHHL x4 (Gen4 x4), from CPU [1] Supports GPUs up to 300W.

Слоты GPU и расширения GIGABYTE R133-C11-AAB1

Storage And Infrastructure

Накопители, сеть и питание

Front hot-swap: 4 x 3.5"/2.5" SATA 4 x 2.5" 7mm SATA Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4, from FCH SATA supported only.. Rear: 2 x 10Gb/s LAN (1 x Broadcom® BCM57416) 2 x 1Gb/s LAN (1 x Broadcom® BCM5720) - Support NCSI function (by switch) 1 x 10/100/1000 Mbps Management LAN. 1+1 800W 80 PLUS Platinum redundant power supplies AC Input: - 100-240V~/ 10-5A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 4A DC Output: - Max 800W +12V/ 65A +12Vsb/ 2.1A

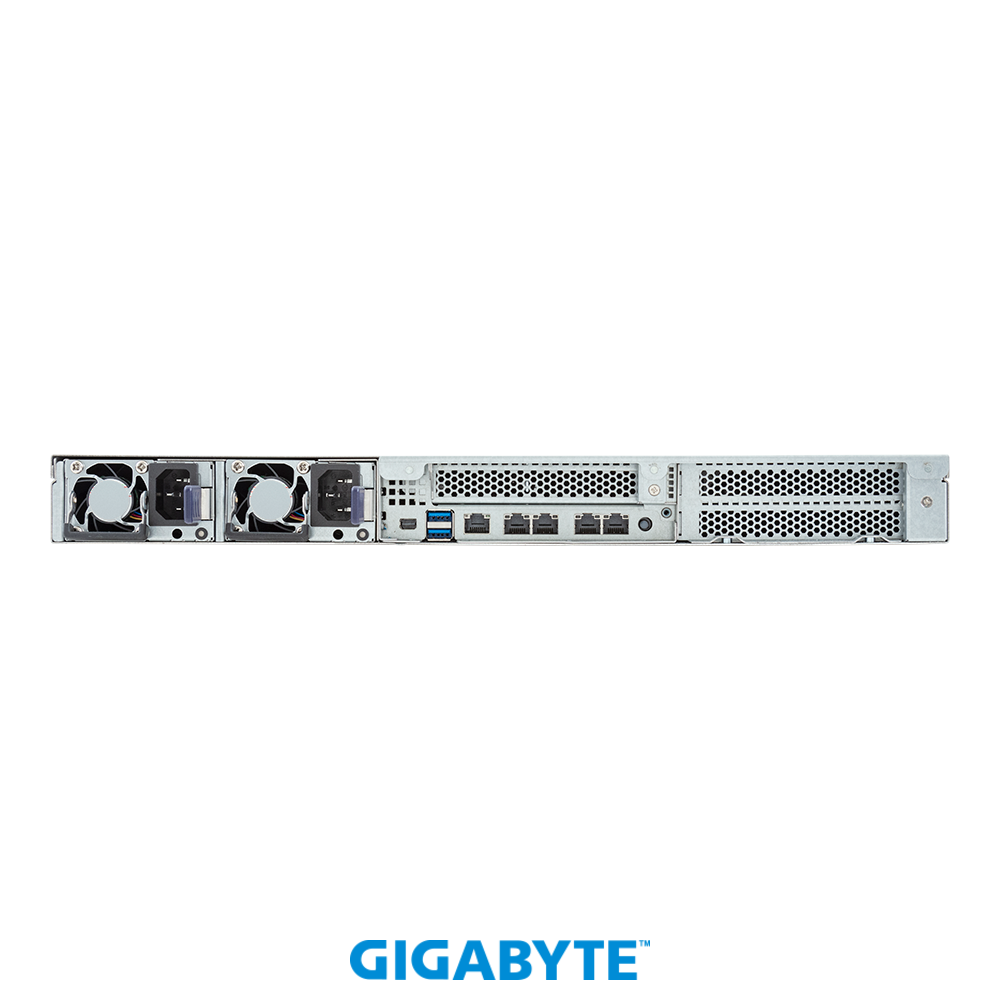

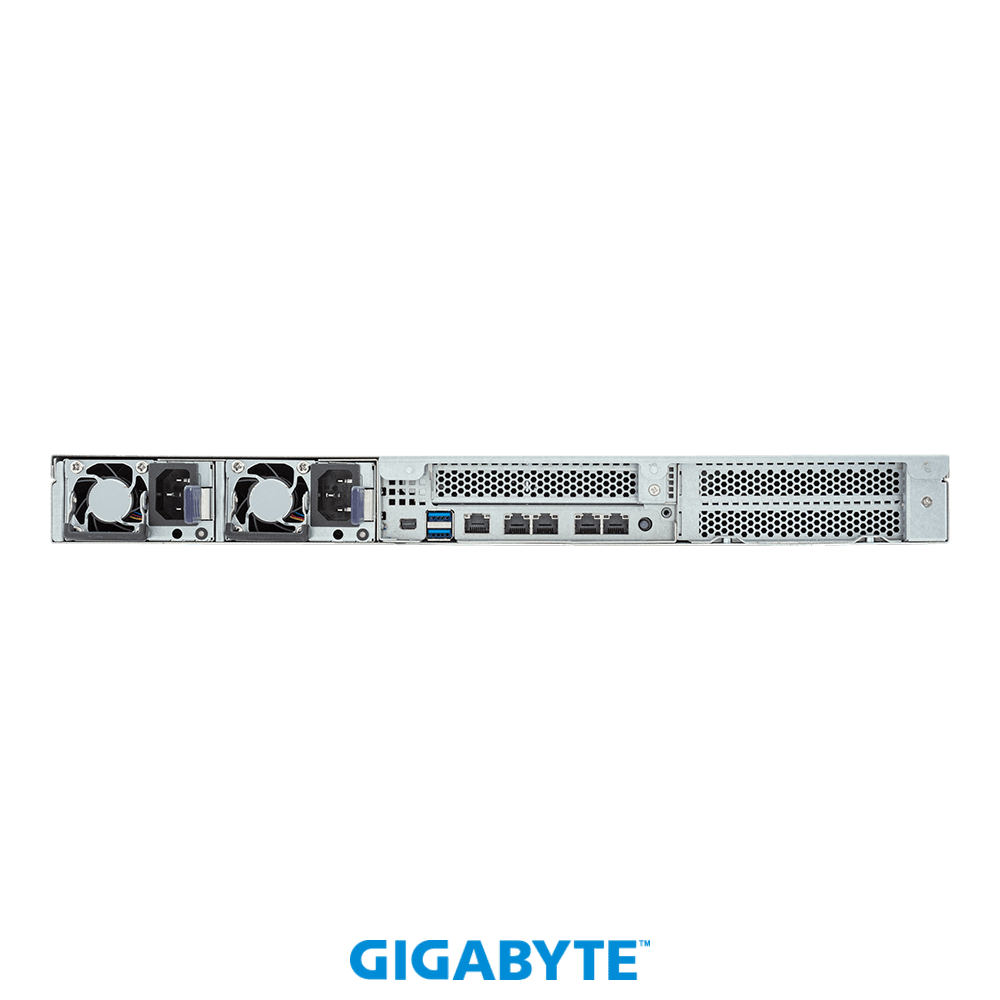

Накопители и задняя панель GIGABYTE R133-C11-AAB1

Product Details

Детали конструкции

Характеристики

SAS	N/A
RAID	RAID 0/1/10 Support optional RAID add-in cards
Вес	Net Weight: 16.8 kg Gross Weight: 20.5 kg
Сеть	Rear: 2 x 10Gb/s LAN (1 x Broadcom® BCM57416) 2 x 1Gb/s LAN (1 x Broadcom® BCM5720) - Support NCSI function (by switch) 1 x 10/100/1000 Mbps Management LAN
Видео	Integrated in ASPEED® AST2600 - 1 x Mini-DP
Сокет	1 x AM5
Память	4 x DIMM slots DDR5 memory supported Dual Channel memory per processor ECC/Non-ECC memory supported AMD EPYC™ 4005 / Ryzen™ 9000: UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Чипсет	AMD B650E
Накопители	Front hot-swap: 4 x 3.5"/2.5" SATA 4 x 2.5" 7mm SATA Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4, from FCH SATA supported only.
Процессоры	AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 170W [Note] Overclocking is not supported due to thermal limitations.
Форм-фактор	1U Rackmount
Блоки питания	1+1 800W 80 PLUS Platinum redundant power supplies AC Input: - 100-240V~/ 10-5A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 4A DC Output: - Max 800W +12V/ 65A +12Vsb/ 2.1A
Задняя панель	2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 4 x RJ45 ports 1 x MLAN port 1 x ID button with LED
Совместимые ОС	EPYC 4005/4004 Series: Ubuntu 22.04 Ubuntu 24.04 Windows Server 2022 Windows Server 2025 Ryzen 9000/7000 Series: Windows 10 21H2 Windows 11
Передняя панель	1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED
Плата бэкплейна	Speed and bandwidth: SATA 6Gb/s
Габариты упаковки	1043 x 594 x 252 mm
Комплект поставки	1 x R133-C11-AAB1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (2x PCIe 8pin, 700mm) 1 x 2-Section Rail kit
Материнская плата	MC13-BL0
Слоты расширения PCIe	PCIe Cable: - 1 x FHFL x16 (Gen5 x16), from CPU, for GPUs [1] Riser Card CRSE016: - 1 x FHHL x4 (Gen4 x4), from CPU [1] Supports GPUs up to 300W.
Габариты (Ш x В x Г), мм	1U 438 x 43.5 x 710
Модули безопасности	1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010
Системное управление	ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Условия эксплуатации	Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Системные вентиляторы	5 x 40x40x56mm
Артикулы компонентов и опций	Barebone package (EPYC 4005/Ryzen 9000): 6NR133C11MR000ACB1* Barebone package (EPYC 4004/Ryzen 7000): 6NR133C11MR000ABB1* Barebone package (Ryzen 7000): 6NR133C11MR000AAB1* Motherboard: 9MC13BL0NR-000* 2-Section Rail kit: 25HB2-3A0203-K0R CPU heatsink: 25ST1-443301-S7R M.2 heatsink: 12SP2-11000E-00R Front panel board - CFP1013: 9CFP1013NR-00* Backplane board - CBP1045: 9CBP1045NR-00* Backplane board - CBP1047: 9CBP1047NR-00* Fan module: 25ST2-405623-A0R Fan module: 25ST2-40562H-A0R Riser card - CRSE016: 9CRSE016NR-00* Mini-DP to D-Sub cable: 25CRN-200801-K1R GPU power cable (2x PCIe 8pin, 700mm): 25CRI-700004-G5R Power supply: 25EP0-208009-F3S Дополнительные опции: 3-Section Rail kit: 25HB2-A56120-K0R Cable Management Arm: 25HBZ-R18100-K0R Состав, артикулы компонентов и доступность опций могут различаться в зависимости от исполнения сервера. Точную конфигурацию уточняйте при заказе.

Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
