GIGABYTE R133-C10-AAA1
Артикул: R133-C10-AAA1
GIGABYTE R133-C10-AAA1
Серверная платформа R133-C10-AAA1

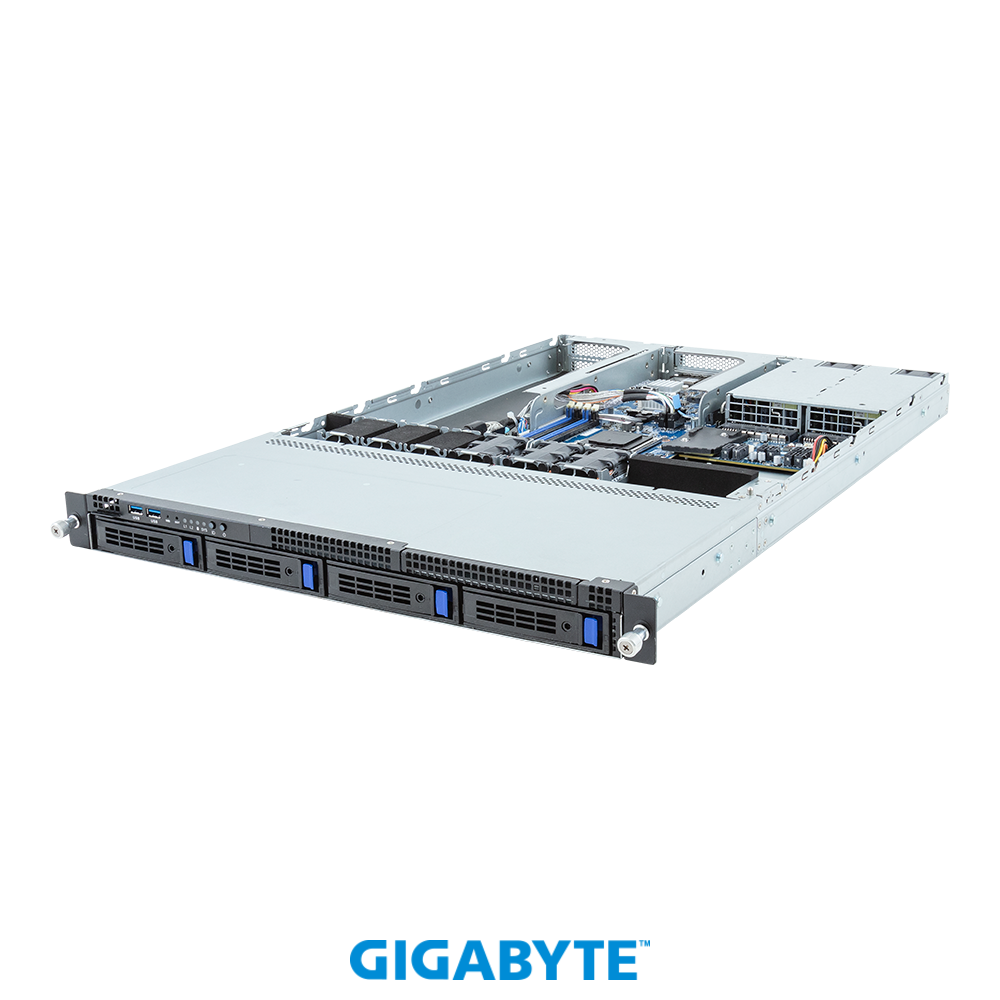

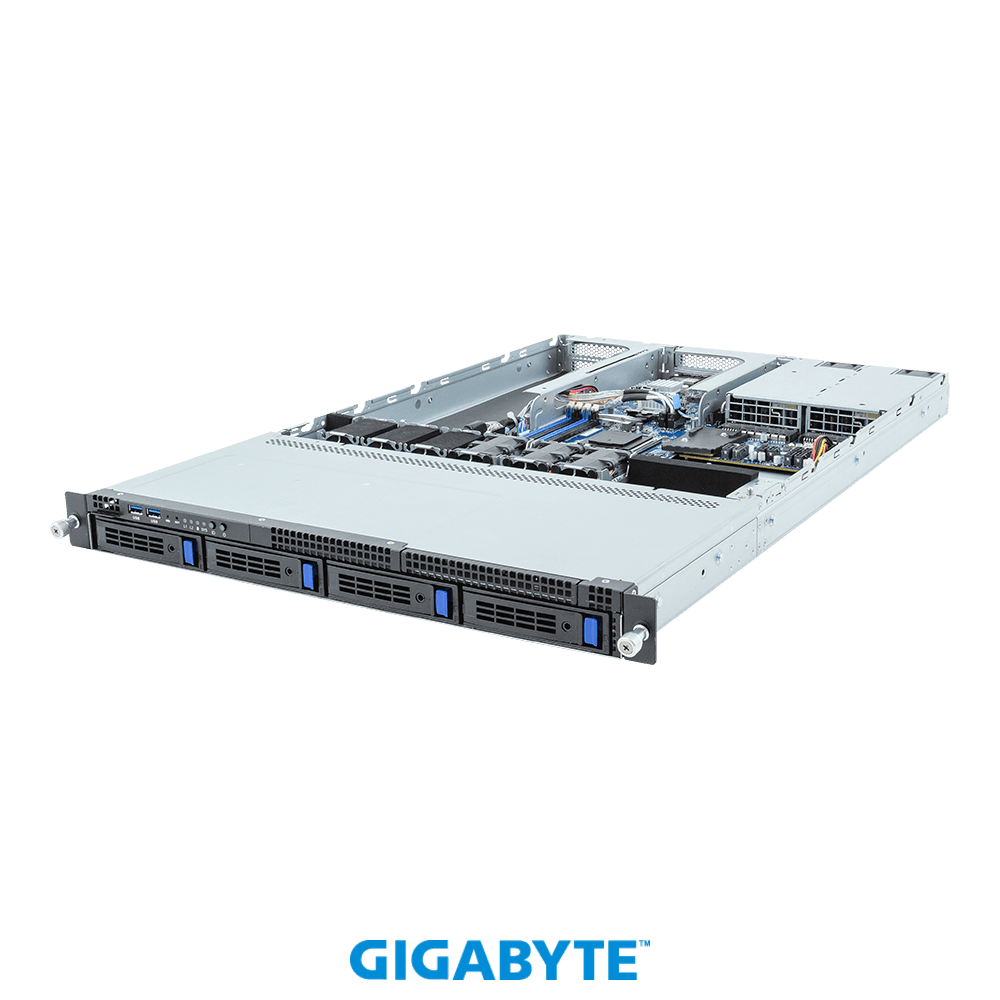

Серверная платформа GIGABYTE R133-C10-AAA1. Rack Server - AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 - 1U UP 4-Bay SATA Platinum
Форм-фактор
1U Rackmount
Процессоры
AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 105W [Note] Overclocking is not supported due to thermal limitations.
Память
4 x DIMM slots DDR5 memory supported Dual Channel memory per processor ECC/Non-ECC memory supported AMD EPYC™ 4005 / Ryzen™ 9000: UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Compute And Memory
Вычислительная платформа и память
AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 105W [Note] Overclocking is not supported due to thermal limitations.. 4 x DIMM slots DDR5 memory supported Dual Channel memory per processor ECC/Non-ECC memory supported AMD EPYC™ 4005 / Ryzen™ 9000: UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
GPU And Expansion
Ускорители и слоты расширения
PCIe Cable: - 1 x FHFL x16 (Gen5 x16), from CPU Riser Card CRSE016: - 1 x FHHL x4 (Gen4 x4), from CPU
Storage And Infrastructure
Накопители, сеть и питание
Front hot-swap: 4 x 3.5"/2.5" SATA [1] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4, from FCH [1] SATA supported only.. Rear: 2 x 1Gb/s LAN (1 x Broadcom® BCM5720) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN. 1+1 550W 80 PLUS Platinum redundant power supplies AC Input: - 100-240V~/ 8-4A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 2.75A DC Output: - Max 550W +12V/ 44A +12Vsb/ 2.1A
Product Details

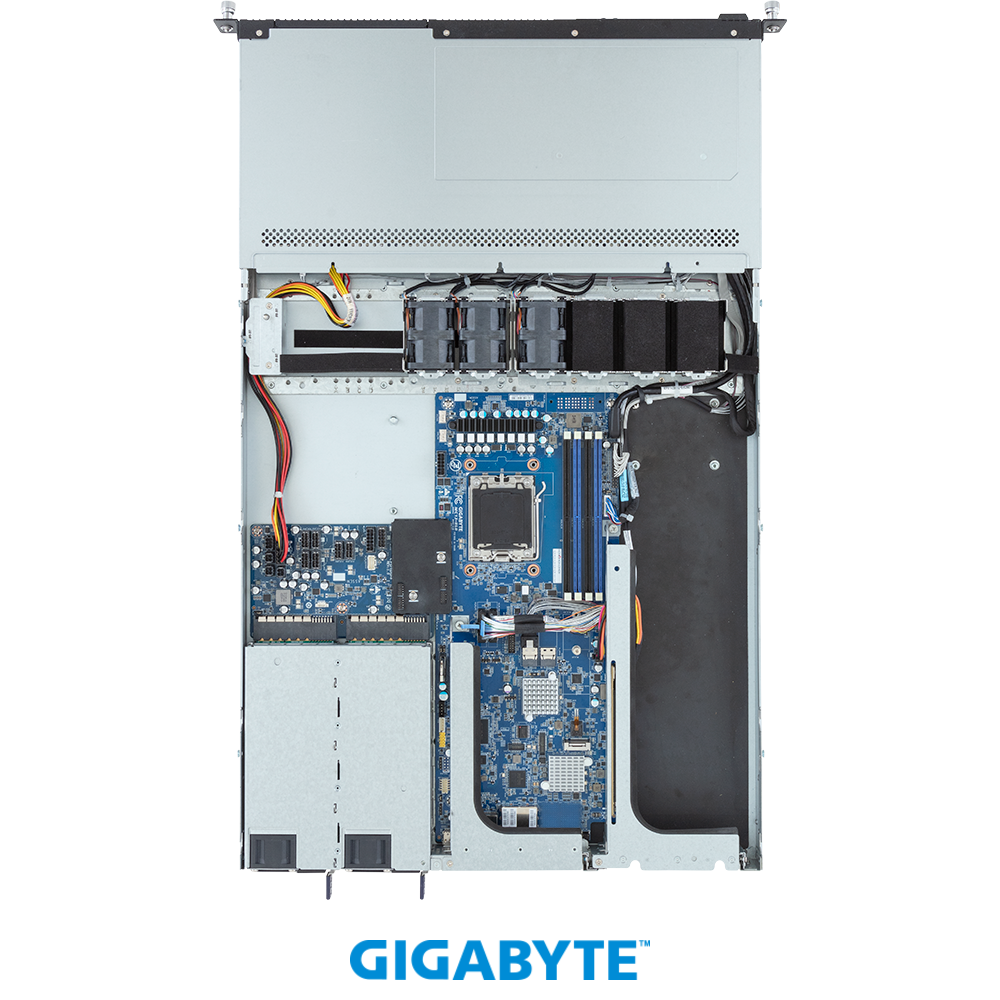

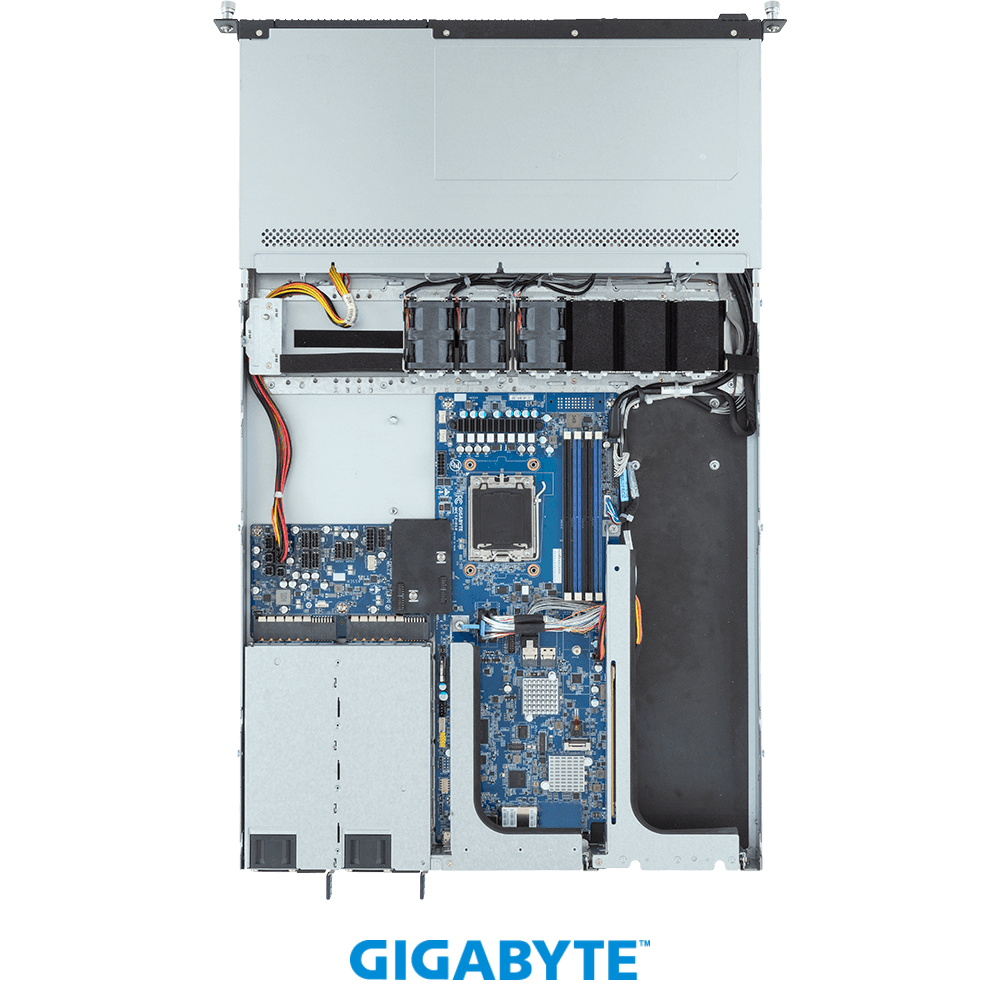

Детали конструкции
Характеристики
| SAS | N/A |
|---|---|
| RAID | RAID 0/1/10 Support optional RAID add-in cards |
| Вес | Net Weight: 18.1 kg Gross Weight: 20.1 kg |
| Сеть | Rear: 2 x 1Gb/s LAN (1 x Broadcom® BCM5720) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Видео | Integrated in ASPEED® AST2600 - 1 x Mini-DP |
| Сокет | 1 x AM5 |
| Память | 4 x DIMM slots DDR5 memory supported Dual Channel memory per processor ECC/Non-ECC memory supported AMD EPYC™ 4005 / Ryzen™ 9000: UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC) |
| Чипсет | AMD B650E |
| Накопители | Front hot-swap: 4 x 3.5"/2.5" SATA [1] Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4, from FCH [1] SATA supported only. |
| Процессоры | AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 105W [Note] Overclocking is not supported due to thermal limitations. |
| Форм-фактор | 1U Rackmount |
| Блоки питания | 1+1 550W 80 PLUS Platinum redundant power supplies AC Input: - 100-240V~/ 8-4A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 2.75A DC Output: - Max 550W +12V/ 44A +12Vsb/ 2.1A |

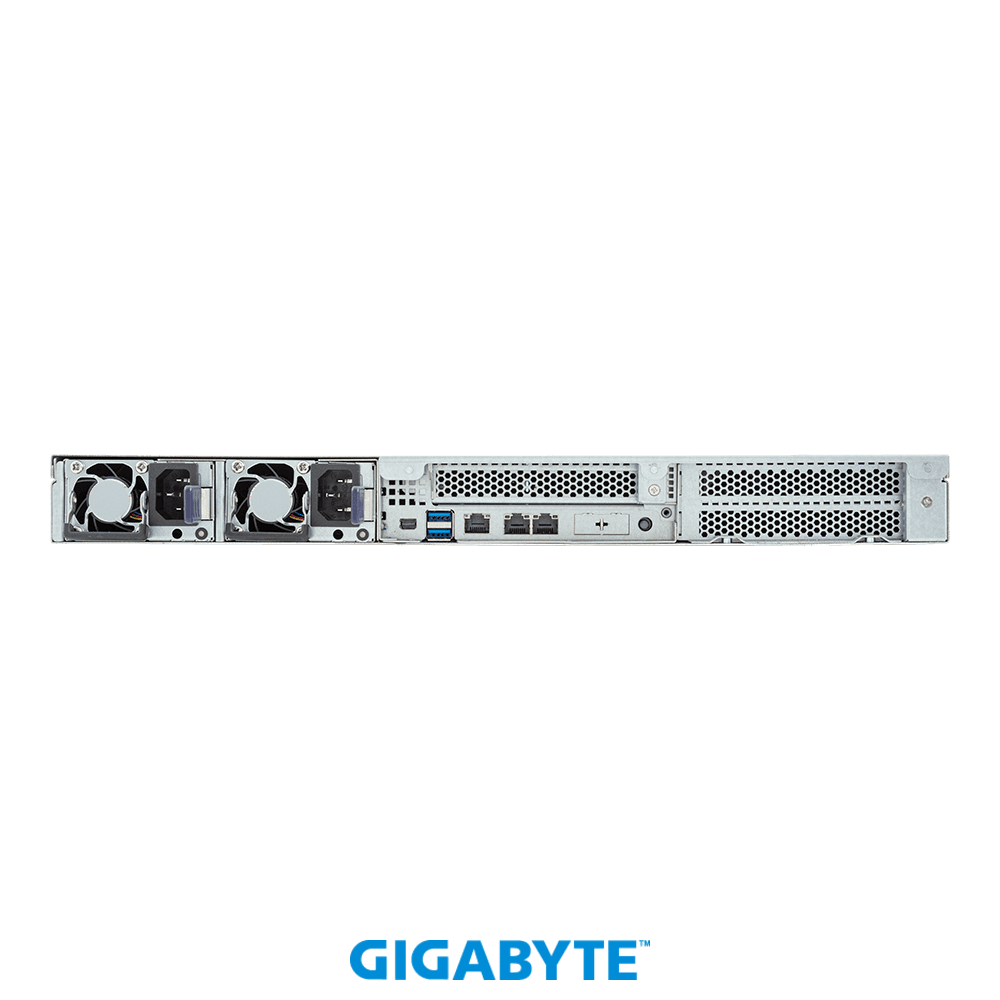

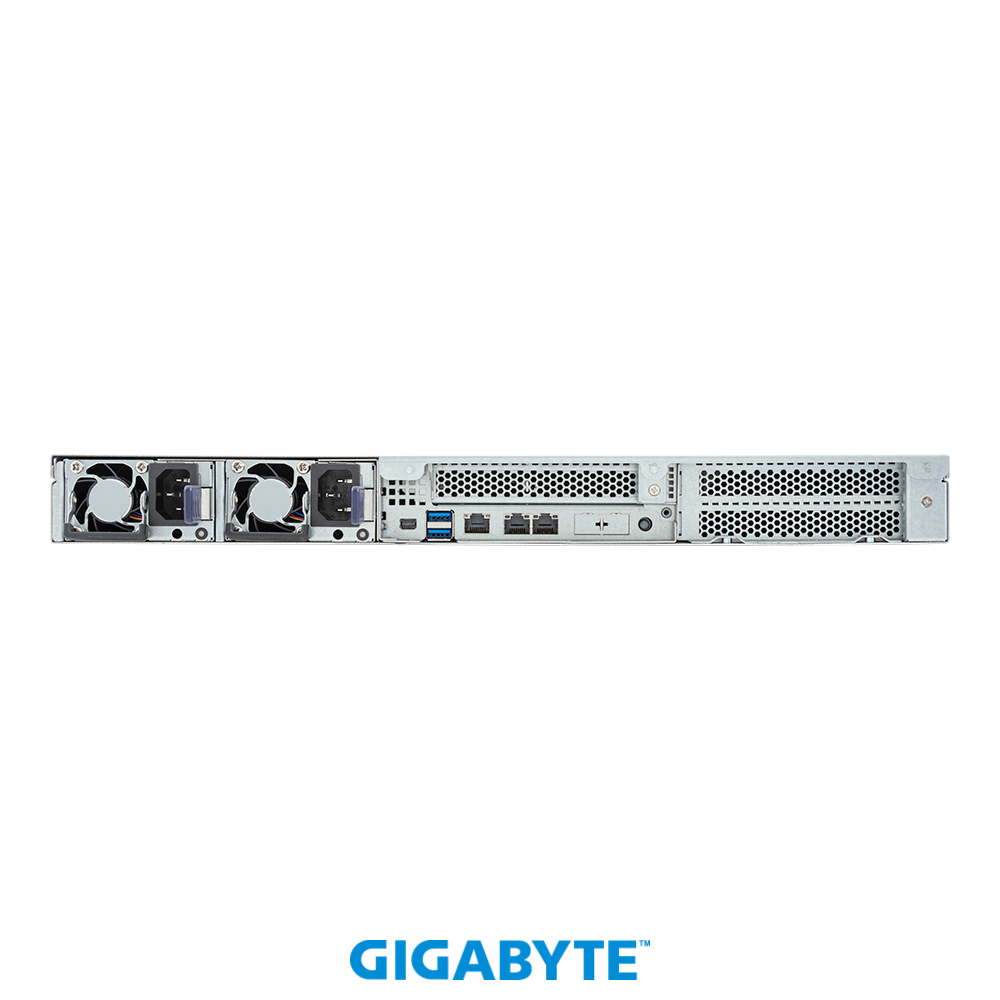

| Задняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Совместимые ОС | EPYC 4005/4004 Series: Ubuntu 22.04 Ubuntu 24.04 Windows Server 2022 Windows Server 2025 Ryzen 9000/7000 Series: Windows 10 21H2 Windows 11 |

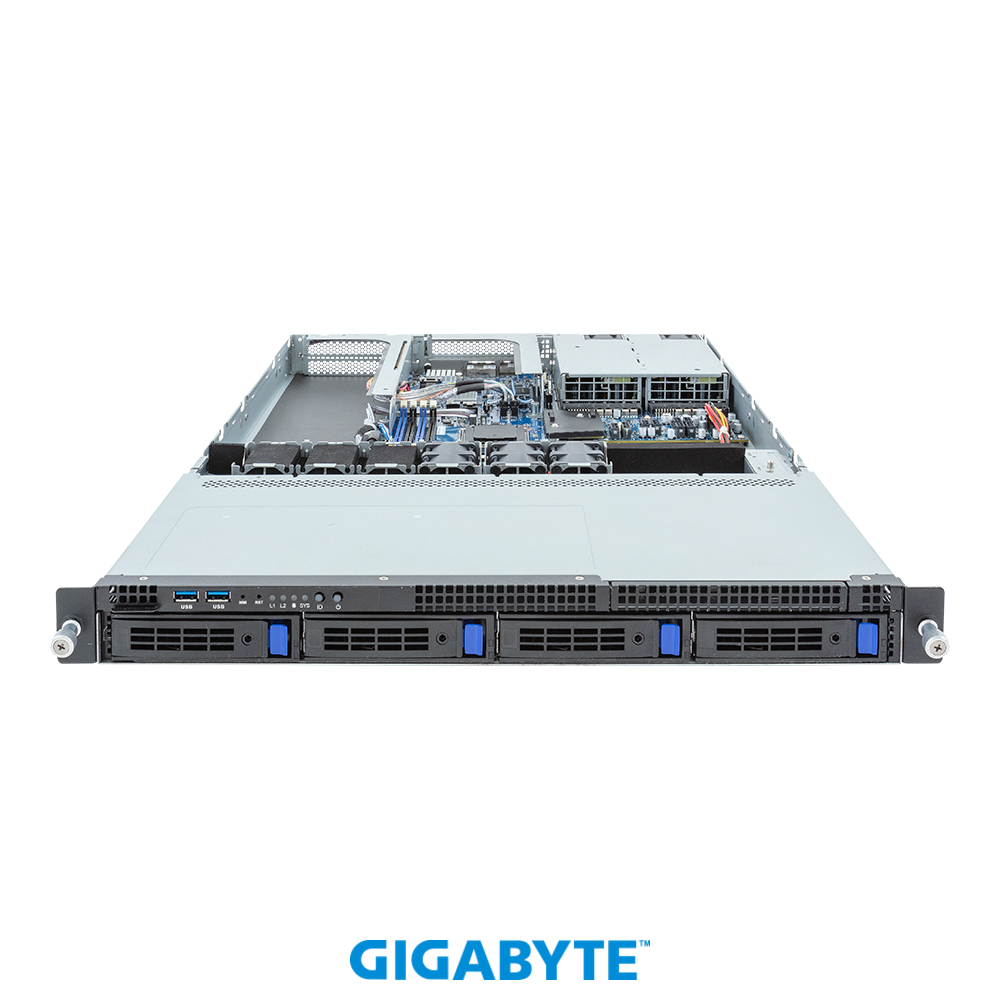

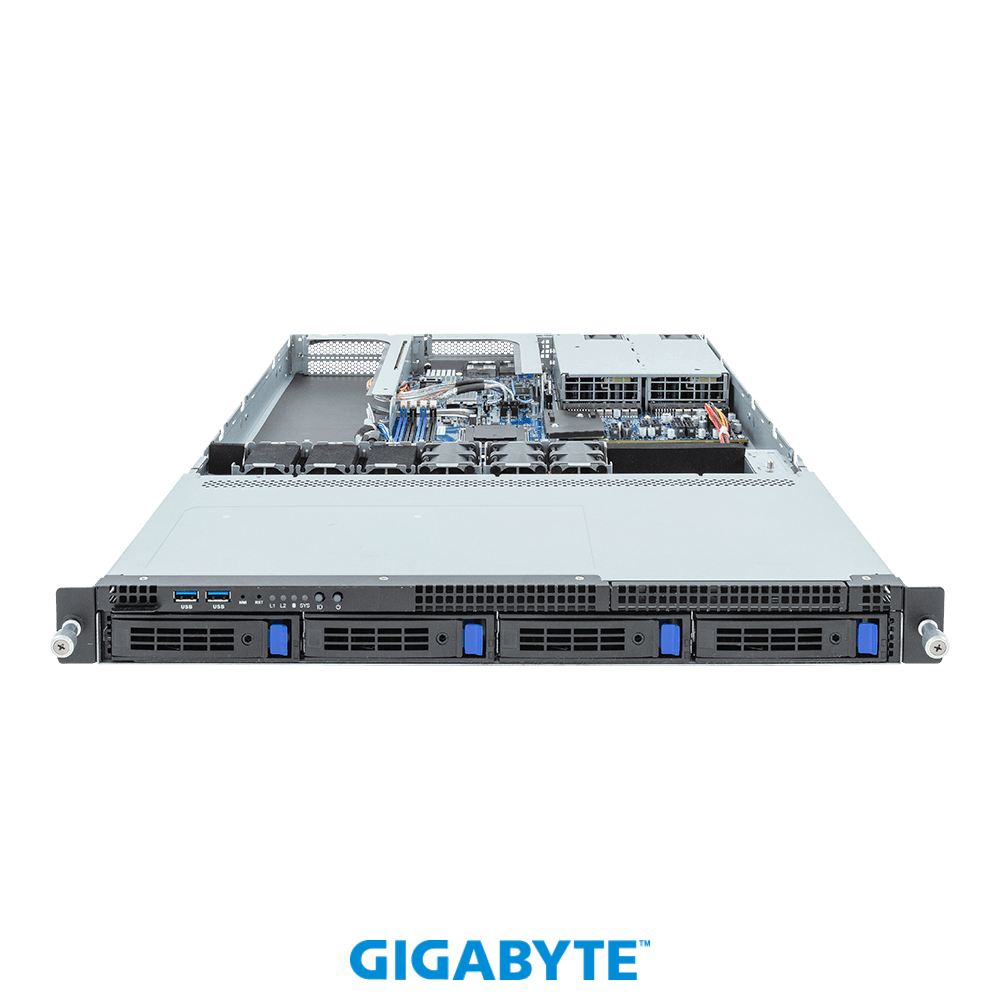

| Передняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Плата бэкплейна | Speed and bandwidth: SATA 6Gb/s |
| Габариты упаковки | 982 x 594 x 250 mm |
| Комплект поставки | 1 x R133-C10-AAA1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit |
| Материнская плата | MC13-BL1 |
| Номера исполнения | - Barebone package (EPYC 4005/Ryzen 9000): 6NR133C10MR000ACA1* - Barebone package (EPYC 4004/Ryzen 7000): 6NR133C10MR000ABA1* - Barebone package (Ryzen 7000): 6NR133C10MR000AAA1* - Motherboard: 9MC13BL1NR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R - CPU heatsink: 25ST1-121101-A7R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP1010: 9CFP1010NR-00* - Backplane board - CBP1047: 9CBP1047NR-00* - Fan module: 25ST2-405623-A0R - Riser card - CRSE016: 9CRSE016NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-205502-F3S Optional parts: - 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R - Cable Management Arm: 25HBZ-R18100-K0R |
| Слоты расширения PCIe | PCIe Cable: - 1 x FHFL x16 (Gen5 x16), from CPU Riser Card CRSE016: - 1 x FHHL x4 (Gen4 x4), from CPU |
| Габариты (Ш x В x Г), мм | 1U 438 x 43.5 x 710 |
| Модули безопасности | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
| Системное управление | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| Условия эксплуатации | Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Системные вентиляторы | 3 x 40x40x56mm |
Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
