ASRock Rack Z490D4U-2L2T

Name: ASRock Rack Z490D4U-2L2T
Brand: ASRock Rack
SKU: Z490D4U-2L2T

Артикул: Z490D4U-2L2T

Серверная материнская плата Z490D4U-2L2T

Серверная материнская плата Z490D4U-2L2T, Micro-ATX.

Форм-фактор

Micro-ATX

Процессоры

Support Intel 10th Gen. Core i9/i7/i5/i3, Pentium, Celeron Series Processors

Память

Support two channels DDR4 2933*/2666/2400 non-ECC DIMM

Сеть

Support 2 x GLAN by Intel i210, 2 x 10G base-T by Intel X710-AT2

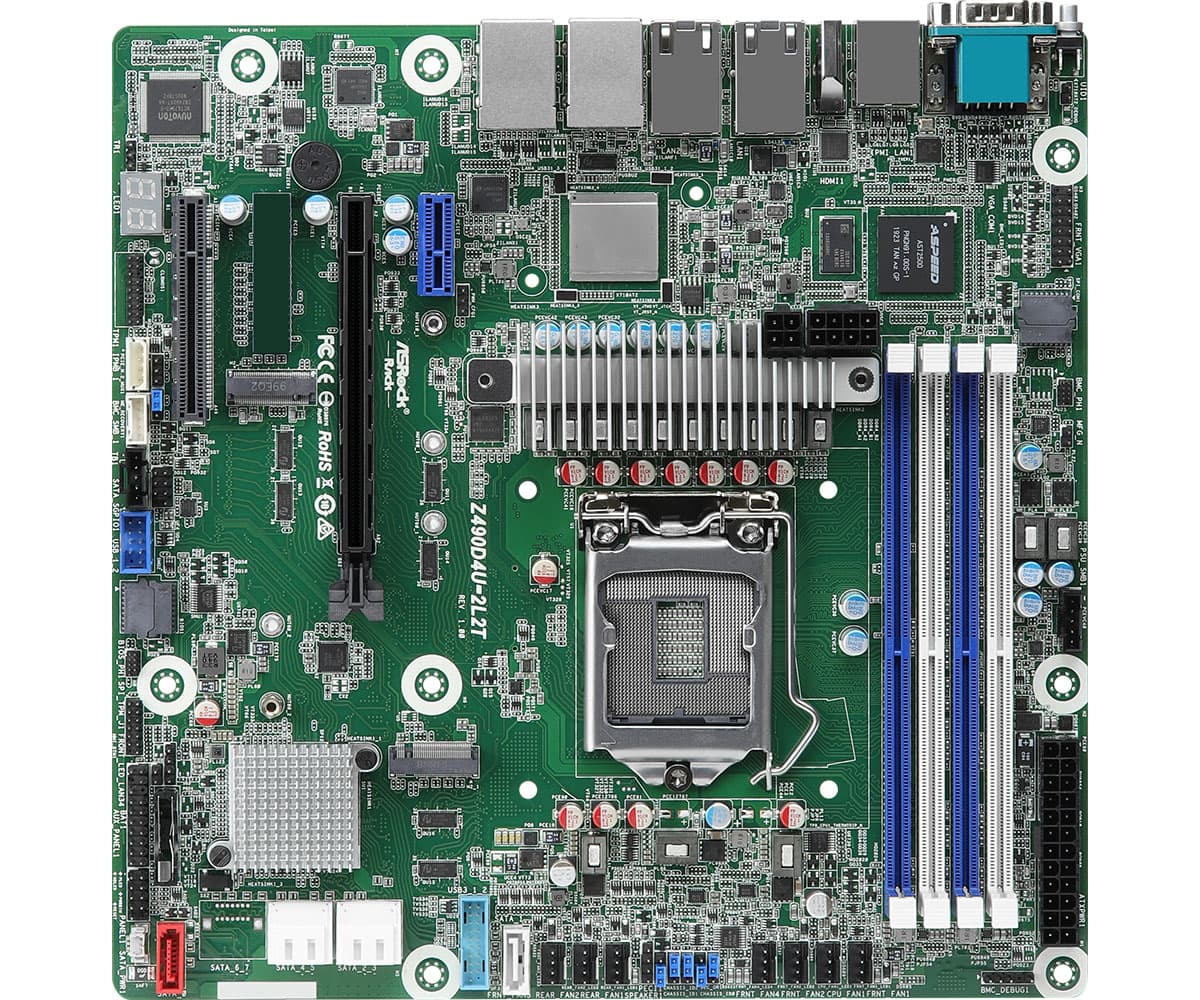

серверная материнская плата ASRock Rack Z490D4U-2L2T

Compute And Memory

Вычислительная платформа и память

Support Intel 10th Gen. Core i9/i7/i5/i3, Pentium, Celeron Series Processors. Support two channels DDR4 2933*/2666/2400 non-ECC DIMM

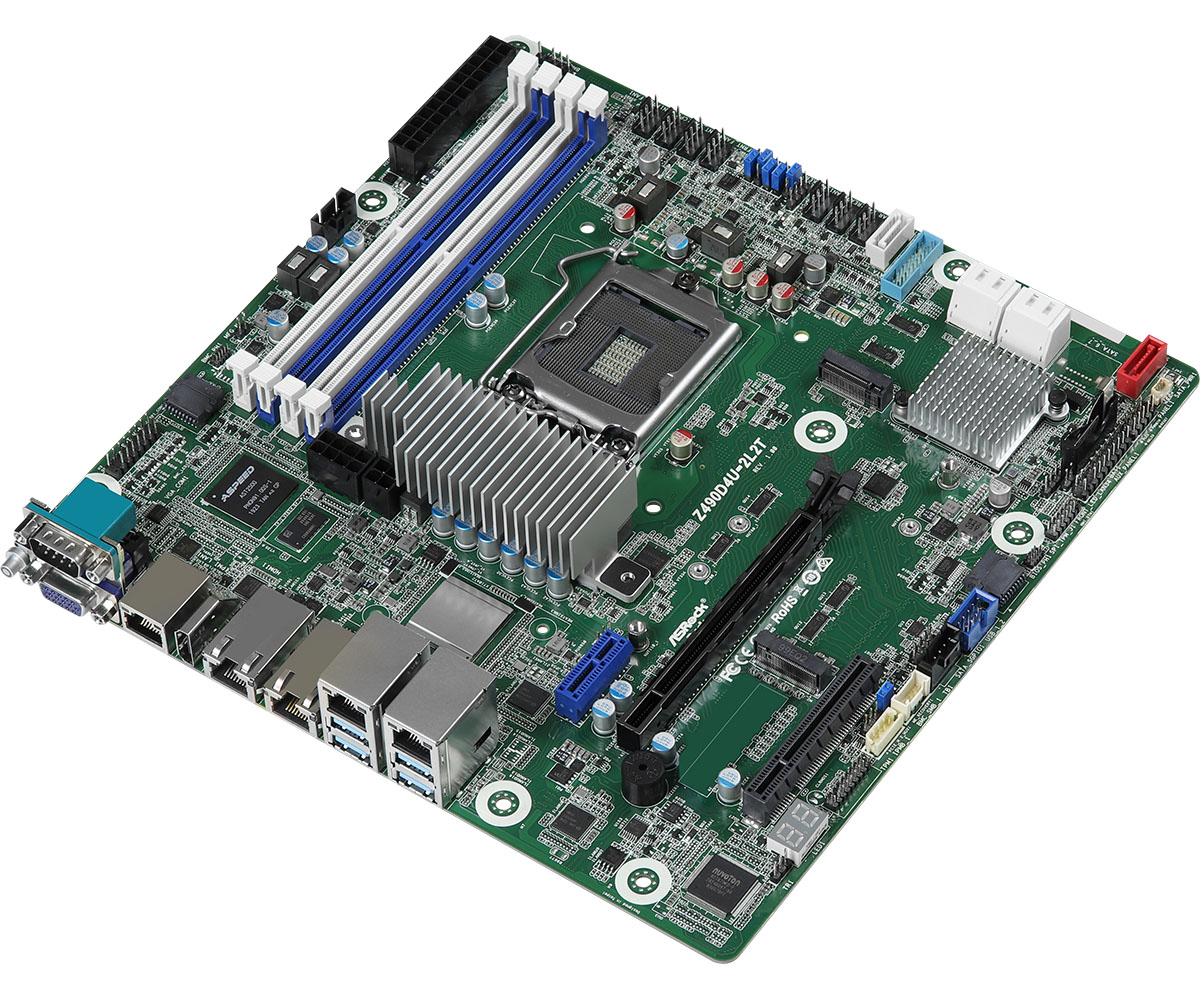

Внутренняя компоновка ASRock Rack Z490D4U-2L2T

GPU And Expansion

Ускорители и слоты расширения

Support 1x PCIe 3.0 x16、1x PCIe 3.0 x8. 1xPCIe 3.0x1

Слоты GPU и расширения ASRock Rack Z490D4U-2L2T

Storage And Infrastructure

Накопители, сеть и питание

6 x SATA3 6Gb/s (SATA0-5, SATA_0 supports SATA DOM). Support 2 x GLAN by Intel i210, 2 x 10G base-T by Intel X710-AT2

Накопители и задняя панель ASRock Rack Z490D4U-2L2T

Product Details

Детали конструкции

Характеристики

Сеть	Support 2 x GLAN by Intel i210, 2 x 10G base-T by Intel X710-AT2
Сокет	1200
Память	Support two channels DDR4 2933*/2666/2400 non-ECC DIMM
Чипсет	Z490
Graphics — VRAM	DDR4 256MB

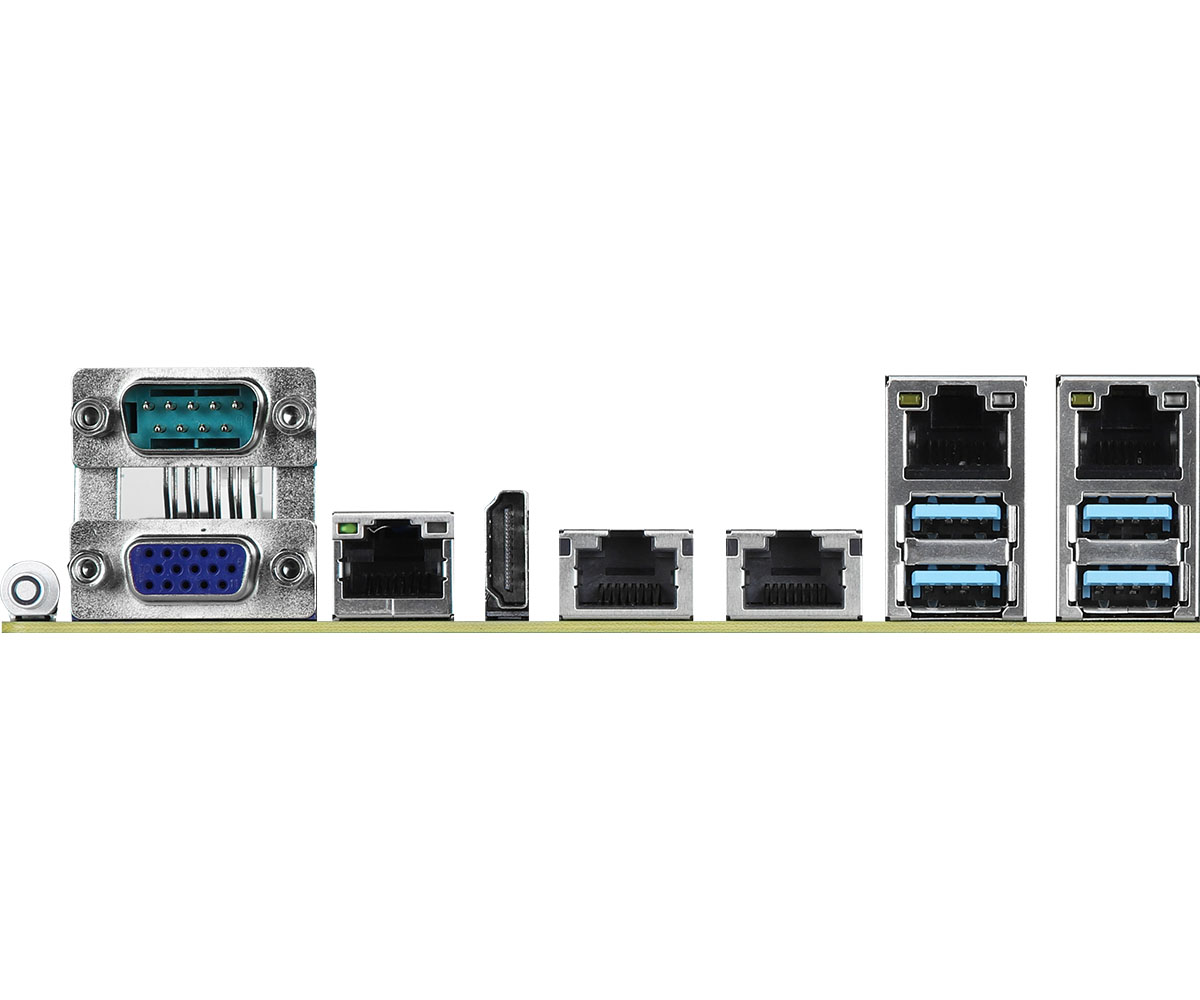

Rear I/O — RJ45	4 +1 RJ45 Gigabit Ethernet LAN ports; LAN Ports with LED (ACT/LINK LED and SPEED LED)
Supported OS — OS	Microsoft® Windows:; Windows® 10 (64 bit); Linux:; RedHat Enterprise Linux Server 7.7 (64 bit) / 8.1 (64 bit); CentOs 7.7 (64 bit) / 8.1 (64 bit); SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP1 (64 bit); Ubuntu 19.04 (64 bit) / 20.04 (64 bit); Hypervisor:; VMWare® ESXi 7.0.0/ vSphere 7.0.0; * Z490D4U-2L2T support Legacy and UEFI BOOT.; * The Intel® RAID mode is not supported on the Linux system.
Процессоры	Support Intel 10th Gen. Core i9/i7/i5/i3, Pentium, Celeron Series Processors
Форм-фактор	Micro-ATX
Ethernet — Interface	10000/1000 /100 Mbps
Graphics — Controller	ASPEED AST2500
Rear I/O — Video Port	1 x D-Sub, 1 HDMI
Environment — Humidity	Non-operating humidity: 20% ~ 90% (non-condensing)
Hardware Monitor — Fan	CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control
Processor System — CPU	Support Intel® 10th Gen. Core i9/i7/i5/i3, Pentium, Celeron® Series Processors
Rear I/O — Serial Port	1
System BIOS — BIOS Type	256 Mb AMI UEFI Legal BIOS
System Memory — Voltage	1.2V
Environment — Temperature	Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Rear I/O — UID Button/LED	1
Hardware Monitor — Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, V1.0M,+BAT, 3VSB, 5VSB
Processor System — Chipset	Intel® Z490
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8.0 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	9.6'' x 9.6'' (244 mm x 244 mm)
Rear I/O — USB 3.2 Gen1 Port	2 Type-A (USB3.2 Gen1)
Rear I/O — USB 3.2 Gen2 Port	2 Type-A (USB3.2 Gen2)
Server Management — Features	Watch Dog; NMI
LED Indicators — Fan Fail LED	7 (header)
Physical Status — Form Factor	Micro-ATX
Слоты расширения	Support 1x PCIe 3.0 x16、1x PCIe 3.0 x8. 1xPCIe 3.0x1
Hardware Monitor — Temperature	CPU Temperature Sensing; MB/Card side/TR1 Temperature Sensing
System Memory — Supported Type	Dual Channel DDR4 memory technology; Supports DDR4 non-ECC UDIMM
LED Indicators — 80 Debug Port LED	1
Server Management — BMC Controller	ASPEED AST2500
Internal Connector/Headers — Buzzer	1
System Memory — Max. DIMM Frequency	Non-ECC UDIMM: 2933/2666/2400 MHzCore (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
Server Management — Dedicated IPMI LAN	1 x Realtek RTL8211E for dedicated management GLAN
System Memory — Max. Capacity per DIMM	non-ECC UDIMM : 32GB, 16GB, 8GB, 4GB
Internal Connector/Headers — Clear CMOS	1 (short pin)
Internal Connector/Headers — Fan Header	7 (1CPU/4Front/2Rear)
Internal Connector/Headers — NMI Header	1
Internal Connector/Headers — TPM Header	1 (13-pin, SPI)
Internal Connector/Headers — VGA header	1
SATA/SAS Storage — PCH Built-in Storage	6 x SATA3 6Gb/s (SATA0-5, SATA_0 supports SATA DOM)
System Memory — Supported DIMM Quantity	4 x 288-pin DDR4 DIMM slots; Support up to 128GB DDR4 non-ECC UDIMM
Internal Connector/Headers — IPMB Header	1
Ethernet — Additional Ethernet Controller	2 x RJ45 GLAN by Intel® i210; 2 x RJ45 10G base-T by Intel® X710-AT2; 1 x RJ45 Dedicated IPMI LAN port by RTL8211E; Supports Wake-On-LAN; Supports Energy Efficient Ethernet 802.3az; Supports Dual LAN with Teaming function; Supports PXE; LAN1 supports NCSI
Internal Connector/Headers — PMBus header	1
Internal Connector/Headers — SGPIO Header	1
Internal Connector/Headers — SMBus header	1
Internal Connector/Headers — System Panel	1 (RST, PWRBTN, HDDLED, PWRLED)
Интерфейсы накопителей	Support 6 SATA3 by Intel Z490(1x SATA3 support SATA DOM)
Other PCIe Expansion Connectors — M.2 slot	2 (M2_1: 2260/2280/22110, Supports PCIE3.0(x4); M2_2:2260/2280, Supports PCIE3.0(x4))**The M.2 slot (M2_2) is shared with the PCIE5 slot (BTO). When M2_2 is populated with a M.2 PCIe module, PCIE5 will be disabled.
Internal Connector/Headers — USB 2.0 Header	1 (9-pin, 2 USB 2.0)
Internal Connector/Headers — ME/SPS Recovery	1
Internal Connector/Headers — Power Connector	1x (24-pin) + 1x (8-pin)+ 1x (4-pin)
Internal Connector/Headers — Thermal Sensor Header	1
Internal Connector/Headers — USB 3.2 (Gen1) Header	1 (19-pin, 2 USB3.2 Gen1)
Internal Connector/Headers — Auxiliary Panel Header	1 (includes chassis intrusion, location button & LED, and front LAN LED)
Internal Connector/Headers — Front Lan LED Connector	1
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 1	SLOT7: PCIe3.0 x1 (Physical x1, EEx1 (from PCH))
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 8	SLOT4: PCIe3.0 x8 (Physical x8, EE x0/x8 (from CPU), shared with SLOT6)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied (Physical x16, EE x16/x8 (from CPU), shared with SLOT4)
