ASRock Rack E3C232D4U-V1L

Name: ASRock Rack E3C232D4U-V1L
Brand: ASRock Rack
SKU: E3C232D4U-V1L

Артикул: E3C232D4U-V1L

Серверная материнская плата E3C232D4U-V1L

Серверная материнская плата E3C232D4U-V1L, Micro-ATX.

Форм-фактор

Micro-ATX

Процессоры

Intel Xeon E3-1200 v5/v6 Series Processors

Память

Supports Dual channel DDR4 2133/1866 ECC max 64 GB

Сеть

Supports Intel I210*1

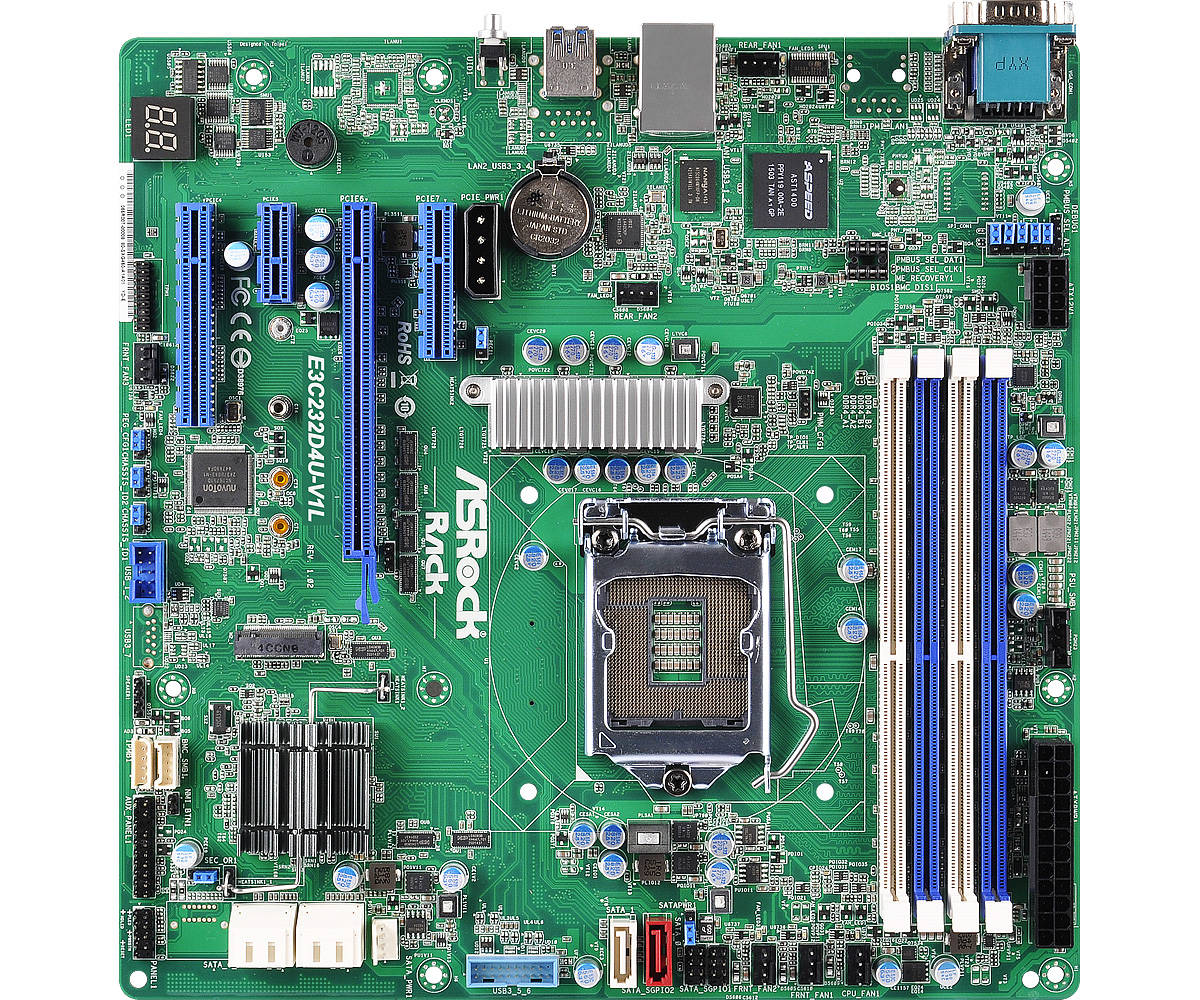

серверная материнская плата ASRock Rack E3C232D4U-V1L

Compute And Memory

Вычислительная платформа и память

Intel Xeon E3-1200 v5/v6 Series Processors. Supports Dual channel DDR4 2133/1866 ECC max 64 GB

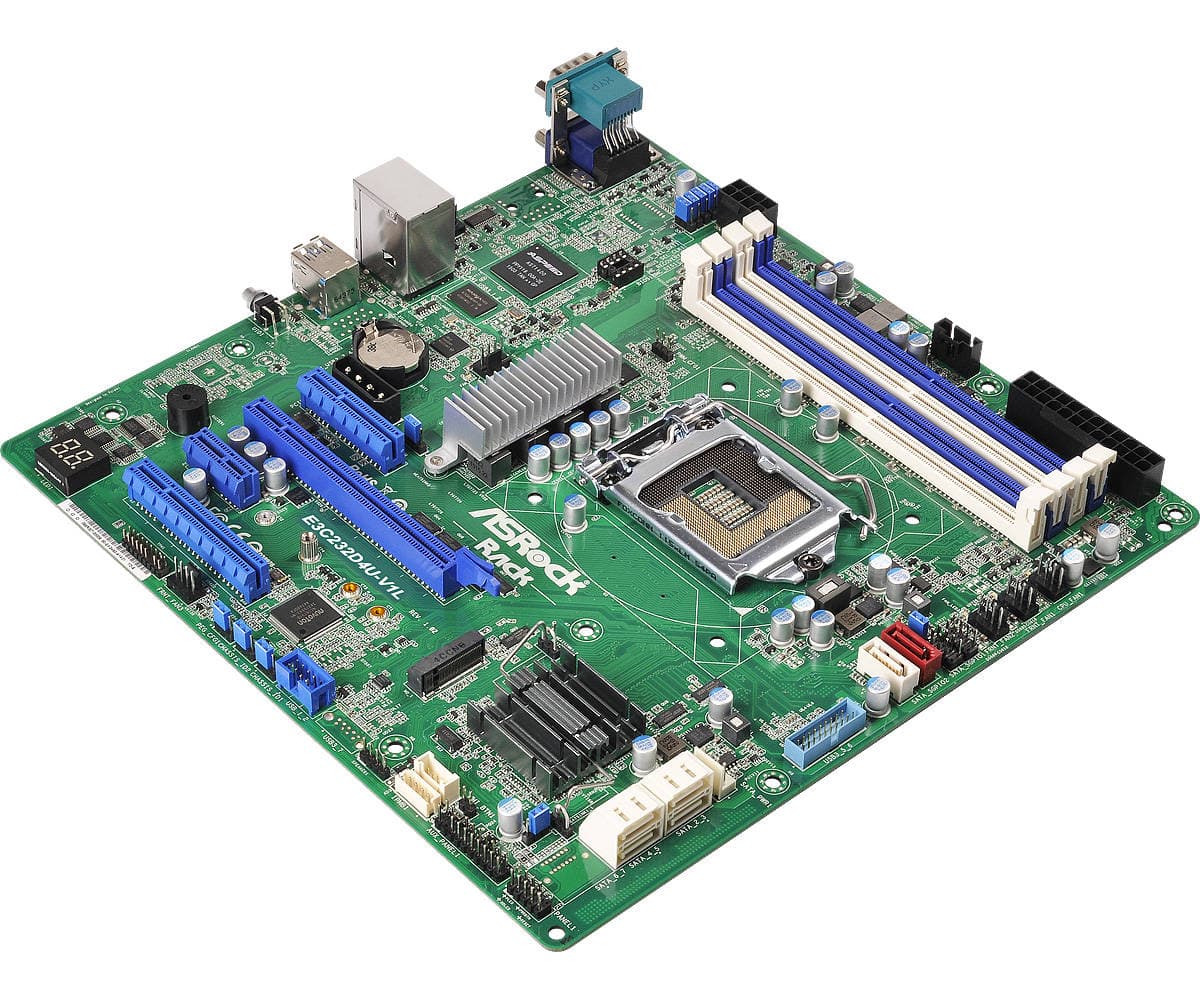

Внутренняя компоновка ASRock Rack E3C232D4U-V1L

GPU And Expansion

Ускорители и слоты расширения

Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe 3.0 x1

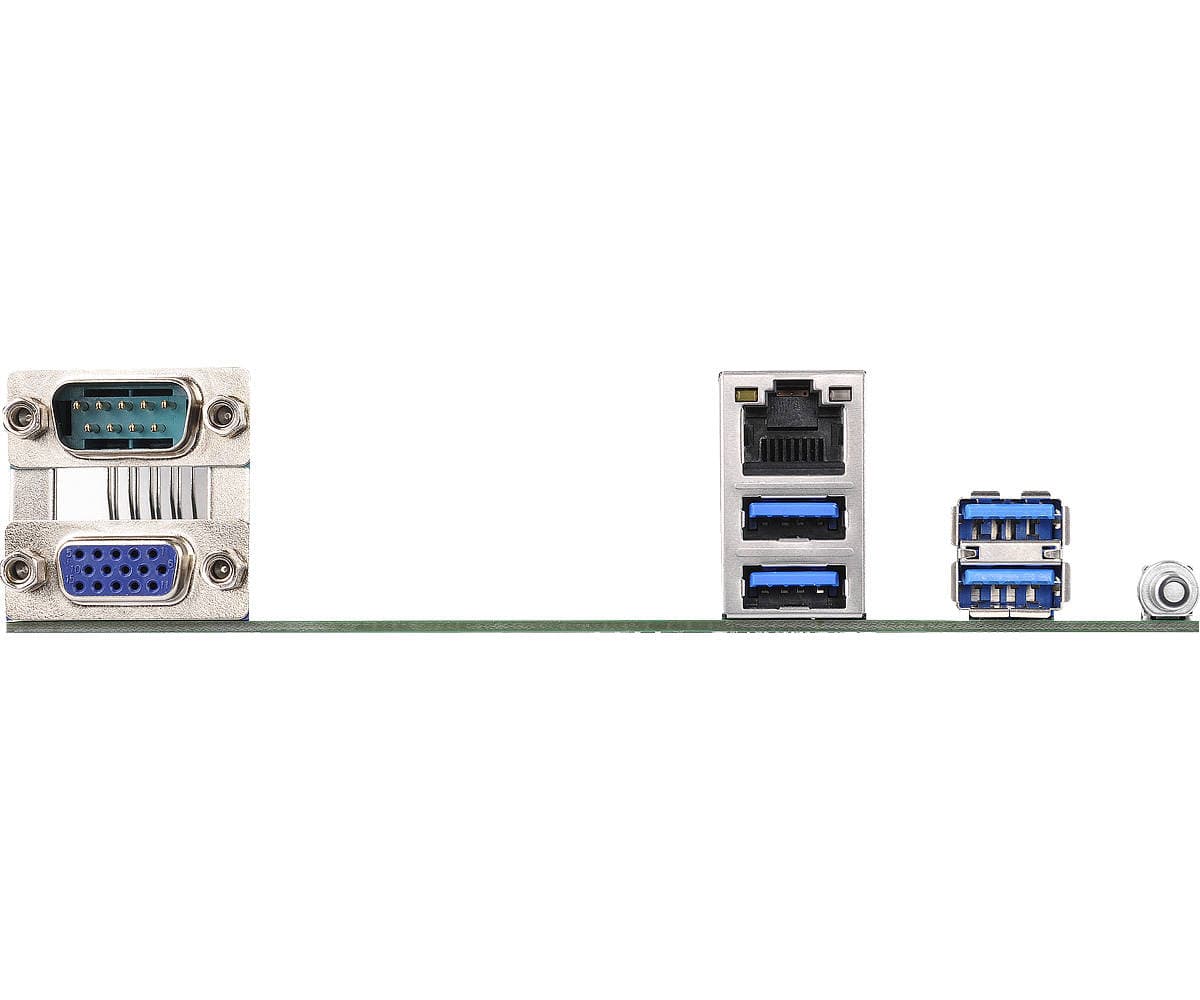

Слоты GPU и расширения ASRock Rack E3C232D4U-V1L

Storage And Infrastructure

Накопители, сеть и питание

6x SATA3 6Gb/s (1 port supports SATA DOM), support RAID 0, 1, 5, 10. Supports Intel I210*1

Накопители и задняя панель ASRock Rack E3C232D4U-V1L

Product Details

Детали конструкции

Характеристики

Сеть	Supports Intel I210*1
Сокет	1151
Память	Supports Dual channel DDR4 2133/1866 ECC max 64 GB
Чипсет	C232
Graphics — VRAM	DDR3 16MB
Rear I/O — RJ45	RJ45: 1x GLAN(by Intel® i210); LAN Ports with LED (ACT/LINK LED and SPEED LED)
Supported OS — OS	Microsoft® Windows®; Server 2008 R2 SP1 (64 bit); Server 2012 (64 bit); Server 2012 R2 (64 bit); Linux; RedHat Enterprise Linux Server 6.6 (32 / 64 bit) / 7.0 (64 bit); CentOS 6.6 (32 / 64 bit) / 7.0 (64 bit); SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit) / 12.0 (64 bit); Fedora core 22 (64 bit); Ubuntu 15.04 (64 bit) / 15.10 (64 bit) (AHCI mode)
Процессоры	Intel Xeon E3-1200 v5/v6 Series Processors
Форм-фактор	Micro-ATX
Ethernet — Interface	1000 /100 /10 Mbps
Graphics — Controller	ASPEED AST1400
Rear I/O — Video Port	1 x D-Sub
Environment — Humidity	Operating Humidity Range: 10%-90% / Non-operating Humidity Range: 10%-90%
Hardware Monitor — Fan	CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control
Processor System — CPU	Intel® Xeon® E3-1200 v5/v6 Series Processors*BIOS version 2.0 or above is required for v4 series
Rear I/O — Serial Port	1(COM1)
Rear I/O — Dedicate LAN	N/A
System BIOS — BIOS Type	128Mb AMI UEFI Legal BIOS
System Memory — Voltage	1.2V
Environment — Temperature	Operating temperature Range: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Rear I/O — UID Button/LED	1
Hardware Monitor — Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.0V_M, +BAT, 3VSB, 5VSB
Processor System — Chipset	Intel® C232
Hardware Monitor — Watchdog	Yes
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8.0 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	9.6'' x 9.6'' (244 mm x244 mm)
Rear I/O — USB 3.2 Gen1 Port	4 Type-A (USB3.2 Gen1)
Server Management — Features	Watch Dog; NMI
Physical Status — Form Factor	Micro-ATX
Слоты расширения	Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe 3.0 x1
Hardware Monitor — Temperature	CPU Temperature Sensing; System Temperature Sensing; System Inlet Temperature Sensing
System Memory — Supported Type	Dual Channel DDR4 memory technology; Supports DDR4 2400/2133/1866/1600 ECC UDIMM memory*Only E3-1200 v6 CPUs can support DDR4 2400
Server Management — BMC Controller	ASPEED AST1400
Internal Connector/Headers — Buzzer	1
System Memory — Max. Capacity per DIMM	Supports DDR4 2133 ECC/U DIMM memory; ECC UDIMM : 16GB, 8GB, 4GB
Internal Connector/Headers — Fan Header	6(1CPU/3Front/2Rear)
Internal Connector/Headers — TPM Header	1
SATA/SAS Storage — PCH Built-in Storage	6x SATA3 6Gb/s (1 port supports SATA DOM), support RAID 0, 1, 5, 10
System Memory — Supported DIMM Quantity	4 x DDR4 DIMM slots
Internal Connector/Headers — IPMB Header	N/A
Ethernet — Additional Ethernet Controller	1 x RJ45 GLAN by Intel® i210; Supports Wake-On-LAN; Supports Energy Efficient Ethernet 802.3az; Supports PXE
Интерфейсы накопителей	Supports 6 SATA3 by C232
Other PCIe Expansion Connectors — M.2 slot	1
Internal Connector/Headers — USB 2.0 Header	1 (9-pin, 2 USB2.0)
Internal Connector/Headers — Power Connector	1x (24-pin) + 1x (8-pin)
Internal Connector/Headers — USB 3.2 (Gen1) Header	1 (19-pin, 2 USB3.2 Gen1)
Internal Connector/Headers — Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED, event log LED)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 1	SLOT5: PCIe3.0 x1
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 4	SLOT7: PCIe3.0 x4 (shared with M.2)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 8	SLOT4: PCIe3.0 x8
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied
