ASRock Rack EP2C622D24HM

Name: ASRock Rack EP2C622D24HM
Brand: ASRock Rack
SKU: EP2C622D24HM

Артикул: EP2C622D24HM

Серверная материнская плата EP2C622D24HM

Серверная материнская плата EP2C622D24HM, Half Width(OCP Blade) 6.5" x 20".

Форм-фактор

Half Width(OCP Blade) 6.5" x 20"

Процессоры

Supports 2 Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors

Память

Supports six Channel DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)

Сеть

1 OCP 2.0 connector A; 1 OCP 2.0 connector B; 1 OCP 2.0 connector C

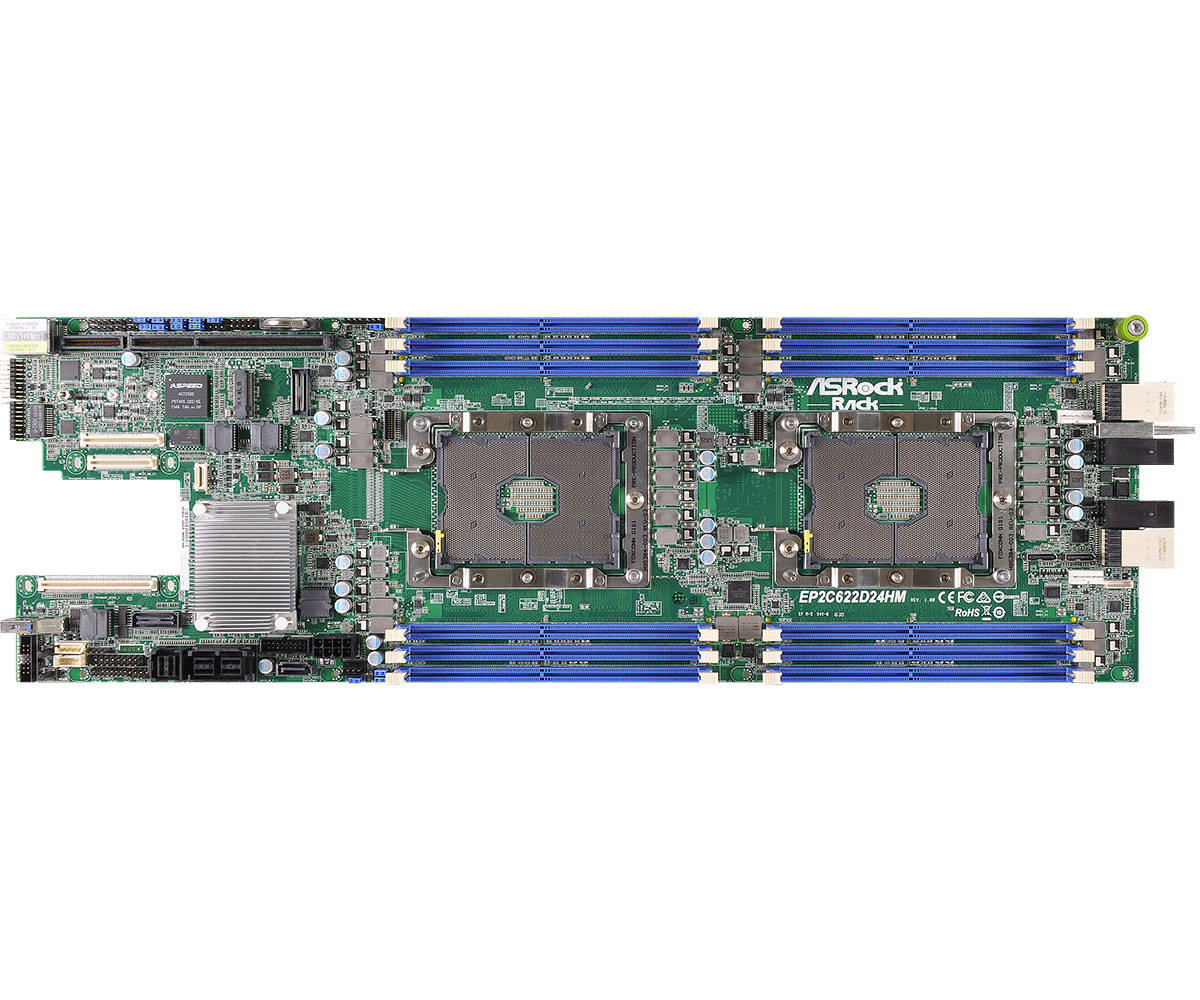

серверная материнская плата ASRock Rack EP2C622D24HM

Compute And Memory

Вычислительная платформа и память

Supports 2 Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors. Supports six Channel DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)

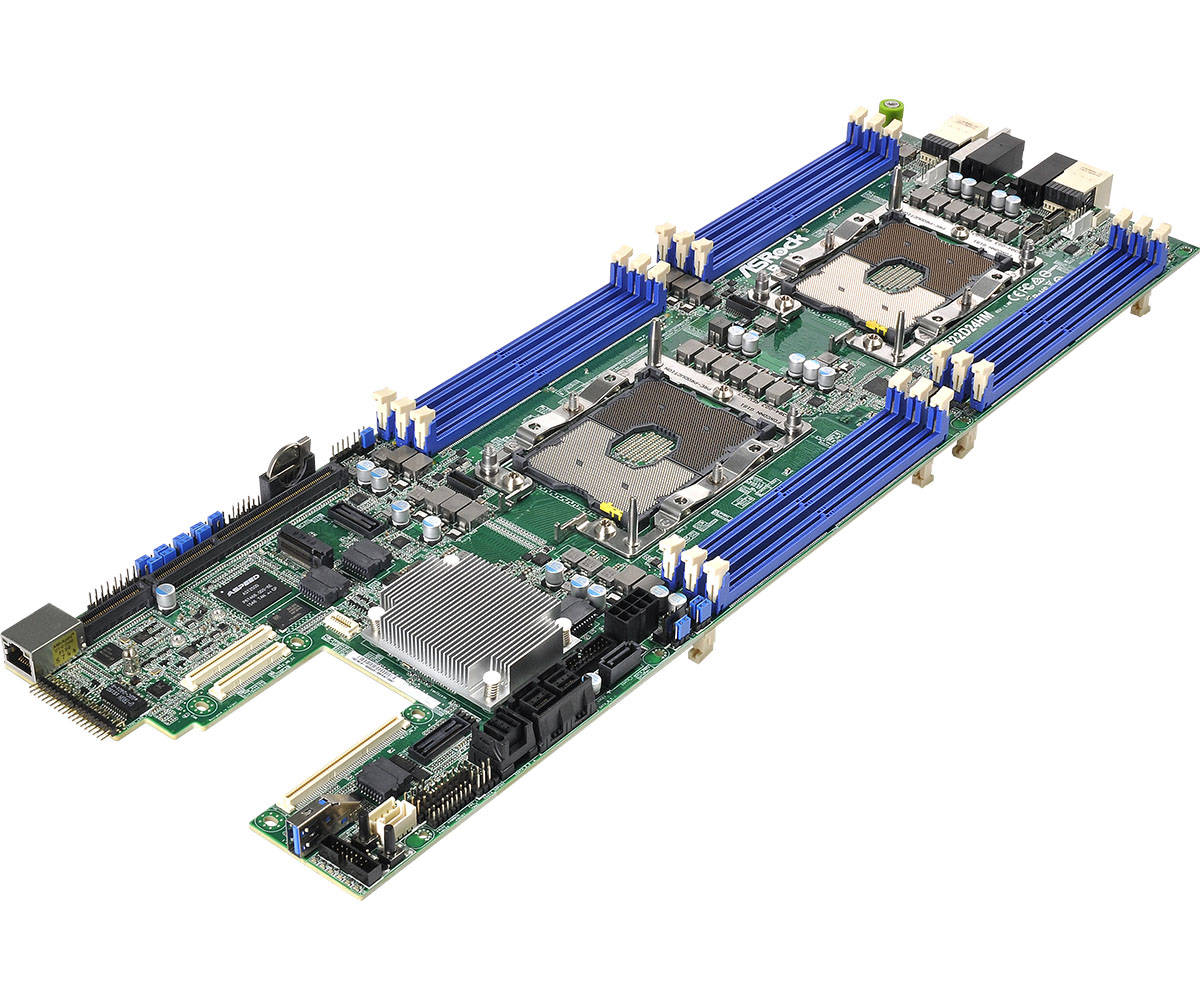

Внутренняя компоновка ASRock Rack EP2C622D24HM

GPU And Expansion

Ускорители и слоты расширения

Supports 1 x PCIe 3.0 x24, 1 x PCIe 3.0 x8

Слоты GPU и расширения ASRock Rack EP2C622D24HM

Storage And Infrastructure

Накопители, сеть и питание

Intel® C622:13 SATA3(by 3 miniSAS HD (SATA 0-7, sSATA 1-3) & 1 sSATA (SATA share with M.2)). 1 OCP 2.0 connector A; 1 OCP 2.0 connector B; 1 OCP 2.0 connector C

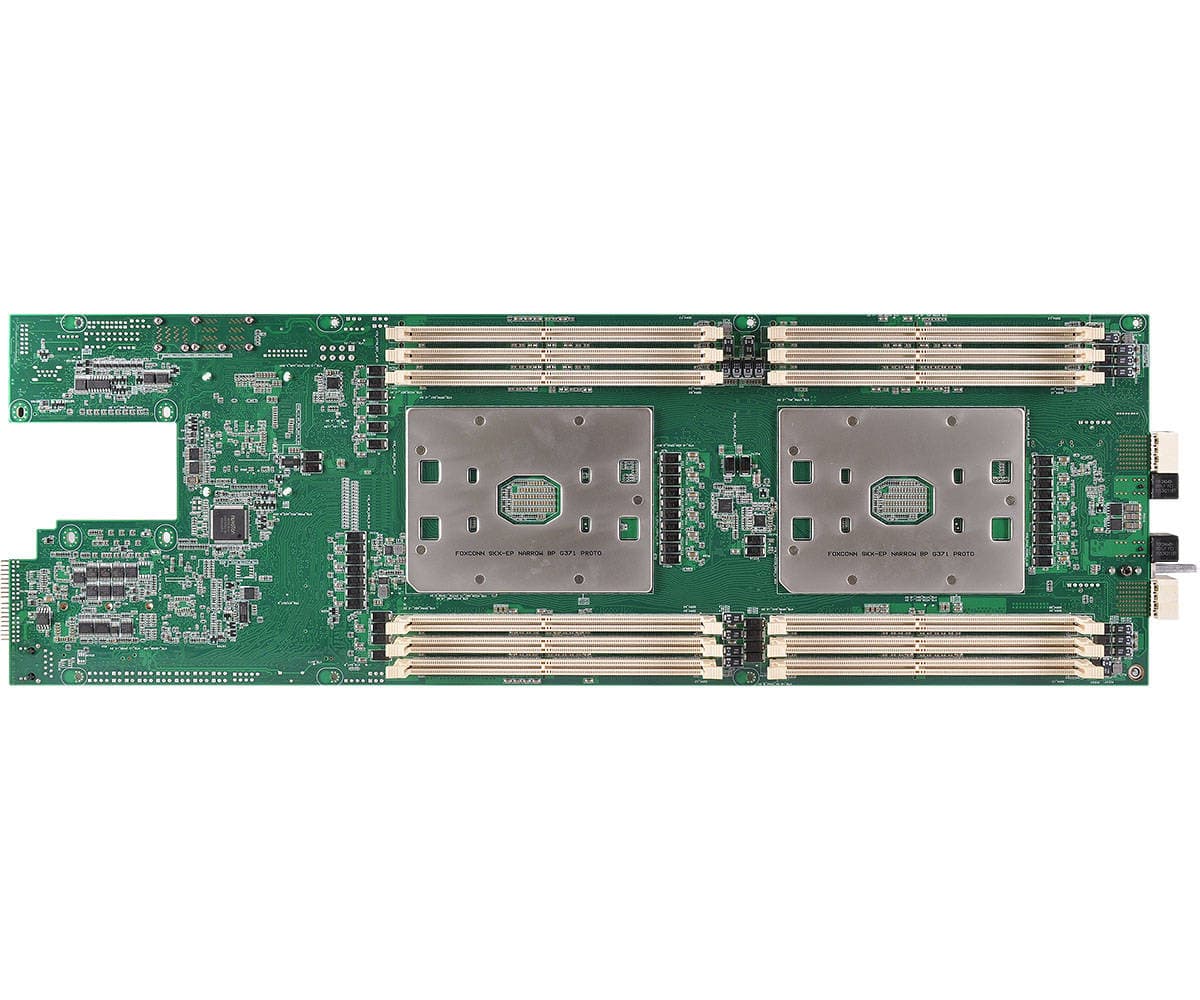

Накопители и задняя панель ASRock Rack EP2C622D24HM

Product Details

Детали конструкции

Характеристики

Сокет	3647
Память	Supports six Channel DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Чипсет	Intel C622
Graphics — VRAM	DDR4 16MB
Процессоры	Supports 2 Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
Ethernet — OCP slot	1 OCP 2.0 connector A; 1 OCP 2.0 connector B; 1 OCP 2.0 connector C
Форм-фактор	Half Width(OCP Blade) 6.5" x 20"
Graphics — Controller	ASPEED AST2500
Environment — Humidity	Non-operating humidity: 20% ~ 90% (non-condensing)
Hardware Monitor — Fan	CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control
Processor System — CPU	Supports 2 nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors
Rear I/O — Dedicate LAN	1 dedicated IPMI LAN port
System BIOS — BIOS Type	256Mb AMI UEFI Legal BIOS
System Memory — Voltage	1.2V
Environment — Temperature	Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Processor System — Socket	Dual Socket P, LGA3647
Hardware Monitor — Voltage	Voltage Monitoring: CPU1/2, VCCM_AB/CD/EF/GH, +1.50_ PCH, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB
Processor System — Chipset	Intel® C622
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	6.5" x 20"
Rear I/O — USB 3.2 Gen1 Port	1
Server Management — Features	Watch Dog; NMI
LED Indicators — Fan Fail LED	2
Physical Status — Form Factor	Half-width (OCP Blade)
Слоты расширения	Supports 1 x PCIe 3.0 x24, 1 x PCIe 3.0 x8
Hardware Monitor — Temperature	CPU Temperature Sensing; System Temperature Sensing; Card Side Temperature Sensing
System Memory — Supported Type	6+6 Channel memory technology; Support up to 64 GB DDR4 UDIMM; Supports DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)
LED Indicators — Standby PWR LED	1
Server Management — BMC Controller	ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm、vMedia support
Server Management — Dedicated IPMI LAN	1 x Realtek RTL8211E for dedicated management GLAN PIN
Internal Connector/Headers — Fan Header	2
Internal Connector/Headers — TPM Header	1
SATA/SAS Storage — PCH Built-in Storage	Intel® C622:13 SATA3(by 3 miniSAS HD (SATA 0-7, sSATA 1-3) & 1 sSATA (SATA share with M.2))
System Memory — Supported DIMM Quantity	24 x 288-pin DDR4 DIMM slots
Internal Connector/Headers — IPMB Header	1
Интерфейсы накопителей	Intel C622：13x SATA3 (by 3x MiniSAS HD, 1 sSATA (share with M.2) )
Other PCIe Expansion Connectors — M.2 slot	1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280/2260/2242 form factor
Internal Connector/Headers — Power Connector	1 (8-pin, ATX 12V)
Internal Connector/Headers — USB 3.2 (Gen1) Header	1
Internal Connector/Headers — Auxiliary Panel Header	1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 8	1 x PCIe3.0 x8
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 24	1 x PCIe3.0 x24
Internal Connector/Headers — Type A USB 3.2 (Gen1) Port	1
Другие официальные характеристики	1 x USB 3.0 ports
