ASRock Rack

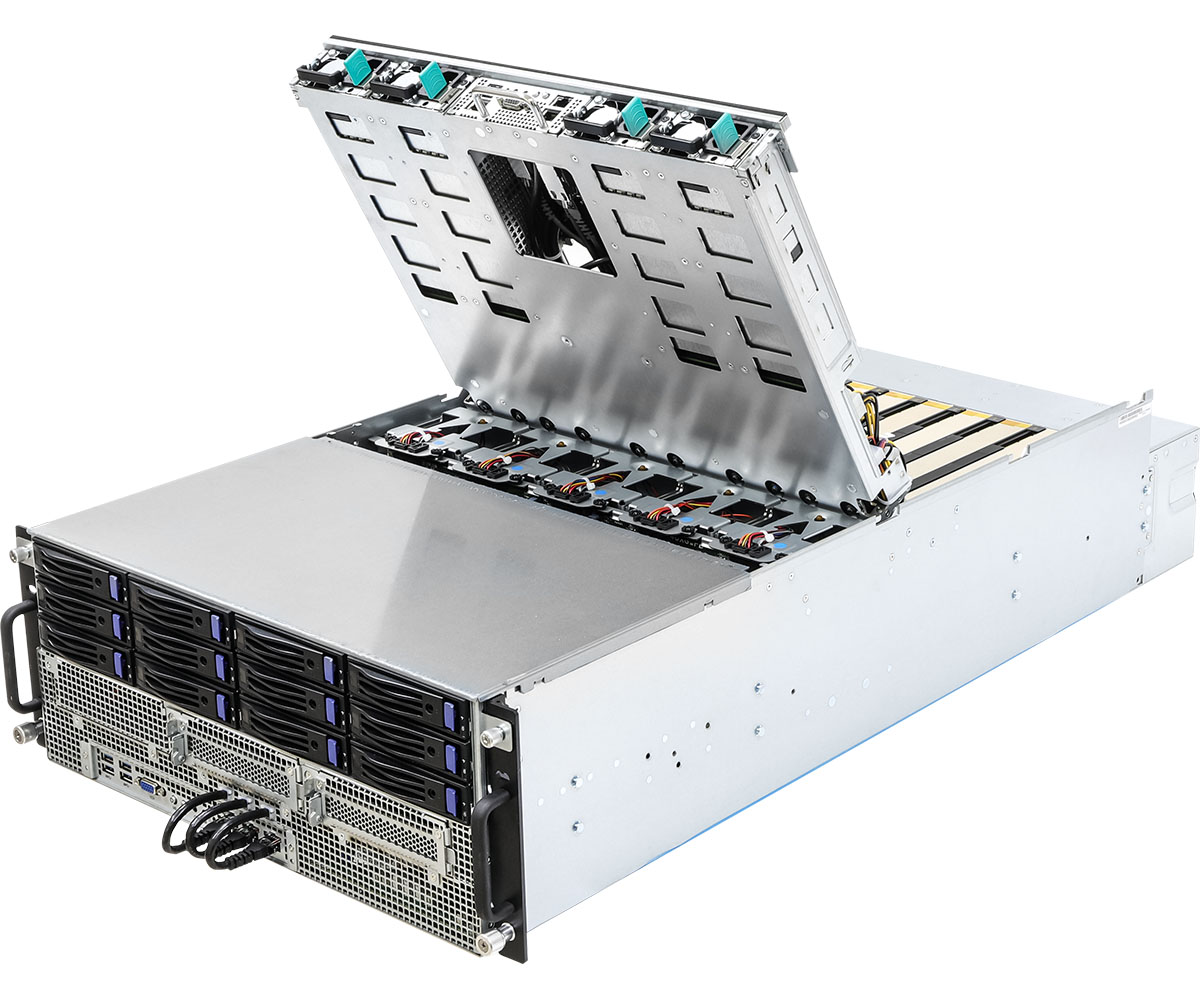

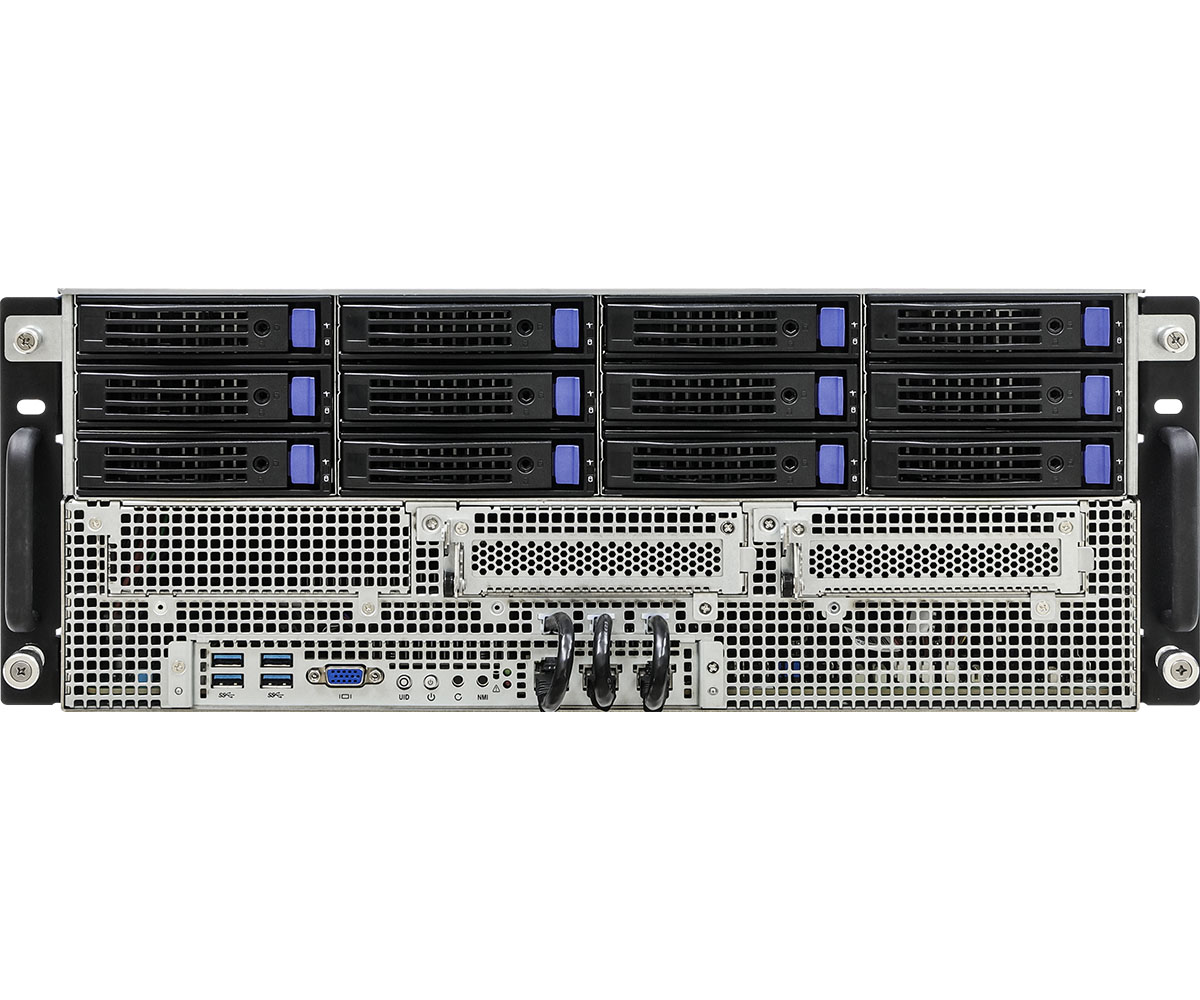

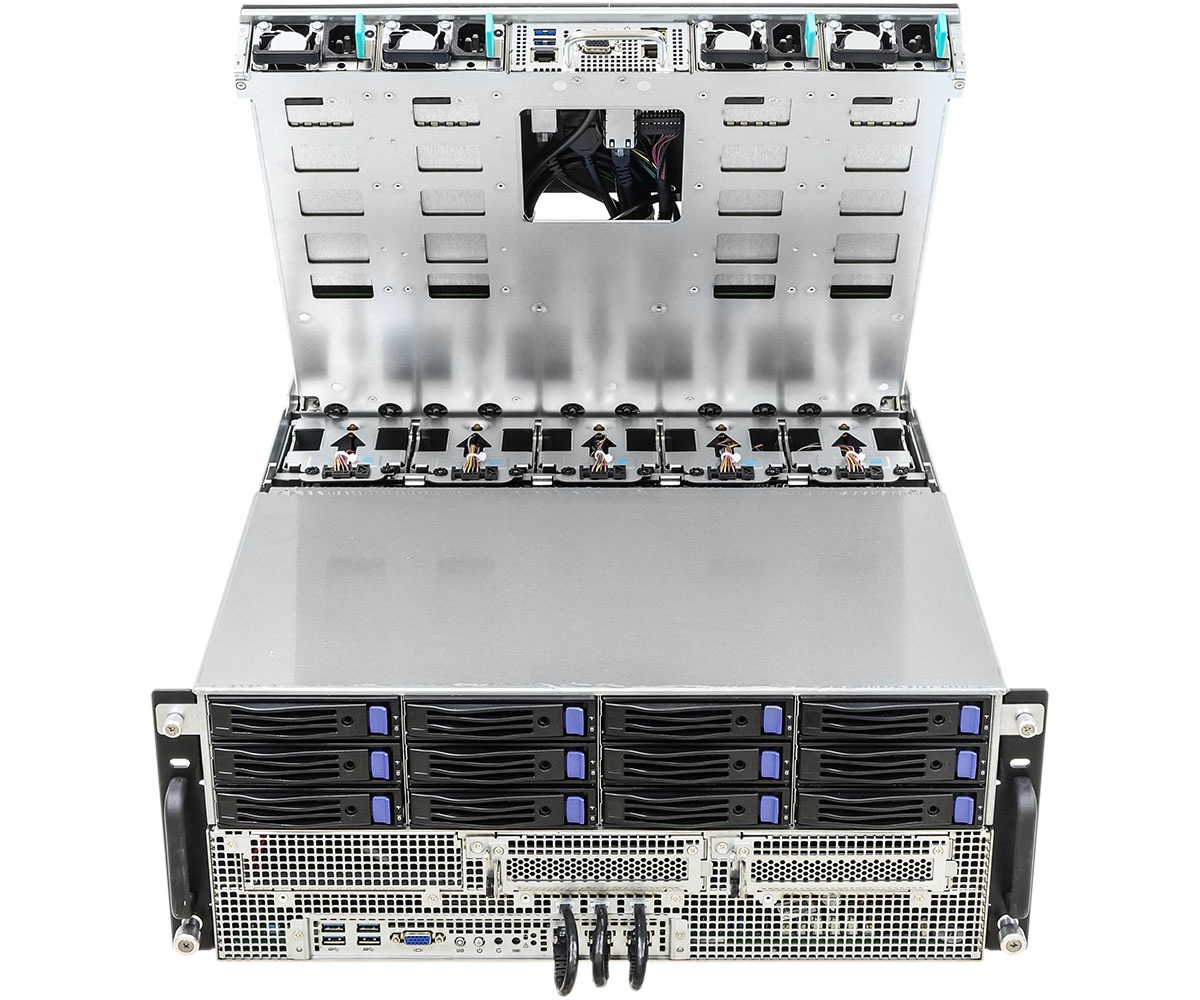

ASRock Rack 4U8G-ICX2/2T

Артикул: 4U8G-ICX2/2T

Характеристики

M.2	1 M-key (PCIe3.0 x4/SATA) supports 22110/2280 form factor, 1 optional M-key (PCIe3.0 x4/SATA) supports 22110/2280 form factor
VGA	1
RJ45	2
Brand	ASRock Rack
Model	4U8G-ICX2/2T
GPU/VPU	Aspeed AST2500
CPU Type	Intel Xeon
Features	4U Rackmount with 3+1 Redundant 1600W CRPSDual Socket (LGA 4189), support Dual 3rd Gen Intel Xeon Scalable Processors16+16 DIMM slots, support DDR4 RDIMM/ LRDIMM/ NVDIMM12 hot-swap 3.5" drive baysSupports up to 8 dual-slot PCIe4.0 x16Front side 1 FHHL PCIe3.0 x4 and OCP NIC 3.0, optional OCP2.0 mezzanine cards supportOn-board dual 10GbE RJ45 by Intel X710-AT2
First LAN	Intel X710-AT2
Front USB	4 x USB 3.2 Gen 1
CPU Socket	1+1 Socket P+ (LGA 4189)
Dimensions	17.24" x 33.27" x 6.95"

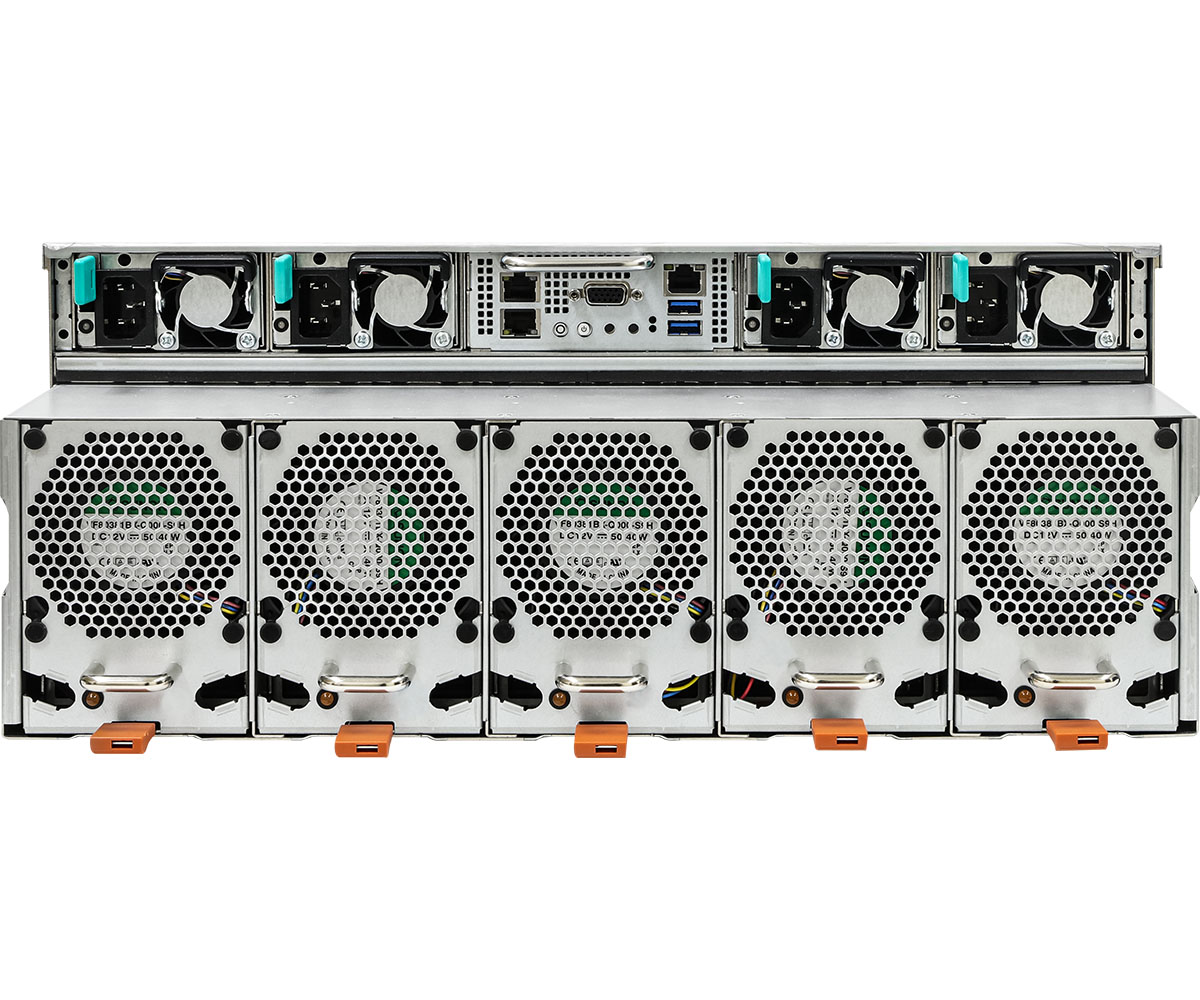

Max. Power	1600W, 3+1 CRPS, 80-PLUS Platinum
Serial ATA	6 x SATA 600
Form Factor	4U Rackmount

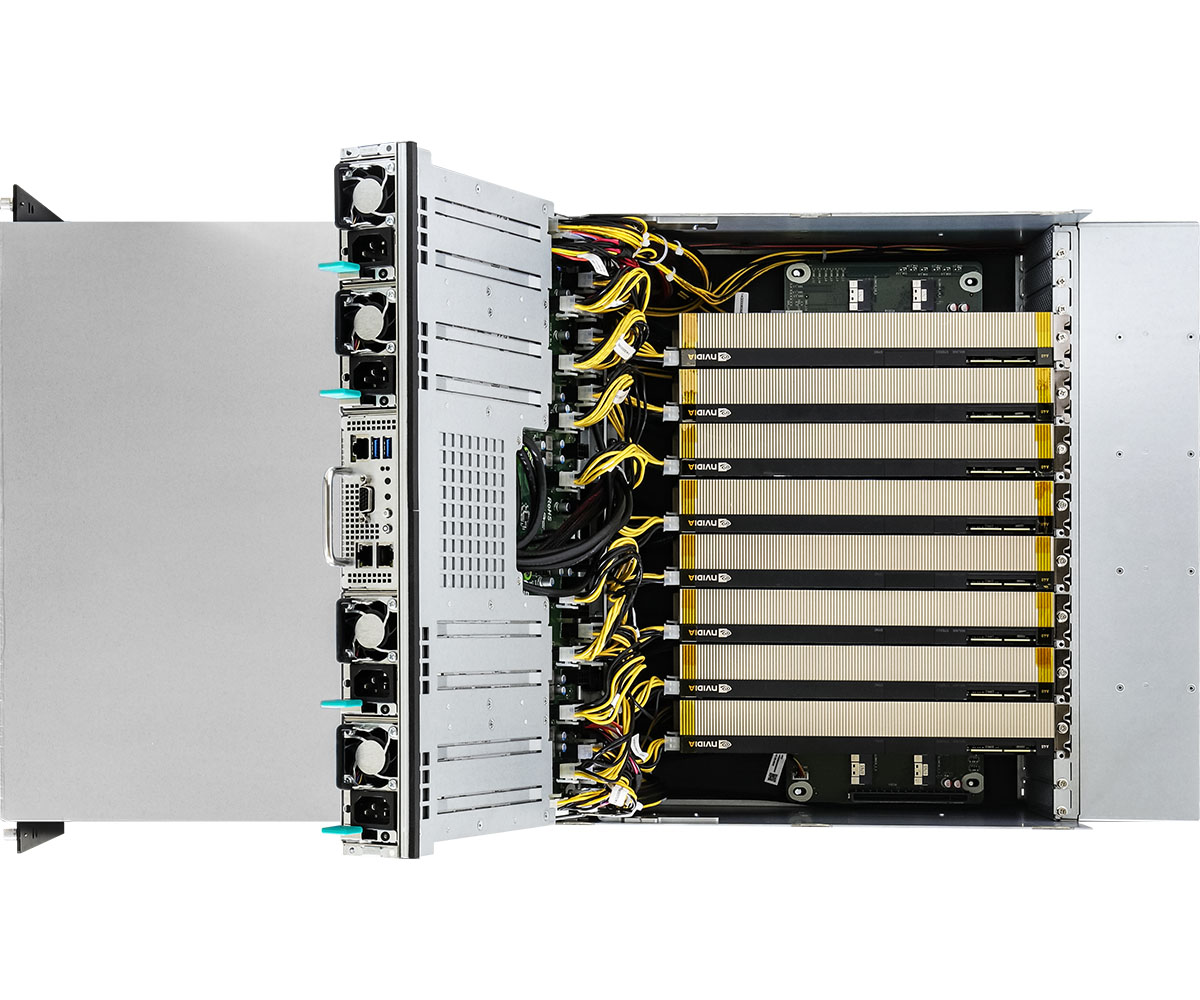

PCI Express	PCIe x 16, Rear: 8 FHFL dual-slot PCIe4.0 x16 via 4UXG_SWBPCIe x 4, Front: 1 FHHL PCIe3.0 x4 via 4UXG_SL2P, 1 OCP3.0 PCIe3.0 x4 via 4UXG_SL2OCP3
Memory Slots	32 x 288Pin
Video Memory	4 GB DDR4
Hot-Swap Bays	12 x Hot-swap 3.5" drive baysSupports 2 SATA drives; additional 4-8 SATA drives possible by cable reconfigurationSupports 8 SAS/SATA drives by additional PCIe 8-port RAID/HBA card
Installed CPU	No CPU Installed
Max Processors	2
Max. LAN Speed	10 Gigabit
Memory Type Supported	DDR4 3200
