ASRock Rack

ASRock Rack RM23712-C622LM/22E

Name: ASRock Rack RM23712-C622LM/22E
Brand: ASRock Rack
SKU: RM23712-C622LM/22E

Артикул: RM23712-C622LM/22E

GPU-платформа RM23712-C622LM/22E

LGA 3647; Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors; 24 x 288Pin Memory Slots; 2 (1+1), Redundant CPRS PSU, 1200W, Platinum

Форм-фактор

2U Rackmount

Процессоры

Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors

Память

24 x 288Pin

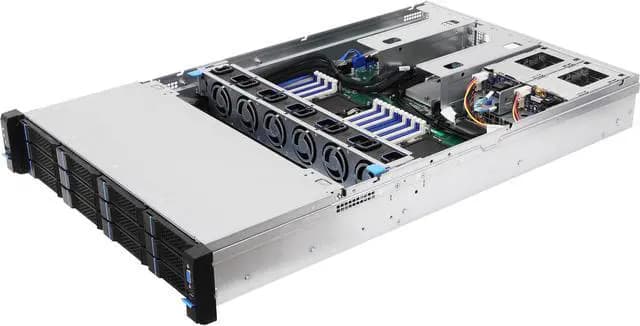

GPU-платформа ASRock Rack RM23712-C622LM/22E

Compute And Memory

Вычислительная платформа и память

Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors. 24 x 288Pin

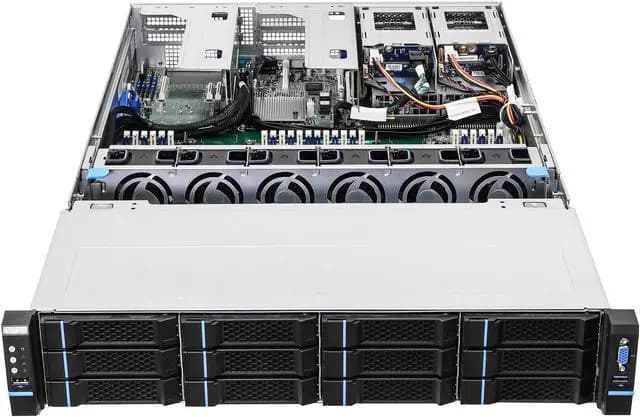

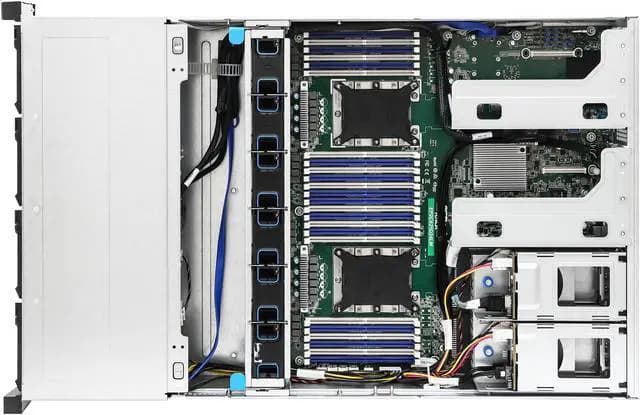

Внутренняя компоновка ASRock Rack RM23712-C622LM/22E

Product Details

Детали конструкции

Характеристики

VGA	1
Brand	ASRock Rack
Model	RM23712-C622LM/22E
CPU Type	Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
Workload	General Purpose Server
Front USB	1 x USB 2.01 x USB 3.0
CPU Socket	LGA 3647

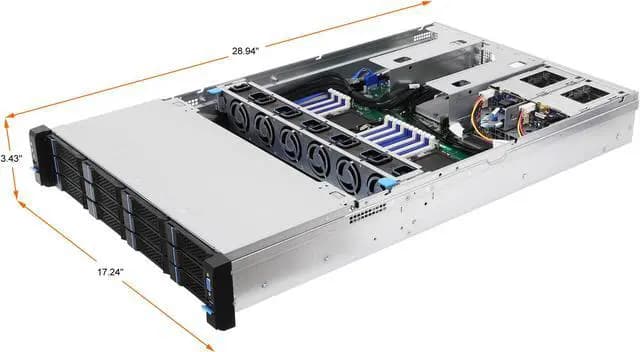

Dimensions	3.43" x 17.24" x 28.94"
Max. Power	2 (1+1), Redundant CPRS PSU, 1200W, Platinum
Form Factor	2U Rackmount
PCI Express	SLOT2: PCIe3.0 x16 [CPU1]SLOT1: PCIe3.0 x16 [CPU0]
Memory Slots	24 x 288Pin
North Bridge	Intel C622
Hot-Swap Bays	Front Side Drive Bay: 12 Hot-swap 3.5" drive baysFront Side Backplane: 12-port 12Gbps passive backplane * SAS drive is only supported with additional RAID/HBA cardsRear Side: 4 Hot-swap 2.5" drive baysRear Side Bakplane: 2-port 12Gbps* and 2-port PCIe3.0 backplane * SAS drive is only supported with additional RAID/HBA cards
Installed CPU	No CPU Installed
Max Processors	2
Channel Supported	6 Channel
Memory Type Supported	DDR4 2933
