ASRock Rack

ASRock Rack 2U4N-F/C621-M3

Name: ASRock Rack 2U4N-F/C621-M3
Brand: ASRock Rack
SKU: 2U4N-F/C621-M3

Артикул: 2U4N-F/C621-M3

GPU-платформа 2U4N-F/C621-M3

2U chassis with 4 node support 16x 2.5" HDD, 1600W Redundant (1+1) PSU; Dual Socket Intel Xeon Scalable Processors and 2nd Gen Intel Xeon Scalable Processors; Supports Six channel DDR4 2666/2400 RDIMM, LRDIMM, 16 x DIMM slots; Supports 4 x 2.5" HDD/S

Форм-фактор

2U Rackmount

Процессоры

Supports 2nd/1st Gen Intel Xeon Scalable Processors

Память

16 x 288Pin

GPU-платформа ASRock Rack 2U4N-F/C621-M3

Compute And Memory

Вычислительная платформа и память

Supports 2nd/1st Gen Intel Xeon Scalable Processors. 16 x 288Pin

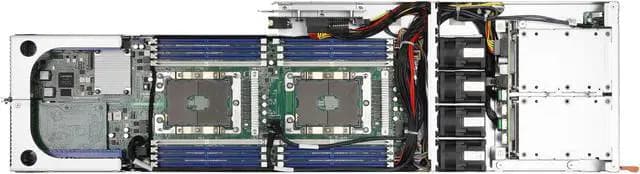

Внутренняя компоновка ASRock Rack 2U4N-F/C621-M3

Product Details

Детали конструкции

Характеристики

M.2	1 (support 2280 only)
VGA	1 x mini Display port (MiniDisplay port, Dsub to miniDisplay cable)
RJ45	1 x (IPMI) Lan port (RJ45)
Brand	ASRock Rack
Model	2U4N-F/C621-M3
CPU Type	Supports 2nd/1st Gen Intel Xeon Scalable Processors
Rear USB	2 x USB 3.2 Gen1
CPU Socket	LGA 3647

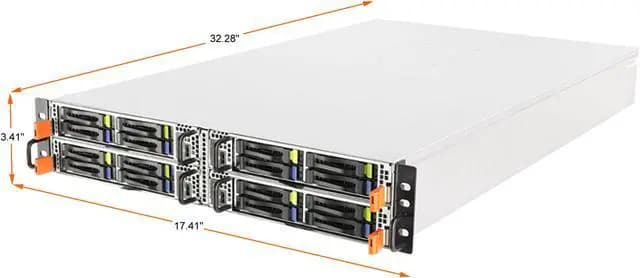

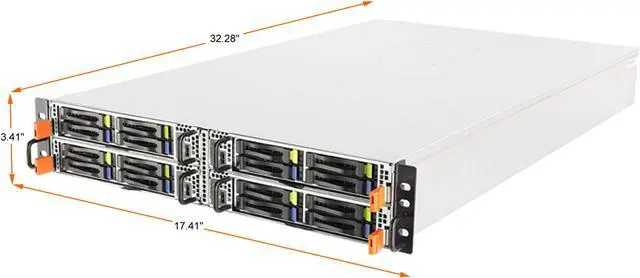

Dimensions	3.41" x 17.41" x 32.28"
Max. Power	1600W Redundant (1+1) PSU
Serial ATA	4 x SATA 600
Form Factor	2U Rackmount
PCI Express	2 x PCIe3.0 x16 (Low Profile card)
Memory Slots	16 x 288Pin
North Bridge	Intel C621
Video Memory	ASPEED AST2500
Installed CPU	No CPU Installed
Max Processors	2
Max. LAN Speed	1 Gigabit
Channel Supported	6 Channel
Memory Type Supported	DDR4 2666/2400 RDIMM and LRDIMM
