ASRock Rack

ASRock Rack 2U2E-F/ICX2

Name: ASRock Rack 2U2E-F/ICX2
Brand: ASRock Rack
SKU: 2U2E-F/ICX2

Артикул: 2U2E-F/ICX2

GPU-платформа 2U2E-F/ICX2

1+1 Socket P+ (LGA 4189); Supports 3rd Gen Intel Xeon Scalable Processors; 32 x 288Pin Memory Slots; 1600W, 1+1 CRPS, 80-PLUS Platinum

Форм-фактор

2U Rackmount

Процессоры

Supports 3rd Gen Intel Xeon Scalable Processors

Память

32 x 288Pin

Compute And Memory

Supports 3rd Gen Intel Xeon Scalable Processors. 32 x 288Pin

Product Details

COM	1
M.2	1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280/2260/2242 form factor
VGA	1
Brand	ASRock Rack
Model	2U2E-F/ICX2
GPU/VPU	Aspeed AST2500
CPU Type	Supports 3rd Gen Intel Xeon Scalable Processors
Features	Front IO2U Rackmount with 1+1 Redundant 1600W CRPSDual 3rd Gen Intel Xeon Scalable Processors sockets16+16 DIMM slots, supports DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel Optane Persistent Memory 200 Series2 PCIe4.0 x16, 2 PCIe4.0 x82 Hot-swap 2.5" NVMe drive bays1 OCP NIC 3.0 (PCIe4.0 x16)1 M.2Remote management (IPMI)
Humidity	Non operation humidity: 20% ~ 90% ( Non condensing)
Workload	Edge Server
Front USB	2 x USB 3.2 Gen 1
CPU Socket	1+1 Socket P+ (LGA 4189)

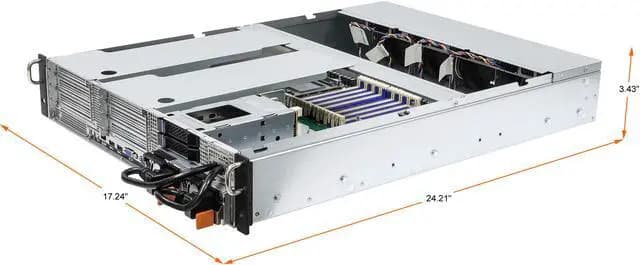

Dimensions	3.43" x 24.21" x 17.24"
Max. Power	1600W, 1+1 CRPS, 80-PLUS Platinum
Form Factor	2U Rackmount
PCI Express	PCIe x 16support 1 Dual-slot PCIe4.0 x16 via riser* [CPU0]support 1 Dual-slot PCIe4.0 x16 via riser* [CPU1]Please contact ASRock Rack for dual-slot cards compatibility FHFL possible if change to 1U height CPU heatsinkPCIe x 8support 1 FHHL PCIe4.0 x8 via riser [CPU0]support 1 FHHL PCIe4.0 x8 via riser [CPU1]
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Memory Slots	32 x 288Pin
North Bridge	Intel C621A
Hot-Swap Bays	2 x Hot-swap 2.5" NVMe drive bays
Installed CPU	No CPU Installed
Max Processors	2
Max Memory Supported	Max. Capacity per DIMM- RDIMM: up to 64GB- RDIMM-3DS: up to 256GB- LRDIMM: up to 128GB- LRDIMM-3DS: up to 256GB
Memory Type Supported	DDR4 3200
