ASRock Rack

ASRock Rack 1U4LW-X470 RPSU

Name: ASRock Rack 1U4LW-X470 RPSU
Brand: ASRock Rack
SKU: 1U4LW-X470 RPSU

Артикул: 1U4LW-X470 RPSU

GPU-платформа 1U4LW-X470 RPSU

1U Rackmount with 300W RPSU; Supports AMD AM4 Socket Ryzen Series CPUs and Ryzen 7nm CPUs; Supports 4x DDR4 ECC and non-ECC UDIMM, max. 128 GB; Supports external 4 x 3.5" HDD or 2.5" HDD, internal 2x 2.5" HDD, external: Slim ODD x1 or 2.5" HDD x1 (op

Форм-фактор

1U Rackmount

Процессоры

Supports AMD Ryzen PRO 3000 / 2000 Series ProcessorsSupports AMD Ryzen 3rd / 2nd Gen ProcessorsSupports AMD Ryzen 2nd / 1st Gen Processors with Radeon Vega Graphics

Память

4 x 288Pin

GPU-платформа ASRock Rack 1U4LW-X470 RPSU

Compute And Memory

Вычислительная платформа и память

Supports AMD Ryzen PRO 3000 / 2000 Series ProcessorsSupports AMD Ryzen 3rd / 2nd Gen ProcessorsSupports AMD Ryzen 2nd / 1st Gen Processors with Radeon Vega Graphics. 4 x 288Pin

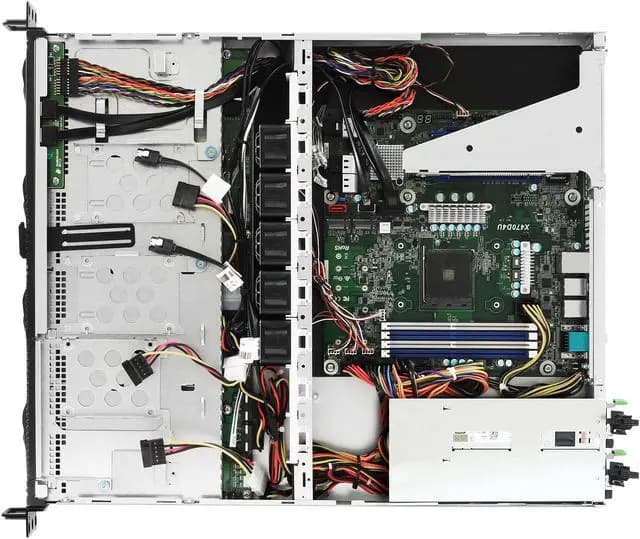

Внутренняя компоновка ASRock Rack 1U4LW-X470 RPSU

Product Details

Детали конструкции

Характеристики

COM	1
M.2	2 (2242/2260/2280/22110, supports SATA3 and PCIe 3.0 x2 or supports PCIe 2.0 x4 only)
VGA	1
RJ45	2 x RJ45 GLAN by Intel i210AT1 x RJ45 Dedicated IPMI LAN port
Brand	ASRock Rack
Model	1U4LW-X470 RPSU
GPU/VPU	Aspeed AST2500
CPU Type	Supports AMD Ryzen PRO 3000 / 2000 Series ProcessorsSupports AMD Ryzen 3rd / 2nd Gen ProcessorsSupports AMD Ryzen 2nd / 1st Gen Processors with Radeon Vega Graphics
Rear USB	2 x USB 3.2 Gen1
Workload	General Purpose Server
First LAN	Intel I210-AT
Front USB	2 x USB 3.0
SATA RAID	RAID 0/1/10
CPU Socket	AM4
Dimensions	1.75" x 21.00" x 19.00"
Max. Power	300W
Serial ATA	6 x SATA 600
Form Factor	1U Rackmount
PCI Express	SLOT6: PCIe3.0 x16 (splittable in x4/4/4/4); auto switch to x8 when SLOT4 is occupiedSLOT5: PCIe3.0 x4SLOT4: PCIe x16 (PCIe3.0 x8)
Memory Slots	4 x 288Pin
North Bridge	AMD X470
Video Memory	16 MB DDR4
ECC Supported	Yes
Installed CPU	No CPU Installed
Max Processors	1
Max. LAN Speed	1 Gigabit
Channel Supported	Dual Channel
Max Memory Supported	128GB
Memory Type Supported	DDR4 3200/2933/2666/2400/2133 MHz ECC/UDIMM
