ASRock Rack 1U4LW-X470

Name: ASRock Rack 1U4LW-X470
Brand: ASRock Rack
SKU: 1U4LW-X470

Артикул: 1U4LW-X470

GPU-платформа 1U4LW-X470

1U Rackmount with 400W PSU; Support AMD AM4 Socket Ryzen Series CPUs and Ryzen 7nm CPUs; Support 4 x DDR4 ECC and non-ECC UDIMM, max. 128 GB; Support externall 4 x 3.5" HDD or 2.5" HDD, internal 2 x 2.5" HDD, external: 1 x Slim ODD or 1 x 2.5" HDD (o

Форм-фактор

1U Rackmount

Процессоры

AMD AM4 Socket Ryzen PRO/ Ryzen 2nd and 3rd generation series processors

Память

16MB DDR4

Compute And Memory

Вычислительная платформа и память

AMD AM4 Socket Ryzen PRO/ Ryzen 2nd and 3rd generation series processors. 16MB DDR4

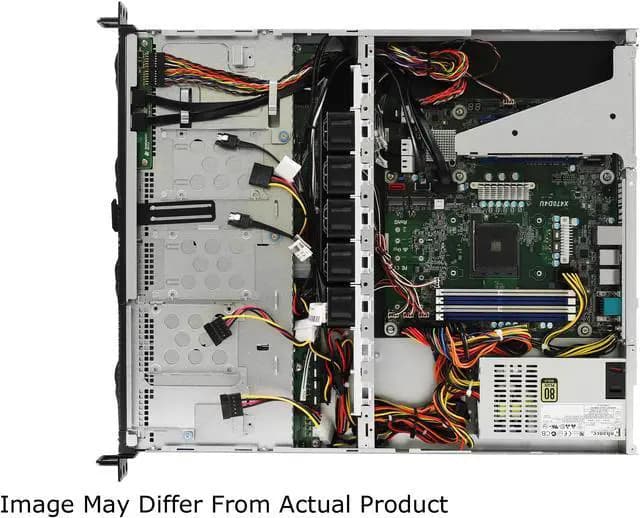

Внутренняя компоновка ASRock Rack 1U4LW-X470

Product Details

Детали конструкции

Характеристики

Brand	ASRock Rack
Model	1U4LW-X470
GPU/VPU	Aspeed AST2500
CPU Type	AMD AM4 Socket Ryzen PRO/ Ryzen 2nd and 3rd generation series processors
Features	1U Rackmount with 400W PSUSupports AMD AM4 Socket Ryzen Series CPUs and Ryzen 7nm CPUsSupports 4x DDR4 ECC and non-ECC UDIMM, max. 128 GBSupports external 4 x 3.5'' HDD or 2.5'' HDD, internal 2x 2.5'' HDD, external: Slim ODD x1 or 2.5" HDD x1 (optional)Supports 1x PCIe 3.0 x16Supports Intel i210 x2ASPEED 2500 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
Rear USB	2 x USB 3.2 Gen 1
Workload	General Purpose Server
First LAN	Intel I210
CPU Socket	AM4
Dimensions	1.75" x 21.00" x 19.00"
Max. Power	Type: Single PSUOutput Watts : 400W
Serial ATA	6 x SATA3 6.0 Gb/s (1x SATA DOM port), support RAID 0, 1, 10
Form Factor	1U Rackmount
PCI Express	PCIe 3.0 x16- PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied.- SLOT4: Gen3 x8 linkPCIe 3.0 x8- SLOT5: Gen3 x4 link
North Bridge	AMD X470
Video Memory	16MB DDR4
Max. LAN Speed	1 Gigabit
Channel Supported	Dual Channel
Max Memory Supported	128GB
Memory Type Supported	Supports DDR4 ECC / UDIMM, up to 2667 MHz
