ASRock Rack 1U4LW-B650/2L2T

Name: ASRock Rack 1U4LW-B650/2L2T
Brand: ASRock Rack
SKU: 1U4LW-B650/2L2T

Артикул: 1U4LW-B650/2L2T

GPU-платформа 1U4LW-B650/2L2T

1U Rackmount with 1, 80-PLUS Gold, 400W PSU; Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4004 and AMD Ryzen™ 9000/8000/7000 Series Processors; 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM; 4 hot-swap 3.5" SATA drive bays; 1 FH PCIe4.0 x1

Форм-фактор

1U Rackmount

Процессоры

AMD Ryzen 7000 Series

Память

4 DIMM slots (2DPC)DDR5 288-pin ECC/non-ECC UDIMM

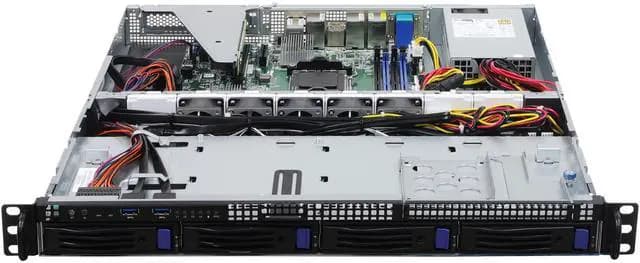

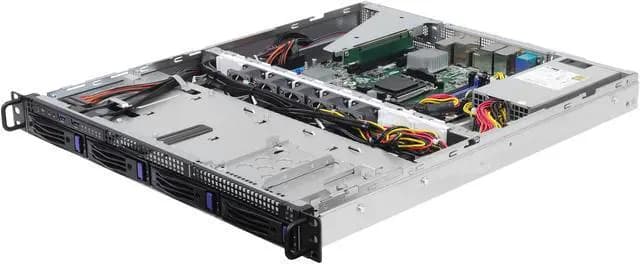

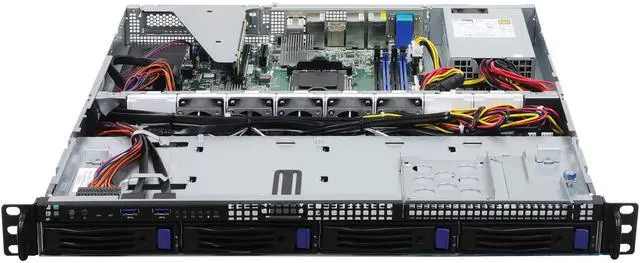

GPU-платформа ASRock Rack 1U4LW-B650/2L2T

Compute And Memory

Вычислительная платформа и память

AMD Ryzen 7000 Series. 4 DIMM slots (2DPC)DDR5 288-pin ECC/non-ECC UDIMM

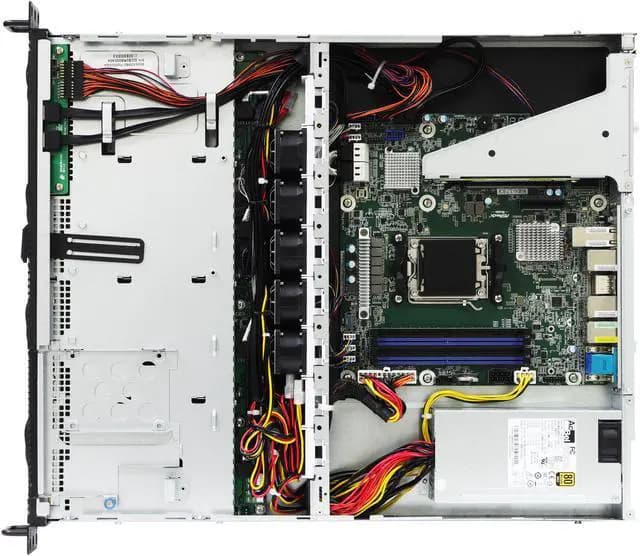

Внутренняя компоновка ASRock Rack 1U4LW-B650/2L2T

Product Details

Детали конструкции

Характеристики

M.2	1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
Fans	5 PWM Hot-swap 40x28 mm fans
Brand	ASRock Rack
Model	1U4LW-B650/2L2T
GPU/VPU	Aspeed AST2600
CPU Type	AMD Ryzen 7000 Series
Humidity	Non operation humidity: 20% ~ 90% ( Non condensing)
Workload	General Purpose Server
First LAN	Broadcom BCM57416: 2 RJ45 (10GbE)
Front USB	2 Type-A (USB3.2 Gen1)
CPU Socket	Single Socket AM5 (LGA 1718)
Max. Power	400W 80-PLUS Gold
Second LAN	Intel i210: 2 RJ45 (1GbE)
Serial ATA	4 x SATA 600
Form Factor	1U Rackmount
Other Ports	UID Button/LED: 1 UID button w/ LEDVGA Port: 1 DB15 (VGA), 1 DisplayPort, 1 HDMISerial Port: 1 DB9 (COM)USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
PCI Express	Rear: 1 FH PCIe4.0 x16 via RB1UX16_G4
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Memory Slots	4 DIMM slots (2DPC)DDR5 288-pin ECC/non-ECC UDIMM
North Bridge	AMD B650
BIOS Features	BIOS Type: AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROMBIOS Features: Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
ECC Supported	Yes
Hot-Swap Bays	4 Hot-swap 3.5" SATA drive bays
Installed CPU	No CPU Installed
Max Processors	1
Max. LAN Speed	10 Gigabit
Hardware Monitor	Temperature: CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slotFan: Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)Voltage: VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
Max Memory Supported	Max. Capacity per DIMM: 48GB
System Compatibility	Microsoft Windows:- Windows 10 (64 bit)- Windows 11 (64 bit)Linux:- RedHat Enterprise Linux Server 8.7 (64bit)- CentOs 8.5 ( 64 bit)- SUSE SLES 15.4(64 bit) / 15.2(64 bit)- UBuntu 22.04.1 (64 bit) / 21.10 (64 bit) / 21.04 (64 bit)Hypervisor:- VMWare ESXi 8.0 / 7.0 U3g
Memory Type Supported	Max. DIMM Frequency: 5200 MHz (1DPC); 3600 MHz (2DPC)
