ASRock Rack

ASRock Rack 1U4L4E-ROME/2T

Name: ASRock Rack 1U4L4E-ROME/2T
Brand: ASRock Rack
SKU: 1U4L4E-ROME/2T

Артикул: 1U4L4E-ROME/2T

GPU-платформа 1U4L4E-ROME/2T

1U Rackmount with 1+1 Platinum 750W Slim PSU; Support single Socket SP3 (LGA4094), supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 Processors; Support 8 x DIMM slots (1DPC), supports RDIMM, LRDIMM, RDIMM/LRDIMM-3DS; Support 4 x Hot-swap

Форм-фактор

1U Rackmount

Процессоры

Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 Series Processors

Память

8 x 288Pin

GPU-платформа ASRock Rack 1U4L4E-ROME/2T

Compute And Memory

Вычислительная платформа и память

Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 Series Processors. 8 x 288Pin

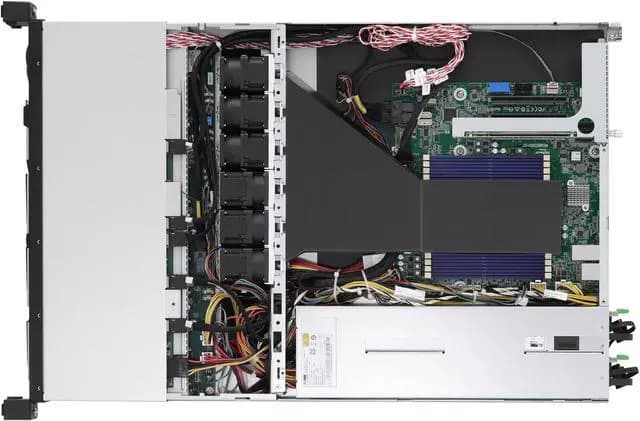

Внутренняя компоновка ASRock Rack 1U4L4E-ROME/2T

Product Details

Детали конструкции

Характеристики

VGA	1
RJ45	2 x RJ45 (10GbE), 1 dedicated IPMI
Brand	ASRock Rack
Model	1U4L4E-ROME/2T
GPU/VPU	Aspeed AST2500
CPU Type	Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*)/7002 Series Processors
Humidity	Non operation humidity: 20% ~ 90% ( Non condensing)
Rear USB	2 x USB 3.2 Gen 1 Type-A
Workload	General Purpose Server
First LAN	Intel X710-AT2
CPU Socket	Socket SP3
Dimensions	26.63" x 17.24" x 1.71"
Max. Power	1+1 Platinum 750W Slim PSU
Form Factor	1U Rackmount
PCI Express	1 FHHL PCIe4.0 x16 via RB1UX16_G4
Temperature	Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C
CPU Features	*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology
Memory Slots	8 x 288Pin
Hot-Swap Bays	4 Hot-swap 2.5" NVMe (PCIe3.0 x4)/SATA drive bays, 4 Hot-swap 3.5" SATA drive bays
Installed CPU	No CPU Installed
Max Processors	1
Max. LAN Speed	10 Gigabit
Memory Type Supported	Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
