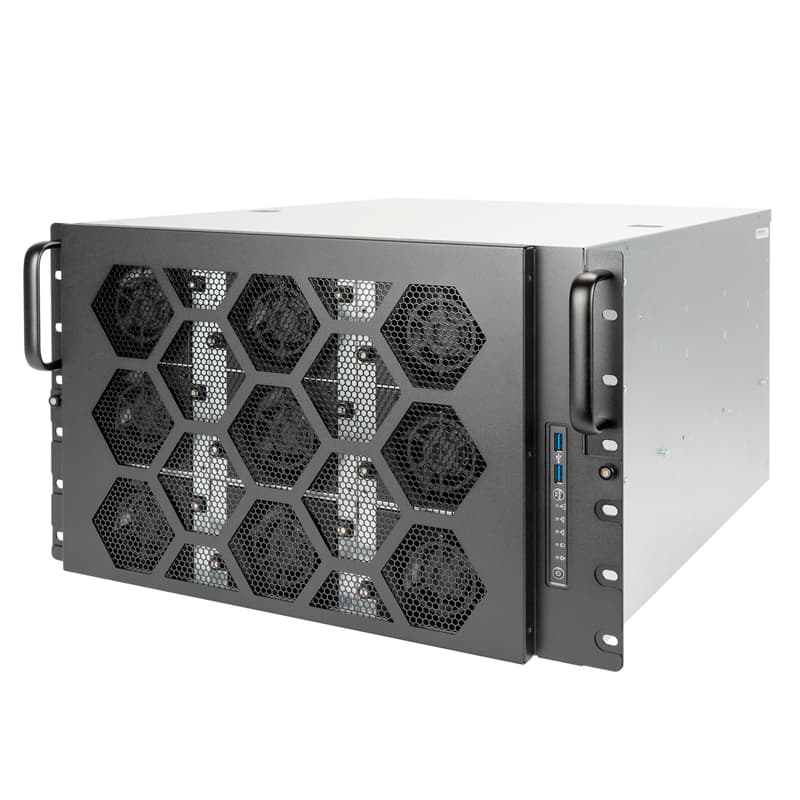

InWin
IW-RG650A
Артикул: IW-RG650A
GPU Rackmount
GPU-корпус 6.5U с 18 полноразмерными PCIe-слотами

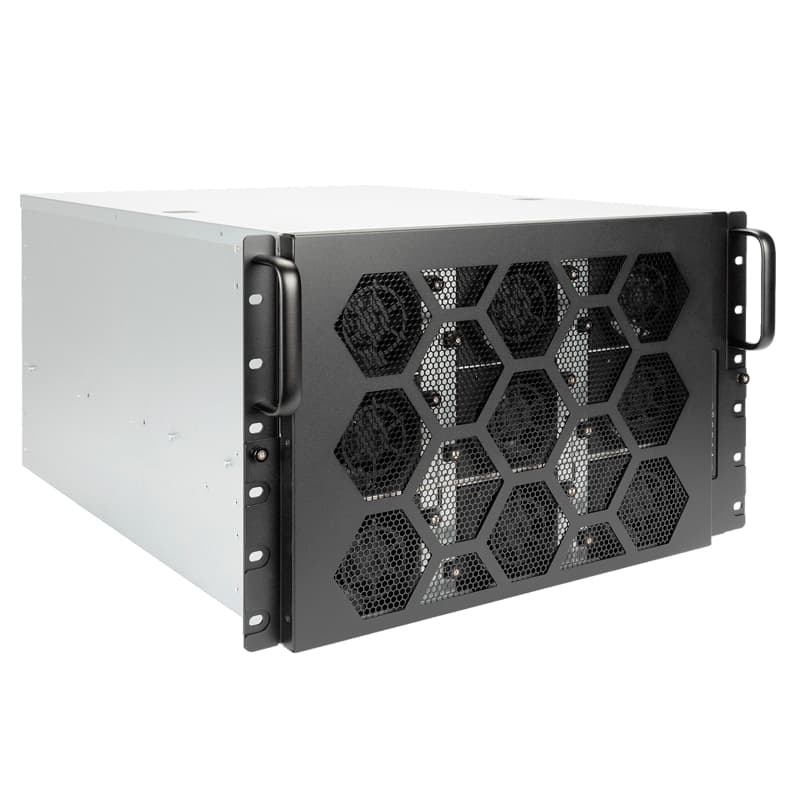

IW-RG650A использует двухкамерную компоновку для GPU-систем: верхняя зона принимает ускорители длиной до 360 мм, нижняя - ATX/CEB/EEB-плату, накопители и CRPS-питание 3200 Вт. Это база для рабочих GPU-узлов и вычислительных стендов.
Платы
ATX / CEB / EEB
Питание
CRPS 3200 Вт
PCIe
18 FH + 7 LP
Рельсы
28" included

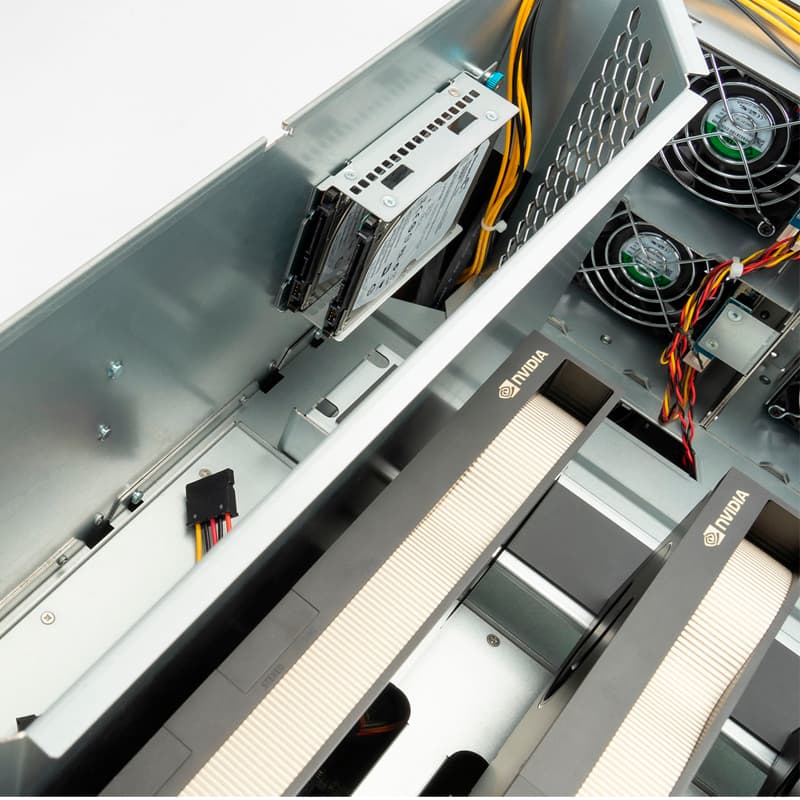

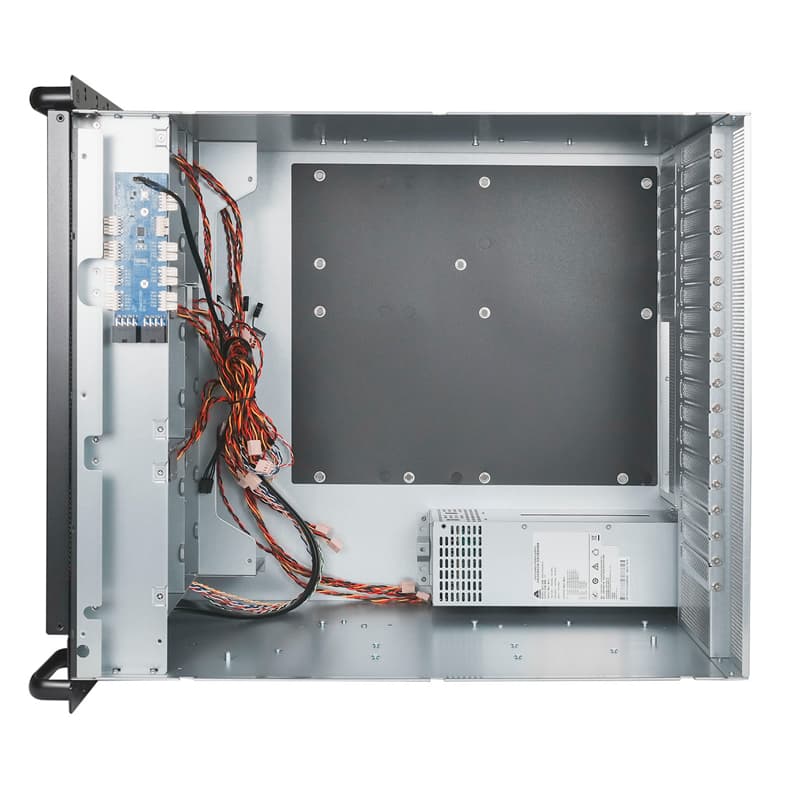

Dual Chamber
Разделение GPU и системной зоны

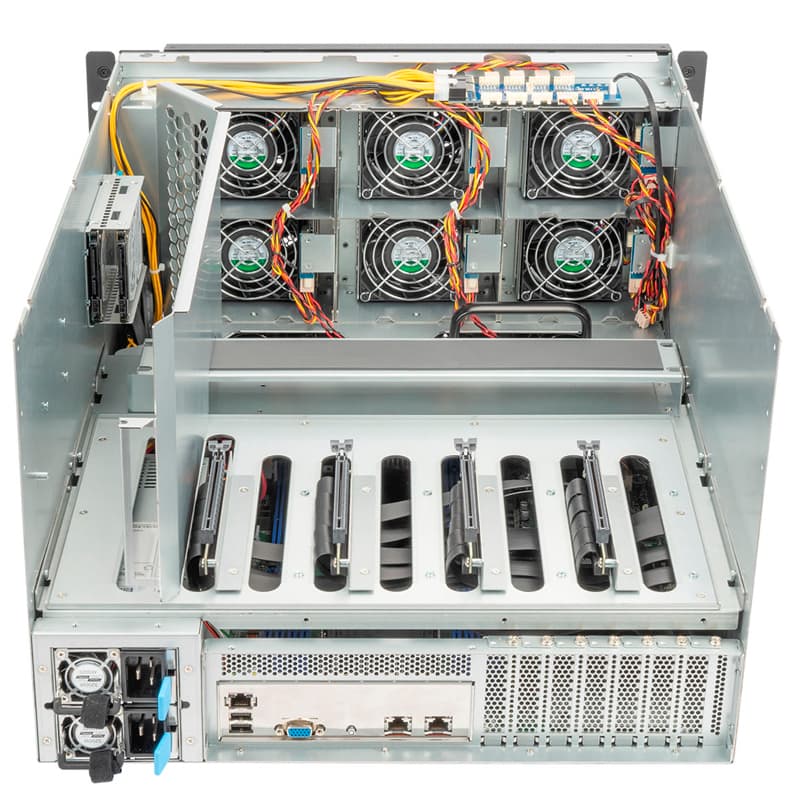

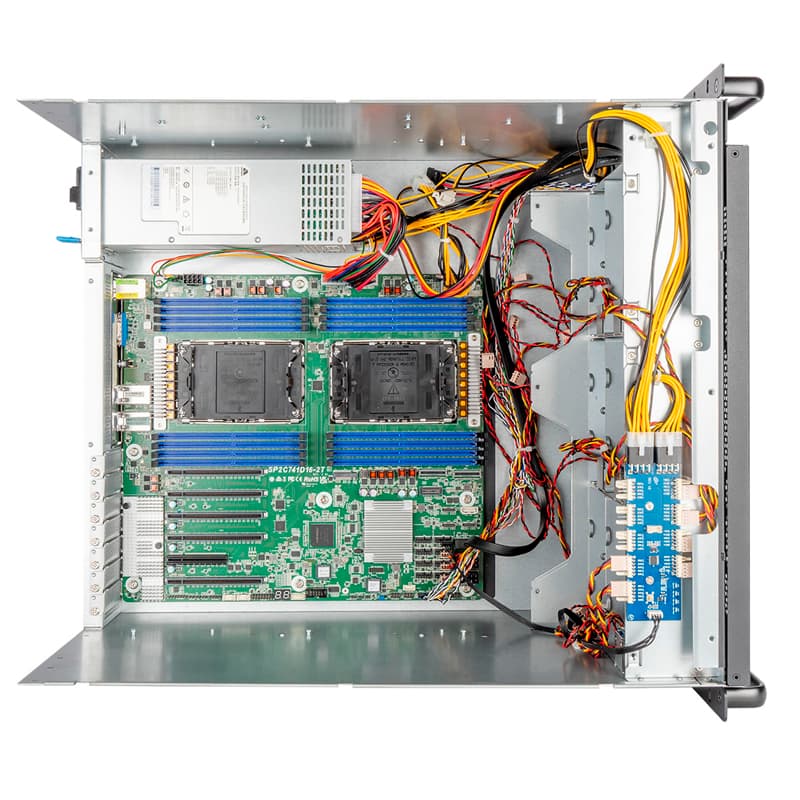

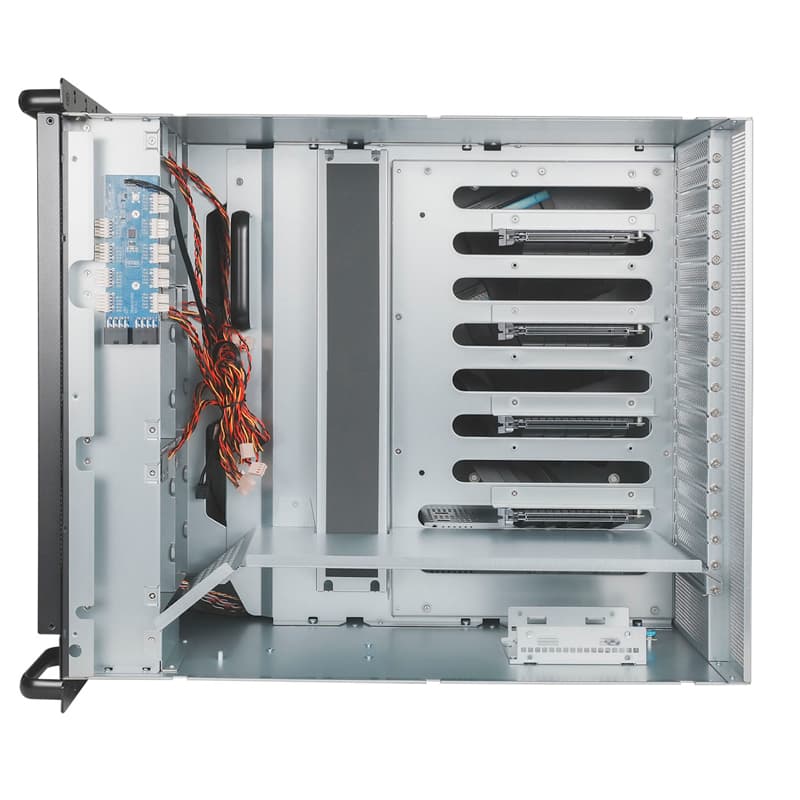

Верхняя камера выделена под графические ускорители, а нижняя - под плату, накопители и питание. Такая компоновка упрощает сборку высокоплотной GPU-системы.

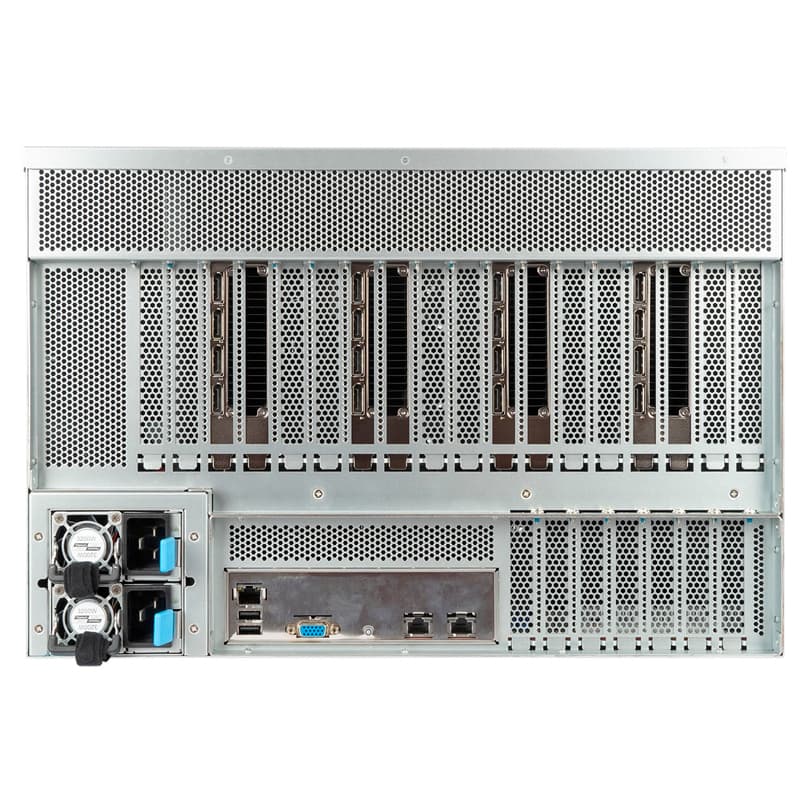

Expansion
Полноразмерные PCIe-слоты и riser-кабели Gen4
В комплекте предусмотрены PCIe Gen4 riser-кабели 220 мм и 350 мм, а набор слотов позволяет гибко размещать GPU и дополнительные карты.
Cooling

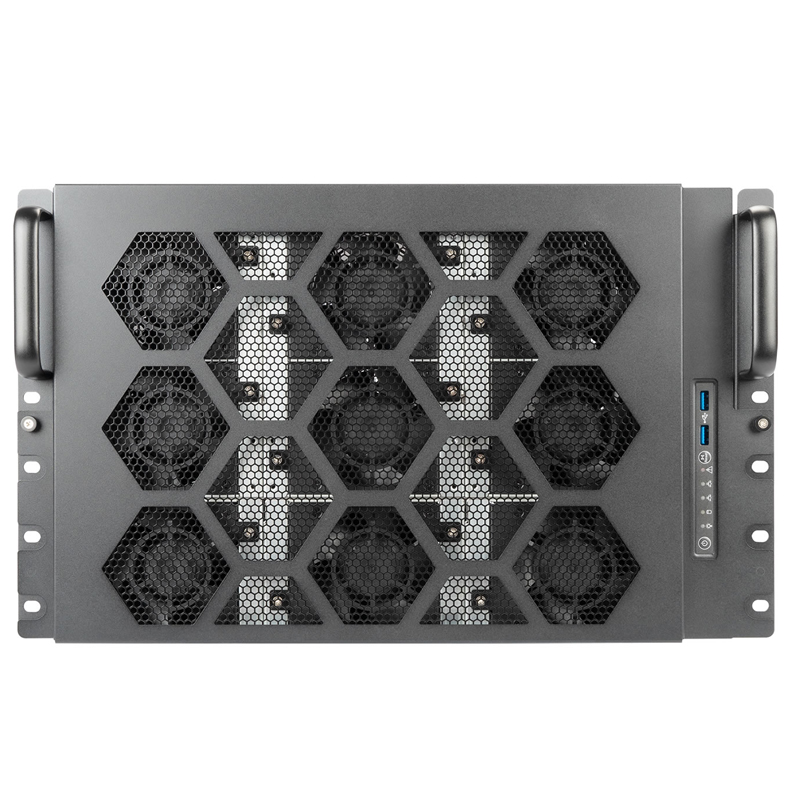

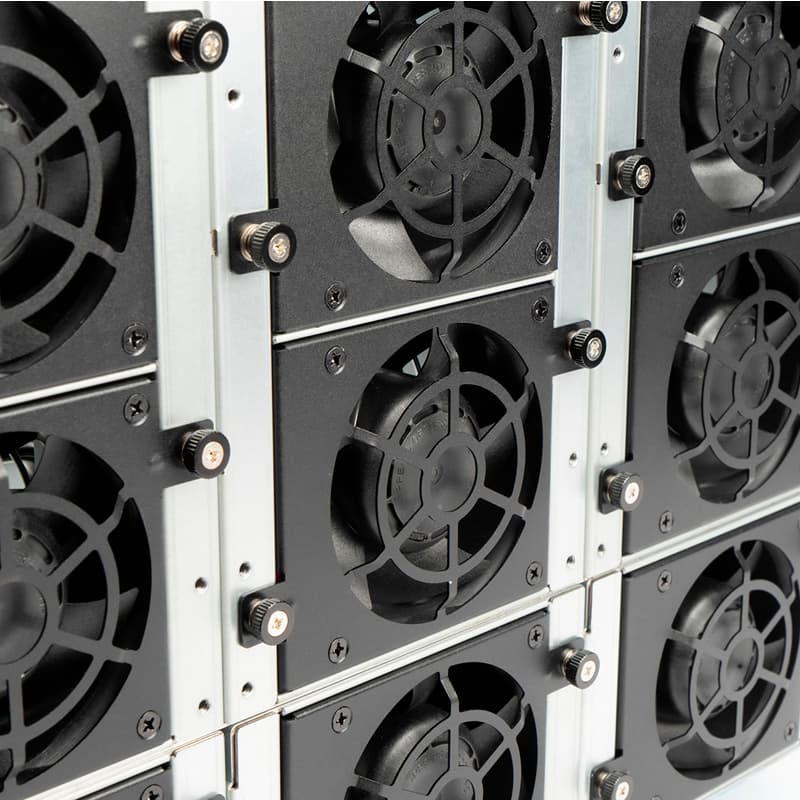

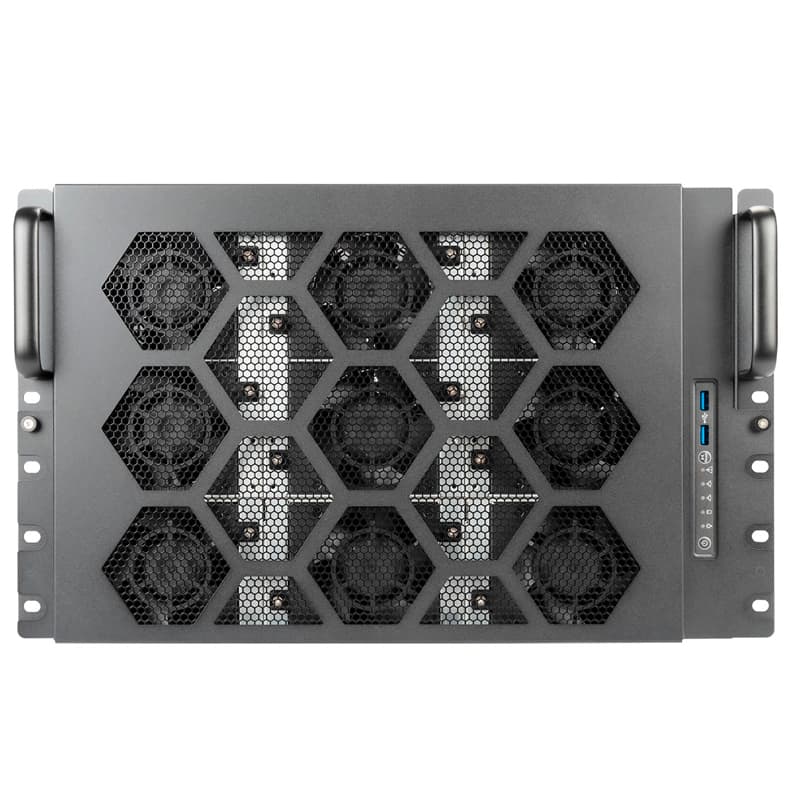

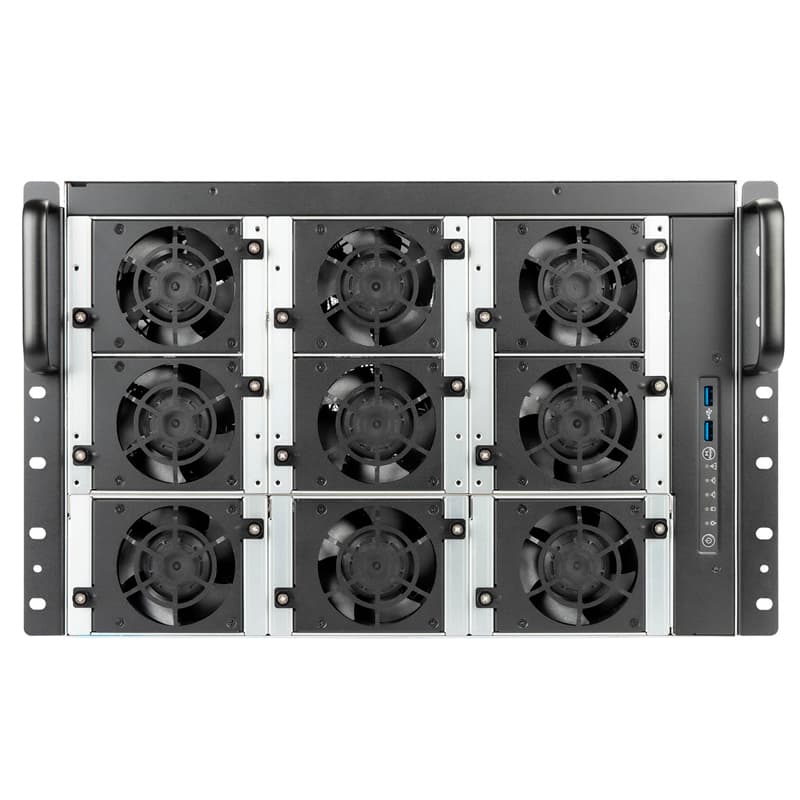

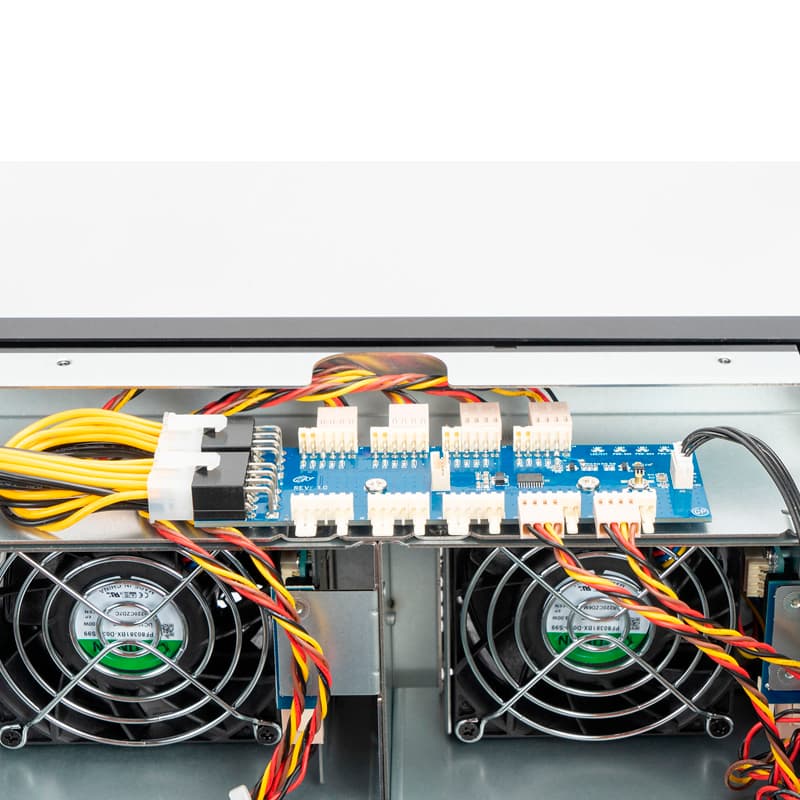

Девять фронтальных PWM-вентиляторов
Фронтальный блок 80 x 38 мм PWM-вентиляторов рассчитан на стабильный поток через GPU-зону и серверную плату при высокой тепловой нагрузке.
Product Details
Детали конструкции InWin IW-RG650A
Specification
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
|---|---|
| Dual Chamber | • 4.5U upper chamber for GPU (maximum length up to 360mm) • 2U lower chamber for system components |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | Internal: 2 x 2.5" 2 x 2.5" (optional) |

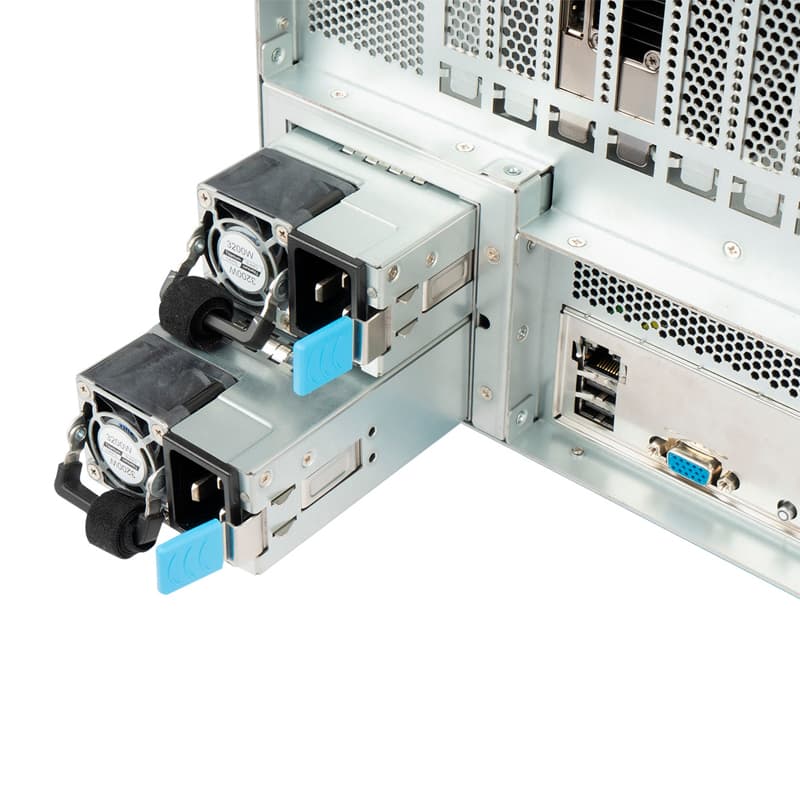

| Power Supply | Pre-installed: • Form factor: 80 Plus Titanium CRPS • Watt: 3200W |
| Indicators | Power LED, LAN 1/LAN 2, system LED, HDD LED |
| Front Control Panel | Power on/off, system reset, USB 3.0 x 2 |
| Cooling Fans | 80 x 38 mm PWM Front fans x 9, 12000 RPM (pre-installed) |
| Expansion Slot | Full-height PCIe slots x 18 (2 x Gen 4 PCIe riser cables 220 mm & 2 x Gen 4 PCIe riser cables 350 mm included) Low-profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | 28" tool-less & ball-bearing slide rails included |

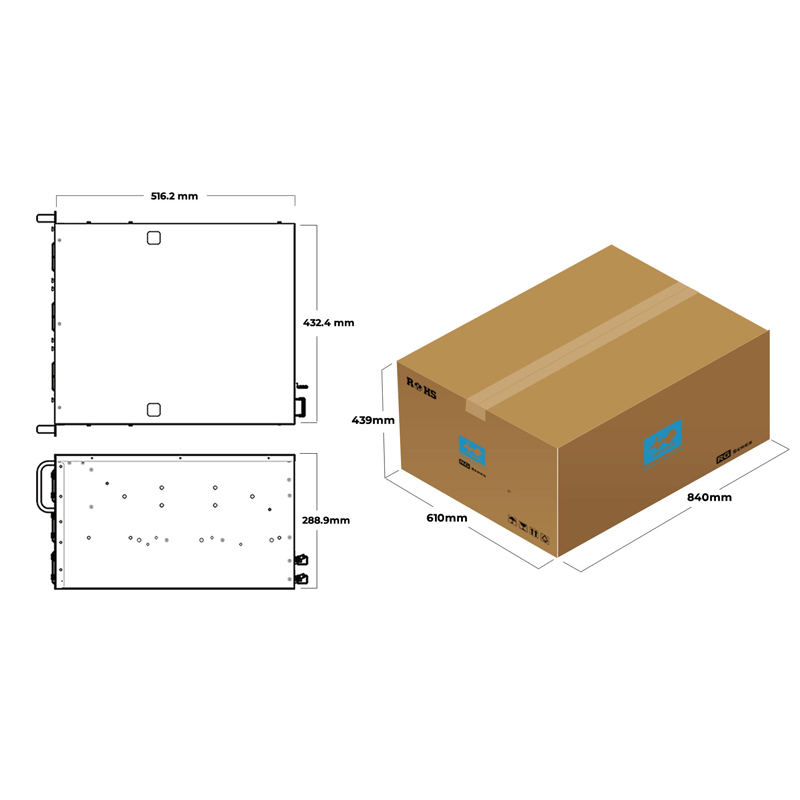

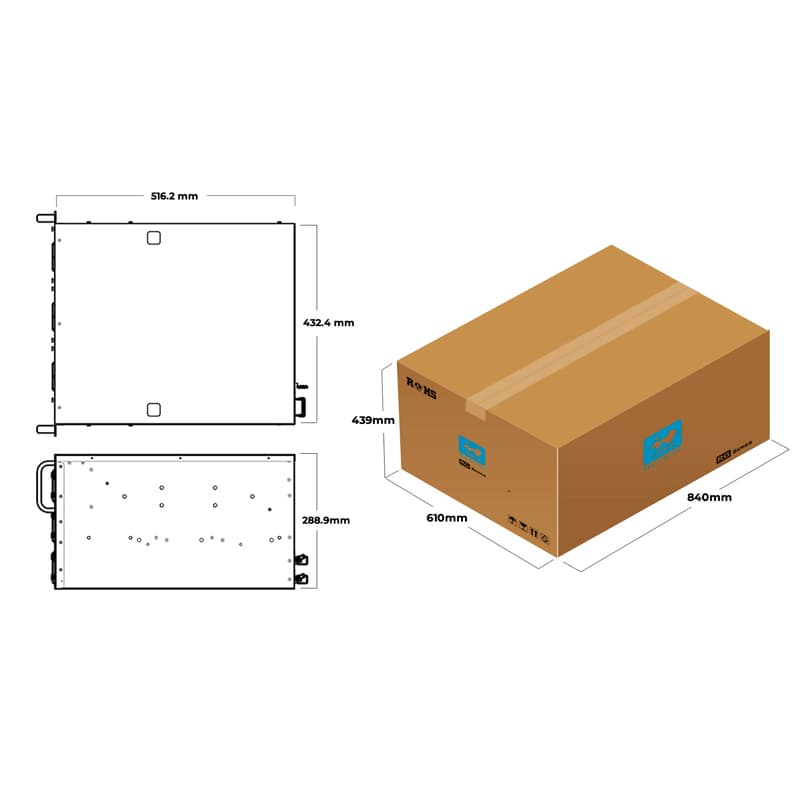

| Product Dimensions (DxWxH; Chassis Only) | 516.2 x 432.4 x 288.9mm (20.32" x 17.02" x 11.37") |
| Package Dimensions (DxWxH) | 840 x 610 x 439mm (33.07" x 24.02" x 17.28") |
| Weight (Chassis Only) | • Net weight: 22.55 kg • Gross weight: 26.16 kg |
| Cubic Feet | 7.94 |
| Container Information | Single packing with pallets: • 20’: 80pcs • 40’: 184pcs • 40'HQ: 230pcs |
* The actual product is subject to change without prior notice. InWin reserves the right to make final modifications. Images and optional parts are for reference only.
Download
IW-RG650A Gallery
zipIW-RG650A Compatibility List
pdfIW-RG650A & IW-RG650B User Manual
pdfOptional Items

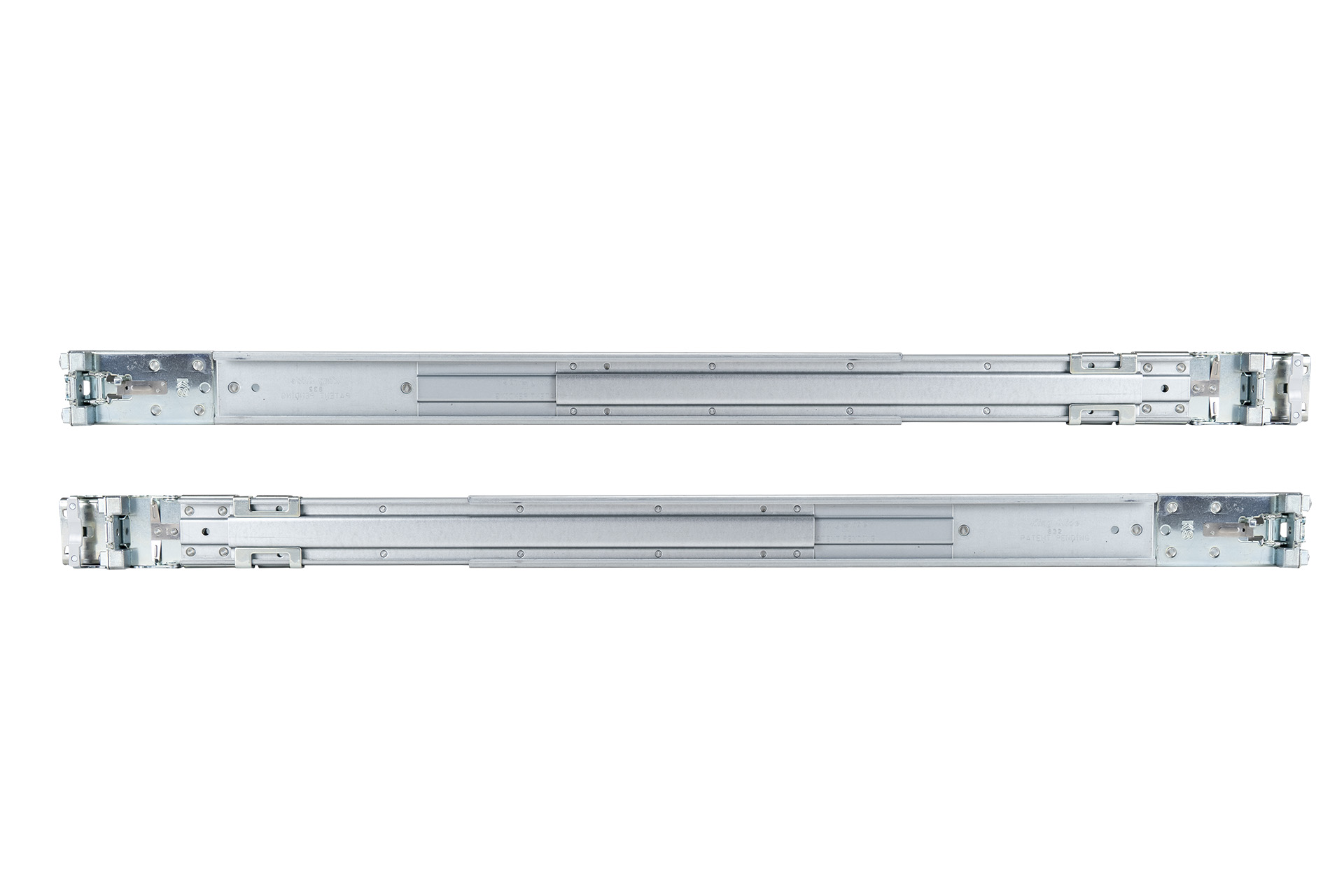

Slide Rail
3RAMIS152700
28" tool-less & ball-bearing slide rails
Support: 1 set

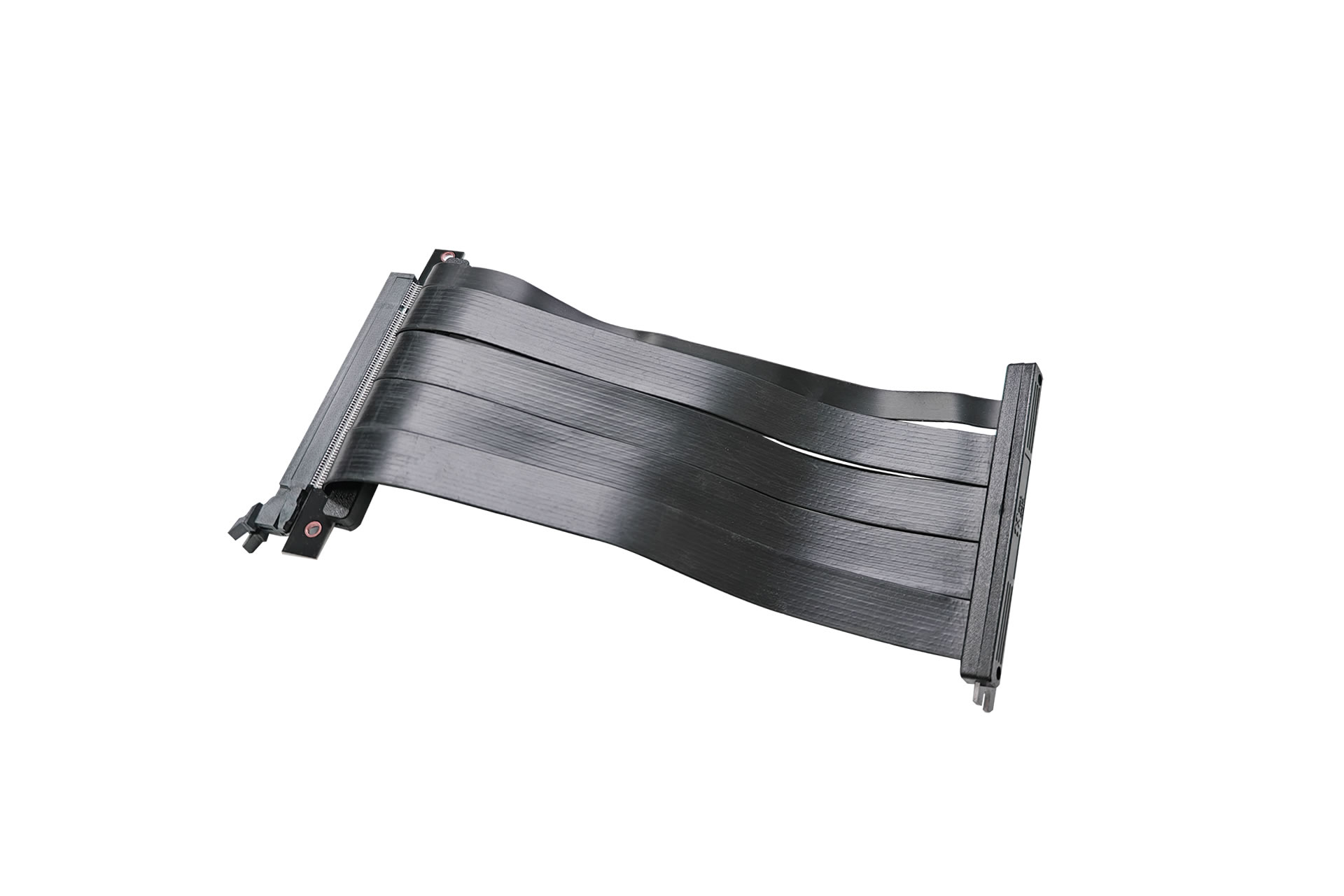

Cable
3RAMPD047500
PCIe Gen4 x 16 lanes riser cable, 220mm
Support: 3
Cable

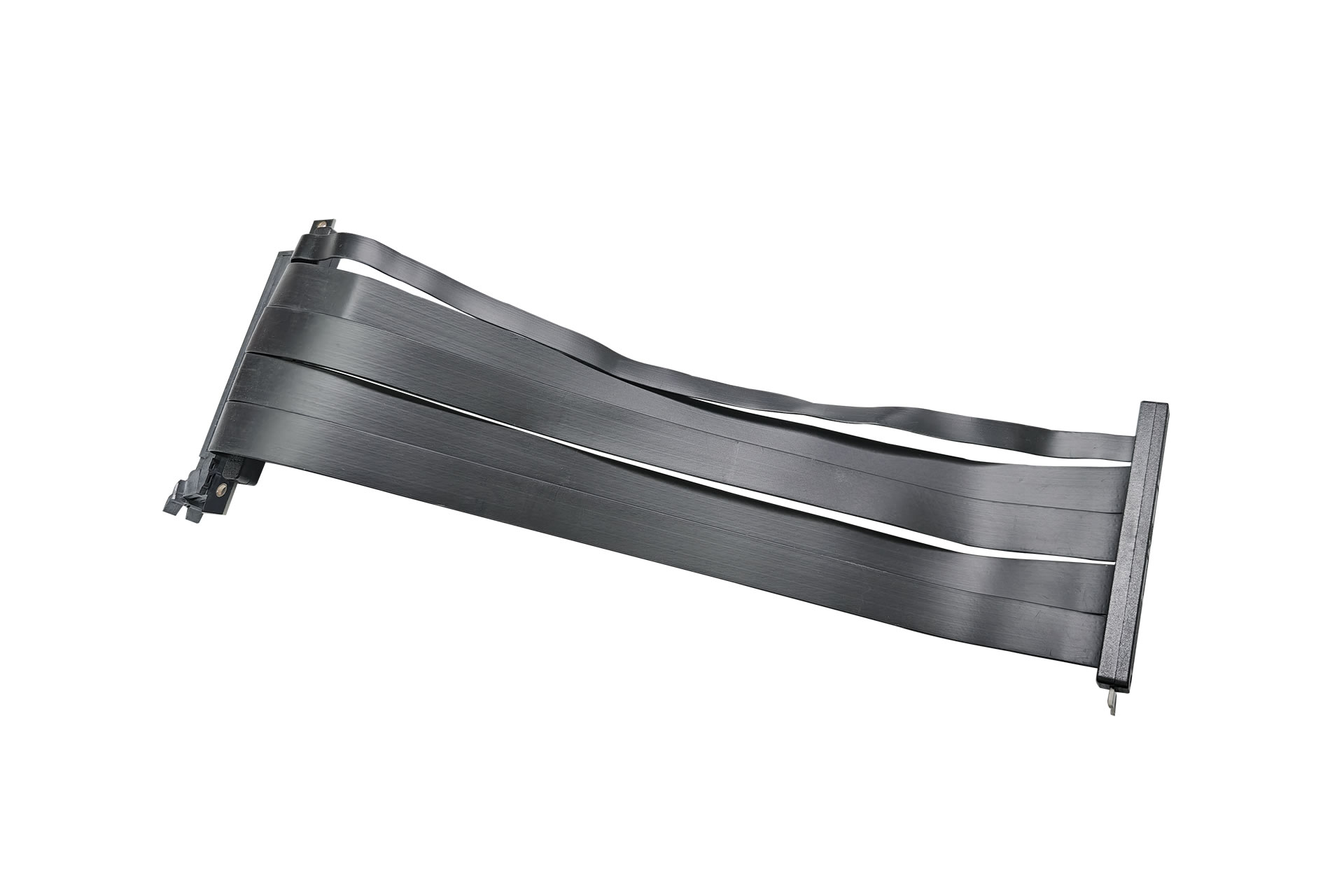

3RAMPD052800
PCIe Gen4 x 16 lanes riser cable, 350mm
Support: 3

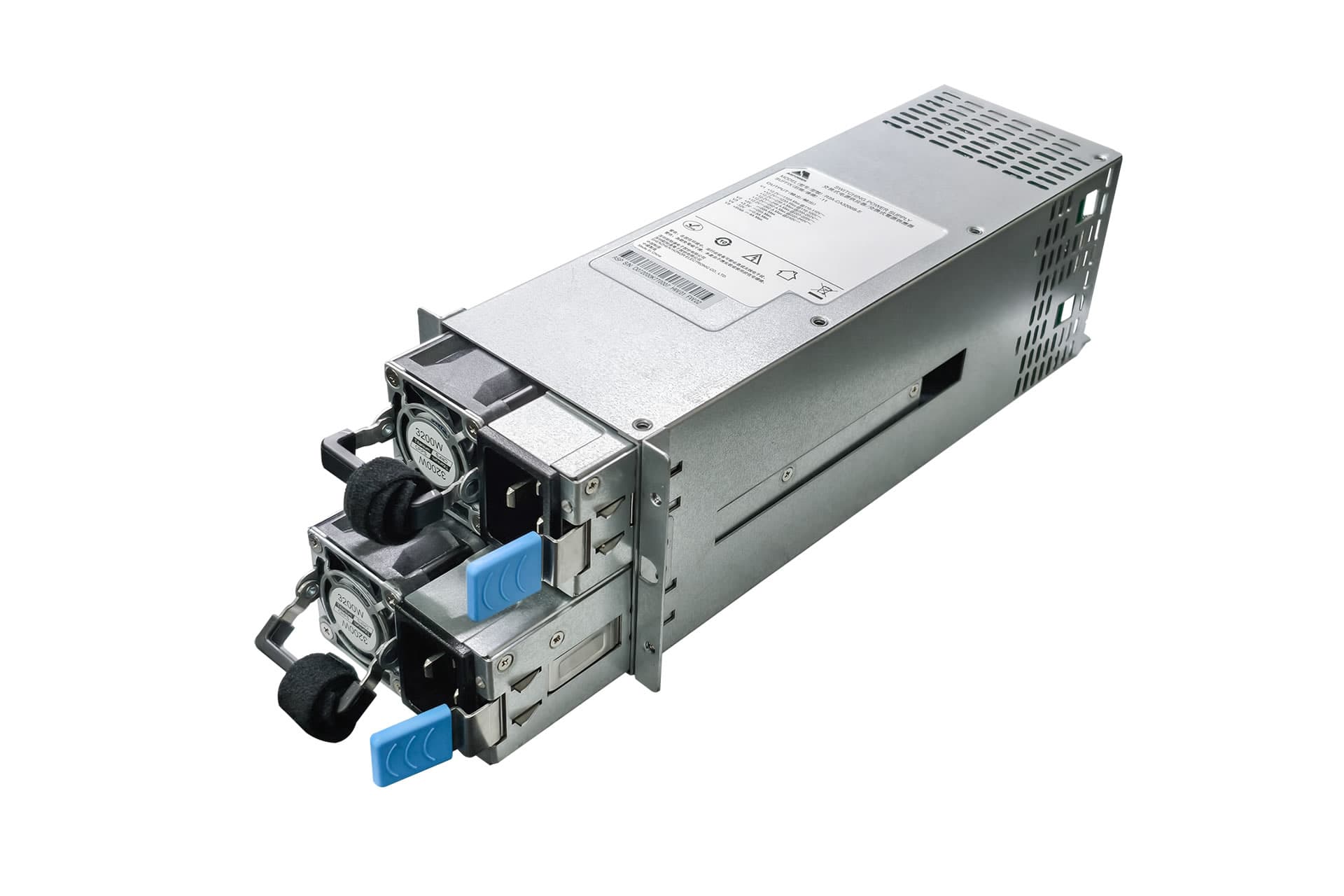

Power Supply
3RAMAP048400
80 PLUS Titanium 3200W CRPS (AC input 100~115V, total power 1340W max. / AC input 116~120V, total power 1600W max. / AC input 200~224V, total power 2800W max. / AC input 225-240V, total power 3200W max.) / 1+1 CRPS PDB
Support: 1 set
Power Supply
3RAMW8014100

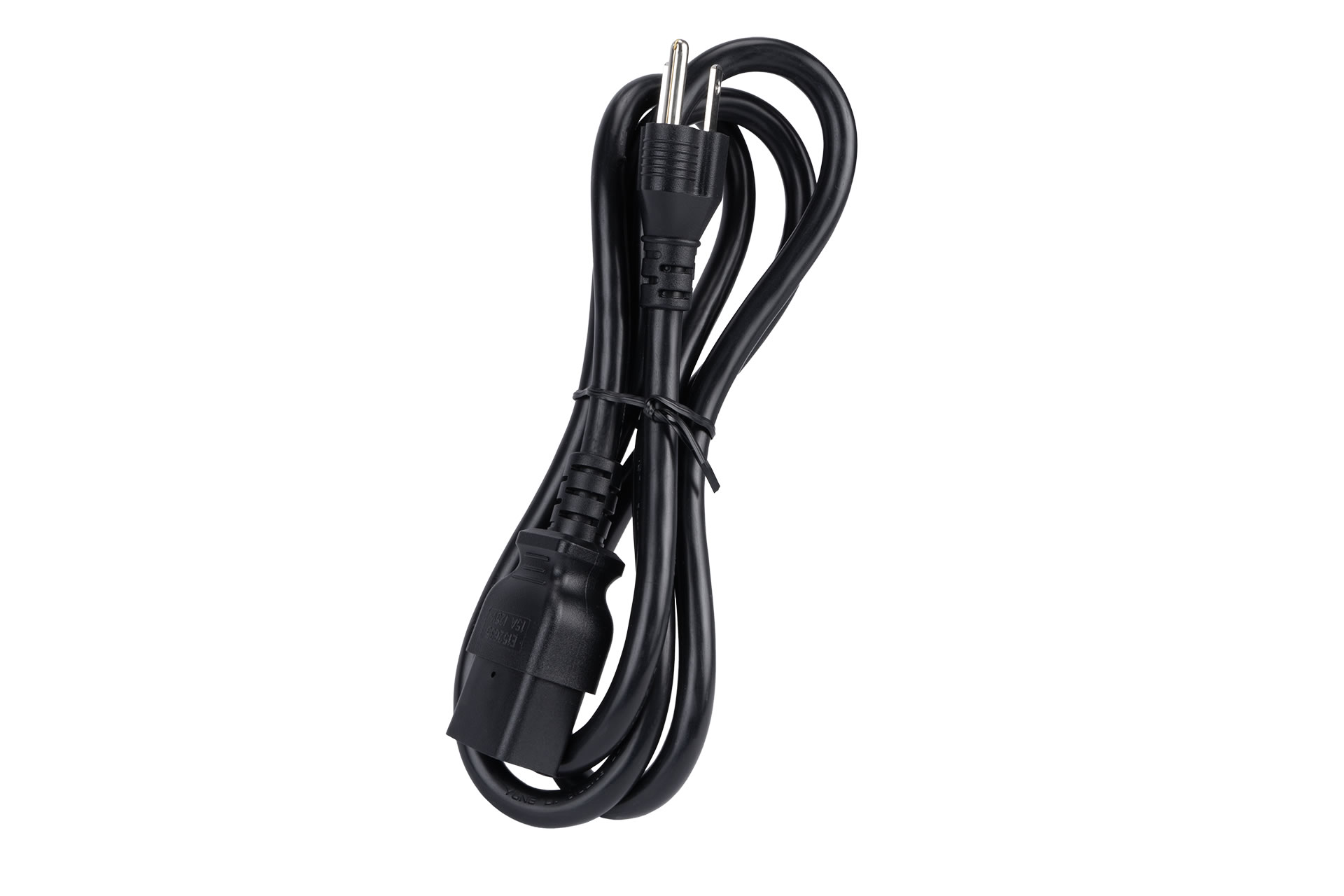

Power cord, American standard (IEC C19, 14 AWG, 1.83 m, 15A)
Support: Max. 2
Power Supply

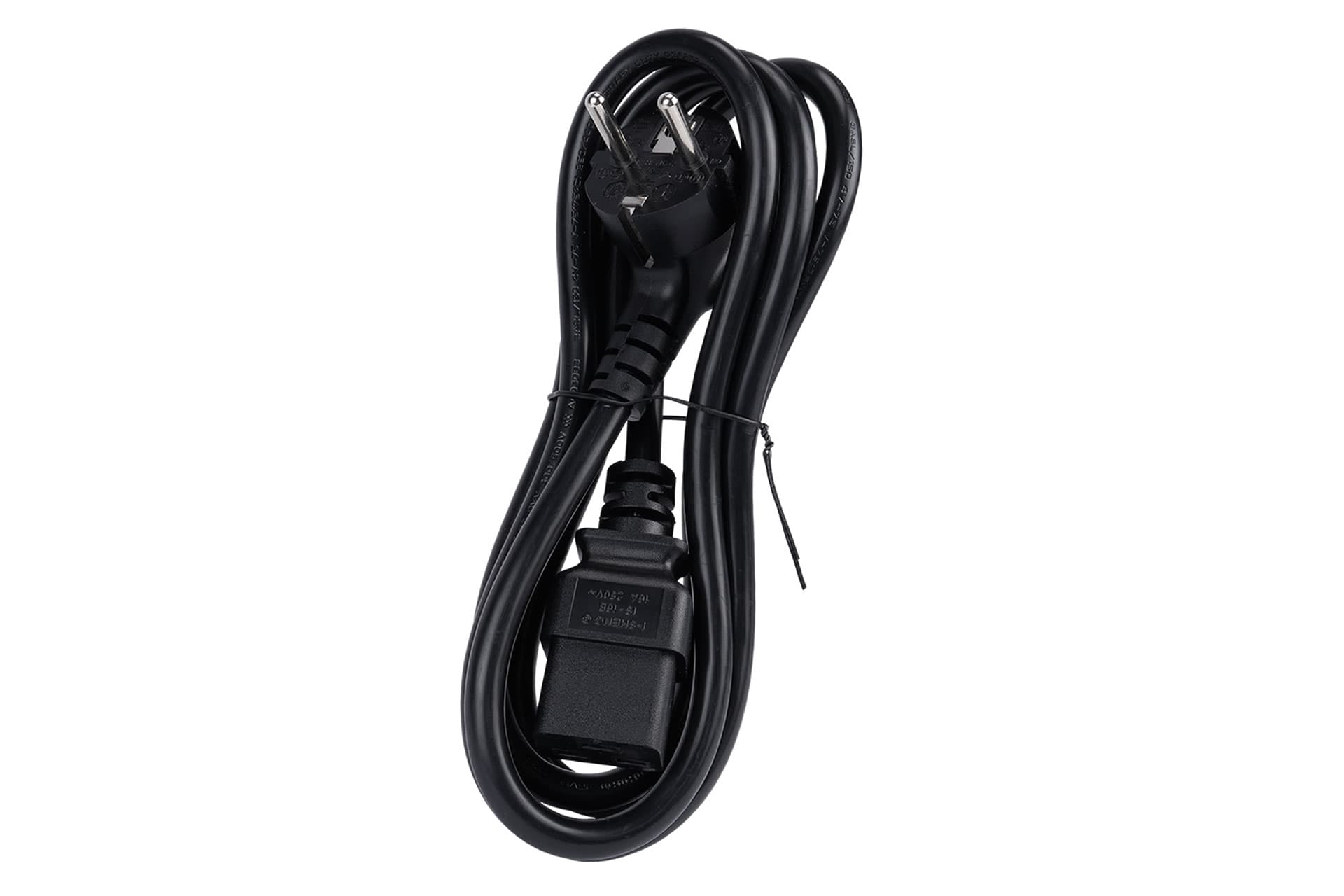

3RAMW8014500
Power cord, European standard (IEC C19, 3G 1.5 mm², L1830 mm, 16A)
Support: Max. 2

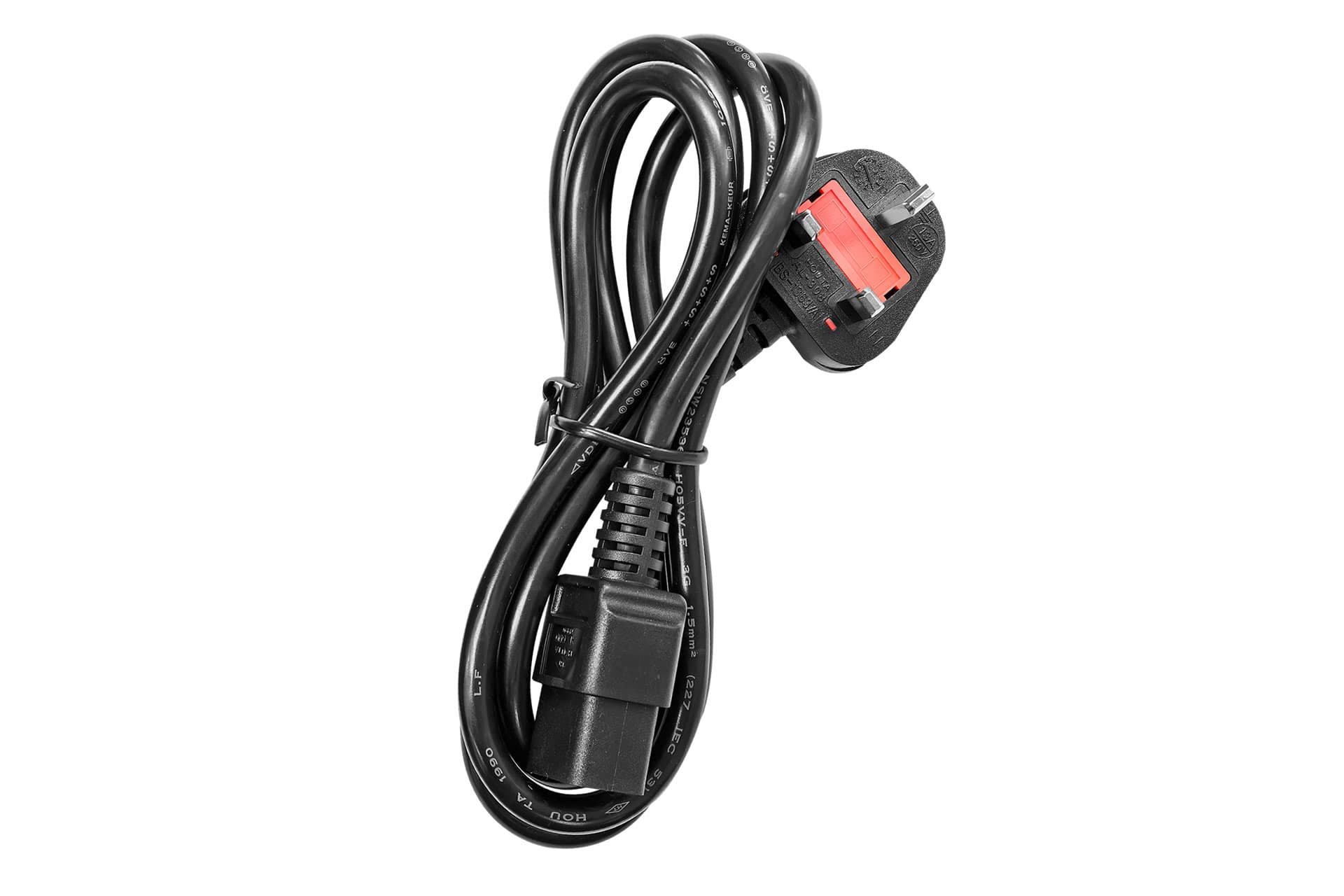

Power Supply
3RAMW8017000
Power cord, British standard (IEC C19, 3G 1.5 mm², L1830 mm, 13A)
Support: Max. 2
Power Supply
3RAMW7121700

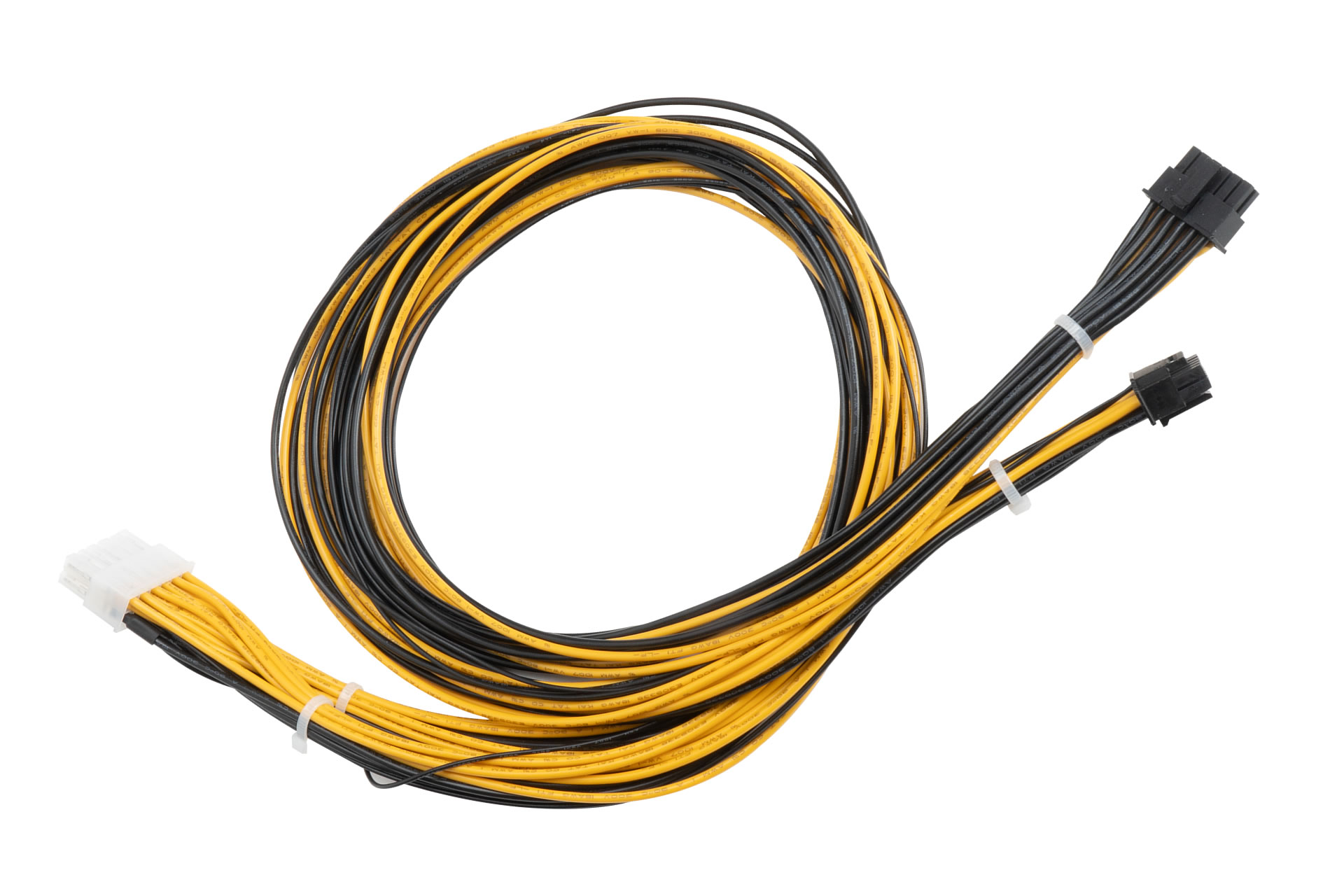

Power cable 12V-2x6 pin GPU connectors (for installations exceeding 4 GPUs)
Support: Max. 2

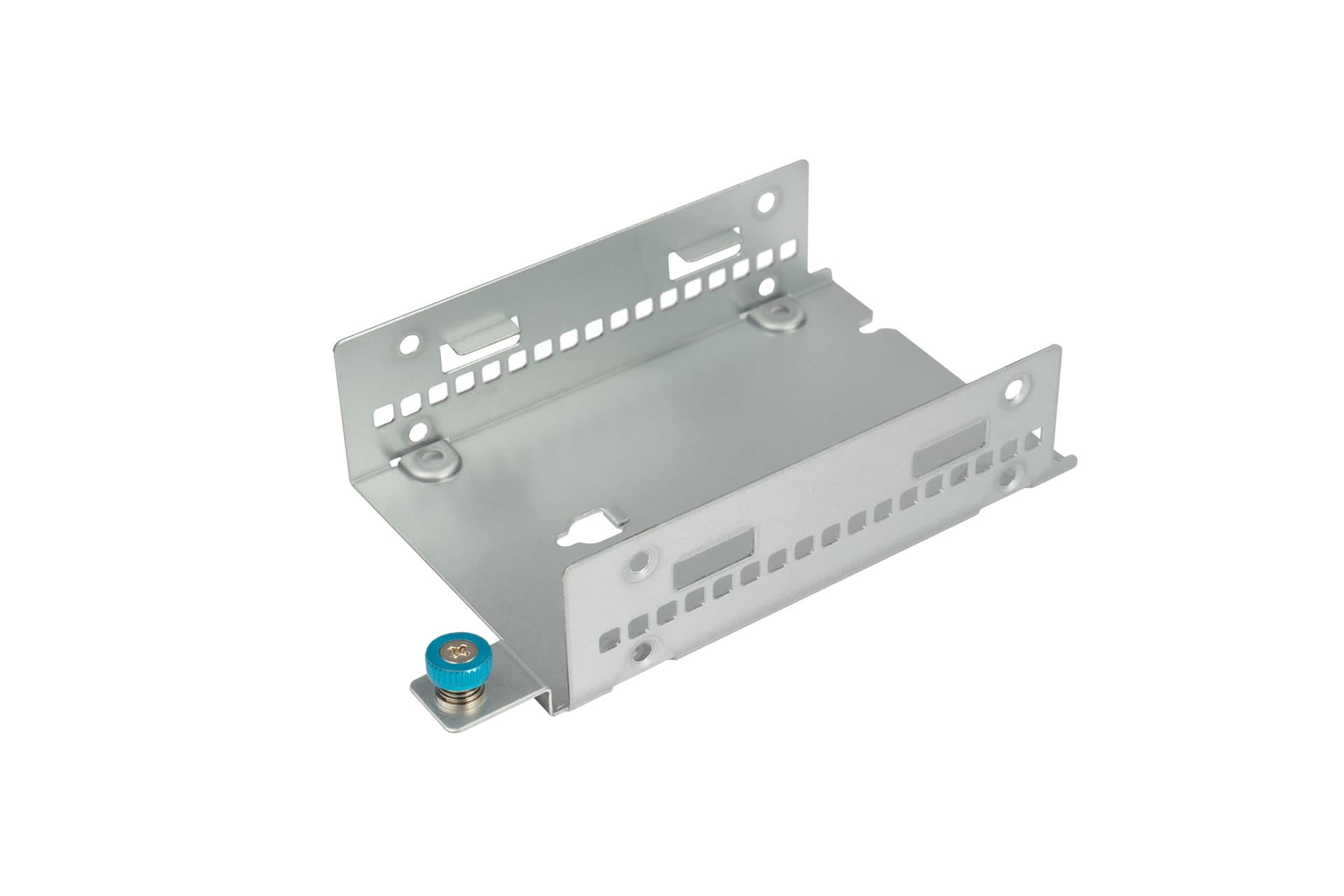

SSD Tray
2RARID047501
2.5" SSD bracket
Support: 1
SSD Tray

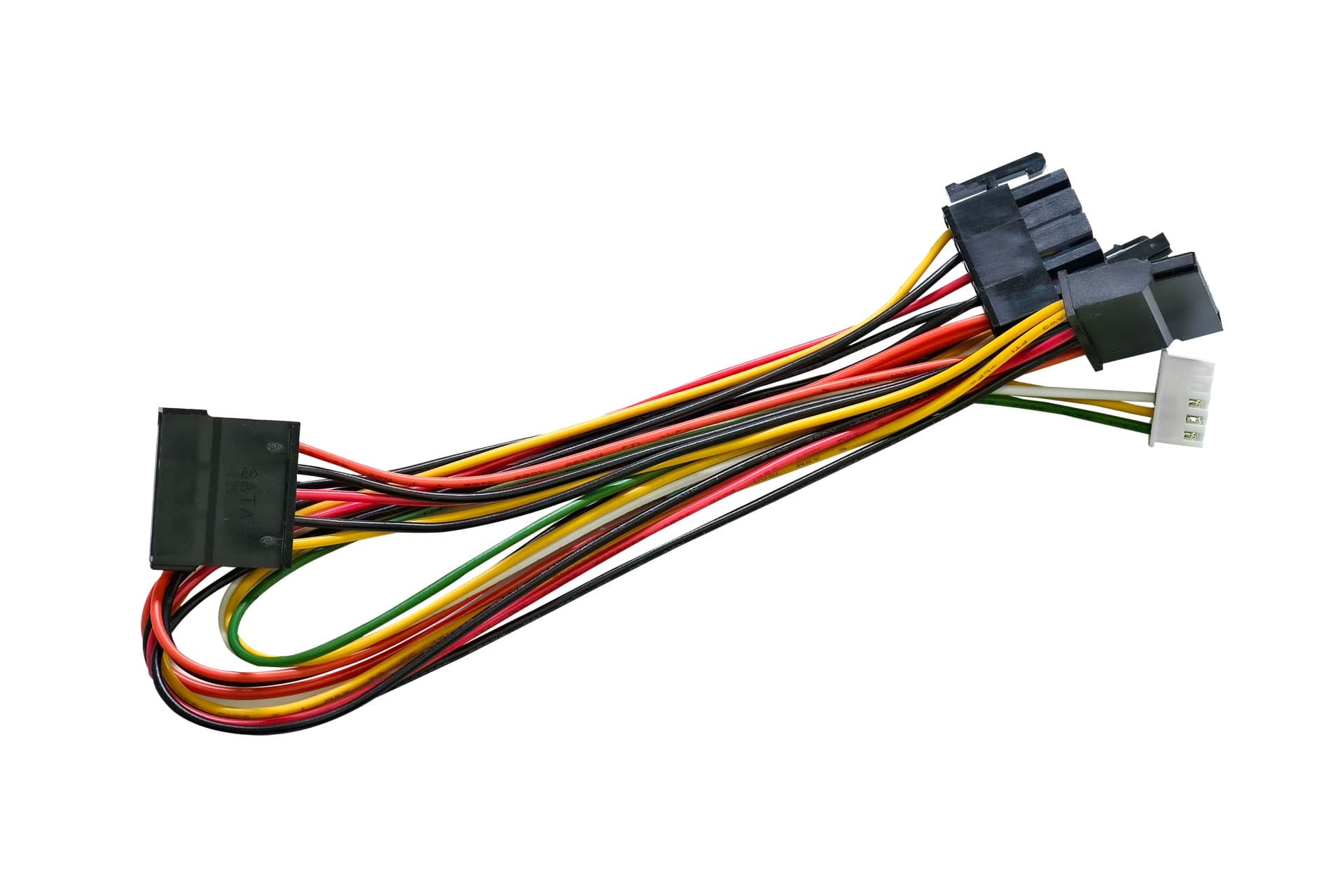

3RAMW7121800
SATA and PMBus cable (bundled with the SSD bracket)
Support: 1
Fan
2RAKFB020100

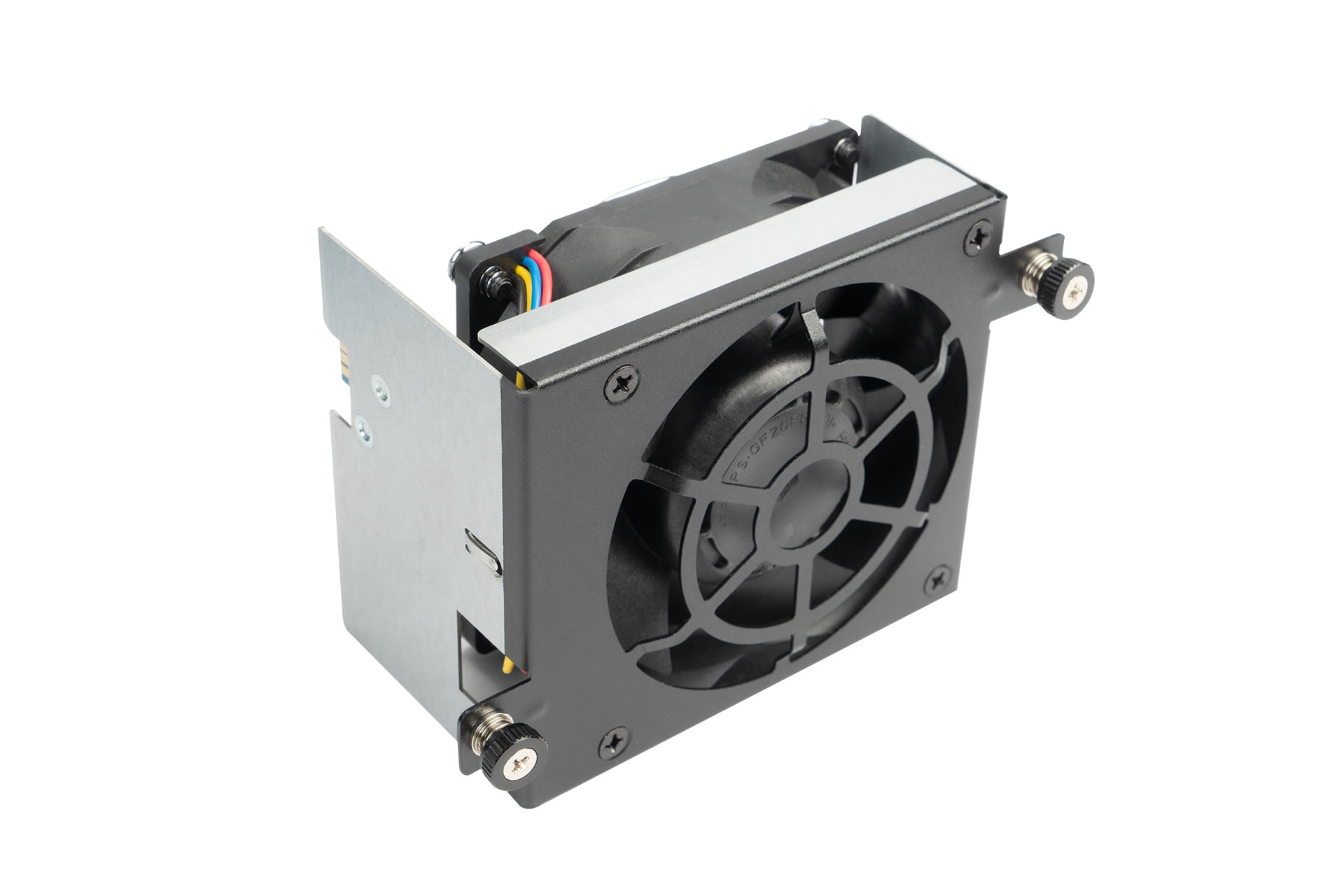

80 x 38mm PWM fan ,12000 RPM, 4-pin
Support: Max. 9
| Item | Part Number | Description | Support | Picture |
|---|---|---|---|---|
| Slide Rail | 3RAMIS152700 | 28" tool-less & ball-bearing slide rails | 1 set | |
| Cable | 3RAMPD047500 | PCIe Gen4 x 16 lanes riser cable, 220mm | 3 | |
| Cable | 3RAMPD052800 | PCIe Gen4 x 16 lanes riser cable, 350mm | 3 | |
| Power Supply | 3RAMAP048400 | 80 PLUS Titanium 3200W CRPS (AC input 100~115V, total power 1340W max. / AC input 116~120V, total power 1600W max. / AC input 200~224V, total power 2800W max. / AC input 225-240V, total power 3200W max.) / 1+1 CRPS PDB | 1 set | |
| Power Supply | 3RAMW8014100 | Power cord, American standard (IEC C19, 14 AWG, 1.83 m, 15A) | Max. 2 | |
| Power Supply | 3RAMW8014500 | Power cord, European standard (IEC C19, 3G 1.5 mm², L1830 mm, 16A) | Max. 2 | |
| Power Supply | 3RAMW8017000 | Power cord, British standard (IEC C19, 3G 1.5 mm², L1830 mm, 13A) | Max. 2 | |
| Power Supply | 3RAMW7121700 | Power cable 12V-2x6 pin GPU connectors (for installations exceeding 4 GPUs) | Max. 2 | |
| SSD Tray | 2RARID047501 | 2.5" SSD bracket | 1 | |
| SSD Tray | 3RAMW7121800 | SATA and PMBus cable (bundled with the SSD bracket) | 1 | |
| Fan | 2RAKFB020100 | 80 x 38mm PWM fan ,12000 RPM, 4-pin | Max. 9 | |
