ASRock Rack EP2C612 WS

Name: ASRock Rack EP2C612 WS
Brand: ASRock Rack
SKU: EP2C612 WS

Артикул: EP2C612 WS

Материнская плата для рабочей станции EP2C612 WS

Материнская плата для рабочей станции EP2C612 WS, SSI-EEB.

Форм-фактор

SSI-EEB

Процессоры

Socket LGA 2011 R3 Intel Xeon processor E5-2600 v3/v4 series

Память

Supports Quad Channel DDR4 2400/2133/1866/1600 RDIMM and LRDIMM, 8 x DIMM slots

Сеть

Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel Dual GLAN (2 x Intel i210 )

материнская плата для рабочей станции ASRock Rack EP2C612 WS

Compute And Memory

Вычислительная платформа и память

Socket LGA 2011 R3 Intel Xeon processor E5-2600 v3/v4 series. Supports Quad Channel DDR4 2400/2133/1866/1600 RDIMM and LRDIMM, 8 x DIMM slots

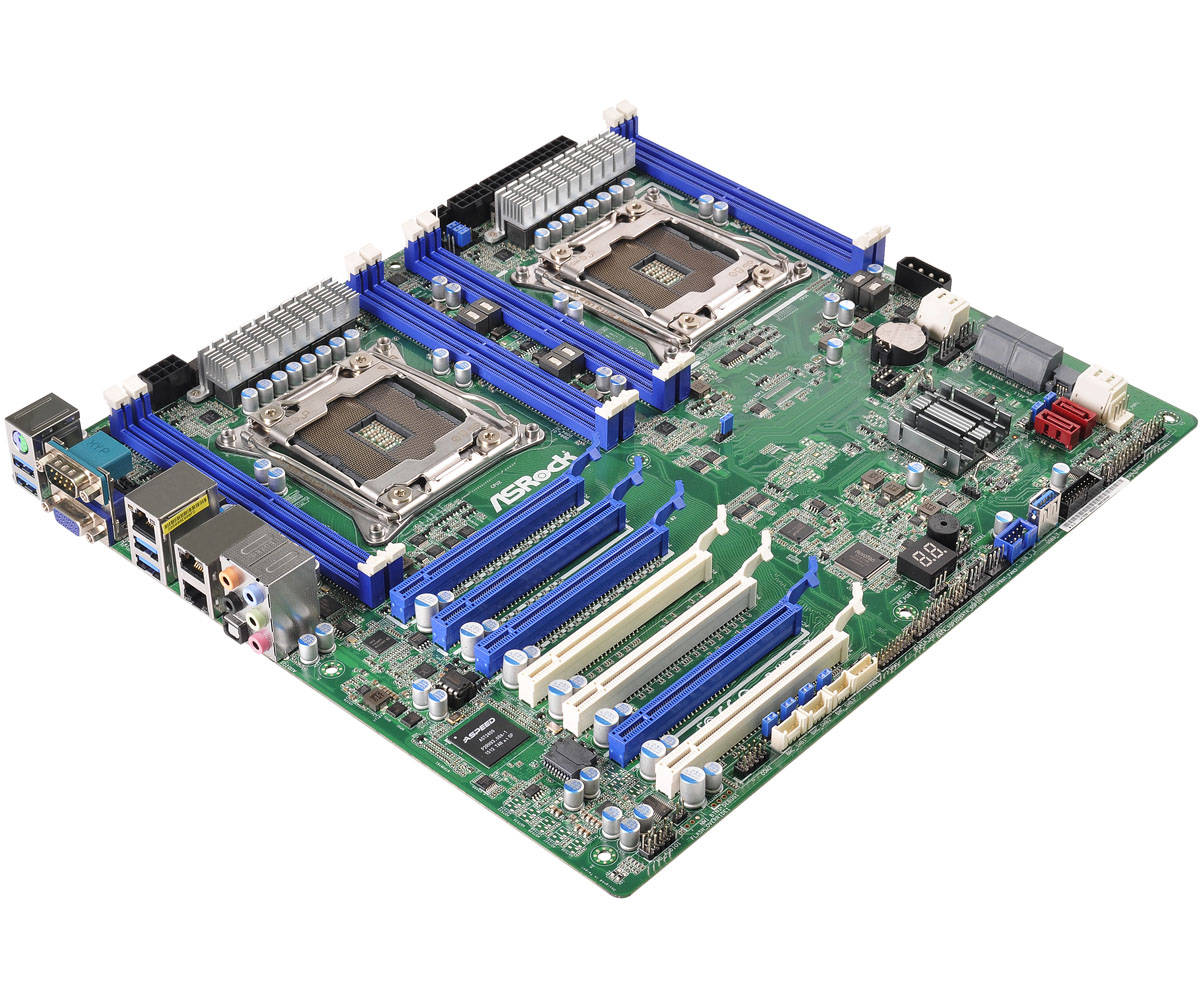

Внутренняя компоновка ASRock Rack EP2C612 WS

GPU And Expansion

Ускорители и слоты расширения

Supports 4 PCIe3.0 x16, 3 PCIe3.0 x8

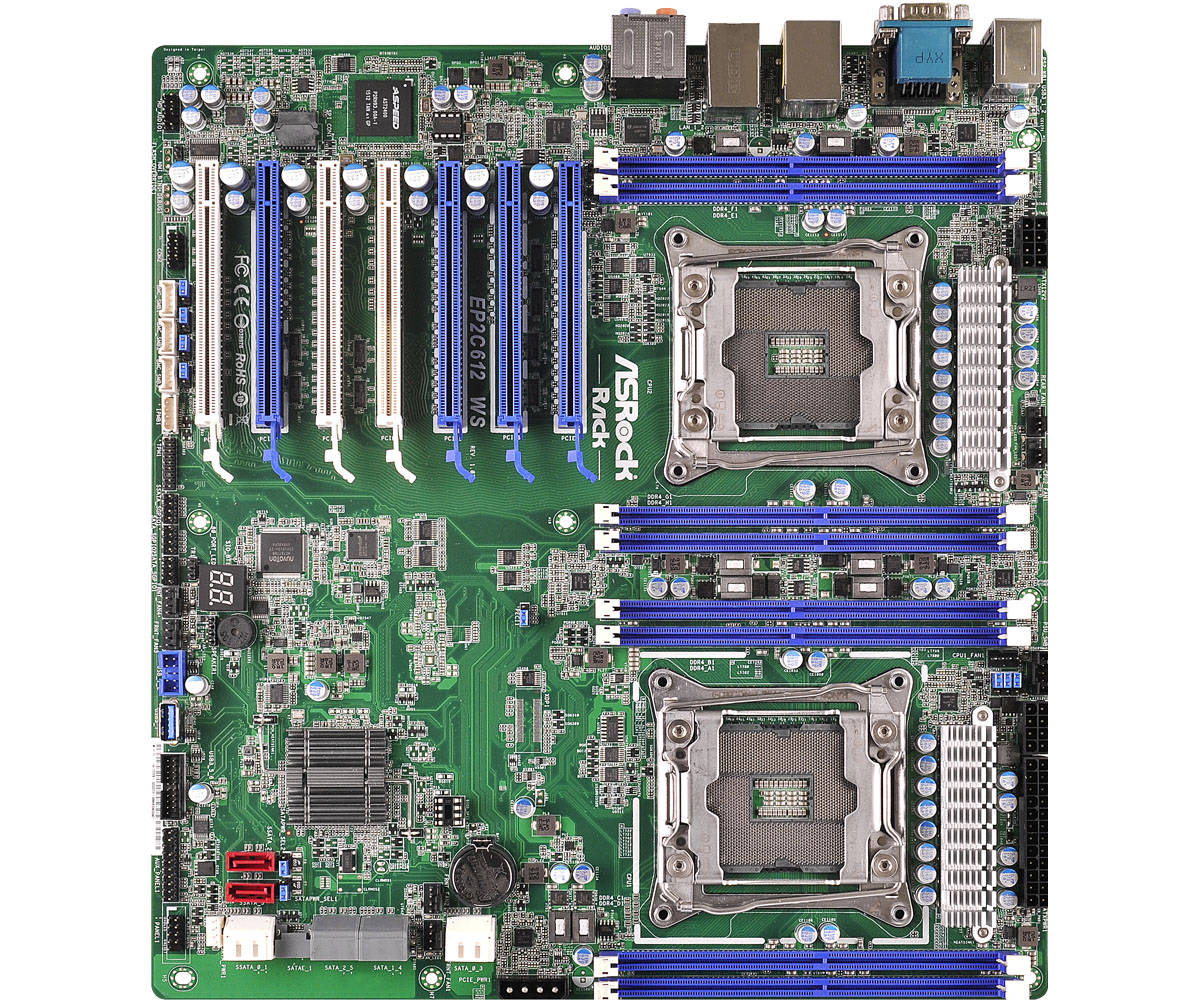

Слоты GPU и расширения ASRock Rack EP2C612 WS

Storage And Infrastructure

Накопители, сеть и питание

Intel® C612: 10 x SATA3 6Gb/s( 6x SATA3 + 4 x SSATA3, support 2 x SATA DOM, 1 x SATA Express), support RAID 0, 1, 5, 10. Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel Dual GLAN (2 x Intel i210 )

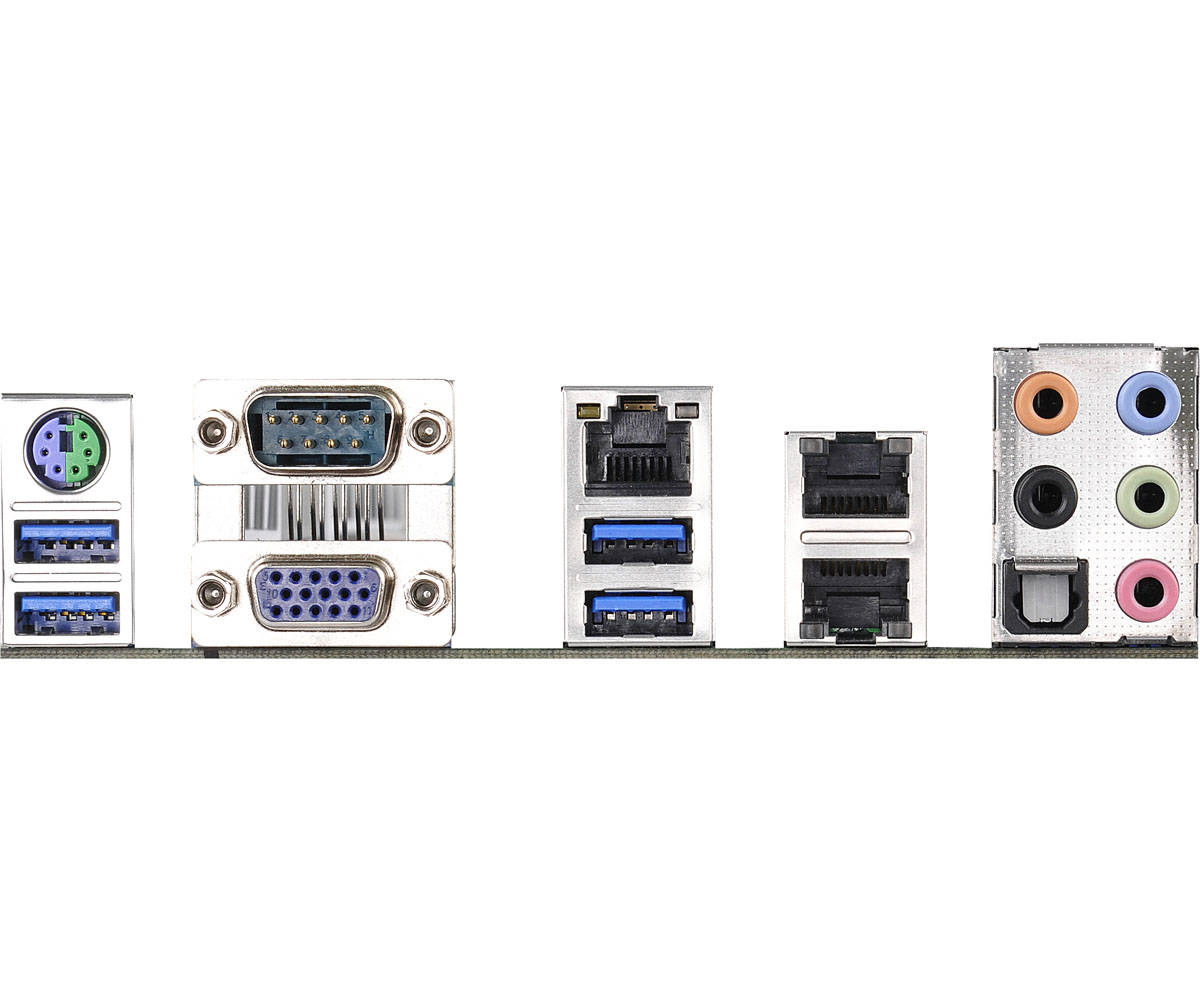

Накопители и задняя панель ASRock Rack EP2C612 WS

Product Details

Детали конструкции

Характеристики

Сеть	Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel Dual GLAN (2 x Intel i210 )
BMC / IPMI	Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
Сокет	2011-3
Память	Supports Quad Channel DDR4 2400/2133/1866/1600 RDIMM and LRDIMM, 8 x DIMM slots
Чипсет	C612
Audio — Audio	Realtek ALC1150
Graphics — VRAM	DDR3 16MB
Rear I/O — RJ45	RJ45: 2 + 1 (IPMI); LAN Ports with LED (ACT/LINK LED and SPEED LED)
Rear I/O — Audio	5 Jack, 1 SPDIF
Rear I/O — Others	1 Mouse
Supported OS — OS	Microsoft® Windows®; Windows® 7 ( 32 / 64 bit); Windows® 8 ( 32 / 64 bit); Windows® 8.1 ( 32 / 64 bit); Windows® 10 (64 bit); Server:; Microsoft® Windows®; Server 2008 R2 SP1 (64 bit); Server 2012 (64 bit); Server 2012 R2 (64 bit); Server 2016 (64 bit); Linux; RedHat Enterprise Linux Server 6.5 (32 / 64 bit); CentOS 5.10 / 6.5 (32 / 64 bit); SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit); FreeBSD 9.2 (32 / 64 bit); Fedora core 19 (64 bit); Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit); Virtual; VMWare® ESXi 5.5; *Please refer to our website for the latest OS support list.
Процессоры	Socket LGA 2011 R3 Intel Xeon processor E5-2600 v3/v4 series
Форм-фактор	SSI-EEB
Ethernet — Interface	1000 /100 /10 Mbps
Graphics — Controller	ASPEED AST2400
Rear I/O — Video Port	1 x D-Sub, 1 SPDIF
Environment — Humidity	Operating Humidity Range: 10%-90% / Non-operating Humidity Range: 10%-90%
Hardware Monitor — Fan	CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control
Processor System — CPU	support Intel® Xeon® processor E5-2600& v3/v4 series
Rear I/O — Serial Port	1 (COM1)
System BIOS — BIOS Type	128Mb AMI UEFI Legal BIOS
System Memory — Voltage	1.2V
GPU Support — Technology	Supports NVIDIA® 4-Way SLI Technology; Supports AMD Quad-GPU CrossFireX Technology
Environment — Temperature	Operating temperature Range: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Processor System — Socket	Dual Socket LGA 2011 R3
Hardware Monitor — Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Processor System — Chipset	Intel® C612
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8.0 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	12'' x 13'' (305 mm x 330 mm)
Rear I/O — USB 3.2 Gen1 Port	4
Server Management — Features	Watch Dog; NMI
Physical Status — Form Factor	SSI EEB
Слоты расширения	Supports 4 PCIe3.0 x16, 3 PCIe3.0 x8
Hardware Monitor — Temperature	CPU Temperature Sensing; System Temperature Sensing; System Inlet Temperature Sensing; Card Side Temperature Sensing
System Memory — Supported Type	Quad Channel memory technology; Support DDR4 2400/2133/1866/1600 RDIMM and LRDIMM*Only E5-2600 V4 CPUs support DDR4 2400
Server Management — BMC Controller	ASPEED AST2400
Internal Connector/Headers — Buzzer	1
Server Management — Dedicated IPMI LAN	1 x Realtek RTL8211E for dedicated management GLAN
System Memory — Max. Capacity per DIMM	RDIMM: 32GB, 16GB, 8GB, 4GB; LRDIMM: 64GB, 32GB
Internal Connector/Headers — Fan Header	2x CPU Fans, 5x system Fans(4-pin)
Internal Connector/Headers — TPM Header	1
SATA/SAS Storage — PCH Built-in Storage	Intel® C612: 10 x SATA3 6Gb/s( 6x SATA3 + 4 x SSATA3, support 2 x SATA DOM, 1 x SATA Express), support RAID 0, 1, 5, 10
System Memory — Supported DIMM Quantity	8 DIMM slots
Internal Connector/Headers — IPMB Header	1
Ethernet — Additional Ethernet Controller	2 x RJ45 by 2 x Intel® i210; 1 x RJ45 Dedicated IPMI LAN port; Supports Wake-On-LAN; Supports Energy Efficient Ethernet 802.3az; Supports Dual LAN with Teaming function; Supports PXE; LAN1 supports NCSI
Internal Connector/Headers — System Panel	1
Интерфейсы накопителей	Support 9 SATA3 by C612 (2 support SATA DOM, 1 support SATA Express)
Internal Connector/Headers — USB 2.0 Header	1 ( support 2 USB 2.0)
Internal Connector/Headers — Power Connector	1 (24-pin) + 2 (8-pin)
Internal Connector/Headers — USB 3.2 (Gen1) Header	1 ( support 2 USB 3.0)
Internal Connector/Headers — Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED)
Internal Connector/Headers — Other Power Connectors	1 for HDD power
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT7: PCIe3.0 x16, auto switch to x8 when SLOT6 is occupied [CPU0]; SLOT6: PCIe x16 (PCIe3.0 x8) [CPU0]; SLOT5: PCIe3.0 x16 [CPU0]; SLOT4: PCIe x16 (PCIe3.0 x8) [CPU1]; SLOT3: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU1]; SLOT2: PCIe x16 (PCIe3.0 x8) [CPU0]; SLOT1: PCIe3.0 x16 [CPU1]; Supports NVIDIA® Quad SLITM, 4-Way SLITM, 3-Way SLITM and SLITM"; Supports AMD GPU-Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX and CrossFireX
Internal Connector/Headers — Type A USB 3.2 (Gen1) Port	1
Другие официальные характеристики	Supports NVIDIA 4-way SLI & AMD Quad-GPU CrossFireX Technology
