ASRock Rack C236M WS

Name: ASRock Rack C236M WS
Brand: ASRock Rack
SKU: C236M WS

Артикул: C236M WS

Материнская плата для рабочей станции C236M WS

Материнская плата для рабочей станции C236M WS, Micro-ATX (9.6" x 9.6").

Форм-фактор

Micro-ATX (9.6" x 9.6")

Процессоры

Single Socket LGA 1151 H4 Intel Xeon processor E3-1200 v5/v6 series

Память

Supports Dual Channel DDR4 2133/1866 ECC DIMM, 4x DIMM

Сеть

Support 2 x GLAN by Intel i219LM and i210

материнская плата для рабочей станции ASRock Rack C236M WS

Compute And Memory

Вычислительная платформа и память

Single Socket LGA 1151 H4 Intel Xeon processor E3-1200 v5/v6 series. Supports Dual Channel DDR4 2133/1866 ECC DIMM, 4x DIMM

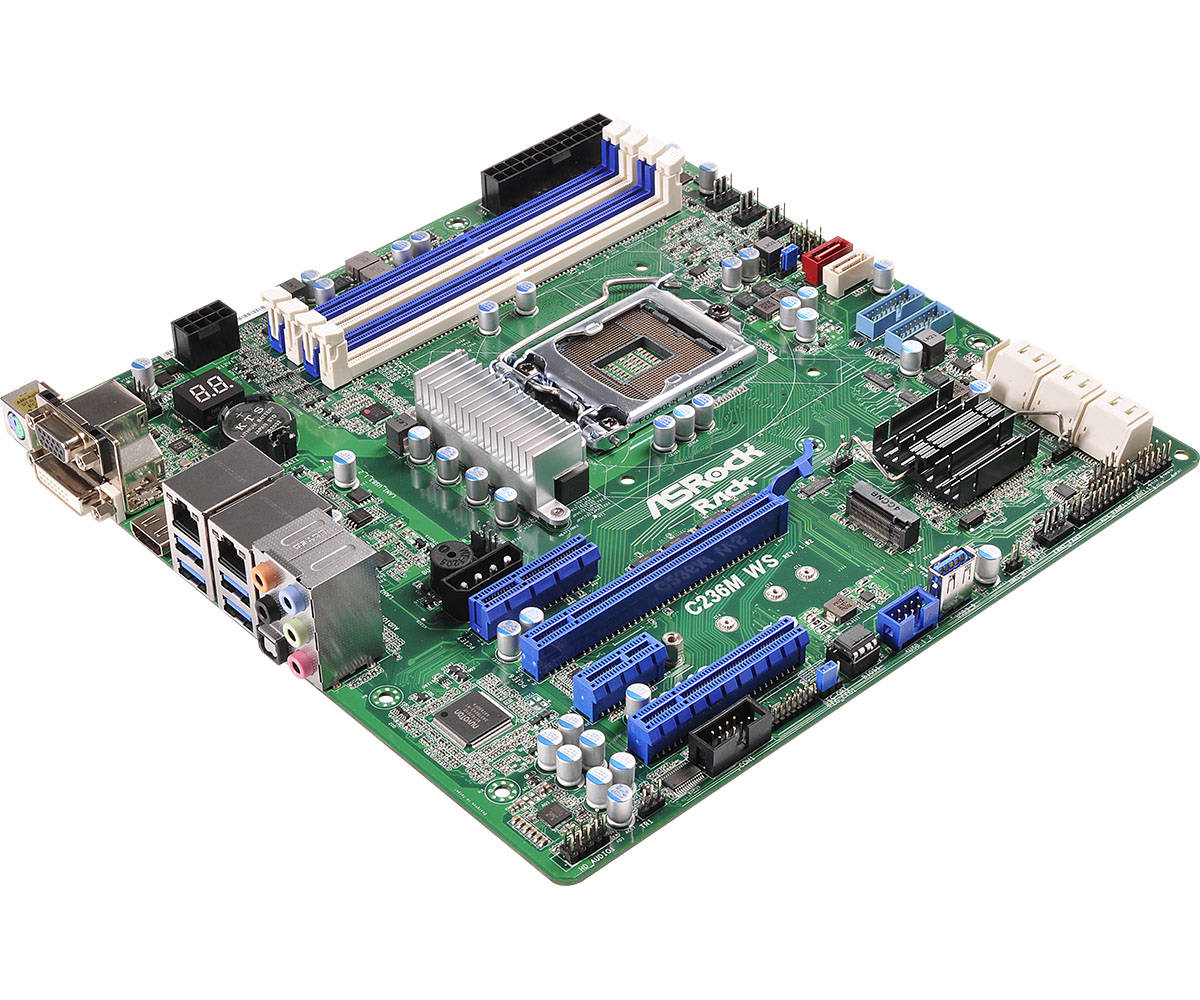

Внутренняя компоновка ASRock Rack C236M WS

GPU And Expansion

Ускорители и слоты расширения

Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe3.0 x1, 1 M.2

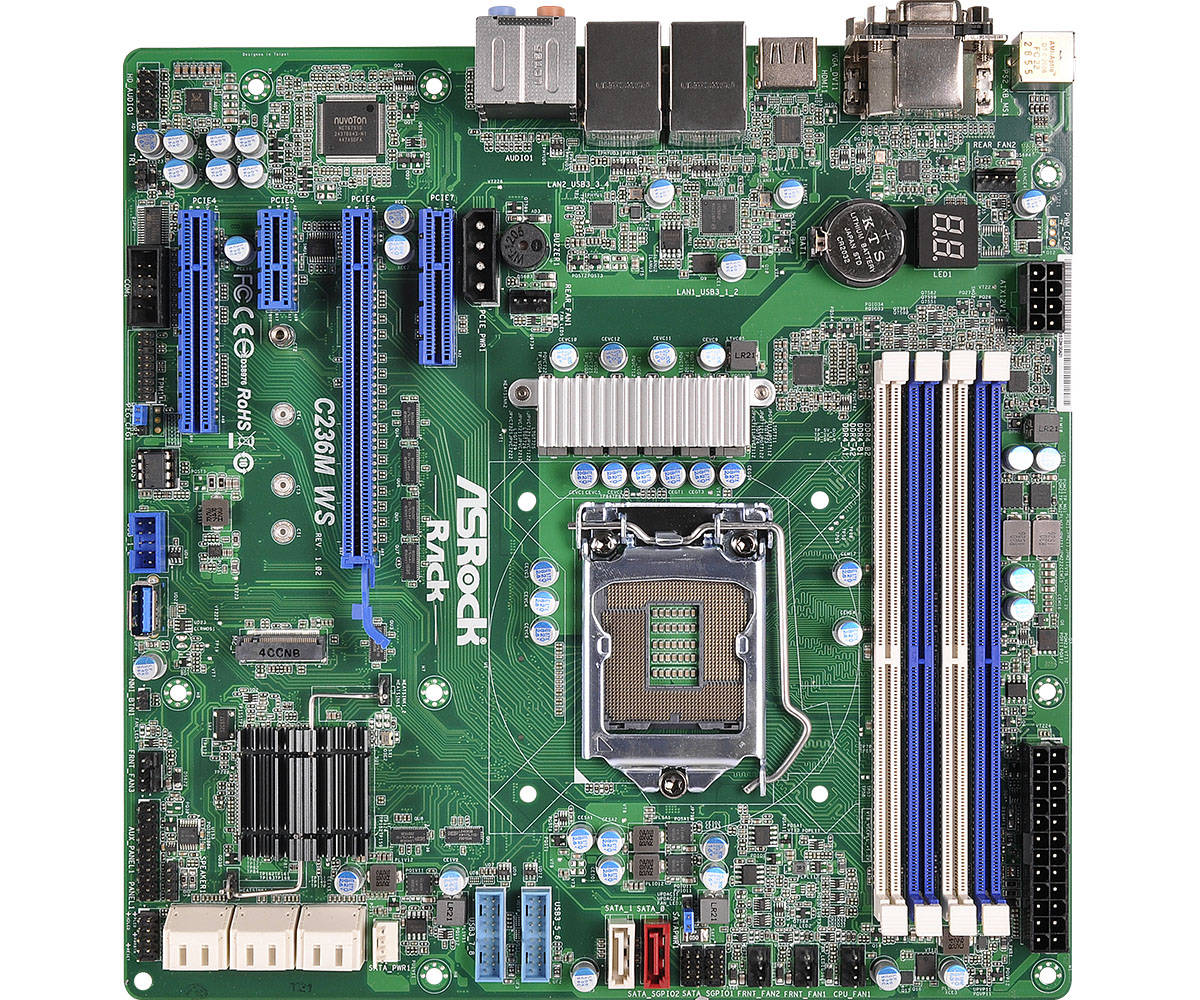

Слоты GPU и расширения ASRock Rack C236M WS

Storage And Infrastructure

Накопители, сеть и питание

Intel® C236 : 8 x SATA3 6.0 Gb/s, support RAID 0,1,5,10. Support 2 x GLAN by Intel i219LM and i210

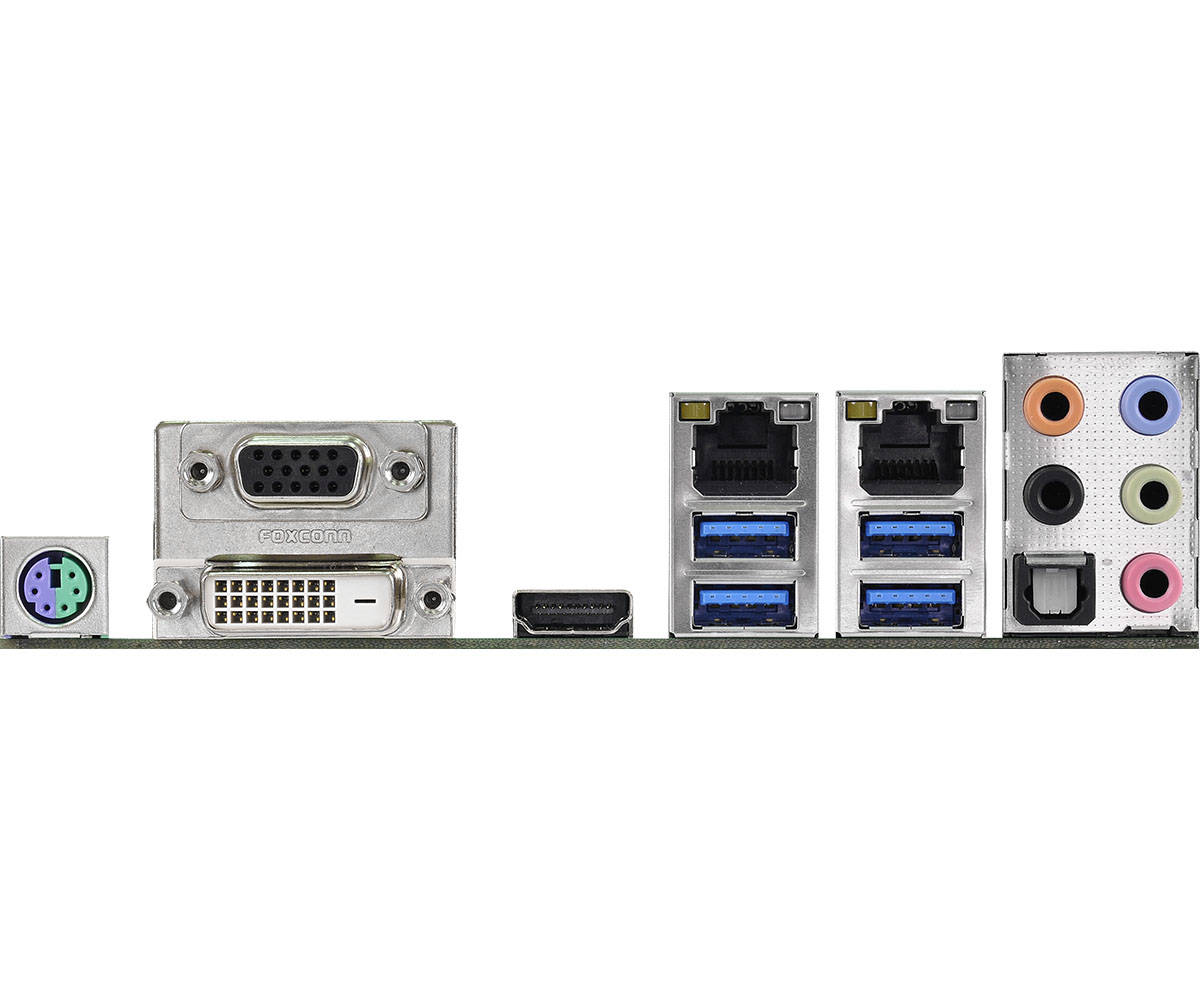

Накопители и задняя панель ASRock Rack C236M WS

Product Details

Детали конструкции

Характеристики

Сеть	Support 2 x GLAN by Intel i219LM and i210
Сокет	1151
Память	Supports Dual Channel DDR4 2133/1866 ECC DIMM, 4x DIMM
Чипсет	C236
Audio — Audio	Realtek ALC1150
Rear I/O — RJ45	RJ45: 2x GLAN(by Intel® i210+ Intel® i219); LAN Ports with LED (ACT/LINK LED and SPEED LED)
Rear I/O — Audio	1 (5+1 jack)
Rear I/O — Others	1 Mouse
Supported OS — OS	Microsoft® Windows®; Windows® 7 (32 / 64 bit); Windows® 8.1 (64 bit); Windows® 10 (64 bit); *Please refer to our website for the latest OS support list.
Процессоры	Single Socket LGA 1151 H4 Intel Xeon processor E3-1200 v5/v6 series
Форм-фактор	Micro-ATX (9.6" x 9.6")
Graphics — Controller	Intel® CPU GFX
Rear I/O — Video Port	1 x D-Sub, 1 HDMI, 1 DVI
Environment — Humidity	Operating Humidity Range: 10%-90% / Non-operating Humidity Range: 10%-90%
Hardware Monitor — Fan	CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control
Processor System — CPU	Intel® Xeon® E3-1200 v5/v6 Series Processors*BIOS version 2.0 or above is required for v4 series.
System BIOS — BIOS Type	128 Mb AMI UEFI Legal BIOS
System Memory — Voltage	1.2V
Environment — Temperature	Operating temperature Range: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Processor System — Socket	Single Socket H4 (LGA1151)
Hardware Monitor — Voltage	Voltage Monitoring: +12V, +5V, +3V, CPU Vcore, GT_CPU, +VCCSA, +V1.0M, +VCCIO, VCCST_SFR, VBAT, 3VSB
Processor System — Chipset	Intel® C236
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8.0 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	9.6" x 9.6"
Rear I/O — USB 3.2 Gen1 Port	4
Physical Status — Form Factor	Micro ATX
Слоты расширения	Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe3.0 x1, 1 M.2
Hardware Monitor — Temperature	CPU Temperature Sensing; MB/Card Side/TR Temperature Sensing
System Memory — Supported Type	Dual Channel memory technology; Supports DDR4 2400/2133/1866/1600 ECC/non-ECC UDIMM memoryOnly E3-1200 v6 CPUs can support DDR4 2400.; non-ECC UDIMM support Client OS only.
Internal Connector/Headers — Buzzer	1
Internal Connector/Headers — Others	1 Front Audio Panel
System Memory — Max. Capacity per DIMM	ECC and non-EDD UDIMM : 4GB, 8GB, 16GB
Internal Connector/Headers — Clear CMOS	1 (short pin)
Internal Connector/Headers — Fan Header	1x CPU Fan, 3x Front Fan, 2xRear Fan (4-pin)
Internal Connector/Headers — NMI Header	1
Internal Connector/Headers — TPM Header	1
SATA/SAS Storage — PCH Built-in Storage	Intel® C236 : 8 x SATA3 6.0 Gb/s, support RAID 0,1,5,10
System Memory — Supported DIMM Quantity	4 DIMM slots; Max Memory Size : 64GB
Internal Connector/Headers — IPMB Header	1
Ethernet — Additional Ethernet Controller	1 x RJ45 GLAN by Intel® i219LM; 1 x RJ45 GLAN by Intel® i210; 2 x RJ45 GLAN by Intel® i210+Intel® i219; Supports Wake-On-LAN; Supports Energy Efficient Ethernet 802.3az; Supports PXE
Internal Connector/Headers — SGPIO Header	2
Internal Connector/Headers — System Panel	1
Интерфейсы накопителей	Supports 8x SATA3 by Intel C236; Supports 1 PCIe3.0 x16, 1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCIe3.0 x1, 1 M.2
Other PCIe Expansion Connectors — M.2 slot	1
Internal Connector/Headers — USB 2.0 Header	1 ( support 2 USB 2.0)
Internal Connector/Headers — Power Connector	1 (24-pin) + 4 (8-pin)
PCIe Expansion Slots (SLOT7 close to CPU) — M.2	1 slot
Internal Connector/Headers — USB 3.2 (Gen1) Header	2 ( support 4 USB 3.0)
Internal Connector/Headers — Auxiliary Panel Header	1 (includes chassis intrusion, front LAN LED)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 1	SLOT5: PCIe3.0 x1
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 4	SLOT7: PCIe3.0 x4 (shared with M.2)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 8	SLOT4: PCIe3.0 x8
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied
Internal Connector/Headers — Type A USB 3.2 (Gen1) Port	1
Другие официальные характеристики	Micro ATX 9.6" x 9.6"
