ASRock Rack C236 WSI

Name: ASRock Rack C236 WSI
Brand: ASRock Rack
SKU: C236 WSI

Артикул: C236 WSI

Материнская плата для рабочей станции C236 WSI

Материнская плата для рабочей станции C236 WSI, Mini-ITX (6.7" x 6.7").

Форм-фактор

Mini-ITX (6.7" x 6.7")

Процессоры

Intel Xeon E3-1200 v5/v6 Series Processors

Память

Supports Dual channel DDR4 2133 ECC/Non-ECC UDIMM max 32 GB

Сеть

Supports Intel i210*1+Intel i219*1

материнская плата для рабочей станции ASRock Rack C236 WSI

Compute And Memory

Вычислительная платформа и память

Intel Xeon E3-1200 v5/v6 Series Processors. Supports Dual channel DDR4 2133 ECC/Non-ECC UDIMM max 32 GB

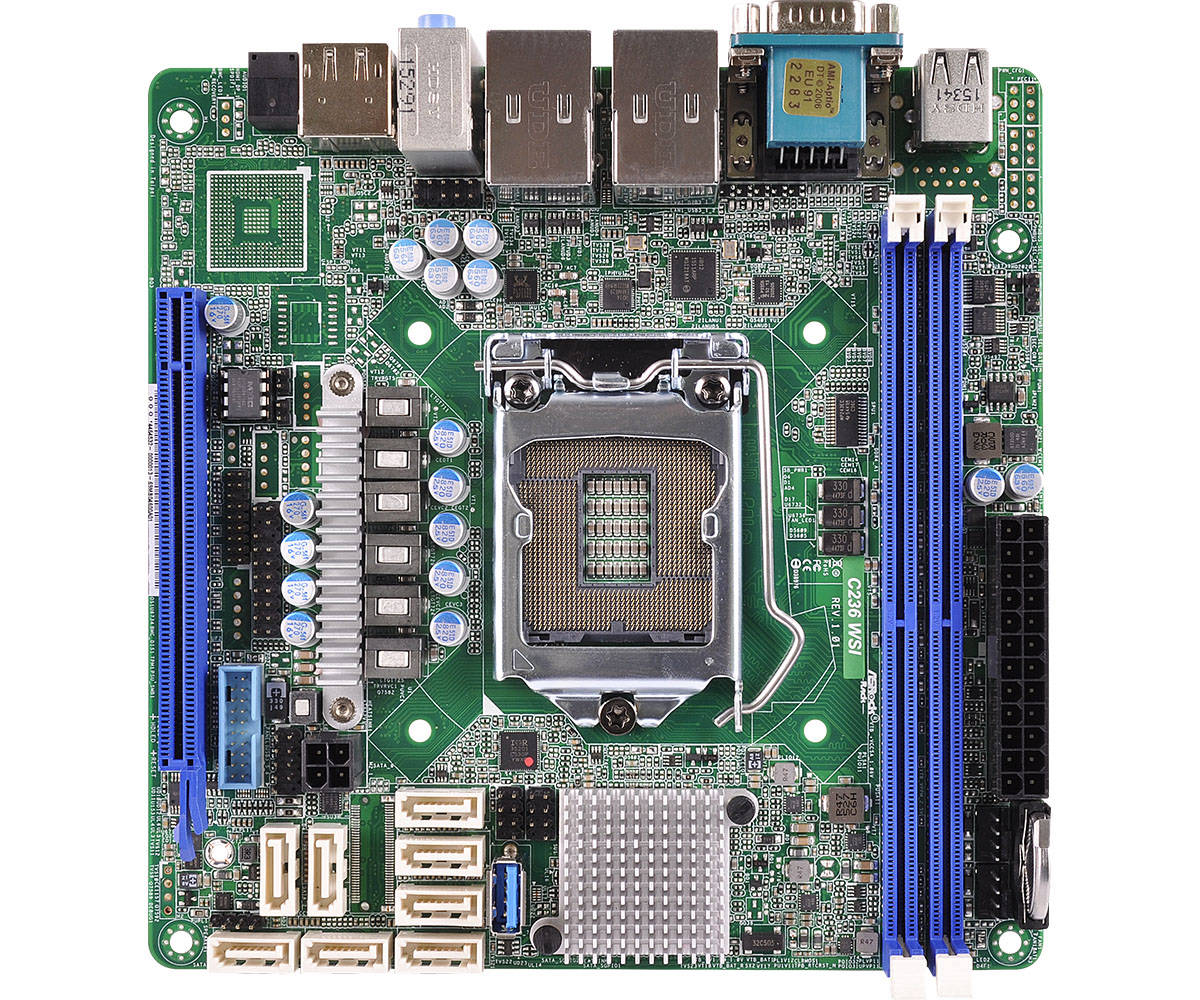

Внутренняя компоновка ASRock Rack C236 WSI

GPU And Expansion

Ускорители и слоты расширения

Supports 1x PCIe 3.0 x16

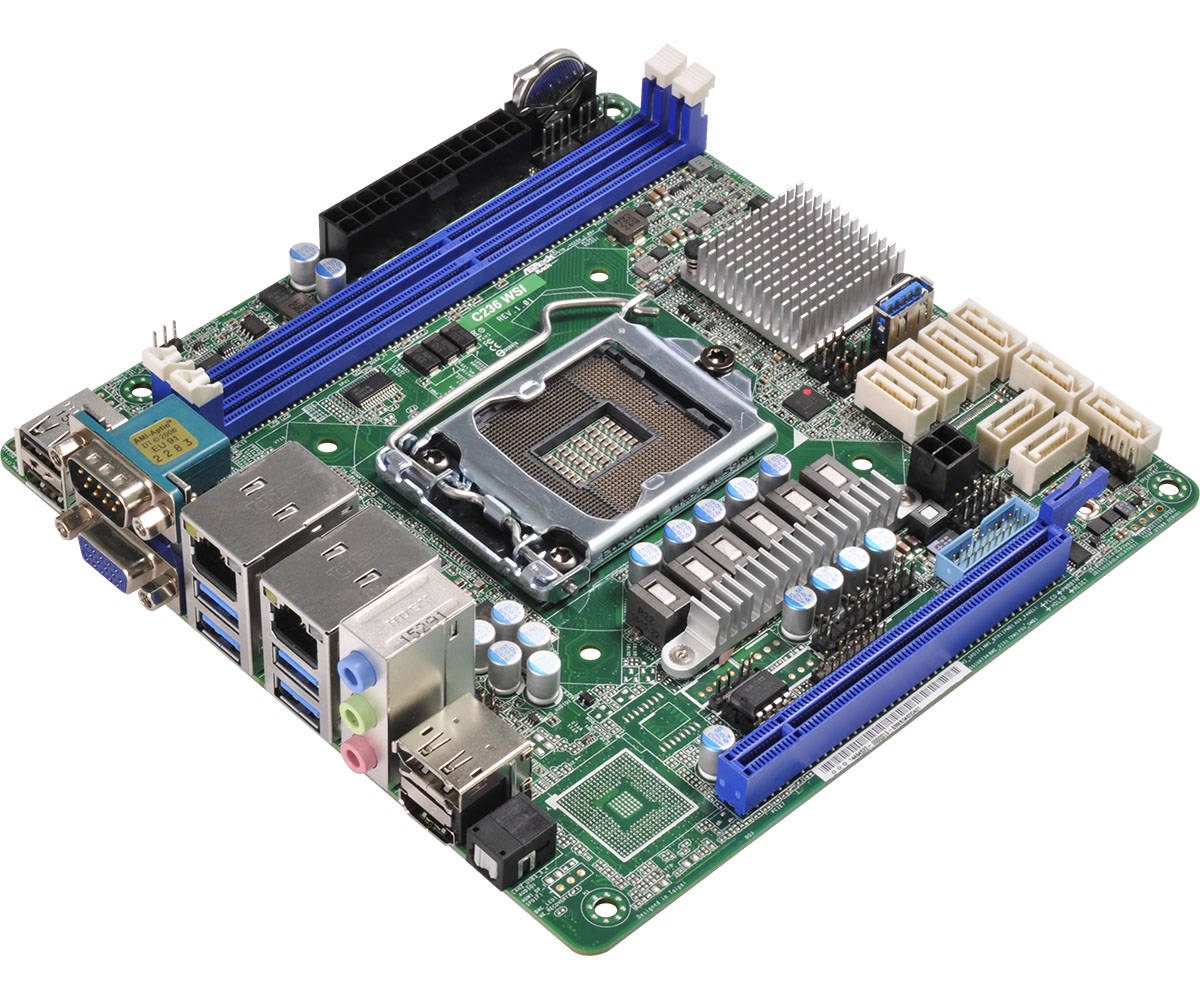

Слоты GPU и расширения ASRock Rack C236 WSI

Storage And Infrastructure

Накопители, сеть и питание

C236: 8x SATA3 6Gb/s, support RAID 0,1,5,10. Supports Intel i210*1+Intel i219*1

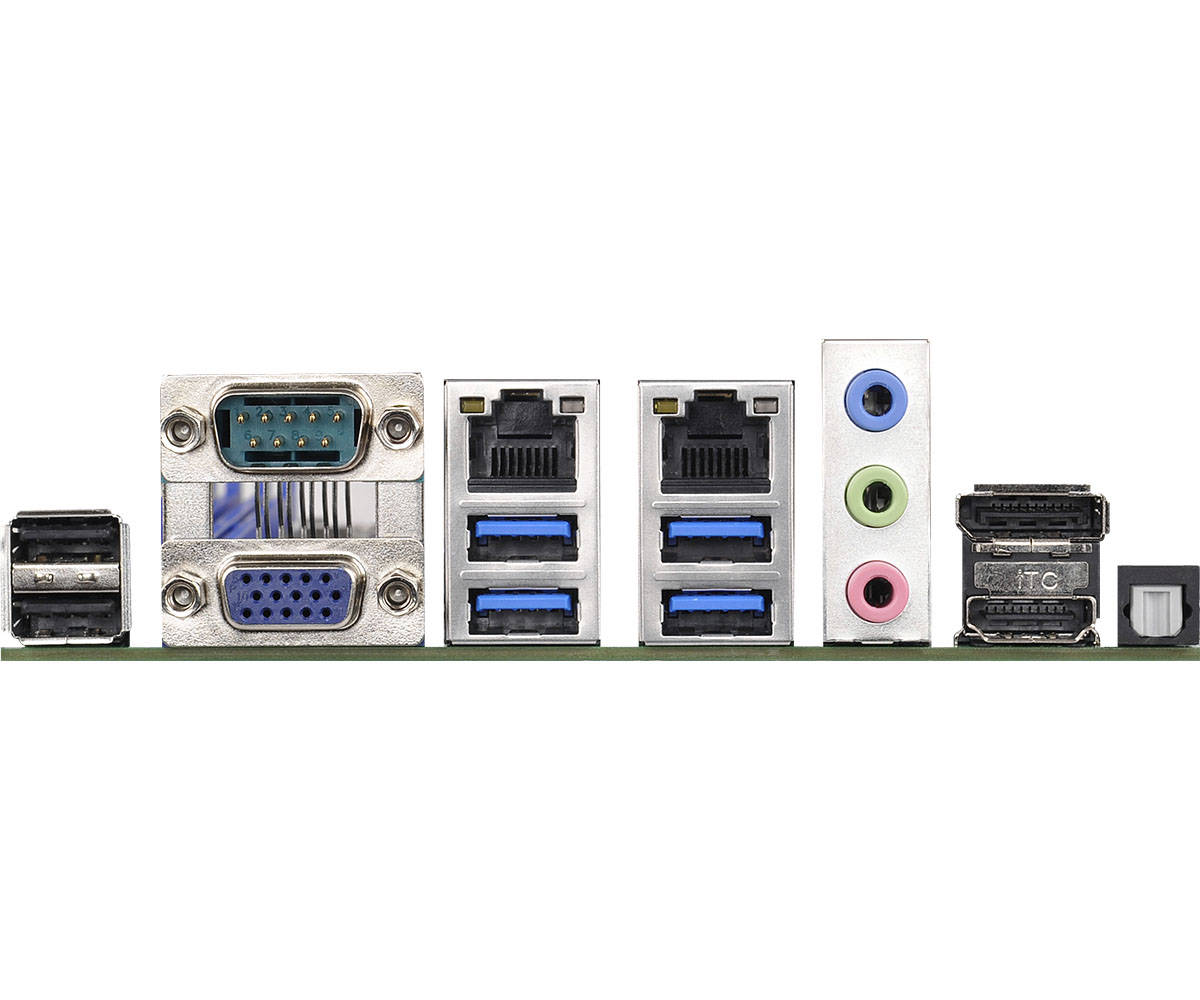

Накопители и задняя панель ASRock Rack C236 WSI

Product Details

Детали конструкции

Характеристики

Сеть	Supports Intel i2101+Intel i2191
Сокет	1151
Память	Supports Dual channel DDR4 2133 ECC/Non-ECC UDIMM max 32 GB
Чипсет	C236
Audio — Audio	Realtek ALC1150
Rear I/O — RJ45	RJ45: 2x GLAN(by Intel® i210+ Intel® i219); LAN Ports with LED (ACT/LINK LED and SPEED LED)
Rear I/O — Audio	3 Jack, 1 SPDIF
Supported OS — OS	Microsoft® Windows®; Windows® 7 (32 / 64 bit); Windows® 8.1 (64 bit); Windows® 10 (64 bit); *Please refer to our website for the latest OS support list.
Процессоры	Intel Xeon E3-1200 v5/v6 Series Processors
Форм-фактор	Mini-ITX (6.7" x 6.7")
Ethernet — Interface	1000 /100 /10 Mbps
Graphics — Controller	Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated
Rear I/O — Video Port	1 x D-Sub, 1 HDMI, 1 DisplayPort
Environment — Humidity	Operating Humidity Range: 10%-90% / Non-operating Humidity Range: 10%-90%
Hardware Monitor — Fan	CPU/Front Fan Tachometer; CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU/Front Fan Multi-Speed Control
Processor System — CPU	Intel® Xeon® E3-1200 v5/v6 Series Processors; *BIOS version 2.0 or above is required for v4 series.
Rear I/O — USB 2.0 Port	2
System BIOS — BIOS Type	128Mb AMI UEFI Legal BIOS
System Memory — Voltage	1.2V
Environment — Temperature	Operating temperature Range: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Hardware Monitor — Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Processor System — Chipset	Intel® C236
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8.0 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	6.7'' x 6.7'' (17.02 cm x17.02 cm)
Rear I/O — USB 3.2 Gen1 Port	4
Physical Status — Form Factor	Mini ITX
Слоты расширения	Supports 1x PCIe 3.0 x16
Hardware Monitor — Temperature	CPU Temperature Sensing; MB Temperature Sensing; System TR Temperature Sensing
System Memory — Supported Type	Dual Channel memory technology; Supports DDR4 2400/2133/1866/1600 ECC/non-ECC UDIMM memoryOnly E3-1200 v6 CPUs can support DDR4 2400; non-ECC UDIMM support Client OS only.
Internal Connector/Headers — Others	1 HDMI_SPDIF, 1 Front Audio Panel
System Memory — Max. Capacity per DIMM	ECC and non-ECC UDIMM : 16GB, 8GB, 4GB
Internal Connector/Headers — Clear CMOS	1 (short pin)
Internal Connector/Headers — Fan Header	2(1CPU/1Front)
Internal Connector/Headers — NMI Header	1
Internal Connector/Headers — TPM Header	1
SATA/SAS Storage — PCH Built-in Storage	C236: 8x SATA3 6Gb/s, support RAID 0,1,5,10
System Memory — Supported DIMM Quantity	2 x DDR4 DIMM slots
Ethernet — Additional Ethernet Controller	2 x RJ45 GLAN by Intel® i210+Intel® i219; Supports Wake-On-LAN; Supports Energy Efficient Ethernet 802.3az; Supports PXE
Internal Connector/Headers — SGPIO Header	2
Internal Connector/Headers — System Panel	1
Интерфейсы накопителей	Support 8 SATA3 by C236
Internal Connector/Headers — Speaker Header	1
Internal Connector/Headers — ME/SPS Recovery	1
Internal Connector/Headers — Power Connector	1x (24-pin) + 1x (4-pin)
Internal Connector/Headers — Thermal Sensor Header	1
Internal Connector/Headers — USB 3.2 (Gen1) Header	1 ( support 2 USB3.0)
Internal Connector/Headers — Auxiliary Panel Header	1 (include chassis intrusion)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT7: PCIe3.0 x16
Internal Connector/Headers — Type A USB 3.2 (Gen1) Port	1
