ASRock Rack Z490D2I

Name: ASRock Rack Z490D2I
Brand: ASRock Rack
SKU: Z490D2I

Артикул: Z490D2I

ASRock Rack Z490D2I

Серверная материнская плата Z490D2I

Серверная материнская плата Z490D2I, mini-ITX (6.7" x 6.7").

Форм-фактор

mini-ITX (6.7" x 6.7")

Процессоры

Supports 11th and 10th Gen. Intel Core Processors

Память

2 DIMM slots (1DPC), supports DDR4 ECC/non-ECC UDIMM Memory

Сеть

1 RJ45 (1GbE) by Intel i210; 1 RJ45 (1GbE) by Intel i219-LM

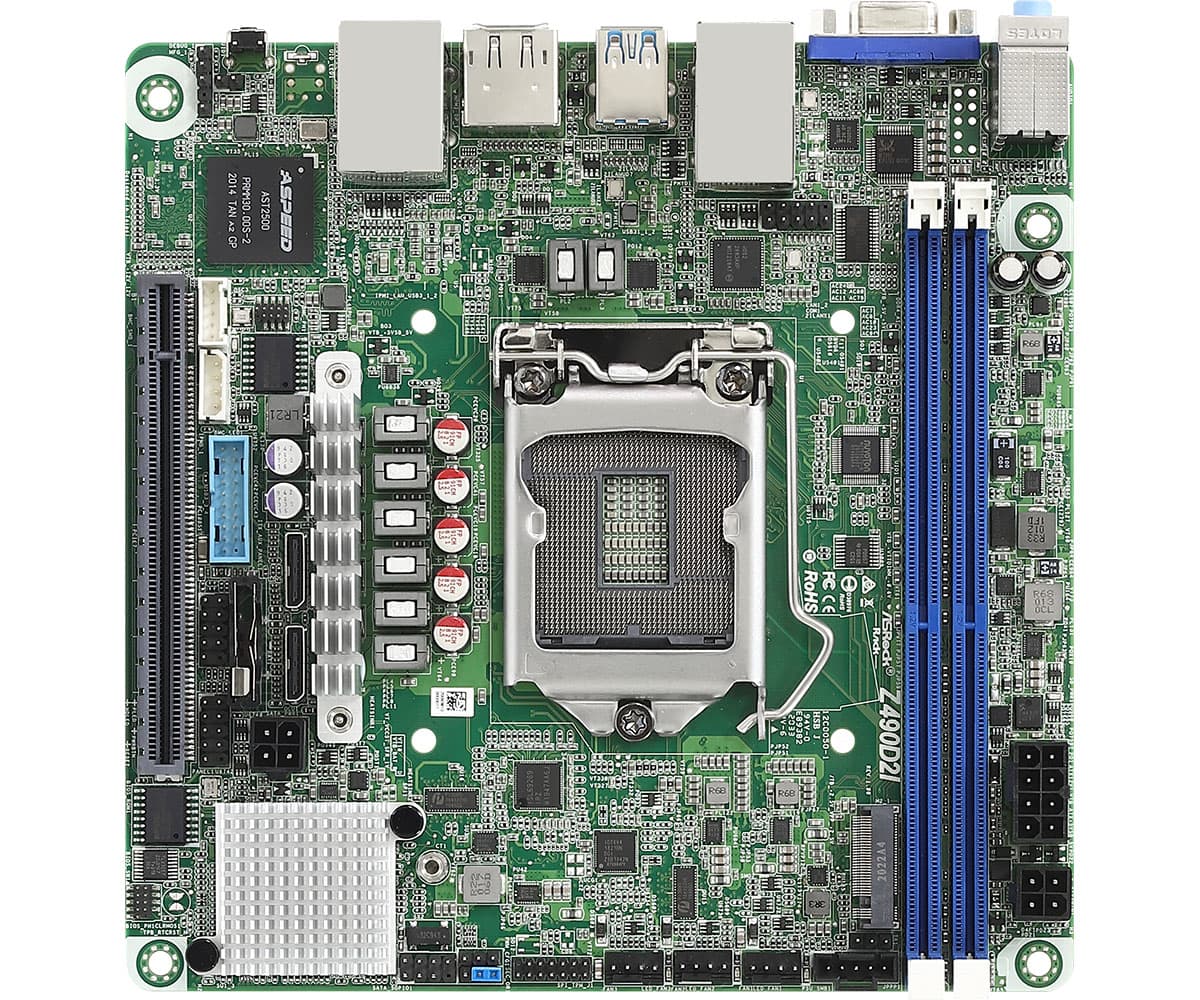

серверная материнская плата ASRock Rack Z490D2I

Compute And Memory

Вычислительная платформа и память

Supports 11th and 10th Gen. Intel Core Processors. 2 DIMM slots (1DPC), supports DDR4 ECC/non-ECC UDIMM Memory

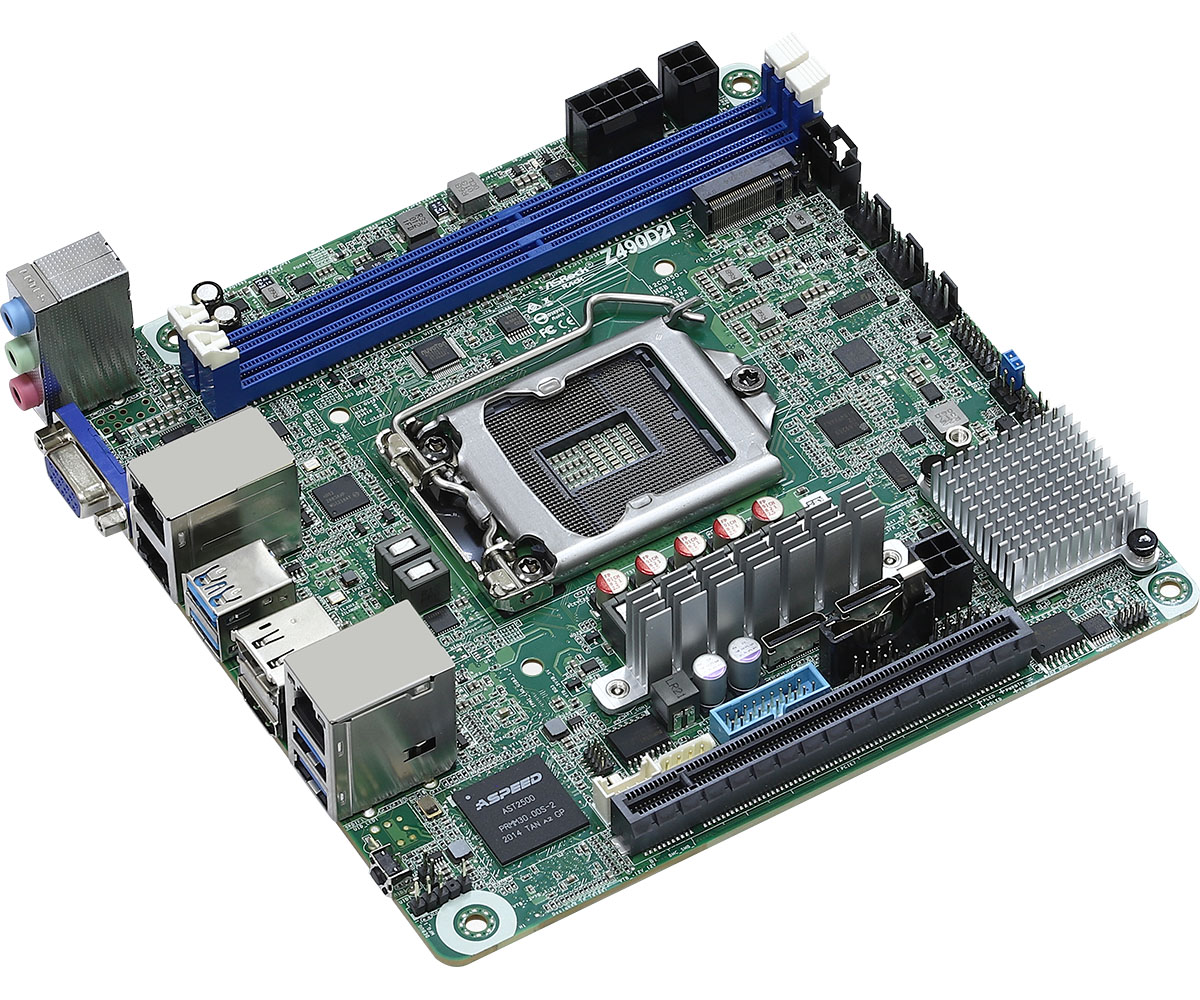

Внутренняя компоновка ASRock Rack Z490D2I

GPU And Expansion

Ускорители и слоты расширения

1 PCIe4.0 x16; Supports 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 2 SATA 6Gb/s); Supports 1 M.2 (PCIe4.0 x4)

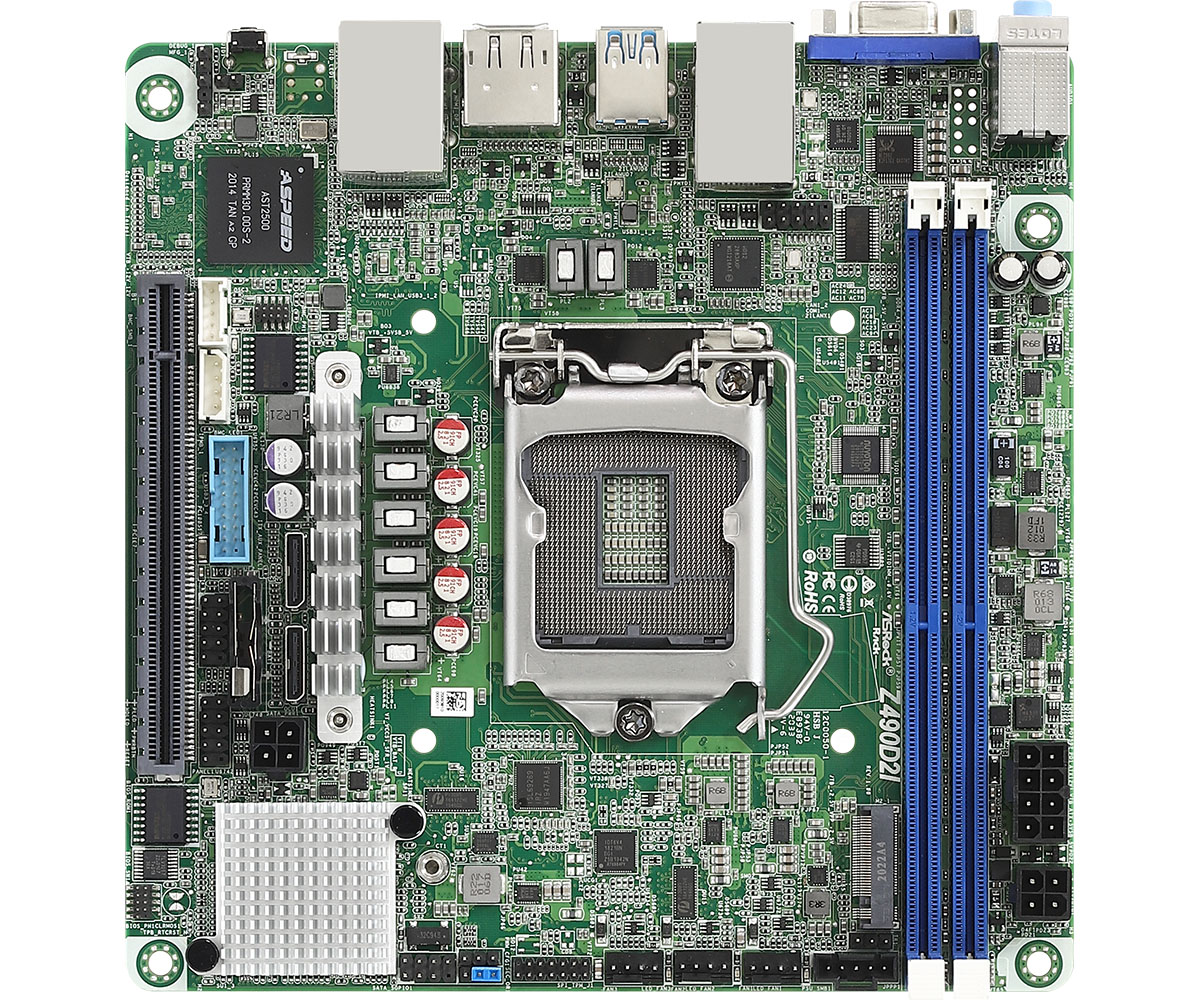

Слоты GPU и расширения ASRock Rack Z490D2I

Storage And Infrastructure

Накопители, сеть и питание

Supports 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 2 SATA 6Gb/s); Supports 1 M.2 (PCIe4.0 x4); 6 SATA 6Gb/s. 1 RJ45 (1GbE) by Intel i210; 1 RJ45 (1GbE) by Intel i219-LM

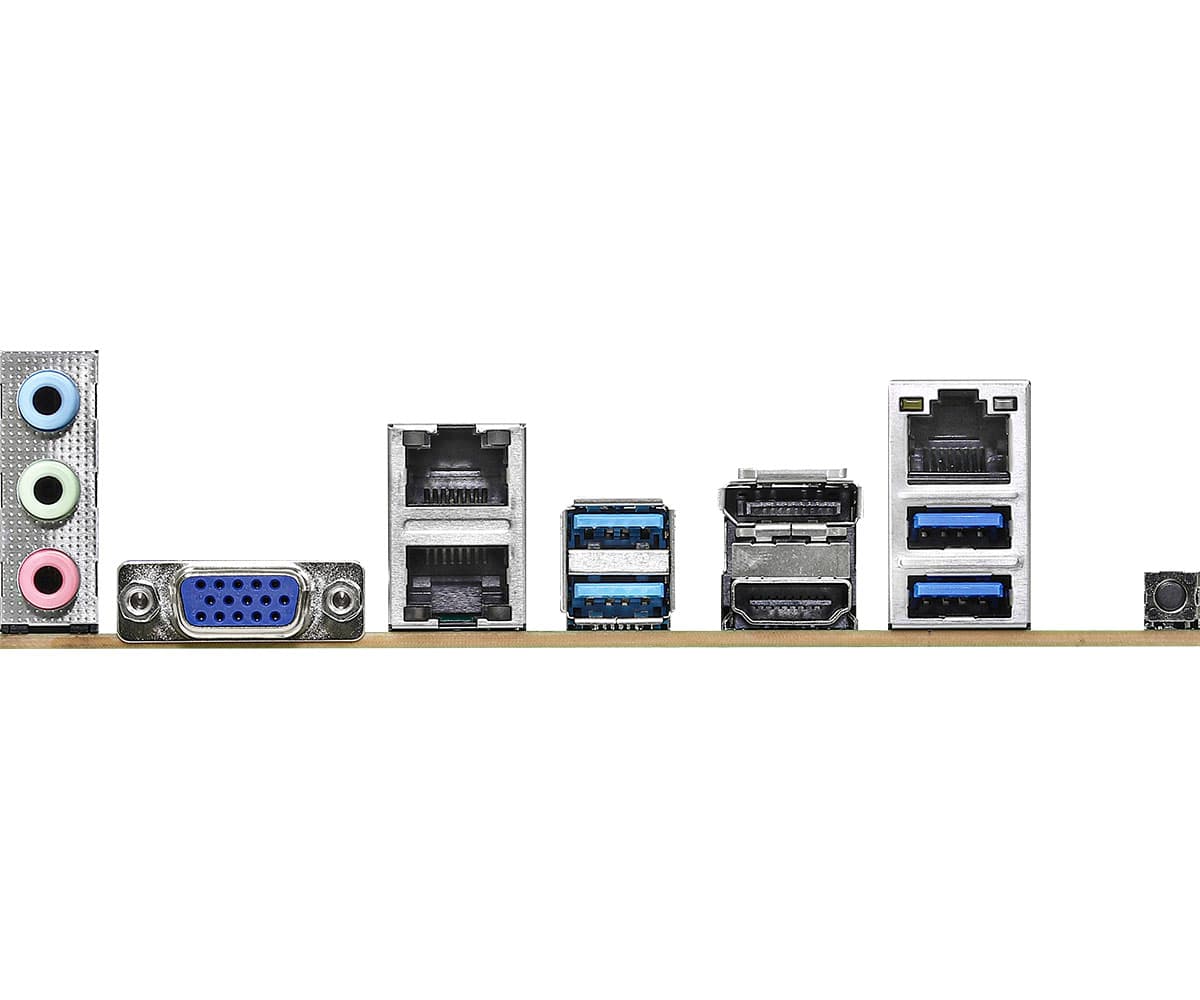

Накопители и задняя панель ASRock Rack Z490D2I

Product Details

Детали конструкции

Характеристики

Сеть	1 RJ45 (1GbE) by Intel i210; 1 RJ45 (1GbE) by Intel i219-LM
BMC / IPMI	Remote Management (IPMI)
Сокет	1200
Память	2 DIMM slots (1DPC), supports DDR4 ECC/non-ECC UDIMM Memory
Чипсет	Z490
Rear I/O — RJ45	2 RJ45 (1GbE); 1 dedicated IPMI
Rear I/O — Audio	1 (3 jacks),
Supported OS — OS	Microsoft® Windows® :; Windows® 10 (64 bit); Linux :; RedHat Enterprise Linux Server 7.9 (64 bit) / 8.2 (64 bit); CentOS 7.9 (64 bit) / 8.2 (64 bit); SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP2 (64 bit); Ubuntu 19.04 (64 bit) / 20.04.1 (64 bit); Hypervisor :; VMWare® ESXi 7.0 U1/ vSphere 7.0 U1; * Supports UEFI BOOT only.; * The Intel® RAID mode is not supported on the Linux system.
Процессоры	Supports 11th and 10th Gen. Intel Core Processors
Форм-фактор	mini-ITX (6.7" x 6.7")
Graphics — Controller	ASPEED AST2500:; 1 DB15 (VGA); Intel® Integrated Processor Graphics:; 1 HDMI, 1 DisplayPort
Rear I/O — Video Port	1 DB15, 1 HDMI, 1 DisplayPort
Environment — Humidity	Non-operating humidity: 20% ~ 90% (non-condensing)
Hardware Monitor — Fan	"CPU/Rear/Front Fan Tachomete; CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control"
Processor System — CPU	Supports 11th and 10th Gen. Intel® Core Processors
System BIOS — BIOS Type	AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
System Memory — Voltage	1.2V
Environment — Temperature	Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Processor System — Socket	LGA 1200
Rear I/O — UID Button/LED	1
Hardware Monitor — Voltage	VCORE,VCCSA,VCCM,3V, 5V, 12V, +1.05V_PCH_AUX,+BAT, 3VSB, 5VSB,VCCIO,+2.5V_VPP
Processor System — Chipset	Intel® Z490
System BIOS — BIOS Features	Plug and Play, ACPI 3.0 compliance wake up events, SMBIOS 3.2, ASRock Rack instant flash
Physical Status — Dimensions	6.7" x 6.7" (170mm x 170mm)
Rear I/O — USB 3.2 Gen1 Port	2 Type-A (USB3.2 Gen1)
Rear I/O — USB 3.2 Gen2 Port	2 Type-A (USB3.2 Gen2)
LED Indicators — Fan Fail LED	3
Physical Status — Form Factor	mini-ITX
Слоты расширения	1 PCIe4.0 x16; Supports 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 2 SATA 6Gb/s); Supports 1 M.2 (PCIe4.0 x4)
Hardware Monitor — Temperature	CPU, MB, TR1 Temperature sensing
System Memory — Supported Type	Supports DDR4 288-pin ECC/non-ECC UDIMM
LED Indicators — Standby PWR LED	1
LED Indicators — BMC Heartbeat LED	1
Server Management — BMC Controller	ASPEED AST2500: IPMI (Intelligent Platform Management Interface) 2.0
System Memory — Max. DIMM Frequency	up to 2933 MHz
Server Management — Dedicated IPMI LAN	1 x Realtek RTL8211E for dedicated management GLAN
System Memory — Max. Capacity per DIMM	up to 32GB
Internal Connector/Headers — COM Header	1
Internal Connector/Headers — Clear CMOS	1
Internal Connector/Headers — Fan Header	3 (4-pin)
Internal Connector/Headers — TPM Header	1 (13-pin, SPI)
Processor System — Thermal Design Power	125 W
System Memory — Supported DIMM Quantity	2 DIMM (1DPC)
Internal Connector/Headers — IPMB Header	1
Ethernet — Additional Ethernet Controller	1 Intel® i210:; 1 RJ45 (1 GbE); 1 Intel® i219-LM:; 1 RJ45 (1 GbE)
Internal Connector/Headers — PMBus header	1
Internal Connector/Headers — SGPIO Header	1
Internal Connector/Headers — SMBus header	1
Internal Connector/Headers — System Panel	1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Other PCIe Expansion Connectors — OCuLink	1 Oculink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]; 1 Oculink (PCIe3.0 x4 or 2 SATA 6Gb/s) [PCH]
Интерфейсы накопителей	Supports 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s), 1 OCuLink (PCIe3.0 x4 or 2 SATA 6Gb/s); Supports 1 M.2 (PCIe4.0 x4); 6 SATA 6Gb/s
Internal Connector/Headers — Power Connector	1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 1 (8-pin, ATX 12V) support 12V DC-in
SATA/SAS Storage — Additional SATA Controller	Intel Z490 (6 SATA 6Gb/s; RAID 0/1/5/10):; 2 OCuLink
PCIe Expansion Slots (SLOT7 close to CPU) — M.2	1 M-key* (PCIe4.0 x4) support 2280 form factor [CPU]; *Supports PCIe3.0 x4 or SATA [PCH] when installing 10th Gen. Intel® Core Processors
Internal Connector/Headers — Thermal Sensor Header	1
Internal Connector/Headers — USB 3.2 (Gen1) Header	1 (19-pin, 2 USB3.2 Gen1)
Internal Connector/Headers — Auxiliary Panel Header	1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
Internal Connector/Headers — Other Power Connectors	1 (4-pin) for HDD power when using 12V DC-in power source
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT7: PCIe4.0 x16; * Supports PCIe3.0 x16 when installing 10th Gen. Intel® Core Processors
Другие официальные характеристики	Supports ATX PSU or 12V DC-in
