ASRock Rack EPC612D4I

Name: ASRock Rack EPC612D4I
Brand: ASRock Rack
SKU: EPC612D4I

Артикул: EPC612D4I

Серверная материнская плата EPC612D4I

Серверная материнская плата EPC612D4I, Mini ITX.

Форм-фактор

Mini ITX

Процессоры

Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 /v4 series

Память

Supports Quad Channel DDR4 2400/2133/1866/1600 ECC SO-DIMM 4 x DIMM slots

Сеть

Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel Dual GLAN ( Intel i210 + Intel i217 )

серверная материнская плата ASRock Rack EPC612D4I

Compute And Memory

Вычислительная платформа и память

Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 /v4 series. Supports Quad Channel DDR4 2400/2133/1866/1600 ECC SO-DIMM 4 x DIMM slots

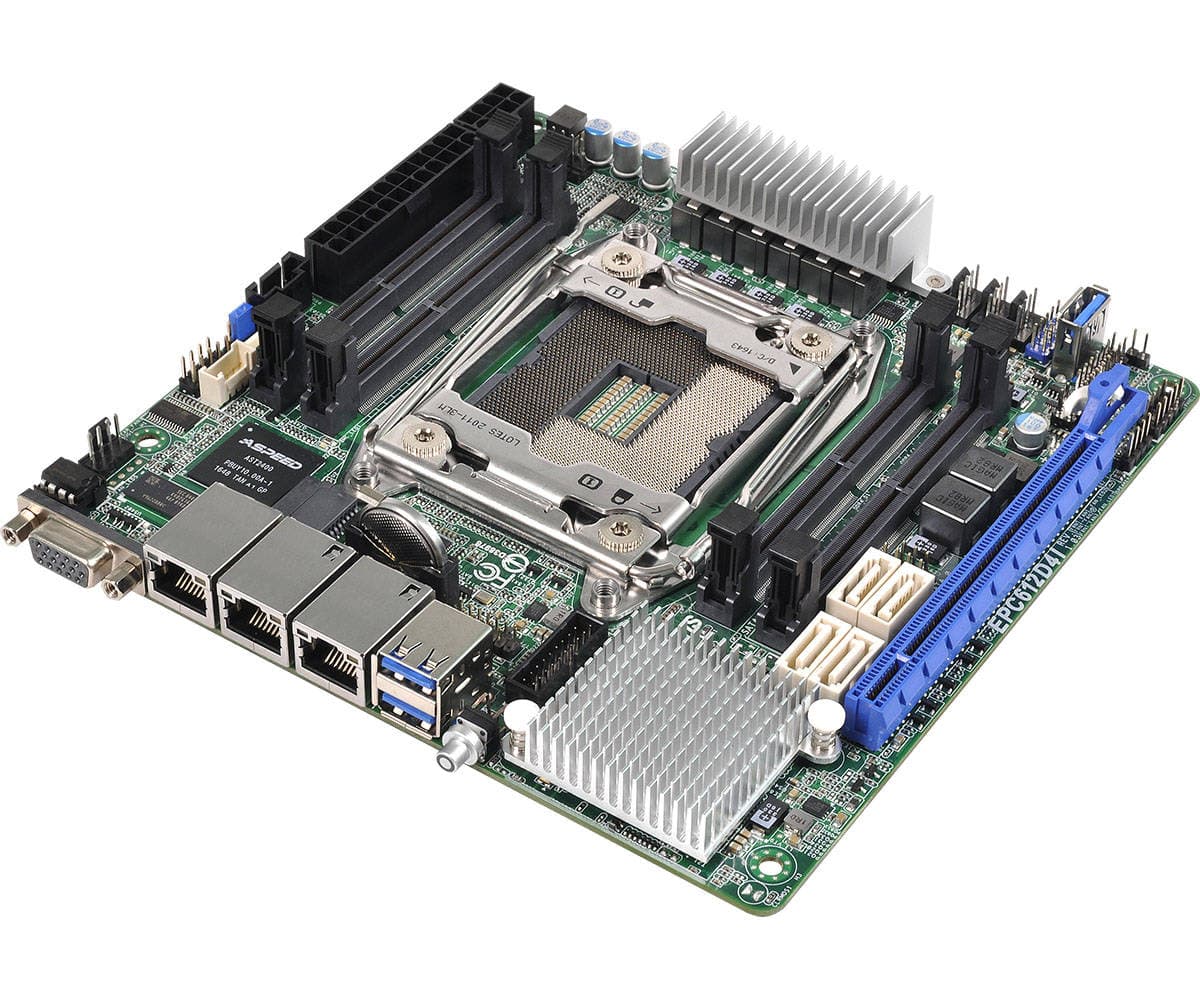

Внутренняя компоновка ASRock Rack EPC612D4I

GPU And Expansion

Ускорители и слоты расширения

Supports 1 x PCIe 3.0 x16

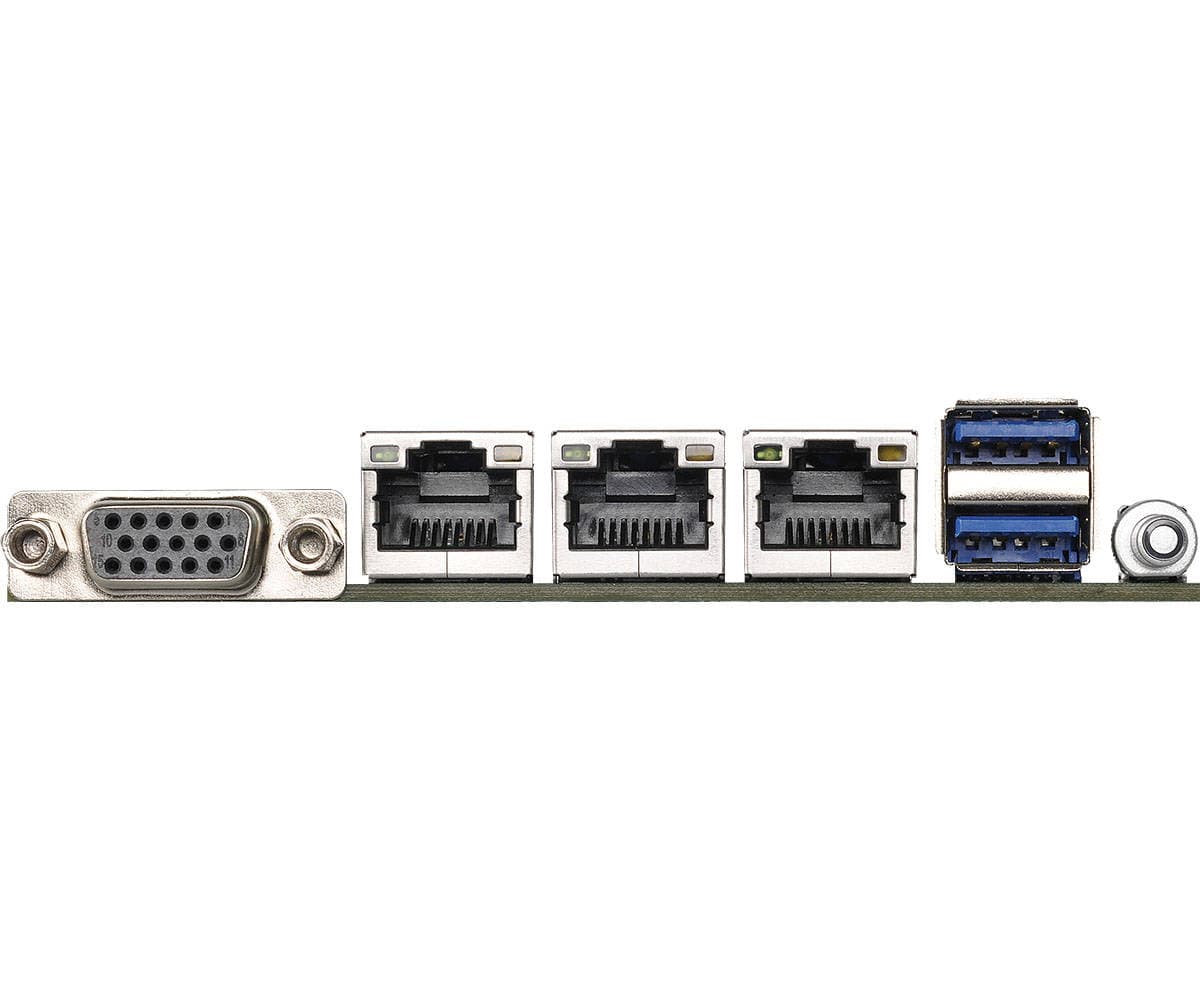

Слоты GPU и расширения ASRock Rack EPC612D4I

Storage And Infrastructure

Накопители, сеть и питание

Intel® C612: 4 x SATA3 6Gb/s, support Intel® RSTe 4.0 RAID 0, 1, 5,10. Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel Dual GLAN ( Intel i210 + Intel i217 )

Накопители и задняя панель ASRock Rack EPC612D4I

Product Details

Детали конструкции

Характеристики

Сеть	Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel Dual GLAN ( Intel i210 + Intel i217 )
BMC / IPMI	Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
Сокет	2011-3
Память	Supports Quad Channel DDR4 2400/2133/1866/1600 ECC SO-DIMM 4 x DIMM slots
Чипсет	C612
Graphics — VRAM	DDR3 16MB
Rear I/O — RJ45	RJ45: 2 + 1 (IPMI); LAN Ports with LED (ACT/LINK LED and SPEED LED)
Supported OS — OS	Microsoft® Windows:; Server 2008 R2 SP1 (64 bit); Server 2012 (64 bit); Server 2012 R2 (64 bit); Server 2016 (64 bit); Linux:; RedHat Enterprise Linux Server 6.5 (32 / 64 bit); CentOS 5.10 / 6.5 (32 / 64 bit); SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit); FreeBSD 9.2 (32 / 64 bit); Fedora core 19 (64 bit); Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit); Virtual:; VMWare® ESXi 5.5
Процессоры	Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 /v4 series
Форм-фактор	Mini ITX
Ethernet — Interface	1000 /100 /10 Mbps
Graphics — Controller	ASPEED AST2400
Rear I/O — Video Port	1 x D-Sub
Environment — Humidity	Operating Humidity Range: 10%-90% / Non-operating Humidity Range: 10%-90%
Hardware Monitor — Fan	CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control
Processor System — CPU	Intel® Xeon® processor E5-1600/2600 v3/v4 series**BIOS version 2.0 or above is required for v4 series.
System BIOS — BIOS Type	128Mb AMI UEFI Legal BIOS
System Memory — Voltage	0.9V - 1.5V
Environment — Temperature	Operating temperature Range: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Processor System — Socket	Single Socket LGA 2011 R3**Please use narrow type CPU Cooler
Rear I/O — UID Button/LED	1
Hardware Monitor — Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +1.5V_PCH, +BAT, 3VSB, 5VSB
Processor System — Chipset	Intel C612
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8.0 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	6.7'' x 6.7'' (170.2 mm x170.2 mm)
Rear I/O — USB 3.2 Gen1 Port	2
Server Management — Features	Watch Dog; NMI
Physical Status — Form Factor	Mini ITX
Слоты расширения	Supports 1 x PCIe 3.0 x16
Hardware Monitor — Temperature	CPU Temperature Sensing; System Temperature Sensing
System Memory — Supported Type	Quad Channel memory technology; Supports DDR4 2400/2133/1866/1600 ECC SO-DIMMOnly E5-2600 V4 CPUs support DDR4 2400.; **2133 support one DIMM per channel.
Server Management — BMC Controller	ASPEED AST2400
Server Management — Dedicated IPMI LAN	1 x Realtek RTL8211E for dedicated management GLAN
System Memory — Max. Capacity per DIMM	ECC SO-DIMM: 16GB, 8GB, 4GB
Internal Connector/Headers — Fan Header	1x CPU Fan, 4x system Fan (4-pin)
Internal Connector/Headers — TPM Header	1
SATA/SAS Storage — PCH Built-in Storage	Intel® C612: 4 x SATA3 6Gb/s, support Intel® RSTe 4.0 RAID 0, 1, 5,10
System Memory — Supported DIMM Quantity	4 DIMM slots
Internal Connector/Headers — IPMB Header	1
Ethernet — Additional Ethernet Controller	2 x RJ45 by Intel® i210 + Intel® i217LM; 1 x RJ45 Dedicated IPMI LAN port; Supports Wake-On-LAN; Supports Energy Efficient Ethernet 802.3az; Supports Dual LAN with Teaming function; Supports PXE; LAN1 supports NCSI Note: With Intel® i217LM LAN chip on board, the LAN Teaming function will be limited to below 3 modes: Intel® Active Management Technology (Intel® AMT) Enabled – Adapter Fault Tolerance (AFT), Switch Fault Tolerance (SFT), and Adaptive Load Balancing (ALB) teams.
Internal Connector/Headers — SMBus header	1
Интерфейсы накопителей	Supports 4 SATA3 by C612
Internal Connector/Headers — USB 2.0 Header	1 (support 2 USB 2.0)
Internal Connector/Headers — Power Connector	1 (24-pin) + 1 (8-pin)
Internal Connector/Headers — USB 3.2 (Gen1) Header	1 (support 2 USB 3.0)
Internal Connector/Headers — Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED, and system fault LED)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT7: PCIe3.0 x16
Internal Connector/Headers — Type A USB 3.2 (Gen1) Port	1
Другие официальные характеристики	Mini ITX 6.7" x 6.7"
