ASRock Rack E3C232D2I

Name: ASRock Rack E3C232D2I
Brand: ASRock Rack
SKU: E3C232D2I

Артикул: E3C232D2I

Серверная материнская плата E3C232D2I

Серверная материнская плата E3C232D2I, Mini ITX.

Форм-фактор

Mini ITX

Процессоры

Intel Xeon E3-1200 v5/v6 Series Processors

Память

Supports Dual channel DDR4 2133 ECC UDIMM max 32 GB

Сеть

Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel i210*1+Intel i219*1

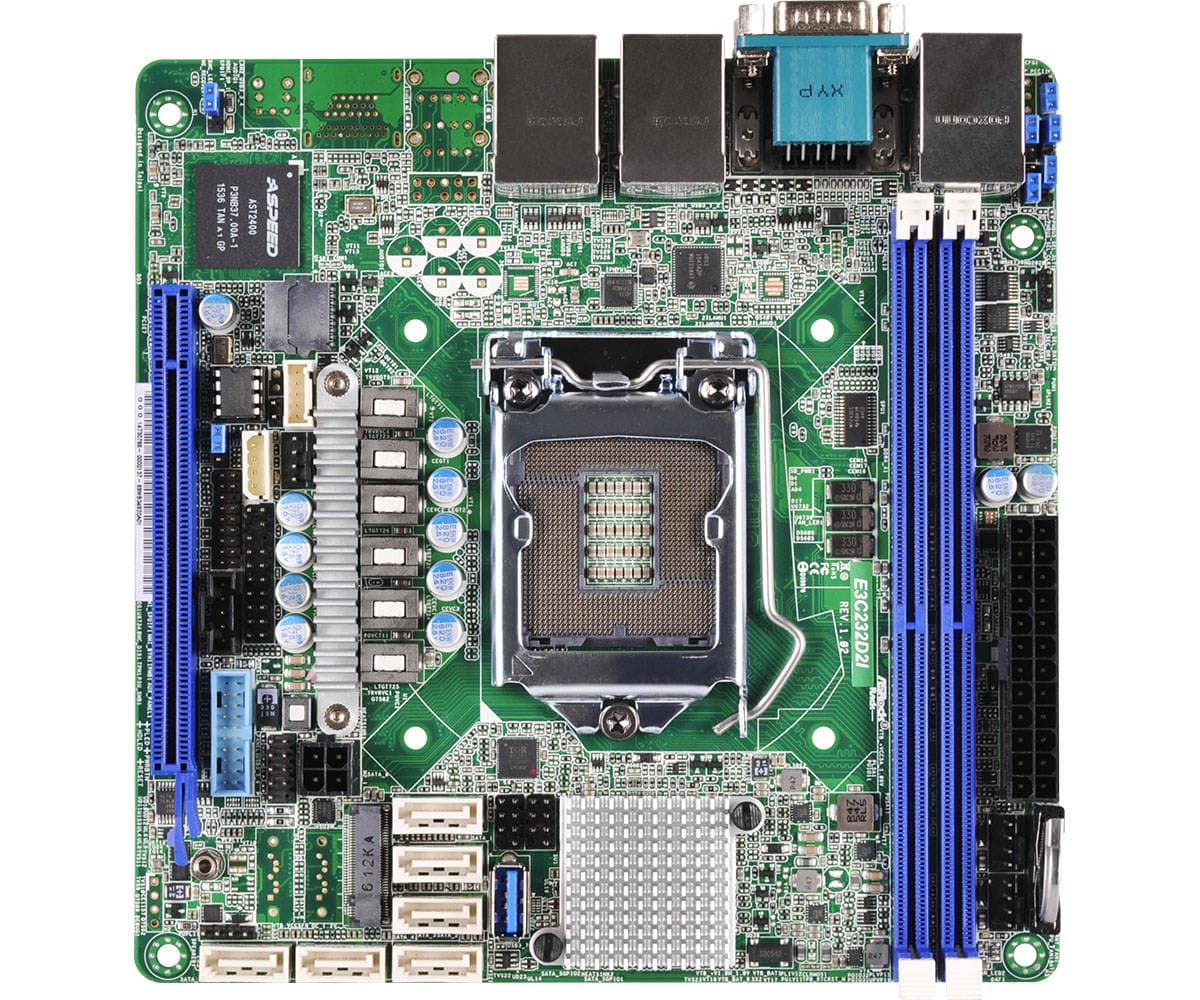

серверная материнская плата ASRock Rack E3C232D2I

Compute And Memory

Вычислительная платформа и память

Intel Xeon E3-1200 v5/v6 Series Processors. Supports Dual channel DDR4 2133 ECC UDIMM max 32 GB

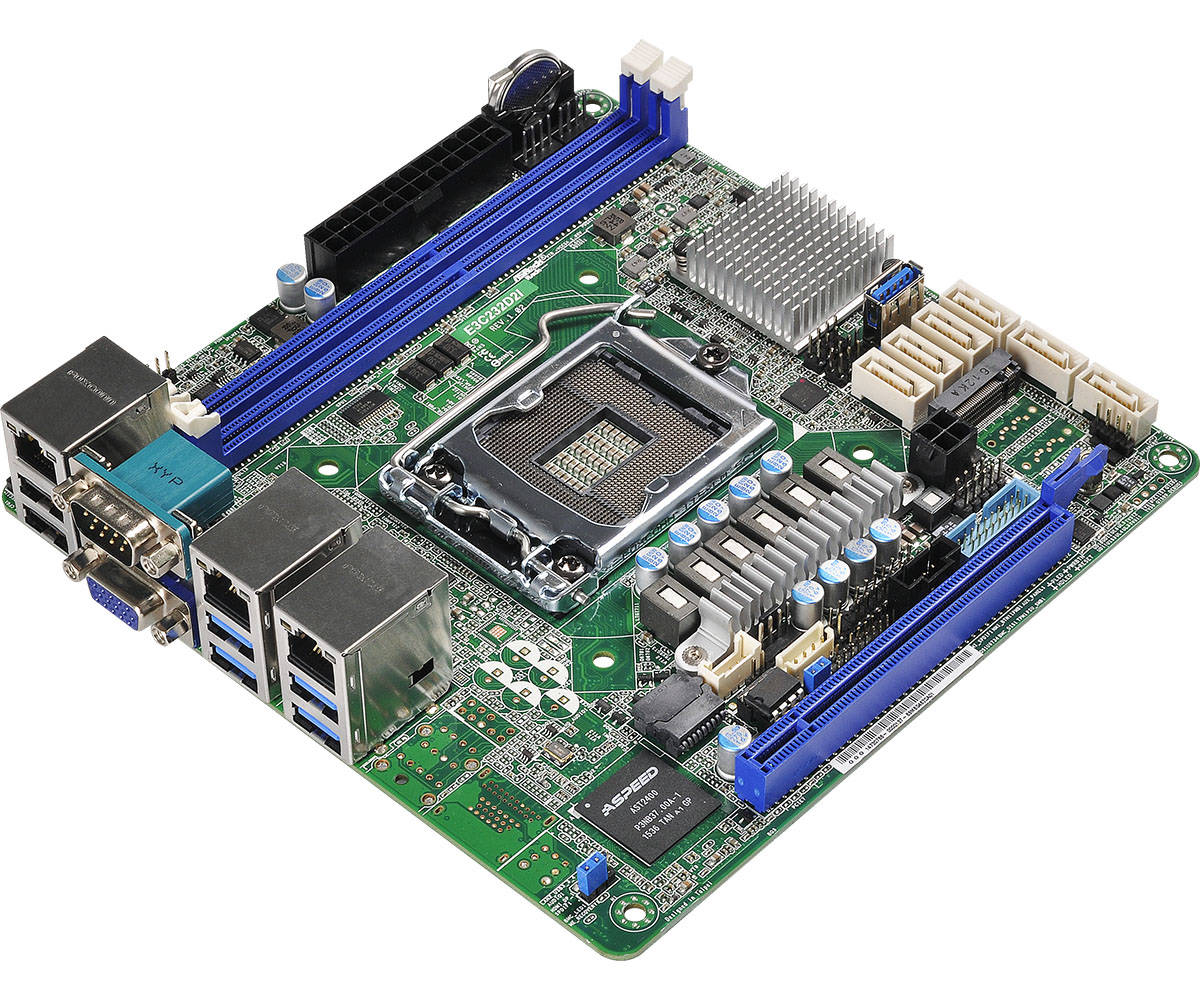

Внутренняя компоновка ASRock Rack E3C232D2I

GPU And Expansion

Ускорители и слоты расширения

Supports 1x PCIe 3.0 x16

Слоты GPU и расширения ASRock Rack E3C232D2I

Storage And Infrastructure

Накопители, сеть и питание

C232: 6x SATA3 6Gb/s (SATA0 share with M.2 connector), support RAID 0, 1, 5, 10. Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel i210*1+Intel i219*1

Накопители и задняя панель ASRock Rack E3C232D2I

Product Details

Детали конструкции

Характеристики

Сеть	Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel i2101+Intel i2191
BMC / IPMI	Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
Сокет	1151
Память	Supports Dual channel DDR4 2133 ECC UDIMM max 32 GB
Чипсет	C232
Graphics — VRAM	DDR3 16MB (ASPEED)

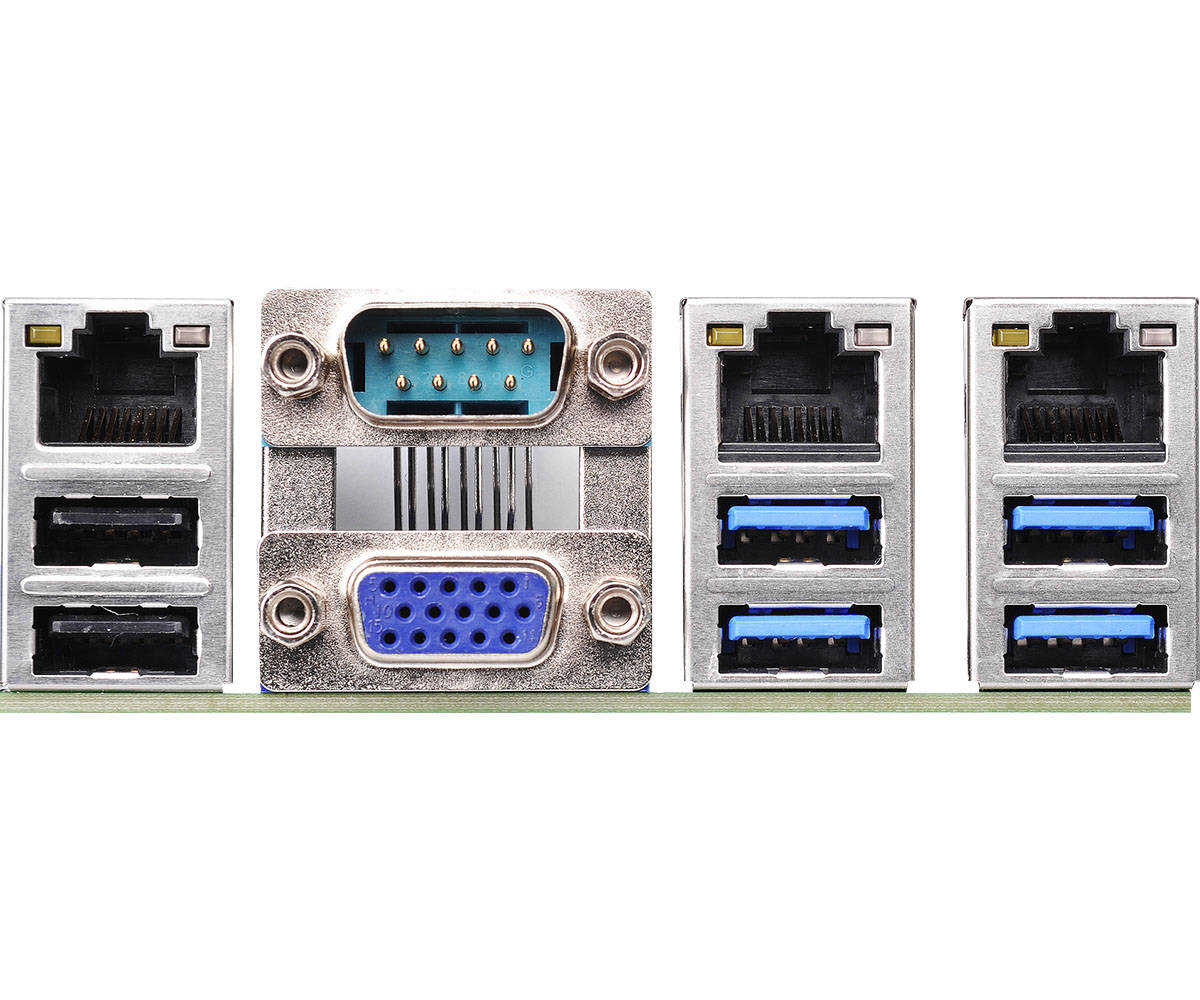

Rear I/O — RJ45	RJ45: 2x GLAN(by Intel® i210+Intel® i219); LAN Ports with LED (ACT/LINK LED and SPEED LED)
Supported OS — OS	Microsoft® Windows®; Server 2008 R2 (64 bit); Server 2012 (64 bit); Server 2012 R2 (64 bit); Server 2016 (64 bit); Linux; RedHat Enterprise Linux Server 6.6 (64 bit) / 7.0 (64 bit); SUSE Enterprise Linux Server 11 SP3 (64 bit) / 12.0 (64 bit); Ubuntu 15.04 (64 bit) / 15.10 (64 bit)
Процессоры	Intel Xeon E3-1200 v5/v6 Series Processors
Форм-фактор	Mini ITX
Ethernet — Interface	1000 /100 /10 Mbps
Graphics — Controller	ASPEED AST2400
Rear I/O — Video Port	1 x D-Sub(From ASPEED AST2400)
Environment — Humidity	Operating Humidity Range: 10%-90% / Non-operating Humidity Range: 10%-90%
Hardware Monitor — Fan	CPU/Rear/Front Fan Tachometer; CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU/Rear/Front Fan Multi-Speed Control
Processor System — CPU	Intel® Xeon® E3-1200 v5/v6 Series Processors*BIOS version 2.0 or above is required for v4 series
Rear I/O — Serial Port	1 (COM1)
Rear I/O — Dedicate LAN	RT8211E; 1 x RJ45 Dedicated IPMI LAN port
Rear I/O — USB 2.0 Port	2 Type-A (USB2.0)
System BIOS — BIOS Type	128Mb AMI UEFI Legal BIOS
System Memory — Voltage	1.2V
Environment — Temperature	Operating temperature Range: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C
Hardware Monitor — Voltage	Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCSA, VCCM, V1.0M, VCCIO, VCCST_SFR, VPPM, +BAT, 3VSB, ATX+5VSB
Processor System — Chipset	Intel® C232
System BIOS — BIOS Features	Plug and Play (PnP); ACPI 2.0 Compliance Wake Up Events; SMBIOS 2.8.0 Support; ASRock Rack Instant Flash
Physical Status — Dimensions	6.7'' x 6.7'' (17.02 cm x17.02 cm)
Rear I/O — USB 3.2 Gen1 Port	4 Type-A (USB3.2 Gen1)
Server Management — Features	Watch Dog; NMI
Physical Status — Form Factor	Mini ITX
Слоты расширения	Supports 1x PCIe 3.0 x16
Hardware Monitor — Temperature	CPU/PCH Temperature Sensing; MB/Card side/TR1 Temperature Sensing
System Memory — Supported Type	Dual Channel DDR4 memory technology; Supports DDR4 2400/2133/1866/1600 ECC UDIMM memory; Max. capacity of system memory:32 GBOnly E3-1200 v6 CPUs can support DDR4 2400
Server Management — BMC Controller	ASPEED AST2400
Server Management — Dedicated IPMI LAN	1 x Realtek RTL8211E for dedicated management GLAN
System Memory — Max. Capacity per DIMM	ECC UDIMM : 16GB, 8GB, 4GB
Internal Connector/Headers — Clear CMOS	1 (short pin)
Internal Connector/Headers — Fan Header	3(CPU/Front/Rear)
Internal Connector/Headers — NMI Header	1
Internal Connector/Headers — TPM Header	1
SATA/SAS Storage — PCH Built-in Storage	C232: 6x SATA3 6Gb/s (SATA0 share with M.2 connector), support RAID 0, 1, 5, 10
System Memory — Supported DIMM Quantity	2 x DDR4 DIMM slots
Internal Connector/Headers — IPMB Header	1
Ethernet — Additional Ethernet Controller	2 x RJ45 GLAN by Intel® i210+Intel® i219; Supports Wake-On-LAN; Supports Energy Efficient Ethernet 802.3az; Supports Dual LAN with Teaming function; Supports PXE; LAN1 supports NCSI
Internal Connector/Headers — PMBus header	1
Internal Connector/Headers — SGPIO Header	2
Internal Connector/Headers — SMBus header	1
Интерфейсы накопителей	Support 6 SATA3 by C232
Other PCIe Expansion Connectors — M.2 slot	1
Internal Connector/Headers — Speaker Header	1
Internal Connector/Headers — USB 2.0 Header	1 (9-pin, 2 USB2.0)
Internal Connector/Headers — ME/SPS Recovery	1
Internal Connector/Headers — Power Connector	1x (24-pin) + 1x (4-pin)
Internal Connector/Headers — Thermal Sensor Header	1 (TR), 1 (PECI),
Internal Connector/Headers — USB 3.2 (Gen1) Header	1 (19-pin, 2 USB3.2 Gen1)
Internal Connector/Headers — Auxiliary Panel Header	1 (include chassis intrusion, location button & LED, front LAN LED, event log LED)
PCIe Expansion Slots (SLOT7 close to CPU) — PCIe x 16	SLOT7: PCIe3.0 x16
Internal Connector/Headers — Type A USB 3.2 (Gen1) Port	1 (Type-A, 1 USB3.2 Gen1)
