GIGABYTE G293-S45-AAP1
Артикул: G293-S45-AAP1
GIGABYTE G293-S45-AAP1

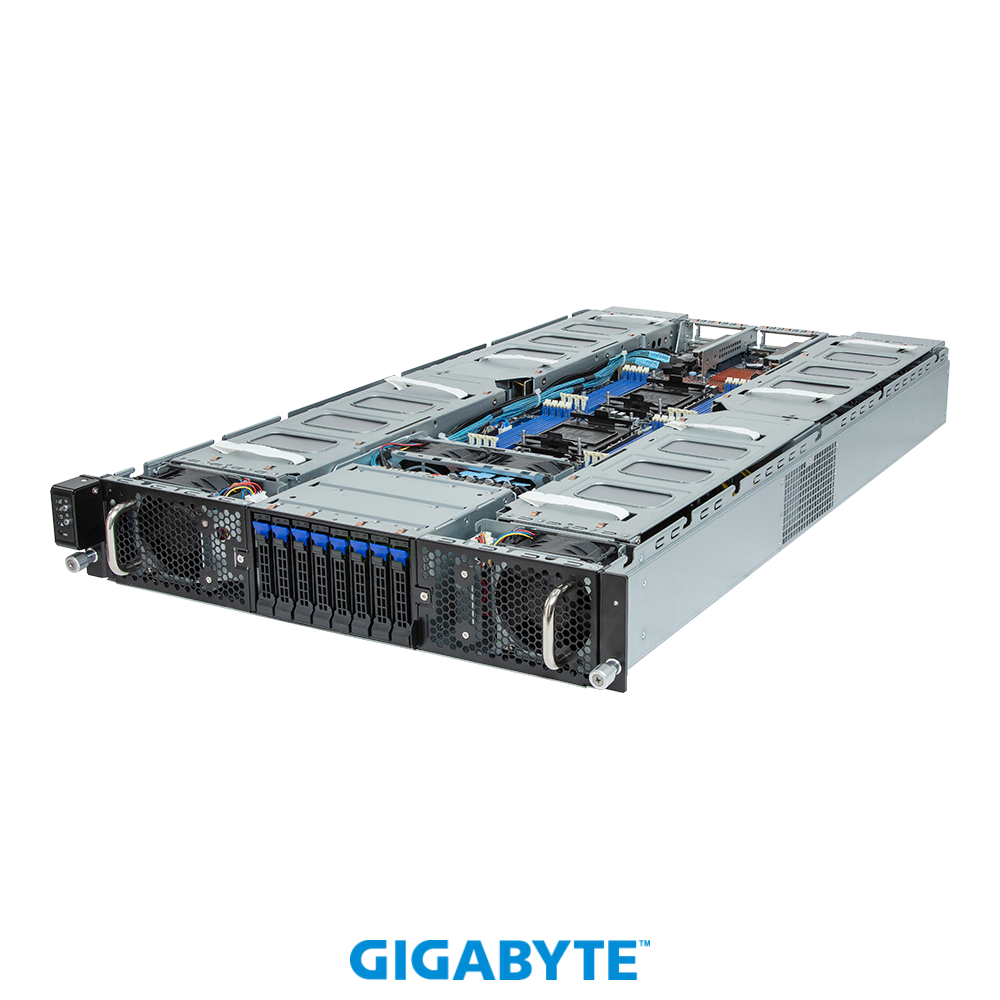

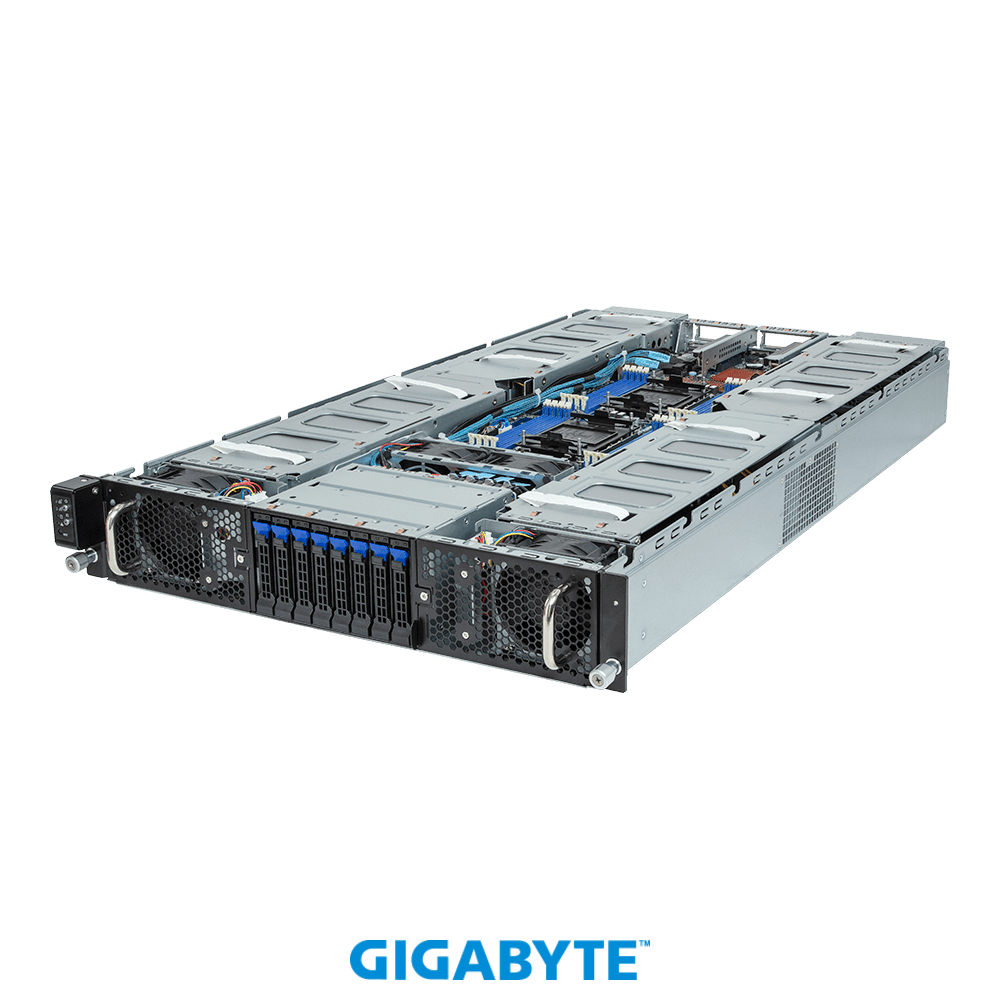

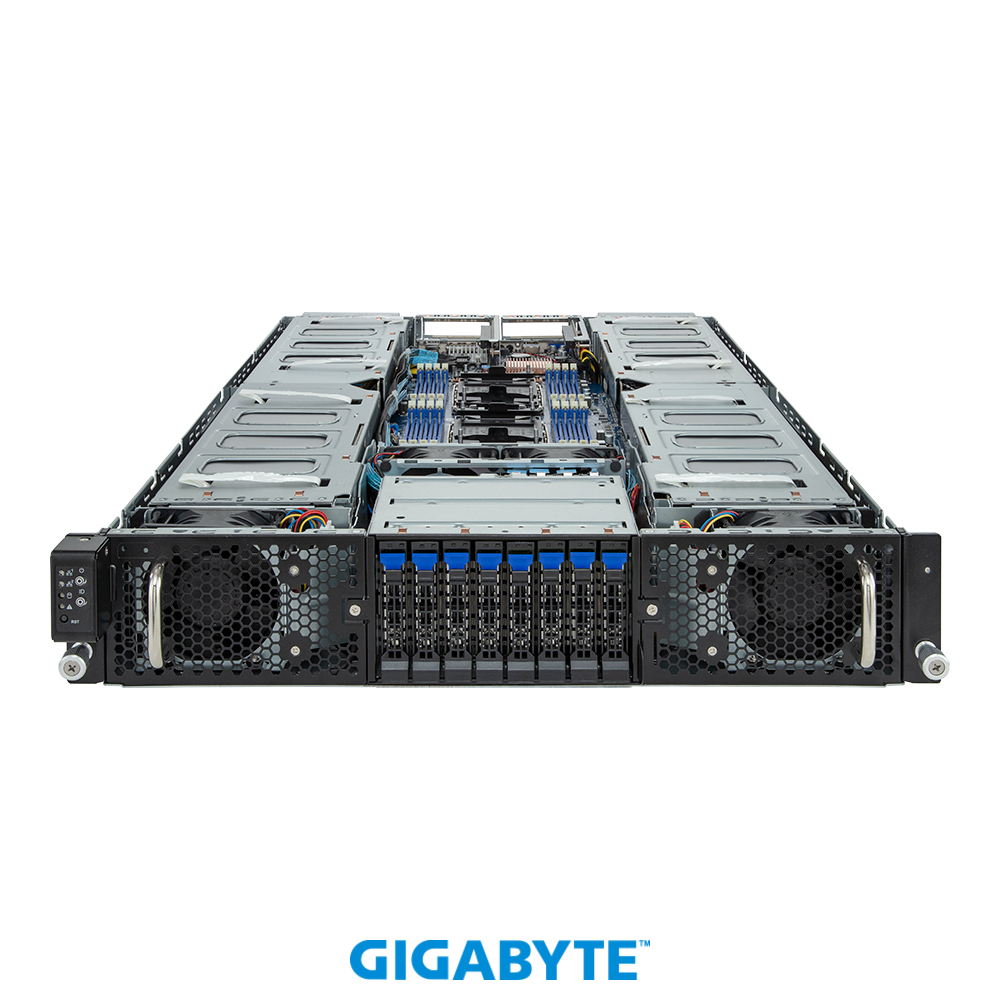

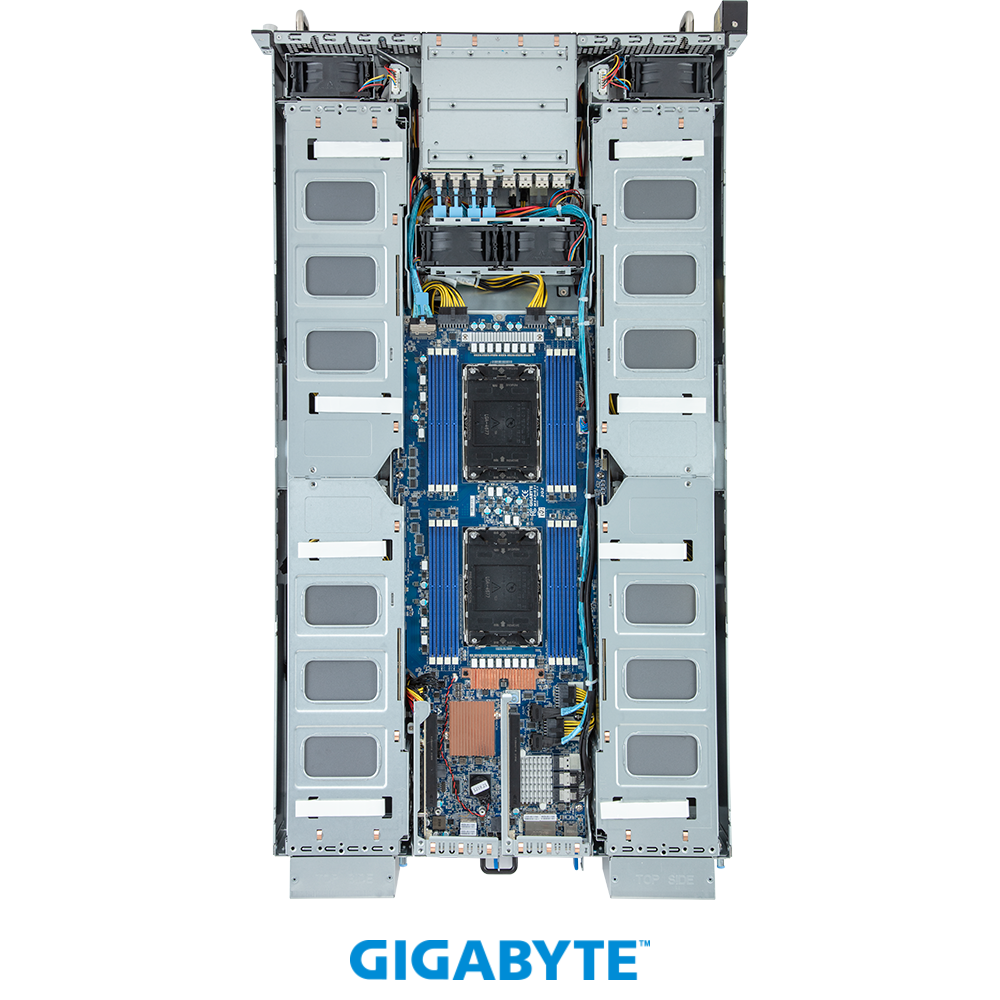

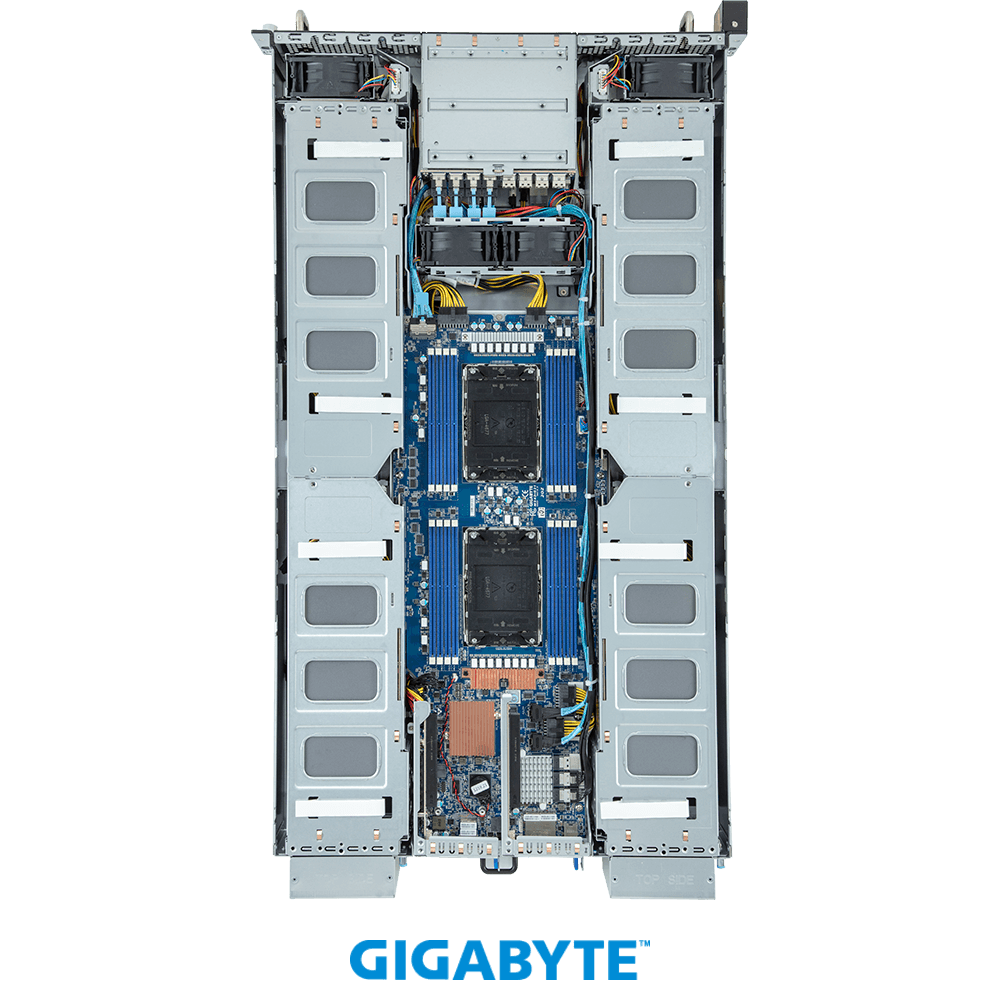

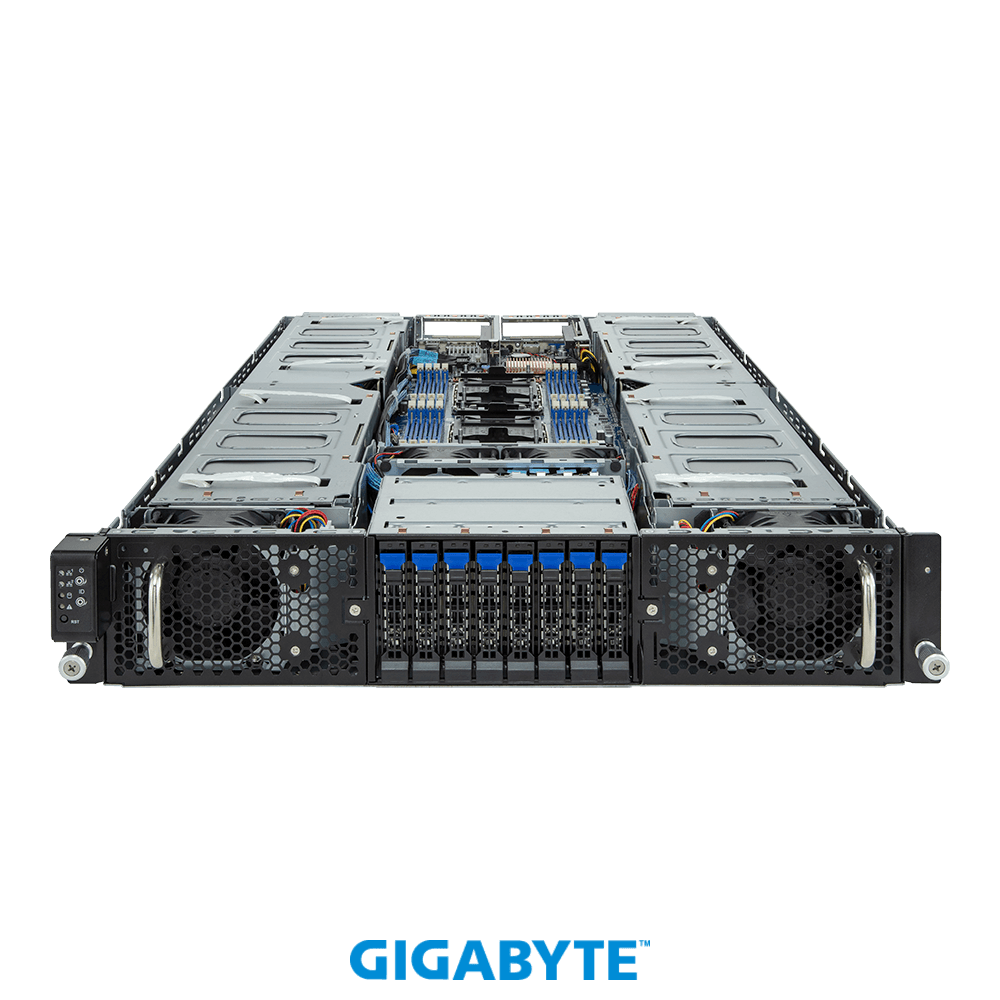

GPU-платформа G293-S45-AAP1
GPU-платформа GIGABYTE G293-S45-AAP1. HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 8 x PCIe Gen5 GPUs
Форм-фактор
2U Rackmount
Процессоры
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Dual processor, TDP up to 225W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Память
16 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s 4th Gen Intel® Xeon®: Up to 4800 MT/s
Compute And Memory
Вычислительная платформа и память
5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Dual processor, TDP up to 225W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.. 16 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s 4th Gen Intel® Xeon®: Up to 4800 MT/s
GPU And Expansion
Ускорители и слоты расширения

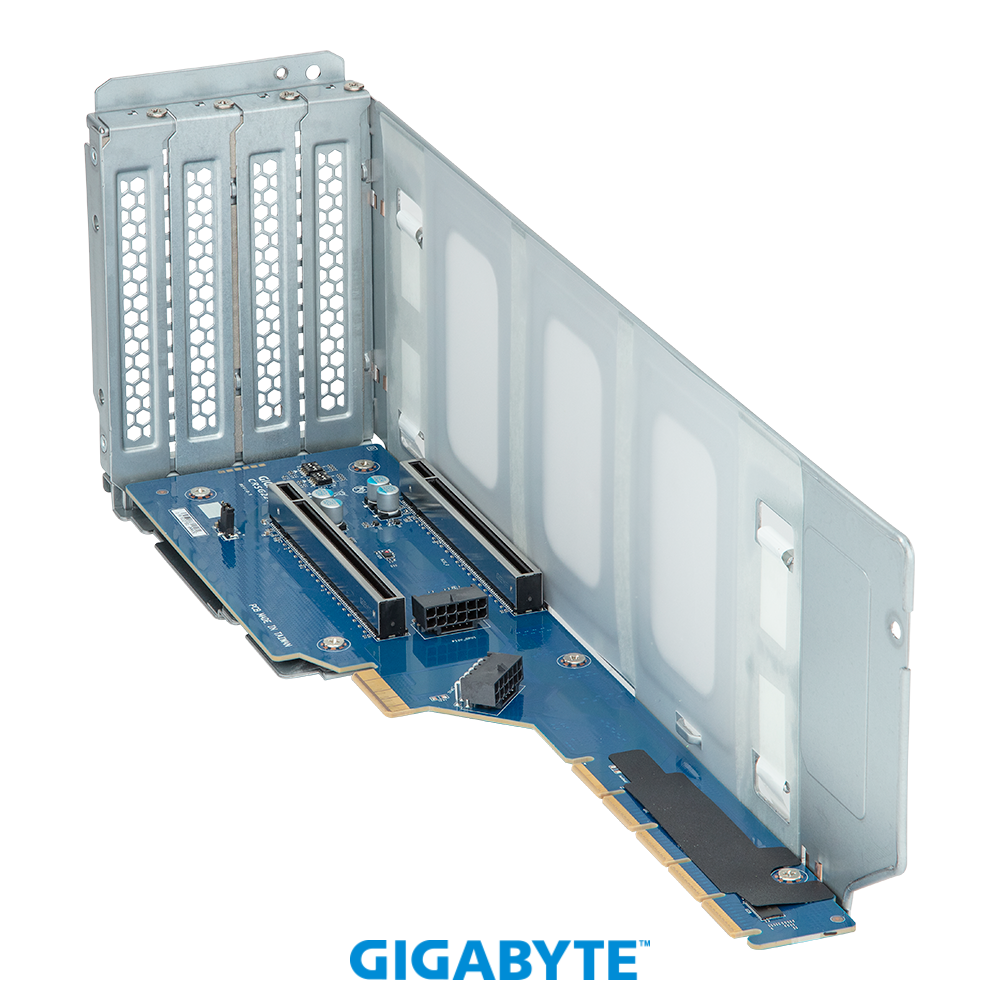

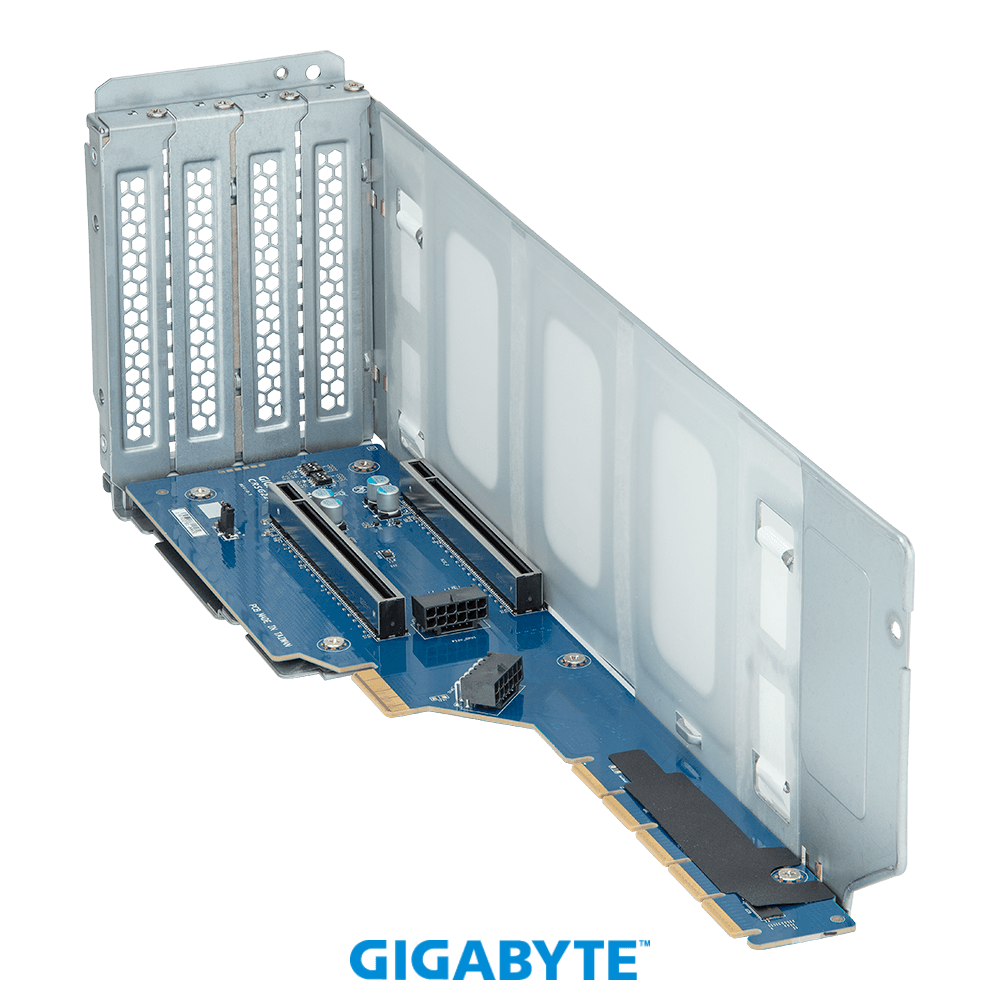

Riser Card CRSG229 x 2: - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs Riser Card CRSG22A x 2: - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs Riser Card CRSG01F x 2: - 1 x LP x16 (Gen5 x16), from CPU_0 - 1 x LP x16 (Gen5 x16), from CPU_1 [Note] Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm. [Note] The system is only validated with a uniform GPU model.
Storage And Infrastructure
Накопители, сеть и питание
Front hot-swap: 8 x 2.5" Gen4 NVMe/SATA/SAS [1][2] [1] SAS card is required to support SAS drives. [2] NVMe support requires additional NVMe cables and occupies PCIe slots. Please refer to optional parts for qualified NVMe cables.. Rear: 2 x 10Gb/s LAN (1 x Broadcom® BCM57416) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN. Dual 3000W 80 PLUS Titanium redundant power supply [1] AC Input: - 100-127V~/ 15.5A, 50-60Hz - 200-220V~/ 15.5A, 50-60Hz - 220-240V~/ 15.5A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 15.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A - Max 2600W/ 200-220V~ +12.2V/ 213A +12Vsb/ 3A - Max 3000W/ 220-240V~ or 240Vdc Input +12.2V/ 245A +12Vsb/ 3A [1] The system power supply requires C19 power cord.
Product Details
Детали конструкции
Характеристики
| SAS | Require SAS add-in cards |
|---|---|
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header Support optional RAID add-in cards |
| Вес | Net Weight: 25.88 kg Gross Weight: 37.16 kg |
| Сеть | Rear: 2 x 10Gb/s LAN (1 x Broadcom® BCM57416) - Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Видео | Integrated in ASPEED® AST2600 - 1 x VGA port |
| Сокет | 2 x LGA 4677 Socket E |
| Память | 16 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor 5th Gen Intel® Xeon®: Up to 5600 MT/s 4th Gen Intel® Xeon®: Up to 4800 MT/s |
| Чипсет | Intel® C741 |
| Накопители | Front hot-swap: 8 x 2.5" Gen4 NVMe/SATA/SAS [1][2] [1] SAS card is required to support SAS drives. [2] NVMe support requires additional NVMe cables and occupies PCIe slots. Please refer to optional parts for qualified NVMe cables. |
| Процессоры | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Dual processor, TDP up to 225W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Форм-фактор | 2U Rackmount |
| Блоки питания | Dual 3000W 80 PLUS Titanium redundant power supply [1] AC Input: - 100-127V~/ 15.5A, 50-60Hz - 200-220V~/ 15.5A, 50-60Hz - 220-240V~/ 15.5A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 15.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A - Max 2600W/ 200-220V~ +12.2V/ 213A +12Vsb/ 3A - Max 3000W/ 220-240V~ or 240Vdc Input +12.2V/ 245A +12Vsb/ 3A [1] The system power supply requires C19 power cord. |

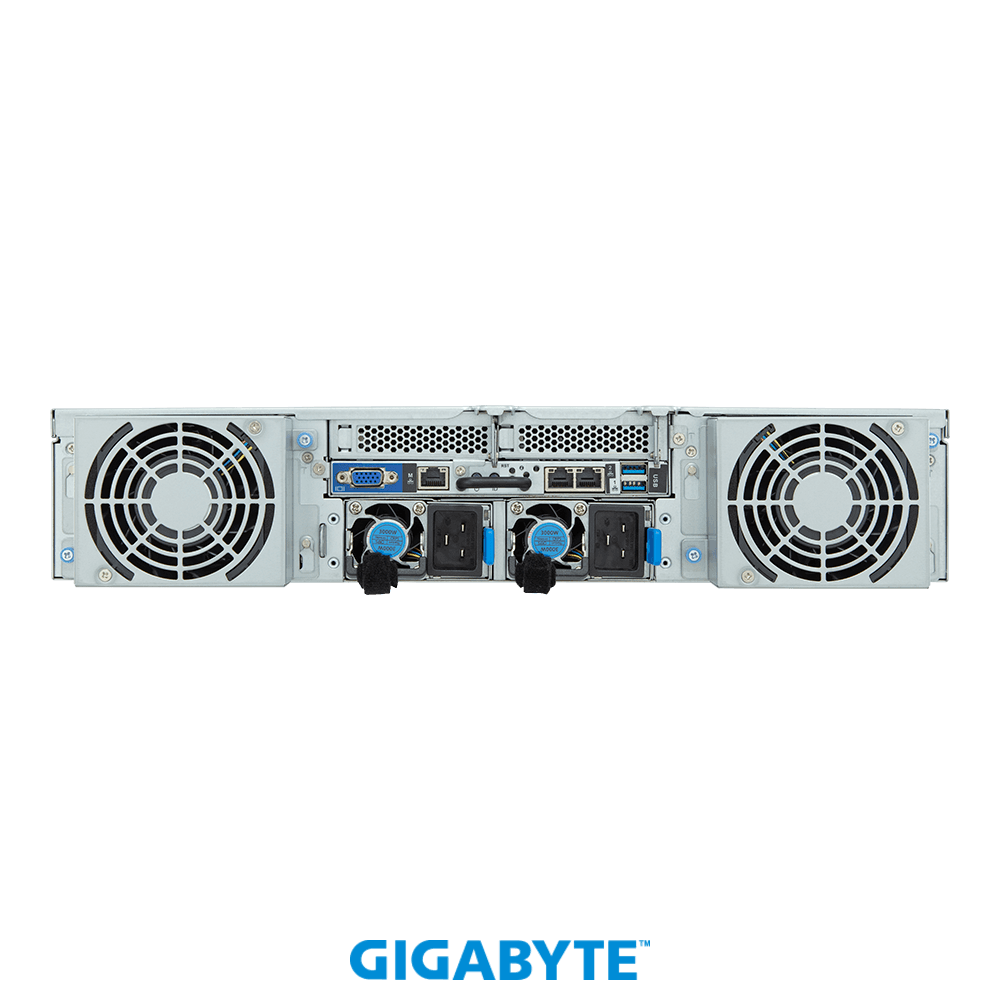

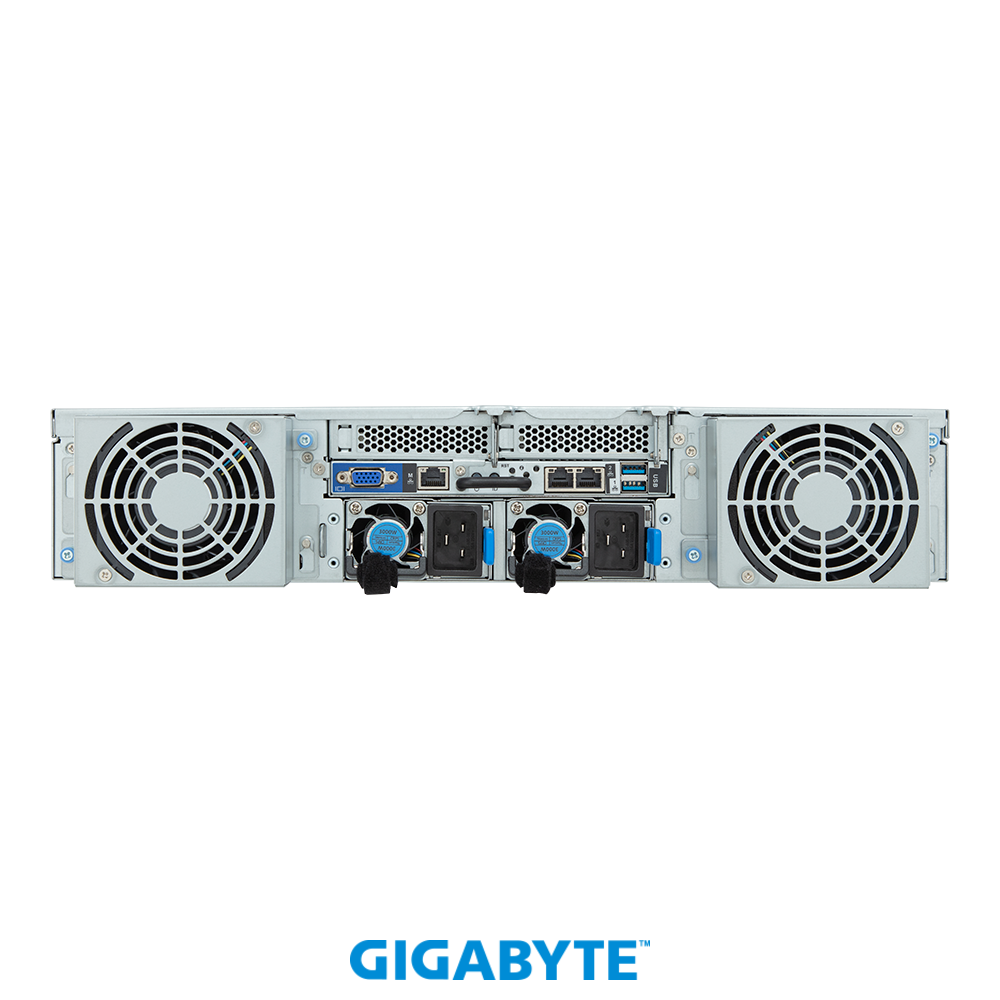

| Задняя панель | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x System status LED |
| Передняя панель | 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Плата бэкплейна | Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s |
| Сертификация ОС | Windows Server 2022 |
| Габариты упаковки | 1138 x 730 x 275 mm |
| Комплект поставки | 1 x G293-S45-AAP1 2 x CPU heatsinks 4 x GPU power cables (16-pin, 250mm) 4 x GPU power cables (16-pin, 280mm) 6 x Carriers 1 x L-shape Rail kit |
| Материнская плата | MS43-G21 |
| Номера исполнения | - Barebone package (5th/4th Gen): 6NG293S45DR000ABP1* - Barebone package (4th Gen): 6NG293S45DR000AAP1* - Motherboard: 9MS43G21UR-000* - L-shape Rail kit: 25HB2-A86102-K0R - CPU heatsink: 25ST1-35320F-C1R/25ST1-453207-C1R - Backplane board - CBPG086: 9CBPG086NR-00* - Fan module: 25ST2-88382R-S1R - Riser card - CRSG01F: 9CRSG01FNR-00* - Riser card - CRSG229: 9CRSG229NR-00* - Riser card - CRSG22A: 9CRSG22ANR-00* - GPU power cable (16-pin, 250mm): 25CRI-2503B3-Y4R - GPU power cable (16*pin, 280mm): 25CRI-3000B2-Y4R - Power supply: 25EP0-23000C-D0S Optional parts: - NVMe cable (MCIO 8i to 2 x MCIO 4i): 25CF9-350705-A4R - NVMe cable (MCIO 4i to MCIO 4i): 25CF9-700050-A4R - RMA packaging: 6NG293S45SR-RMA-A100 |
| Слоты расширения PCIe | Riser Card CRSG229 x 2: - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs Riser Card CRSG22A x 2: - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs Riser Card CRSG01F x 2: - 1 x LP x16 (Gen5 x16), from CPU_0 - 1 x LP x16 (Gen5 x16), from CPU_1 [Note] Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm. [Note] The system is only validated with a uniform GPU model. |
| Габариты (Ш x В x Г), мм | 2U 448 x 87.5 x 800 |
| Модули безопасности | 1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010 |
| Системное управление | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings |
| Условия эксплуатации | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Системные вентиляторы | 8 x 80x80x38mm |
Характеристики приведены по данным производителя и могут быть изменены без предварительного уведомления.
